This document proposes extensions to the Foundational UML (fUML) virtual machine to enable analyzing, observing, and controlling activity model execution. It introduces a trace model to analyze execution order and input/output relationships, an event model to observe execution state changes, and a command API to control execution. The goal is to support efficient testing and debugging of models by allowing retrieval and analysis of runtime information during execution.

1. A Runtime Model for fUML
MRT 2012 – 7th International Workshop on Models@run.time
p @
www.modelexecution.org
Tanja Mayerhofer, Philip Langer, Gerti Kappel
Business Informatics Group
Institute of Software Technology and Interactive Systems
Vienna University of Technology
y gy
Favoritenstraße 9‐11/188‐3, 1040 Vienna, Austria
phone: +43 (1) 58801‐18804 (secretary), fax: +43 (1) 58801‐18896
office@big.tuwien.ac.at, www.big.tuwien.ac.at

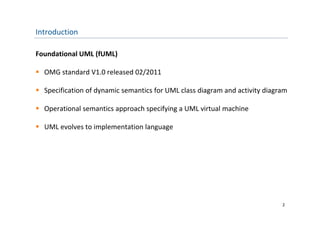

2. Introduction
Foundational UML (fUML)
 OMG standard V1.0 released 02/2011
 Specification of dynamic semantics for UML class diagram and activity diagram
 Operational semantics approach specifying a UML virtual machine
 UML evolves to implementation language
2

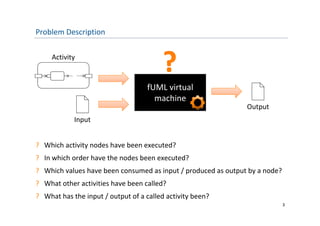

3. Problem Description
p
Activity
… …
fUML virtual
fUML virtual
machine
Output
Input
? Which activity nodes have been executed?
? In which order have the nodes been executed?
? Which values have been consumed as input / produced as output by a node?
? What other activities have been called?
? What has the input / output of a called activity been?
3

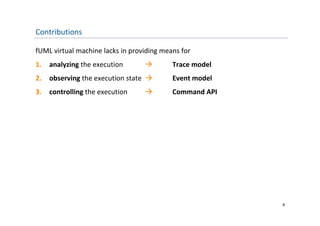

4. Contributions
fUML virtual machine lacks in providing means for
1. analyzing the execution  Trace model
2. observing the execution state  Event model
3. controlling the execution  Command API
4

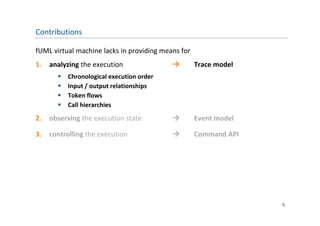

5. Contributions
fUML virtual machine lacks in providing means for
1. analyzing the execution  Trace model
 Chronological execution order
 Input / output relationships
Input / output relationships
 Token flows
 Call hierarchies
2. observing the execution state  Event model
3. controlling the execution  Command API
5

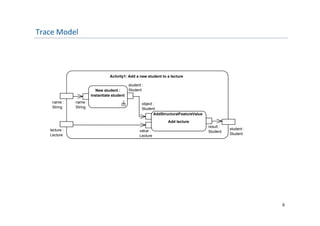

6. Trace Model
Activity1: Add a new student to a lecture
student :
New student : Student
Instantiate student
name : name : object :
String String Student
AddStructuralFeatureValue
AddSt t lF t V l
Add lecture
result :
lecture : value : student :
Student
Lecture Lecture Student
6

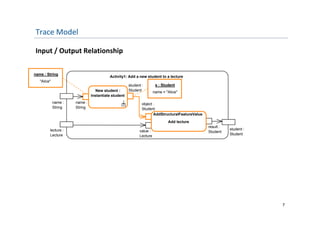

7. Trace Model
Input / Output Relationship
name : String
Activity1: Add a new student to a lecture
"Alice"
student : s : Student
New student : Student name = "Alice"
Instantiate student
name : name : object :
String String Student
AddStructuralFeatureValue
AddSt t lF t V l
Add lecture
result :
lecture : value : student :
Student
Lecture Student
Lecture
7

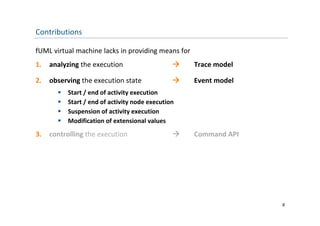

8. Contributions
fUML virtual machine lacks in providing means for
1. analyzing the execution  Trace model
2. observing the execution state  Event model
 Start / end of activity execution
 Start / end of activity node execution
 Suspension of activity execution
Suspension of activity execution
 Modification of extensional values
3. controlling the execution  Command API
8

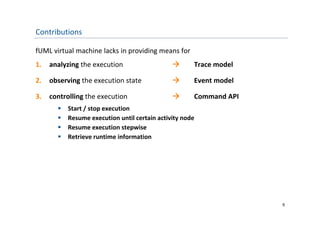

9. Contributions
fUML virtual machine lacks in providing means for
1. analyzing the execution  Trace model
2. observing the execution state  Event model
3. controlling the execution  Command API
 Start / stop execution
 Resume execution until certain activity node
 Resume execution stepwise
 Retrieve runtime information
Retrieve runtime information
9

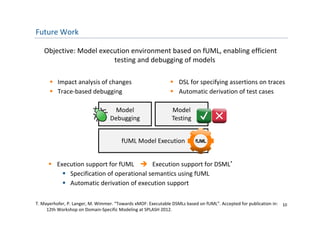

10. Future Work
Objective: Model execution environment based on fUML, enabling efficient
testing and debugging of models
testing and debugging of models
 Impact analysis of changes  DSL for specifying assertions on traces
 Trace‐based debugging  Automatic derivation of test cases
Model Model
Debugging Testing
fUML Model Execution
fU L d l i
 Execution support for fUML  Execution support for DSML*
Execution support for fUML  Execution support for DSML
 Specification of operational semantics using fUML
 Automatic derivation of execution support
T. Mayerhofer, P. Langer, M. Wimmer. “Towards xMOF: Executable DSMLs based on fUML”. Accepted for publication in: 10
12th Workshop on Domain‐Specific Modeling at SPLASH 2012.

11. Thank you!
y
Debugging and Testing Models Based on fUML
www.modelexecution.org
d l ti
11
