This document proposes a federated multi-cloud Platform as a Service (PaaS) infrastructure to address the challenges of portability, interoperability, heterogeneity, and geographic diversity. It presents a configurable architecture based on a software product line and plug-in systems. A flexible component model using Service Component Architecture allows developing and deploying multi-cloud PaaS and Software as a Service applications. Three sample applications are deployed across multiple clouds to validate the approach.

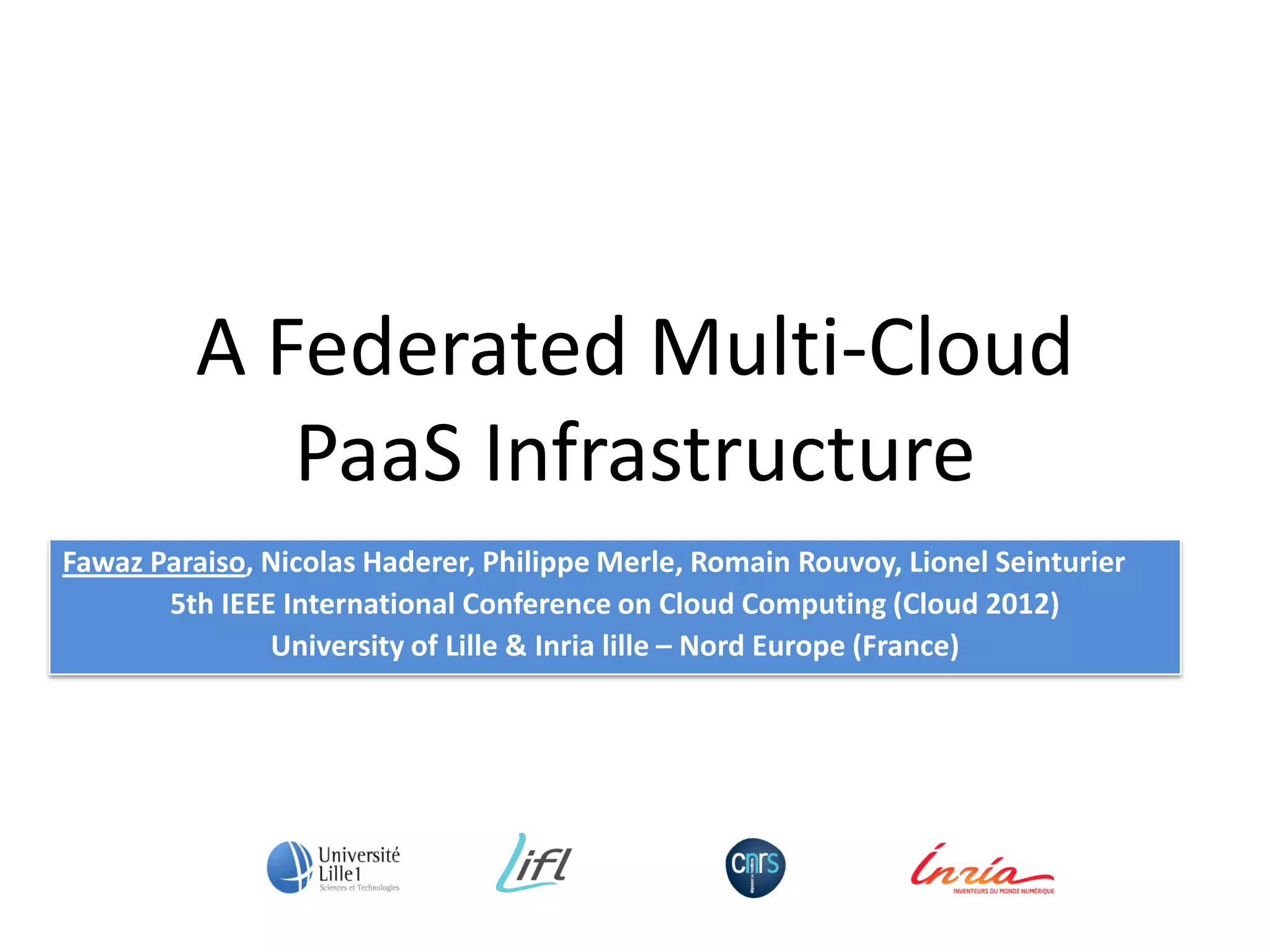

1. A Federated Multi-Cloud
PaaS Infrastructure
Fawaz Paraiso, Nicolas Haderer, Philippe Merle, Romain Rouvoy, Lionel Seinturier
5th IEEE International Conference on Cloud Computing (Cloud 2012)
University of Lille & Inria lille – Nord Europe (France)

2. Agenda
2
Motivation
Challenges
Contribution
Validation
Conclusion

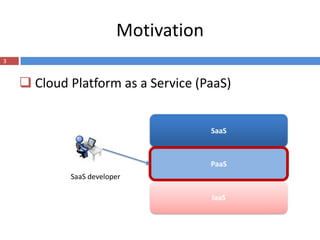

3. Motivation
3
 Cloud Platform as a Service (PaaS)
SaaS
PaaS
SaaS developer
IaaS

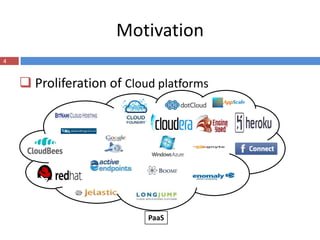

4. Motivation
4
 Proliferation of Cloud platforms
PaaS

5. Motivation
5

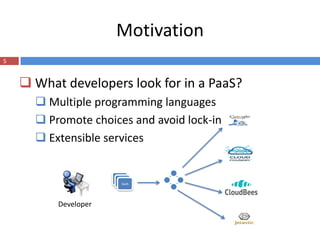

 What developers look for in a PaaS?
 Multiple programming languages
 Promote choices and avoid lock-in
 Extensible services
SaaS
Developer

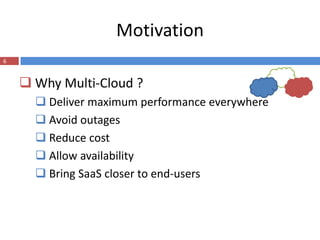

6. Motivation
6
 Why Multi-Cloud ?
 Deliver maximum performance everywhere
 Avoid outages
 Reduce cost
 Allow availability
 Bring SaaS closer to end-users

7. Agenda
7
Motivation
Challenges
Contribution
Validation
Conclusion

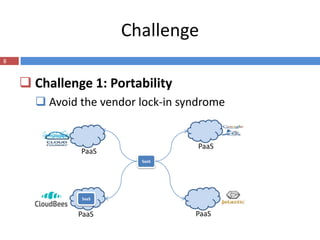

8. Challenge
8
 Challenge 1: Portability
 Avoid the vendor lock-in syndrome
PaaS
PaaS
SaaS
SaaS
PaaS PaaS

9. Challenges
9
 Challenge 2: Interoperability
 Ability to cooperate or interoperate
SaaS
SaaS
PaaS
PaaS
SaaS SaaS
PaaS PaaS

10. Challenges
10
 Challenge 3: Heterogeneity
 Interactions between services distributed on the
cloud PaaS
REST JSON
SOAP
RPC
JMS

11. Challenges
11

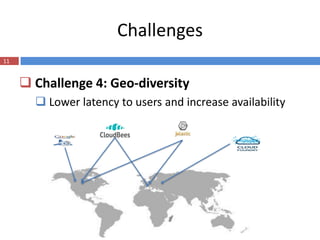

 Challenge 4: Geo-diversity
 Lower latency to users and increase availability

12. Agenda
12
Motivation
Challenge
Contribution
Validation
Conclusion

13. Contribution
13

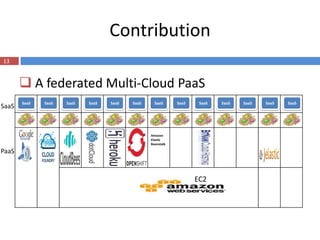

 A federated Multi-Cloud PaaS
SaaS SaaS SaaS SaaS SaaS SaaS SaaS SaaS SaaS SaaS SaaS SaaS SaaS
SaaS
Amazon
Elastic
Beanstalk
PaaS
EC2

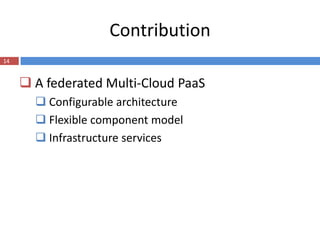

14. Contribution
14
 A federated Multi-Cloud PaaS
 Configurable architecture
 Flexible component model
 Infrastructure services

15. Contribution
15

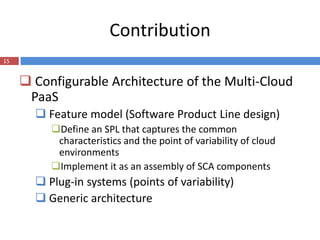

 Configurable Architecture of the Multi-Cloud
PaaS
 Feature model (Software Product Line design)
Define an SPL that captures the common
characteristics and the point of variability of cloud
environments
Implement it as an assembly of SCA components
 Plug-in systems (points of variability)
 Generic architecture

16. Contribution
16

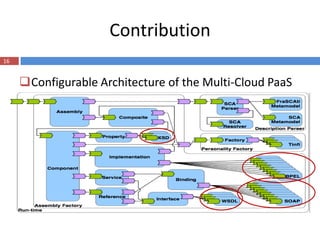

Configurable Architecture of the Multi-Cloud PaaS

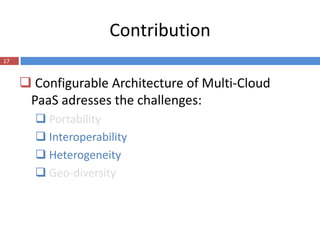

17. Contribution
17
 Configurable Architecture of Multi-Cloud
PaaS adresses the challenges:
 Portability
 Interoperability
 Heterogeneity
 Geo-diversity

18. Contribution
18

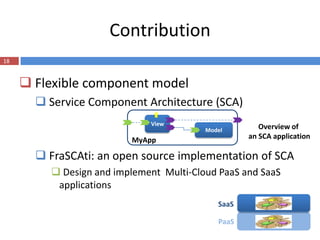

 Flexible component model
 Service Component Architecture (SCA)
View
Model Overview of
MyApp an SCA application
 FraSCAti: an open source implementation of SCA
 Design and implement Multi-Cloud PaaS and SaaS
applications
SaaS
PaaS

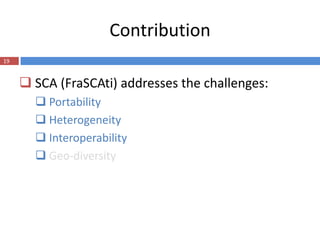

19. Contribution
19
 SCA (FraSCAti) addresses the challenges:
 Portability
 Heterogeneity
 Interoperability
 Geo-diversity

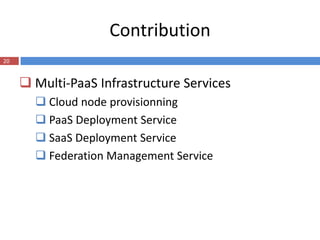

20. Contribution
20
 Multi-PaaS Infrastructure Services
 Cloud node provisionning
 PaaS Deployment Service
 SaaS Deployment Service
 Federation Management Service

21. Contribution
21

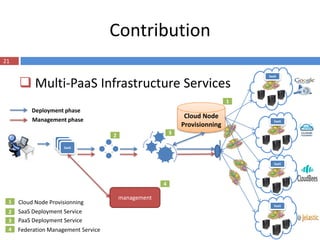

 Multi-PaaS Infrastructure Services
SaaS
1
Deployment phase
Management phase
Cloud Node
SaaS
Provisionning
2 3
SaaS
SaaS
4
management
1 Cloud Node Provisionning SaaS
2 SaaS Deployment Service
3 PaaS Deployment Service
4 Federation Management Service

22. Agenda
22
Motivation
Challenge
Contribution
Validation
Conclusion

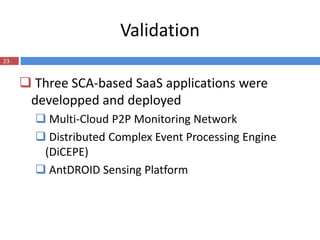

23. Validation
23
 Three SCA-based SaaS applications were
developped and deployed
 Multi-Cloud P2P Monitoring Network
 Distributed Complex Event Processing Engine
(DiCEPE)
 AntDROID Sensing Platform

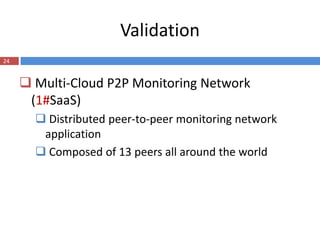

24. Validation
24
 Multi-Cloud P2P Monitoring Network
(1#SaaS)
 Distributed peer-to-peer monitoring network
application
 Composed of 13 peers all around the world

25. Validation
25

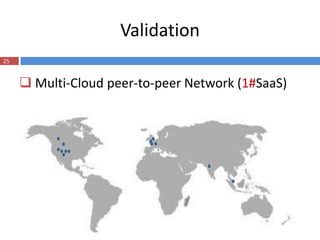

 Multi-Cloud peer-to-peer Network (1#SaaS)

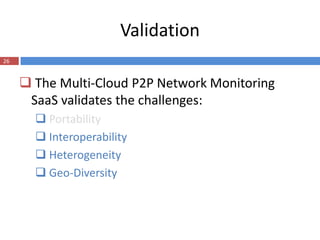

26. Validation
26
 The Multi-Cloud P2P Network Monitoring
SaaS validates the challenges:
 Portability
 Interoperability
 Heterogeneity
 Geo-Diversity

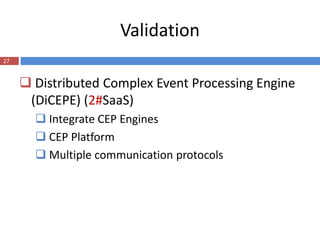

27. Validation
27
 Distributed Complex Event Processing Engine
(DiCEPE) (2#SaaS)
 Integrate CEP Engines
 CEP Platform
 Multiple communication protocols

28. Validation
28

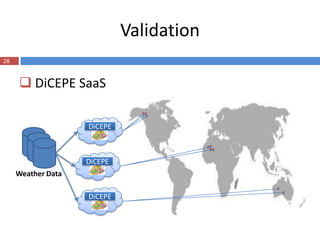

 DiCEPE SaaS
DiCEPE
DiCEPE
Weather Data
DiCEPE

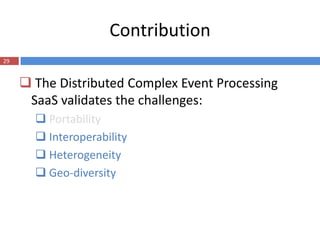

29. Contribution
29
 The Distributed Complex Event Processing
SaaS validates the challenges:
 Portability
 Interoperability
 Heterogeneity
 Geo-diversity

30. Validation
30
 AntDROID (3#SaaS)
 Collect data from mobile users
 Process data (road extraction, mobility model, …)
 Realistic Simulation

31. Validation
31
AntDROID
 AntDroid SaaS On-demand
deploy
AntDROIDNode AntDROIDNode AntDROIDNode

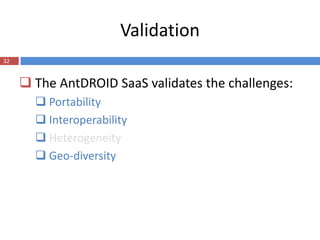

32. Validation
32
 The AntDROID SaaS validates the challenges:
 Portability
 Interoperability
 Heterogeneity
 Geo-diversity

33. Agenda
33
Motivation
Challenge
Contribution
Validation
Conclusion

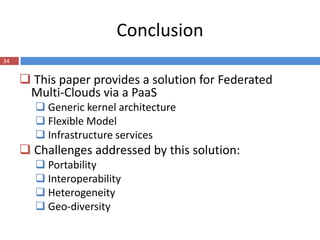

34. Conclusion
34
 This paper provides a solution for Federated
Multi-Clouds via a PaaS
 Generic kernel architecture
 Flexible Model
 Infrastructure services
 Challenges addressed by this solution:
 Portability
 Interoperability
 Heterogeneity
 Geo-diversity
