2. Innovation 2050 – A digital future for the infrastructure industry
Nick Boyle – Technical Innovation Director
July 2019 – COMIT Annual Conference

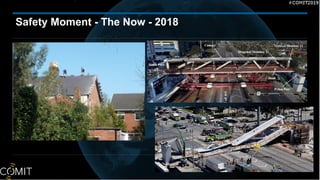

3. Safety Moment - The Now - 2018

4. 4
Innovation 2050 – Visions of Future Infrastructure
• Automation
• Robotics
• Unmanned vehicle
• A journey of a 1000 steps needs you to take the
first of many…….

5. 5
Innovation 2050 – Visions of Future Infrastructure

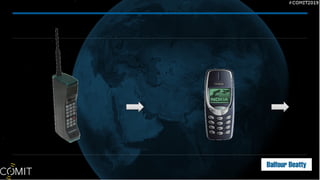

6. A brief history of time ………… the tablet is back or….
6

12. Smarter Working is Key

13. 13
What is our 25% by 2025 Initiative?
‘Our 25 by 2025 strategy aims to reduce activity
onsite by 25% by the year 2025 - increasing
productivity, improving quality and safety and
ensuring value for our customers.

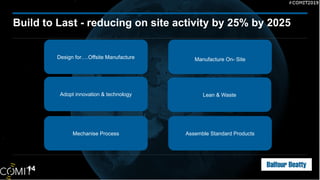

14. Build to Last - reducing on site activity by 25% by 2025
14
Manufacture On- Site
Mechanise Process Assemble Standard Products
Adopt innovation & technology
Design for….Offsite Manufacture
Lean & Waste

15. Smarter Working is Key
- with better engagement & communication

16. Integrating and Combining digital processes

17. Semi- Automation

18. Reality Capture
Digital surveying techniques – True as-is

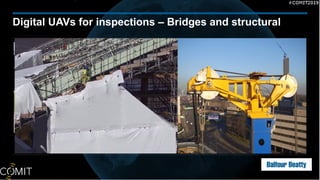

19. Digital UAVs for inspections – Bridges and structural

20. 20

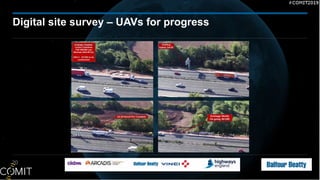

Digital site survey – UAVs for progress

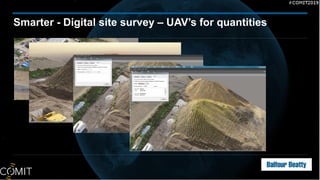

21. Smarter - Digital site survey – UAV’s for quantities

22. 22

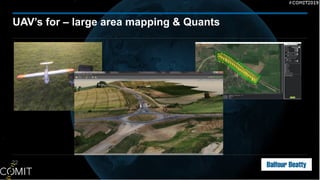

UAV’s for – large area mapping & Quants

23. Digital site survey – Laser scanning

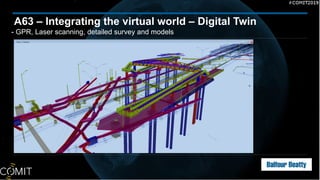

24. A63 – Integrating the virtual world – Digital Twin
- GPR, Laser scanning, detailed survey and models

25. 25

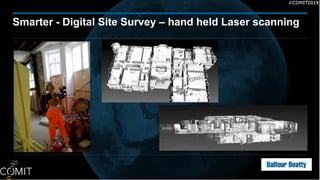

Smarter - Digital Site Survey – hand held Laser scanning

26. • Validating as-built vs design by laser scanning
• Laser scan processed to produce point cloud accurate to <5mm
• Compare point cloud & design model
26

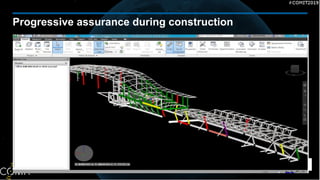

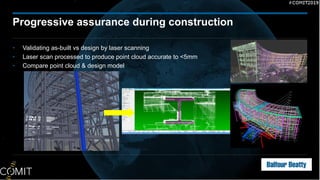

Progressive assurance during construction

27. • Validating as-built vs design by laser scanning
• Laser scan processed to produce point cloud accurate to <5mm
• Compare point cloud & design model
27
Progressive assurance during construction

28. Virtual Reality / Augmented Reality for Zero Harm
- Digital Twin & Digital Rehearsal

29. Virtual Reality – Training & Inductions

30. Augmented Reality applied

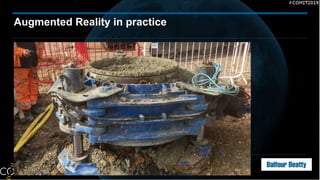

31. Augmented Reality in practice

32. 32
Hololens: Virtual world into the Real world

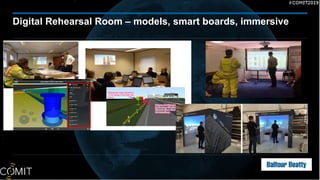

33. Digital Rehearsal Room – models, smart boards, immersive

34. Digitalisation – 1000 No.+ access to all
34

35. Digital Project Management around the world

36. Smarter Working is Key
Operations & Maintenance
- with better data and information

37. 37
Southampton – Use of Data Insight/Analytics

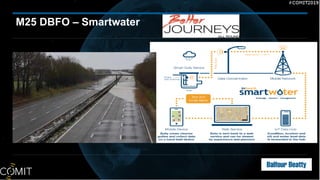

38. M25 DBFO – Smartwater

39. Smarter Working is Key
Industrialised Construction - Offsite & Onsite

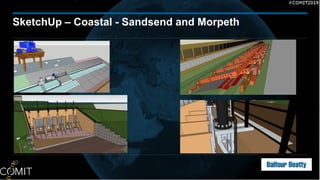

40. SketchUp – Coastal - Sandsend and Morpeth
40

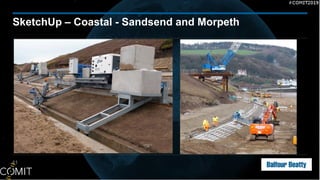

41. SketchUp – Coastal - Sandsend and Morpeth
41

42. A14 – double bridge move on SPMT’s

43. A14 – double bridge move on SPMT’s
https://www.youtube.com/watch?v=nvBryO0O6xA
https://m.youtube.com/watch?v=DjSCYTjRo7o
https://www.youtube.com/watch?v=KdjvzRkLa14&app=desktop

44. 44

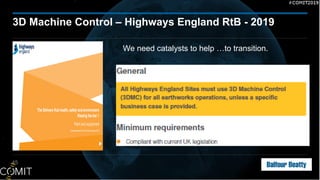

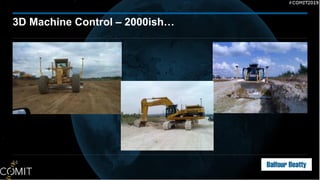

3D Machine Control – 2000ish…

45. 45
3D Machine Control – Highways England RtB - 2019
We need catalysts to help …to transition.

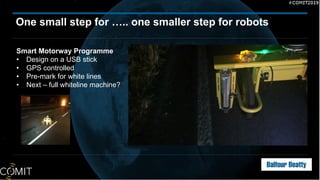

46. One small step for ….. one smaller step for robots
Smart Motorway Programme
• Design on a USB stick
• GPS controlled
• Pre-mark for white lines
• Next – full whiteline machine?

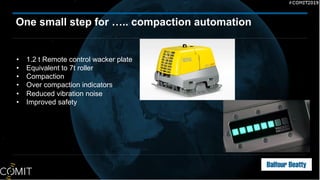

47. One small step for ….. compaction automation
• 1.2 t Remote control wacker plate
• Equivalent to 7t roller
• Compaction
• Over compaction indicators
• Reduced vibration noise
• Improved safety

48. 48

49. 49

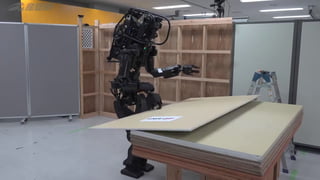

50. 50

51. Smarter Working is Key

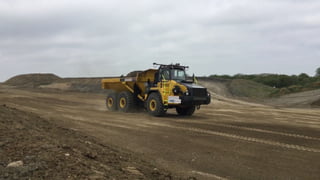

The Future - Autonomous Machines?

54. Smarter working
Its also about Health

55. 55
Wearables – Crossrail Highways England i3P

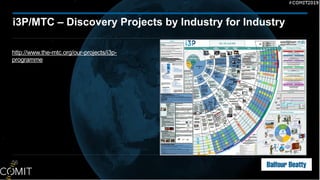

56. i3P/MTC – Discovery Projects by Industry for Industry
56
http://www.the-mtc.org/our-projects/i3p-
programme

57. Its all about engagement at every level….

58. Conclusion – Balfour Beatty’s site of the future

59. 59

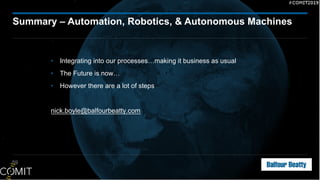

Summary – Automation, Robotics, & Autonomous Machines
• Integrating into our processes…making it business as usual
• The Future is now…
• However there are a lot of steps
