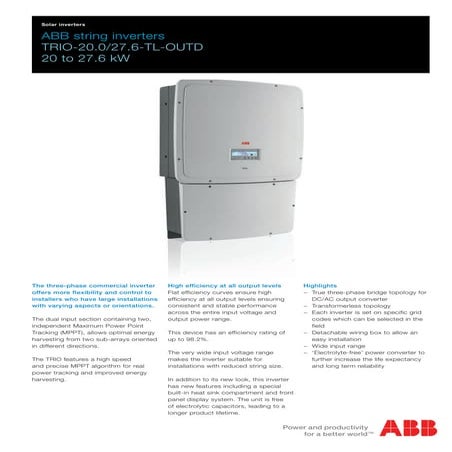

The latest in ABB’s TRIO range, this new-look three-phase inverter fills a specific niche in the commercial solar market. This new three-phase inverter benefits from the three-phase inverter technology perfected in the PVI-10.0 and 12.5, probably the world’s most commonly used three-phase inverter which has led the way in best-in-class efficiency.
Controlling more PV panels than its smaller predecessor, the TRIO-27.6 and TRIO-20.0 will offer more flexibility and control to installers who have large installations with varying aspects or orientations. This device has two independent MPPTs and efficiency ratings of up to 98.3%. The very wide input voltage range makes the inverter suitable to installations with reduced string size.
The new look inverter has new features including a special built-in heat sink compartment and front panel display system. The unit is free of electrolytic capacitors, leading to a longer product lifetime.
NOTE: If installing a PV system using TRIO in North America, please verify that the selected PV module is listed for use in 1000Vdc systems in accordance with local electrical codes.
Electrical test equipment for high and low voltage systems. Phasing rods, ammeter for overhead powerlines on
systems up to 36kV. Hubungi PT. Siwali Swantika, Jakarta Office : 021-45850618 atau Surabaya Office : 031-8421264
The latest in ABB’s TRIO range, this new-look three-phase inverter fills a specific niche in the commercial solar market. This new three-phase inverter benefits from the three-phase inverter technology perfected in the PVI-10.0 and 12.5, probably the world’s most commonly used three-phase inverter which has led the way in best-in-class efficiency.
Controlling more PV panels than its smaller predecessor, the TRIO-27.6 and TRIO-20.0 will offer more flexibility and control to installers who have large installations with varying aspects or orientations. This device has two independent MPPTs and efficiency ratings of up to 98.3%. The very wide input voltage range makes the inverter suitable to installations with reduced string size.
The new look inverter has new features including a special built-in heat sink compartment and front panel display system. The unit is free of electrolytic capacitors, leading to a longer product lifetime.
NOTE: If installing a PV system using TRIO in North America, please verify that the selected PV module is listed for use in 1000Vdc systems in accordance with local electrical codes.
How to protect electronic systems against esdMohamed Saadna
Electronic systems are subjected to electrostatic discharges (ESD). PCB designers must ensure their PCB is ESD-proof by adding TVS close to the connectors exposed to ESD. This presentation is an introduction on why and how to protect electronic systems. Advanced informations on IEC61000-4-2 and ISO10605 standards are also mentioned. Finally application examples from STMicroelectronics boards are shown as examples with ESD product recommendation for interfaces commonly used around MCUs like USB, RS-232, RS-485, USB-C, microphone, speakers, SWD, JTAG, memory card, ethernet, MIPI, Display port, HDMI, PLC inputs, CAN bus, KNX, DC barrel, SIM cards, etc.
Catalog biến tần Frenic eHVAC - beeteco.com
Chuyên cung cấp các thiết bị: Đèn báo nút nhấn, Relay, Timer, Contactor, MCCB ELCB, Biến tần, Van, Thiết bị cảm biến, phụ kiện tủ điện, .... Từ các thương hiệu hàng đầu trên thế giới.
www.beeteco.com @ Công ty TNHH TM KT ASTER
Địa chỉ : Số 7/31 KDC Thương Mại Sóng Thần, KP. Nhị Đồng 1, P. Dĩ An, Tx. Dĩ An, Tỉnh Bình Dương
FB: www.facebook.com/beeteco
Email: contact@beeteco.com
Tel: 0650 3617 012
Hotline: 0909.41.61.43
The Liquid Cooled 40 kW version of this Transmitter family offers highest compact design and the highest power density per square ft. Doherty Technology, IP seamless switching, and integrated pump unit. Can be cascaded to >100 kW
ANAVIEW Class-D OEM Amplifier Boards for the Audio IndustryHTCS LLC
Anaview is part of the ETAL Group which is a part of the KAMIC Organization. The presentation covers the Class-D amp product portfolio from 80W to 1kW, including a comparison with the competition. such as Pascal, Hypex, and ICE Power.
TELSAT s.r.l. Italy can manufacture and deliver everything you need for your Broadcasting Requirements for FM, UHF, VHF, DTV, Antennas, Station Accessories.
BROADCAST INNOVATIONS
PLISCH is a leading manufacturer of digital Radio and TV transmitter systems in today’s market.
PLISCH delivers the know-how in implementing all the latest broadcasting standards.
ISO Certified, SW K-TEC(HQ) is located in Seoul Korea where low business risk is ensured, and SWE (manufacturing facility) is located in Yantai China where manufacturing infrastructure is well established and conveniently accessible from Korea and anywhere on the globe
Since its foundation in 1989, SW K-TEC has been successfully serving customers for over 25+ years, and over 13 years of experience in China has enabled our stable operation-capability
The Redcatt Professional Transducers Product Catalog 2018HTCS LLC
RedCatt designs and manufactures transducers that are not only the best performing and consistent drivers around, but RedCatt also pays great attention to the reliability testing and to achieve a highest product lifetime for the transducers, either neodymium or ferrite based. The products provide consistent, high integrity magnetic flux gaps, ultra low distortion characteristics, and high efficiency cooling designs. For additional information and/or questions, please call Rolf @ HTCS LLC, 978-852-5803.
Excellent quality and great sounding OEM Class-D amplifiers from 80W to 1,000 Watts in a variety of footprints and design. A great OEM product for Soundbars, PA Systems, Sub-Woofers, WiFi Speakers, Active Studio Monitors or active Speakers, Off-the-Shelf delivery, samples are also available.
Vorstellung von XP Power (China) ElectronicsHTCS LLC
XP Power (China) entwickelt, fertigt, und liefert Spulen, Trafos, Induktions-Bauteile, wurde 1992 gegründet und hat heute mehr als 1,000 Mitarbeiter und erreichte einen Umsatz in 2016 von mehr als US$ 35 Millionen..
Vorstellung der XP Power (China) Electronics Co. Ltd.HTCS LLC
XP Power (China) Electronics, gegründet 1992, heute mehr als 1,000 Mitabeiter und mehr als US$35 Mio Umsatz, entwickelt und fertigt magnetische Komponenten für Anwendungen in Audio Verstärkern, Computer, Monitor & Sicherheit, Haushalts-Geräten, Automation, Beleuchtung, und Netzteile.
XP Power (CHINA) Electronics Corporate Presentation 2018HTCS LLC
Founded in 1992, and with 1,000+ employees today and approx. US$ 35 Mio in revenue, XP POWER (CHINA) Electronics designs and manufactures highest quality magnetics and inductors, i.e. Chokes, Coils, Transformers, for applications with Computers, Consumer Electronics, Automation, Security, Home Appliances, and Lighting.
SW K-TEC Company Overview presented by HTCS Jan 2018HTCS LLC
SW K-TEC., Inc. is the ideal choice for those who are seeking customized low to mid-volume production solutions from dedicated and agile manufacturing partners.
SW K-TEC is a turn-key provider of electronics manufacturing services, successfully having served customers with product development and high-quality OEM services for over 25 years
.
SW K-TEC is a turn-key provider of electronics manufacturing services, successfully having served customers with product development and high-quality OEM services for over 25 years. Manufacturing high-quality product has been always the most important factor for SW K-TEC. Through seamless quality controls in multiple phases, SWKT ensures the finest-quality product manufacturing.
AQS Contract Manufacturing Presented by HTCS, LLCHTCS LLC
The AQS Mission Statement:
Our mission is to provide our customers a one-stop solution for all their needs in high quality electronics manufacturing and engineering services so that they can thrive in any dynamic competitive environment.
REDCATT TECH PAPER== Speaker Transducer Dome bondingHTCS LLC
The RedCatt Engineering and Manufacturing teams have put a lot of effort into the development of high performance bonding techniques, specifically for use in High Frequency (HF) transducers/speakers and research in the area of HF dome design and manufacturing. The technical paper covers: Dome Forming, In-Process Dome Quality Control, Dome Treatment and Coating Process, Adhesives, UV Curing, SPL Improvement, Power Handling, and the Result Evaluation.
Redcatt received the TS 16949 Certification HTCS LLC
RedCatt, a leading designer and manufacturer of Audio and Sound Transducers, Drivers, and Loudspeakers has received the ISO/TS 16949 Certification. See more details at www.redcatt.net.
Description:
The 6NPM is a very high efficiency, (101.8 dB 1watt / 1 meter) 6-inch midrange speaker with incredibly linear frequency response characteristics and ultra low harmonic distortion artifacts. The 6NPM has extremely high sound quality. The 6NPM uses a lightweight paper pulp, specifically developed for this application. This unique cone provides the ideal weight to strength ratio.
At the core of the 6NPM is it’s voice coil technology featuring edge wounded aluminum ribbon wire. Unique lightweight and very short former provides the ideal transfer of power between the voice coil and the cone assembly and assists in reducing the distortion artifacts. By combining this material with the state of the art adhesives, the 6FPM delivers incredible performance. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability. The neodymium magnet is in a direct contact with the CNC exposed aluminum section of the basket, hold in place by our thermal transfer adhesives. This design dramatically improves the heat transfer. The 6NPM is ideal for use in both sealed and vented enclosure designs. The most suitable applications are in high quality professional audio, as line array systems, 3-way designs, where extreme SPL outputs are desired. The 6NPM can be horn loaded or used in directly radiated midrange applications.
REDCATT ANNOUNCES NEW COMPRESSION DRIVER 140FCDHTCS LLC
The REDCATT 140FCD design has been optimized to provide high SPL output with very low distortion artifacts. At the core is its polyamide composite dome, formed as single piece with the surround. Surround has FEM optimized resonance control features. The voice coil former is carefully bonded to the dome with the very best available adhesives. The strong and reliable joint between the voice coil former and the dome ensures the energy is well transferred from the moving voice coil onto the dome and it also guaranties the longevity of the compression driver.
Accelerate your Kubernetes clusters with Varnish CachingThijs Feryn
A presentation about the usage and availability of Varnish on Kubernetes. This talk explores the capabilities of Varnish caching and shows how to use the Varnish Helm chart to deploy it to Kubernetes.
This presentation was delivered at K8SUG Singapore. See https://feryn.eu/presentations/accelerate-your-kubernetes-clusters-with-varnish-caching-k8sug-singapore-28-2024 for more details.
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...James Anderson
Effective Application Security in Software Delivery lifecycle using Deployment Firewall and DBOM
The modern software delivery process (or the CI/CD process) includes many tools, distributed teams, open-source code, and cloud platforms. Constant focus on speed to release software to market, along with the traditional slow and manual security checks has caused gaps in continuous security as an important piece in the software supply chain. Today organizations feel more susceptible to external and internal cyber threats due to the vast attack surface in their applications supply chain and the lack of end-to-end governance and risk management.
The software team must secure its software delivery process to avoid vulnerability and security breaches. This needs to be achieved with existing tool chains and without extensive rework of the delivery processes. This talk will present strategies and techniques for providing visibility into the true risk of the existing vulnerabilities, preventing the introduction of security issues in the software, resolving vulnerabilities in production environments quickly, and capturing the deployment bill of materials (DBOM).
Speakers:
Bob Boule
Robert Boule is a technology enthusiast with PASSION for technology and making things work along with a knack for helping others understand how things work. He comes with around 20 years of solution engineering experience in application security, software continuous delivery, and SaaS platforms. He is known for his dynamic presentations in CI/CD and application security integrated in software delivery lifecycle.
Gopinath Rebala
Gopinath Rebala is the CTO of OpsMx, where he has overall responsibility for the machine learning and data processing architectures for Secure Software Delivery. Gopi also has a strong connection with our customers, leading design and architecture for strategic implementations. Gopi is a frequent speaker and well-known leader in continuous delivery and integrating security into software delivery.
State of ICS and IoT Cyber Threat Landscape Report 2024 previewPrayukth K V
The IoT and OT threat landscape report has been prepared by the Threat Research Team at Sectrio using data from Sectrio, cyber threat intelligence farming facilities spread across over 85 cities around the world. In addition, Sectrio also runs AI-based advanced threat and payload engagement facilities that serve as sinks to attract and engage sophisticated threat actors, and newer malware including new variants and latent threats that are at an earlier stage of development.
The latest edition of the OT/ICS and IoT security Threat Landscape Report 2024 also covers:
State of global ICS asset and network exposure
Sectoral targets and attacks as well as the cost of ransom
Global APT activity, AI usage, actor and tactic profiles, and implications
Rise in volumes of AI-powered cyberattacks
Major cyber events in 2024
Malware and malicious payload trends
Cyberattack types and targets
Vulnerability exploit attempts on CVEs
Attacks on counties – USA
Expansion of bot farms – how, where, and why
In-depth analysis of the cyber threat landscape across North America, South America, Europe, APAC, and the Middle East
Why are attacks on smart factories rising?
Cyber risk predictions
Axis of attacks – Europe
Systemic attacks in the Middle East
Download the full report from here:
https://sectrio.com/resources/ot-threat-landscape-reports/sectrio-releases-ot-ics-and-iot-security-threat-landscape-report-2024/
UiPath Test Automation using UiPath Test Suite series, part 4DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 4. In this session, we will cover Test Manager overview along with SAP heatmap.
The UiPath Test Manager overview with SAP heatmap webinar offers a concise yet comprehensive exploration of the role of a Test Manager within SAP environments, coupled with the utilization of heatmaps for effective testing strategies.
Participants will gain insights into the responsibilities, challenges, and best practices associated with test management in SAP projects. Additionally, the webinar delves into the significance of heatmaps as a visual aid for identifying testing priorities, areas of risk, and resource allocation within SAP landscapes. Through this session, attendees can expect to enhance their understanding of test management principles while learning practical approaches to optimize testing processes in SAP environments using heatmap visualization techniques
What will you get from this session?
1. Insights into SAP testing best practices
2. Heatmap utilization for testing
3. Optimization of testing processes
4. Demo
Topics covered:
Execution from the test manager
Orchestrator execution result
Defect reporting
SAP heatmap example with demo
Speaker:
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
Epistemic Interaction - tuning interfaces to provide information for AI supportAlan Dix
Paper presented at SYNERGY workshop at AVI 2024, Genoa, Italy. 3rd June 2024
https://alandix.com/academic/papers/synergy2024-epistemic/
As machine learning integrates deeper into human-computer interactions, the concept of epistemic interaction emerges, aiming to refine these interactions to enhance system adaptability. This approach encourages minor, intentional adjustments in user behaviour to enrich the data available for system learning. This paper introduces epistemic interaction within the context of human-system communication, illustrating how deliberate interaction design can improve system understanding and adaptation. Through concrete examples, we demonstrate the potential of epistemic interaction to significantly advance human-computer interaction by leveraging intuitive human communication strategies to inform system design and functionality, offering a novel pathway for enriching user-system engagements.
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Tobias Schneck
As AI technology is pushing into IT I was wondering myself, as an “infrastructure container kubernetes guy”, how get this fancy AI technology get managed from an infrastructure operational view? Is it possible to apply our lovely cloud native principals as well? What benefit’s both technologies could bring to each other?
Let me take this questions and provide you a short journey through existing deployment models and use cases for AI software. On practical examples, we discuss what cloud/on-premise strategy we may need for applying it to our own infrastructure to get it to work from an enterprise perspective. I want to give an overview about infrastructure requirements and technologies, what could be beneficial or limiting your AI use cases in an enterprise environment. An interactive Demo will give you some insides, what approaches I got already working for real.
Connector Corner: Automate dynamic content and events by pushing a buttonDianaGray10
Here is something new! In our next Connector Corner webinar, we will demonstrate how you can use a single workflow to:
Create a campaign using Mailchimp with merge tags/fields
Send an interactive Slack channel message (using buttons)
Have the message received by managers and peers along with a test email for review
But there’s more:
In a second workflow supporting the same use case, you’ll see:
Your campaign sent to target colleagues for approval
If the “Approve” button is clicked, a Jira/Zendesk ticket is created for the marketing design team
But—if the “Reject” button is pushed, colleagues will be alerted via Slack message
Join us to learn more about this new, human-in-the-loop capability, brought to you by Integration Service connectors.
And...
Speakers:
Akshay Agnihotri, Product Manager
Charlie Greenberg, Host
UiPath Test Automation using UiPath Test Suite series, part 3DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 3. In this session, we will cover desktop automation along with UI automation.
Topics covered:
UI automation Introduction,
UI automation Sample
Desktop automation flow
Pradeep Chinnala, Senior Consultant Automation Developer @WonderBotz and UiPath MVP
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
The Art of the Pitch: WordPress Relationships and SalesLaura Byrne
Clients don’t know what they don’t know. What web solutions are right for them? How does WordPress come into the picture? How do you make sure you understand scope and timeline? What do you do if sometime changes?
All these questions and more will be explored as we talk about matching clients’ needs with what your agency offers without pulling teeth or pulling your hair out. Practical tips, and strategies for successful relationship building that leads to closing the deal.
JMeter webinar - integration with InfluxDB and GrafanaRTTS
Watch this recorded webinar about real-time monitoring of application performance. See how to integrate Apache JMeter, the open-source leader in performance testing, with InfluxDB, the open-source time-series database, and Grafana, the open-source analytics and visualization application.
In this webinar, we will review the benefits of leveraging InfluxDB and Grafana when executing load tests and demonstrate how these tools are used to visualize performance metrics.
Length: 30 minutes
Session Overview
-------------------------------------------
During this webinar, we will cover the following topics while demonstrating the integrations of JMeter, InfluxDB and Grafana:
- What out-of-the-box solutions are available for real-time monitoring JMeter tests?
- What are the benefits of integrating InfluxDB and Grafana into the load testing stack?
- Which features are provided by Grafana?
- Demonstration of InfluxDB and Grafana using a practice web application
To view the webinar recording, go to:
https://www.rttsweb.com/jmeter-integration-webinar
Let's dive deeper into the world of ODC! Ricardo Alves (OutSystems) will join us to tell all about the new Data Fabric. After that, Sezen de Bruijn (OutSystems) will get into the details on how to best design a sturdy architecture within ODC.
Search and Society: Reimagining Information Access for Radical FuturesBhaskar Mitra
The field of Information retrieval (IR) is currently undergoing a transformative shift, at least partly due to the emerging applications of generative AI to information access. In this talk, we will deliberate on the sociotechnical implications of generative AI for information access. We will argue that there is both a critical necessity and an exciting opportunity for the IR community to re-center our research agendas on societal needs while dismantling the artificial separation between the work on fairness, accountability, transparency, and ethics in IR and the rest of IR research. Instead of adopting a reactionary strategy of trying to mitigate potential social harms from emerging technologies, the community should aim to proactively set the research agenda for the kinds of systems we should build inspired by diverse explicitly stated sociotechnical imaginaries. The sociotechnical imaginaries that underpin the design and development of information access technologies needs to be explicitly articulated, and we need to develop theories of change in context of these diverse perspectives. Our guiding future imaginaries must be informed by other academic fields, such as democratic theory and critical theory, and should be co-developed with social science scholars, legal scholars, civil rights and social justice activists, and artists, among others.
Search and Society: Reimagining Information Access for Radical Futures

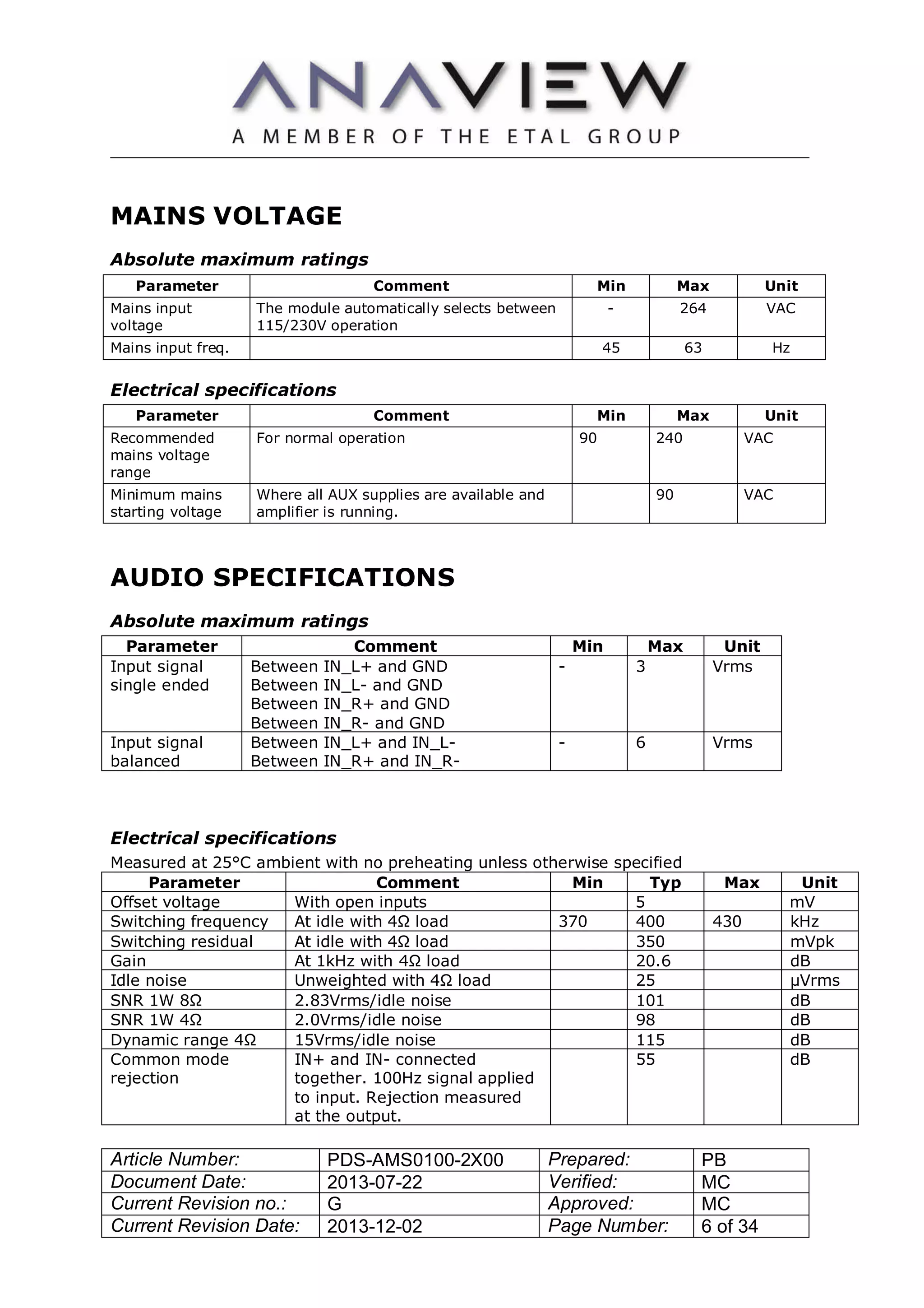

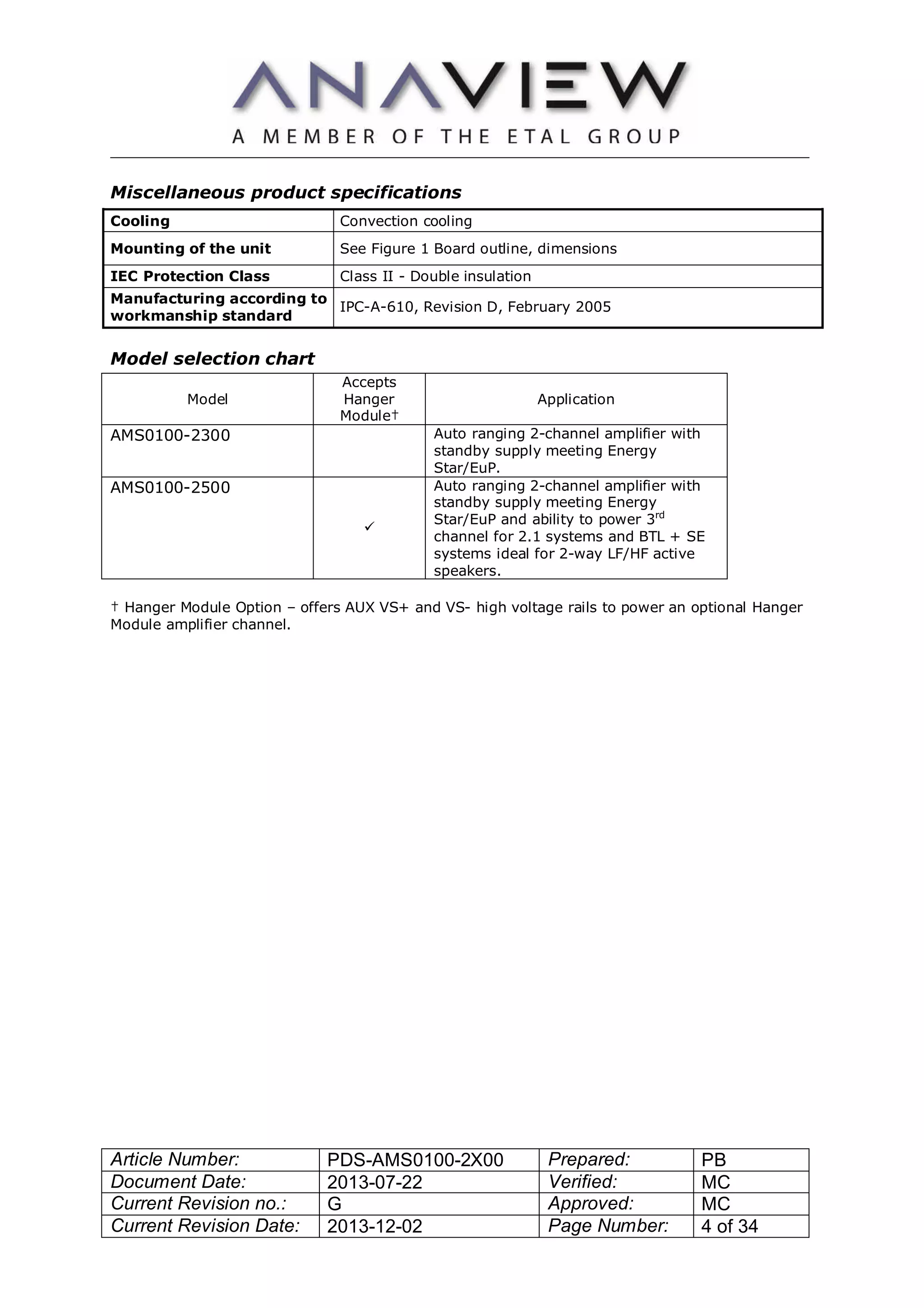

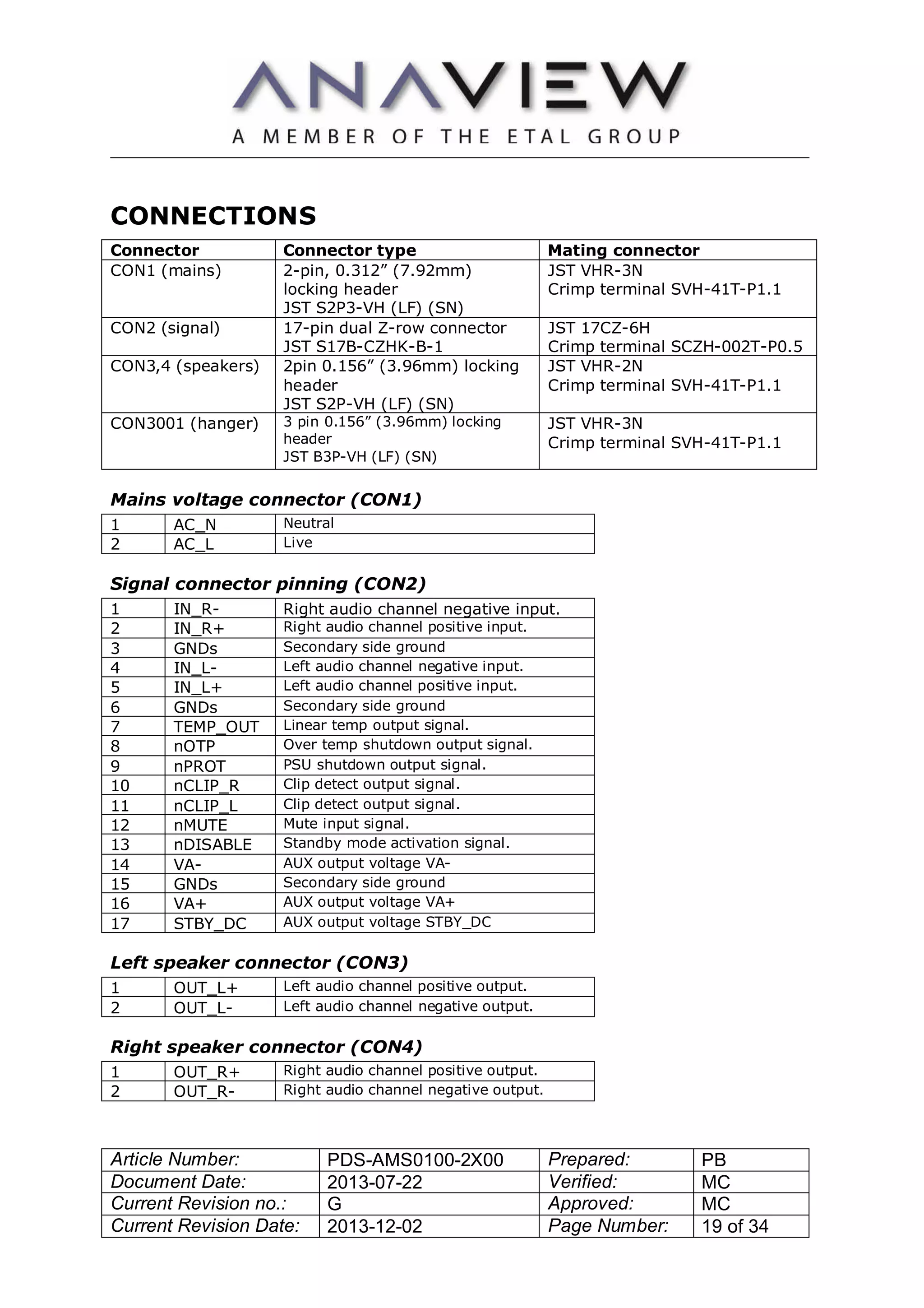

A Data Sheet Spec Sheet example with real Test Data

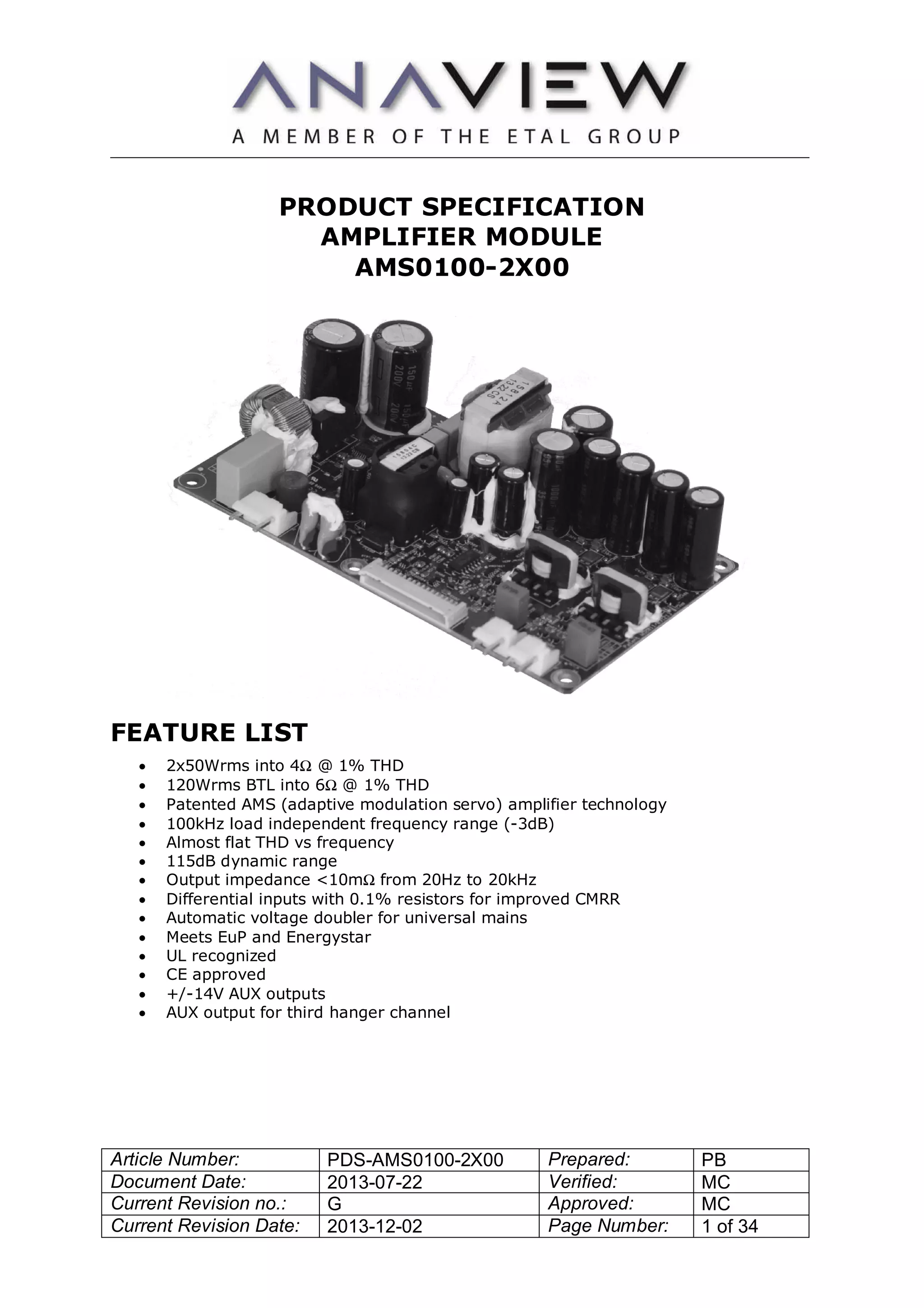

1. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 1 of 34
PRODUCT SPECIFICATION
AMPLIFIER MODULE
AMS0100-2X00
FEATURE LIST
2x50Wrms into 4Ω @ 1% THD
120Wrms BTL into 6Ω @ 1% THD
Patented AMS (adaptive modulation servo) amplifier technology
100kHz load independent frequency range (-3dB)
Almost flat THD vs frequency
115dB dynamic range
Output impedance <10mΩ from 20Hz to 20kHz
Differential inputs with 0.1% resistors for improved CMRR
Automatic voltage doubler for universal mains
Meets EuP and Energystar
UL recognized
CE approved
+/-14V AUX outputs
AUX output for third hanger channel
2. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 2 of 34

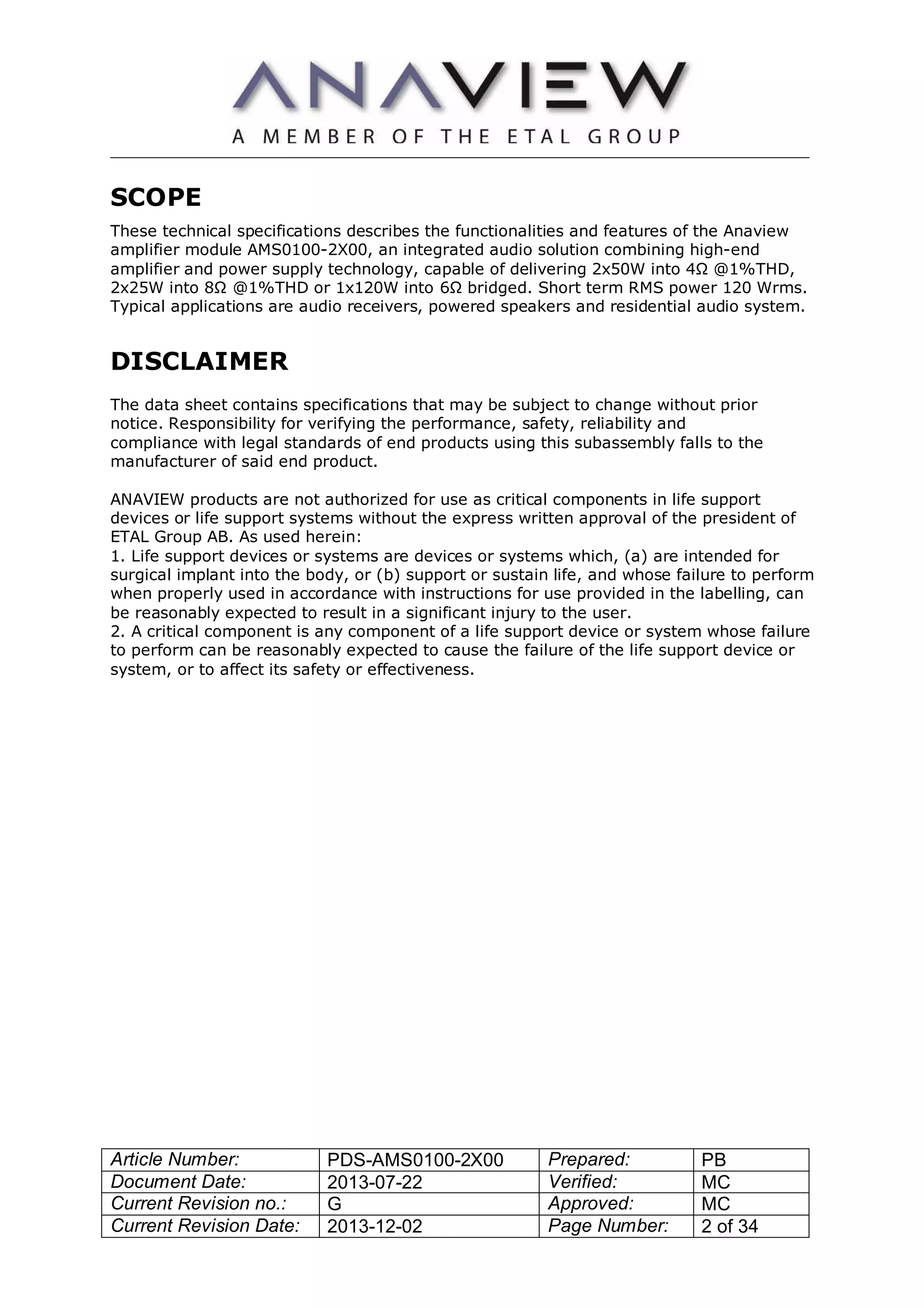

SCOPE
These technical specifications describes the functionalities and features of the Anaview
amplifier module AMS0100-2X00, an integrated audio solution combining high-end
amplifier and power supply technology, capable of delivering 2x50W into 4Ω @1%THD,
2x25W into 8Ω @1%THD or 1x120W into 6Ω bridged. Short term RMS power 120 Wrms.
Typical applications are audio receivers, powered speakers and residential audio system.
DISCLAIMER
The data sheet contains specifications that may be subject to change without prior
notice. Responsibility for verifying the performance, safety, reliability and
compliance with legal standards of end products using this subassembly falls to the
manufacturer of said end product.
ANAVIEW products are not authorized for use as critical components in life support
devices or life support systems without the express written approval of the president of
ETAL Group AB. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for
surgical implant into the body, or (b) support or sustain life, and whose failure to perform
when properly used in accordance with instructions for use provided in the labelling, can
be reasonably expected to result in a significant injury to the user.
2. A critical component is any component of a life support device or system whose failure
to perform can be reasonably expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
3. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 3 of 34

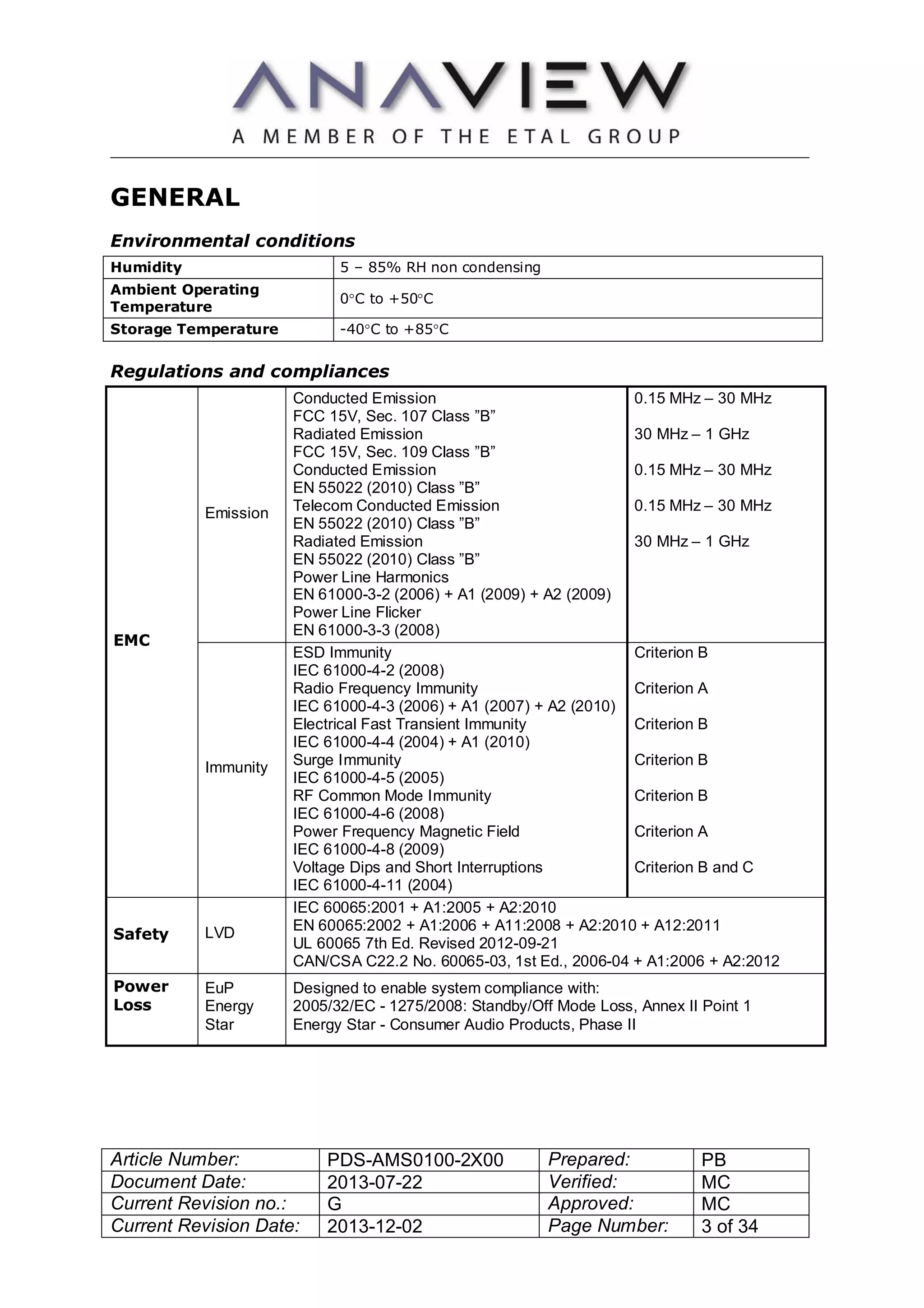

GENERAL
Environmental conditions
Humidity 5 – 85% RH non condensing
Ambient Operating
Temperature
0C to +50C
Storage Temperature -40C to +85C
Regulations and compliances
EMC
Emission
Conducted Emission
FCC 15V, Sec. 107 Class ”B”
Radiated Emission
FCC 15V, Sec. 109 Class ”B”
Conducted Emission
EN 55022 (2010) Class ”B”
Telecom Conducted Emission
EN 55022 (2010) Class ”B”
Radiated Emission
EN 55022 (2010) Class ”B”
Power Line Harmonics
EN 61000-3-2 (2006) + A1 (2009) + A2 (2009)
Power Line Flicker
EN 61000-3-3 (2008)
0.15 MHz – 30 MHz
30 MHz – 1 GHz
0.15 MHz – 30 MHz
0.15 MHz – 30 MHz
30 MHz – 1 GHz
Immunity
ESD Immunity
IEC 61000-4-2 (2008)
Radio Frequency Immunity
IEC 61000-4-3 (2006) + A1 (2007) + A2 (2010)
Electrical Fast Transient Immunity
IEC 61000-4-4 (2004) + A1 (2010)
Surge Immunity
IEC 61000-4-5 (2005)
RF Common Mode Immunity
IEC 61000-4-6 (2008)
Power Frequency Magnetic Field
IEC 61000-4-8 (2009)
Voltage Dips and Short Interruptions
IEC 61000-4-11 (2004)
Criterion B
Criterion A
Criterion B
Criterion B
Criterion B
Criterion A
Criterion B and C
Safety LVD
IEC 60065:2001 + A1:2005 + A2:2010
EN 60065:2002 + A1:2006 + A11:2008 + A2:2010 + A12:2011
UL 60065 7th Ed. Revised 2012-09-21
CAN/CSA C22.2 No. 60065-03, 1st Ed., 2006-04 + A1:2006 + A2:2012
Power
Loss
EuP
Energy
Star
Designed to enable system compliance with:
2005/32/EC - 1275/2008: Standby/Off Mode Loss, Annex II Point 1
Energy Star - Consumer Audio Products, Phase II
4. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 4 of 34
Miscellaneous product specifications
Model selection chart
Model
Accepts
Hanger
Module†
Application
AMS0100-2300 Auto ranging 2-channel amplifier with
standby supply meeting Energy
Star/EuP.
AMS0100-2500
Auto ranging 2-channel amplifier with
standby supply meeting Energy
Star/EuP and ability to power 3rd
channel for 2.1 systems and BTL + SE
systems ideal for 2-way LF/HF active
speakers.
† Hanger Module Option – offers AUX VS+ and VS- high voltage rails to power an optional Hanger
Module amplifier channel.
Cooling Convection cooling

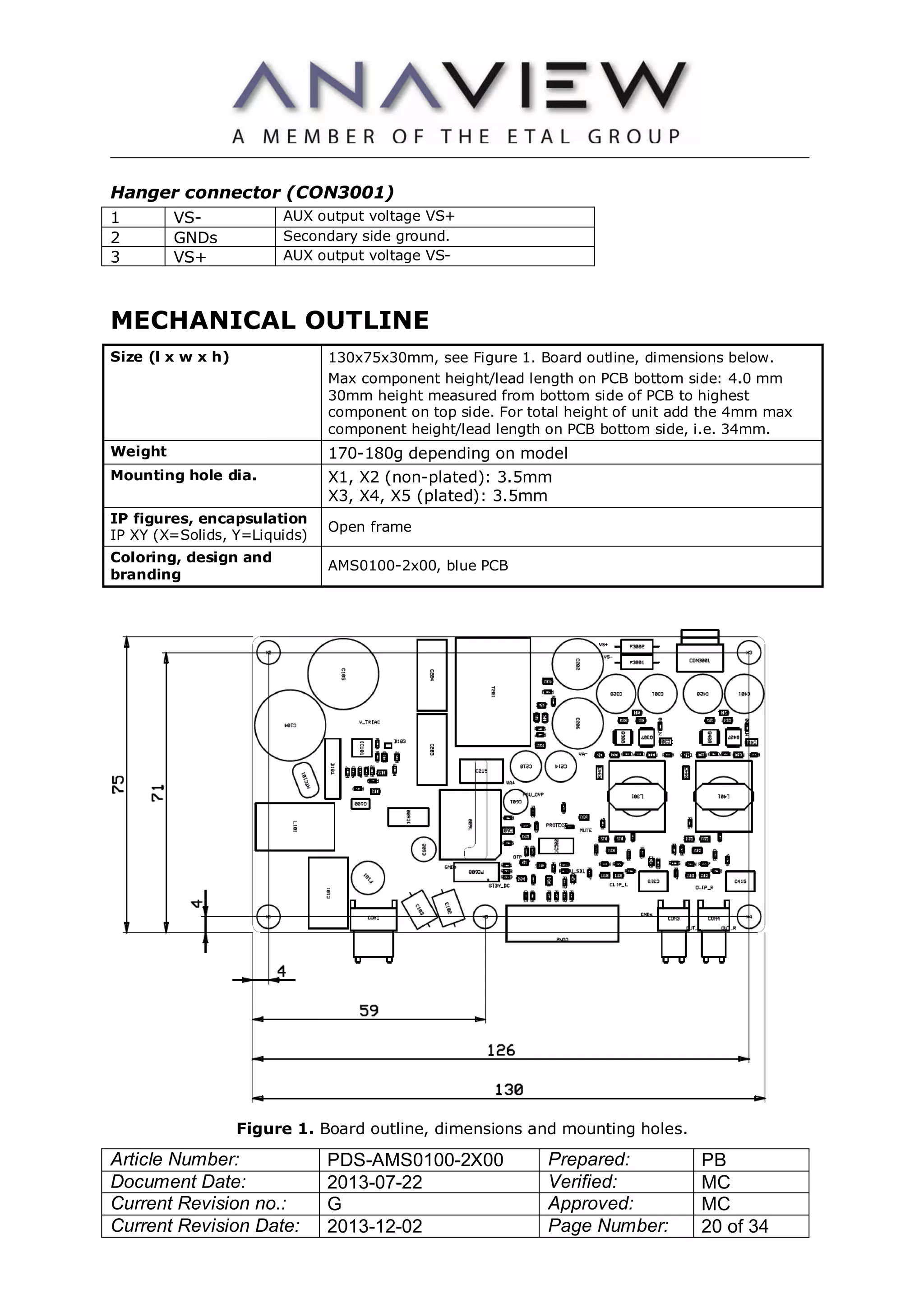

Mounting of the unit See Figure 1 Board outline, dimensions
IEC Protection Class Class II - Double insulation
Manufacturing according to
workmanship standard
IPC-A-610, Revision D, February 2005
5. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 5 of 34

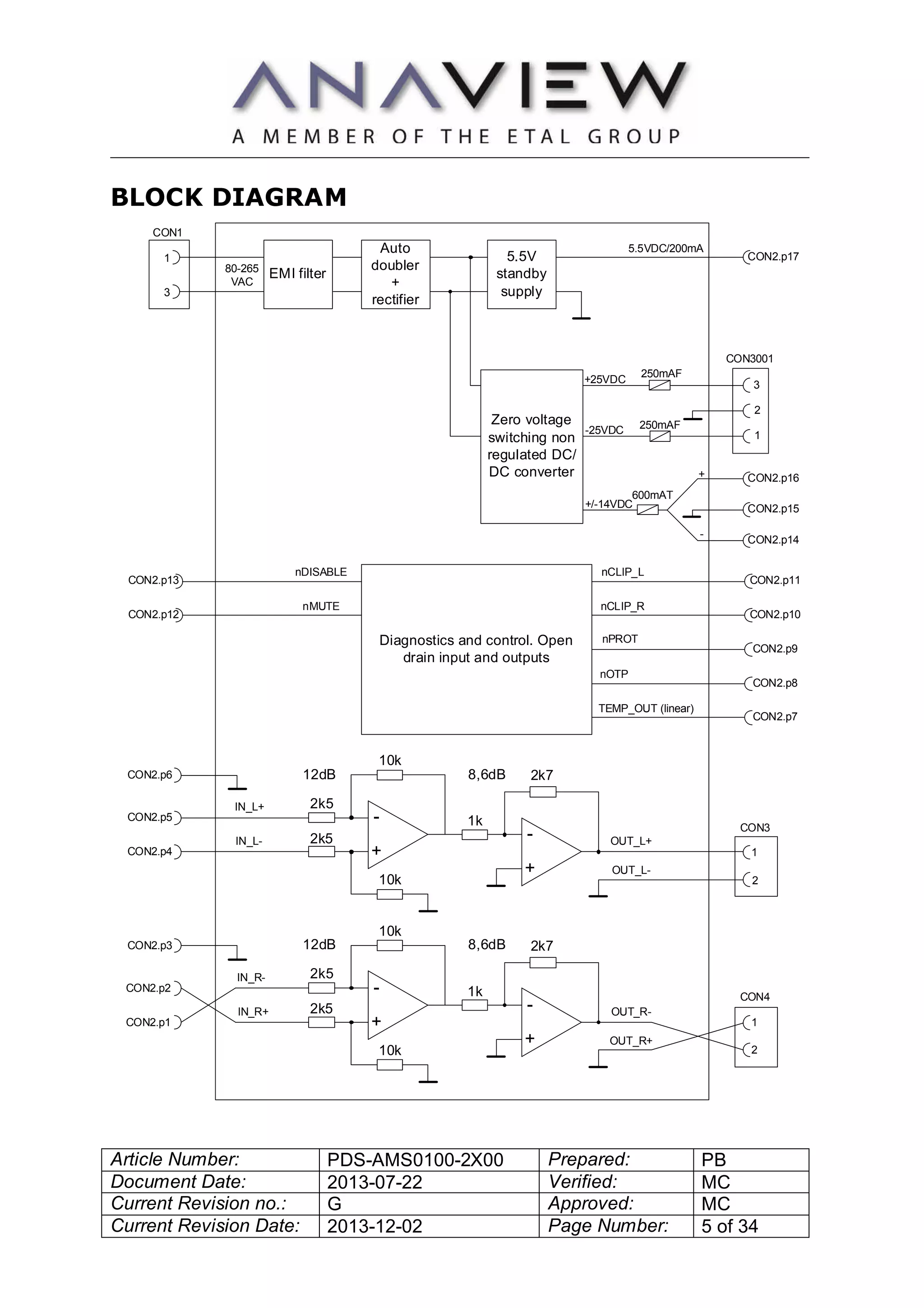

BLOCK DIAGRAM
CON1
EMI filter
Auto
doubler
+
rectifier
Zero voltage
switching non
regulated DC/
DC converter
5.5V
standby
supply
5.5VDC/200mA
CON2.p17
3
1
+25VDC
-25VDC
250mAF
250mAF
2
CON3001
80-265
VAC
1
3
CON2.p16
CON2.p14
600mAT
+/-14VDC
CON2.p11
CON2.p10
CON2.p9
CON2.p8
CON2.p7
Diagnostics and control. Open
drain input and outputs
CON2.p13
CON2.p12
nDISABLE
nMUTE
nCLIP_L
nCLIP_R
nPROT
nOTP
TEMP_OUT (linear)
CON2.p15
+
-
+
-
+
-
2k5
2k5
10k
10k
12dB 8,6dB 2k7
1k
+
-
+
-
2k5
2k5
10k
10k
12dB 8,6dB 2k7
1k
1
CON3
2
1
CON4
2
IN_L+
IN_R-
IN_L-
IN_R+
CON2.p5
CON2.p4
CON2.p2
CON2.p1
CON2.p6
CON2.p3
OUT_L+
OUT_L-
OUT_R-
OUT_R+
6. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 6 of 34
MAINS VOLTAGE
Absolute maximum ratings
Parameter Comment Min Max Unit
Mains input
voltage
The module automatically selects between
115/230V operation
- 264 VAC
Mains input freq. 45 63 Hz
Electrical specifications
Parameter Comment Min Max Unit
Recommended
mains voltage
range
For normal operation 90 240 VAC
Minimum mains
starting voltage
Where all AUX supplies are available and
amplifier is running.
90 VAC
AUDIO SPECIFICATIONS
Absolute maximum ratings
Parameter Comment Min Max Unit
Input signal
single ended
Between IN_L+ and GND
Between IN_L- and GND
Between IN_R+ and GND
Between IN_R- and GND
- 3 Vrms

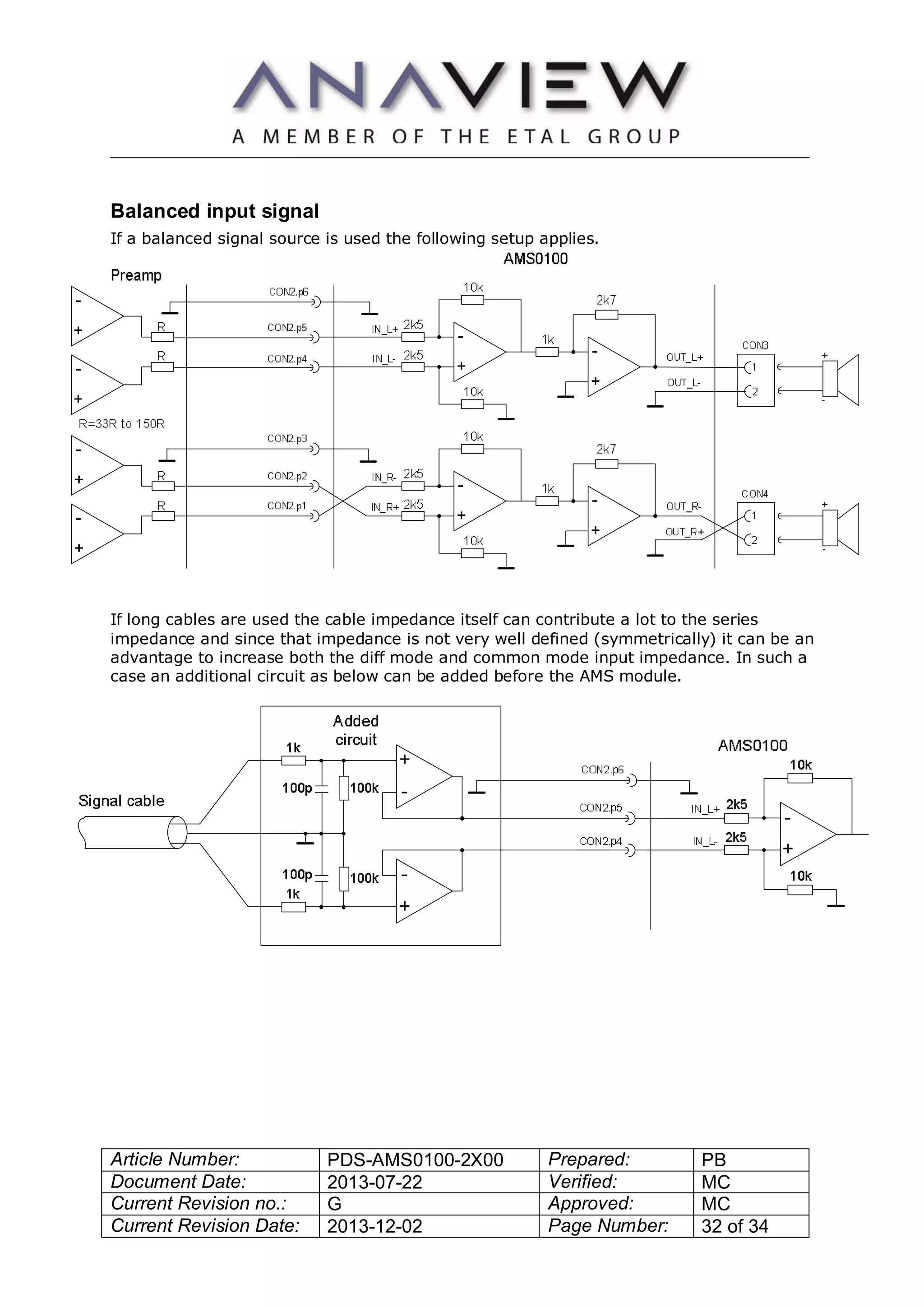

Input signal
balanced
Between IN_L+ and IN_L-
Between IN_R+ and IN_R-
- 6 Vrms
Electrical specifications
Measured at 25°C ambient with no preheating unless otherwise specified
Parameter Comment Min Typ Max Unit
Offset voltage With open inputs 5 mV
Switching frequency At idle with 4Ω load 370 400 430 kHz
Switching residual At idle with 4Ω load 350 mVpk
Gain At 1kHz with 4Ω load 20.6 dB
Idle noise Unweighted with 4Ω load 25 µVrms
SNR 1W 8Ω 2.83Vrms/idle noise 101 dB
SNR 1W 4Ω 2.0Vrms/idle noise 98 dB
Dynamic range 4Ω 15Vrms/idle noise 115 dB
Common mode
rejection
IN+ and IN- connected
together. 100Hz signal applied
to input. Rejection measured
at the output.
55 dB
7. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 7 of 34

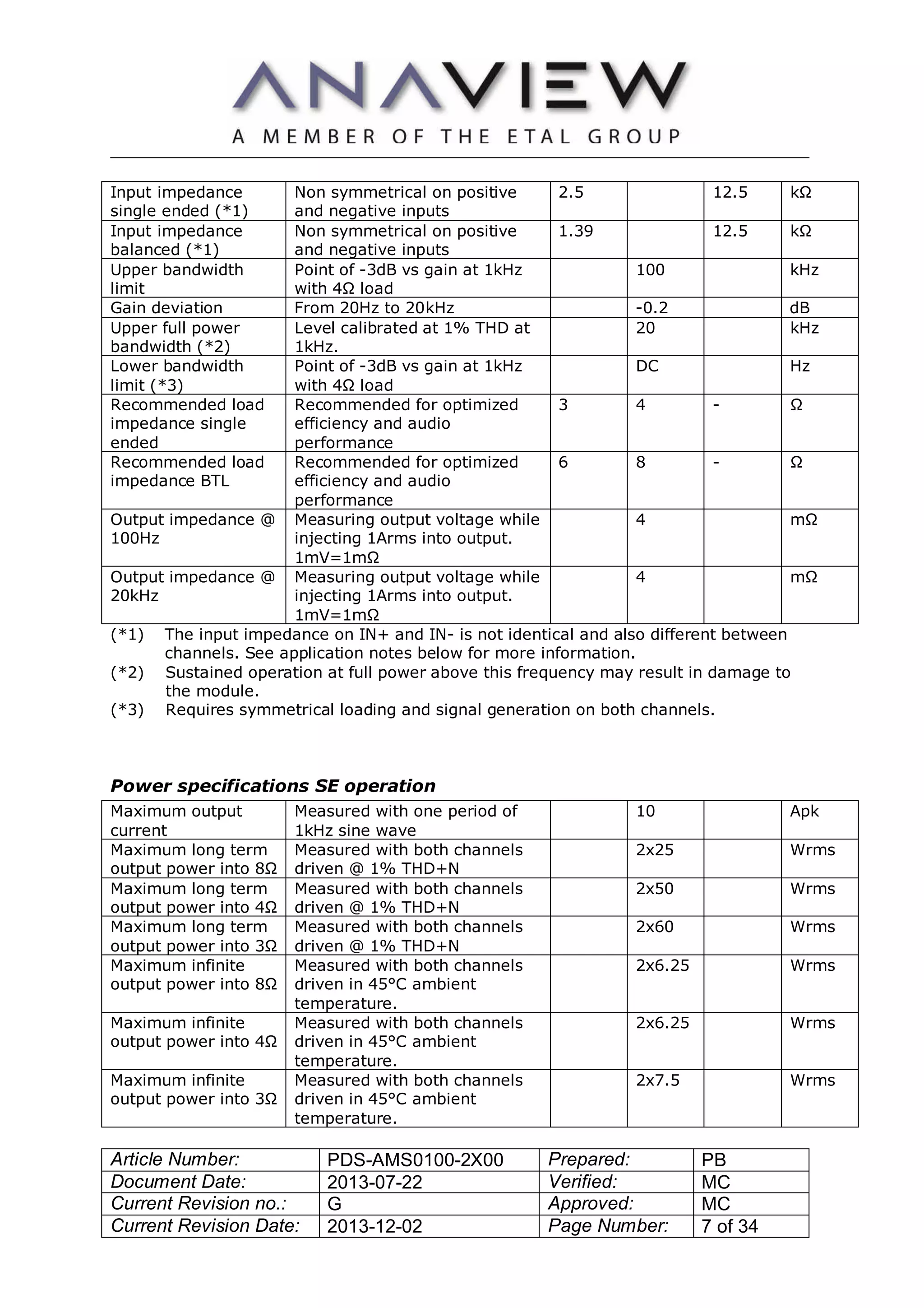

Input impedance
single ended (*1)
Non symmetrical on positive
and negative inputs
2.5 12.5 kΩ
Input impedance
balanced (*1)
Non symmetrical on positive
and negative inputs
1.39 12.5 kΩ
Upper bandwidth
limit
Point of -3dB vs gain at 1kHz
with 4Ω load
100 kHz
Gain deviation From 20Hz to 20kHz -0.2 dB
Upper full power
bandwidth (*2)
Level calibrated at 1% THD at
1kHz.
20 kHz
Lower bandwidth
limit (*3)
Point of -3dB vs gain at 1kHz
with 4Ω load
DC Hz
Recommended load
impedance single
ended
Recommended for optimized
efficiency and audio
performance
3 4 - Ω
Recommended load
impedance BTL
Recommended for optimized
efficiency and audio
performance
6 8 - Ω
Output impedance @
100Hz
Measuring output voltage while
injecting 1Arms into output.
1mV=1mΩ
4 mΩ
Output impedance @
20kHz
Measuring output voltage while
injecting 1Arms into output.
1mV=1mΩ
4 mΩ
(*1) The input impedance on IN+ and IN- is not identical and also different between
channels. See application notes below for more information.
(*2) Sustained operation at full power above this frequency may result in damage to
the module.
(*3) Requires symmetrical loading and signal generation on both channels.
Power specifications SE operation
Maximum output
current
Measured with one period of
1kHz sine wave
10 Apk
Maximum long term
output power into 8Ω
Measured with both channels
driven @ 1% THD+N
2x25 Wrms
Maximum long term
output power into 4Ω
Measured with both channels
driven @ 1% THD+N
2x50 Wrms
Maximum long term
output power into 3Ω
Measured with both channels
driven @ 1% THD+N
2x60 Wrms
Maximum infinite
output power into 8Ω
Measured with both channels
driven in 45°C ambient
temperature.
2x6.25 Wrms
Maximum infinite
output power into 4Ω
Measured with both channels
driven in 45°C ambient
temperature.
2x6.25 Wrms
Maximum infinite
output power into 3Ω
Measured with both channels
driven in 45°C ambient
temperature.
2x7.5 Wrms

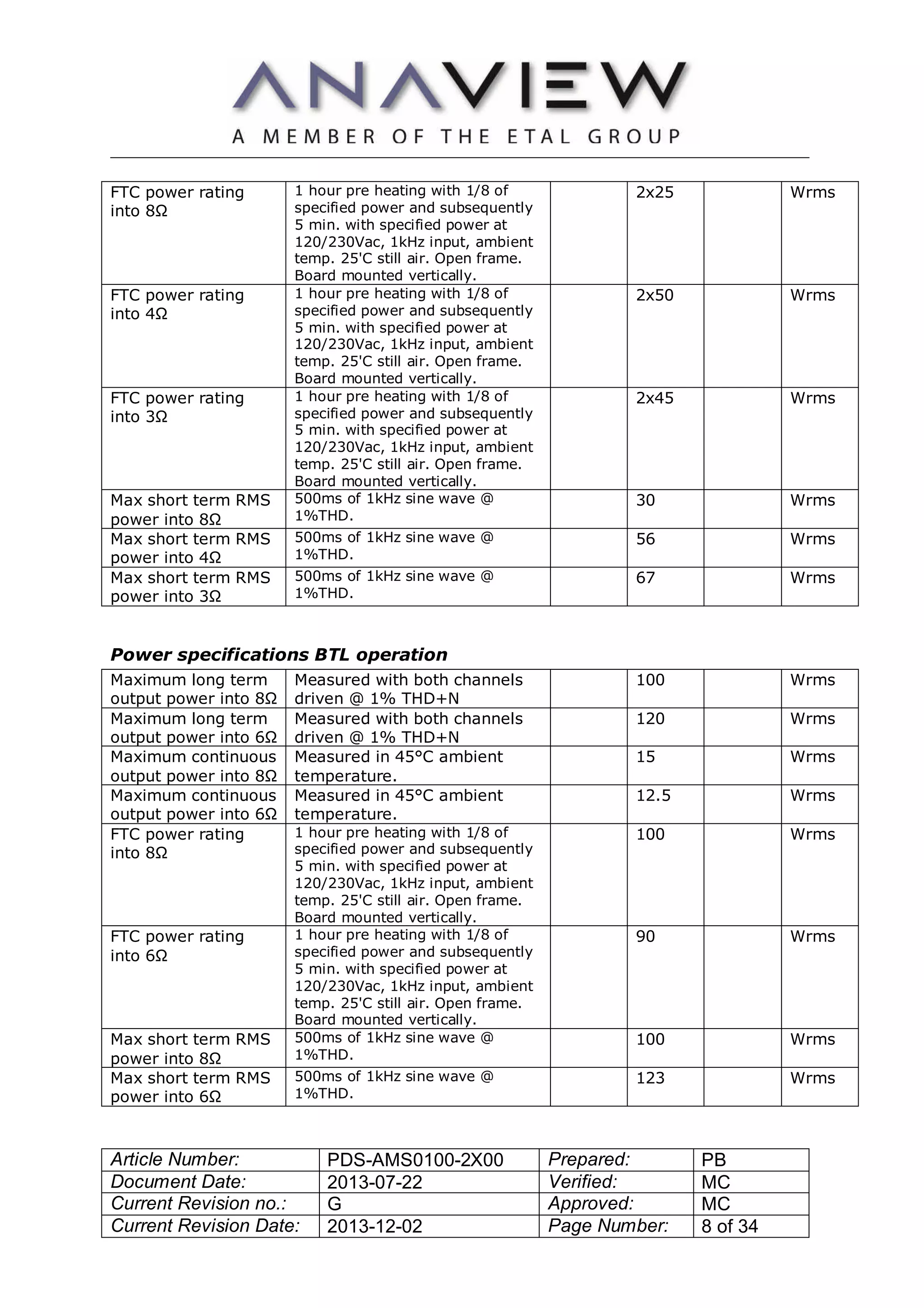

8. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 8 of 34
FTC power rating
into 8Ω
1 hour pre heating with 1/8 of
specified power and subsequently
5 min. with specified power at
120/230Vac, 1kHz input, ambient
temp. 25'C still air. Open frame.
Board mounted vertically.
2x25 Wrms
FTC power rating
into 4Ω
1 hour pre heating with 1/8 of
specified power and subsequently
5 min. with specified power at
120/230Vac, 1kHz input, ambient
temp. 25'C still air. Open frame.
Board mounted vertically.
2x50 Wrms
FTC power rating
into 3Ω
1 hour pre heating with 1/8 of
specified power and subsequently
5 min. with specified power at
120/230Vac, 1kHz input, ambient
temp. 25'C still air. Open frame.
Board mounted vertically.
2x45 Wrms
Max short term RMS
power into 8Ω
500ms of 1kHz sine wave @
1%THD.
30 Wrms
Max short term RMS
power into 4Ω
500ms of 1kHz sine wave @
1%THD.
56 Wrms
Max short term RMS
power into 3Ω
500ms of 1kHz sine wave @
1%THD.
67 Wrms
Power specifications BTL operation
Maximum long term
output power into 8Ω
Measured with both channels
driven @ 1% THD+N
100 Wrms
Maximum long term
output power into 6Ω
Measured with both channels
driven @ 1% THD+N
120 Wrms
Maximum continuous
output power into 8Ω
Measured in 45°C ambient
temperature.
15 Wrms
Maximum continuous
output power into 6Ω
Measured in 45°C ambient
temperature.
12.5 Wrms
FTC power rating
into 8Ω
1 hour pre heating with 1/8 of
specified power and subsequently
5 min. with specified power at
120/230Vac, 1kHz input, ambient
temp. 25'C still air. Open frame.
Board mounted vertically.
100 Wrms
FTC power rating
into 6Ω
1 hour pre heating with 1/8 of
specified power and subsequently
5 min. with specified power at
120/230Vac, 1kHz input, ambient
temp. 25'C still air. Open frame.
Board mounted vertically.
90 Wrms
Max short term RMS
power into 8Ω
500ms of 1kHz sine wave @
1%THD.
100 Wrms
Max short term RMS
power into 6Ω
500ms of 1kHz sine wave @
1%THD.
123 Wrms
9. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 9 of 34

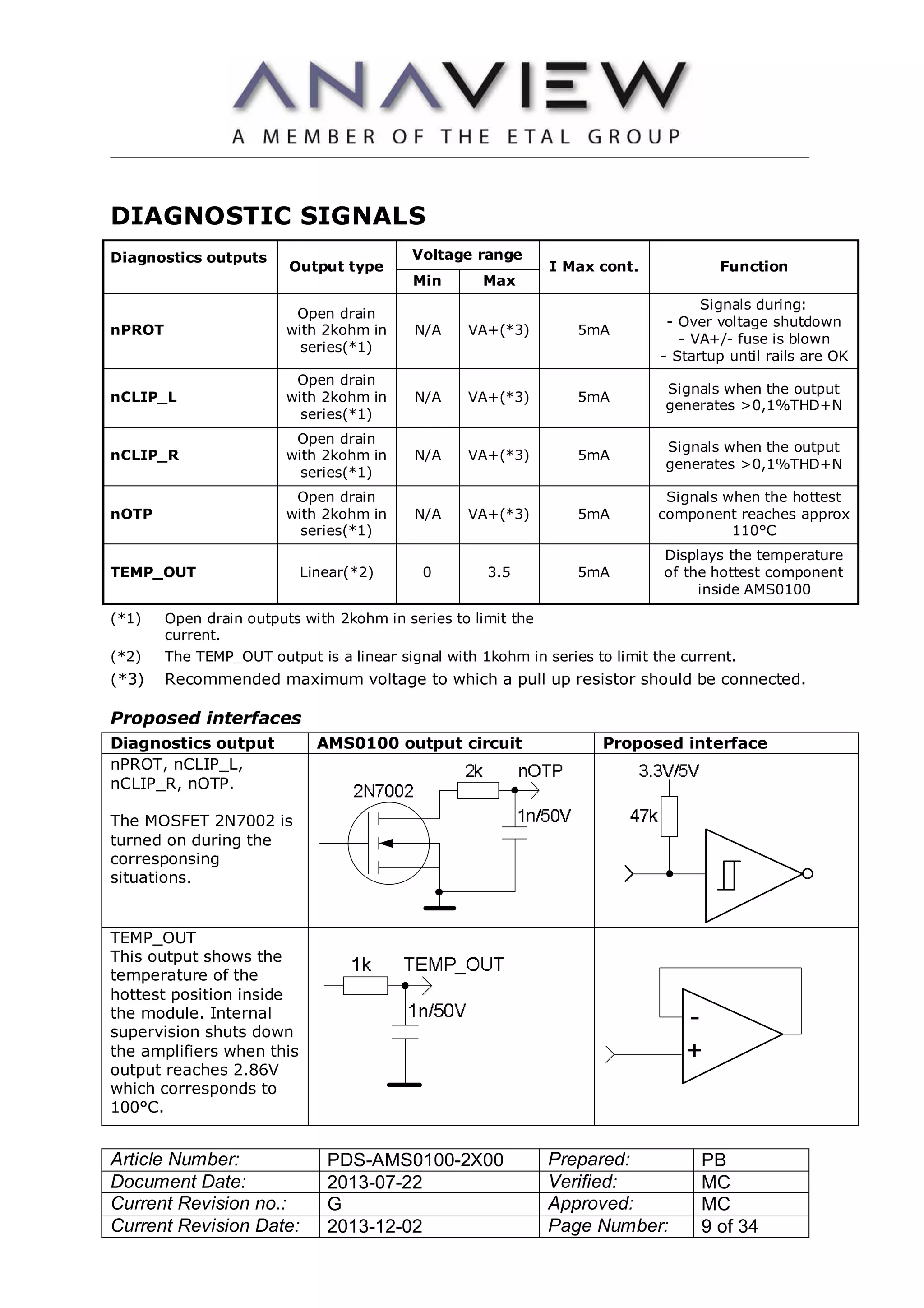

DIAGNOSTIC SIGNALS
Diagnostics outputs
Output type
Voltage range
I Max cont. Function
Min Max
nPROT
Open drain
with 2kohm in
series(*1)
N/A VA+(*3) 5mA
Signals during:
- Over voltage shutdown
- VA+/- fuse is blown
- Startup until rails are OK
nCLIP_L
Open drain
with 2kohm in
series(*1)
N/A VA+(*3) 5mA
Signals when the output
generates >0,1%THD+N
nCLIP_R
Open drain
with 2kohm in
series(*1)
N/A VA+(*3) 5mA
Signals when the output
generates >0,1%THD+N
nOTP
Open drain
with 2kohm in
series(*1)
N/A VA+(*3) 5mA
Signals when the hottest
component reaches approx
110°C
TEMP_OUT Linear(*2) 0 3.5 5mA
Displays the temperature
of the hottest component
inside AMS0100
(*1) Open drain outputs with 2kohm in series to limit the
current.
(*2) The TEMP_OUT output is a linear signal with 1kohm in series to limit the current.
(*3) Recommended maximum voltage to which a pull up resistor should be connected.
Proposed interfaces
Diagnostics output AMS0100 output circuit Proposed interface
nPROT, nCLIP_L,
nCLIP_R, nOTP.
The MOSFET 2N7002 is
turned on during the
corresponsing
situations.
TEMP_OUT
This output shows the
temperature of the
hottest position inside
the module. Internal
supervision shuts down
the amplifiers when this
output reaches 2.86V
which corresponds to
100°C.
10. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 10 of 34

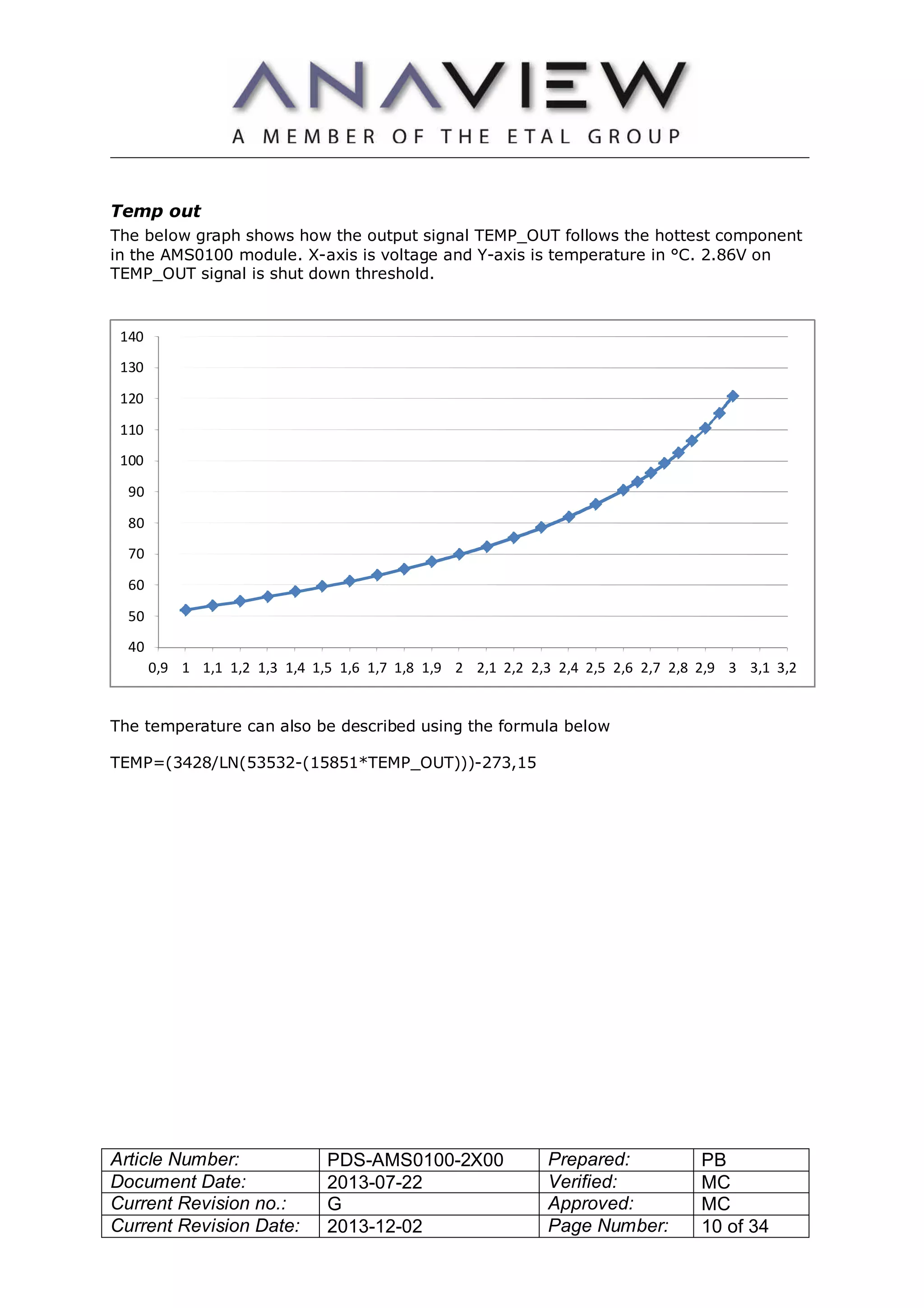

Temp out
The below graph shows how the output signal TEMP_OUT follows the hottest component
in the AMS0100 module. X-axis is voltage and Y-axis is temperature in °C. 2.86V on
TEMP_OUT signal is shut down threshold.
The temperature can also be described using the formula below
TEMP=(3428/LN(53532-(15851*TEMP_OUT)))-273,15
40
50
60
70
80
90
100
110
120
130
140
0,9 1 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,8 1,9 2 2,1 2,2 2,3 2,4 2,5 2,6 2,7 2,8 2,9 3 3,1 3,2
11. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 11 of 34

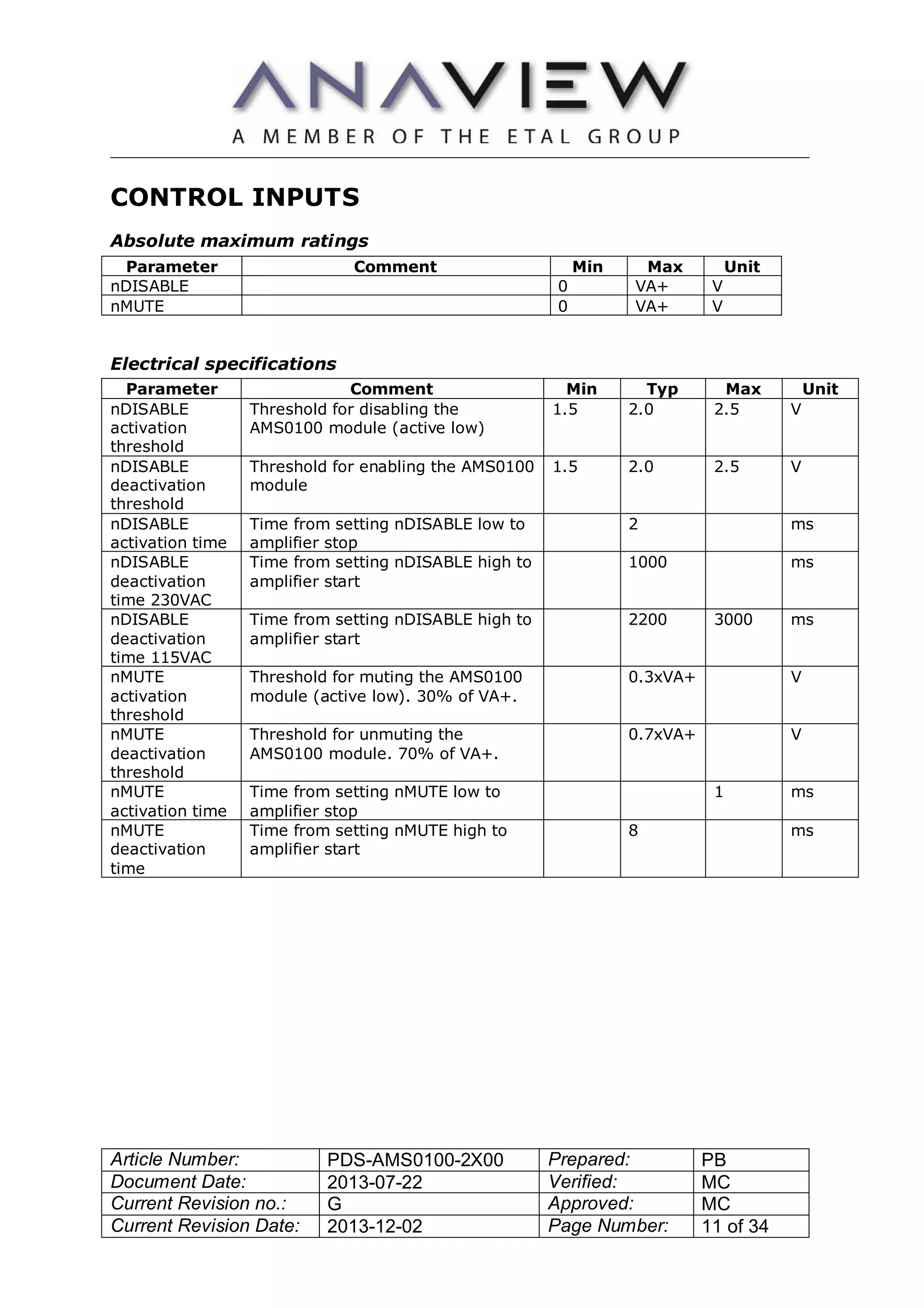

CONTROL INPUTS
Absolute maximum ratings
Parameter Comment Min Max Unit
nDISABLE 0 VA+ V
nMUTE 0 VA+ V
Electrical specifications
Parameter Comment Min Typ Max Unit
nDISABLE
activation
threshold
Threshold for disabling the
AMS0100 module (active low)
1.5 2.0 2.5 V
nDISABLE
deactivation
threshold
Threshold for enabling the AMS0100
module
1.5 2.0 2.5 V
nDISABLE
activation time
Time from setting nDISABLE low to
amplifier stop
2 ms
nDISABLE
deactivation
time 230VAC
Time from setting nDISABLE high to
amplifier start
1000 ms
nDISABLE
deactivation
time 115VAC
Time from setting nDISABLE high to
amplifier start
2200 3000 ms
nMUTE
activation
threshold
Threshold for muting the AMS0100
module (active low). 30% of VA+.
0.3xVA+ V
nMUTE
deactivation
threshold
Threshold for unmuting the
AMS0100 module. 70% of VA+.
0.7xVA+ V
nMUTE
activation time
Time from setting nMUTE low to
amplifier stop
1 ms
nMUTE
deactivation
time
Time from setting nMUTE high to
amplifier start
8 ms
12. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 12 of 34

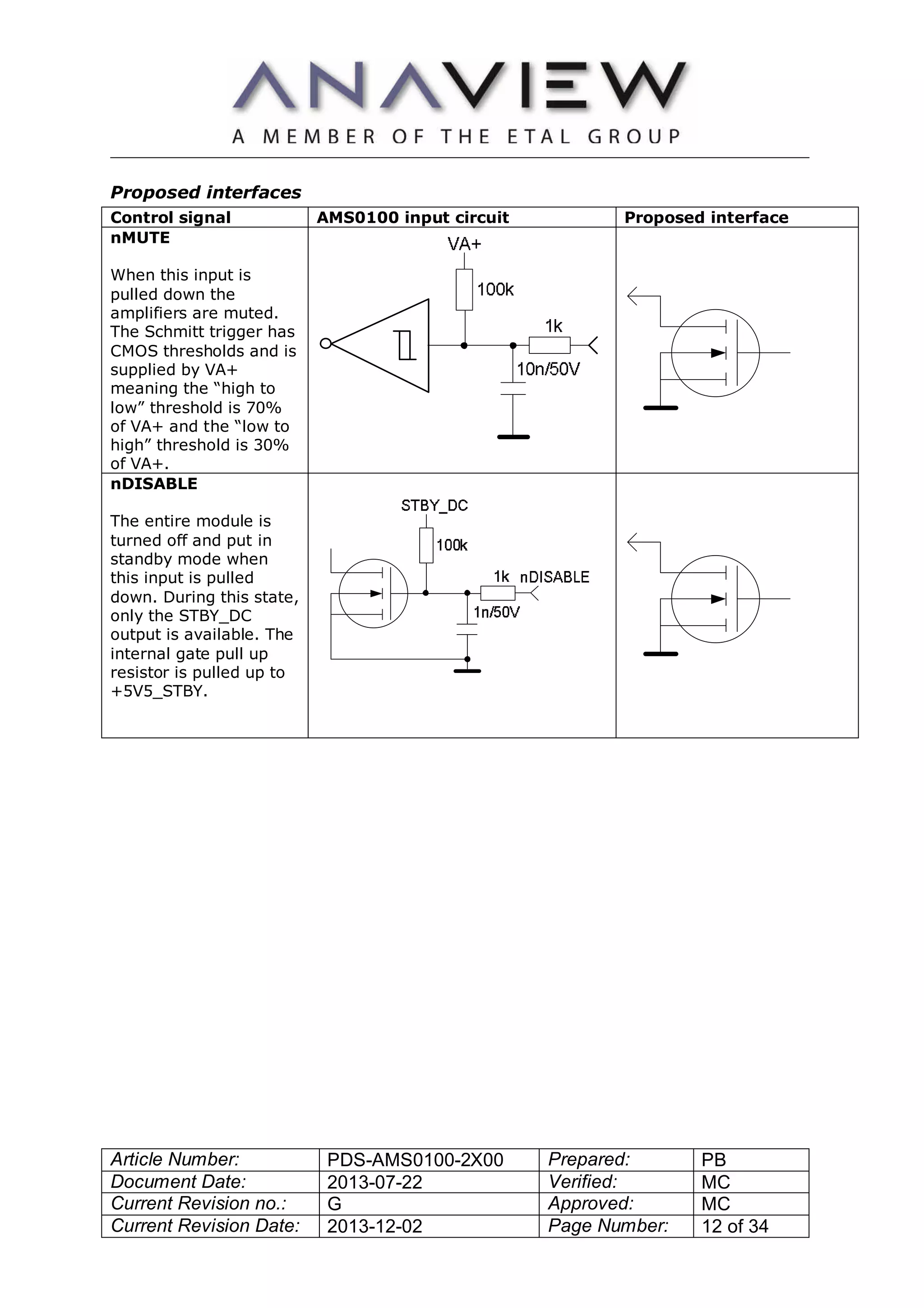

Proposed interfaces
Control signal AMS0100 input circuit Proposed interface
nMUTE
When this input is
pulled down the
amplifiers are muted.
The Schmitt trigger has
CMOS thresholds and is
supplied by VA+
meaning the “high to
low” threshold is 70%
of VA+ and the “low to
high” threshold is 30%
of VA+.
nDISABLE
The entire module is
turned off and put in
standby mode when
this input is pulled
down. During this state,
only the STBY_DC
output is available. The
internal gate pull up
resistor is pulled up to
+5V5_STBY.

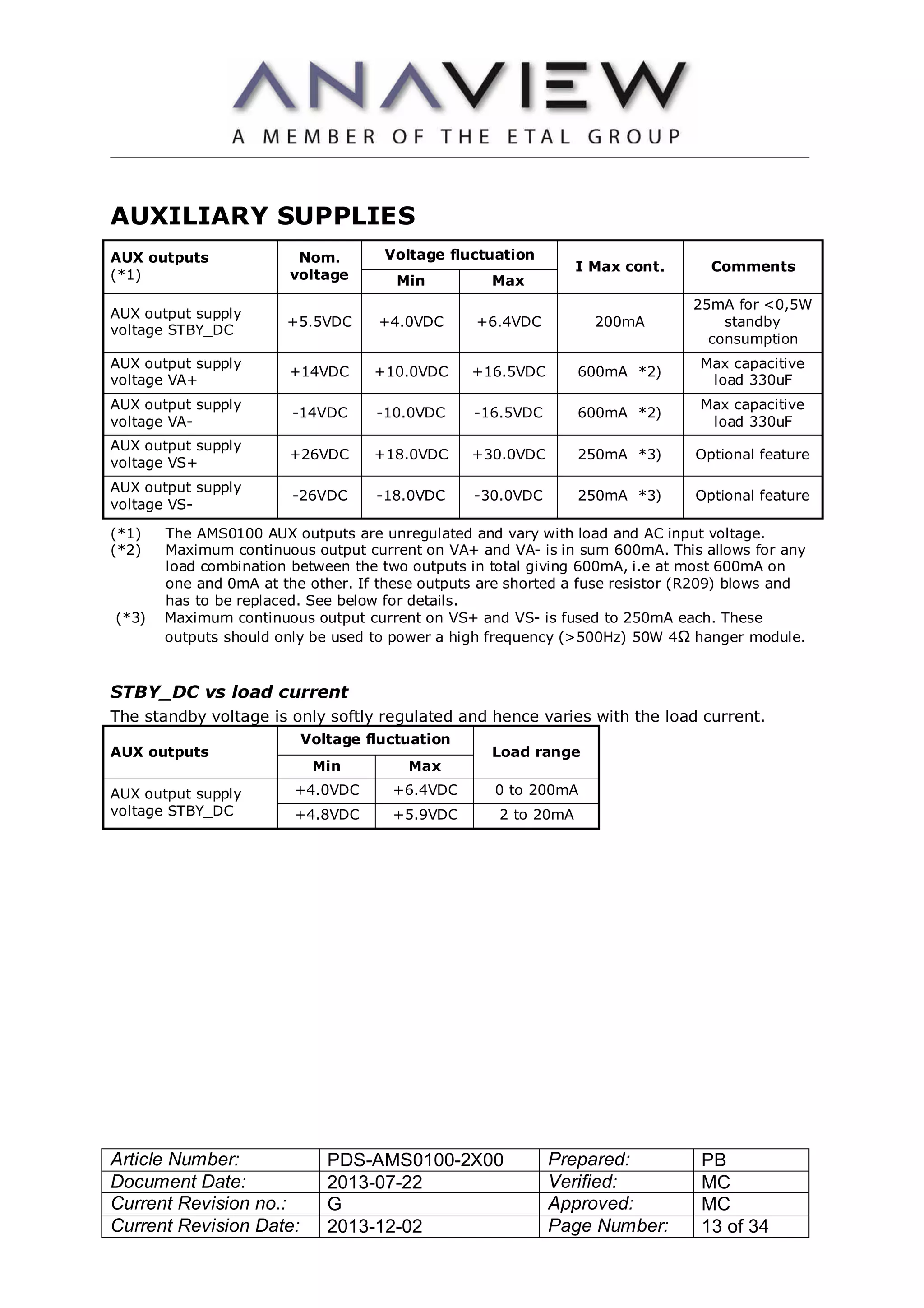

13. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 13 of 34
AUXILIARY SUPPLIES
AUX outputs
(*1)
Nom.
voltage
Voltage fluctuation
I Max cont. Comments
Min Max
AUX output supply
voltage STBY_DC
+5.5VDC +4.0VDC +6.4VDC 200mA
25mA for <0,5W
standby
consumption
AUX output supply
voltage VA+
+14VDC +10.0VDC +16.5VDC 600mA *2)
Max capacitive
load 330uF
AUX output supply
voltage VA-
-14VDC -10.0VDC -16.5VDC 600mA *2)
Max capacitive
load 330uF
AUX output supply
voltage VS+
+26VDC +18.0VDC +30.0VDC 250mA *3) Optional feature
AUX output supply
voltage VS-
-26VDC -18.0VDC -30.0VDC 250mA *3) Optional feature
(*1) The AMS0100 AUX outputs are unregulated and vary with load and AC input voltage.
(*2) Maximum continuous output current on VA+ and VA- is in sum 600mA. This allows for any
load combination between the two outputs in total giving 600mA, i.e at most 600mA on
one and 0mA at the other. If these outputs are shorted a fuse resistor (R209) blows and
has to be replaced. See below for details.
(*3) Maximum continuous output current on VS+ and VS- is fused to 250mA each. These
outputs should only be used to power a high frequency (>500Hz) 50W 4Ω hanger module.
STBY_DC vs load current
The standby voltage is only softly regulated and hence varies with the load current.
AUX outputs
Voltage fluctuation
Load range
Min Max
AUX output supply
voltage STBY_DC
+4.0VDC +6.4VDC 0 to 200mA
+4.8VDC +5.9VDC 2 to 20mA
14. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 14 of 34

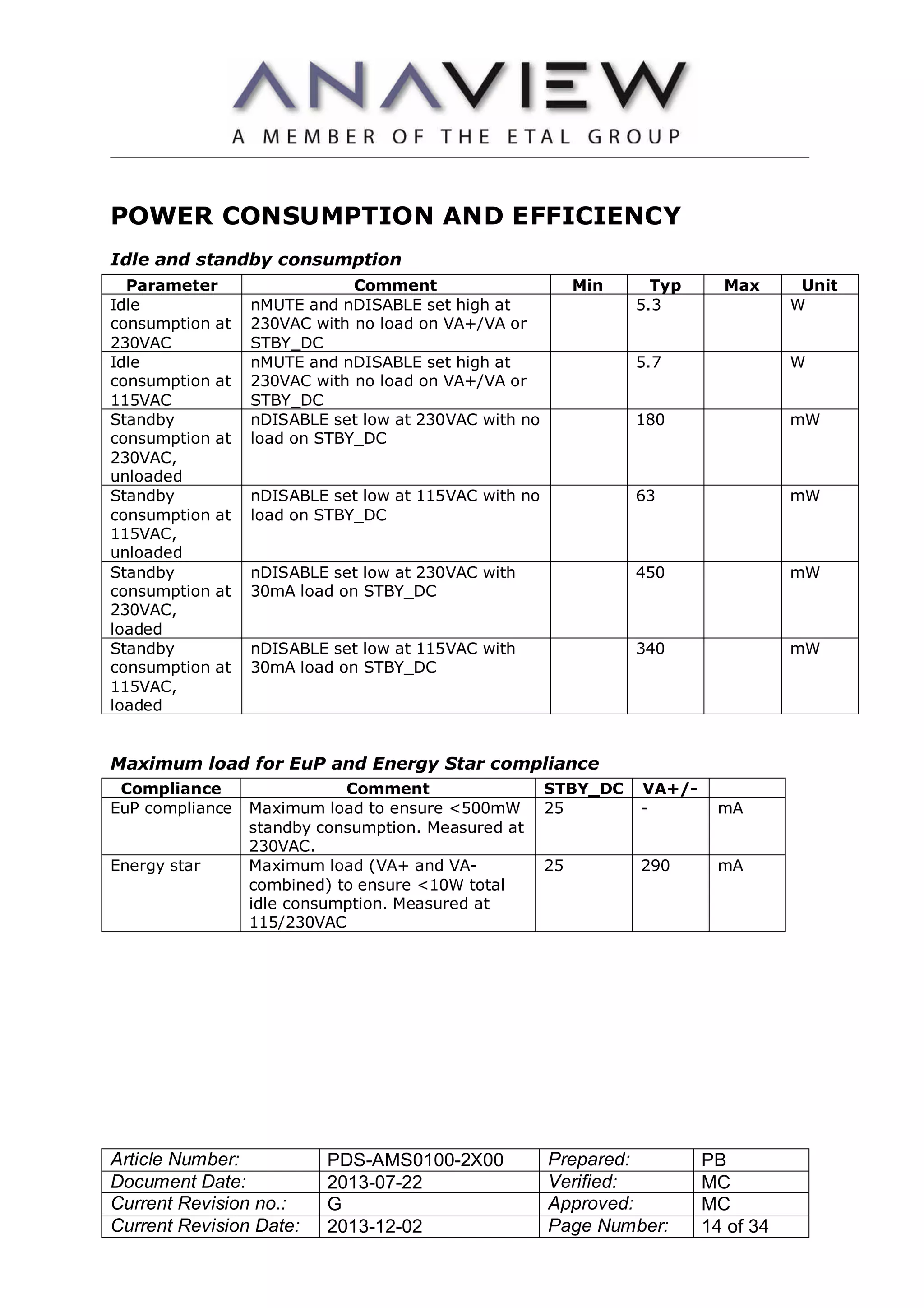

POWER CONSUMPTION AND EFFICIENCY
Idle and standby consumption
Parameter Comment Min Typ Max Unit
Idle
consumption at
230VAC
nMUTE and nDISABLE set high at
230VAC with no load on VA+/VA or
STBY_DC
5.3 W
Idle
consumption at
115VAC
nMUTE and nDISABLE set high at
230VAC with no load on VA+/VA or
STBY_DC
5.7 W
Standby
consumption at
230VAC,
unloaded
nDISABLE set low at 230VAC with no
load on STBY_DC
180 mW
Standby
consumption at
115VAC,
unloaded
nDISABLE set low at 115VAC with no
load on STBY_DC
63 mW
Standby
consumption at
230VAC,
loaded
nDISABLE set low at 230VAC with
30mA load on STBY_DC
450 mW
Standby
consumption at
115VAC,
loaded
nDISABLE set low at 115VAC with
30mA load on STBY_DC
340 mW
Maximum load for EuP and Energy Star compliance
Compliance Comment STBY_DC VA+/-
EuP compliance Maximum load to ensure <500mW
standby consumption. Measured at
230VAC.
25 - mA
Energy star Maximum load (VA+ and VA-
combined) to ensure <10W total
idle consumption. Measured at
115/230VAC
25 290 mA
15. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 15 of 34

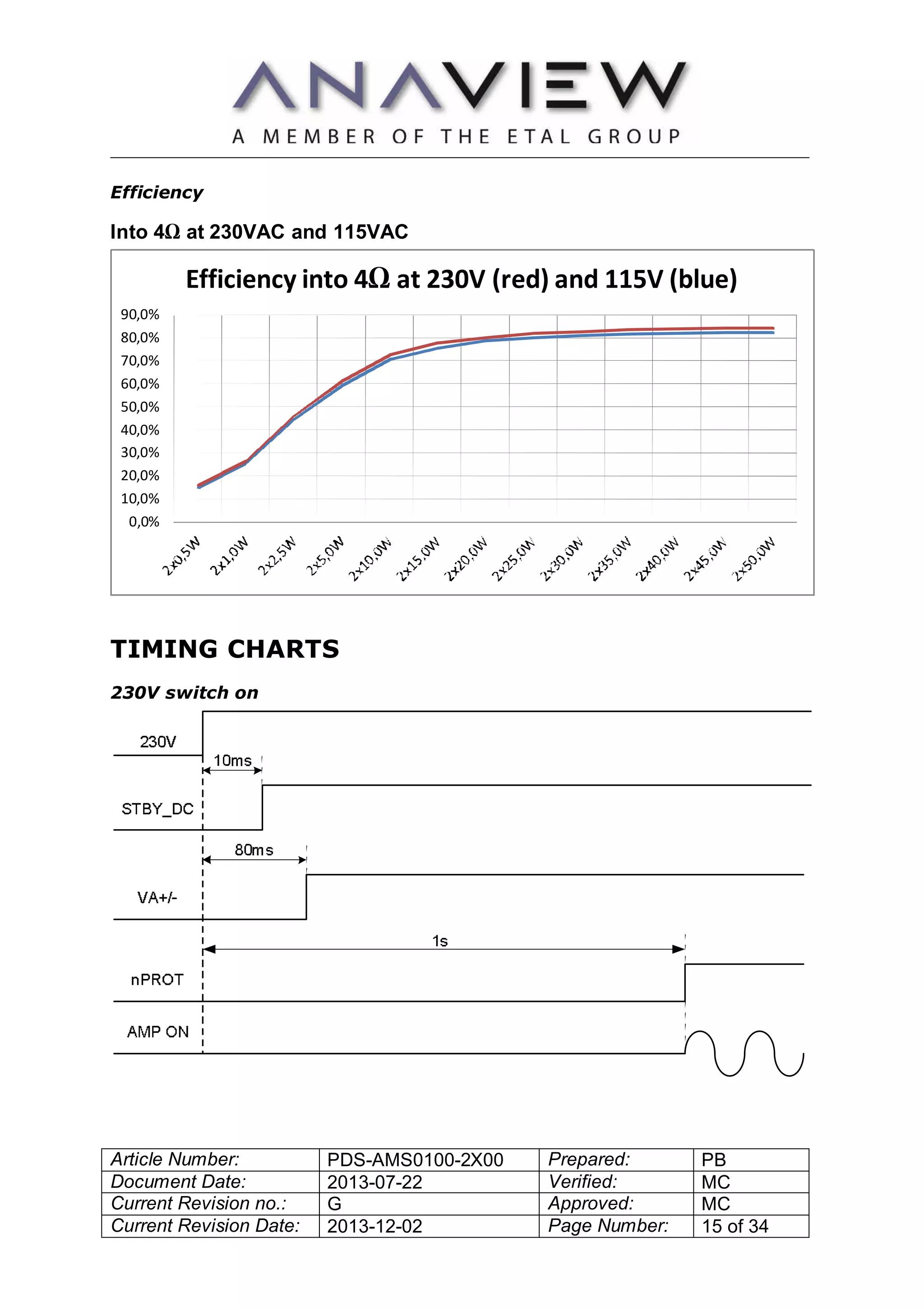

Efficiency
Into 4Ω at 230VAC and 115VAC
TIMING CHARTS
230V switch on
0,0%
10,0%
20,0%
30,0%
40,0%
50,0%
60,0%
70,0%
80,0%
90,0%
Efficiency into 4Ω at 230V (red) and 115V (blue)
16. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 16 of 34

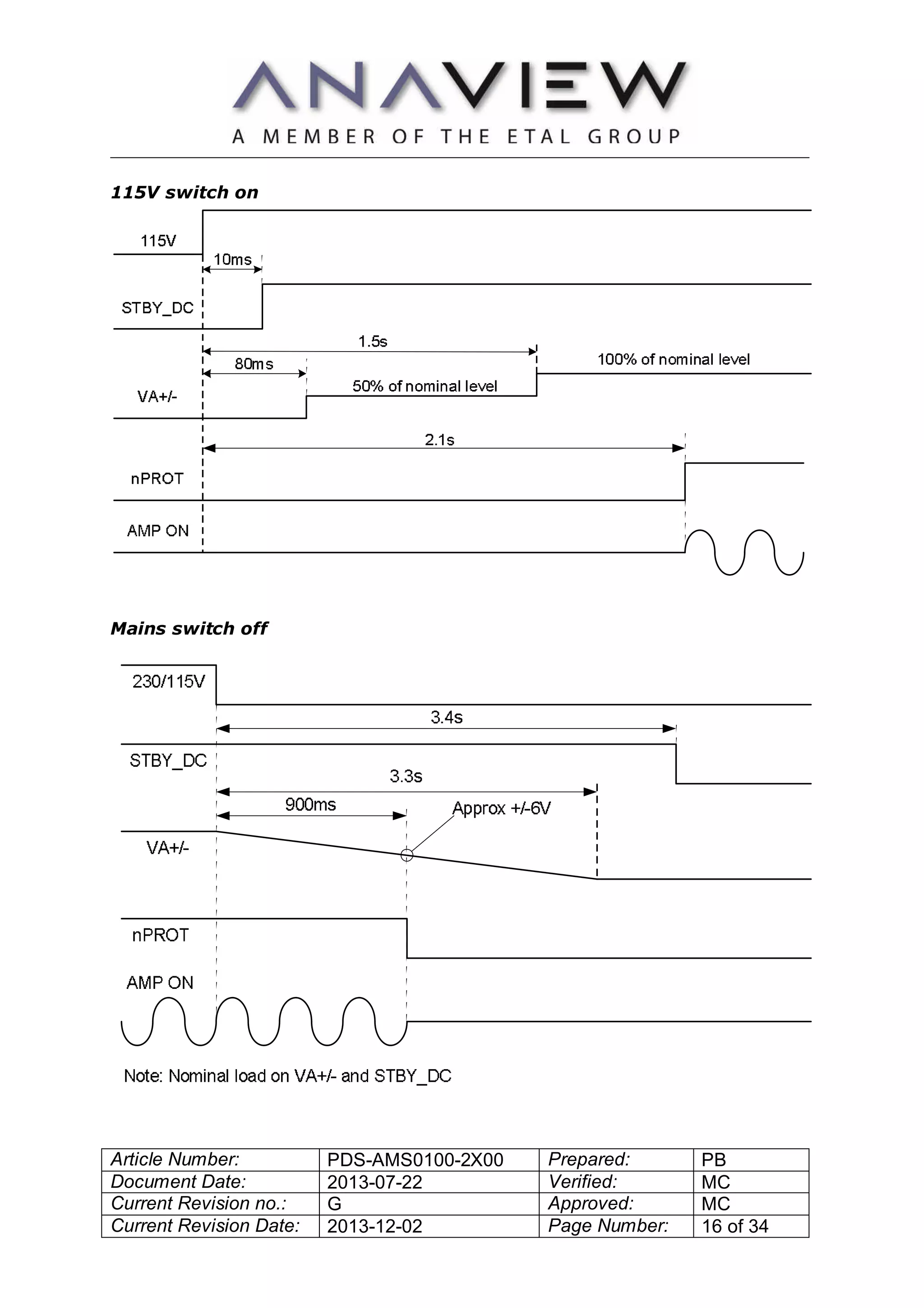

115V switch on
Mains switch off
17. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 17 of 34

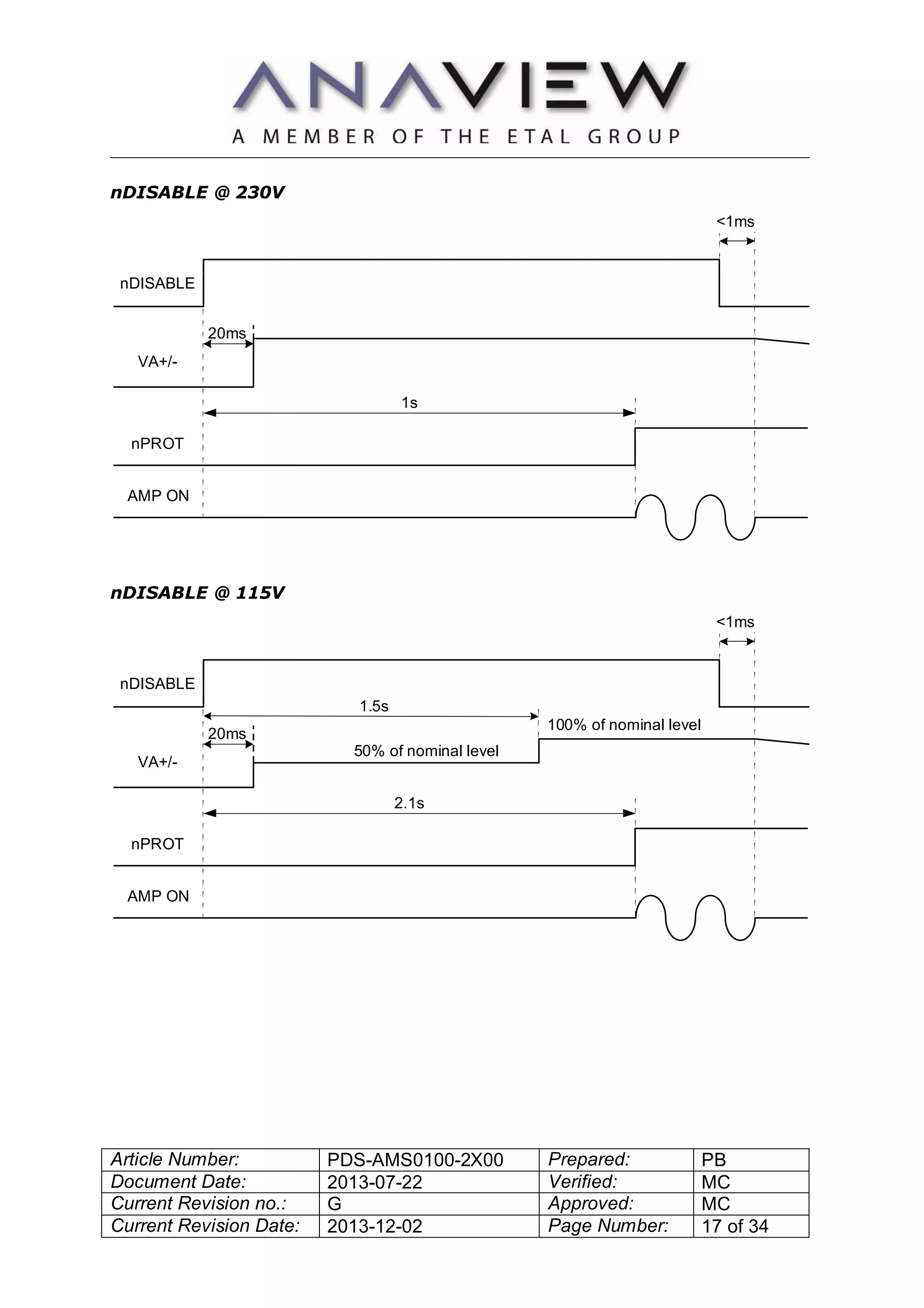

nDISABLE @ 230V
nPROT
1s
20ms
VA+/-
AMP ON
nDISABLE
<1ms
nDISABLE @ 115V
nPROT
2.1s
20ms
VA+/-
AMP ON
1.5s
50% of nominal level
100% of nominal level
nDISABLE
<1ms
18. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 18 of 34

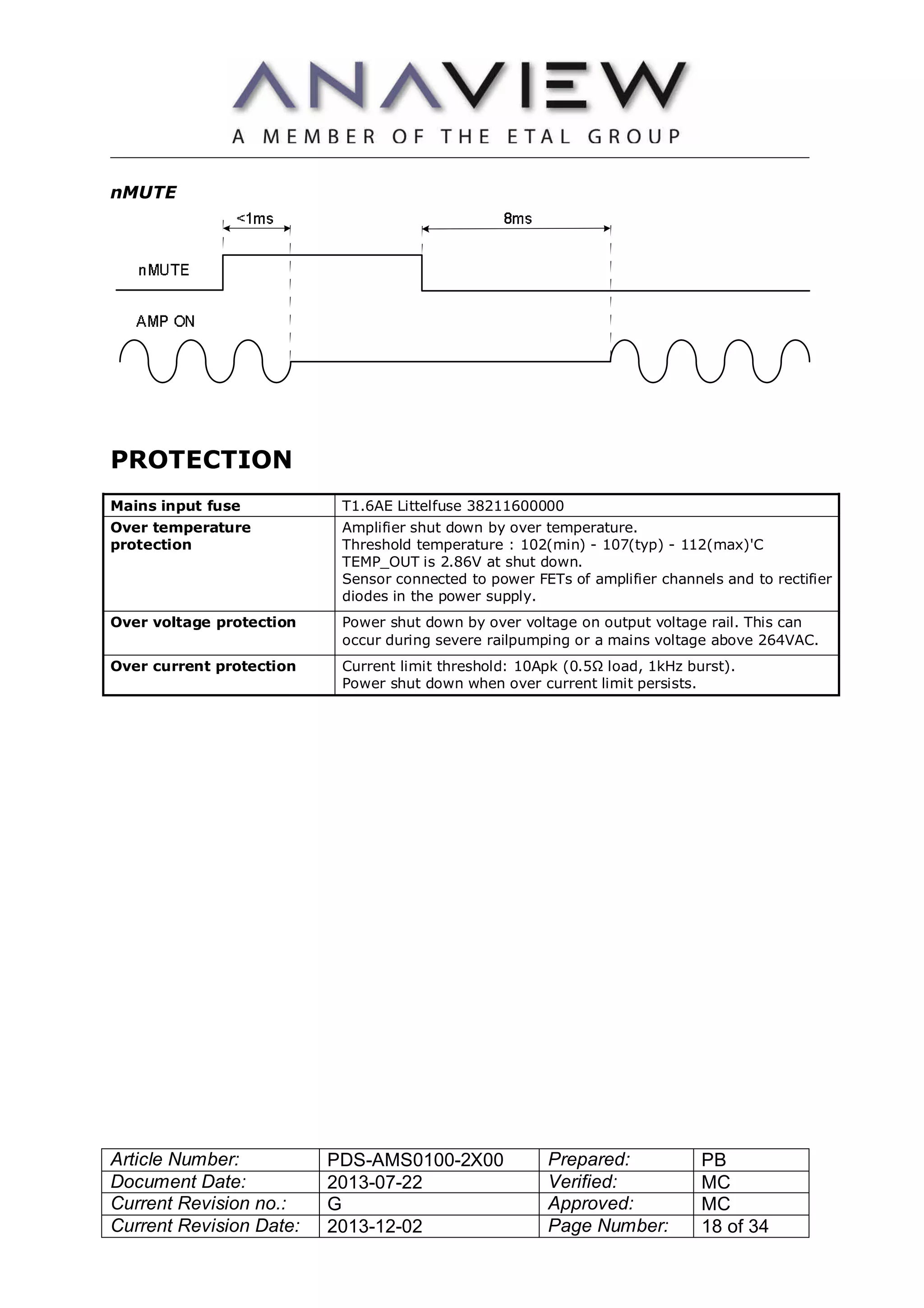

nMUTE
PROTECTION
Mains input fuse T1.6AE Littelfuse 38211600000
Over temperature
protection
Amplifier shut down by over temperature.
Threshold temperature : 102(min) - 107(typ) - 112(max)'C
TEMP_OUT is 2.86V at shut down.
Sensor connected to power FETs of amplifier channels and to rectifier
diodes in the power supply.
Over voltage protection Power shut down by over voltage on output voltage rail. This can
occur during severe railpumping or a mains voltage above 264VAC.
Over current protection Current limit threshold: 10Apk (0.5Ω load, 1kHz burst).
Power shut down when over current limit persists.
19. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 19 of 34
CONNECTIONS
Connector Connector type Mating connector
CON1 (mains) 2-pin, 0.312” (7.92mm)
locking header
JST S2P3-VH (LF) (SN)
JST VHR-3N
Crimp terminal SVH-41T-P1.1
CON2 (signal) 17-pin dual Z-row connector
JST S17B-CZHK-B-1
JST 17CZ-6H
Crimp terminal SCZH-002T-P0.5
CON3,4 (speakers) 2pin 0.156” (3.96mm) locking
header
JST S2P-VH (LF) (SN)
JST VHR-2N
Crimp terminal SVH-41T-P1.1
CON3001 (hanger) 3 pin 0.156” (3.96mm) locking
header
JST B3P-VH (LF) (SN)
JST VHR-3N
Crimp terminal SVH-41T-P1.1
Mains voltage connector (CON1)
1 AC_N Neutral
2 AC_L Live
Signal connector pinning (CON2)
1 IN_R- Right audio channel negative input.
2 IN_R+ Right audio channel positive input.
3 GNDs Secondary side ground
4 IN_L- Left audio channel negative input.
5 IN_L+ Left audio channel positive input.
6 GNDs Secondary side ground
7 TEMP_OUT Linear temp output signal.
8 nOTP Over temp shutdown output signal.
9 nPROT PSU shutdown output signal.
10 nCLIP_R Clip detect output signal.
11 nCLIP_L Clip detect output signal.
12 nMUTE Mute input signal.
13 nDISABLE Standby mode activation signal.
14 VA- AUX output voltage VA-
15 GNDs Secondary side ground
16 VA+ AUX output voltage VA+
17 STBY_DC AUX output voltage STBY_DC
Left speaker connector (CON3)
1 OUT_L+ Left audio channel positive output.
2 OUT_L- Left audio channel negative output.
Right speaker connector (CON4)
1 OUT_R+ Right audio channel positive output.
2 OUT_R- Right audio channel negative output.
20. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 20 of 34
Hanger connector (CON3001)
1 VS- AUX output voltage VS+
2 GNDs Secondary side ground.
3 VS+ AUX output voltage VS-
MECHANICAL OUTLINE
Size (l x w x h) 130x75x30mm, see Figure 1. Board outline, dimensions below.
Max component height/lead length on PCB bottom side: 4.0 mm
30mm height measured from bottom side of PCB to highest
component on top side. For total height of unit add the 4mm max
component height/lead length on PCB bottom side, i.e. 34mm.
Weight 170-180g depending on model
Mounting hole dia. X1, X2 (non-plated): 3.5mm
X3, X4, X5 (plated): 3.5mm
IP figures, encapsulation
IP XY (X=Solids, Y=Liquids)
Open frame
Coloring, design and
branding
AMS0100-2x00, blue PCB
Figure 1. Board outline, dimensions and mounting holes.
21. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 21 of 34

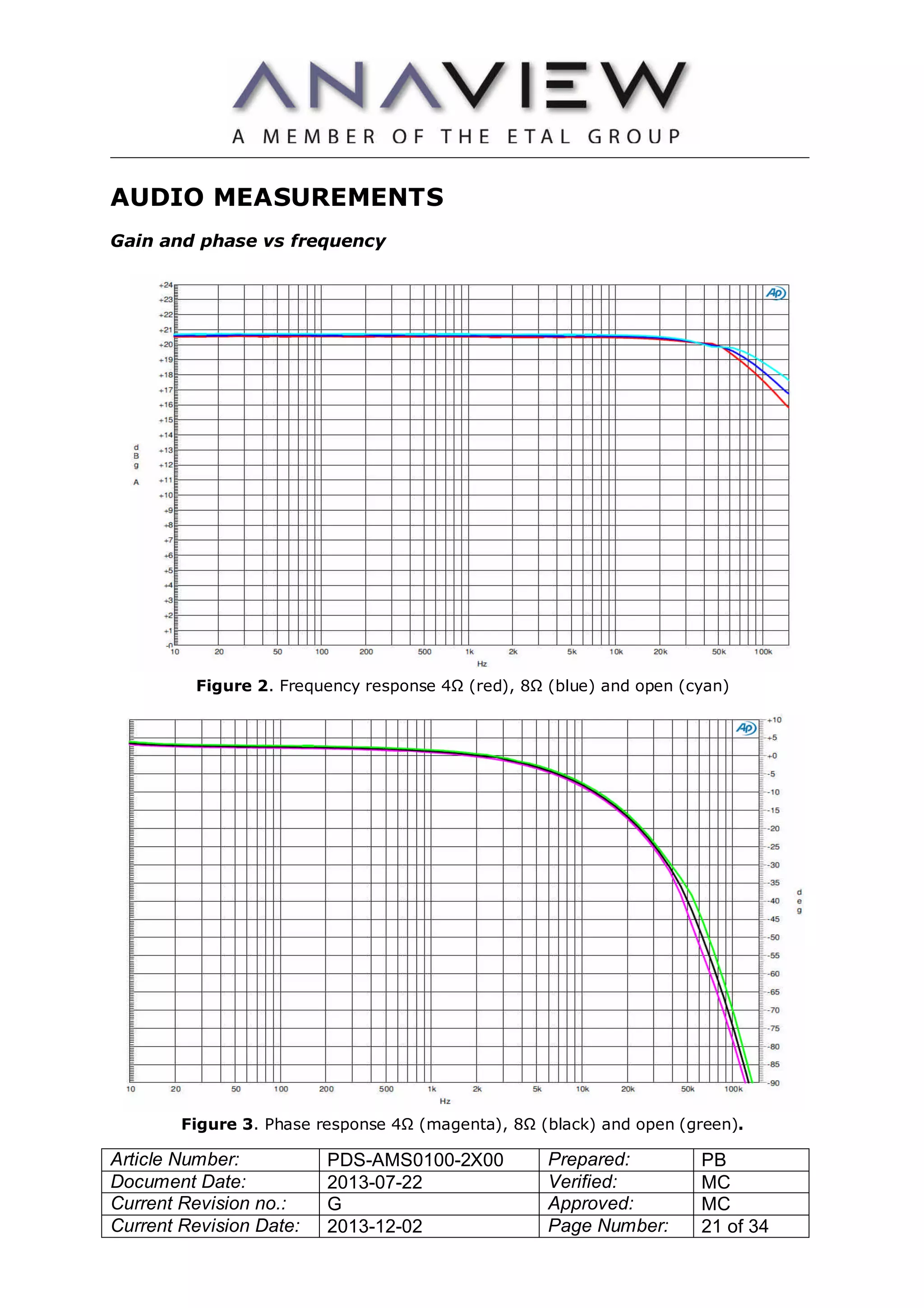

AUDIO MEASUREMENTS
Gain and phase vs frequency
Figure 2. Frequency response 4Ω (red), 8Ω (blue) and open (cyan)
Figure 3. Phase response 4Ω (magenta), 8Ω (black) and open (green).
22. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 22 of 34

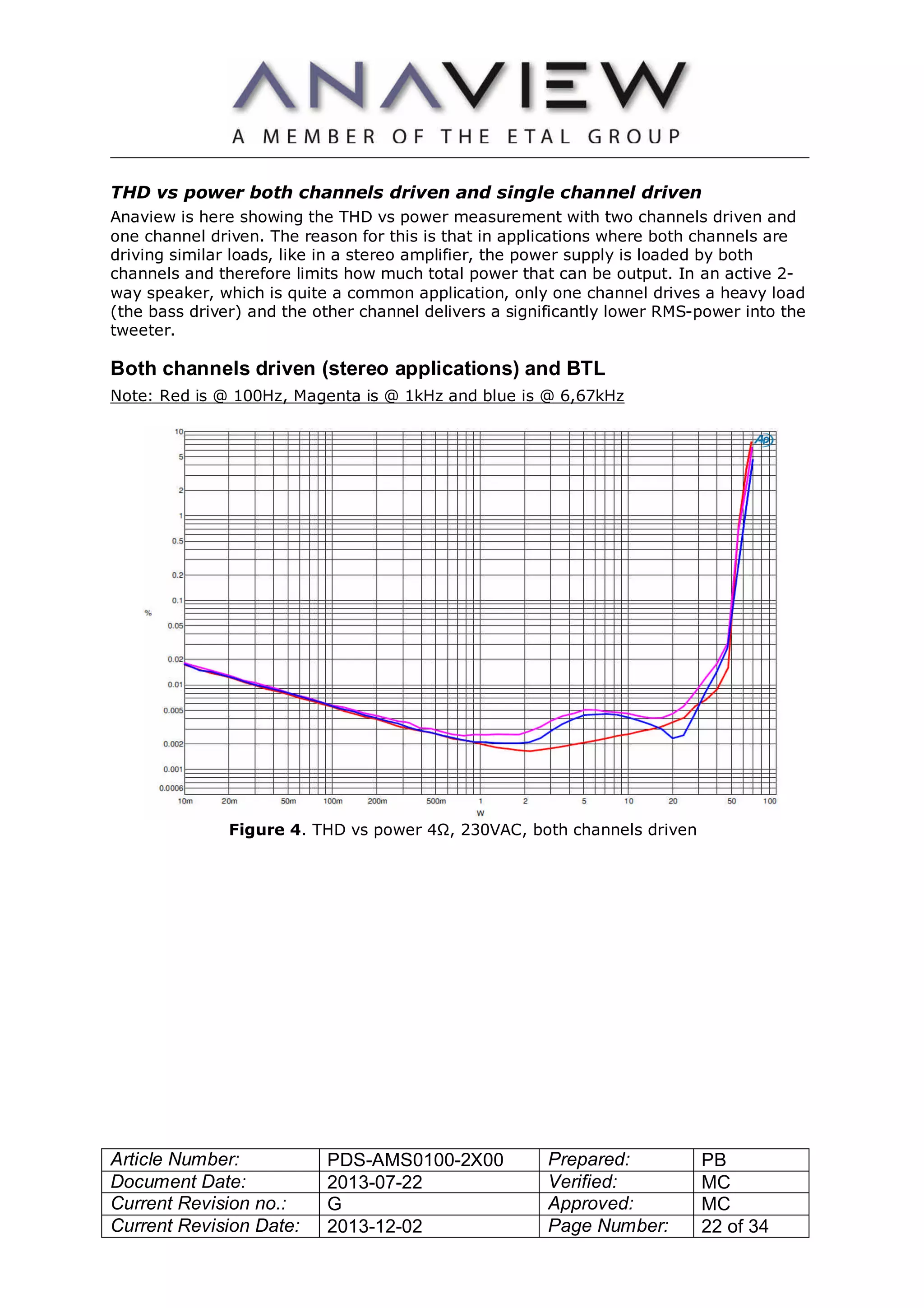

THD vs power both channels driven and single channel driven
Anaview is here showing the THD vs power measurement with two channels driven and
one channel driven. The reason for this is that in applications where both channels are
driving similar loads, like in a stereo amplifier, the power supply is loaded by both
channels and therefore limits how much total power that can be output. In an active 2-
way speaker, which is quite a common application, only one channel drives a heavy load
(the bass driver) and the other channel delivers a significantly lower RMS-power into the
tweeter.
Both channels driven (stereo applications) and BTL
Note: Red is @ 100Hz, Magenta is @ 1kHz and blue is @ 6,67kHz
Figure 4. THD vs power 4Ω, 230VAC, both channels driven
23. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 23 of 34

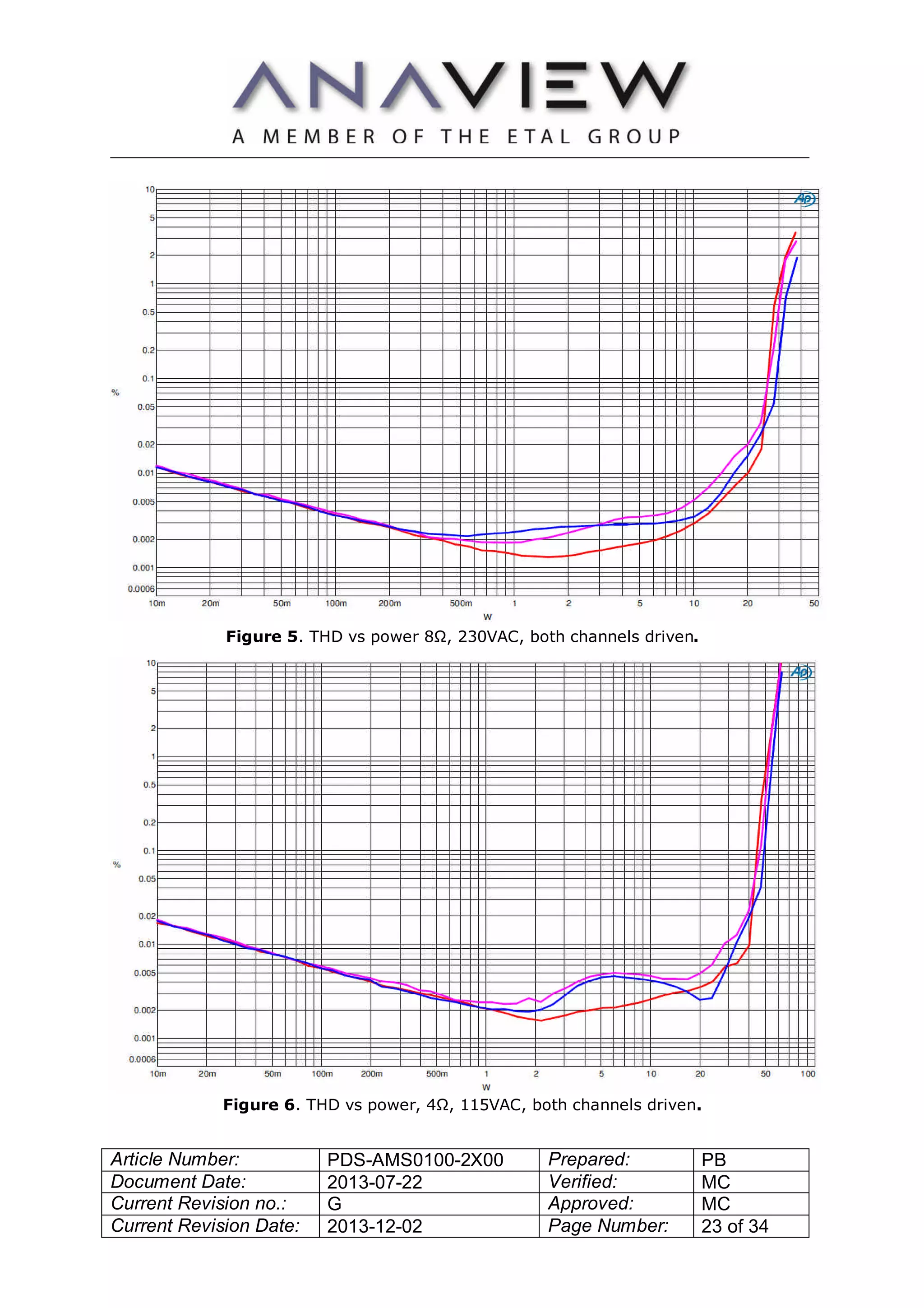

Figure 5. THD vs power 8Ω, 230VAC, both channels driven.
Figure 6. THD vs power, 4Ω, 115VAC, both channels driven.
24. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 24 of 34

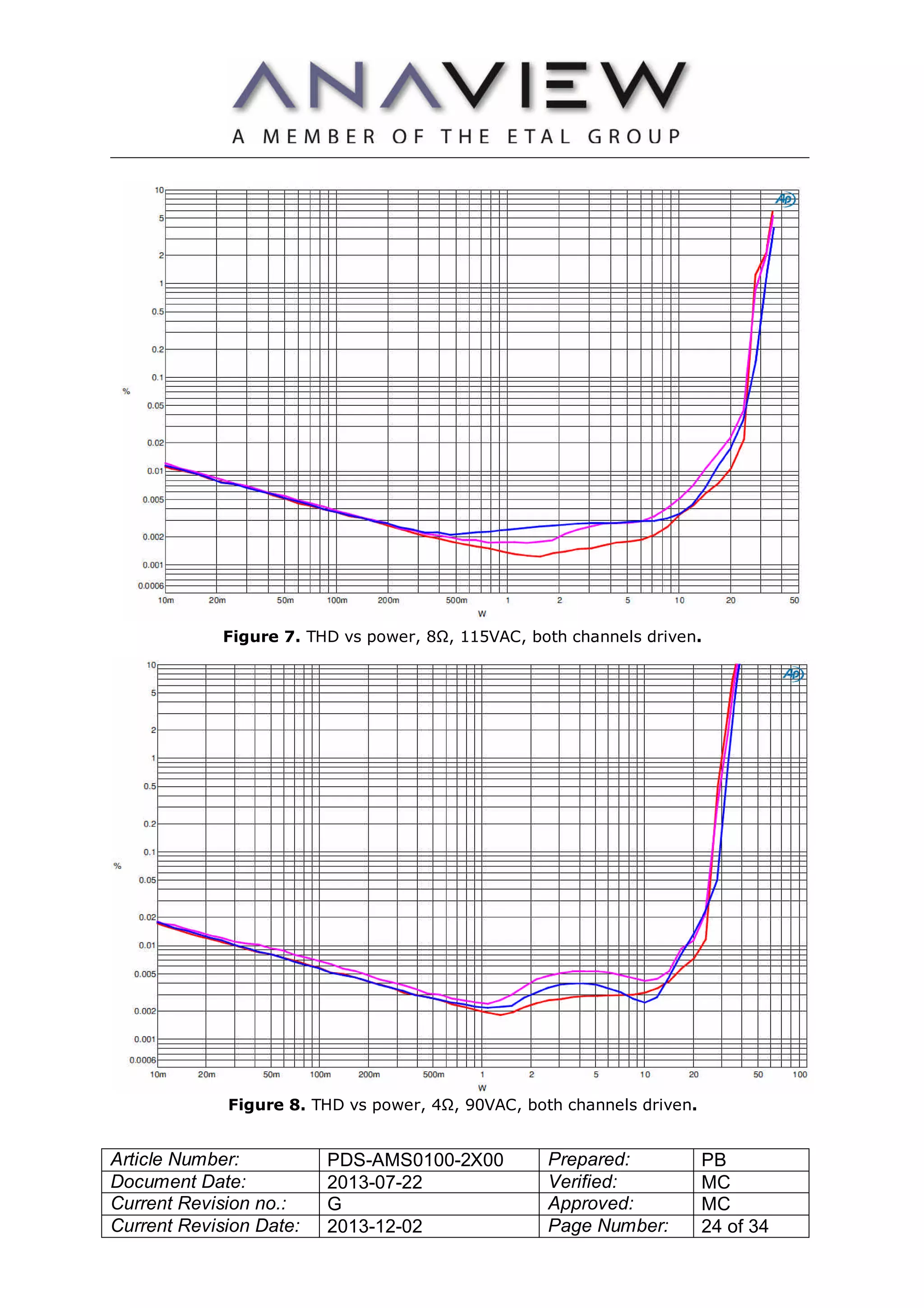

Figure 7. THD vs power, 8Ω, 115VAC, both channels driven.
Figure 8. THD vs power, 4Ω, 90VAC, both channels driven.
25. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 25 of 34

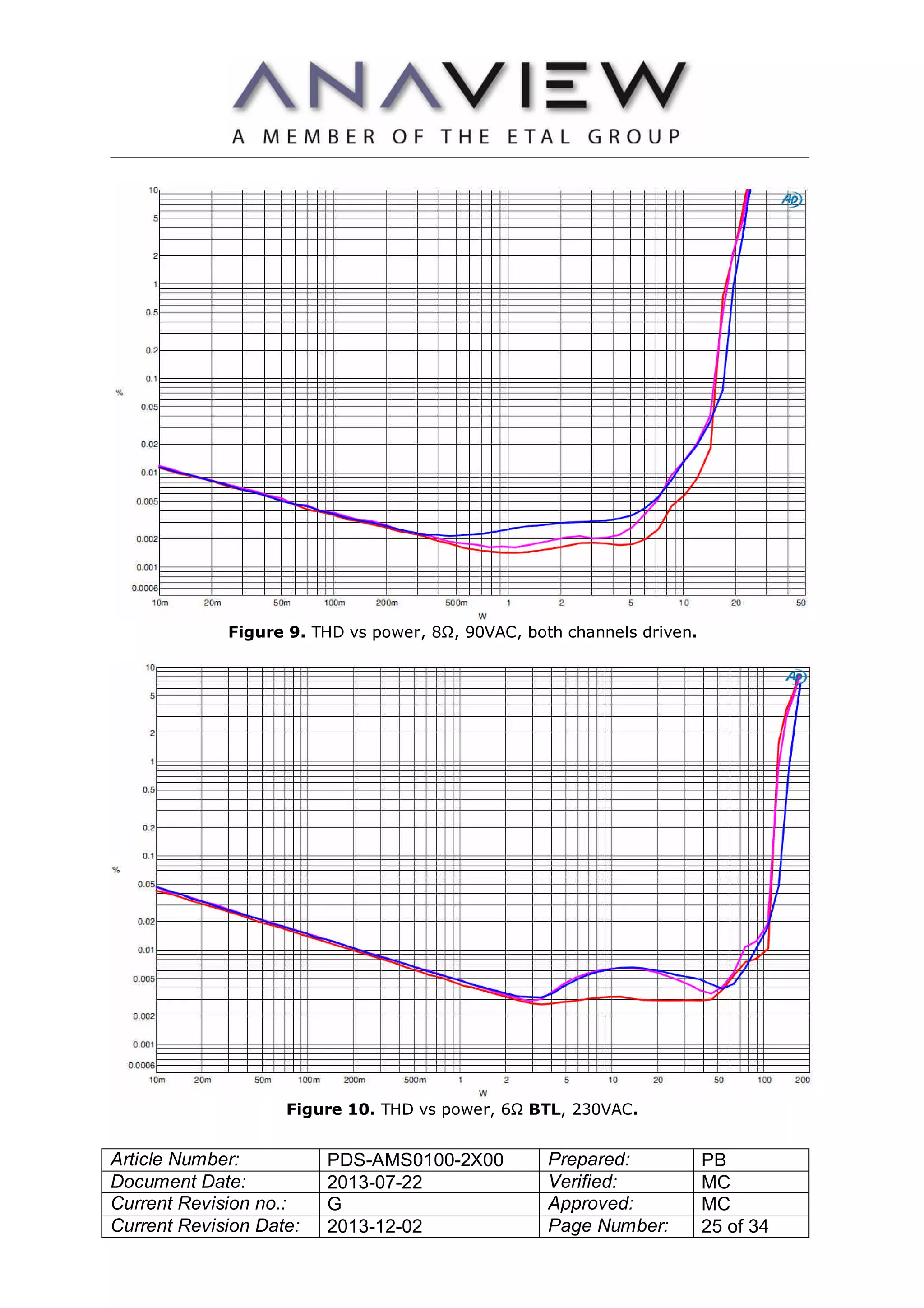

Figure 9. THD vs power, 8Ω, 90VAC, both channels driven.
Figure 10. THD vs power, 6Ω BTL, 230VAC.
26. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 26 of 34

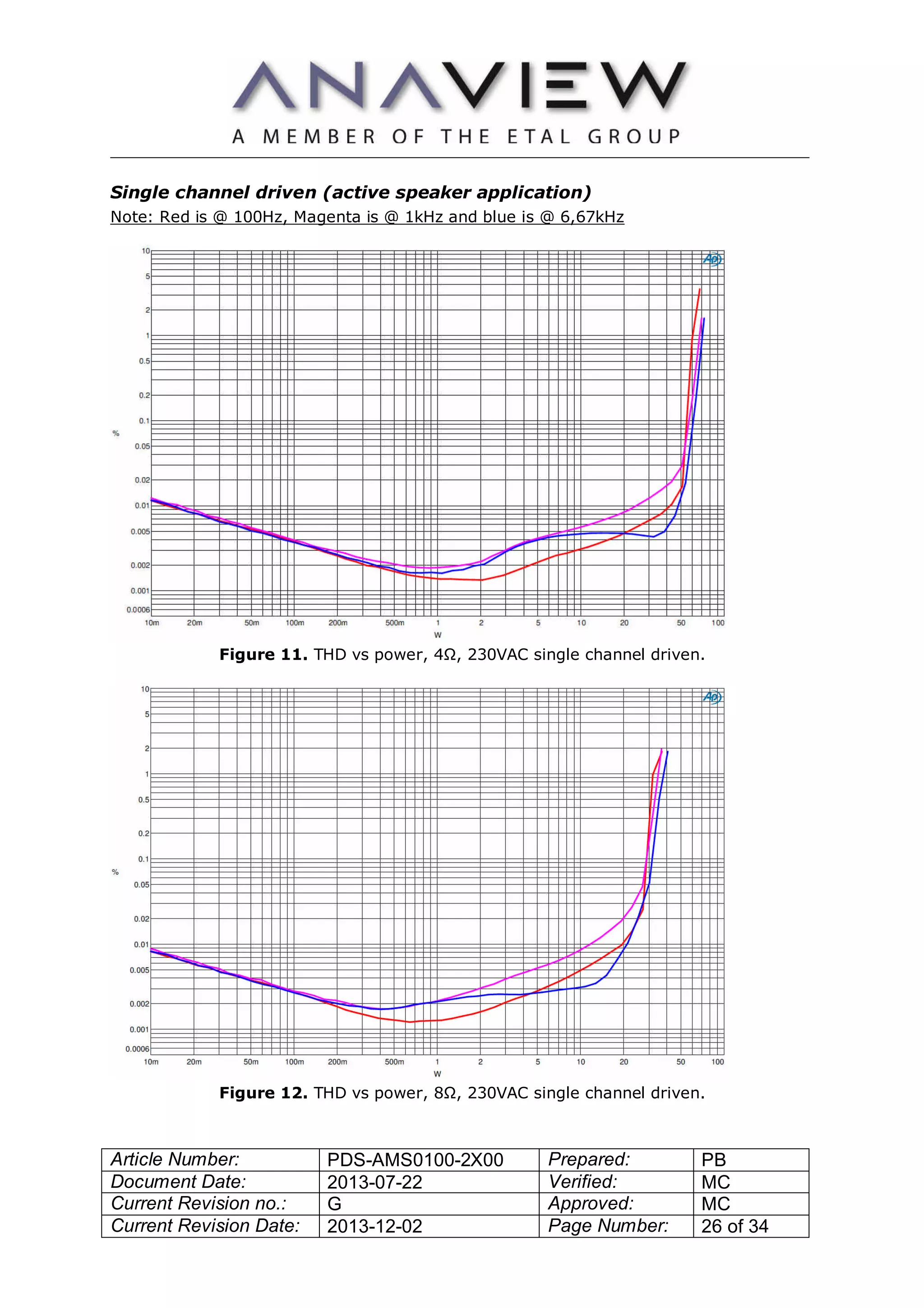

Single channel driven (active speaker application)
Note: Red is @ 100Hz, Magenta is @ 1kHz and blue is @ 6,67kHz
Figure 11. THD vs power, 4Ω, 230VAC single channel driven.
Figure 12. THD vs power, 8Ω, 230VAC single channel driven.
27. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 27 of 34

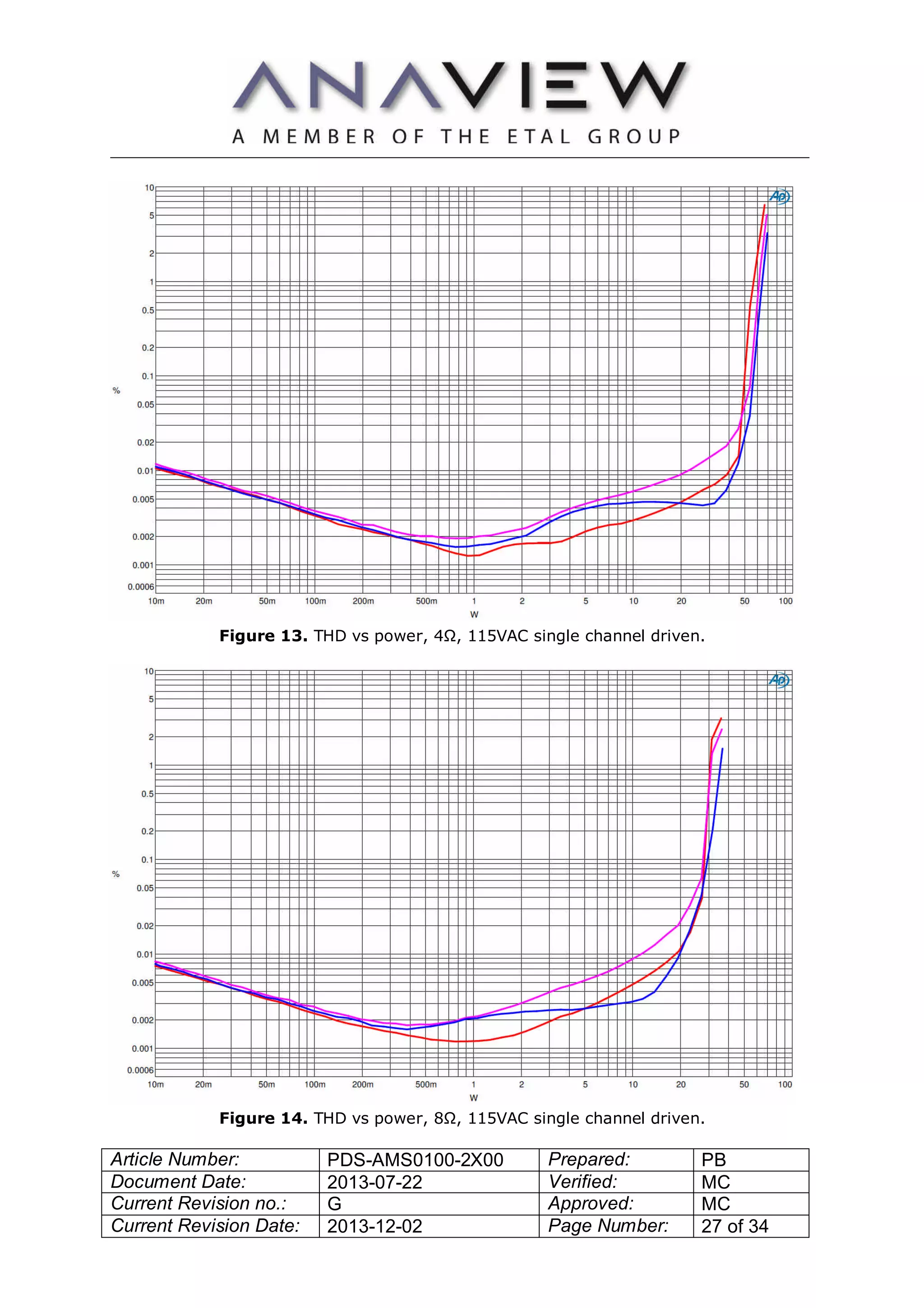

Figure 13. THD vs power, 4Ω, 115VAC single channel driven.
Figure 14. THD vs power, 8Ω, 115VAC single channel driven.
28. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 28 of 34
Figure 15. THD vs power, 4Ω, 90VAC single channel driven.
Figure 16. THD vs power, 8Ω, 90VAC single channel driven.
29. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 29 of 34

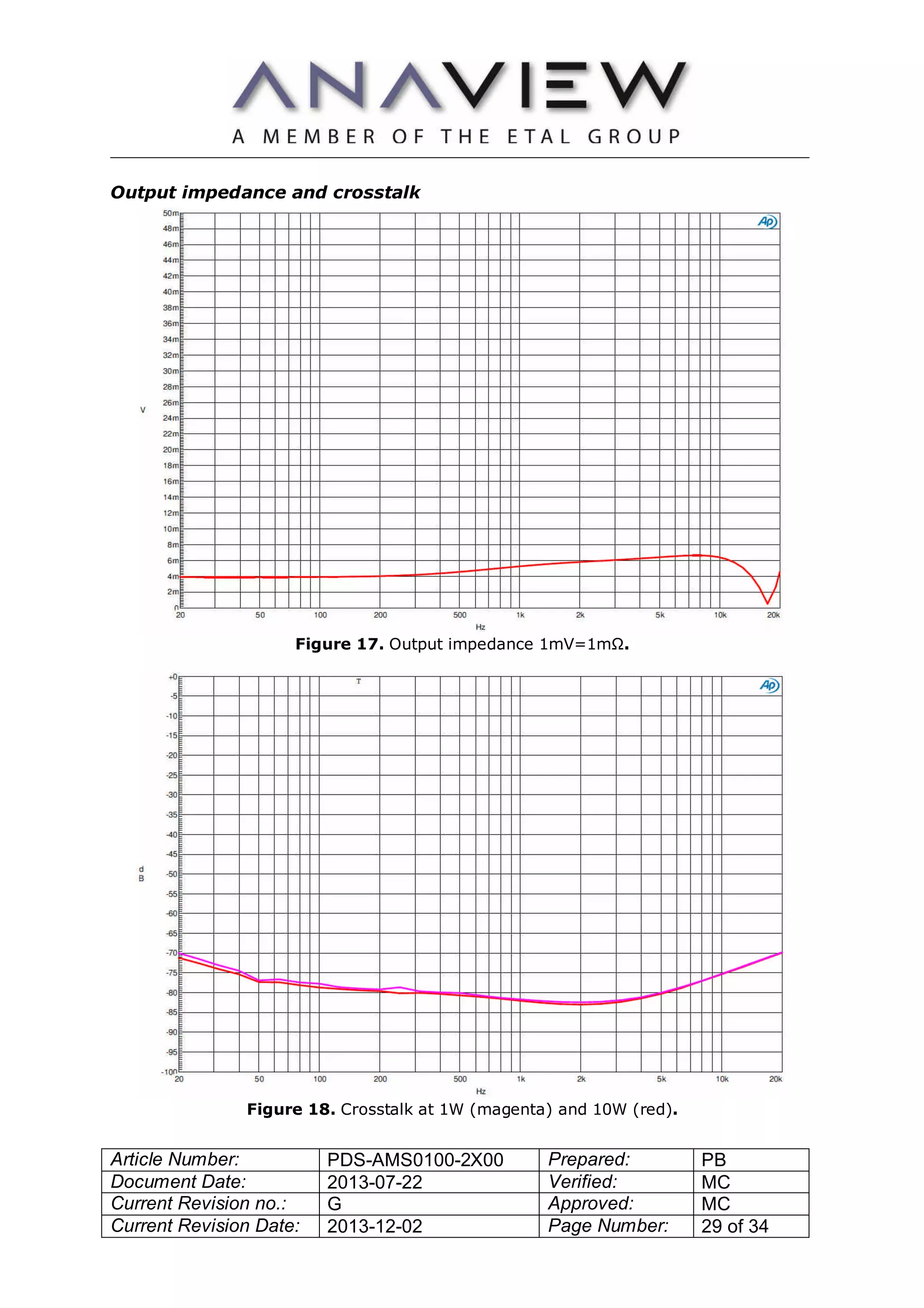

Output impedance and crosstalk
Figure 17. Output impedance 1mV=1mΩ.
Figure 18. Crosstalk at 1W (magenta) and 10W (red).
30. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 30 of 34

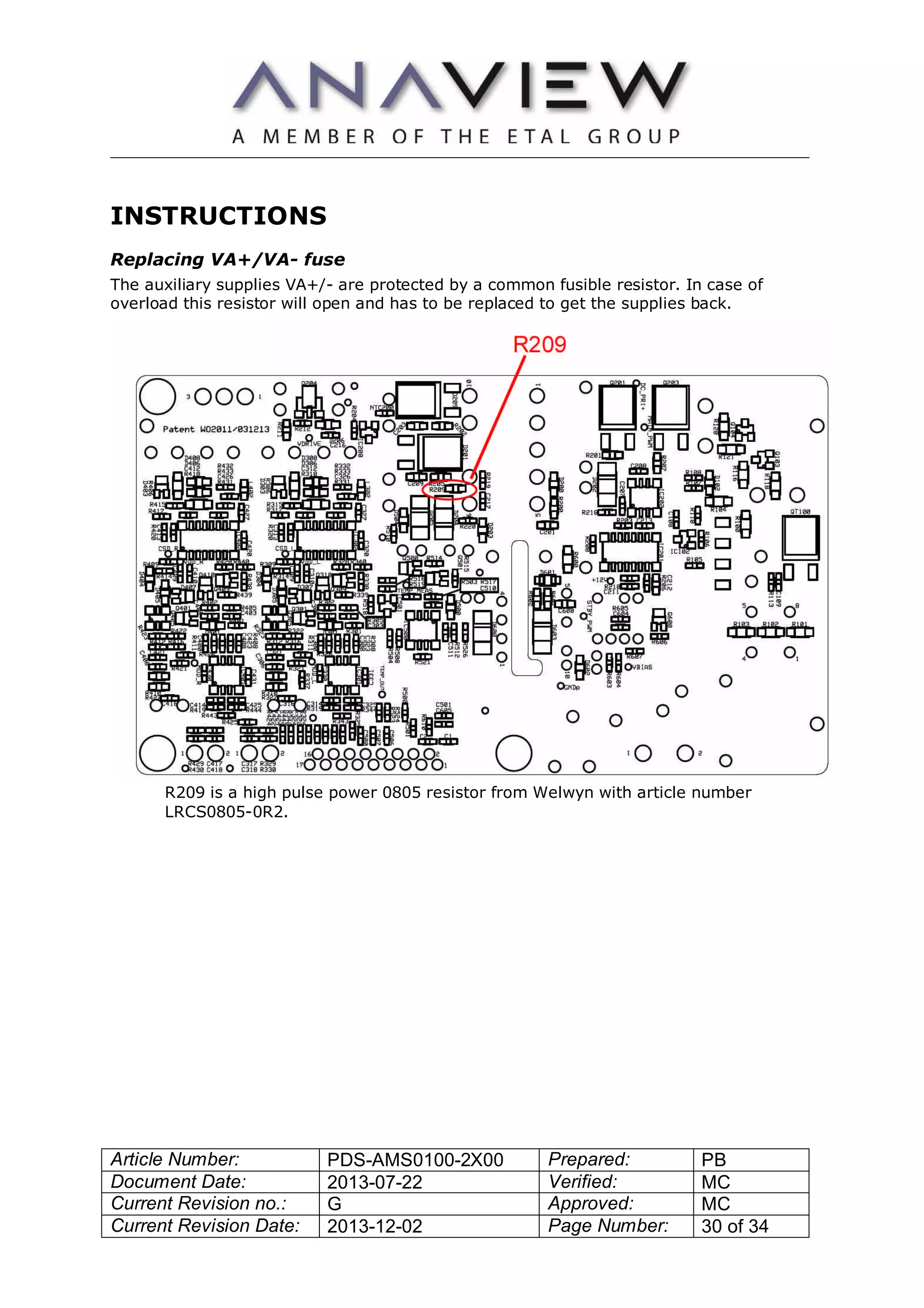

INSTRUCTIONS
Replacing VA+/VA- fuse
The auxiliary supplies VA+/- are protected by a common fusible resistor. In case of
overload this resistor will open and has to be replaced to get the supplies back.
R209 is a high pulse power 0805 resistor from Welwyn with article number
LRCS0805-0R2.
31. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 31 of 34

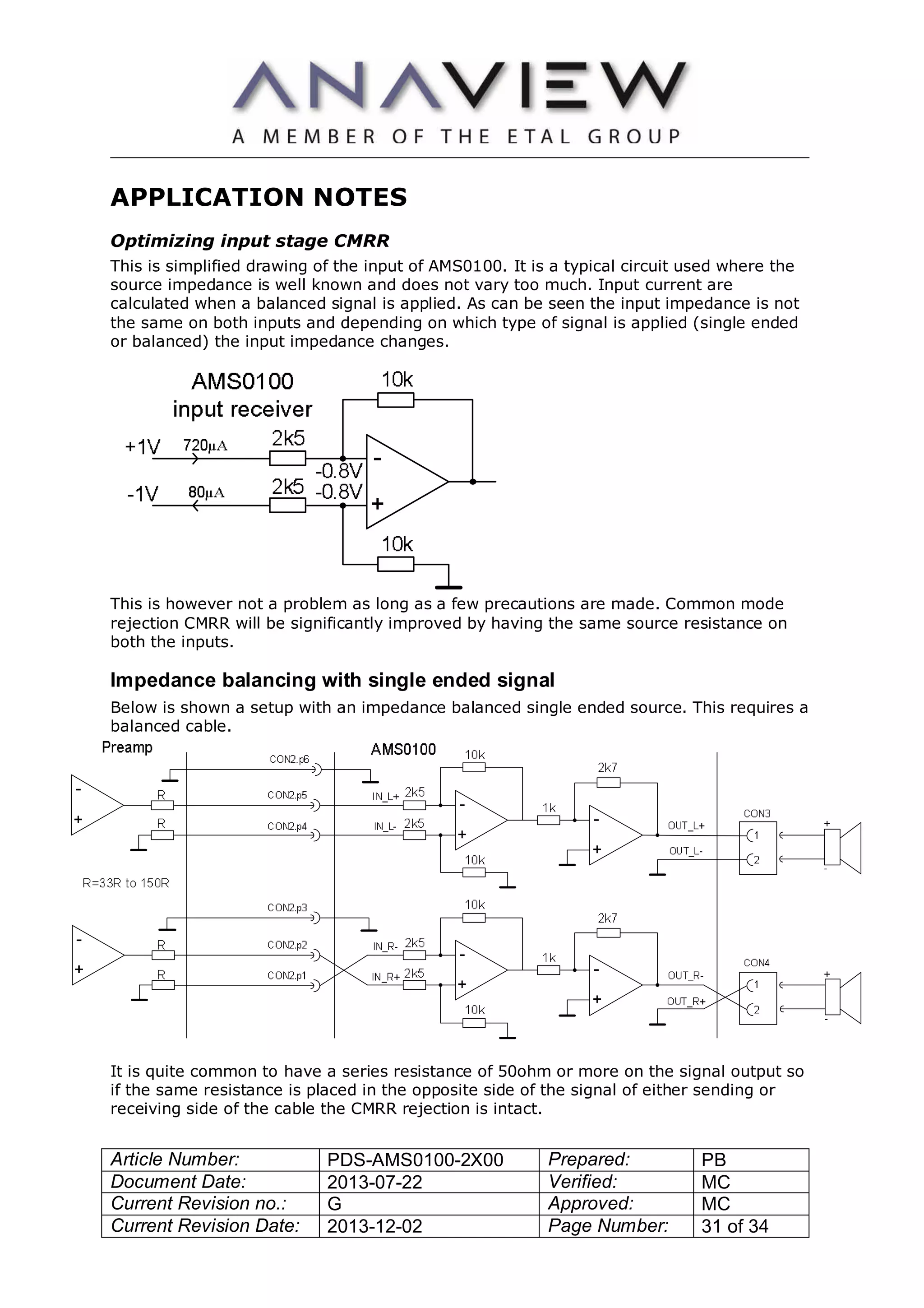

APPLICATION NOTES
Optimizing input stage CMRR
This is simplified drawing of the input of AMS0100. It is a typical circuit used where the
source impedance is well known and does not vary too much. Input current are
calculated when a balanced signal is applied. As can be seen the input impedance is not
the same on both inputs and depending on which type of signal is applied (single ended
or balanced) the input impedance changes.
This is however not a problem as long as a few precautions are made. Common mode
rejection CMRR will be significantly improved by having the same source resistance on
both the inputs.
Impedance balancing with single ended signal
Below is shown a setup with an impedance balanced single ended source. This requires a
balanced cable.
It is quite common to have a series resistance of 50ohm or more on the signal output so
if the same resistance is placed in the opposite side of the signal of either sending or
receiving side of the cable the CMRR rejection is intact.
32. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 32 of 34
Balanced input signal
If a balanced signal source is used the following setup applies.
If long cables are used the cable impedance itself can contribute a lot to the series
impedance and since that impedance is not very well defined (symmetrically) it can be an
advantage to increase both the diff mode and common mode input impedance. In such a
case an additional circuit as below can be added before the AMS module.
33. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 33 of 34

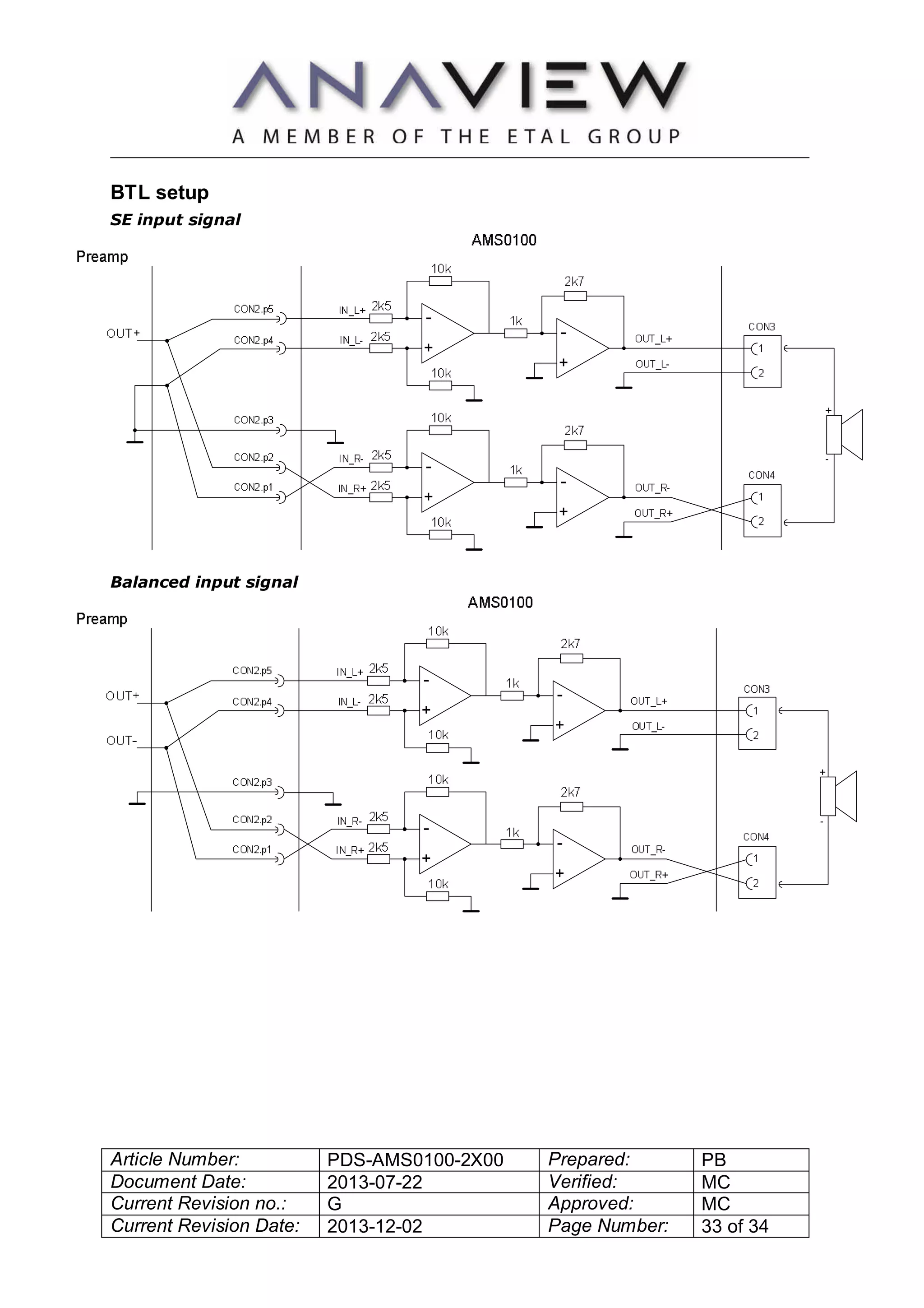

BTL setup
SE input signal
Balanced input signal
34. Article Number: PDS-AMS0100-2X00 Prepared: PB
Document Date: 2013-07-22 Verified: MC
Current Revision no.: G Approved: MC
Current Revision Date: 2013-12-02 Page Number: 34 of 34

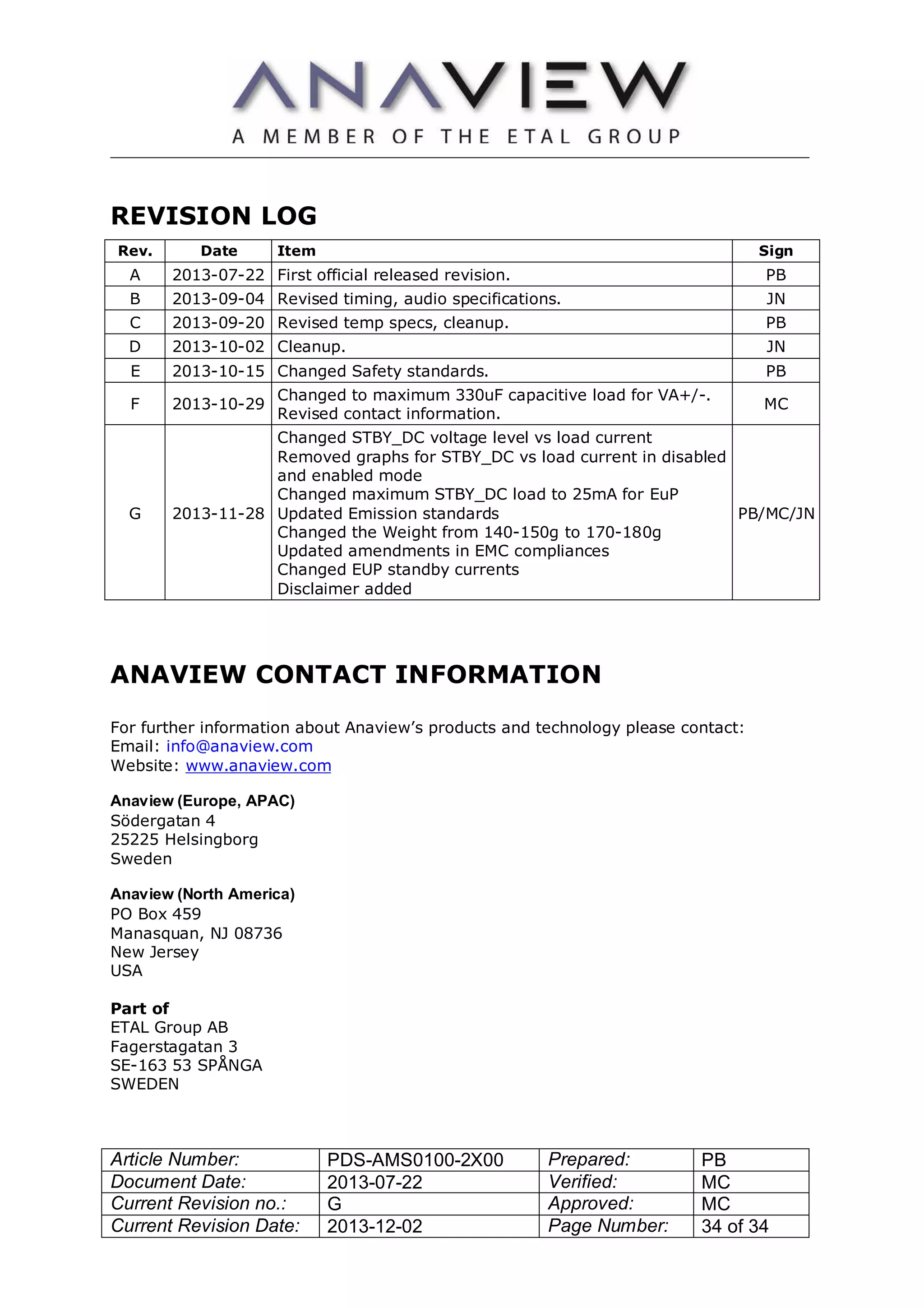

REVISION LOG
Rev. Date Item Sign
A 2013-07-22 First official released revision. PB
B 2013-09-04 Revised timing, audio specifications. JN
C 2013-09-20 Revised temp specs, cleanup. PB
D 2013-10-02 Cleanup. JN
E 2013-10-15 Changed Safety standards. PB
F 2013-10-29
Changed to maximum 330uF capacitive load for VA+/-.
Revised contact information.
MC
G 2013-11-28
Changed STBY_DC voltage level vs load current
Removed graphs for STBY_DC vs load current in disabled
and enabled mode
Changed maximum STBY_DC load to 25mA for EuP
Updated Emission standards
Changed the Weight from 140-150g to 170-180g
Updated amendments in EMC compliances
Changed EUP standby currents
Disclaimer added
PB/MC/JN
