The document discusses a data API with graph-level access control for managing queries and updates. It summarizes existing approaches that allow predefined parameterized queries subject to access controls and rewriting. It then outlines the British Museum's approach, which uses a RESTful API to manage queries and updates as resources with parameters, scheduling, and testing. Finally, it describes the ResearchSpace platform for enabling researchers to make claims on GLAM data while preserving canonical data across institutions.

1. A Data API
with Security and
Graph-level Access Control
Dr. Barry Norton,
Development Manager, ResearchSpace*
The British Museum
* supported by the Andrew W. Mellon Foundation
ESWC,
Crete
May 2014

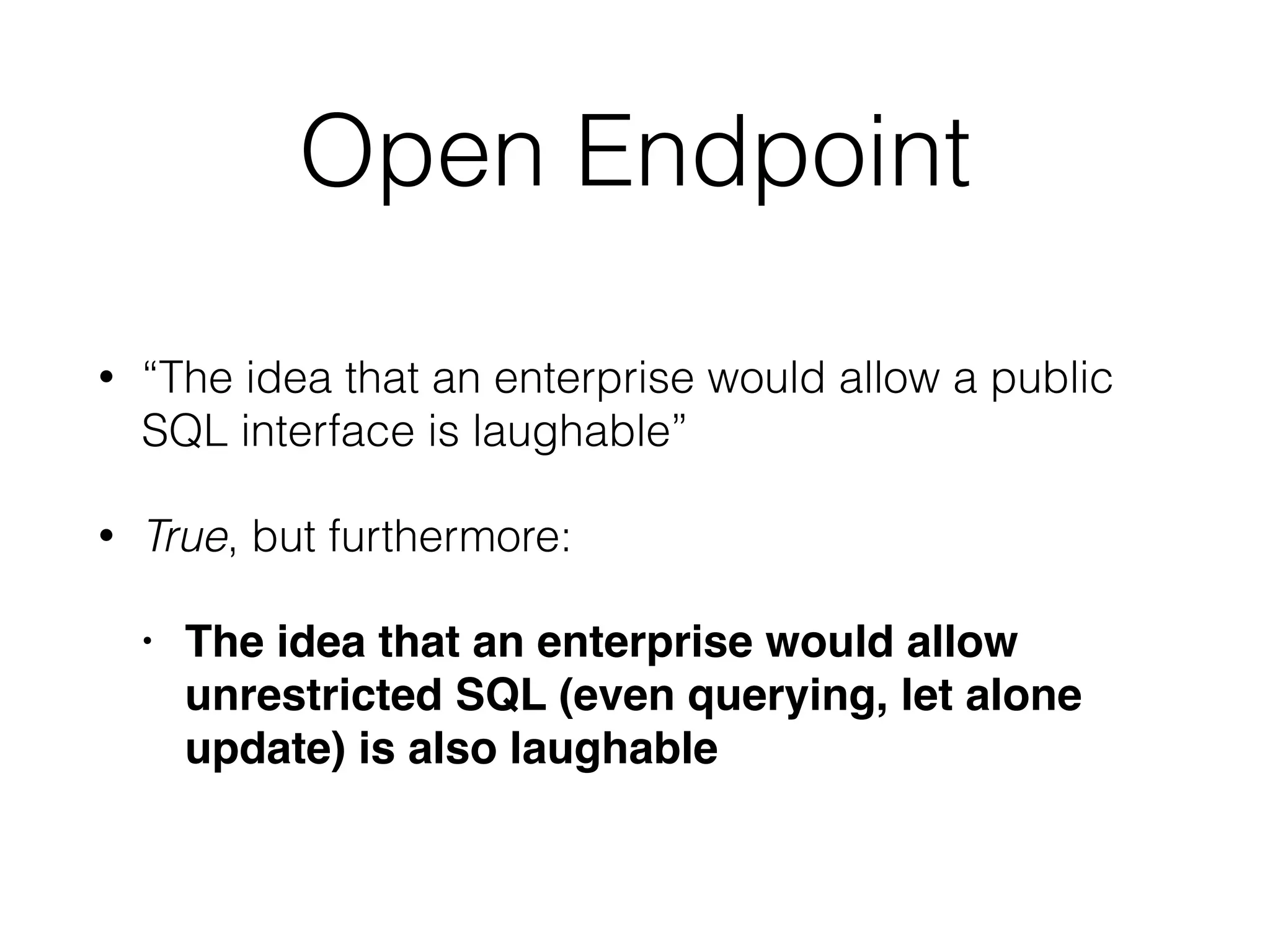

2. Open Endpoint
• “The idea that an enterprise would allow a public
SQL interface is laughable”
• True, but furthermore:
• The idea that an enterprise would allow
unrestricted SQL (even querying, let alone
update) is also laughable

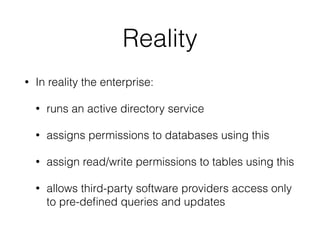

3. Reality
• In reality the enterprise:
• runs an active directory service
• assigns permissions to databases using this
• assign read/write permissions to tables using this
• allows third-party software providers access only
to pre-defined queries and updates

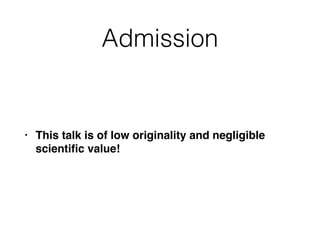

4. Admission
• This talk is of low originality and negligible
scientific value!

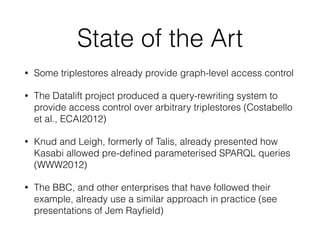

5. State of the Art
• Some triplestores already provide graph-level access control
• The Datalift project produced a query-rewriting system to
provide access control over arbitrary triplestores (Costabello
et al., ECAI2012)
• Knud and Leigh, formerly of Talis, already presented how
Kasabi allowed pre-defined parameterised SPARQL queries
(WWW2012)
• The BBC, and other enterprises that have followed their
example, already use a similar approach in practice (see
presentations of Jem Rayfield)

6. State of the Art
• Some triplestores already provide graph-level access control
• The Datalift project produced a query-rewriting system to
provide access control over arbitrary triplestores (Costabello
et al., ECAI2012)
• Knud and Leigh, formerly of Talis, already presented how
Kasabi allowed pre-defined parameterised SPARQL queries
(WWW2012)
• The BBC, and other enterprises that have followed their
example, already use a similar approach in practice (see
presentations of Jem Rayfield)
Proprietary
Enumerates graphs in query
Dead !
(and proprietary user management)
Closed source

7. BM Dataset
http://collection.britishmuseum.org

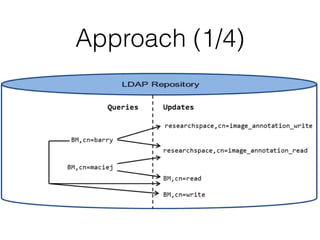

8. Approach (1/4)

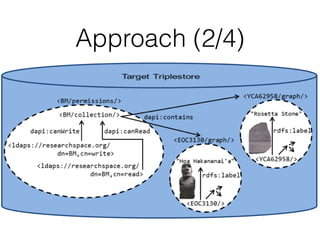

9. Approach (2/4)

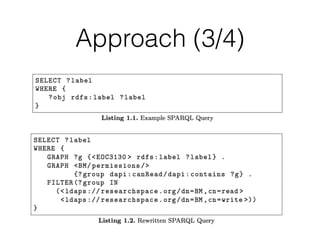

10. Approach (3/4)

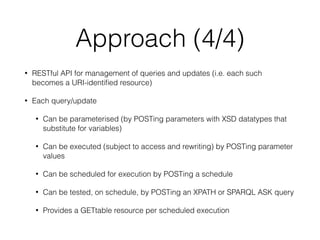

11. Approach (4/4)
• RESTful API for management of queries and updates (i.e. each such
becomes a URI-identified resource)
• Each query/update
• Can be parameterised (by POSTing parameters with XSD datatypes that
substitute for variables)
• Can be executed (subject to access and rewriting) by POSTing parameter
values
• Can be scheduled for execution by POSTing a schedule
• Can be tested, on schedule, by POSTing an XPATH or SPARQL ASK query
• Provides a GETtable resource per scheduled execution

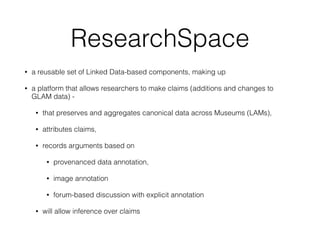

12. ResearchSpace
• a reusable set of Linked Data-based components, making up
• a platform that allows researchers to make claims (additions and changes to
GLAM data) -
• that preserves and aggregates canonical data across Museums (LAMs),
• attributes claims,
• records arguments based on
• provenanced data annotation,
• image annotation
• forum-based discussion with explicit annotation
• will allow inference over claims

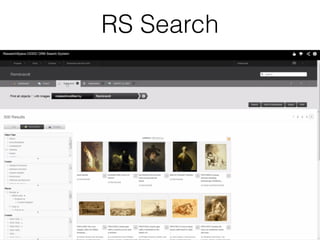

13. RS Search

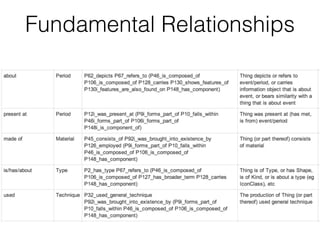

14. Fundamental Relationships

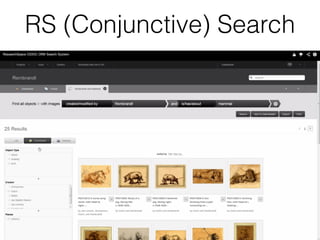

15. RS (Conjunctive) Search

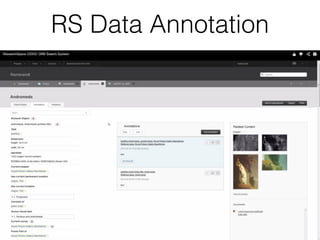

16. RS Data Annotation

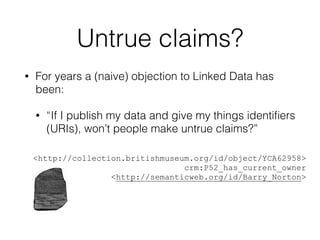

17. Untrue claims?
• For years a (naive) objection to Linked Data has
been:
• “If I publish my data and give my things identifiers
(URIs), won’t people make untrue claims?”
!
!
<http://collection.britishmuseum.org/id/object/YCA62958>
crm:P52_has_current_owner
<http://semanticweb.org/id/Barry_Norton>

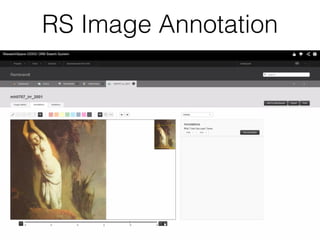

18. RS Image Annotation

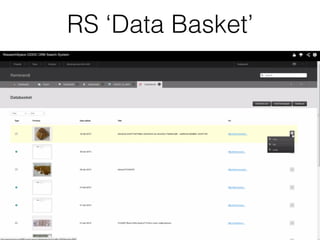

19. RS ‘Data Basket’

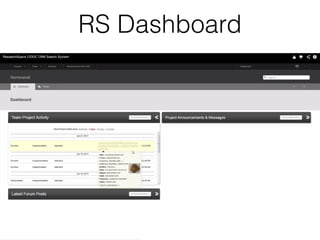

20. RS Dashboard

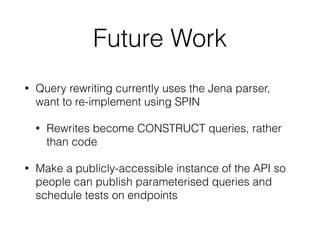

21. Future Work
• Query rewriting currently uses the Jena parser,
want to re-implement using SPIN
• Rewrites become CONSTRUCT queries, rather
than code
• Make a publicly-accessible instance of the API so
people can publish parameterised queries and
schedule tests on endpoints
