1
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
Compressors: A flow compressor is a mechanical
device that increases the pressure of a gas by
reducing its volume through dynamic or positive
displacement means.
Applications: Aerospace propulsion, gas turbines,
HVAC systems, industrial processing.
Classification of Compressors:
• Based on Flow Direction:
 Axial Flow Compressor
 Centrifugal (Radial) Flow Compressor
2
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
• Based on Staging:
• Single Stage Compressor
• Multistage Compressor
Single Stage Axial Compressor
• A compressor with one rotor and one stator stage.
Working Principle:
 Rotor imparts kinetic energy to the fluid.
 Stator converts kinetic energy to pressure energy.
3
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
Equations – Single Stage Compressor:
Euler’s Turbomachinery Equation: Δ h0 = U⋅ΔVθ
• Δh0​
: Stagnation enthalpy rise (J/kg)
• U: Blade speed at rotor tip (m/s)
• ΔVθ ​
: Change in tangential velocity component (m/s)
Isentropic Efficiency (ηs ) = [h02−h01] / [h02s−h01]
• ηis​
: Isentropic efficiency
• h02​
, h01​
: Total enthalpy at outlet and inlet
• h02s​
: Total enthalpy for isentropic process
4
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
6.Multistage Compressors
Consists of multiple rotor-stator stages to achieve
higher pressure ratios.
Advantages:
• Higher total pressure rise
• Improved efficiency with interstage cooling
Use Cases: Jet engines, industrial gas compressors
5
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
Multistage Compressor Performance
1.Total Pressure Ratio =
• ​
P0: Stagnation pressure
• T0​
: Stagnation temperature
• γ : Ratio of specific heats
2. Overall Efficiency ηoverall =
(T0,exit−T0,inlet) / (Ts
0,exit​
−T0,inlet​
​)
6
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
8: Velocity Triangles: Illustrates relative and
absolute velocities at blade inlet / outlet. The
figure 2, Show the Inlet and outlet velocity
triangles
Where
• V: Absolute velocity,
• U: Blade speed,
• W: Relative velocity
7
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR

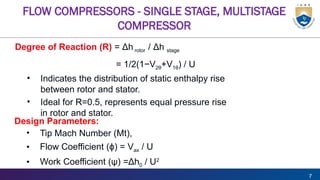

Degree of Reaction (R) = Δh rotor / Δh stage
= 1/2(1−V2θ+V1θ) / U
• Indicates the distribution of static enthalpy rise
between rotor and stator.
• Ideal for R=0.5, represents equal pressure rise
in rotor and stator.
Design Parameters:
• Tip Mach Number (Mt),
• Flow Coefficient ( )
ϕ = Vax / U
• Work Coefficient (ψ) =Δh0 / U2
8
FLOW COMPRESSORS - SINGLE STAGE, MULTISTAGE
COMPRESSOR
Losses in Compressors
• Profile losses
• Secondary flow losses
• Tip clearance losses
• Skin friction
9
