This document contains the assembly language code for an 8051 microcontroller to generate various numeric series: 1. The first program generates the first 10 even numbers by incrementing a register and testing the least significant bit to check for evenness. 2. The second program generates the first 10 odd numbers using a similar approach but tests for oddness instead of evenness. 3. The third program generates the first 10 square numbers by incrementing a register and multiplying it by itself to calculate each square. 4. The fourth program generates the first 10 cube numbers by incrementing a register and multiplying it by itself twice to calculate each cube. 5. The final program generates the Fibonacci series by

1. 8051
Part IV

2. 8051 ALP to generate first 10 even numbers
● org 0h
mov r0, #01h
mov r4, #50h
mov r1, #30h
back: mov a, r0
rrc a
jc odd
mov a, r0
mov @r1, a
inc r0
inc r1

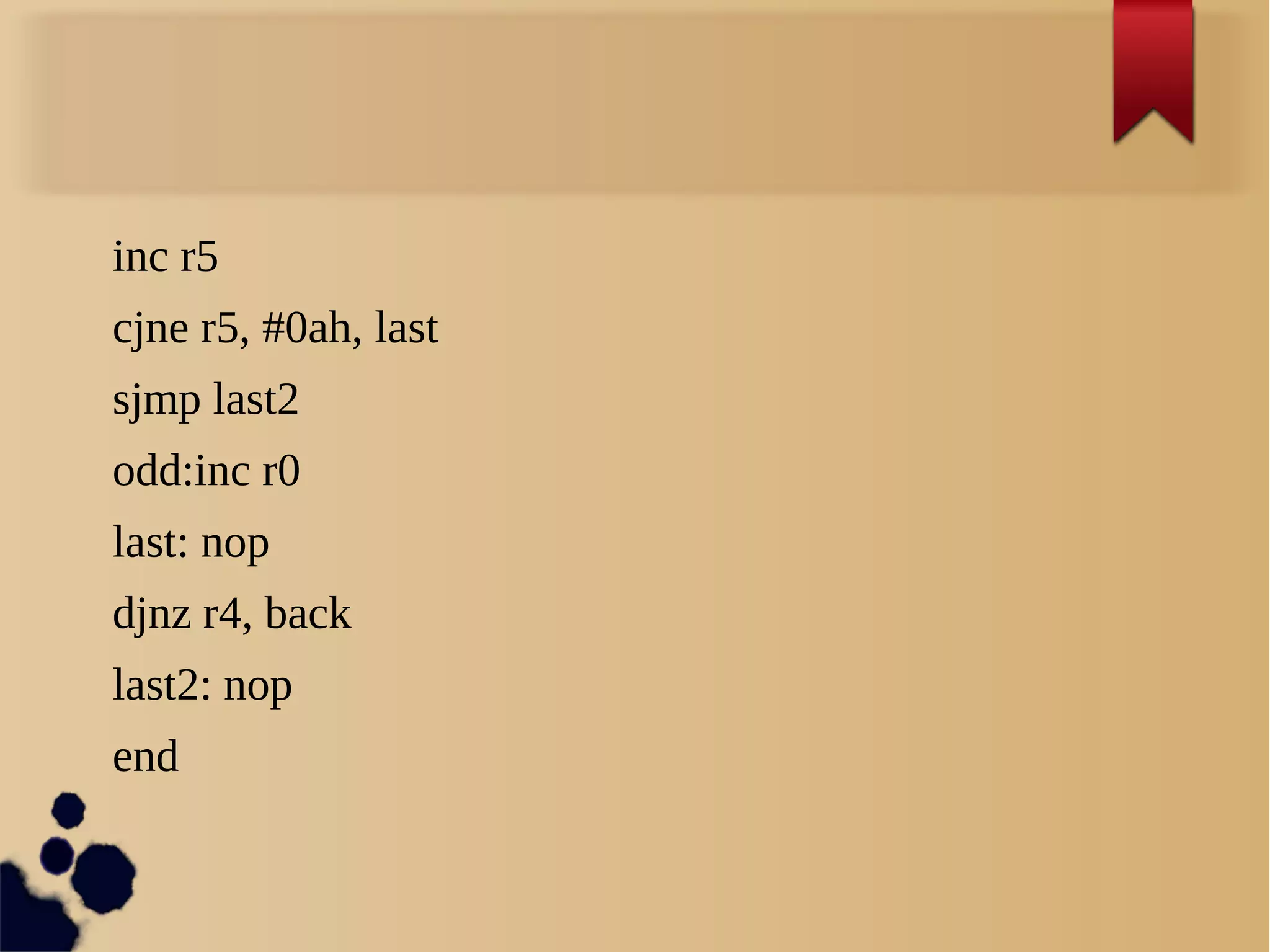

3. inc r5
cjne r5, #0ah, last
sjmp last2
odd:inc r0
last: nop
djnz r4, back
last2: nop
end

4. 8051 ALP to generate first 10 odd numbers
● org 0h
mov r0, #01h
mov r4, #50h
mov r1, #30h
back: mov a, r0rrc a
jnc even
mov a, r0
mov @r1, a
inc r0
inc r1
inc r5

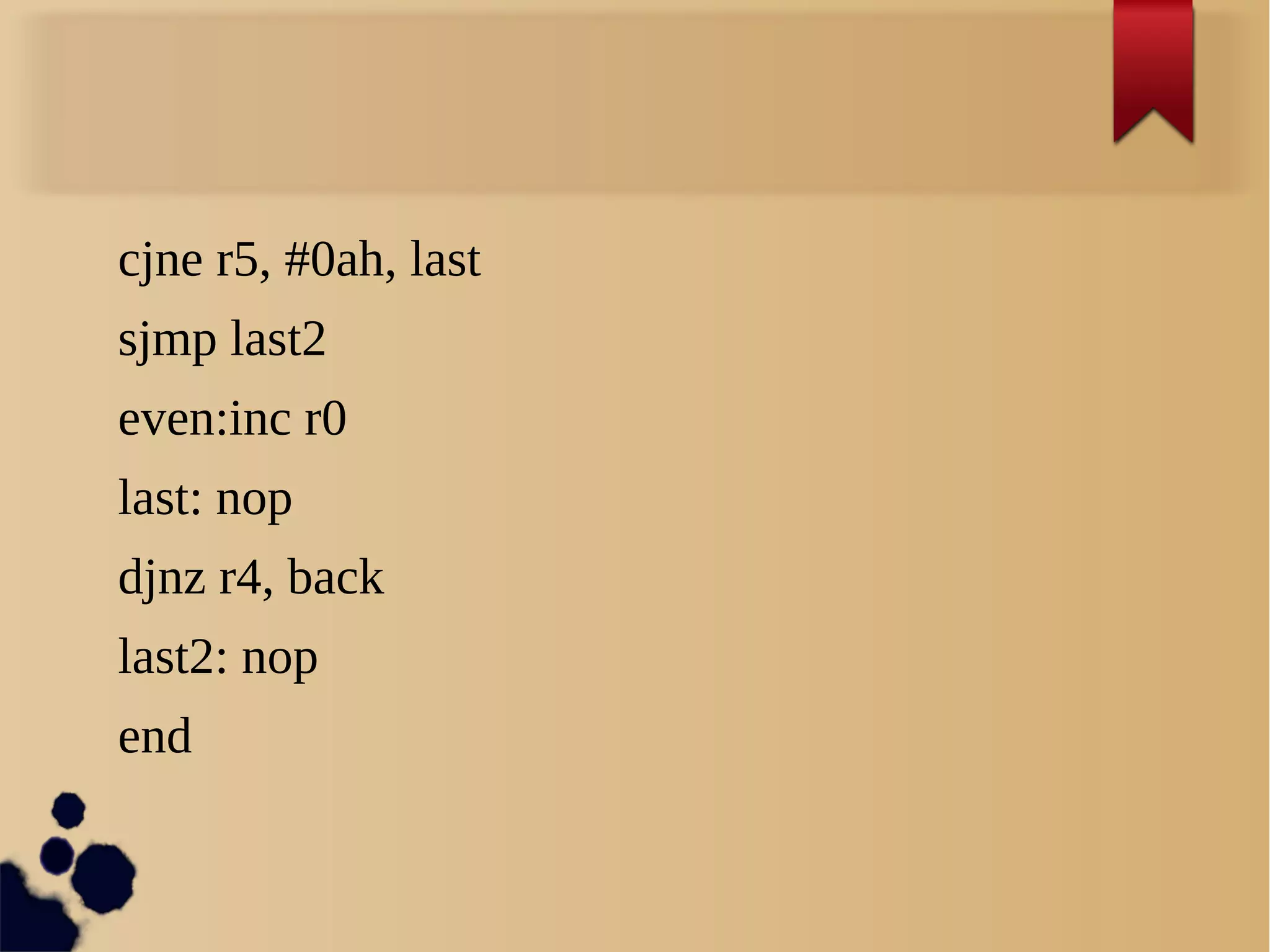

5. cjne r5, #0ah, last
sjmp last2
even:inc r0
last: nop
djnz r4, back
last2: nop
end

6. 8051 ALP to generate first 10 square numbers
● org 0h
mov r0, #1h
mov r1, #30h
mov r4, #09h
mov 30h, #1h
back: inc r0
inc r1
mov a, r0
mov b, r0
mul ab
mov @r1, a
djnz r4, back
end

7. 8051 ALP to generate first 10 cube numbers
● org 0h
mov r0, #1h
mov r1, #30h
mov r4, #06h
mov 30h, #1h
back: inc r0
inc r1
mov a, r0
mov b, r0
mul ab
mov b, r0
mul ab
mov @r1, a
djnz r4, back
end

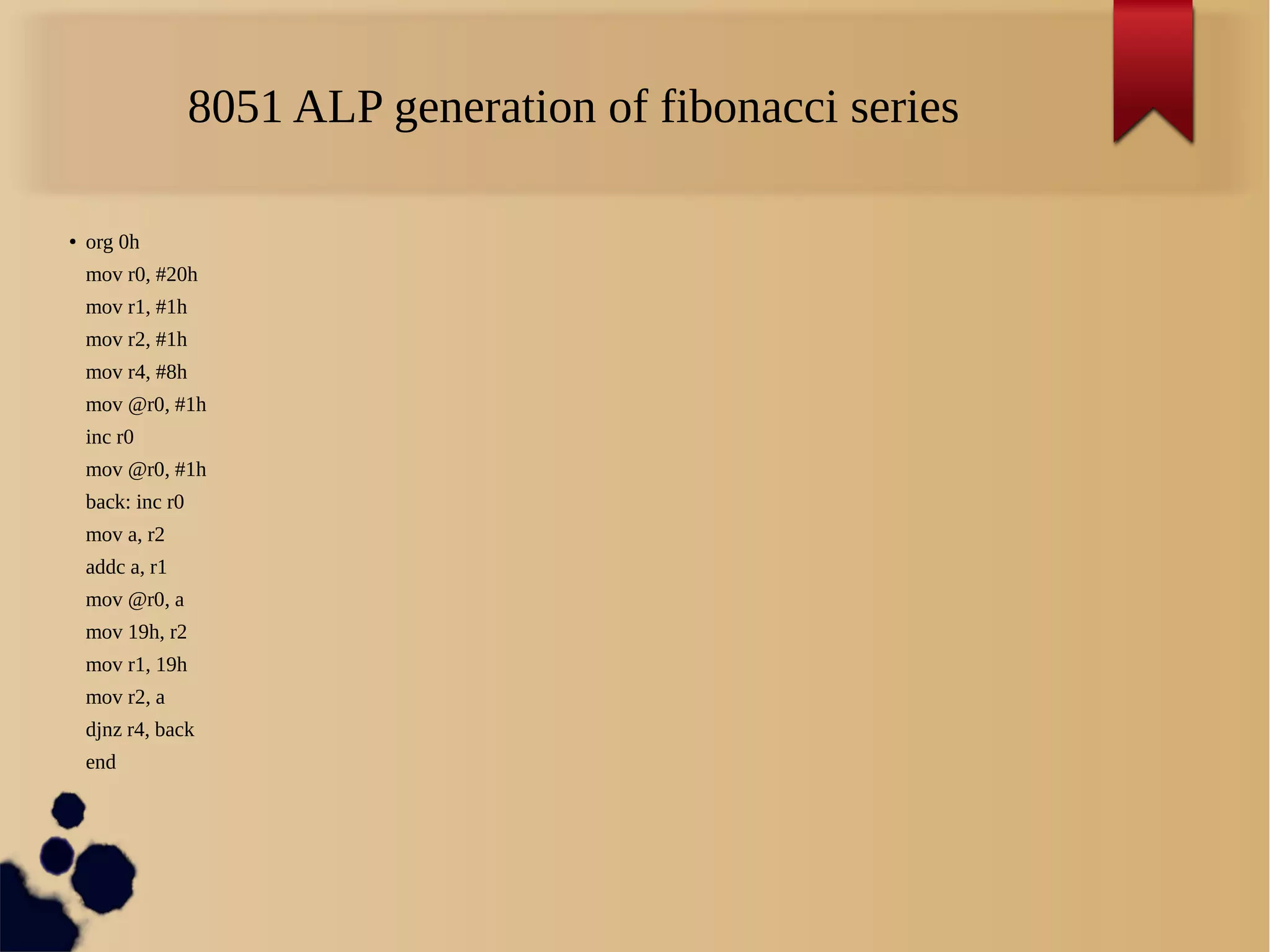

8. 8051 ALP generation of fibonacci series
● org 0h
mov r0, #20h
mov r1, #1h
mov r2, #1h
mov r4, #8h
mov @r0, #1h
inc r0
mov @r0, #1h
back: inc r0
mov a, r2
addc a, r1
mov @r0, a
mov 19h, r2
mov r1, 19h
mov r2, a
djnz r4, back
end
