8 AKKA ANTI-PATTERNS
YOU'D BETTER BE AWARE OF
REACTIVE SUMMIT AUSTIN 2017
MANUEL BERNHARDT
Reactive Summit Austin 2017 - https://manuel.bernhardt.io - @elmanu

WHY THIS TALK?
Tools, of course, can be the subtlest of traps
— Neil Gaiman

MANUEL.BERNHARDT.IO
> Helping companies to get started with
reactive systems...
> ... or to keep going
> Lightbend training partner
(Akka Professional & Expert)

If you want to make enemies, try
to change something.
— Woodrow Wilson

ANTI-PATTERN #1
GLOBAL MUTABLE STATE

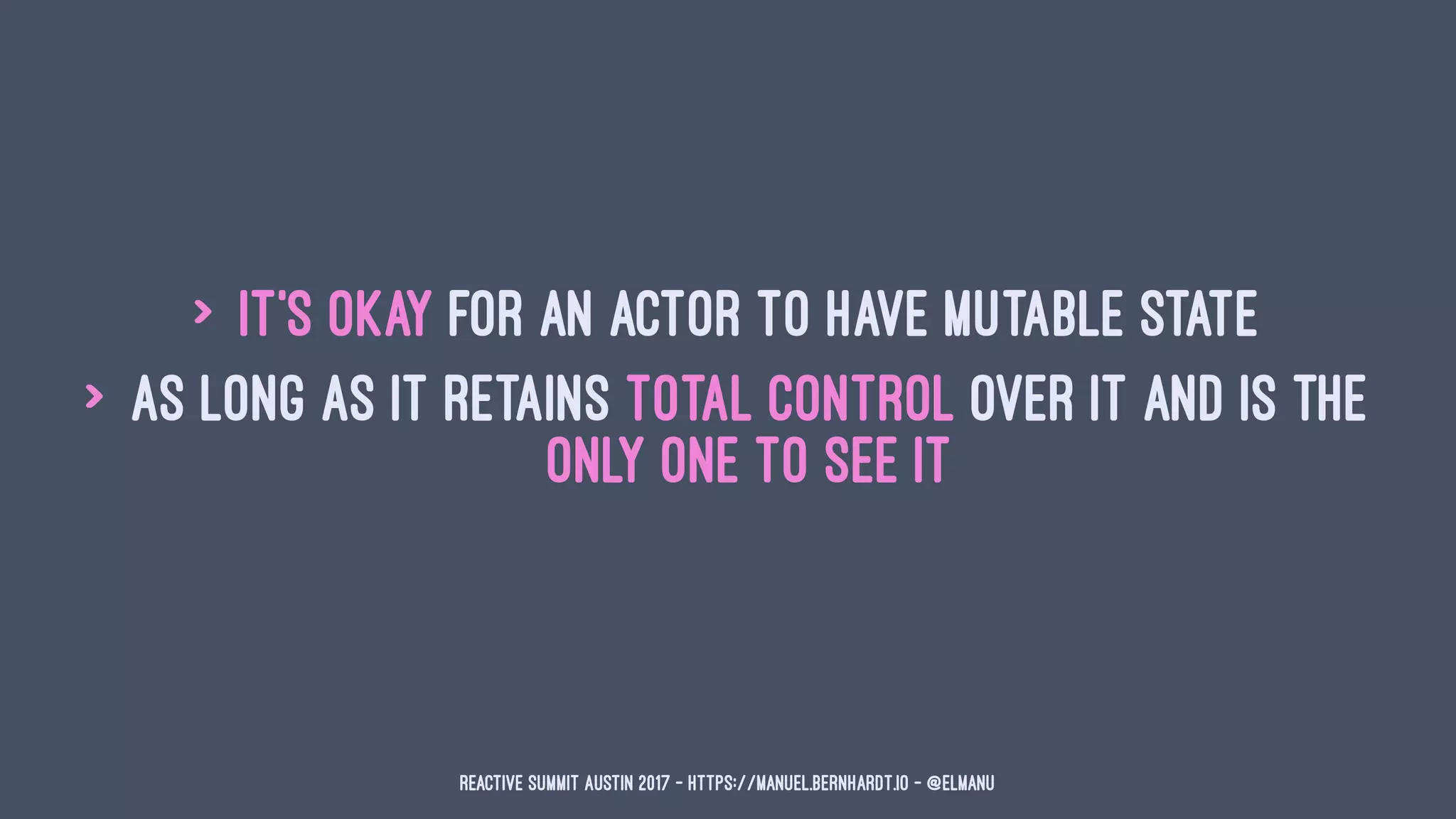

> it's okay for an actor to have mutable state
> as long as it retains total control over it and is the
only one to see it

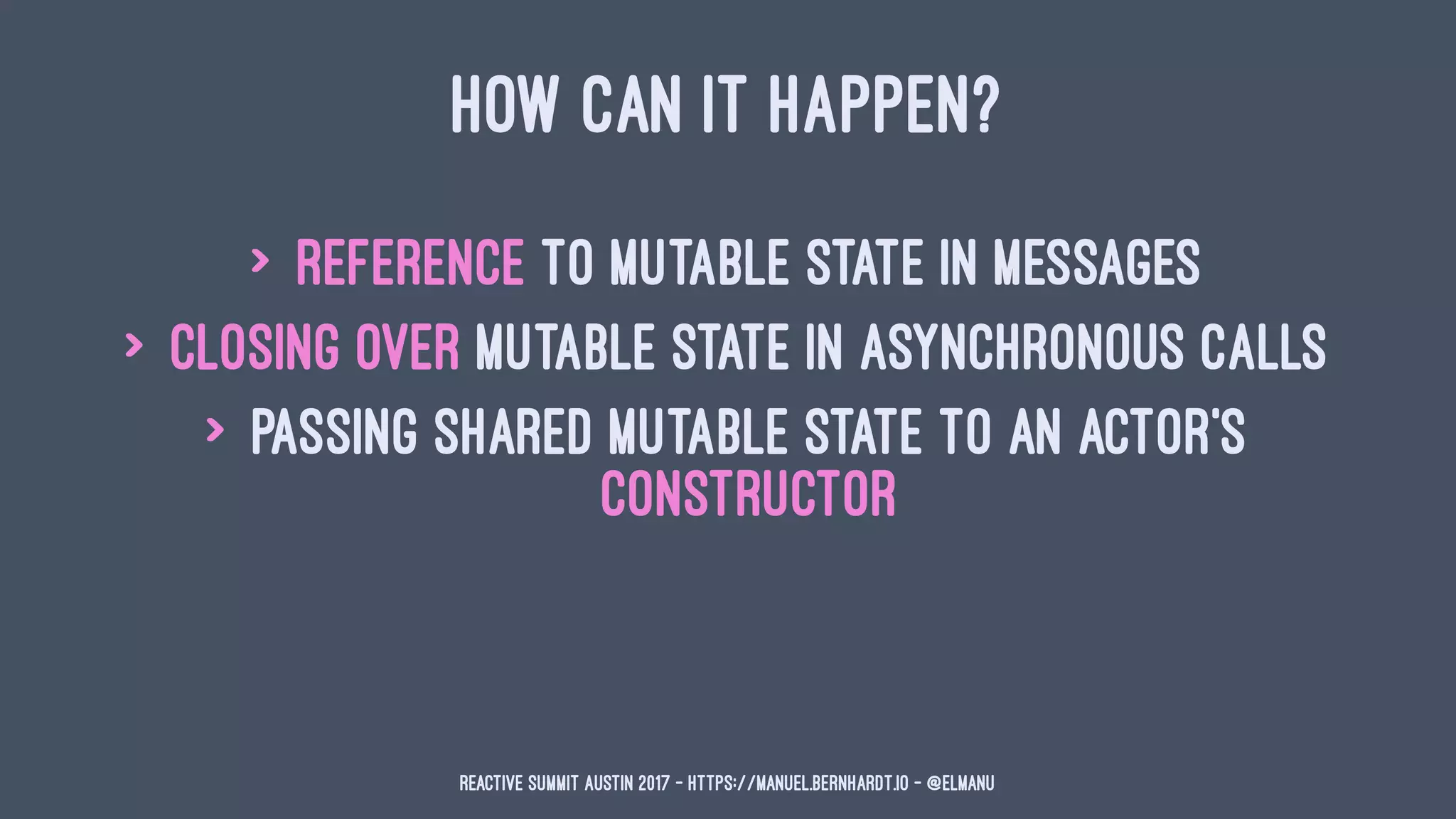

HOW CAN IT HAPPEN?
> reference to mutable state in messages
> closing over mutable state in asynchronous calls
> passing shared mutable state to an actor's
constructor

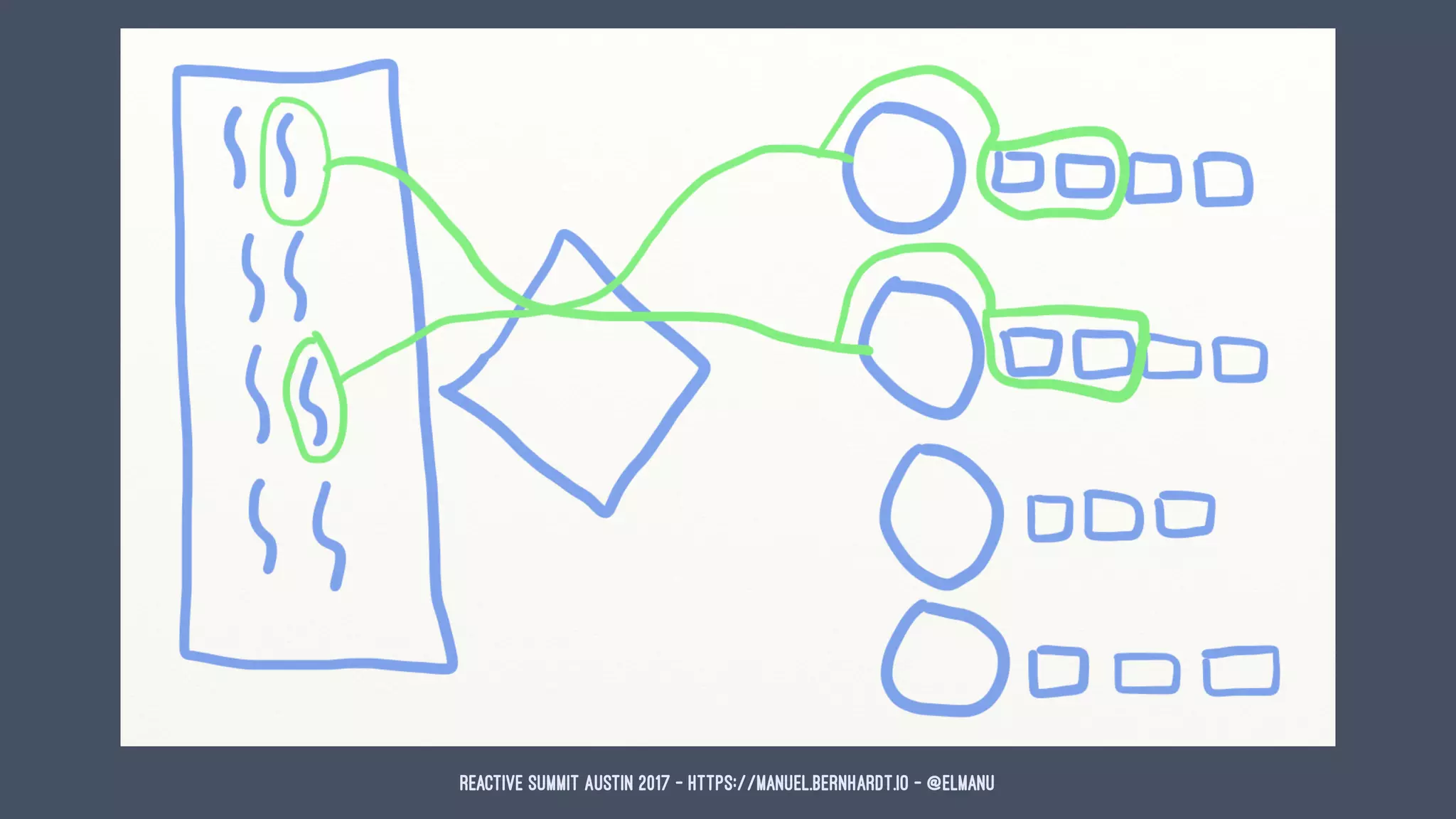

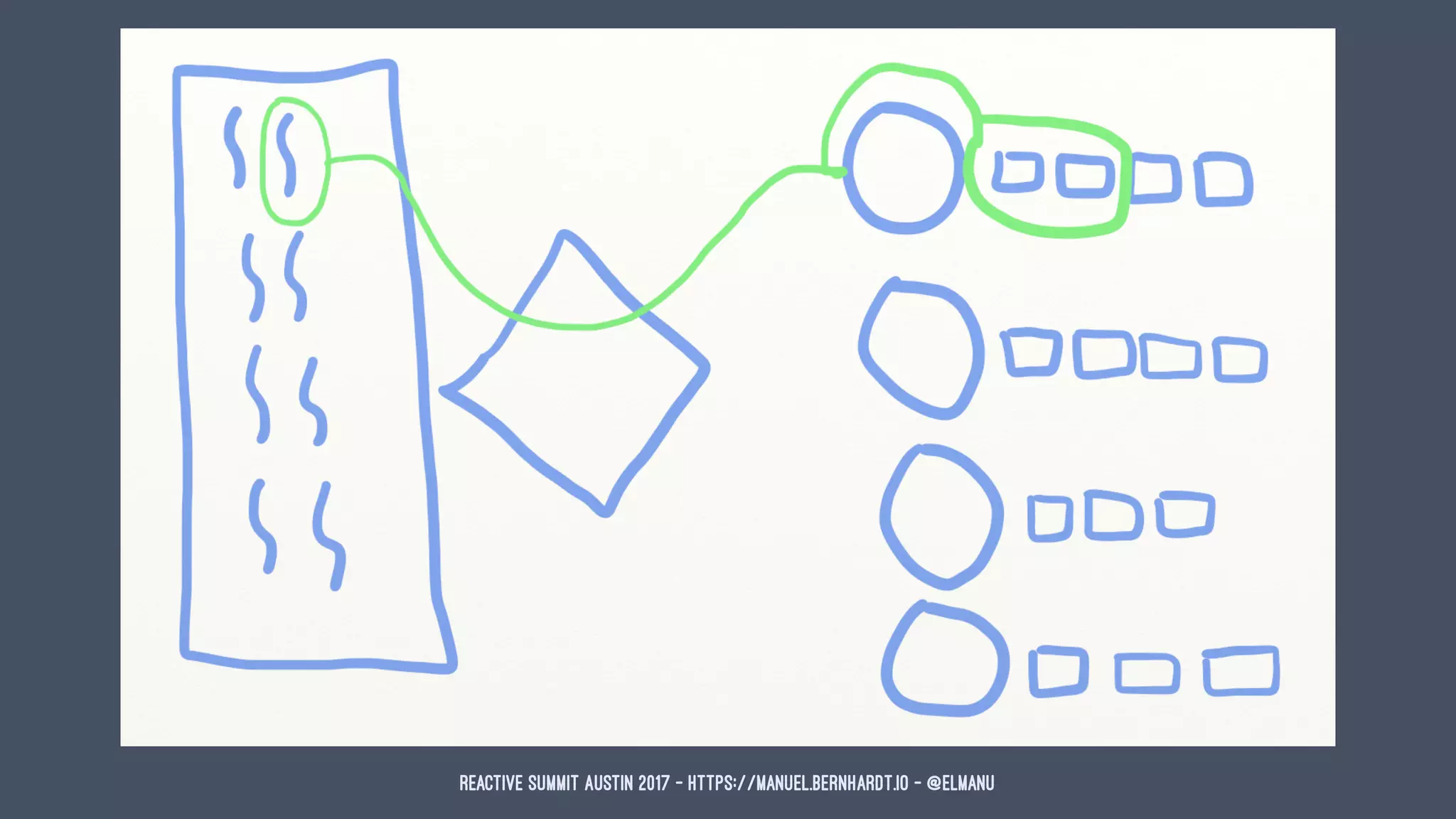

WHY IS THIS BAD?

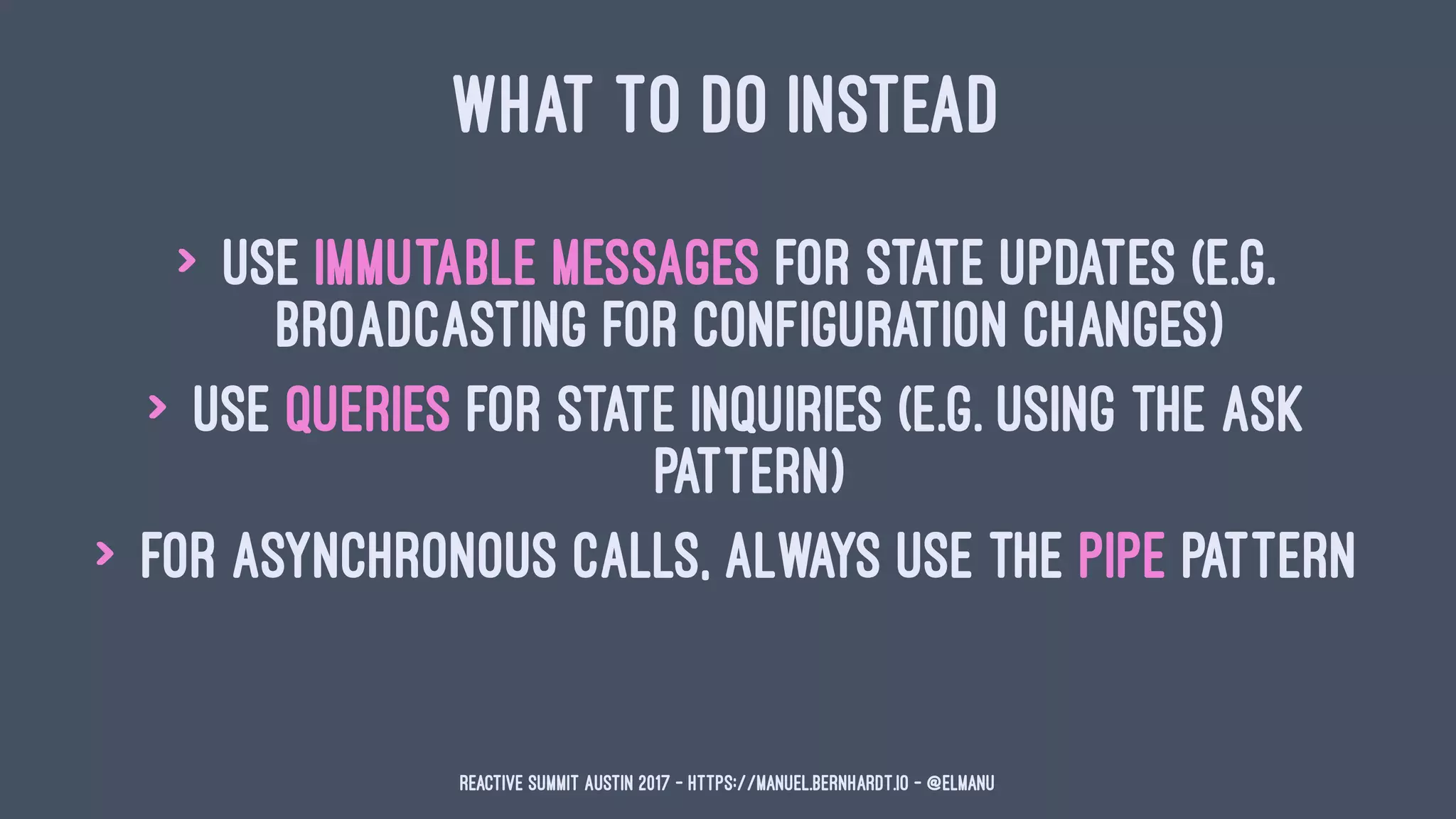

WHAT TO DO INSTEAD
> use immutable messages for state updates (e.g.
broadcasting for configuration changes)
> use queries for state inquiries (e.g. using the ask
pattern)
> for asynchronous calls, always use the pipe pattern

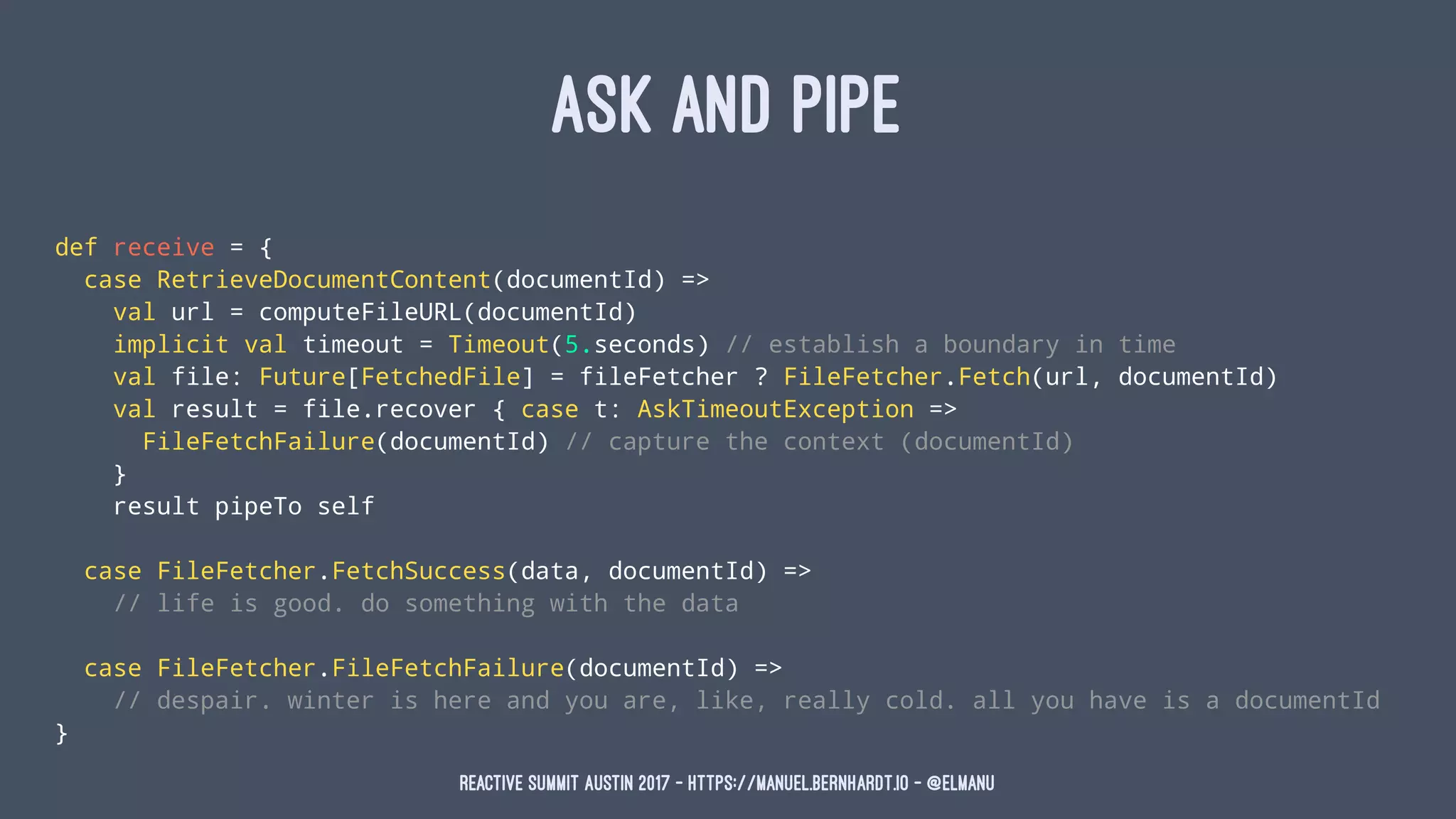

ASK AND PIPE
def receive = {
case RetrieveDocumentContent(documentId) =>
val url = computeFileURL(documentId)
implicit val timeout = Timeout(5.seconds) // establish a boundary in time
val file: Future[FetchedFile] = fileFetcher ? FileFetcher.Fetch(url, documentId)
val result = file.recover { case t: AskTimeoutException =>
FileFetchFailure(documentId) // capture the context (documentId)
}
result pipeTo self
case FileFetcher.FetchSuccess(data, documentId) =>
// life is good. do something with the data
case FileFetcher.FileFetchFailure(documentId) =>
// despair. winter is here and you are, like, really cold. all you have is a documentId
}

The two enemies of human
happiness are pain and boredom.
— Arthur Schopenhauer

ANTI-PATTERN #2
FLAT ACTOR HIERARCHIES

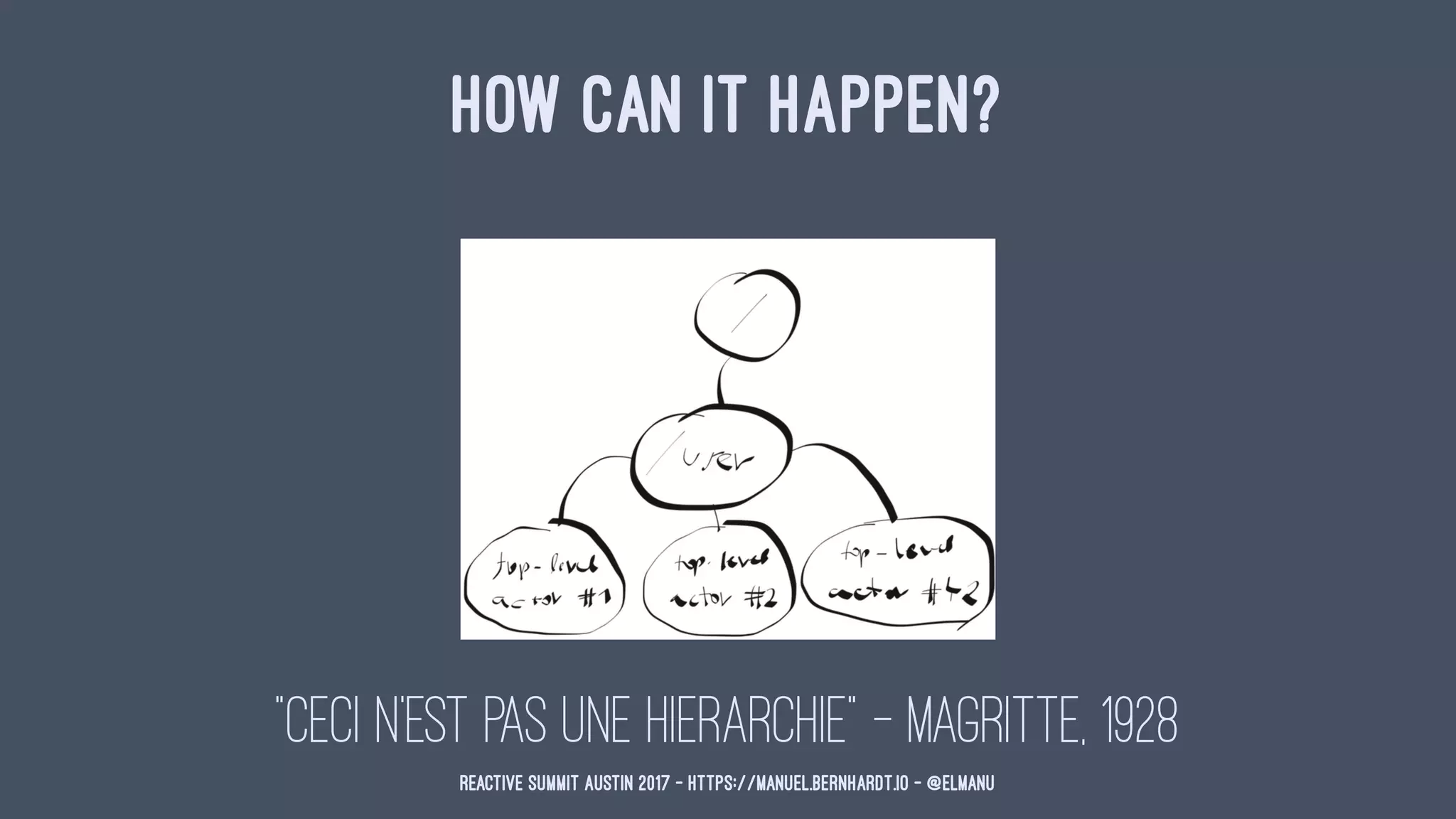

HOW CAN IT HAPPEN?
"Ceci n'est pas une hierarchie" - Magritte, 1928

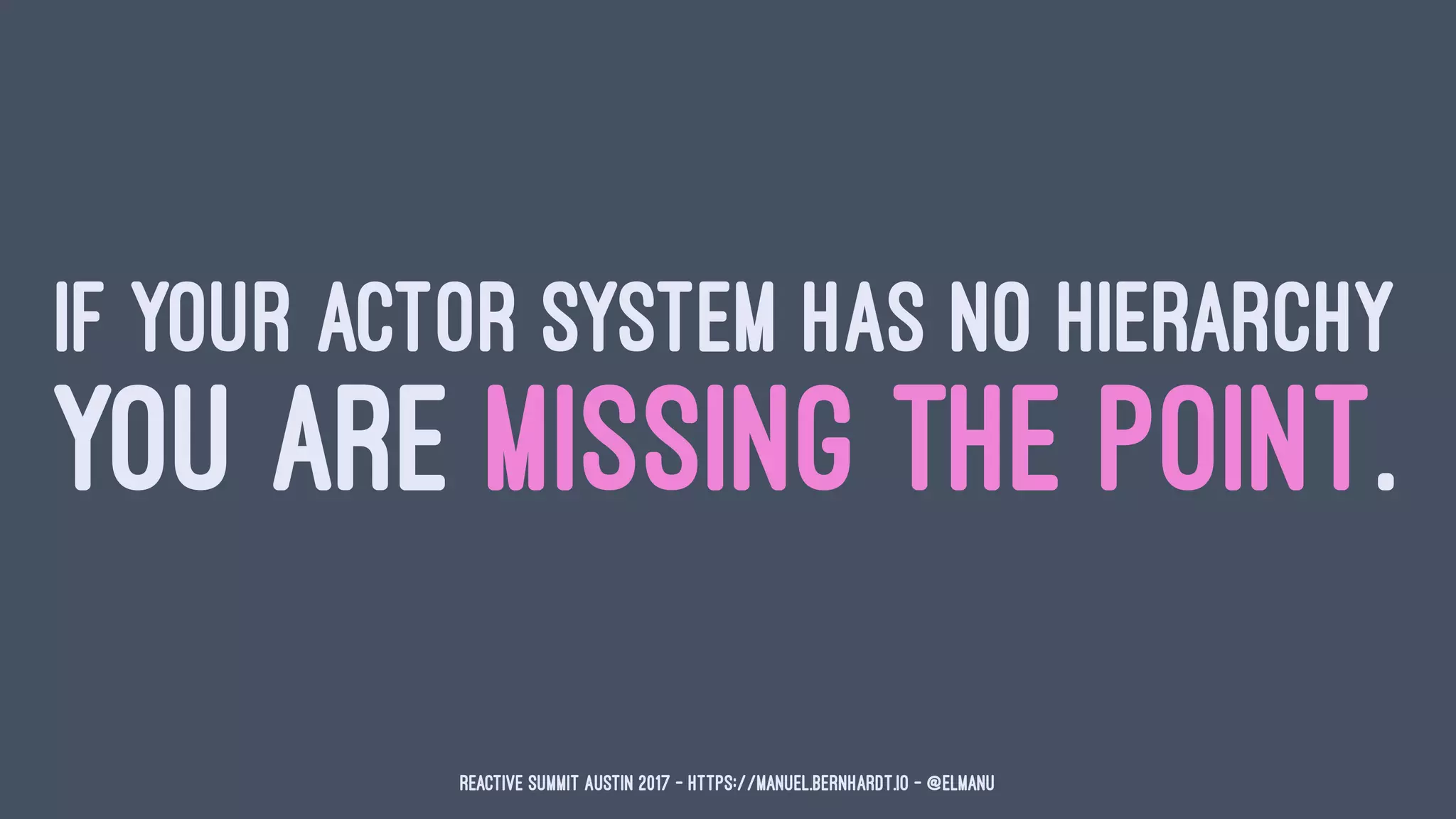

IF YOUR ACTOR SYSTEM HAS NO HIERARCHY
YOU ARE MISSING THE POINT.

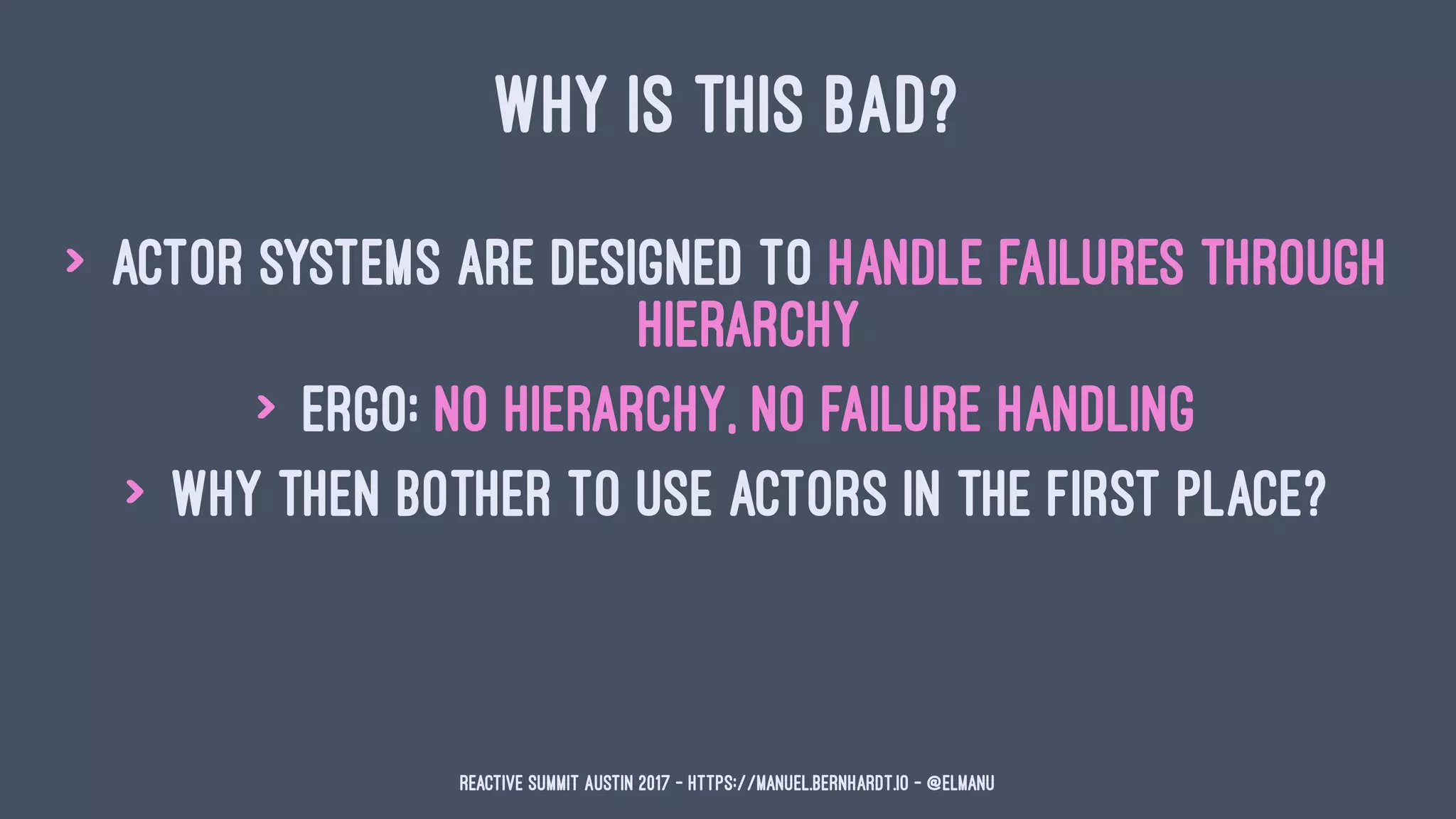

WHY IS THIS BAD?
> actor systems are designed to handle failures through
hierarchy
> ergo: no hierarchy, no failure handling
> why then bother to use actors in the first place?

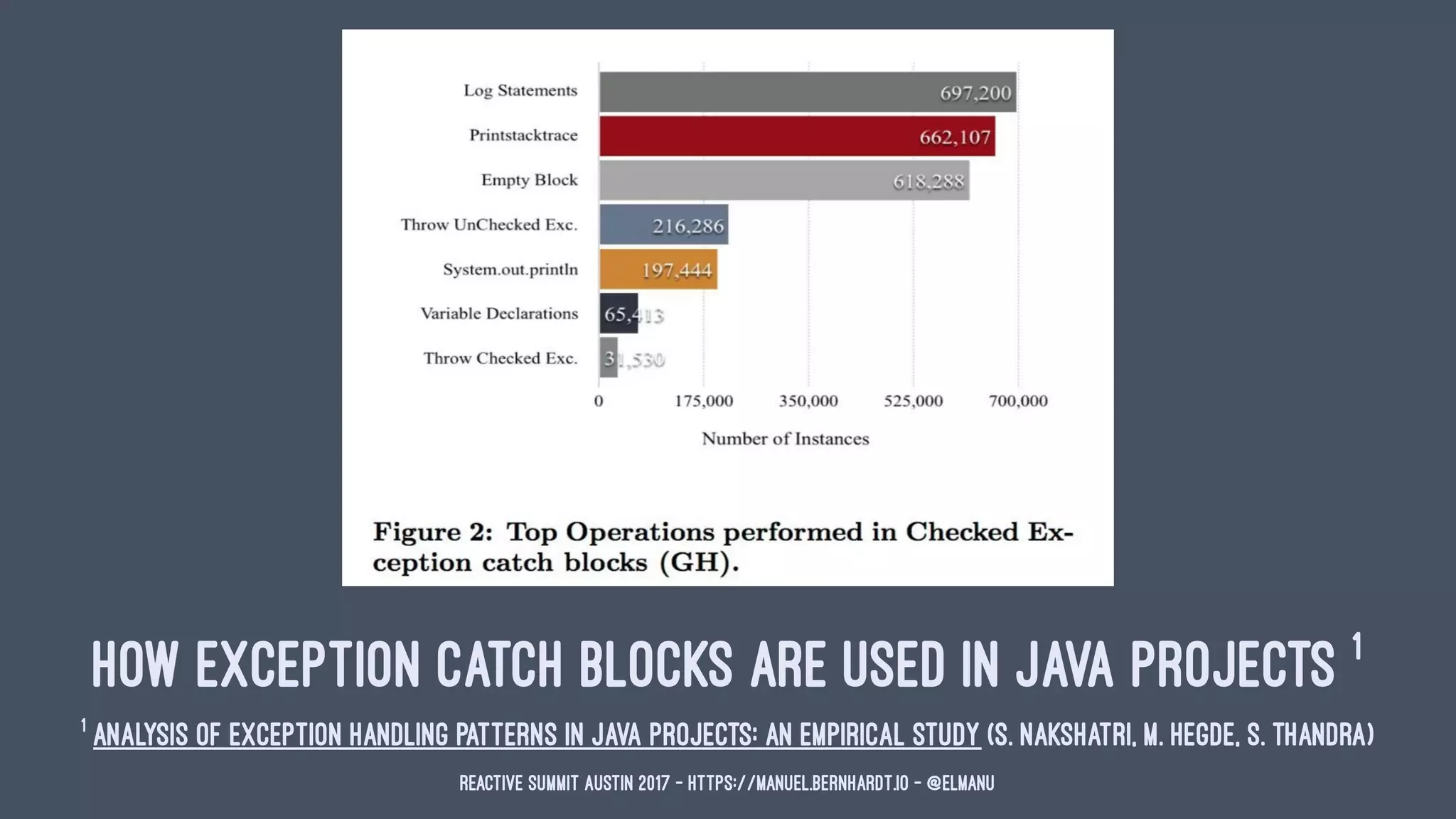

How exception catch blocks are used in Java projects 1
1
Analysis of Exception Handling Patterns in Java Projects: An Empirical Study (S. Nakshatri, M. Hegde, S. Thandra)

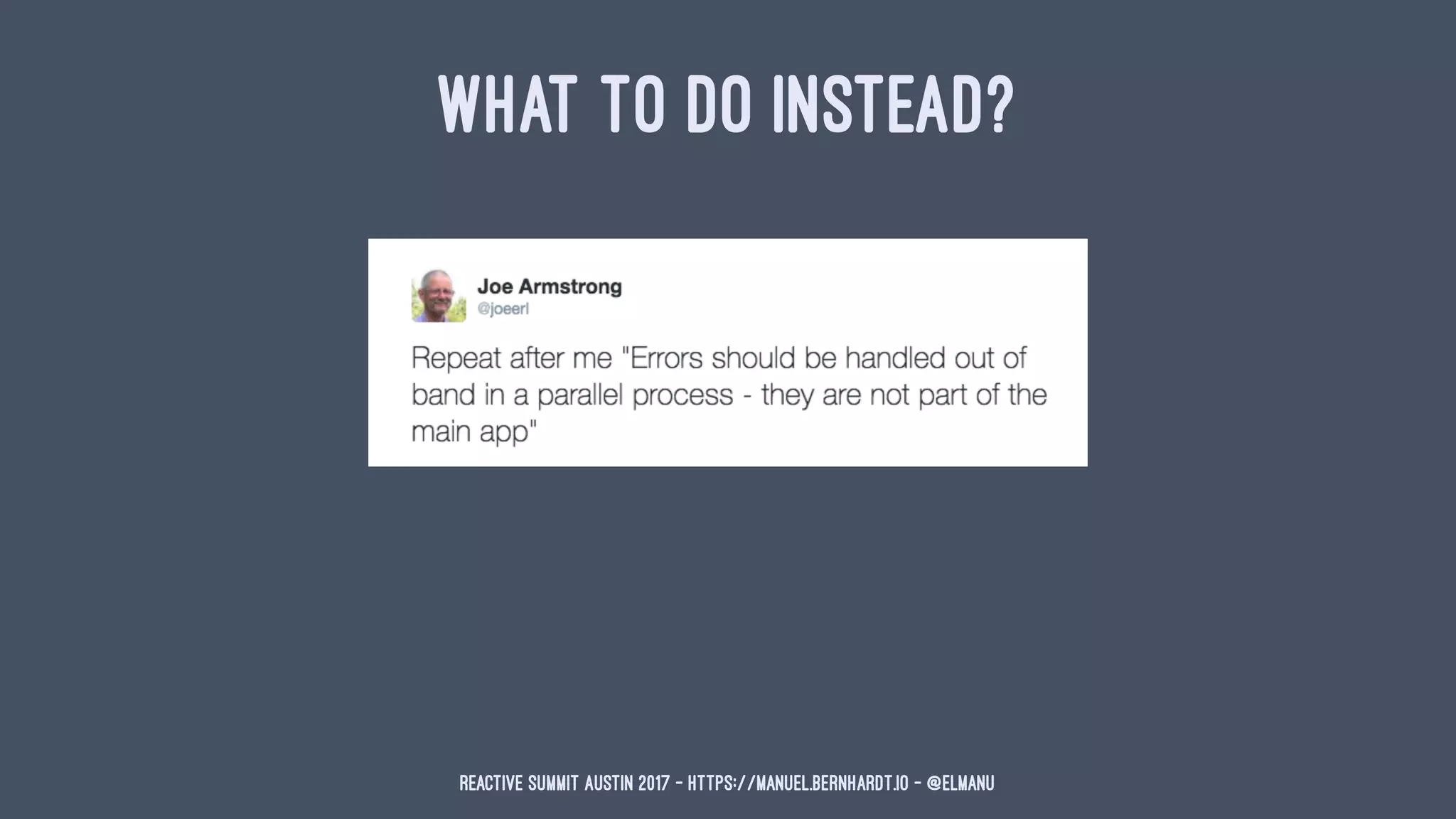

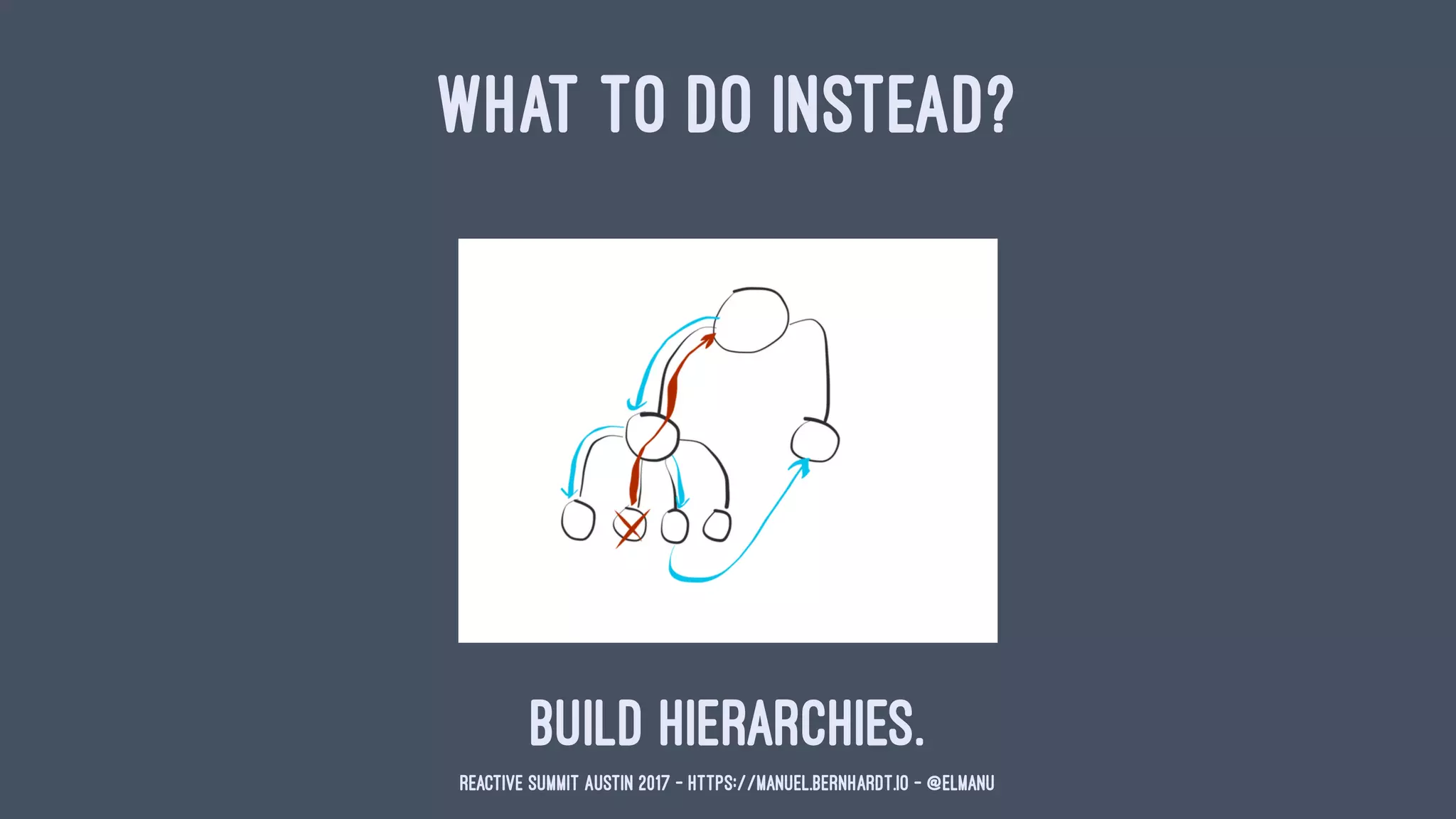

WHAT TO DO INSTEAD?

WHAT TO DO INSTEAD?
Build hierarchies.

The mother of excess is not joy
but joylessness.
— Friedrich Nietzsche

ANTI-PATTERN #3
TOO MANY ACTOR SYSTEMS

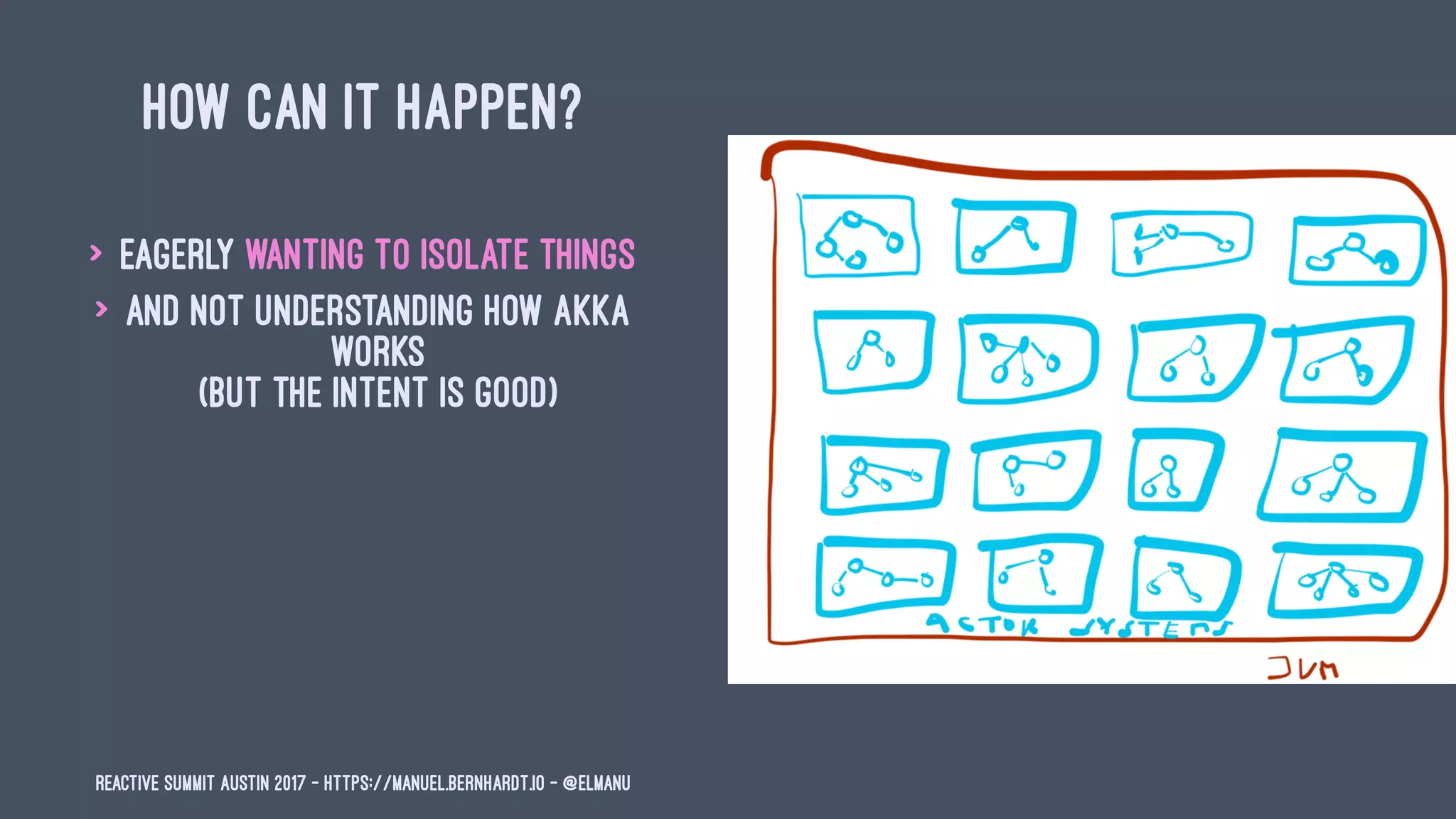

HOW CAN IT HAPPEN?
> eagerly wanting to isolate things
> and not understanding how Akka
works
(but the intent is good)

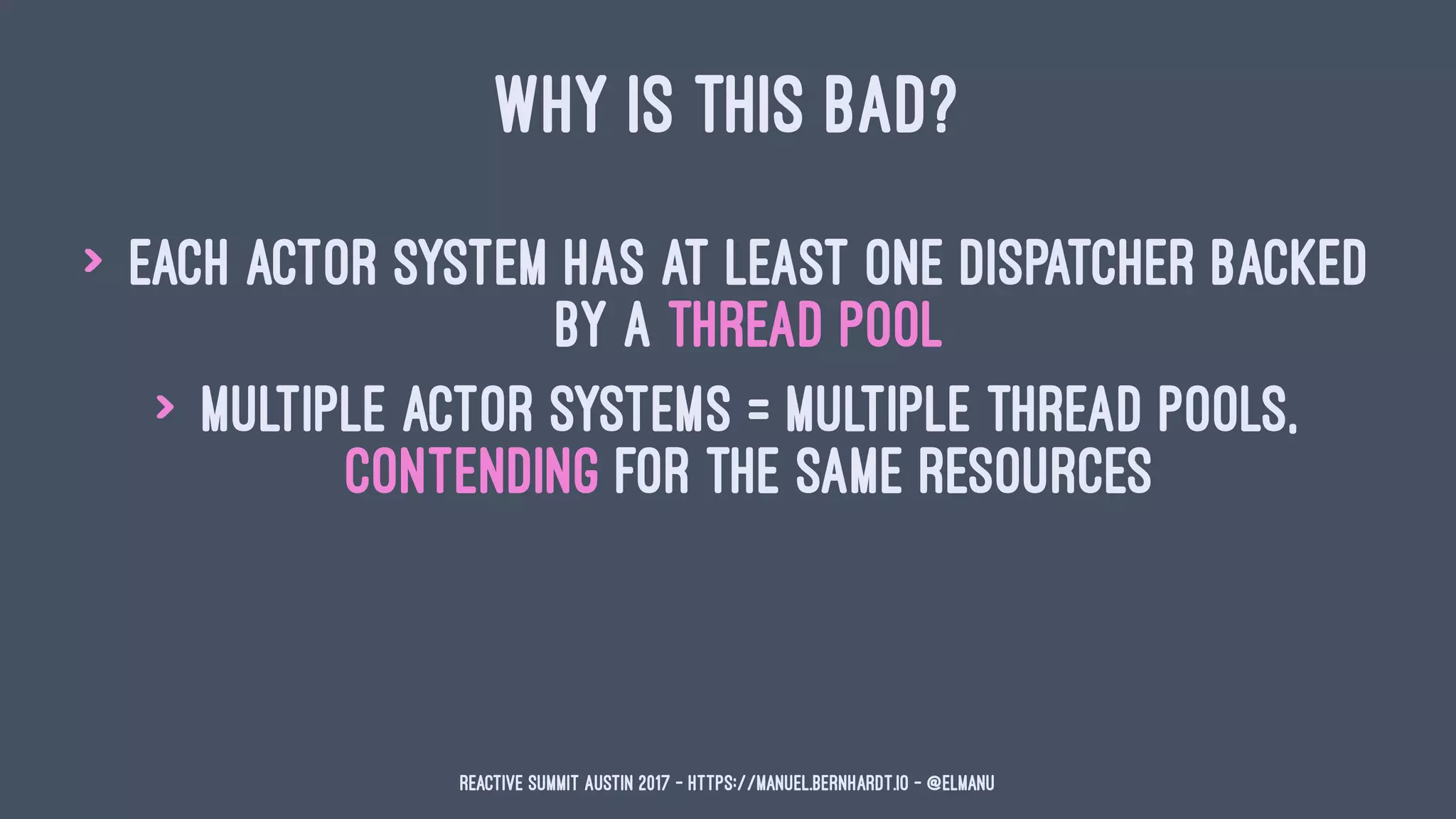

WHY IS THIS BAD?

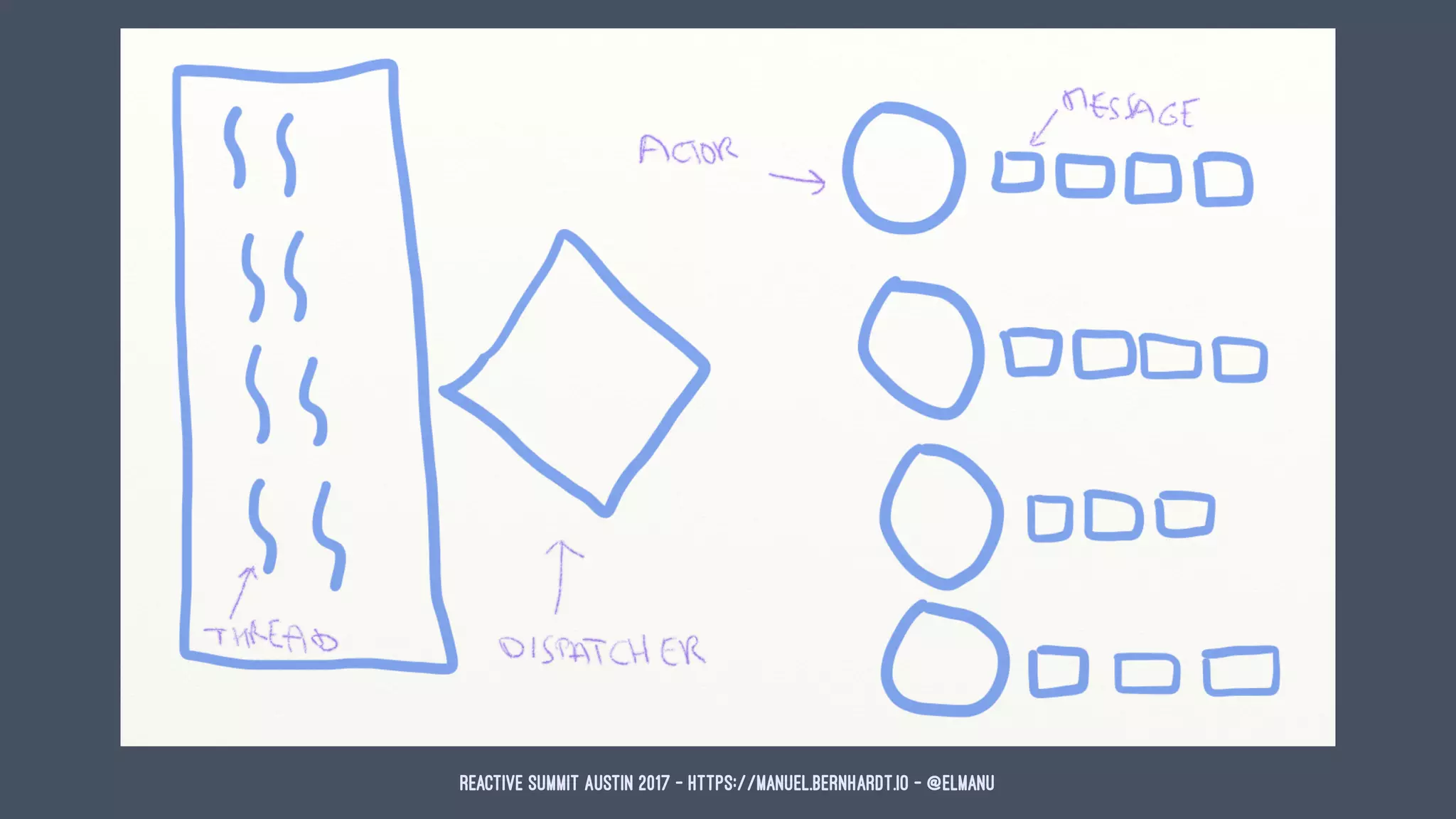

> each actor system has at least one dispatcher backed
by a thread pool
> multiple actor systems = multiple thread pools,
contending for the same resources

WHAT TO DO INTEAD?

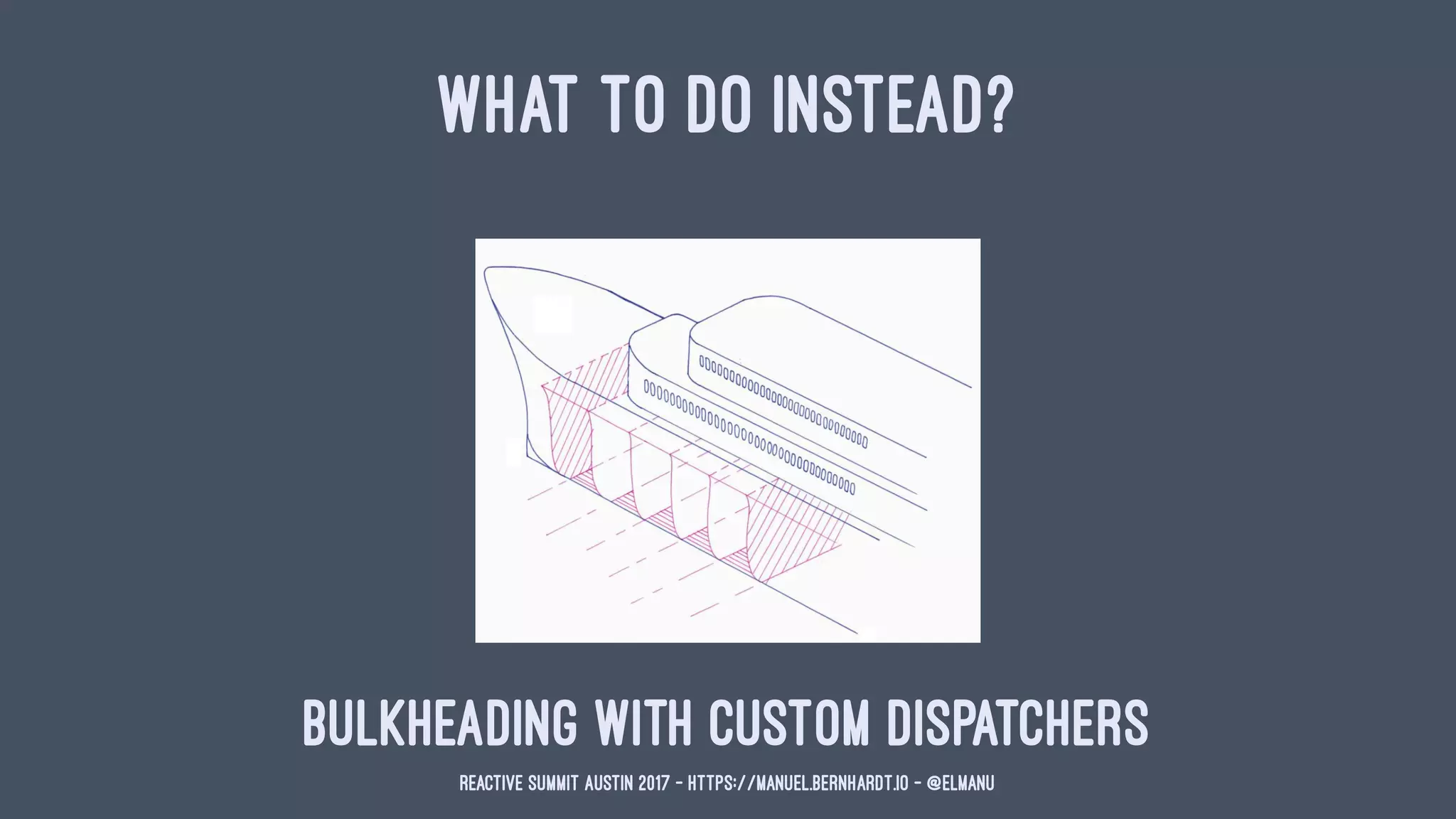

WHAT TO DO INSTEAD?

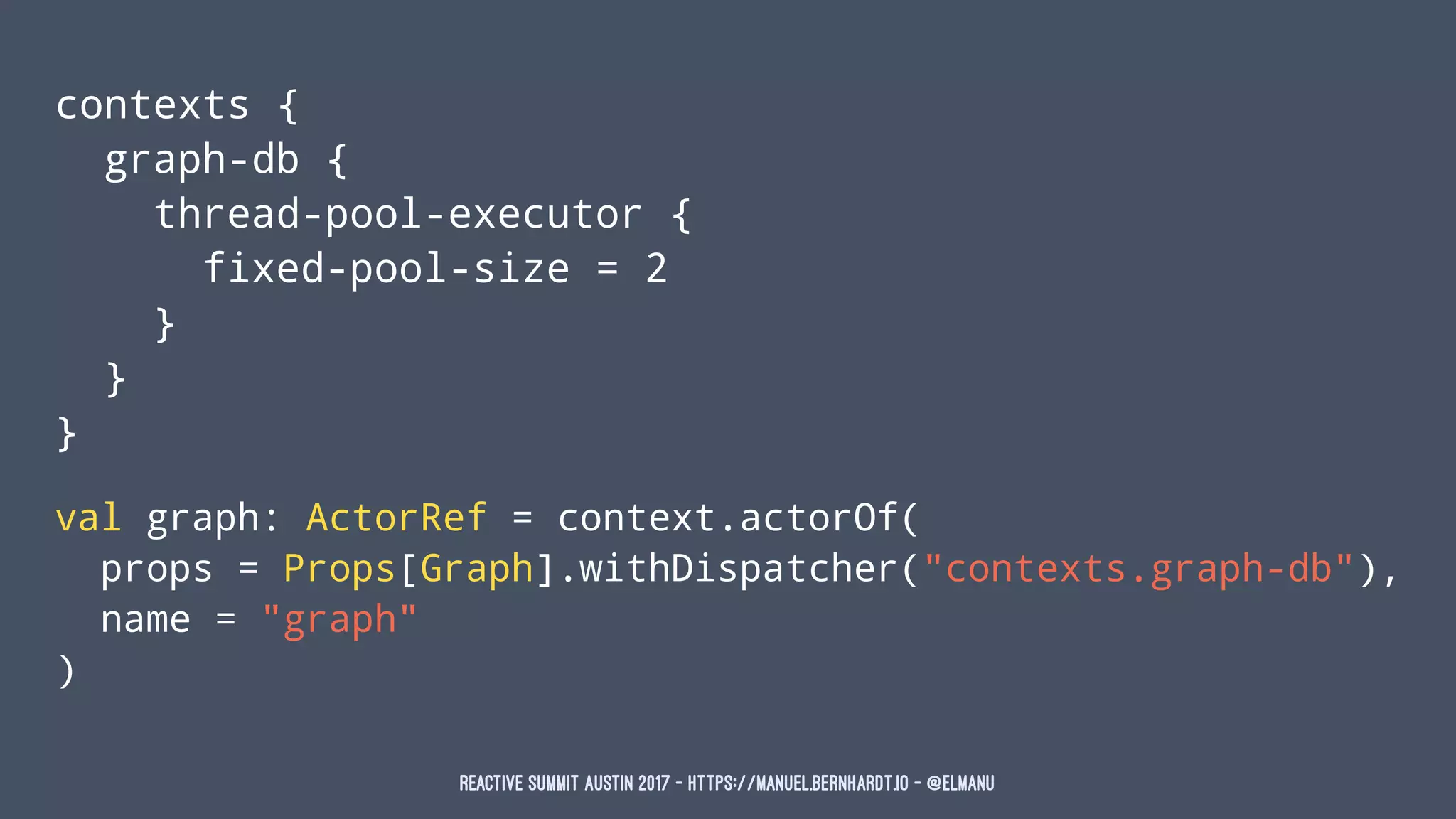

Bulkheading with custom dispatchers

contexts {
graph-db {
thread-pool-executor {
fixed-pool-size = 2
}
}
}
val graph: ActorRef = context.actorOf(
props = Props[Graph].withDispatcher("contexts.graph-db"),
name = "graph"
)

"Words, words, words."
— William Shakespeare, Hamlet

ANTI-PATTERN #4
LOGGING**THE WRONG WAY

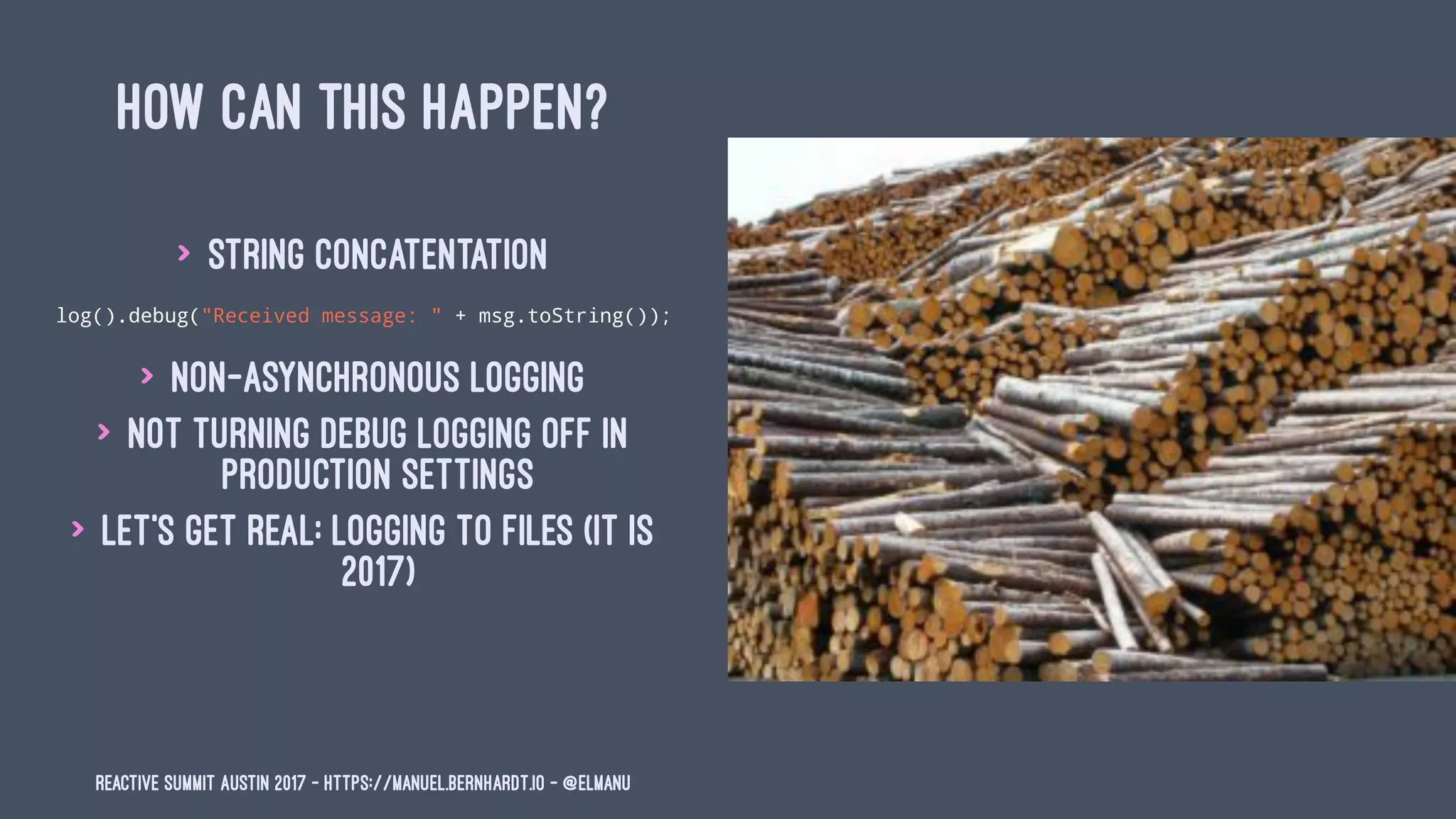

HOW CAN THIS HAPPEN?
> string concatentation
log().debug("Received message: " + msg.toString());
> non-asynchronous logging
> not turning debug logging off in
production settings
> let's get real: logging to files (it is
2017)

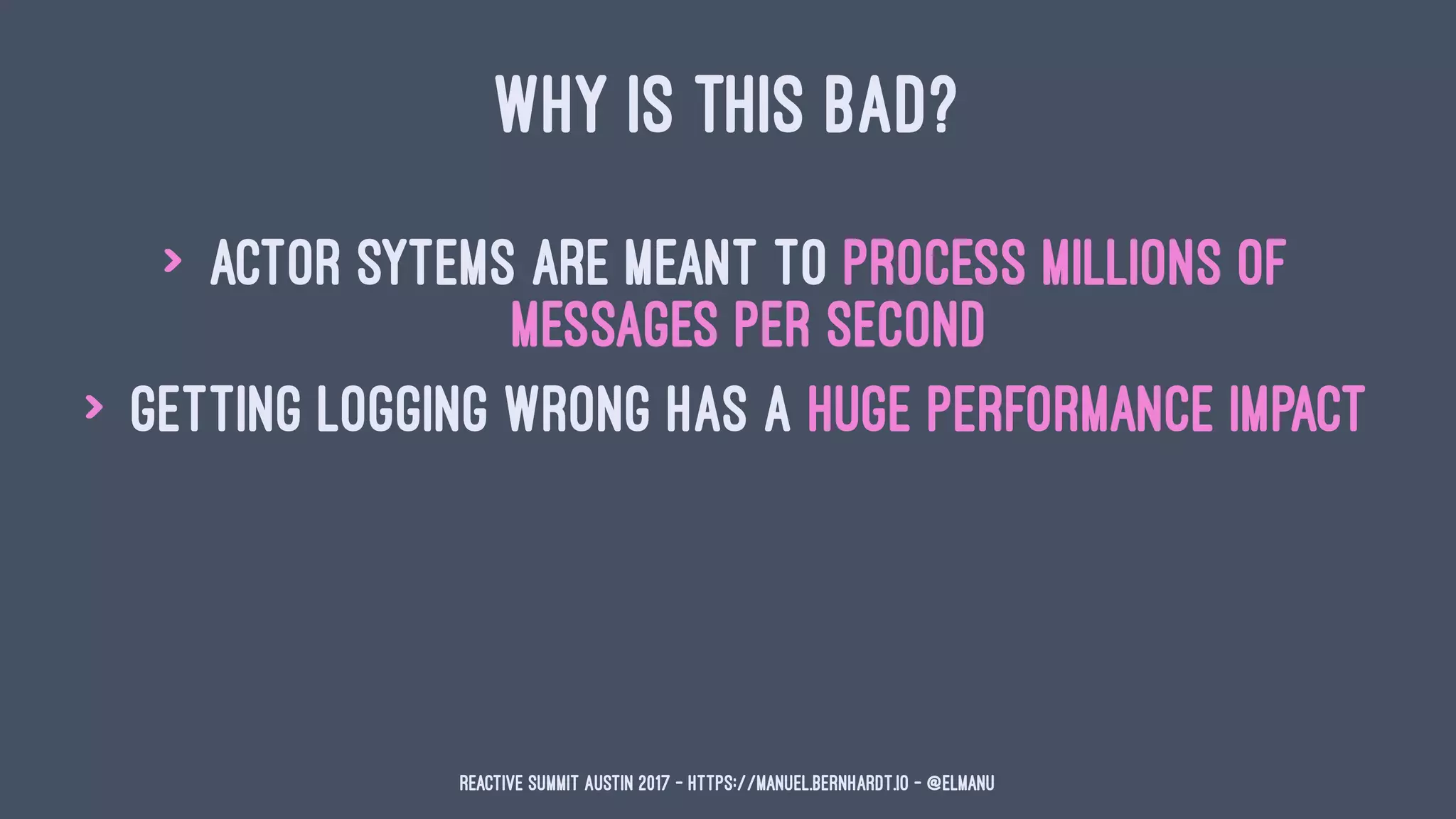

WHY IS THIS BAD?
> actor sytems are meant to process millions of
messages per second
> getting logging wrong has a huge performance impact

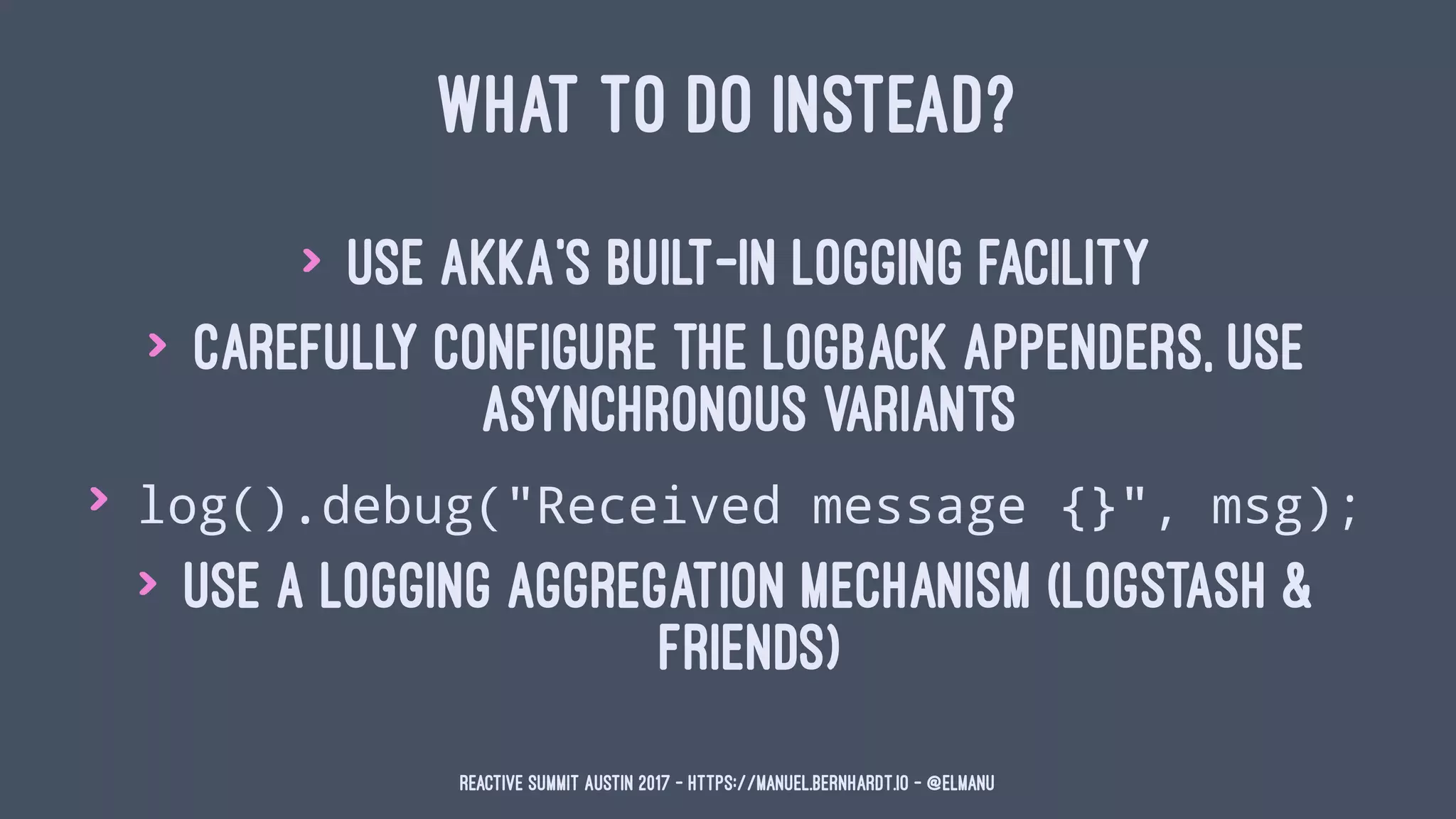

WHAT TO DO INSTEAD?
> use Akka's built-in logging facility
> carefully configure the logback appenders, use
asynchronous variants
> log().debug("Received message {}", msg);
> use a logging aggregation mechanism (logstash &
friends)

All that we see or seem is but a
dream within a dream.
— Edgar Allan Poe

ANTI-PATTERN #5BEING OUT OF TOUCH WITH THE HARDWARE

XKCDE 2
2
http://xkcd.com/1764/

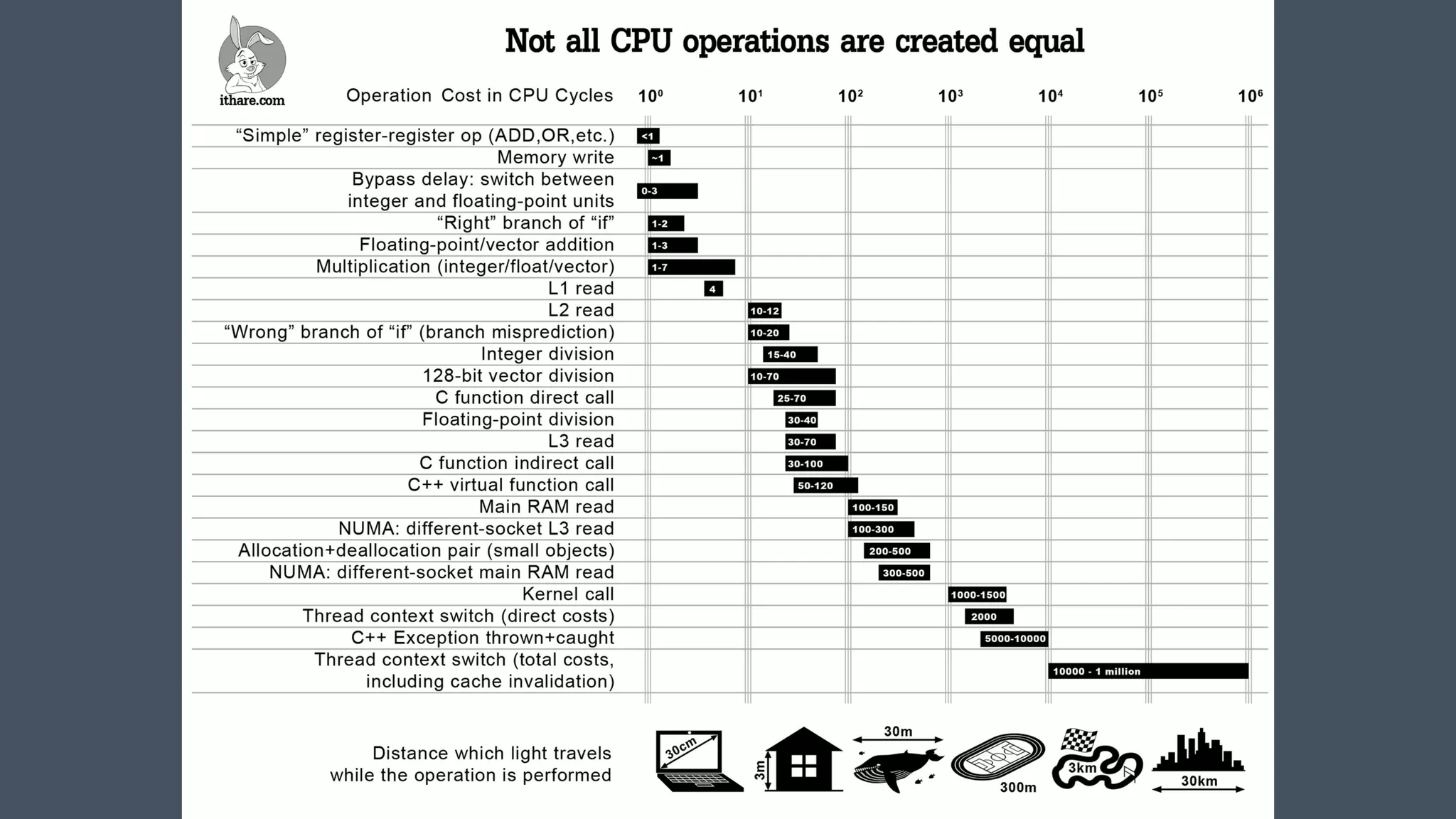

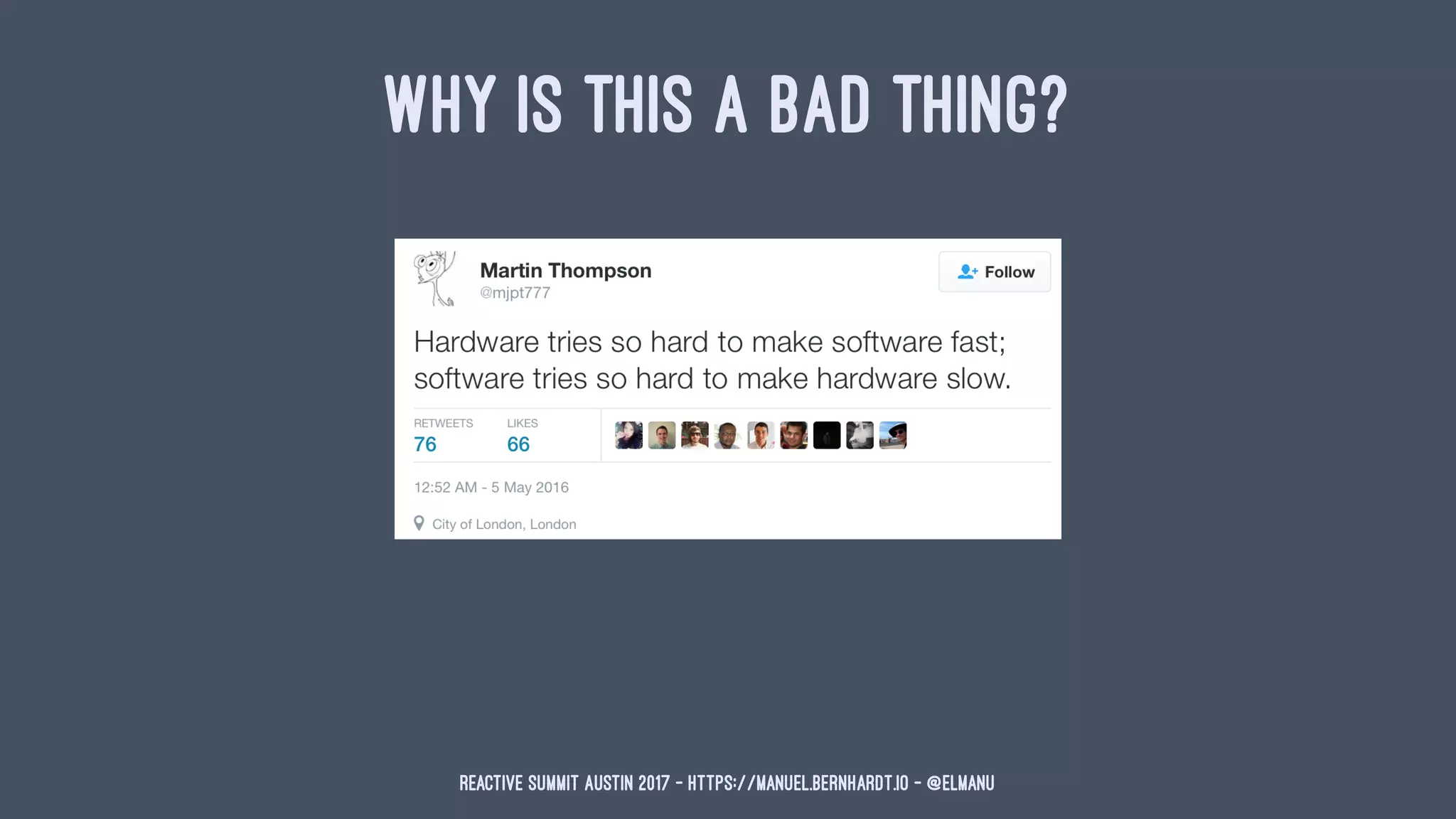

WHY IS THIS A BAD THING?

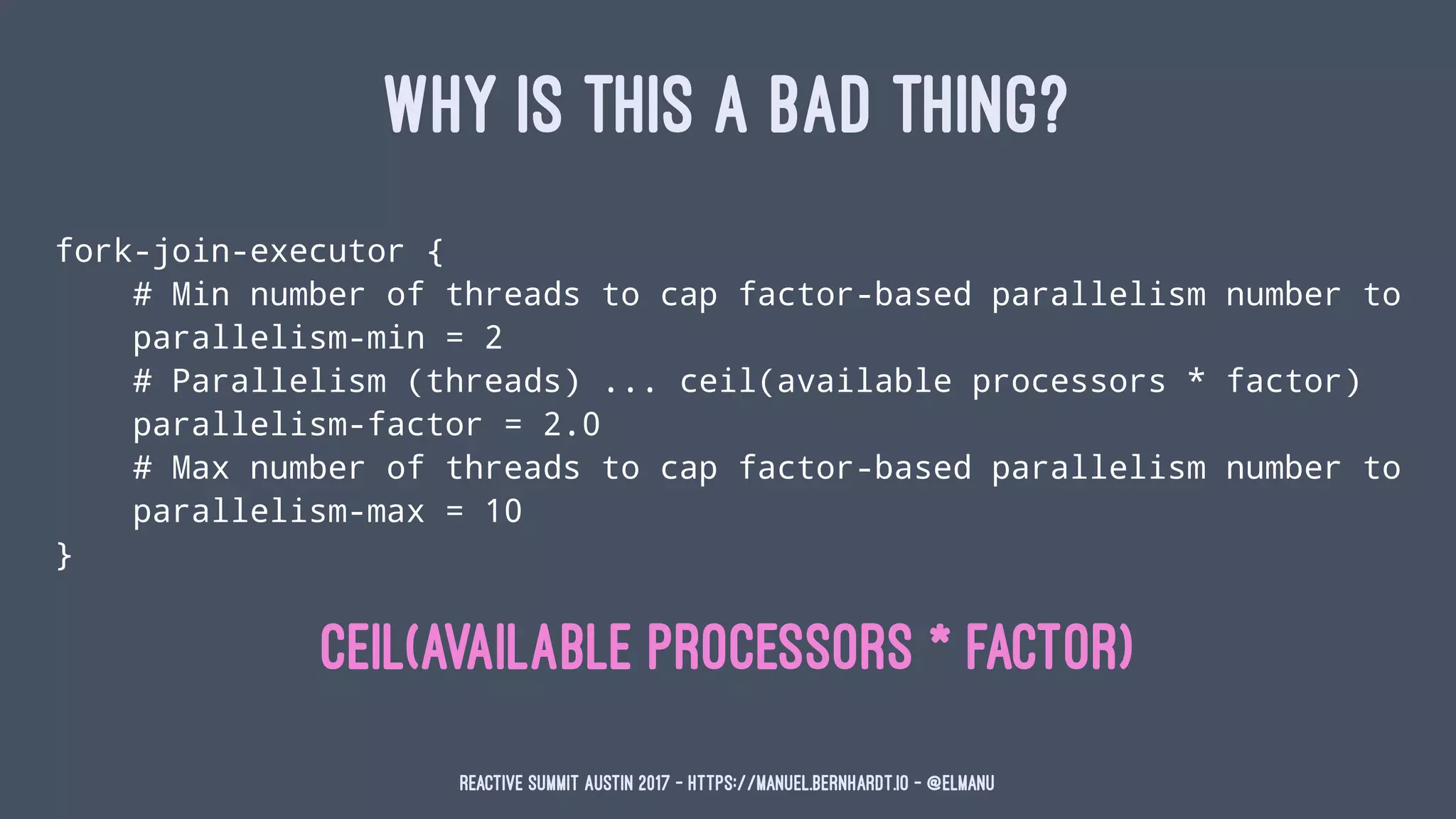

WHY IS THIS A BAD THING?
fork-join-executor {
# Min number of threads to cap factor-based parallelism number to
parallelism-min = 2
# Parallelism (threads) ... ceil(available processors * factor)
parallelism-factor = 2.0
# Max number of threads to cap factor-based parallelism number to
parallelism-max = 10
}
ceil(available processors * factor)

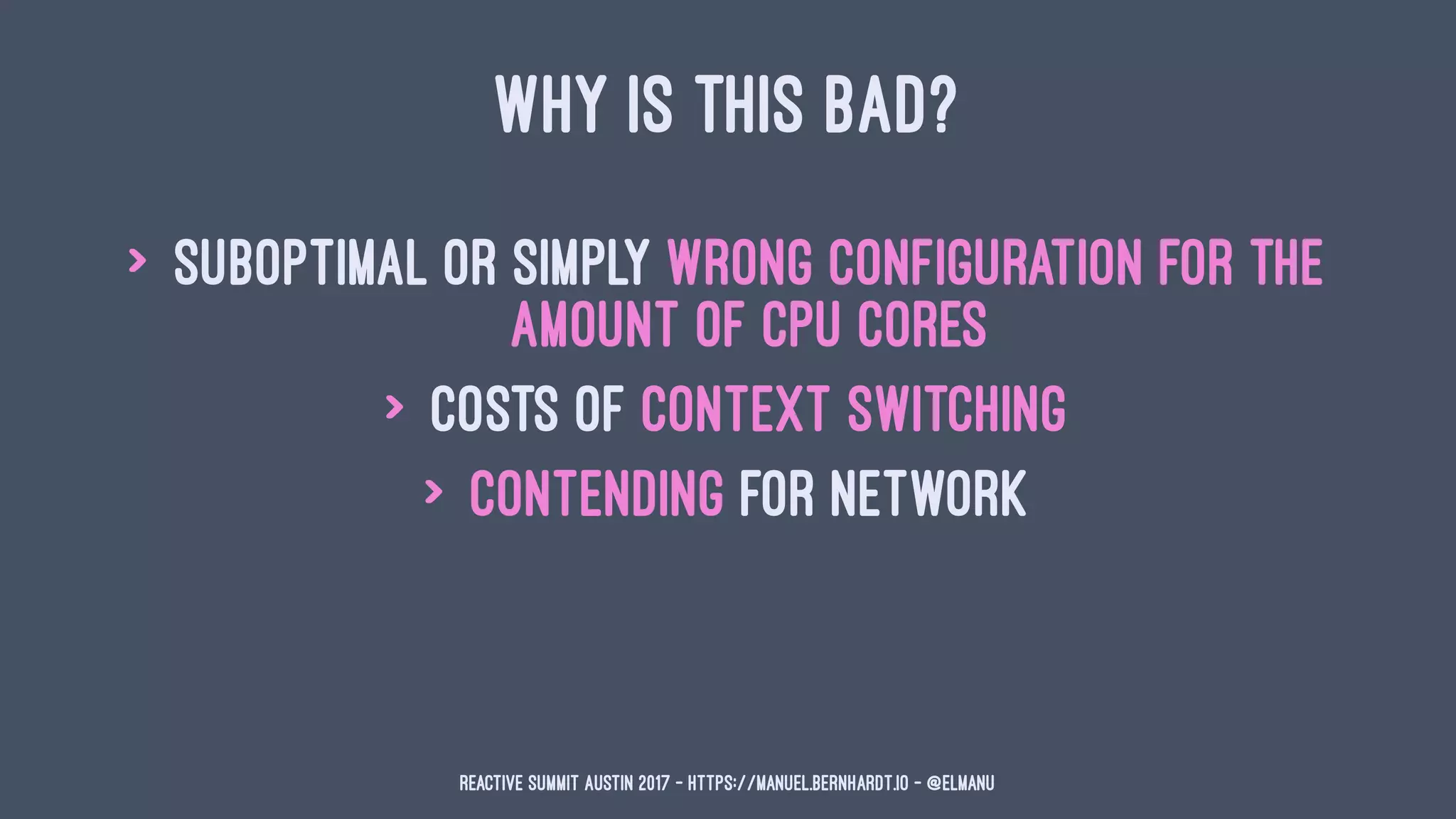

WHY IS THIS BAD?
> suboptimal or simply wrong configuration for the
amount of CPU cores
> costs of context switching
> contending for network

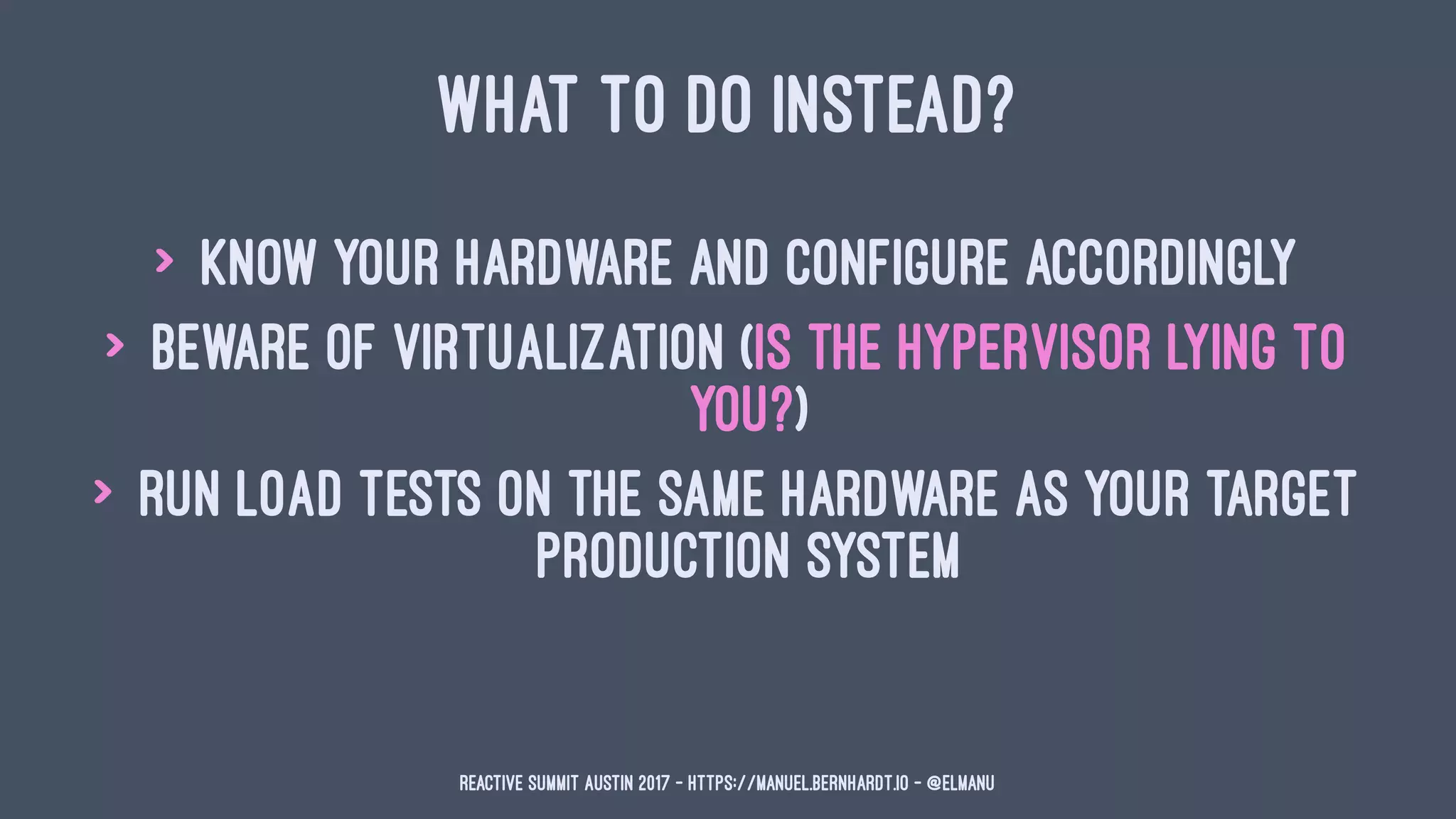

WHAT TO DO INSTEAD?
> know your hardware and configure accordingly
> beware of virtualization (is the hypervisor lying to
you?)
> run load tests on the same hardware as your target
production system

"...some men aren't looking for
anything logical, like money. They
can't be bought, bullied, reasoned,
or negotiated with. Some men just
want to watch the world burn."
— Alfred Pennyworth, Batman, The Dark Knight

ANTI-PATTERN #6
BLOCKINGReactive Summit Austin 2017 - https://manuel.bernhardt.io - @elmanu

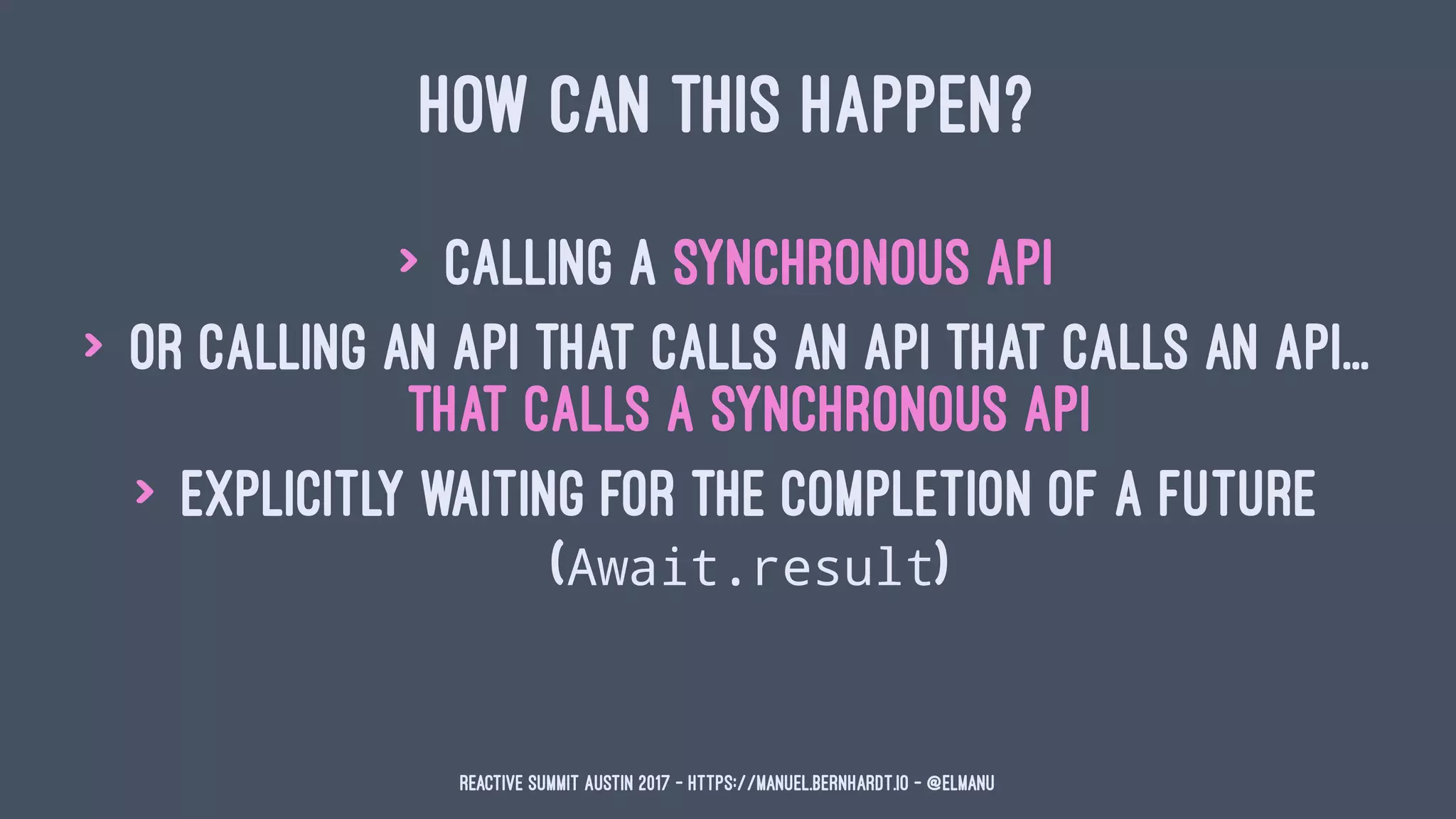

> calling a synchronous API
> or calling an API that calls an API that calls an API...
that calls a synchronous API
> explicitly waiting for the completion of a Future
(Await.result)

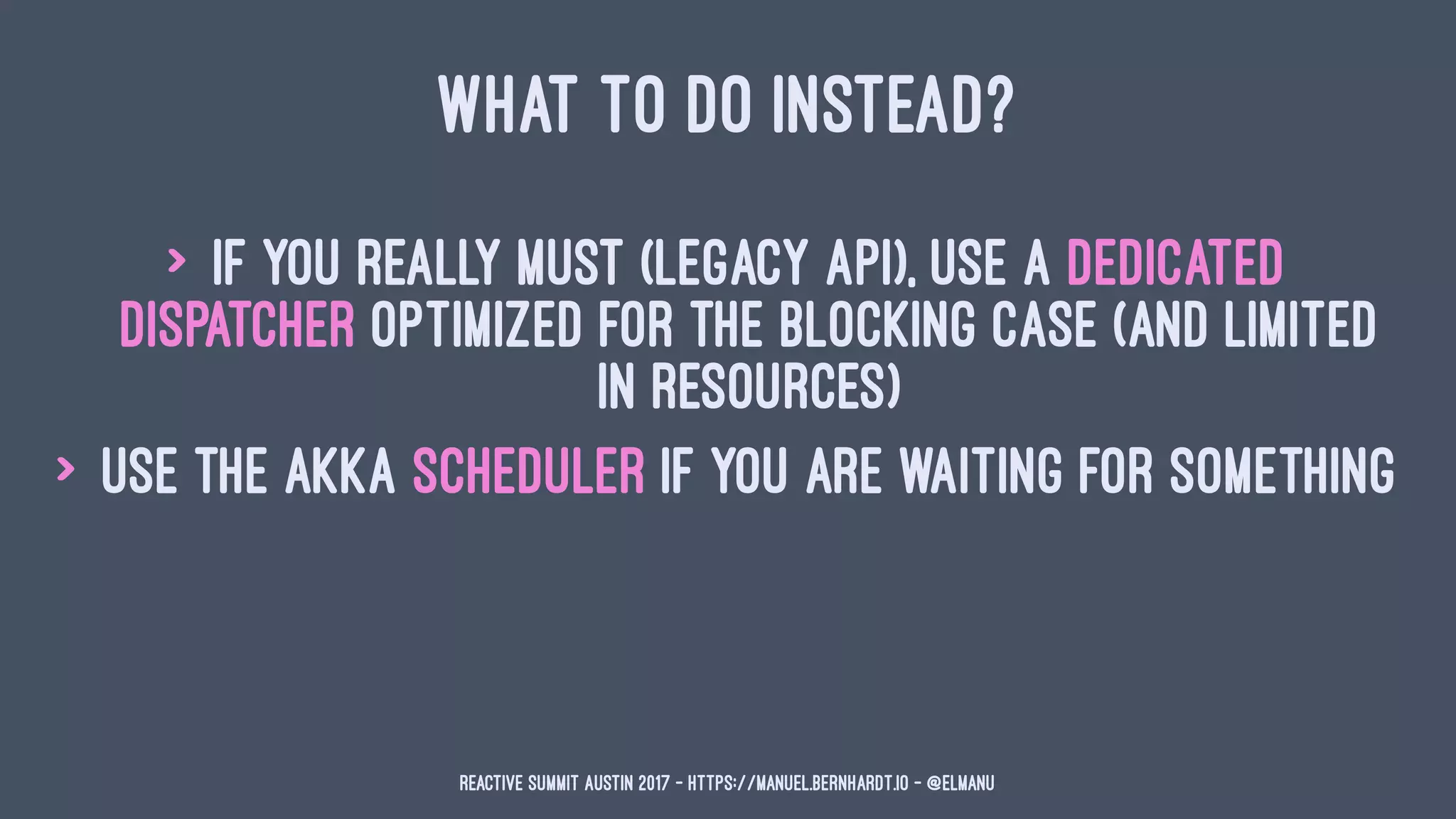

WHAT TO DO INSTEAD?
> if you really must (legacy API), use a dedicated
dispatcher optimized for the blocking case (and limited
in resources)
> use the akka scheduler if you are waiting for something

The desire of excessive power
caused the angels to fall
— Francis Bacon

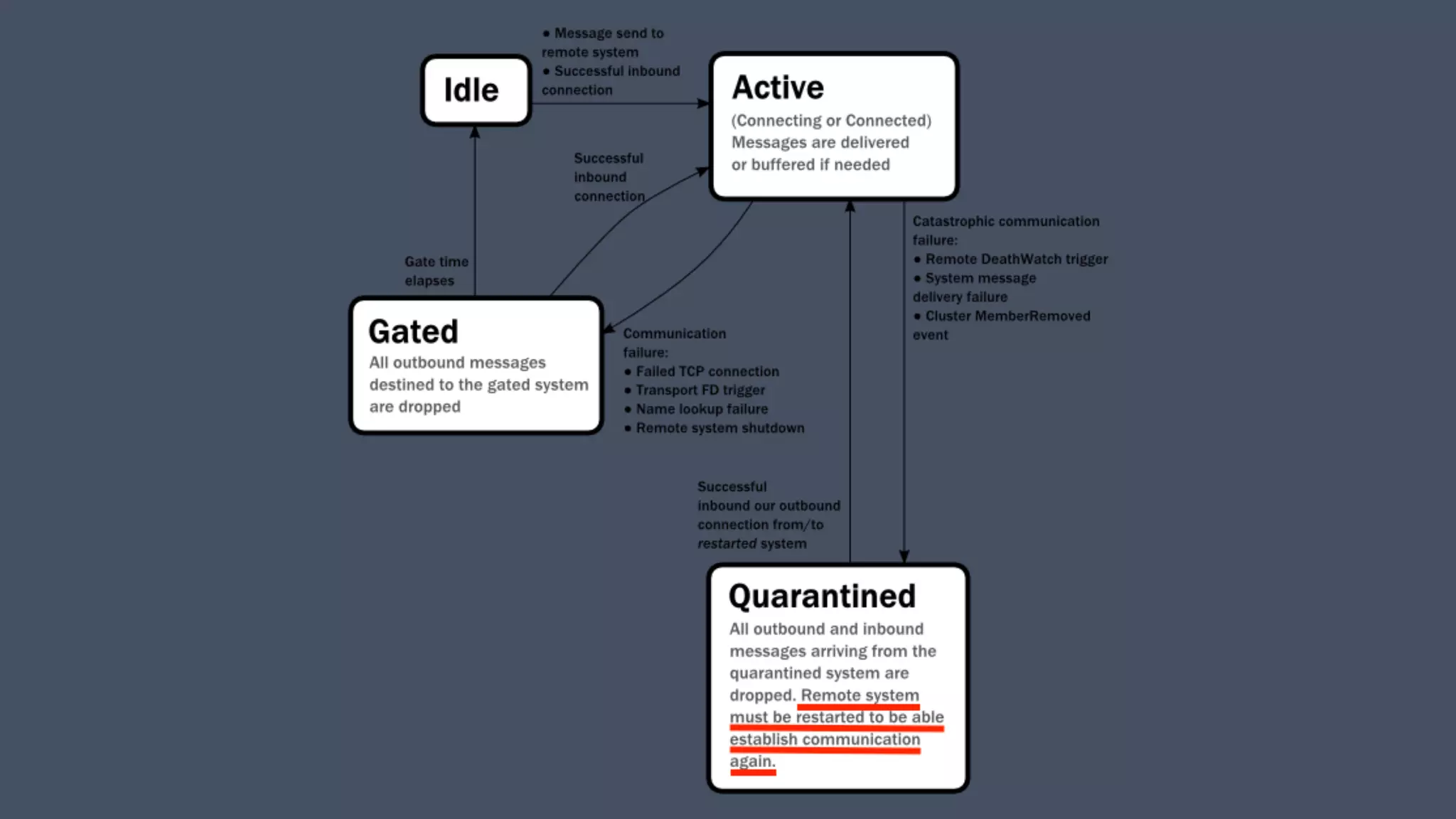

ANTI-PATTERN #7
USING AKKA REMOTING** DIRECTLY

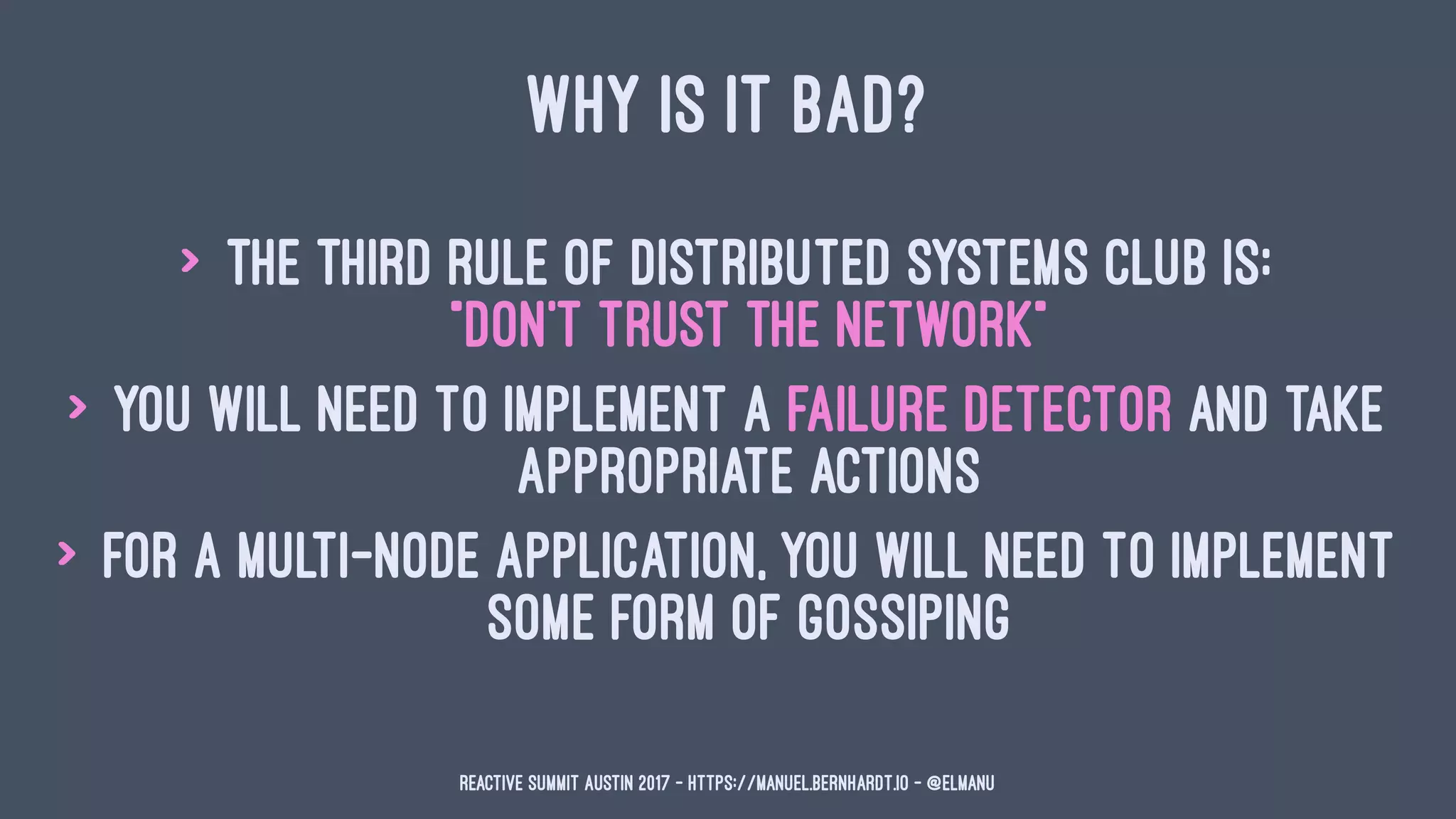

WHY IS IT BAD?
> The third rule of Distributed Systems Club is:
"Don't trust the network"
> you will need to implement a failure detector and take
appropriate actions
> for a multi-node application, you will need to implement
some form of gossiping

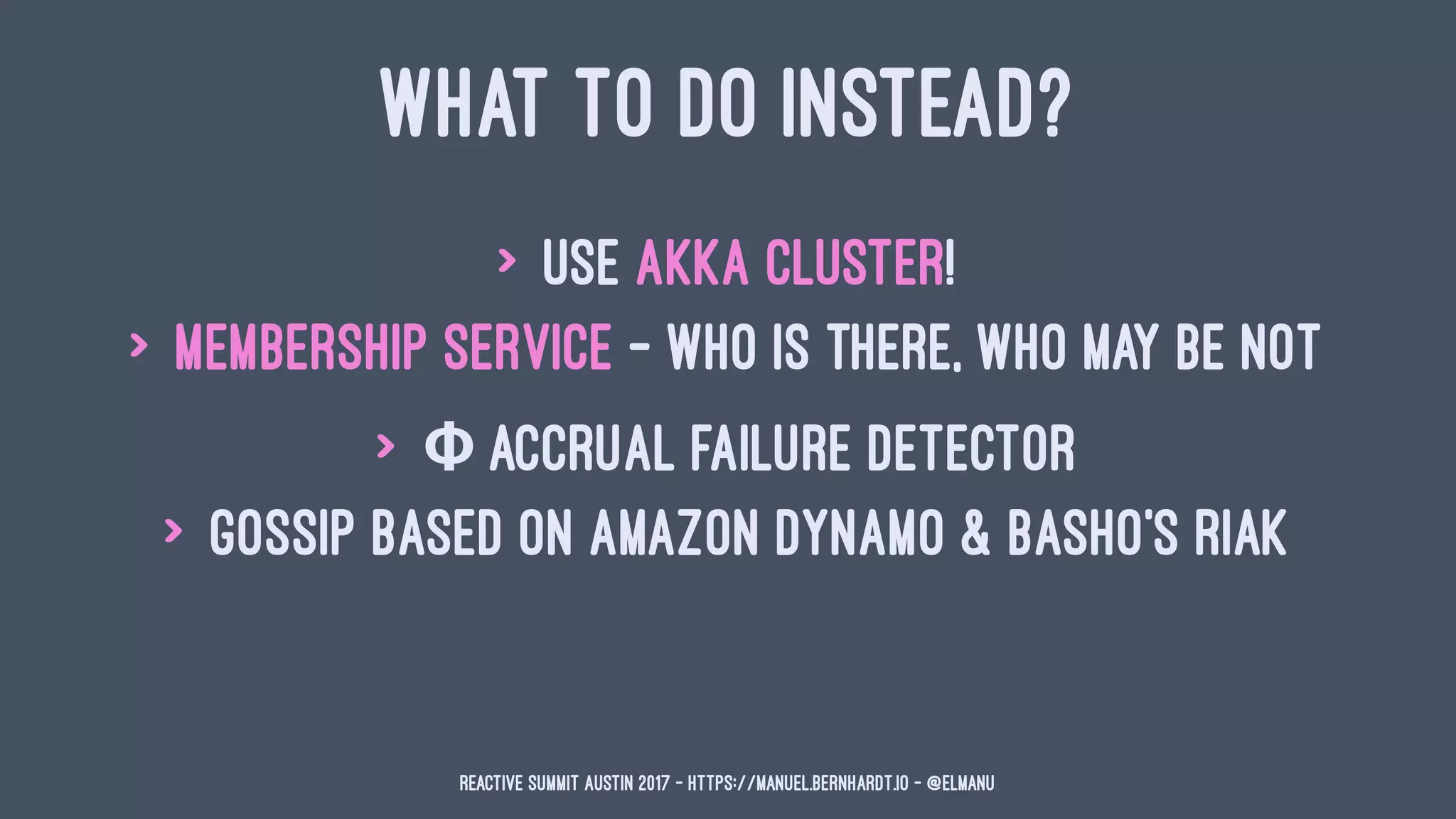

WHAT TO DO INSTEAD?
> use Akka cluster!
> membership service - who is there, who may be not
> Φ accrual failure detector
> gossip based on Amazon Dynamo & Basho's Riak

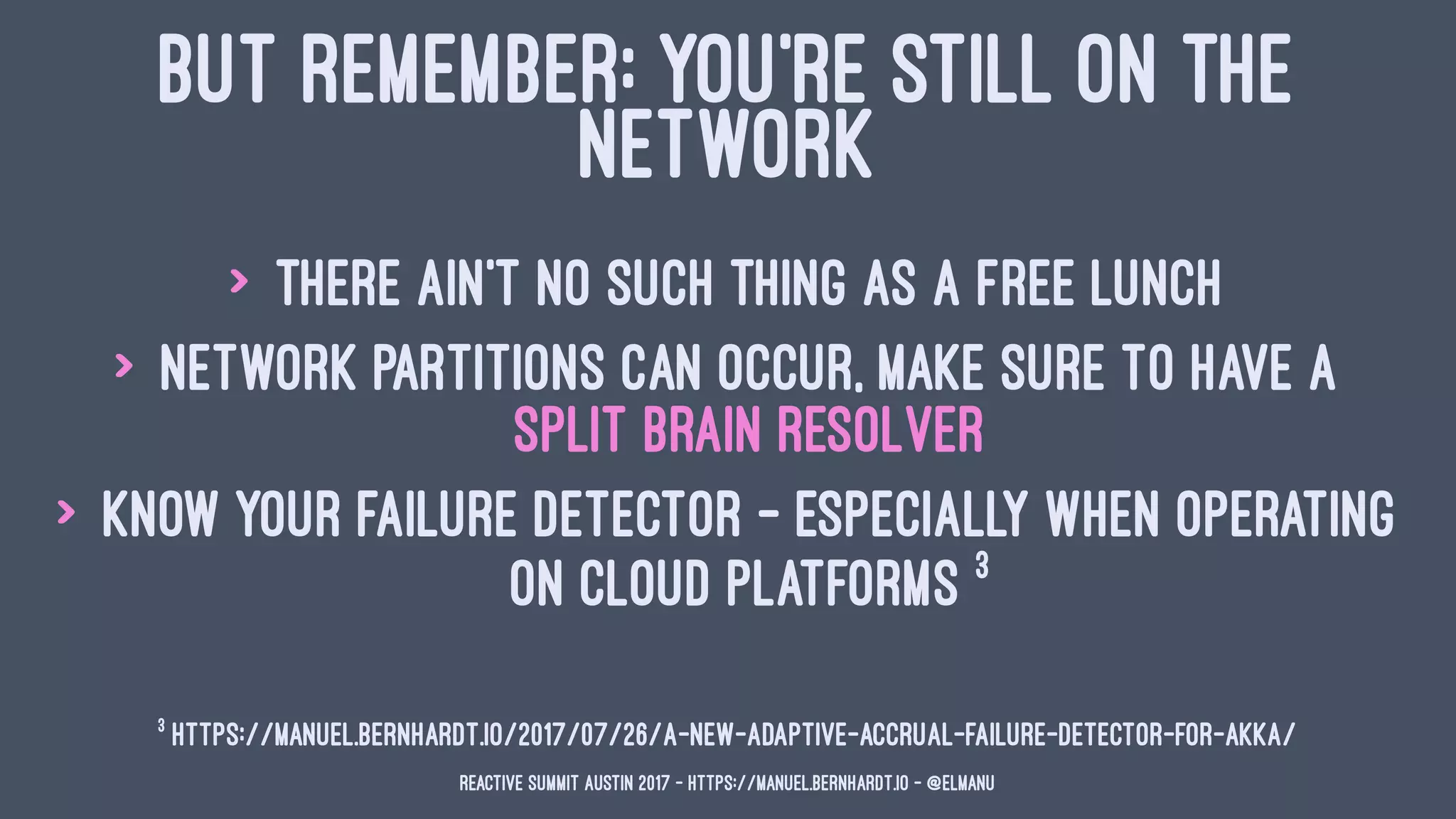

BUT REMEMBER: YOU'RE STILL ON THE
NETWORK
> there ain't no such thing as a free lunch
> network partitions can occur, make sure to have a
split brain resolver
> know your failure detector - especially when operating
on cloud platforms 3
3
https://manuel.bernhardt.io/2017/07/26/a-new-adaptive-accrual-failure-detector-for-akka/

This is the way the world ends
Not with a bang but a whimper.
— T.S. Eliot

ANTI-PATTERN #8
USING JAVA SERIALIZATION

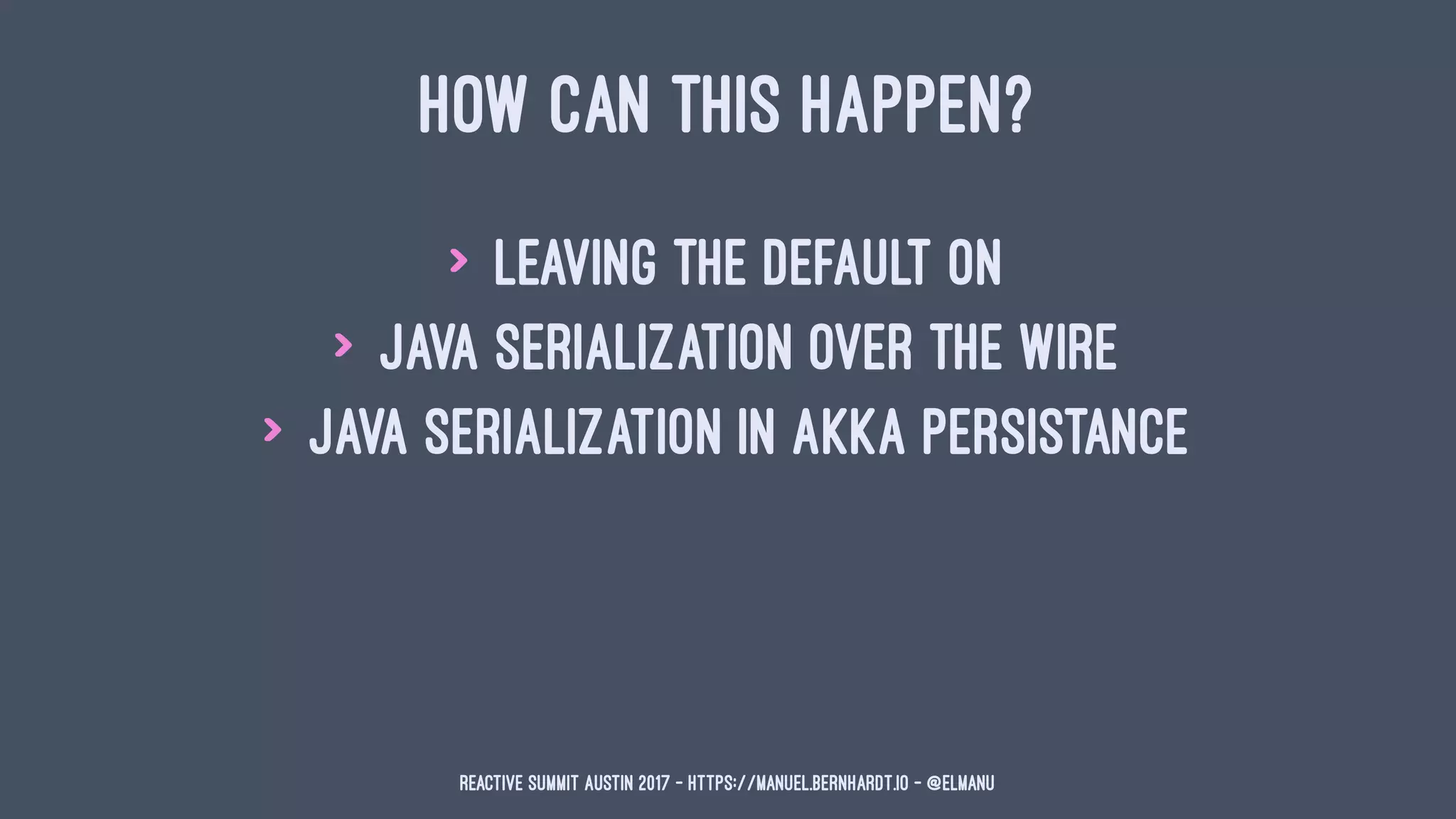

> leaving the default on
> Java serialization over the wire
> Java serialization in Akka Persistance

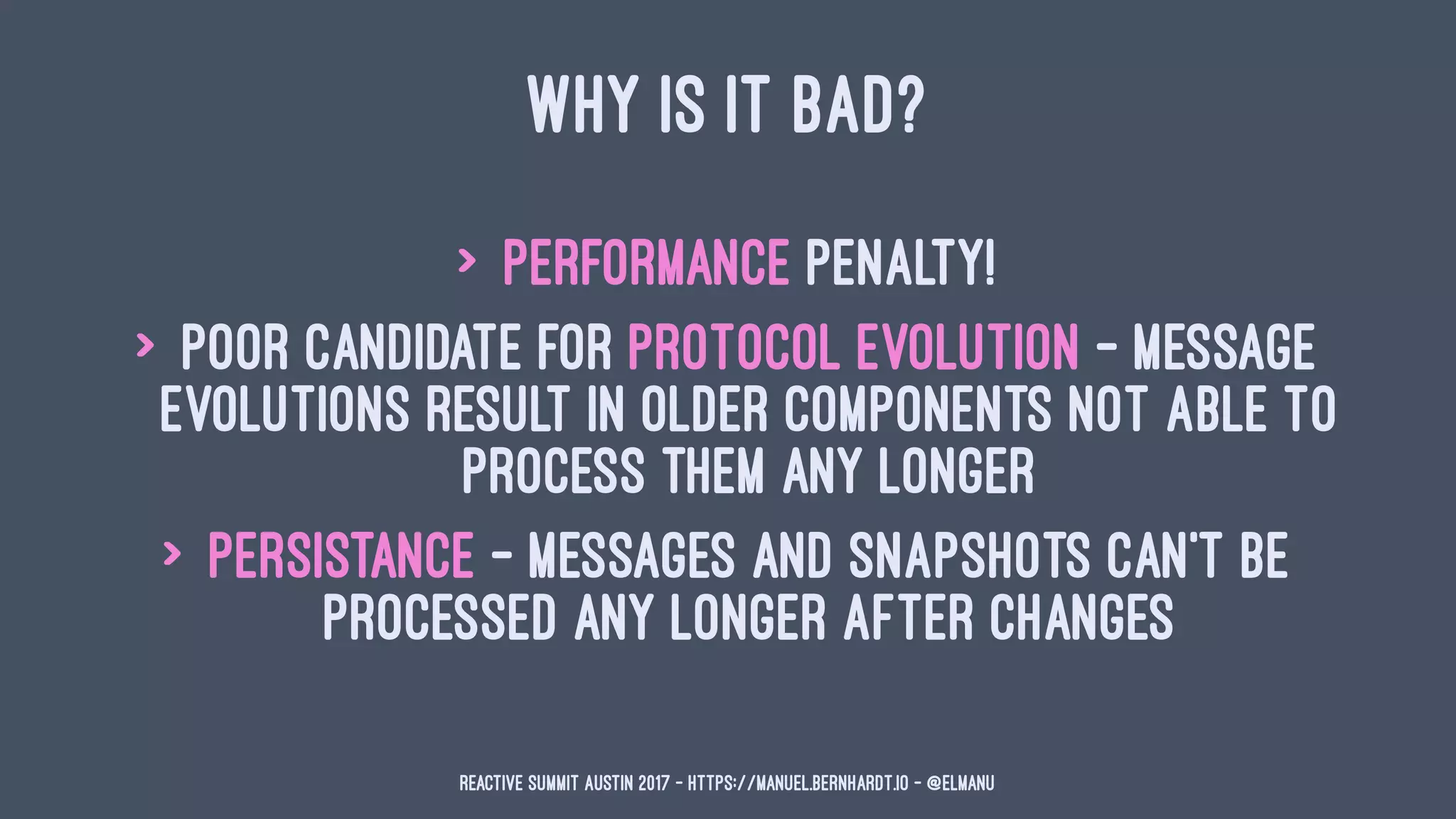

WHY IS IT BAD?
> performance penalty!
> poor candidate for protocol evolution - message
evolutions result in older components not able to
process them any longer
> persistance - messages and snapshots can't be
processed any longer after changes

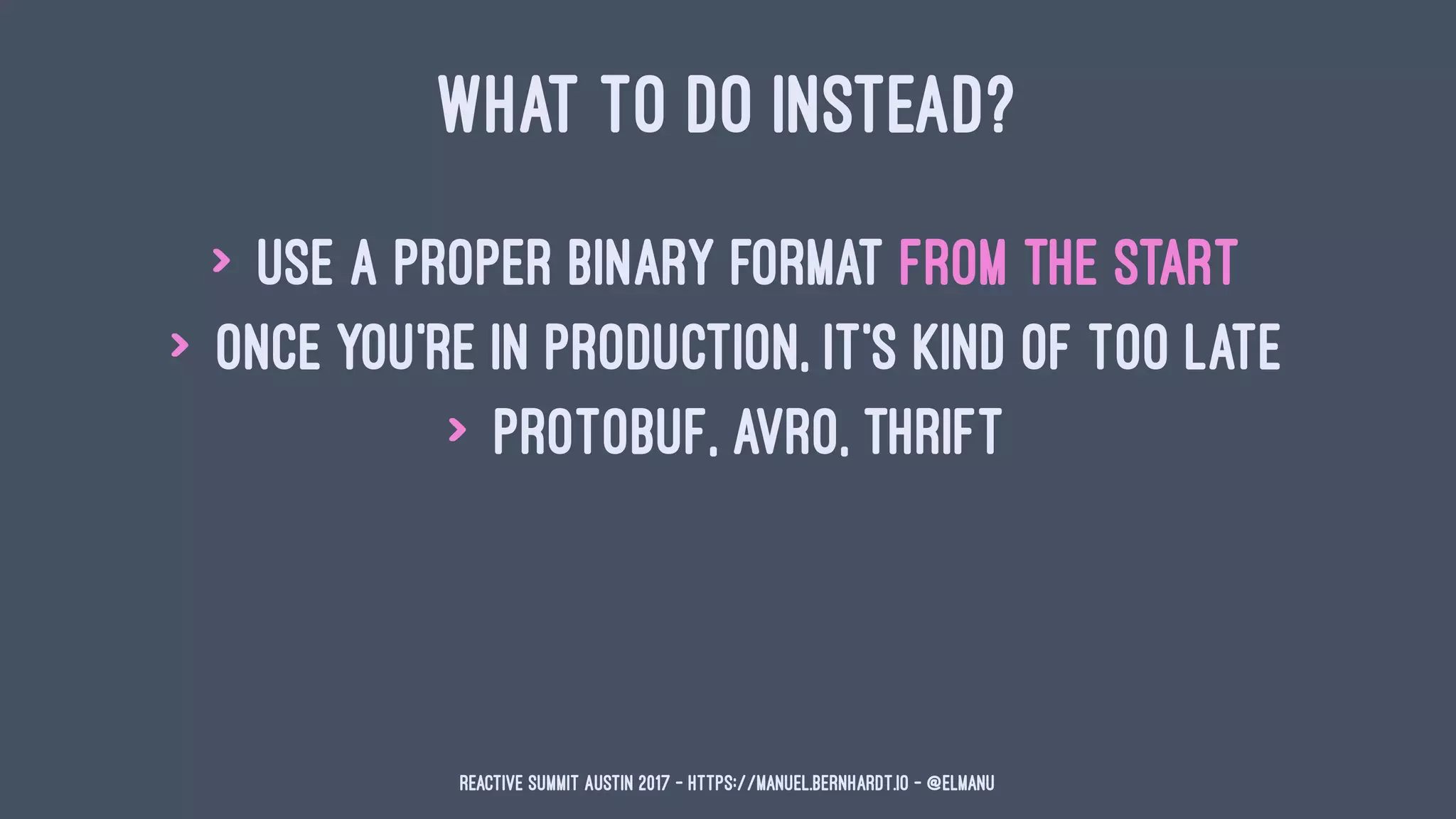

WHAT TO DO INSTEAD?
> use a proper binary format from the start
> once you're in production, it's kind of too late
> protobuf, avro, thrift

THANK YOU
> Questions, comments, feedback?
> Contact me at manuel@bernhardt.io / @elmanu
> Check out more anti-patterns at
https://manuel.bernhardt.io
