The 648 is a bidirectional optical repeater that extends FireWire cable runs up to 500m by converting electrical FireWire signals to optical signals and back. It has two 9-pin FireWire ports and two LC fiber optic ports, supports transfer rates up to 800Mbps, and can extend the FireWire cable range from 4.5m to 500m when used in pairs. It is compliant with FireWire and IEEE 1394 standards and can be rack mounted with an optional adapter.

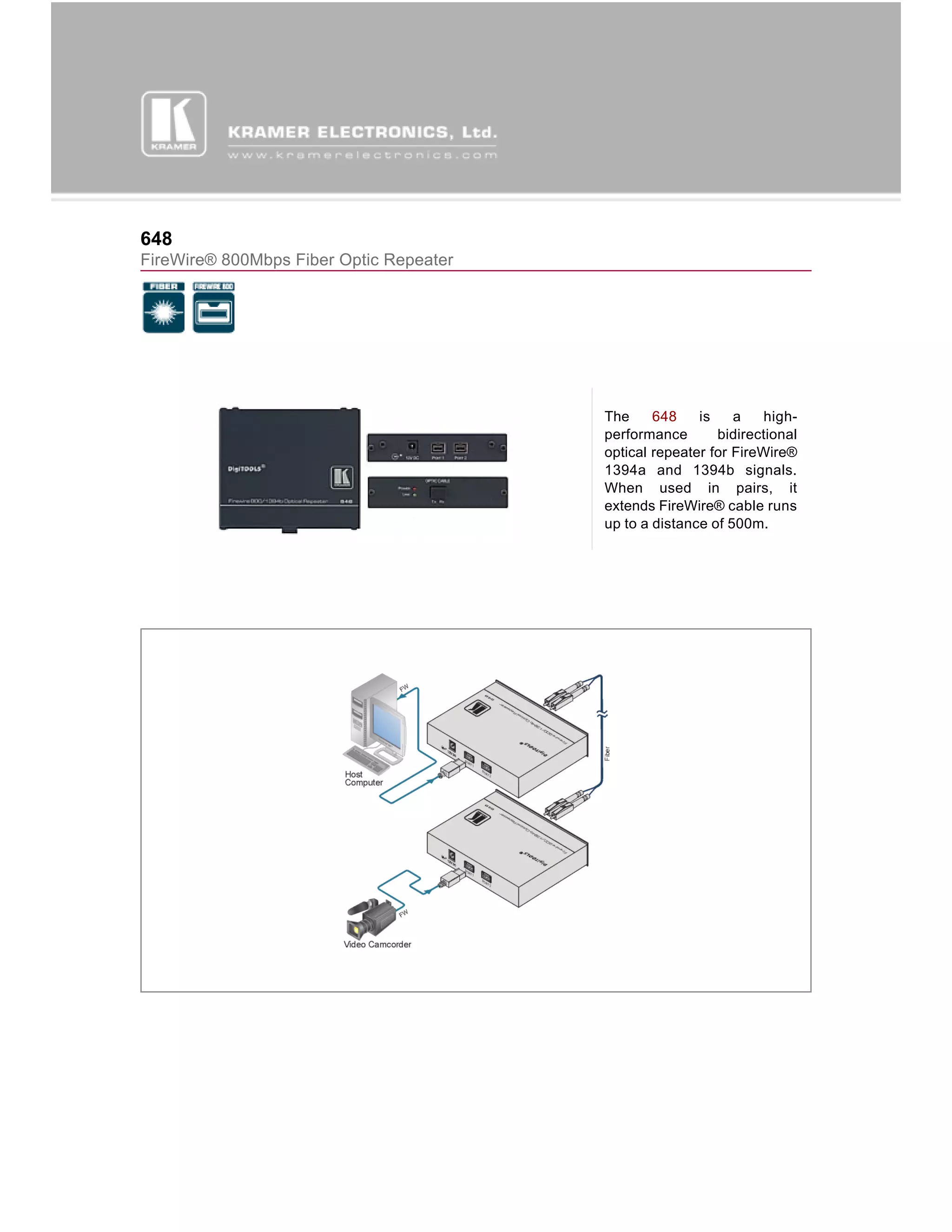

1. 648
FireWire® 800Mbps Fiber Optic Repeater
The 648 is a high-
performance bidirectional
optical repeater for FireWire®
1394a and 1394b signals.
When used in pairs, it
extends FireWire® cable runs
up to a distance of 500m.

2. 648

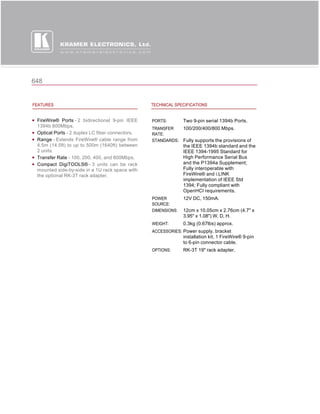

FEATURES TECHNICAL SPECIFICATIONS
FireWire® Ports - 2 bidirectional 9-pin IEEE PORTS: Two 9-pin serial 1394b Ports.
1394b 800Mbps.
TRANSFER 100/200/400/800 Mbps.
Optical Ports - 2 duplex LC fiber connectors. RATE:
Range - Extends FireWire® cable range from STANDARDS: Fully supports the provisions of
4.5m (14.5ft) to up to 500m (1640ft) between the IEEE 1394b standard and the
2 units. IEEE 1394-1995 Standard for
Transfer Rate - 100, 200, 400, and 800Mbps. High Performance Serial Bus
Compact DigiTOOLS® - 3 units can be rack and the P1394a Supplement;
mounted side-by-side in a 1U rack space with Fully interoperable with
the optional RK-3T rack adapter. FireWire® and i.LINK
implementation of IEEE Std
1394; Fully compliant with
OpenHCI requirements.
POWER 12V DC, 150mA.
SOURCE:
DIMENSIONS: 12cm x 10.05cm x 2.76cm (4.7" x
3.95" x 1.08") W, D, H.
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply, bracket
installation kit, 1 FireWire® 9-pin
to 6-pin connector cable.
OPTIONS: RK-3T 19" rack adapter.
