6.1.4phasor

•
•
T
Talia Carbis

In three-phase systems, the voltage in each phase is shifted 120 degrees from the others. This phase shift allows the rotating magnetic field to be produced which drives motors and generators. The phase shift results in the voltages reaching their peaks sequentially, with 1/3 of the cycle between them.

TechnologyBusiness
1 of 2

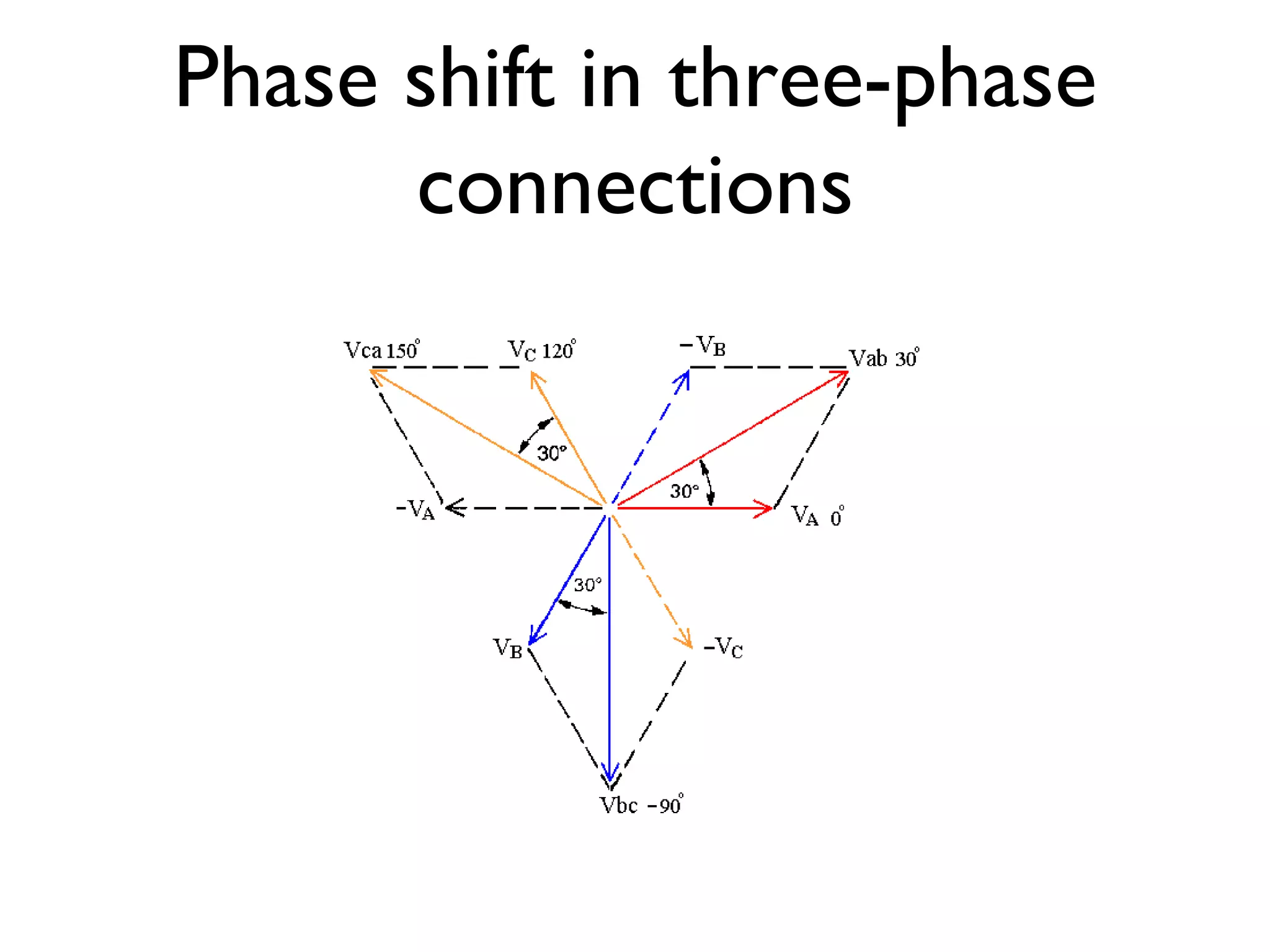

Phase shift in three-phase connections
Phase shift in three-phase connections
