This document contains information about a CNC milling program for part number 601-08147BACK, including: 1) The program involves 8 operations using two end mills with diameters of 8mm and 6mm. 2) Images and tool information are provided for the 8mm and 6mm end mills. 3) An operation summary lists the 6 roughing and 2 finishing operations with estimated cycle times totaling 9 minutes and 58 seconds.

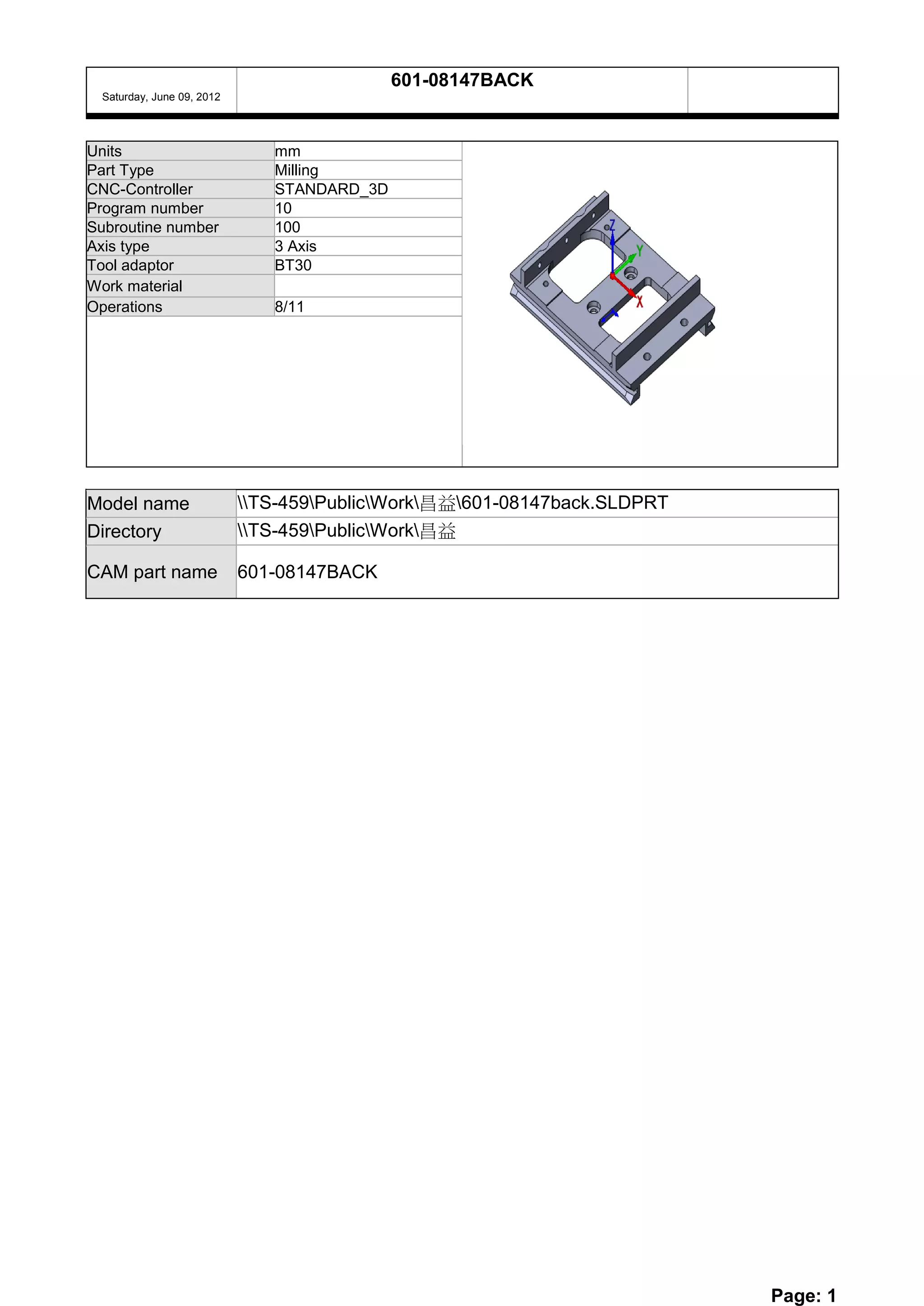

1. 601-08147BACK
Saturday, June 09, 2012
Units mm
Part Type Milling
CNC-Controller STANDARD_3D
Program number 10
Subroutine number 100
Axis type 3 Axis
Tool adaptor BT30
Work material
Operations 8/11
Model name TS-459PublicWork昌益601-08147back.SLDPRT
Directory TS-459PublicWork昌益
CAM part name 601-08147BACK
Page: 1

2. Images 601-08147BACK
Saturday, June 09, 2012
粗加工 ENDMILL 8MM 底正寸 ENDMILL 8MM
側正寸 ENDMILL 6MM
Page: 2

3. Tool Table For 601-08147BACK
Saturday, June 09, 2012
1-Spindle-1
D: 8 mm TL: 80 mm H1 D1
AD: 8 OHL: 60 mm Flutes: 4
CL: 24 mm
END MILL
H: 100 mm
2-Spindle-1
D: 6 mm TL: 80 mm H2 D2
AD: 6 OHL: 60 mm Flutes: 4
CL: 24 mm
END MILL
H: 100 mm
Page: 3

4. Operation Summary 601-08147BACK
Saturday, June 09, 2012
Tool Tool
Operation Name Operation Operation description Transform Time
Number Coolant
1-
MAC 1 (1- Position) iRough_
輪廓 iMachining Spindle- 0:04:13
1
1-
MAC 1 (1- Position) iRough_
輪廓1 iMachining Spindle- 0:02:37
1
1-
MAC 1 (1- Position) iRough_
輪廓2 iMachining Spindle- 0:01:12
1
1-
MAC 1 (1- Position) iRough_
輪廓1_1 iMachining Spindle- 0:00:46
1
1-
MAC 1 (1- Position) iRough_
輪廓2_1 iMachining Spindle- 0:00:19
1
Page: 4

5. Tool Tool
Operation Name Operation Operation description Transform Time
Number Coolant
2-
MAC 1 (1- Position) iFinish_
輪廓 iMachining Spindle- 0:00:26
1
2-
MAC 1 (1- Position) iFinish_
輪廓1 iMachining Spindle- 0:00:16
1
2-
MAC 1 (1- Position) iFinish_
輪廓2 iMachining Spindle- 0:00:09
1
Total time 0:09:58
Page: 5
