The document provides information about office machinery and printing equipment produced by Energy Link International Corp., including guillotines, perfect binders, and electric staplers. Energy Link is headquartered in Taiwan and has a factory in China. They produce a variety of manual and automatic guillotine cutters ranging from 430mm to 650mm in size. They also offer desktop and professional perfect binders and heavy duty staplers in their product line.

1. Office Machines &
Printing Finished
Guillotine–Binder–Stapler–Driller
Paper shredder–Folder–Puncher……
Headquarter office
in Taipei Taiwan
Factory in Guangzhou China
The technical data are approximate. Subject to change. 02/2011
HEADQUARTER
ENERGY LINK INTERNATIONAL CORP.
P.O. Box 2-103, Chung Ho, New Taipei City, Taiwan.
TEL:+886 2 29496760 FAX:+886 2 29496761
www.sysform.tw www.energy-link.info
sales@energy-link.info
FACTORY
Building D, No.1, Fenghuang South Rd. Huadu, Guangzhou
TEL:+86 20 36916601 FAX:+86 20 36916603
A brand of ENERGY LINK Your Best Choice
Printed in Taiwan 02/2011 Version 2

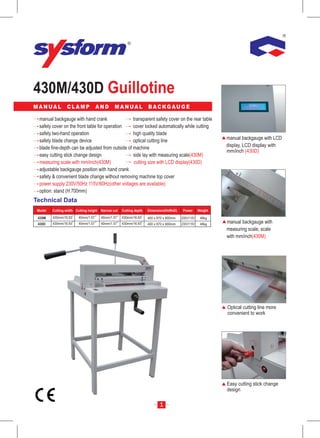

2. 430M/430D Guillotine
MANUAL CLAMP AND MANUAL BACKGAUGE
manual backgauge with hand crank transparent safety cover on the rear table
safety cover on the front table for operation cover locked automatically while cutting
safety two-hand operation high quality blade
safety blade change device optical cutting line manual backgauge with LCD
blade fine-depth can be adjusted from outside of machine display, LCD display with
mm/inch (430D)
easy cutting stick change design side lay with measuring scale(430M)
measuring scale with mm/inch(430M) cutting size with LCD display(430D)
adjustable backgauge position with hand crank
safety & convenient blade change without removing machine top cover
power supply:230V/50Hz 115V/60Hz(other voltages are available)
option: stand (H:700mm)
Technical Data
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Power Weight
430M 430mm/16.93 40mm/1.57 40mm/1.57 430mm/16.93 400 x 870 x 800mm 230V/115V 46kg
430D 430mm/16.93 40mm/1.57 40mm/1.57 430mm/16.93 400 x 870 x 800mm 230V/115V 48kg manual backgauge with
measuring scale, scale
with mm/inch(430M)
Optical cutting line more
convenient to work
Easy cutting stick change
design
1

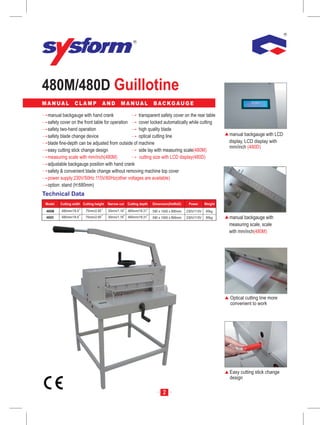

3. 480M/480D Guillotine
MANUAL CLAMP AND MANUAL BACKGAUGE
manual backgauge with hand crank transparent safety cover on the rear table
safety cover on the front table for operation cover locked automatically while cutting
safety two-hand operation high quality blade
safety blade change device optical cutting line manual backgauge with LCD
blade fine-depth can be adjusted from outside of machine display, LCD display with
mm/inch (480D)
easy cutting stick change design side lay with measuring scale(480M)
measuring scale with mm/inch(480M) cutting size with LCD display(480D)
adjustable backgauge position with hand crank
safety & convenient blade change without removing machine top cover
power supply:230V/50Hz 115V/60Hz(other voltages are available)
option: stand (H:680mm)
Technical Data
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Power Weight
480M 480mm/18.9 75mm/2.95 30mm/1.18 465mm/18.31 590 x 1000 x 890mm 230V/115V 85kg
480D 480mm/18.9 75mm/2.95 30mm/1.18 465mm/18.31 590 x 1000 x 890mm 230V/115V 85kg manual backgauge with
measuring scale, scale
with mm/inch(480M)
Optical cutting line more
convenient to work
Easy cutting stick change
design
2

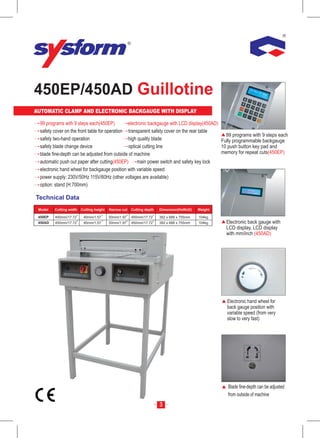

4. 450EP/450AD Guillotine
AUTOMATIC CLAMP AND ELECTRONIC BACKGAUGE WITH DISPLAY
99 programs with 9 steps each(450EP) electronic backgauge with LCD display(450AD)
safety cover on the front table for operation transparent safety cover on the rear table
99 programs with 9 steps each
safety two-hand operation high quality blade Fully programmable backgauge
safety blade change device optical cutting line 10 push button key pad and
blade fine-depth can be adjusted from outside of machine memory for repeat cuts(450EP)
automatic push out paper after cutting(450EP) main power switch and safety key lock
electronic hand wheel for backgauge position with variable speed
power supply: 230V/50Hz 115V/60Hz (other voltages are available)
option: stand (H:700mm)
Technical Data
Model
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Weight
450EP 450mm/17.72 40mm/1.57 50mm/1.97 450mm/17.72 382 x 688 x 755mm 104kg
450AD 450mm/17.72 40mm/1.57 50mm/1.97 450mm/17.72 382 x 688 x 755mm 104kg Electronic back gauge with
LCD display, LCD display
with mm/inch (450AD)
Electronic hand wheel for
back gauge position with
variable speed (from very
slow to very fast)
Blade fine-depth can be adjusted
from outside of machine
3

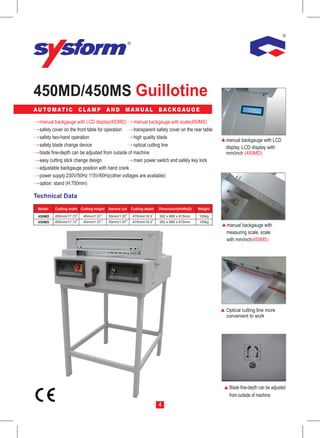

5. 450MD/450MS Guillotine
A U T O M AT I C CLAMP AND MANUAL BACKGAUGE
manual backgauge with LCD display(450MD) manual backgauge with scale(450MS)
safety cover on the front table for operation transparent safety cover on the rear table
safety two-hand operation high quality blade
manual backgauge with LCD
safety blade change device optical cutting line display, LCD display with
blade fine-depth can be adjusted from outside of machine mm/inch (450MD)
easy cutting stick change design main power switch and safety key lock
adjustable backgauge position with hand crank
power supply:230V/50Hz 115V/60Hz(other voltages are available)
option: stand (H:700mm)
Technical Data
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Weight
450MD 450mm/17.72 40mm/1.57 50mm/1.97 470mm/18.5 382 x 688 x 815mm 100kg
450MS 450mm/17.72 40mm/1.57 50mm/1.97 470mm/18.5 382 x 688 x 815mm 100kg
manual backgauge with
measuring scale, scale
with mm/inch(450MS)
Optical cutting line more
convenient to work
Blade fine-depth can be adjusted
from outside of machine
4

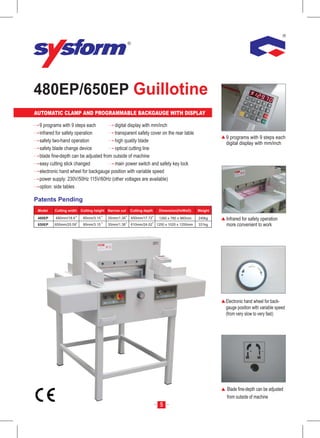

6. 480EP/650EP Guillotine
AUTOMATIC CLAMP AND PROGRAMMABLE BACKGAUGE WITH DISPLAY
9 programs with 9 steps each digital display with mm/inch
infrared for safety operation transparent safety cover on the rear table
9 programs with 9 steps each
safety two-hand operation high quality blade digital display with mm/inch
safety blade change device optical cutting line
blade fine-depth can be adjusted from outside of machine
easy cutting stick changed main power switch and safety key lock
electronic hand wheel for backgauge position with variable speed
power supply: 230V/50Hz 115V/60Hz (other voltages are available)
option: side tables
Patents Pending
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Weight
480EP 480mm/18.9 80mm/3.15 35mm/1.38 450mm/17.72 1260 x 780 x 960mm 240kg Infrared for safety operation
650EP 650mm/25.59 80mm/3.15 35mm/1.38 610mm/24.02 1250 x 1020 x 1250mm 331kg more convenient to work
Electronic hand wheel for back-
gauge position with variable speed
(from very slow to very fast)
Blade fine-depth can be adjusted
from outside of machine
5

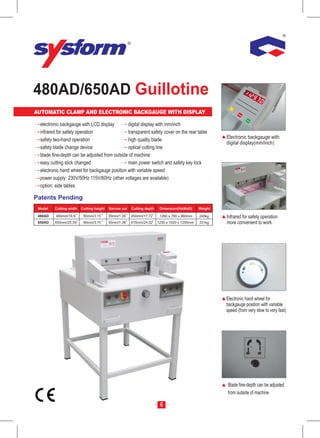

7. 480AD/650AD Guillotine
mm
AUTOMATIC CLAMP AND ELECTRONIC BACKGAUGE WITH DISPLAY
Inc
h
SER
VIC
E
ST
AR
T
electronic backgauge with LCD display digital display with mm/inch
infrared for safety operation transparent safety cover on the rear table
safety two-hand operation high quality blade Electronic backgauge with
digital display(mm/inch)
safety blade change device optical cutting line
blade fine-depth can be adjusted from outside of machine
easy cutting stick changed main power switch and safety key lock
electronic hand wheel for backgauge position with variable speed
power supply: 230V/50Hz 115V/60Hz (other voltages are available)
option: side tables
Patents Pending
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Weight
480AD 480mm/18.9 80mm/3.15 35mm/1.38 450mm/17.72 1260 x 780 x 960mm 240kg Infrared for safety operation
650AD 650mm/25.59 80mm/3.15 35mm/1.38 610mm/24.02 1250 x 1020 x 1250mm 331kg more convenient to work
Electronic hand wheel for
backgauge position with variable
speed (from very slow to very fast)
Blade fine-depth can be adjusted
from outside of machine
6

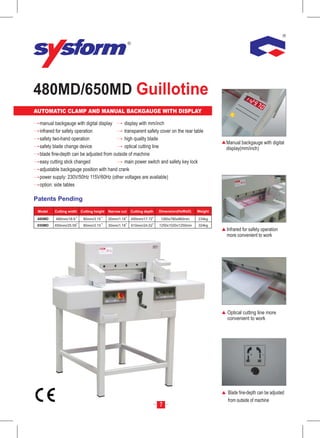

8. 480MD/650MD Guillotine
AUTOMATIC CLAMP AND MANUAL BACKGAUGE WITH DISPLAY mm
Inc
h
manual backgauge with digital display display with mm/inch
infrared for safety operation transparent safety cover on the rear table
safety two-hand operation high quality blade
Manual backgauge with digital
safety blade change device optical cutting line display(mm/inch)
blade fine-depth can be adjusted from outside of machine
easy cutting stick changed main power switch and safety key lock
adjustable backgauge position with hand crank
power supply: 230V/50Hz 115V/60Hz (other voltages are available)
option: side tables
Patents Pending
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Weight
480MD 480mm/18.9 80mm/3.15 30mm/1.18 450mm/17.72 1260x780x960mm 234kg
650MD 650mm/25.59 80mm/3.15 30mm/1.18 610mm/24.02 1250x1020x1250mm 324kg
Infrared for safety operation
more convenient to work
Optical cutting line more
convenient to work
Blade fine-depth can be adjusted
from outside of machine
7

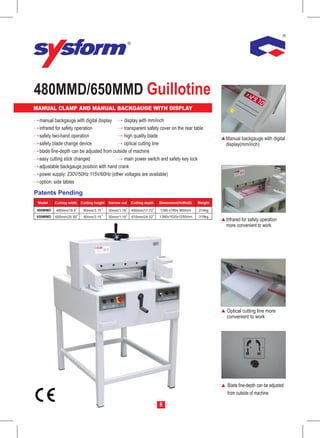

9. 480MMD/650MMD Guillotine
MANUAL CLAMP AND MANUAL BACKGAUGE WITH DISPLAY mm
Inc
h
manual backgauge with digital display display with mm/inch
infrared for safety operation transparent safety cover on the rear table
safety two-hand operation high quality blade Manual backgauge with digital
safety blade change device optical cutting line display(mm/inch)
blade fine-depth can be adjusted from outside of machine
easy cutting stick changed main power switch and safety key lock
adjustable backgauge position with hand crank
power supply: 230V/50Hz 115V/60Hz (other voltages are available)
option: side tables
Patents Pending
Model Cutting width Cutting height Narrow cut Cutting depth Dimension(HxWxD) Weight
480MMD 480mm/18.9 80mm/3.15 30mm/1.18 450mm/17.72 1390 x780x 960mm 214kg
650MMD 650mm/25.59 80mm/3.15 30mm/1.18 610mm/24.02 1380x1020x1250mm 319kg
Infrared for safety operation
more convenient to work
Optical cutting line more
convenient to work
Blade fine-depth can be adjusted
from outside of machine
8

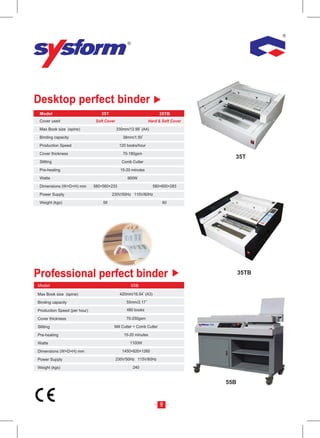

10. Desktop perfect binder
Cover used Soft Cover Hard & Soft Cover
Max Book size (spine) 330mm/12.99 (A4)
Binding capacity 38mm/1.50
Production Speed 120 books/hour
Cover thickness 70-180gsm
35T
Slitting Comb Cutter
Pre-heating 15-20 minutes
Watte 900W
Dimensions (W×D×H) mm 580×560×233 580×600×283
Power Supply 230V/50Hz 115V/60Hz
Weight (kgs) 56 60
Professional perfect binder 35TB
Max Book size (spine) 420mm/16.54 (A3)
Binding capacity 55mm/2.17
Production Speed (per hour) 480 books
Cover thickness 70-250gsm
Slitting Mill Cutter + Comb Cutter
Pre-heating 15-20 minutes
Watte 1100W
Dimensions (W×D×H) mm 1450×620×1260
Power Supply 230V/50Hz 115V/60Hz
Weight (kgs) 240
55B
9

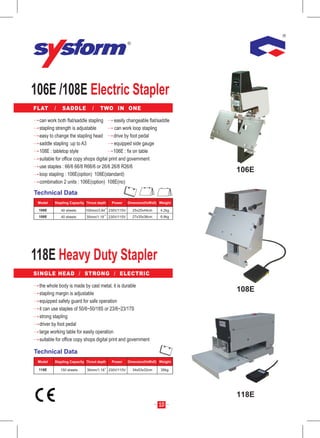

11. 106E /108E Electric Stapler
FLAT / SADDLE / TWO IN ONE
can work both flat/saddle stapling easily changeable flat/saddle
stapling strength is adjustable can work loop stapling
easy to change the stapling head drive by foot pedal
saddle stapling :up to A3 equipped side gauge
108E : tabletop style 106E : fix on table
suitable for office copy shops digital print and government
use staples : 66/6 66/8 R66/6 or 26/6 26/8 R26/6
loop stapling : 106E(option) 108E(standard)
106E
combination 2 units : 106E(option) 108E(no)
Technical Data
Model Stapling Capacity Throut depth Power Dimension(HxWxD) Weight
106E 40 sheets 100mm/3.94 230V/115V 25x25x44cm 4.2kg
108E 40 sheets 30mm/1.18 230V/115V 27x35x36cm 6.8kg
118E Heavy Duty Stapler
SINGLE HEAD / STRONG / ELECTRIC
the whole body is made by cast metal, it is durable
stapling margin is adjustable
108E
equipped safety guard for safe operation
it can use staples of 50/6~50/18S or 23/6~23/17S
strong stapling
driver by foot pedal
large working table for easily operation
suitable for office copy shops digital print and government
Technical Data
Model Stapling Capacity Throut depth Power Dimension(HxWxD) Weight
118E 150 sheets 30mm/1.18 230V/115V 34x53x32cm 26kg
118E
10

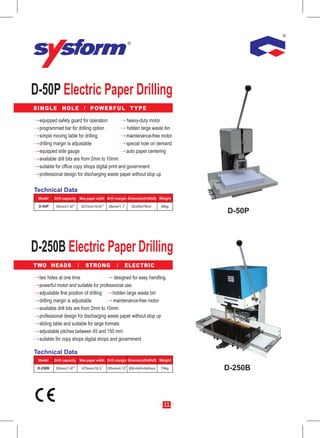

12. D-50P Electric Paper Drilling
S I N G L E H O L E / P OW E R F U L T Y P E
equipped safety guard for operation heavy-duty motor
programmed bar for drilling option hidden large waste bin
simple moving table for drilling maintenance-free motor
drilling margin is adjustable special hole on demand
equipped side gauge auto paper centering
available drill bits are from 2mm to 10mm
suitable for office copy shops digital print and government
professional design for discharging waste paper without stop up
Technical Data
Model Drill capacity Max.paper width Drill margin Dimension(HxWxD) Weight
D-50P 50mm/1.97 427mm/16.81 28mm/1.1 52x50x79cm 26kg
D-50P
D-250B Electric Paper Drilling
TWO HEADS / STRONG / ELECTRIC
two holes at one time designed for easy handling.
powerful motor and suitable for professional use.
adjustable fine position of drilling hidden large waste bin
drilling margin is adjustable maintenance-free motor
available drill bits are from 2mm to 10mm
professional design for discharging waste paper without stop up
sliding table and suitable for large formats
adjustable pitches between 45 and 150 mm
suitable for copy shops digital shops and government
Technical Data
Model Drill capacity Max.paper width Drill margin Dimension(HxWxD) Weight
D-250B 50mm/1.97 470mm/18.5 105mm/4.13 850×640×640mm 74kg D-250B
11

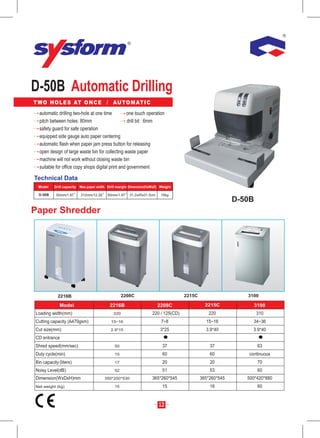

13. D-50B Automatic Drilling
T WO H O L E S AT O N C E / AU TO M AT I C
automatic drilling two-hole at one time one touch operation
pitch between holes: 80mm drill bit : 6mm
safety guard for safe operation
equipped side gauge auto paper centering
automatic flash when paper jam press button for releasing
open design of large waste bin for collecting waste paper
machine will not work without closing waste bin
suitable for office copy shops digital print and government
Technical Data
Model Drill capacity Max.paper width Drill margin Dimension(HxWxD) Weight
D-50B 50mm/1.97 312mm/12.28 50mm/1.97 31.2x45x31.5cm 16kg
D-50B
Paper Shredder
2216B 2208C 2215C 3100
Model 2216B 2208C 2215C 3100
Loading width(mm) 220 220 / 125(CD) 220 310
Cutting capacity (A470gsm) 15~16 7~8 15~16 34~36
Cut size(mm) 2.9*15 3*25 3.9*40 3.9*40
CD entrance
Shred speed(mm/sec) 50 37 37 63
Duty cycle(min) 15 60 60 continuous
Bin capacity (liters) 17 20 20 70
Noisy Level(dB) 52 51 53 60
Dimension(WxDxH)mm 350*250*530 365*260*545 365*260*545 500*420*880
Net weight (kg) 15 15 16 60
12

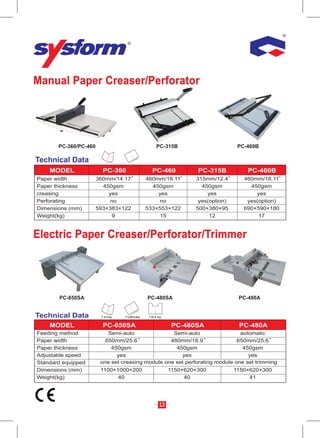

14. Manual Paper Creaser/Perforator
PC-360/PC-460 PC-315B PC-460B
Technical Data
MODEL PC-360 PC-460 PC-315B PC-460B
Paper width 360mm/14.17 460mm/18.11 315mm/12.4 460mm/18.11
Paper thickness 450gsm 450gsm 450gsm 450gsm
creasing yes yes yes yes
Perforating no no yes(option) yes(option)
Dimensions (mm) 593×383×122 533×553×122 500×380×95 690×590×180
Weight(kg) 9 15 12 17
Electric Paper Creaser/Perforator/Trimmer
PC-650SA PC-480SA PC-480A
Technical Data
MODEL PC-650SA PC-480SA PC-480A
Feeding method Semi-auto Semi-auto automatic
Paper width 650mm/25.6 480mm/18.9 650mm/25.6
Paper thickness 450gsm 450gsm 450gsm
Adjustable speed yes yes yes
Standard equipped one set creasing module one set perforating module one set trimming
Dimensions (mm) 1100×1000×200 1150×620×300 1150×620×300
Weight(kg) 40 40 41
13

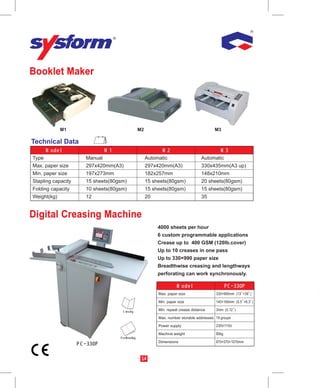

15. Booklet Maker
M1 M2 M3
Technical Data
Type Manual Automatic Automatic
Max. paper size 297x420mm(A3) 297x420mm(A3) 330x435mm(A3 up)
Min. paper size 197x273mm 182x257mm 148x210mm
Stapling capacity 15 sheets(80gsm) 15 sheets(80gsm) 20 sheets(80gsm)
Folding capacity 10 sheets(80gsm) 15 sheets(80gsm) 15 sheets(80gsm)
Weight(kg) 12 20 35
Digital Creasing Machine
4000 sheets per hour
6 custom programmable applications
Crease up to 400 GSM (120lb.cover)
Up to 10 creases in one pass
Up to 330×990 paper size
Breadthwise creasing and lengthways
perforating can work synchronously.
Max. paper size 330×990mm (13 ×39 )
Min. paper size 140×160mm (5.5 ×6.3 )
Min. repeat crease distance 3mm (0.12 )
Max. number storable addresses 19 groups
Power supply 230V/115V
Machine weight 80kg
Dimensions 870×570×1070mm
14

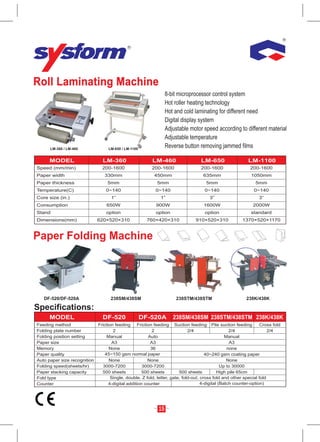

16. Roll Laminating Machine
8-bit microprocessor control system
Hot roller heating technology
Hot and cold laminating for different need
Digital display system
Adjustable motor speed according to different material
Adjustable temperature
LM-360 / LM-460 LM-650 / LM-1100
Reverse button removing jammed films
MODEL LM-360 LM-460 LM-650 LM-1100
Speed (mm/min) 200-1600 200-1600 200-1600 200-1600
Paper width 330mm 450mm 635mm 1050mm
Paper thickness 5mm 5mm 5mm 5mm
Temperature(C) 0~140 0~140 0~140 0~140
Core size (in.) 1” 1” 3” 3”
Consumption 650W 900W 1600W 2000W
Stand option option option standard
Dimensions(mm) 620×520×310 760×420×310 910×520×310 1370×520×1170
Paper Folding Machine
DF-520/DF-520A 238SM/438SM 238STM/438STM 238K/438K
Specifications:
MODEL DF-520 DF-520A 238SM/438SM 238STM/438STM 238K/438K
Feeding method Friction feeding Friction feeding Suction feeding Pile suction feeding Cross fold
Folding plate number 2 2 2/4 2/4 2/4
Folding position setting Manual Auto Manual
Paper size A3 A3 A3
Memory None 36 none
Paper quality 45~150 gsm normal paper 40~240 gsm coating paper
Auto paper size recognition None None None
Folding speed(sheets/hr) 3000-7200 3000-7200 Up to 30000
Paper stacking capacity 500 sheets 500 sheets 500 sheets High pile 65cm
Fold type Single, double, Z fold, letter, gate, fold-out, cross fold and other special fold
Counter 4-digital addition counter 4-digital (Batch counter-option)
15

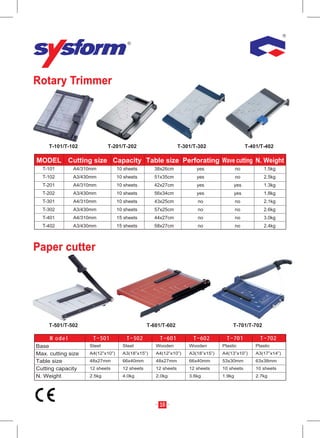

17. Rotary Trimmer
T-101/T-102 T-201/T-202 T-301/T-302 T-401/T-402
MODEL Cutting size Capacity Table size Perforating Wave cutting N. Weight
T-101 A4/310mm 10 sheets 38x26cm yes no 1.5kg
T-102 A3/430mm 10 sheets 51x35cm yes no 2.5kg
T-201 A4/310mm 10 sheets 42x27cm yes yes 1.3kg
T-202 A3/430mm 10 sheets 56x34cm yes yes 1.8kg
T-301 A4/310mm 10 sheets 43x25cm no no 2.1kg
T-302 A3/430mm 10 sheets 57x25cm no no 2.6kg
T-401 A4/310mm 15 sheets 44x27cm no no 3.0kg
T-402 A3/430mm 15 sheets 58x27cm no no 2.4kg
Paper cutter
T-501/T-502 T-601/T-602 T-701/T-702
Base Steel Steel Wooden Wooden Plastic Plastic
Max. cutting size A4(12”x10”) A3(18”x15”) A4(12”x10”) A3(18”x15”) A4(13”x10”) A3(17”x14”)
Table size 48x27mm 66x40mm 48x27mm 66x40mm 53x30mm 63x38mm
Cutting capacity 12 sheets 12 sheets 12 sheets 12 sheets 10 sheets 10 sheets
N. Weight 2.5kg 4.0kg 2.0kg 3.6kg 1.9kg 2.7kg
16

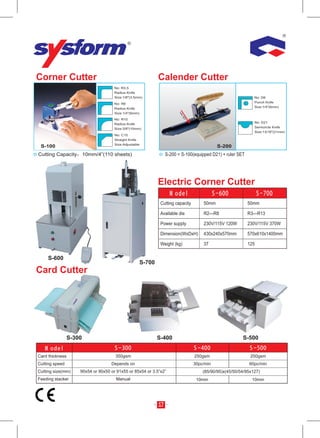

18. Corner Cutter Calender Cutter
No: R3.5
Radius Knife
Size:1/8″(3.5mm) No: D6
No: R6 Punch Knife
Radius Knife Size:1/4″(6mm)
Size:1/4″(6mm)
rul
er
SE
No: R10
T
Radius Knife No: D21
Size:3/8″(10mm) Semicircle Knife
Size:13/16″(21mm)
No: C15
Straight Knife
Size:Adjustable
S-100 S-200
Cutting Capacity 10mm/4”(110 sheets) S-200 = S-100(equipped D21) + ruler SET
Electric Corner Cutter
Cutting capacity 50mm 50mm
Available die R2—R8 R3—R13
Power supply 230V/115V 120W 230V/115V 370W
Dimension(WxDxH) 430x240x570mm 570x610x1400mm
Weight (kg) 37 125
S-600
S-700
Card Cutter
S-300 S-400 S-500
Card thickness 350gsm 250gsm 250gsm
Cutting speed Depends on 30pc/min 60pc/min
Cutting size(mm) 90x54 or 90x50 or 91x55 or 85x54 or 3.5”x2” (85/90/95)x(45/50/54/95x127)
Feeding stacker Manual 10mm 10mm
17

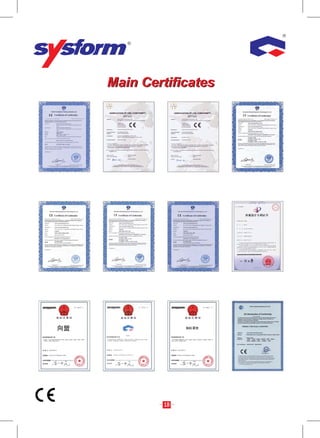

19. Main Certificates
18
