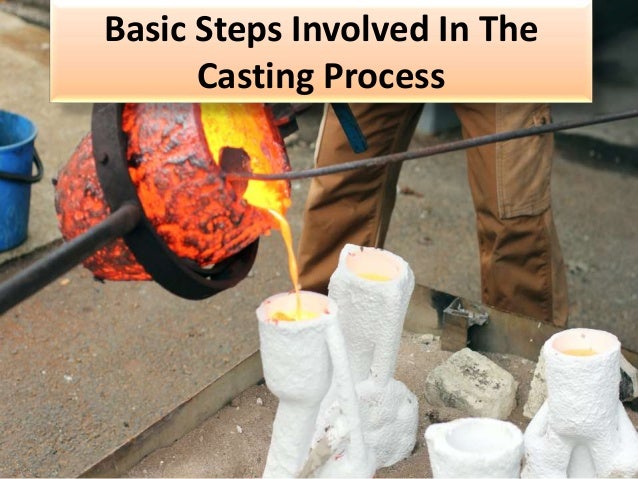

1. Basic Steps Involved In The
Casting Process

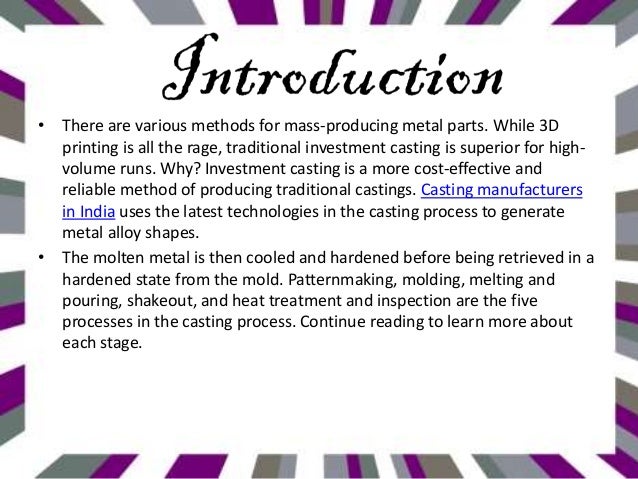

2. • There are various methods for mass-producing metal parts. While 3D
printing is all the rage, traditional investment casting is superior for high-
volume runs. Why? Investment casting is a more cost-effective and
reliable method of producing traditional castings. Casting manufacturers
in India uses the latest technologies in the casting process to generate
metal alloy shapes.
• The molten metal is then cooled and hardened before being retrieved in a
hardened state from the mold. Patternmaking, molding, melting and
pouring, shakeout, and heat treatment and inspection are the five
processes in the casting process. Continue reading to learn more about
each stage.

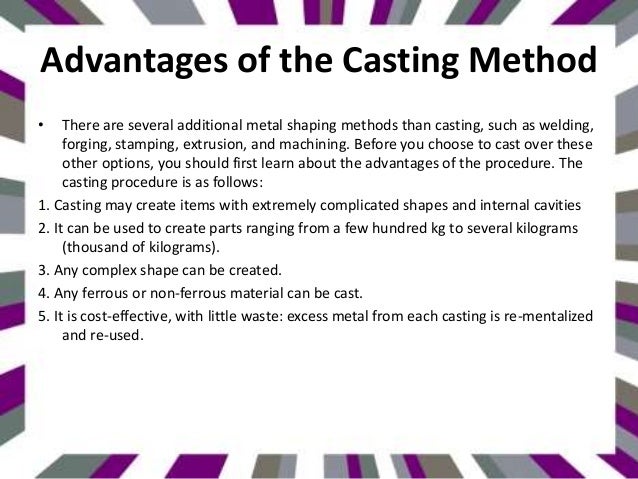

3. Advantages of the Casting Method
• There are several additional metal shaping methods than casting, such as welding,
forging, stamping, extrusion, and machining. Before you choose to cast over these
other options, you should first learn about the advantages of the procedure. The
casting procedure is as follows:
1. Casting may create items with extremely complicated shapes and internal cavities
2. It can be used to create parts ranging from a few hundred kg to several kilograms
(thousand of kilograms).
3. Any complex shape can be created.
4. Any ferrous or non-ferrous material can be cast.
5. It is cost-effective, with little waste: excess metal from each casting is re-mentalized
and re-used.

4. Types Of Casting Processes
1. Die casting
• Die casting is the process of pumping molten metal into a die or mold under high
pressure to create pieces or designs. Casting manufacturers in India has turned to
die casting to make printing plates for huge machines in a defunct printing method
known as linotype. Its advancement superseded or supplemented the gravure
method that came before it. Linotype machines became obsolete as computers
became more advanced and replaced more efficient technical means.
2. Plaster casting
• Plaster casting is a non-ferrous alloy manufacturing process that produces smooth,
even finished pieces. This plaster casting is typically used to create precise,
intricate pieces with dimensional correctness. The template for the casting, like
many modern designs, is developed in CAD or some form of software and contains
shrinkage tolerances.

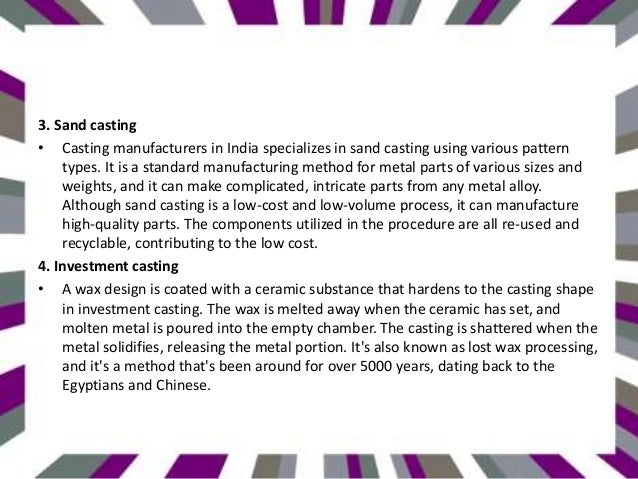

5. 3. Sand casting
• Casting manufacturers in India specializes in sand casting using various pattern
types. It is a standard manufacturing method for metal parts of various sizes and
weights, and it can make complicated, intricate parts from any metal alloy.
Although sand casting is a low-cost and low-volume process, it can manufacture
high-quality parts. The components utilized in the procedure are all re-used and
recyclable, contributing to the low cost.
4. Investment casting
• A wax design is coated with a ceramic substance that hardens to the casting shape
in investment casting. The wax is melted away when the ceramic has set, and
molten metal is poured into the empty chamber. The casting is shattered when the
metal solidifies, releasing the metal portion. It's also known as lost wax processing,
and it's a method that's been around for over 5000 years, dating back to the
Egyptians and Chinese.

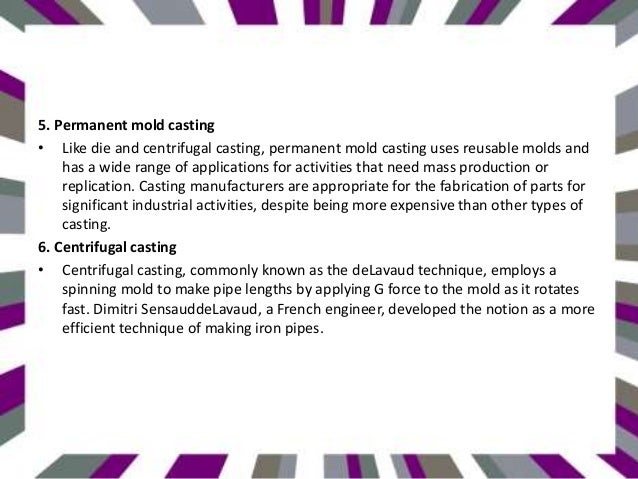

6. 5. Permanent mold casting
• Like die and centrifugal casting, permanent mold casting uses reusable molds and
has a wide range of applications for activities that need mass production or
replication. Casting manufacturers are appropriate for the fabrication of parts for
significant industrial activities, despite being more expensive than other types of
casting.
6. Centrifugal casting
• Centrifugal casting, commonly known as the deLavaud technique, employs a
spinning mold to make pipe lengths by applying G force to the mold as it rotates
fast. Dimitri SensauddeLavaud, a French engineer, developed the notion as a more
efficient technique of making iron pipes.

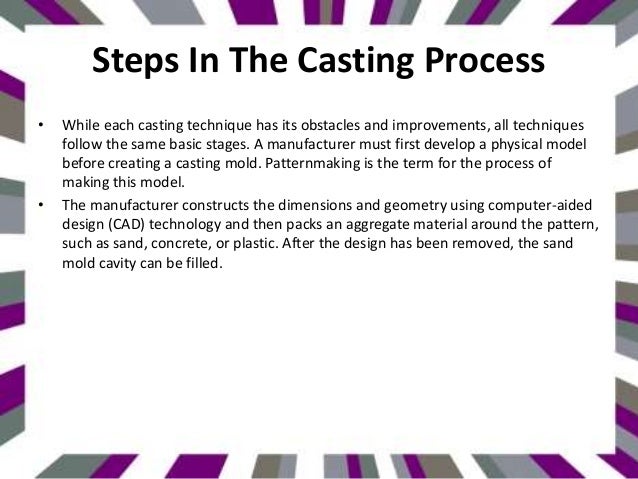

7. Steps In The Casting Process
• While each casting technique has its obstacles and improvements, all techniques
follow the same basic stages. A manufacturer must first develop a physical model
before creating a casting mold. Patternmaking is the term for the process of
making this model.
• The manufacturer constructs the dimensions and geometry using computer-aided
design (CAD) technology and then packs an aggregate material around the pattern,
such as sand, concrete, or plastic. After the design has been removed, the sand
mold cavity can be filled.

8. 1. Making patterns
• A physical model of casting, i.e., a pattern, is used to construct the mold in pattern
making. The mold is constructed by placing easily formed aggregated materials
around the pattern, such as sand molding.
• When the pattern is removed, its imprint is left in the mold cavity, eventually filled
with metal to form the casting. Additional patterns, known as cores, are utilized to
generate these cavities in cases when the castings are required to be hollow, such
as in the case of pipe fittings.
2. Creating the core
• Casting manufacturers in India to provide cores in the casting mold. Solid materials
are inserted into the mold chamber to create the internal surfaces of the casting.
For example, to form the hollow internal architecture of a metal pipe fitting, a
cylindrical core must be placed inside the mold cavity.

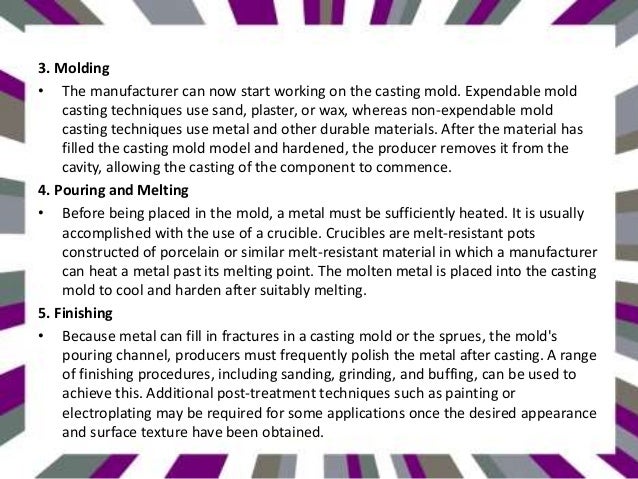

9. 3. Molding
• The manufacturer can now start working on the casting mold. Expendable mold
casting techniques use sand, plaster, or wax, whereas non-expendable mold
casting techniques use metal and other durable materials. After the material has
filled the casting mold model and hardened, the producer removes it from the
cavity, allowing the casting of the component to commence.
4. Pouring and Melting
• Before being placed in the mold, a metal must be sufficiently heated. It is usually
accomplished with the use of a crucible. Crucibles are melt-resistant pots
constructed of porcelain or similar melt-resistant material in which a manufacturer
can heat a metal past its melting point. The molten metal is placed into the casting
mold to cool and harden after suitably melting.
5. Finishing
• Because metal can fill in fractures in a casting mold or the sprues, the mold's
pouring channel, producers must frequently polish the metal after casting. A range
of finishing procedures, including sanding, grinding, and buffing, can be used to
achieve this. Additional post-treatment techniques such as painting or
electroplating may be required for some applications once the desired appearance
and surface texture have been obtained.

10. Conclusion
• The remaining casting should match the original pattern exactly. The product may
subsequently be subjected to various finishing processes, depending on its
intended use. Castings made for heavy industrial application, for example, are
frequently heat-treated to endure freezing temperatures, moist environments, or
excessive weight. To ensure wear and abrasion resistance, tool steel casting will
blend carbon and alloy steels.
• Our casting will be subjected to extensive testing to ensure its structural and
physical integrity as per casting manufacturers norms.
