Dynamic programming is a method for solving complex problems by breaking them down into simpler subproblems. It has two approaches: bottom-up, which solves subproblems first before combining their solutions, and top-down (memoization), which caches results of functions to avoid repeating calculations. Examples covered include calculating the Fibonacci sequence, the 0-1 knapsack problem modeled with a dynamic programming matrix, and the coin change problem solved by considering all combinations of previous amounts.

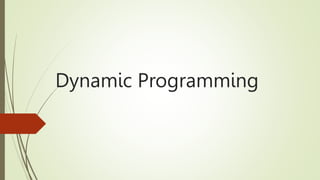

1. Dynamic Programming

2. What is Dynamic Programming
 A method for solving complex problems by breaking them down into simpler sub
problems. It is applicable to problems exhibiting the properties of overlapping
subproblems which are only slightly smaller
o The key idea behind dynamic programming is quite simple. In general, to solve a
given problem, we need to solve different parts of the problem (subproblems),
then combine the solutions of the subproblems to reach an overall solution.

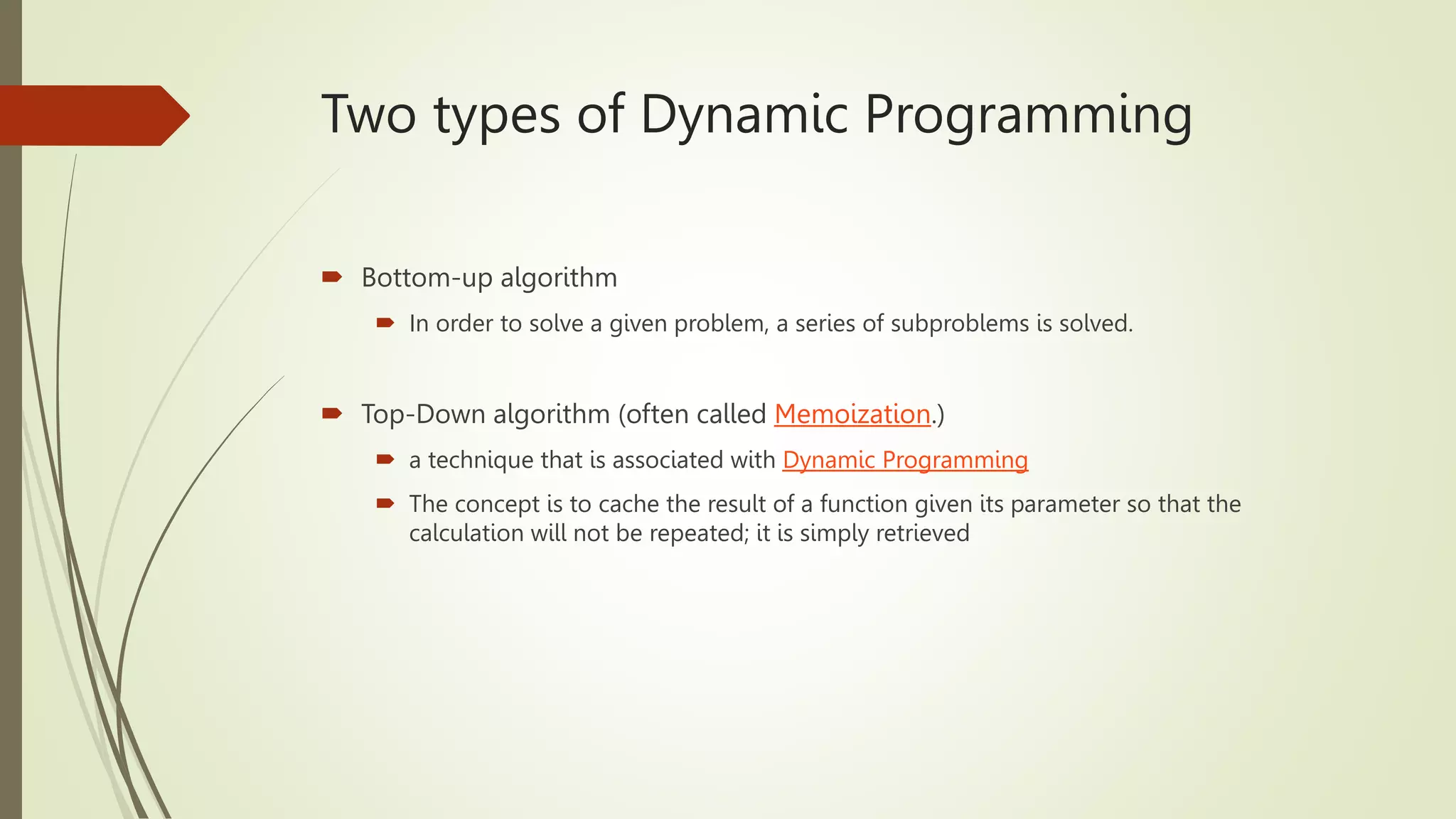

3. Two types of Dynamic Programming
 Bottom-up algorithm
 In order to solve a given problem, a series of subproblems is solved.
 Top-Down algorithm (often called Memoization.)
 a technique that is associated with Dynamic Programming
 The concept is to cache the result of a function given its parameter so that the
calculation will not be repeated; it is simply retrieved

4. Fibonacci Sequence with Dynamic Programming
Pseudo-code for a simple recursive function will be :
fib(int n)
{
if (n==0) return 0;
if (n==1) return 1;
return fib(n-1)+fib(n-2);
}

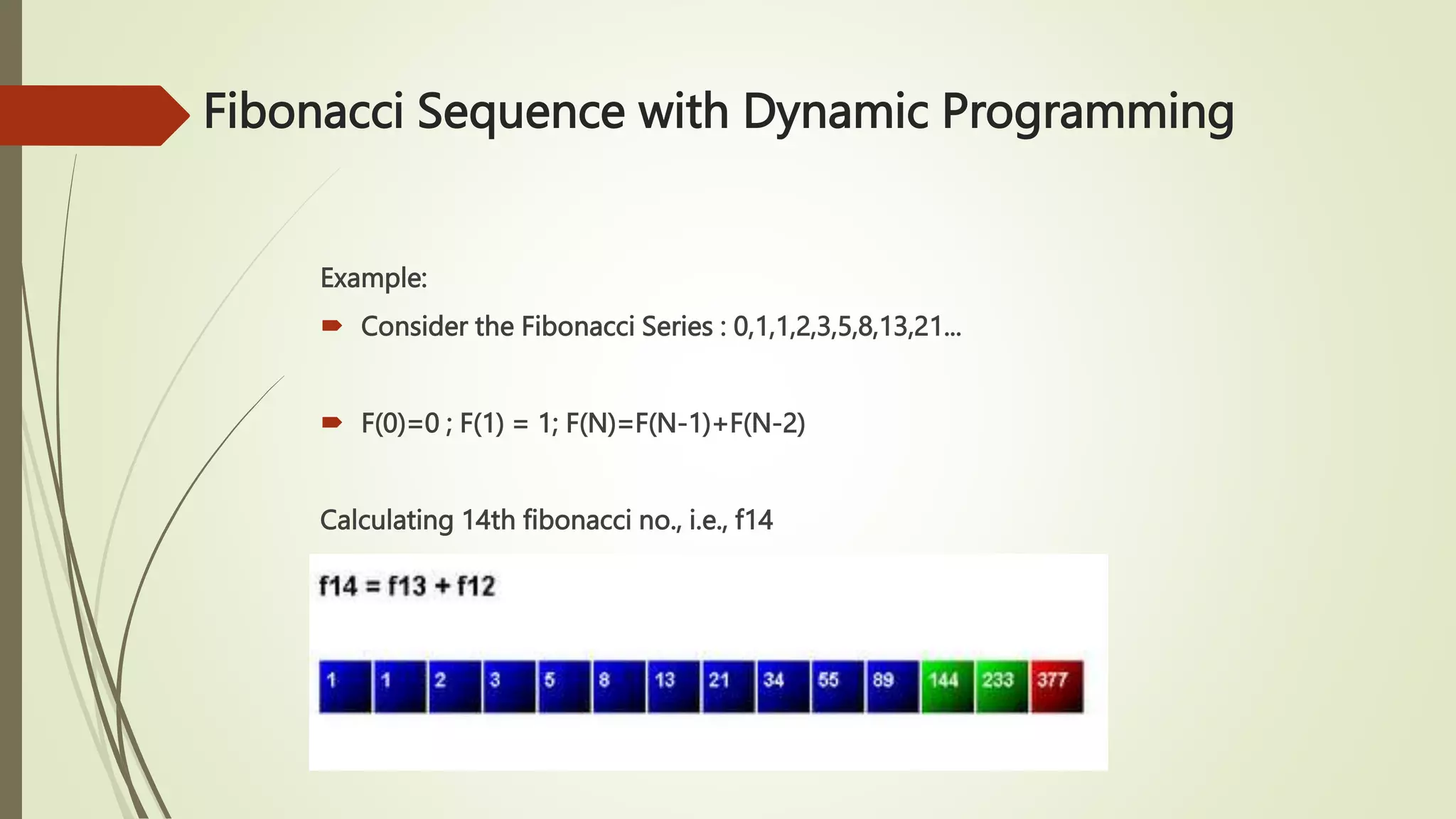

5. Fibonacci Sequence with Dynamic Programming
Example:
 Consider the Fibonacci Series : 0,1,1,2,3,5,8,13,21...
 F(0)=0 ; F(1) = 1; F(N)=F(N-1)+F(N-2)
Calculating 14th fibonacci no., i.e., f14

6. Using Dynamic Programming
The 0-1 Knapsack
Problem

7. 0-1 Knapsack
 the 0-1 Knapsack problem and its algorithm as well as its derivation from its
recursive formulation
 to enhance the development of understanding the use of dynamic programming to
solve discrete optimization problems

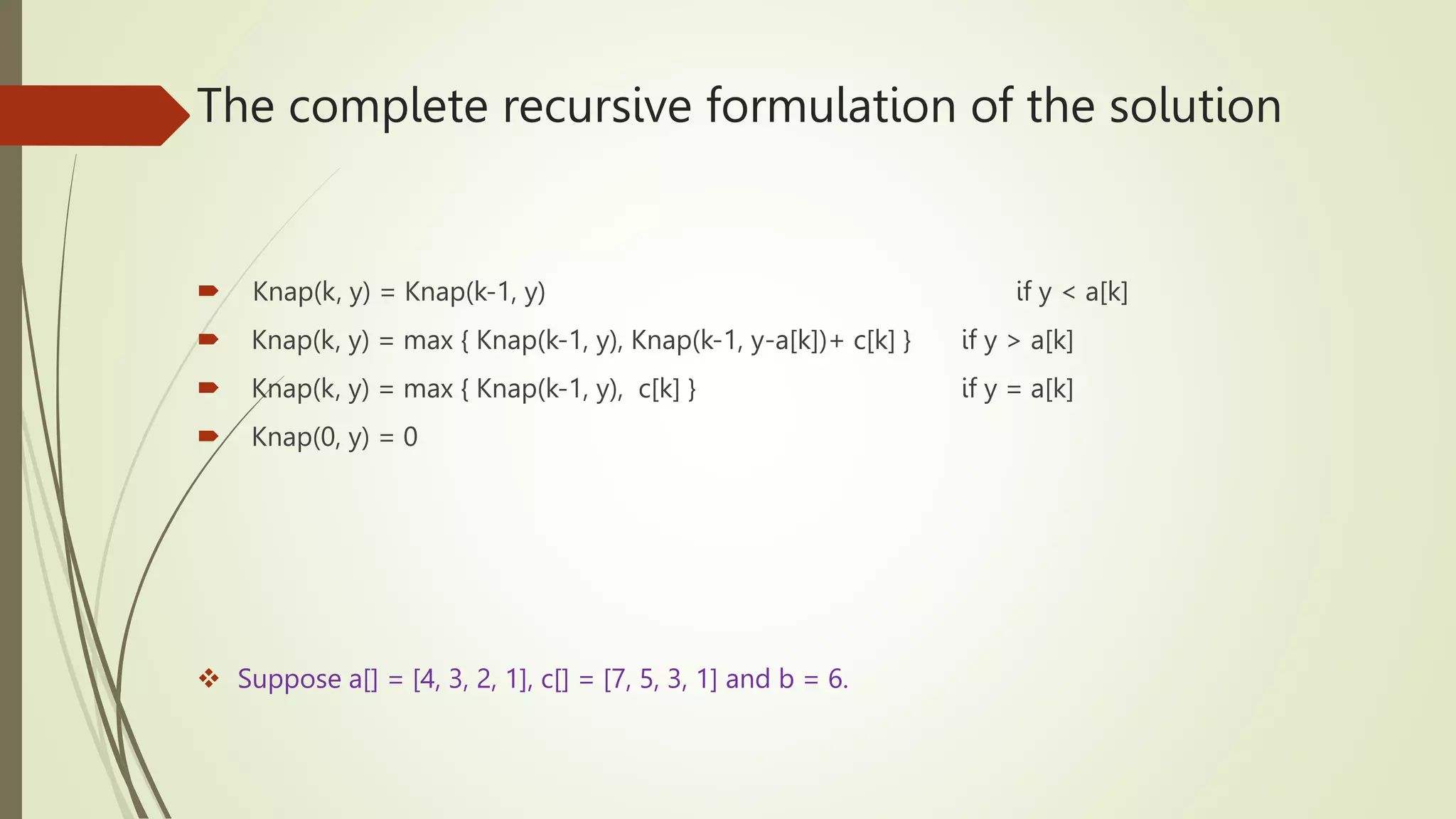

8. The complete recursive formulation of the solution
 Knap(k, y) = Knap(k-1, y) if y < a[k]
 Knap(k, y) = max { Knap(k-1, y), Knap(k-1, y-a[k])+ c[k] } if y > a[k]
 Knap(k, y) = max { Knap(k-1, y), c[k] } if y = a[k]
 Knap(0, y) = 0
 Suppose a[] = [4, 3, 2, 1], c[] = [7, 5, 3, 1] and b = 6.

9. Given: Suppose a[] = [4, 3, 2, 1], c[] = [7, 5, 3, 1] and b = 6.
 The ci represents the value of selecting item i for inclusion in the knapsack;
 The ai represents the weight of item i - the weights
 The constant b represents the maximum weight that the knapsack is permitted to
hold.

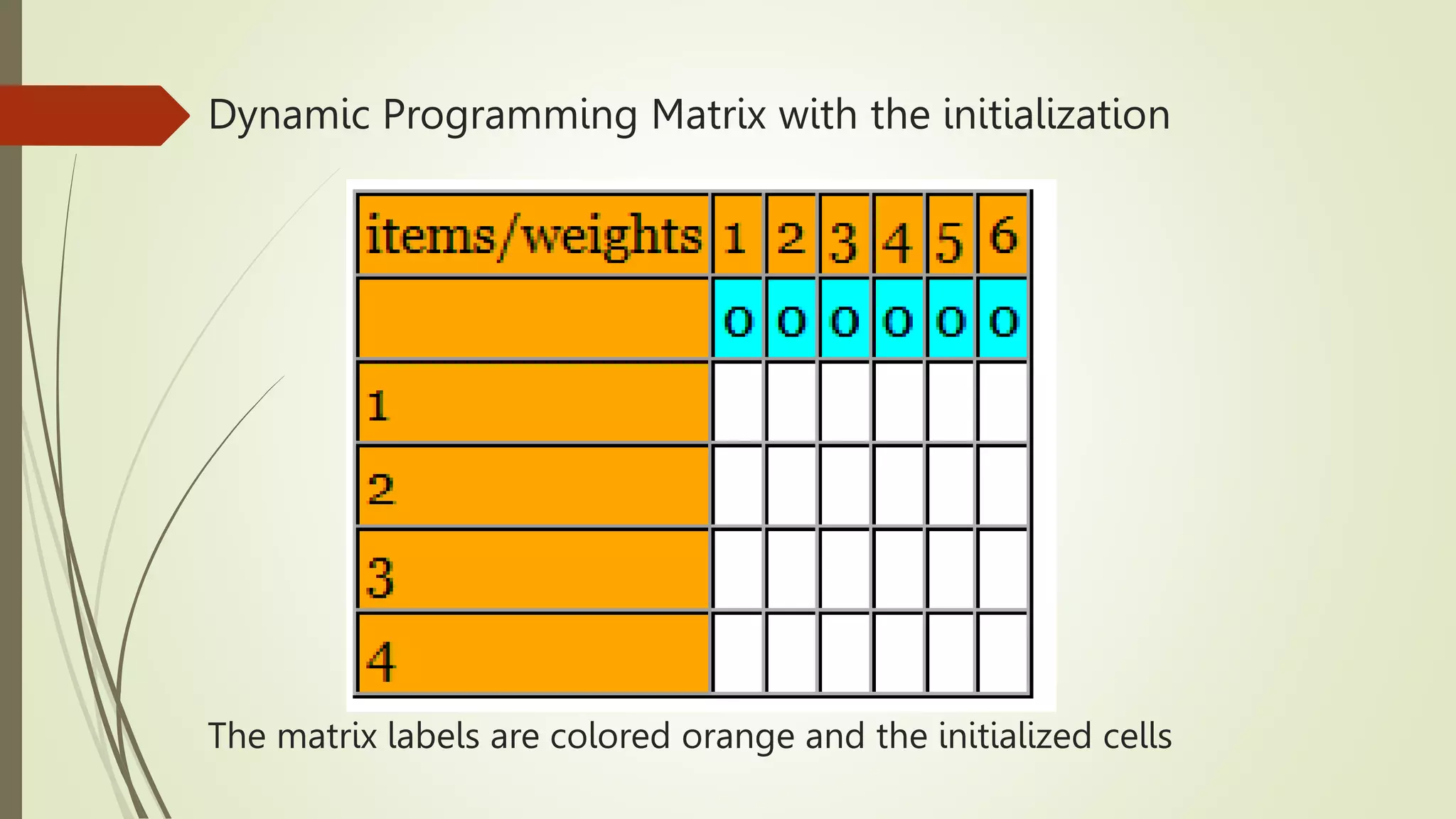

10. Dynamic Programming Matrix with the initialization
The matrix labels are colored orange and the initialized cells

11. Dynamic Programming Matrix with the initialization
has a weight of 4
Suppose a[] = [4, 3, 2, 1], c[] = [7, 5, 3, 1]
Weights = [4, 3, 2, 1]
Values = [7, 5, 3, 1]

12. Dynamic Programming Matrix with the initialization
has a weight of 3
Suppose a[] = [4, 3, 2, 1], c[] = [7, 5, 3, 1]
Weights = [4, 3, 2, 1]
Values = [7, 5, 3, 1]

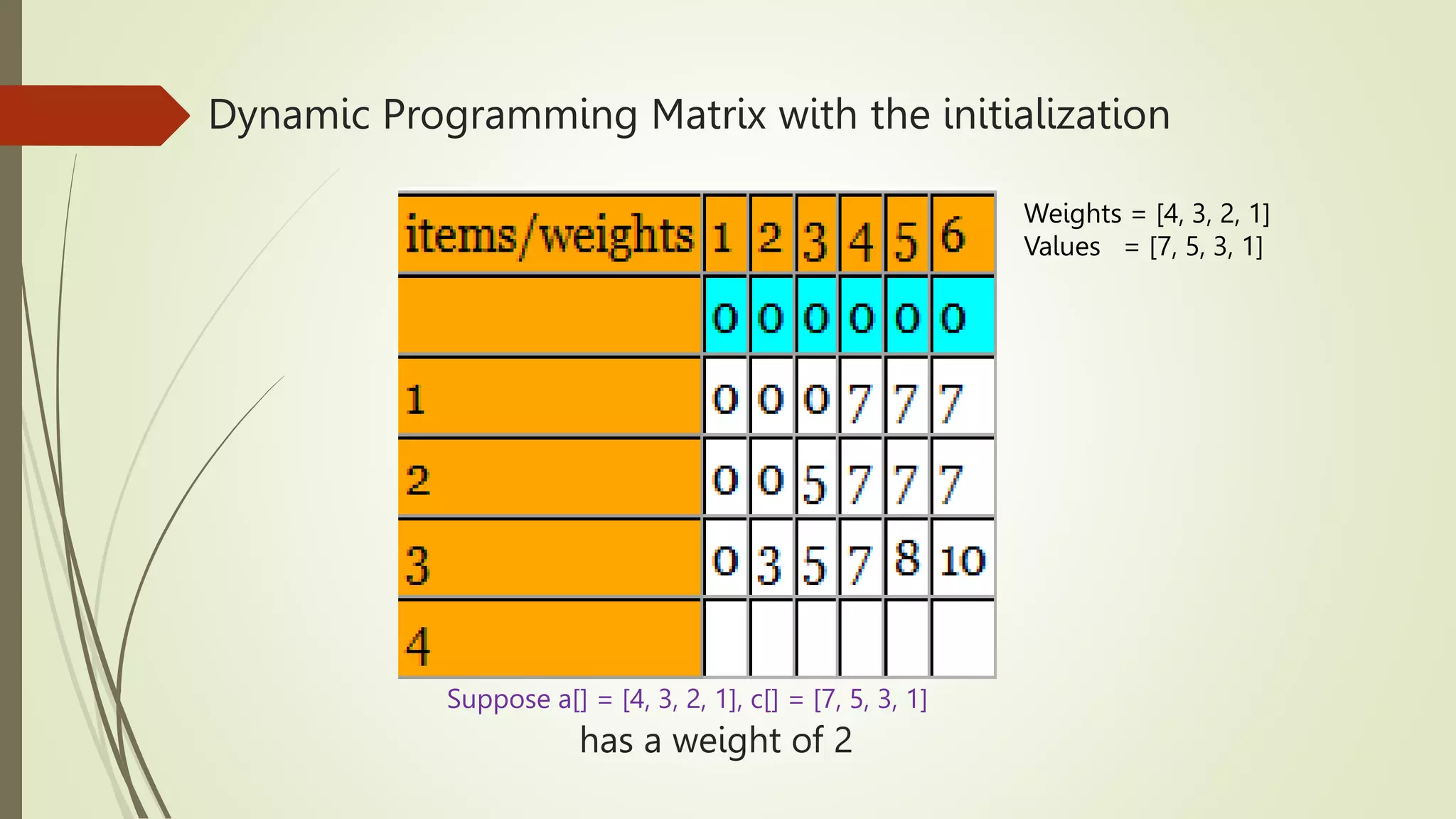

13. Dynamic Programming Matrix with the initialization
has a weight of 2
Suppose a[] = [4, 3, 2, 1], c[] = [7, 5, 3, 1]
Weights = [4, 3, 2, 1]
Values = [7, 5, 3, 1]

14. Dynamic Programming Matrix with the initialization
has a weight of 1
The maximum value for this knapsack problem is in the bottom leftmost entry in the matrix, knap[4][5].
Weights = [4, 3, 2, 1]
Values = [7, 5, 3, 1]

15. Using Dynamic Programming
Coin Change

16. A dynamic programming solution (Coin Change )
 Idea: Solve first for one cent, then two cents, then three cents, etc., up
to the desired amount
 Save each answer in an array !
 For each new amount N, compute all the possible pairs of previous
answers which sum to N
 For example, to find the solution for 13¢,
 First, solve for all of 1¢, 2¢, 3¢, ..., 12¢
 Next, choose the best solution among:
 Solution for 1¢ + solution for 12¢
 Solution for 2¢ + solution for 11¢
 Solution for 3¢ + solution for 10¢
 Solution for 4¢ + solution for 9¢
 Solution for 5¢ + solution for 8¢
 Solution for 6¢ + solution for 7¢

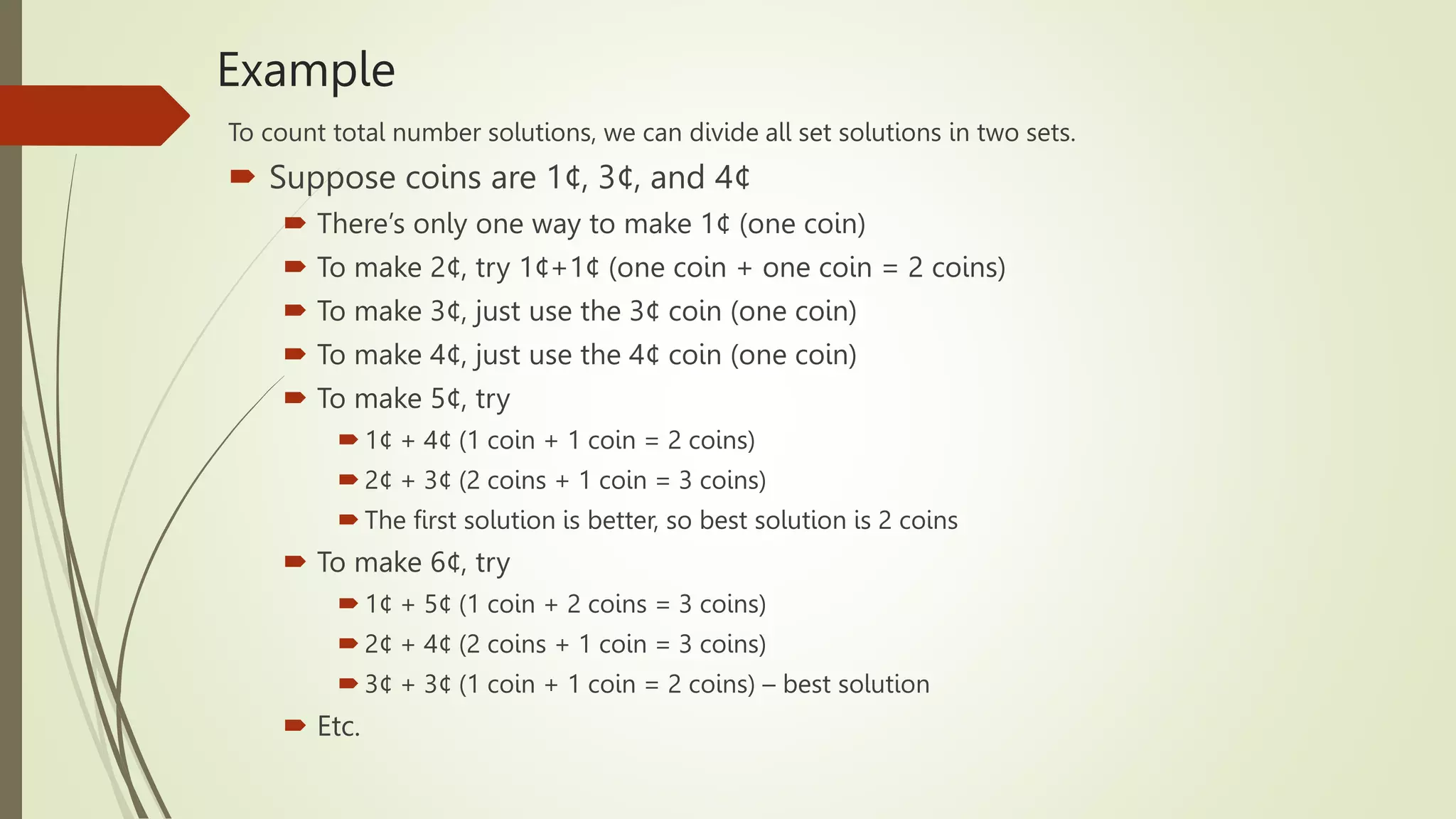

17. Example
To count total number solutions, we can divide all set solutions in two sets.
 Suppose coins are 1¢, 3¢, and 4¢
 There’s only one way to make 1¢ (one coin)
 To make 2¢, try 1¢+1¢ (one coin + one coin = 2 coins)
 To make 3¢, just use the 3¢ coin (one coin)
 To make 4¢, just use the 4¢ coin (one coin)
 To make 5¢, try
 1¢ + 4¢ (1 coin + 1 coin = 2 coins)
 2¢ + 3¢ (2 coins + 1 coin = 3 coins)
 The first solution is better, so best solution is 2 coins
 To make 6¢, try
 1¢ + 5¢ (1 coin + 2 coins = 3 coins)
 2¢ + 4¢ (2 coins + 1 coin = 3 coins)
 3¢ + 3¢ (1 coin + 1 coin = 2 coins) – best solution
 Etc.

18. Time Complexity: O(mn)
Coin Change – Source Code

19. Sample Source Code
Dynamic programming example--typesetting a
paragraph.
Overall running time: O(n3)

20. THE END.
