1. Object Design & Mapping
onto Code
By Dr. Maryam Kausar

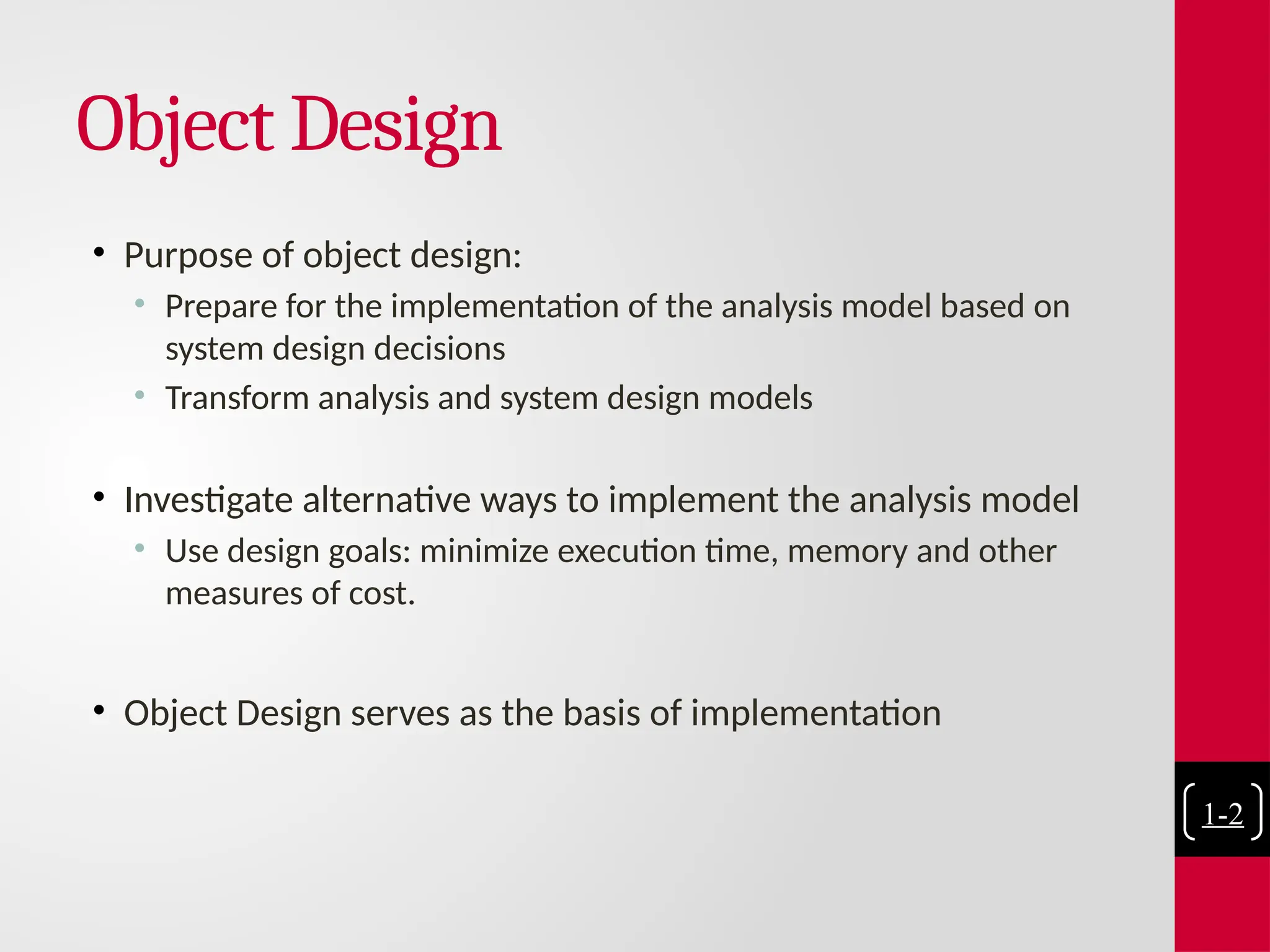

2. Object Design
• Purpose of object design:
• Prepare for the implementation of the analysis model based on
system design decisions
• Transform analysis and system design models
• Investigate alternative ways to implement the analysis model
• Use design goals: minimize execution time, memory and other
measures of cost.
• Object Design serves as the basis of implementation
1-2

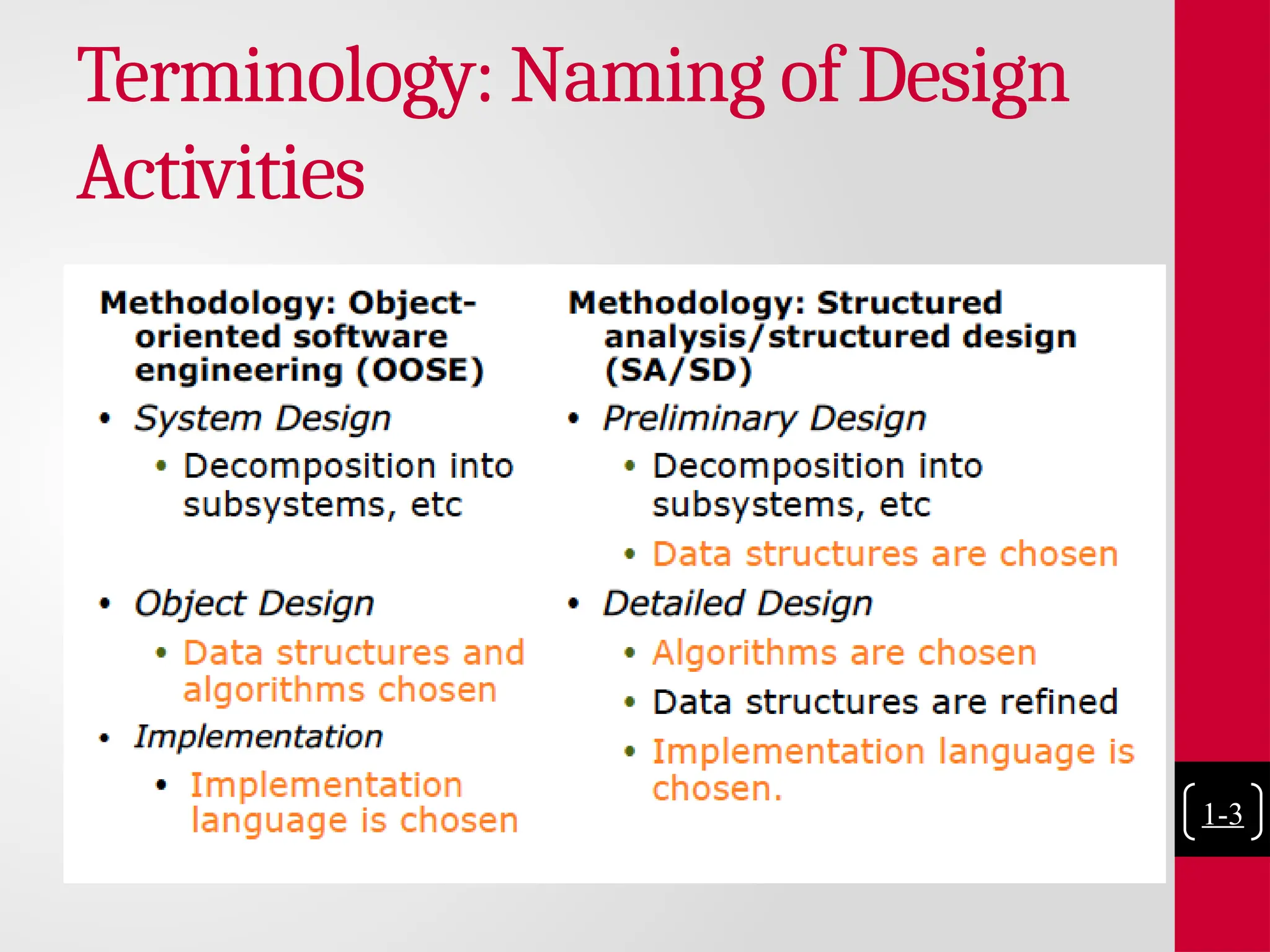

3. Terminology: Naming of Design
Activities
1-3

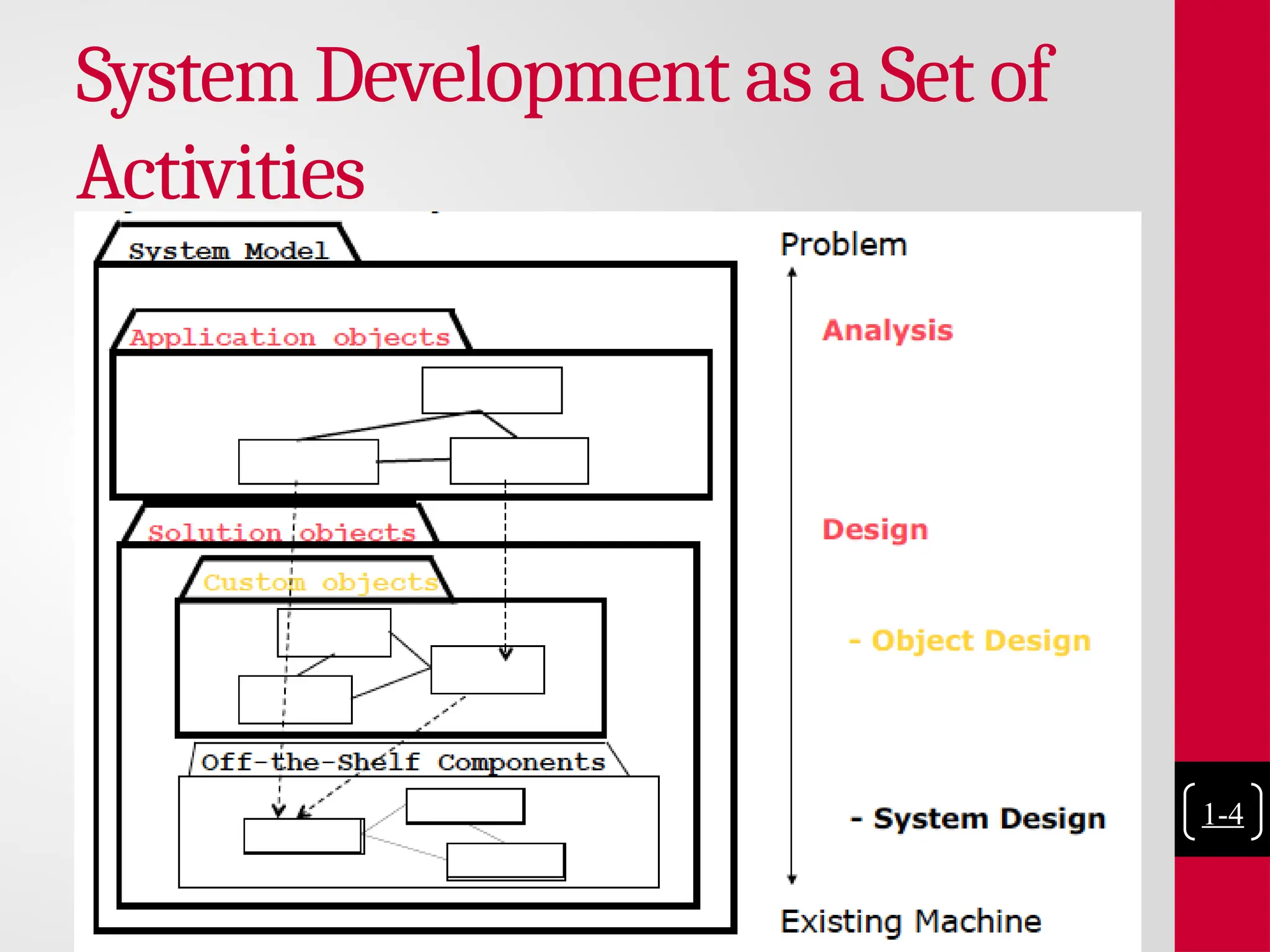

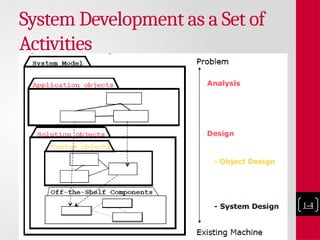

4. System Development as a Set of
Activities
1-4

5. 1-5

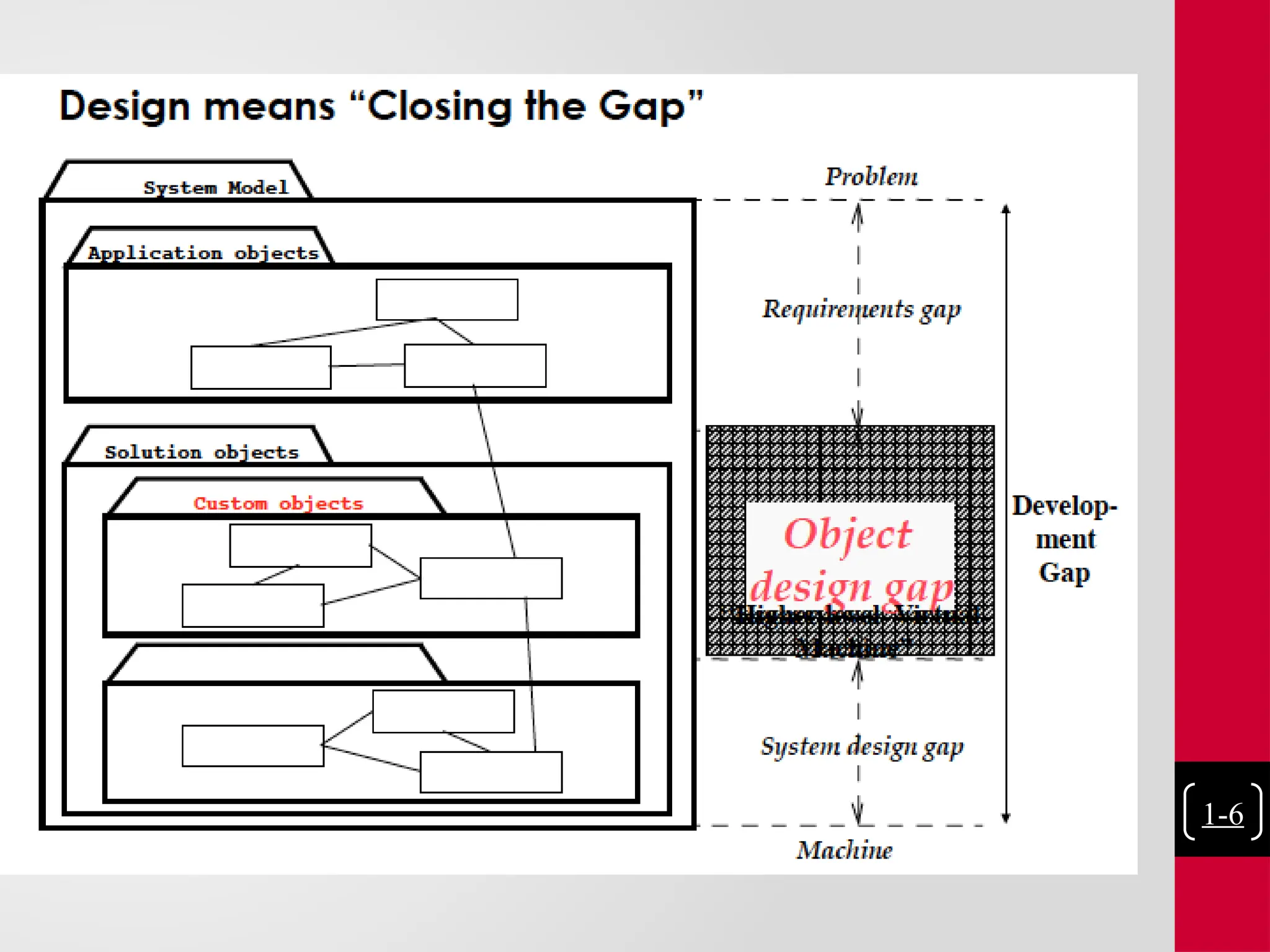

6. 1-6

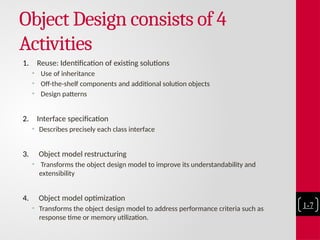

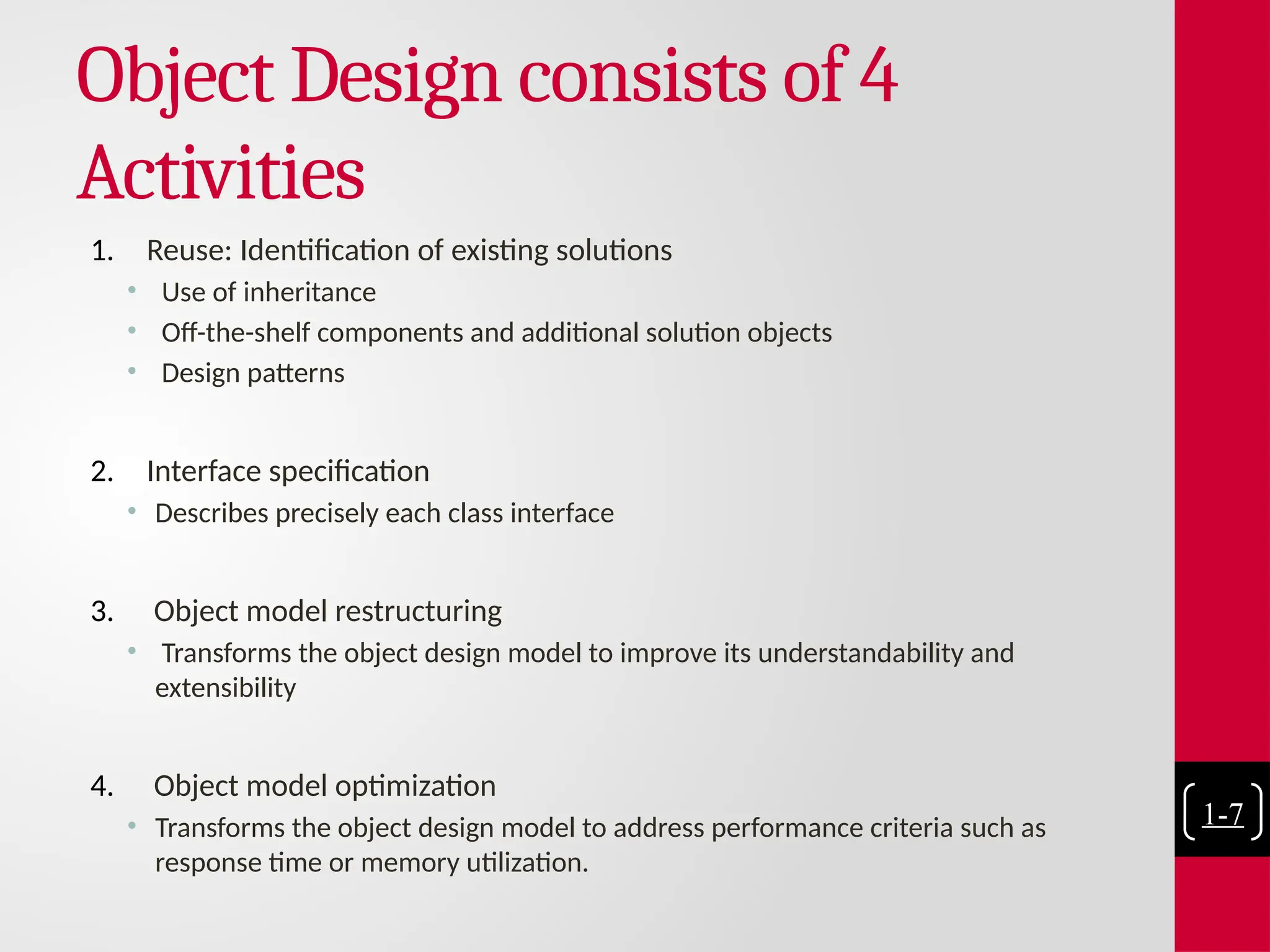

7. Object Design consists of 4
Activities
1. Reuse: Identification of existing solutions
• Use of inheritance
• Off-the-shelf components and additional solution objects
• Design patterns
2. Interface specification
• Describes precisely each class interface
3. Object model restructuring
• Transforms the object design model to improve its understandability and
extensibility
4. Object model optimization
• Transforms the object design model to address performance criteria such as
response time or memory utilization.
1-7

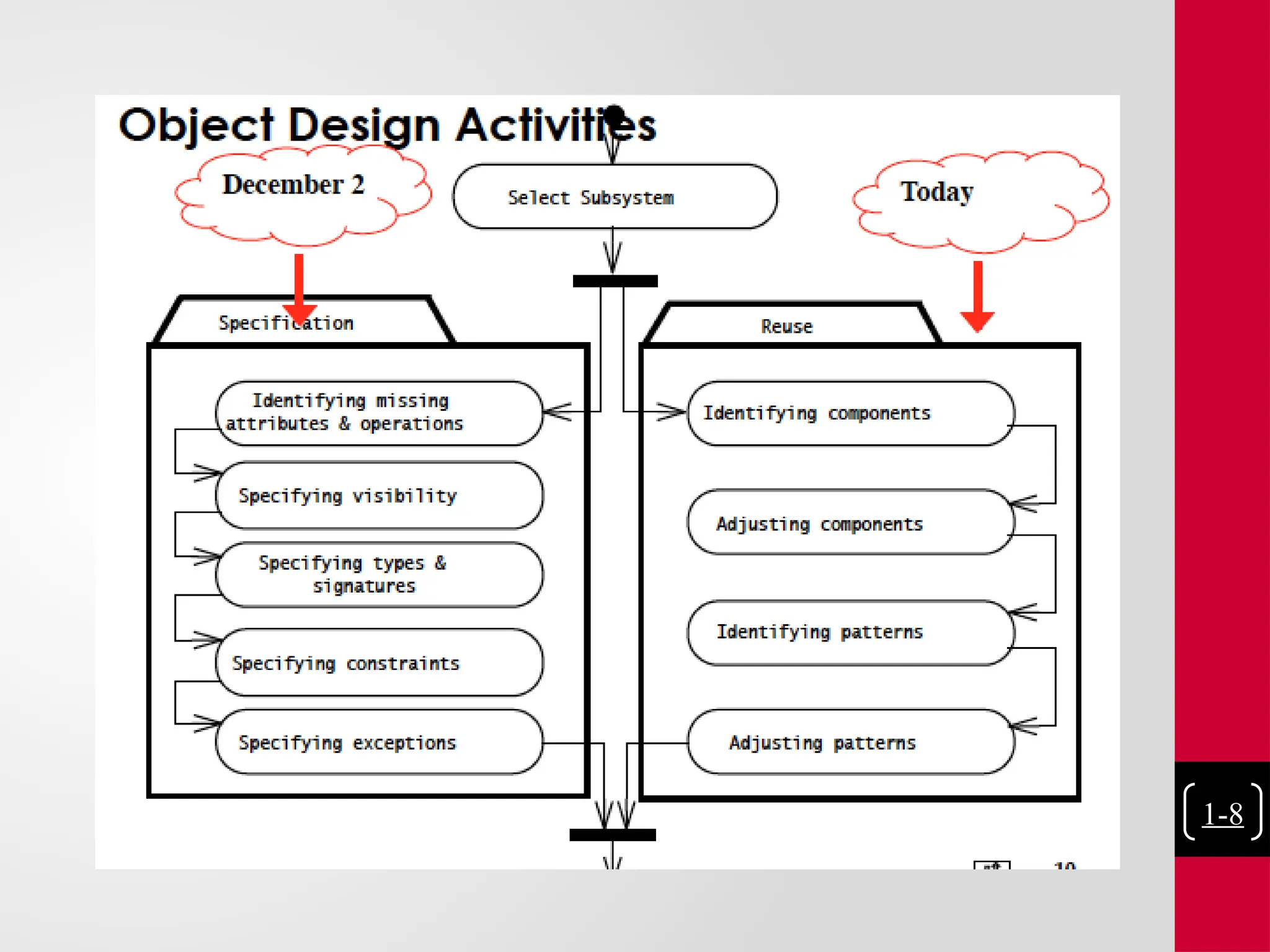

8. 1-8

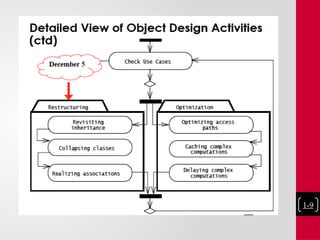

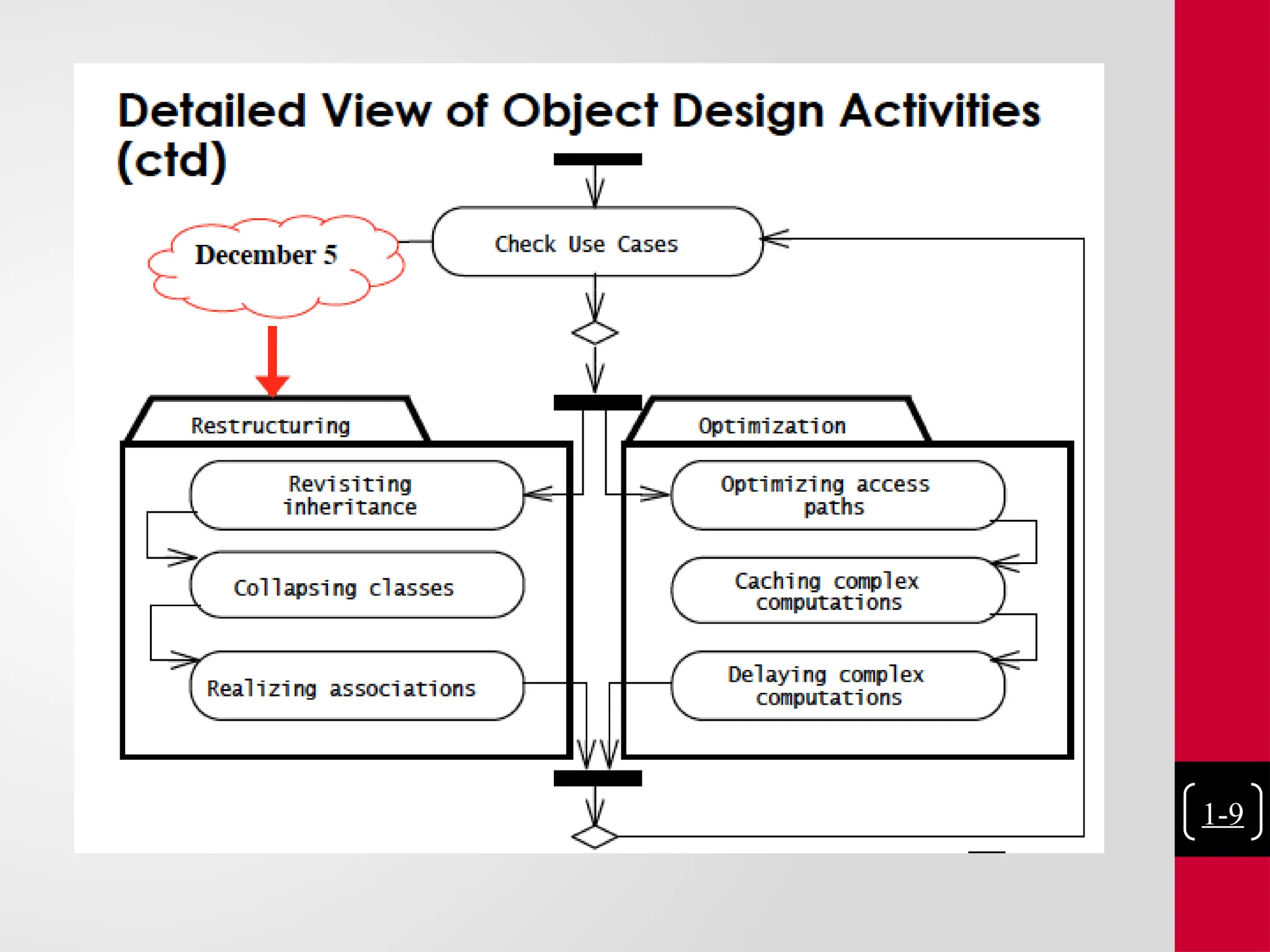

9. 1-9

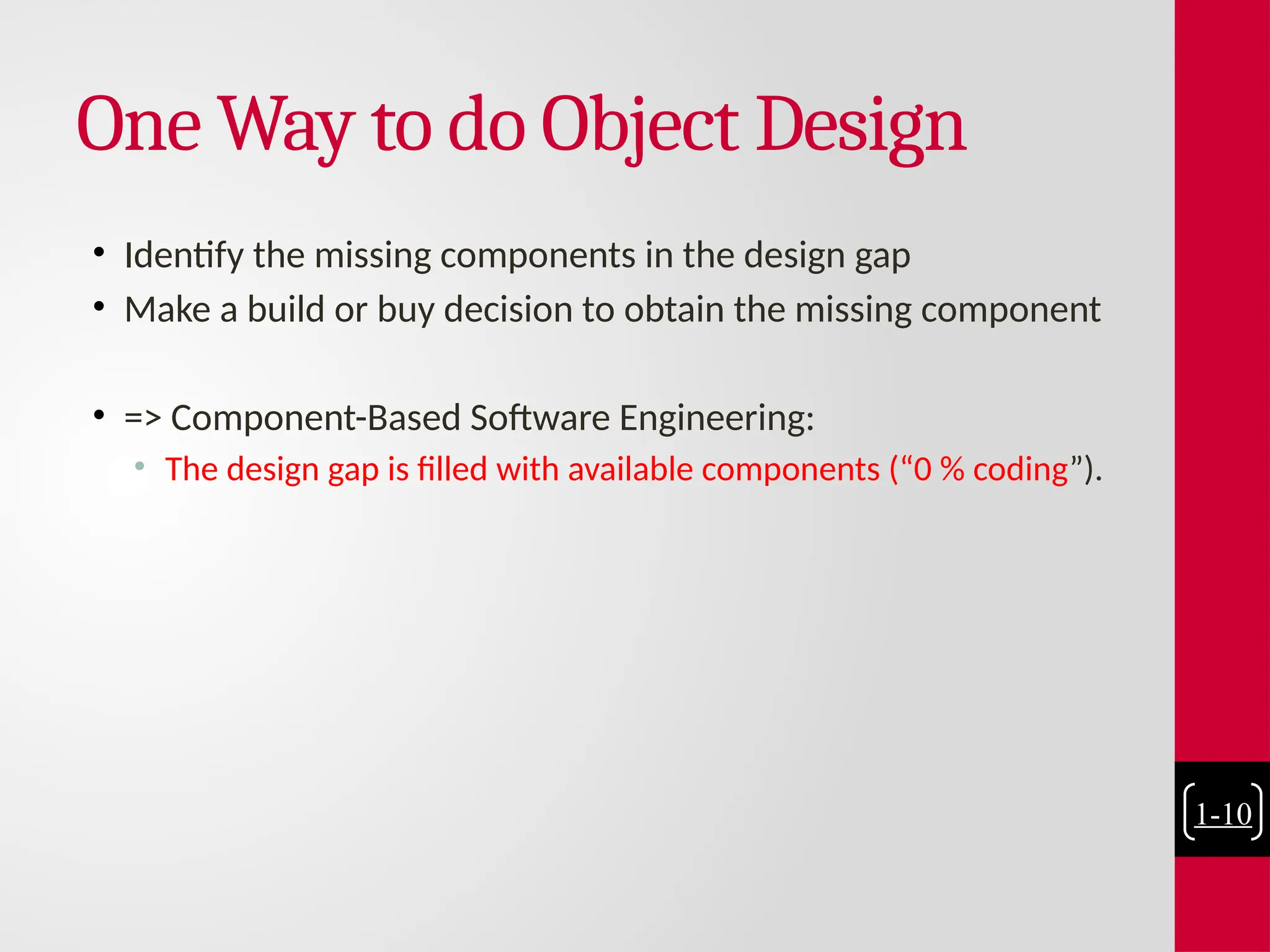

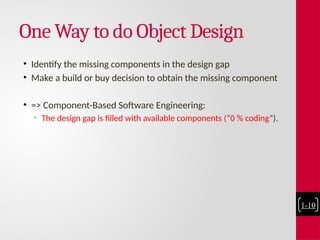

10. One Way to do Object Design
• Identify the missing components in the design gap
• Make a build or buy decision to obtain the missing component
• => Component-Based Software Engineering:
• The design gap is filled with available components (“0 % coding”).
1-10

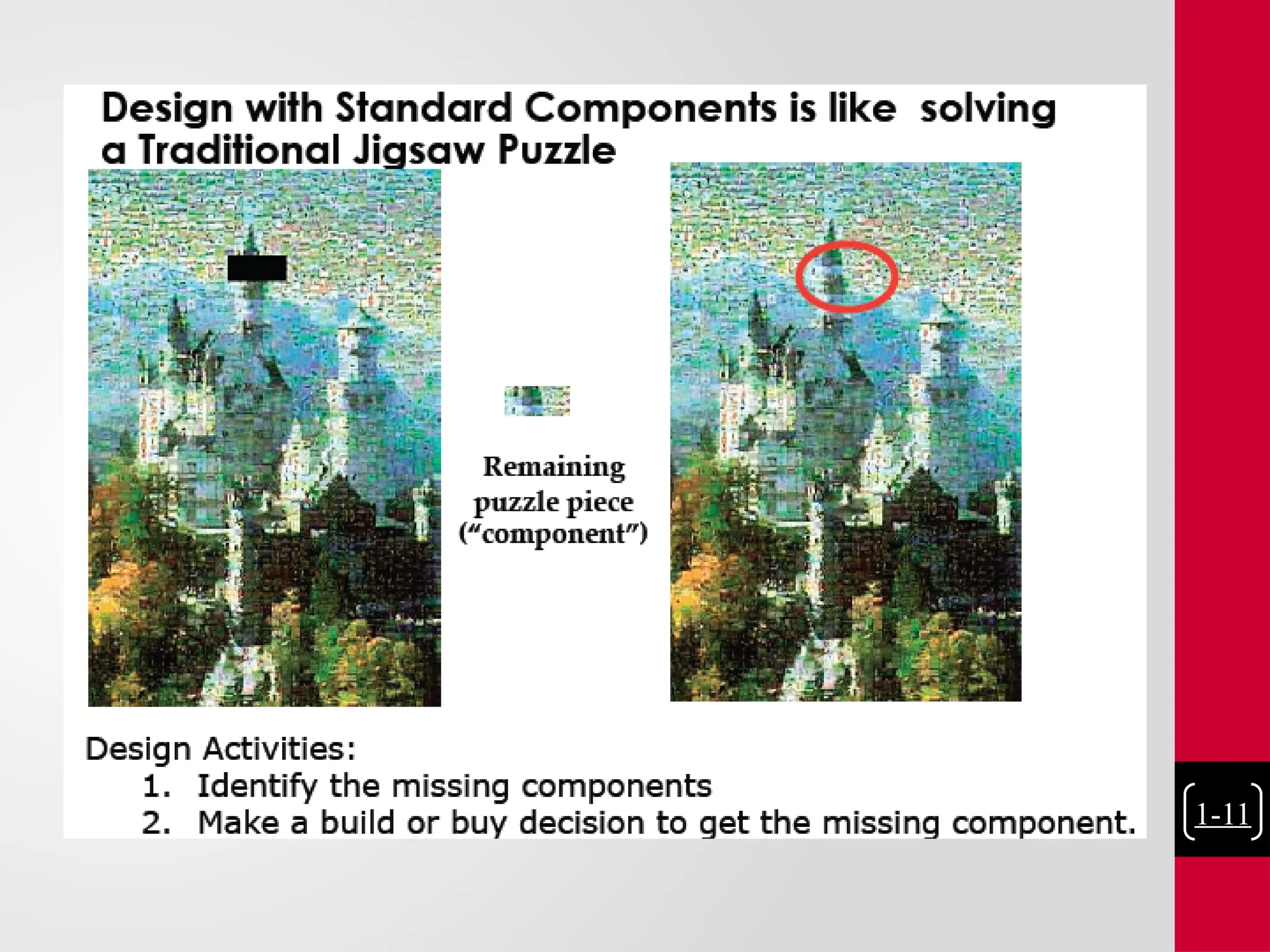

11. 1-11

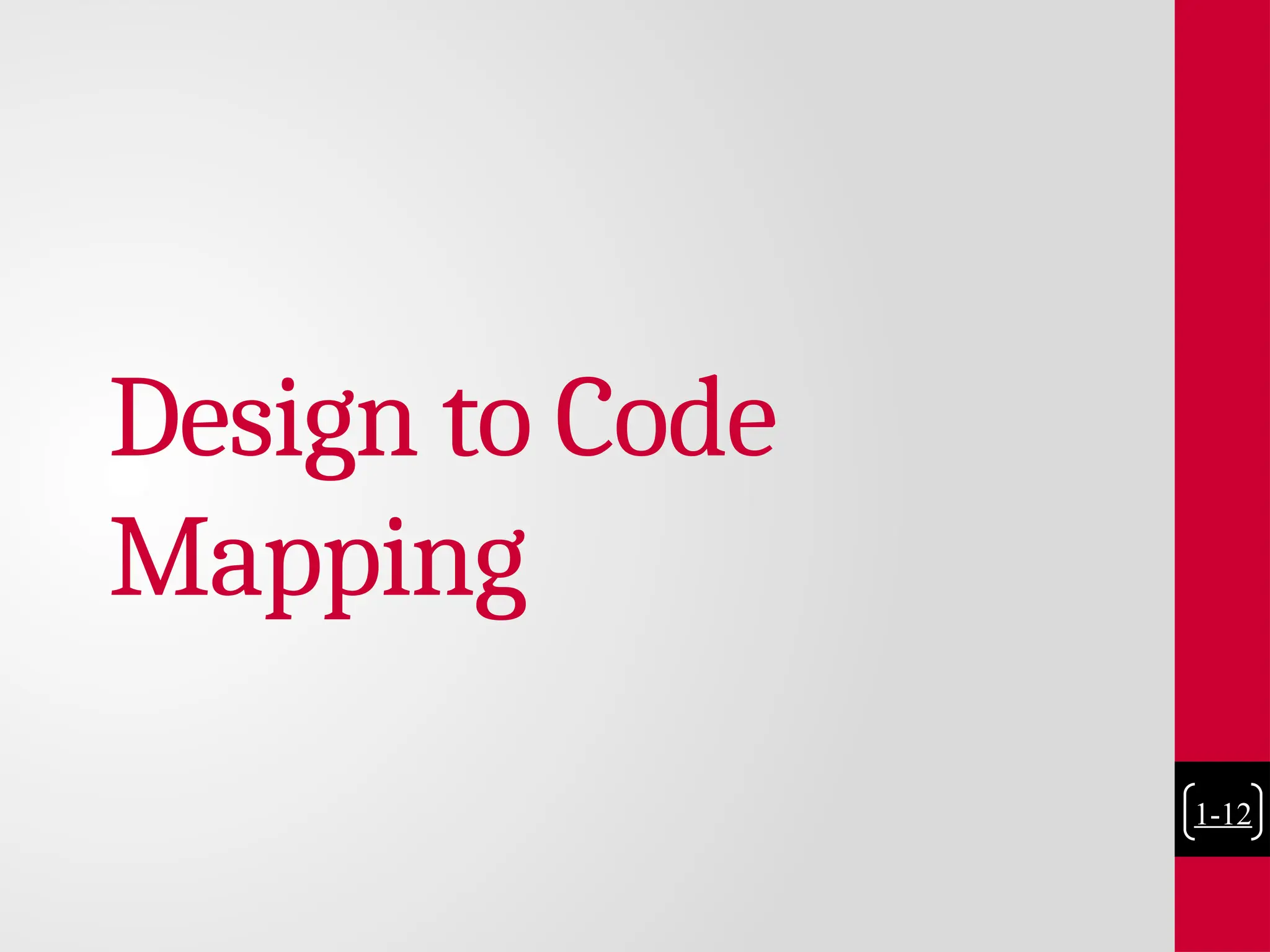

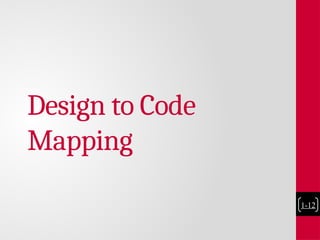

12. Design to Code
Mapping
1-12

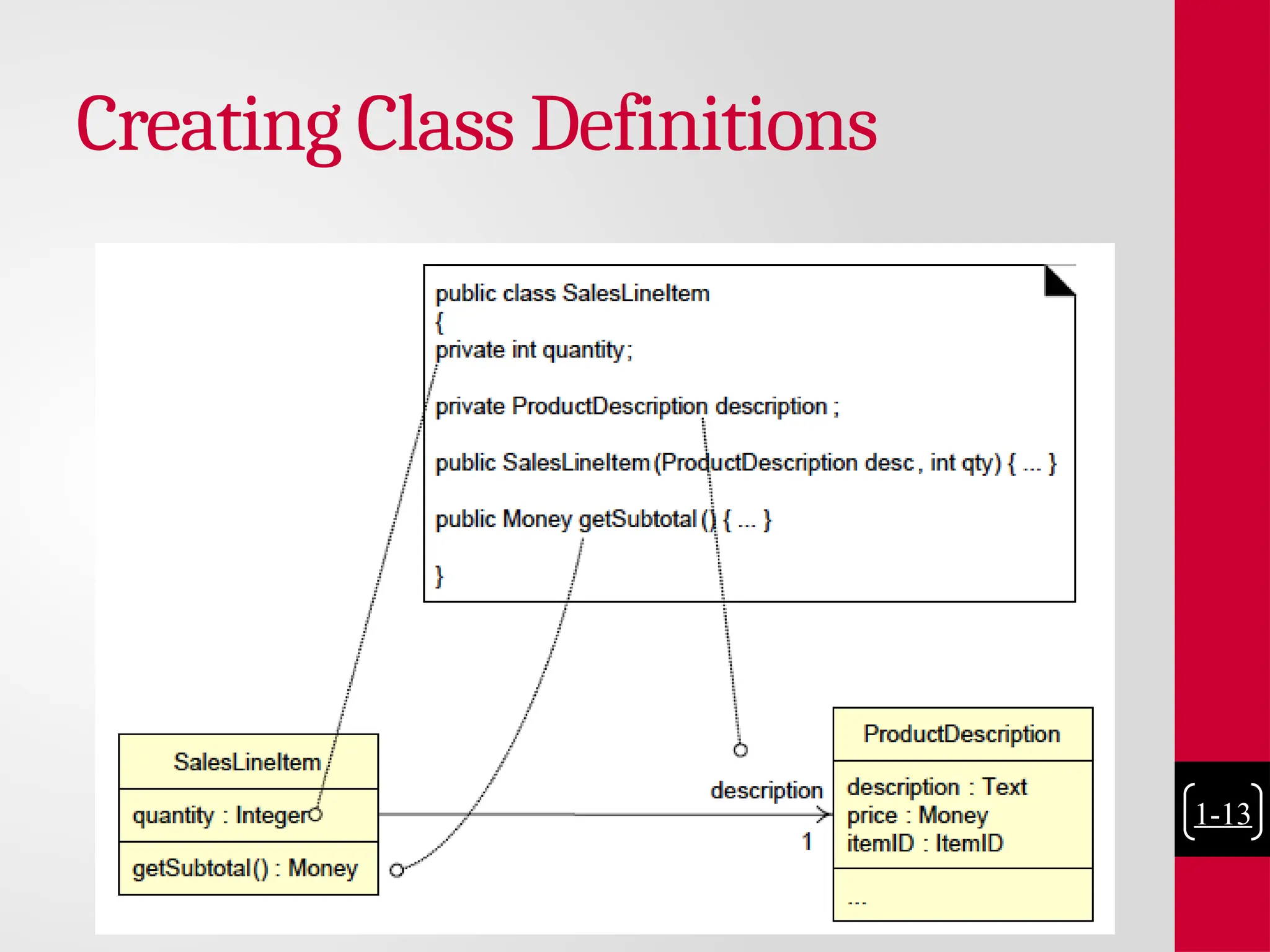

13. Creating Class Definitions
1-13

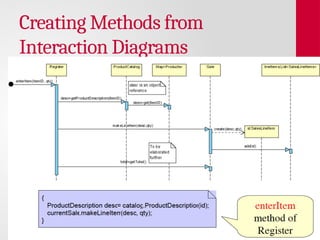

14. Creating Methods from
Interaction Diagrams
1-14

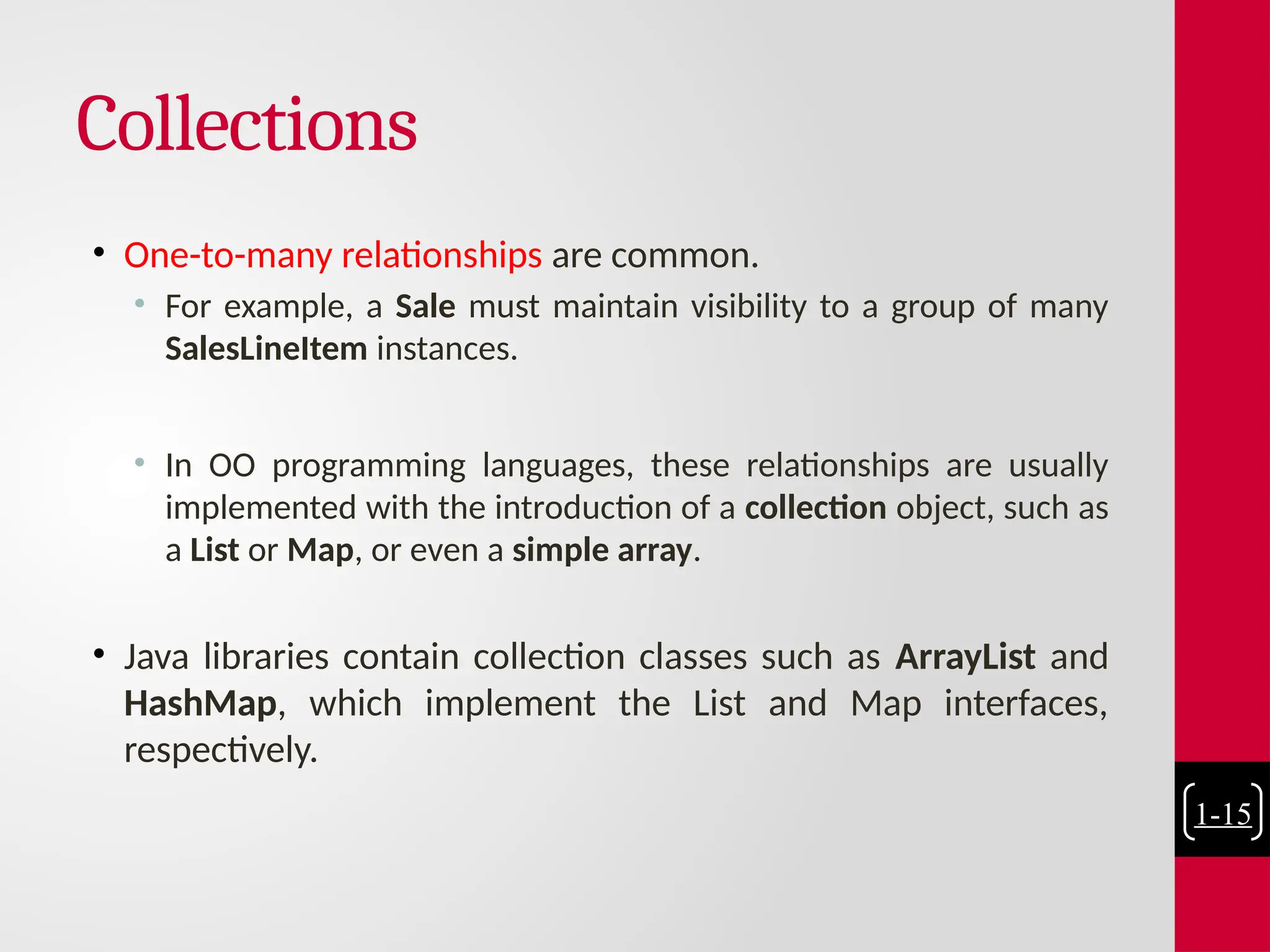

15. Collections
• One-to-many relationships are common.
• For example, a Sale must maintain visibility to a group of many
SalesLineItem instances.
• In OO programming languages, these relationships are usually
implemented with the introduction of a collection object, such as
a List or Map, or even a simple array.
• Java libraries contain collection classes such as ArrayList and
HashMap, which implement the List and Map interfaces,
respectively.
1-15

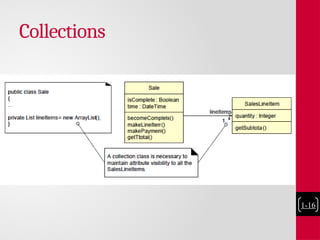

16. Collections
1-16

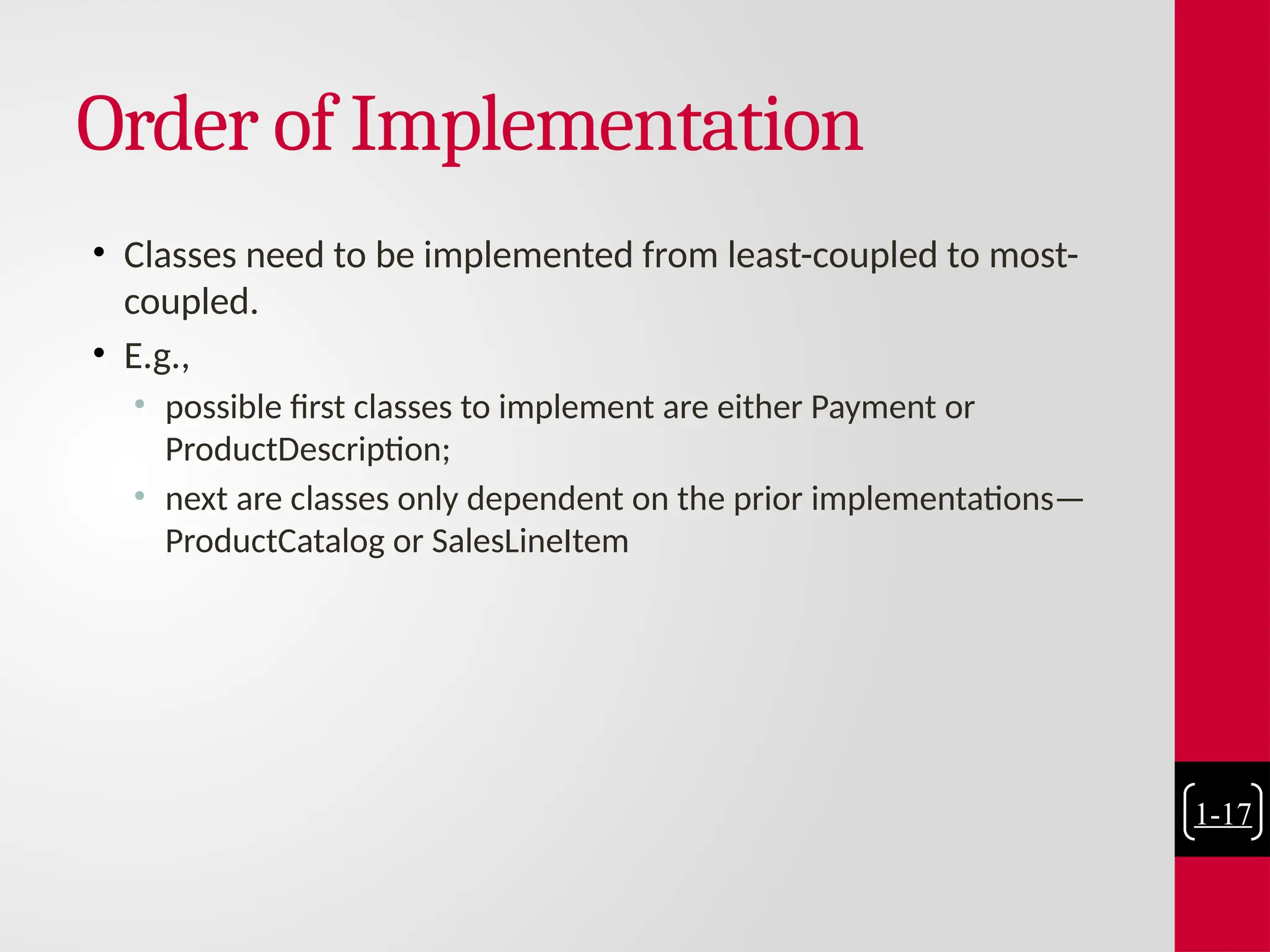

17. Order of Implementation
• Classes need to be implemented from least-coupled to most-
coupled.
• E.g.,
• possible first classes to implement are either Payment or
ProductDescription;
• next are classes only dependent on the prior implementations—
ProductCatalog or SalesLineItem
1-17

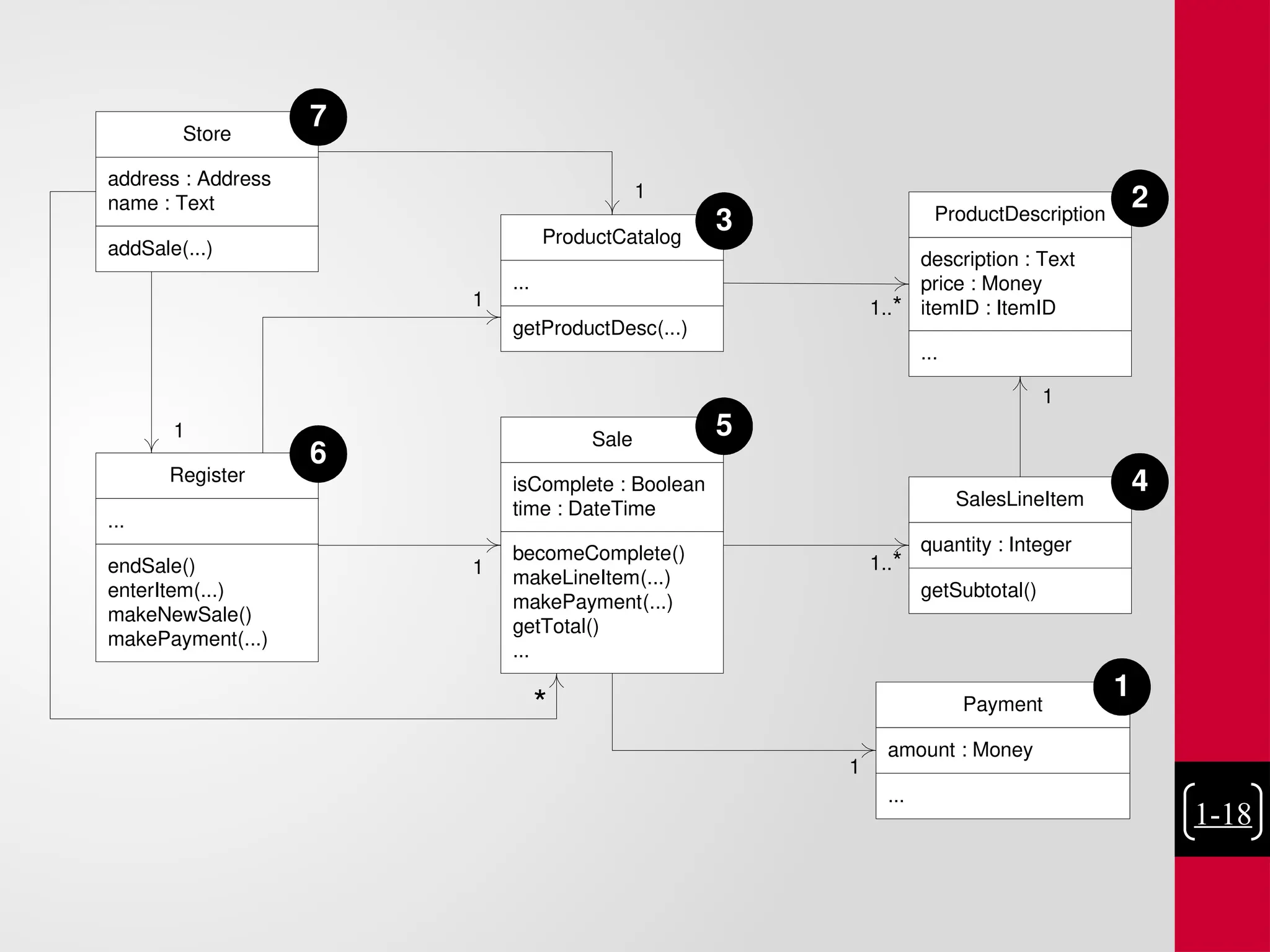

18. 1-18
SalesLineItem
quantity : Integer
getSubtotal()
ProductCatalog
...
getProductDesc(...)
ProductDescription
description : Text
price : Money
itemID : ItemID
...
Store
address : Address
name : Text
addSale(...)
Payment
amount : Money
...
1..*
1..*
Register
...
endSale()
enterItem(...)
makeNewSale()
makePayment(...)
Sale
isComplete : Boolean
time : DateTime
becomeComplete()
makeLineItem(...)
makePayment(...)
getTotal()
...
1
1
1
1
1
1
*
1
2
3
4
5
6
7

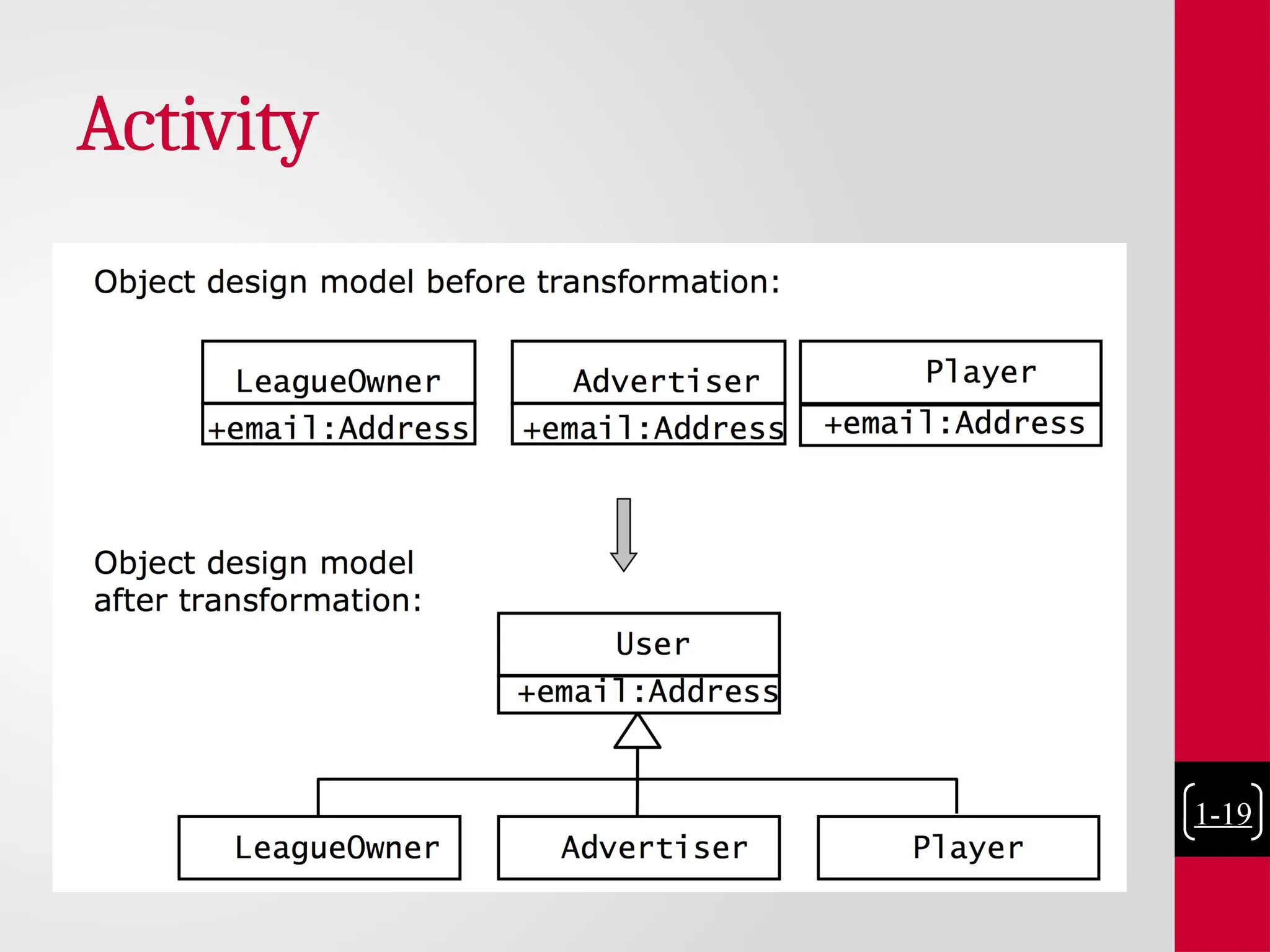

19. Activity
1-19

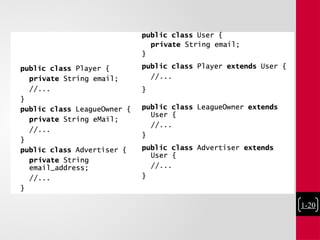

20. 1-20
