Suite # 3A, House # 40, Road # 01, Sector # 9, Uttara
Dhaka 1230, Bangladesh.
E-mail: unicodebd@gmail.com
www.unicodebd.com
To Date: --/--/----
Subject: Financial Proposal for CCTV Security System.
Dear Sir
We would like to propose the quoted price of CCTV Security System for your
office. Details of the specifications are enclosing herewith.
In Word: Forty Nine Thousand and Four Hundred Only
Your co-operation is highly appreciated.
Thanking you with gratitude
Md. Jubayer
Head of Admin & IT
Unicode Technology
SL. Hardware Description
Unit Price
In BDT
QTY
Total
Amount
In BDT
1. 0
1
Campro CB-RD139 with stand 700tvl IR
Security Camera (Taiwan)(weatherproof)
5,200.00 4 20,800.00
2. 0
7
Campro 4 channel Dvr (Taiwan)
14,000.00 1 14,000.00
3. 0
8
Cable (box)
*approximately 1000.00 2 2000.00
4. Toshiba Hard disk – 500GB 4,000.00 1 4,000.00
5. ViewSonic VA1620A 15.6" LED 5,600.00 1 5,600.00
6. Installation charge 5,00.00 4 2,000.00
7. Accessories –BNC, adaptor 250.00 4 1,000.00
Total Amount 49,400.00
TERMS AND CONDITIONS:
VAT & TAX: All prices quoted above are excluding VAT & TAX
PAYMENT TERMS: 50% advanced payment is acceptable at the time of
signing work order and balance 50% payment will be paid after delivery of
hardware goods with successful completion of Total project.
Warranty & Service: 12 months fully comprehensive warranty of hardware and
Service warranty from the date of singing work order. No warranty will be
provide for burning Internal Circuits of equipment’s due to voltage fluctuation and
over voltage or physical damage.
Service Criteria for 12 Month:
 Service and Support team will be consists of Four 4 members
 Support Engineer will be available within 24 hours Inside of Dhaka and
Outside of Dhaka after getting called from your premises Support
Engineer will be available within 48 hours. Prompt support will be given
through Telephone/E-mail.
Delivery / Installation: Hardware 07 working days.
Training: Training will be provided by Unicode Technology after completion of
the Project.
Accessories Pictures
Long Range Weatherproof IR Security Camera Campro 4 Channel DVR
Power cable Power supply Cable

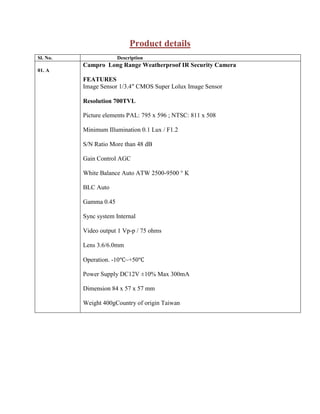

Product details
Sl. No. Description
01. A
Campro Long Range Weatherproof IR Security Camera
FEATURES
Image Sensor 1/3.4″ CMOS Super Lolux Image Sensor
Resolution 700TVL
Picture elements PAL: 795 x 596 ; NTSC: 811 x 508
Minimum Illumination 0.1 Lux / F1.2
S/N Ratio More than 48 dB
Gain Control AGC
White Balance Auto ATW 2500-9500 ° K
BLC Auto
Gamma 0.45
Sync system Internal
Video output 1 Vp-p / 75 ohms
Lens 3.6/6.0mm
Operation. -10℃~+50℃
Power Supply DC12V ±10% Max 300mA
Dimension 84 x 57 x 57 mm
Weight 400gCountry of origin Taiwan
DVR
02.A Campro 4CH DVR
Product Description
◆ Compression algorithm upgraded to H.264 High Profile,more advanced video compression technique
makes the code stream lowered at least 30%.
◆ Completely new graphics operating interface design, to let you experience easily and conveniently.
◆ CAMPRO SDVR combines the functions of DVR/HVR/NVR together, multi-mode input ( support pure
analog input, support analog + network HD video input, support pure network HD video input). No need to
worry how to be compatible with analog system, to choose DVR or HVR, just one SDVR can work.
◆ Super Strong processing capacity: can realize 4CH D1 recording.
◆ Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain
the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of
bandwidth.
◆ Support super cloud service (specialized website for super cloud service: www.dvrcenter.net), one step to do
remote control easily & conveniently without any complicated setting.
◆ Powerful net service(support
DHCP、PPPOE、FTP、DNS、DDNS、ARSP(www.dvrcenter.com)、NTP、UPNP、EMAIL IP
authority、IP search、alarm center, etc),complete enclosure(WEB、CMS、SDK),to easily achieve
interconnection.
◆ Built-in IE plugs, no need to install from CD disk independently.
◆ Support 3G & WIFI extension.
◆ Support multi-browser(IE、Chrome、Firefox、Safari).
◆ Support all kinds of mobile monitor(iPhone,Windows Mobile,BlackBerry,Symbian, Android)
◆ Multiplex operation: Preview, recording, playback, backup, network live, mobile phone view; all operations
are independent of each other.
◆ Support many recording modes: Auto-continuing recording, timing recording, motion detection recording.
◆ Playback mode support normal play, speed play, fast back play, manual and single-frame play.
◆ Many backup device: USB flash disk, USB portable HDD and network.
◆ Support alarm triggered recording will send alerts matter (some models support sending picture) to the
designated email.
◆ Support pre-alarm recording (before 10 sec),not lose any suspicious screen.
◆ Twenty kinds of
language(English、Finnish、French、German,Greek、Italian、Japanese,Polish、Portuguese、Russian,
Spanish、Thai、Simplified Chinese、Chinese-Traditional、Turkish, etc),break up country limitation.
◆ System auto recovery to power after power reconnected, and return to the pre-power-down state
System
Main processor: Industrial grade embedded micro controller chip Huawei HIS chipset Hi3521
Operating system: Embedded LINUX operating system
System resource: Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-
channel multi-user network operation, USB back up
Display
Operation interface: 16 bit real color GUI interface support mouse operation
Display screen: 1/4/8/9/16 screen
Video
Video standard: PAL(625 lines,50fps);NTSC(525lines,60fps)
Image encode: H.264 (High profile)
Monitor quality: Monitor:D1;VGA:1080P ;HDMI:1080P
Playback quality: Max support 1080P under HVR and NVR mode;Max support D1 under DVR mode
Encode capability: 16CH HD1 / D1real time(DVR mode)
Decode capability: 16CH HD1/1CH D1 real time(DVR mode)
Multi-mode video input: ★ DVR mode :16 *D1 ★ HVR mode:4 *D1+(1*1080P+3*720P) ★ NVR mode:16*D1
/ 2*720P + 2*1080P / 1*720P+1*1080P+6*960H/8*720P
Motion detection: Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local
analog channel only)
Audio compression: G.711A
Record and playback
Record mode: Manual、alarm、motion detection、timing
Local Playback: 1-16ch playback synchronously; under the mode of DVR, Max support 16ch playback or 1ch
D1 real time playback
Video search: Time、date、event、channel search
Storage and back up
Space occupation: Video: CIF 4~5G/day*channel, D1 16~20G/day*channel; audio:691.2M/day*channel
Video storage: Local HDD, Network
Backup mode: Network backup、USB portable HDD、USB DVD-RW, SATA DVD-RW
Interface
Video input: 16CH BNC
Video output: 2CH BNC,1CH VGA,1CH HDMI
Audio input/output: 16CH RCA / 1CH RCA
Loopout: 16CH BNC
Alarm input/output: 16CH / 2CH
Network port: RJ45 10M/100M self-adaptive Ethernet port
PTZ control: 1 RS485;support multi kinds of PTZ Protocol
USB port: 2*USB2.0
HDD port: 4 SATA(each max support 2048G)
Wireless port: 3G、WIFI(extension via USB port)
Tour: Yes
Remote control: Yes
Power supply: DC 12V / 6A
Dimension: 430(Length) x 370(Width) x 97(Height)

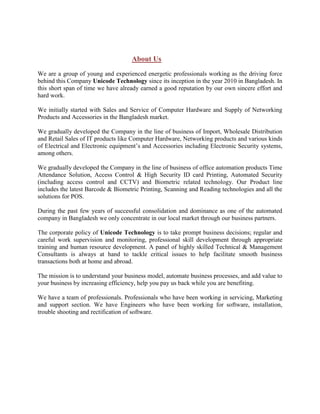

About Us
We are a group of young and experienced energetic professionals working as the driving force
behind this Company Unicode Technology since its inception in the year 2010 in Bangladesh. In
this short span of time we have already earned a good reputation by our own sincere effort and
hard work.
We initially started with Sales and Service of Computer Hardware and Supply of Networking
Products and Accessories in the Bangladesh market.
We gradually developed the Company in the line of business of Import, Wholesale Distribution
and Retail Sales of IT products like Computer Hardware, Networking products and various kinds
of Electrical and Electronic equipment’s and Accessories including Electronic Security systems,
among others.
We gradually developed the Company in the line of business of office automation products Time
Attendance Solution, Access Control & High Security ID card Printing, Automated Security
(including access control and CCTV) and Biometric related technology. Our Product line
includes the latest Barcode & Biometric Printing, Scanning and Reading technologies and all the
solutions for POS.
During the past few years of successful consolidation and dominance as one of the automated
company in Bangladesh we only concentrate in our local market through our business partners.
The corporate policy of Unicode Technology is to take prompt business decisions; regular and
careful work supervision and monitoring, professional skill development through appropriate
training and human resource development. A panel of highly skilled Technical & Management
Consultants is always at hand to tackle critical issues to help facilitate smooth business
transactions both at home and abroad.
The mission is to understand your business model, automate business processes, and add value to
your business by increasing efficiency, help you pay us back while you are benefiting.
We have a team of professionals. Professionals who have been working in servicing, Marketing
and support section. We have Engineers who have been working for software, installation,
trouble shooting and rectification of software.
Our Solutions
 CCTV
 Time & Attendance
 Access Control
 Payroll / HRM
 Bio-metric with Facial
 Barcode Scanning & Printing
 ID card Printing
 Point of Sales (POS)
 PC/Laptop
 Pabx
Equipment’s
 Time Attendance Terminal
 Access Control Terminal
 Retail / Industrial Barcode Scanning Equipment
 Wireless Barcode Scanning Equipment
 Barcode Printers
 ID Card Printers
 Access Control & Attendance
 CCTV
We are representing world famous company for the Bangladesh territory:
1 HUNDURE Technology Co. of Taiwan for their Time & Attendance and Access Control
Equipment.
2 ZK Software Products from China for All Type of Access Control Solutions.
3 Symbol Technology of USA for all types of scanners and Mobile Computers.
4 AVTECH of Taiwan for all types of CCTV Solutions.
5 YHDO of China for all types of CCTV Solutions.
6 Howell for all type of CCTV Accessories.
Some of our Client List
SL. No. Name of the Company Type of Solutions
1. Save The Children (organization) CCTV Solution
2. VSO (organization) Access Control Solution
3. Hotel Purbani International CCTV Solution and Time Attendance
Solution
4. Bojrokantho CCTV Solution
5. Delta Group Time Attendance with payroll
Solution
6. JS Metal Ltd CCTV Solution
7. Daar Foundation Access Control Solution
8. Sher-E-Bangla Agri Varsity Access Control & CCTV Solution
9. WSC Inc. Access Control Solution
10. Shahid cadet Time Attendance Solution
11. Rainbow Group Time Attendance with payroll
Solution
12. Stylion Fashion Time Attendance And Payroll
Solution
13. Alif Food & Beverage Ind. Ltd. Barcode In counter Scanner Solution
14. Fozila shopping complex Proximity Card Solution
15. DK petrol cng station DVR Based CCTV
16. Mousumi Industries Ltd. CCTV Solution
17. Target knitting Access Control and CCTV Solution
18. Young One Proximity Solution
19. Borak Spinning Mills Proximity Based Time Attendance
Solution
20. Sikder auto CCTV Solution
21. Qsee Technology Ltd. CCTV Solution
22. Mozart fabrics Ltd. Time Attendance Solution
