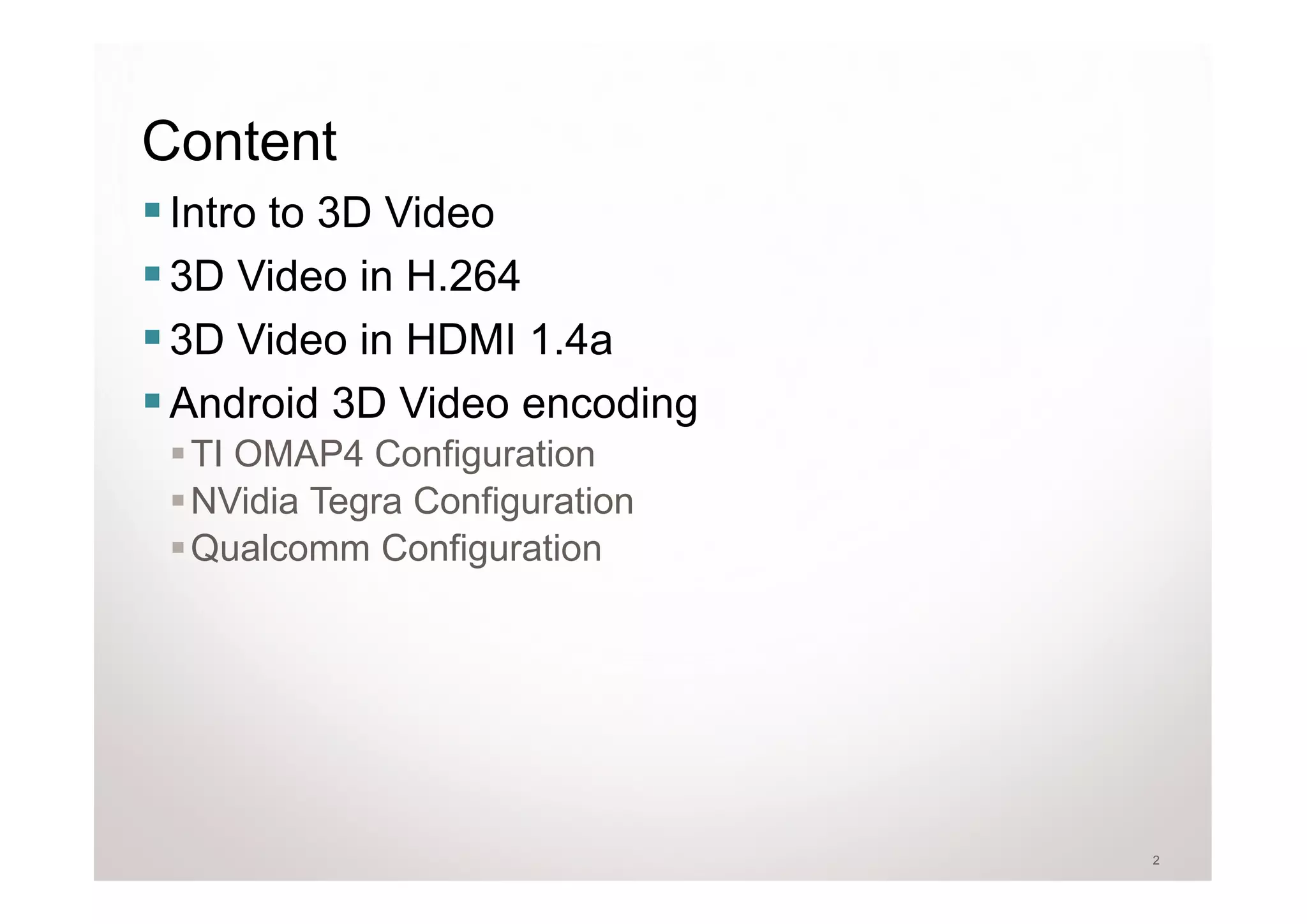

2. Content

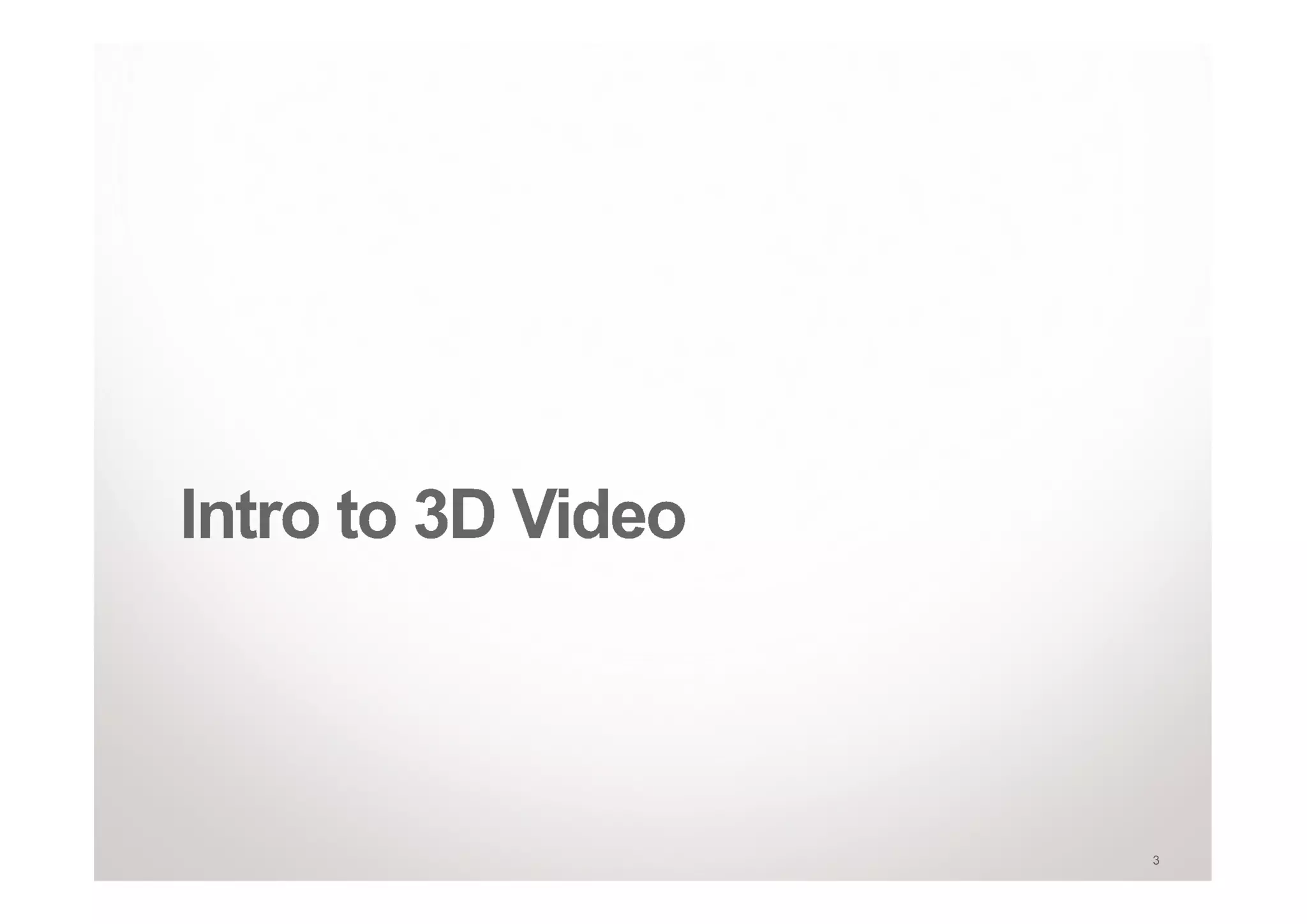

Intro to 3D Video
3D Video in H.264
3D Video in HDMI 1.4a
Android 3D Video encoding
TI OMAP4 Configuration

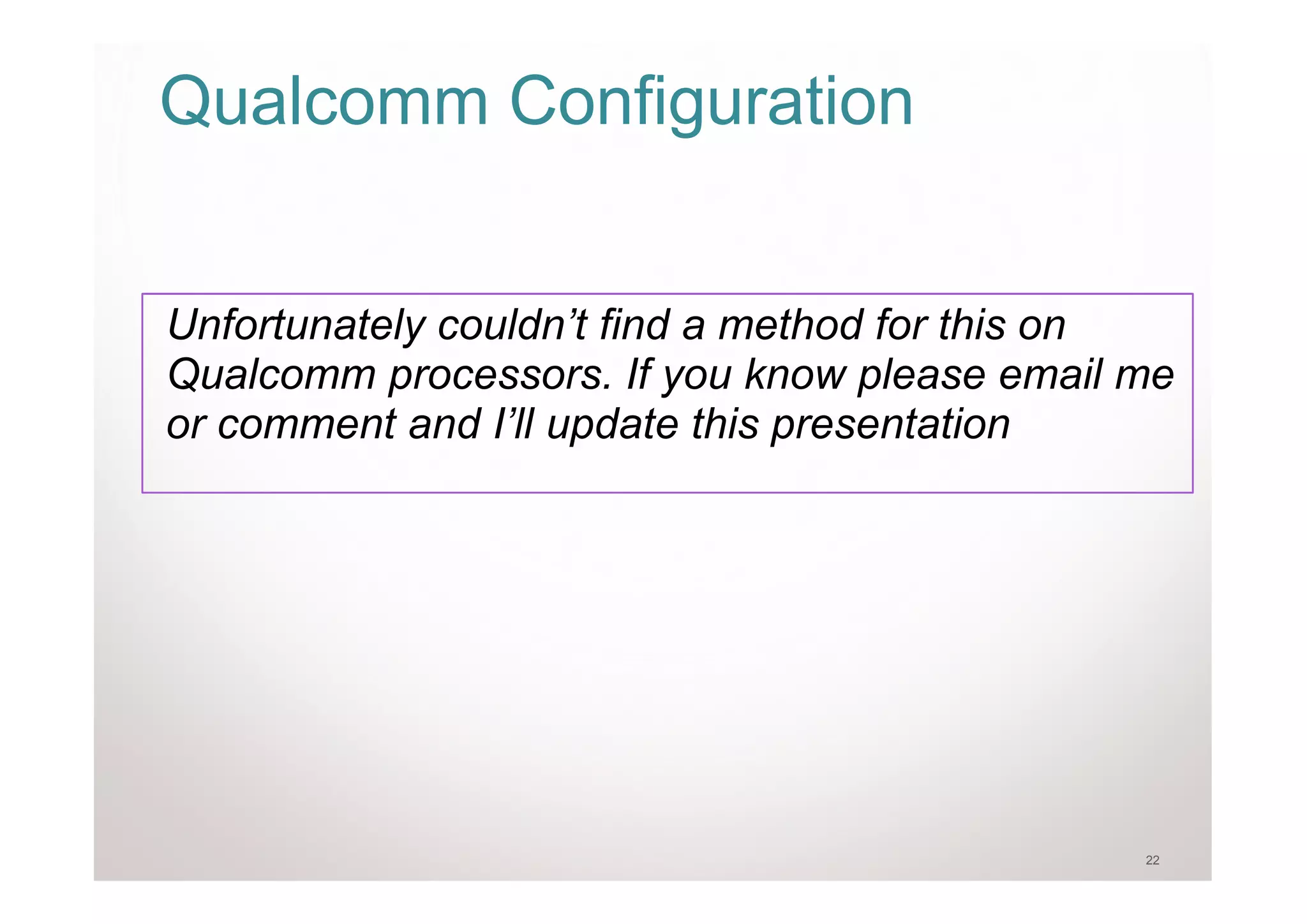

Qualcomm Configuration
2

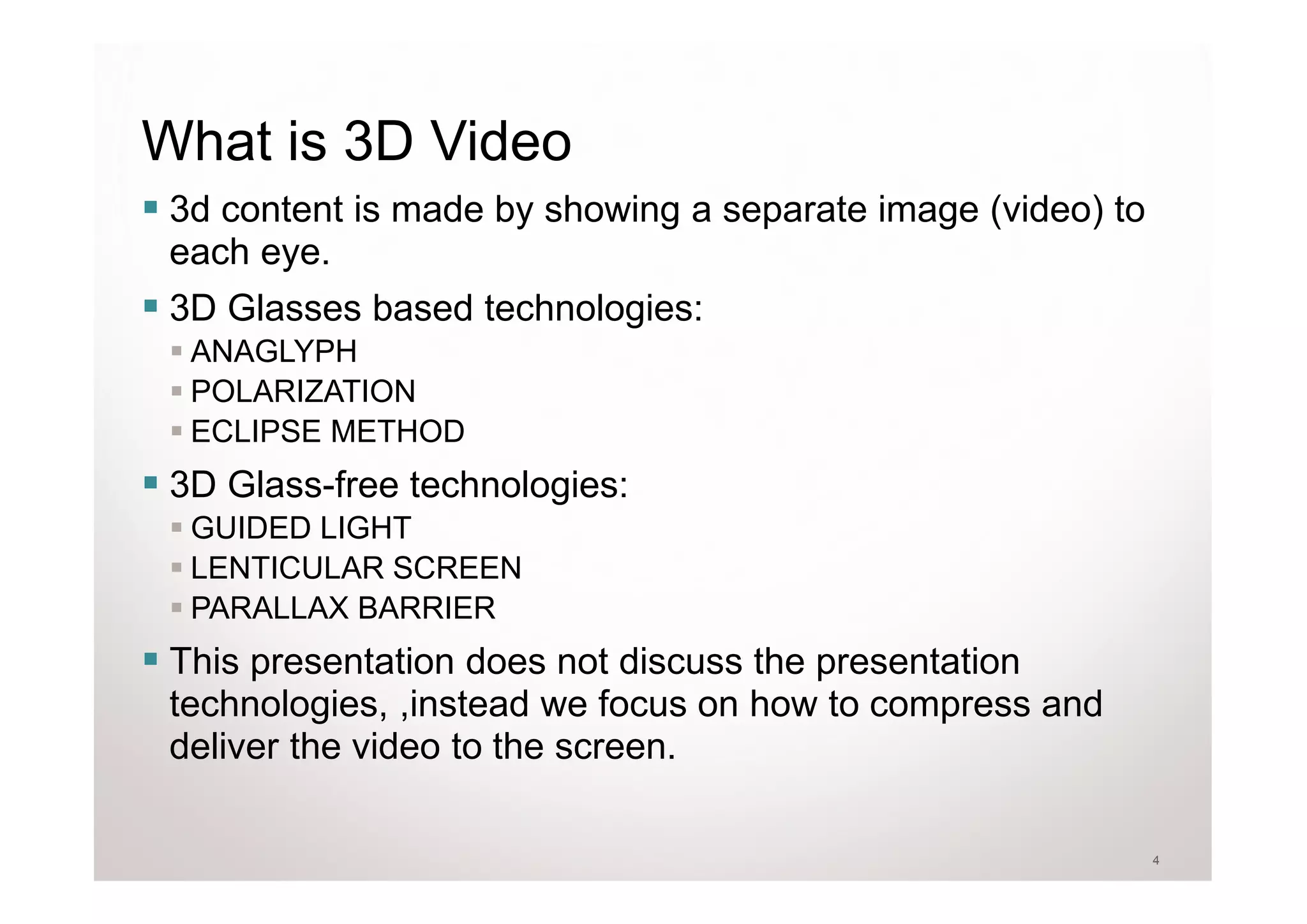

4. What is 3D Video
3d content is made by showing a separate image (video) to
each eye.
3D Glasses based technologies:
ANAGLYPH
POLARIZATION
ECLIPSE METHOD
3D Glass-free technologies:
GUIDED LIGHT
LENTICULAR SCREEN
PARALLAX BARRIER
This presentation does not discuss the presentation
technologies, ,instead we focus on how to compress and
deliver the video to the screen.
4

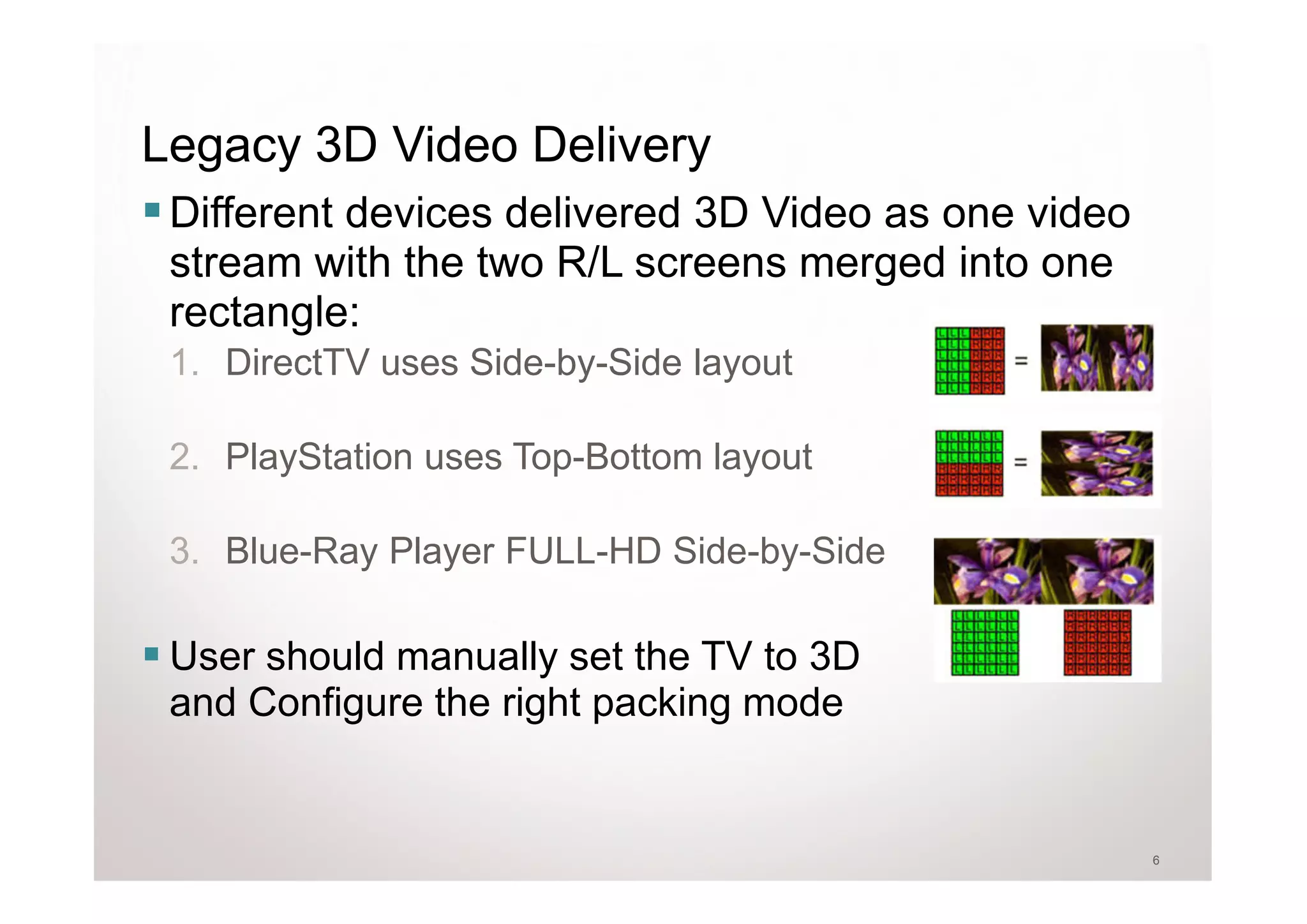

6. Legacy 3D Video Delivery
Different devices delivered 3D Video as one video
stream with the two R/L screens merged into one
rectangle:

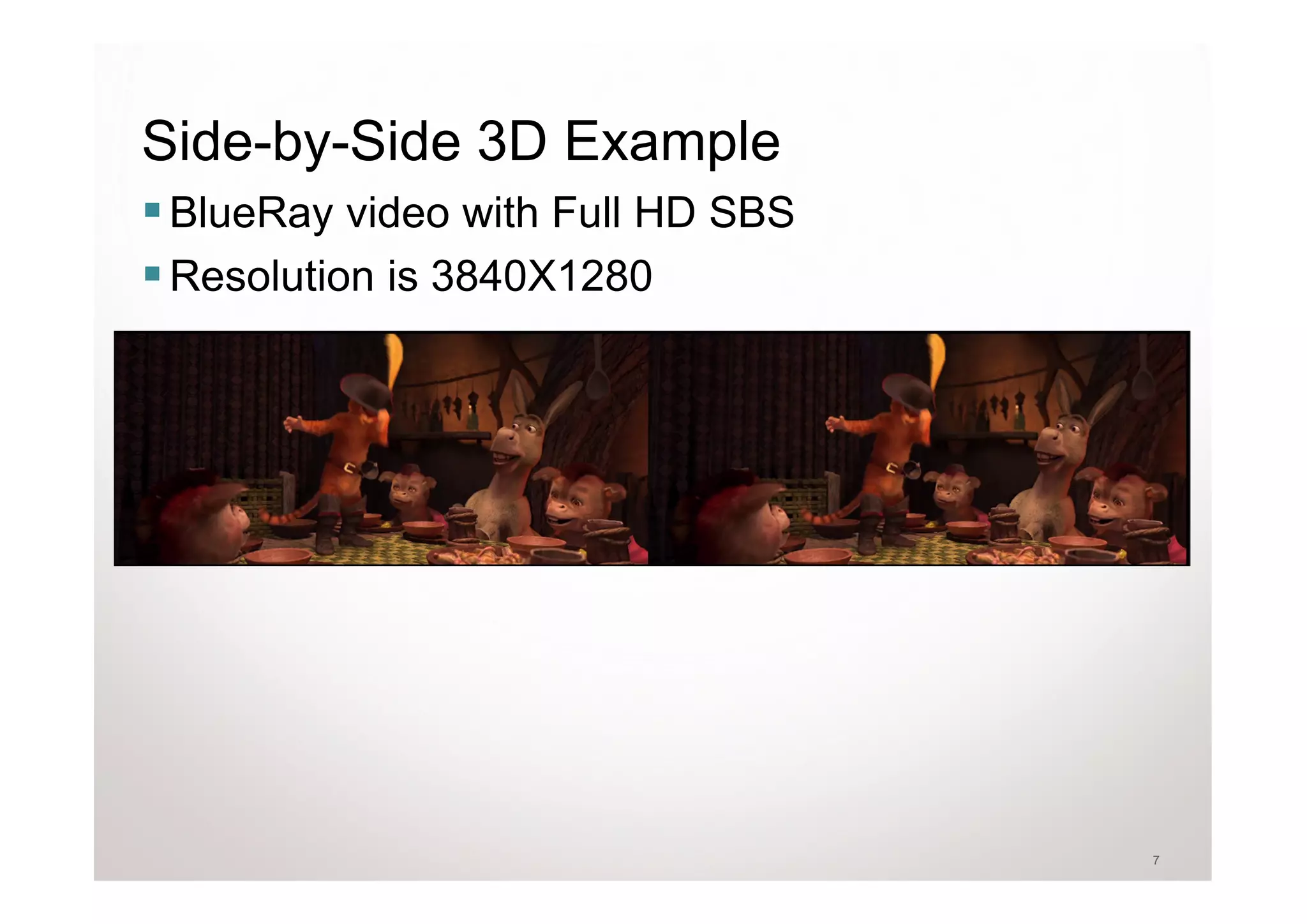

1. DirectTV uses Side-by-Side layout
2. PlayStation uses Top-Bottom layout
3. Blue-Ray Player FULL-HD Side-by-Side
User should manually set the TV to 3D
and Configure the right packing mode
6

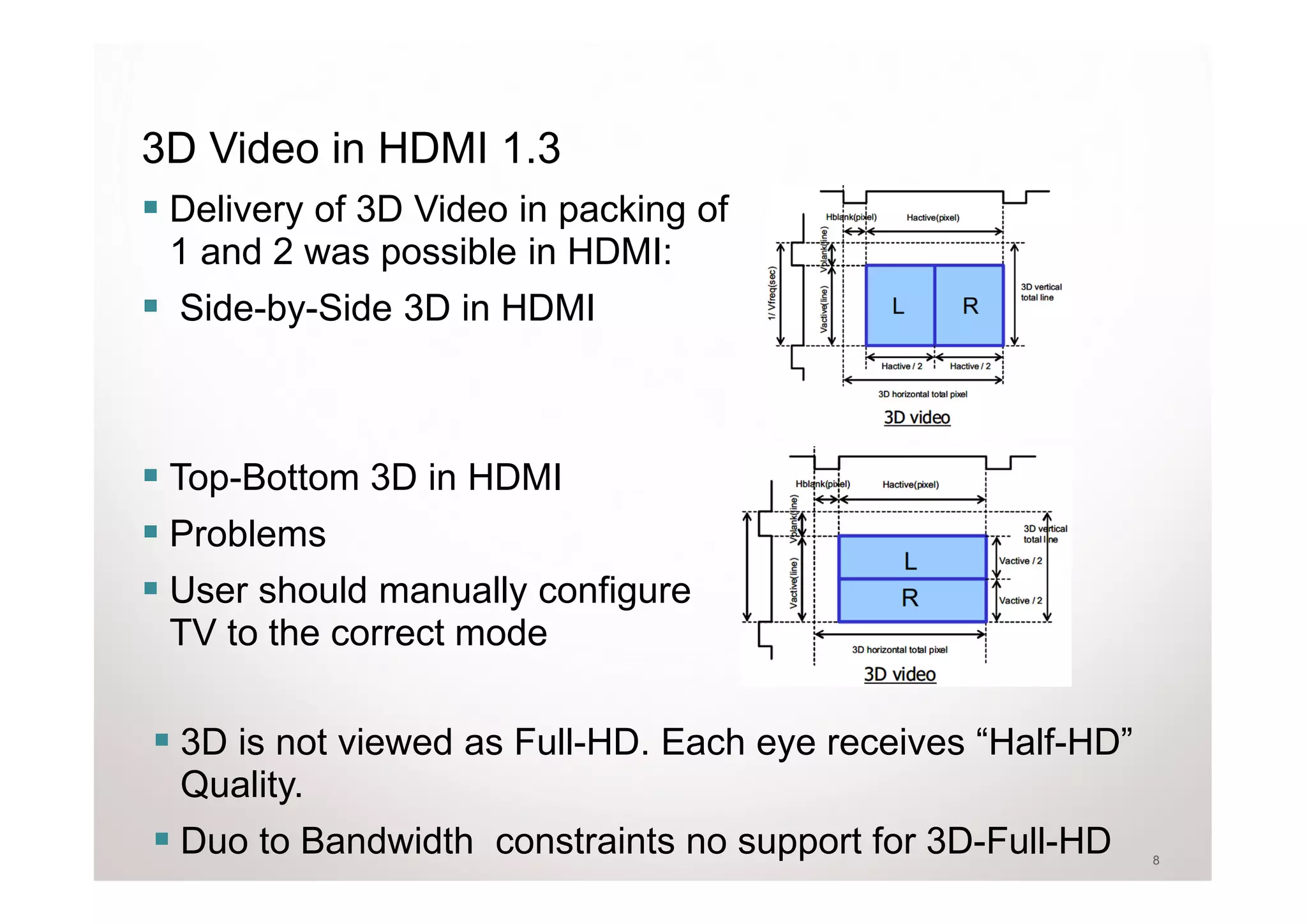

8. 3D Video in HDMI 1.3
Delivery of 3D Video in packing of
1 and 2 was possible in HDMI:
Side-by-Side 3D in HDMI
Top-Bottom 3D in HDMI
Problems
User should manually configure
TV to the correct mode
3D is not viewed as Full-HD. Each eye receives “Half-HD”
Quality.
Duo to Bandwidth constraints no support for 3D-Full-HD 8

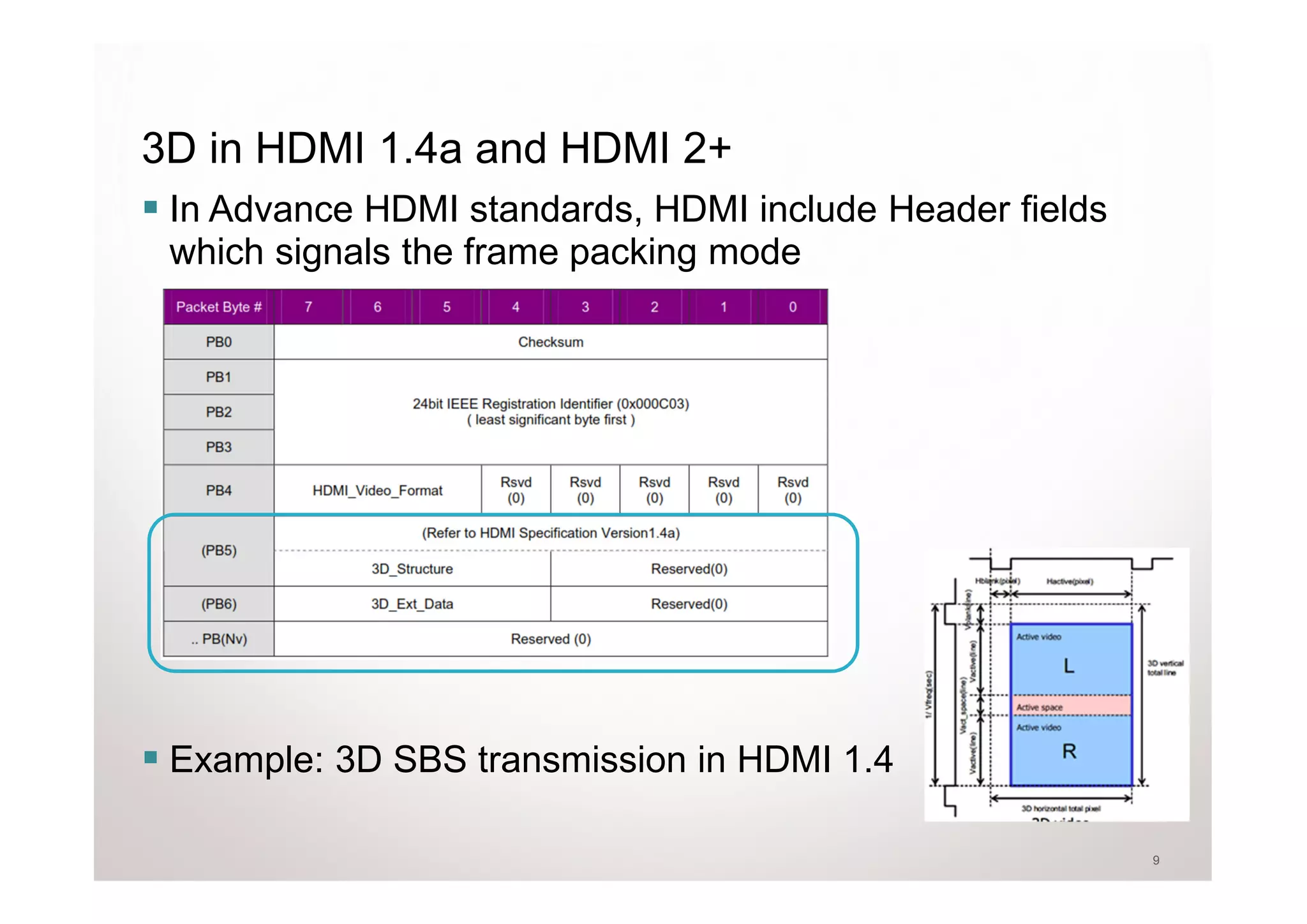

9. 3D in HDMI 1.4a and HDMI 2+
In Advance HDMI standards, HDMI include Header fields
which signals the frame packing mode
Example: 3D SBS transmission in HDMI 1.4
9

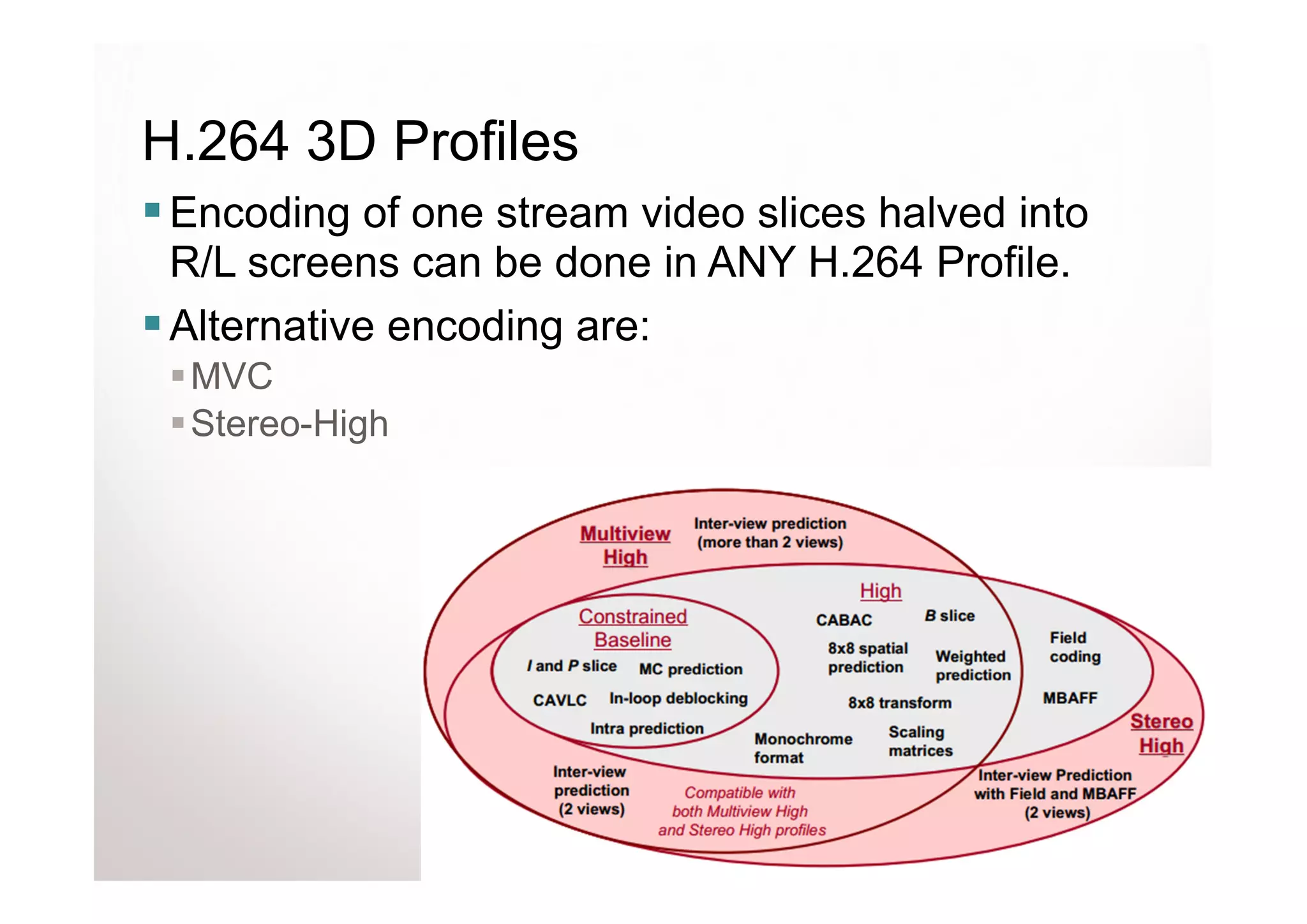

11. H.264 3D Profiles
Encoding of one stream video slices halved into
R/L screens can be done in ANY H.264 Profile.
Alternative encoding are:
MVC
Stereo-High
11

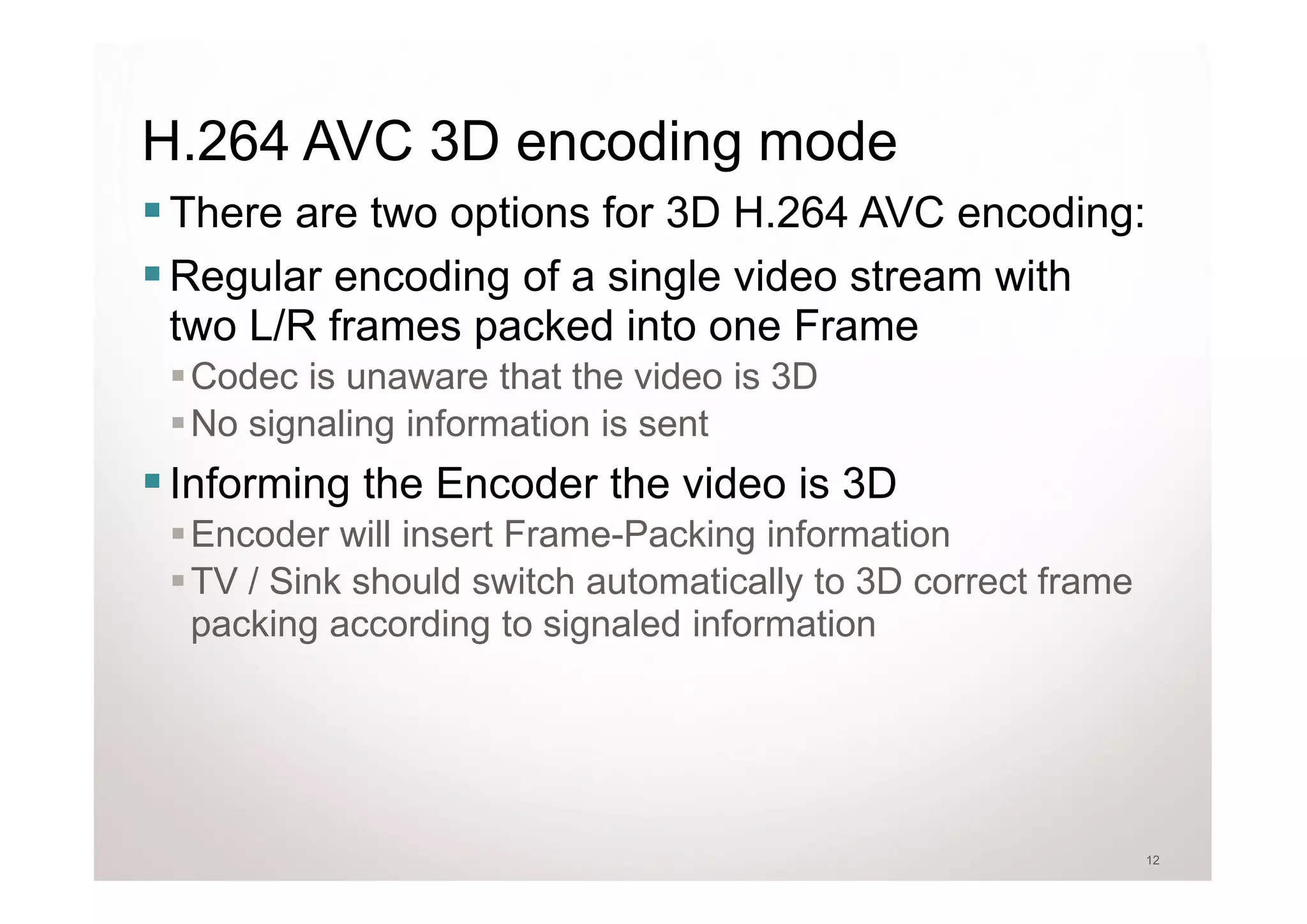

12. H.264 AVC 3D encoding mode
There are two options for 3D H.264 AVC encoding:
Regular encoding of a single video stream with
two L/R frames packed into one Frame
Codec is unaware that the video is 3D
No signaling information is sent
Informing the Encoder the video is 3D
Encoder will insert Frame-Packing information
TV / Sink should switch automatically to 3D correct frame
packing according to signaled information
12

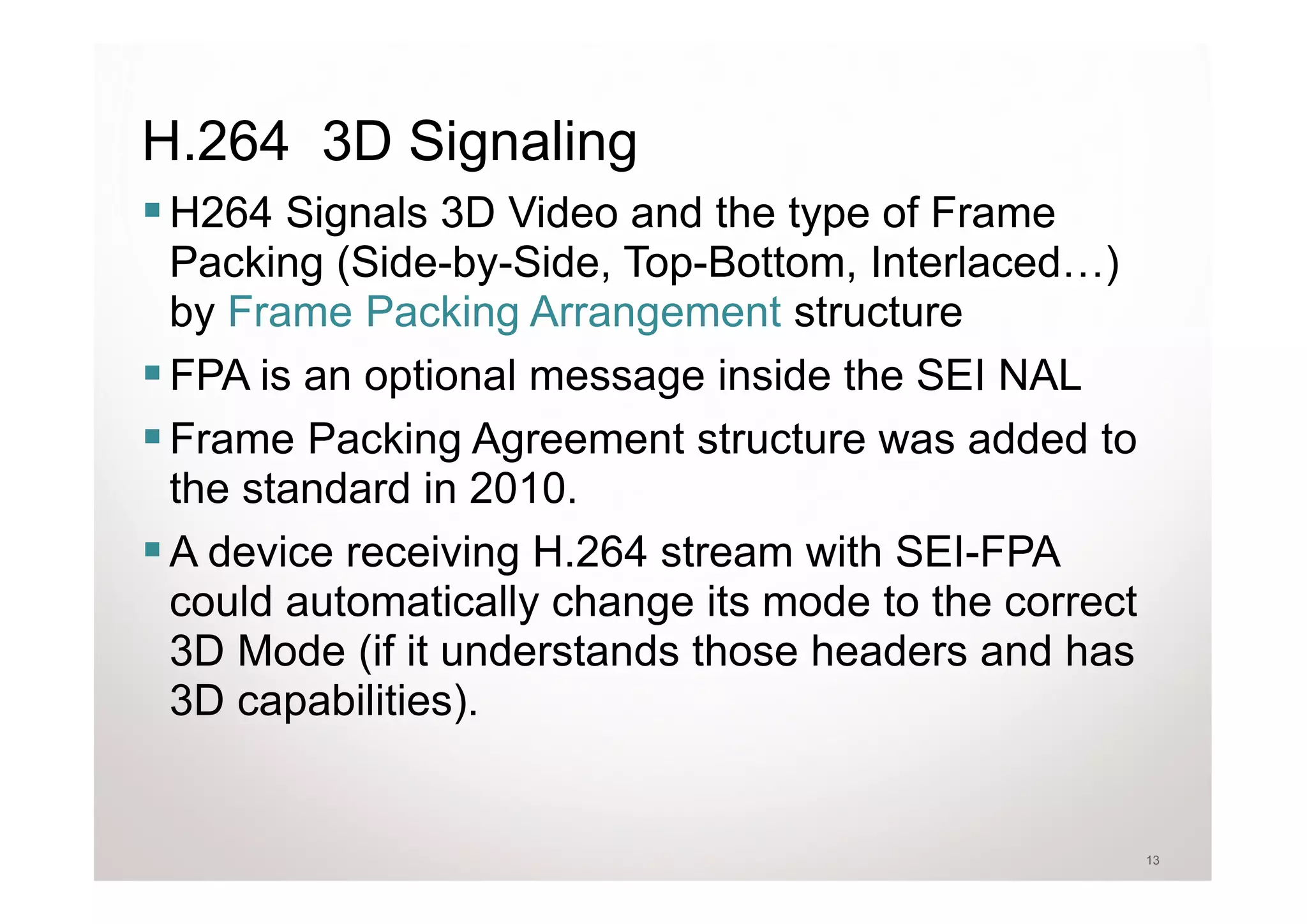

13. H.264 3D Signaling
H264 Signals 3D Video and the type of Frame
Packing (Side-by-Side, Top-Bottom, Interlaced…)
by Frame Packing Arrangement structure
FPA is an optional message inside the SEI NAL
Frame Packing Agreement structure was added to
the standard in 2010.
A device receiving H.264 stream with SEI-FPA
could automatically change its mode to the correct
3D Mode (if it understands those headers and has
3D capabilities).
13

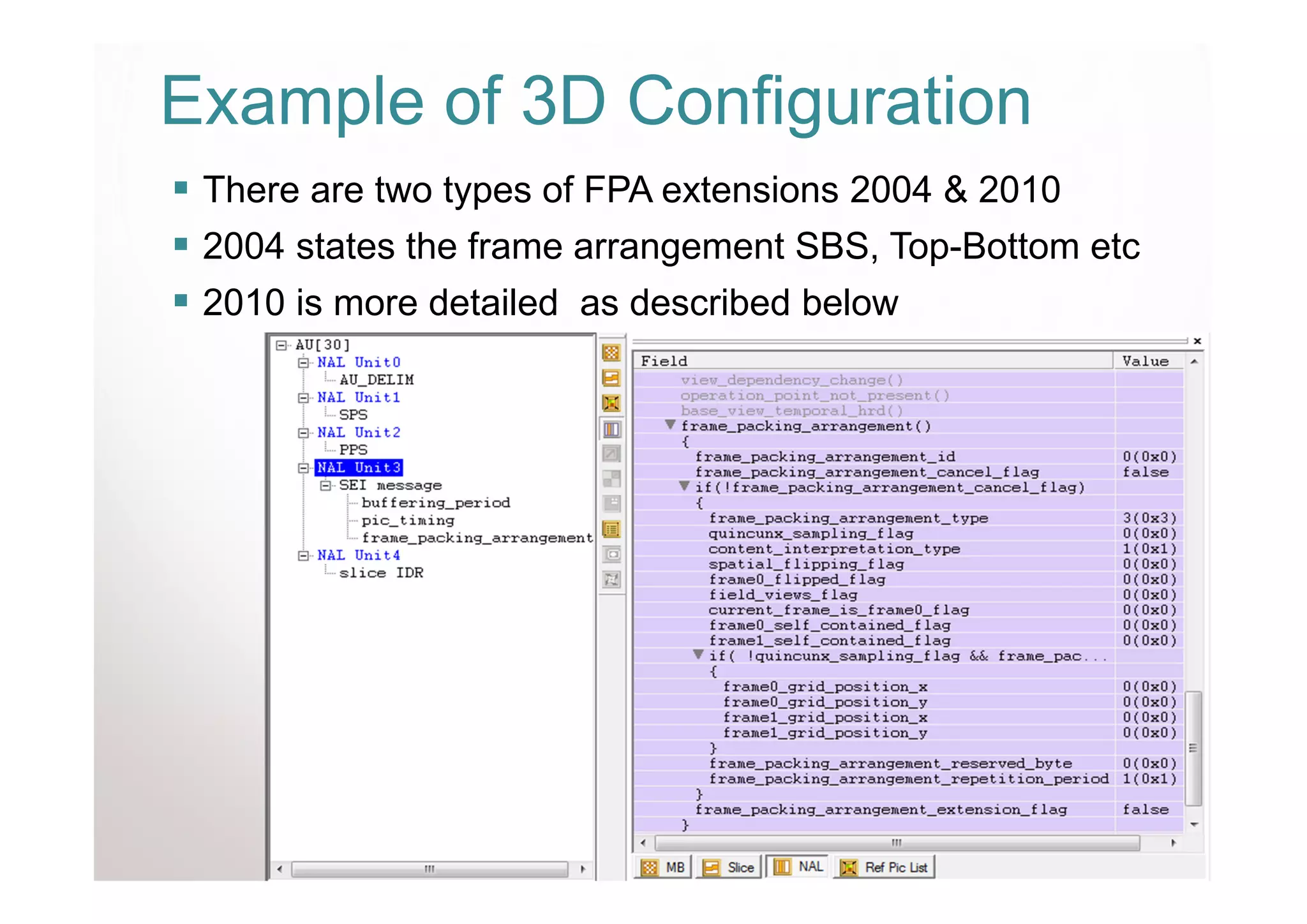

14. Example of 3D Configuration
There are two types of FPA extensions 2004 & 2010
2004 states the frame arrangement SBS, Top-Bottom etc
2010 is more detailed as described below
14

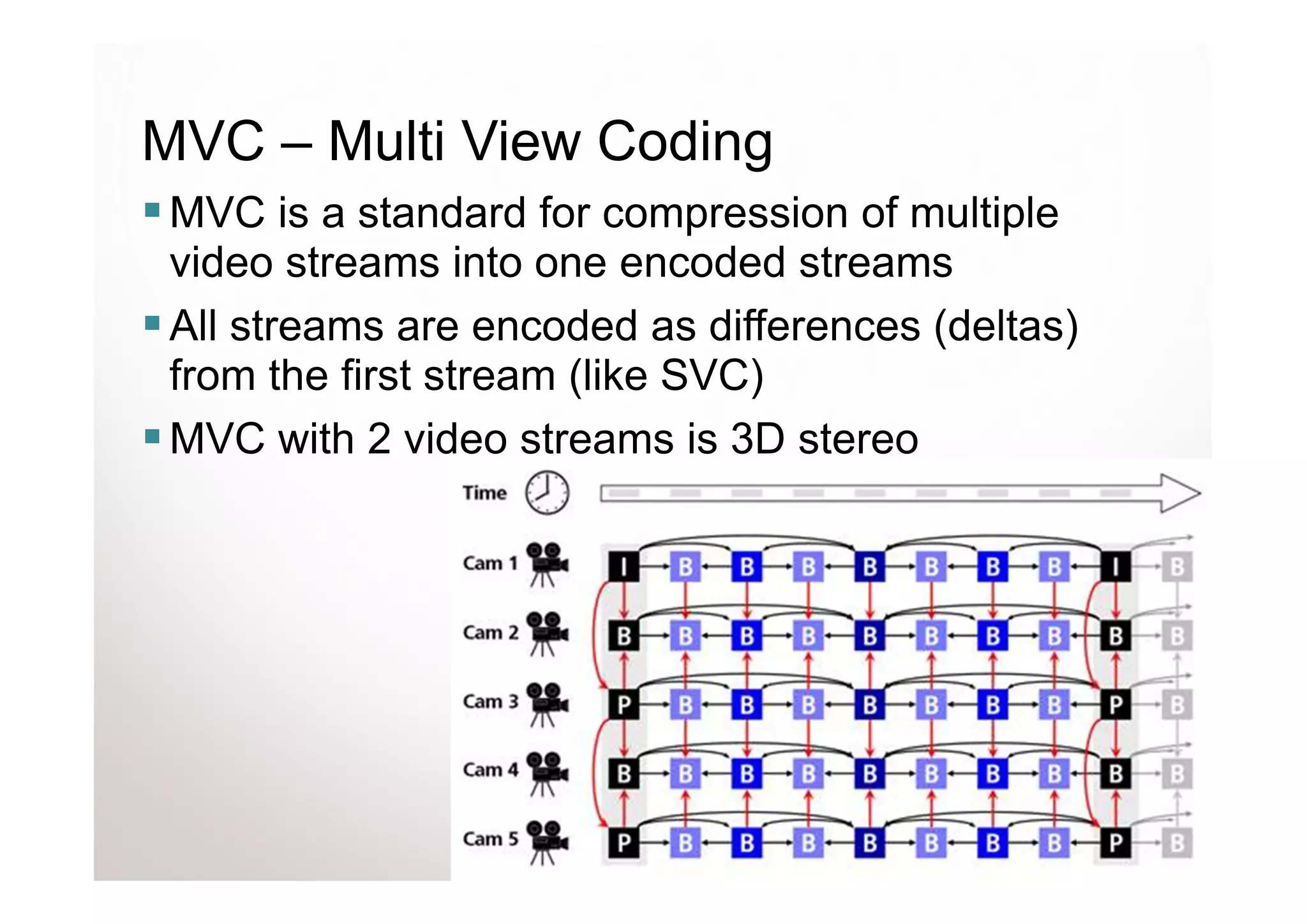

15. MVC – Multi View Coding
MVC is a standard for compression of multiple
video streams into one encoded streams
All streams are encoded as differences (deltas)
from the first stream (like SVC)
MVC with 2 video streams is 3D stereo
15

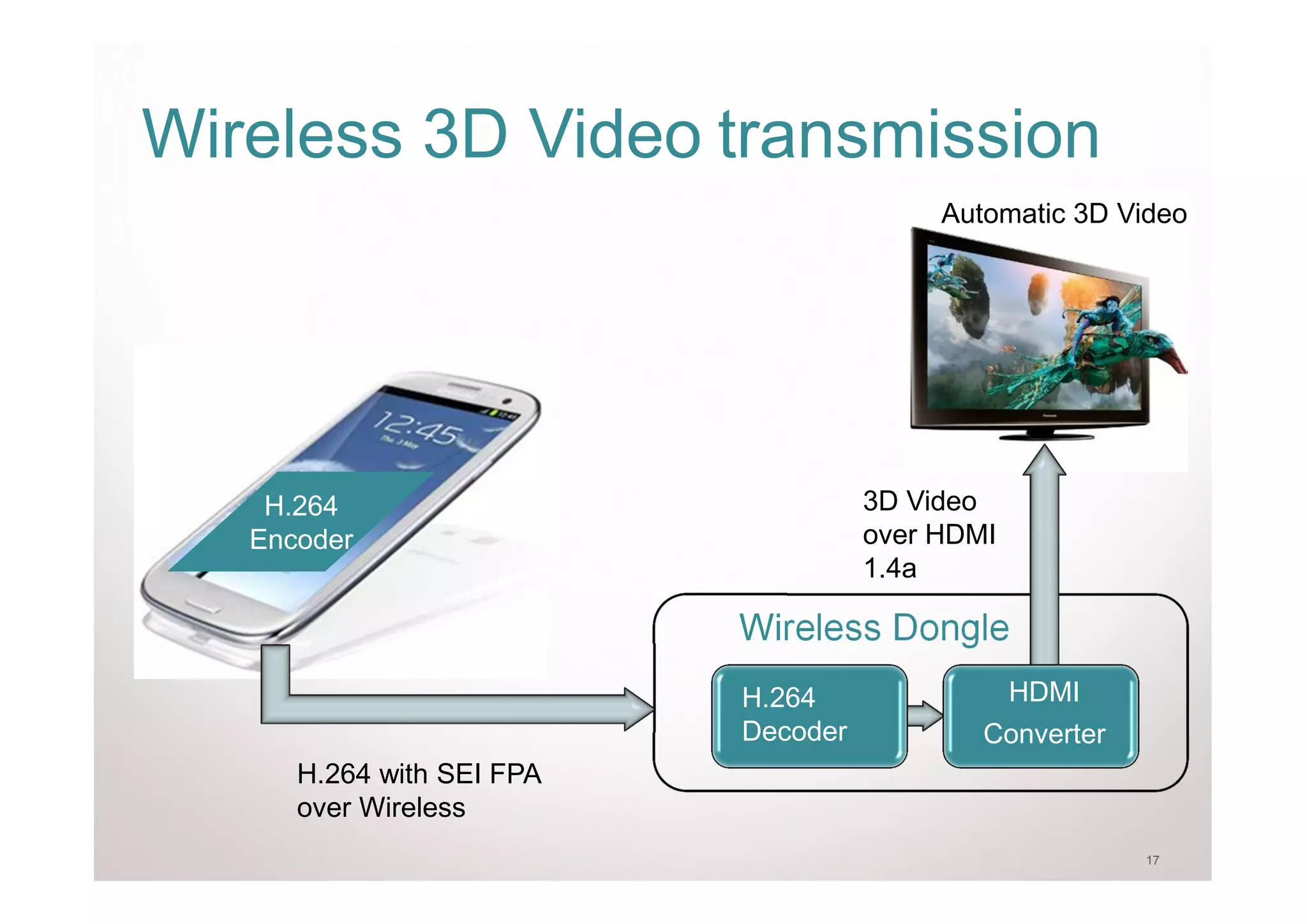

17. Wireless 3D Video transmission
Automatic 3D Video
H.264 3D Video
Encoder over HDMI
1.4a
Wireless Dongle
H.264 HDMI
Decoder Converter
H.264 with SEI FPA
over Wireless
17

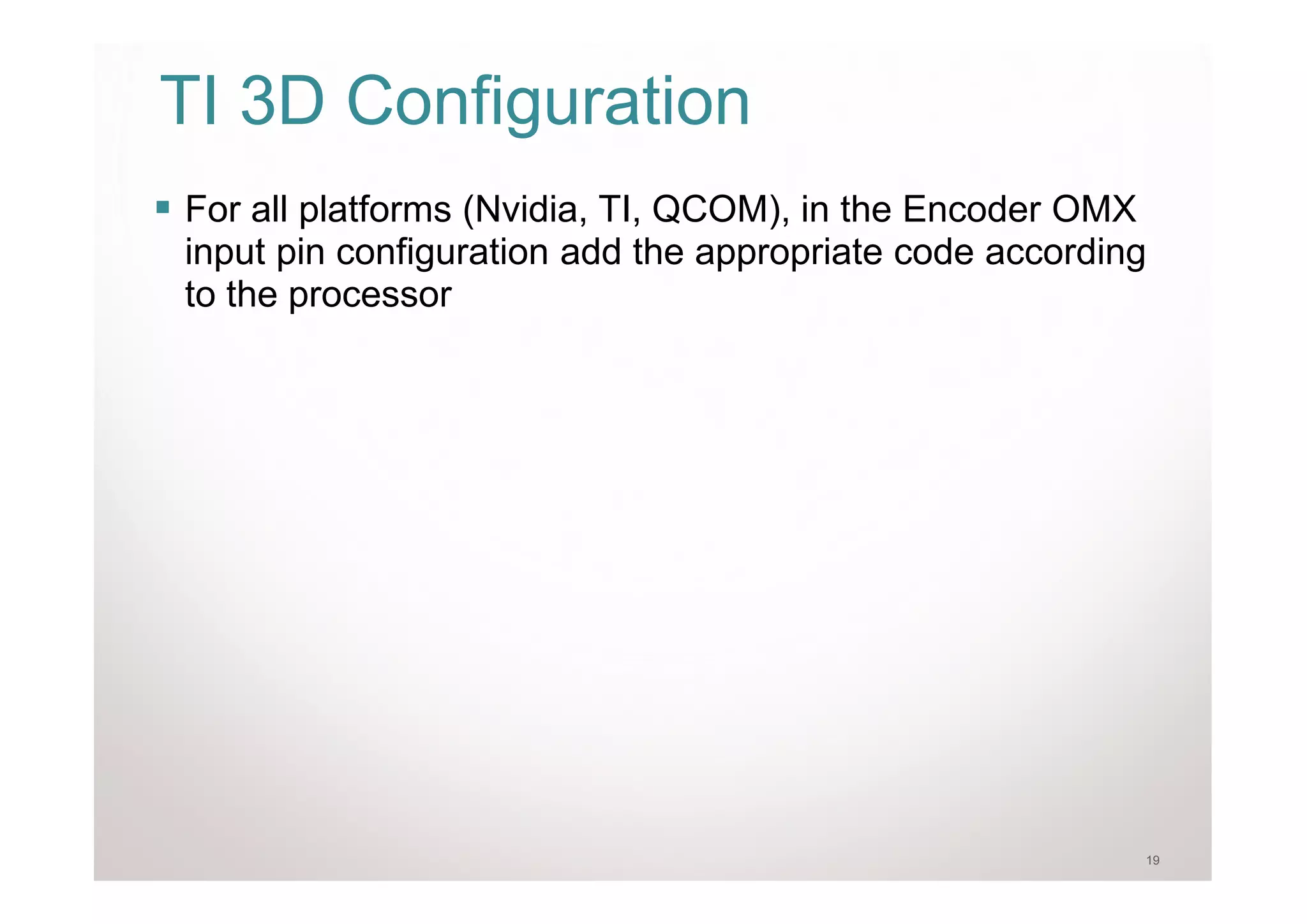

19. TI 3D Configuration
For all platforms (Nvidia, TI, QCOM), in the Encoder OMX
input pin configuration add the appropriate code according
to the processor
19

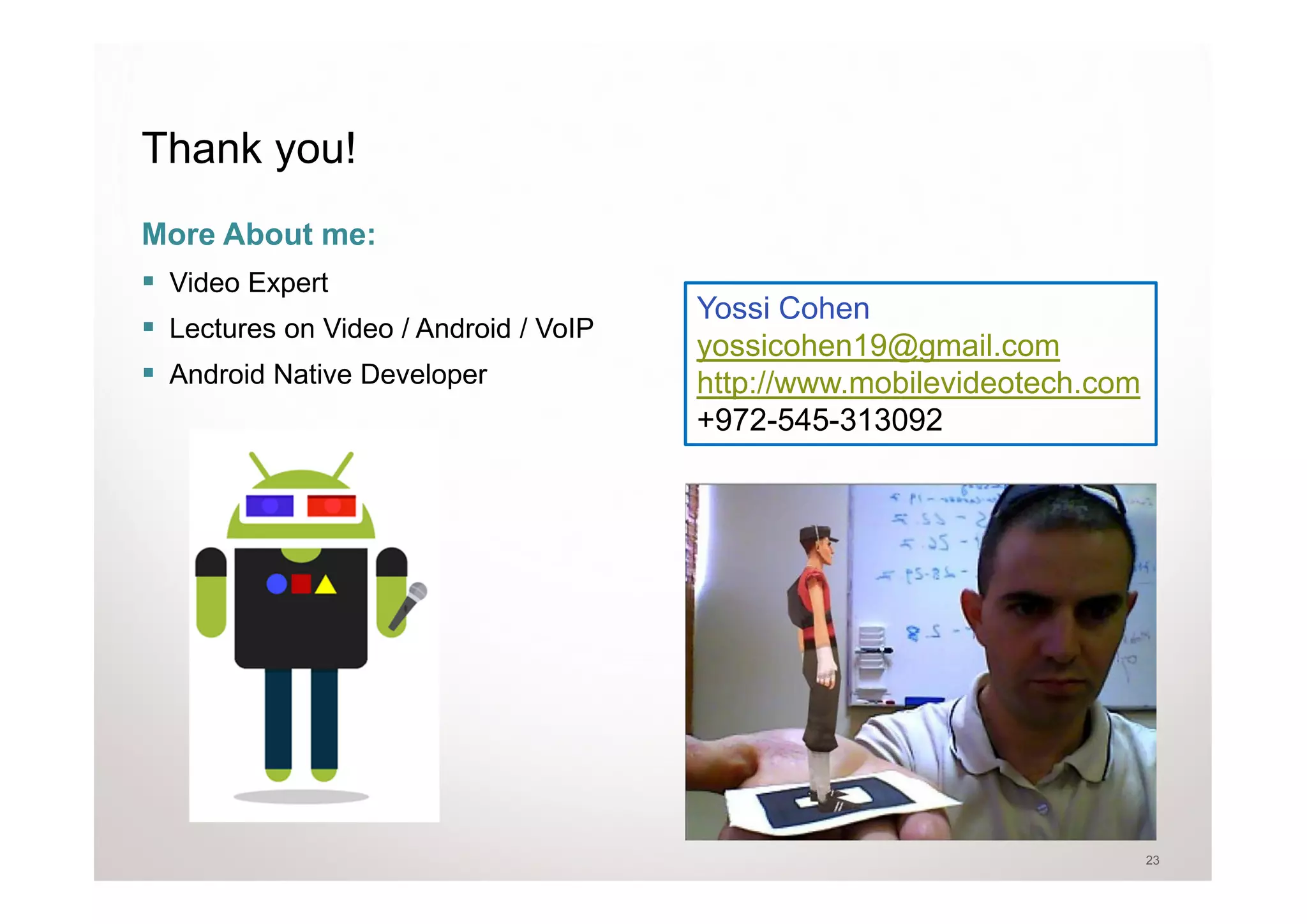

22. Thank you!
More About me:
Video Expert
Yossi Cohen
Lectures on Video / Android / VoIP
yossicohen19@gmail.com
Android Native Developer http://www.mobilevideotech.com
+972-545-313092
22
23. Resources
Overview of the Stereo and Multiview Video Coding Extensions of the
H.264/MPEG-4 AVC Standard
http://www.practical-home-theater-guide.com/3d-tv-formats.html
High-Definition Multimedia Interface Specification Version 1.4a Extraction of 3D
Signaling Portion
23
