24online is a billing and bandwidth management solution that allows ISPs to provide internet access based on hours/data usage and manage subscribers. It supports networks like WiMax, Wi-Fi, cable, DSL and fiber. 24online has over 2400 installations across 40+ countries serving over 2 million subscribers. It offers flexible billing plans, package management, bandwidth control, network management and reporting features to help ISPs optimize operations and monetize bandwidth usage.

1. Billing and Bandwidth Management Solution BILLING AND BANDWIDTH MANAGEMENT SOLUTION

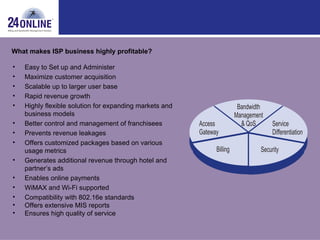

2. What makes ISP business highly profitable? Easy to Set up and Administer Maximize customer acquisition Scalable up to larger user base Rapid revenue growth Highly flexible solution for expanding markets and business models Better control and management of franchisees Prevents revenue leakages Offers customized packages based on various usage metrics Generates additional revenue through hotel and partner’s ads Enables online payments WiMAX and Wi-Fi supported Compatibility with 802.16e standards Offers extensive MIS reports Ensures high quality of service

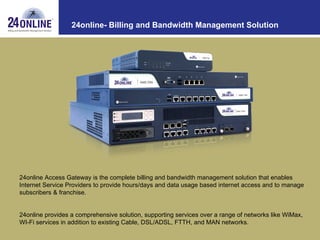

3. 24online- Billing and Bandwidth Management Solution 24online Access Gateway is the complete billing and bandwidth management solution that enables Internet Service Providers to provide hours/days and data usage based internet access and to manage subscribers & franchise. 24online provides a comprehensive solution, supporting services over a range of networks like WiMax, WI-Fi services in addition to existing Cable, DSL/ADSL, FTTH, and MAN networks.

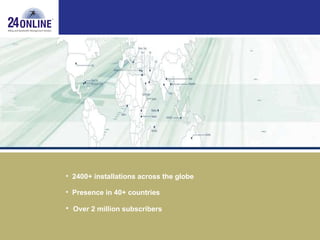

4. 24online – A Widely Used Solution 24online – A Widely Used Solution 2400+ installations across the globe Presence in 40+ countries Over 2 million subscribers

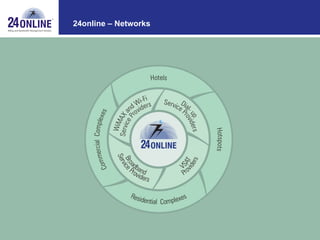

5. 24online – Networks

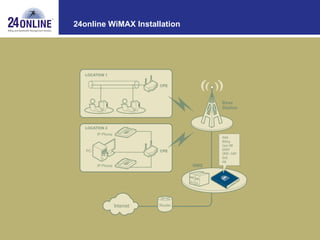

6. 24online WiMAX Installation

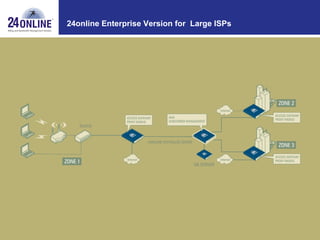

7. 24online Enterprise Version for Large ISPs

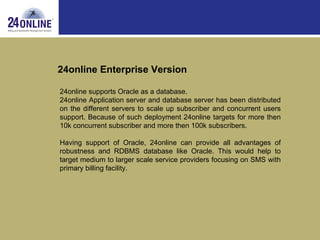

8. 24online Enterprise Version 24online supports Oracle as a database. 24online Application server and database server has been distributed on the different servers to scale up subscriber and concurrent users support. Because of such deployment 24online targets for more then 10k concurrent subscriber and more then 100k subscribers. Having support of Oracle, 24online can provide all advantages of robustness and RDBMS database like Oracle. This would help to target medium to larger scale service providers focusing on SMS with primary billing facility.

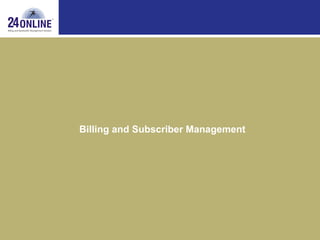

9. Billing and Subscriber Management

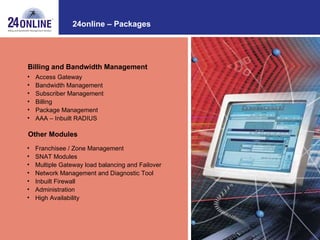

10. 24online – Packages Access Gateway Bandwidth Management Subscriber Management Billing Package Management AAA – Inbuilt RADIUS Billing and Bandwidth Management Other Modules Franchisee / Zone Management SNAT Modules Multiple Gateway load balancing and Failover Network Management and Diagnostic Tool Inbuilt Firewall Administration High Availability

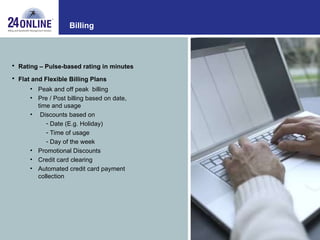

11. Billing Rating – Pulse-based rating in minutes Flat and Flexible Billing Plans Peak and off peak billing Pre / Post billing based on date, time and usage Discounts based on Date (E.g. Holiday) Time of usage Day of the week Promotional Discounts Credit card clearing Automated credit card payment collection

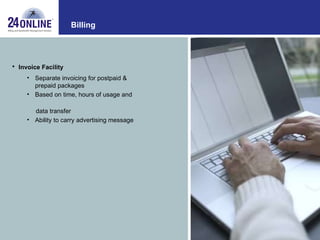

12. Billing Invoice Facility Separate invoicing for postpaid & prepaid packages Based on time, hours of usage and data transfer Ability to carry advertising message

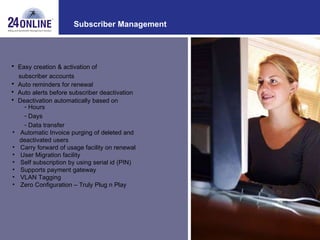

13. Subscriber Management Easy creation & activation of subscriber accounts Auto reminders for renewal Hours Days Data transfer Automatic Invoice purging of deleted and deactivated users Carry forward of usage facility on renewal User Migration facility Self subscription by using serial id (PIN) Supports payment gateway VLAN Tagging Zero Configuration – Truly Plug n Play Auto alerts before subscriber deactivation Deactivation automatically based on

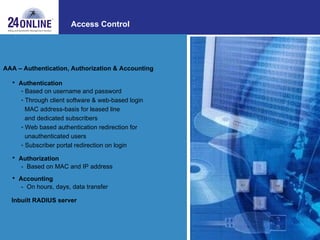

14. Access Control AAA – Authentication, Authorization & Accounting Authentication Based on username and password Through client software & web-based login MAC address-basis for leased line and dedicated subscribers Web based authentication redirection for unauthenticated users Subscriber portal redirection on login Authorization - Based on MAC and IP address Accounting - On hours, days, data transfer Inbuilt RADIUS server

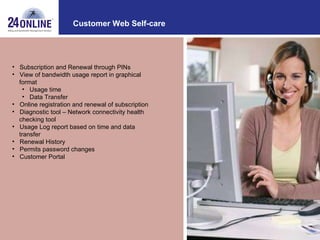

15. Customer Web Self-care Subscription and Renewal through PINs View of bandwidth usage report in graphical format Usage time Data Transfer Online registration and renewal of subscription Diagnostic tool – Network connectivity health checking tool Usage Log report based on time and data transfer Renewal History Permits password changes Customer Portal

16. Package Management

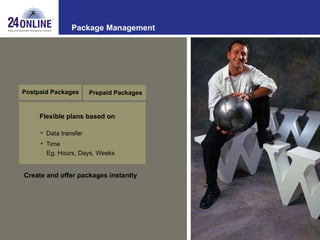

17. Package Management Flexible plans based on Data transfer Time Eg. Hours, Days, Weeks Create and offer packages instantly Postpaid Packages Prepaid Packages

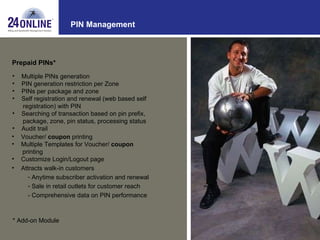

18. PIN Management Prepaid PINs* Multiple PINs generation PIN generation restriction per Zone PINs per package and zone Self registration and renewal (web based self registration) with PIN Searching of transaction based on pin prefix, package, zone, pin status, processing status Audit trail * Add-on Module Voucher/ coupon printing Multiple Templates for Voucher/ coupon printing Customize Login/Logout page Attracts walk-in customers Anytime subscriber activation and renewal Sale in retail outlets for customer reach - Comprehensive data on PIN performance

19. Bandwidth Management

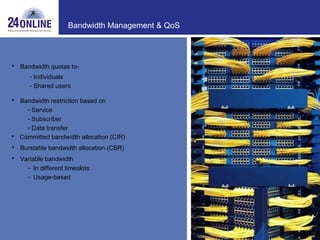

20. Bandwidth Management & QoS Bandwidth quotas to- Individuals - Shared users Bandwidth restriction based on Service Subscriber Data transfer Committed bandwidth allocation (CIR) Burstable bandwidth allocation (CBR) Variable bandwidth In different timeslots Usage-based

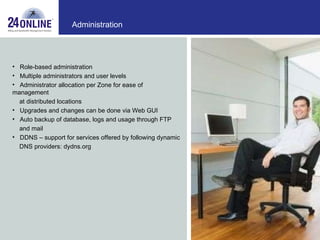

21. Role-based administration Multiple administrators and user levels Administrator allocation per Zone for ease of management at distributed locations Upgrades and changes can be done via Web GUI Auto backup of database, logs and usage through FTP and mail DDNS – support for services offered by following dynamic DNS providers: dydns.org Administration

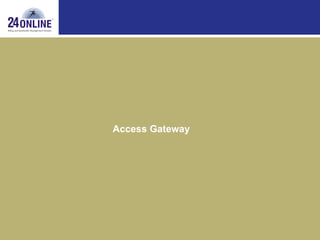

22. Access Gateway

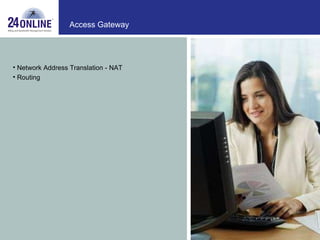

23. Access Gateway Network Address Translation - NAT Routing

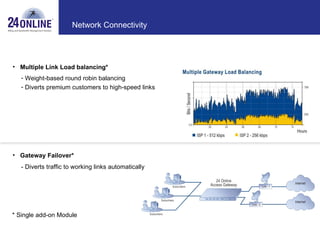

24. Network Connectivity Multiple Link Load balancing* Gateway Failover* Weight-based round robin balancing Diverts premium customers to high-speed links - Diverts traffic to working links automatically * Single add-on Module

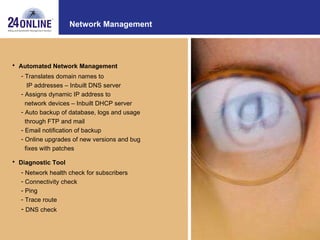

25. Network Management Automated Network Management Translates domain names to IP addresses – Inbuilt DNS server Assigns dynamic IP address to network devices – Inbuilt DHCP server Auto backup of database, logs and usage through FTP and mail Email notification of backup Online upgrades of new versions and bug fixes with patches Diagnostic Tool Network health check for subscribers Connectivity check Ping Trace route DNS check

26. Other Modules

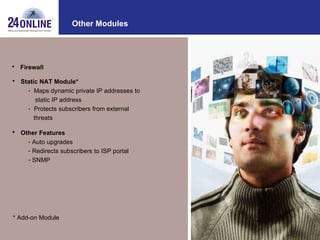

27. Other Modules Static NAT Module* Maps dynamic private IP addresses to static IP address Protects subscribers from external threats Other Features Auto upgrades Redirects subscribers to ISP portal SNMP * Add-on Module Firewall

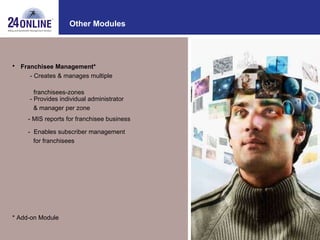

28. - Provides individual administrator & manager per zone - Enables subscriber management for franchisees - MIS reports for franchisee business Other Modules Franchisee Management* - Creates & manages multiple franchisees-zones * Add-on Module

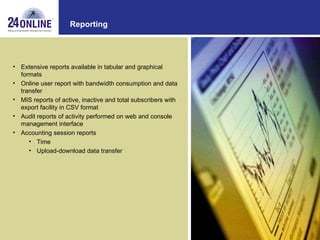

29. Reporting Extensive reports available in tabular and graphical formats Online user report with bandwidth consumption and data transfer MIS reports of active, inactive and total subscribers with export facility in CSV format Audit reports of activity performed on web and console management interface Accounting session reports Time Upload-download data transfer

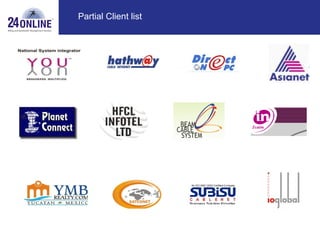

30. Partial Client list

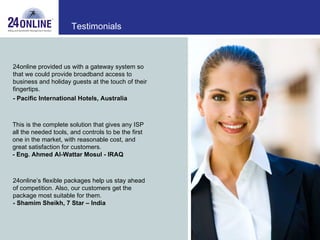

31. 24online provided us with a gateway system so that we could provide broadband access to business and holiday guests at the touch of their fingertips. - Pacific International Hotels, Australia This is the complete solution that gives any ISP all the needed tools, and controls to be the first one in the market, with reasonable cost, and great satisfaction for customers. - Eng. Ahmed Al-Wattar Mosul - IRAQ 24online’s flexible packages help us stay ahead of competition. Also, our customers get the package most suitable for them. - Shamim Sheikh, 7 Star – India Testimonials

32. Elitecore Technologies Limited

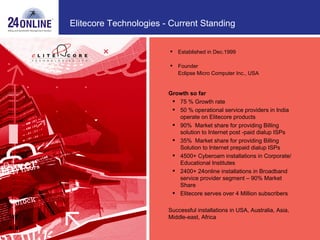

33. Founder Established in Dec.1999 Founder Eclipse Micro Computer Inc., USA Growth so far 75 % Growth rate 50 % operational service providers in India operate on Elitecore products 90% Market share for providing Billing solution to Internet post -paid dialup ISPs 35% Market share for providing Billing Solution to Internet prepaid dialup ISPs 4500+ Cyberoam installations in Corporate/Educational Institutes 2400+ 24online installations in Broadband service provider segment – 90% Market Share Elitecore serves over 4 Million subscribers Successful installations in USA, Australia, Asia, Middle-east, Africa Elitecore Technologies - Current Standing Established in Dec.1999 Founder Eclipse Micro Computer Inc., USA

34. Elitecore Technologies - Current Standing Elitecore Technologies 400+ Employees 11,000 Square Foot Development Centre in Ahmedabad Sales and Support Offices Bangalore, Mumbai and Delhi International Offices USA ISO 9001-2000 Certification

35. Elitecore Products Unified Threat Management Convergent Billing Framework Billing & Bandwidth Management Solution Educational Institutions Government Organizations Corporates Wireline Networks Wireless Networks

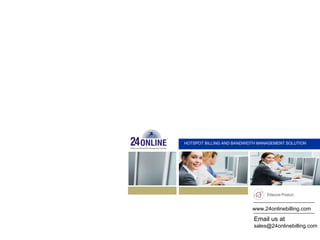

36. www.24onlinebilling.com Email us at [email_address] HOTSPOT BILLING AND BANDWIDTH MANAGEMENT SOLUTION
