- 1.
- 2. What is ClimateChange ?

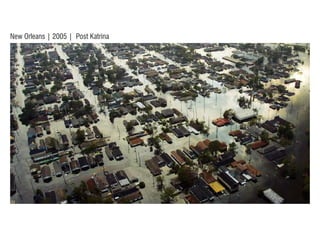

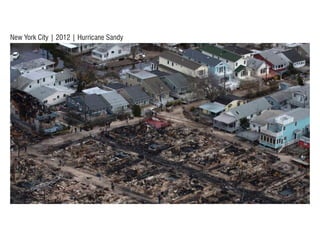

- 3. New Orleans |2005 | Post Katrina
- 4. New York City| 2012 | Hurricane Sandy
- 5. Boston| 2015 |Snow Storm Neptune
- 6. Houston | 2015| Tropical Storm Allison
- 8.
- 9. East Boston HistoricalPrecipitation total snowfall 0” 1920 1945 1965 1985 2005 2015 20” 40” 60” 80” 100” 120” total precipitation total snowfall above 70”
- 10. Projected Heat RelatedDeath for Boston Heat-realatedmortality per100,000population 0 10 20 30 40 50 2000 2020 2050 2080

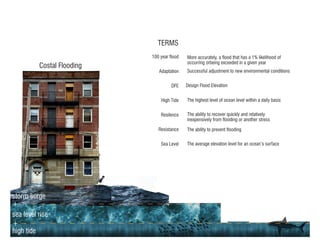

- 11. Costal Flooding storm surge + sealevel rise + high tide 100 year flood Adaptation DFE High Tide Resilence Resistance Sea Level More accurately, a flood that has a 1% likelihood of occurring orbeing exceeded in a given year The ability to recover quickly and relatively inexpensively from flooding or another stress Successful adjustment to new environmental conditions Design Flood Elevation The ability to prevent flooding The average elevation level for an ocean’s surface The highest level of ocean level within a daily basis TERMS

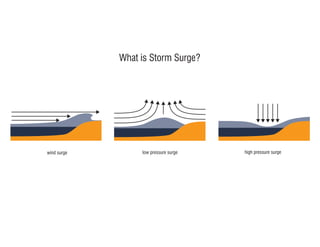

- 12. wind surge lowpressure surge high pressure surge What is Storm Surge?

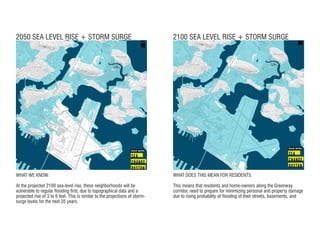

- 13. WHAT WE KNOW: Atthe projected 2100 sea-level rise, these neighborhoods will be vulnerable to regular flooding first, due to topographical data and a projected rise of 3 to 6 feet. This is similar to the projections of storm- surge levels for the next 35 years. WHAT DOES THIS MEAN FOR RESIDENTS: This means that residents and home-owners along the Greenway corridor, need to prepare for minimizing personal and property damage due to rising probability of flooding of their streets, basements, and 2050 SEA LEVEL RISE + STORM SURGE 2100 SEA LEVEL RISE + STORM SURGE

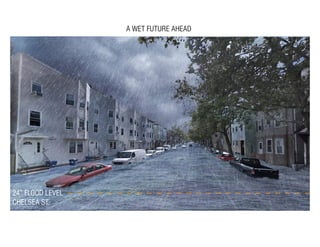

- 14. A WET FUTUREAHEAD CHELSEA ST. 24” FLOOD LEVEL
- 15.
- 16.

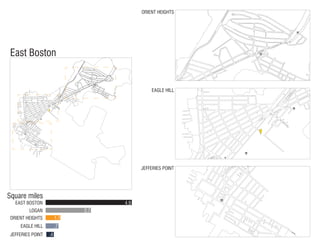

- 17. East Boston Square miles 4.9 2.7 1.1 .7 .4 ORIENTHEIGHTS ORIENT HEIGHTS LOGAN EAST BOSTON EAGLE HILL EAGLE HILL JEFFERIES POINT JEFFERIES POINT

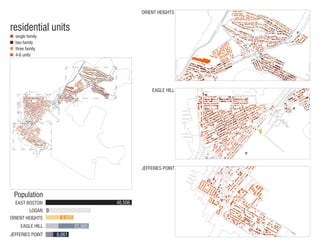

- 18. single family three family twofamily 4-6 units residential units ORIENT HEIGHTS EAGLE HILL JEFFERIES POINT Population 0 9,885 8,061 22,560 ORIENT HEIGHTS LOGAN EAST BOSTON EAGLE HILL JEFFERIES POINT 40,506

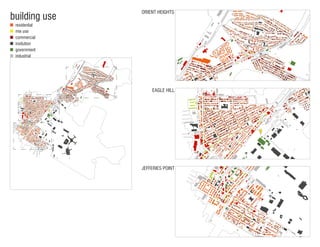

- 19. residential commercial government mix use insitution industrial building use ORIENTHEIGHTS EAGLE HILL JEFFERIES POINT

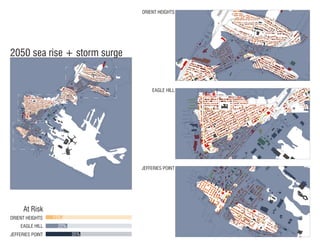

- 20. 2050 sea rise+ storm surge At Risk EAGLE HILL JEFFERIES POINT 15% 35% 20% ORIENT HEIGHTS EAGLE HILL JEFFERIES POINT ORIENT HEIGHTS

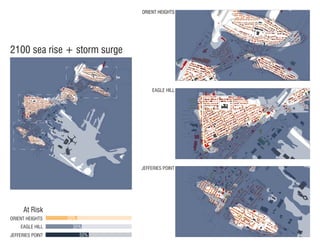

- 21. 2100 sea rise+ storm surge ORIENT HEIGHTS EAGLE HILL JEFFERIES POINT ORIENT HEIGHTS At Risk 30% 50% 35% ORIENT HEIGHTS EAGLE HILL JEFFERIES POINT

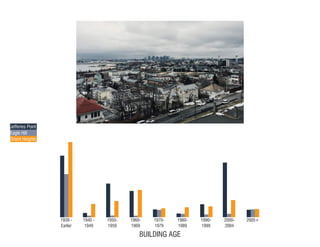

- 23. BUILDING AGE Jefferies Point EagleHill Orient Heights 1939 - Earlier 1940 - 1949 1950- 1959 1960- 1969 1970- 1979 1980- 1989 1990- 1999 2000- 2004 2005+

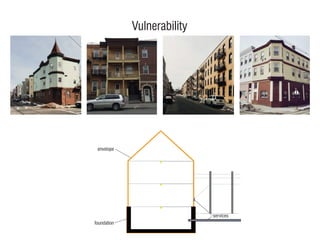

- 24.

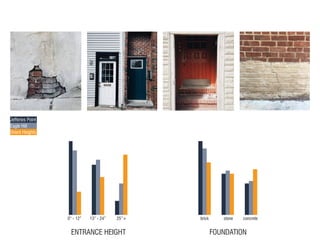

- 25. 0” - 12”13” - 24” 25”+ ENTRANCE HEIGHT brick stone concrete FOUNDATION Jefferies Point Eagle Hill Orient Heights

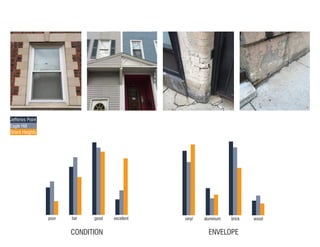

- 26. poor fair goodexcellent CONDITION vinyl aluminum brick wood ENVELOPE Jefferies Point Eagle Hill Orient Heights

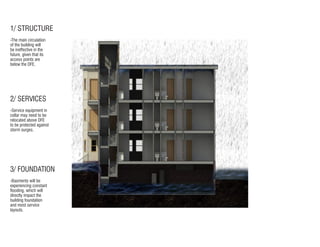

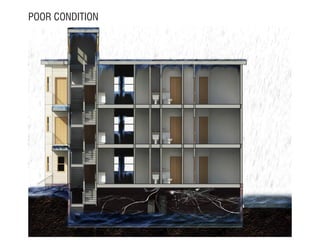

- 27. 1/ STRUCTURE 2/ SERVICES 3/FOUNDATION -The main circulation of the building will be ineffective in the future, given that its access points are below the DFE. -Service equipment in cellar may need to be relocated above DFE to be protected against storm surges. -Basments will be experiencing constant flooding, which will directly impact the building foundation and most service layouts.

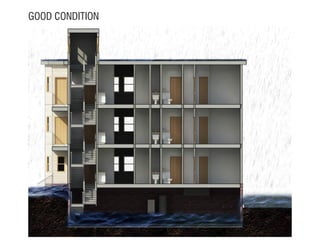

- 28.
- 29.
- 30.

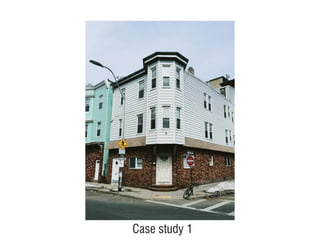

- 31.

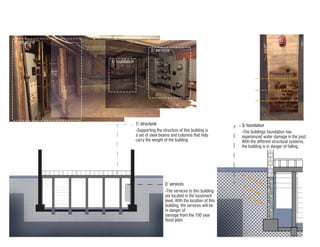

- 32. Previous Floods 1/ structural 3/foundation 2/ services -Supporting the structure of this building is a set of steel beams and columns that help carry the weight of the building -The services to this building are located in the basement level. With the location of this building, the services will be in danger of damage from the 100 year flood plain -The buildings foundation has experienced water damage in the past. With the different structural systems, the building is in danger of failing. 1/ structural 2/ services 3/ foundation
- 33.

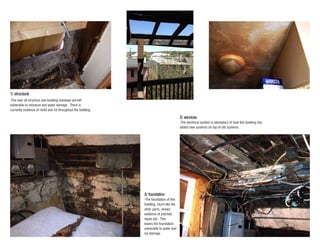

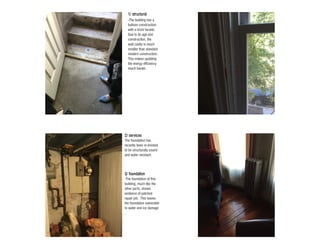

- 34. -The foundation ofthis building, much like the other parts, shows evidence of patched repair job. This leaves the foundation vulnerable to water and ice damage . 3/ foundation -The electrical system is exemplary of how this building has added new systems on top of old systems. 2/ services -The over all structure and building envelope are left volnerable to moisture and water damage. There is currently evidence of mold and rot throughout the building. 1/ structural

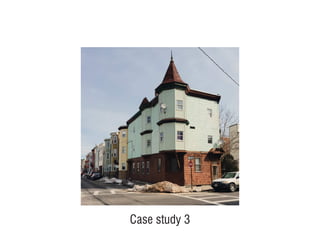

- 35.
- 36. -The foundation ofthis building, much like the other parts, shows evidence of patched repair job. This leaves the foundation vulnerable to water and ice damage . 3/ foundation The foundation has recently been re-bricked to be structurally sound and water resistant. 2/ services -The building has a balloon construction with a brick facade. Due to its age and construction, the wall cavity is much smaller than standard modern construction. This makes updating the energy efficiency much harder. 1/ structural
- 37. What is Resilience? What is Sustainability ?

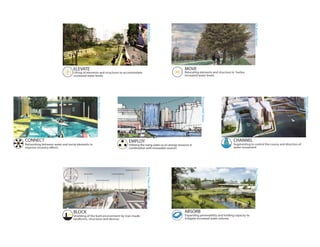

- 38. BLOCK CONNECT EMPLOY BOSTONGENICResilientLinkages OmegaChainTheWaterFun(d)OnBostonShoresThrivingWithWater #RisingTidesLiftAllBoats Liftingof elements and structures to accommodate increased water levels Utilizing the rising water as an energy resource in combination with renewable sources. Networking between water and social elements to improve recovery efforts Shielding of the built environment by man-made landforms, structures and devices EMPLOY CONNECT Augmenting to control the course and direction of water movement CHANNEL BLOCK Relocating elements and structure to harbor increased water levels Expanding permeability and holding capacity to mitigate increased water volume MOVE ABSORB ELEVATE #LivingWithWater @BostonLwW Take another look at the competition boards online and share the ideas with your colleagues, friends and family! or e Barr t. BLOCK CONNECT EMPLOY ResilientLinkages TheOmegaChainTheWaterFun(d) Expanding permeability and holding capacity to mitigate increased water volume ABSORB BOSTONGENIC OnBostonShoresThrivingWithWater #RisingTidesLiftAllBoats Lifting of elements and structures to accommodate increased water levels Utilizing the rising water as an energy resource in combination with renewable sources. Networking between water and social elements to improve recovery efforts Shielding of the built environment by man-made landforms, structures and devices EMPLOY CONNECT Augmenting to control the course and direction of water movement CHANNEL BLOCK Relocating elements and structure to harbor increased water levels MOVEELEVATE #LivingWithWater @BostonLwW Take another look at the competition boards online and share the ideas with your colleagues, friends and family! or e Barr t. BOSTONGENICs OnBostonShoresThrivingWithWater #RisingTidesLiftAllBoats Lifting of elements and structures to accommodate increased water levels Utilizing the rising water as an energy resource in combination with renewable sources. Networking between water and social elements to improve recovery efforts Shielding of the built environment by man-made landforms, structures and devices EMPLOY CONNECT Augmenting to control the course and direction of water movement CHANNEL BLOCK Relocating elements and structure to harbor increased water levels MOVEELEVATE TheOmegaChainTheWaterFun(d)OnBostonShoresThrivingWithWater Networking between water and social elements to improve recovery efforts CONNECT Relocating elements and structure to harbor increased water levels Expanding permeability and holding capacity to mitigate increased water volume MOVE ABSORB BOSTONGENIC OnBostonShoresThrivingWithWater #RisingTidesLiftAllBoats Lifting of elements and structures to accommodate increased water levels Utilizing the rising water as an energy resource in combination with renewable sources. Networking between water and social elements to improve recovery efforts Shielding of the built environment by man-made landforms, structures and devices EMPLOY CONNECT Augmenting to control the course and direction of water movement CHANNEL BLOCK Relocating elements and structure to harbor increased water levels MOVEELEVATE #LivingWithWater @BostonLwW Take another look at the competition boards online and share the ideas with your colleagues, friends and family! Barr A Futuristic and Resilient View for Fort Point A Life Aquatic: A celebration of living with water Bridging Culture Living Shorelines for a Resilient Urban Cove MORRISSEY 2100: The Road to Resilience Contributive Infrastructure Prince Place a Community Center / Surge Shelter On Boston Shores Total Resilience Approach East of the sun, west of the moon Open Circuit: Traveling Water Transforming Morrissey: Arterial to Amenity Resilient Linkages Sky City Channel Green Water District Atlantic Boardwalk - Northern Bridge Fort Point Power Morrissey Boulevard: The High Road Fort Point's: Living Basin 100 Acres: 100 Years Water District Re/Creation District The Past Informs the Future Strategy for a Resilient Neighborhood The Prince Building Piers BOSTONGENIC Evoluted DNA Urban System Archimedes Negotiation Ecologically Connected No building is an island Living Threshold 100 Acres: 100 Years Fort Point: An Emerging Synthesis The Water Fun(d) Contribute Infrastructure Bountiful Delta: It’s not just resilient Emerald Necklace Extended MorriSEA PARKWAY An Archaeological Tour of Boston Inverted Pier Why not flooding? High Street City Reconnect-Resist-Slow-Collect Living with WWH (love thy neighbor) Thriving With Water The Omega Chain Living Threshold SEE-Levels: A Glimpse into the North End’s Shell The Hydrokinetic Canal as an Urban Generator The Boston's Mangrove The 100 Acres: Urban Resiliency Test Lab #Rising Tides Lift All Boats COMPETITION ENTRIES ABSORB CHANNEL ELEVATE MOVE BLOCK CONNECT EMPLOY BOSTONGENICResilientLinkages#RisingTidesLiftAllBoat Lifting of elements and structures to accommodate increased water levels Augmenting to control the course and direction of water movement CHANNEL ELEVATE Finalist Honorable Mention People’s Choice
- 39.
- 40.

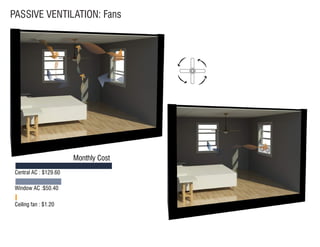

- 41. PASSIVE VENTILATION: Fans CentralAC : $129.60 Monthly Cost Window AC :$50.40 Ceiling fan : $1.20

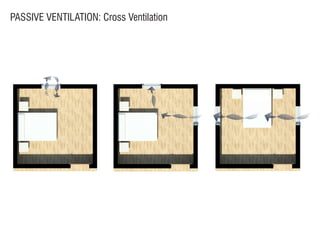

- 42. PASSIVE VENTILATION: CrossVentilation

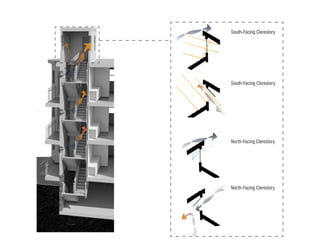

- 43. South-Facing Clerestory South-Facing Clerestory North-FacingClerestory North-Facing Clerestory

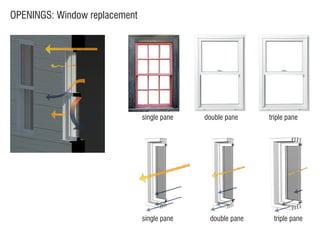

- 44. OPENINGS: Window replacement singlepane single pane double pane double pane triple pane triple pane

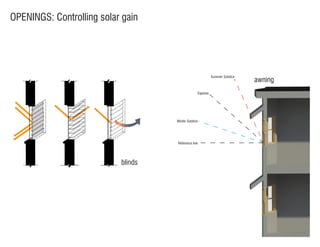

- 45. Summer Solstice Equinox Winter Solstice Referenceline OPENINGS: Controlling solar gain blinds awning
- 46.

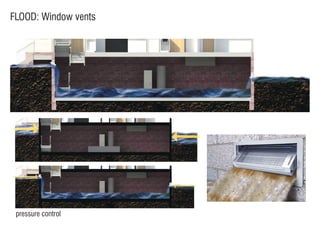

- 47. FLOOD: Window vents pressurecontrol
- 48.

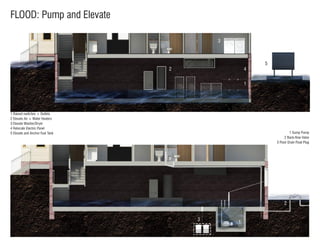

- 49. 1 Sump Pump 2Back-flow Valve 3 Floor Drain Float Plug 1 Raised switches + Outlets 2 Elevate Air + Water Heaters 3 Elevate Washer/Dryer 4 Relocate Electric Panel 5 Elevate and Anchor Fuel Tank 1 1 2 2 5 3 3 4 FLOOD: Pump and Elevate
