Keynote Offshore Wind Power
02/12/2015 – Optiwind Siemens – Peter Koninckx

Nov. 2013 EMEA OF BD / Siemens Belgium Restricted © Siemens AG 2013. All rights reservedRestricted © Siemens AG 2013. All rights reservedRestricted © Siemens AG 2013. All rights reserved
Siemens at a glance
Key Figures 2014
Siemens AG Siemens Belgium-Luxemburg
Lead Country Bundle Belgium Lead Country Belgium
78“350‘ New Orders
71“920‘
343.000
Revenue
Employees
New Orders
Revenue
Employees
New Orders
Revenue
Employees
1“115‘487
1“917‘442
2.667
Benin
Burkina Faso
Burundi
Cameroun
Central African Republic
Tchad
Congo
Congo, (RDC)
Ivory Coast
Equatorial Guinea
Gabon
Western Sahara
Gambia
Guinea
Guinea-Bissau
Liberia
Mali
Mauritania
Niger
Rwanda
Senegal
Sierra Leone
Togo
Algeria Morocco
Tunisia
898‘
1“075‘
1.591
Figures in EUR
Huizingen
1.310
Export % of Revenue32%

Positioning

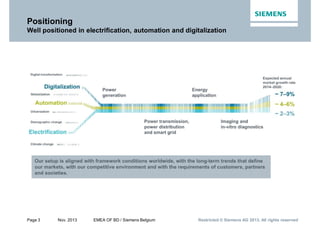

Well positioned in electrification, automation and digitalization

siemens.com/answers
siemens.com/answers
siemens.com/answers
Cost of Energy approach
Siemens Wind Power

From an innovation point of view, Offshore wind has
had a steep technology development…
From 30 kW to 6 MW
in 30 years
6 MW450 kW30 kW
1980:
11 meters
79.8 Meter
2012:
154 meters
A 380
1991:
35 meters
projects are moving into
deeper water
and
further from shore

…from an construction point of view,
Offshore wind has been extremely successful
From 5 MW to 630 MW in 22 years
World‘s
1stoffshore
wind power
plant
5 MW
1991
Vindeby
World‘s 1st
offshore wind
power plant
w/MW turbines
40 MW
2000
Middelgrunden
World‘s largest
offshore wind
power plant in
operation
166 MW
2003
Nysted
World‘s largest
offshore wind
power plant
in operation
630 MW
2013
London Array
World‘s largest
offshore wind
power plant in
operation
504 MW
2012
Greater
Gabbard
Wind farms scale has grown dramatically

Nov. 2013 EMEA OF BD / Siemens Belgium
What is the challenge?
to reduce the cost of electricity to pair other technologies ...
30-40%
reduction
2012 2020-2025
Offshore wind
competitive with
CCGT
Unit
cost/MWh
Nuclear CCGTOnshore CoalBiomassOffshorePV Solar

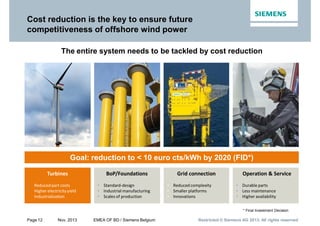

Cost reduction is the key to ensure future
competitiveness of offshore wind power
Turbines
• Reduced part costs
• Higher electricityyield
• Industrialization
BoP/Foundations
• Standard-design
• Industrial manufacturing
• Scales of production
Grid connection
• Reduced complexity
• Smaller platforms
• Innovations
Operation & Service
• Durable parts
• Less maintenance
• Higher availability
The entire system needs to be tackled by cost reduction
Goal: reduction to < 10 euro cts/kWh by 2020 (FID*)
* Final Investment Decision

A new yardstick is needed –
Society‘s Costs of Electricity (SCOE)
Background
• Judging electricity sources only by
LCOE stems from ages where
electricity production was by definition
big-scale and localized at load centers
• With new energy sources entering the
scene, this approach falls short.
Objectives
• Analyze supplementary factors in addition
to LCOE which affect the true cost of
electricity on a macro-economic level
• Provide a comprehensive background for
fact-based and objective decisions on the
future energy mix
• Base all calculation on acknowledged
methods
Social
Impact
Economy &
employment
Geopolitical
risks
Environmental
impact
Transmission
needs
Variability
compensation
True
LCOE

From a macroeconomic perspective wind energy with
natural gas as back-up is the least expensive option

siemens.com/answers
siemens.com/answers
siemens.com/answers
Optimising O&M Offshore Wind
Siemens Wind Power

Market leader in the global offshore wind market
0
5
10
15
20
25
30
35
40
45
50
'13 '14 '15 '16 '17 '18 '19 '20
Total
Other
Siemens
Global Offshore Market and Siemens Share (in GW and FY)

Global footprint of Siemens Wind Power Service
Orlando, FL
Americas
Headquarters Service
Renewables
Brande, DK
Headquarters Service Wind
Singapore
Asia-Pacific
Hamburg, DE
EMEA
Newcastle, UK
UK/Ireland
25 years of operational experience with O&M in offshore wind power
+4 GW of offshore wind power from more than 1 200 turbines
Partnerships with leading offshore wind power asset owners and investors

Remote Diagnostic Services

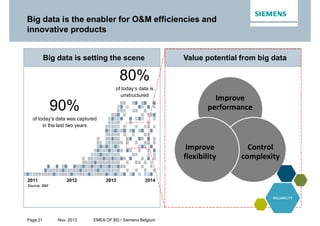

Big data is the enabler for O&M efficiencies and
innovative products
80%
of today’s data is
unstructured
90%
of today’s data was captured
in the last two years
Big data is setting the scene
2011 2012 2013 2014
Value potential from big data
Improve
performance
Control
complexity
Improve
flexibility
Source: IBM

Advanced data integration enhances O&M and creates
additional value for offshore assets
Siemens Service
Technicians
Service & vessel
planning
Turbine upgrades
WTG availability
warranties
Energy forecasting
Risk
Management
3rd party weather
data
Spares partsAdvanced RDS
Big data Field services Asset efficiency

Addressing minor issues before they develop into major ones
§ Wind Turbine Technical Support,
WTC Support and SCADA Support
§ Remote technical support for
troubleshooting of Wind Turbine
components
§ Technical follow up utilizing global
fleet historical data
§ Remote software support on WTC
(turbine controller), SCADA and
network for troubleshooting,
maintenance and resolution
Diagnostic Support
§ 24/7/365 remote monitoring of turbines
§ Alarm management by means of remote
resetting and restarting turbines
§ Customer notification of events
§ Remote monitoring and alarm
management of SCADA systems
§ WPS (Wind Power Supervisor) user
administration
§ 24/7 Remote Monitoring is the first
interface to our Vibration Diagnostic
24/7 Remote Monitoring

Addressing minor issues before they develop into major ones
§ Early detection of potential damages
§ Predicitive methods used for preventive
repair and prevention of consequencial
damagages
§ Active and proactive vibration analyses
performed using global fleet data
§ Daily diagnostic reports are available
through Siemens Wind Dialogue Customer
Portal
§ Maintenance and updates of TCM
configuration
Vibration Diagnostics
§ Software Version Updates performed on
‒ Wind Turbine Controllers (WTC/STC)
‒ SCADA System (WPS)
‒ High Performance Park Pilot (HPPP)
‒ Turbine Interface Computers (STIC)
‒ TCM System (TMC Site Server and
M-System)
§ Updated functionality
§ Improvement, enhancements and bug fixes
Software Updates

Siemens Remote Diagnostic Services is fueled by
data analytics that ensures top performance
Approximately 80% of the turbine
alarms handled remotely led to
no call out of technicians.
Approx. 400,000 cases are created
on Siemens turbines yearly, and the
average response time is 10
minutes on turbine alarms.
99,54% of all alarms handled
within the first hour.
Largest offshore fleet in the
industry with the most offshore data.

Maritime & Aviation Solutions

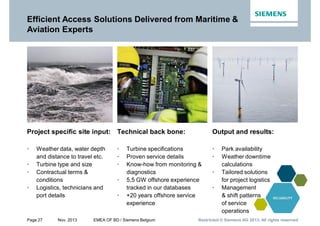

Efficient Access Solutions Delivered from Maritime &
Aviation Experts
Project specific site input:
• Weather data, water depth
and distance to travel etc.
• Turbine type and size
• Contractual terms &
conditions
• Logistics, technicians and
port details
Technical back bone:
• Turbine specifications
• Proven service details
• Know-how from monitoring &
diagnostics
• 5,5 GW offshore experience
tracked in our databases
• +20 years offshore service
experience
Output and results:
• Park availability
• Weather downtime
calculations
• Tailored solutions
for project logistics
• Management
& shift patterns
of service
operations

Siemens Wind Farm Simulation Tool creates
competitive advantage for offshore site planning
Wind Farm Simulation Tool
What it does
• Calculates optimal site
planning based on likely
weather conditions
• Reduces overall costs
• Improves customer
communication
How it works
• Logistics support and
prioritization of multiple
turbines
• Coordinate sailing route, fuel
consumption
• Inputs weather and financial
model improvement
Visualization of simulation from tool

• As offshore sites are
moving further from
shore, a variety of logistic
options ensure timely
and safe O&M
• Minimizing customer
price is a key driver
• Ensures EHS high
standards
• Efficiencies from
strategic partnerships
and extensive customer
base
Offshore Logistic Solutions customized for optimal
safety and customer value
Access System
Crew Transportation Vessel
Helicopter
Service Operation Vessel

The Right Tool for the Right Task

Service Operation Vessel - SOV
Development and design of SOV
We have designed and chartered 2
new service operation vessels (SOV)
aimed at efficient far shore and big
scaled service operations for longer
periods. First vessel supplied 2015 and
further vessels are in the pipeline.
SOV operation specifications
• Pax 40
• Sign. wave height access : 2.3 m.
• Cargo: 300sqm/8x 20 feet containers
• Walk to work access systems
• Comfortable accomodation for long
periods far-shore and big projects

Benchmark Example of SOV vs. CTV Operations
40%
22%
CTV (146 days) SOV (80 days)
Example: Weather downtime
comparison for an offshore site
7 10
0
2
4
6
8
10
12
CTV SOV
Pre-Processing
Transit in / in field
Climbing within WTG / get ready to
work
Lunch
Effective working time
Transit out
Post-Processing
Less downtime - higher yield:
• Less weather downtime means
better use of working hours, less
technicians and fast responses
• Wind farm simulation tool and
weather database integrated part
of offerings
Efficient use of working hours:
• Less idling during transport means
more efficient working time in the
turbine and fewer technician hours
necessary.

siemens.com/answers
siemens.com/answers
siemens.com/answers
Optimising Offshore Grid
Connection
Siemens Wind Power

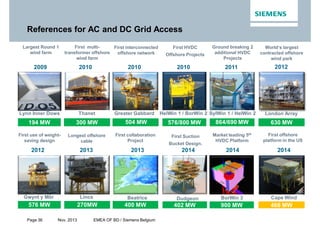

References for AC and DC Grid Access
194 MW 300 MW 504 MW
Largest Round 1
wind farm
2009
Lynn Inner Dows
2010
Thanet
2010
Greater Gabbard
630 MW
2012
London Array
864/690 MW
2011
SylWin 1 / HelWin 2
270MW
2013
Lincs
Longest offshore
cable
First multi-
transformer offshore
wind farm
Ground breaking 2
additional HVDC
Projects
First interconnected
offshore network
World‘s largest
contracted offshore
wind park
900 MW
Market leading 5th
HVDC Platform
2014
BorWin 3
400 MW
First collaboration
Project
2013
Beatrice
468 MW
First offshore
platform in the US
2014
Cape Wind
402 MW
2014
Dudgeon
First Suction
Bucket Design.
576/800 MW
2010
HelWin 1 / BorWin 2
First HVDC
Offshore Projects
576 MW
2012
Gwynt y Môr
First use of weight-
saving design

Evolution of the AC Offshore Platform
Architectural
Dry Tow – ‘Swimming
and Self Jacking
Containerised
Onshore
Barrow
Robbin Rig 1 & 2
Lillgrund
Gunfleet
Rodsand
London Array 1 & 2
Thanet, Galbbard Lincs
GYM 1 & 2
Arecleoch
SheringhamBaltic 1
Bard
What
happens next
?

PLATFORM AND T&I
Primary & SecondarySteel, Ancillaries, transport& installation
AC Offshore Grid Connection
Typical cost distribution
NON-PLATFORM ELEMENTS
HV/MVequipment, labour, cabling
RELATED TO THE ELECTRICAL
SUBSTATION COMPONENTS
LABOUR TO DESIGN, MANAGE AND
INSTALL
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
$ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $ $
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OF THE COST OF THE OFFSHORE
SUBSTATION IS RELATED TO THE
PLATFORM

For significant cost savings in the grid access part
we need a paradigm shift!
HVAC
HVDC
Substation
1200MW900
MW
500
MW
500
MW
HVAC
HVDC
Current
Solution
New
Solution

AC Offshore Grid Connection
The next step: the OTM (Offshore Transformer Module)
In 2014, we developed the OTM
§ 3 times lighter
§ Same Electrical capability
§ Up to 40% cheaper than a traditional offshore
substations
§ Back to basic, simple, essential design
§ Share the foundation with a Wind turbine

OTM – the new AC Grid Access Solution
Flexible solution to meet the needs of the wind farm
OTM with Enclosure on a Monopile
OTM on a Jacket OTM without WTG
OTM with Enclosure

DC Offshore Grid Acces
Borwin 3 – current design requires hughe logistics

New Siemens DC Grid Acces Solution
Most important levers for reducing costs
Fully encapsulated
HV equipment
1
Passive and
robust power
electronics2
Modular Diode
Rectifier Unit
3
• Reduction of required
space
• Simplified auxiliary
equipment
• No complex control
system
• High lifetime, low O&M
costs
• 1200 MW power rating
• Low losses
• Flexible offshore
installation options:
e.g. central or distributed

The new Siemens DC Grid Access Solution
is based on the Diode Rectifier Unit
Key features of the Modular
Diode Rectifier Unit
• Encapsulated, rugged equipment
• Bio degradable and flame retardant
insulation
• Simple and robust power electronics
• Small platform with easy transport and
installation
• High reliability, minimal maintenance
• No offshore DC converter as single point
of failure
• Flexible offshore installation options due
to modular rectifier concept
Transformer
Rectifier
Cooling
DC
smoothing
reactors

Benefits of the new DC Grid Access Solution
80%
lower
topside volume
65%
lower
topside weight
30%
higher
transmission
capacity
20%
fewer
transmission
losses
20%
shorter
installation
time
30%
lower
costs

Peter Koninckx
Siemens S.A./N.V.
RC-BE Power Generation & Large Transmission
Guido Gezellestraat 123
1654 Beersel, Belgium
Tel.: +32 253-62235
Fax: +32 253-66900
Mobile: +32 478550087
mailto:peter.koninckx@siemens.com
http://www.siemens.be

2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-keynote siemens

More Related Content

Viewers also liked

Similar to 2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-keynote siemens

More from Sirris

Recently uploaded

2015 12 02_optiwind_optimization-operations-maintenance-offshore-wind-farms-keynote siemens
