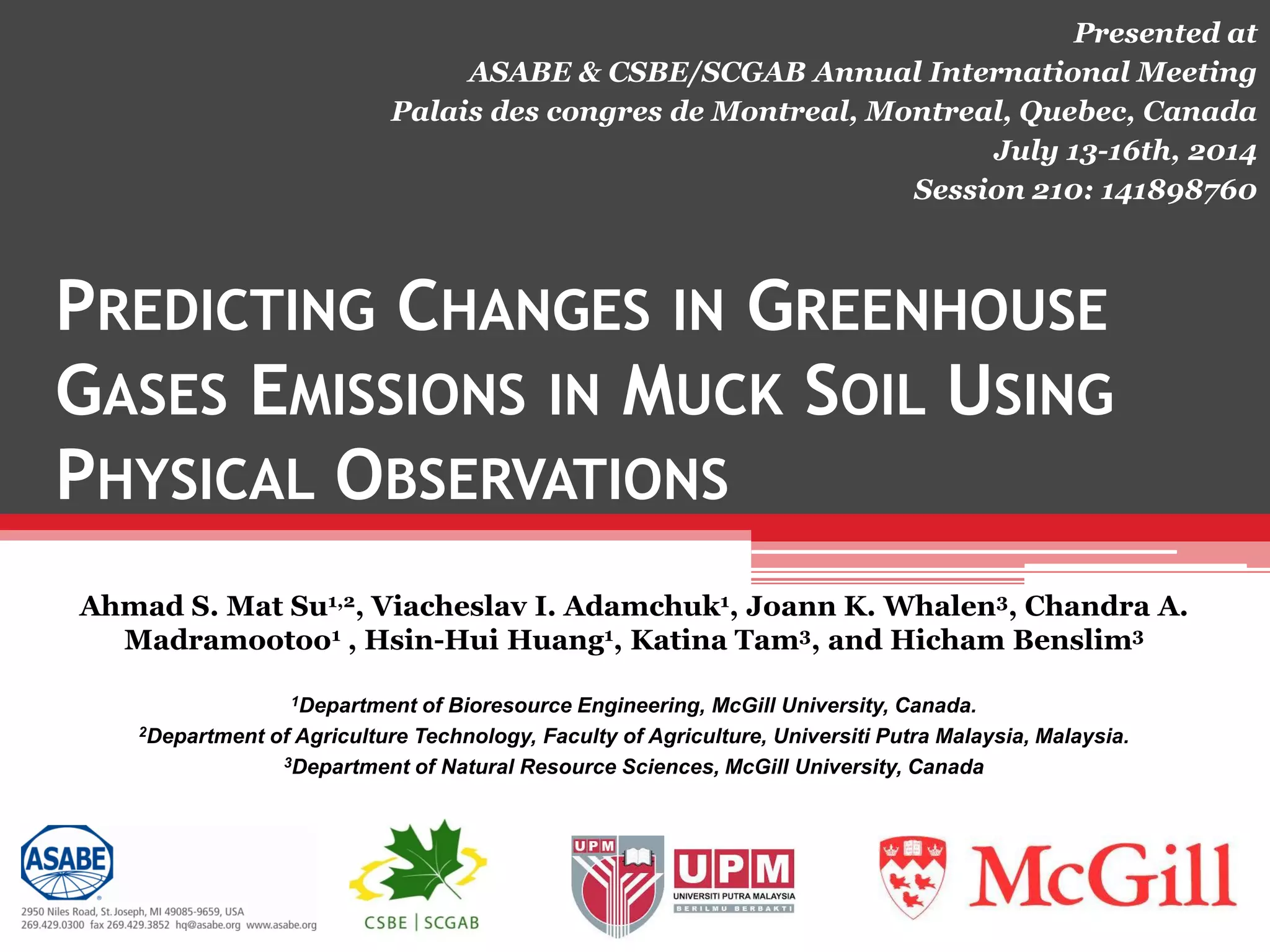

1. PREDICTING CHANGES IN GREENHOUSE
GASES EMISSIONS IN MUCK SOIL USING
PHYSICAL OBSERVATIONS
Ahmad S. Mat Su1,2, Viacheslav I. Adamchuk1, Joann K. Whalen3, Chandra A.
Madramootoo1 , Hsin-Hui Huang1, Katina Tam3, and Hicham Benslim3
1Department of Bioresource Engineering, McGill University, Canada.
2Department of Agriculture Technology, Faculty of Agriculture, Universiti Putra Malaysia, Malaysia.
3Department of Natural Resource Sciences, McGill University, Canada
Presented at
ASABE & CSBE/SCGAB Annual International Meeting
Palais des congres de Montreal, Montreal, Quebec, Canada
July 13-16th, 2014
Session 210: 141898760

2.  Muck soil (organic soil) and issues
 Objectives
 Materials and Method
» Soil physical properties measurement
» Gas sampling and flux calculation
