- 1. Devon Way 2014 Maintenance PeterLeslie - Senior Engineer
- 2. MODULE: Devon Way– Demonstration Project – Maintenance February 2014 Alloa – Clackmannanshire Council Peter Leslie Providing training to deliver solutions 2
- 3. Learning Outcomes By theend of this workshop, candidates will be able to: 1.Discuss current policy and guidance aiding the delivery of maintenance in Scotland. 2.Review maintenance required for active travel networks. 3.Identify issues and constraints to the delivery of maintenance regimes.
- 4.
- 5. Questions? Name Job Description Achievement inthe last month Question on Learning Point 5
- 6.
- 7. 2014 Sharing InformationDays Equestrian Access Days, Managing Access to Paths (Access Control) - A Review of Guidance and Implementation Cycle Route Signage http://www.satinonline.org/satin/training-by-satin/ 7
- 8.

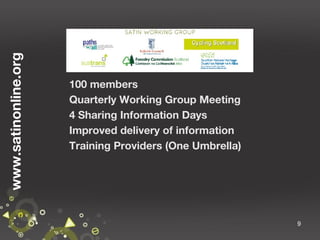

- 9. www.satinonline.org 100 members Quarterly WorkingGroup Meeting 4 Sharing Information Days Improved delivery of information Training Providers (One Umbrella) 9

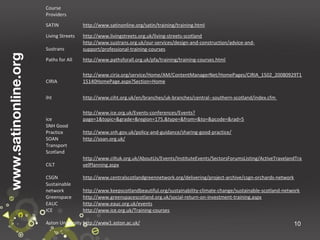

- 10. Course Providers http://www.satinonline.org/satin/training/training.html Living Streets Sustrans www.satinonline.org SATIN http://www.livingstreets.org.uk/living-streets-scotland http://www.sustrans.org.uk/our-services/design-and-construction/advice-andsupport/professional-training-courses Paths forAll http://www.pathsforall.org.uk/pfa/training/training-courses.html CIRIA http://www.ciria.org/service/Home/AM/ContentManagerNet/HomePages/CIRIA_1502_20080929T1 15140HomePage.aspx?Section=Home iht http://www.ciht.org.uk/en/branches/uk-branches/central--southern-scotland/index.cfm ice SNH Good Practice SOAN Transport Scotland CILT CSGN Sustainable network Greenspace EAUC ICE http://www.ice.org.uk/Events-conferences/Events? page=1&topic=&grade=®ion=175,&type=&from=&to=&pcode=&rad=5 http://www.snh.gov.uk/policy-and-guidance/sharing-good-practice/ http://soan.org.uk/ http://www.ciltuk.org.uk/AboutUs/Events/InstituteEvents/SectorsForumsListing/ActiveTravelandTra velPlanning.aspx http://www.centralscotlandgreennetwork.org/delivering/project-archive/csgn-orchards-network http://www.keepscotlandbeautiful.org/sustainability-climate-change/sustainable-scotland-network http://www.greenspacescotland.org.uk/social-return-on-investment-training.aspx http://www.eauc.org.uk/events http://www.ice.org.uk/Training-courses Aston University http://www1.aston.ac.uk/ 10

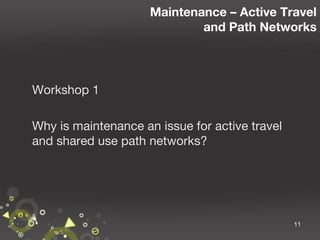

- 11. Maintenance – ActiveTravel and Path Networks Workshop 1 Why is maintenance an issue for active travel and shared use path networks? 11

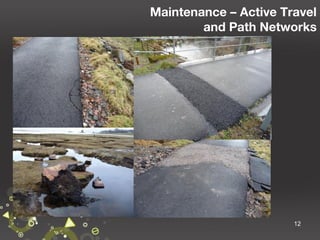

- 12. Maintenance – ActiveTravel and Path Networks 12

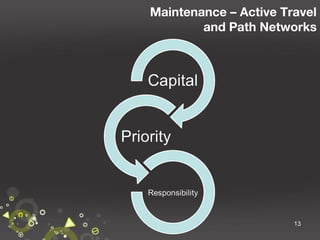

- 13. Maintenance – ActiveTravel and Path Networks 13

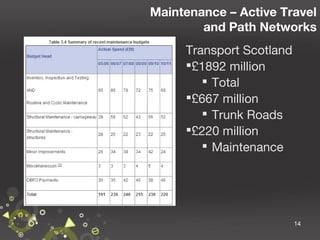

- 14. Maintenance – ActiveTravel and Path Networks Transport Scotland £1892 million Total £667 million Trunk Roads £220 million Maintenance 14
- 15. Maintenance – ActiveTravel and Path Networks 15

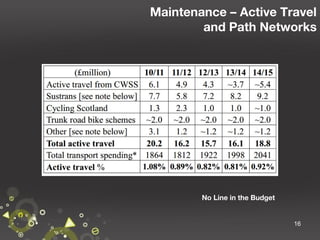

- 16. Maintenance – ActiveTravel and Path Networks No Line in the Budget 16
- 17. Millennium Link Capital Project- £10 million pound investment to create towpath Priority - Keeping Water in Canal Responsibility - Asset Management Monthly Review and Access Points Understanding the Users 99.7% of the canal network use the towpath 17

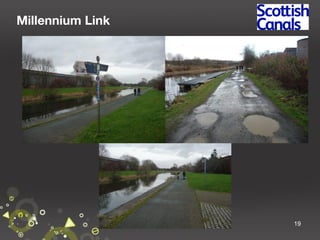

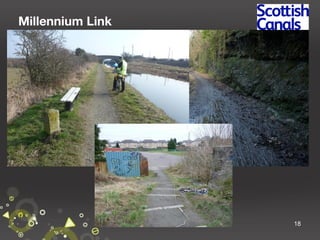

- 18.
- 19.

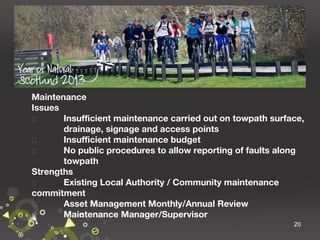

- 20. Maintenance Issues Insufficient maintenance carriedout on towpath surface, drainage, signage and access points Insufficient maintenance budget No public procedures to allow reporting of faults along towpath Strengths Existing Local Authority / Community maintenance commitment Asset Management Monthly/Annual Review Maintenance Manager/Supervisor 20

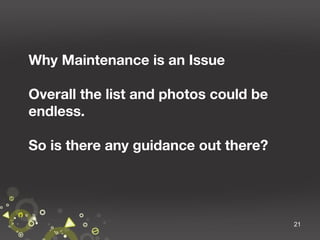

- 21. Why Maintenance isan Issue Overall the list and photos could be endless. So is there any guidance out there? 21

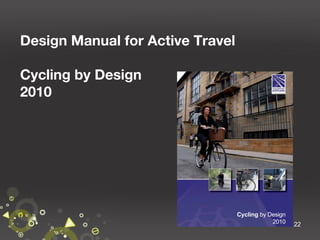

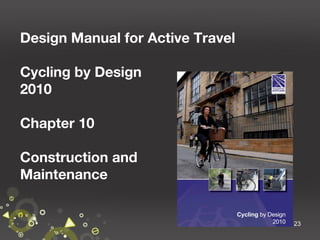

- 22. Design Manual forActive Travel Cycling by Design 2010 22
- 23. Design Manual forActive Travel Cycling by Design 2010 Chapter 10 Construction and Maintenance 23

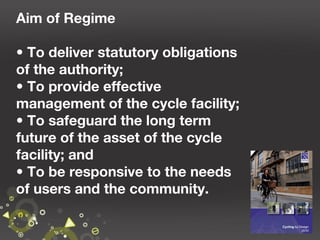

- 24. Aim of Regime •To deliver statutory obligations of the authority; • To provide effective management of the cycle facility; • To safeguard the long term future of the asset of the cycle facility; and • To be responsive to the needs of users and the community. 24

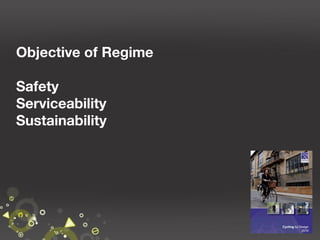

- 25.

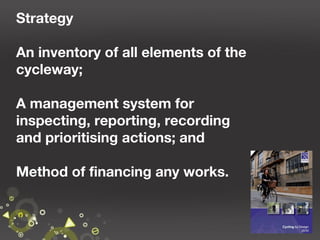

- 26. Strategy An inventory ofall elements of the cycleway; A management system for inspecting, reporting, recording and prioritising actions; and Method of financing any works. 26

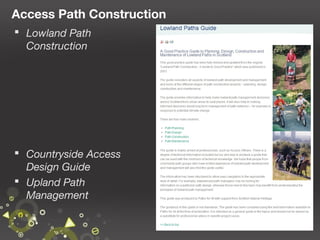

- 27. Access Path Construction Lowland Path Construction Countryside Access Design Guide Upland Path Management 27
- 28. Lowland Path Guides Planned Maintenance Reactive Maintenance Create a Maintenance Schedule 28
- 29. Sustrans Connect 2and Greenway Design Forward Looking Design Carry out tasks during construction Widen the path envelope Create drainage ditches / Clear existing Consider what will carry out the maintenance 29
- 30. Overall There are manualsout there which provide us the how the question is what we should maintain? 30
- 31. Workshop 2 What wouldyou maintain? Urban Active Travel Network 31

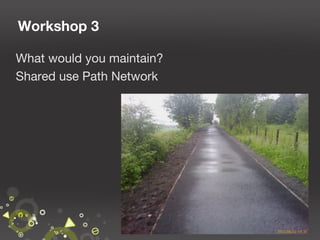

- 32. Workshop 3 What wouldyou maintain? Shared use Path Network 32
- 33. Cycling England –The Hub (CILT) Issue Surface Activity Notes Frequency Time of year Drainage Vegetation Signs / Mapboard s Access barriers Fences Structures including culverts and retaining walls Seating sculptures etc. Other 33

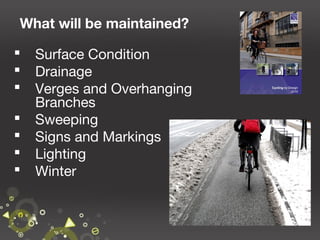

- 34. What will bemaintained? Surface Condition Drainage Verges and Overhanging Branches Sweeping Signs and Markings Lighting Winter 34

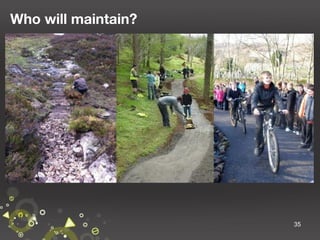

- 35.

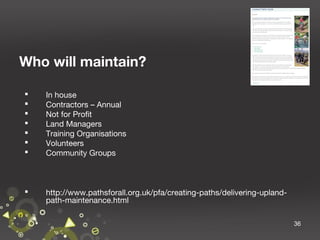

- 36. Who will maintain? Inhouse Contractors – Annual Not for Profit Land Managers Training Organisations Volunteers Community Groups http://www.pathsforall.org.uk/pfa/creating-paths/delivering-uplandpath-maintenance.html 36

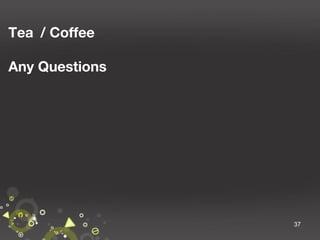

- 37. Tea / Coffee AnyQuestions 37

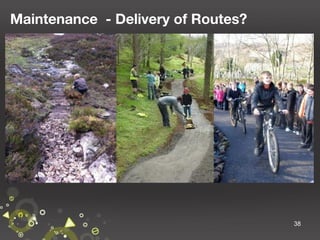

- 38. Maintenance - Deliveryof Routes? 38

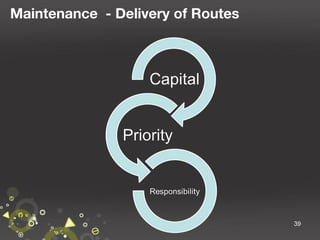

- 39. Maintenance - Deliveryof Routes 39

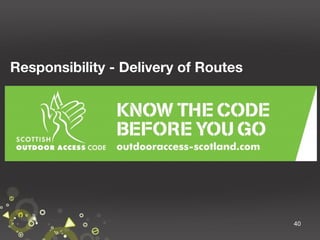

- 40. Responsibility - Deliveryof Routes 40

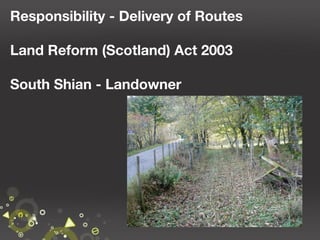

- 41. Responsibility - Deliveryof Routes Land Reform (Scotland) Act 2003 South Shian - Landowner 41

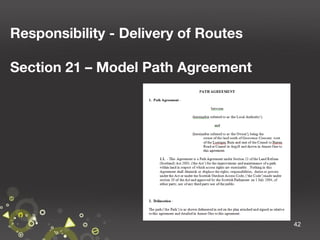

- 42. Responsibility - Deliveryof Routes Section 21 – Model Path Agreement 42

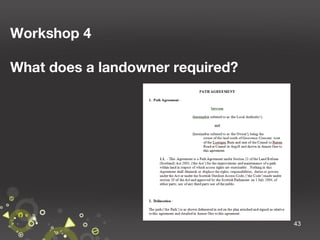

- 43. Workshop 4 What doesa landowner required? 43

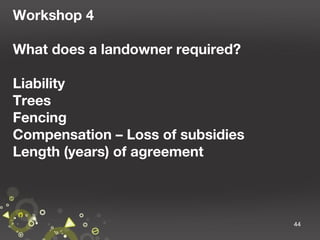

- 44. Workshop 4 What doesa landowner required? Liability Trees Fencing Compensation – Loss of subsidies Length (years) of agreement 44
- 45.

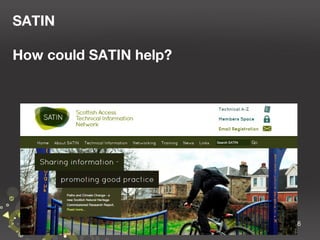

- 46. SATIN How could SATINhelp? 46
- 47. Demonstration Project – SharedUse Path – Devon Way Introduction 47
- 48. Devon Way -Information Core Path Linking Alloa and Dollar 10km long linking 7 settlements Alloa Railway Station, Community Health Centre, Liveries and Primary Schools and other amenities. 48
- 49. Demonstration Project – SharedUse Path – Devon Way Why Complete a Demonstration Project? 49

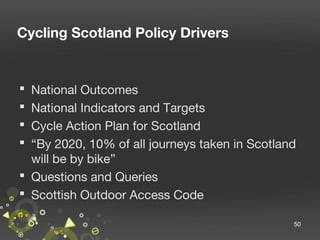

- 50. Cycling Scotland PolicyDrivers National Outcomes National Indicators and Targets Cycle Action Plan for Scotland “By 2020, 10% of all journeys taken in Scotland will be by bike” Questions and Queries Scottish Outdoor Access Code 50

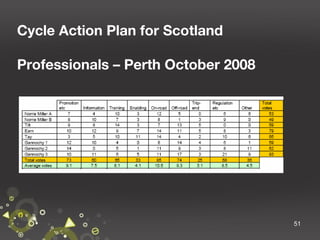

- 51. Cycle Action Planfor Scotland Professionals – Perth October 2008 51

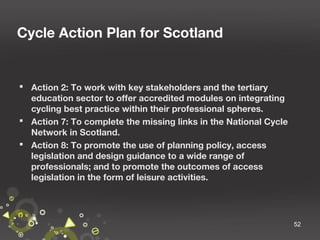

- 52. Cycle Action Planfor Scotland Action 2: To work with key stakeholders and the tertiary education sector to offer accredited modules on integrating cycling best practice within their professional spheres. Action 7: To complete the missing links in the National Cycle Network in Scotland. Action 8: To promote the use of planning policy, access legislation and design guidance to a wide range of professionals; and to promote the outcomes of access legislation in the form of leisure activities. 52

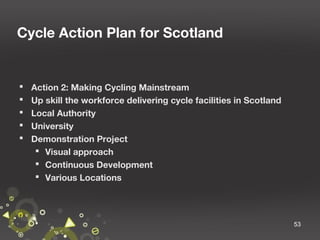

- 53. Cycle Action Planfor Scotland Action 2: Making Cycling Mainstream Up skill the workforce delivering cycle facilities in Scotland Local Authority University Demonstration Project Visual approach Continuous Development Various Locations 53

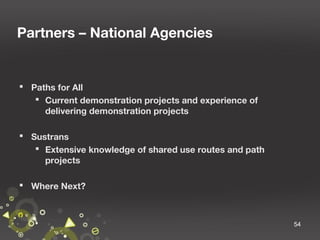

- 54. Partners – NationalAgencies Paths for All Current demonstration projects and experience of delivering demonstration projects Sustrans Extensive knowledge of shared use routes and path projects Where Next? 54

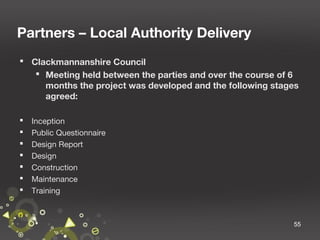

- 55. Partners – LocalAuthority Delivery Clackmannanshire Council Meeting held between the parties and over the course of 6 months the project was developed and the following stages agreed: Inception Public Questionnaire Design Report Design Construction Maintenance Training 55

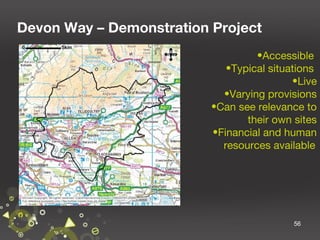

- 56. Devon Way –Demonstration Project •Accessible •Typical situations •Live •Varying provisions •Can see relevance to their own sites •Financial and human resources available 56

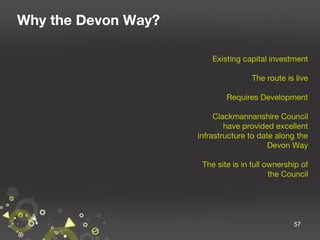

- 57. Why the DevonWay? Existing capital investment The route is live Requires Development Clackmannanshire Council have provided excellent infrastructure to date along the Devon Way The site is in full ownership of the Council 57

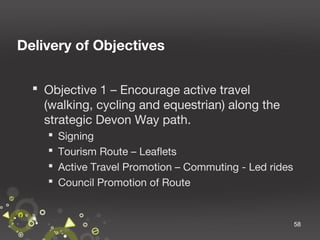

- 58. Delivery of Objectives Objective 1 – Encourage active travel (walking, cycling and equestrian) along the strategic Devon Way path. Signing Tourism Route – Leaflets Active Travel Promotion – Commuting - Led rides Council Promotion of Route 58

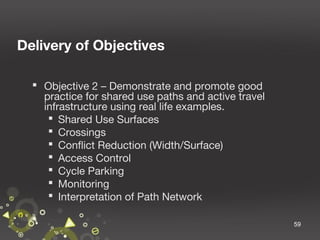

- 59. Delivery of Objectives Objective 2 – Demonstrate and promote good practice for shared use paths and active travel infrastructure using real life examples. Shared Use Surfaces Crossings Conflict Reduction (Width/Surface) Access Control Cycle Parking Monitoring Interpretation of Path Network 59
- 60. Inception Report –Objectives of the Demonstration Project Objective 3 – Delivery of a training venue which will assist practitioners in the judgement/assessment of installing shared use and active travel infrastructure. We are here today and the ongoing training delivery will be as follows: Action Plan Email updates Site Visit Course Delivery after Construction 60
- 61.

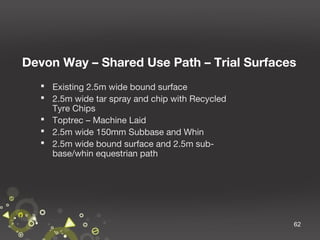

- 62. Devon Way –Shared Use Path – Trial Surfaces Existing 2.5m wide bound surface 2.5m wide tar spray and chip with Recycled Tyre Chips Toptrec – Machine Laid 2.5m wide 150mm Subbase and Whin 2.5m wide bound surface and 2.5m subbase/whin equestrian path 62

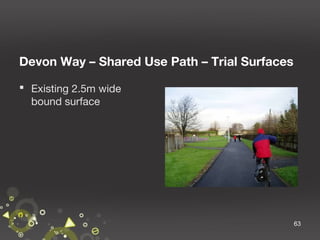

- 63. Devon Way –Shared Use Path – Trial Surfaces Existing 2.5m wide bound surface 63

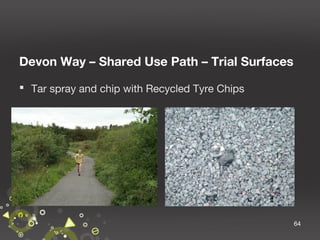

- 64. Devon Way –Shared Use Path – Trial Surfaces Tar spray and chip with Recycled Tyre Chips 64

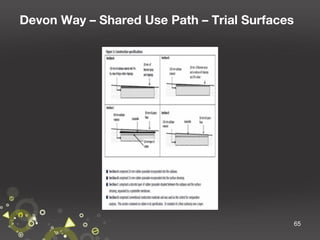

- 65. Devon Way –Shared Use Path – Trial Surfaces 65

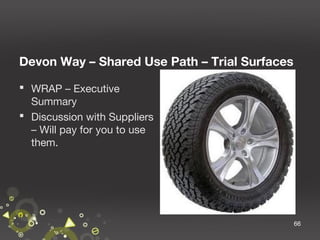

- 66. Devon Way –Shared Use Path – Trial Surfaces WRAP – Executive Summary Discussion with Suppliers – Will pay for you to use them. 66
- 67. Devon Way –Shared Use Path – Trial Surfaces Toptrec – Machine Laid 67
- 68. Devon Way –Shared Use Path – Trial Surfaces 150mm Subbase and Whin 68

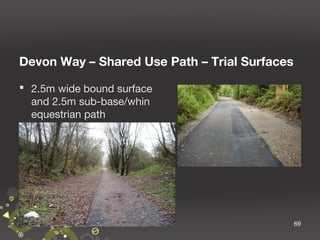

- 69. Devon Way –Shared Use Path – Trial Surfaces 2.5m wide bound surface and 2.5m sub-base/whin equestrian path 69

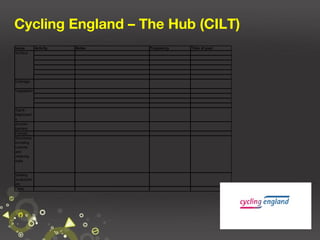

- 70. Cycling England –The Hub (CILT) Issue Surface Activity Notes Frequency Time of year Drainage Vegetation Signs / Mapboard s Access barriers Fences Structures including culverts and retaining walls Seating sculptures etc. Other 70

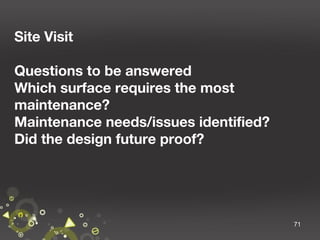

- 71. Site Visit Questions tobe answered Which surface requires the most maintenance? Maintenance needs/issues identified? Did the design future proof? 71
- 72. Are there anyquestions from this mornings workshops? 72

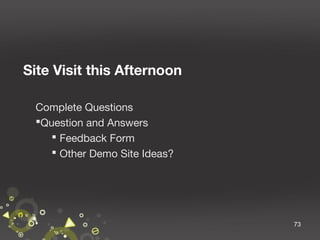

- 73. Site Visit thisAfternoon Complete Questions Question and Answers Feedback Form Other Demo Site Ideas? 73
- 74. THANK YOU Peter Leslie 0141229 5352 peterleslie@cyclingscotland.org
