1. Re-Energizing our Cities
From district to specific
Dave Ramslie & Gerry Faubert
Integral Group
October 03, 2013

2. A Point in History…

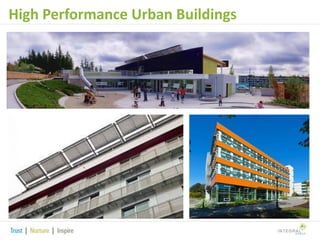

3. High Performance Urban Buildings

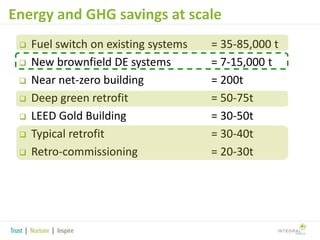

4. Energy and GHG savings at scale







Fuel switch on existing systems
New brownfield DE systems
Near net-zero building
Deep green retrofit
LEED Gold Building
Typical retrofit
Retro-commissioning
= 35-85,000 t
= 7-15,000 t
= 200t
= 50-75t
= 30-50t
= 30-40t
= 20-30t

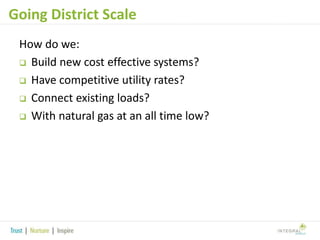

5. Going District Scale
How do we:
 Build new cost effective systems?
 Have competitive utility rates?
 Connect existing loads?
 With natural gas at an all time low?

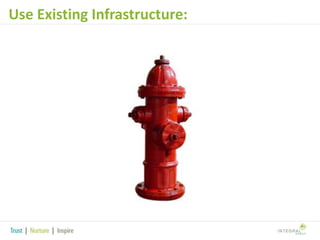

6. Use Existing Infrastructure:

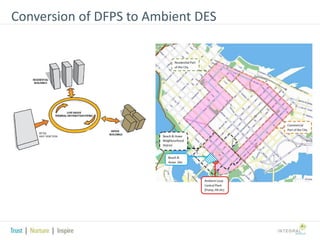

7. Conversion of DFPS to Ambient DES

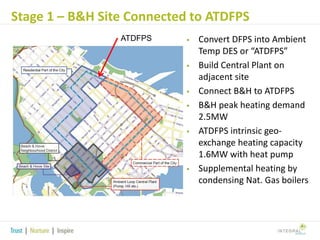

8. Stage 1 – B&H Site Connected to ATDFPS
ATDFPS






Convert DFPS into Ambient
Temp DES or “ATDFPS”
Build Central Plant on
adjacent site
Connect B&H to ATDFPS
B&H peak heating demand
2.5MW
ATDFPS intrinsic geoexchange heating capacity
1.6MW with heat pump
Supplemental heating by
condensing Nat. Gas boilers

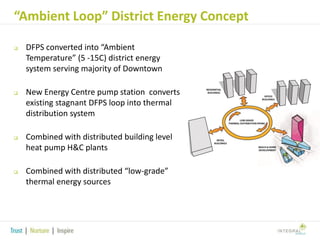

9. “Ambient Loop” District Energy Concept




DFPS converted into “Ambient
Temperature” (5 -15C) district energy
system serving majority of Downtown
New Energy Centre pump station converts
existing stagnant DFPS loop into thermal
distribution system
Combined with distributed building level
heat pump H&C plants
Combined with distributed “low-grade”
thermal energy sources

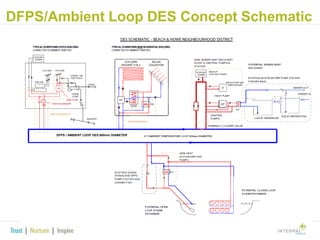

10. DFPS/Ambient Loop DES Concept Schematic
DFPS / AMBIENT LOOP DES 600mm DIAMETER

11. Ambient Loop Demand & Temperature Profile

Net heat extraction/ heat rejection from/ into Ambient Loop at Phase 1
Ambient Loop temperature profile with 1.5 MW low-grade heat source

SHR @ 8C dT, 45 l/s or Ocean Loop @ 4C dT, 90 l/s
20
Ambient Loop Demand & Temperature Profile at Phase 1
18
4000
3000
16
2000
14
1000
12
Degrre C

10
0
8
-1000
6
-2000
4
-3000
2
0
Fri,
01/Jan
-4000
Tue,
26/Jan
Sat,
Wed,
Sun,
20/Feb 17/Mar 11/Apr
Thu,
06/Ma
y
Mon,
31/Ma
y
Fri,
25/Jun
Tue,
20/Jul
Sat,
Wed,
Sun,
Thu,
Mon,
Fri,
14/Aug 08/Sep 03/Oct 28/Oct 22/Nov 17/Dec

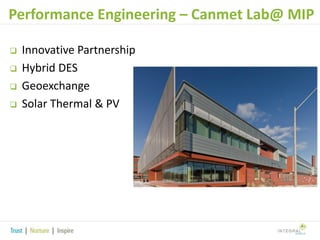

12. Performance Engineering – Canmet Lab@ MIP




Innovative Partnership
Hybrid DES
Geoexchange
Solar Thermal & PV

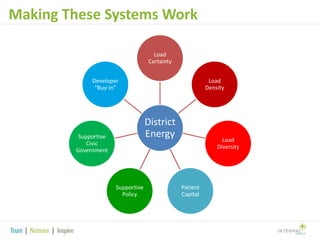

13. Making These Systems Work
Load
Certainty
Developer
“Buy-In”
Load
Density
District
Energy
Supportive
Civic
Government
Supportive
Policy
Load
Diversity
Patient
Capital

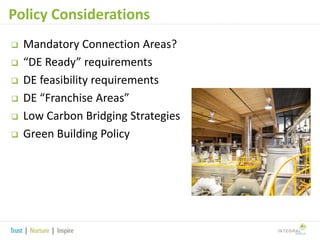

14. Policy Considerations






Mandatory Connection Areas?
“DE Ready” requirements
DE feasibility requirements
DE “Franchise Areas”
Low Carbon Bridging Strategies
Green Building Policy

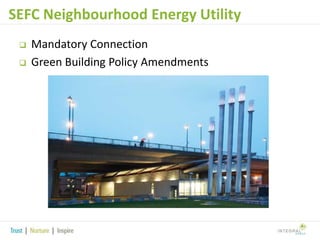

15. SEFC Neighbourhood Energy Utility


Mandatory Connection
Green Building Policy Amendments

16. The River District

Low Carbon Bridging Strategies

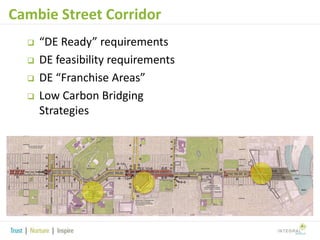

17. Cambie Street Corridor




“DE Ready” requirements
DE feasibility requirements
DE “Franchise Areas”
Low Carbon Bridging
Strategies

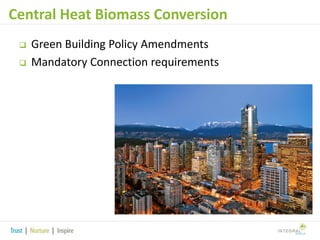

18. Central Heat Biomass Conversion


Green Building Policy Amendments
Mandatory Connection requirements

19. Thank you!
dramslie@integral-group.ca
gfaubert@integral-group.ca
October 03, 2013
