The document discusses how to work with workloads in the vitalpointz IoT Core platform. It describes that workloads allow developers to build applications using container images provided in the platform. These include frameworks like NodeRED, databases like MariaDB and MongoDB, and operating systems like CentOS. The typical workflow to use a workload involves selecting an image, configuring settings like ports and volumes, and wiring rules to route device messages to the container. Language containers can then process messages and return responses. Workloads allow custom code deployment and integration with devices and functions on the platform.

1. Confidential
www.vitalpointz.net1
Working with workloads

2. Confidential
www.vitalpointz.net
©2017 , www.vitalpointz.net
vitalpointz IoT Core Lite v1.3 and above
Working with Workloads in
vitalpointz IoT Core Lite

3. Confidential
www.vitalpointz.net
 Workloads are containers that allows developers/users to build application on top of the vitalpointz
IoT Core Platform and extend the capabilities
 Follows a list of container images available in vitalpointz IoT platform v1.3, and their typical use-
cases
3

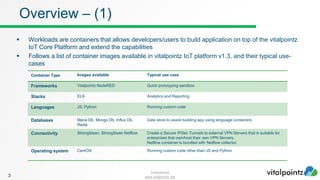

Overview – (1)
Container Type Images available Typical use case
Frameworks Vitalpointz NodeRED Quick prototyping sandbox
Stacks ELK Analytics and Reporting
Languages JS, Python Running custom code
Databases Maria Db, Mongo Db, Influx Db,
Redis
Data store to assist building app using language containers
Connectivity StrongSwan, StrongSwan Netflow Create a Secure IPSec Tunnels to external VPN Servers that is suitable for
enterprises that own/host their own VPN Servers.
Netflow container is bundled with Netflow collector.
Operating system CentOS Running custom code other than JS and Python

4. Confidential
www.vitalpointz.net

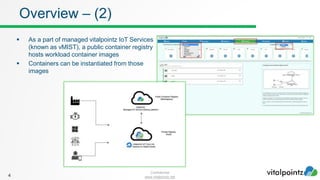

 As a part of managed vitalpointz IoT Services
(known as vMIST), a public container registry
hosts workload container images
 Containers can be instantiated from those
images
4
Overview – (2)

5. Confidential
www.vitalpointz.net5
Typical workflow with workload

6. Confidential
www.vitalpointz.net
 Click on the (+) icon on the container of your
choice to open a form
6
Spinning up a container
2
1
3

7. Confidential
www.vitalpointz.net7
Fields in Workload-Instantiation Form
Name * Give a name to the Object.
Description Optional
Meta data Optional
Mount Volume Check and provide the path inside the container that require the persistent storage
Run as Privileged Container This allows the container to run with additional privileges. Privileges are required
for containers like Strongswan and Netflow-Strongswan
Ports to Expose to External World Service Port of the container needs to be mapped to a URL
For an instance: NodeRED Container runs its UI on 1880.
By mapping 1880 to a URL provided (app-mynodered.xxx.vitalpointz.com) , the
node red service is made available on public internet.
This is useful in hosting your own application/REST APIs
Always On If Checked, this URL will be accessible directly.
If Unchecked, when the URL is accessed platform's login page is shown. After
successful Login, the URL becomes accessible.
(see : User management Documentation)

8. Confidential
www.vitalpointz.net

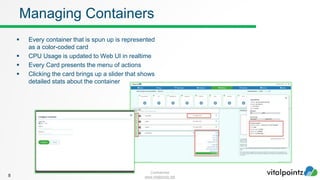

 Every container that is spun up is represented
as a color-coded card
 CPU Usage is updated to Web UI in realtime
 Every Card presents the menu of actions
 Clicking the card brings up a slider that shows
detailed stats about the container
8
Managing Containers

9. Confidential
www.vitalpointz.net

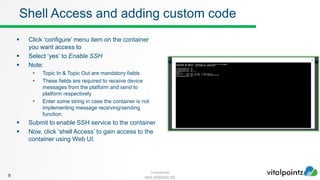

 Click ‘configure’ menu item on the container
you want access to
 Select ‘yes’ to Enable SSH
 Note:
 Topic In & Topic Out are mandatory fields
 These fields are required to receive device
messages from the platform and send to
platform respectively
 Enter some string in case the container is not
implementing message receiving/sending
function.
 Submit to enable SSH service to the container
 Now, click ‘shell Access’ to gain access to the
container using Web UI.
9
Shell Access and adding custom code

10. Confidential
www.vitalpointz.net
 Once SSH Access is available, user can login into the
container & install codes from GIT, CURL etc.
 Save and commit the container into local / private
container registry
 Committed container images are available under private
registry
 New container can start from committed images as a new
immutable container
 For security, the container can run with complete internet
isolation by clicking ‘disable the internet’ menu item.
10
Productionizing
1
2
3
4

11. Confidential
www.vitalpointz.net
 Three images are provided to run user code in
container
 JavaScript (helloworld-js0)
 Python(helloworld-py0)
 CentOS (centos)
 Functionally, helloworld-js0 and helloworld-py0
are implementing identical functions
 Both the containers receive messages from the
platform; process them and emit message back to
platform
 The helloworld program is present under
/usr/app/src/Main.js
 User can inspect & modify the code or add their
own in order to build their cstomised workload
 Centos image is provided as a plain os image, on
which user can install any runtime or binary to
create their own workload
11
Working with Language Containers – (1)

12. Confidential
www.vitalpointz.net
 Wiring messages to workload container
 Step1. Select a device topic whose data needs to
be forwarded to a workload
 Step2. Configure workload container with topic in
and topic out names
 For e.g., topic in: myjstopicin, topic out:
app/myjostopicout
 Note: Topic Out must always begin with app/
12
Working with Language Containers – (2)
1
2

13. Confidential
www.vitalpointz.net

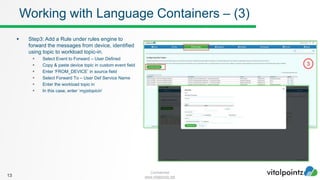

 Step3: Add a Rule under rules engine to
forward the messages from device, identified
using topic to workload topic-in.
 Select Event to Forward – User Defined
 Copy & paste device topic in custom event field
 Enter ‘FROM_DEVICE’ in source field
 Select Forward To – User Def Service Name
 Enter the workload topic in
 In this case, enter ‘myjstopicin’
13
Working with Language Containers – (3)
3

14. Confidential
www.vitalpointz.net
 Step4: Add a Rule under rules engine to
forward the output messages from the
workload, to a user-defined function
 Select Event to Forward – User Defined
 Enter Topic Out in custom event field
(app/myjstopicout)
 Enter ‘HELLOWORLDJS’ in source field*
 Select Forward To – User Def Service Name
 Enter any function name
 E.g, ‘APPHNDLR’
 Note: user must write a function with the name
‘APPHNDLR’ in order to receive messages
This can be implemented in NodeRED or in another
Workload container
*Note : in case of helloworld-py-0 container,
Use ‘HELLOWORLDPY’
14
Working with Language Containers – (4)
4

15. Confidential
www.vitalpointz.net

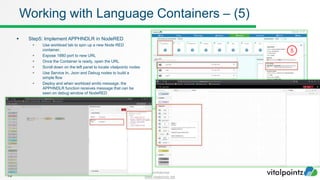

 Step5: Implement APPHNDLR in NodeRED
 Use workload tab to spin up a new Node RED
container.
 Expose 1880 port to new URL
 Once the Container is ready, open the URL
 Scroll down on the left panel to locate vitalpointz nodes
 Use Service In, Json and Debug nodes to build a
simple flow
 Deploy and when workload emits message, the
APPHNDLR function receives message that can be
seen on debug window of NodeRED
15
Working with Language Containers – (5)
5

16. Confidential
www.vitalpointz.net

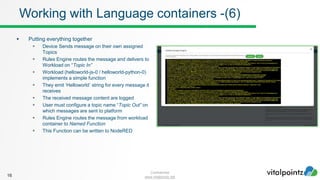

 Putting everything together
 Device Sends message on their own assigned
Topics
 Rules Engine routes the message and delivers to
Workload on “Topic In”
 Workload (helloworld-js-0 / helloworld-python-0)
implements a simple function
 They emit ‘Helloworld’ string for every message it
receives
 The received message content are logged
 User must configure a topic name “Topic Out” on
which messages are sent to platform
 Rules Engine routes the message from workload
container to Named Function
 This Function can be written to NodeRED
16
Working with Language containers -(6)

17. Confidential
www.vitalpointz.net
 In order to support application development, several
database images are hosted in Public registry
 On create new container form,
 Check the Mount Volume – this will mount the
container’s folder on host machine’s persistent
storage
 Enter the full folder path of the container to be
persisted
17
Working with Database containers

18. Confidential
www.vitalpointz.net
 Using Workload module of vitalpointz IoT Core,
 Developers can Port or build a new application on any language
 Receive messages from the Platform, process and return the result back platform
 The workload can remain private within the platform OR can be exposed to external world using a URL
18
Summary

19. Confidential
www.vitalpointz.net
©2017 , www.vitalpointz.net
Got a Questions ?
ask in our Slack support channel
search in our community forum community.vitalpointz.com
