18CS3040 Distributed System

18CS3040
DISTRIBUTED SYSTEMS
Module – II
Dr.A.Kathirvel, Professor, Computer Science and Engg.
Karunya Institute of Technology and Sciences, CBE

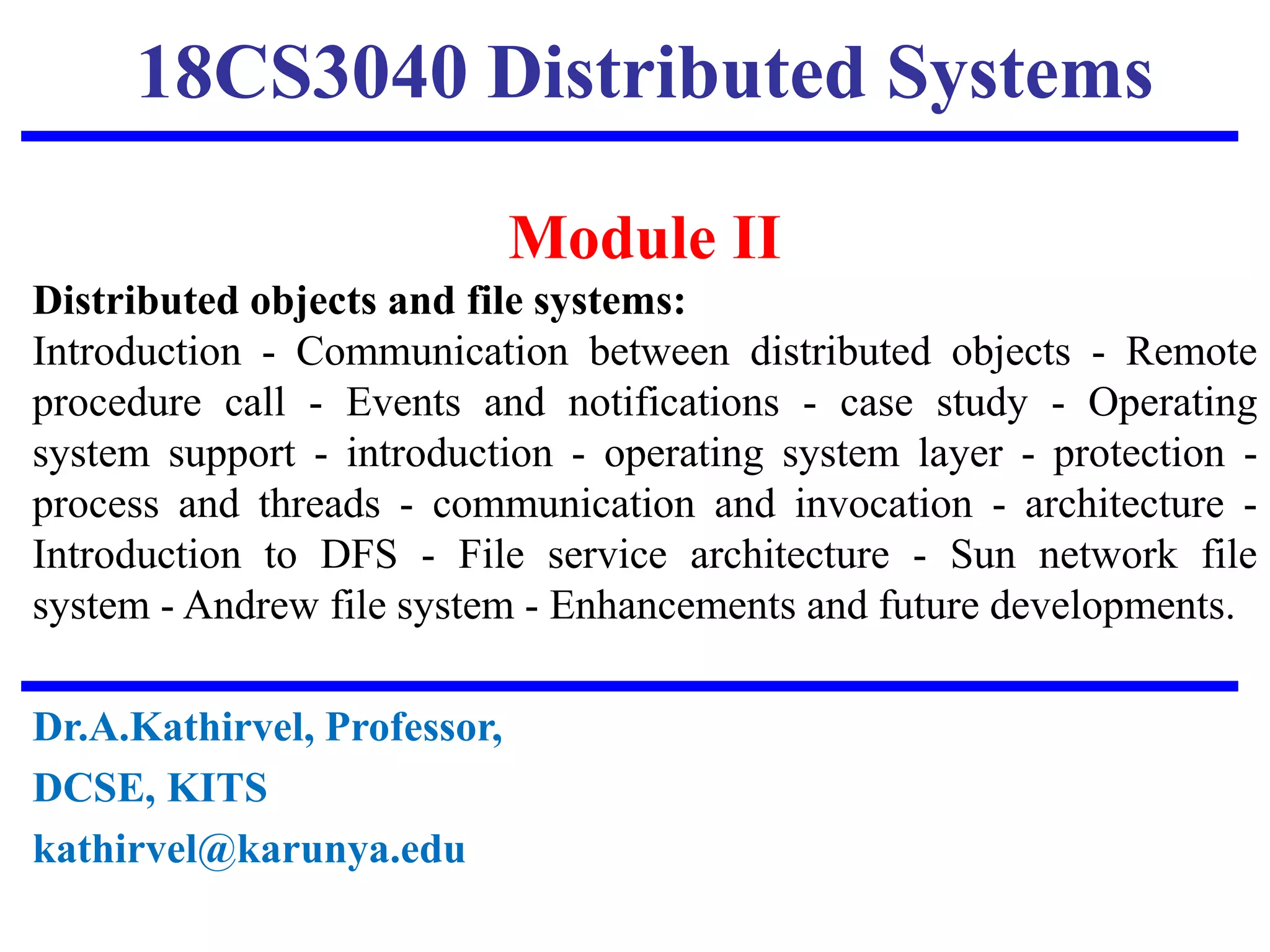

18CS3040 Distributed Systems
Module II
Distributed objects and file systems:
Introduction - Communication between distributed objects - Remote
procedure call - Events and notifications - case study - Operating
system support - introduction - operating system layer - protection -
process and threads - communication and invocation - architecture -
Introduction to DFS - File service architecture - Sun network file
system - Andrew file system - Enhancements and future developments.
Dr.A.Kathirvel, Professor,
DCSE, KITS
kathirvel@karunya.edu

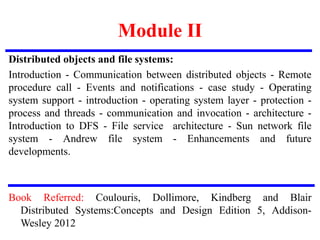

Module II
Distributed objects and file systems:
Introduction - Communication between distributed objects - Remote
procedure call - Events and notifications - case study - Operating
system support - introduction - operating system layer - protection -
process and threads - communication and invocation - architecture -
Introduction to DFS - File service architecture - Sun network file
system - Andrew file system - Enhancements and future
developments.
Book Referred: Coulouris, Dollimore, Kindberg and Blair
Distributed Systems:Concepts and Design Edition 5, Addison-
Wesley 2012

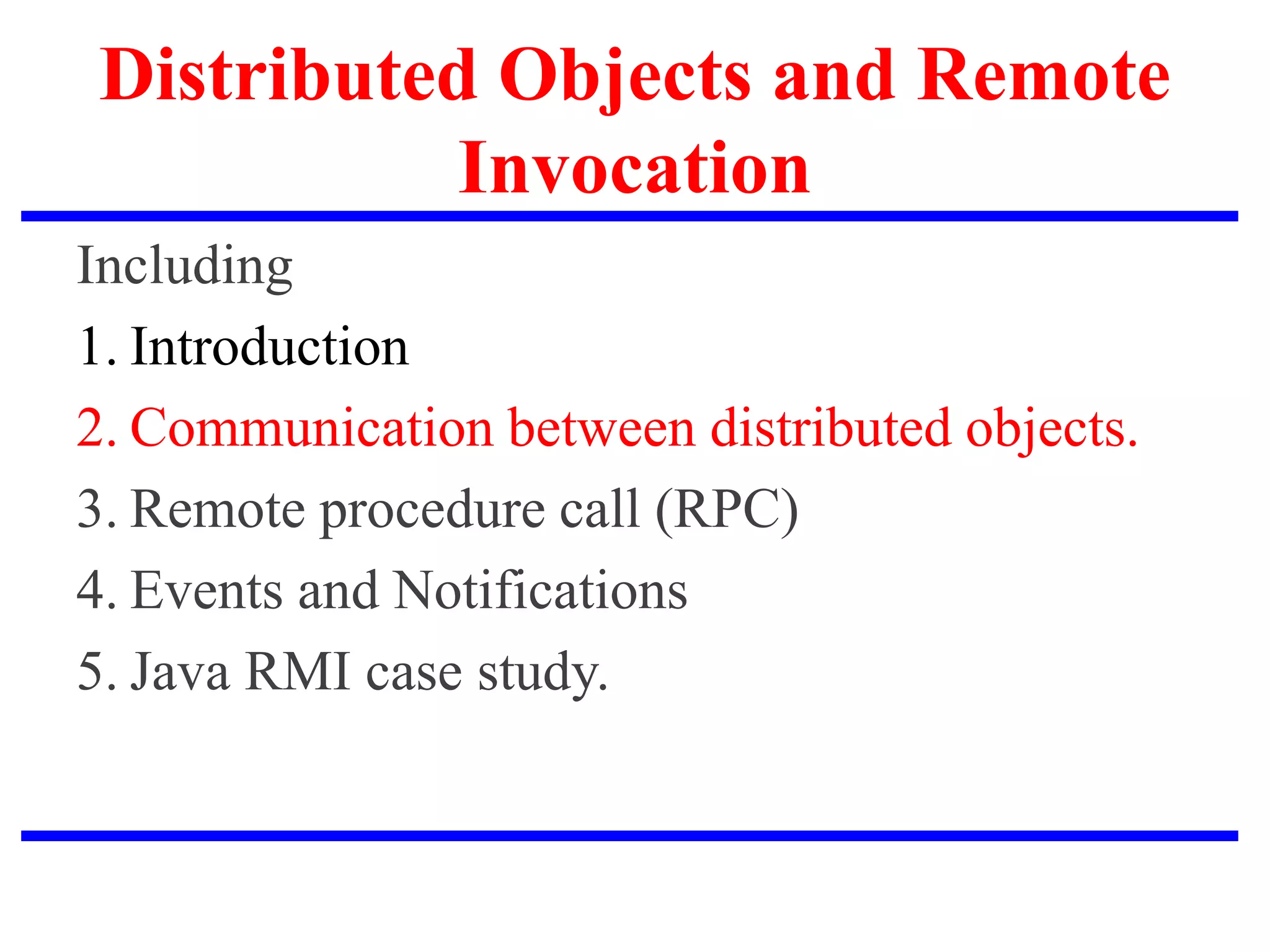

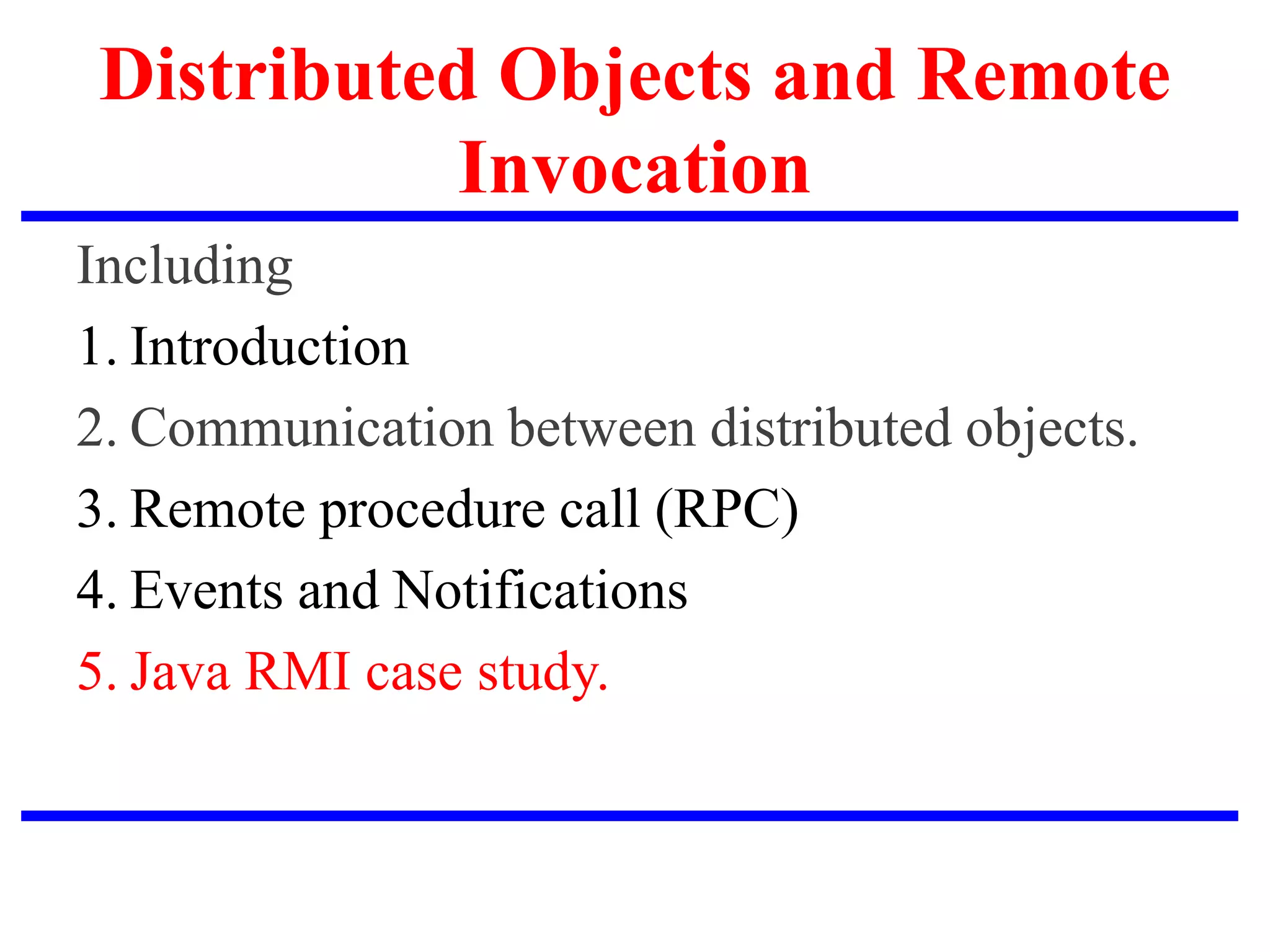

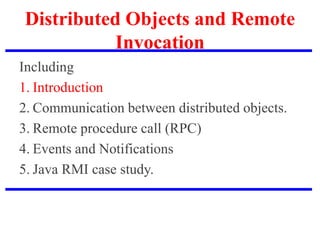

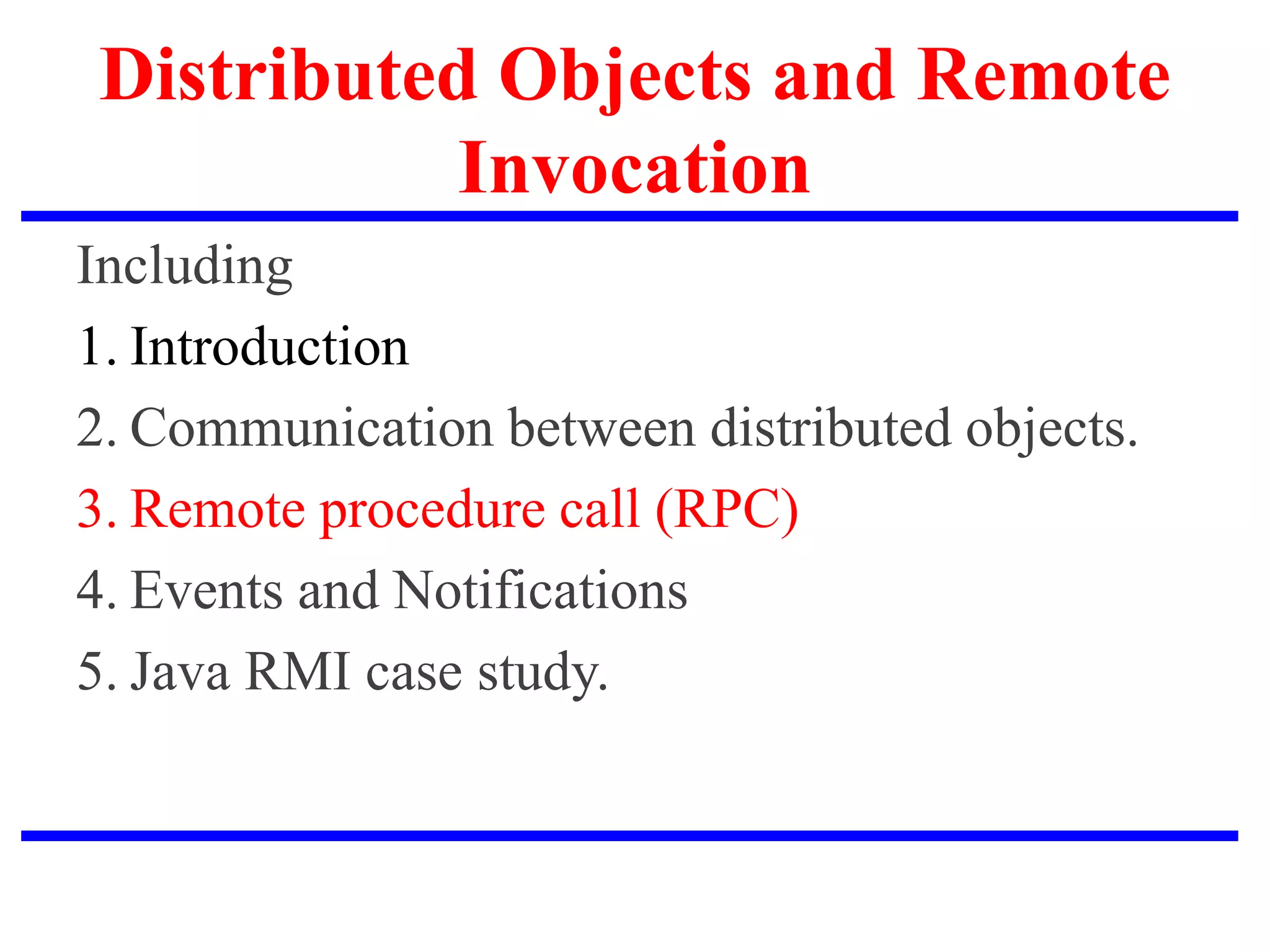

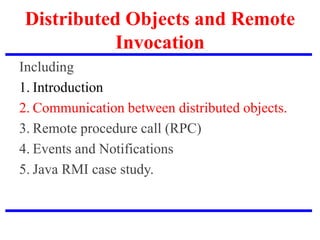

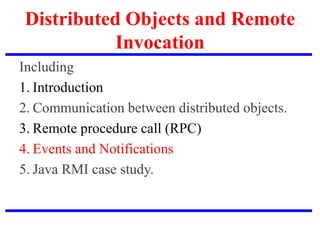

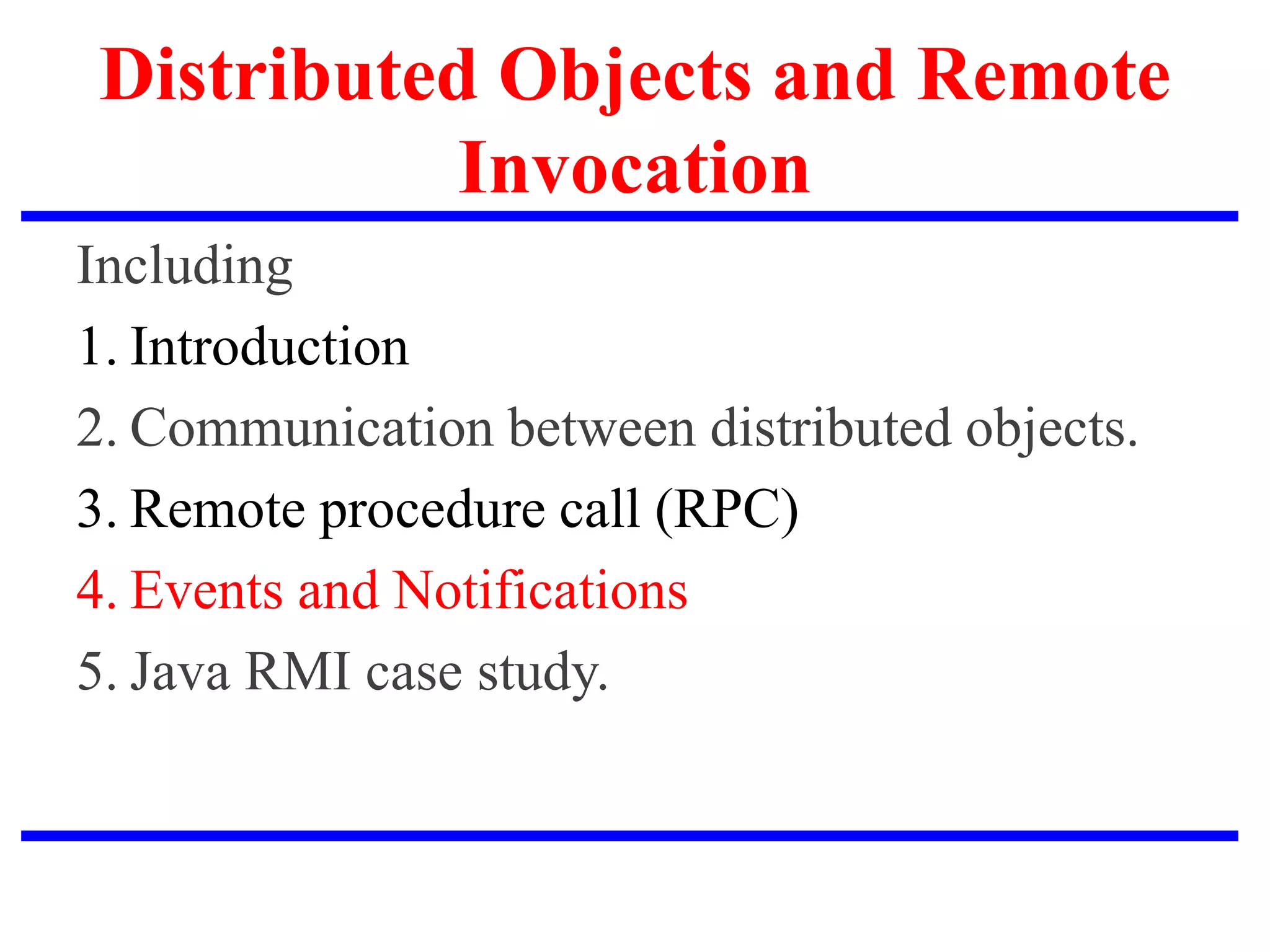

Distributed Objects and Remote
Invocation
Including
1. Introduction
2. Communication between distributed objects.
3. Remote procedure call (RPC)
4. Events and Notifications
5. Java RMI case study.

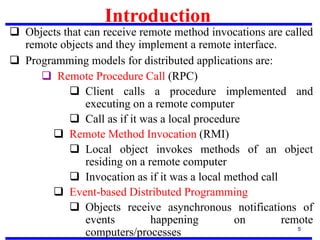

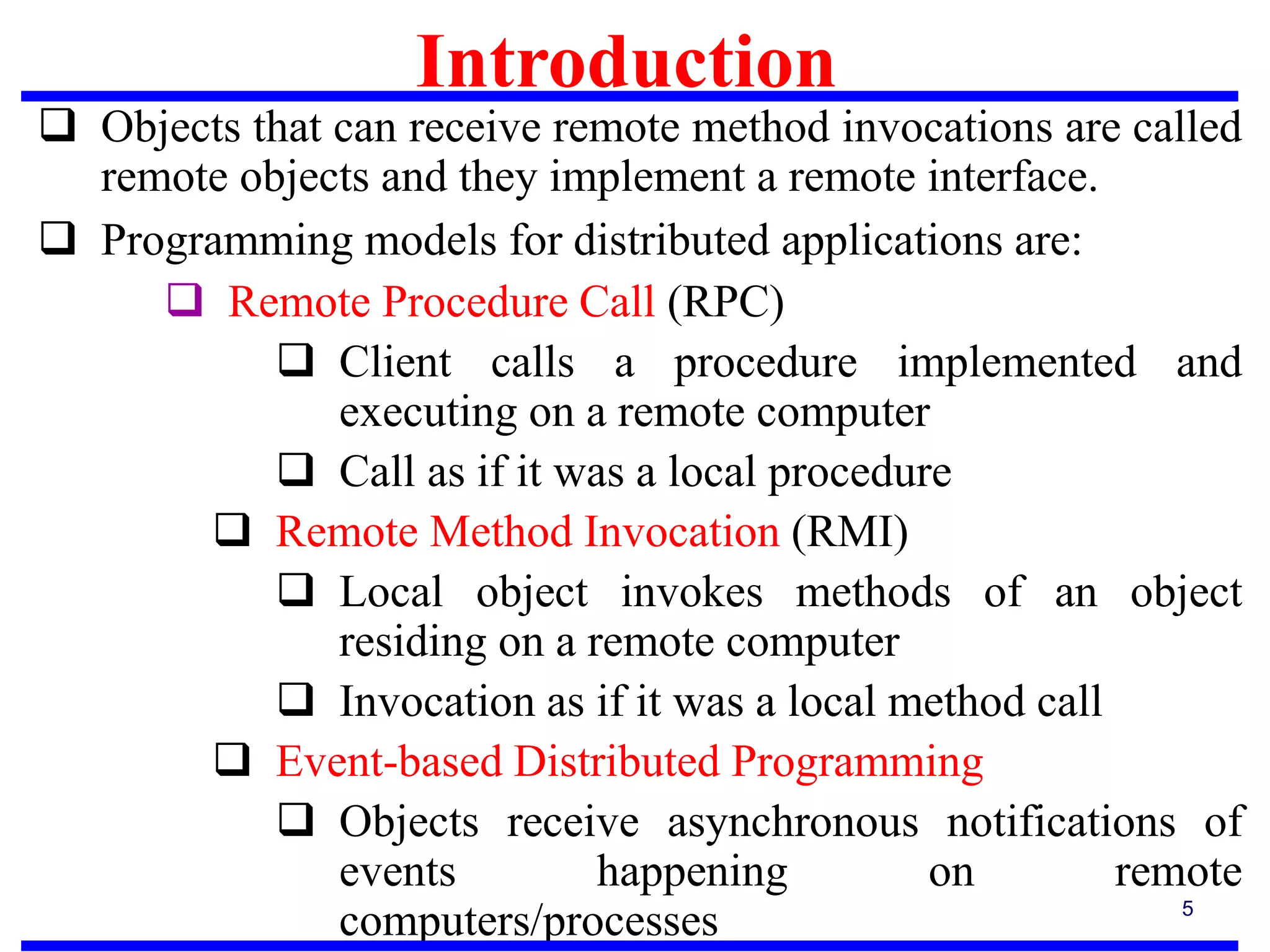

Introduction
5
 Objects that can receive remote method invocations are called
remote objects and they implement a remote interface.
 Programming models for distributed applications are:
 Remote Procedure Call (RPC)
 Client calls a procedure implemented and
executing on a remote computer
 Call as if it was a local procedure
 Remote Method Invocation (RMI)
 Local object invokes methods of an object
residing on a remote computer
 Invocation as if it was a local method call
 Event-based Distributed Programming
 Objects receive asynchronous notifications of
events happening on remote
computers/processes

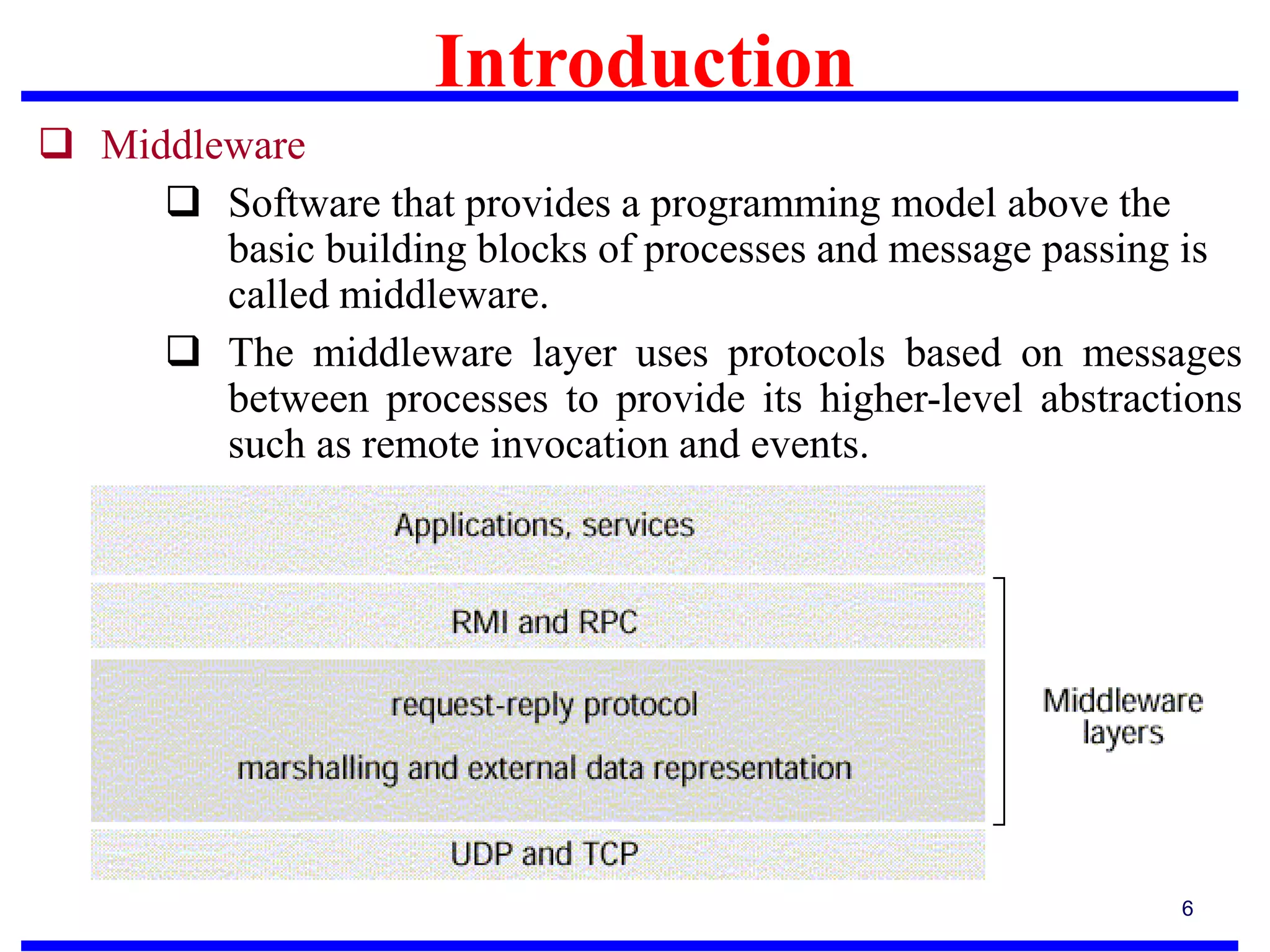

Introduction
6

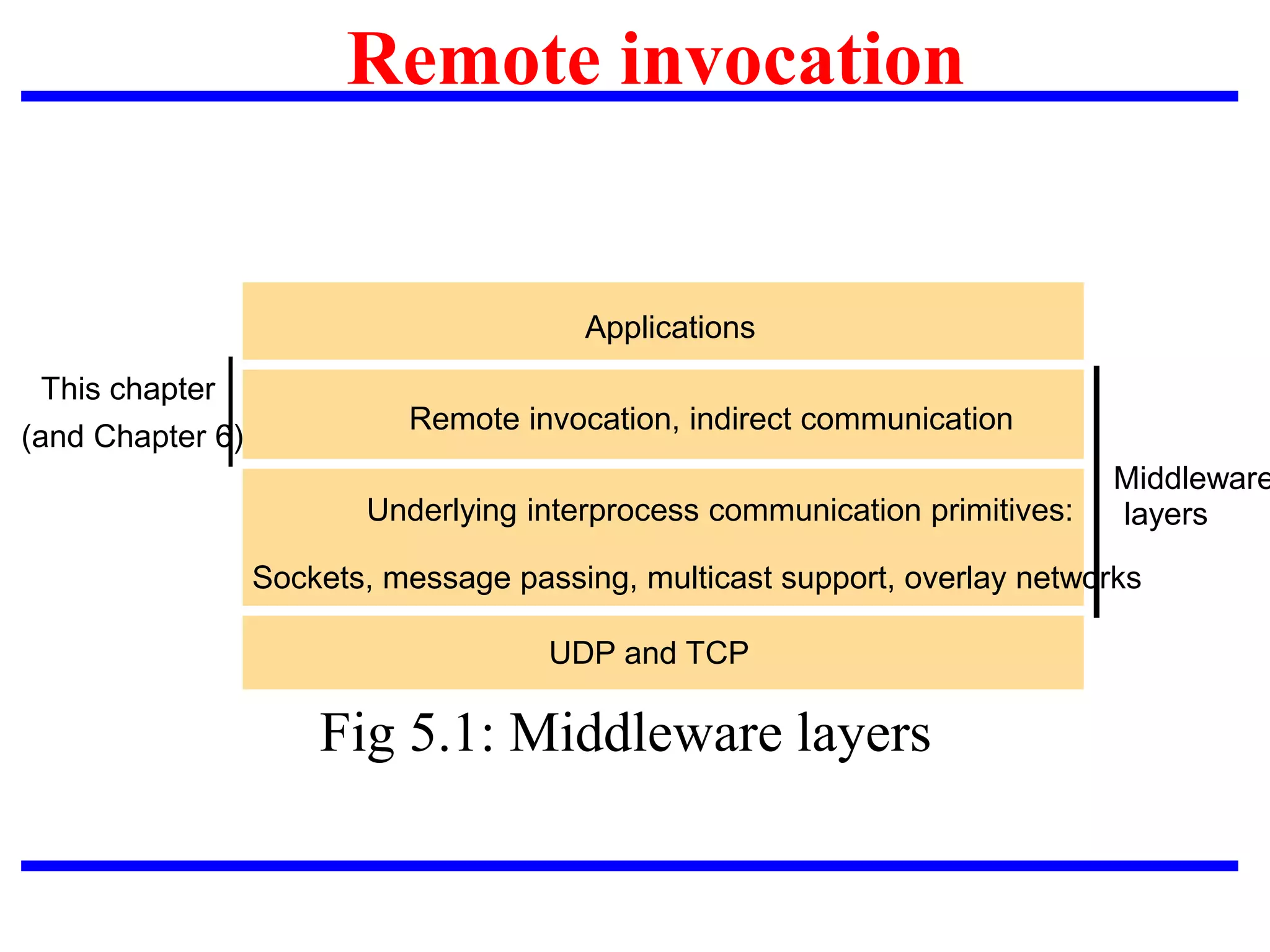

 Middleware
 Software that provides a programming model above the
basic building blocks of processes and message passing is
called middleware.
 The middleware layer uses protocols based on messages
between processes to provide its higher-level abstractions
such as remote invocation and events.

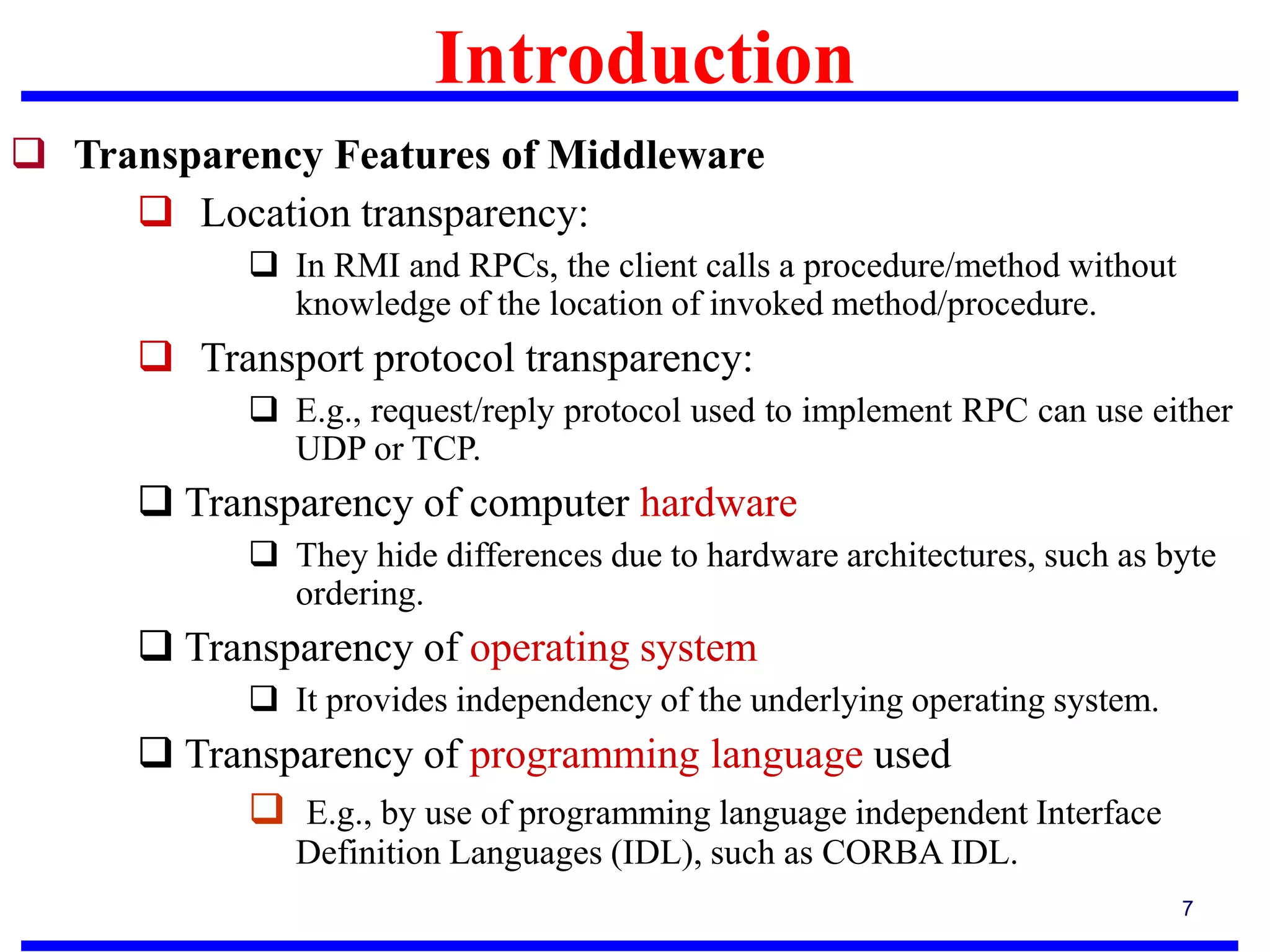

Introduction
7
 Transparency Features of Middleware
 Location transparency:
 In RMI and RPCs, the client calls a procedure/method without
knowledge of the location of invoked method/procedure.
 Transport protocol transparency:
 E.g., request/reply protocol used to implement RPC can use either
UDP or TCP.
 Transparency of computer hardware
 They hide differences due to hardware architectures, such as byte
ordering.
 Transparency of operating system
 It provides independency of the underlying operating system.
 Transparency of programming language used
 E.g., by use of programming language independent Interface
Definition Languages (IDL), such as CORBA IDL.

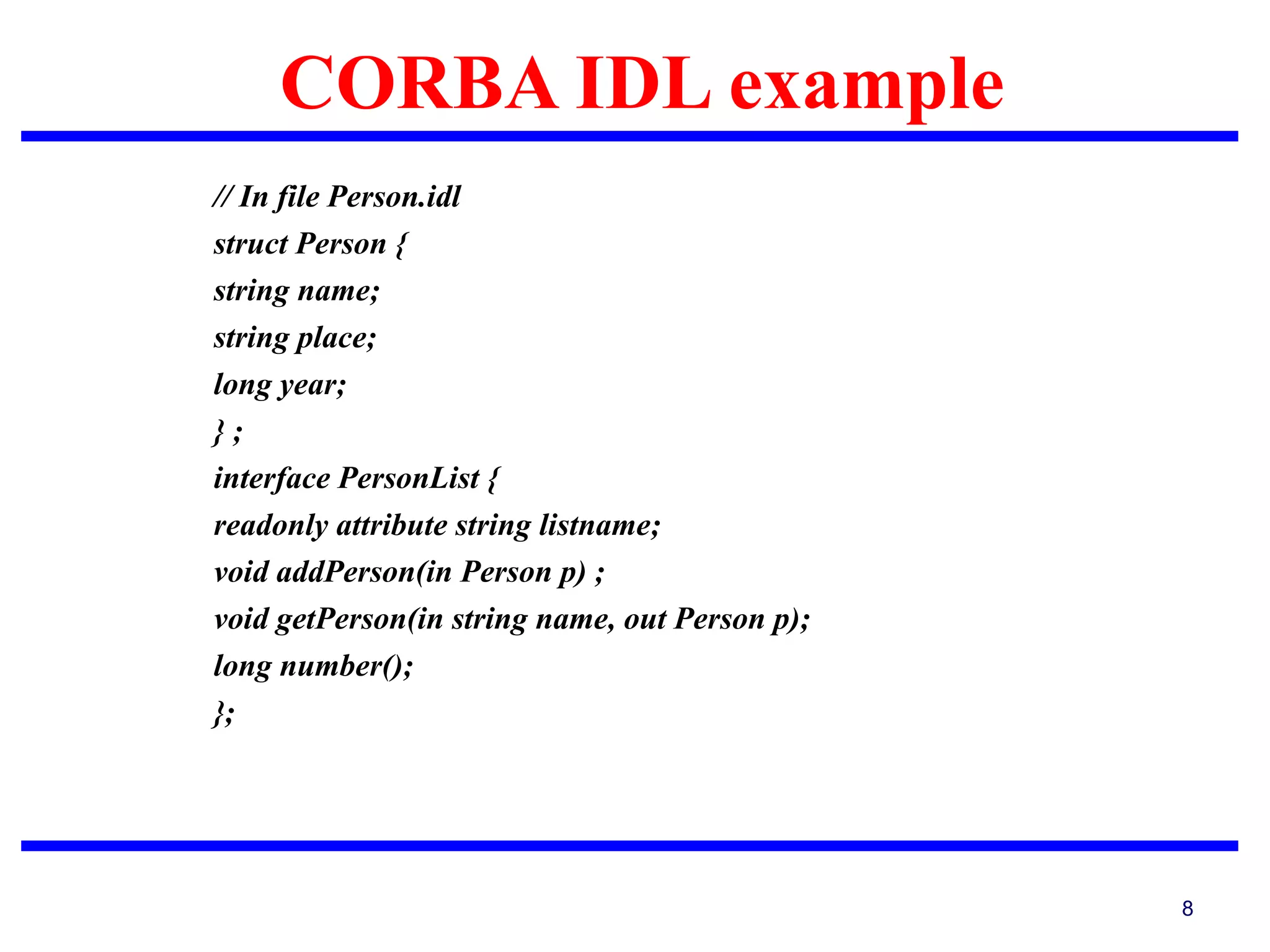

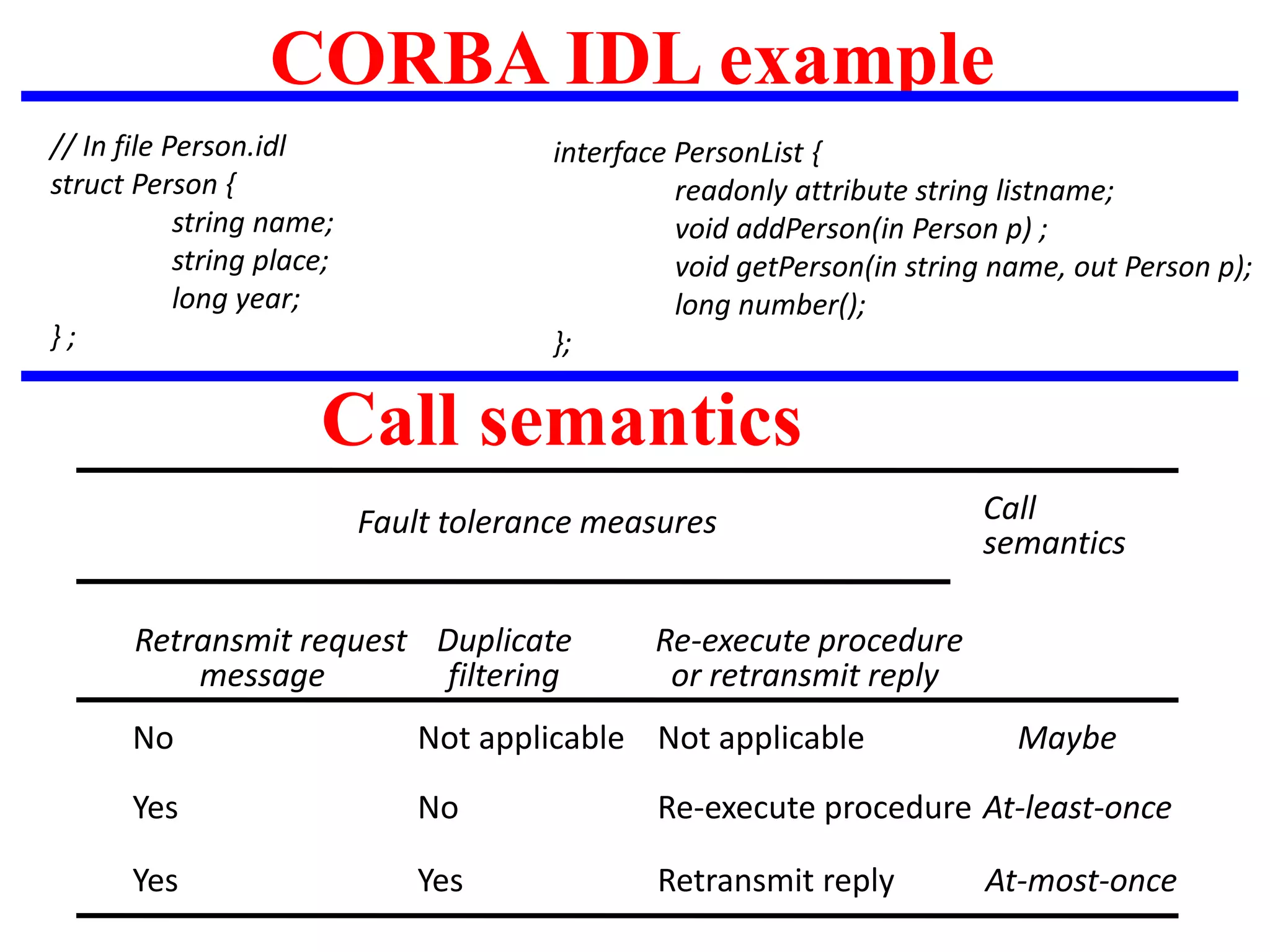

CORBA IDL example
8
// In file Person.idl
struct Person {
string name;
string place;
long year;
} ;
interface PersonList {
readonly attribute string listname;
void addPerson(in Person p) ;
void getPerson(in string name, out Person p);
long number();
};

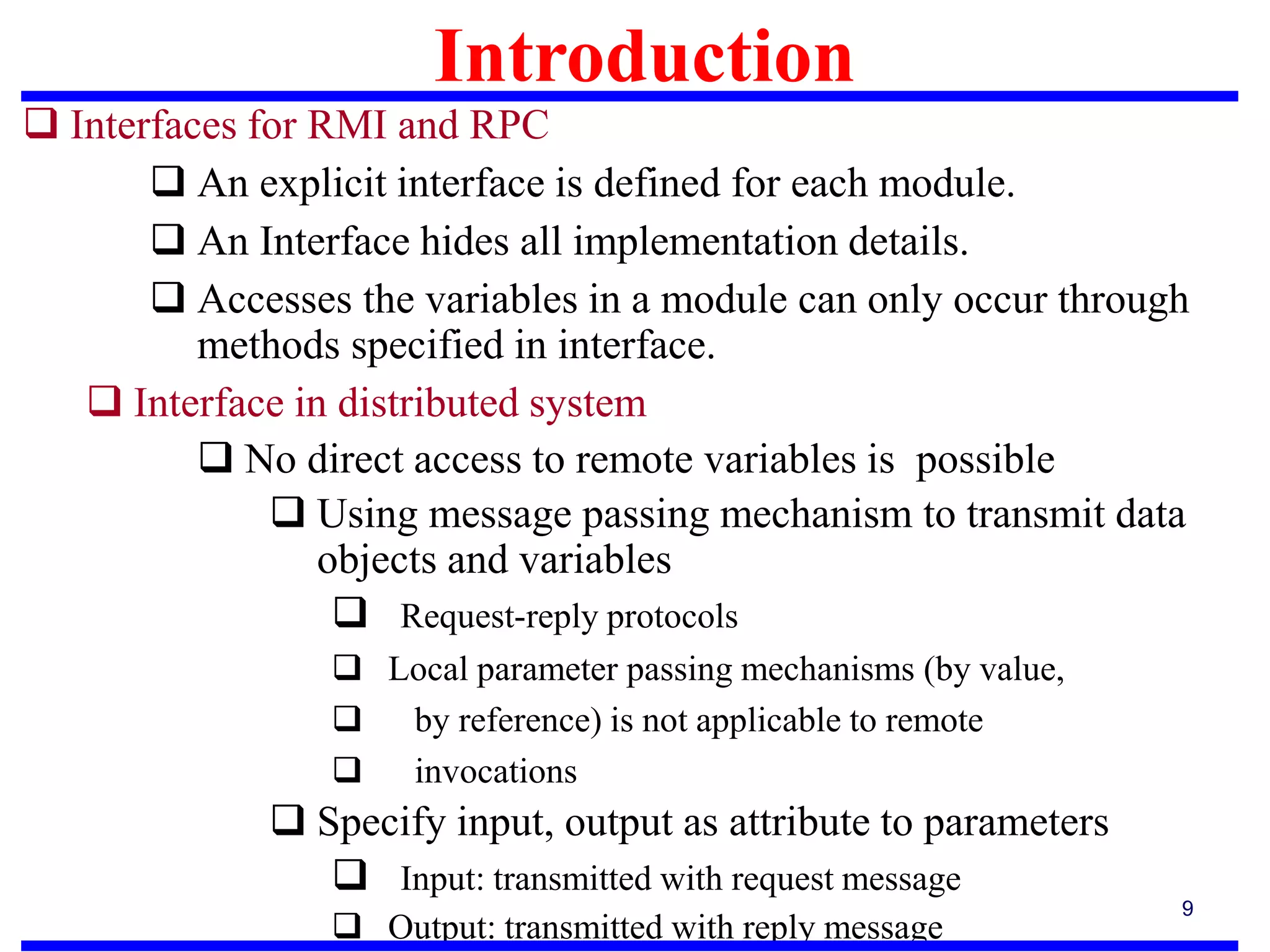

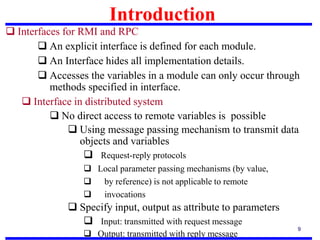

Introduction
9
 Interfaces for RMI and RPC
 An explicit interface is defined for each module.
 An Interface hides all implementation details.
 Accesses the variables in a module can only occur through
methods specified in interface.
 Interface in distributed system
 No direct access to remote variables is possible
 Using message passing mechanism to transmit data
objects and variables
 Request-reply protocols
 Local parameter passing mechanisms (by value,
 by reference) is not applicable to remote
 invocations
 Specify input, output as attribute to parameters
 Input: transmitted with request message
 Output: transmitted with reply message

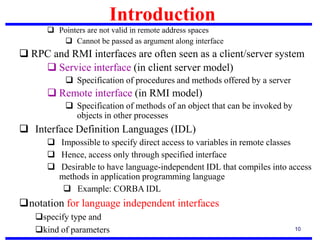

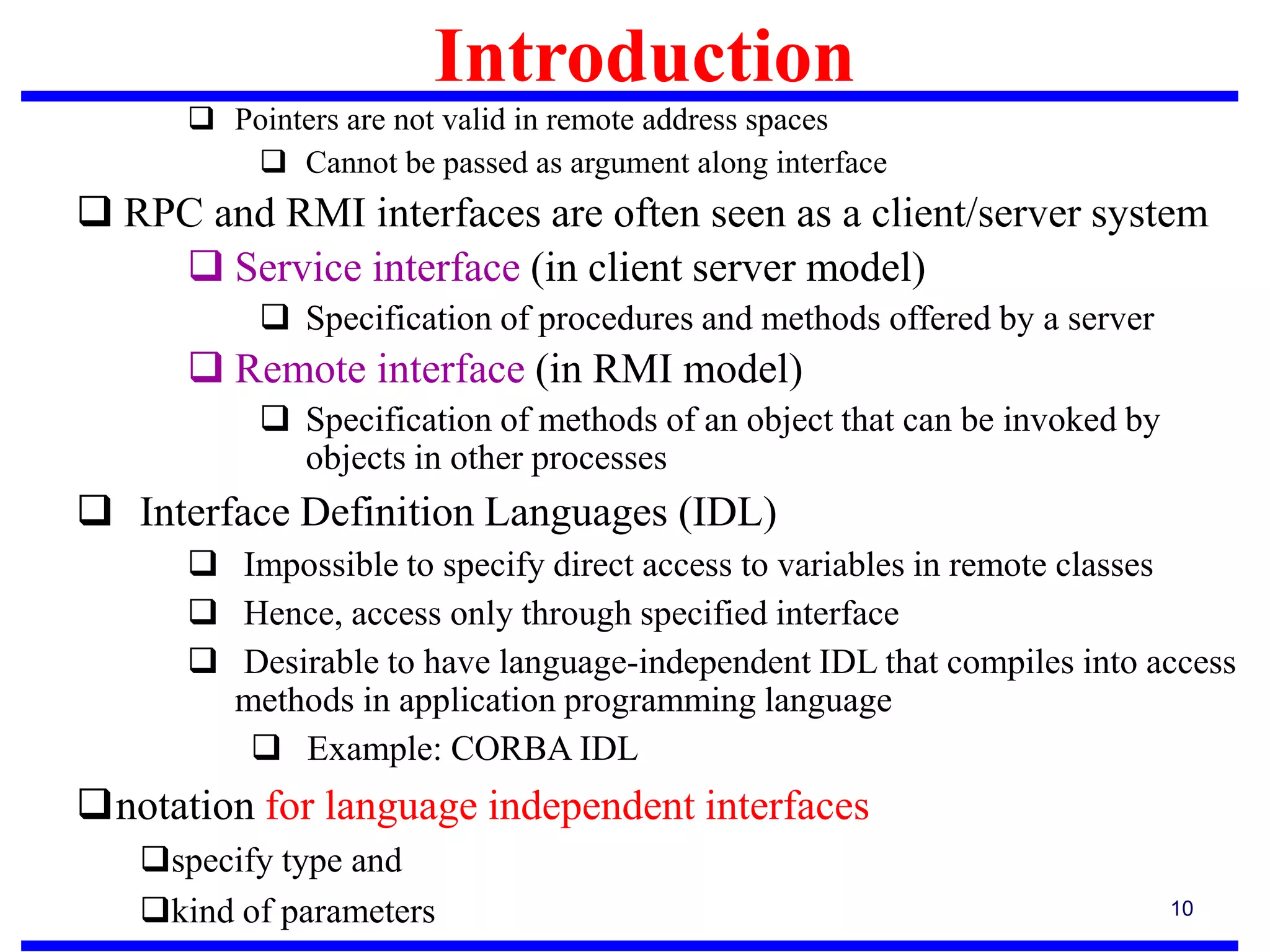

10
 Pointers are not valid in remote address spaces
 Cannot be passed as argument along interface
 RPC and RMI interfaces are often seen as a client/server system
 Service interface (in client server model)
 Specification of procedures and methods offered by a server
 Remote interface (in RMI model)
 Specification of methods of an object that can be invoked by
objects in other processes
 Interface Definition Languages (IDL)
 Impossible to specify direct access to variables in remote classes
 Hence, access only through specified interface
 Desirable to have language-independent IDL that compiles into access
methods in application programming language
 Example: CORBA IDL
notation for language independent interfaces
specify type and
kind of parameters
Introduction

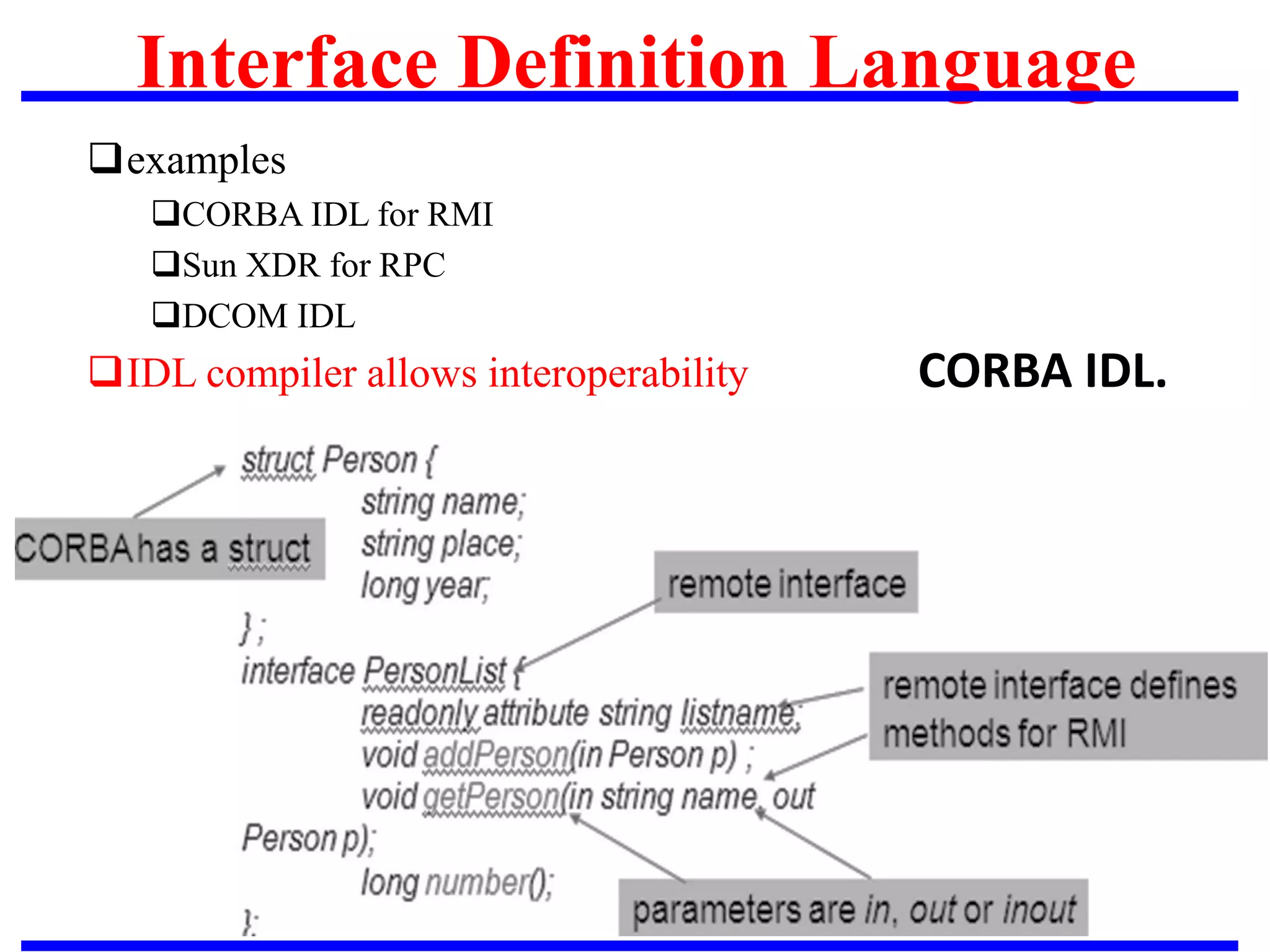

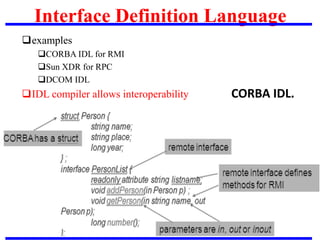

Interface Definition Language
examples
CORBA IDL for RMI
Sun XDR for RPC
DCOM IDL
IDL compiler allows interoperability CORBA IDL.

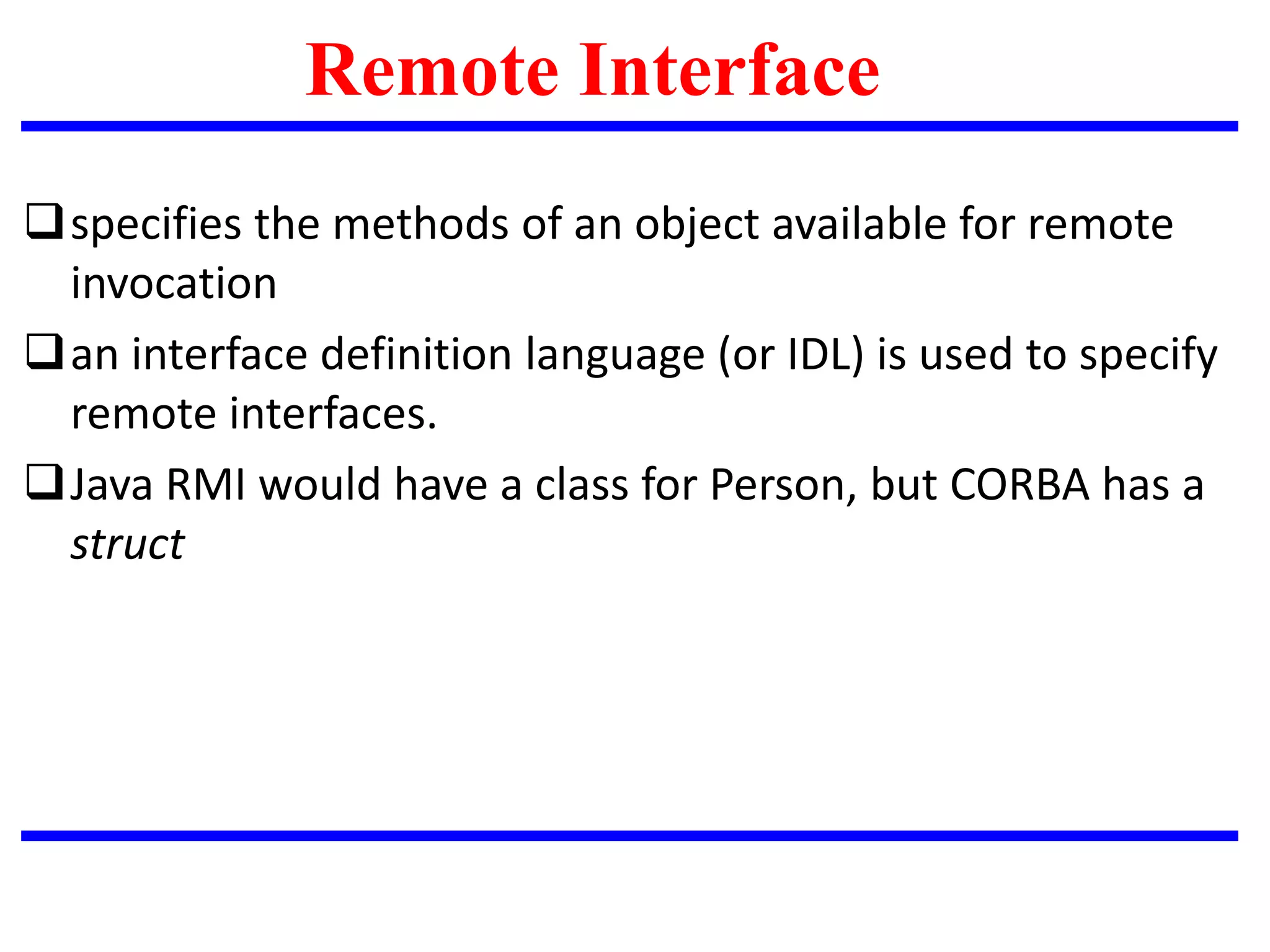

specifies the methods of an object available for remote
invocation
an interface definition language (or IDL) is used to specify
remote interfaces.
Java RMI would have a class for Person, but CORBA has a
struct
Remote Interface

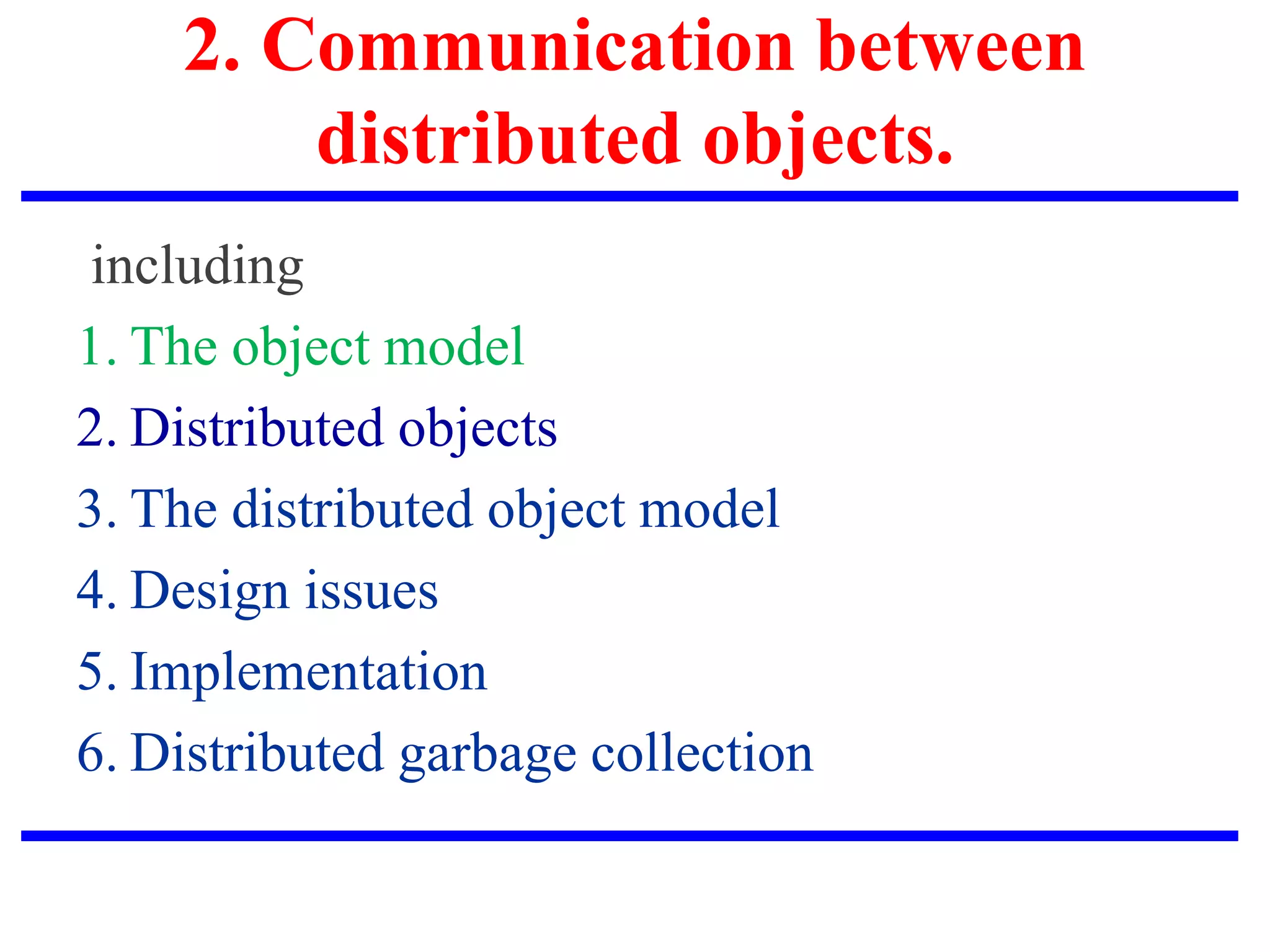

2. Communication between
distributed objects.
including
1. The object model
2. Distributed objects
3. The distributed object model
4. Design issues
5. Implementation
6. Distributed garbage collection

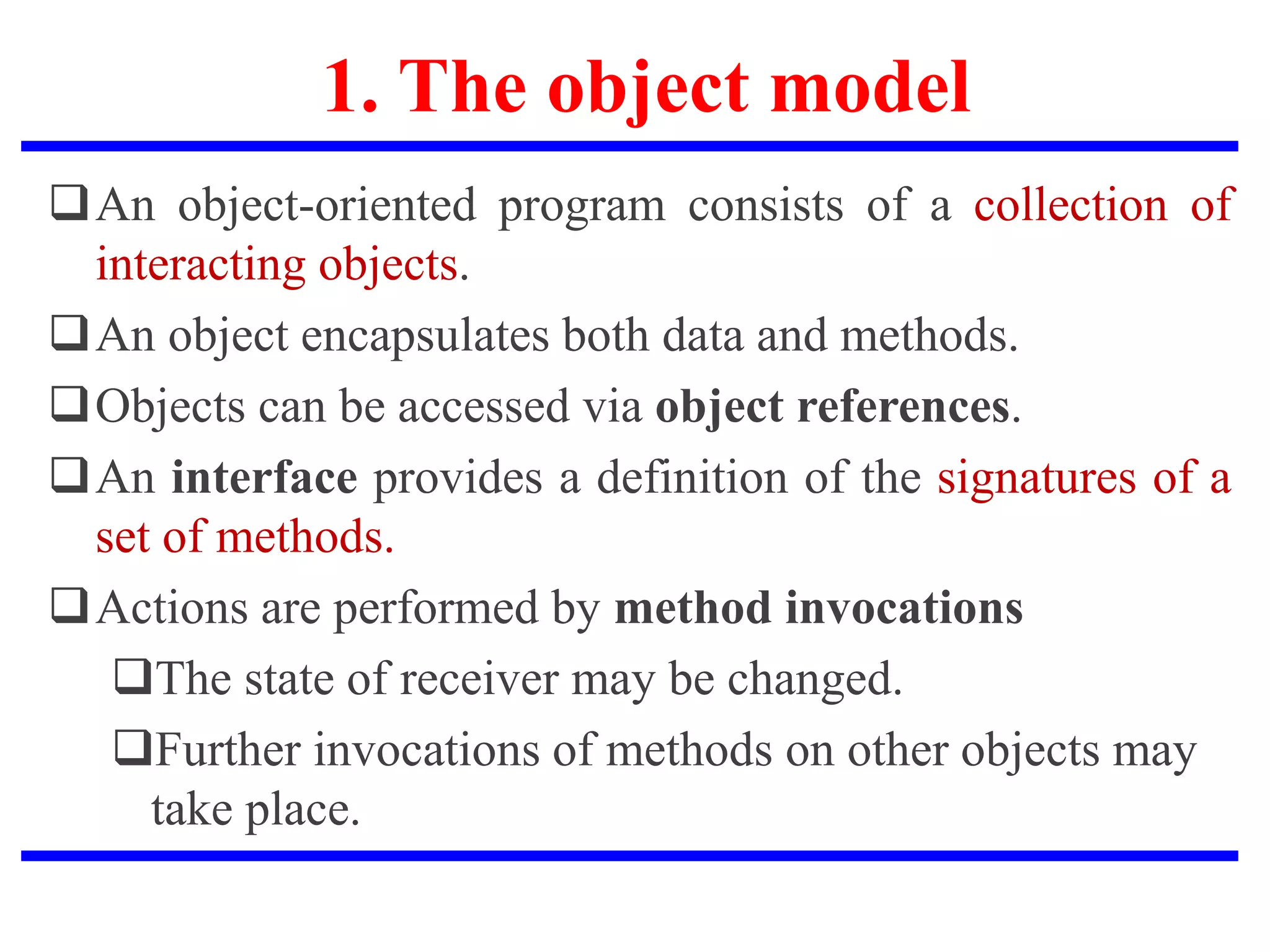

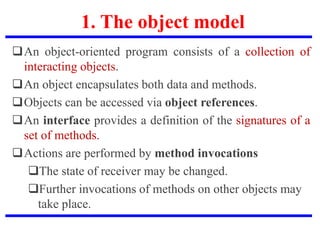

1. The object model
An object-oriented program consists of a collection of
interacting objects.
An object encapsulates both data and methods.
Objects can be accessed via object references.
An interface provides a definition of the signatures of a
set of methods.
Actions are performed by method invocations
The state of receiver may be changed.
Further invocations of methods on other objects may
take place.

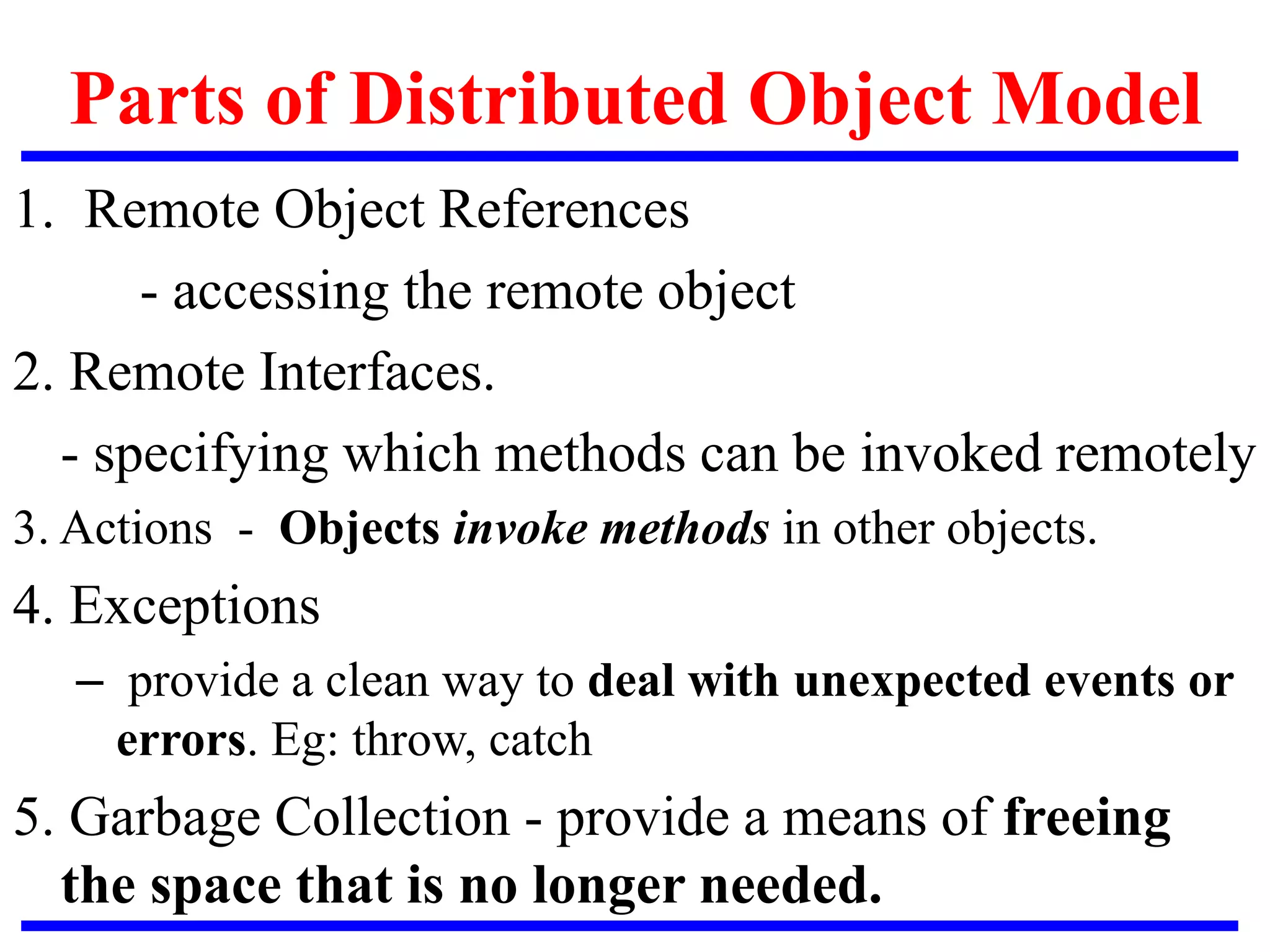

Parts of Distributed Object Model
1. Remote Object References
- accessing the remote object
2. Remote Interfaces.
- specifying which methods can be invoked remotely
3. Actions - Objects invoke methods in other objects.
4. Exceptions
– provide a clean way to deal with unexpected events or
errors. Eg: throw, catch
5. Garbage Collection - provide a means of freeing
the space that is no longer needed.

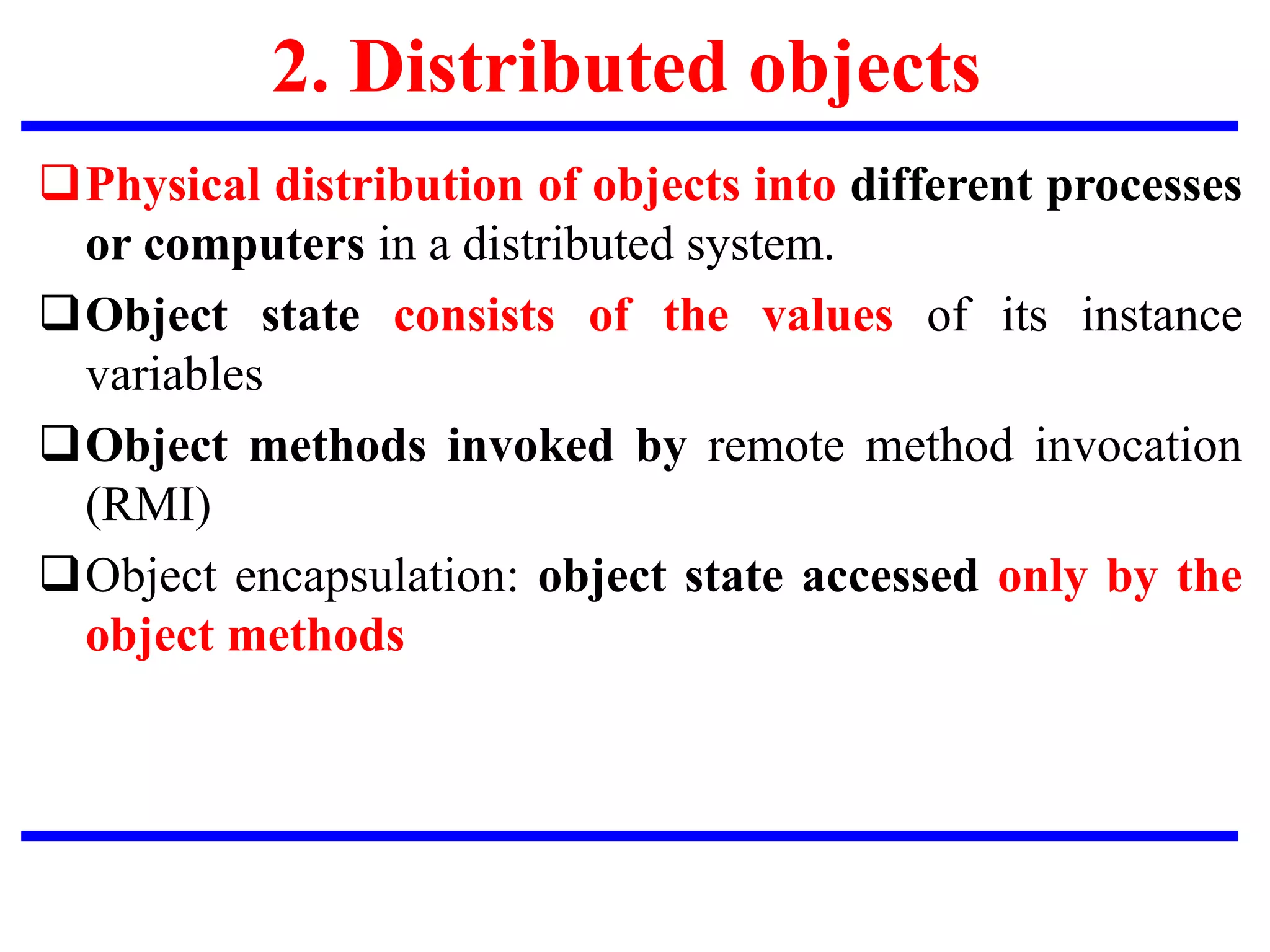

2. Distributed objects
Physical distribution of objects into different processes
or computers in a distributed system.
Object state consists of the values of its instance
variables
Object methods invoked by remote method invocation
(RMI)
Object encapsulation: object state accessed only by the
object methods

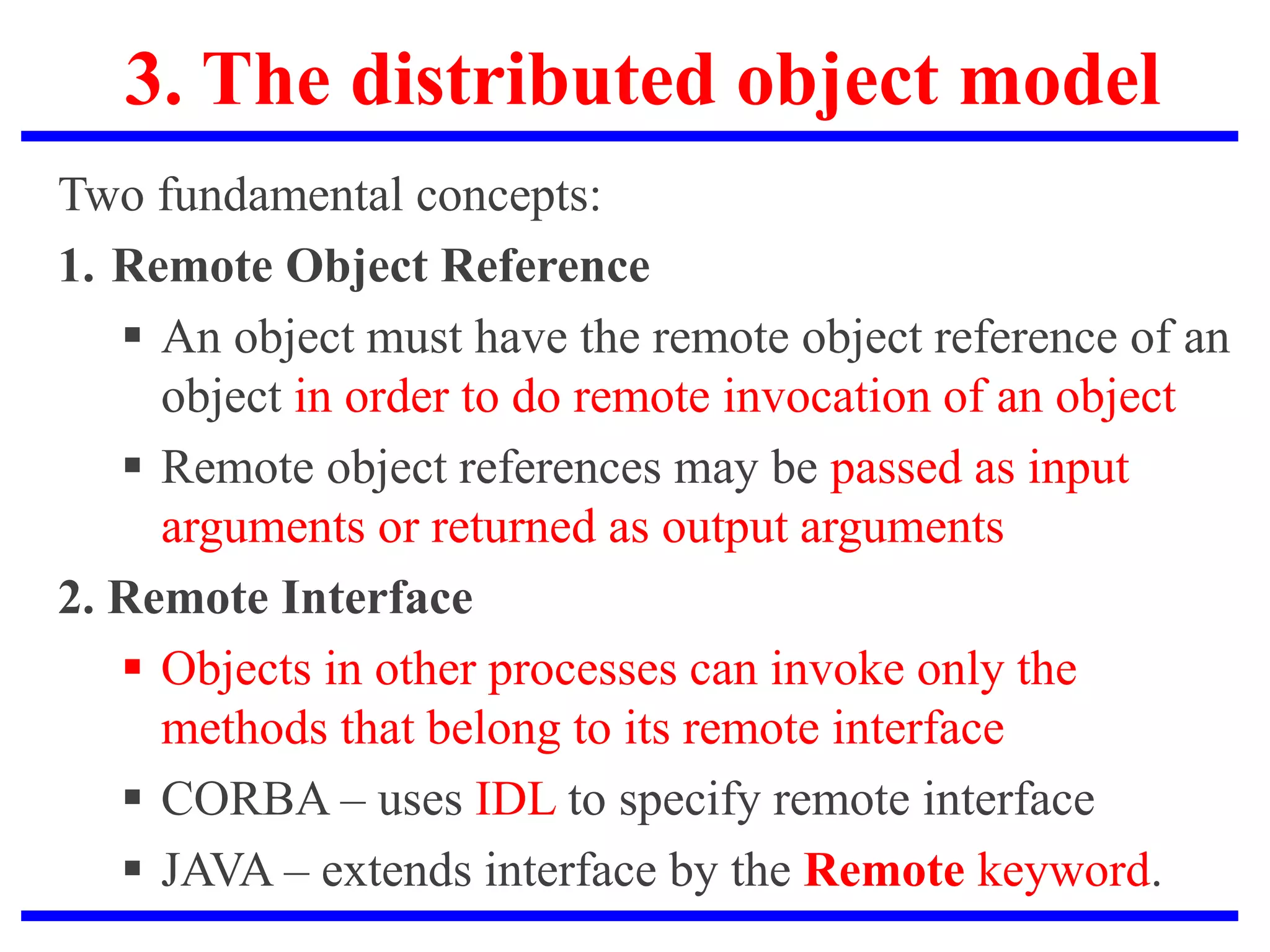

3. The distributed object model
Two fundamental concepts:
1. Remote Object Reference
 An object must have the remote object reference of an
object in order to do remote invocation of an object
 Remote object references may be passed as input
arguments or returned as output arguments
2. Remote Interface
 Objects in other processes can invoke only the
methods that belong to its remote interface
 CORBA – uses IDL to specify remote interface
 JAVA – extends interface by the Remote keyword.

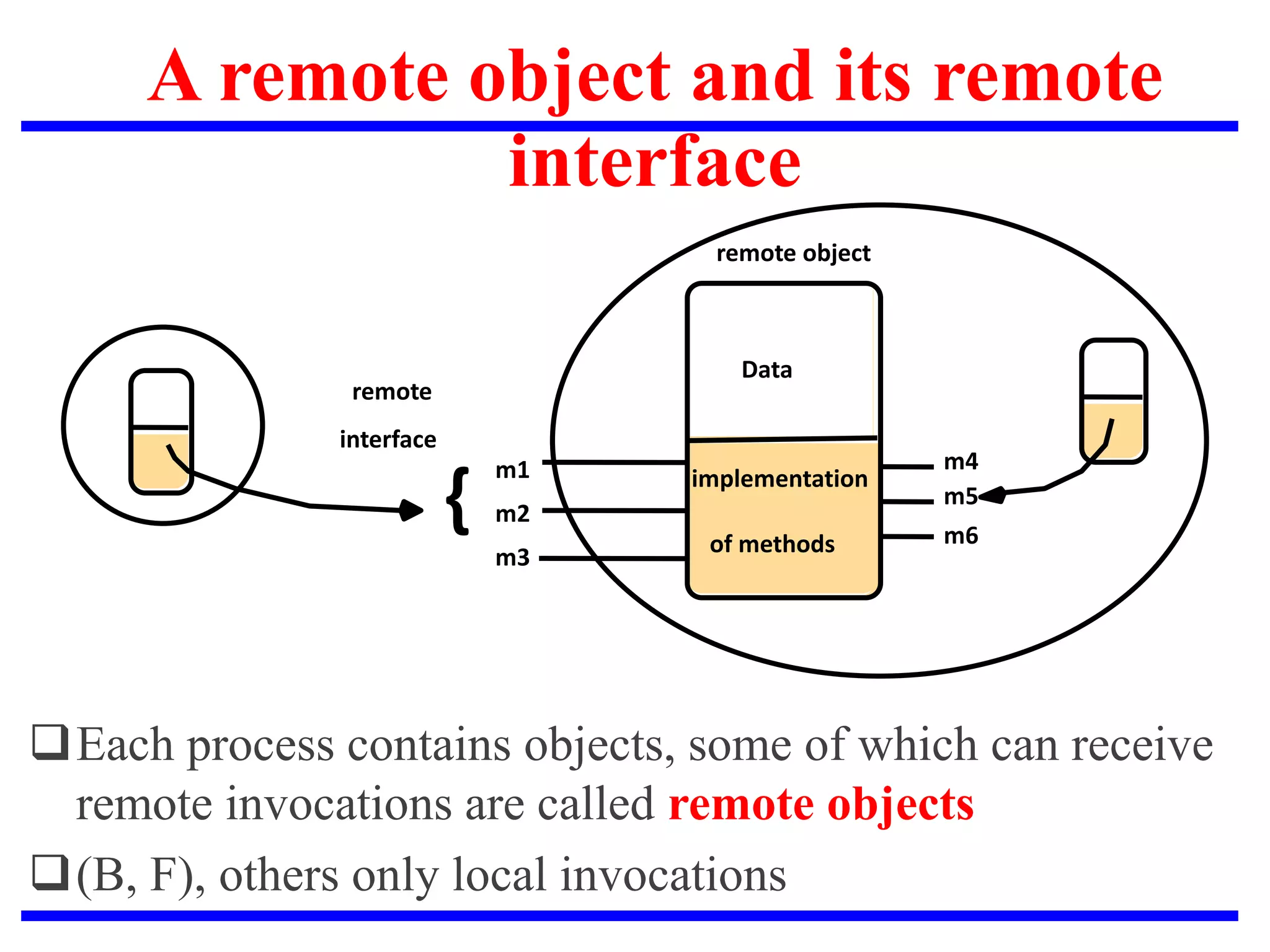

interface
remote
m1
m2
m3
m4
m5
m6
Data
implementation
remote object
{ of methods
A remote object and its remote
interface
Each process contains objects, some of which can receive
remote invocations are called remote objects
(B, F), others only local invocations

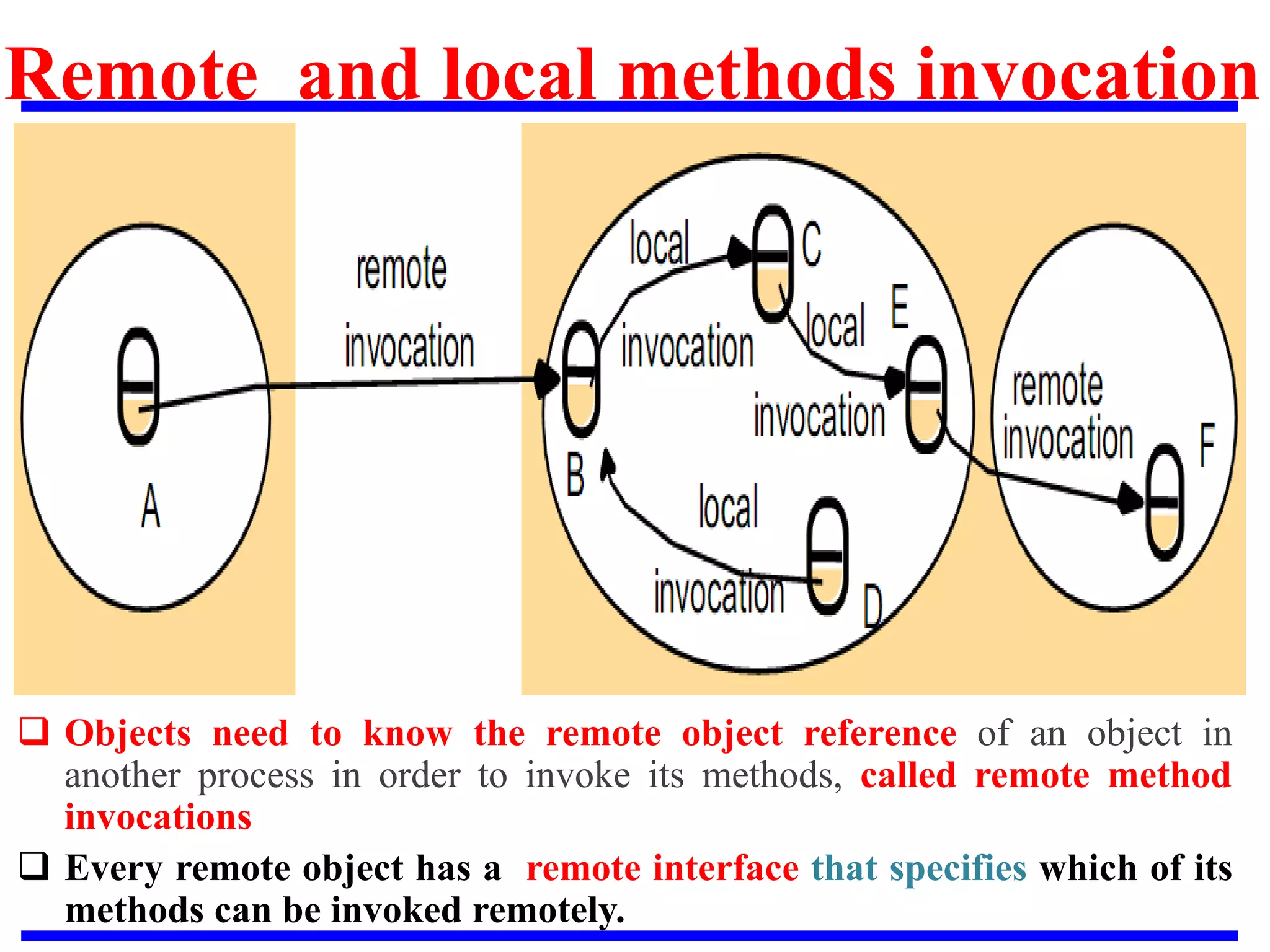

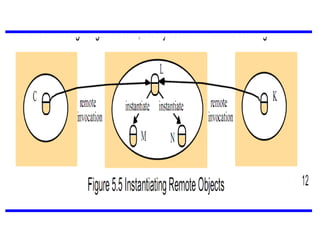

Remote and local methods invocation
 Objects need to know the remote object reference of an object in
another process in order to invoke its methods, called remote method
invocations
 Every remote object has a remote interface that specifies which of its
methods can be invoked remotely.

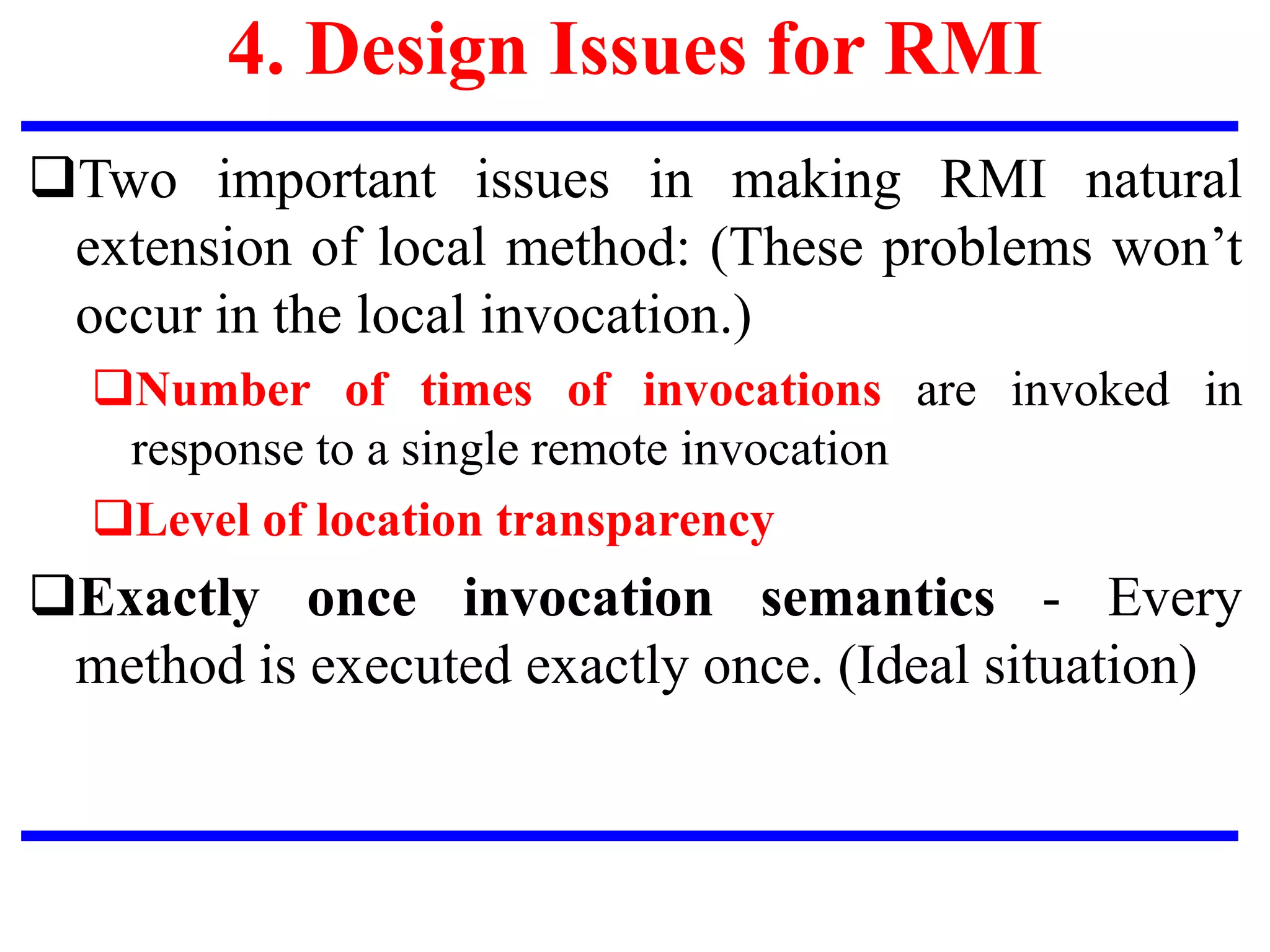

4. Design Issues for RMI
Two important issues in making RMI natural
extension of local method: (These problems won’t
occur in the local invocation.)
Number of times of invocations are invoked in
response to a single remote invocation
Level of location transparency
Exactly once invocation semantics - Every
method is executed exactly once. (Ideal situation)

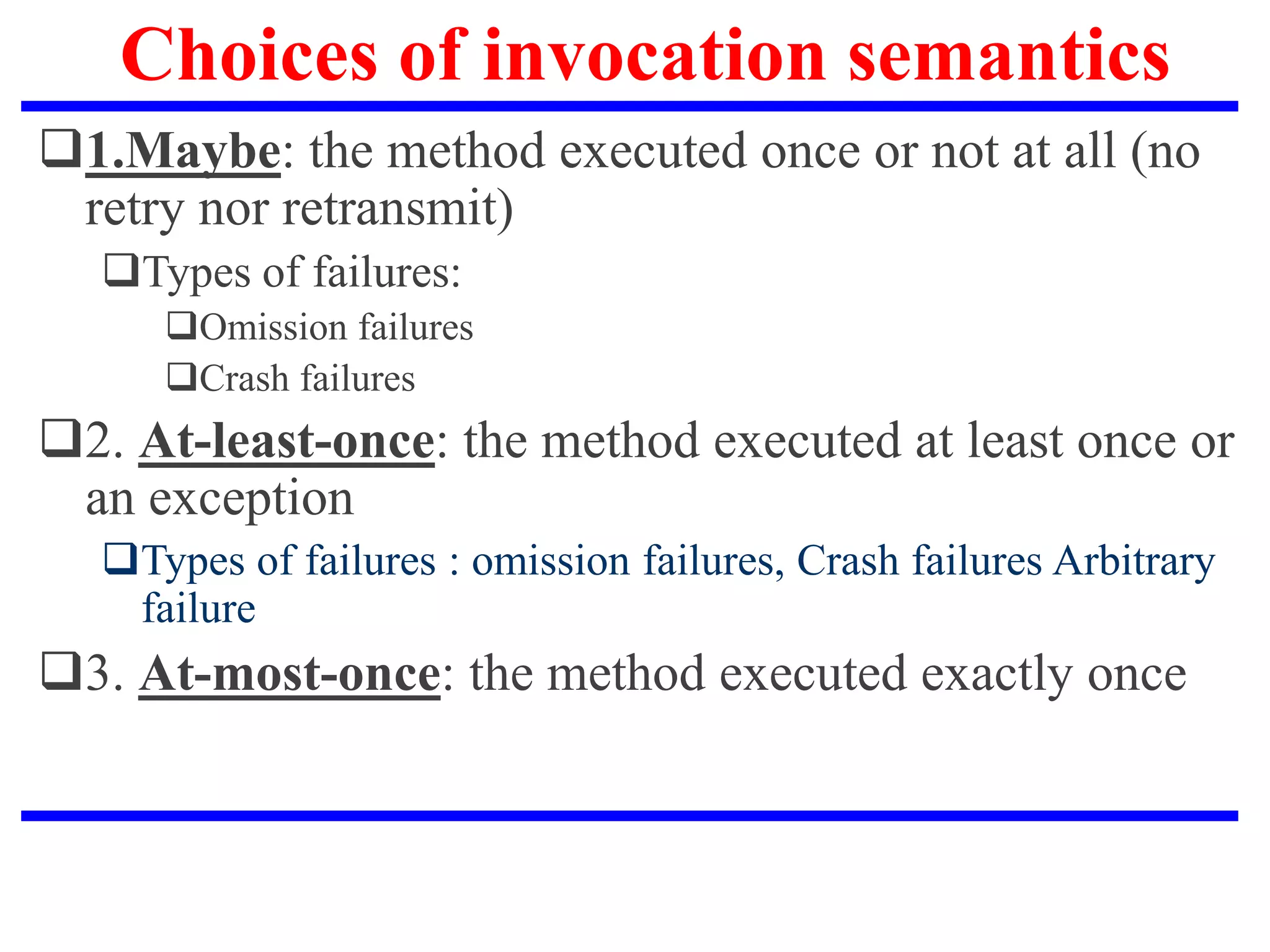

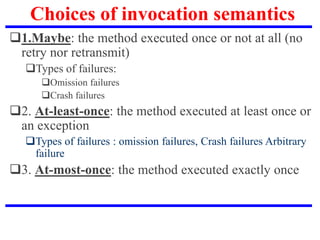

Choices of invocation semantics
1.Maybe: the method executed once or not at all (no
retry nor retransmit)
Types of failures:
Omission failures
Crash failures
2. At-least-once: the method executed at least once or
an exception
Types of failures : omission failures, Crash failures Arbitrary
failure
3. At-most-once: the method executed exactly once

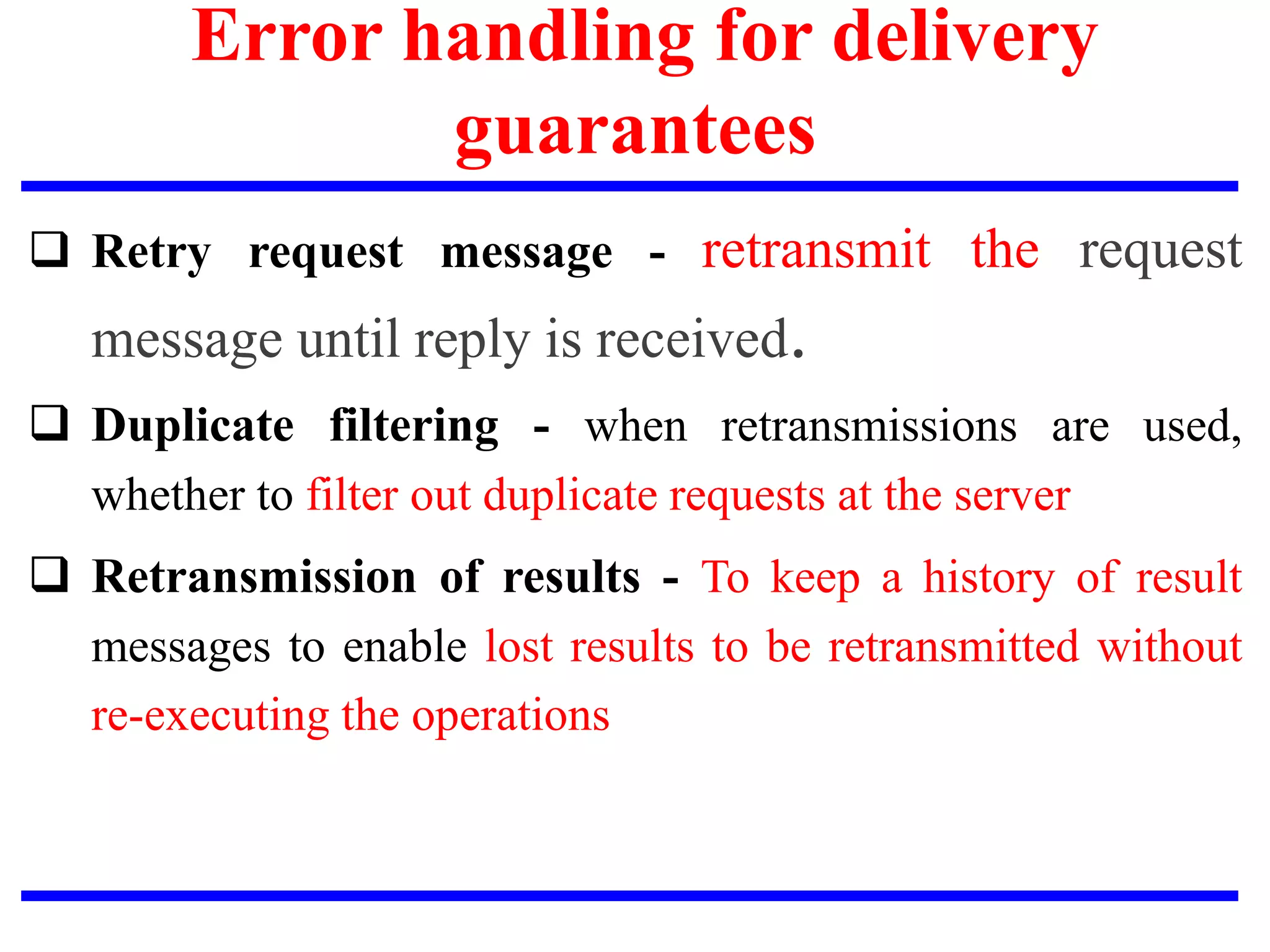

Error handling for delivery
guarantees
 Retry request message - retransmit the request
message until reply is received.
 Duplicate filtering - when retransmissions are used,
whether to filter out duplicate requests at the server
 Retransmission of results - To keep a history of result
messages to enable lost results to be retransmitted without
re-executing the operations

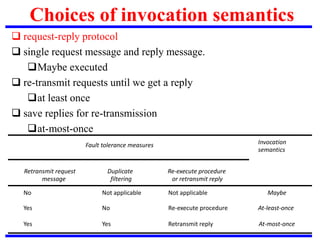

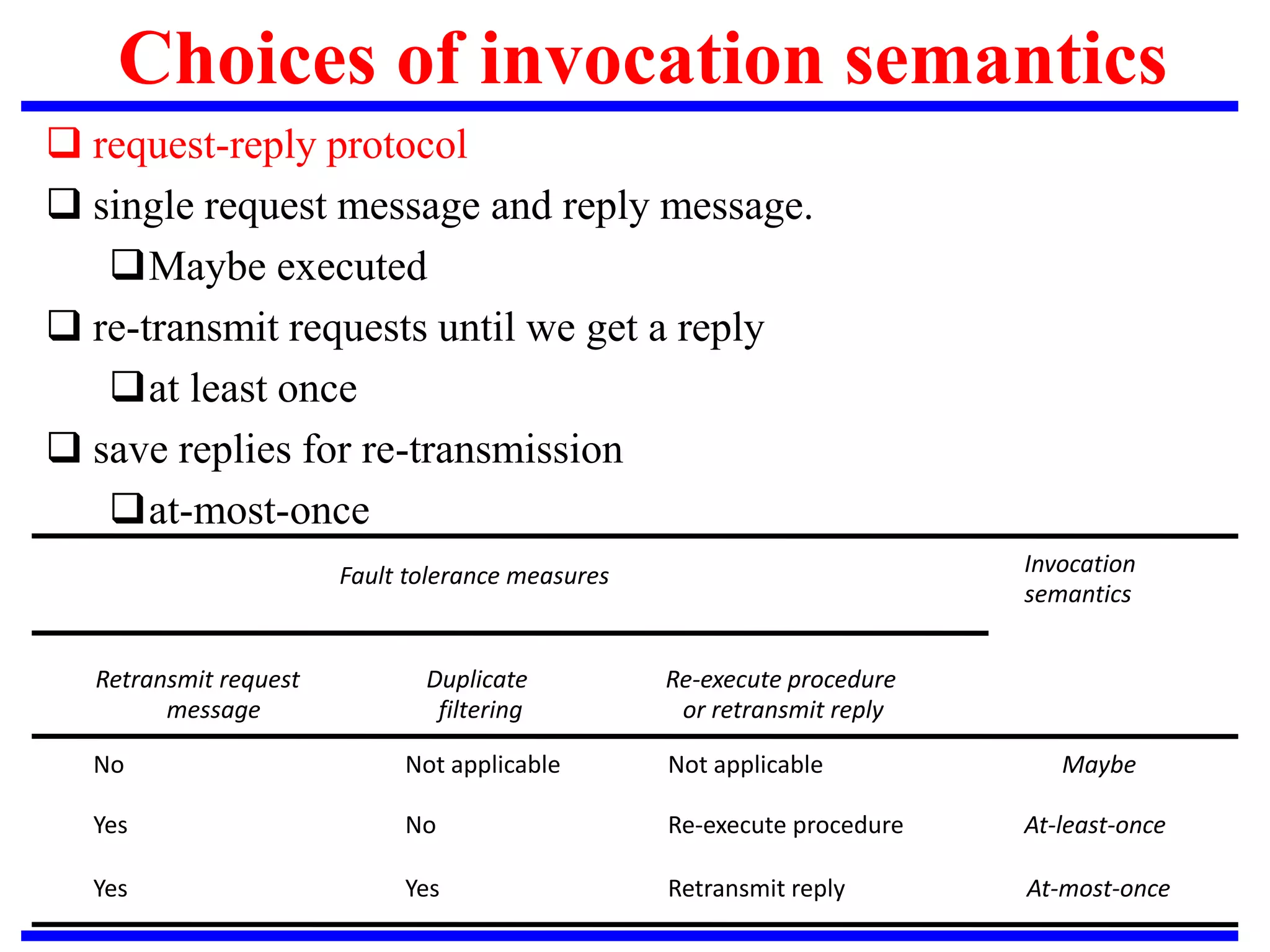

 request-reply protocol
 single request message and reply message.
Maybe executed
 re-transmit requests until we get a reply
at least once
 save replies for re-transmission
at-most-once
Choices of invocation semantics
Fault tolerance measures Invocation
semantics
Retransmit request
message
Duplicate
filtering
Re-execute procedure
or retransmit reply
No
Yes
Yes
Not applicable
No
Yes
Not applicable
Retransmit reply At-most-once
At-least-once
Maybe

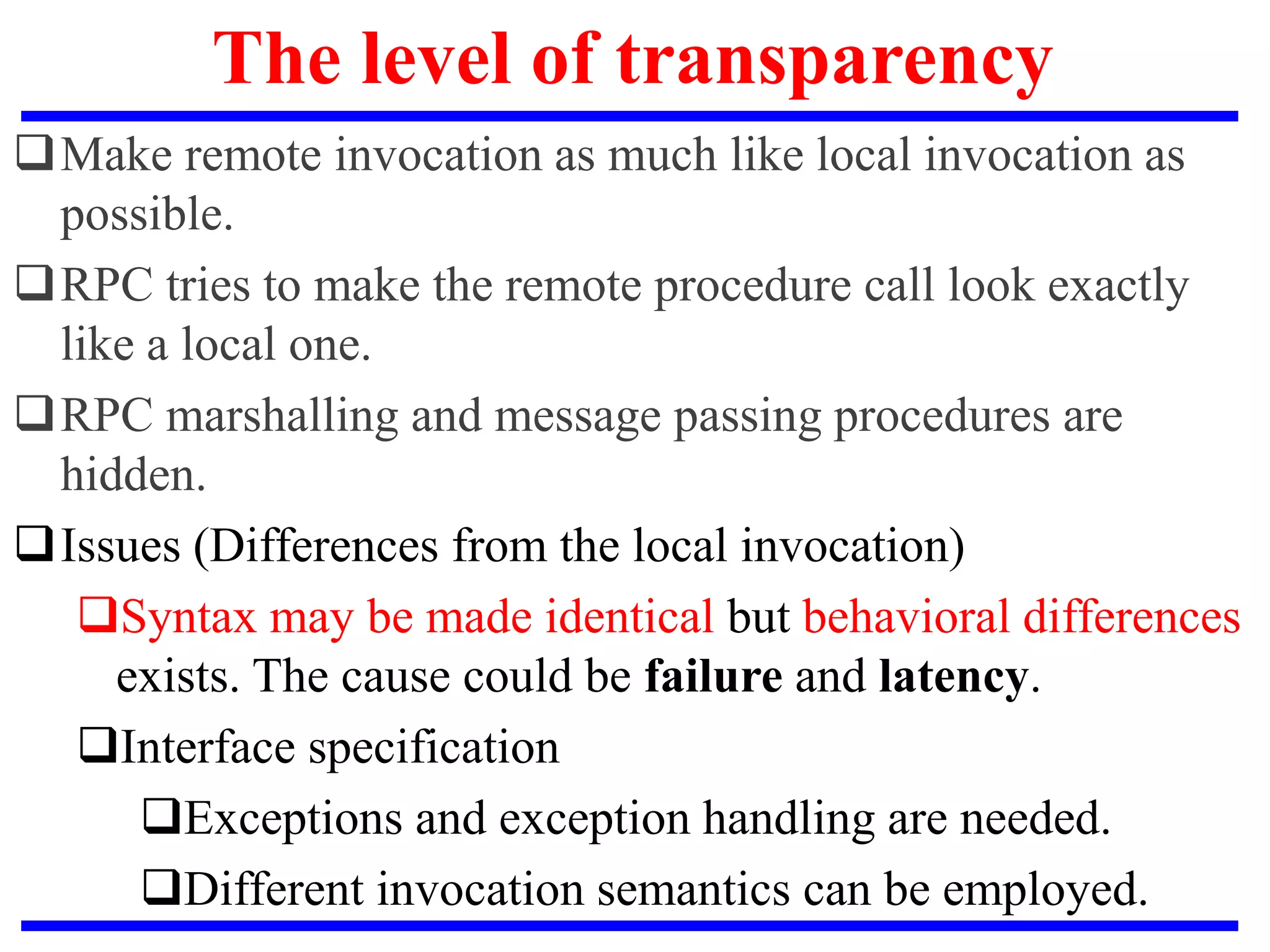

The level of transparency
Make remote invocation as much like local invocation as
possible.
RPC tries to make the remote procedure call look exactly
like a local one.
RPC marshalling and message passing procedures are
hidden.
Issues (Differences from the local invocation)
Syntax may be made identical but behavioral differences
exists. The cause could be failure and latency.
Interface specification
Exceptions and exception handling are needed.
Different invocation semantics can be employed.

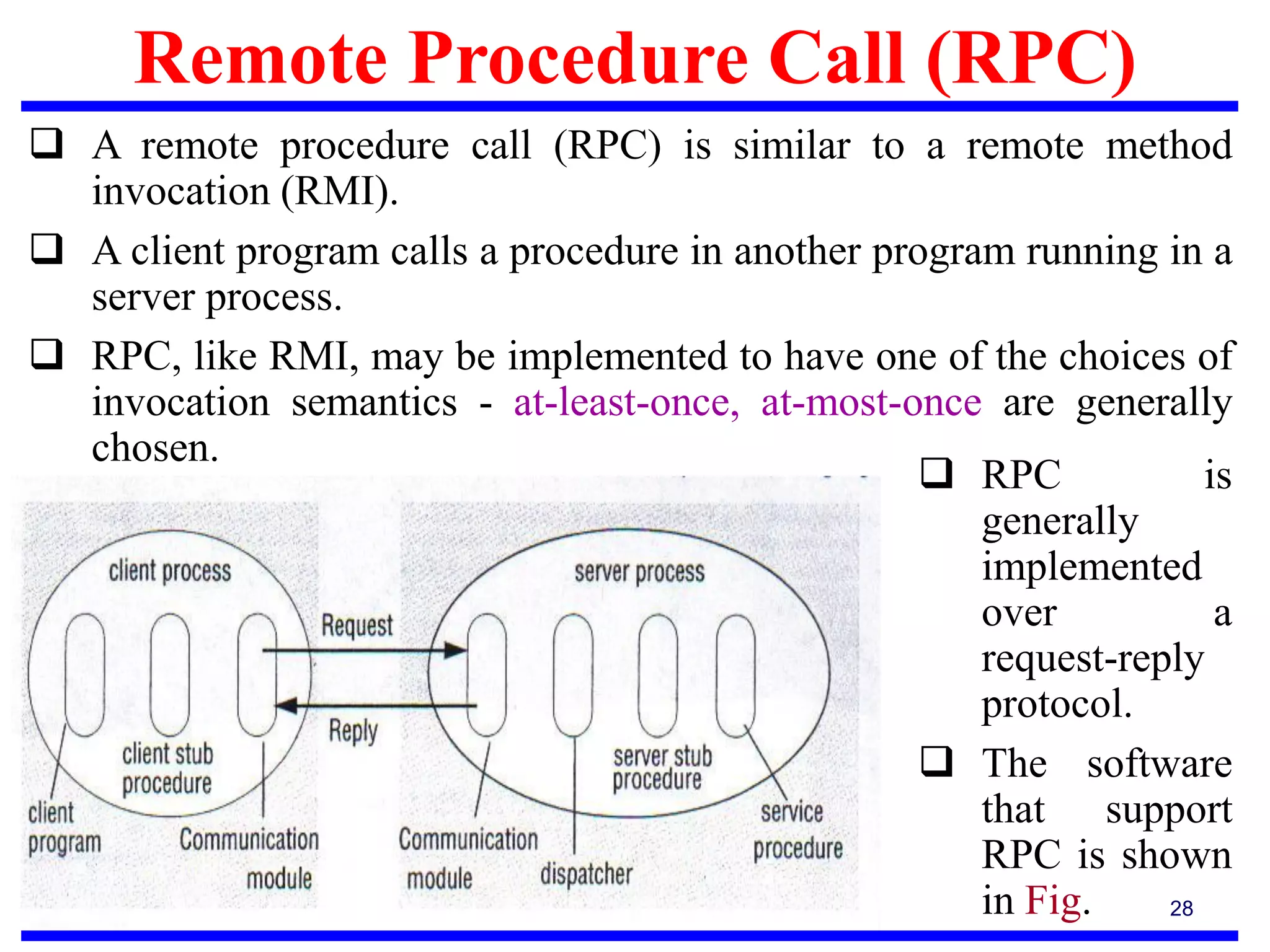

Remote Procedure Call (RPC)
28
 A remote procedure call (RPC) is similar to a remote method
invocation (RMI).
 A client program calls a procedure in another program running in a
server process.
 RPC, like RMI, may be implemented to have one of the choices of
invocation semantics - at-least-once, at-most-once are generally
chosen.
 RPC is
generally
implemented
over a
request-reply
protocol.

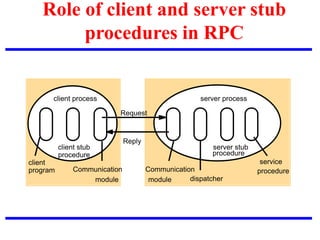

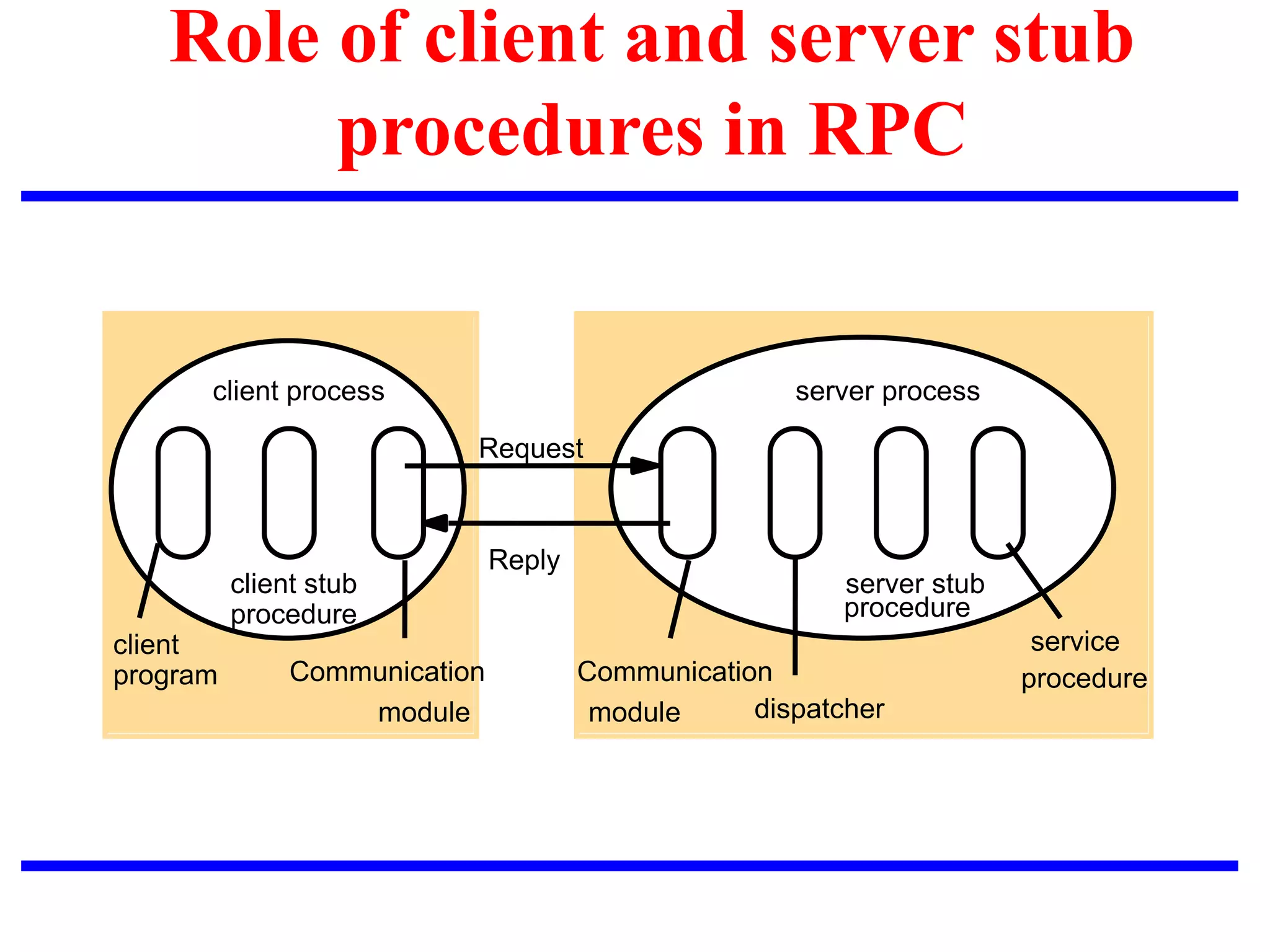

 The software
that support
RPC is shown
in Fig.

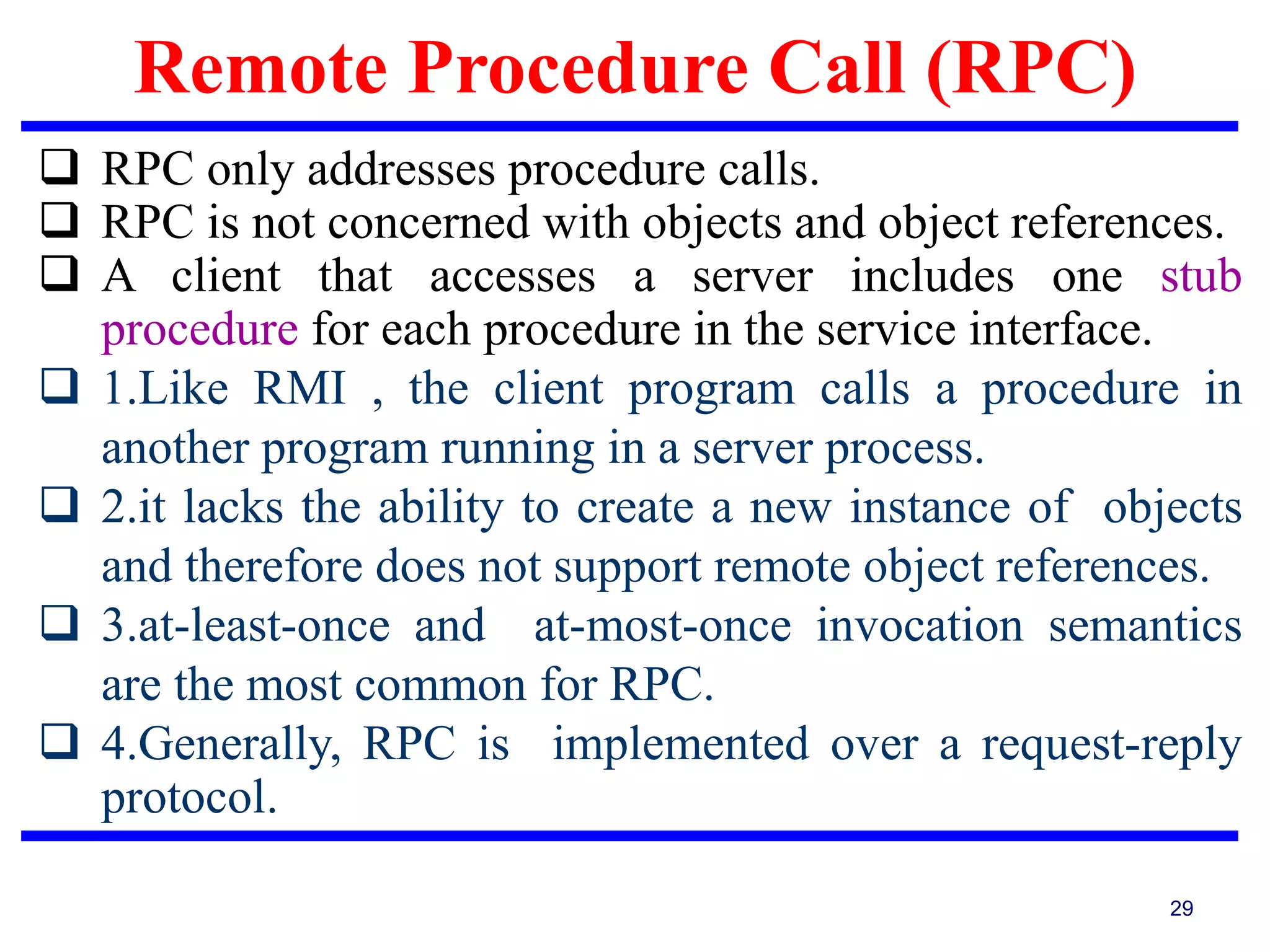

Remote Procedure Call (RPC)
29
 RPC only addresses procedure calls.
 RPC is not concerned with objects and object references.
 A client that accesses a server includes one stub
procedure for each procedure in the service interface.
 1.Like RMI , the client program calls a procedure in
another program running in a server process.
 2.it lacks the ability to create a new instance of objects
and therefore does not support remote object references.
 3.at-least-once and at-most-once invocation semantics
are the most common for RPC.
 4.Generally, RPC is implemented over a request-reply
protocol.

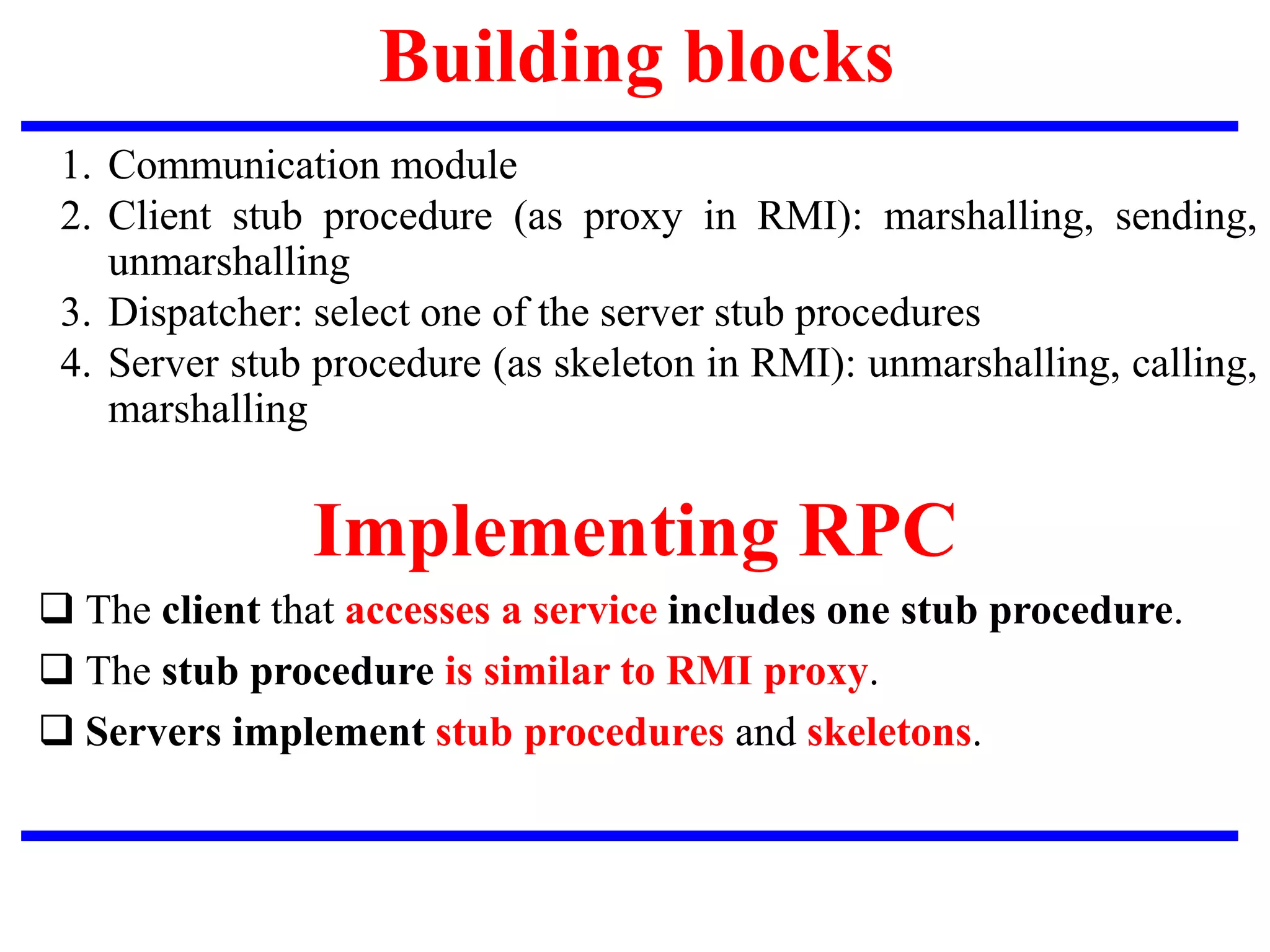

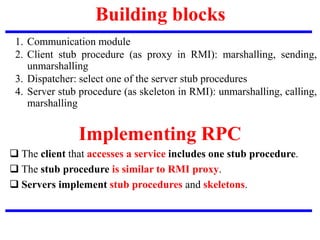

Building blocks
1. Communication module
2. Client stub procedure (as proxy in RMI): marshalling, sending,
unmarshalling
3. Dispatcher: select one of the server stub procedures
4. Server stub procedure (as skeleton in RMI): unmarshalling, calling,
marshalling
 The client that accesses a service includes one stub procedure.
 The stub procedure is similar to RMI proxy.
 Servers implement stub procedures and skeletons.
Implementing RPC

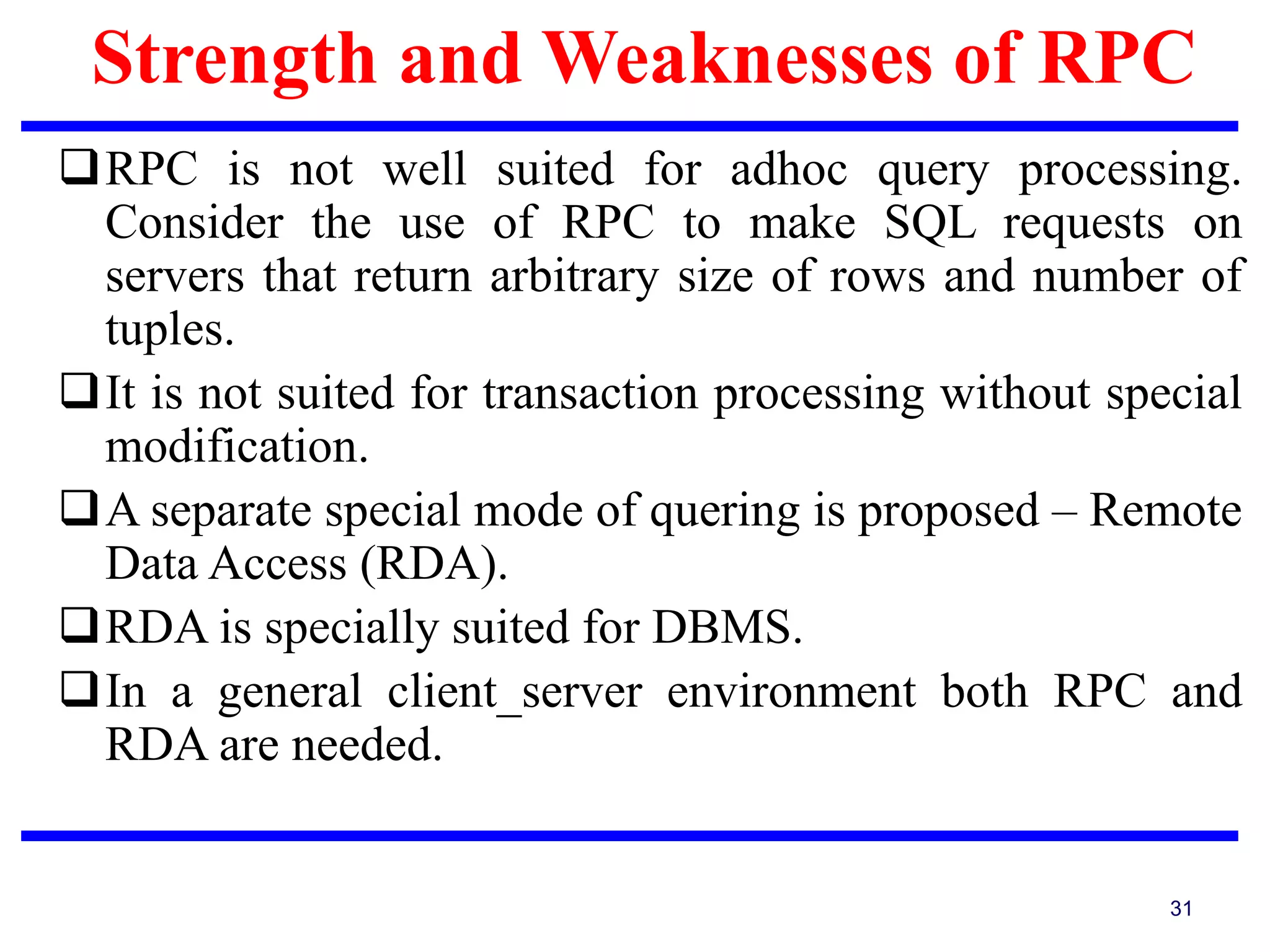

Strength and Weaknesses of RPC
31
RPC is not well suited for adhoc query processing.
Consider the use of RPC to make SQL requests on
servers that return arbitrary size of rows and number of
tuples.
It is not suited for transaction processing without special
modification.
A separate special mode of quering is proposed – Remote
Data Access (RDA).
RDA is specially suited for DBMS.
In a general client_server environment both RPC and
RDA are needed.

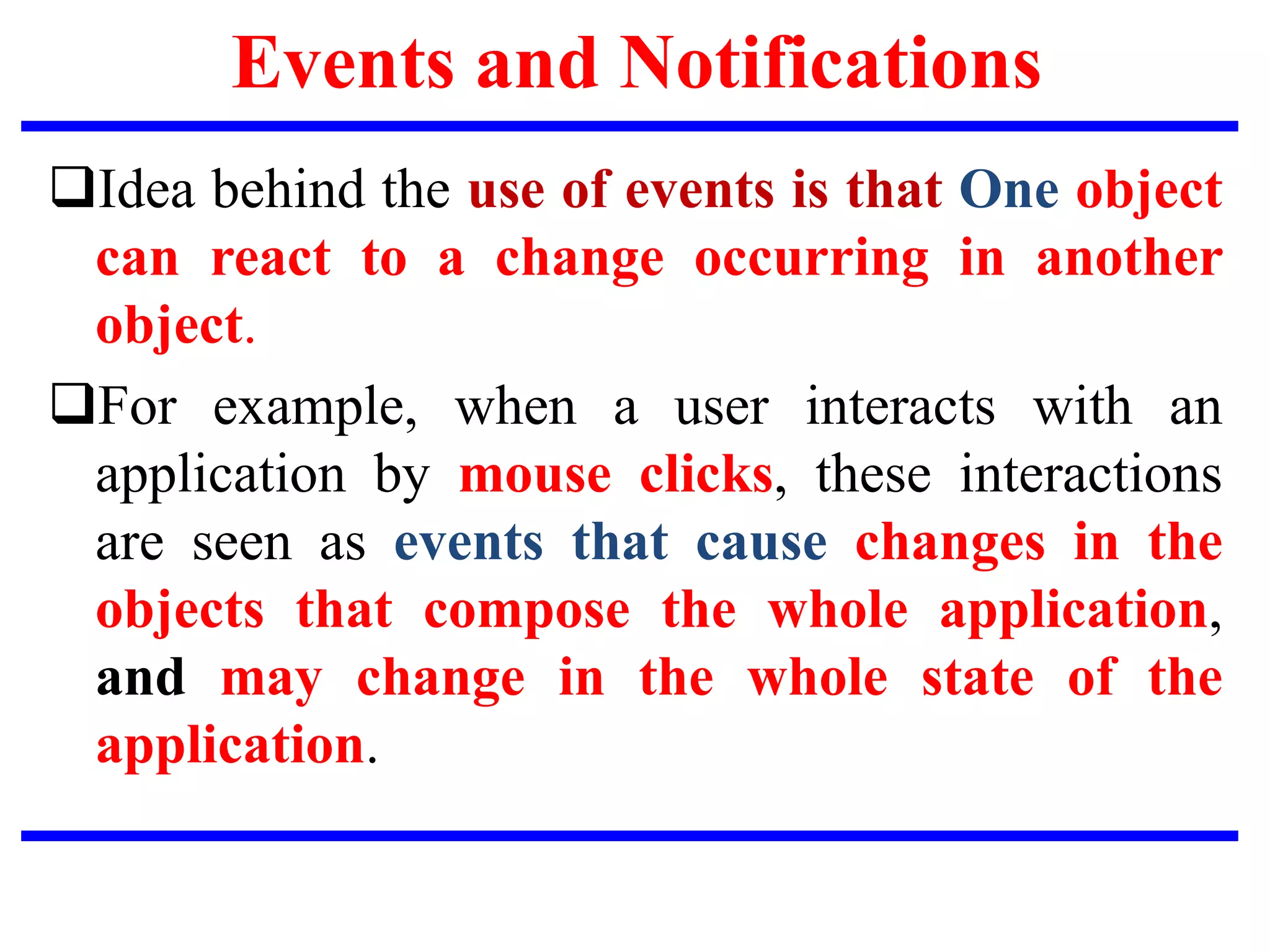

Events and Notifications
Idea behind the use of events is that One object
can react to a change occurring in another
object.
For example, when a user interacts with an
application by mouse clicks, these interactions
are seen as events that cause changes in the
objects that compose the whole application,
and may change in the whole state of the
application.

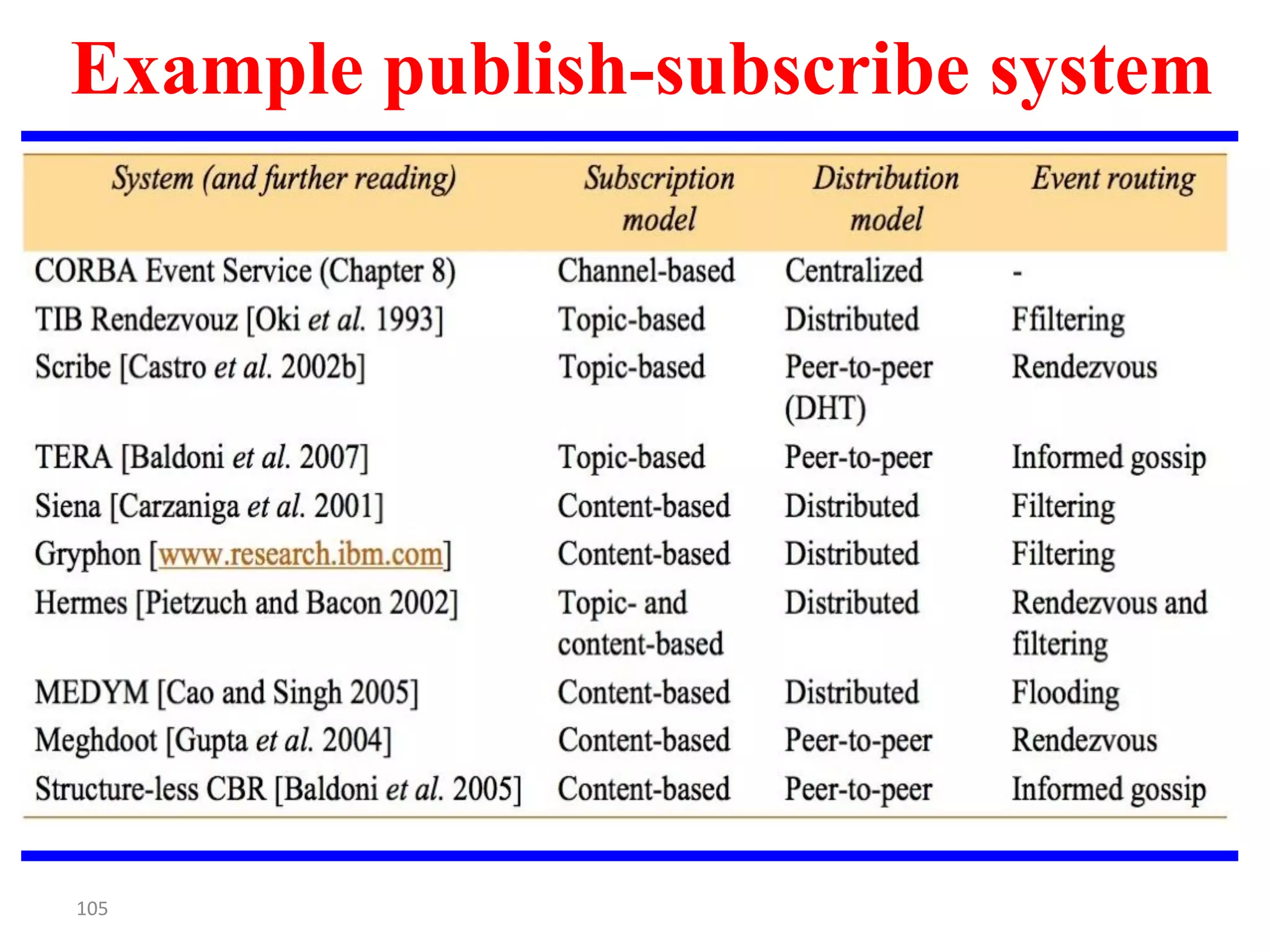

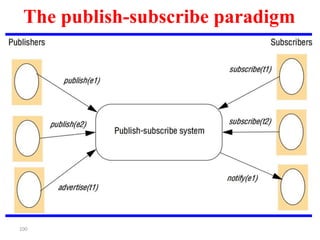

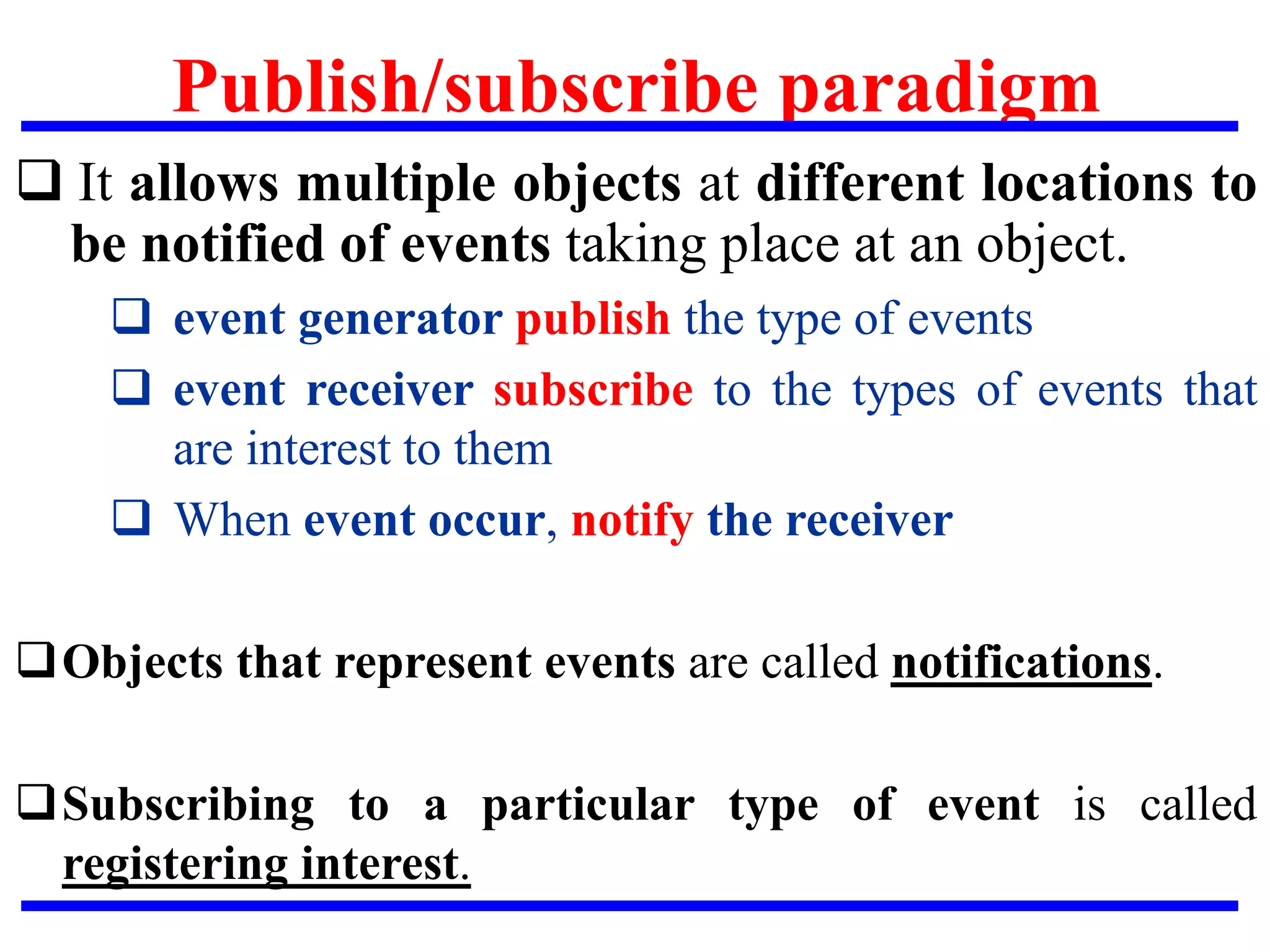

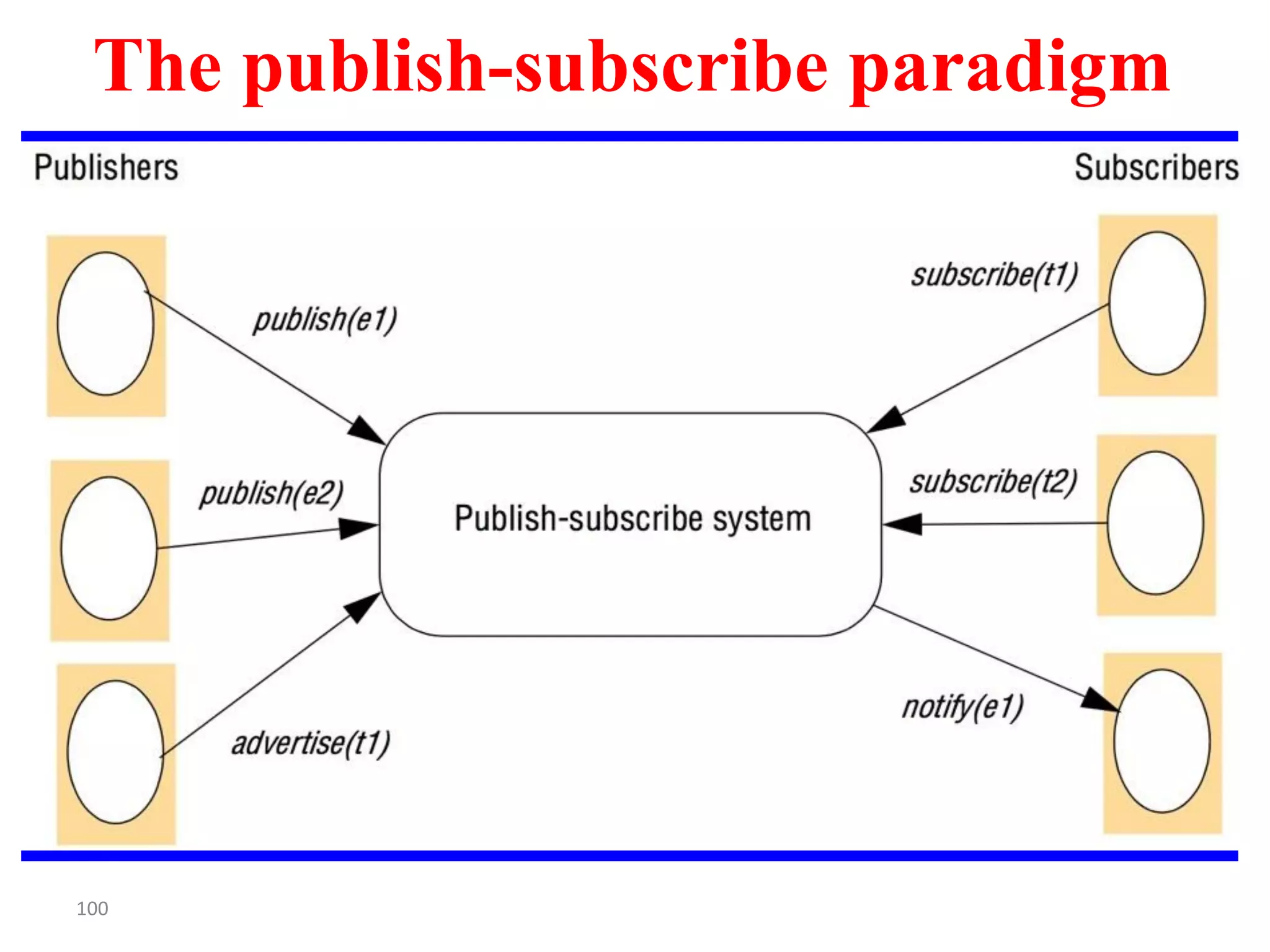

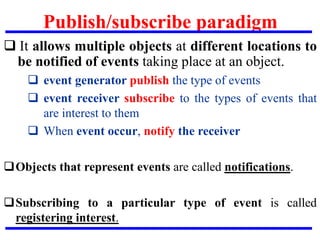

Publish/subscribe paradigm
 It allows multiple objects at different locations to
be notified of events taking place at an object.
 event generator publish the type of events
 event receiver subscribe to the types of events that
are interest to them
 When event occur, notify the receiver
Objects that represent events are called notifications.
Subscribing to a particular type of event is called
registering interest.

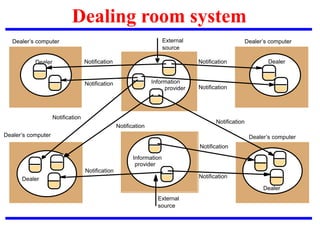

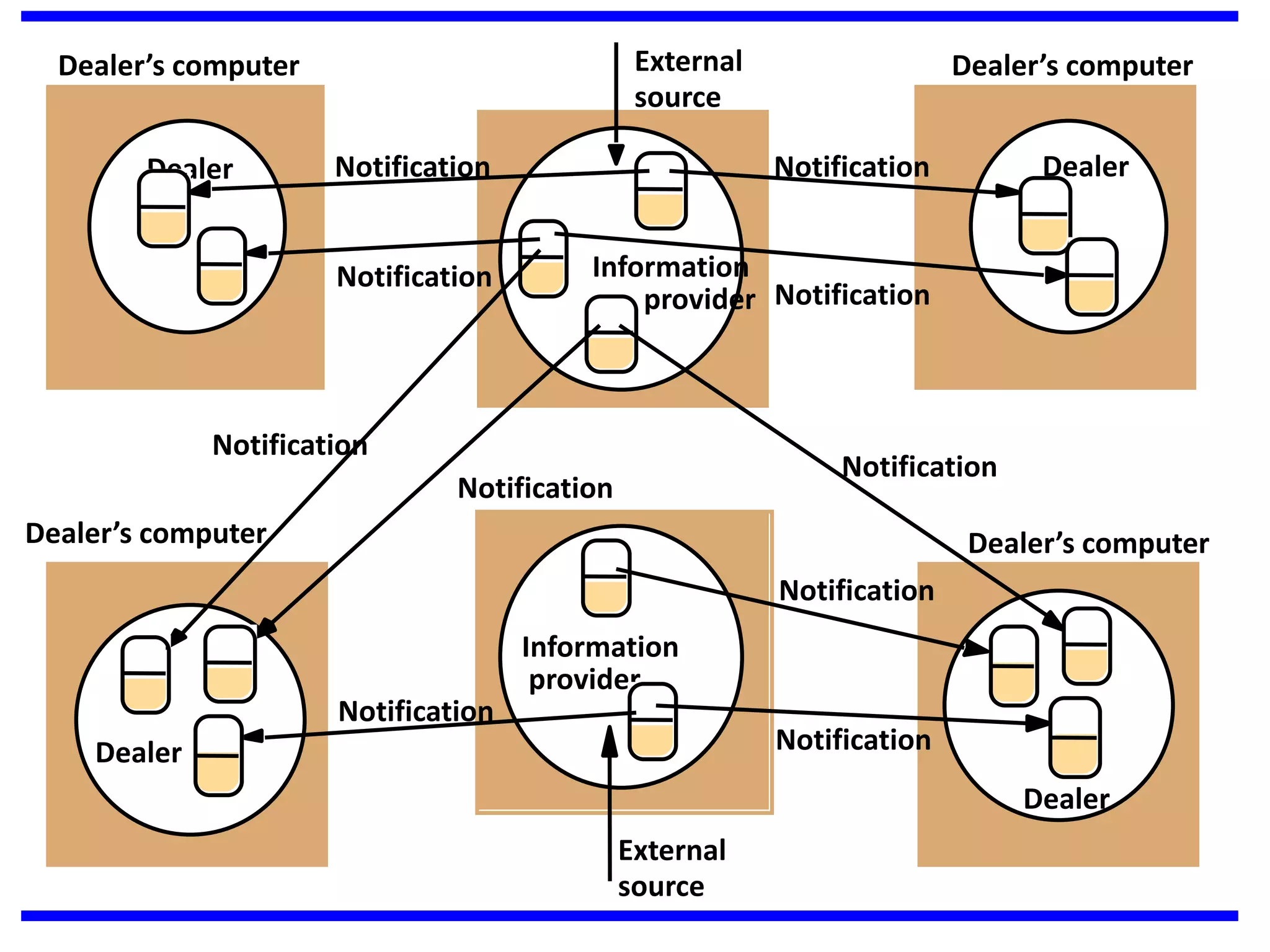

Dealer’s computer
Information
provider
Dealer
External
source
External
source
Information
provider
Dealer
Dealer
Dealer
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Dealer’s computer
Dealer’s computer
Dealer’s computer
Notification
Notification

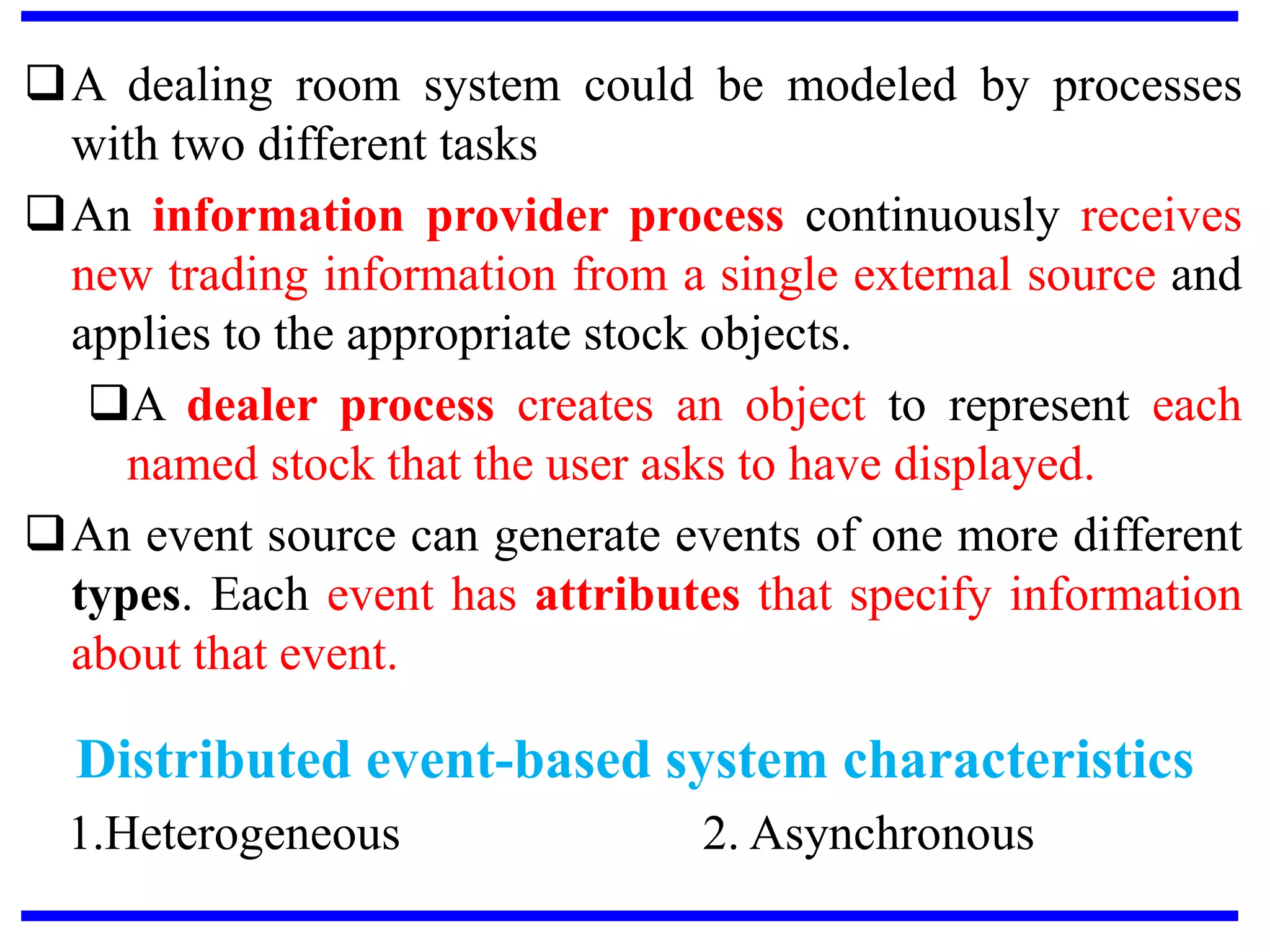

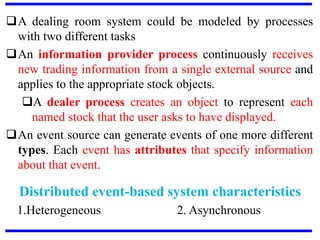

A dealing room system could be modeled by processes
with two different tasks
An information provider process continuously receives
new trading information from a single external source and
applies to the appropriate stock objects.
A dealer process creates an object to represent each
named stock that the user asks to have displayed.
An event source can generate events of one more different
types. Each event has attributes that specify information
about that event.
Distributed event-based system characteristics
1.Heterogeneous 2. Asynchronous

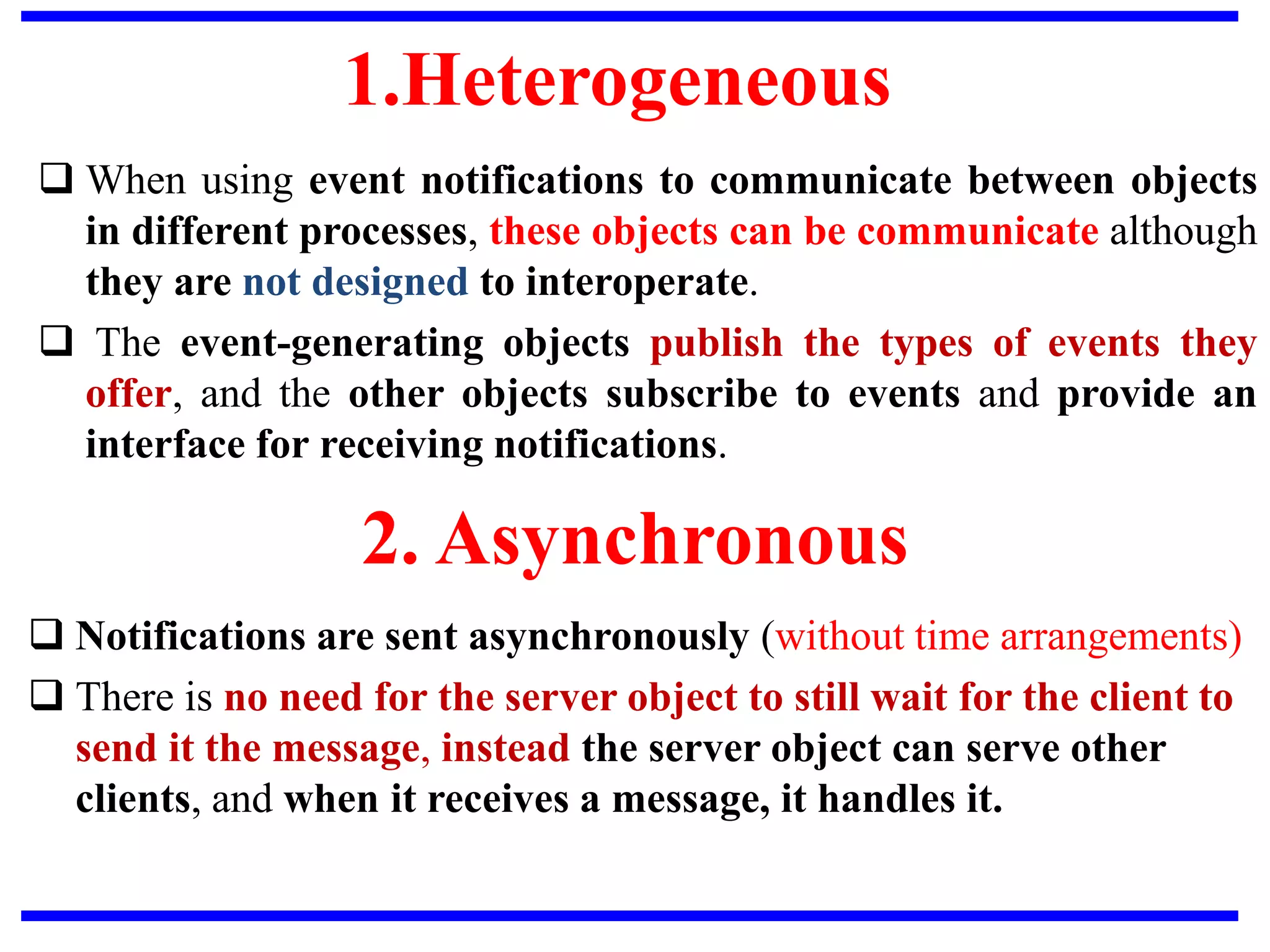

1.Heterogeneous
 When using event notifications to communicate between objects
in different processes, these objects can be communicate although
they are not designed to interoperate.
 The event-generating objects publish the types of events they
offer, and the other objects subscribe to events and provide an
interface for receiving notifications.
2. Asynchronous
 Notifications are sent asynchronously (without time arrangements)
 There is no need for the server object to still wait for the client to
send it the message, instead the server object can serve other
clients, and when it receives a message, it handles it.

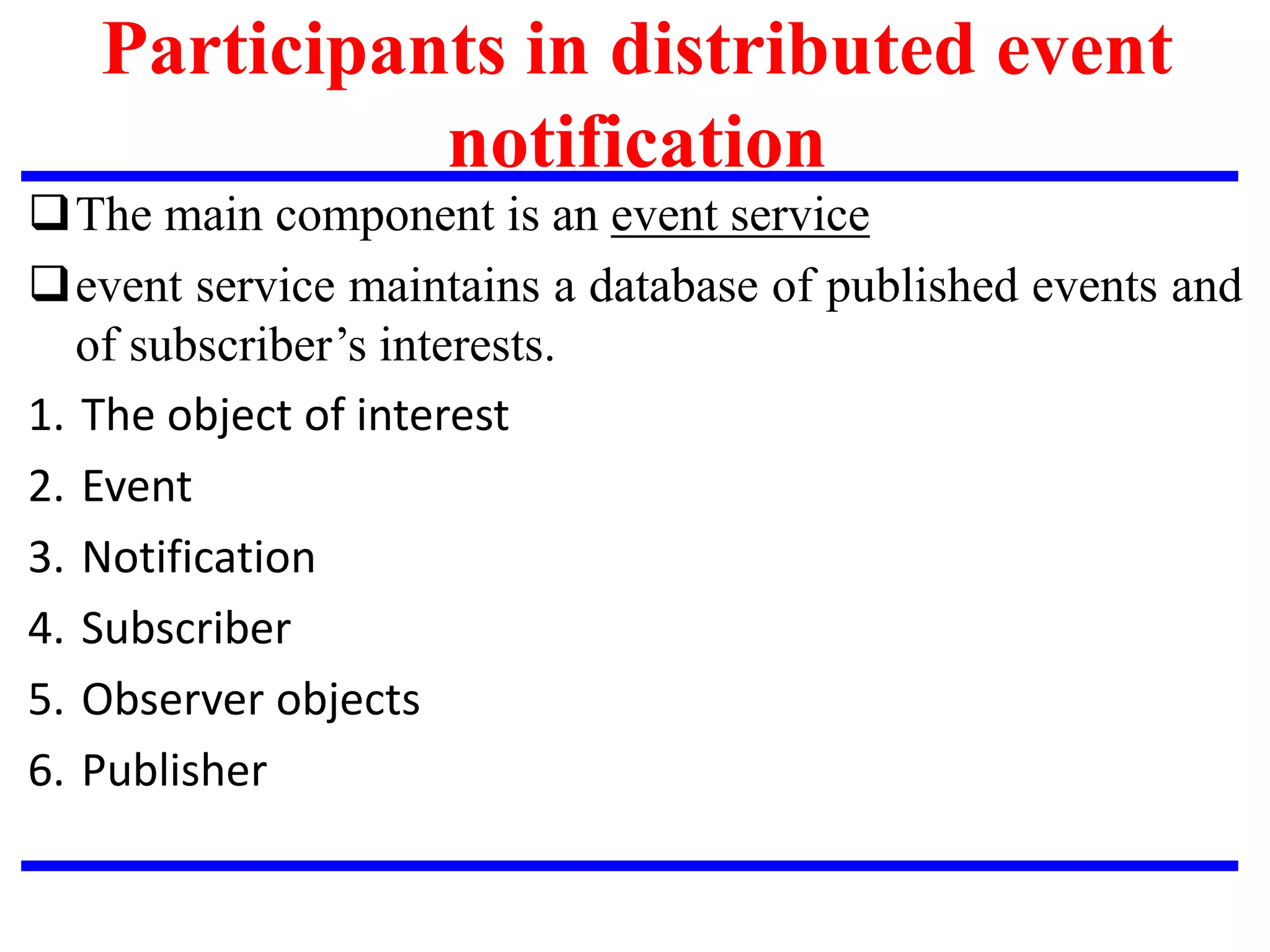

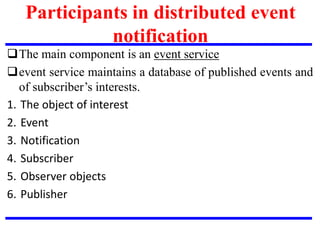

Participants in distributed event
notification
The main component is an event service
event service maintains a database of published events and
of subscriber’s interests.
1. The object of interest
2. Event
3. Notification
4. Subscriber
5. Observer objects
6. Publisher

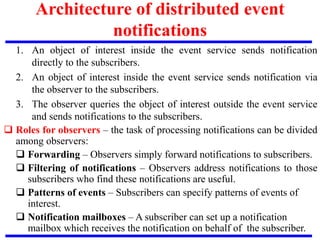

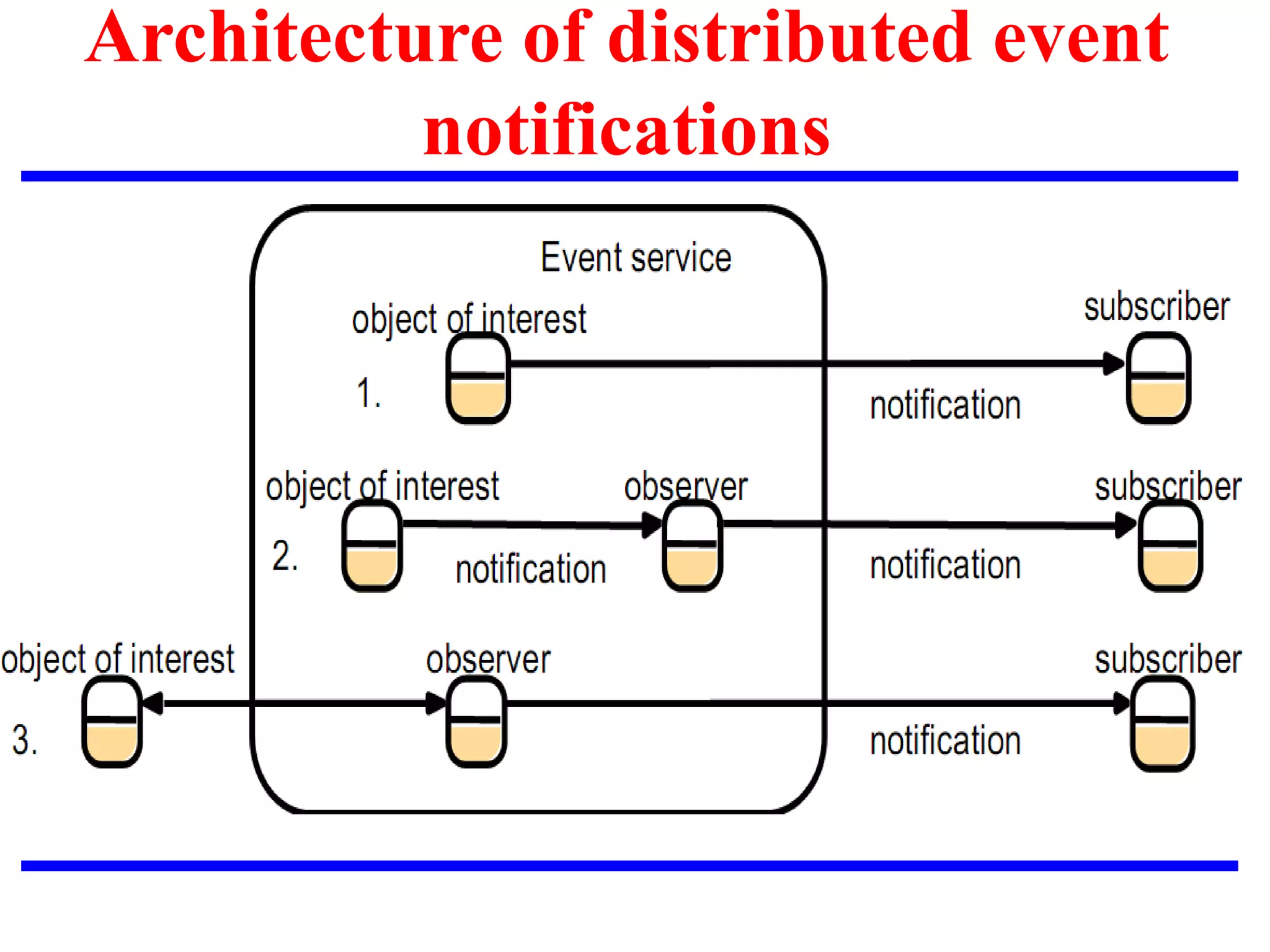

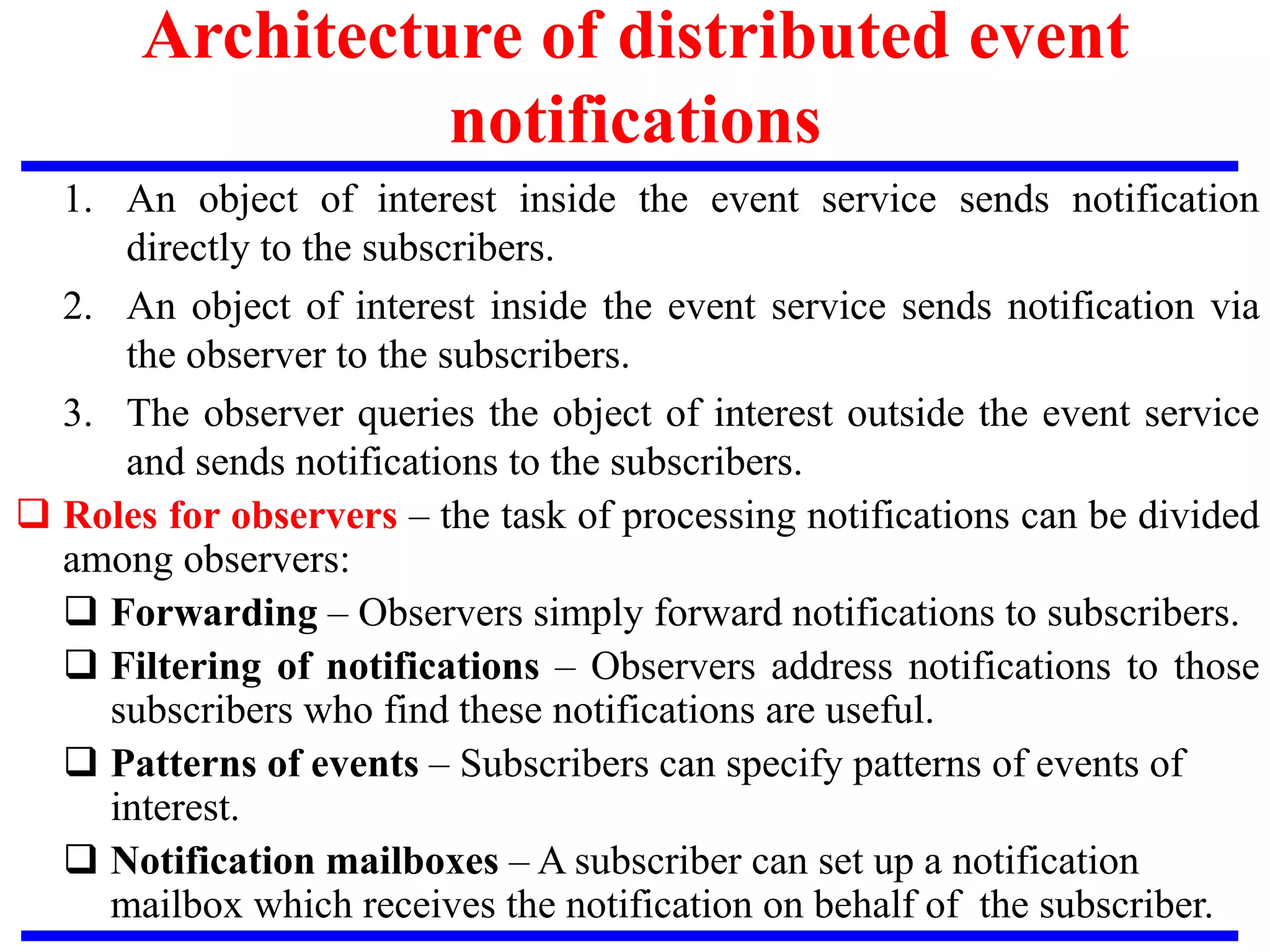

Architecture of distributed event
notifications

1. An object of interest inside the event service sends notification
directly to the subscribers.
2. An object of interest inside the event service sends notification via
the observer to the subscribers.
3. The observer queries the object of interest outside the event service
and sends notifications to the subscribers.
 Roles for observers – the task of processing notifications can be divided
among observers:
 Forwarding – Observers simply forward notifications to subscribers.
 Filtering of notifications – Observers address notifications to those
subscribers who find these notifications are useful.
 Patterns of events – Subscribers can specify patterns of events of
interest.
 Notification mailboxes – A subscriber can set up a notification
mailbox which receives the notification on behalf of the subscriber.
notifications

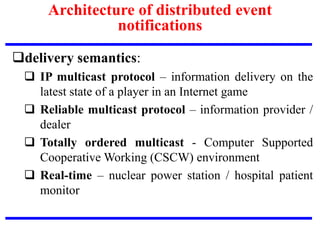

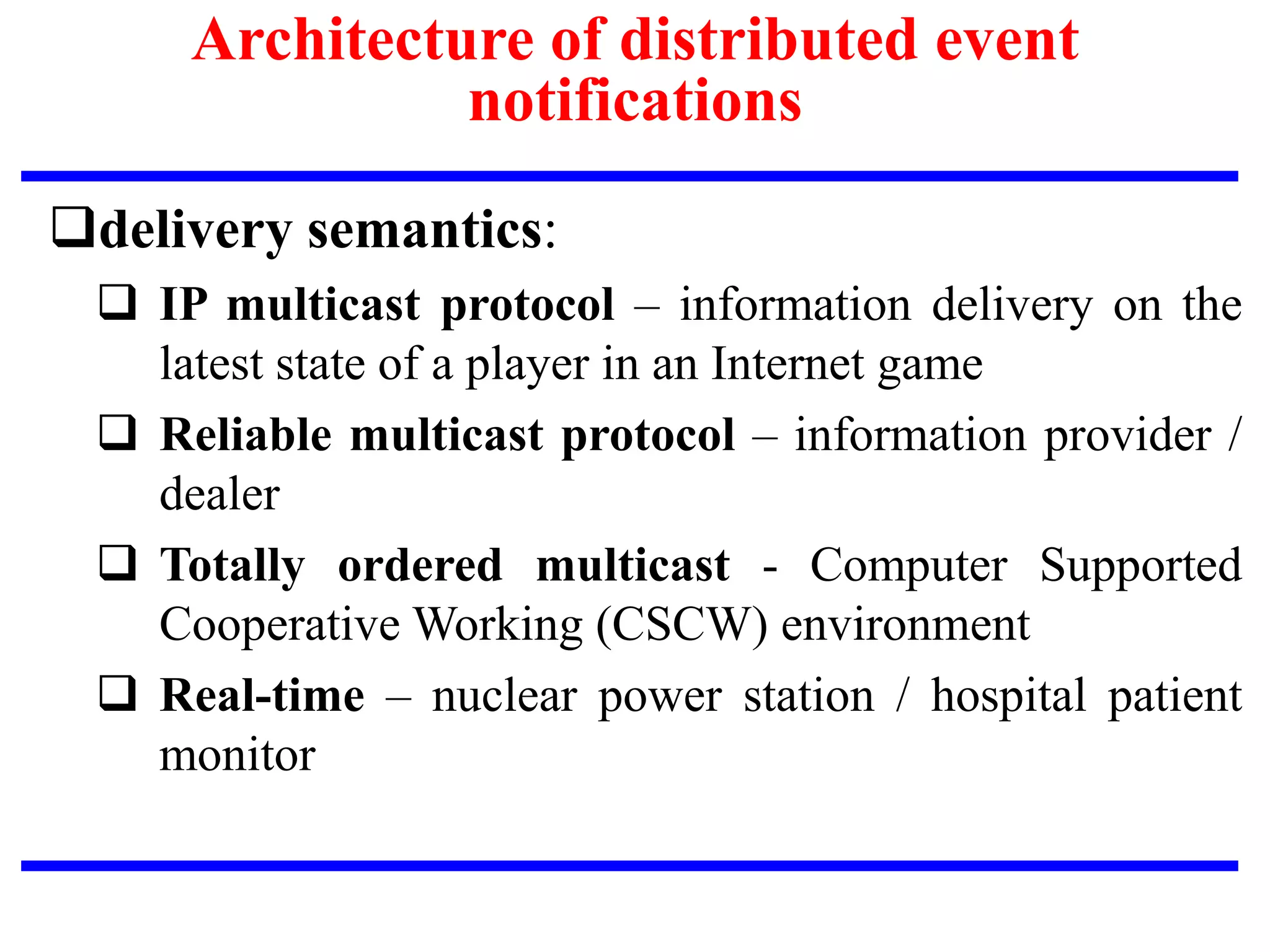

delivery semantics:
 IP multicast protocol – information delivery on the
latest state of a player in an Internet game
 Reliable multicast protocol – information provider /
dealer
 Totally ordered multicast - Computer Supported
Cooperative Working (CSCW) environment
 Real-time – nuclear power station / hospital patient
monitor
notifications

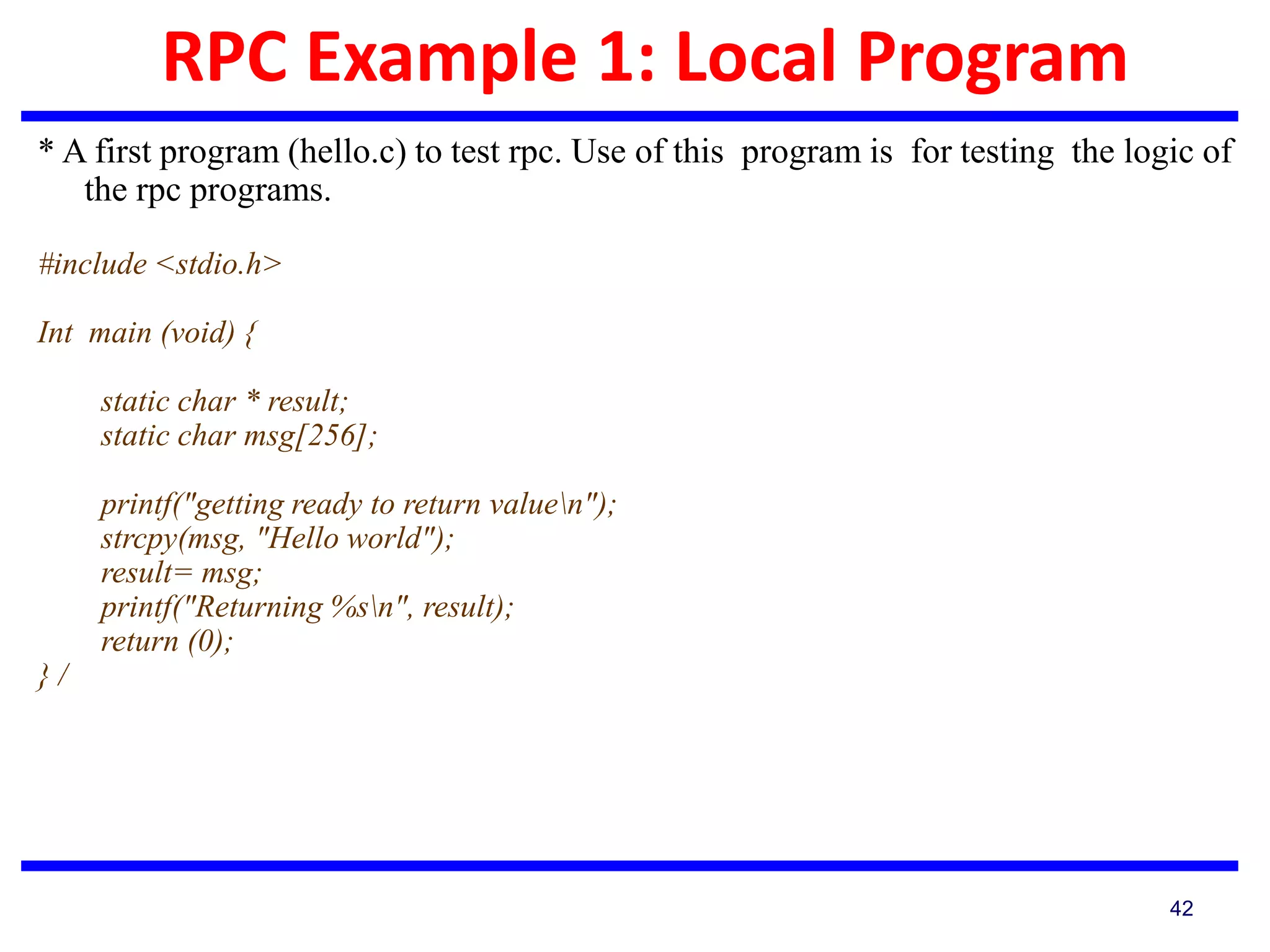

RPC Example 1: Local Program
42
* A first program (hello.c) to test rpc. Use of this program is for testing the logic of
the rpc programs.
#include <stdio.h>
Int main (void) {
static char * result;
static char msg[256];
printf("getting ready to return valuen");
strcpy(msg, "Hello world");
result= msg;
printf("Returning %sn", result);
return (0);
} /

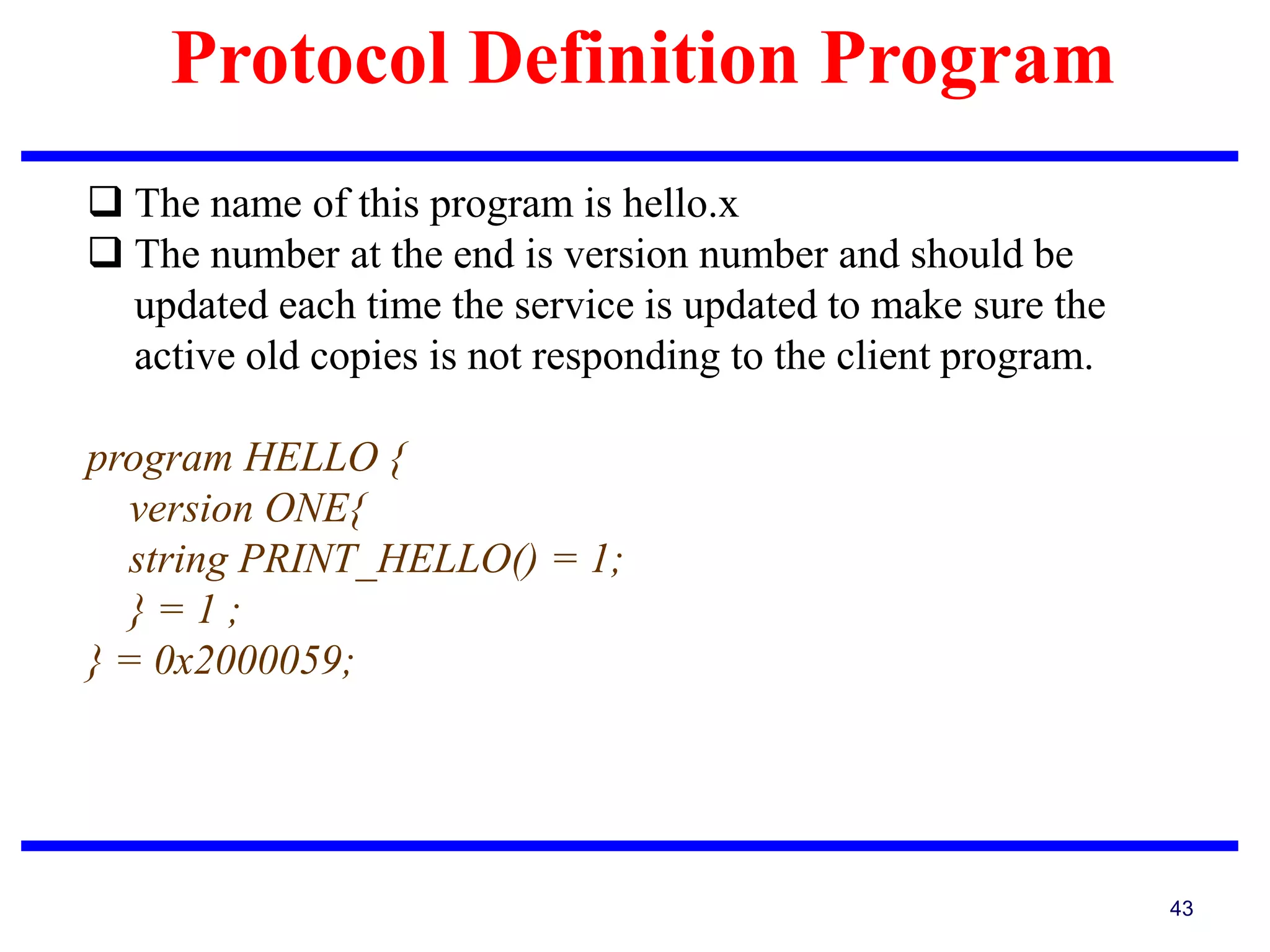

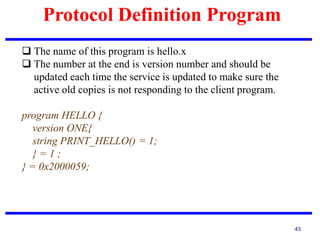

Protocol Definition Program
43
 The name of this program is hello.x
 The number at the end is version number and should be
updated each time the service is updated to make sure the
active old copies is not responding to the client program.
program HELLO {
version ONE{
string PRINT_HELLO() = 1;
} = 1 ;
} = 0x2000059;

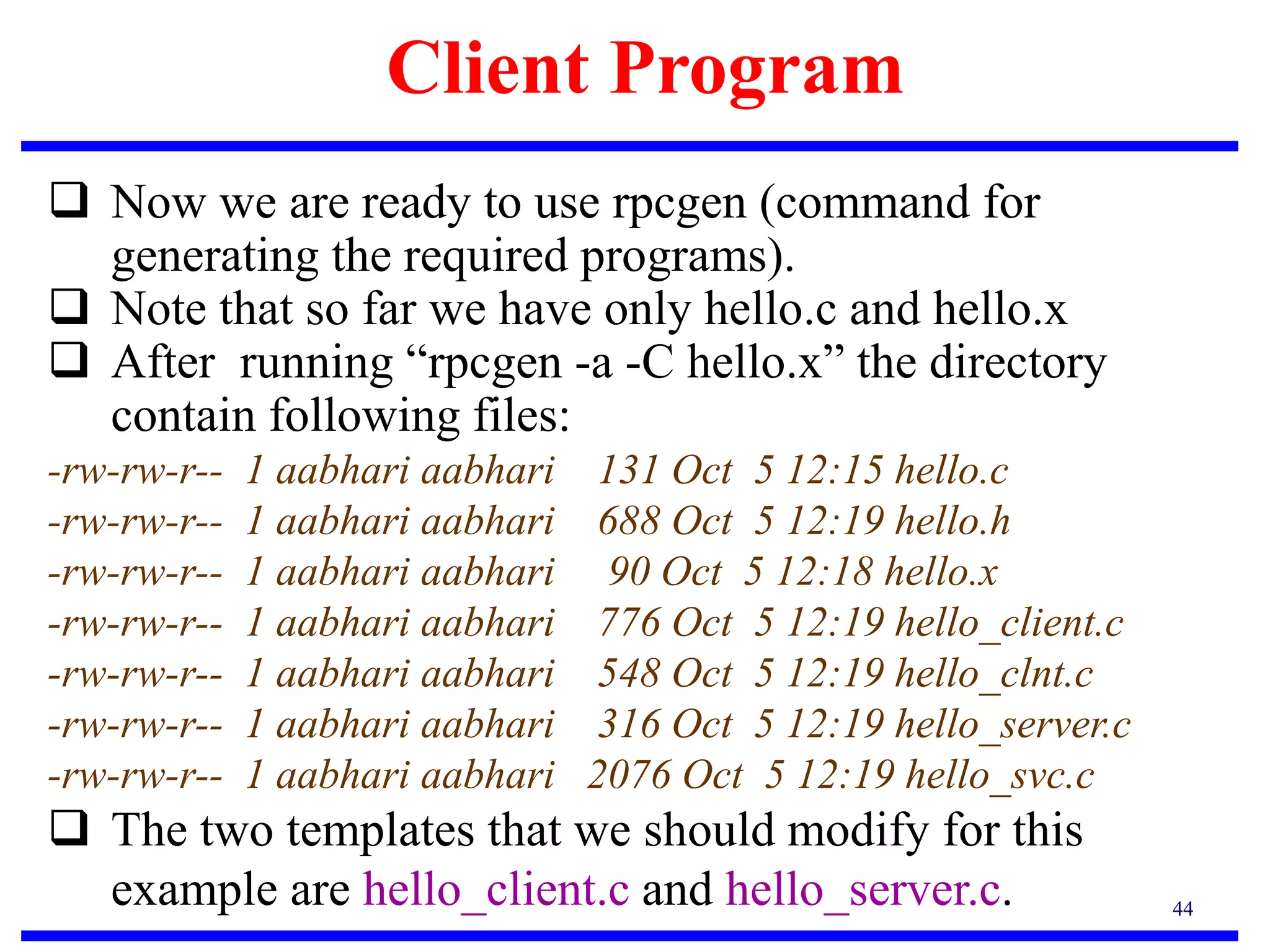

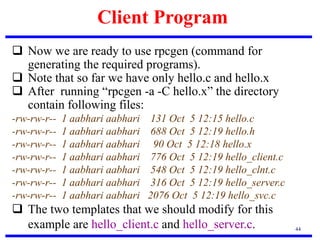

Client Program
44
 Now we are ready to use rpcgen (command for
generating the required programs).
 Note that so far we have only hello.c and hello.x
 After running “rpcgen -a -C hello.x” the directory
contain following files:
-rw-rw-r-- 1 aabhari aabhari 131 Oct 5 12:15 hello.c
-rw-rw-r-- 1 aabhari aabhari 688 Oct 5 12:19 hello.h
-rw-rw-r-- 1 aabhari aabhari 90 Oct 5 12:18 hello.x
-rw-rw-r-- 1 aabhari aabhari 776 Oct 5 12:19 hello_client.c
-rw-rw-r-- 1 aabhari aabhari 548 Oct 5 12:19 hello_clnt.c
-rw-rw-r-- 1 aabhari aabhari 316 Oct 5 12:19 hello_server.c
-rw-rw-r-- 1 aabhari aabhari 2076 Oct 5 12:19 hello_svc.c
 The two templates that we should modify for this
example are hello_client.c and hello_server.c.

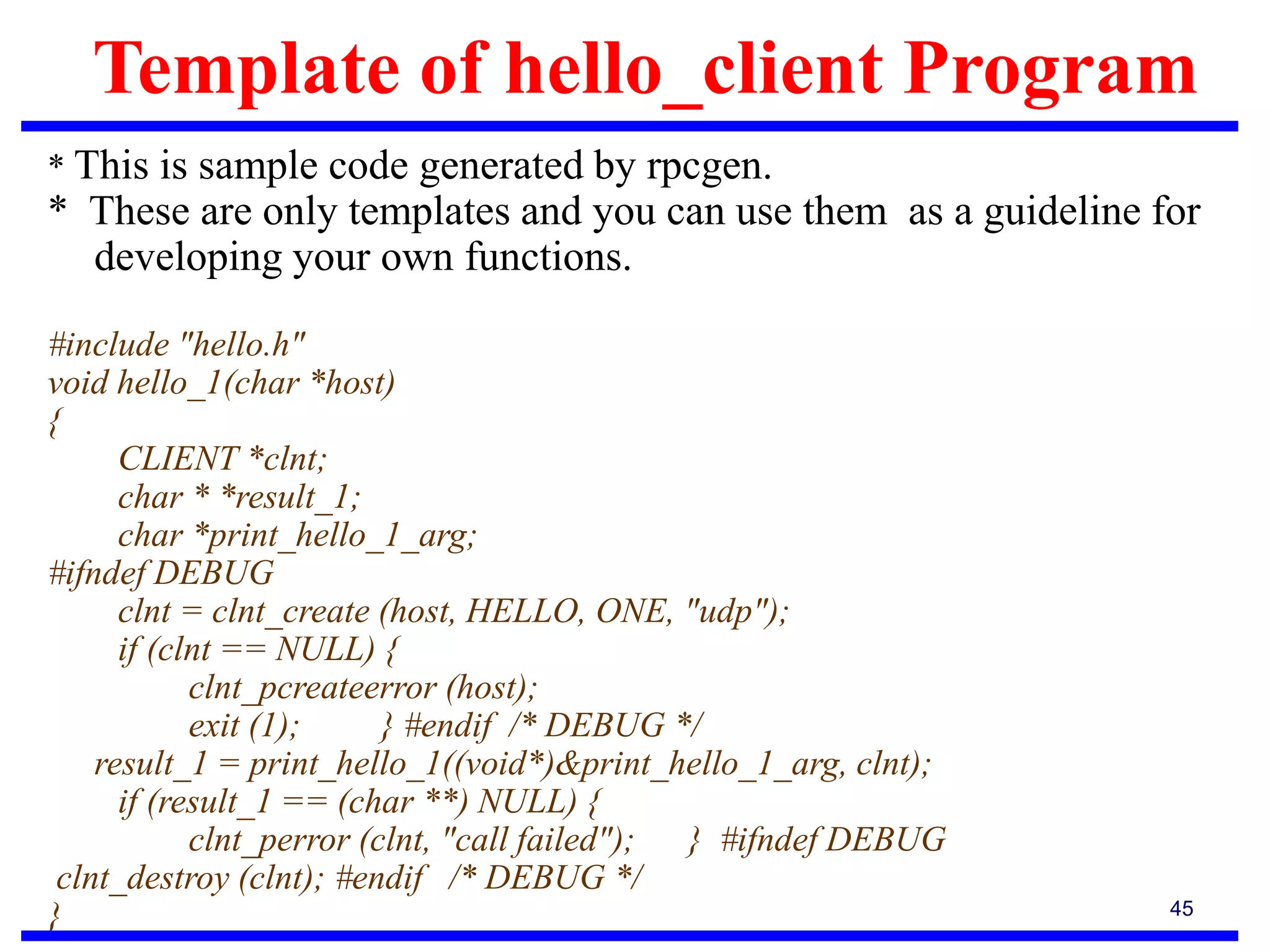

Template of hello_client Program
45
* This is sample code generated by rpcgen.
* These are only templates and you can use them as a guideline for
developing your own functions.
#include "hello.h"
void hello_1(char *host)
{
CLIENT *clnt;
char * *result_1;
char *print_hello_1_arg;
#ifndef DEBUG
clnt = clnt_create (host, HELLO, ONE, "udp");
if (clnt == NULL) {
clnt_pcreateerror (host);
exit (1); } #endif /* DEBUG */
result_1 = print_hello_1((void*)&print_hello_1_arg, clnt);
if (result_1 == (char **) NULL) {
clnt_perror (clnt, "call failed"); } #ifndef DEBUG
clnt_destroy (clnt); #endif /* DEBUG */
}

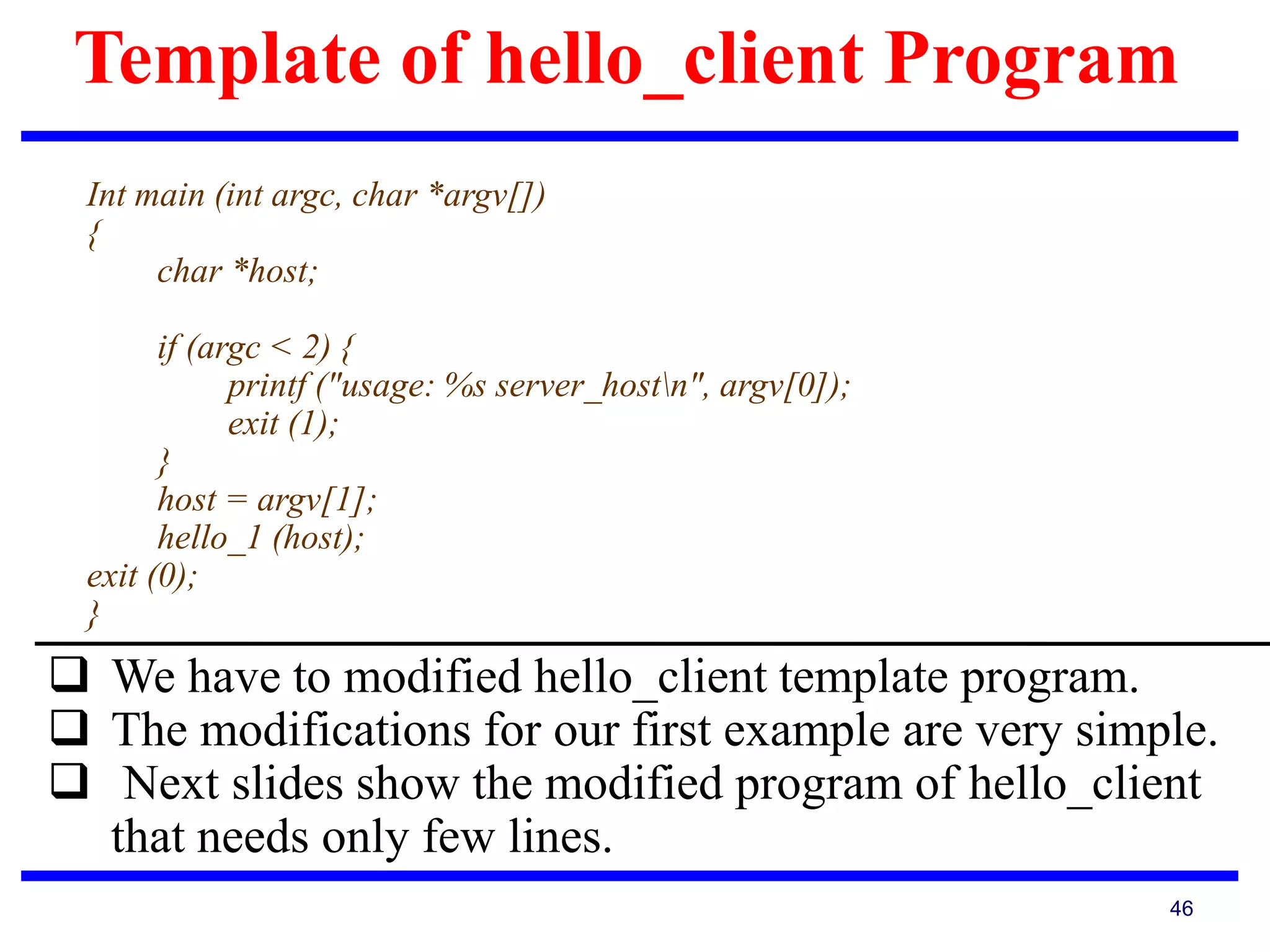

Template of hello_client Program
46
Int main (int argc, char *argv[])
{
char *host;
if (argc < 2) {
printf ("usage: %s server_hostn", argv[0]);
exit (1);
}
host = argv[1];
hello_1 (host);
exit (0);
}
 We have to modified hello_client template program.
 The modifications for our first example are very simple.
 Next slides show the modified program of hello_client
that needs only few lines.

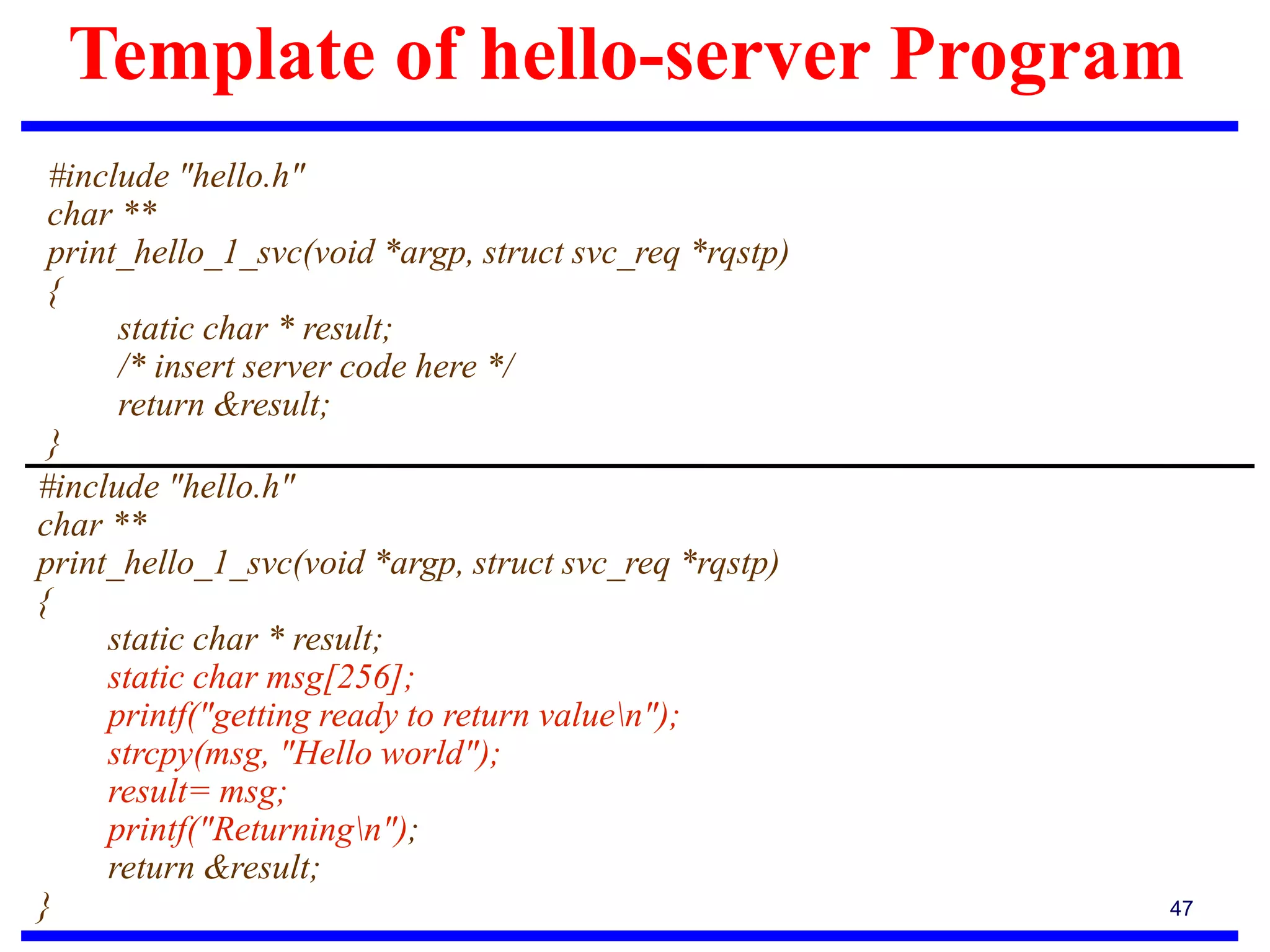

Template of hello-server Program
47
#include "hello.h"
char **
print_hello_1_svc(void *argp, struct svc_req *rqstp)
{
/* insert server code here */
return &result;
}
#include "hello.h"
char **
print_hello_1_svc(void *argp, struct svc_req *rqstp)
{
static char msg[256];
printf("getting ready to return valuen");
strcpy(msg, "Hello world");
result= msg;
printf("Returningn");
return &result;
}

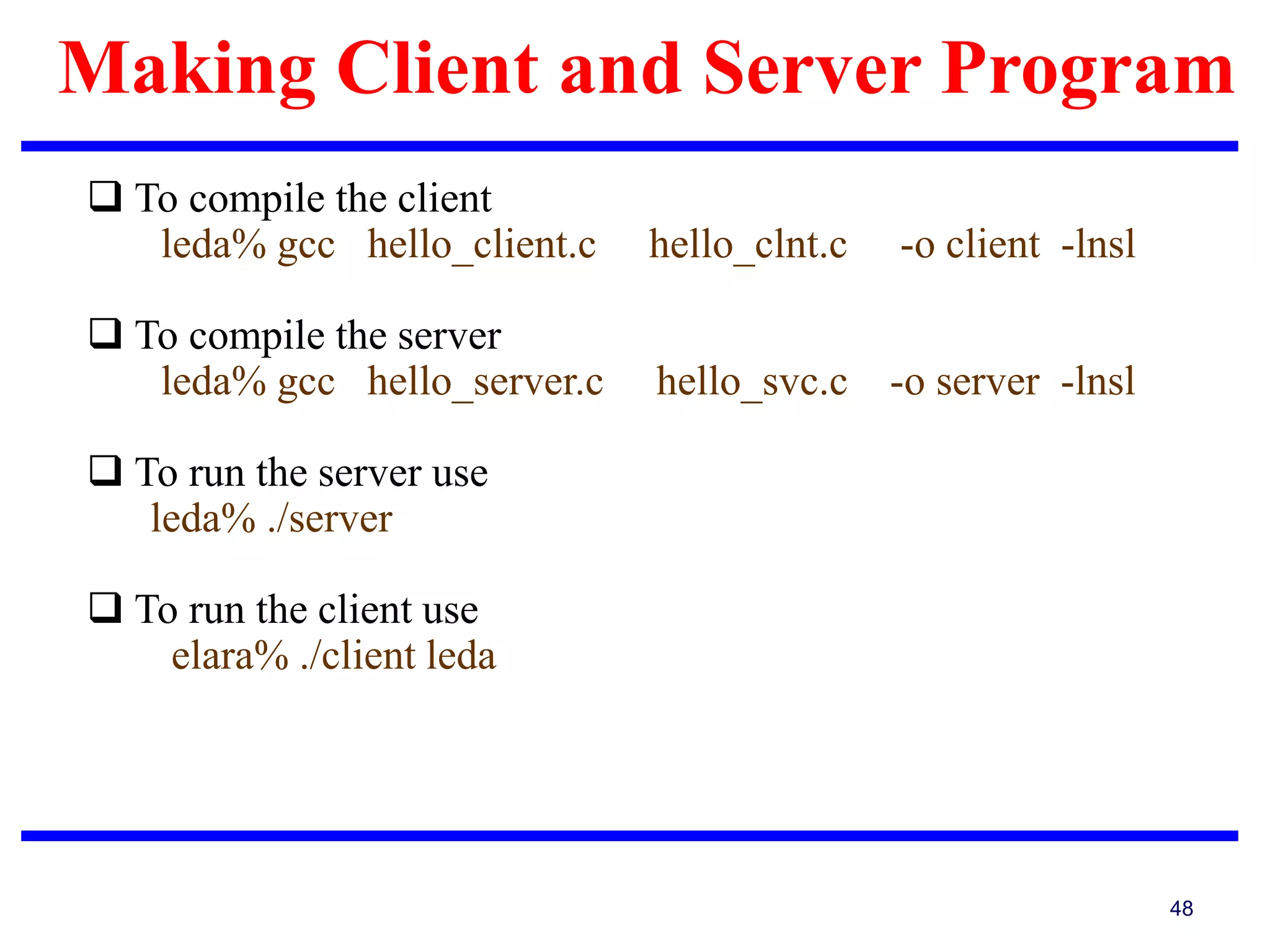

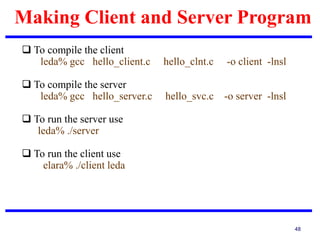

Making Client and Server Program
48
 To compile the client
leda% gcc hello_client.c hello_clnt.c -o client -lnsl
 To compile the server
leda% gcc hello_server.c hello_svc.c -o server -lnsl
 To run the server use
leda% ./server
 To run the client use
elara% ./client leda

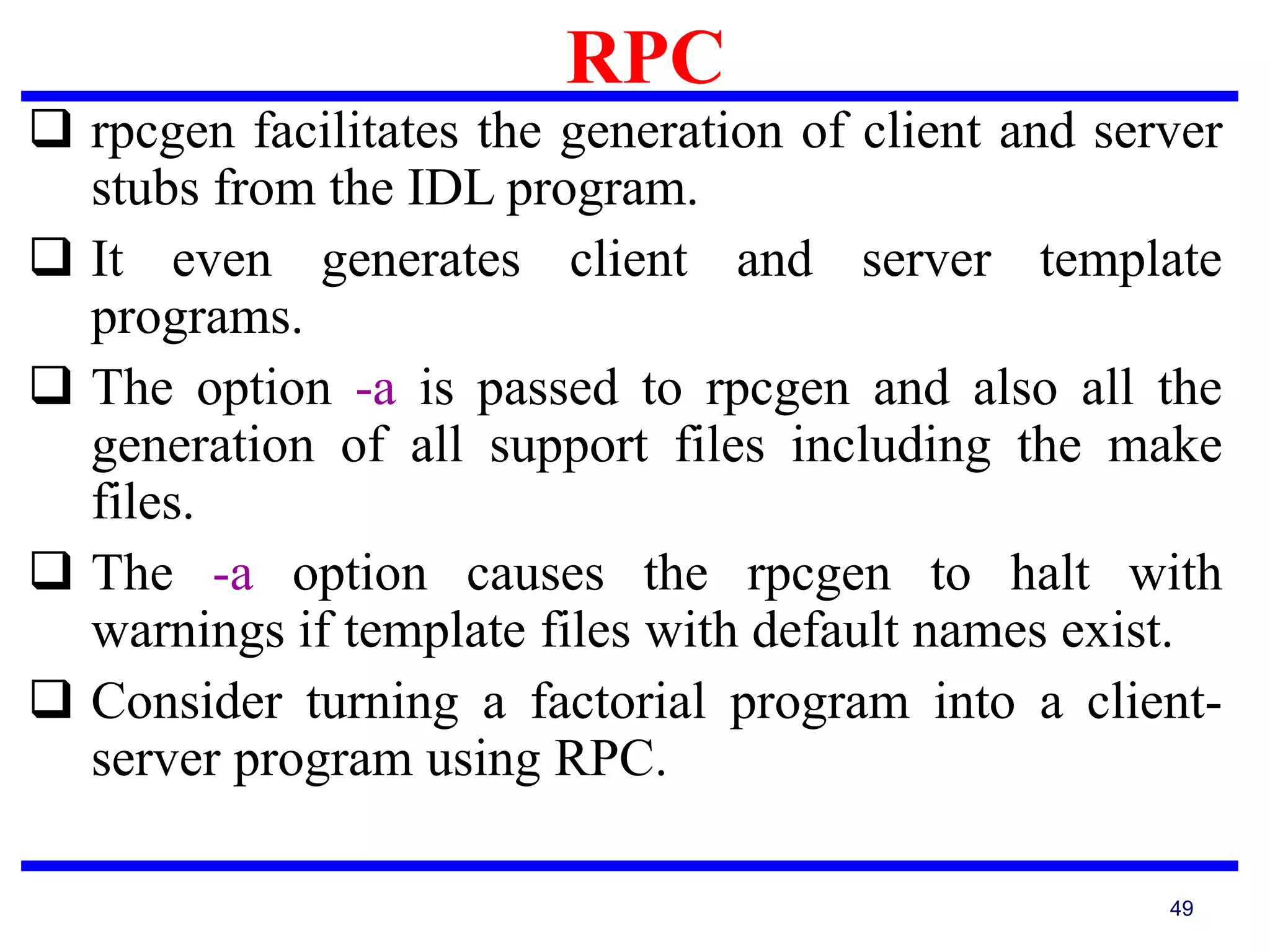

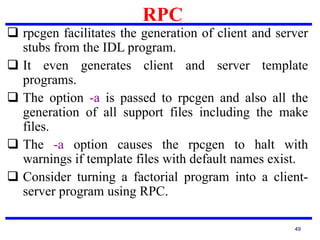

RPC
49
 rpcgen facilitates the generation of client and server
stubs from the IDL program.
 It even generates client and server template
programs.
 The option -a is passed to rpcgen and also all the
generation of all support files including the make
files.
 The -a option causes the rpcgen to halt with
warnings if template files with default names exist.
 Consider turning a factorial program into a client-
server program using RPC.

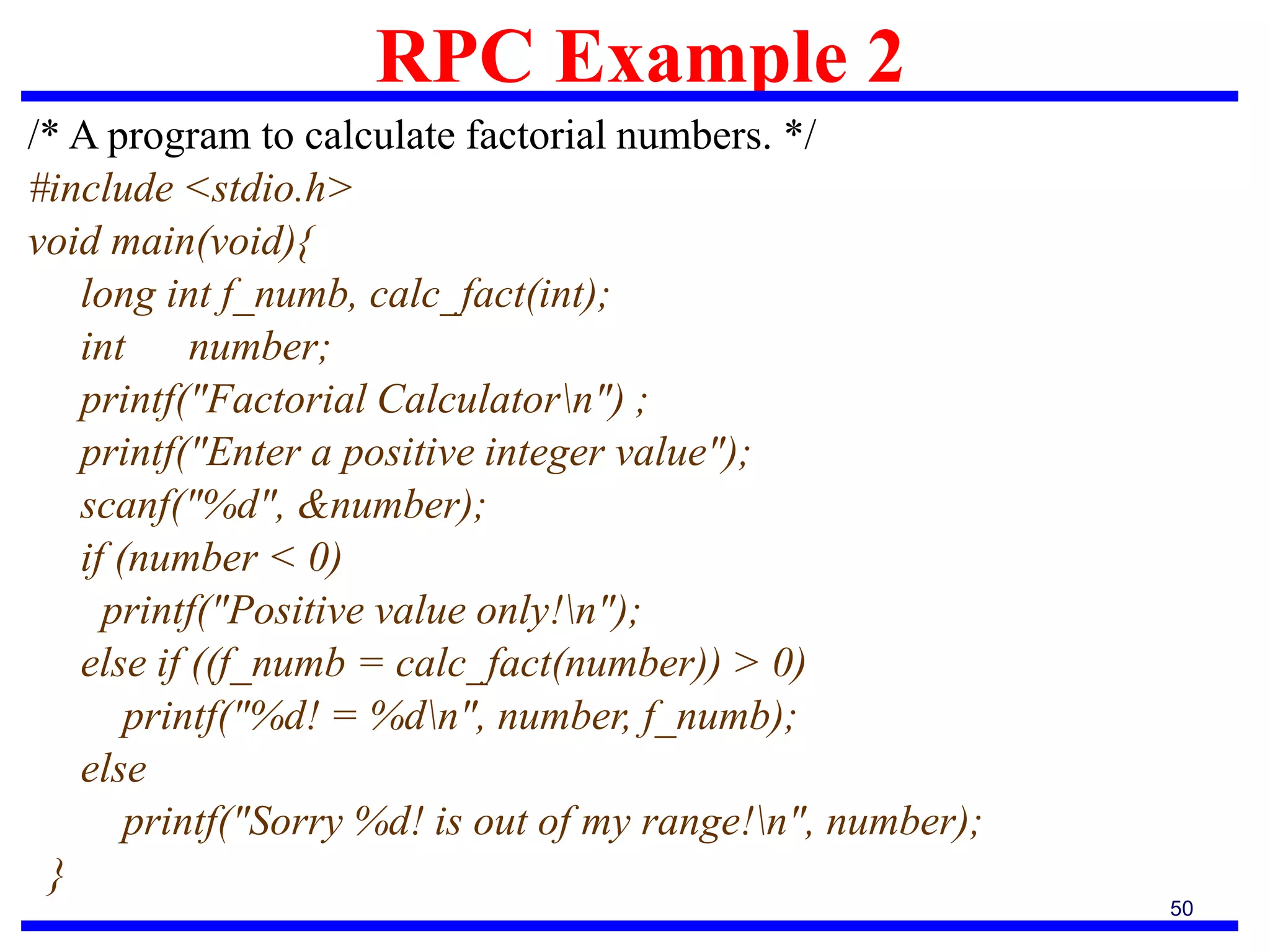

RPC Example 2
50
/* A program to calculate factorial numbers. */
#include <stdio.h>
void main(void){
long int f_numb, calc_fact(int);
int number;
printf("Factorial Calculatorn") ;
printf("Enter a positive integer value");
scanf("%d", &number);
if (number < 0)
printf("Positive value only!n");
else if ((f_numb = calc_fact(number)) > 0)
printf("%d! = %dn", number, f_numb);
else
printf("Sorry %d! is out of my range!n", number);
}

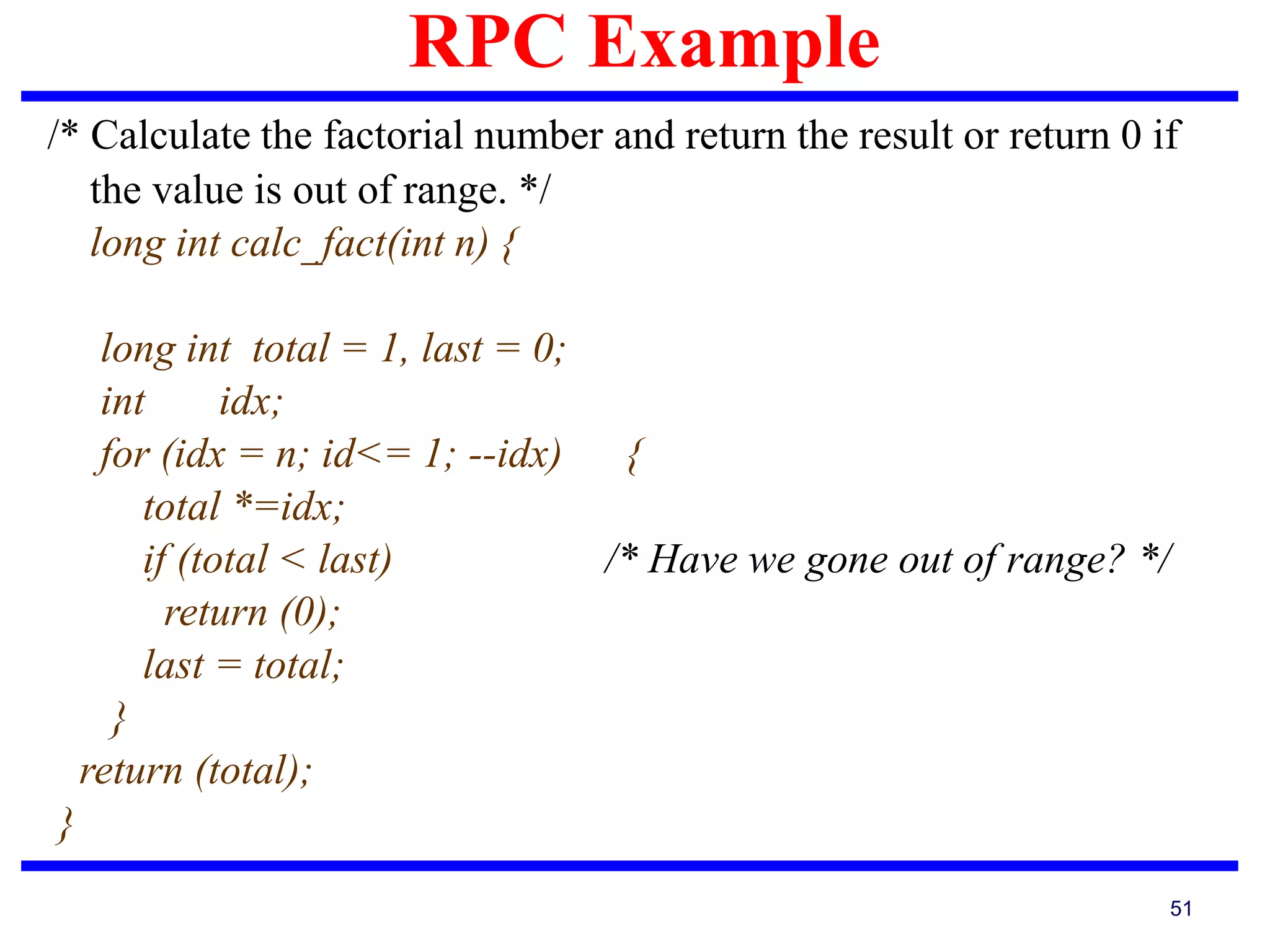

RPC Example
51
/* Calculate the factorial number and return the result or return 0 if
the value is out of range. */
long int calc_fact(int n) {
long int total = 1, last = 0;
int idx;
for (idx = n; id<= 1; --idx) {
total *=idx;
if (total < last) /* Have we gone out of range? */
return (0);
last = total;
}
return (total);
}

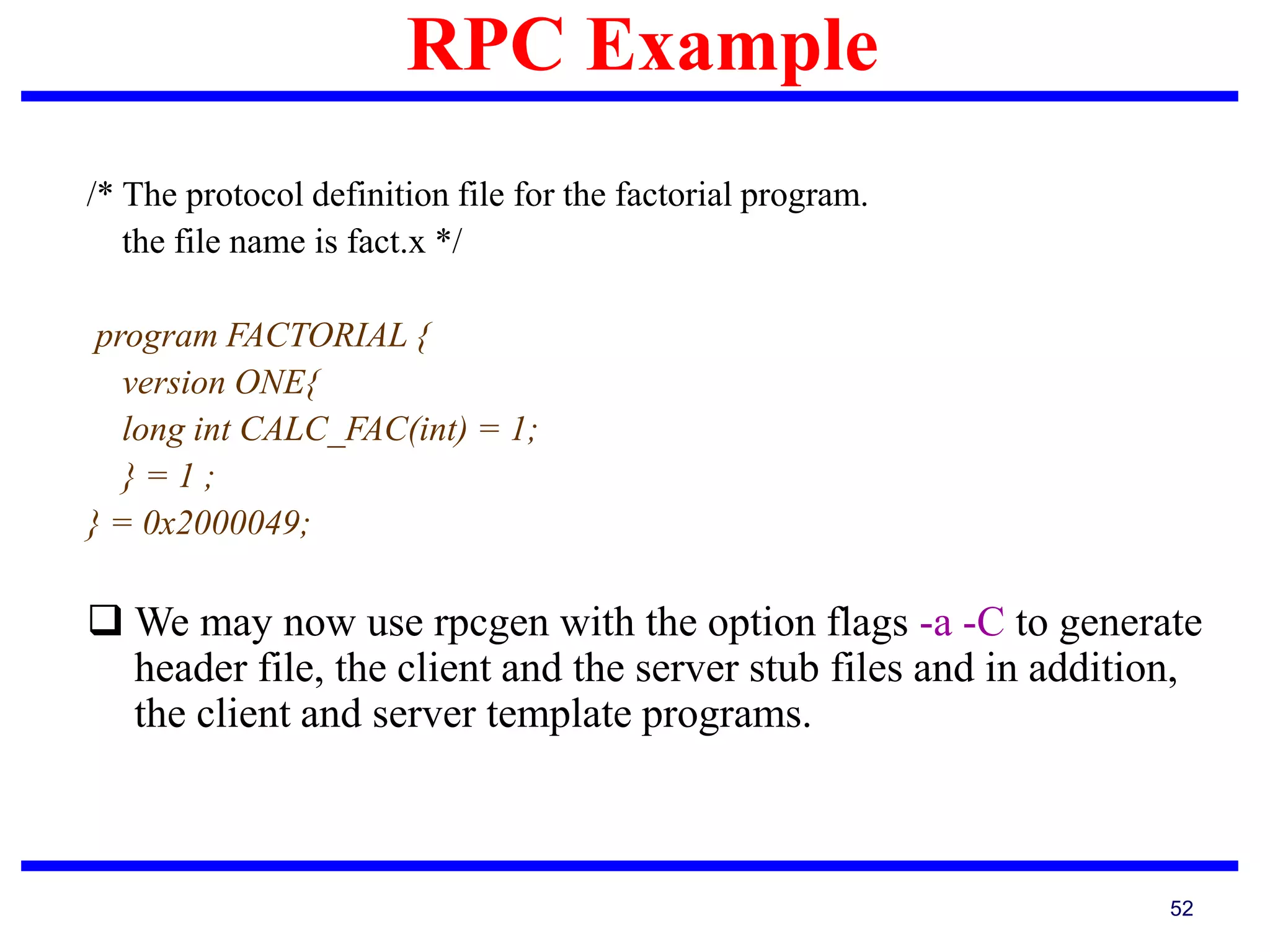

RPC Example
52
/* The protocol definition file for the factorial program.
the file name is fact.x */
program FACTORIAL {
version ONE{
long int CALC_FAC(int) = 1;
} = 1 ;
} = 0x2000049;
 We may now use rpcgen with the option flags -a -C to generate
header file, the client and the server stub files and in addition,
the client and server template programs.

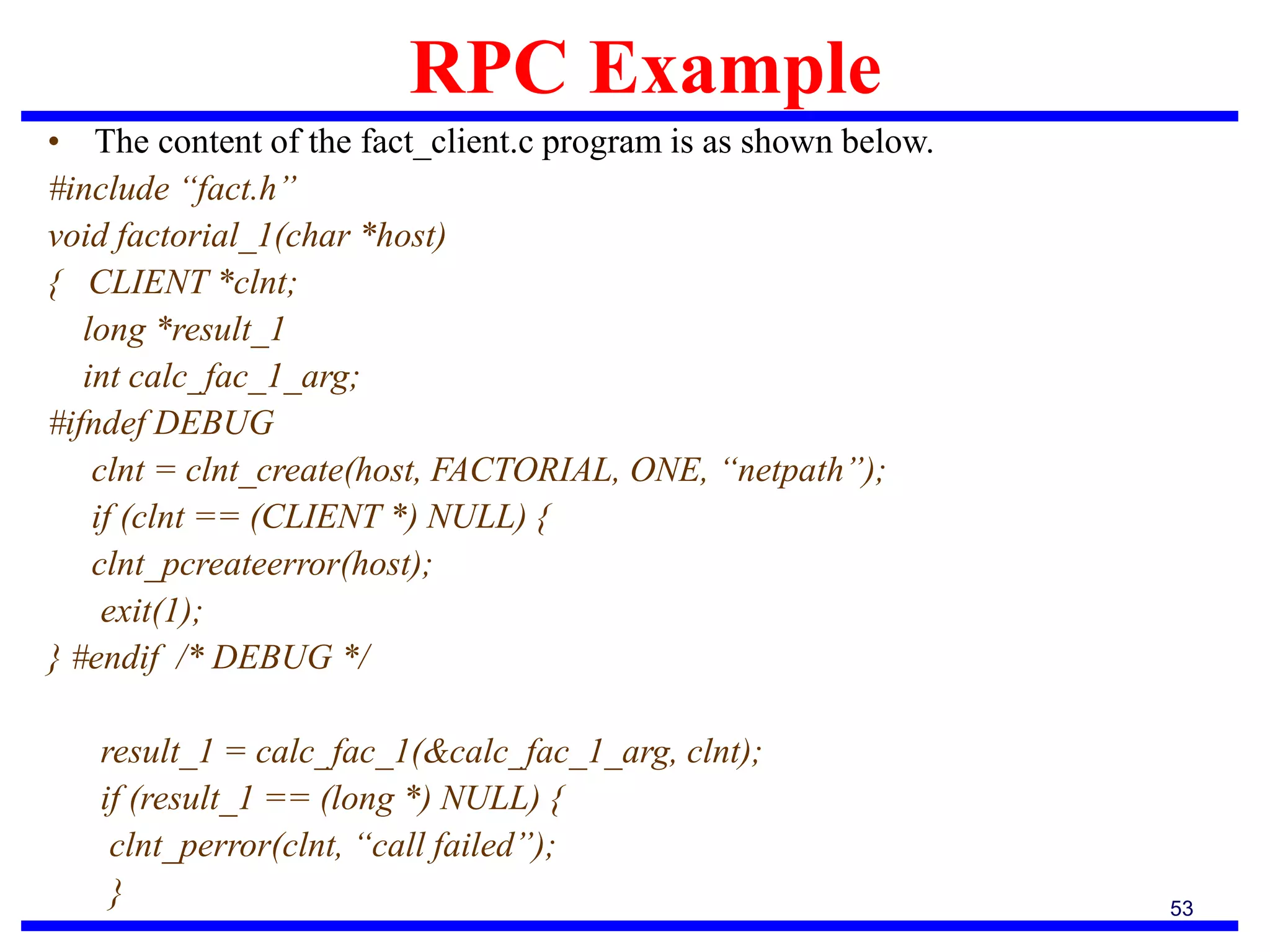

RPC Example
53
• The content of the fact_client.c program is as shown below.
#include “fact.h”
void factorial_1(char *host)
{ CLIENT *clnt;
long *result_1
int calc_fac_1_arg;
#ifndef DEBUG
clnt = clnt_create(host, FACTORIAL, ONE, “netpath”);
if (clnt == (CLIENT *) NULL) {
clnt_pcreateerror(host);
exit(1);
} #endif /* DEBUG */
result_1 = calc_fac_1(&calc_fac_1_arg, clnt);
if (result_1 == (long *) NULL) {
clnt_perror(clnt, “call failed”);
}

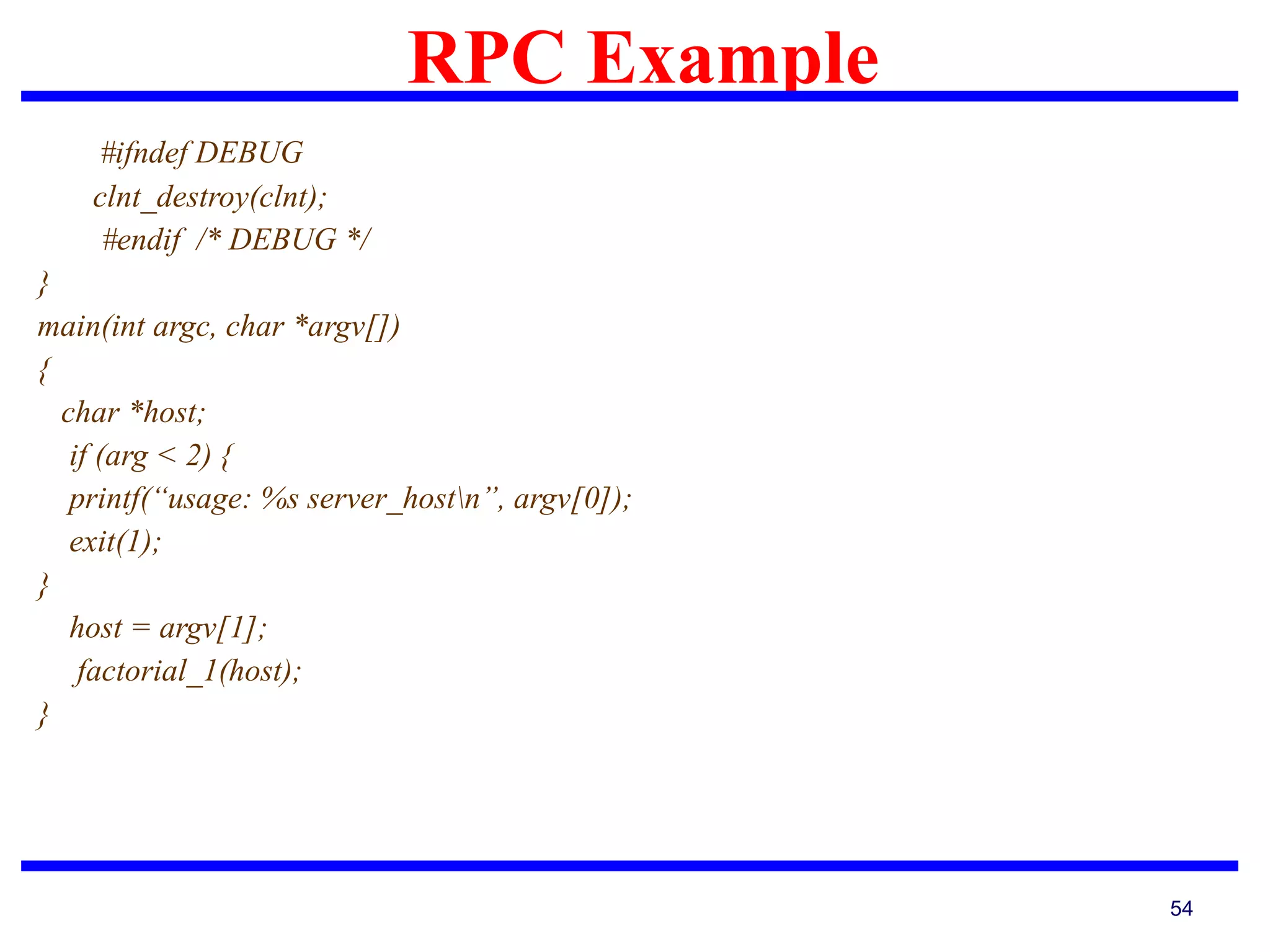

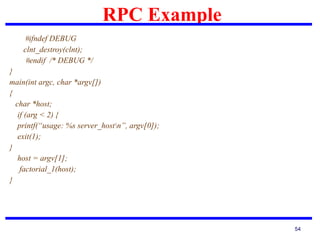

RPC Example
54
#ifndef DEBUG
clnt_destroy(clnt);
#endif /* DEBUG */
}
main(int argc, char *argv[])
{
char *host;
if (arg < 2) {
printf(“usage: %s server_hostn”, argv[0]);
exit(1);
}
host = argv[1];
factorial_1(host);
}

RPC Example
55

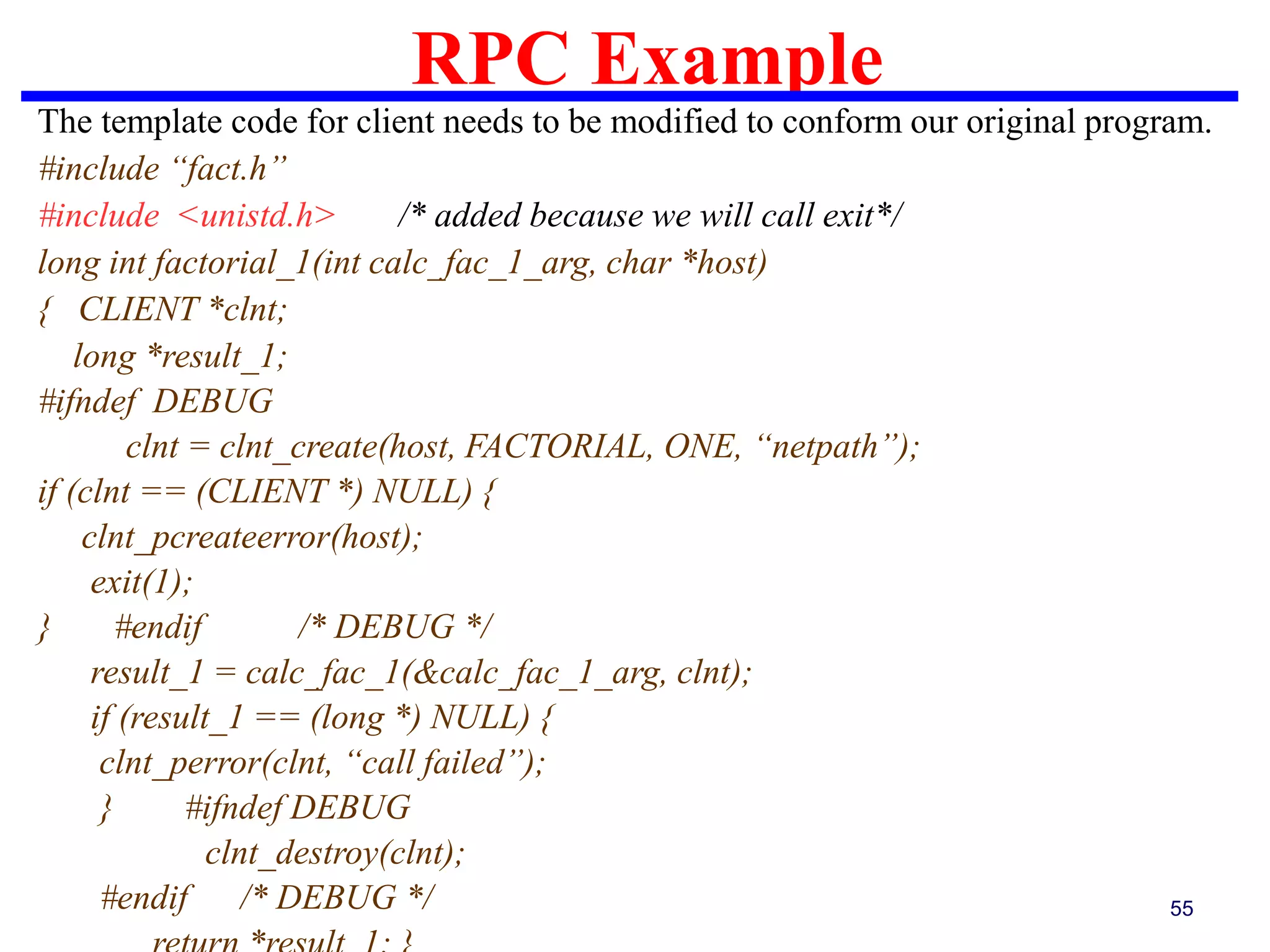

The template code for client needs to be modified to conform our original program.
#include <unistd.h> /* added because we will call exit*/
long int factorial_1(int calc_fac_1_arg, char *host)
{ CLIENT *clnt;
long *result_1;
#ifndef DEBUG
clnt = clnt_create(host, FACTORIAL, ONE, “netpath”);
if (clnt == (CLIENT *) NULL) {
clnt_pcreateerror(host);
exit(1);
} #endif /* DEBUG */
result_1 = calc_fac_1(&calc_fac_1_arg, clnt);
if (result_1 == (long *) NULL) {
clnt_perror(clnt, “call failed”);
} #ifndef DEBUG
clnt_destroy(clnt);
#endif /* DEBUG */

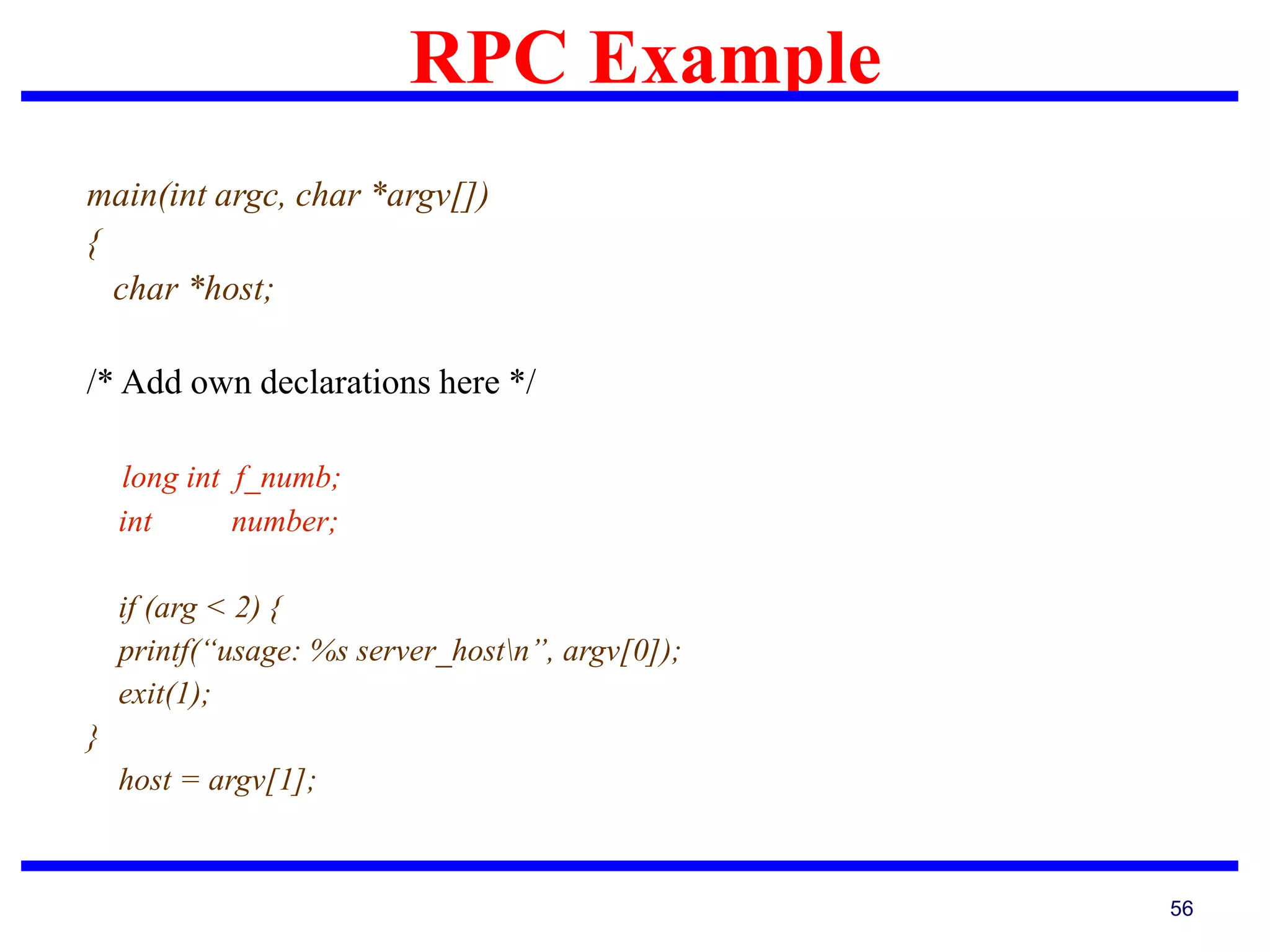

RPC Example
56
main(int argc, char *argv[])
{
char *host;
/* Add own declarations here */
long int f_numb;
int number;
if (arg < 2) {
printf(“usage: %s server_hostn”, argv[0]);
exit(1);
}
host = argv[1];

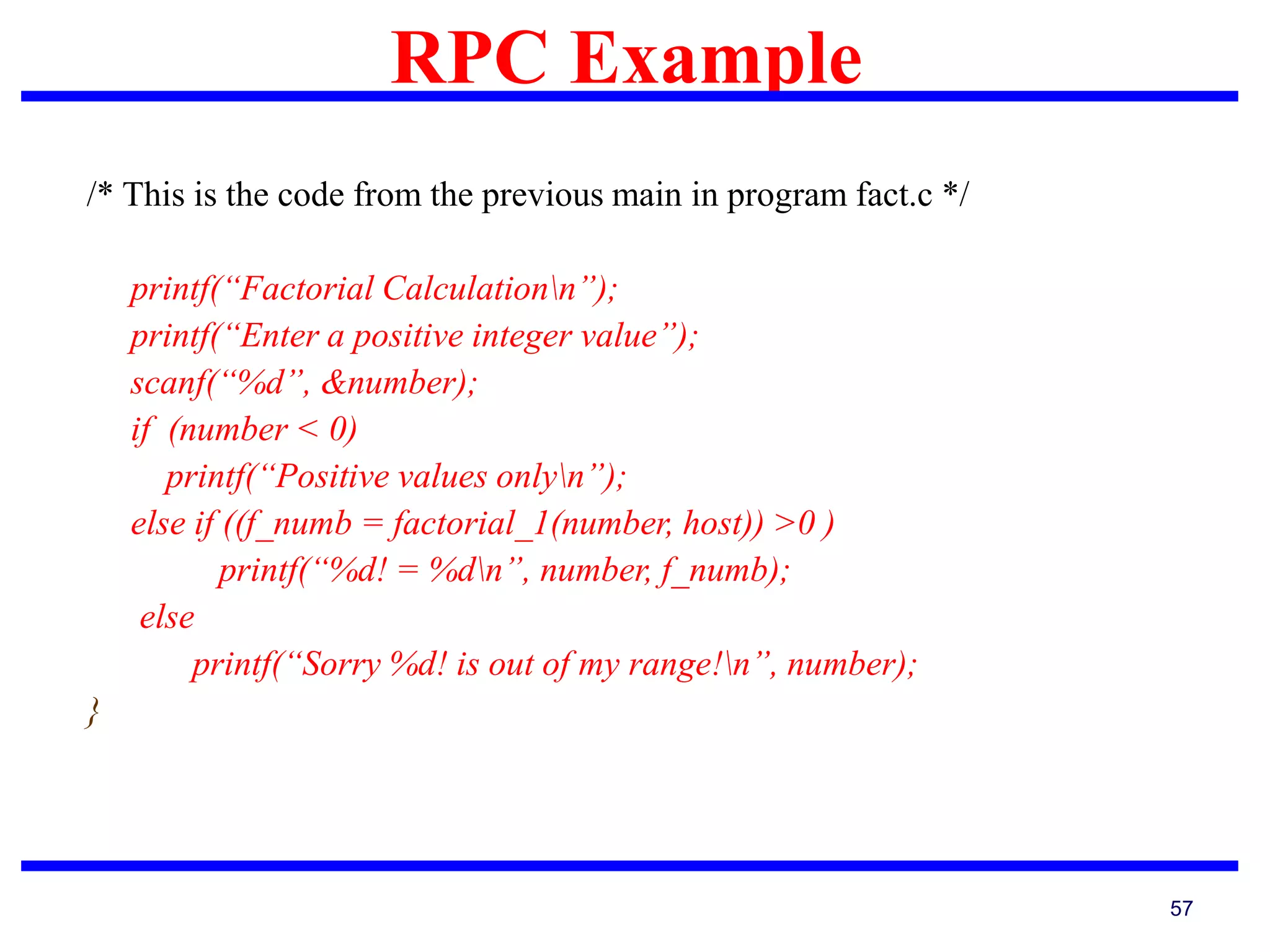

RPC Example
57
/* This is the code from the previous main in program fact.c */
printf(“Factorial Calculationn”);
printf(“Enter a positive integer value”);
scanf(“%d”, &number);
if (number < 0)
printf(“Positive values onlyn”);
else if ((f_numb = factorial_1(number, host)) >0 )
printf(“%d! = %dn”, number, f_numb);
else
printf(“Sorry %d! is out of my range!n”, number);
}

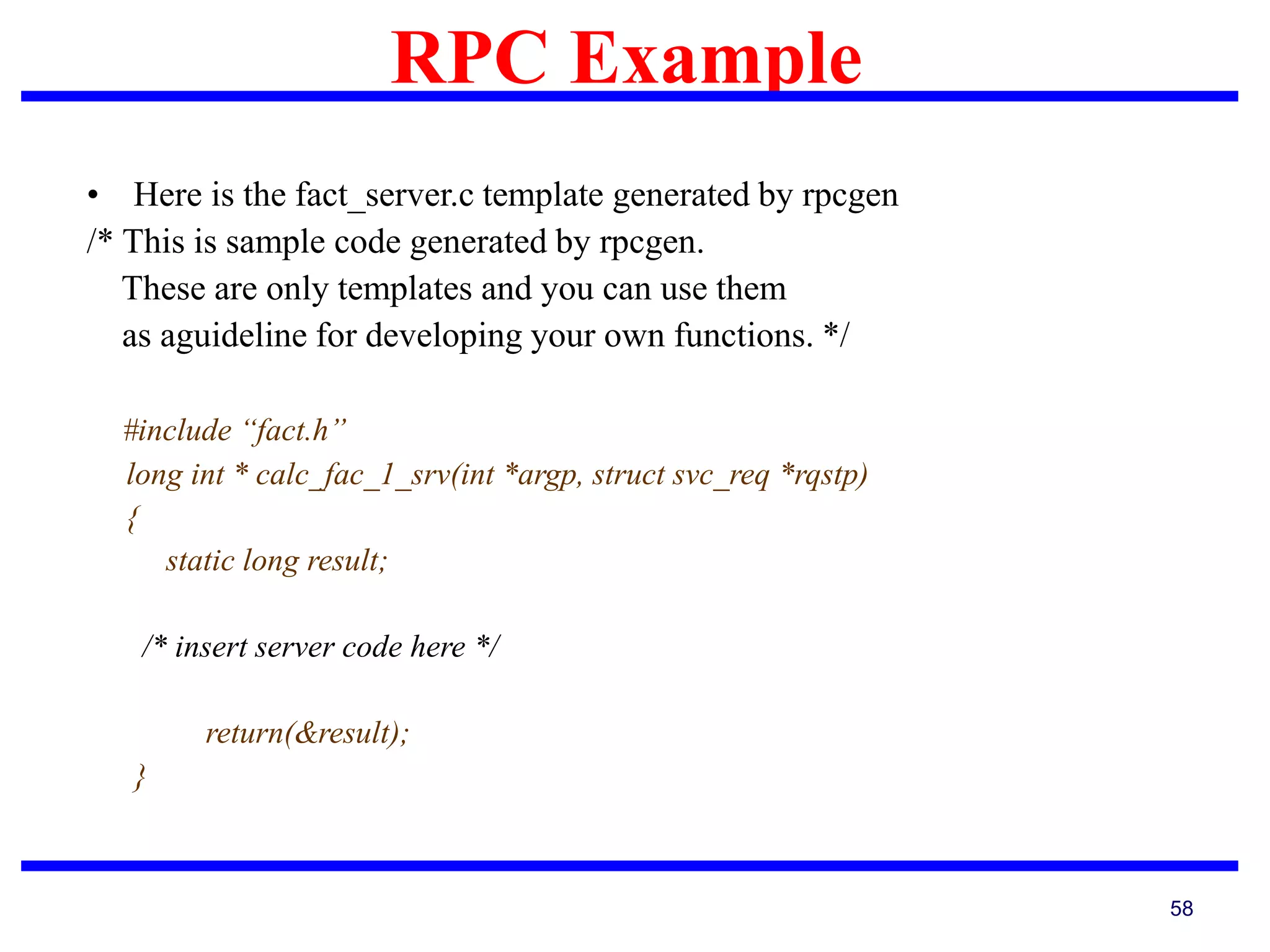

RPC Example
58
• Here is the fact_server.c template generated by rpcgen
/* This is sample code generated by rpcgen.
These are only templates and you can use them
as aguideline for developing your own functions. */
long int * calc_fac_1_srv(int *argp, struct svc_req *rqstp)
{
static long result;
/* insert server code here */
return(&result);
}

RPC Example
59

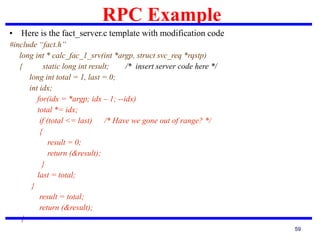

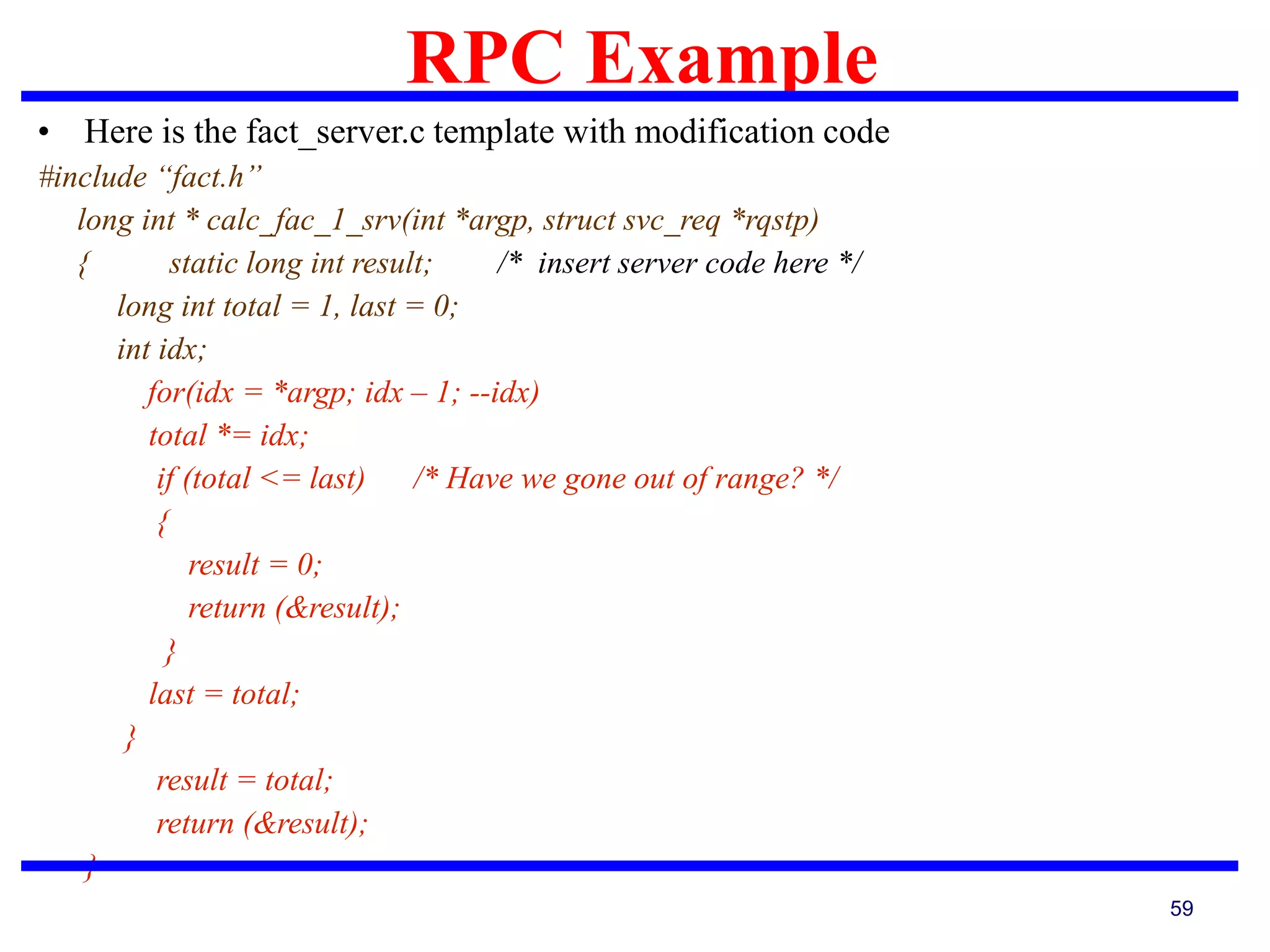

• Here is the fact_server.c template with modification code
long int * calc_fac_1_srv(int *argp, struct svc_req *rqstp)
{ static long int result; /* insert server code here */
long int total = 1, last = 0;
int idx;
for(idx = *argp; idx – 1; --idx)
total *= idx;
if (total <= last) /* Have we gone out of range? */
{
result = 0;
return (&result);
}
last = total;
}
result = total;
return (&result);
}

RPC Example
60

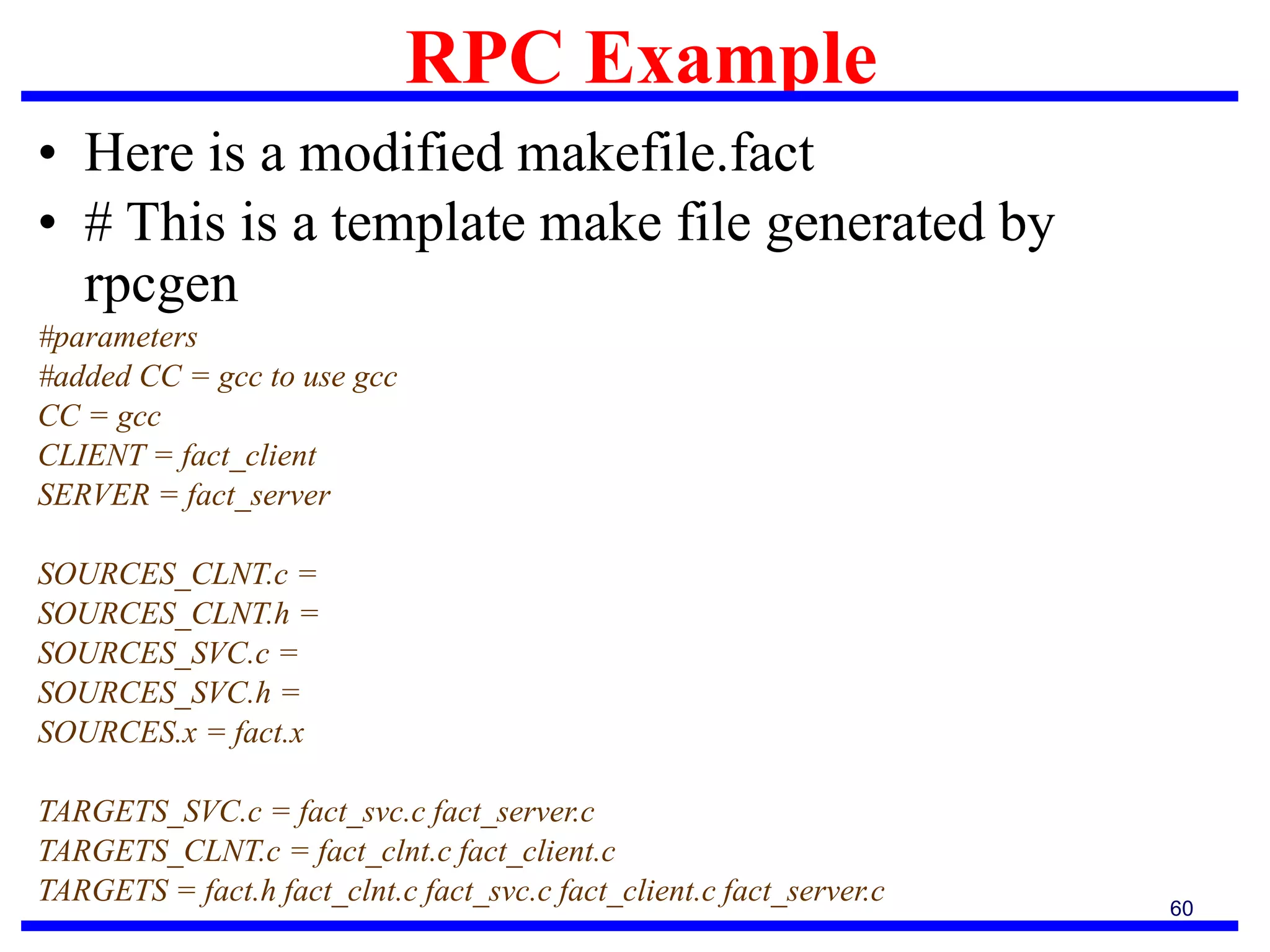

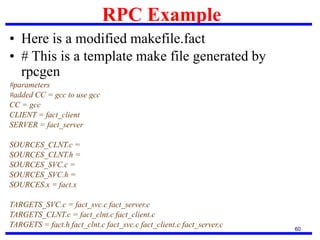

• Here is a modified makefile.fact
• # This is a template make file generated by
rpcgen
#parameters
#added CC = gcc to use gcc
CC = gcc
CLIENT = fact_client
SERVER = fact_server
SOURCES_CLNT.c =
SOURCES_CLNT.h =
SOURCES_SVC.c =
SOURCES_SVC.h =
SOURCES.x = fact.x
TARGETS_SVC.c = fact_svc.c fact_server.c
TARGETS_CLNT.c = fact_clnt.c fact_client.c
TARGETS = fact.h fact_clnt.c fact_svc.c fact_client.c fact_server.c

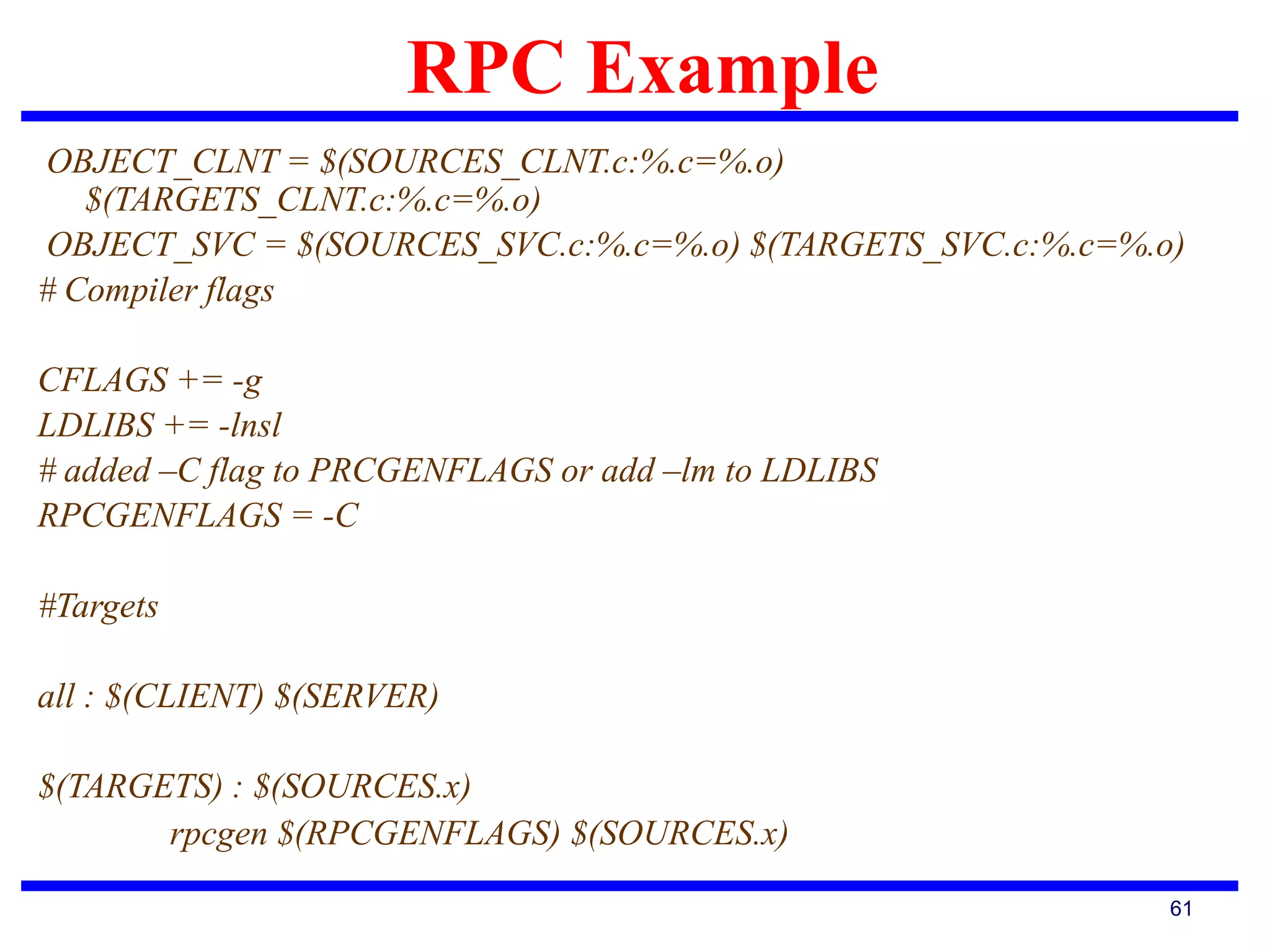

RPC Example
61

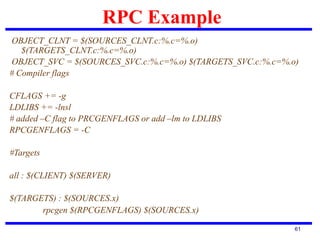

OBJECT_CLNT = $(SOURCES_CLNT.c:%.c=%.o)
$(TARGETS_CLNT.c:%.c=%.o)
OBJECT_SVC = $(SOURCES_SVC.c:%.c=%.o) $(TARGETS_SVC.c:%.c=%.o)
# Compiler flags
CFLAGS += -g
LDLIBS += -lnsl
# added –C flag to PRCGENFLAGS or add –lm to LDLIBS
RPCGENFLAGS = -C
#Targets
all : $(CLIENT) $(SERVER)
$(TARGETS) : $(SOURCES.x)
rpcgen $(RPCGENFLAGS) $(SOURCES.x)

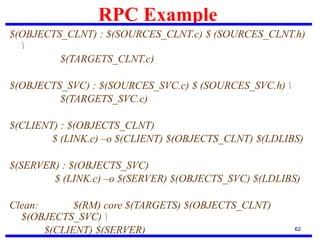

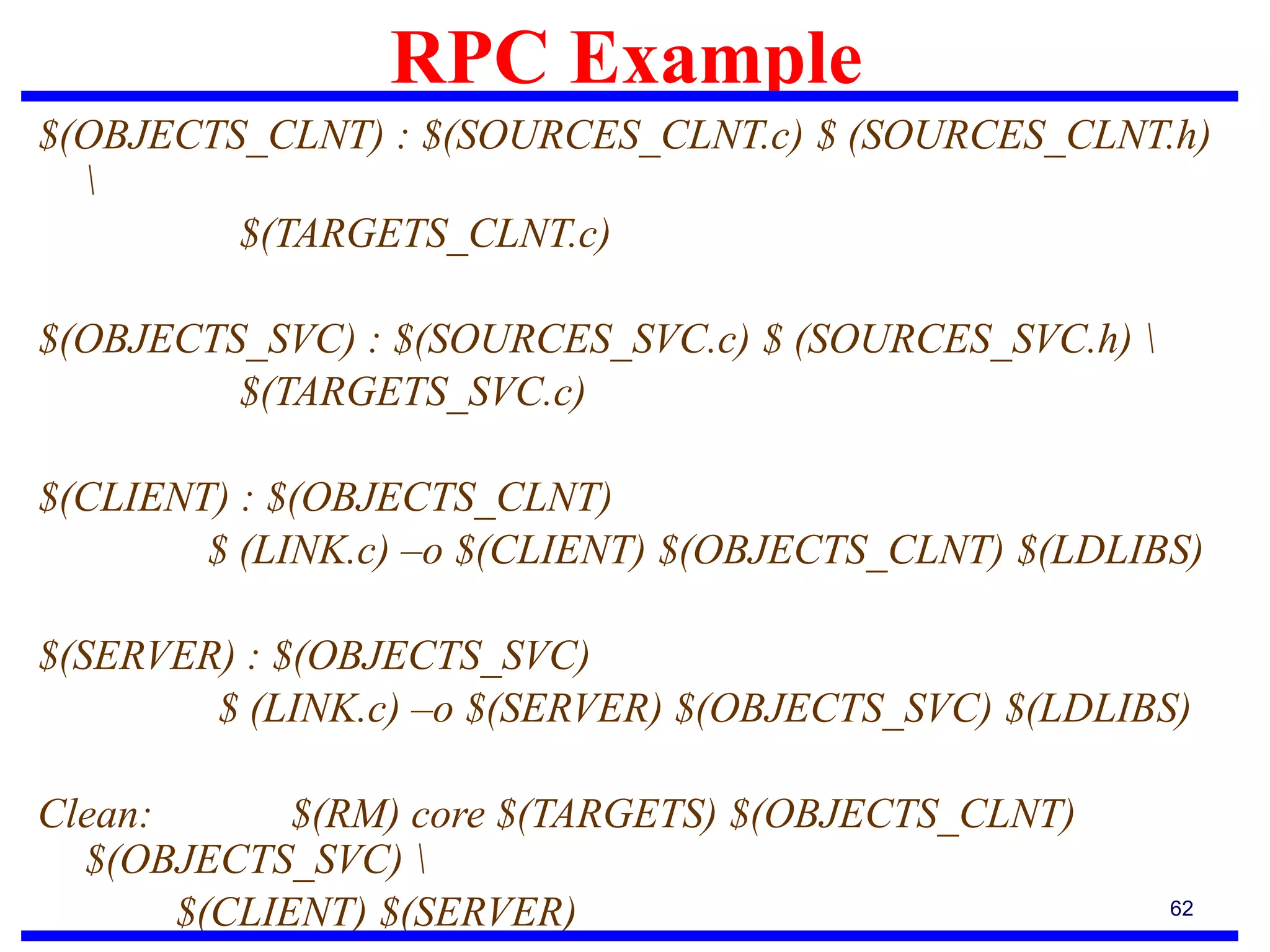

RPC Example
62
$(OBJECTS_CLNT) : $(SOURCES_CLNT.c) $ (SOURCES_CLNT.h)

$(TARGETS_CLNT.c)
$(OBJECTS_SVC) : $(SOURCES_SVC.c) $ (SOURCES_SVC.h)
$(TARGETS_SVC.c)
$(CLIENT) : $(OBJECTS_CLNT)
$ (LINK.c) –o $(CLIENT) $(OBJECTS_CLNT) $(LDLIBS)
$(SERVER) : $(OBJECTS_SVC)
$ (LINK.c) –o $(SERVER) $(OBJECTS_SVC) $(LDLIBS)
Clean: $(RM) core $(TARGETS) $(OBJECTS_CLNT)
$(OBJECTS_SVC)
$(CLIENT) $(SERVER)

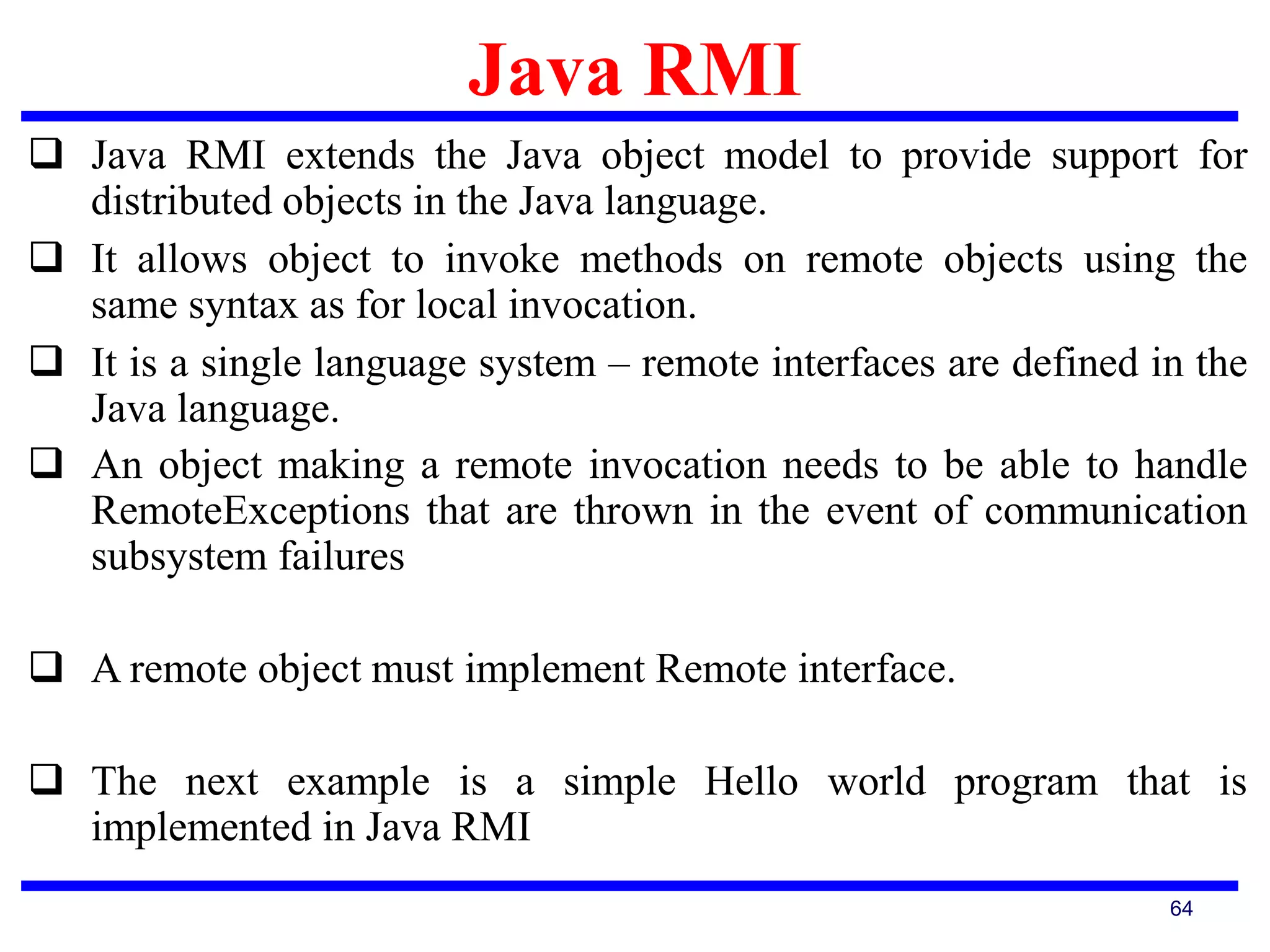

Java RMI
64
 Java RMI extends the Java object model to provide support for
distributed objects in the Java language.
 It allows object to invoke methods on remote objects using the
same syntax as for local invocation.
 It is a single language system – remote interfaces are defined in the
Java language.
 An object making a remote invocation needs to be able to handle
RemoteExceptions that are thrown in the event of communication
subsystem failures
 A remote object must implement Remote interface.
 The next example is a simple Hello world program that is
implemented in Java RMI

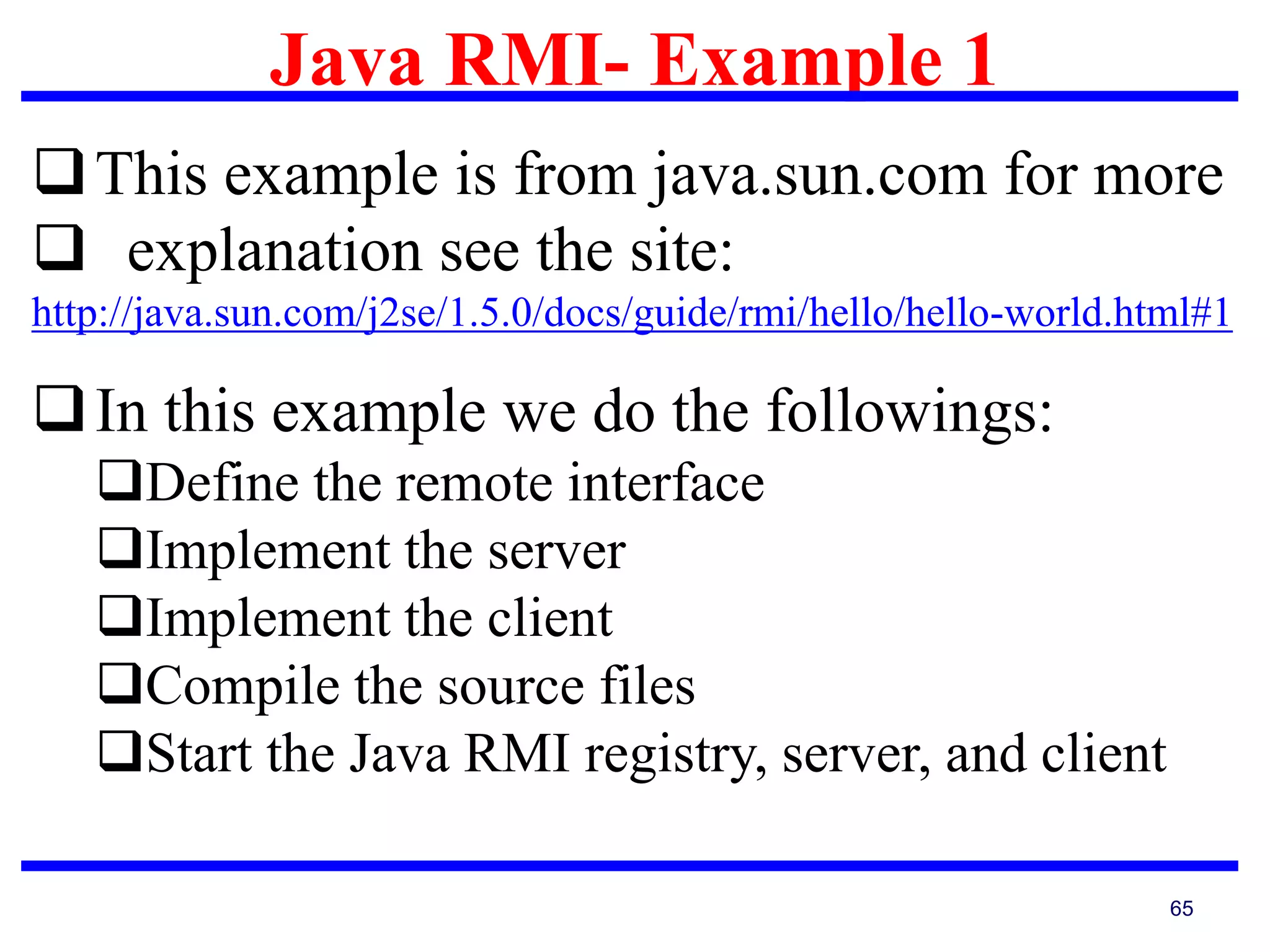

Java RMI- Example 1
65
This example is from java.sun.com for more
 explanation see the site:
http://java.sun.com/j2se/1.5.0/docs/guide/rmi/hello/hello-world.html#1
In this example we do the followings:
Define the remote interface
Implement the server
Implement the client
Compile the source files
Start the Java RMI registry, server, and client

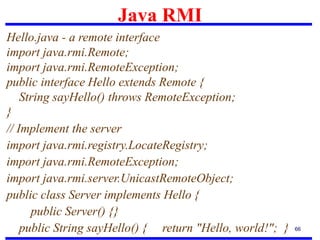

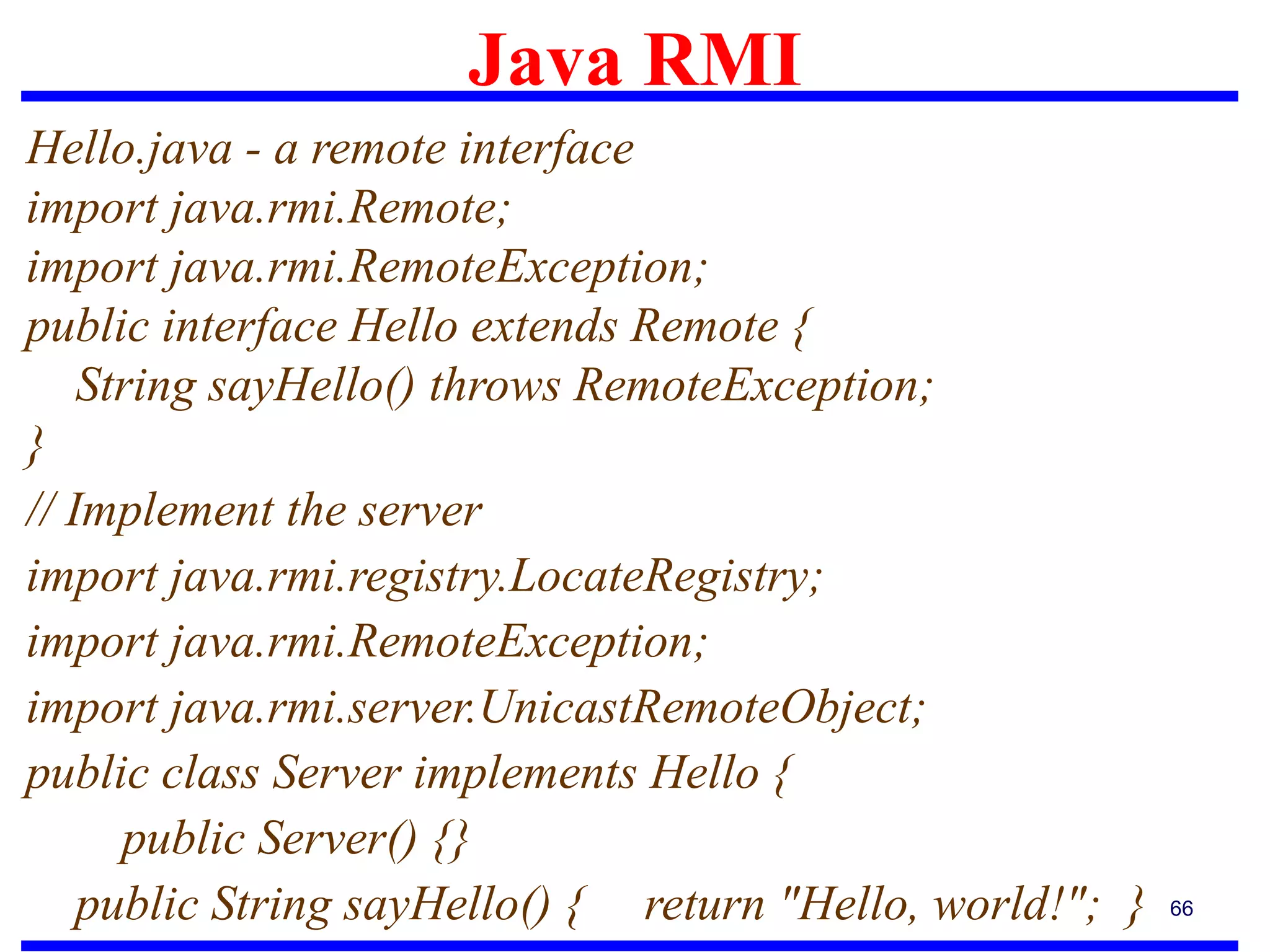

Java RMI
66
Hello.java - a remote interface
import java.rmi.Remote;
import java.rmi.RemoteException;
public interface Hello extends Remote {
String sayHello() throws RemoteException;
}
// Implement the server
import java.rmi.registry.LocateRegistry;
import java.rmi.RemoteException;
import java.rmi.server.UnicastRemoteObject;
public class Server implements Hello {
public Server() {}
public String sayHello() { return "Hello, world!"; }

Java RMI
67

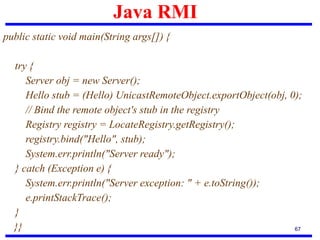

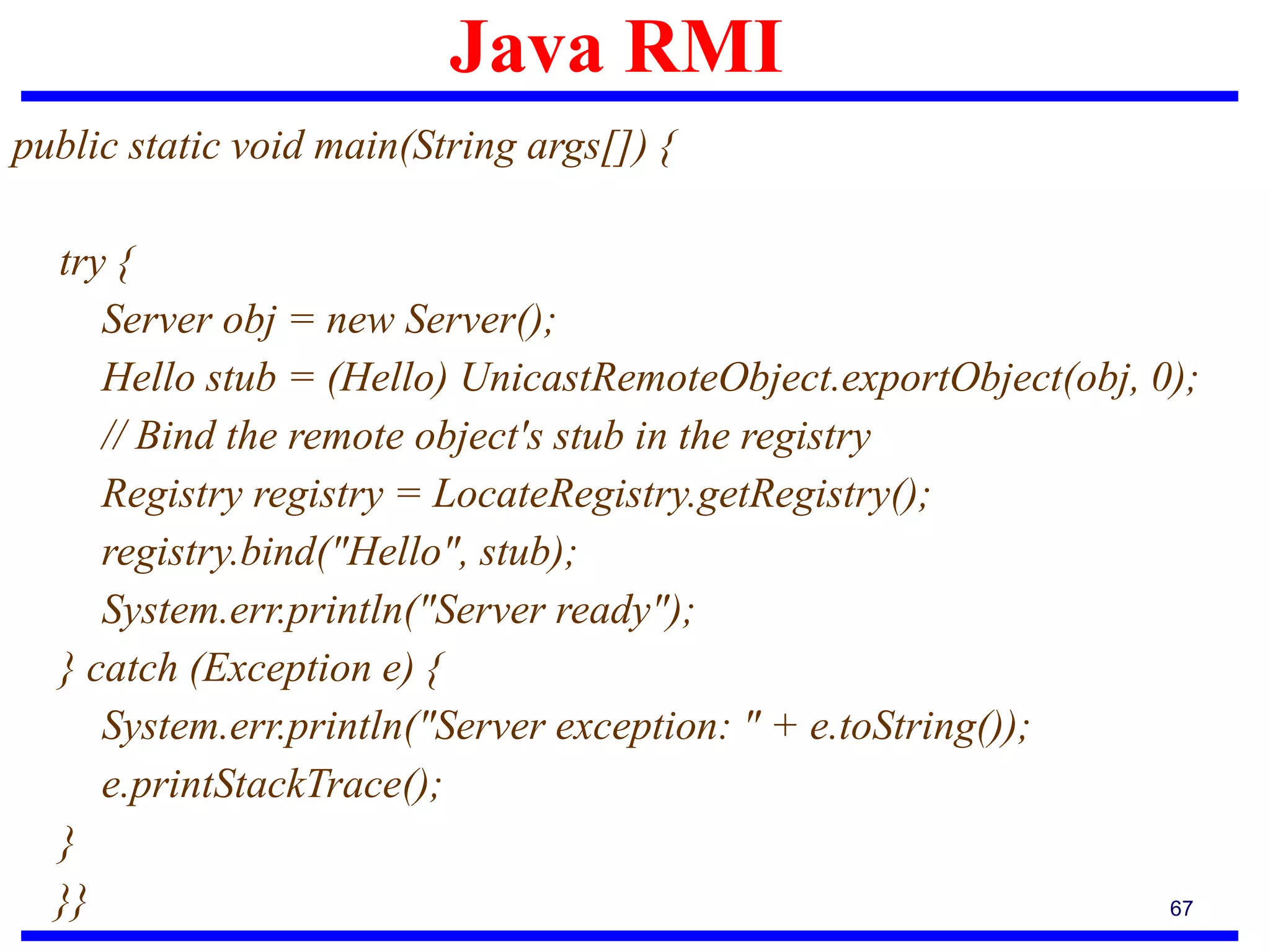

public static void main(String args[]) {
try {
Server obj = new Server();
Hello stub = (Hello) UnicastRemoteObject.exportObject(obj, 0);
// Bind the remote object's stub in the registry
Registry registry = LocateRegistry.getRegistry();
registry.bind("Hello", stub);
System.err.println("Server ready");
} catch (Exception e) {
System.err.println("Server exception: " + e.toString());
e.printStackTrace();
}
}}

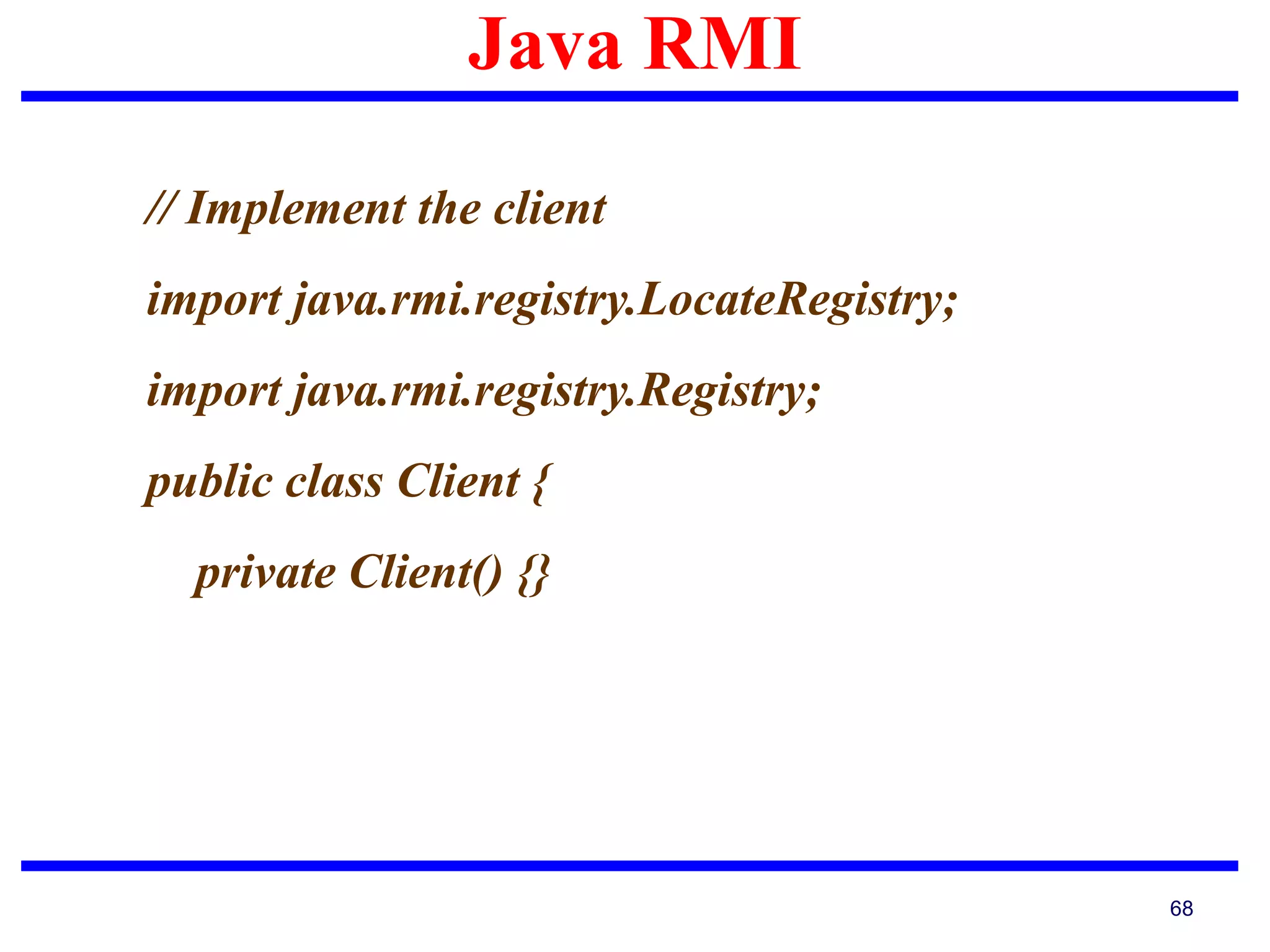

Java RMI
68
// Implement the client
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
public class Client {
private Client() {}

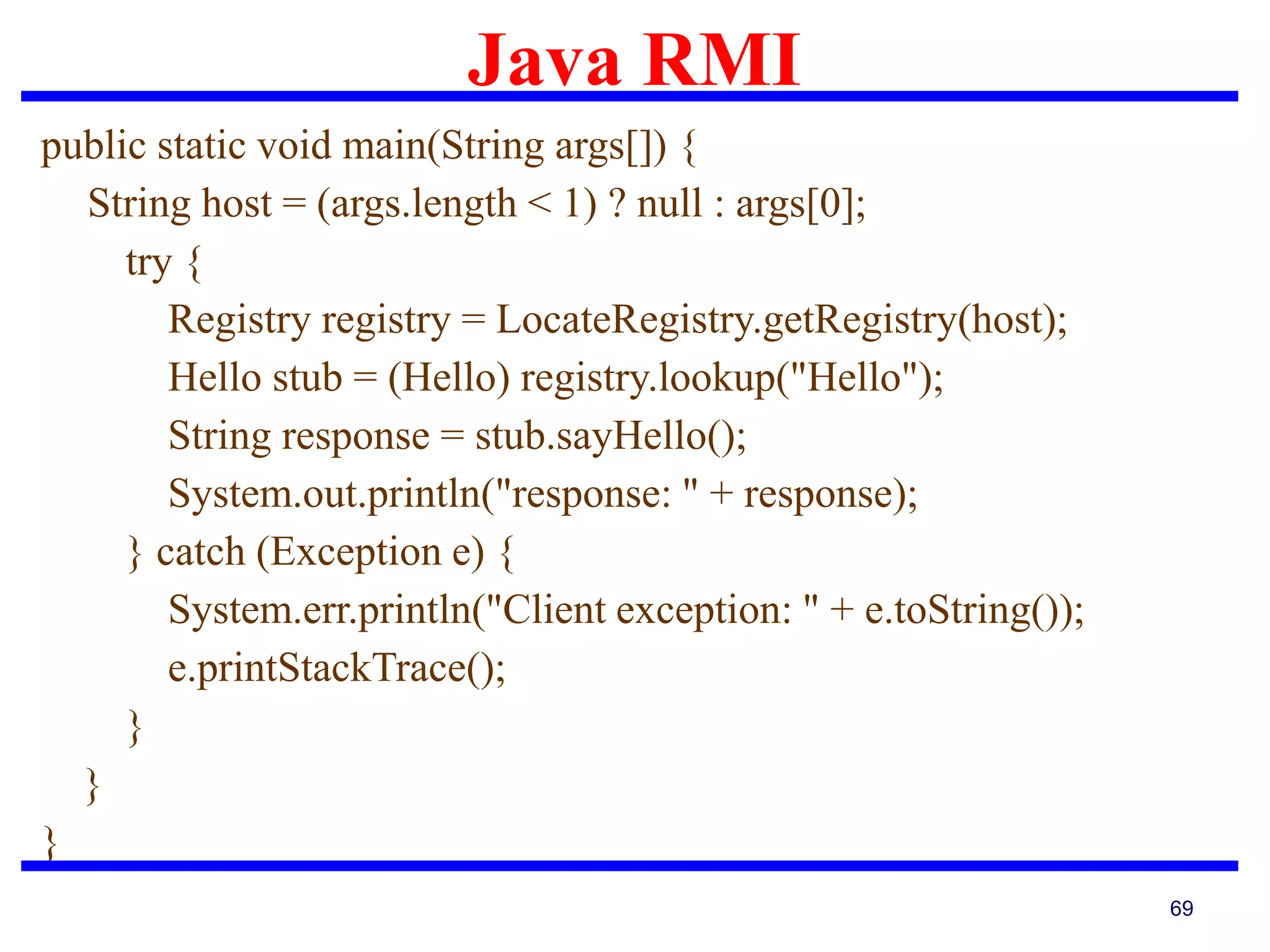

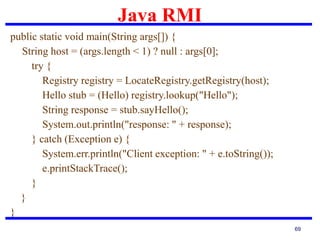

Java RMI
69
public static void main(String args[]) {
String host = (args.length < 1) ? null : args[0];
try {
Registry registry = LocateRegistry.getRegistry(host);
Hello stub = (Hello) registry.lookup("Hello");
String response = stub.sayHello();
System.out.println("response: " + response);
} catch (Exception e) {
System.err.println("Client exception: " + e.toString());
e.printStackTrace();
}
}
}

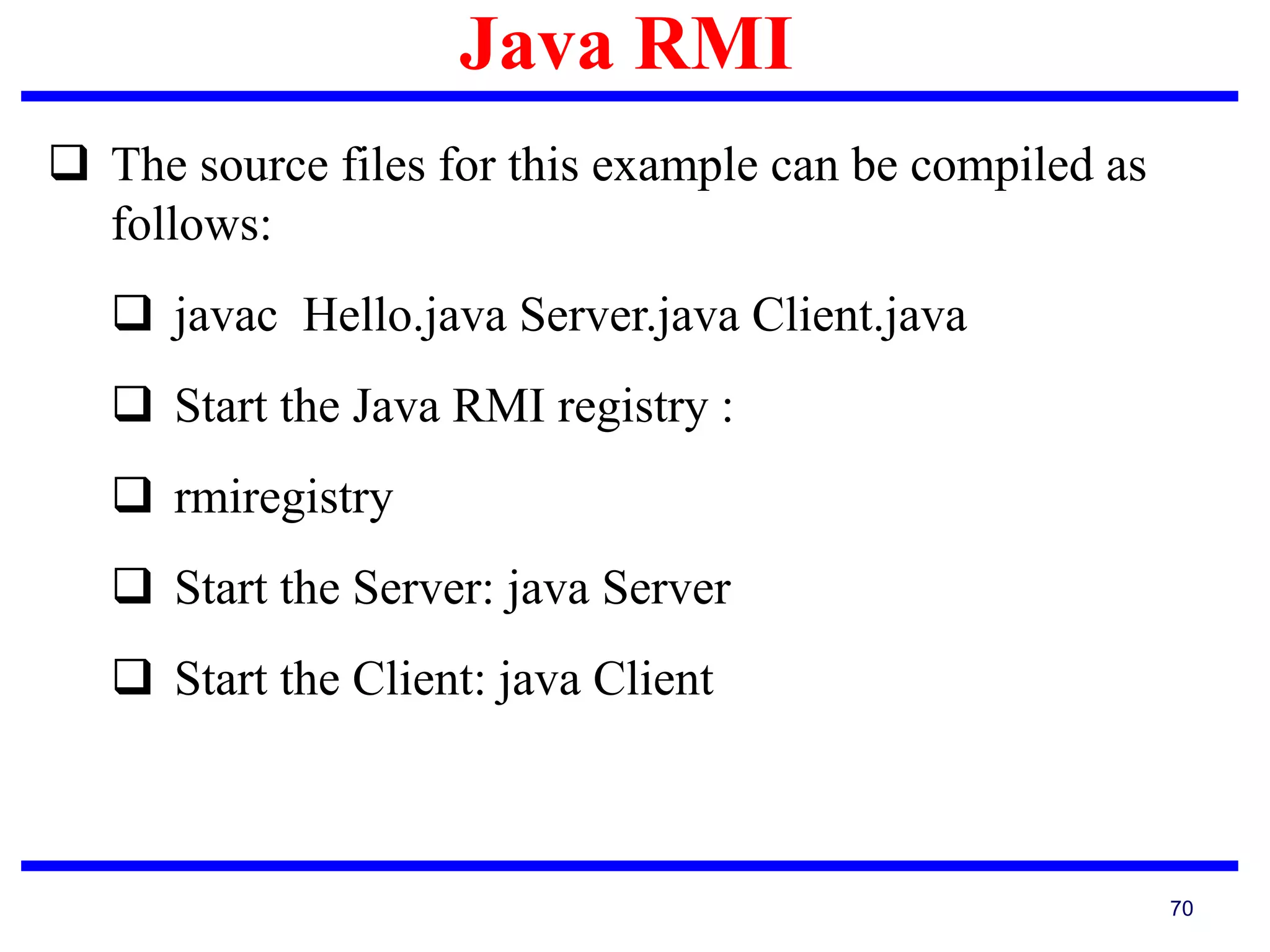

Java RMI
70
 The source files for this example can be compiled as
follows:
 javac Hello.java Server.java Client.java
 Start the Java RMI registry :
 rmiregistry
 Start the Server: java Server
 Start the Client: java Client

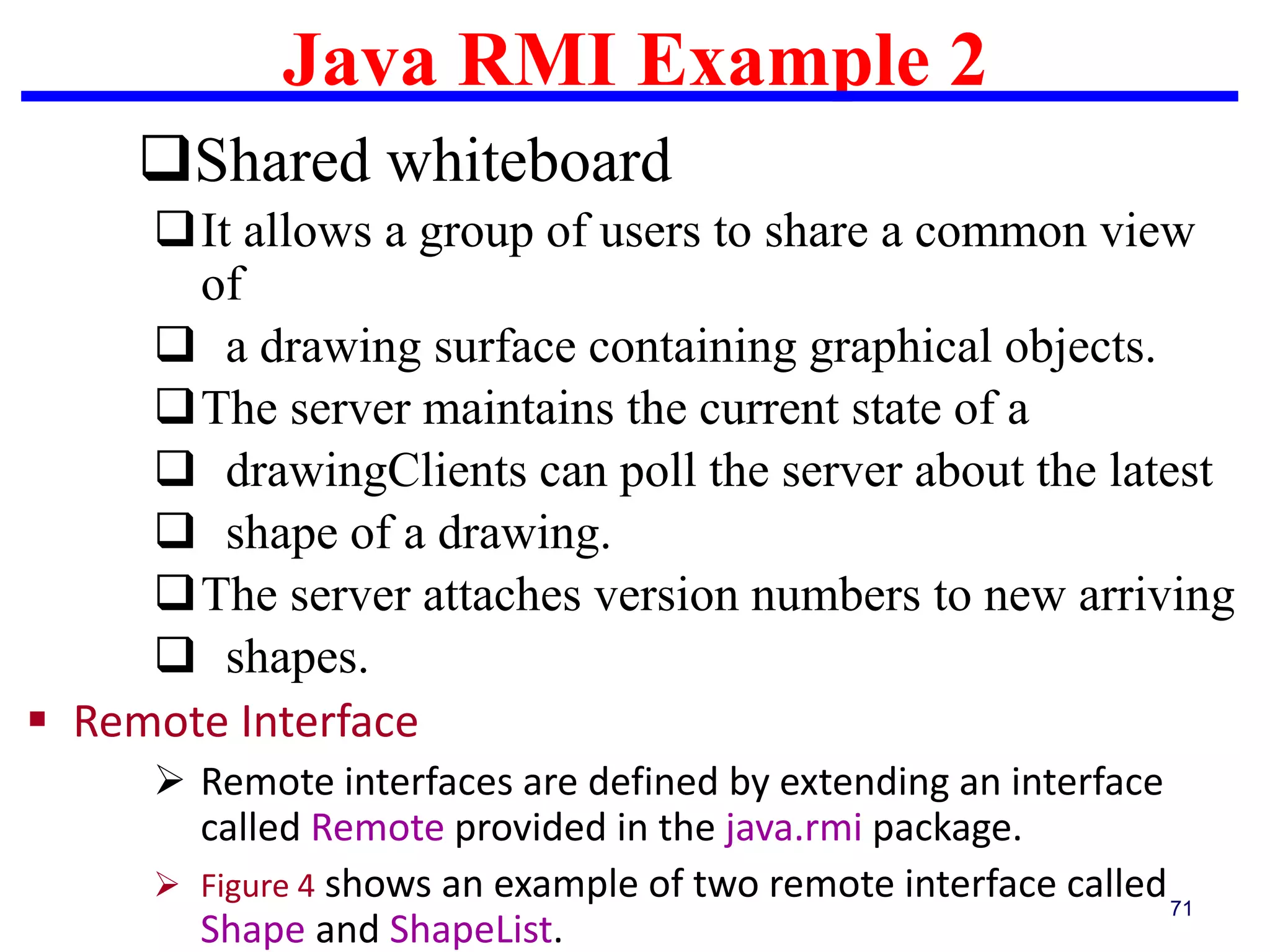

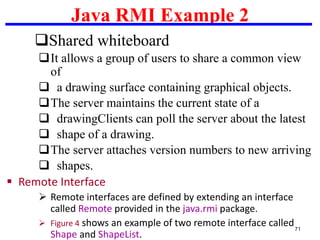

Java RMI Example 2
71
Shared whiteboard
It allows a group of users to share a common view
of
 a drawing surface containing graphical objects.
The server maintains the current state of a
 drawingClients can poll the server about the latest
 shape of a drawing.
The server attaches version numbers to new arriving
 shapes.
 Remote Interface
 Remote interfaces are defined by extending an interface
called Remote provided in the java.rmi package.
 Figure 4 shows an example of two remote interface called
Shape and ShapeList.

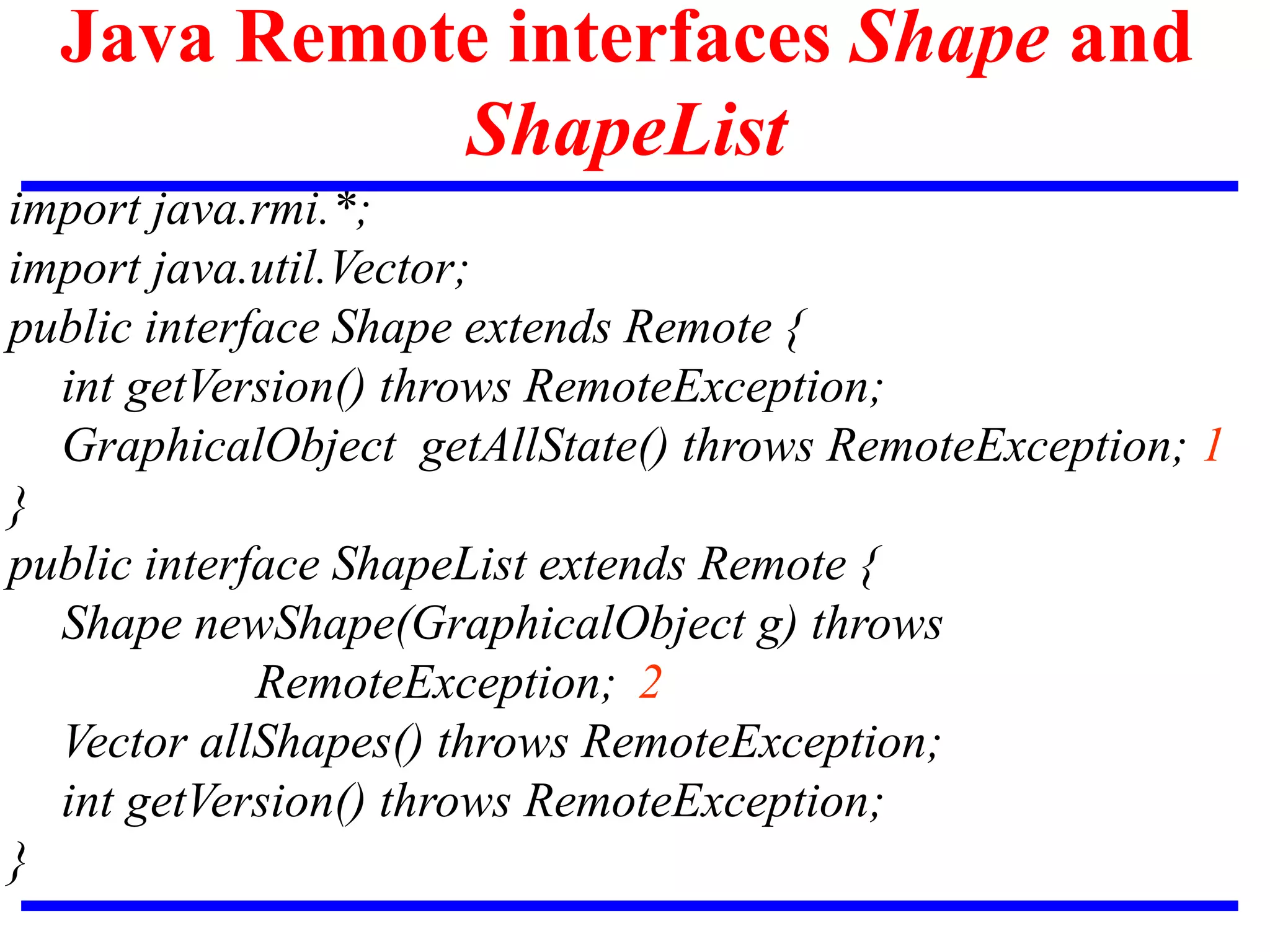

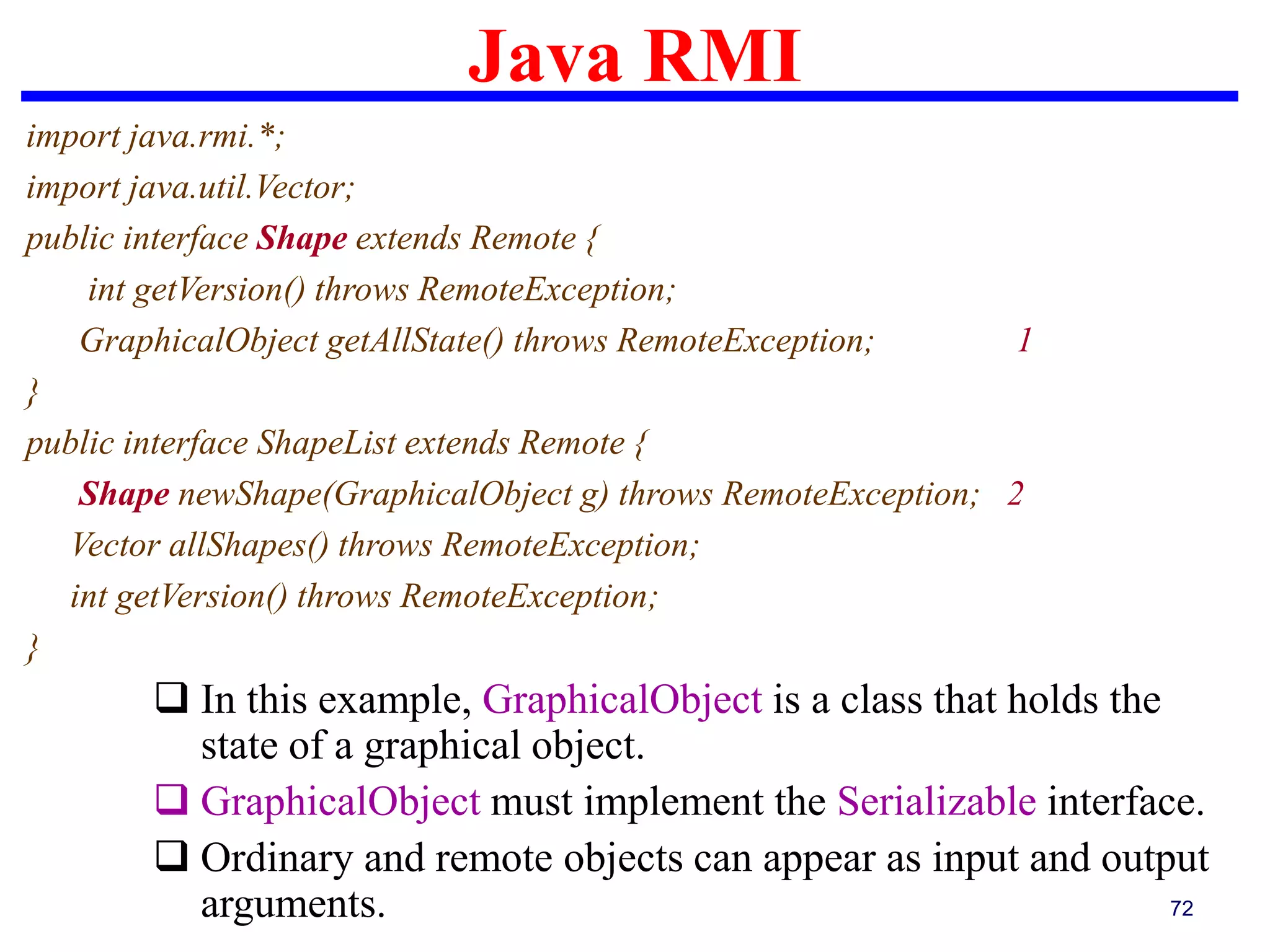

Java RMI
72
import java.rmi.*;
import java.util.Vector;
public interface Shape extends Remote {
int getVersion() throws RemoteException;
GraphicalObject getAllState() throws RemoteException; 1
}
public interface ShapeList extends Remote {
Shape newShape(GraphicalObject g) throws RemoteException; 2
Vector allShapes() throws RemoteException;
}
 In this example, GraphicalObject is a class that holds the
state of a graphical object.
 GraphicalObject must implement the Serializable interface.
 Ordinary and remote objects can appear as input and output
arguments.

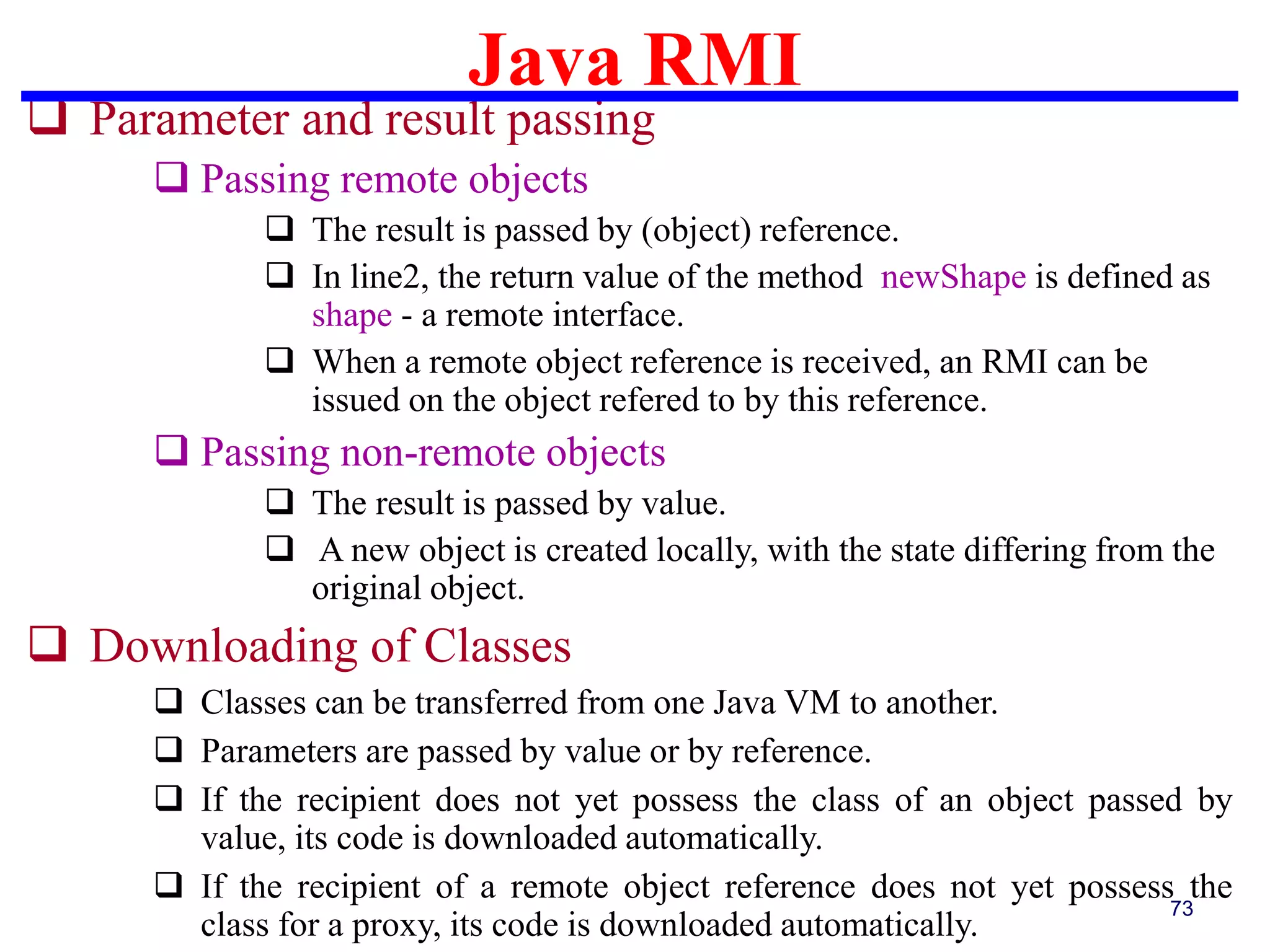

Java RMI
73
 Parameter and result passing
 Passing remote objects
 The result is passed by (object) reference.
 In line2, the return value of the method newShape is defined as
shape - a remote interface.
 When a remote object reference is received, an RMI can be
issued on the object refered to by this reference.
 Passing non-remote objects
 The result is passed by value.
 A new object is created locally, with the state differing from the
original object.
 Downloading of Classes
 Classes can be transferred from one Java VM to another.
 Parameters are passed by value or by reference.
 If the recipient does not yet possess the class of an object passed by
value, its code is downloaded automatically.
 If the recipient of a remote object reference does not yet possess the
class for a proxy, its code is downloaded automatically.

Java RMI
74

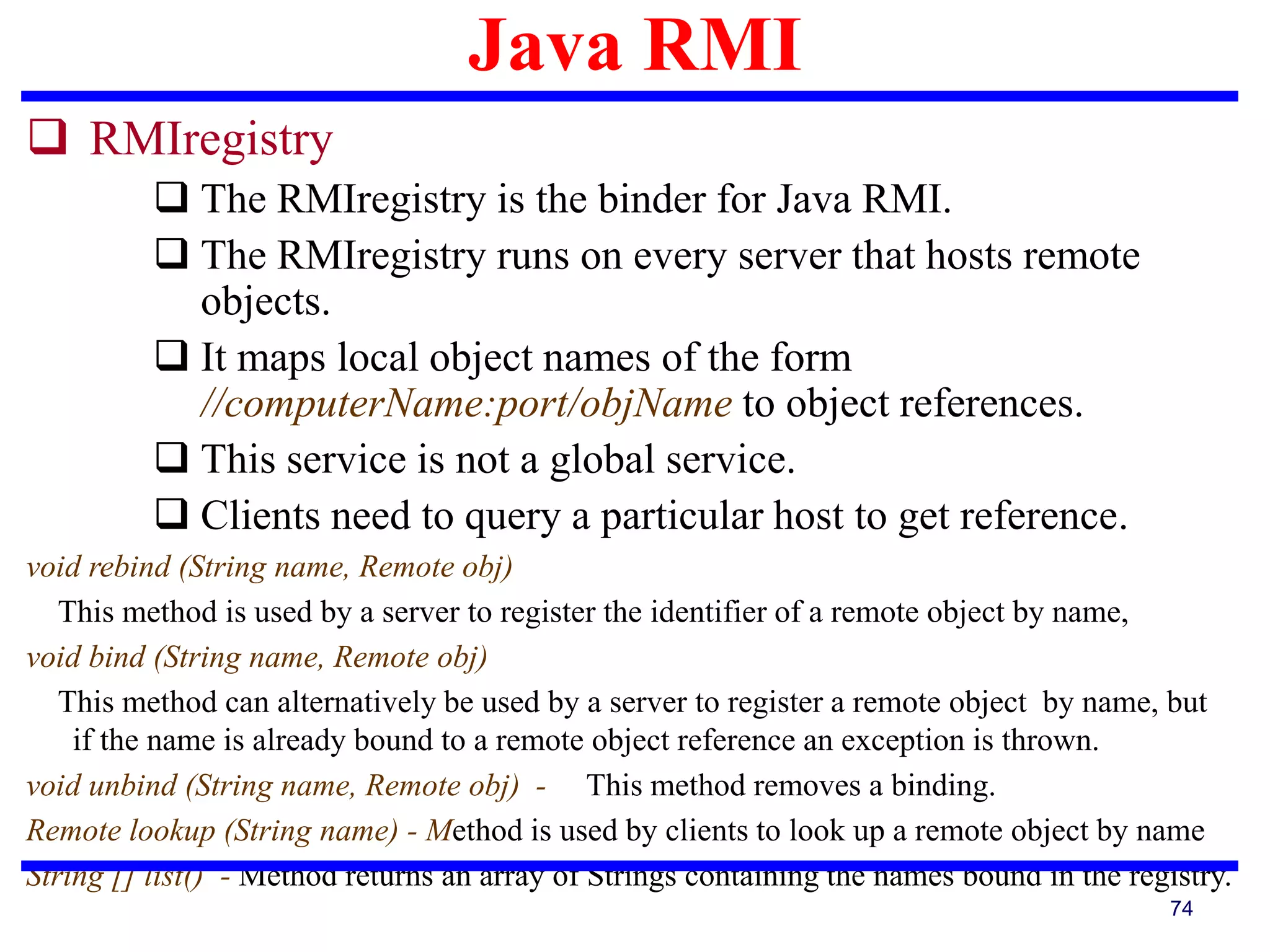

 RMIregistry
 The RMIregistry is the binder for Java RMI.
 The RMIregistry runs on every server that hosts remote
objects.
 It maps local object names of the form
//computerName:port/objName to object references.
 This service is not a global service.
 Clients need to query a particular host to get reference.

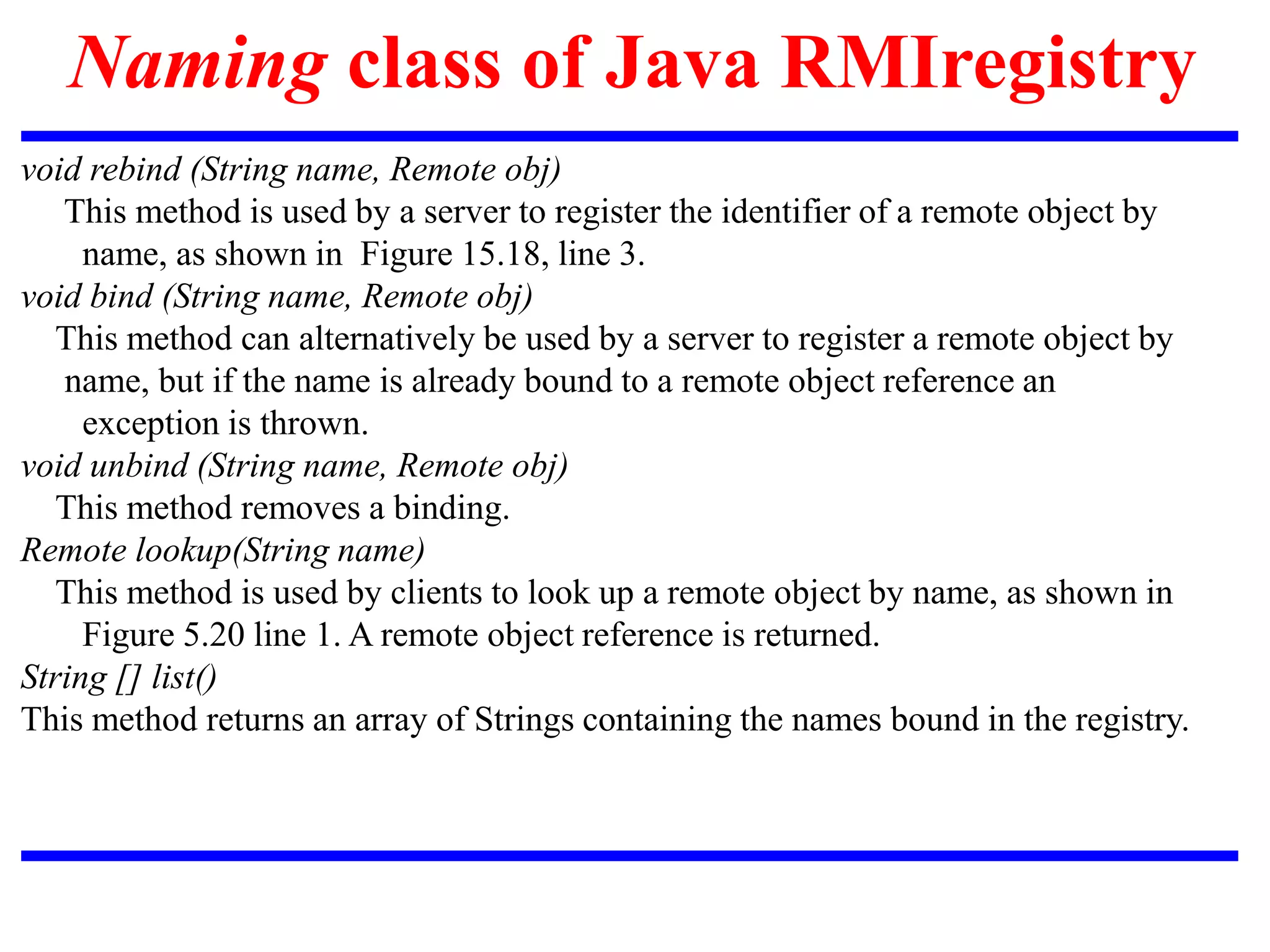

void rebind (String name, Remote obj)
This method is used by a server to register the identifier of a remote object by name,
void bind (String name, Remote obj)
This method can alternatively be used by a server to register a remote object by name, but
if the name is already bound to a remote object reference an exception is thrown.
void unbind (String name, Remote obj) - This method removes a binding.
Remote lookup (String name) - Method is used by clients to look up a remote object by name
String [] list() - Method returns an array of Strings containing the names bound in the registry.

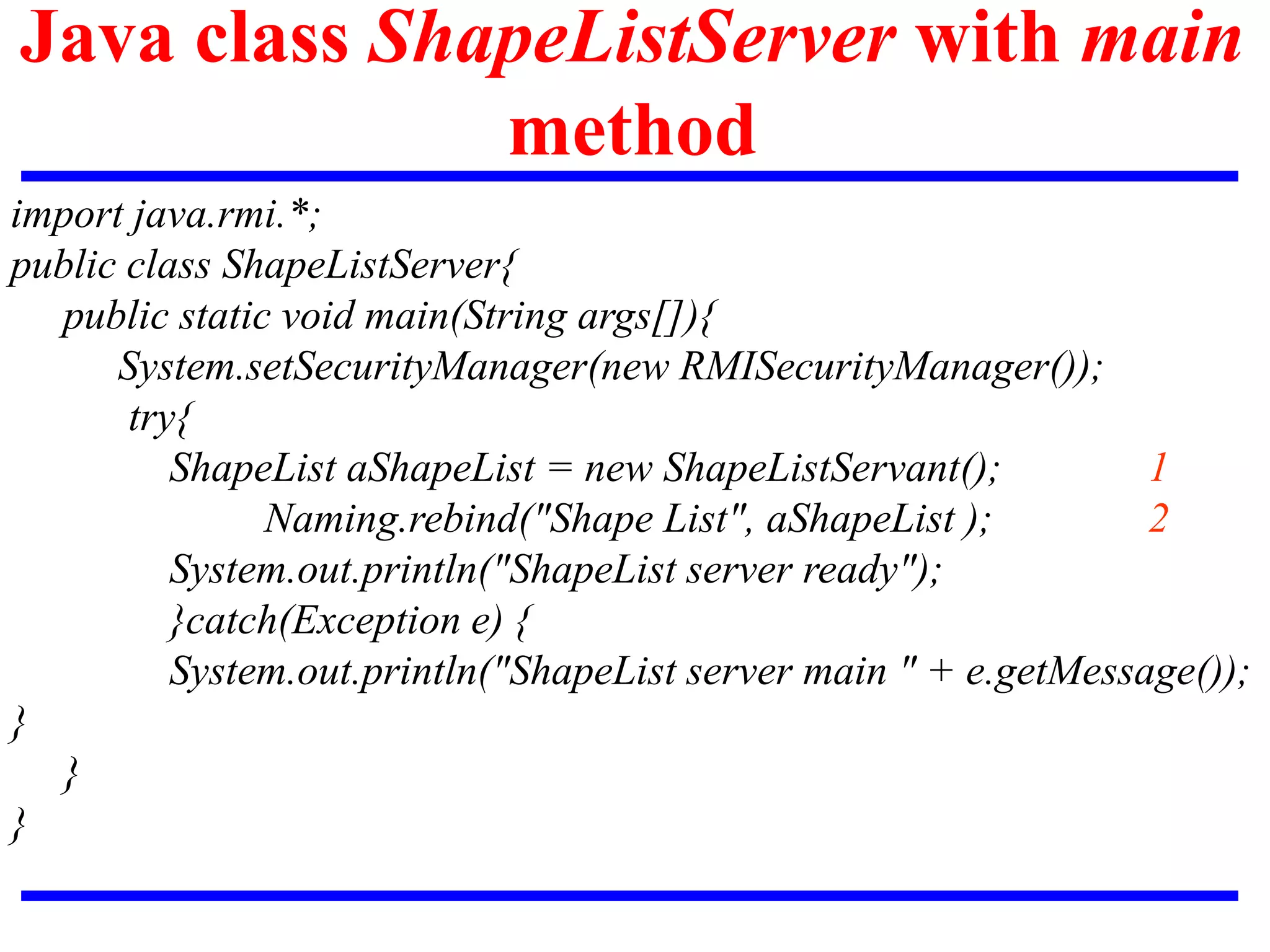

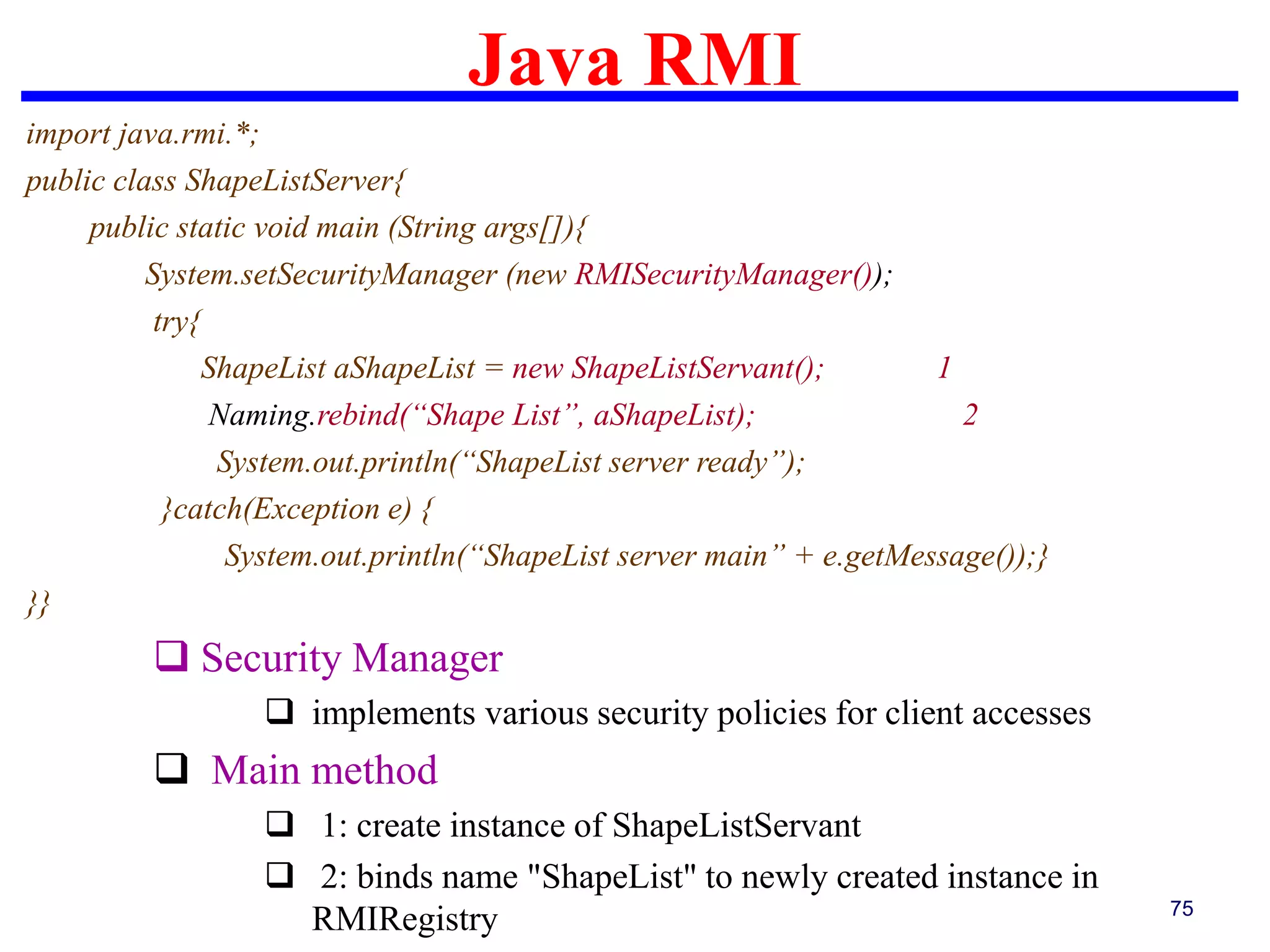

Java RMI
75

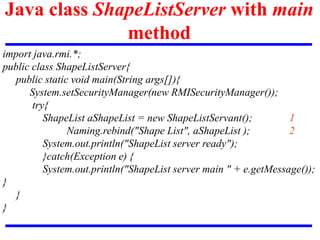

import java.rmi.*;
public class ShapeListServer{
public static void main (String args[]){
System.setSecurityManager (new RMISecurityManager());
try{
ShapeList aShapeList = new ShapeListServant(); 1
Naming.rebind(“Shape List”, aShapeList); 2
System.out.println(“ShapeList server ready”);
}catch(Exception e) {
System.out.println(“ShapeList server main” + e.getMessage());}
}}
 Security Manager
 implements various security policies for client accesses
 Main method
 1: create instance of ShapeListServant
 2: binds name "ShapeList" to newly created instance in
RMIRegistry

Java RMI

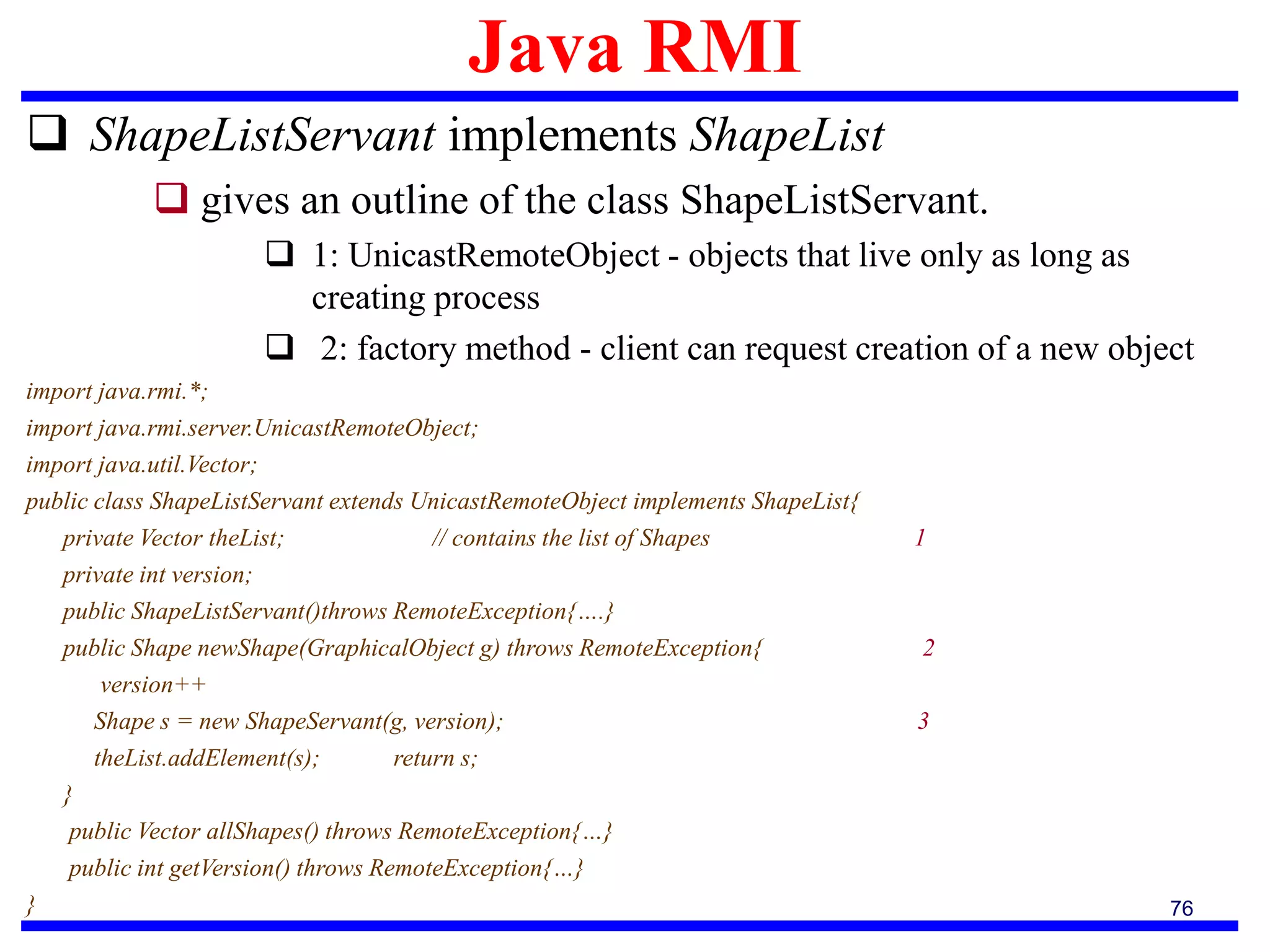

76

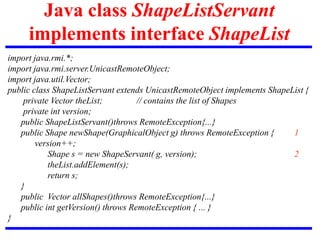

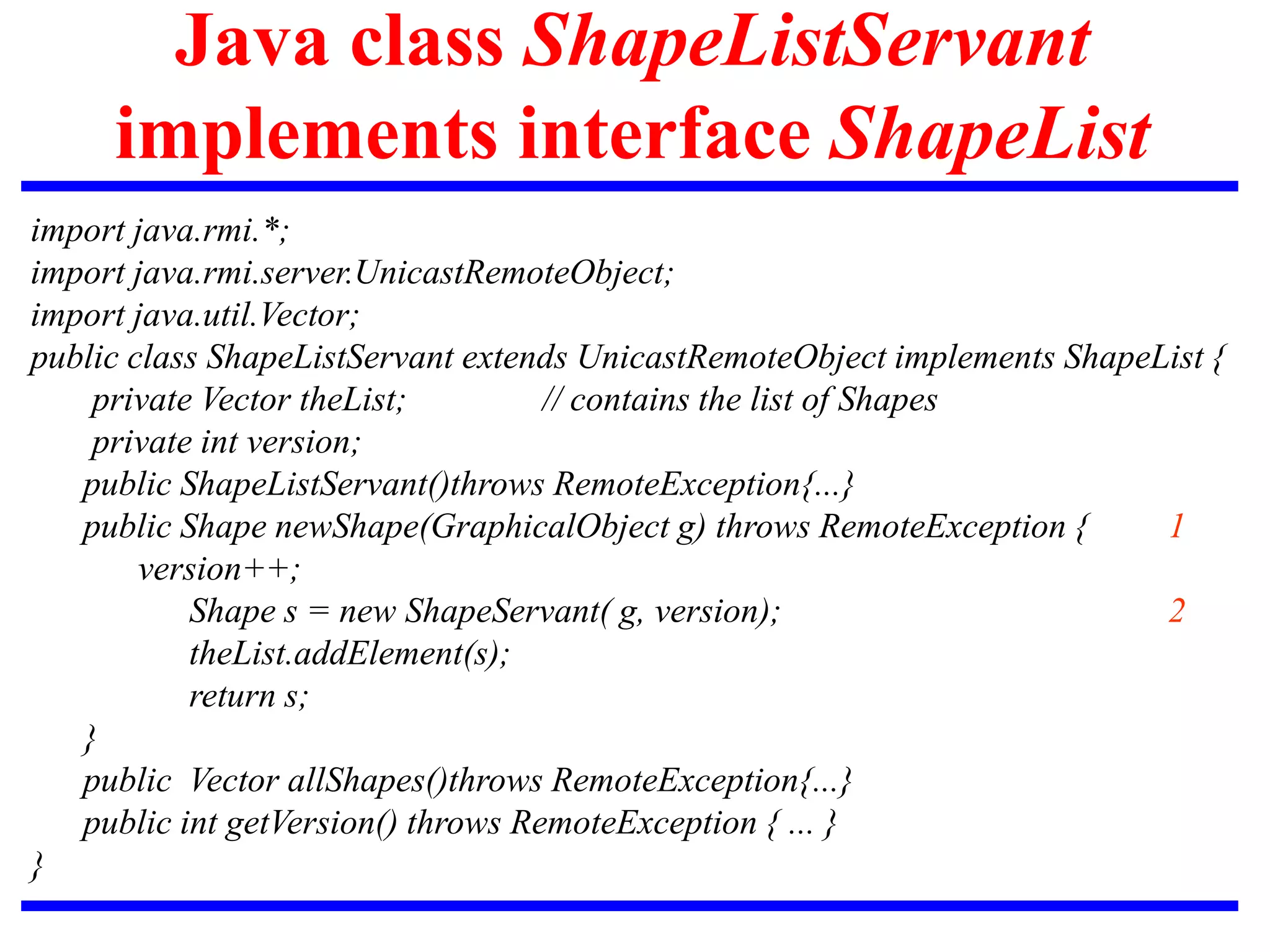

 ShapeListServant implements ShapeList
 gives an outline of the class ShapeListServant.
 1: UnicastRemoteObject - objects that live only as long as
creating process
 2: factory method - client can request creation of a new object
import java.rmi.*;
public class ShapeListServant extends UnicastRemoteObject implements ShapeList{
private Vector theList; // contains the list of Shapes 1
private int version;
public ShapeListServant()throws RemoteException{….}
public Shape newShape(GraphicalObject g) throws RemoteException{ 2
version++
Shape s = new ShapeServant(g, version); 3
theList.addElement(s); return s;
}
public Vector allShapes() throws RemoteException{…}
public int getVersion() throws RemoteException{…}
}

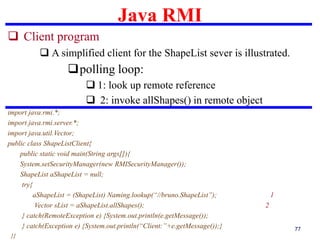

Java RMI
77

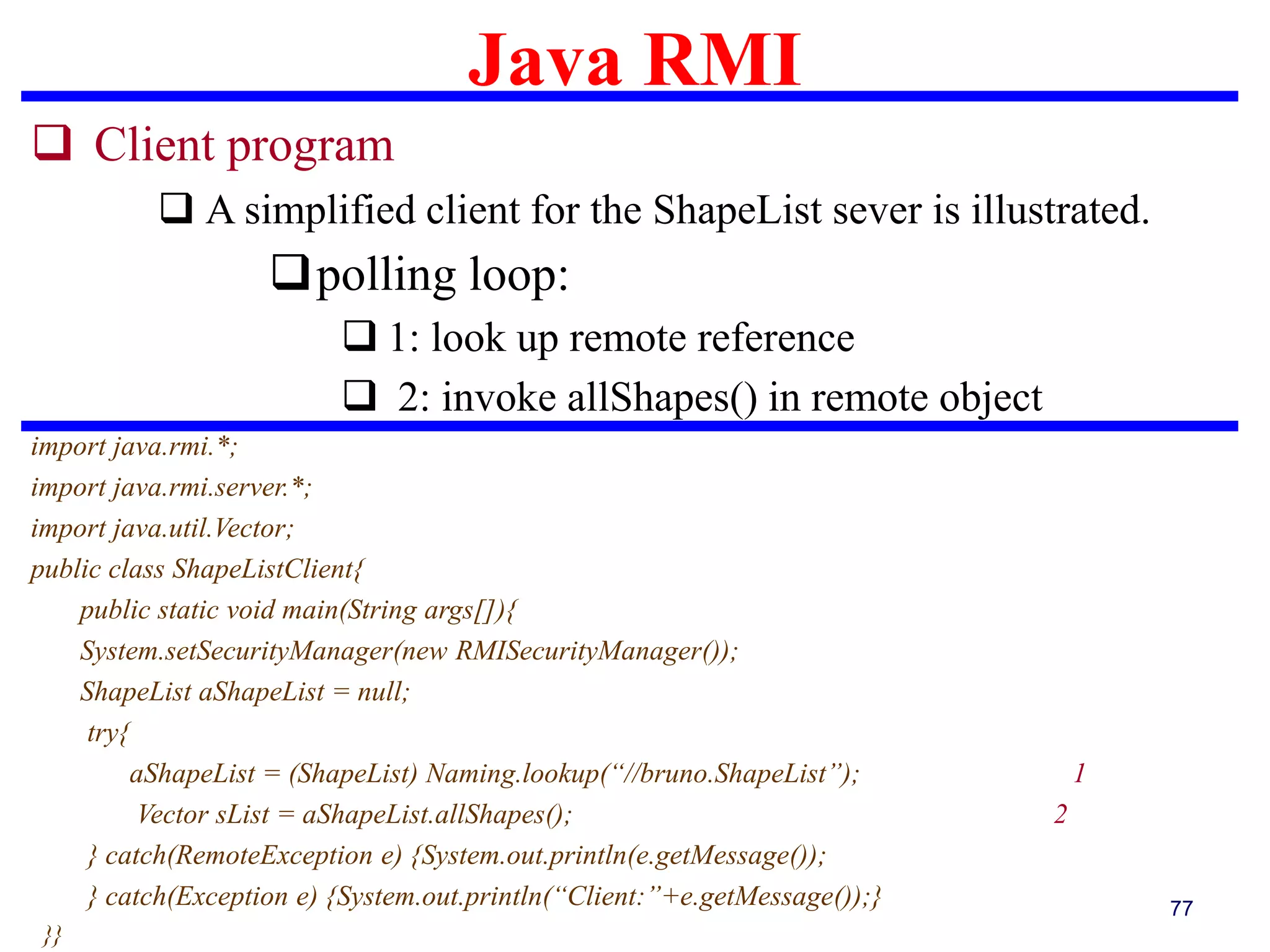

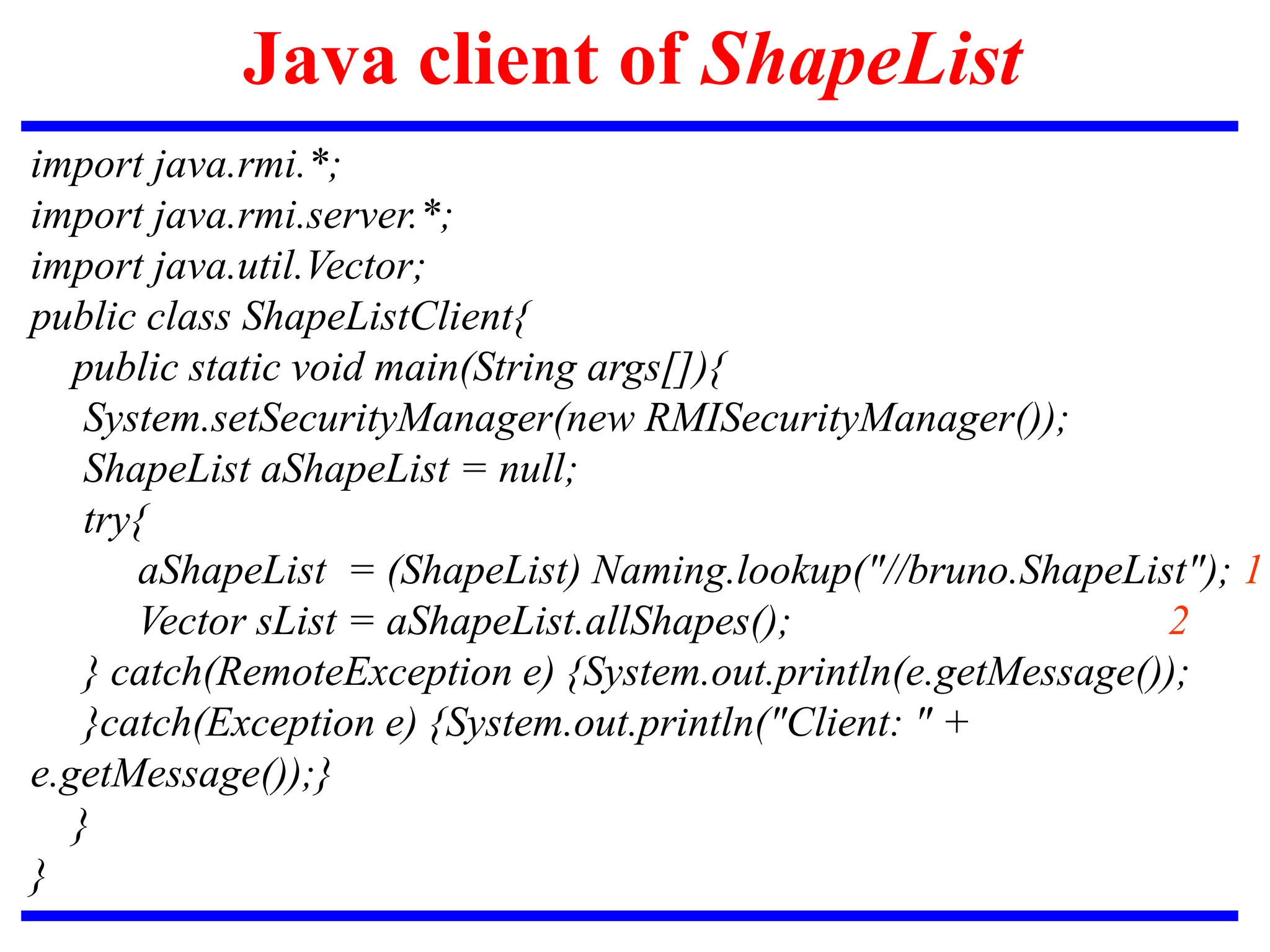

 Client program
 A simplified client for the ShapeList sever is illustrated.
polling loop:
 1: look up remote reference
 2: invoke allShapes() in remote object

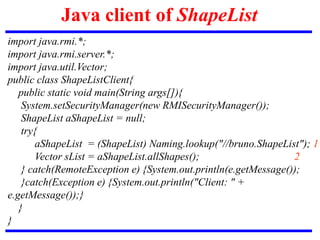

import java.rmi.*;
import java.rmi.server.*;
public class ShapeListClient{
public static void main(String args[]){
System.setSecurityManager(new RMISecurityManager());
ShapeList aShapeList = null;
try{
aShapeList = (ShapeList) Naming.lookup(“//bruno.ShapeList”); 1
Vector sList = aShapeList.allShapes(); 2
} catch(RemoteException e) {System.out.println(e.getMessage());
} catch(Exception e) {System.out.println(“Client:”+e.getMessage());}
}}

Fig 5.1: Middleware layers
Applications
Middleware
layers
Underlying interprocess communication primitives:
Sockets, message passing, multicast support, overlay networks
UDP and TCP
Remote invocation, indirect communication
This chapter
(and Chapter 6)
Remote invocation

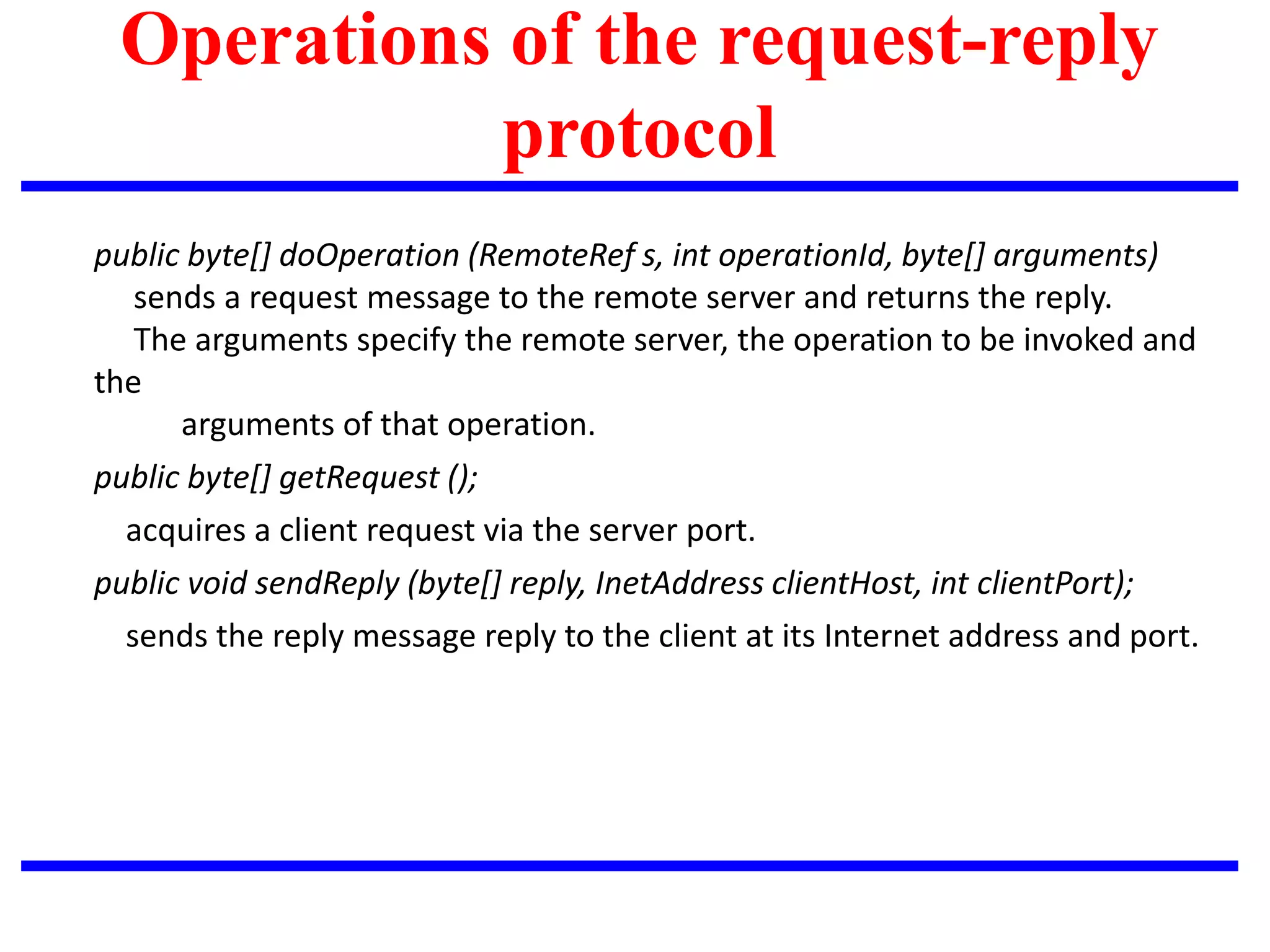

Operations of the request-reply
protocol
public byte[] doOperation (RemoteRef s, int operationId, byte[] arguments)
sends a request message to the remote server and returns the reply.
The arguments specify the remote server, the operation to be invoked and
the
arguments of that operation.
public byte[] getRequest ();
acquires a client request via the server port.
public void sendReply (byte[] reply, InetAddress clientHost, int clientPort);
sends the reply message reply to the client at its Internet address and port.

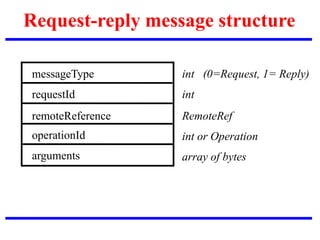

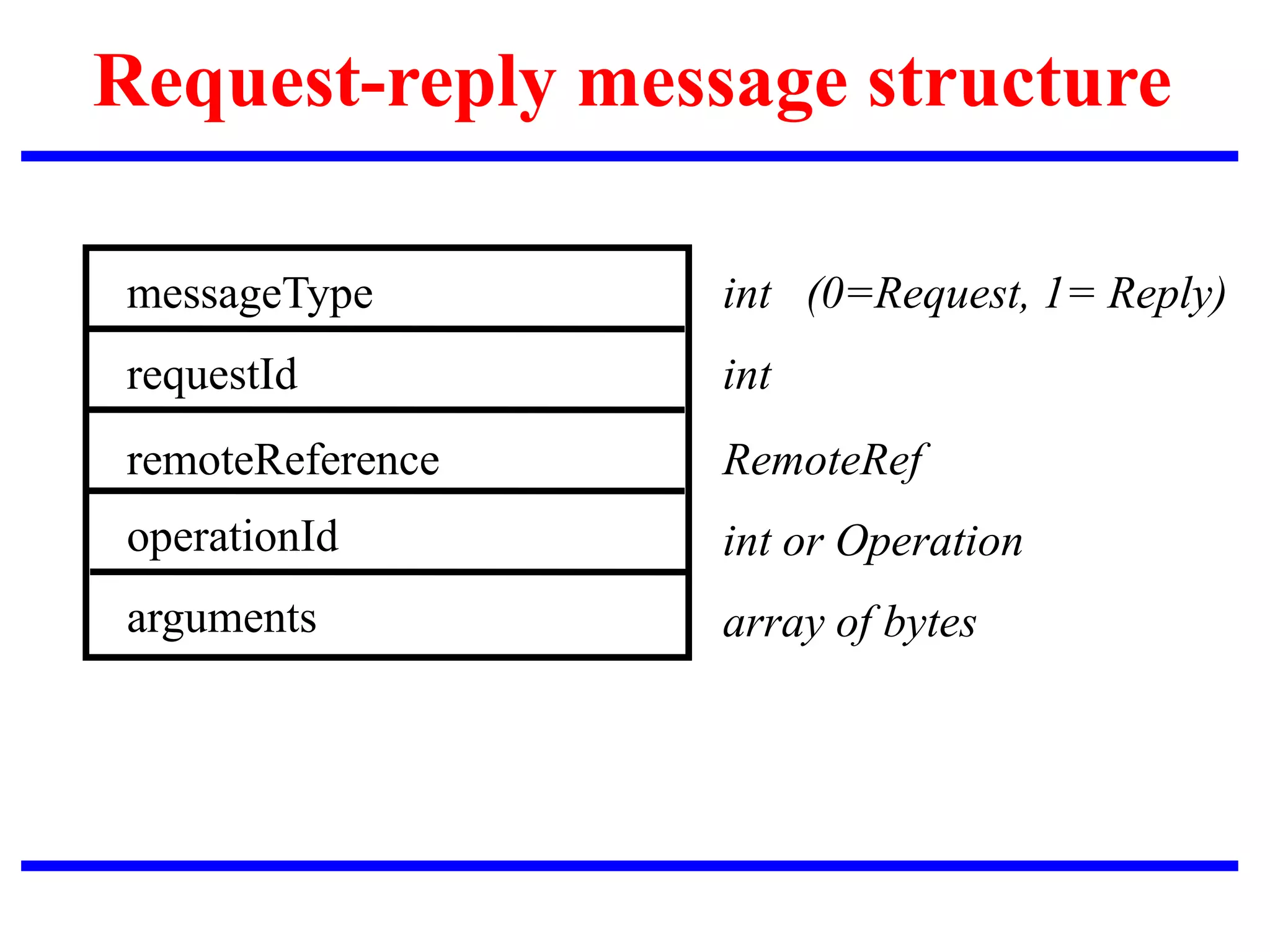

Request-reply message structure
messageType
requestId
remoteReference
operationId
arguments
int (0=Request, 1= Reply)
int
RemoteRef
int or Operation
array of bytes

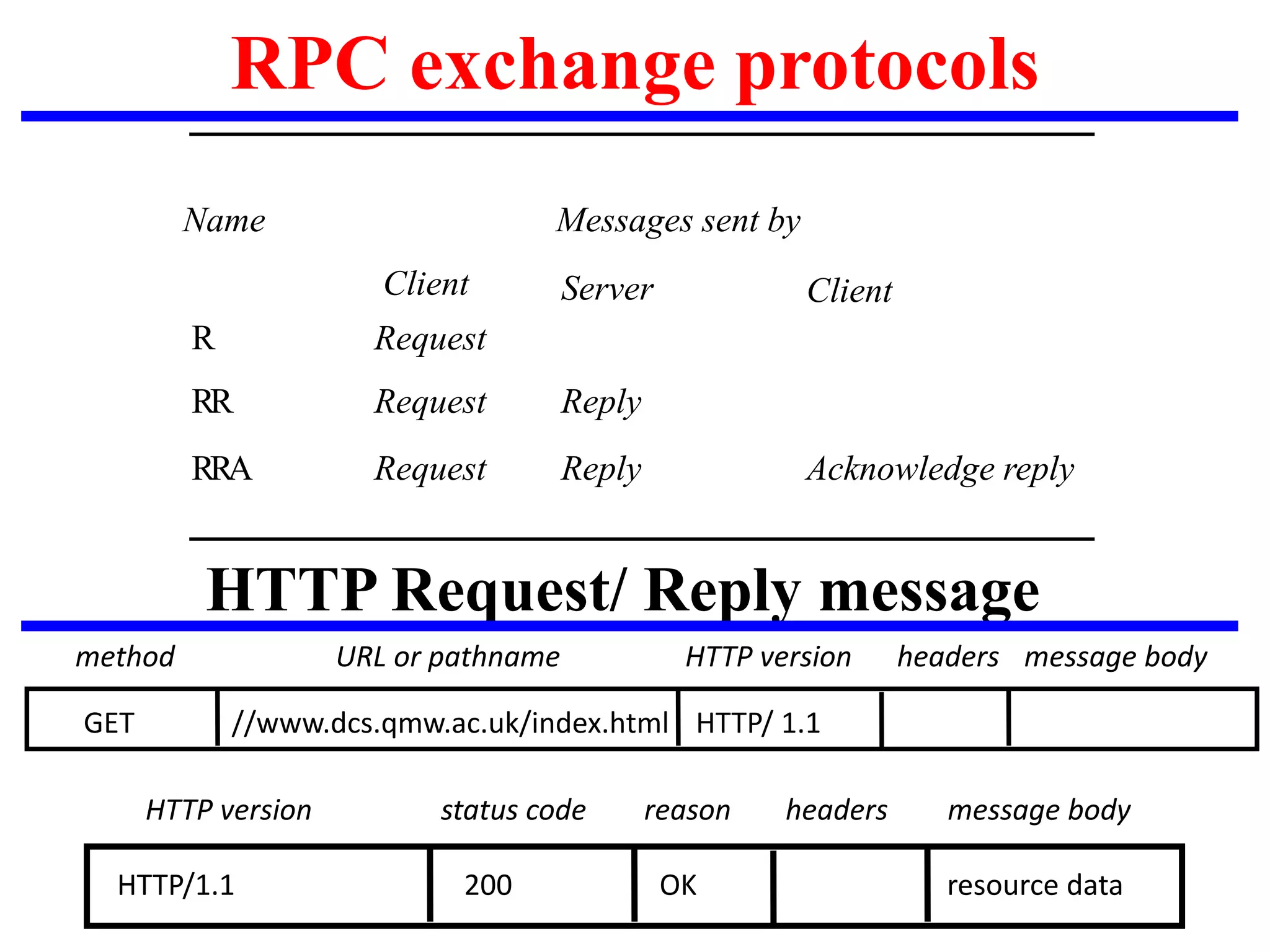

RPC exchange protocols
R Request
RR Reply
RRA Acknowledge reply
Request
Request Reply
Client Server Client
Name Messages sent by
HTTP Request/ Reply message
GET //www.dcs.qmw.ac.uk/index.html HTTP/ 1.1
URL or pathname
method HTTP version headers message body
HTTP/1.1 200 OK resource data
HTTP version status code reason headers message body

CORBA IDL example
// In file Person.idl
struct Person {
string name;
string place;
long year;
} ;
Call semantics
interface PersonList {
readonly attribute string listname;
void addPerson(in Person p) ;
void getPerson(in string name, out Person p);
long number();
};
Fault tolerance measures Call
semantics
Retransmit request
message
Duplicate
filtering
or retransmit reply
No
Yes
Yes
Not applicable
No
Yes
Not applicable
Retransmit reply At-most-once
At-least-once
Maybe

Role of client and server stub
procedures in RPC
client
Request
Reply
Communication
Communication
module
module dispatcher
service
client stub server stub
procedure procedure
client process server process
procedure
program

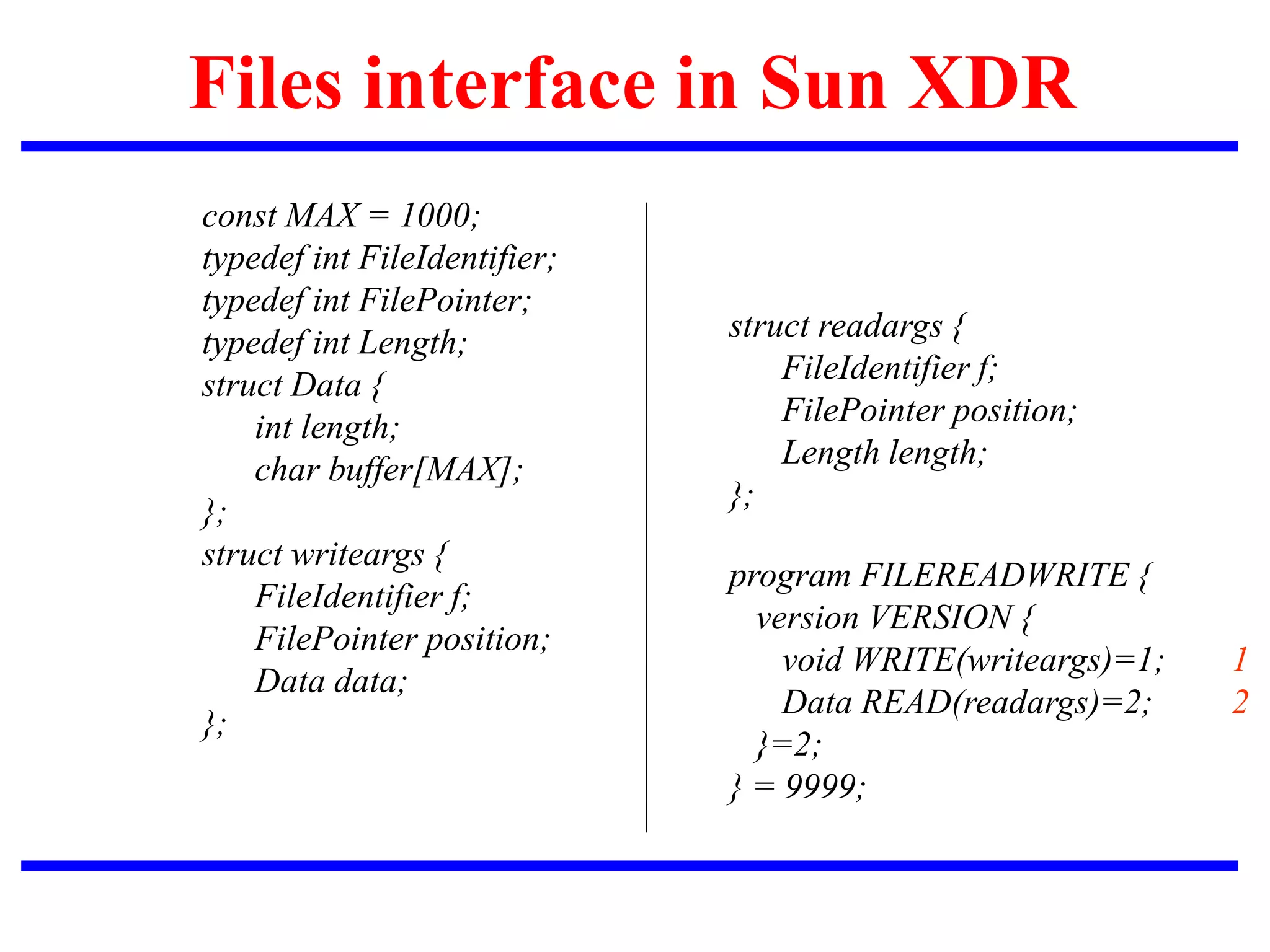

Files interface in Sun XDR
const MAX = 1000;
typedef int FileIdentifier;
typedef int FilePointer;
typedef int Length;
struct Data {
int length;
char buffer[MAX];
};
struct writeargs {
FileIdentifier f;
FilePointer position;
Data data;
};
struct readargs {
FileIdentifier f;
FilePointer position;
Length length;
};
program FILEREADWRITE {
version VERSION {
void WRITE(writeargs)=1; 1
Data READ(readargs)=2; 2
}=2;
} = 9999;

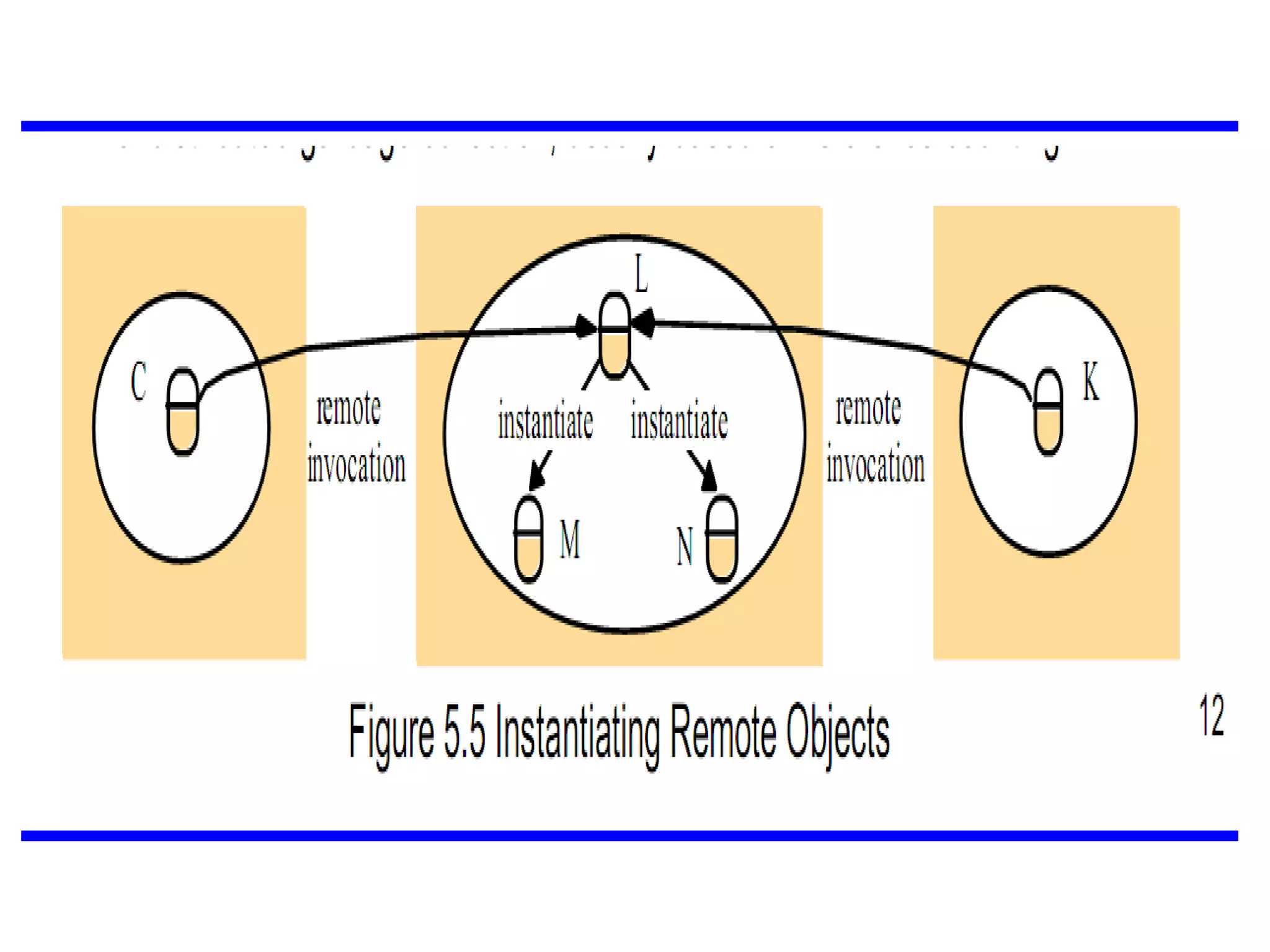

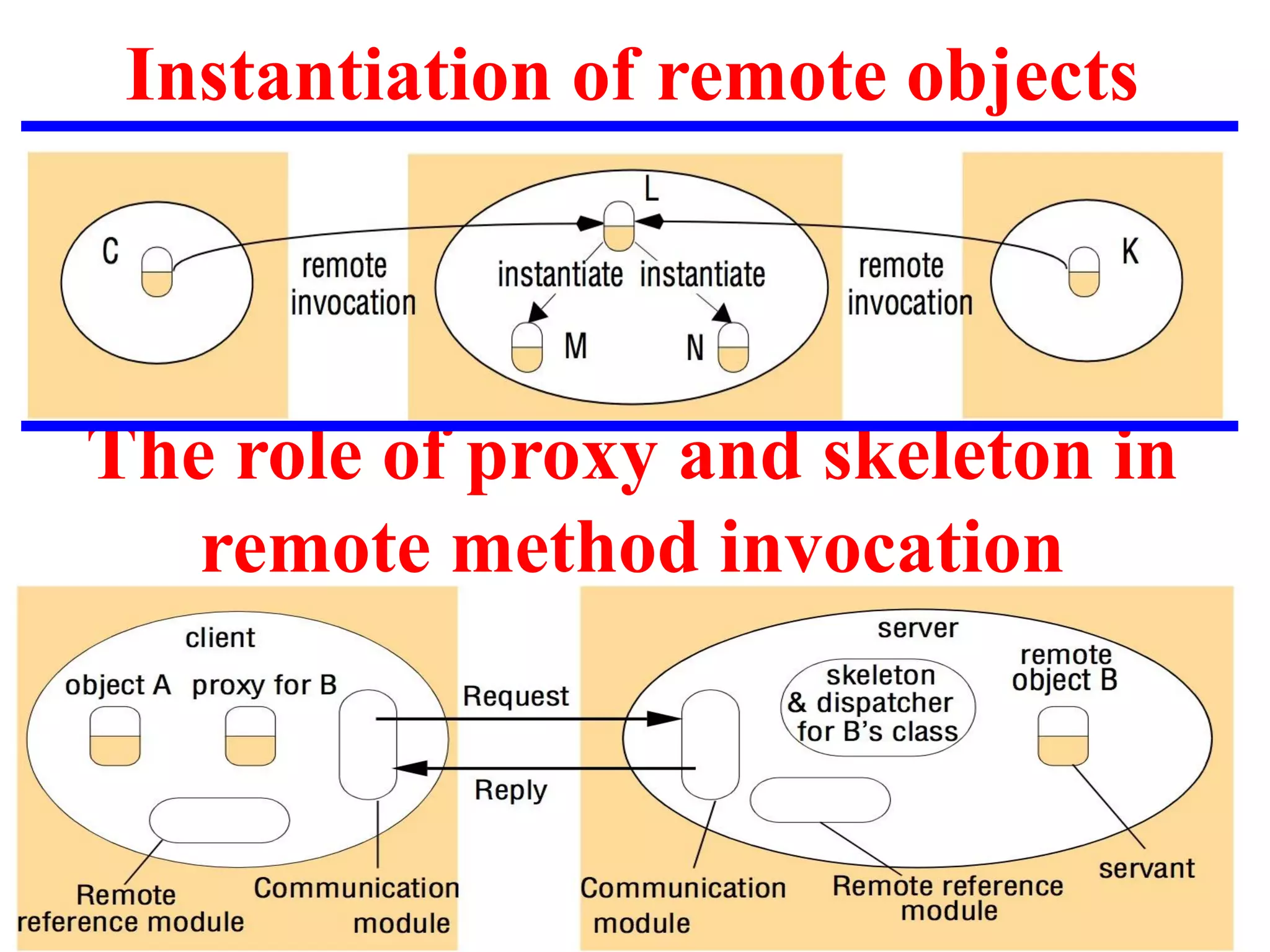

Instantiation of remote objects
The role of proxy and skeleton in
remote method invocation

Java Remote interfaces Shape and
ShapeList
import java.rmi.*;
public interface Shape extends Remote {
GraphicalObject getAllState() throws RemoteException; 1
}
public interface ShapeList extends Remote {
Shape newShape(GraphicalObject g) throws
RemoteException; 2
Vector allShapes() throws RemoteException;
}

Naming class of Java RMIregistry
void rebind (String name, Remote obj)
This method is used by a server to register the identifier of a remote object by
name, as shown in Figure 15.18, line 3.
void bind (String name, Remote obj)
This method can alternatively be used by a server to register a remote object by
name, but if the name is already bound to a remote object reference an
exception is thrown.
void unbind (String name, Remote obj)
This method removes a binding.
Remote lookup(String name)
This method is used by clients to look up a remote object by name, as shown in
Figure 5.20 line 1. A remote object reference is returned.
String [] list()
This method returns an array of Strings containing the names bound in the registry.

Java class ShapeListServer with main
method
import java.rmi.*;
public class ShapeListServer{
try{
ShapeList aShapeList = new ShapeListServant(); 1
Naming.rebind("Shape List", aShapeList ); 2
System.out.println("ShapeList server ready");
}catch(Exception e) {
System.out.println("ShapeList server main " + e.getMessage());
}
}
}

Java class ShapeListServant
implements interface ShapeList
import java.rmi.*;
public class ShapeListServant extends UnicastRemoteObject implements ShapeList {
private Vector theList; // contains the list of Shapes
private int version;
public ShapeListServant()throws RemoteException{...}
public Shape newShape(GraphicalObject g) throws RemoteException { 1
version++;
Shape s = new ShapeServant( g, version); 2
theList.addElement(s);
return s;
}
public Vector allShapes()throws RemoteException{...}
public int getVersion() throws RemoteException { ... }
}

Java client of ShapeList
import java.rmi.*;
import java.rmi.server.*;
public class ShapeListClient{
ShapeList aShapeList = null;
try{
aShapeList = (ShapeList) Naming.lookup("//bruno.ShapeList"); 1
Vector sList = aShapeList.allShapes(); 2
} catch(RemoteException e) {System.out.println(e.getMessage());
}catch(Exception e) {System.out.println("Client: " +
e.getMessage());}
}
}

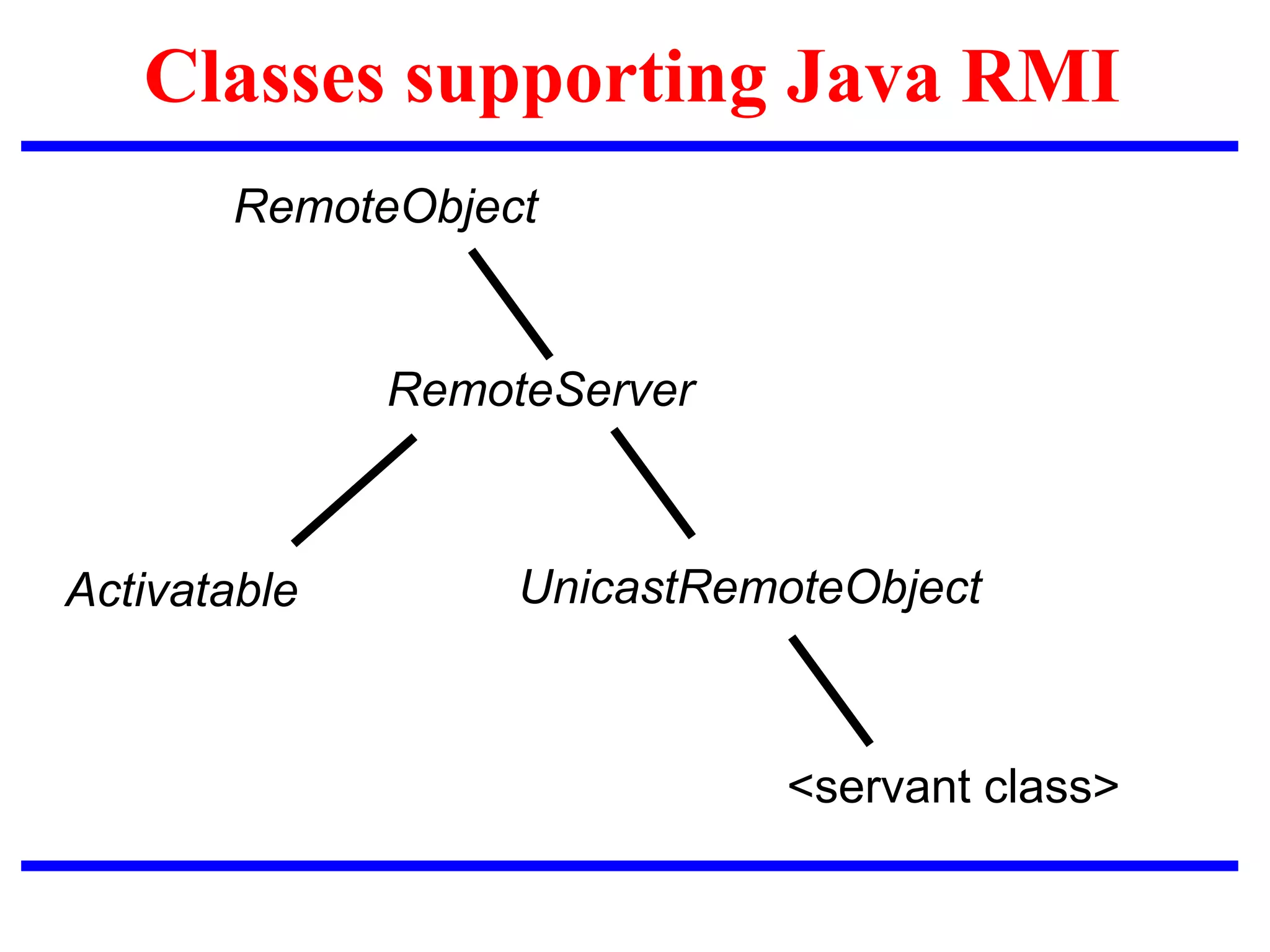

Classes supporting Java RMI
RemoteServer
UnicastRemoteObject
<servant class>
Activatable
RemoteObject

From Coulouris, Dollimore, Kindberg and
Blair
Distributed Systems:
Concepts and Design
Edition 5, © Addison-Wesley 2012
Slides for Chapter 6:
Indirect Communication

93

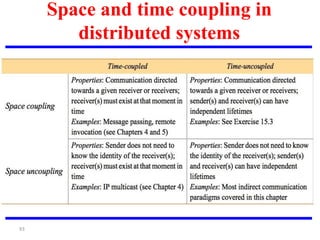

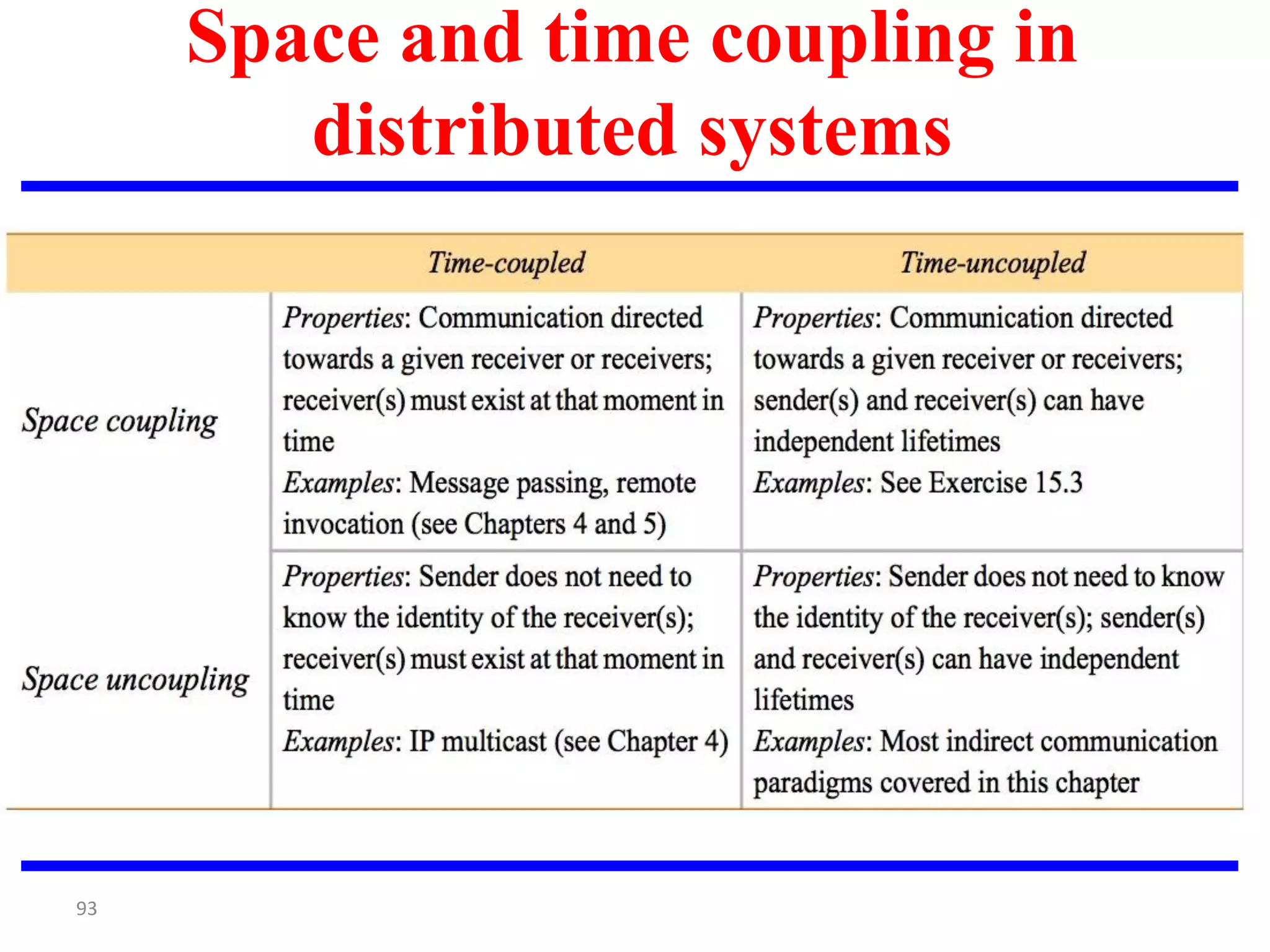

Space and time coupling in
distributed systems

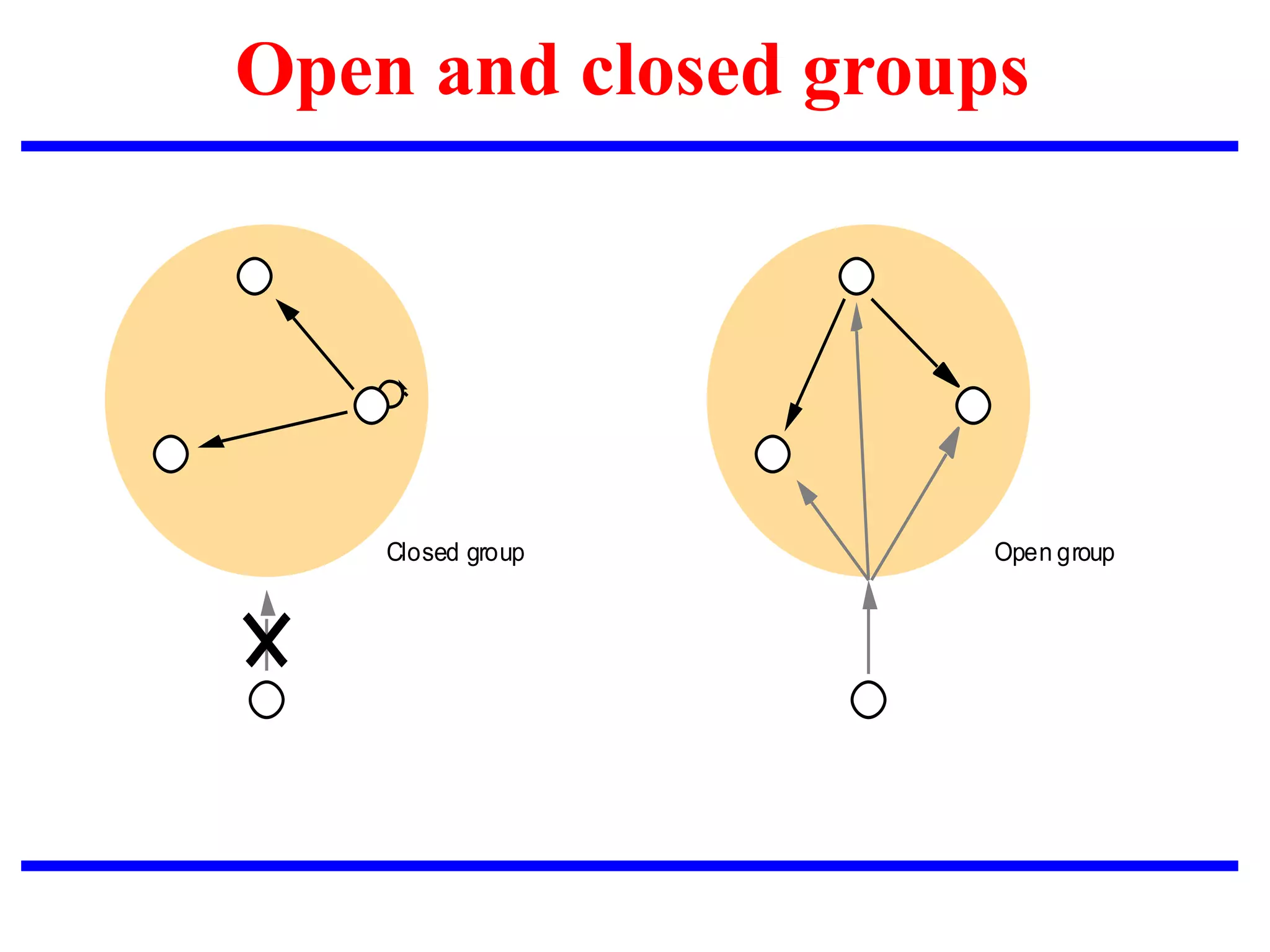

Open and closed groups
Closed group Open group

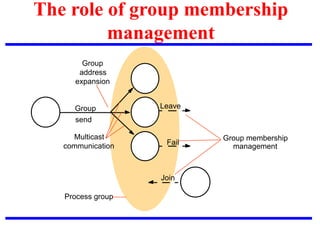

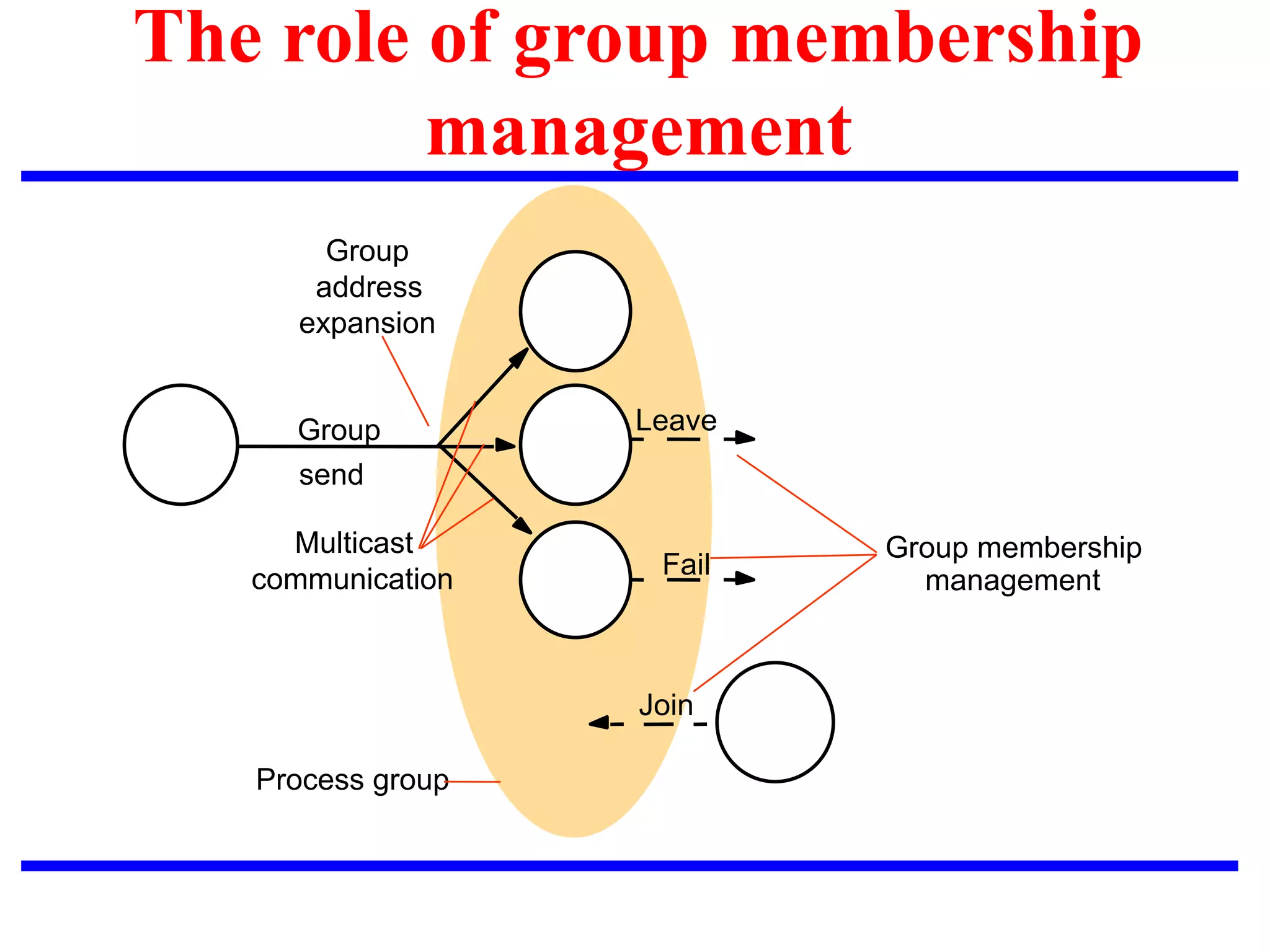

The role of group membership
management
Join
Group
address
expansion
Multicast
communication
Group
send
Fail
Group membership
management
Leave
Process group

96

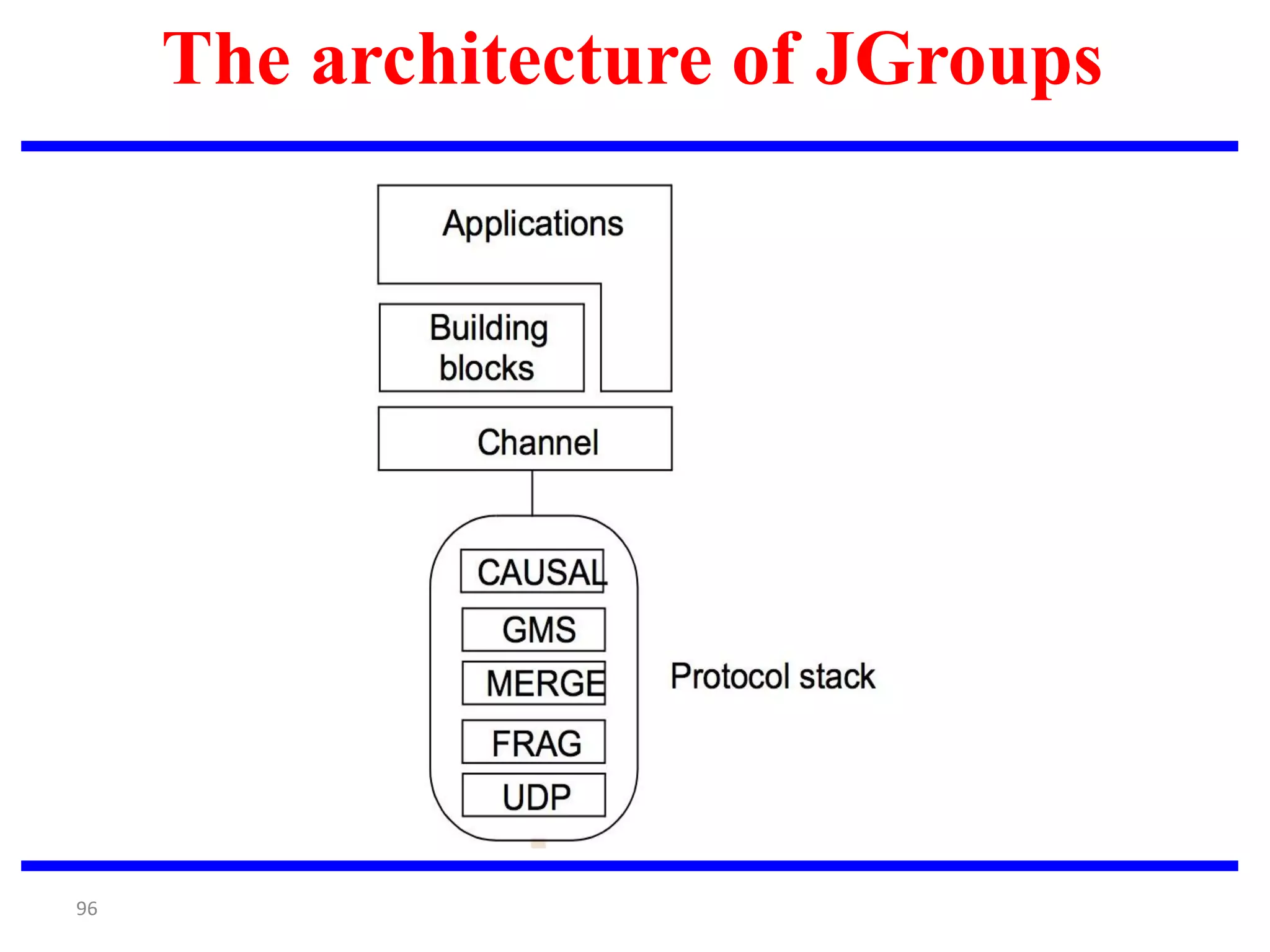

The architecture of JGroups

97

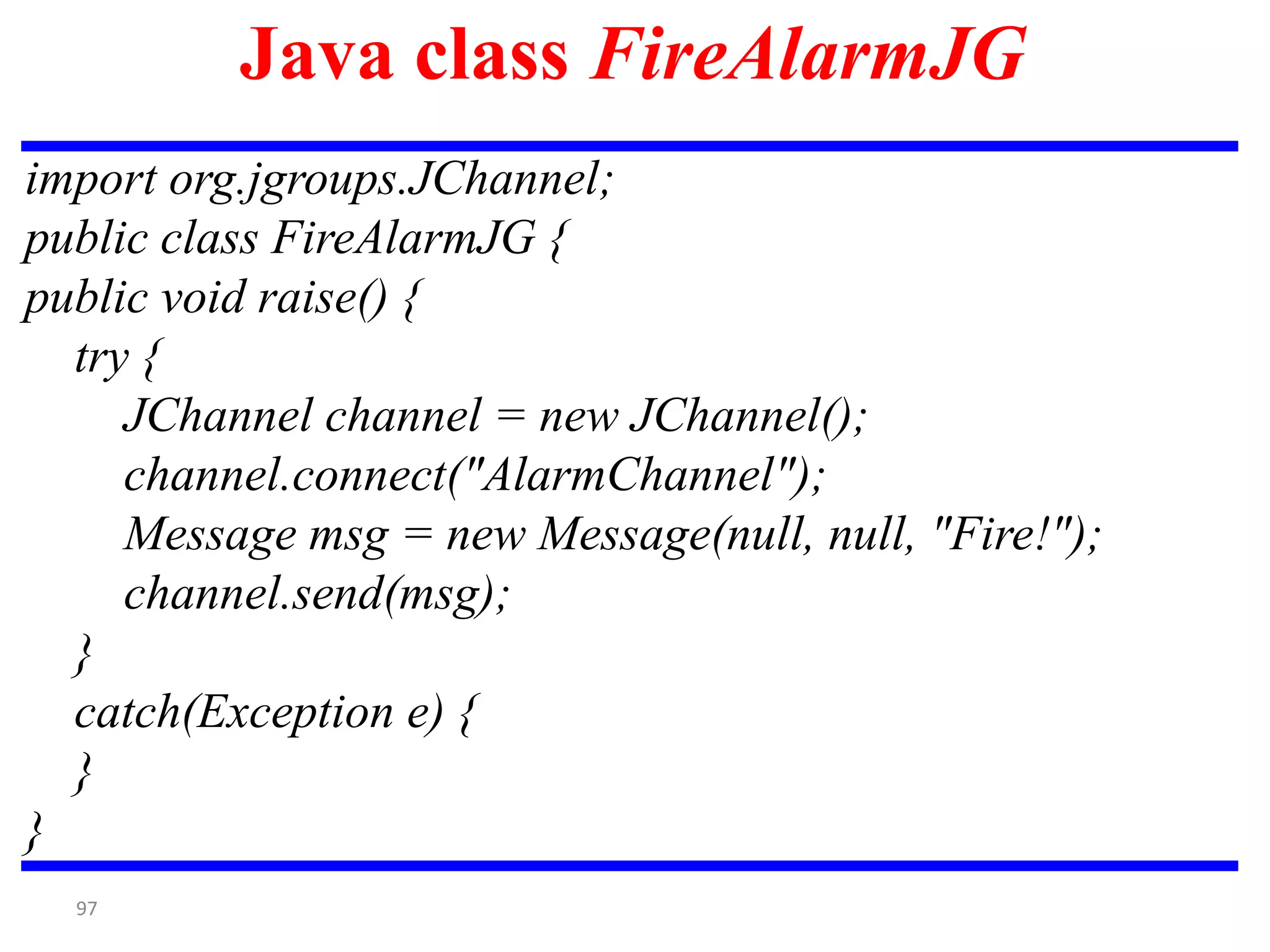

Java class FireAlarmJG
import org.jgroups.JChannel;
public class FireAlarmJG {
public void raise() {
try {
JChannel channel = new JChannel();
channel.connect("AlarmChannel");
Message msg = new Message(null, null, "Fire!");
channel.send(msg);
}
catch(Exception e) {
}
}

98

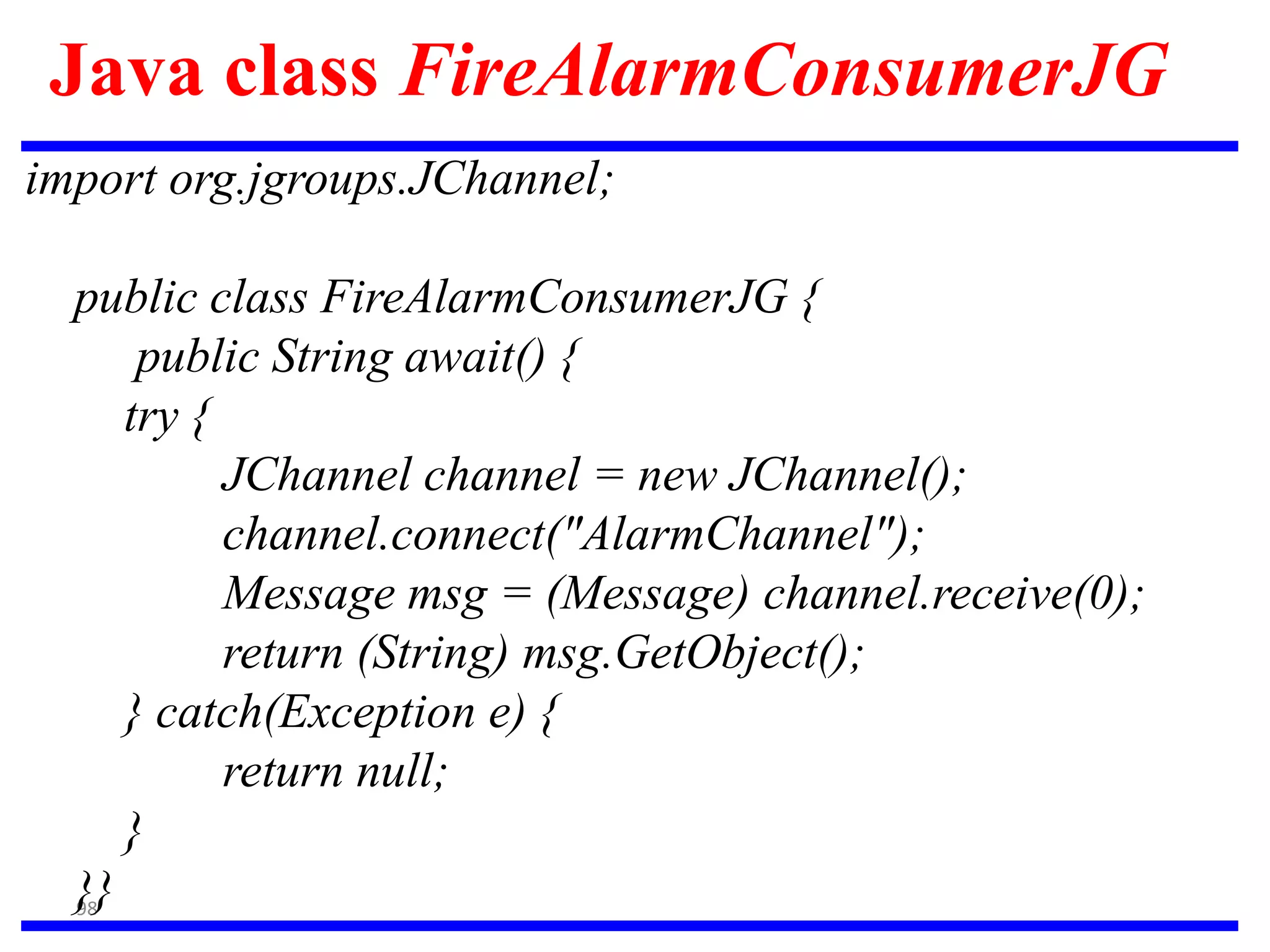

Java class FireAlarmConsumerJG
import org.jgroups.JChannel;
public class FireAlarmConsumerJG {
public String await() {
try {
JChannel channel = new JChannel();
channel.connect("AlarmChannel");
Message msg = (Message) channel.receive(0);
return (String) msg.GetObject();
} catch(Exception e) {
return null;
}
}}

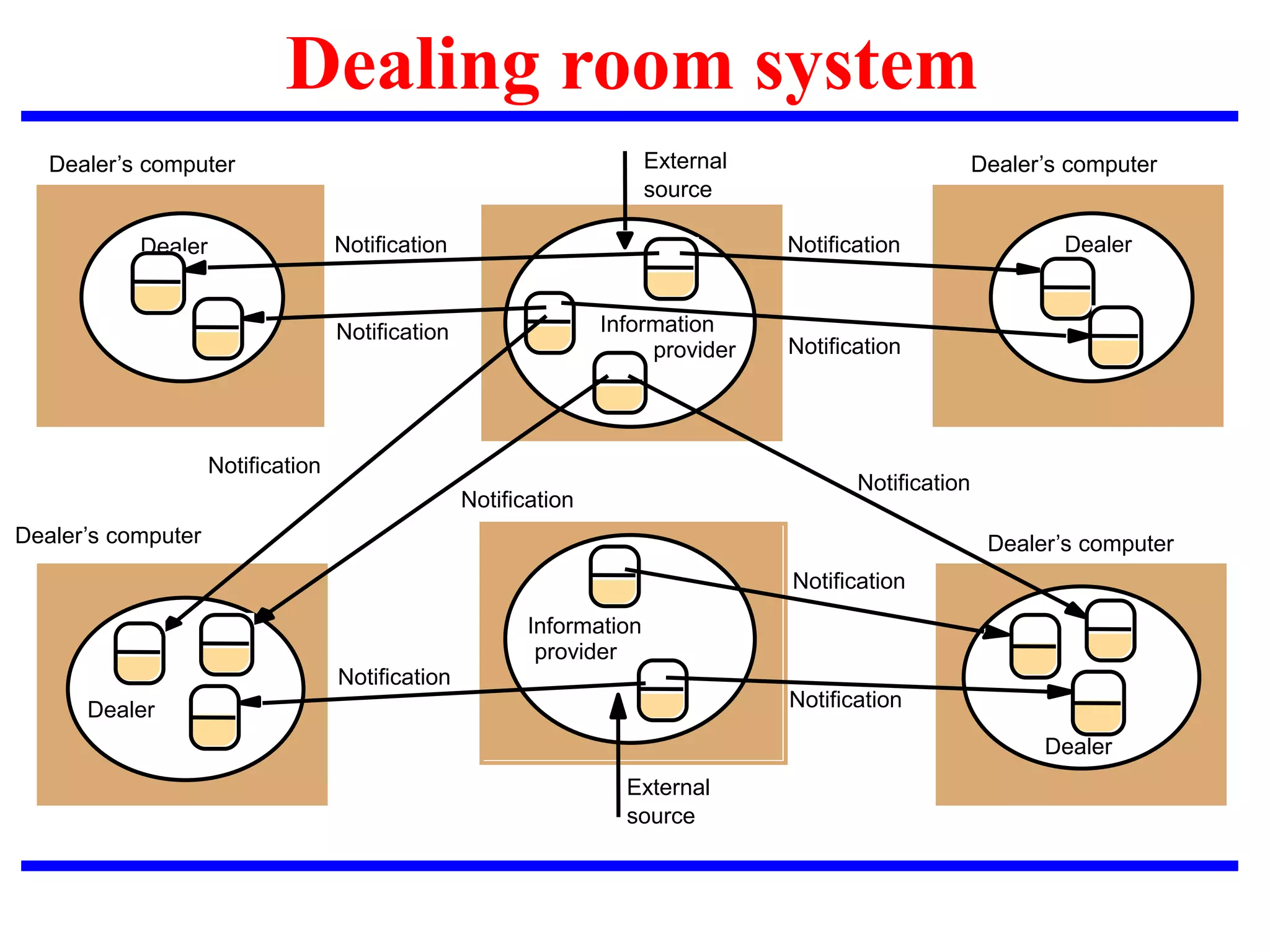

Dealing room system
Dealer’s computer
Information
provider
Dealer
External
source
External
source
Information
provider
Dealer
Dealer
Dealer
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Dealer’s computer
Dealer’s computer
Dealer’s computer
Notification
Notification

100

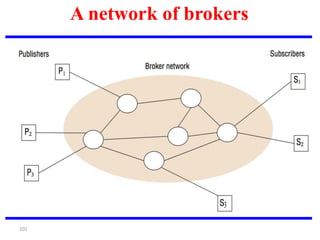

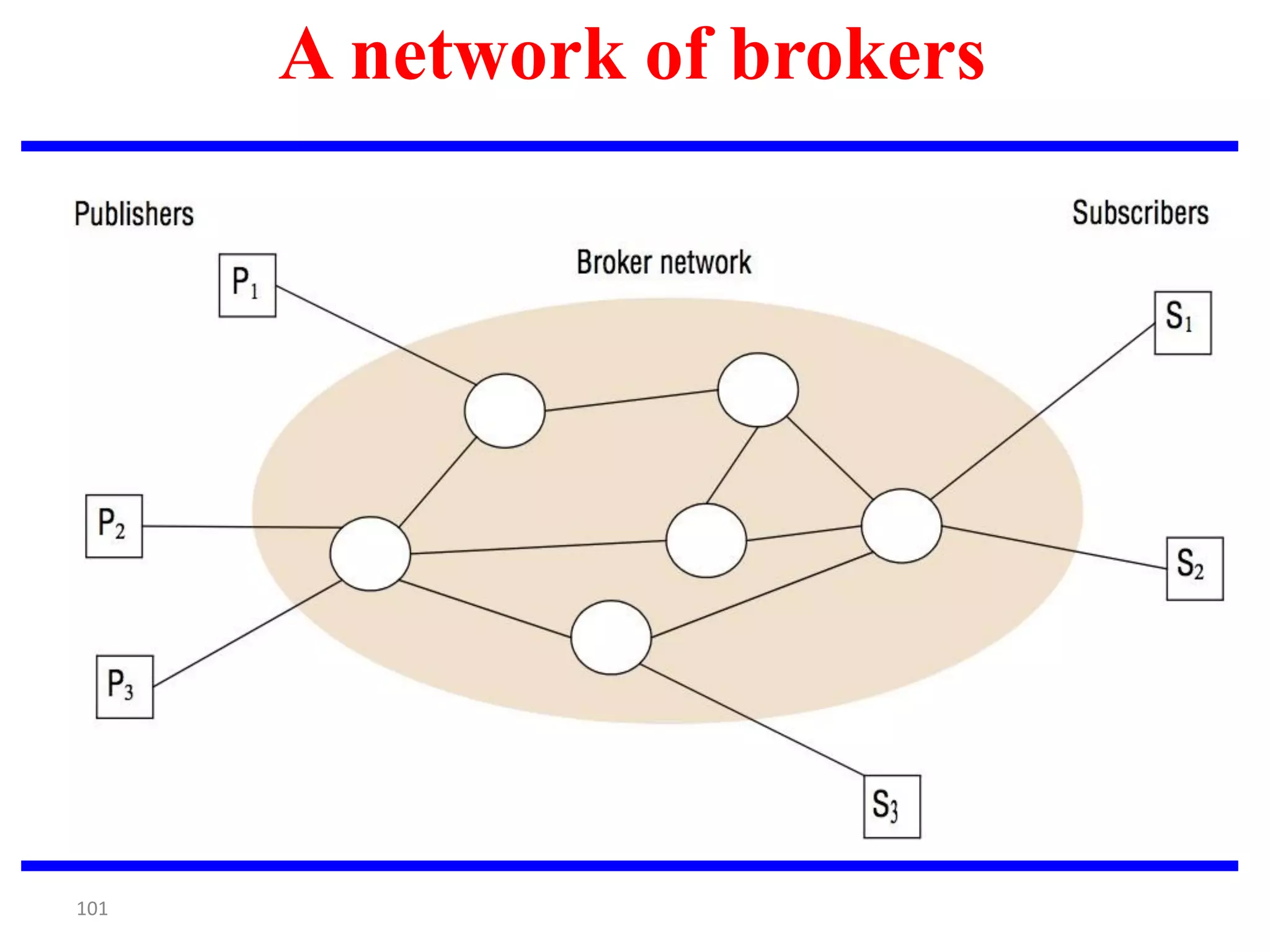

The publish-subscribe paradigm

102

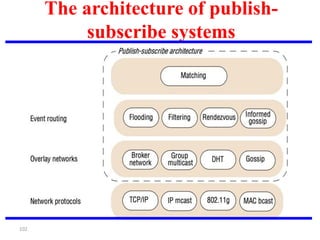

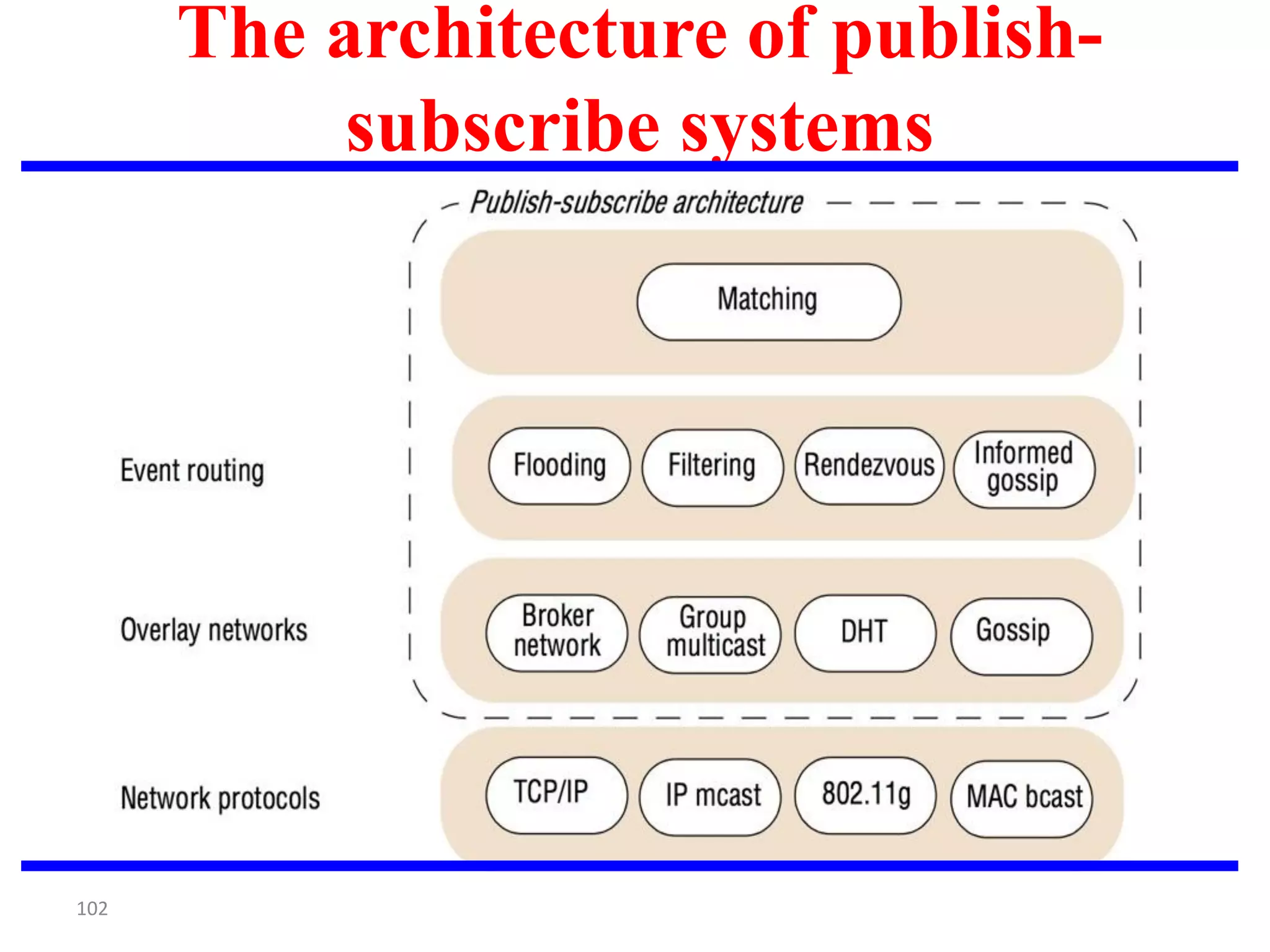

The architecture of publish-
subscribe systems

103

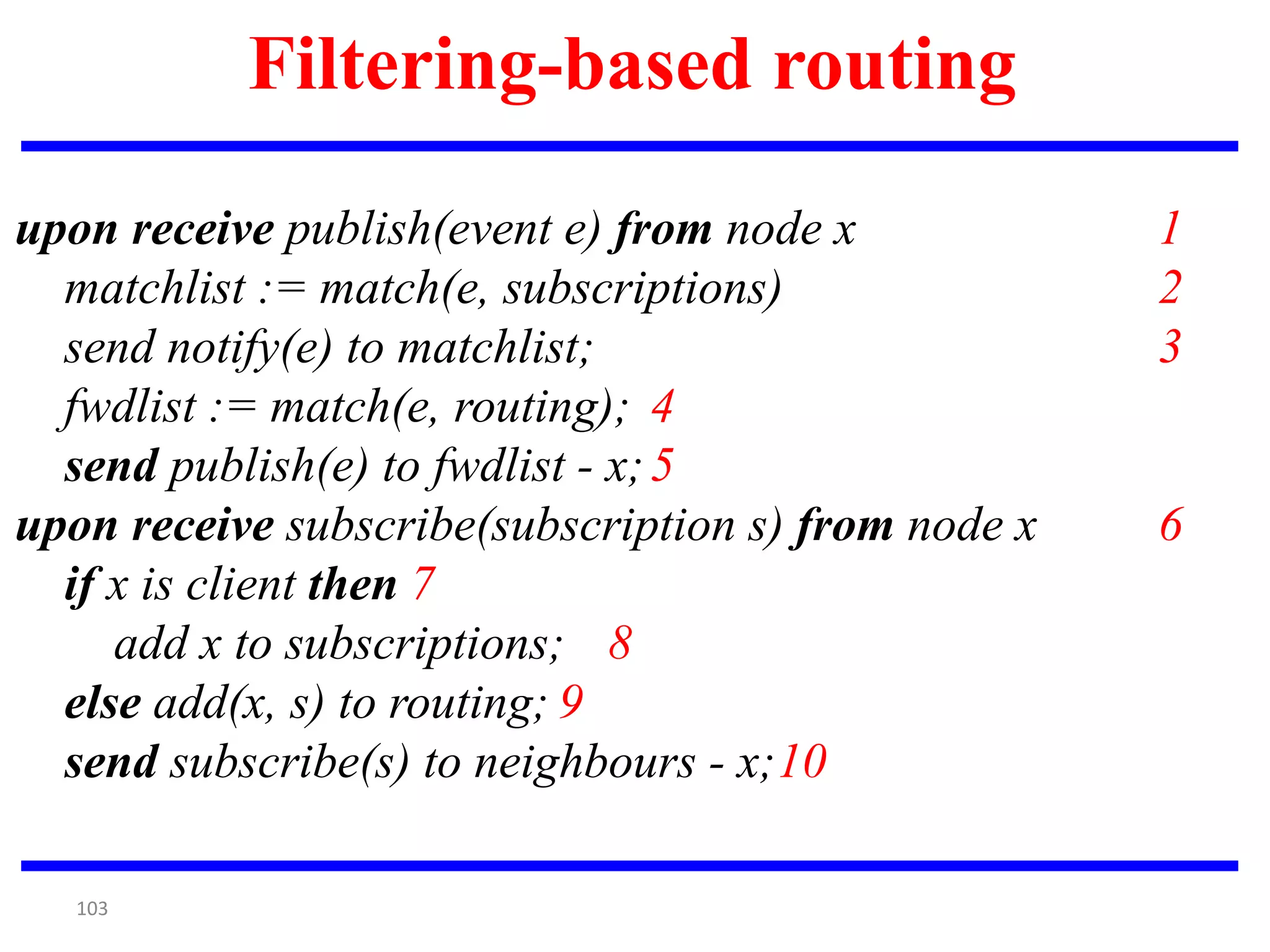

Filtering-based routing
upon receive publish(event e) from node x 1
matchlist := match(e, subscriptions) 2
send notify(e) to matchlist; 3
fwdlist := match(e, routing); 4
send publish(e) to fwdlist - x;5
upon receive subscribe(subscription s) from node x 6
if x is client then 7
add x to subscriptions; 8
else add(x, s) to routing; 9
send subscribe(s) to neighbours - x;10

104

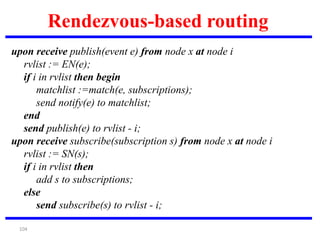

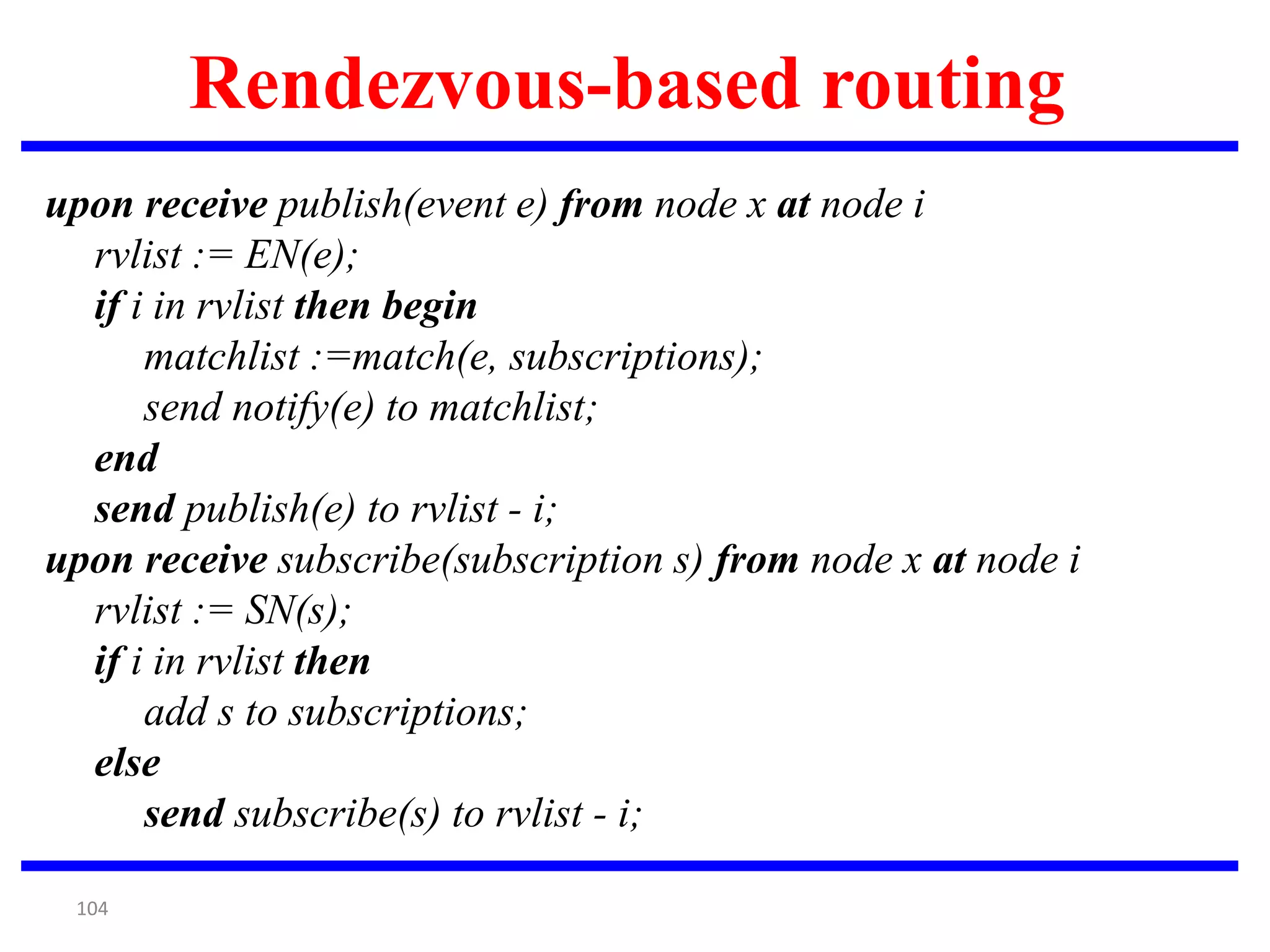

Rendezvous-based routing
upon receive publish(event e) from node x at node i
rvlist := EN(e);
if i in rvlist then begin
matchlist :=match(e, subscriptions);
send notify(e) to matchlist;
end
send publish(e) to rvlist - i;
upon receive subscribe(subscription s) from node x at node i
rvlist := SN(s);
if i in rvlist then
add s to subscriptions;
else
send subscribe(s) to rvlist - i;

105
Example publish-subscribe system

106

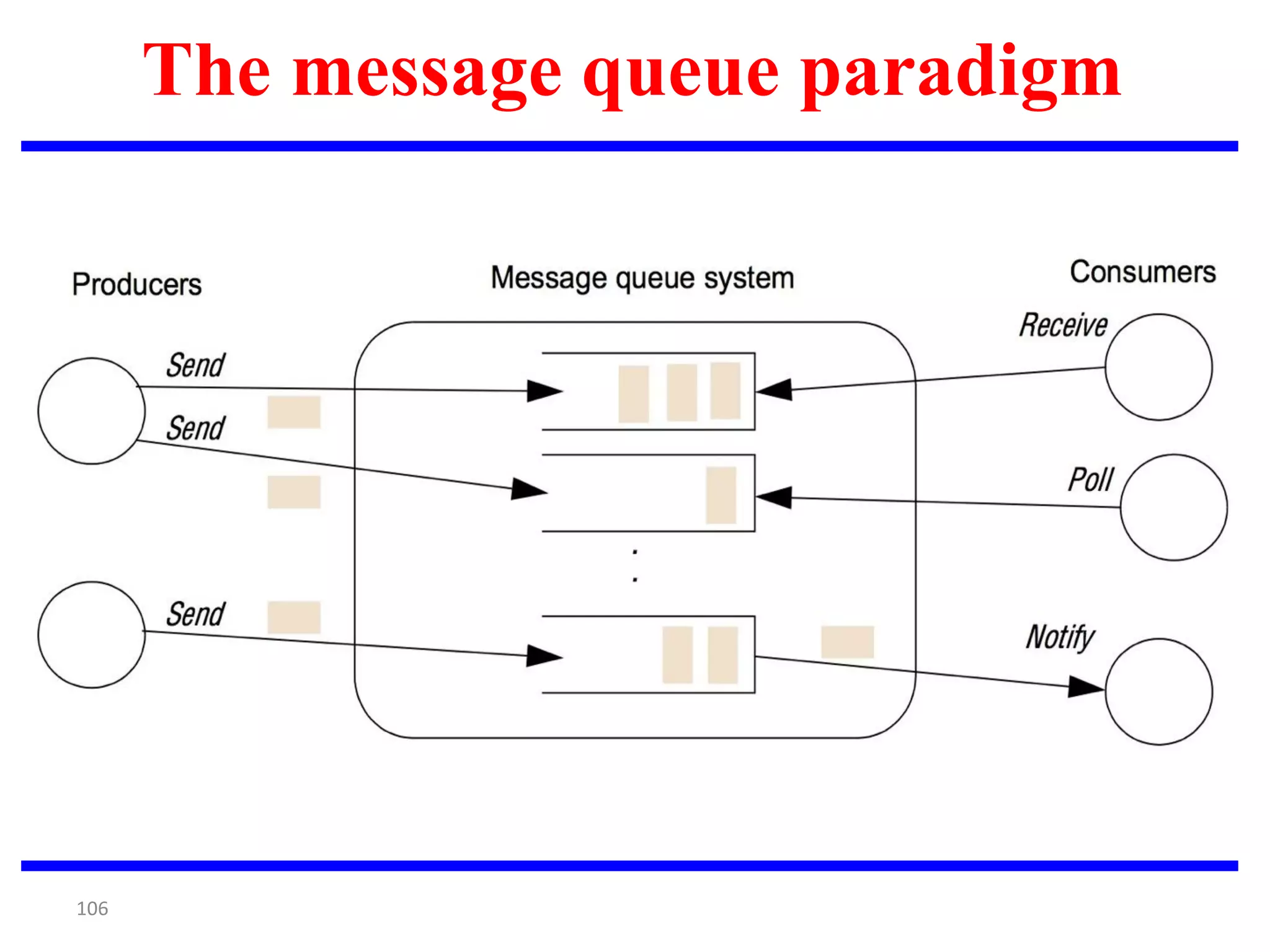

The message queue paradigm

107

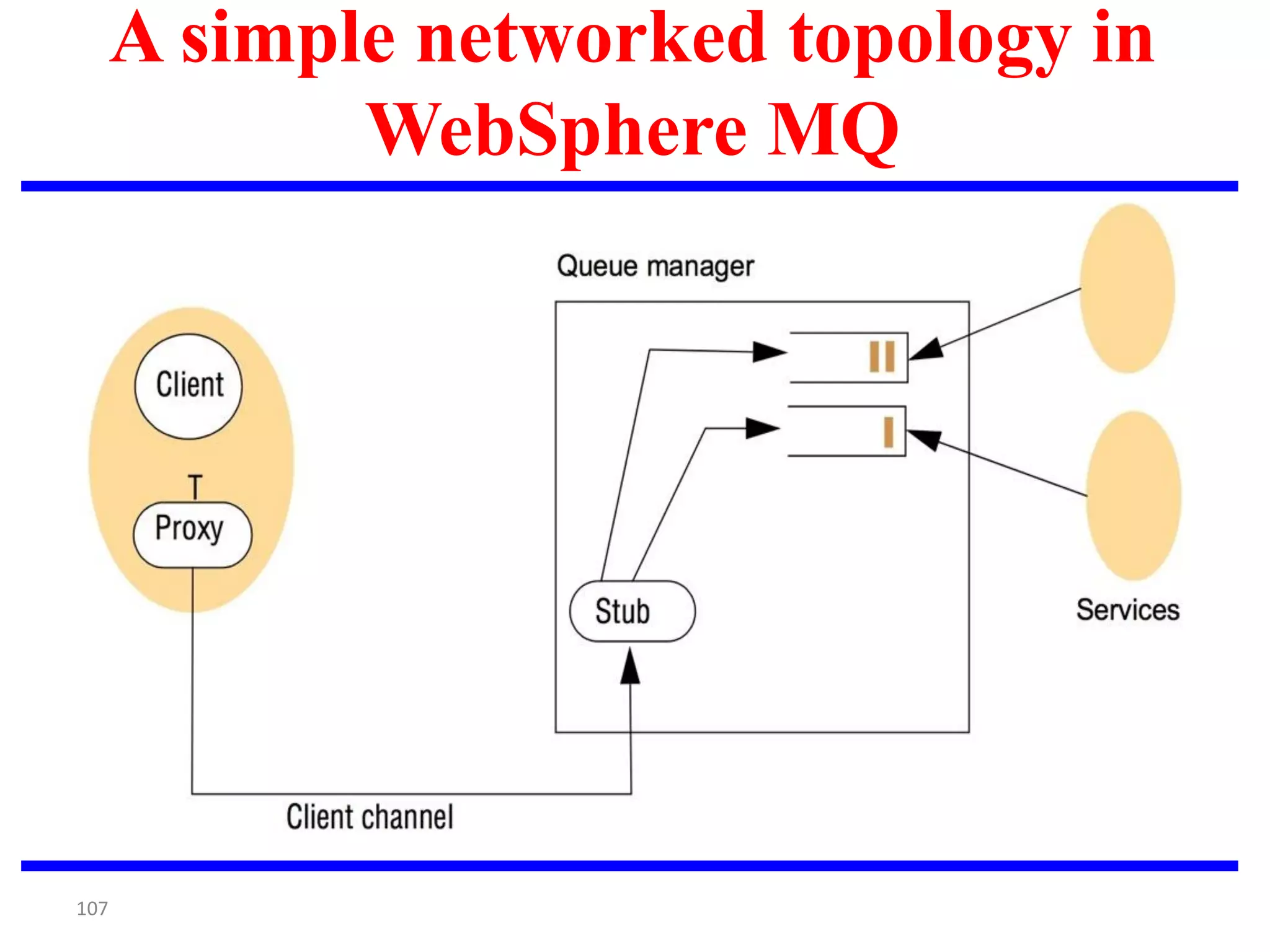

A simple networked topology in
WebSphere MQ

108

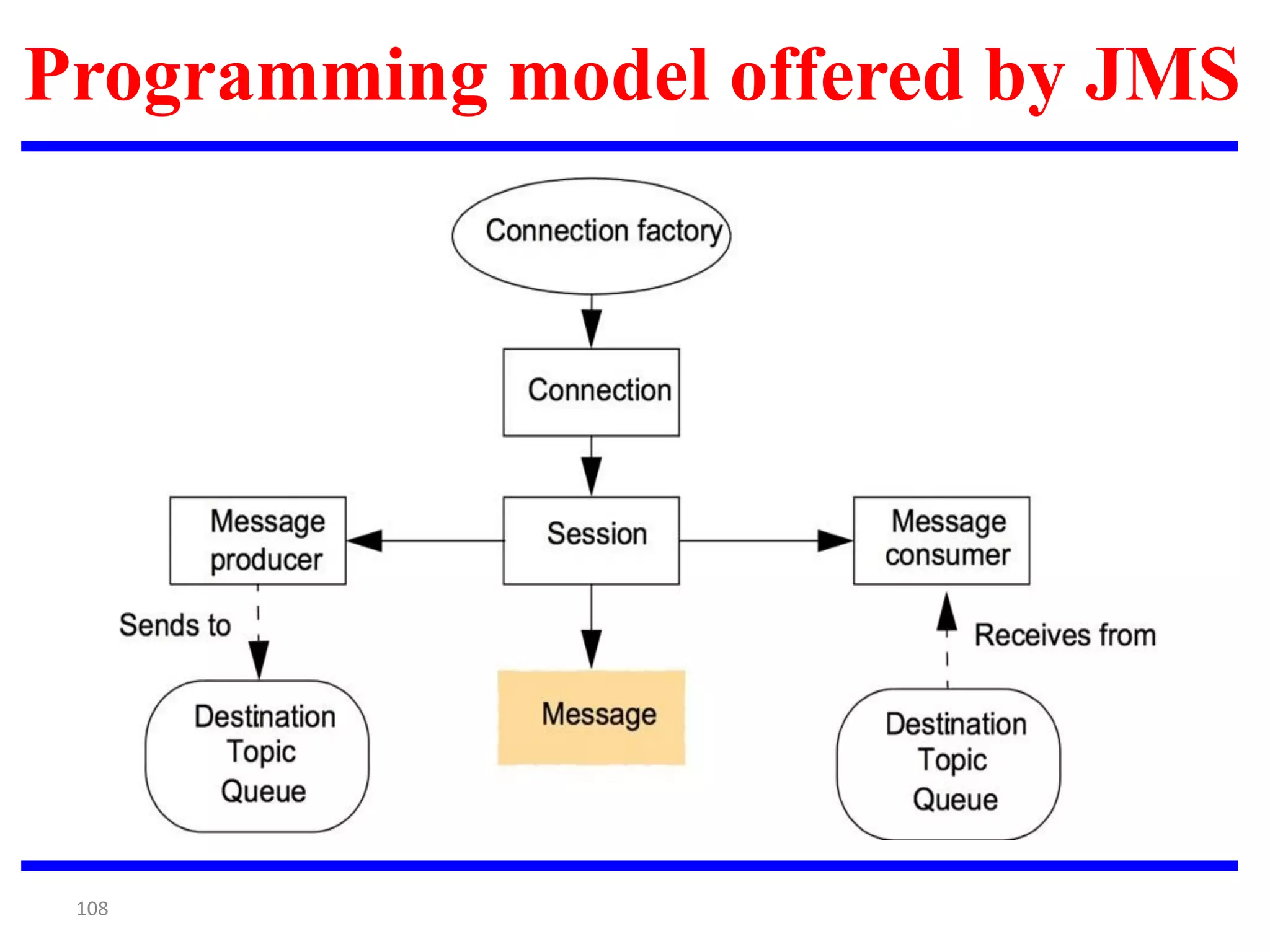

Programming model offered by JMS

109

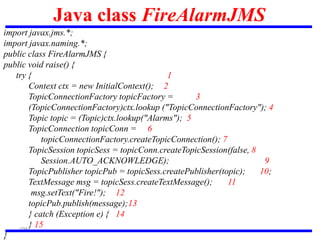

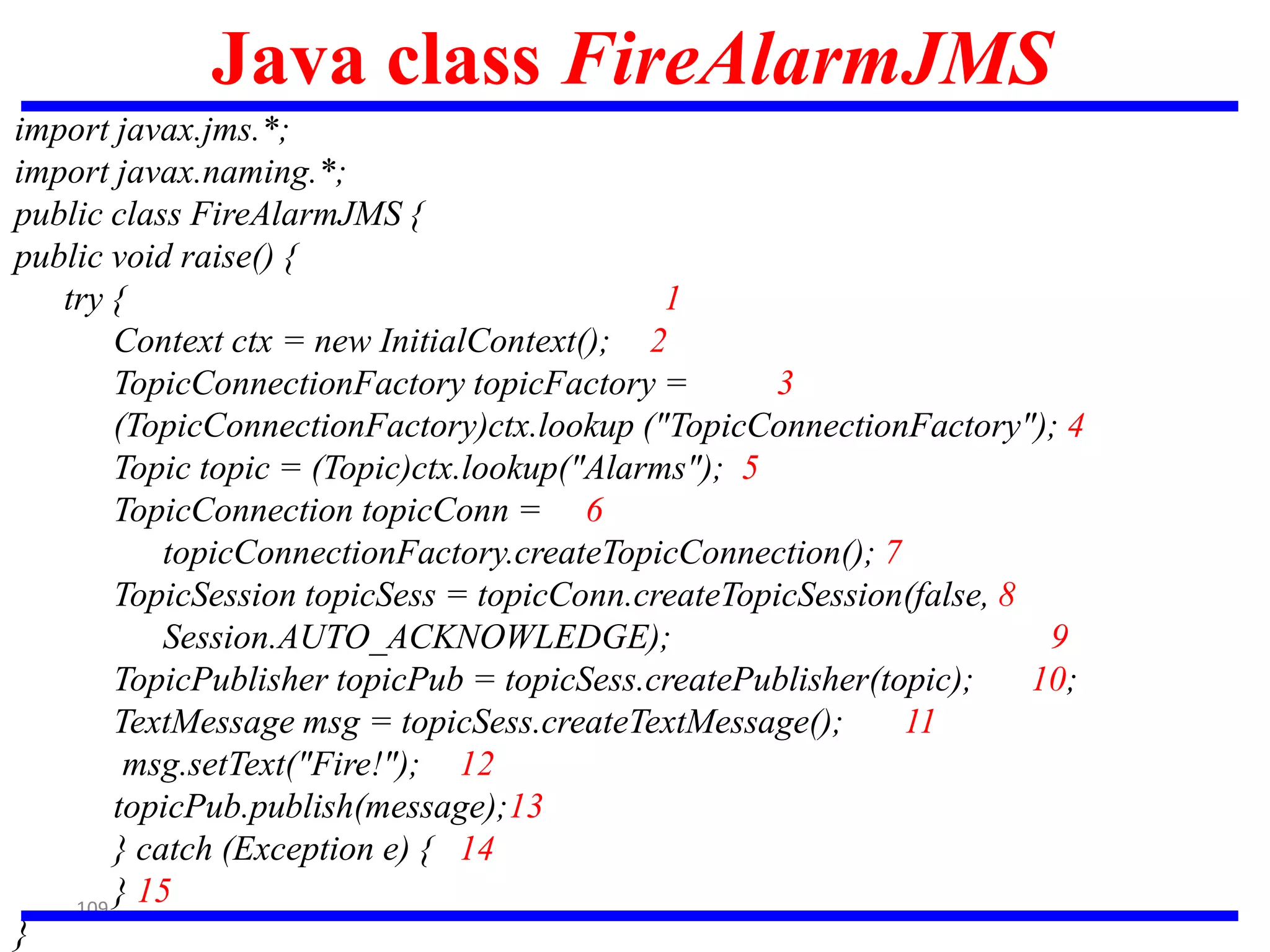

Java class FireAlarmJMS
import javax.jms.*;
import javax.naming.*;
public class FireAlarmJMS {
try { 1
Context ctx = new InitialContext(); 2
TopicConnectionFactory topicFactory = 3
(TopicConnectionFactory)ctx.lookup ("TopicConnectionFactory"); 4
Topic topic = (Topic)ctx.lookup("Alarms"); 5
TopicConnection topicConn = 6
topicConnectionFactory.createTopicConnection(); 7
TopicSession topicSess = topicConn.createTopicSession(false, 8
Session.AUTO_ACKNOWLEDGE); 9
TopicPublisher topicPub = topicSess.createPublisher(topic); 10;
TextMessage msg = topicSess.createTextMessage(); 11
msg.setText("Fire!"); 12
topicPub.publish(message);13
} catch (Exception e) { 14
} 15
}

110

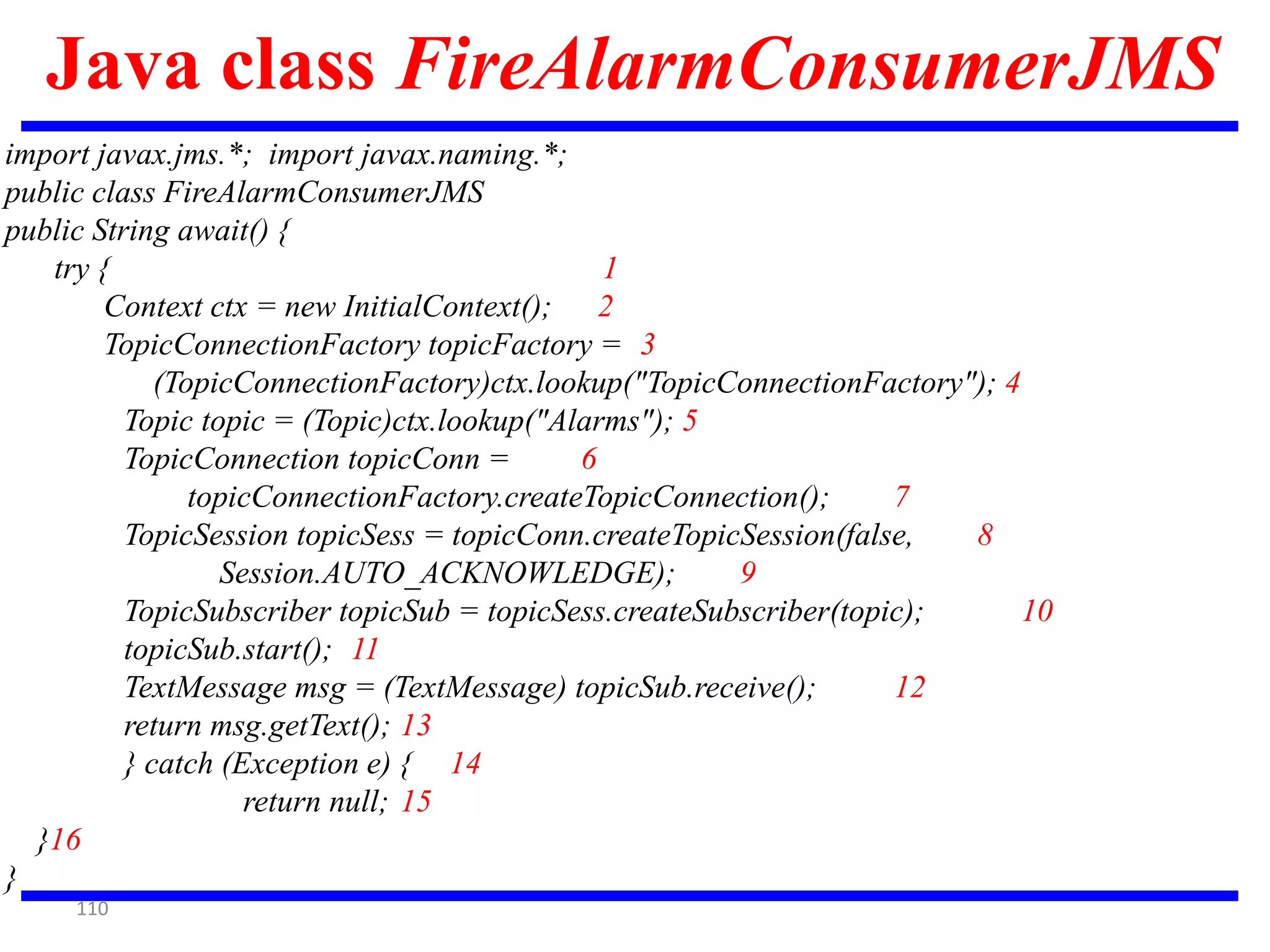

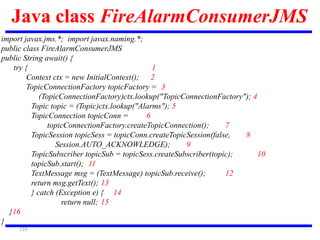

Java class FireAlarmConsumerJMS
import javax.jms.*; import javax.naming.*;
public class FireAlarmConsumerJMS
try { 1
Context ctx = new InitialContext(); 2
TopicConnectionFactory topicFactory = 3
(TopicConnectionFactory)ctx.lookup("TopicConnectionFactory"); 4
Topic topic = (Topic)ctx.lookup("Alarms"); 5
TopicConnection topicConn = 6
topicConnectionFactory.createTopicConnection(); 7
TopicSession topicSess = topicConn.createTopicSession(false, 8
Session.AUTO_ACKNOWLEDGE); 9
TopicSubscriber topicSub = topicSess.createSubscriber(topic); 10
topicSub.start(); 11
TextMessage msg = (TextMessage) topicSub.receive(); 12
return msg.getText(); 13
} catch (Exception e) { 14
return null; 15
}16
}

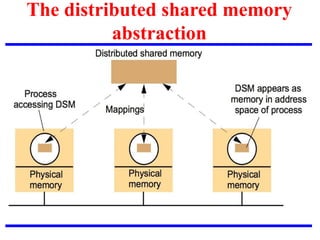

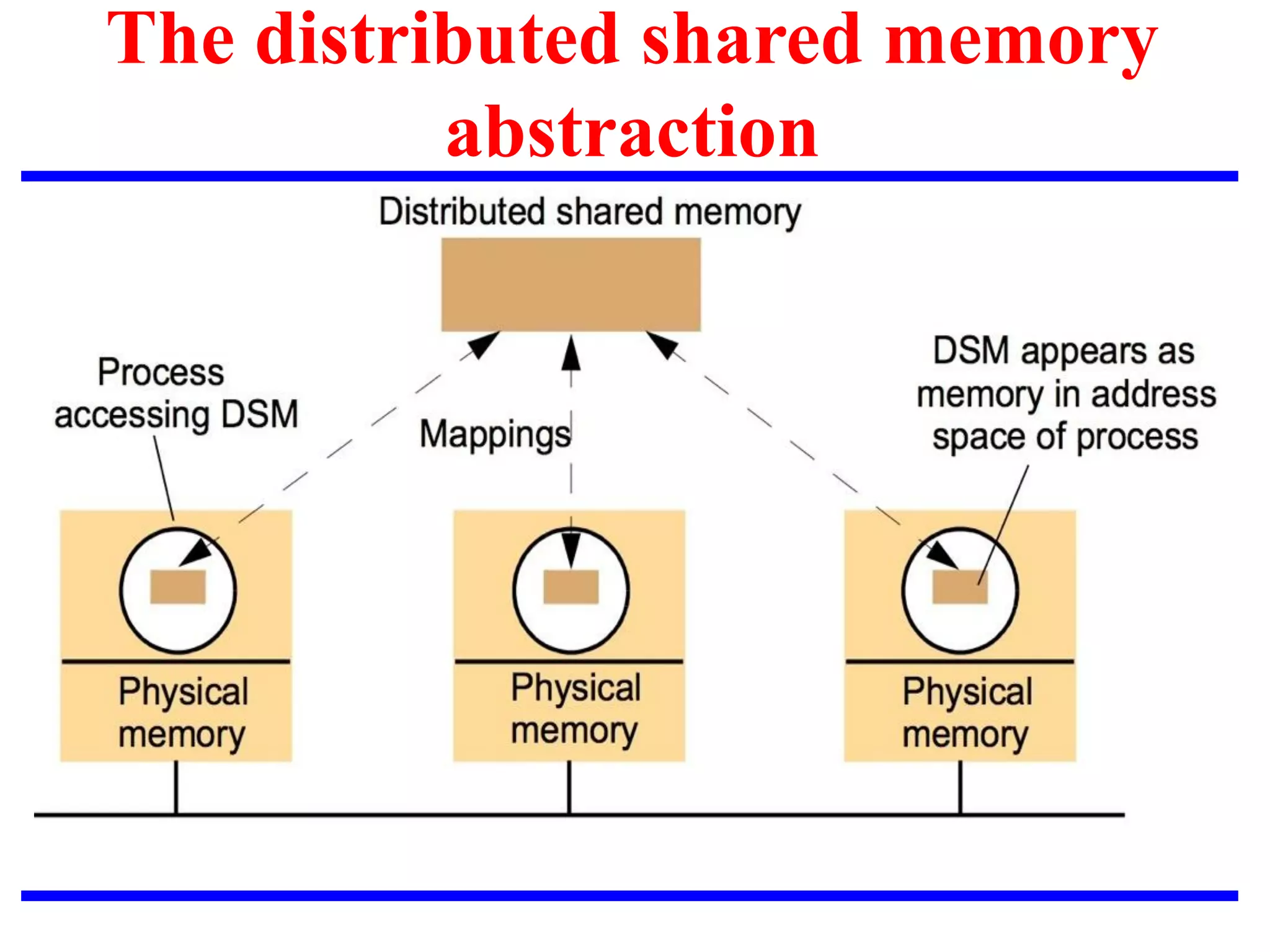

The distributed shared memory
abstraction

112

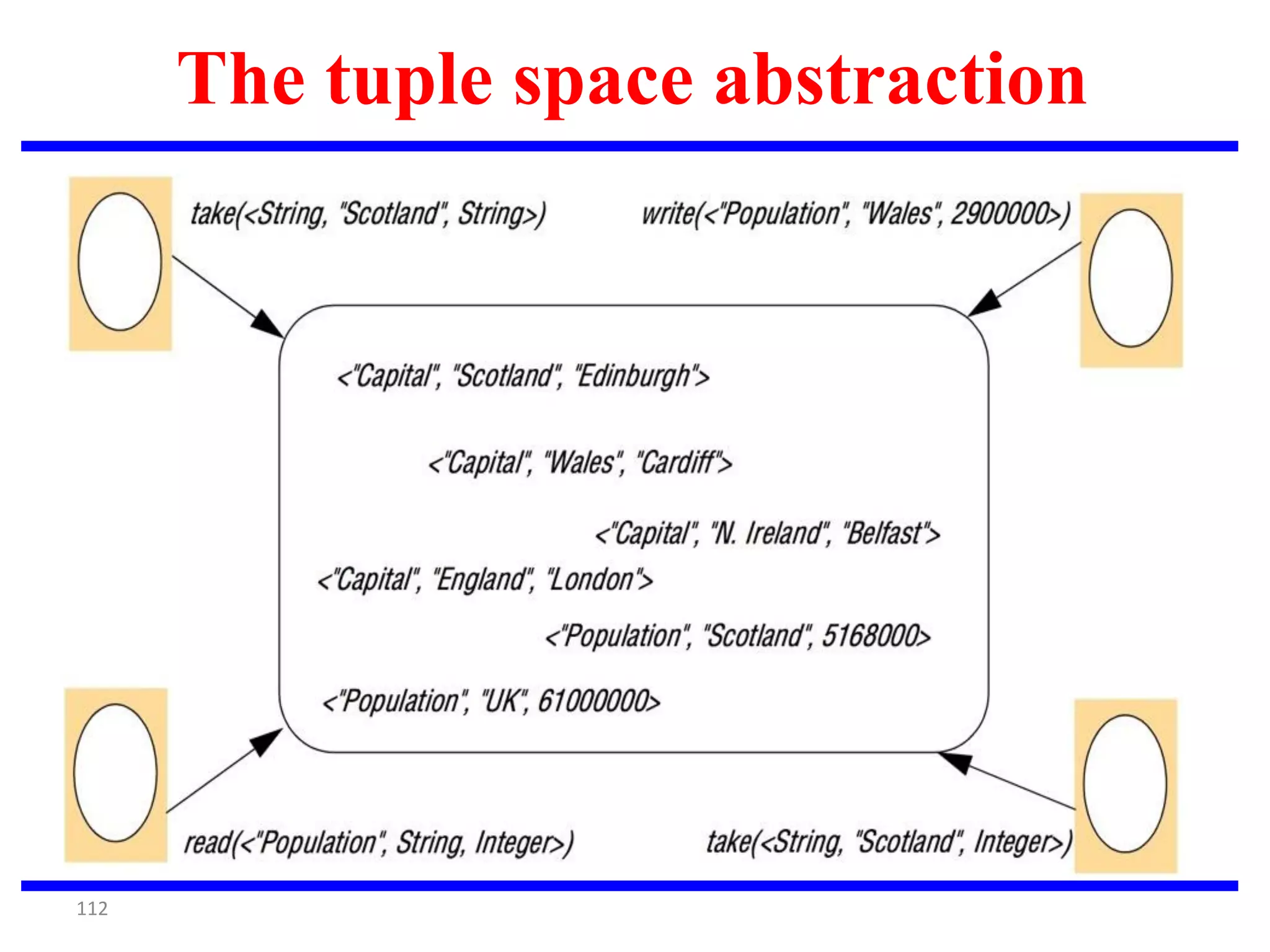

The tuple space abstraction

113

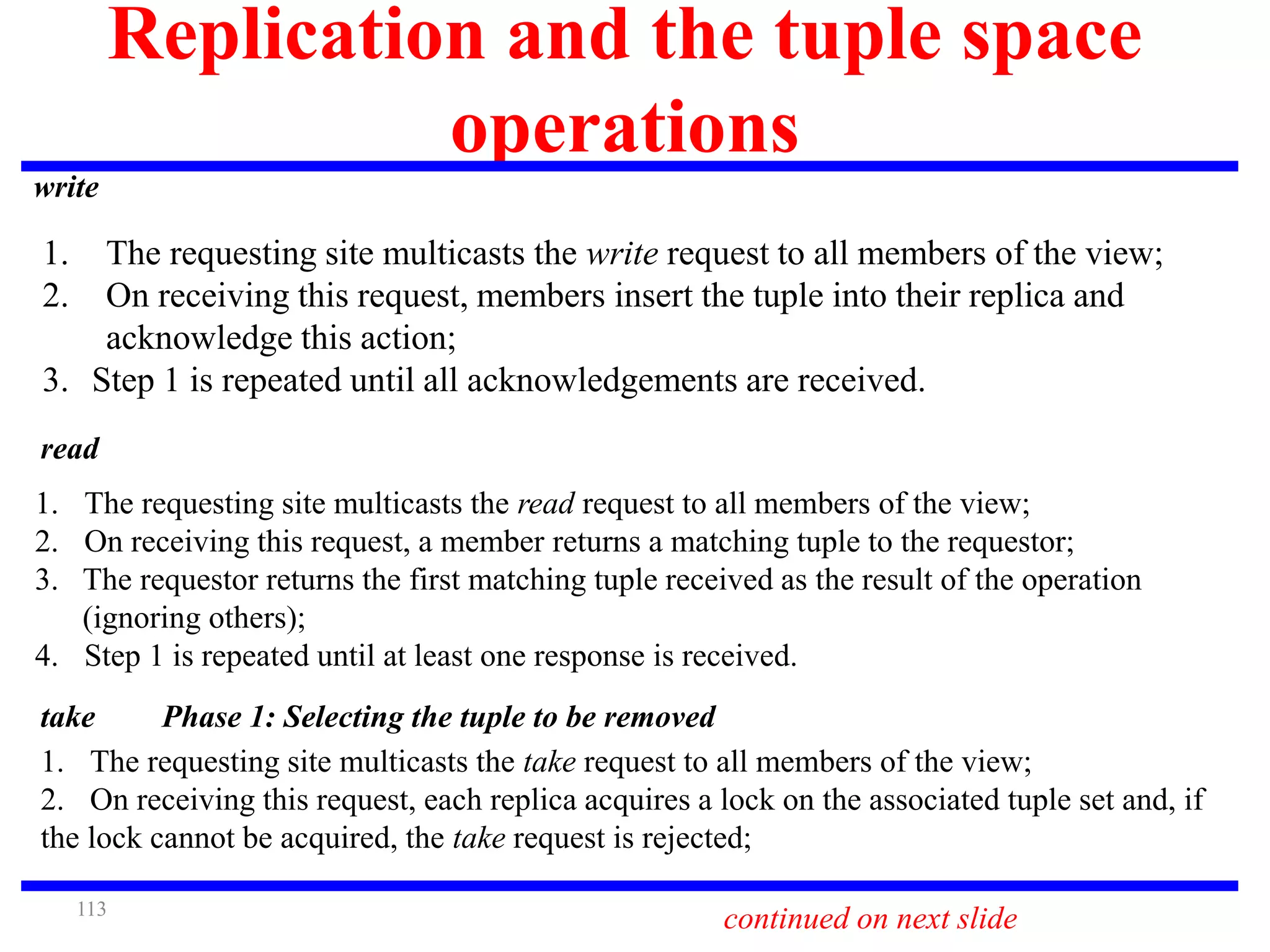

Replication and the tuple space
operations
write
1. The requesting site multicasts the write request to all members of the view;
2. On receiving this request, members insert the tuple into their replica and
acknowledge this action;
3. Step 1 is repeated until all acknowledgements are received.
read
1. The requesting site multicasts the read request to all members of the view;
2. On receiving this request, a member returns a matching tuple to the requestor;
3. The requestor returns the first matching tuple received as the result of the operation
(ignoring others);
4. Step 1 is repeated until at least one response is received.
continued on next slide
take Phase 1: Selecting the tuple to be removed
1. The requesting site multicasts the take request to all members of the view;
2. On receiving this request, each replica acquires a lock on the associated tuple set and, if
the lock cannot be acquired, the take request is rejected;

114

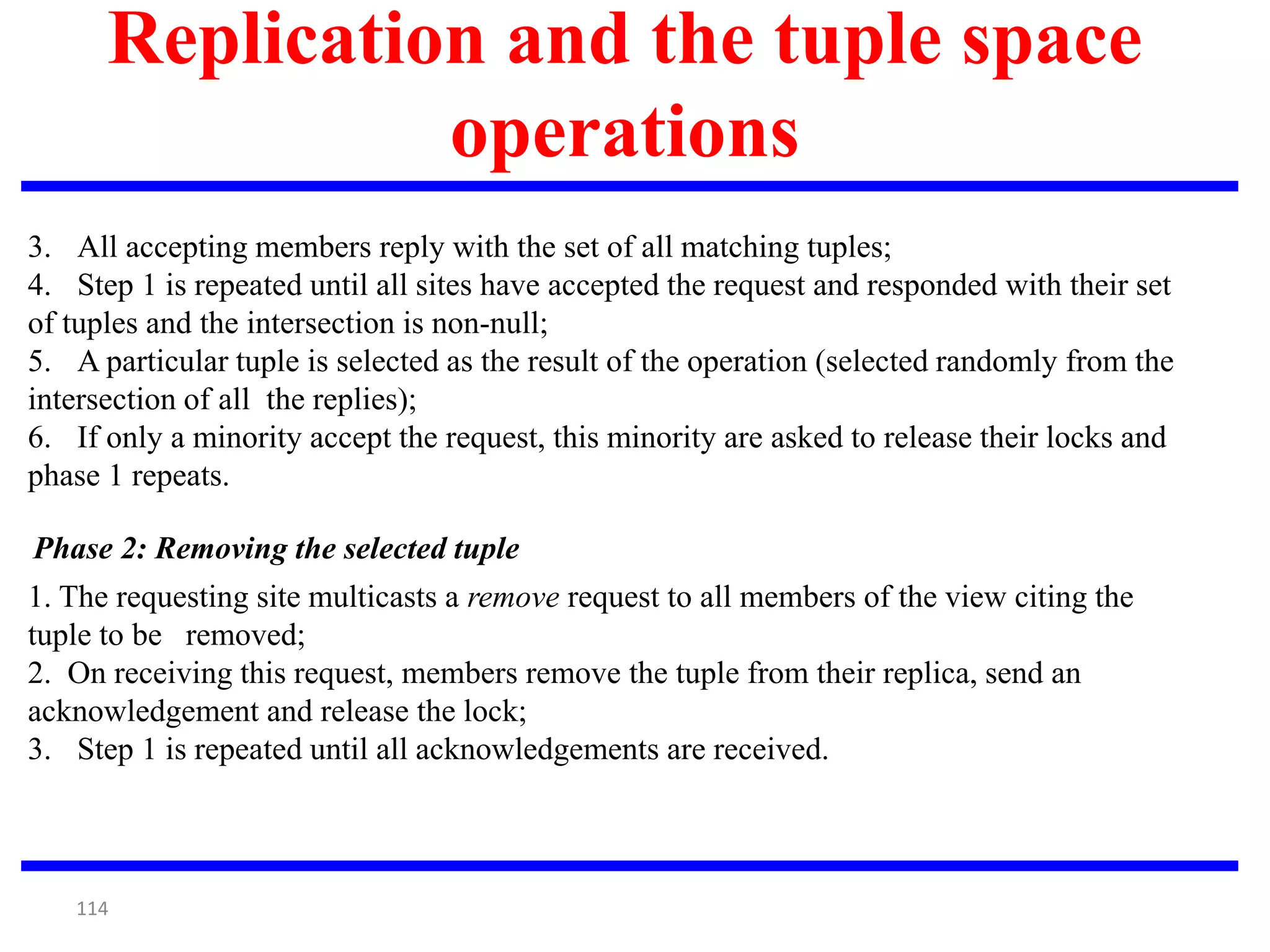

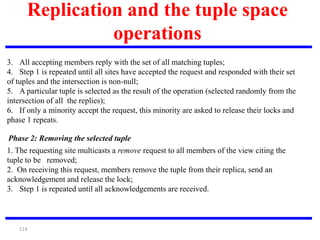

Replication and the tuple space
operations
Phase 2: Removing the selected tuple
3. All accepting members reply with the set of all matching tuples;
4. Step 1 is repeated until all sites have accepted the request and responded with their set
of tuples and the intersection is non-null;
5. A particular tuple is selected as the result of the operation (selected randomly from the
intersection of all the replies);
6. If only a minority accept the request, this minority are asked to release their locks and
phase 1 repeats.
1. The requesting site multicasts a remove request to all members of the view citing the
tuple to be removed;
2. On receiving this request, members remove the tuple from their replica, send an
acknowledgement and release the lock;
3. Step 1 is repeated until all acknowledgements are received.

115

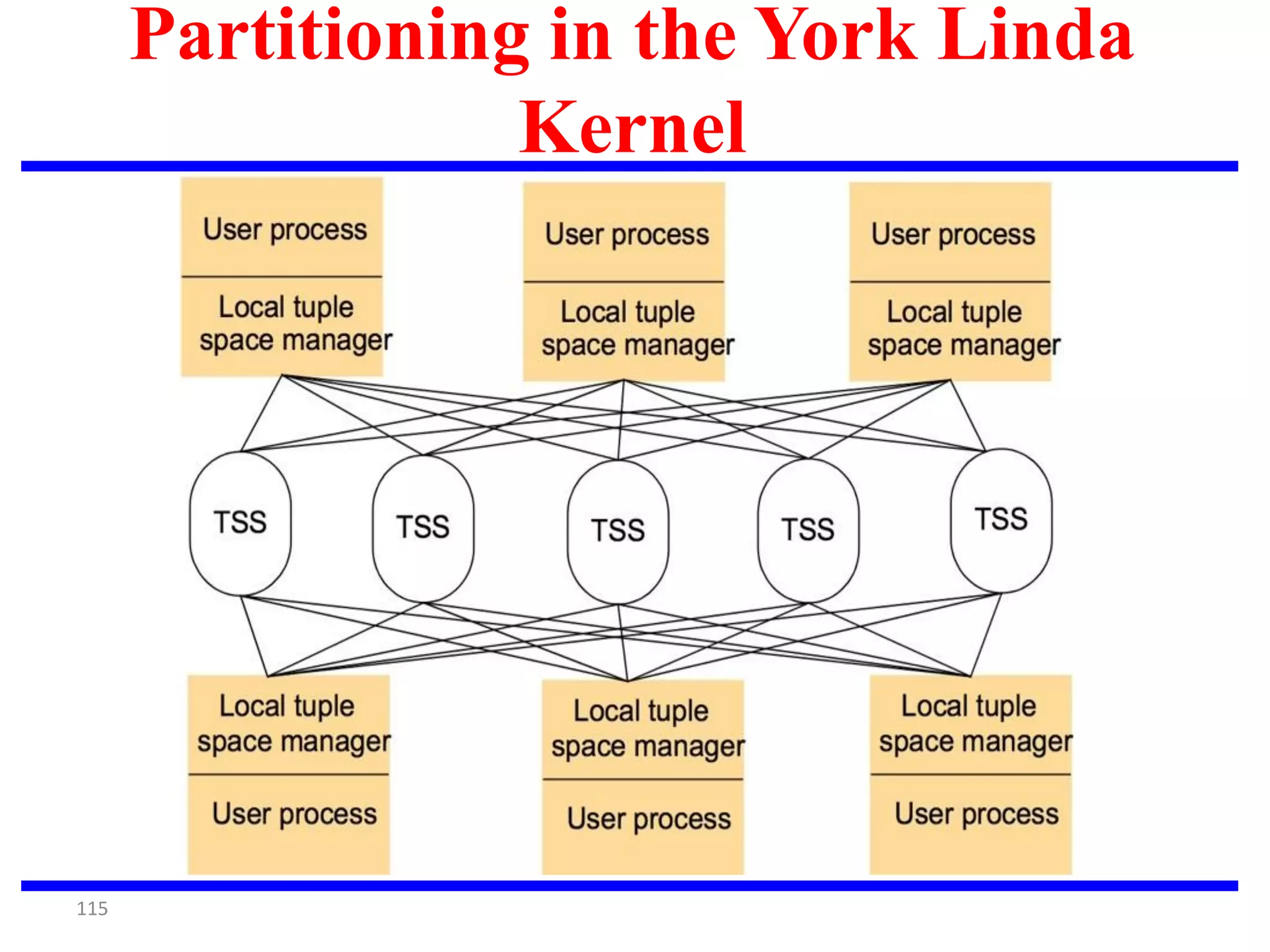

Partitioning in the York Linda
Kernel

117

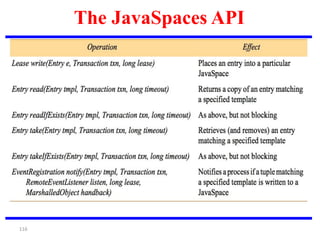

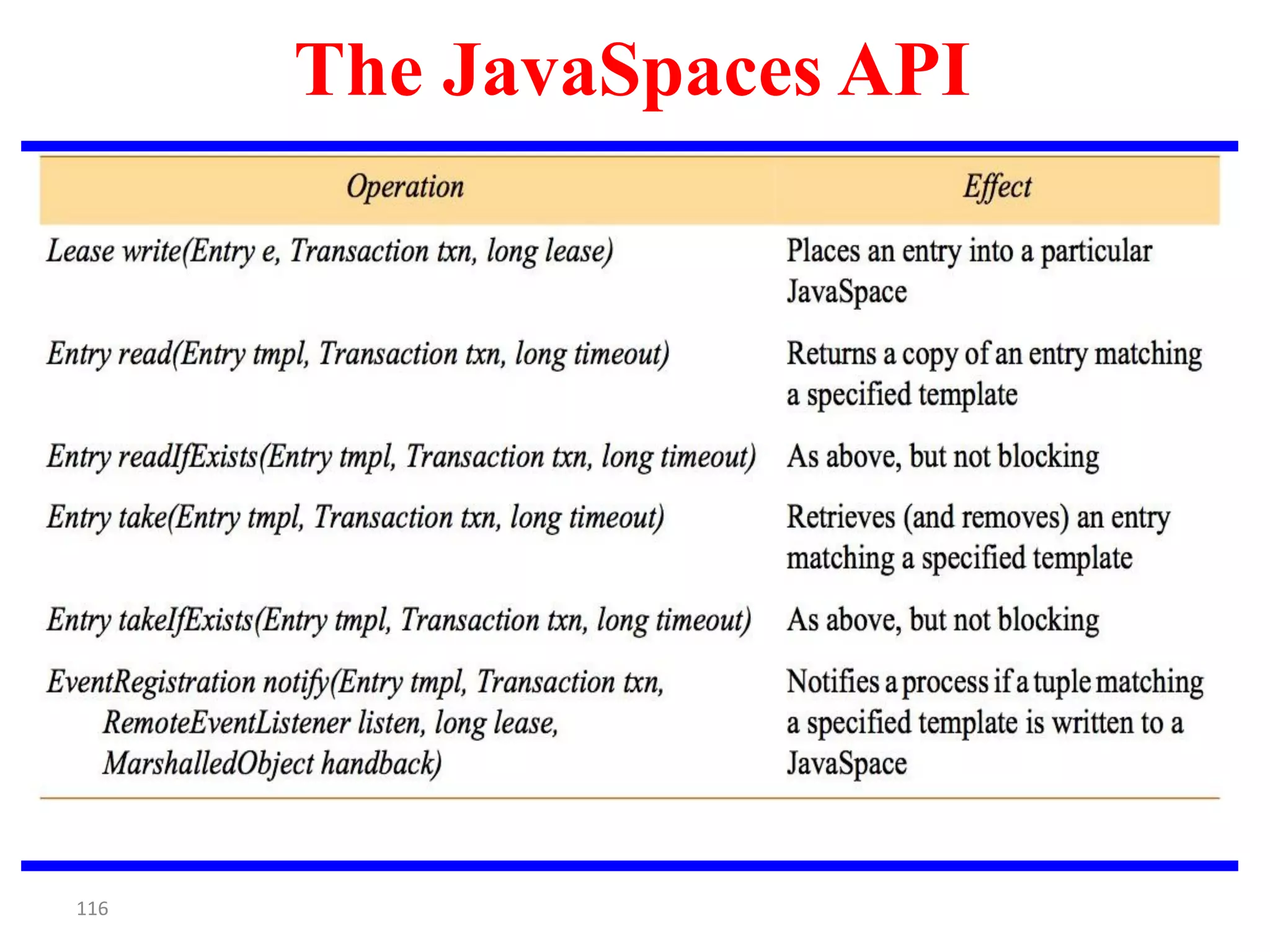

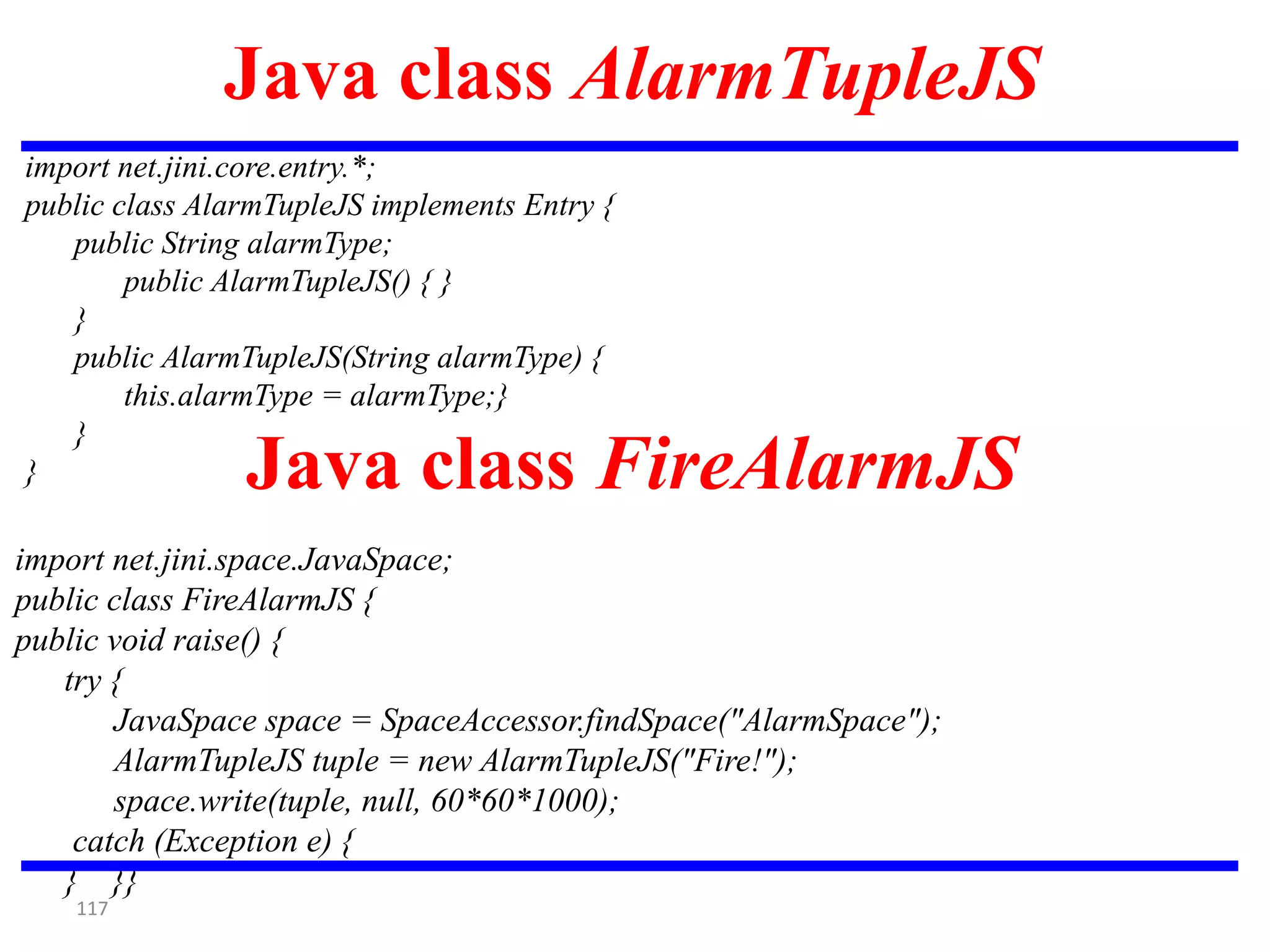

Java class AlarmTupleJS
import net.jini.core.entry.*;
public class AlarmTupleJS implements Entry {
public String alarmType;
public AlarmTupleJS() { }
}
public AlarmTupleJS(String alarmType) {
this.alarmType = alarmType;}
}
} Java class FireAlarmJS
import net.jini.space.JavaSpace;
public class FireAlarmJS {
try {
JavaSpace space = SpaceAccessor.findSpace("AlarmSpace");
AlarmTupleJS tuple = new AlarmTupleJS("Fire!");
space.write(tuple, null, 60*60*1000);
catch (Exception e) {
} }}

118

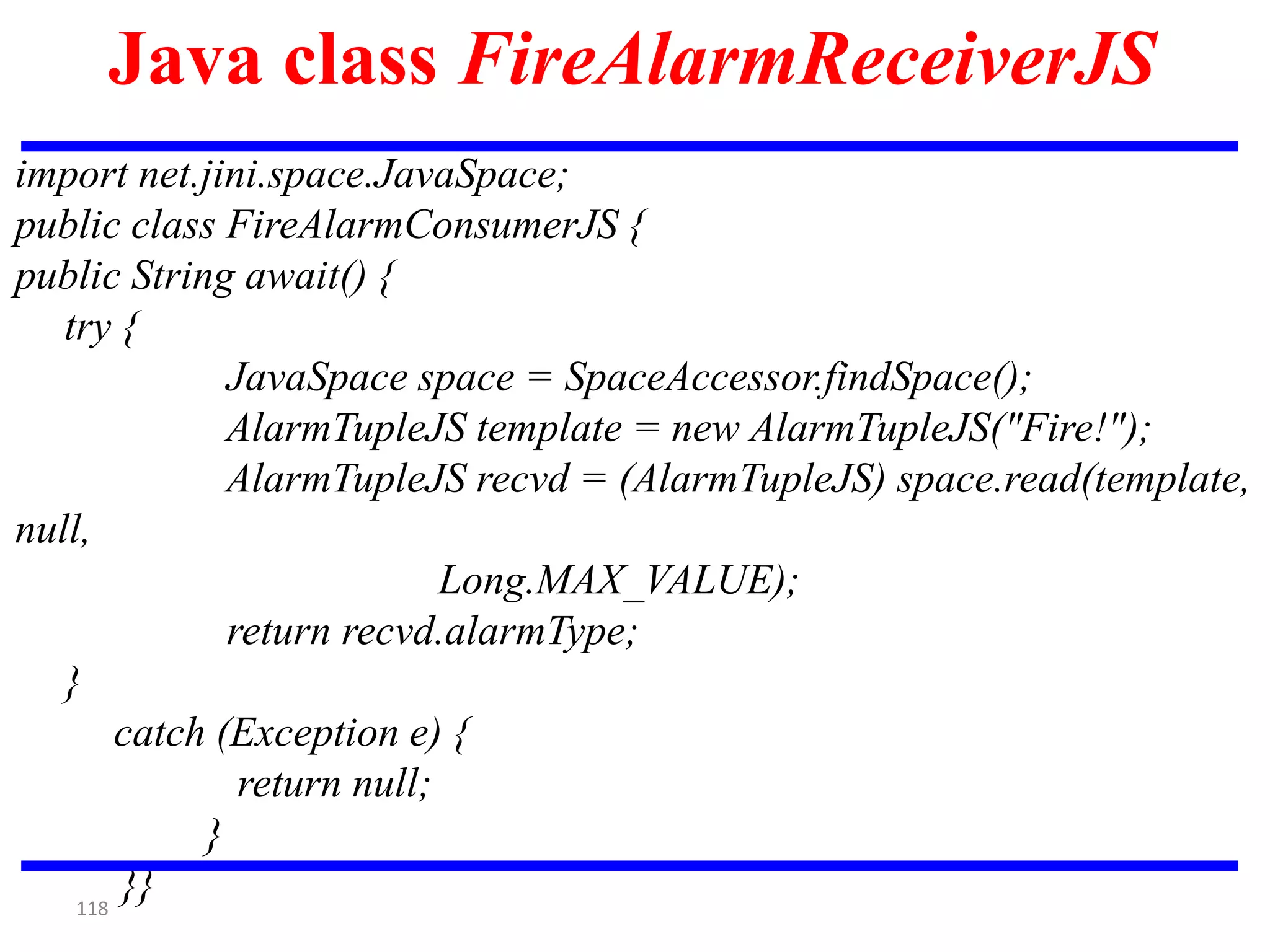

Java class FireAlarmReceiverJS
import net.jini.space.JavaSpace;
public class FireAlarmConsumerJS {
try {
JavaSpace space = SpaceAccessor.findSpace();
AlarmTupleJS template = new AlarmTupleJS("Fire!");
AlarmTupleJS recvd = (AlarmTupleJS) space.read(template,
null,
Long.MAX_VALUE);
return recvd.alarmType;
}
catch (Exception e) {
return null;
}
}}

119

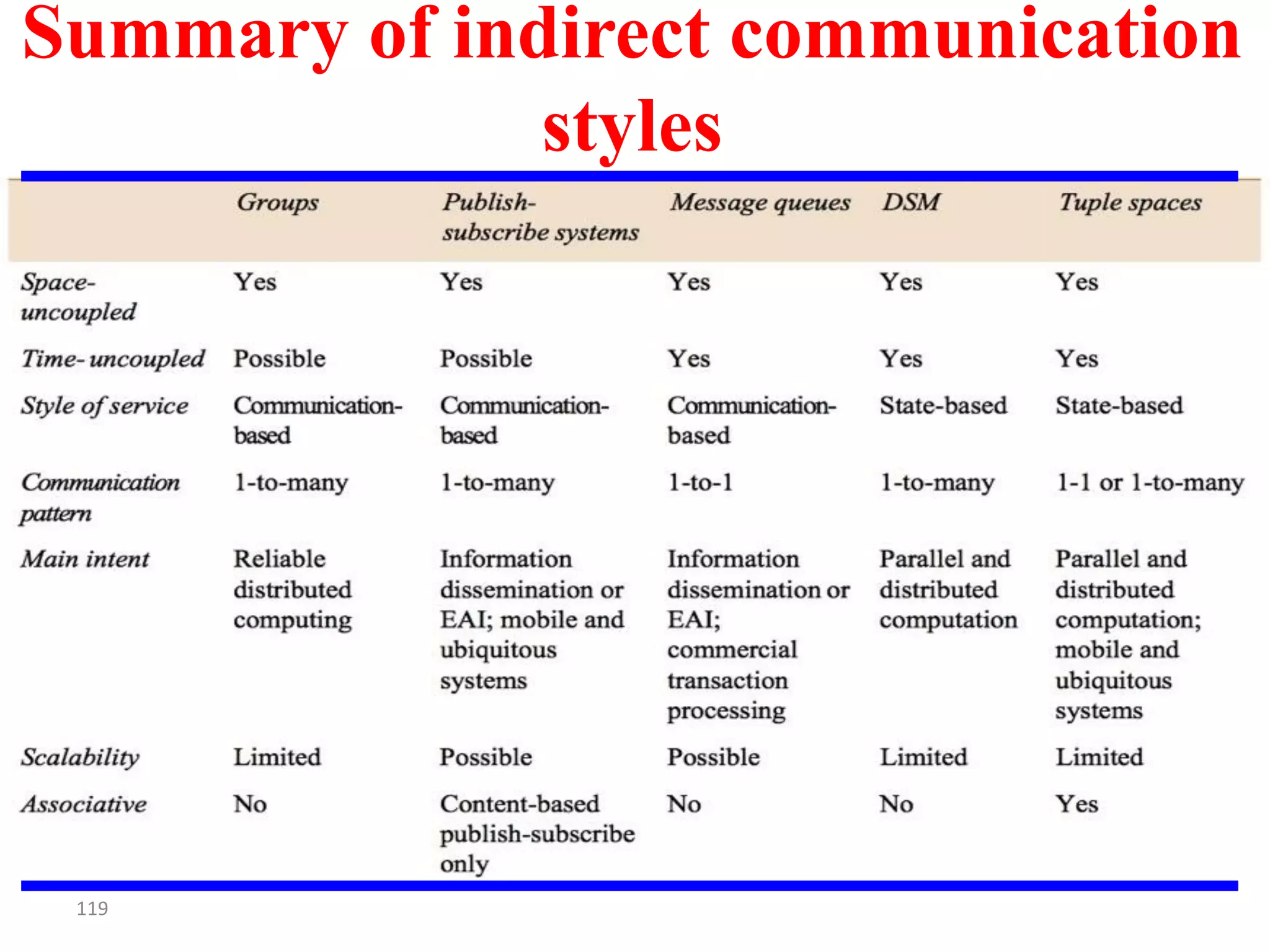

Summary of indirect communication
styles

From Coulouris, Dollimore, Kindberg and
Blair
Distributed Systems:
Concepts and Design
Edition 5, © Addison-Wesley 2012
Slides for Chapter 7:
Operating System support

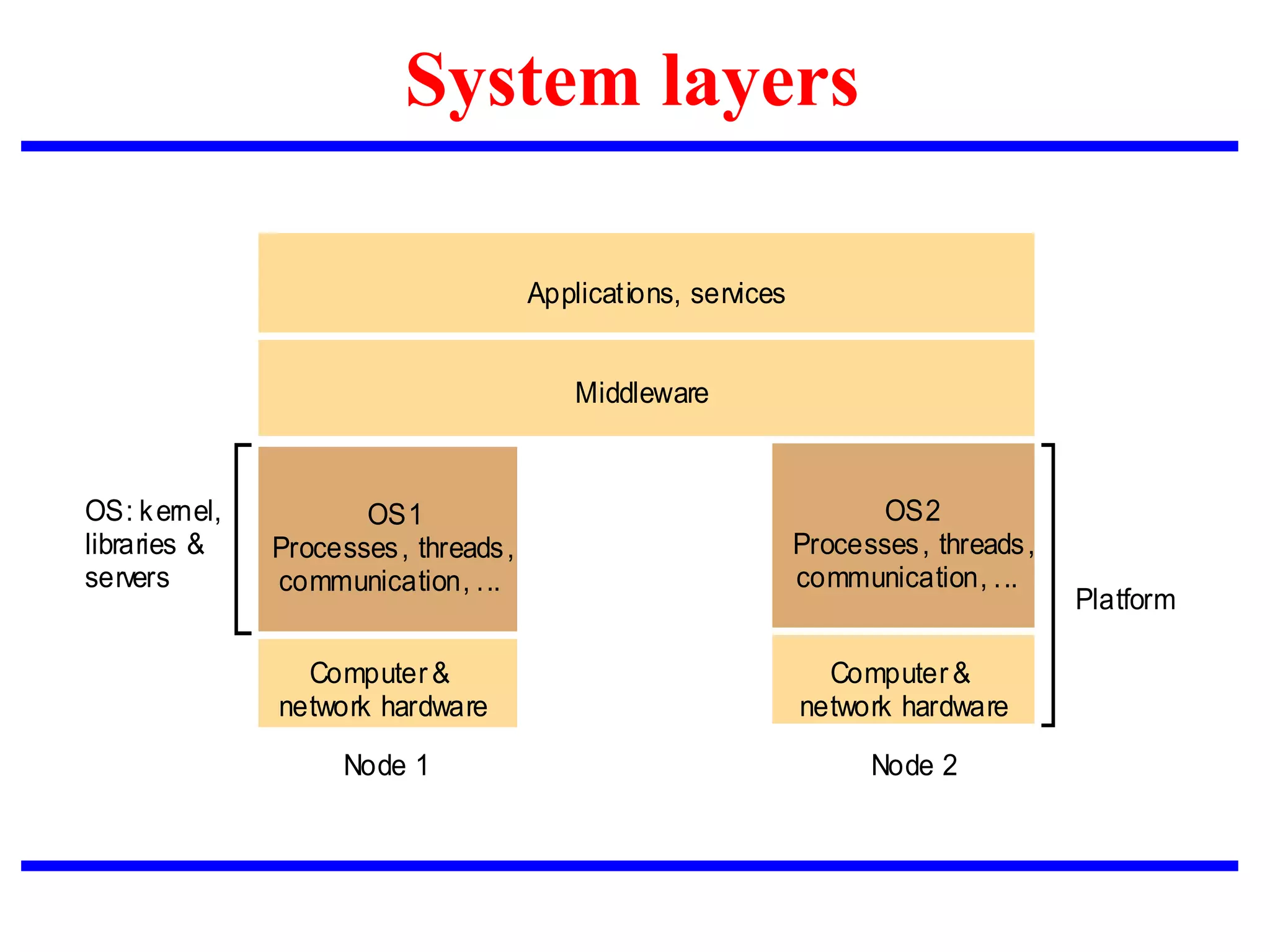

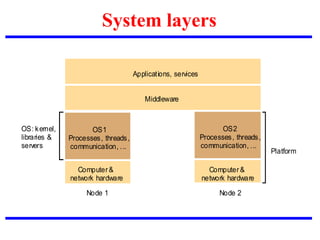

System layers
Applications, services
Computer &
Platform
Middleware
OS: kernel,
libraries &
servers
network hardware
OS1
Computer &
network hardware
Node 1 Node 2
Processes, threads,
communication, ...
OS2
Processes, threads,
communication, ...

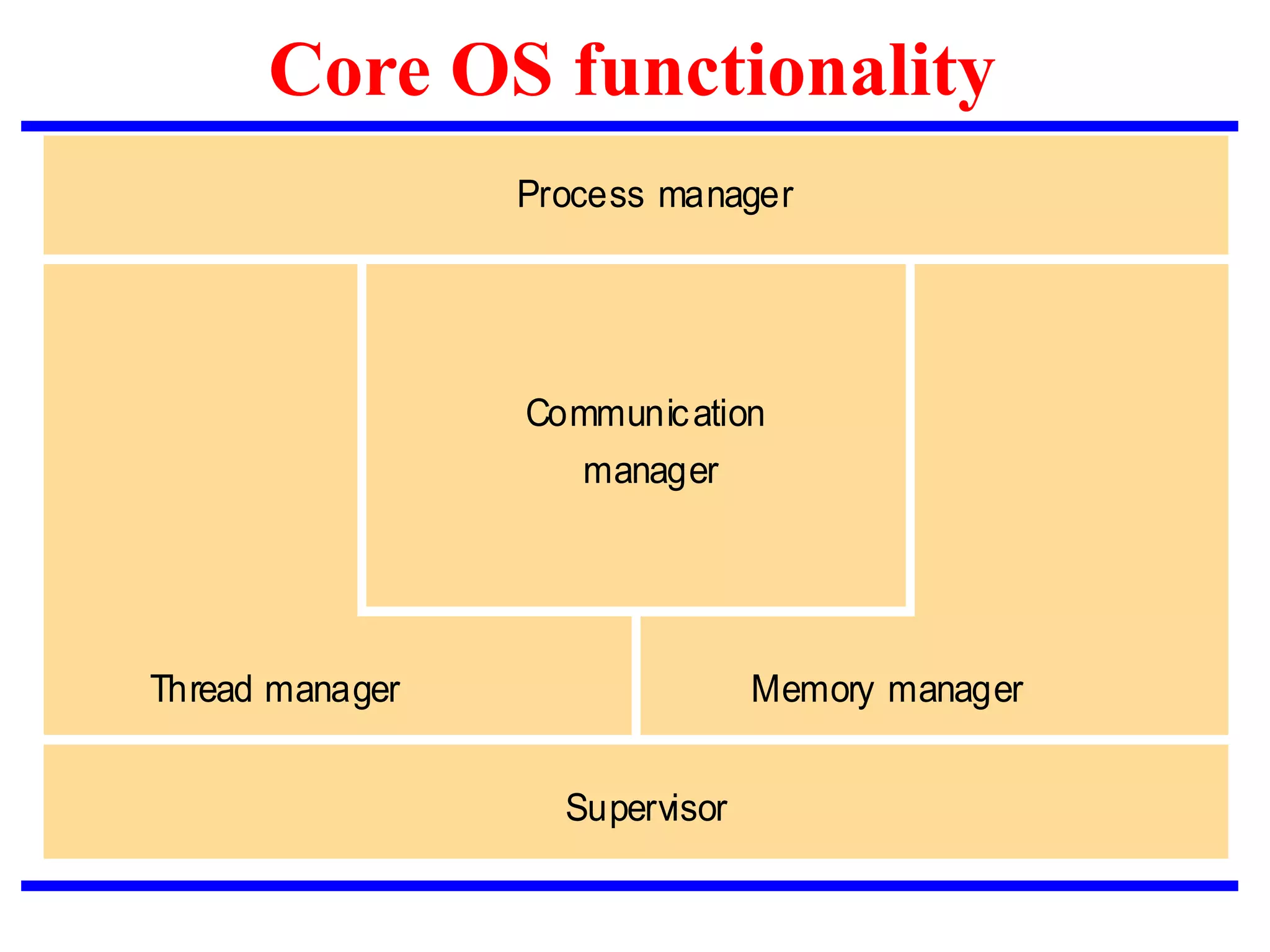

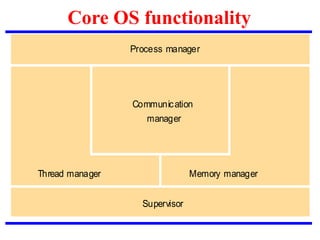

Core OS functionality
Communication
manager
Thread manager Memory manager
Supervisor
Process manager

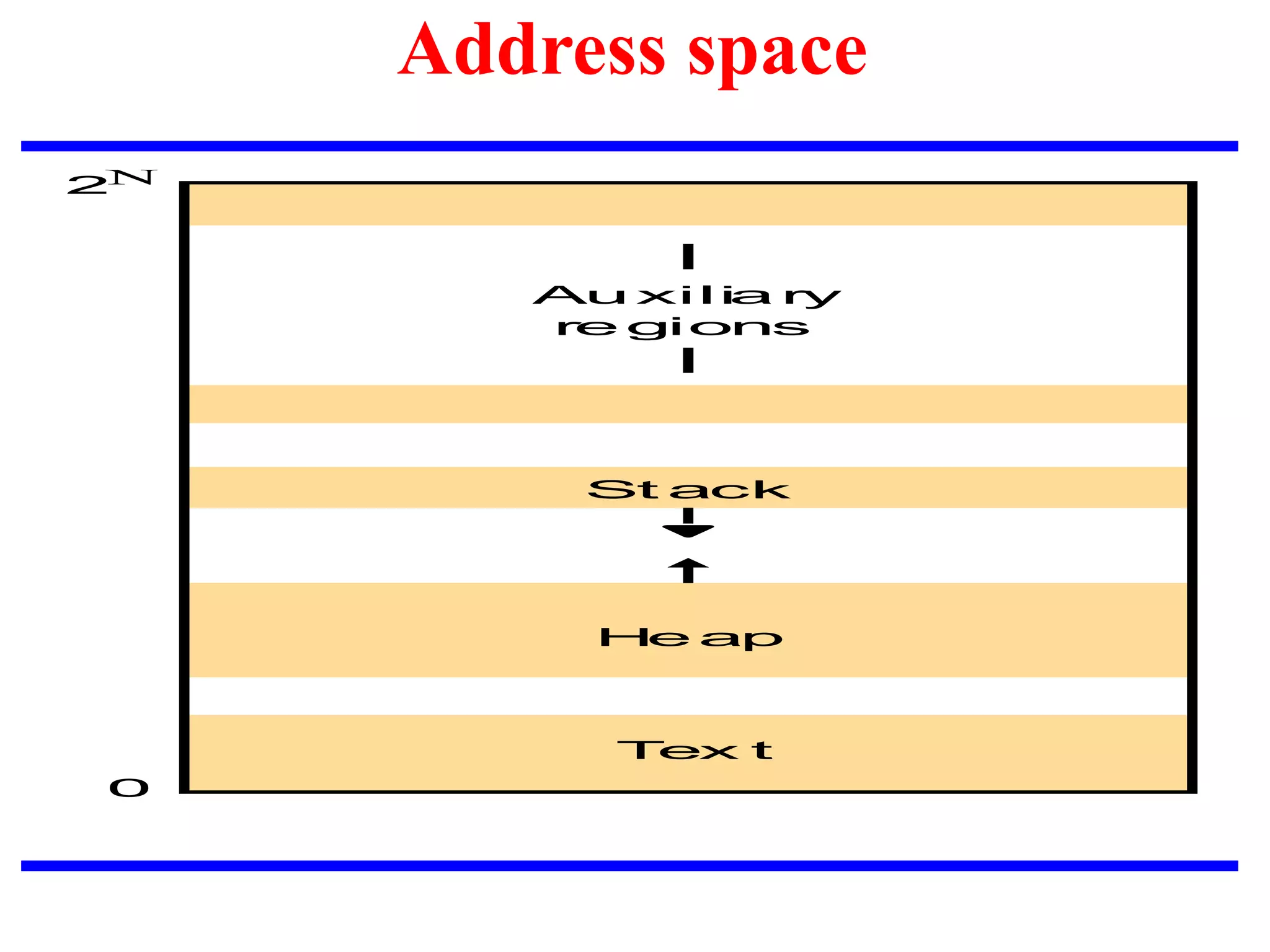

Address space
St ack
T
ex t
H
e ap
Au xili
a r
y
r
e gions
0
2N

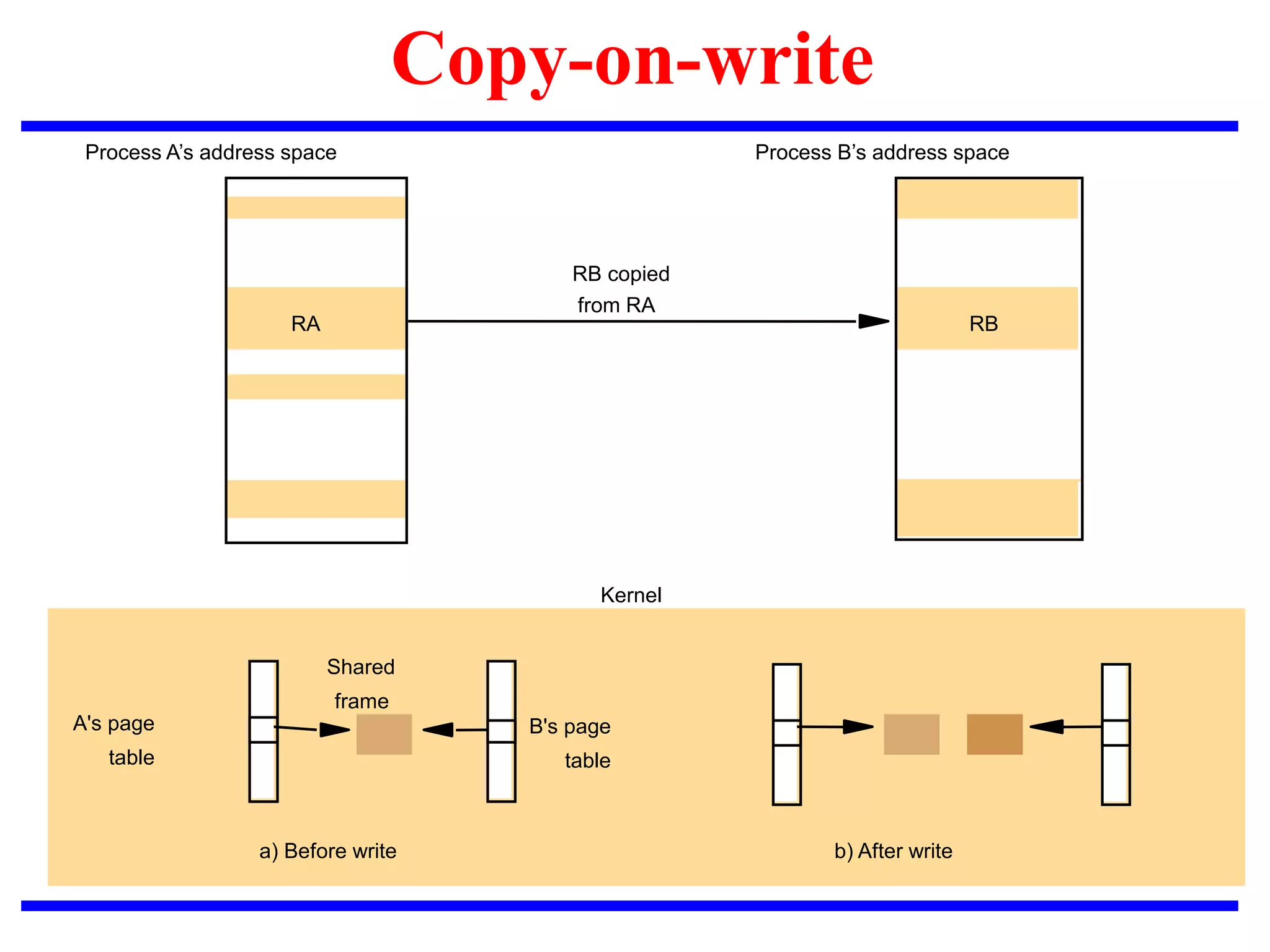

Copy-on-write
a) Before write b) After write
Shared
frame
A's page
table
B's page
table
Process A’s address space Process B’s address space
Kernel
RA RB
RB copied
from RA

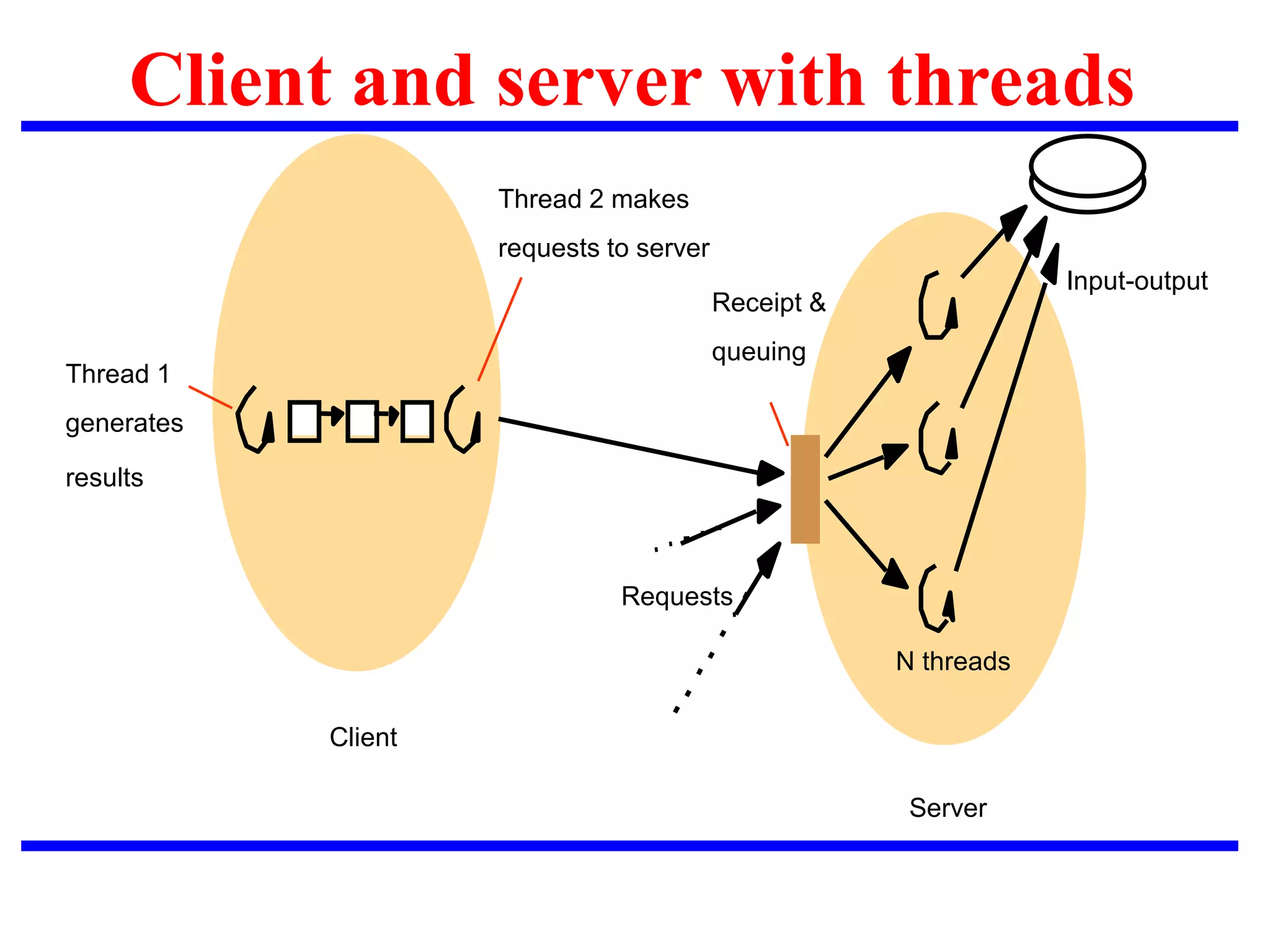

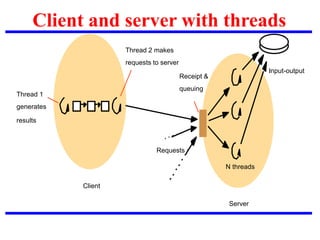

Client and server with threads
Server
N threads
Input-output
Client
Thread 2 makes
T1
Thread 1
requests to server
generates
results
Requests
Receipt &
queuing

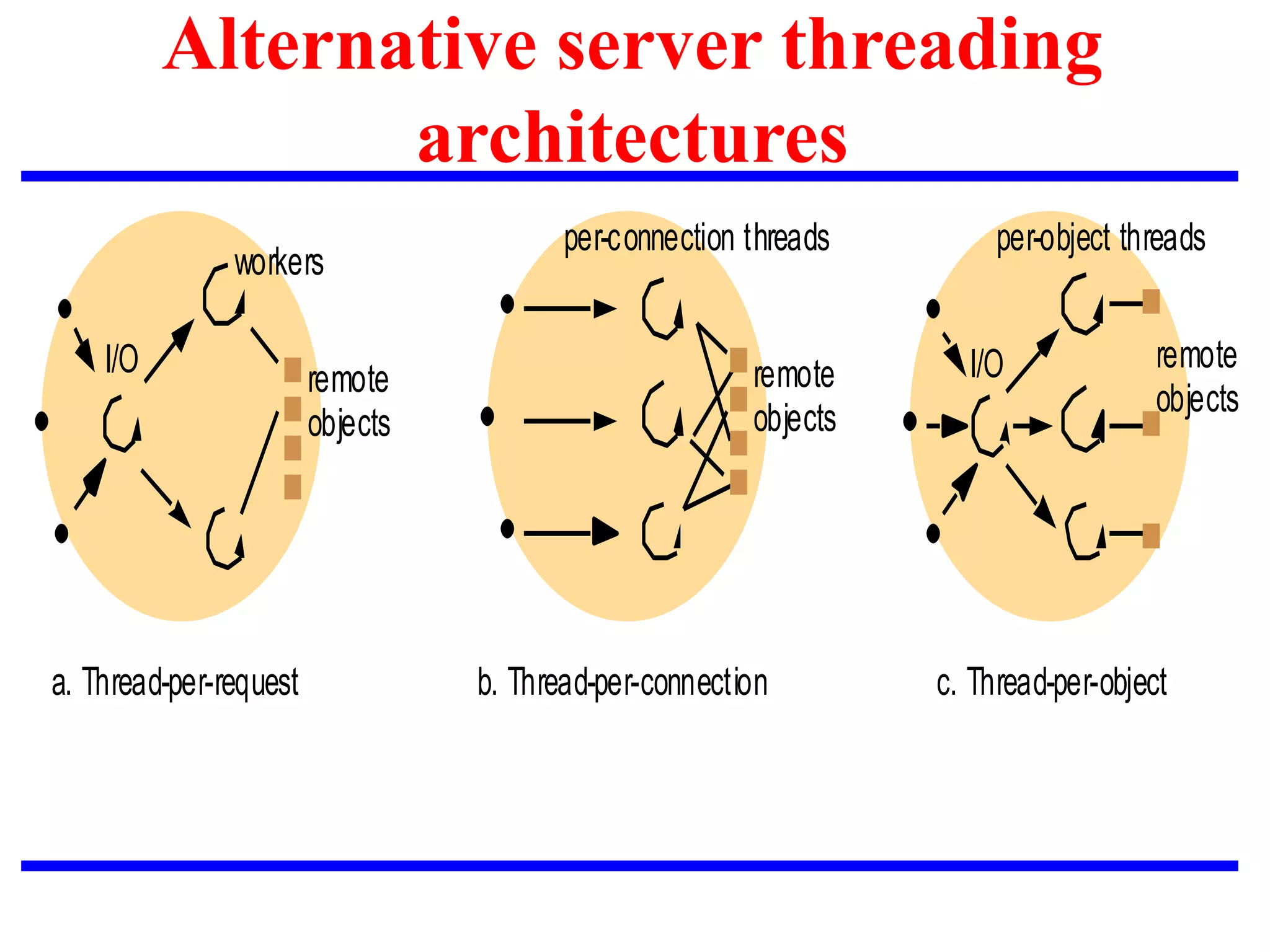

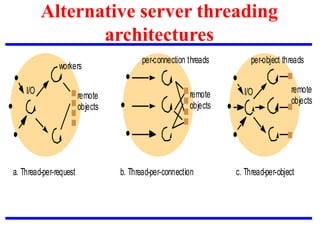

Alternative server threading
architectures
a. Thread-per-request b. Thread-per-connection c. Thread-per-object
remote
workers
I/O remote
remote I/O
per-connection threads per-object threads
objects objects objects

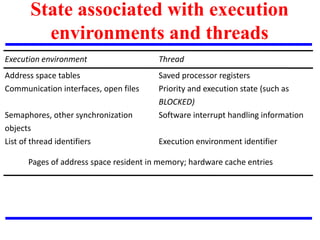

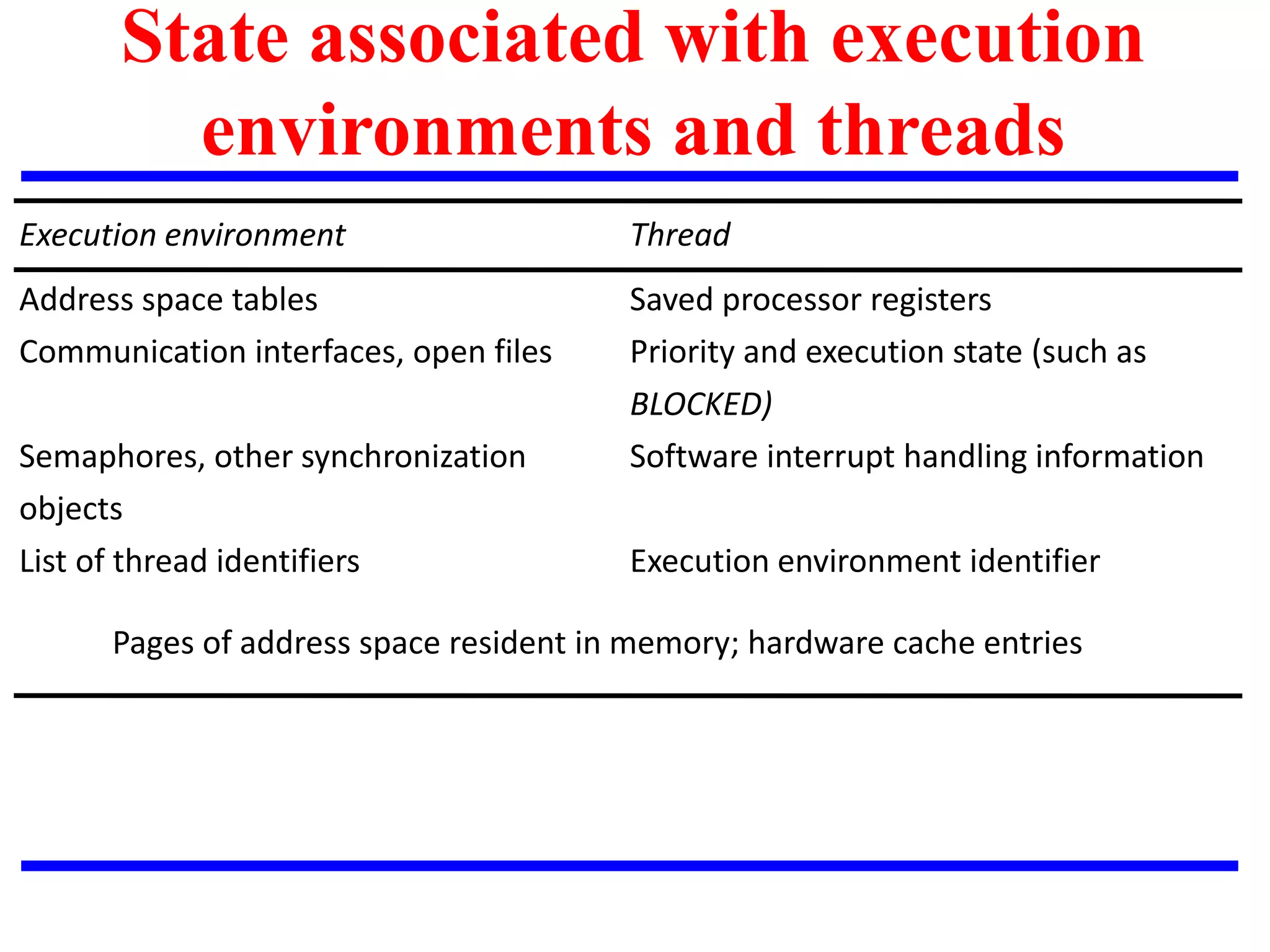

State associated with execution
environments and threads
Execution environment Thread
Address space tables Saved processor registers
Communication interfaces, open files Priority and execution state (such as
BLOCKED)
Semaphores, other synchronization
objects
Software interrupt handling information
List of thread identifiers Execution environment identifier
Pages of address space resident in memory; hardware cache entries

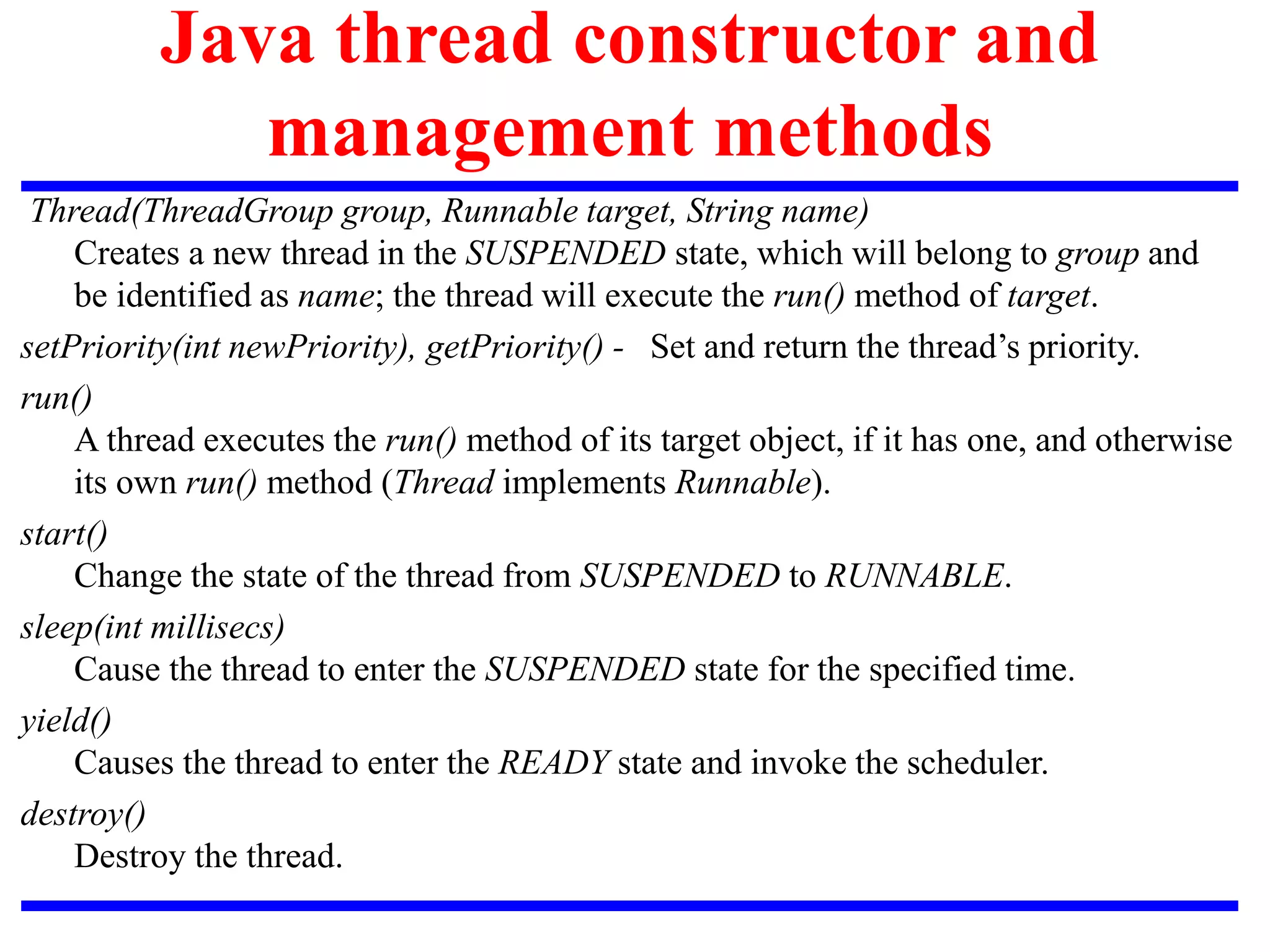

Java thread constructor and
management methods
Thread(ThreadGroup group, Runnable target, String name)
Creates a new thread in the SUSPENDED state, which will belong to group and
be identified as name; the thread will execute the run() method of target.
setPriority(int newPriority), getPriority() - Set and return the thread’s priority.
run()
A thread executes the run() method of its target object, if it has one, and otherwise
its own run() method (Thread implements Runnable).
start()
Change the state of the thread from SUSPENDED to RUNNABLE.
sleep(int millisecs)
Cause the thread to enter the SUSPENDED state for the specified time.
yield()
Causes the thread to enter the READY state and invoke the scheduler.
destroy()
Destroy the thread.

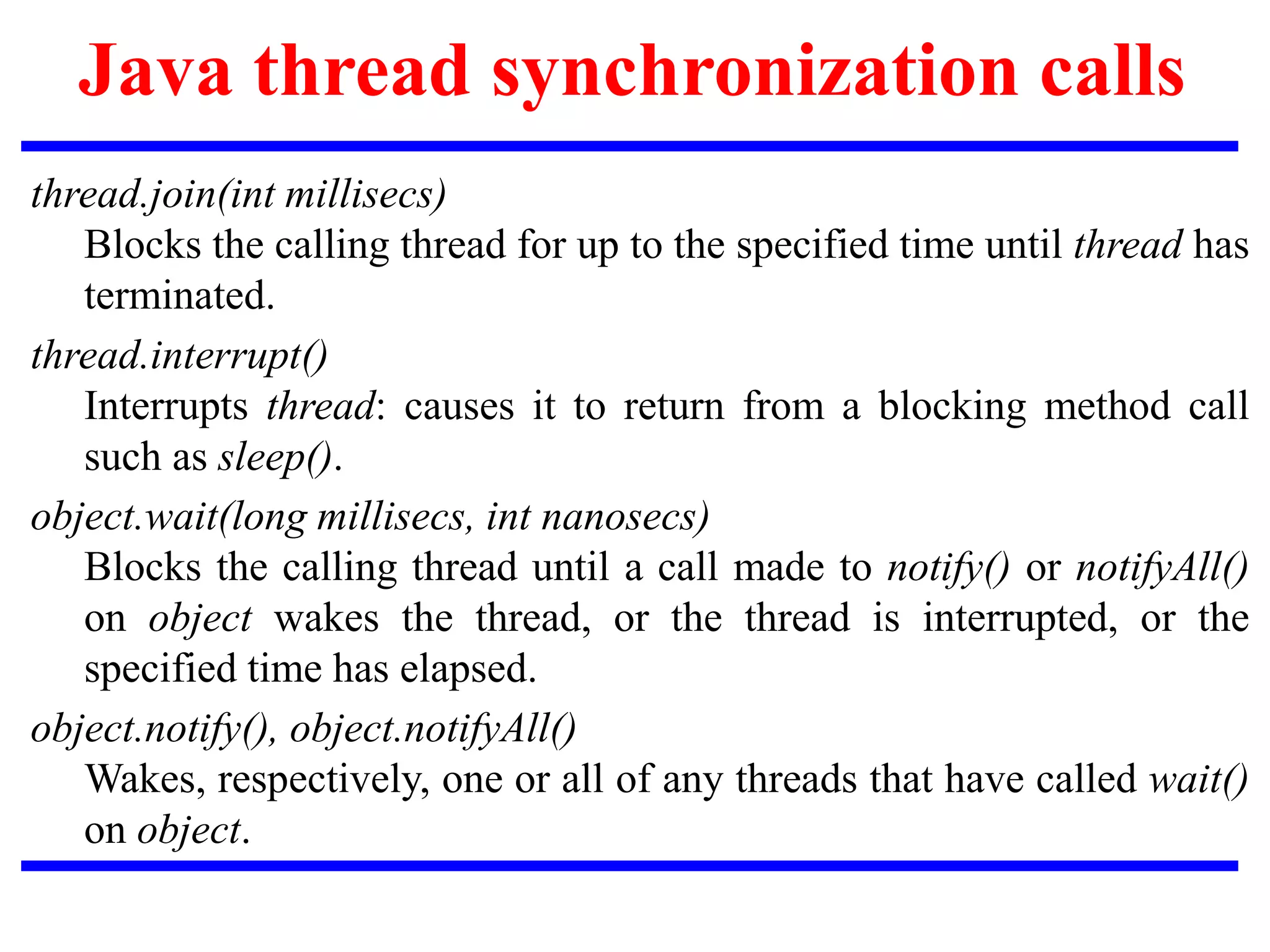

Java thread synchronization calls
thread.join(int millisecs)
Blocks the calling thread for up to the specified time until thread has
terminated.
thread.interrupt()
Interrupts thread: causes it to return from a blocking method call
such as sleep().
object.wait(long millisecs, int nanosecs)
Blocks the calling thread until a call made to notify() or notifyAll()
on object wakes the thread, or the thread is interrupted, or the
specified time has elapsed.
object.notify(), object.notifyAll()
Wakes, respectively, one or all of any threads that have called wait()
on object.

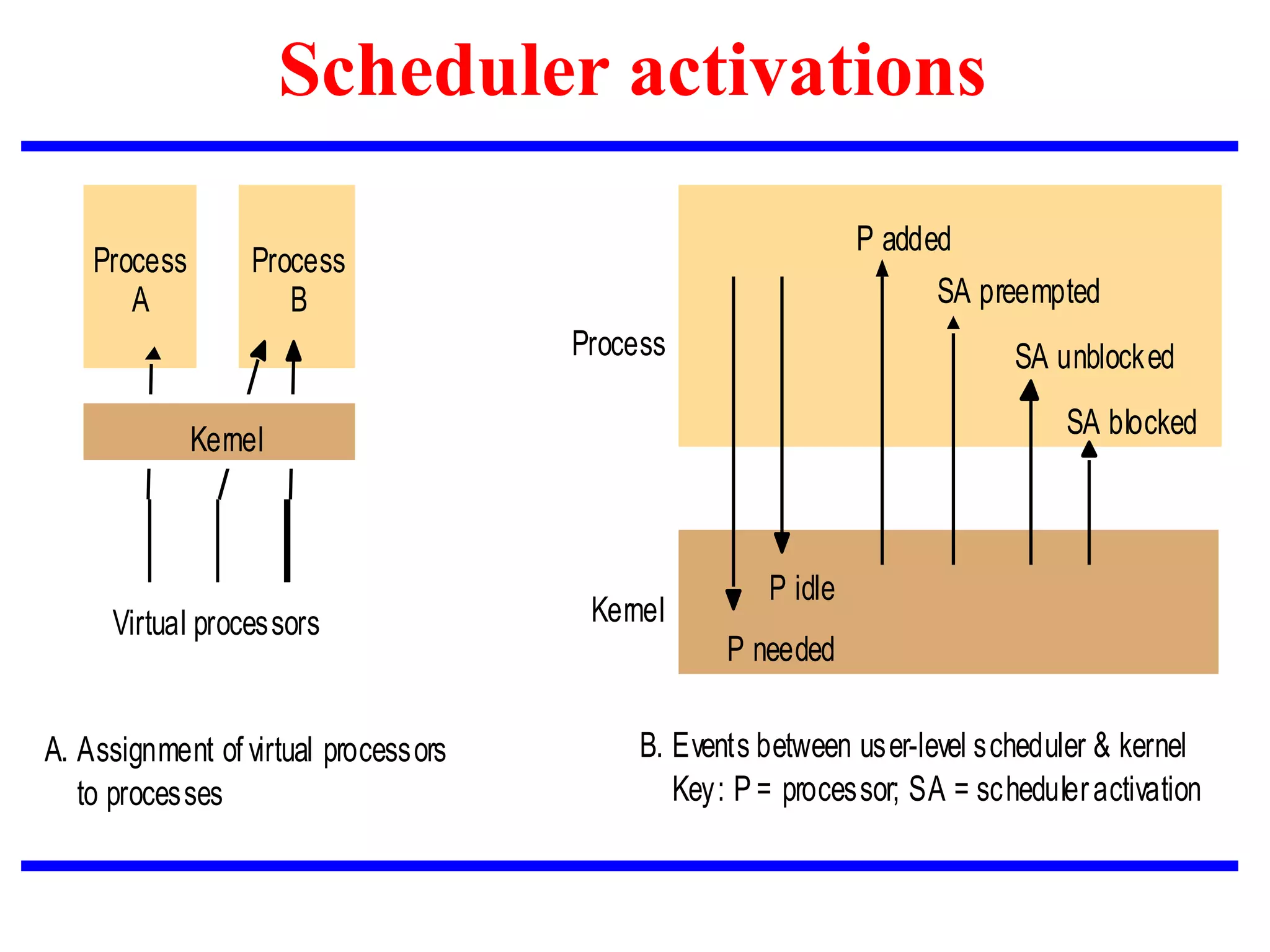

Scheduler activations
Process
A
Process
B
Virtual processors Kernel
Process
Kernel
P idle
P needed
P added
SA blocked
SA unblocked
SA preempted
A. Assignment of virtual processors
to processes
B. Events between user-level scheduler & kernel
Key: P = processor; SA = scheduleractivation

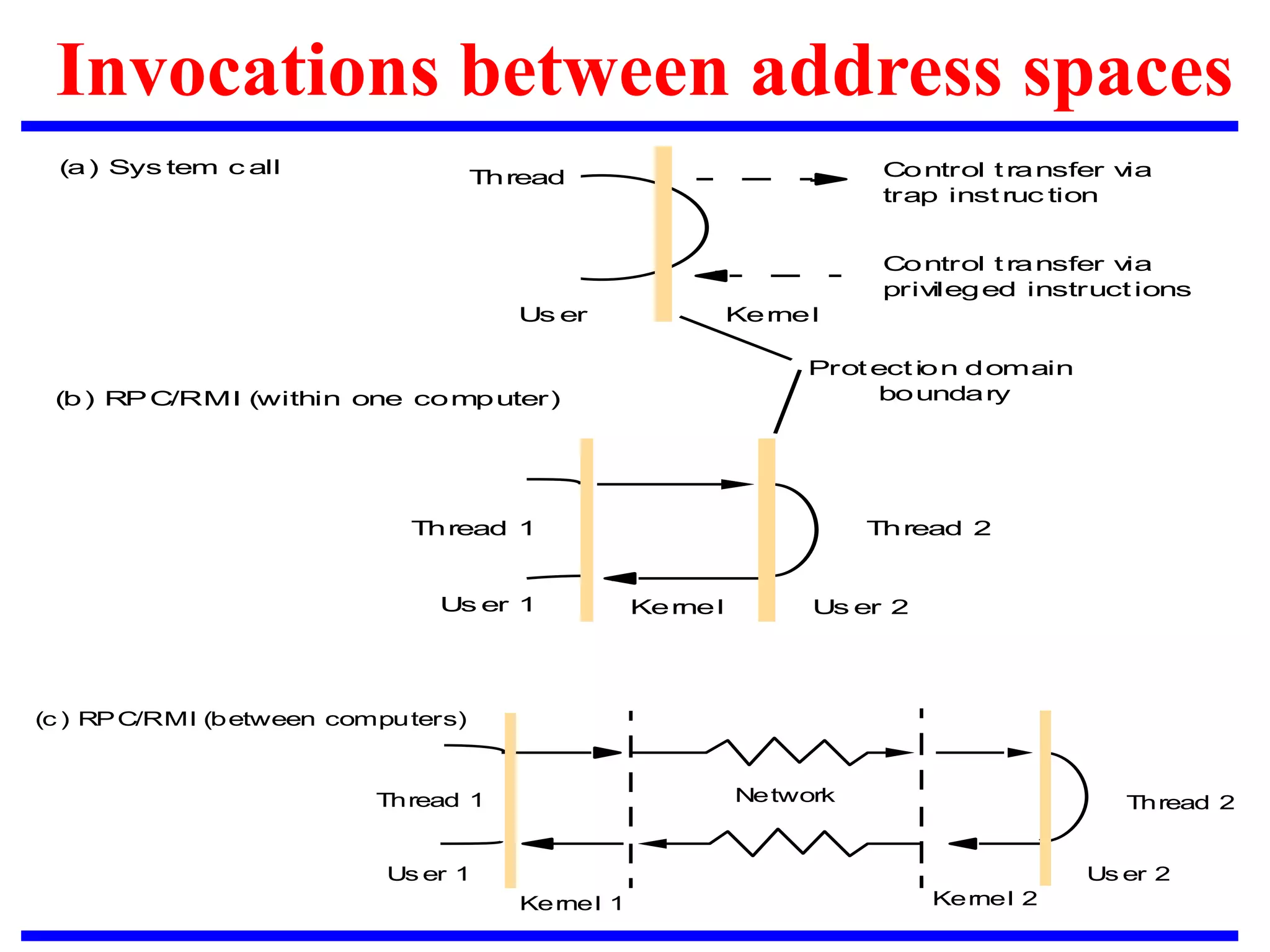

Invocations between address spaces
Control t ransfer v
ia
trap inst ruc tion
Us er Kernel
Thread
Us er 1 Us er 2
Control t ransfer v
ia
priv
ileged instruct ions
Thread 1 Thread 2
Prot ect ion domain
boundary
(a) Sys tem c all
(b) RPC/RMI (within one computer)
Kernel
(c ) RPC/RMI (between computers)
Us er 1 Us er 2
Thread 1 Network Thread 2
Kernel 2
Kernel 1

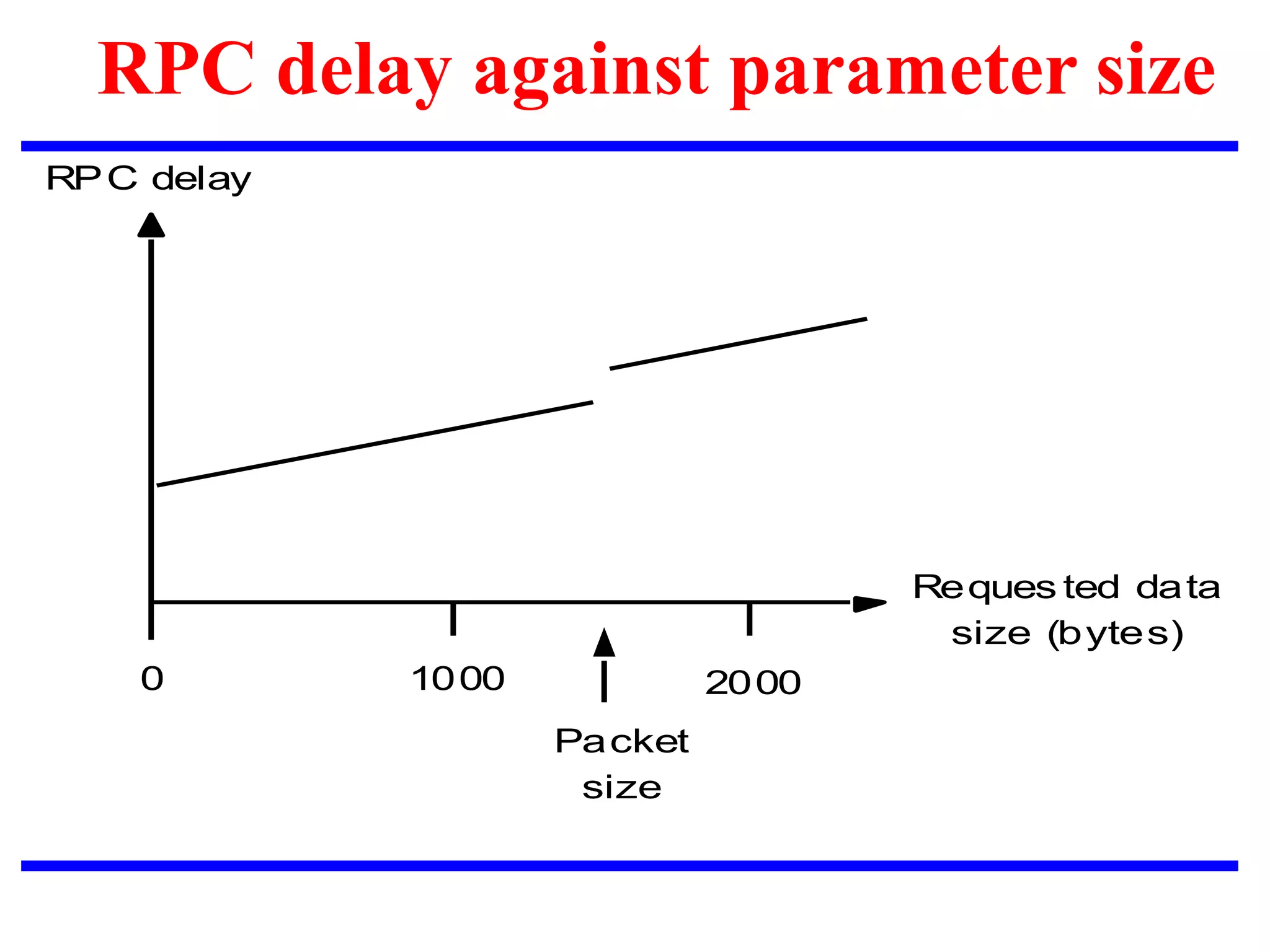

RPC delay against parameter size
1000 2000
RPC delay
Reques ted data
size (bytes)
Packet
size
0

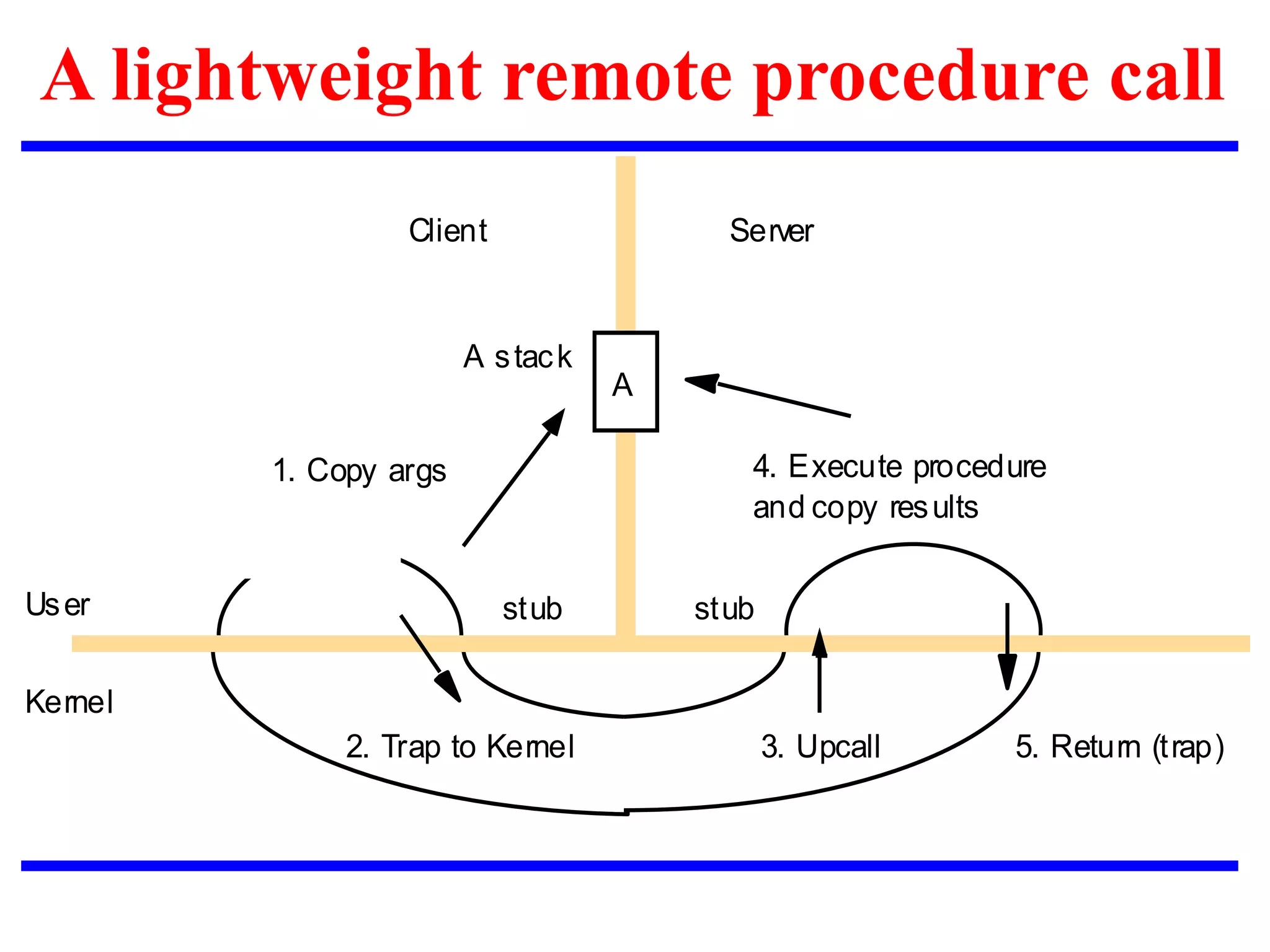

A lightweight remote procedure call
1. Copy args
2. Trap to Kernel
4. Execute procedure
and copy results
Client
User stub
Server
Kernel
stub
3. Upcall 5. Return (trap)
A
A stack

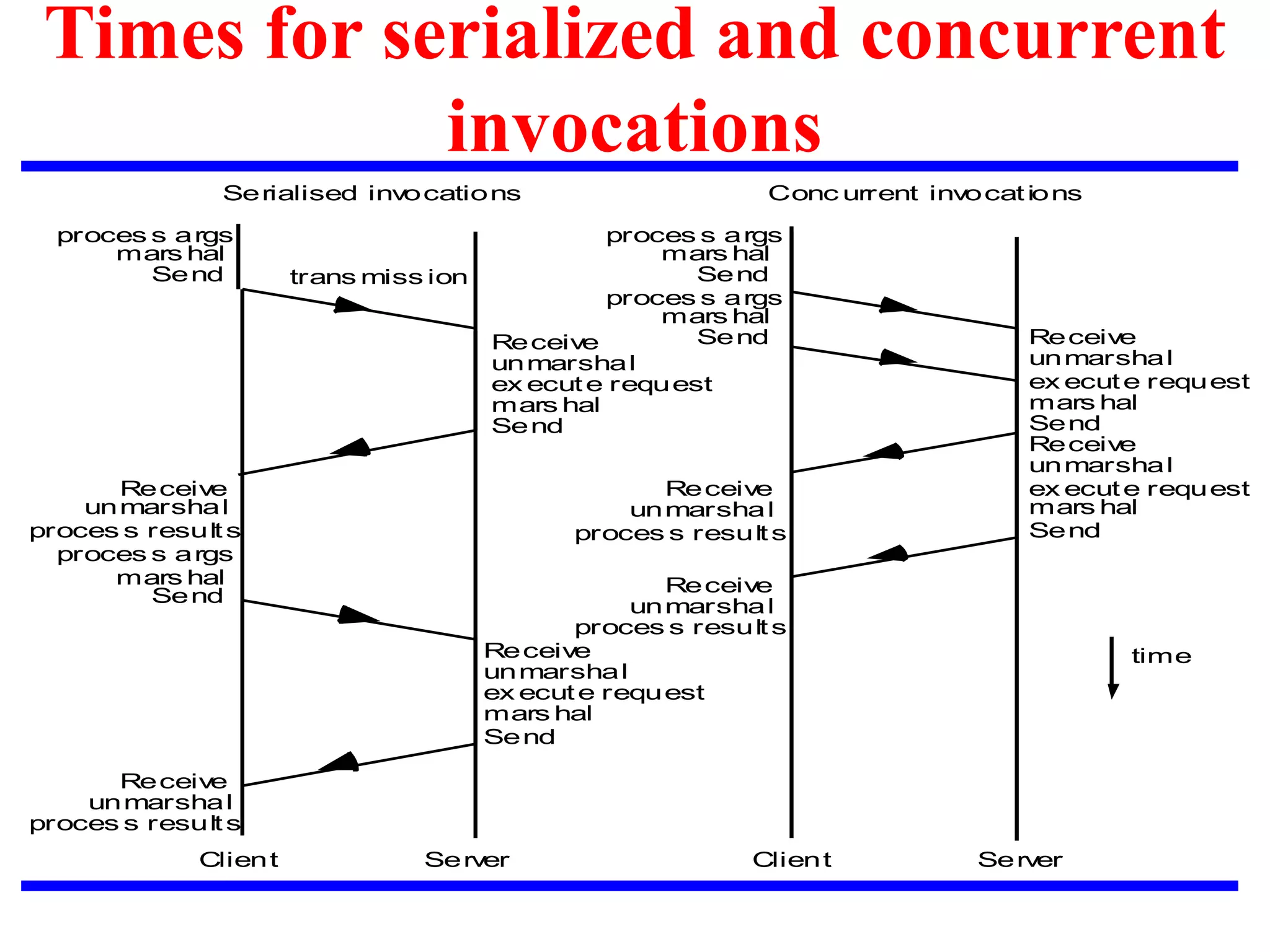

Times for serialized and concurrent
invocations
Client Server
ex ecute request
Send
Receive
unmarshal
mars hal
Receive
unmarshal
proces s results
mars hal
Send
proces s args
mars hal
Send
proces s args
trans miss ion
Receive
unmarshal
proces s results
ex ecute request
Send
Receive
unmarshal
mars hal
mars hal
Send
proces s args
mars hal
Send
proces s args
ex ecute request
Send
Receive
unmarshal
mars hal
ex ecute request
Send
Receive
unmarshal
mars hal
Receive
unmarshal
proces s results
Receive
unmarshal
proces s results
time
Client Server
Serialised invocations Conc urrent invocations

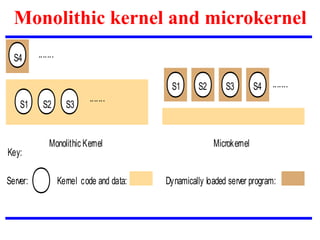

Monolithic kernel and microkernel
Monolithic Kernel Microkernel
Server: Dynamically loaded server program:
Kernel code and data:
.......
.......
Key:
S4
S1 .......
S1 S2 S3
S2 S3 S4

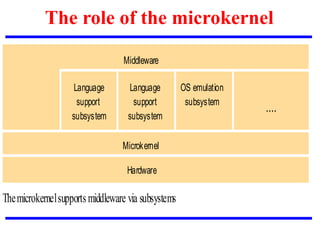

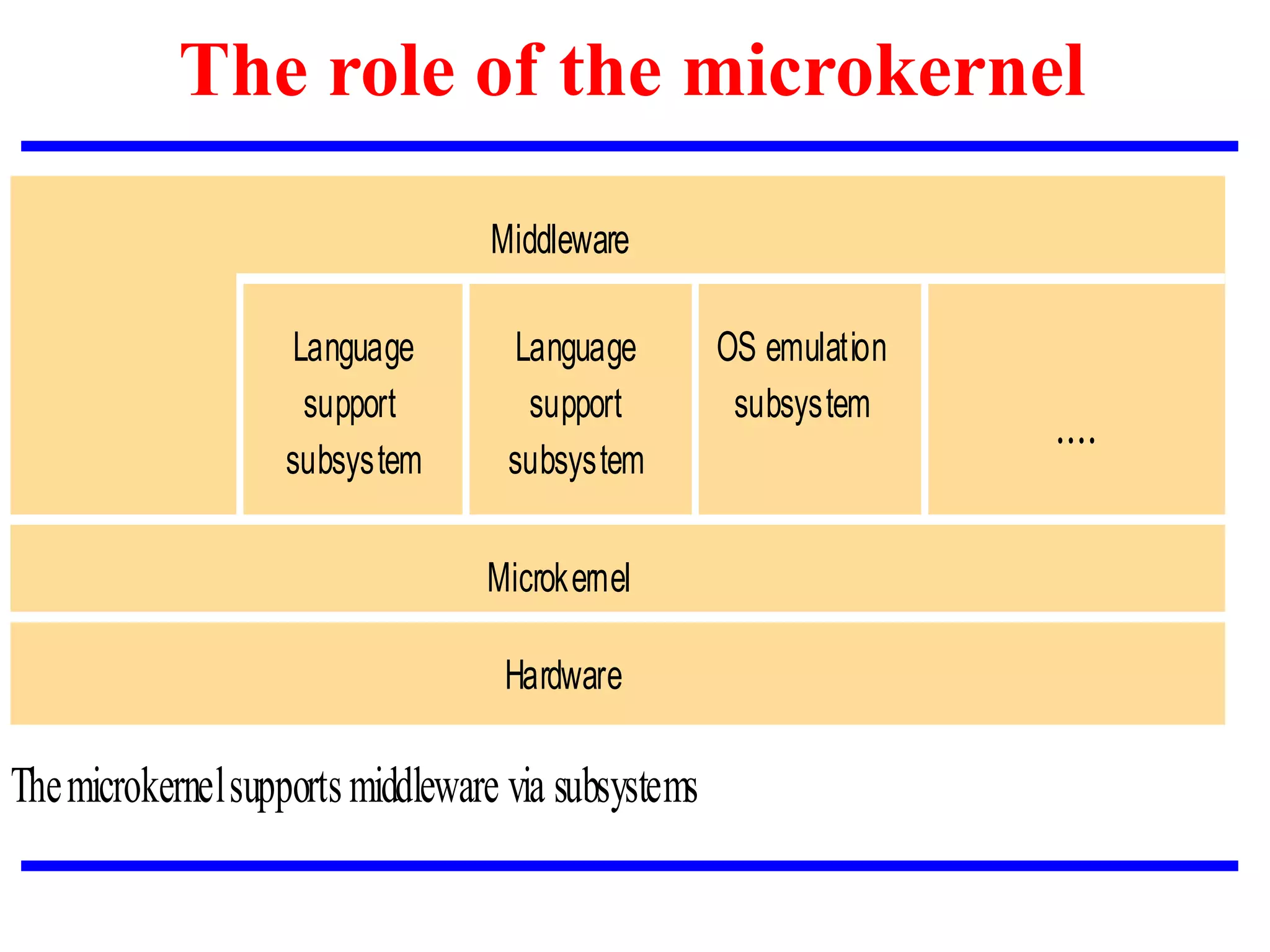

The role of the microkernel
Middleware
Language
support
subsystem
Language
support
subsystem
OS emulation
subsystem
....
Microkernel
Hardware
Themicrokernelsupportsmiddleware via subsystems

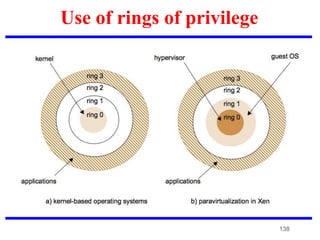

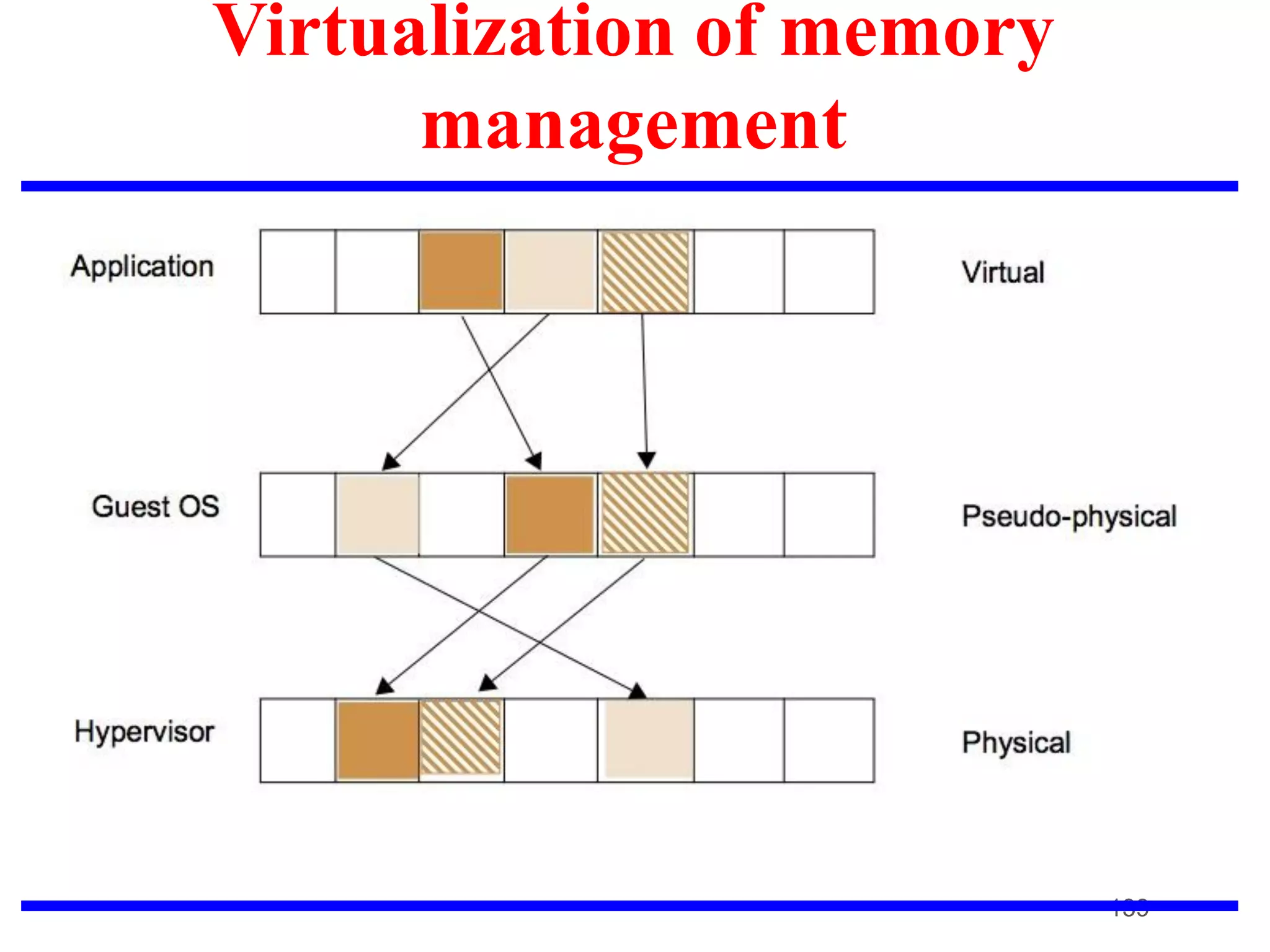

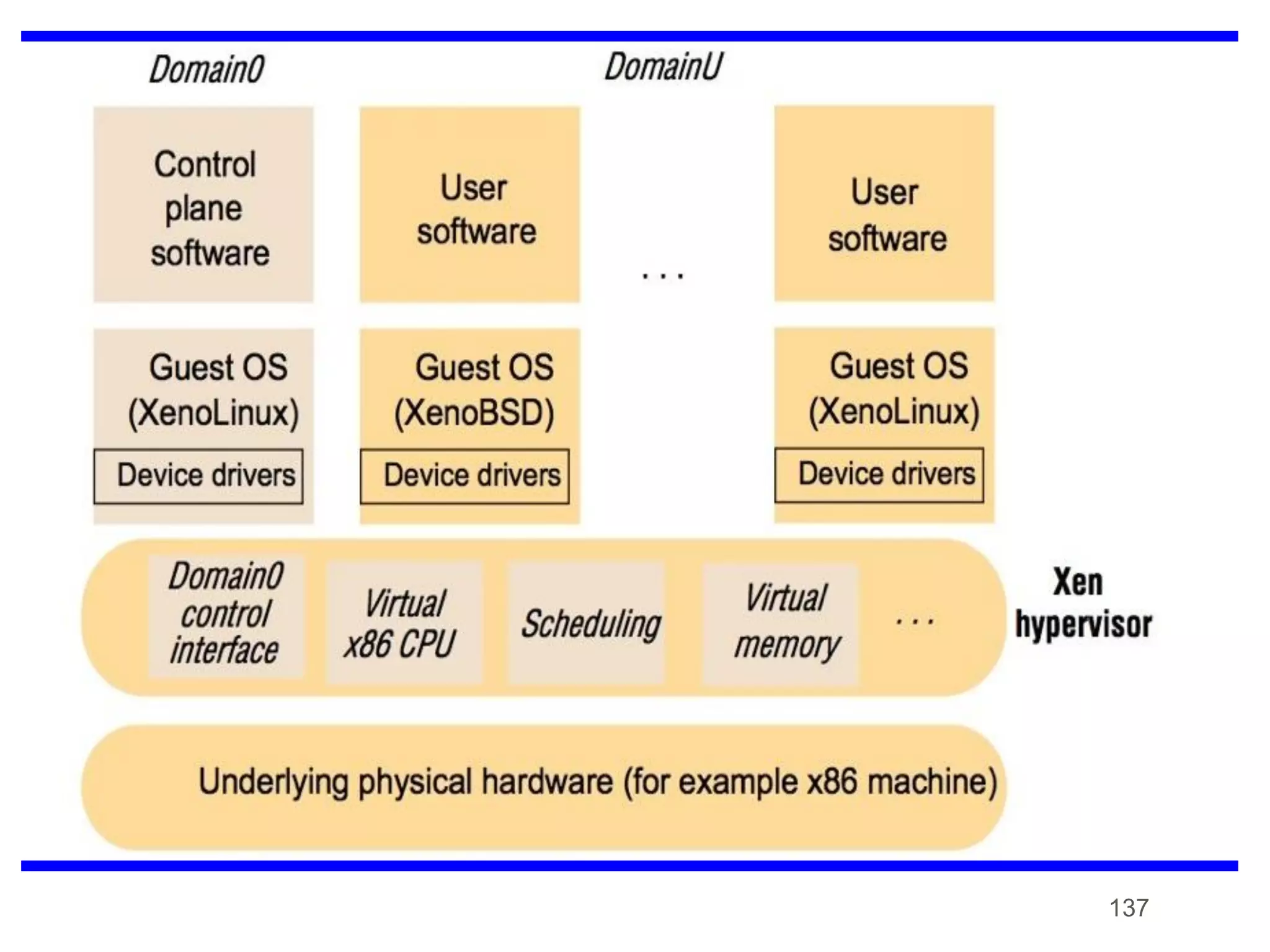

Virtualization of memory
management
139

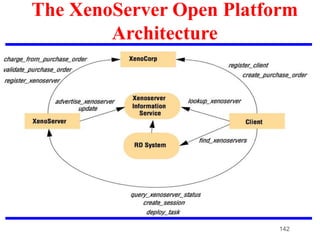

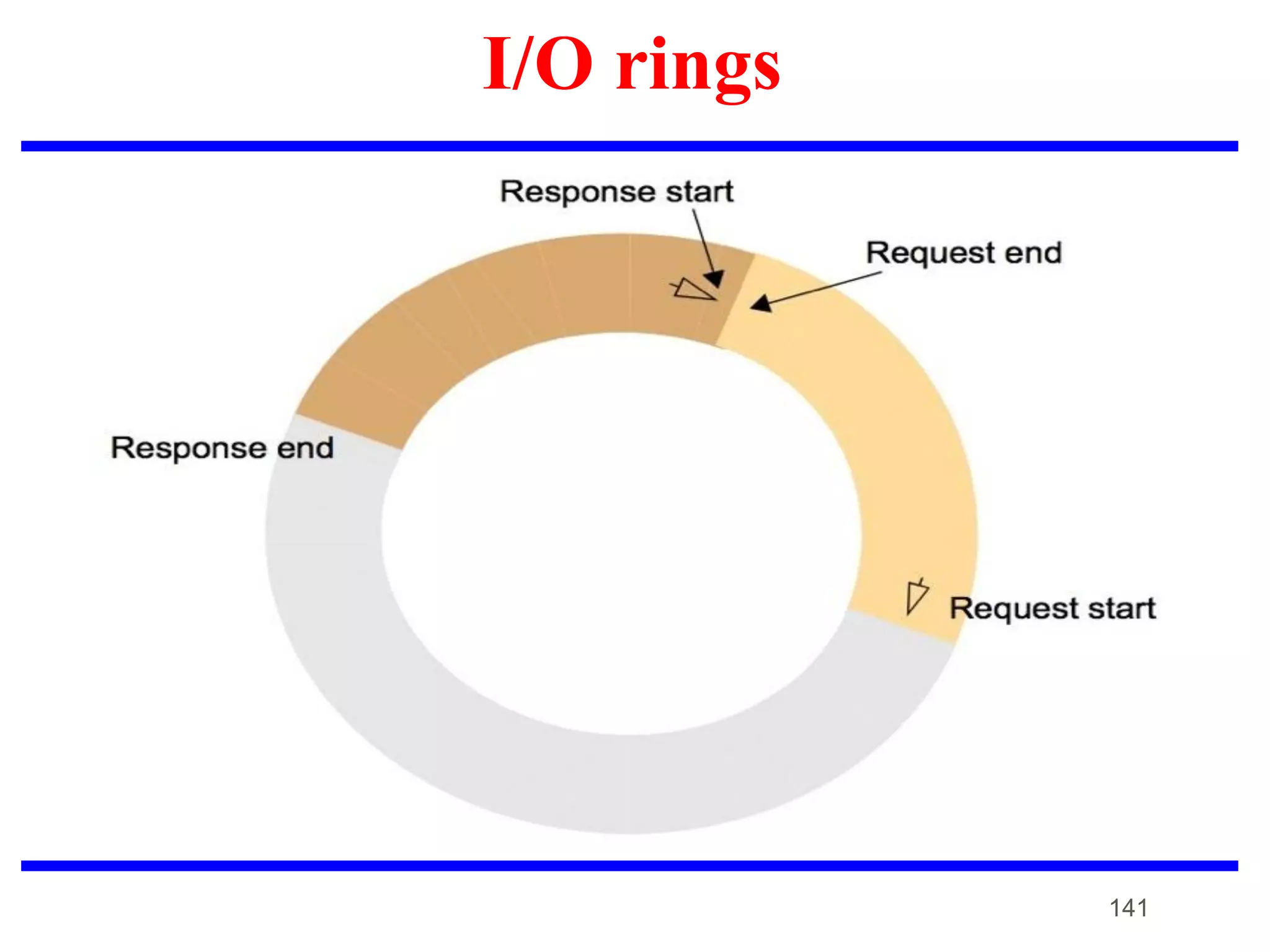

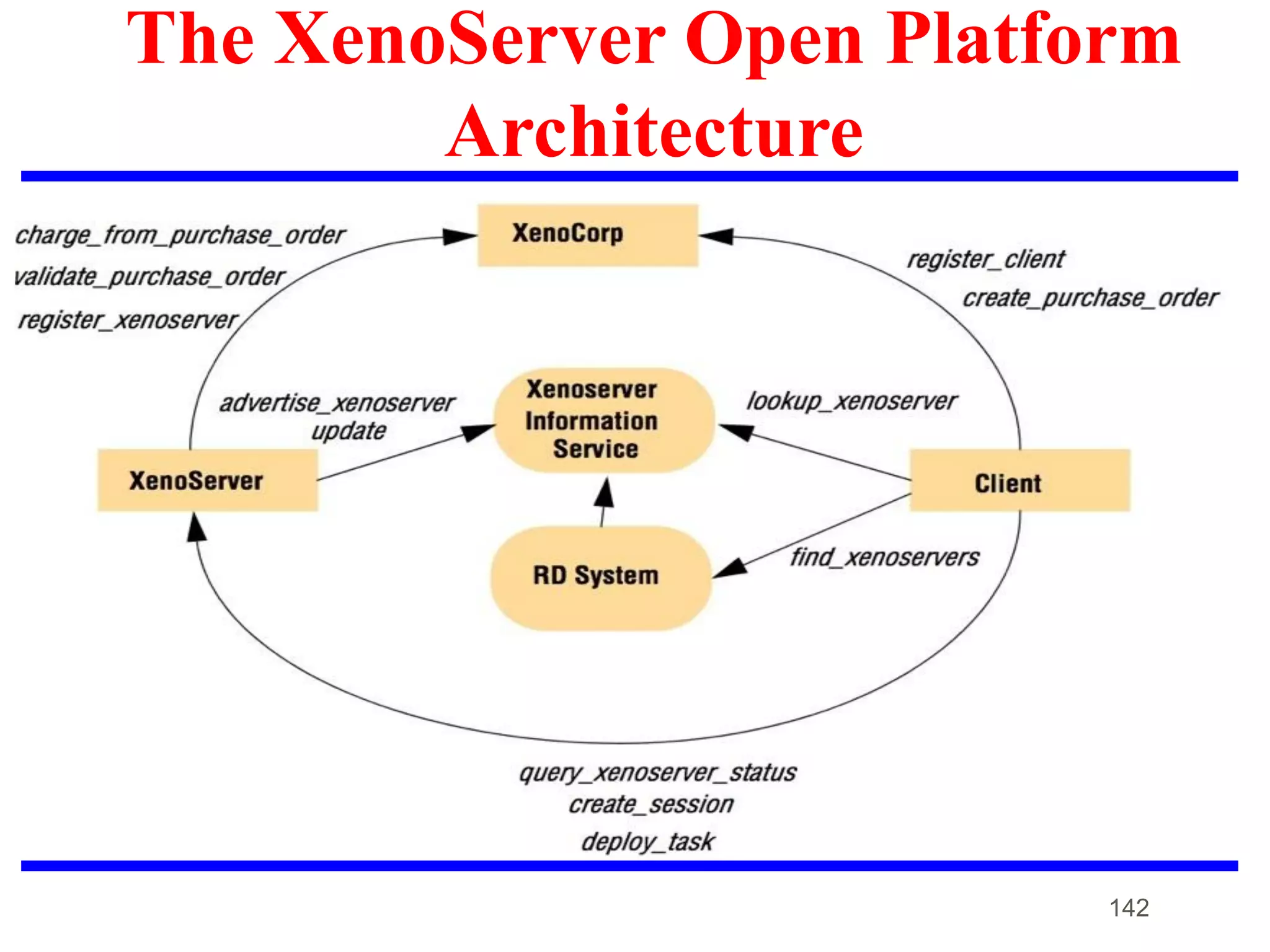

The XenoServer Open Platform
Architecture
142

18CS3040 Distributed System

More Related Content

Similar to 18CS3040 Distributed System

More from Kathirvel Ayyaswamy

Recently uploaded

18CS3040 Distributed System
