Offering a right size solution for small
and medium volume laboratories
A robust mid-sized fully automated immunoassay instrument
Fujirebio US, Inc.
205 Great Valley Pkwy, Malvern, PA 19355
888-499-9998 • www.fdi.com
FDI-406 05/15
Major Specifications
Assay method CLEIA (Chemiluminescent Enzyme Immunoassay)
Number of Different Simultaneous Assays 24 Assays / Sample
Throughput 120 Tests / Hour
Time to Result 30 Minutes (35 minutes first sample) Successive Results Every 30 Seconds
Sample Capacity 100 Samples
Reagent Capacity 504 Tests on Board
Sample Loading Rack ID system (5 specimens / rack) Also compatible w/track systems
Sampling Method Disposable Tips
Sample Types Serum, plasma, urine and cerebrospinal fluid
Sample Barcode Types Code 39, Code 128, ITF, Interleaved 2 of 5, and NW-7 (Codabar)
Sample Vessels Tubes
Height: 75 – 100 mm
Diameter: 10.5 -13 mm (inner) 13 -16 mm (outer)
Cups
Yes (Hitachi brand)
Vessel Dead Volume Tubes: 250 µL
Cups: 100 µL
Specimen Volume 10-140 µL / Test (Assay Dependent)
Specimen Dilution 1:10, 1:100, 1:200, and 1:1,000 (Assay Dependent)
Type of optical measurement Photon Counting (Direct light measurement of immunoreaction cartridge)
Instrument Interface Touch screen, keyboard and barcode scanner
Online Input and Output RS232C
Calibration Type Master calibration and full calibration
Water Requirements Purified Water
Electrical Specifications Voltage 100-240 VAC, Single phase 50 / 60 Hz, Voltage fluctuation: ≤ 10%
Power Consumption 1.7kVA (max.); Analyzer
Dimensions 3.9 ft x 2.6 ft x 4.8 ft
Weight Approx. 727 lbs
Installation Space Requirement 5.9 ft x 5.5 ft or more
The specification and shape shall not be changed without a previous notice.
Lumipulse is a registered trademark of Fujirebio Inc. ©Fujirebio US

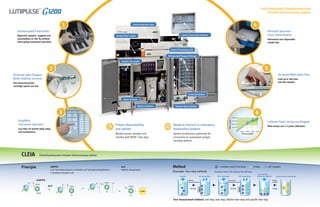

Sample Diluent BottleWaste Container
Wash Solution
Sample Tip Loader
Substrate Bottles
Immunoreaction Area
Central Processing Unit
Sample Rack Loader
Refrigerated Reagent Storage
AMPPD:
3-(2’-spiroadamantane)-4-methoxy-4-(3”-phosphoryloxy)phenyl-1,
2-dioxetane disodium salt
ALP:
Alkaline phosphatase
Principle
CLEIA Chemiluminescent enzyme immunoassay system
AMPPD:
3-(2’-spiroadamantane)-4-methoxy-4-(3”-phosphoryloxy)phenyl-1,
2-dioxetane disodium salt
ALP:
Alkaline phosphatase
Principle
CLEIA Chemiluminescent enzyme immunoassay system
AMPPD:
3-(2’-spiroadamantane)-4-methoxy-4-(3”-phosphoryloxy)phenyl-1,
2-dioxetane disodium salt
ALP:
Alkaline phosphatase
Principle
Method
[Example: Two-step method]
CLEIA Chemiluminescent enzyme immunoassay system
Four measurement methods: one-step, two-step, dilution two-step and specific two-step
3
Simplified
Instrument Operation
Less than 10-minute daily setup
and maintenance
1
Uninterrupted Productivity
Replenish samples, reagents and
consumables on-the-fly without
interrupting instrument operation
Eliminate Open Reagent
Bottle Stability Concerns
One immunoreaction
cartridge equals one test
Calibrate Faster Using Less Reagent
Most assays use 2-3 point calibration
Touch Screen User Interface
Proven Dependability
and Uptime
Market-proven durable and
reliable with MTBF >300 days
Ready to Connect to Laboratory
Automation Systems
System architecture optimized for
connection to automated sample
tracking systems
5
Increased Walk Away Time
Load up to 504 tests
and 100 samples
4
Eliminate Specimen
Cross-contamination
Instrument uses disposable
sample tips
Fully Automated Chemiluminescent
Enzyme Immunoassay System
2
6
