The document summarizes a presentation about using Google Charts to visualize data from Degree Works. It discusses the benefits of Google Charts, including being free and easy to use. Several types of Google Charts are demonstrated, such as geo charts, word trees, word clouds, and bubble charts. Examples show how they can be used to visualize advising issues, curriculum reviews, and other insights from student data in Degree Works. Caveats of each chart type are also provided. The presentation aims to help decide if and how Google Charts can be effectively used to communicate important trends in institutional data.

1. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Degree Works, Business Intelligence
& Google Charts
Josh Whitlock
East Tennessee State University
April 10, 2015
Session ID: 12298

2. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Session rules of etiquette
• Please turn off your cell phone/pager
• If you must leave the session early, please do so as discreetly as possible
• Please avoid side conversation during the session
Thank you for your cooperation!

3. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
1 Introduction
2 Why Use Google Charts?
3 Selected Google Charts
4 Final Details
5 Summary

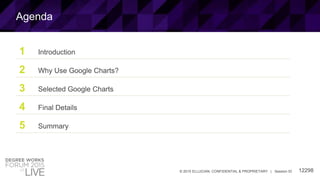

Agenda

4. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Introduction
• Purpose of this Presentation
• Examine the use of Google Charts as a low-cost method of presenting
data in context-rich ways
• Benefits of Attending this Session
• Learn more about Google Charts and if they’re right for you

5. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Why Use Google Charts?

6. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

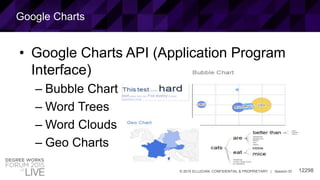

Google Charts
• Google Charts API (Application Program
Interface)
– Bubble Chart
– Word Trees
– Word Clouds
– Geo Charts

7. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

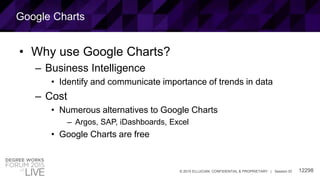

Google Charts
• Why use Google Charts?
– Business Intelligence
• Identify and communicate importance of trends in data
– Cost
• Numerous alternatives to Google Charts
– Argos, SAP, iDashboards, Excel
• Google Charts are free

8. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

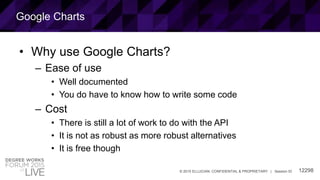

Google Charts
• Why use Google Charts?
– Ease of use
• Well documented
• You do have to know how to write some code
– Cost
• There is still a lot of work to do with the API
• It is not as robust as more robust alternatives
• It is free though

9. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Argos
• ETSU uses Argos for functional user reporting
• Argos allows you to create graphics and
dashboards
– Difficult / time consuming to build complex
dashboards
• Better to build queries in the Report Query window first, so
you can test it, but this is time consuming if you have multiple
graphics on your dashboard

10. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Argos Chart

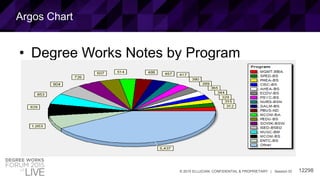

• Degree Works Notes by Program

11. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Google Chart

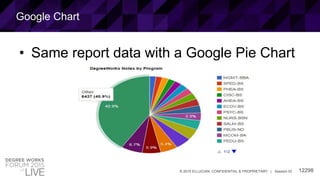

• Same report data with a Google Pie Chart

12. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Excel Chart
• Same report data with an Excel Chart

13. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Google Charts

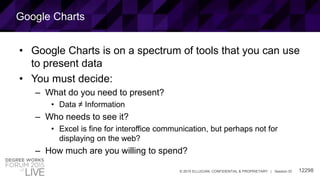

• Google Charts is on a spectrum of tools that you can use
to present data
• You must decide:
– What do you need to present?
• Data ≠ Information
– Who needs to see it?
• Excel is fine for interoffice communication, but perhaps not for
displaying on the web?
– How much are you willing to spend?

14. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Possible Uses
• Advisement
– What are the problems most students encounter?
– Are there geographic differences in student groups?
• Management / Control
– Which advisors / colleges are using notes?
– Why are there so many exceptions in a given
program?

15. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Selected Google Charts

16. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

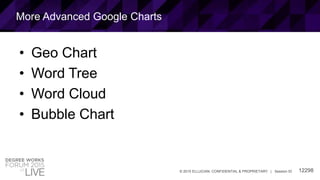

More Advanced Google Charts
• Geo Chart
• Word Tree
• Word Cloud
• Bubble Chart

17. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Geo Chart

18. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

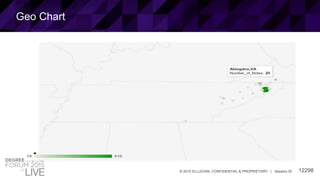

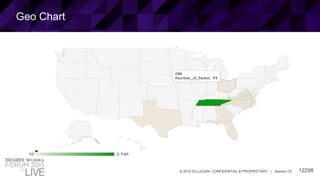

Geo Chart

19. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

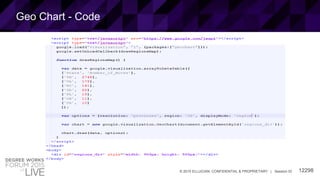

Geo Chart - Code

20. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

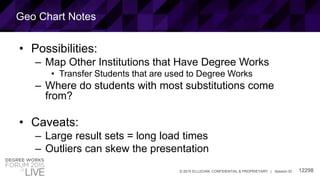

Geo Chart Notes
• Possibilities:
– Map Other Institutions that Have Degree Works
• Transfer Students that are used to Degree Works
– Where do students with most substitutions come
from?
• Caveats:
– Large result sets = long load times
– Outliers can skew the presentation

21. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

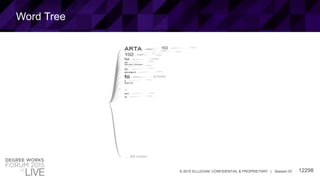

Word Tree

22. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

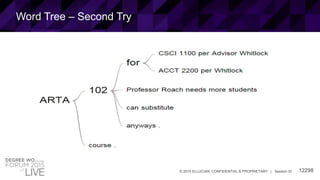

Word Tree – Second Try

23. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

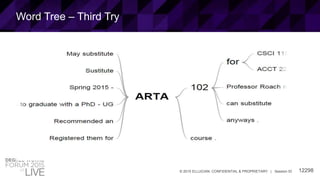

Word Tree – Third Try

24. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

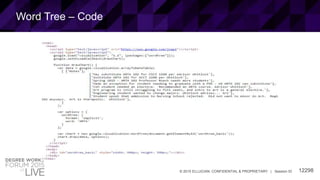

Word Tree – Code

25. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Word Tree Notes
• Possibilities:
– Department review of curriculum
• Courses that have to be articulated
– Should we offer them?
– Identify common advisement issues
• Commonly substituted department “requirements”

26. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

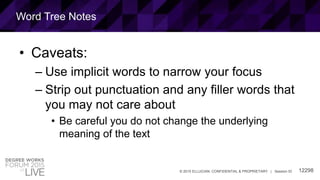

Word Tree Notes
• Caveats:
– Use implicit words to narrow your focus
– Strip out punctuation and any filler words that
you may not care about
• Be careful you do not change the underlying
meaning of the text

27. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

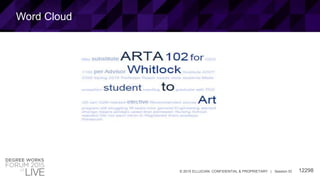

Word Cloud

28. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

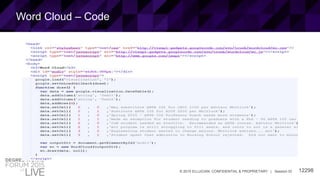

Word Cloud – Code

29. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

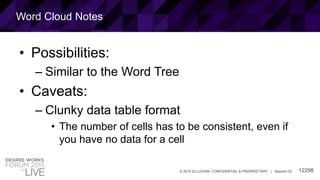

Word Cloud Notes
• Possibilities:
– Similar to the Word Tree
• Caveats:
– Clunky data table format
• The number of cells has to be consistent, even if
you have no data for a cell

30. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

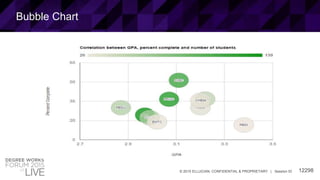

Bubble Chart

31. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

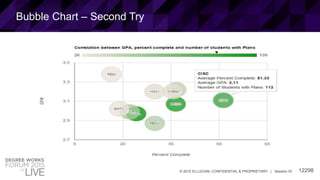

Bubble Chart – Second Try

32. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

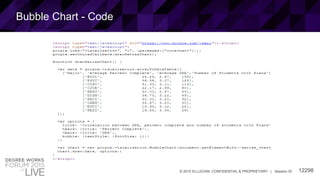

Bubble Chart - Code

33. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

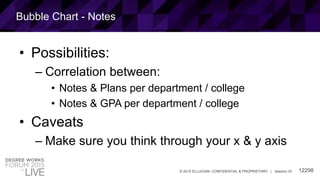

Bubble Chart - Notes
• Possibilities:
– Correlation between:
• Notes & Plans per department / college
• Notes & GPA per department / college
• Caveats
– Make sure you think through your x & y axis

34. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Final Details

35. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

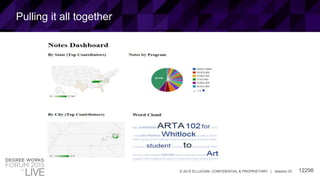

Pulling it all together

36. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

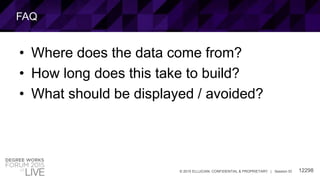

FAQ
• Where does the data come from?
• How long does this take to build?
• What should be displayed / avoided?

37. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID

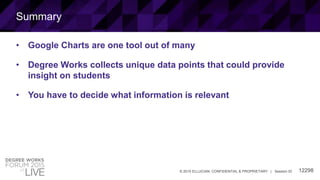

Summary
• Google Charts are one tool out of many
• Degree Works collects unique data points that could provide
insight on students
• You have to decide what information is relevant

38. 12298© 2015 ELLUCIAN. CONFIDENTIAL & PROPRIETARY | Session ID
Questions & Answers
