1. 1.2 Segments and Congruence 8­23­10

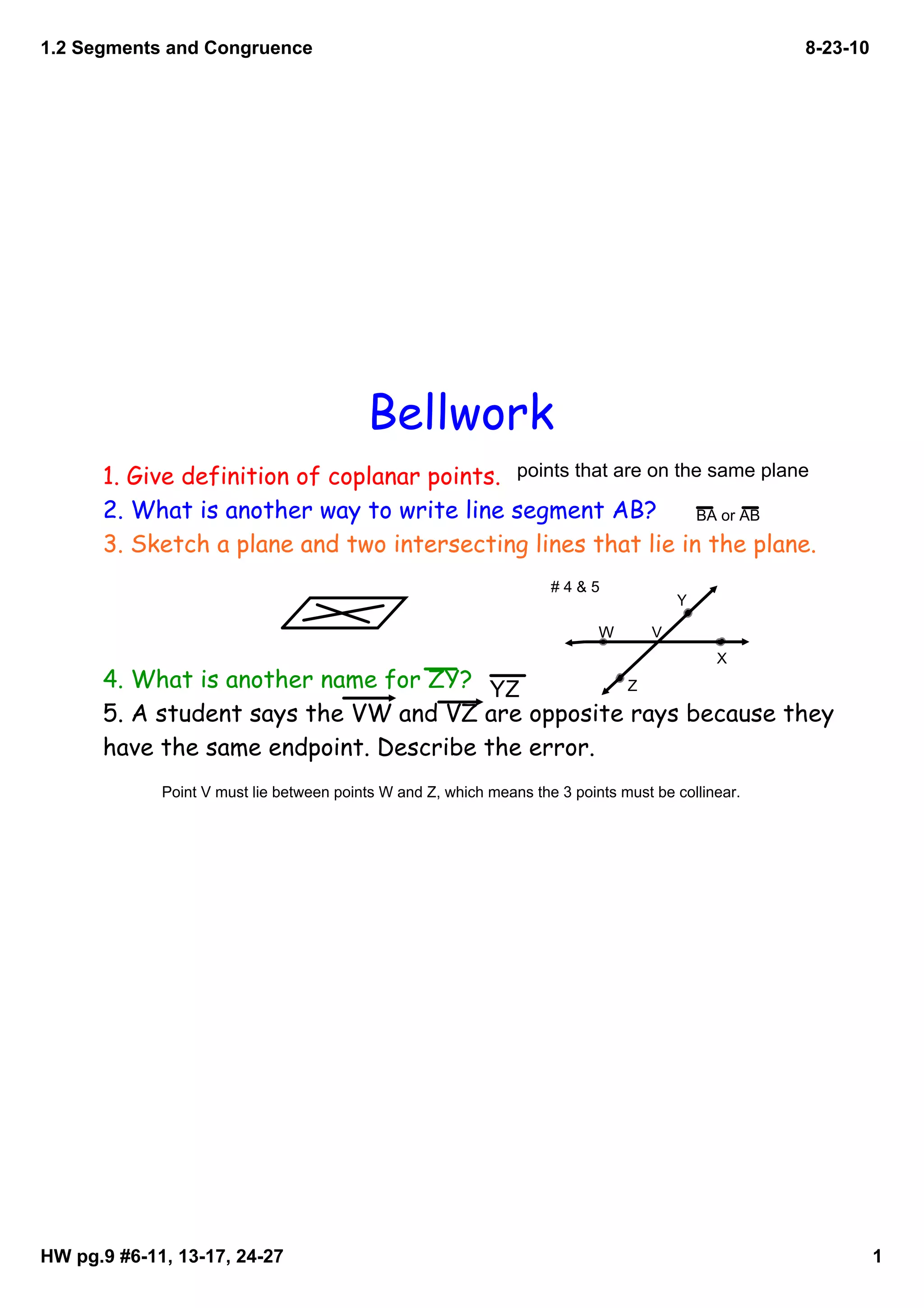

Bellwork
1. Give definition of coplanar points. points that are on the same plane
2. What is another way to write line segment AB? BA or AB
3. Sketch a plane and two intersecting lines that lie in the plane.
# 4 & 5
Y
W V
X
4. What is another name for ZY? YZ Z
5. A student says the VW and VZ are opposite rays because they
have the same endpoint. Describe the error.
Point V must lie between points W and Z, which means the 3 points must be collinear.
HW pg.9 #6­11, 13­17, 24­27 1

2. 1.2 Segments and Congruence 8­23­10

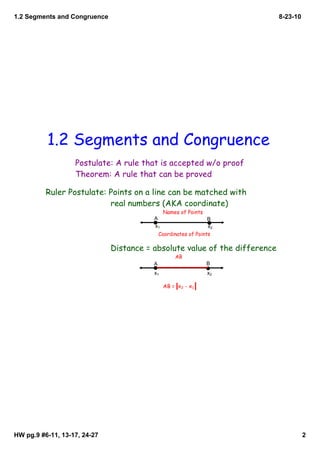

1.2 Segments and Congruence
Postulate: A rule that is accepted w/o proof
Theorem: A rule that can be proved
Ruler Postulate: Points on a line can be matched with
real numbers (AKA coordinate)
Names of Points
A B
x1 x2
Coordinates of Points
Distance = absolute value of the difference
AB
A B
x1 x2
AB = x2 - x1
HW pg.9 #6­11, 13­17, 24­27 2

3. 1.2 Segments and Congruence 8­23­10
HW pg.9 #6­11, 13­17, 24­27 3

4. 1.2 Segments and Congruence 8­23­10

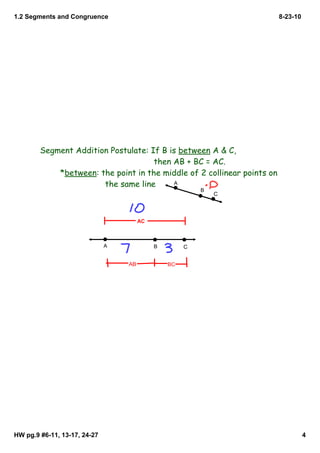

Segment Addition Postulate: If B is between A & C,
then AB + BC = AC.
*between: the point in the middle of 2 collinear points on
the same line A
B
C
AC
A B C
AB BC
HW pg.9 #6­11, 13­17, 24­27 4

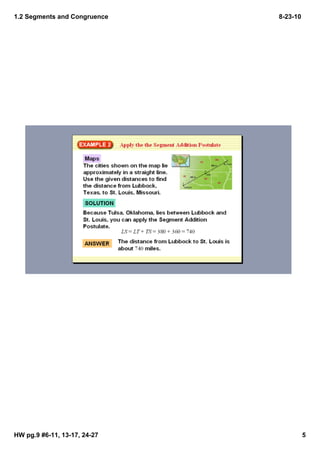

5. 1.2 Segments and Congruence 8­23­10
HW pg.9 #6­11, 13­17, 24­27 5

6. 1.2 Segments and Congruence 8­23­10
HW pg.9 #6­11, 13­17, 24­27 6

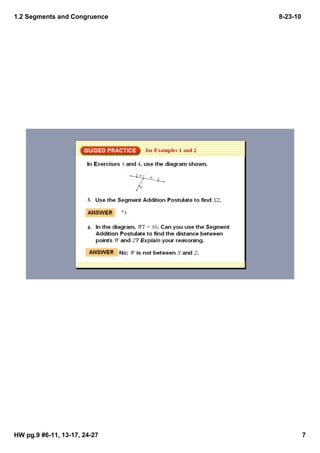

7. 1.2 Segments and Congruence 8­23­10
HW pg.9 #6­11, 13­17, 24­27 7

8. 1.2 Segments and Congruence 8­23­10

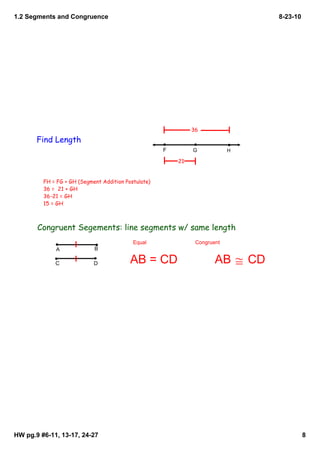

36
Find Length
F G H
21
FH = FG + GH (Segment Addition Postulate)
36 = 21 + GH
36-21 = GH
15 = GH
Congruent Segements: line segments w/ same length
Equal Congruent
A B
C D AB = CD AB ≅ CD
HW pg.9 #6­11, 13­17, 24­27 8

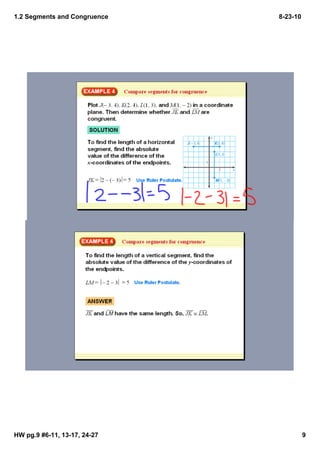

9. 1.2 Segments and Congruence 8­23­10
HW pg.9 #6­11, 13­17, 24­27 9

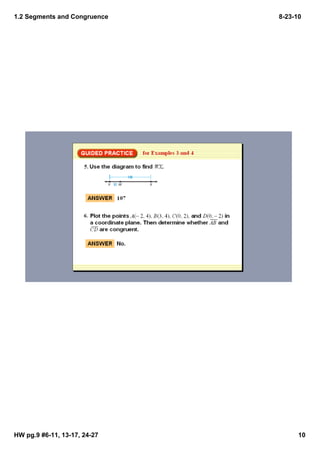

10. 1.2 Segments and Congruence 8­23­10
HW pg.9 #6­11, 13­17, 24­27 10

11. 1.2 Segments and Congruence 8­23­10
HW: p 12
# 6-11
13-17
24-27
HW pg.9 #6­11, 13­17, 24­27 11
