1.1.Operations on signals

•

1 like•117 views

The document discusses various operations that can be performed on signals, including addition, multiplication, time reversal/folding, time shifting, subtraction, and time scaling. It is a lecture on signal operations for a class called PCL 402 - Signals and Systems taught by Prof. Dr. B. Satheesh Monikandan of the Indian Navy. Examples of adding sinusoidal waves to generate a square wave and multiplying signals are provided.

14/07/20 1Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

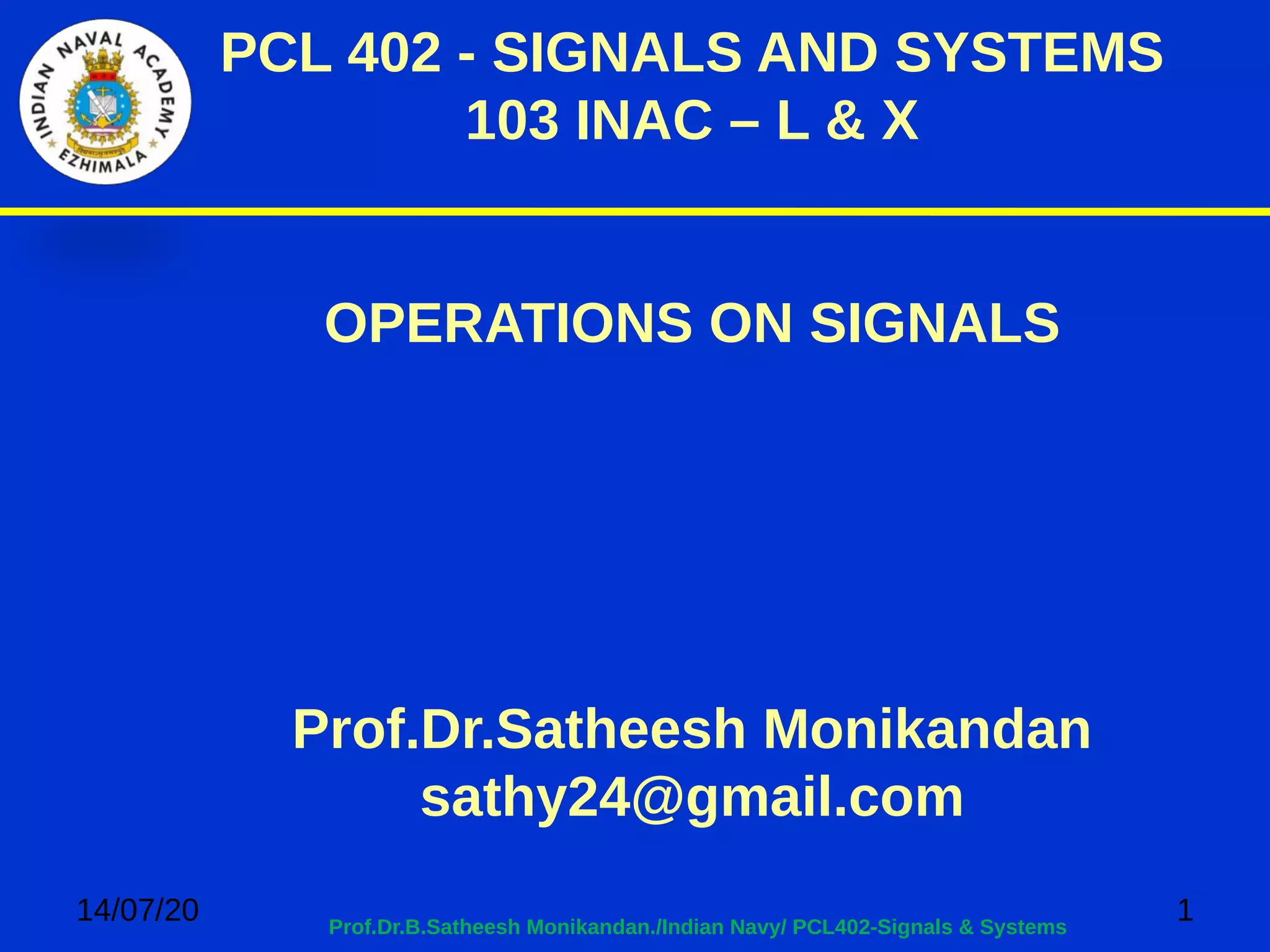

PCL 402 - SIGNALS AND SYSTEMS
103 INAC – L & X
OPERATIONS ON SIGNALS
Prof.Dr.Satheesh Monikandan
sathy24@gmail.com

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL ADDITION
14/07/20 2Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL ADDITION
14/07/20 3Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL ADDITION
14/07/20 4Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL ADDITION
14/07/20 5Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL ADDITION
14/07/20 6Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

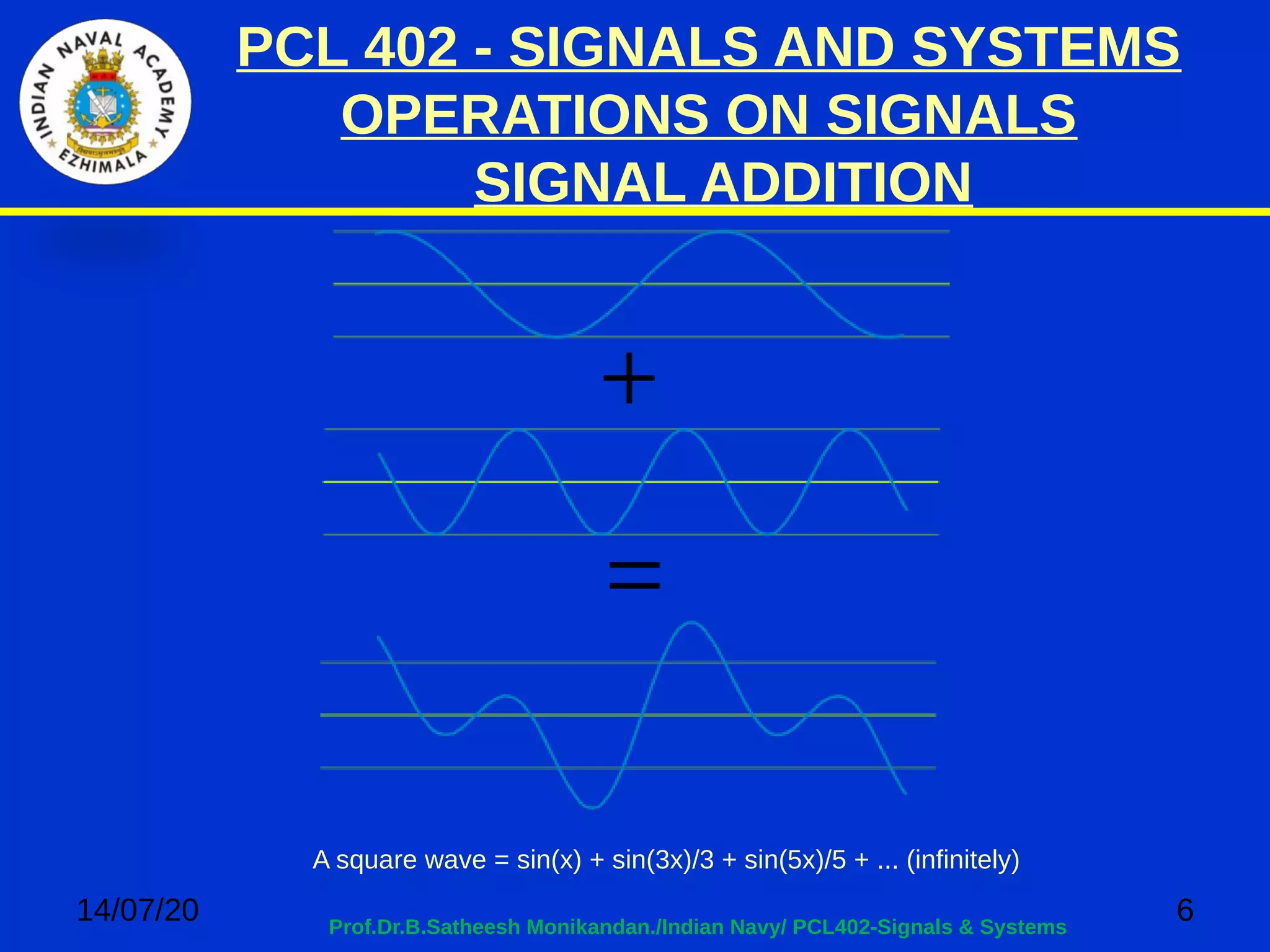

A square wave = sin(x) + sin(3x)/3 + sin(5x)/5 + ... (infinitely)

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

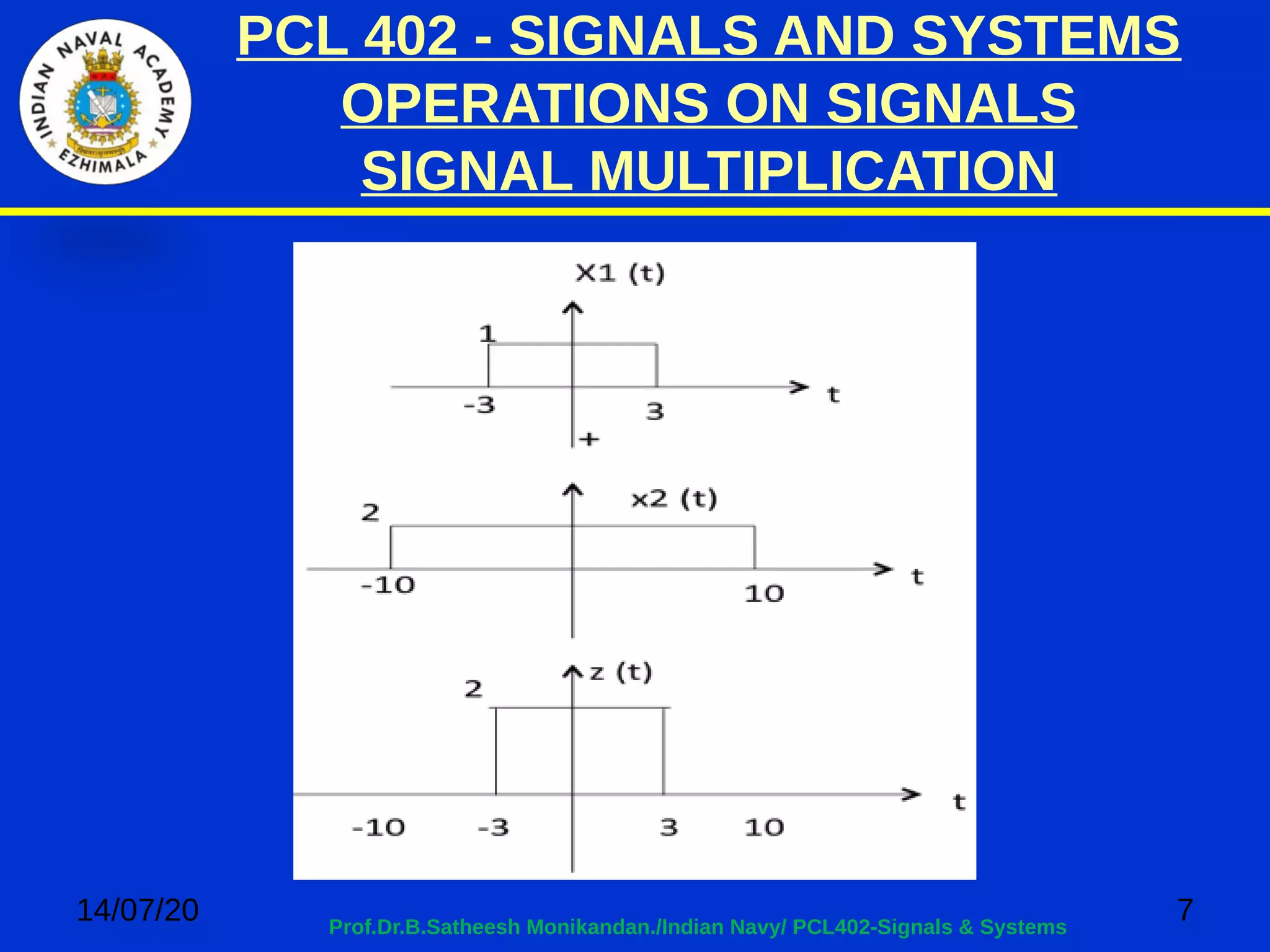

SIGNAL MULTIPLICATION
14/07/20 7Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL MULTIPLICATION
14/07/20 8Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

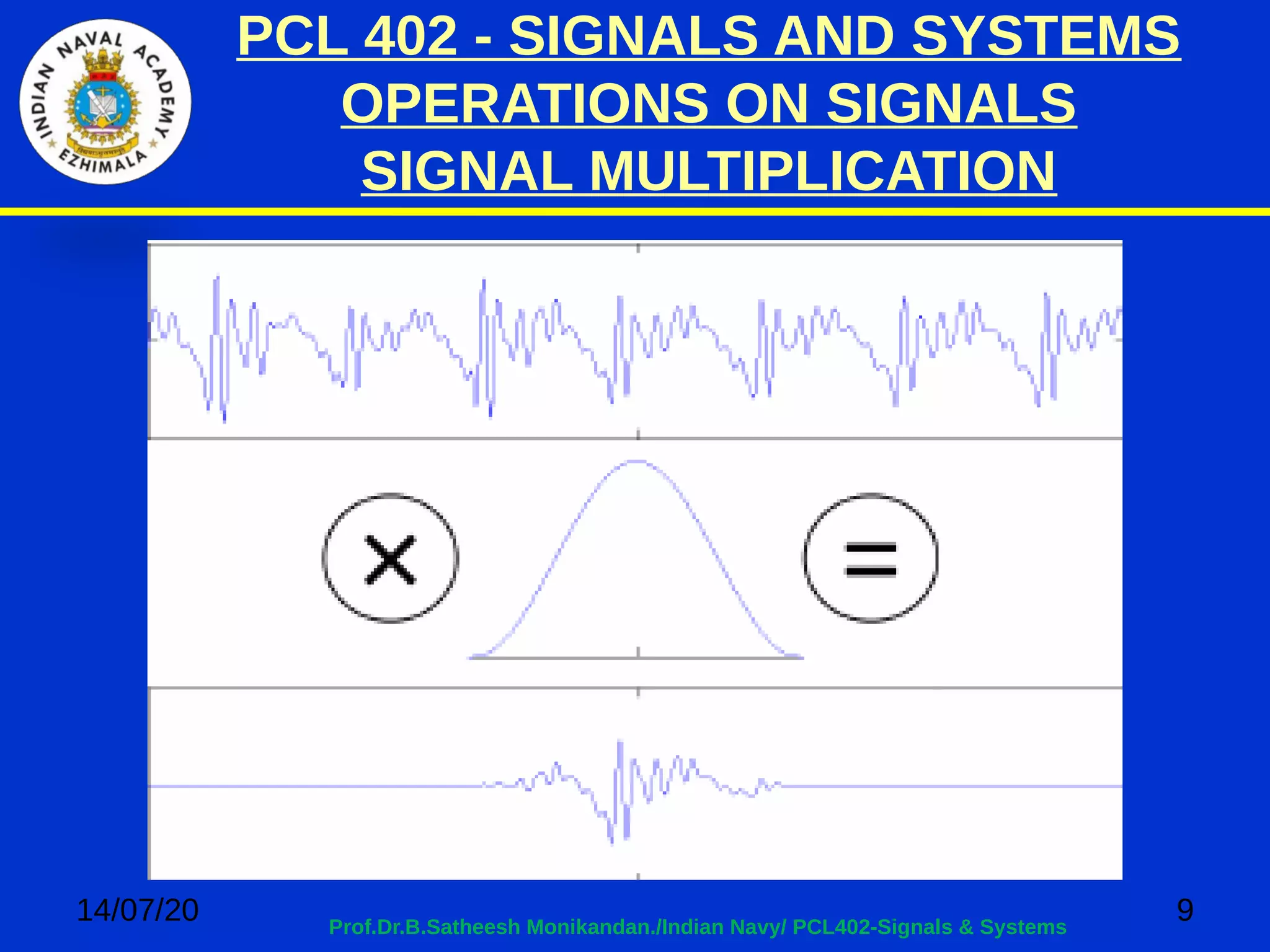

SIGNAL MULTIPLICATION
14/07/20 9Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

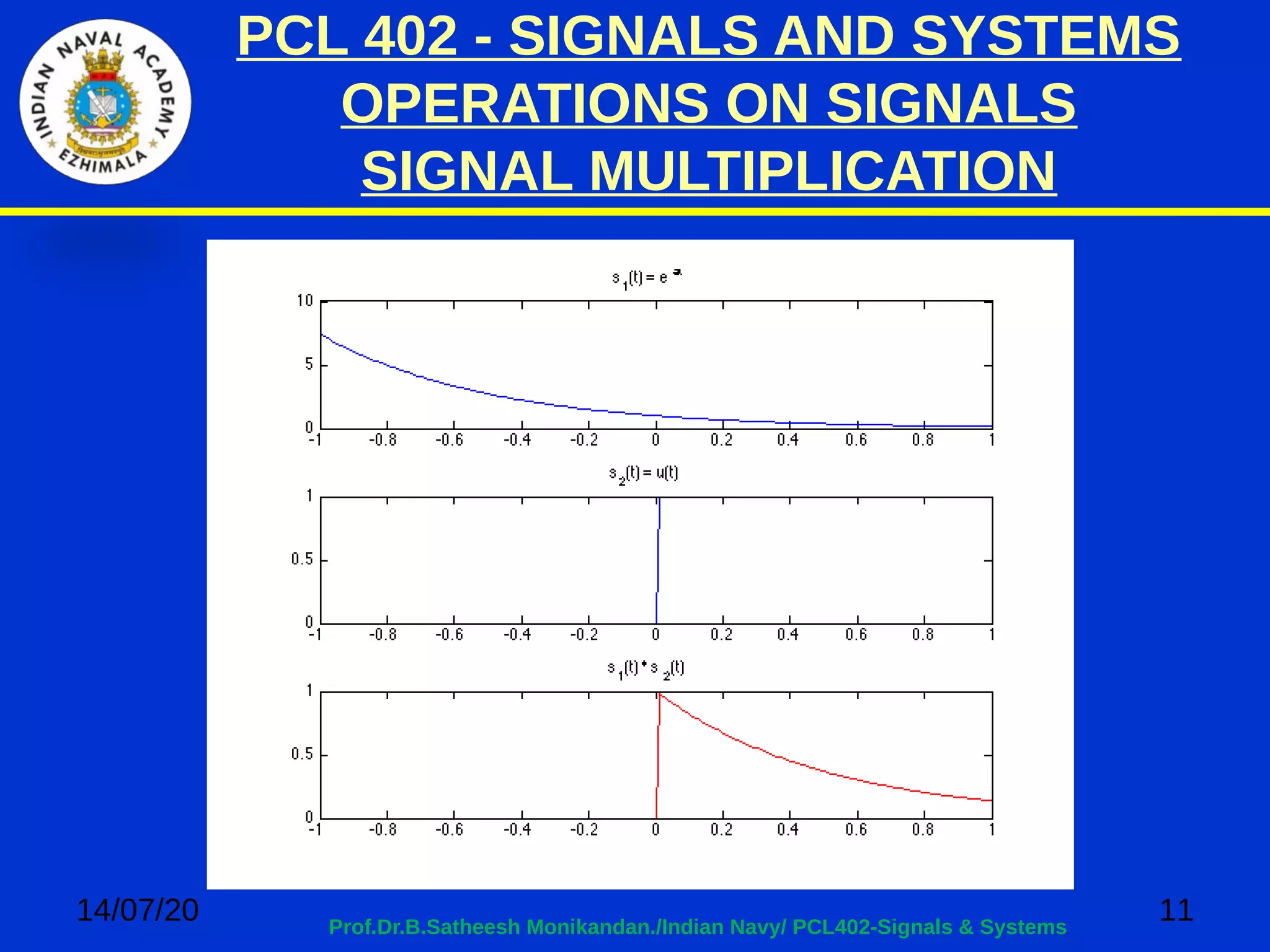

SIGNAL MULTIPLICATION
14/07/20 10Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

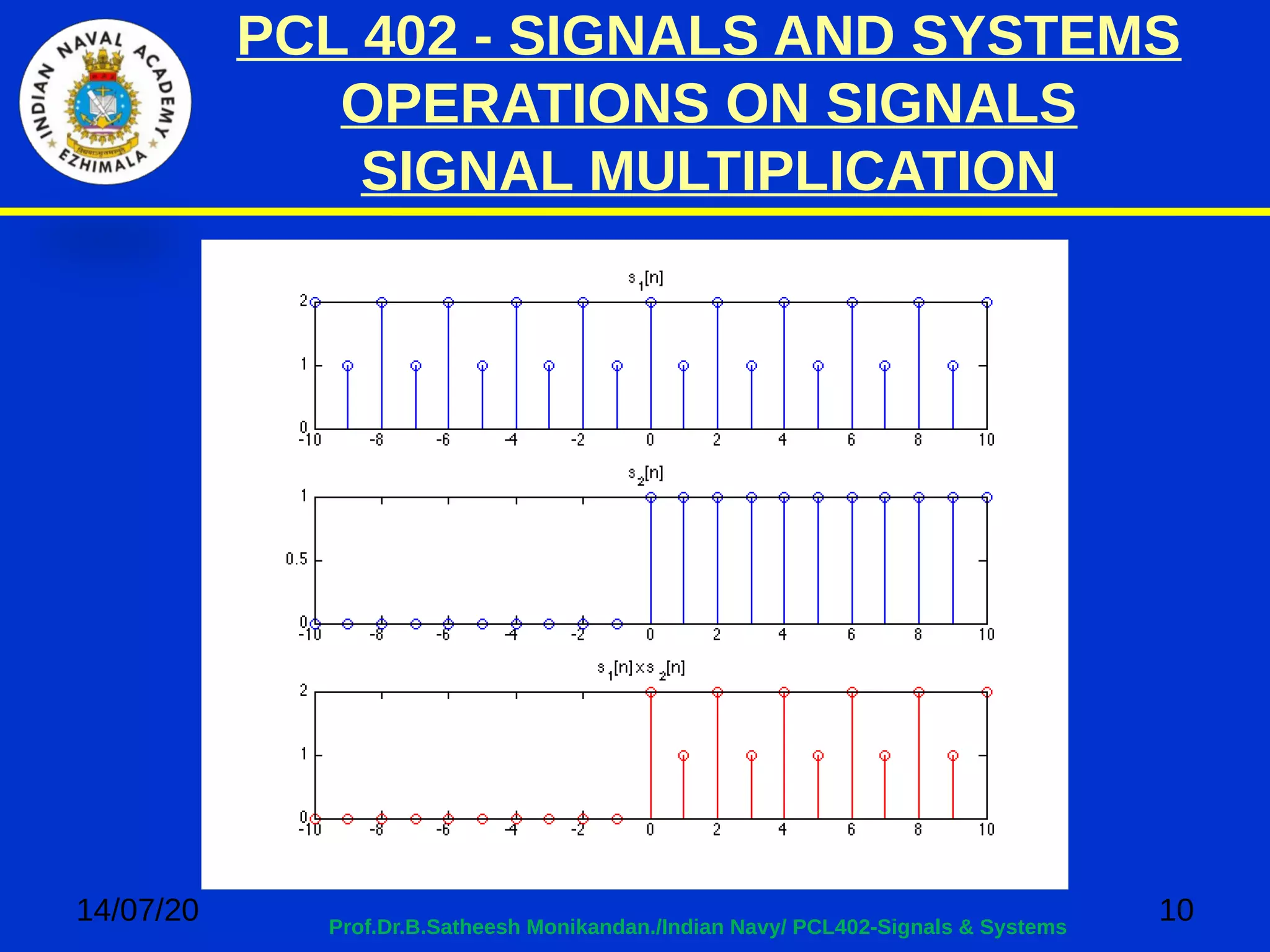

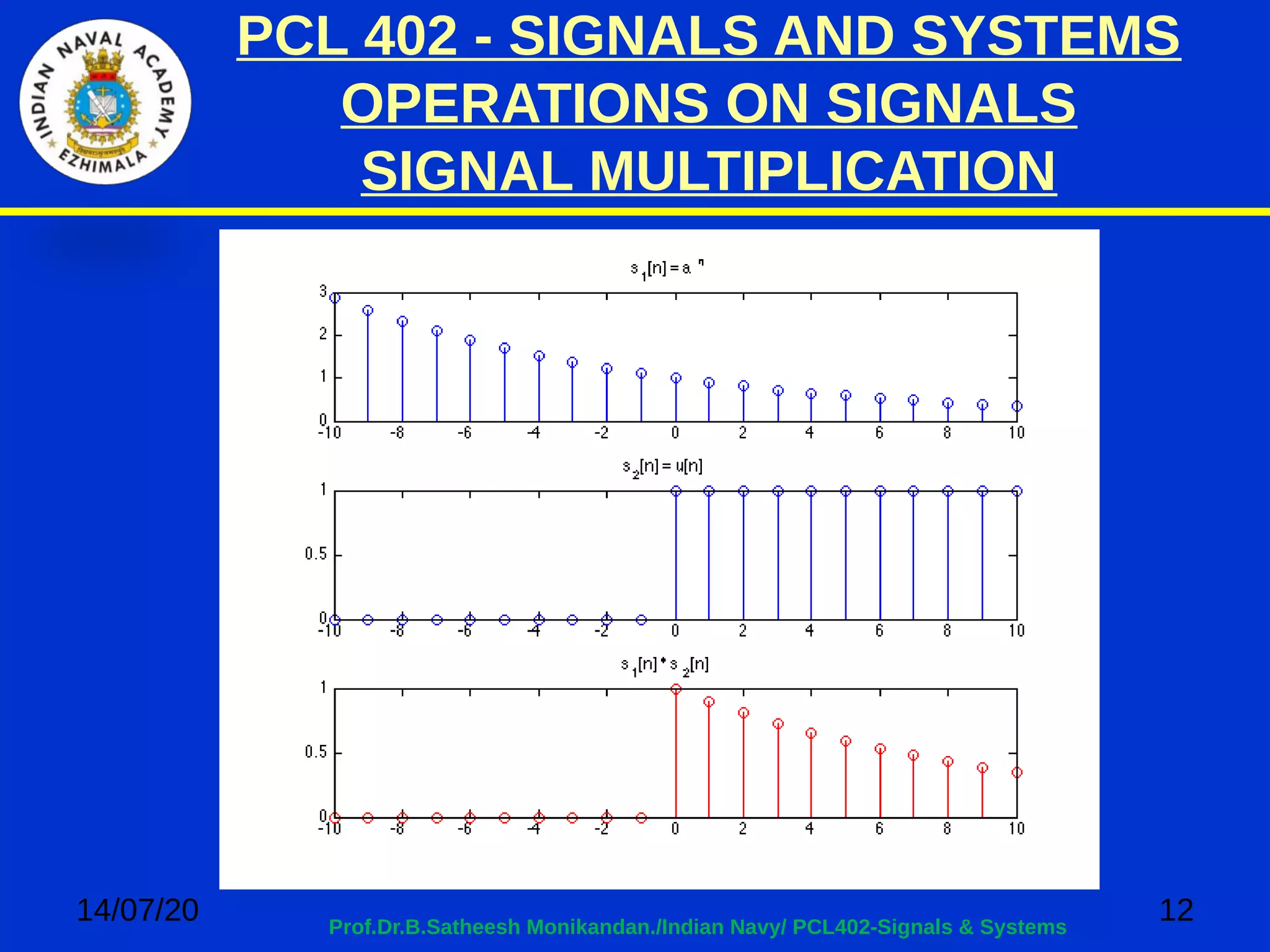

SIGNAL MULTIPLICATION
14/07/20 11Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
SIGNAL MULTIPLICATION
14/07/20 12Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
14/07/20 13Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

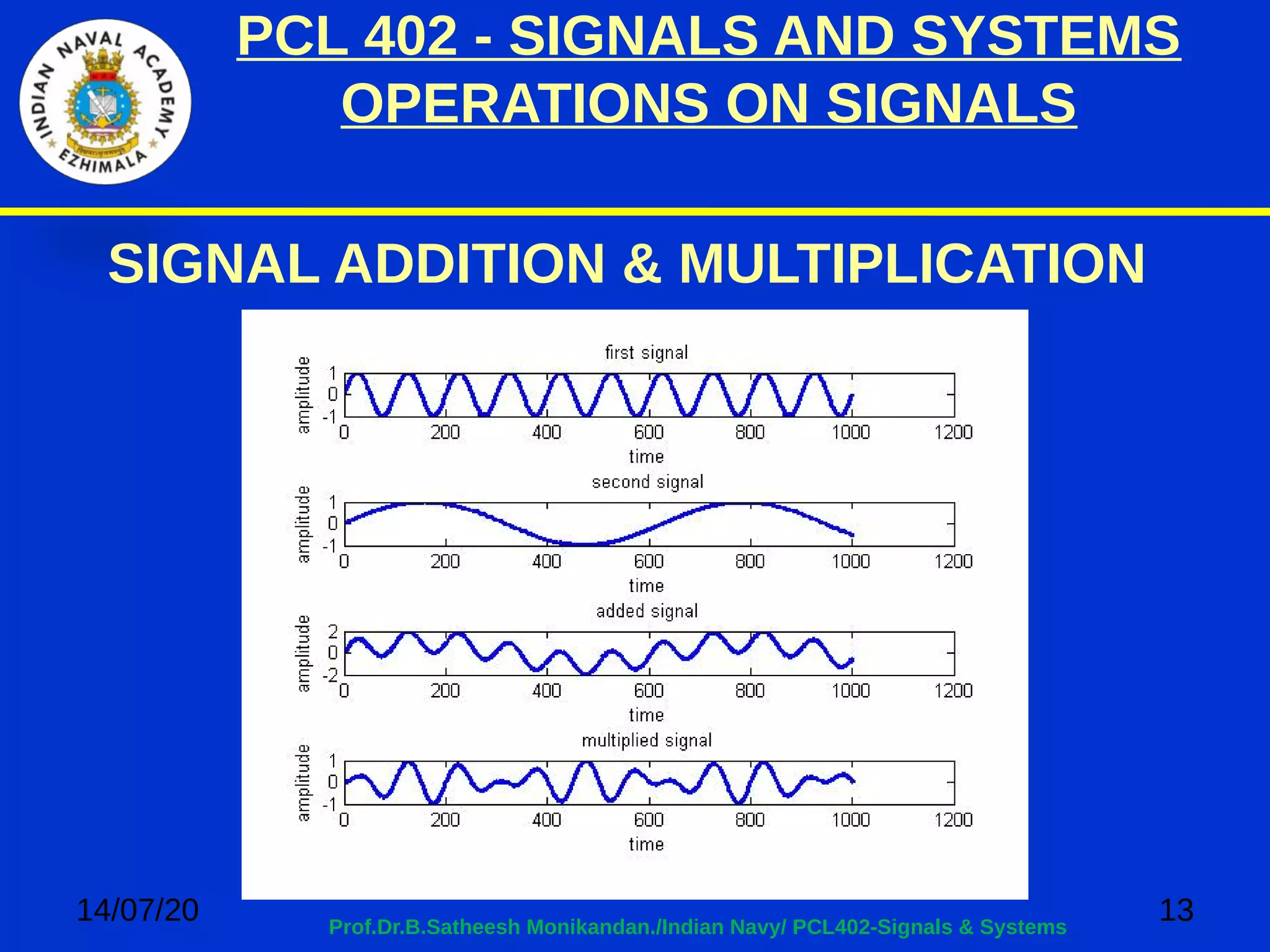

SIGNAL ADDITION & MULTIPLICATION

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

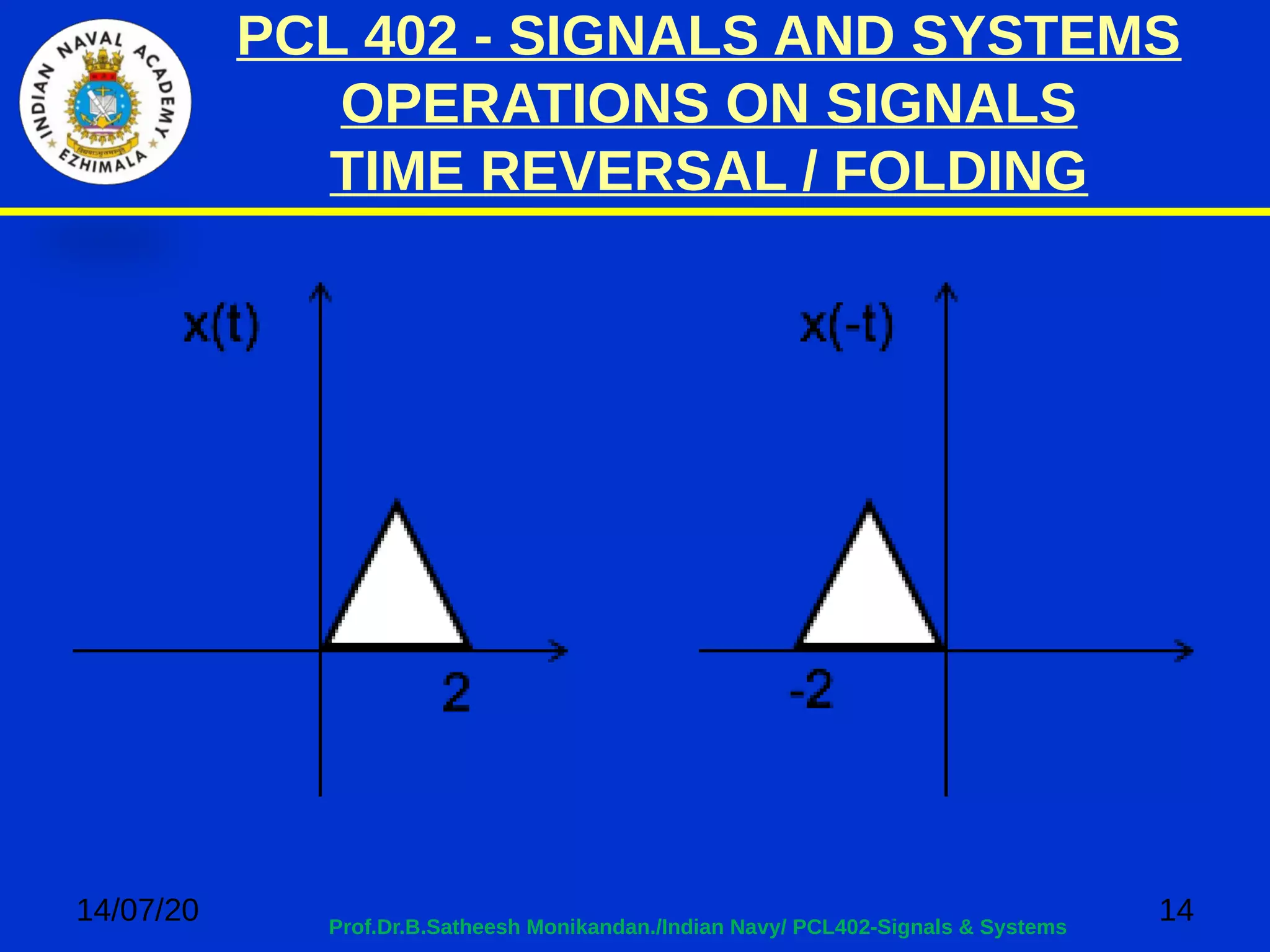

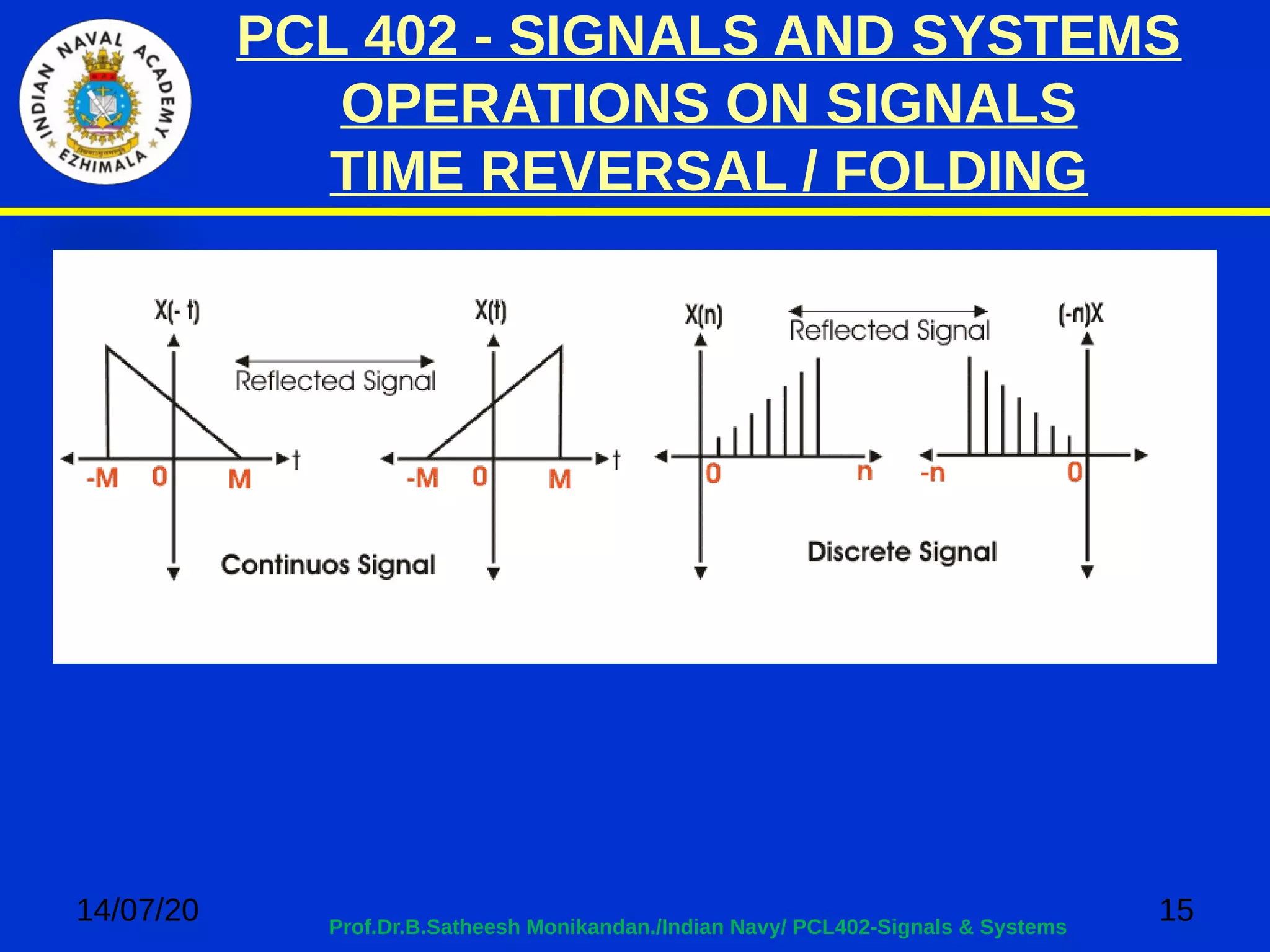

TIME REVERSAL / FOLDING
14/07/20 14Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
TIME REVERSAL / FOLDING
14/07/20 15Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

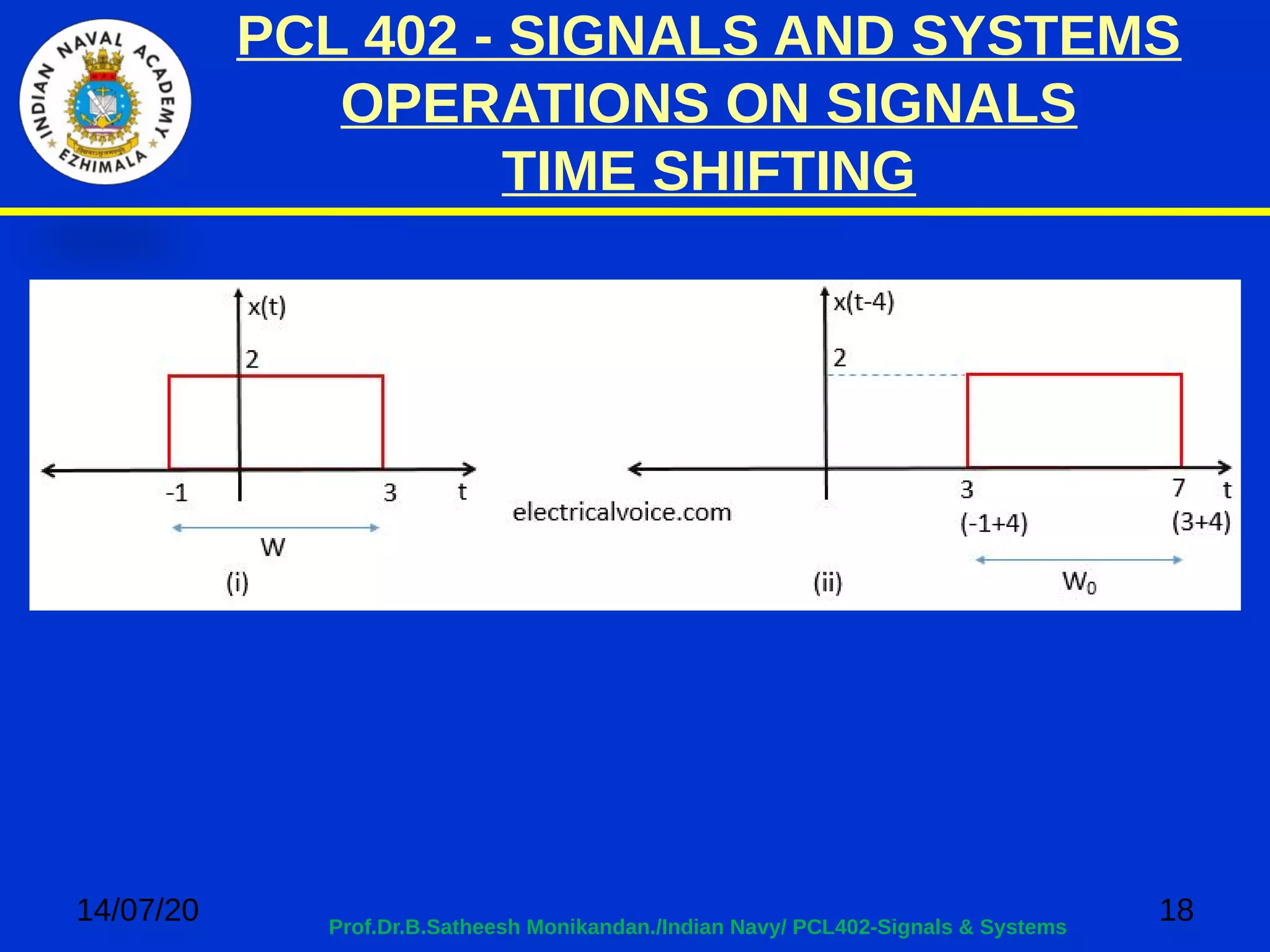

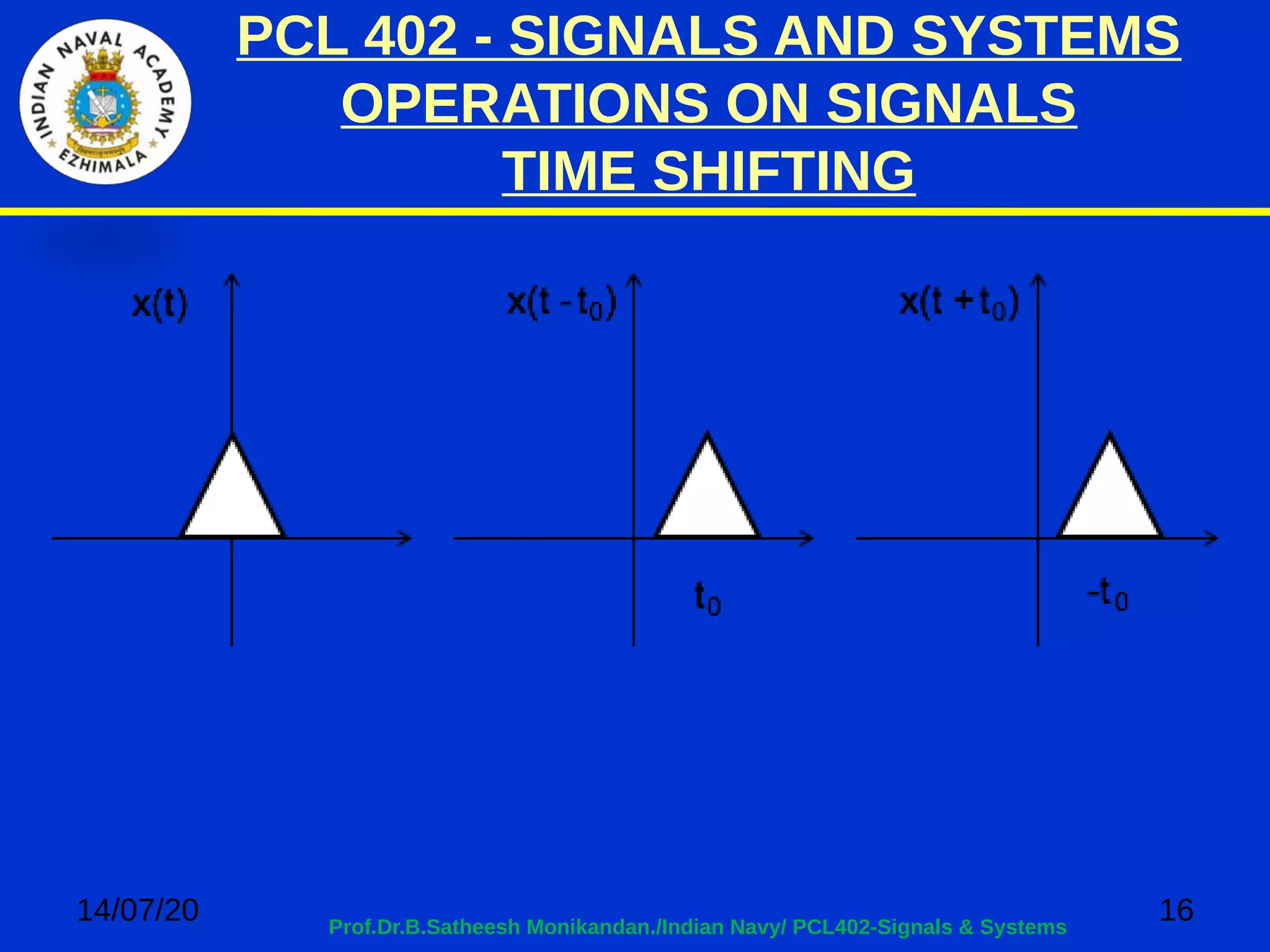

TIME SHIFTING
14/07/20 16Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

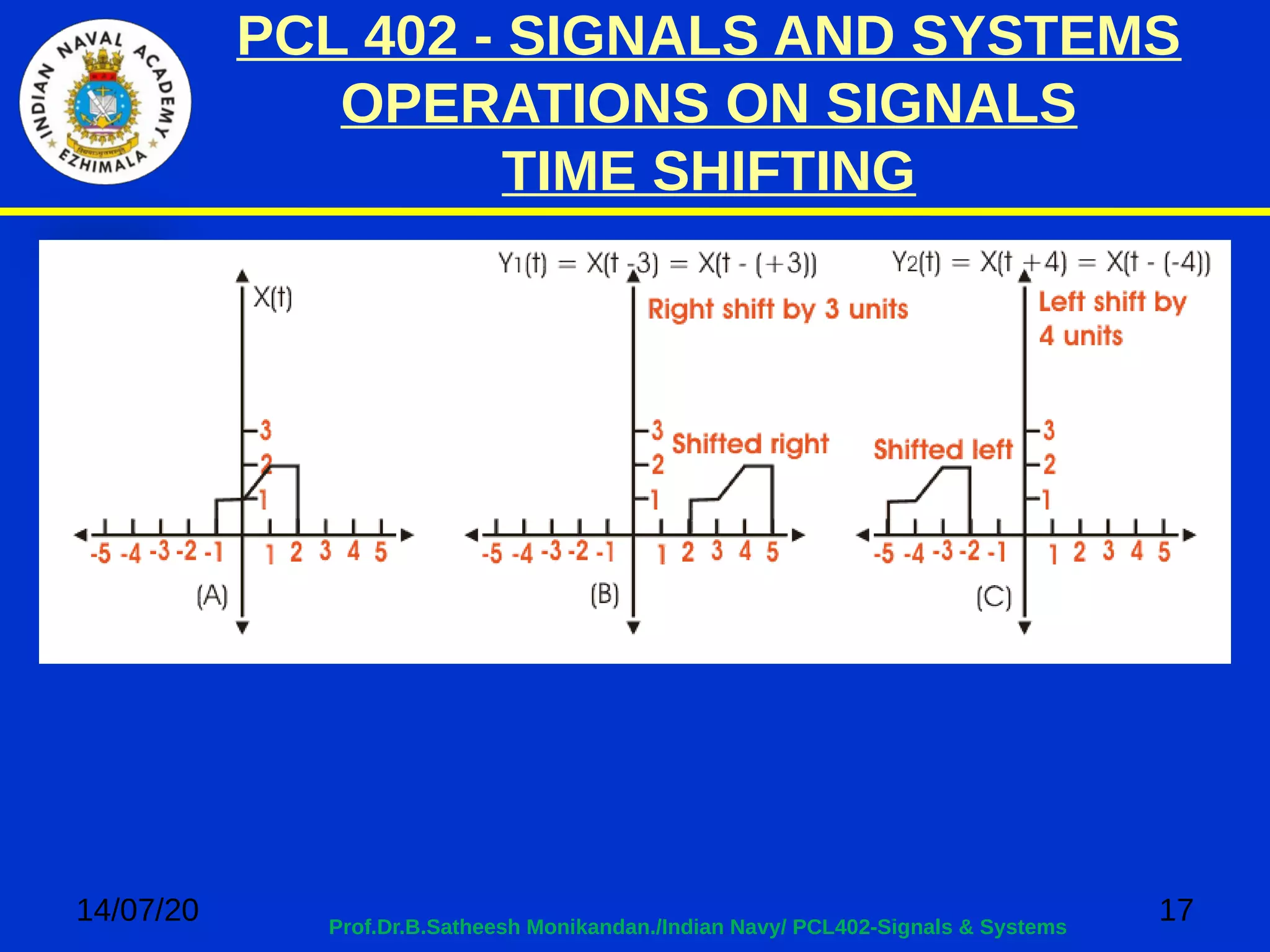

TIME SHIFTING
14/07/20 17Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
TIME SHIFTING
14/07/20 18Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

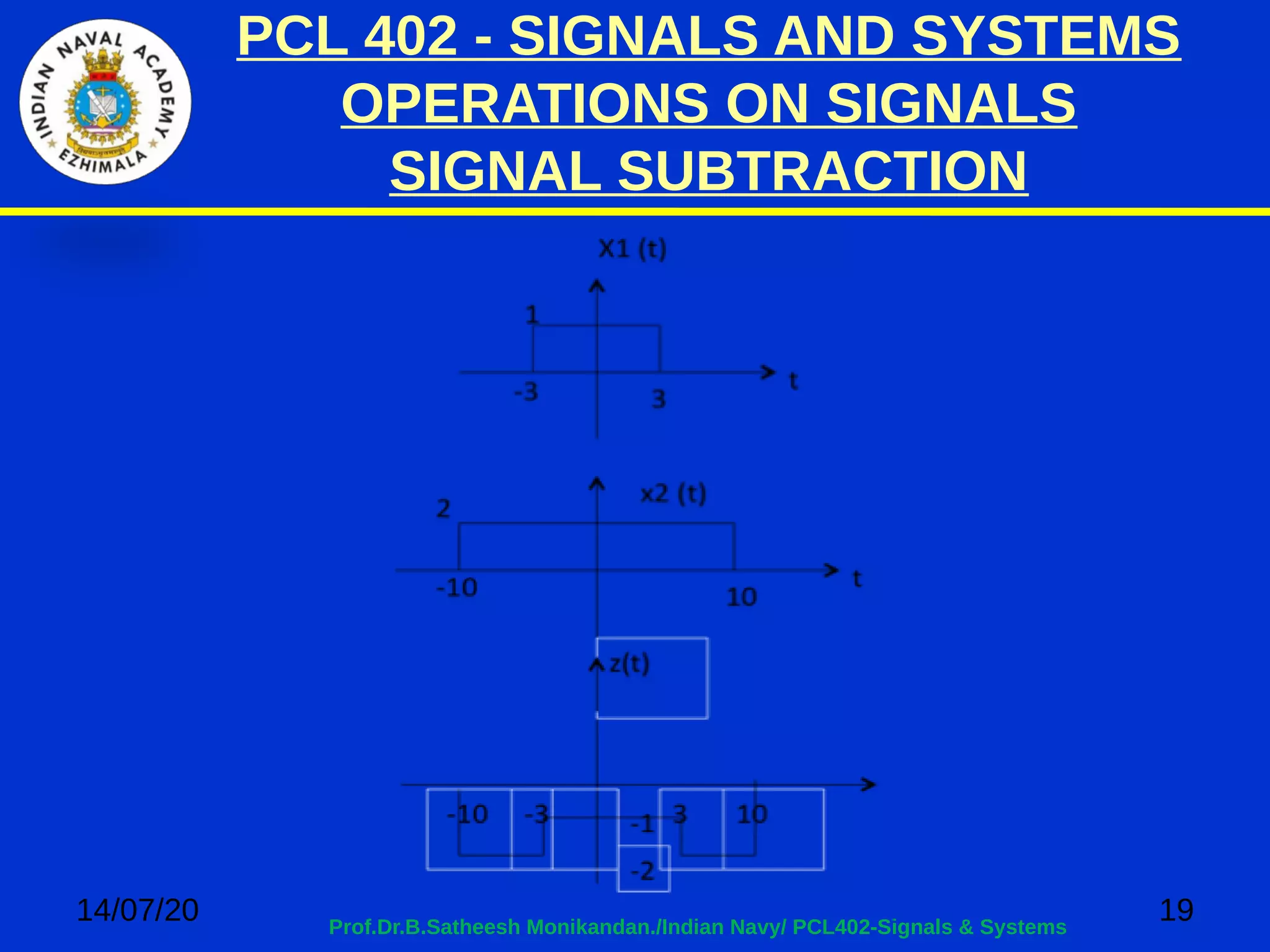

SIGNAL SUBTRACTION
14/07/20 19Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS

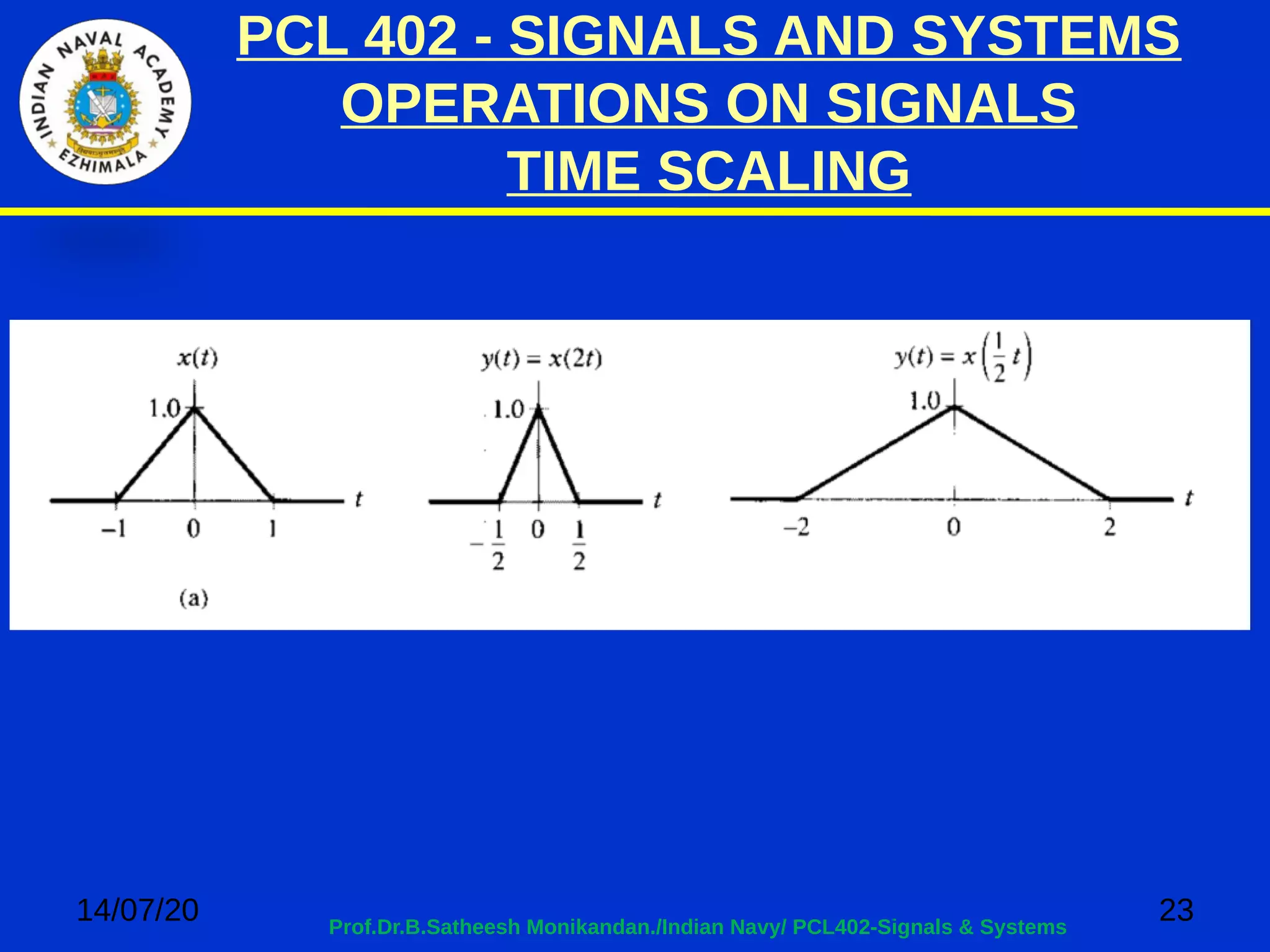

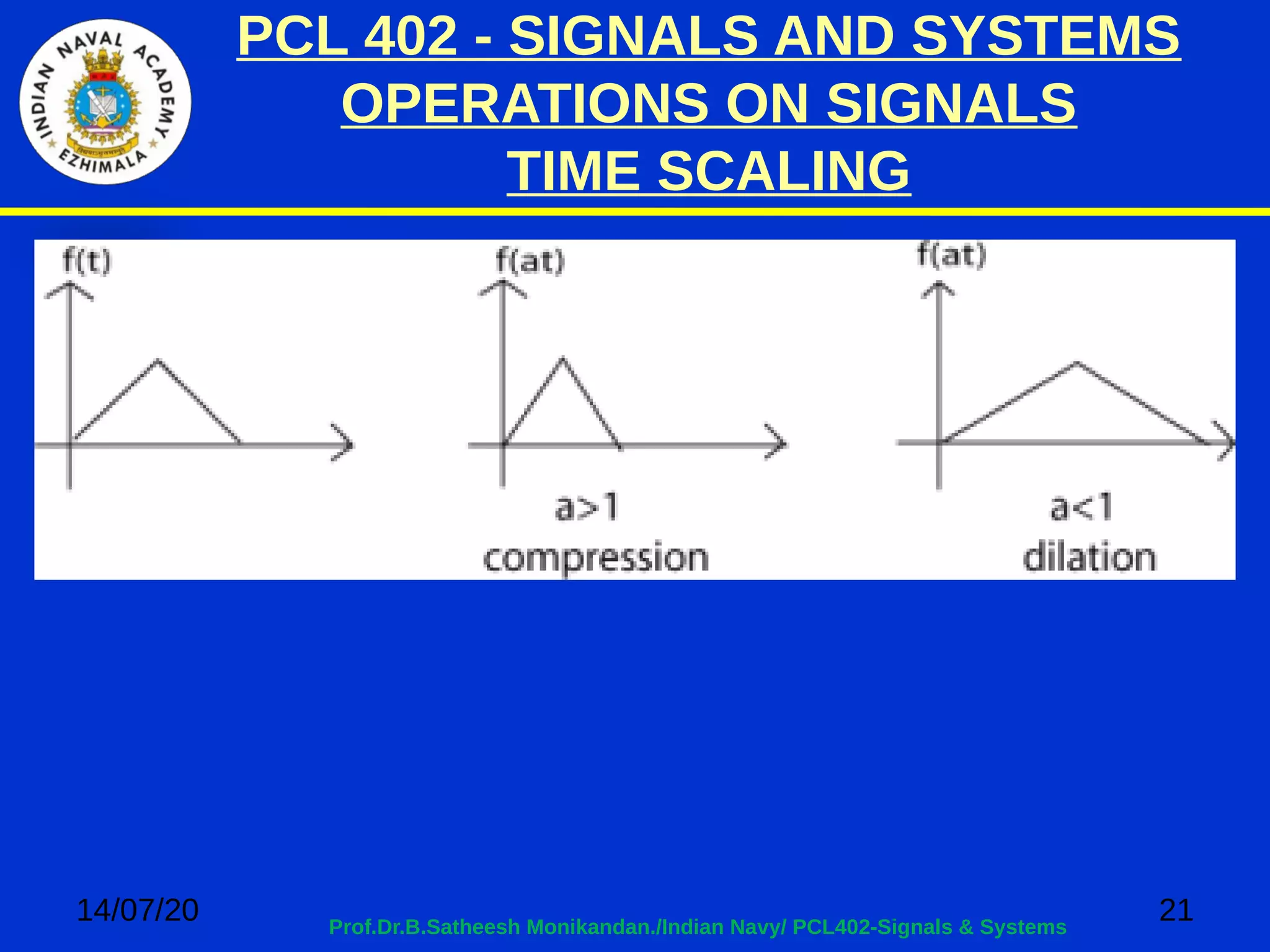

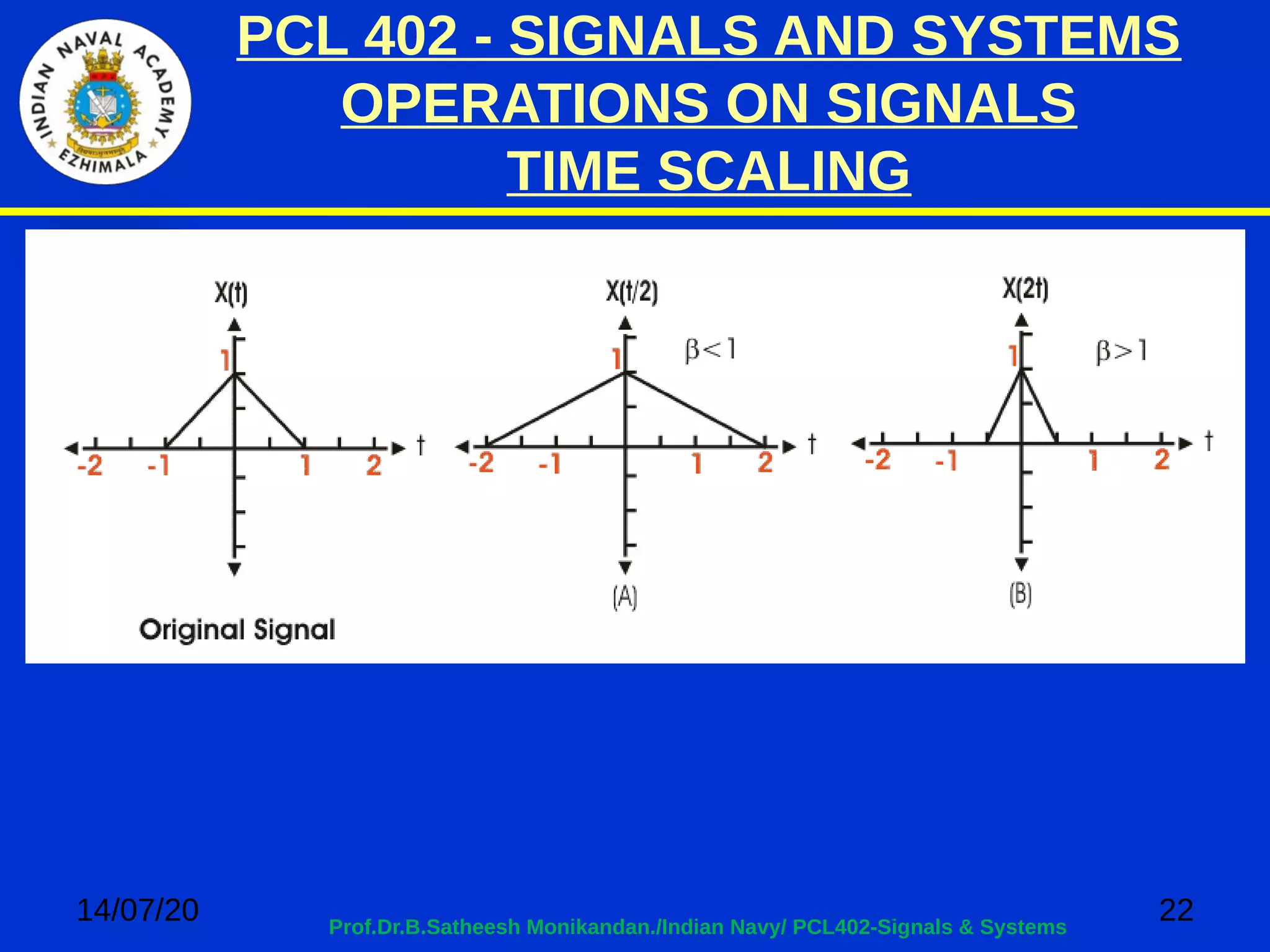

TIME SCALING
14/07/20 20Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
TIME SCALING
14/07/20 21Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
TIME SCALING
14/07/20 22Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems

PCL 402 - SIGNALS AND SYSTEMS
OPERATIONS ON SIGNALS
TIME SCALING
14/07/20 23Prof.Dr.B.Satheesh Monikandan./Indian Navy/ PCL402-Signals & Systems
