This document discusses different types of forces. It defines force as a push or pull on an object that can be caused by the interaction between two objects. There are two main types of forces - contact forces that occur when objects touch, and non-contact forces that act over a distance like magnetic, electrostatic, and gravitational forces. Contact forces include muscular force and friction. Non-contact forces are illustrated by examples of magnetic, electrostatic, and gravitational interactions. The document also discusses how multiple forces combine into a net force, and how forces can affect an object by changing its motion, speed, direction, or shape.

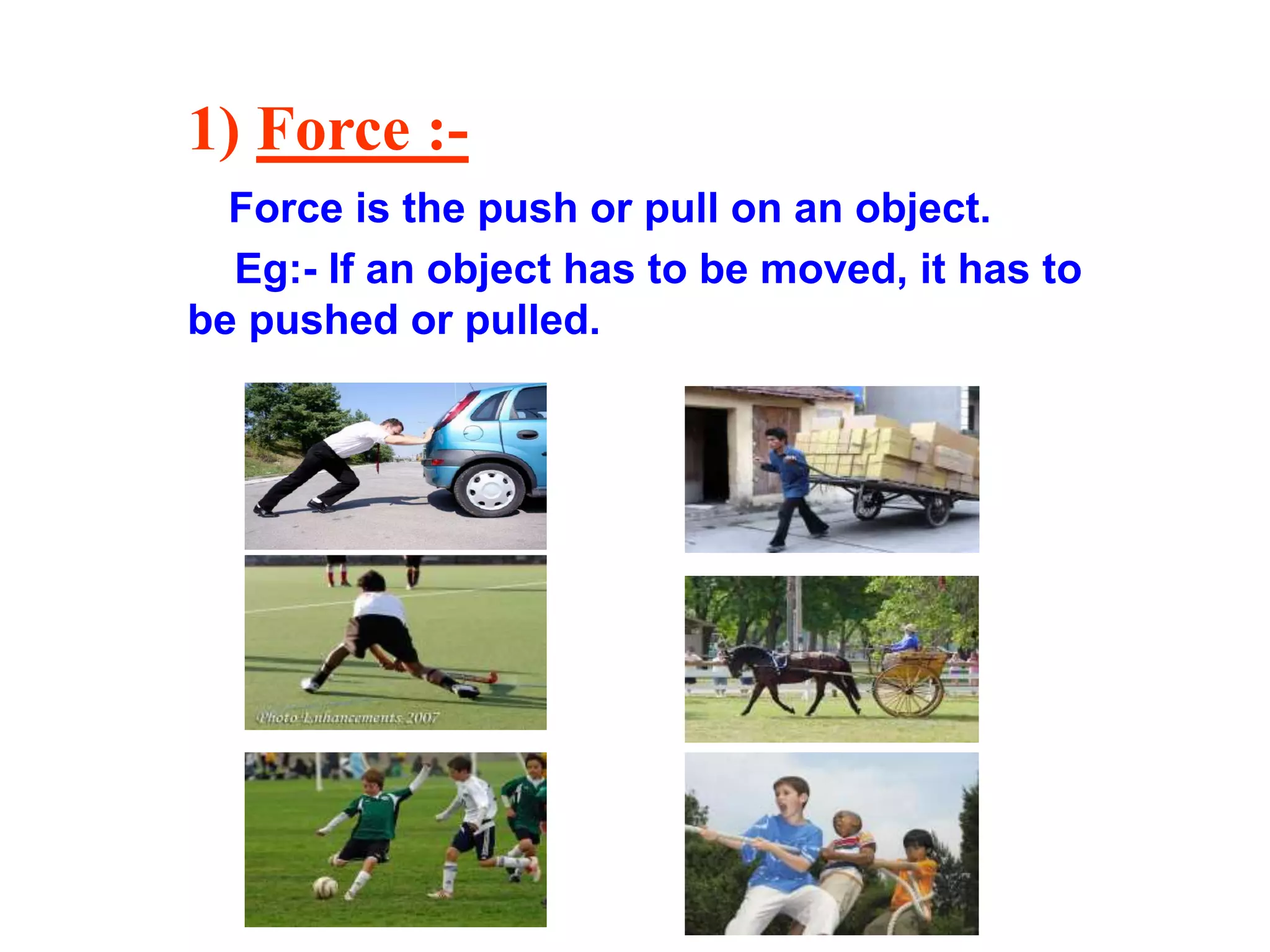

2. 1) Force :-
Force is the push or pull on an object.
Eg:- If an object has to be moved, it has to
be pushed or pulled.

3. 2) Forces are due to interaction
:-
An interaction of one object on another object results
in a force between the two objects.
Eg :- If a man stands behind a car, the car does not
move. If he pushes the car, he applies force and the car
begins to move in the direction of the applied force.

4. 3) Exploring forces :-
a) If two forces act on a body in the same direction, the net force is
the sum of the two forces.
F1
F2
Net force = F1 + F2
b) If two forces act on a body in opposite directions, the net force is
the difference between the two forces.
F1 F2
Net force = F2 – F1
The effect on the object depends on the net force acting on it.

5. 4) Effects of force on an object :-
i) Force can make an object to move from rest.
ii) Force can stop a moving object.
iii) Force can change the speed of an object if it is
moving.
iv) Force can change the direction of a motion of an
object.
v) Force can change the shape of an object.
Force may cause one or more of these effects.

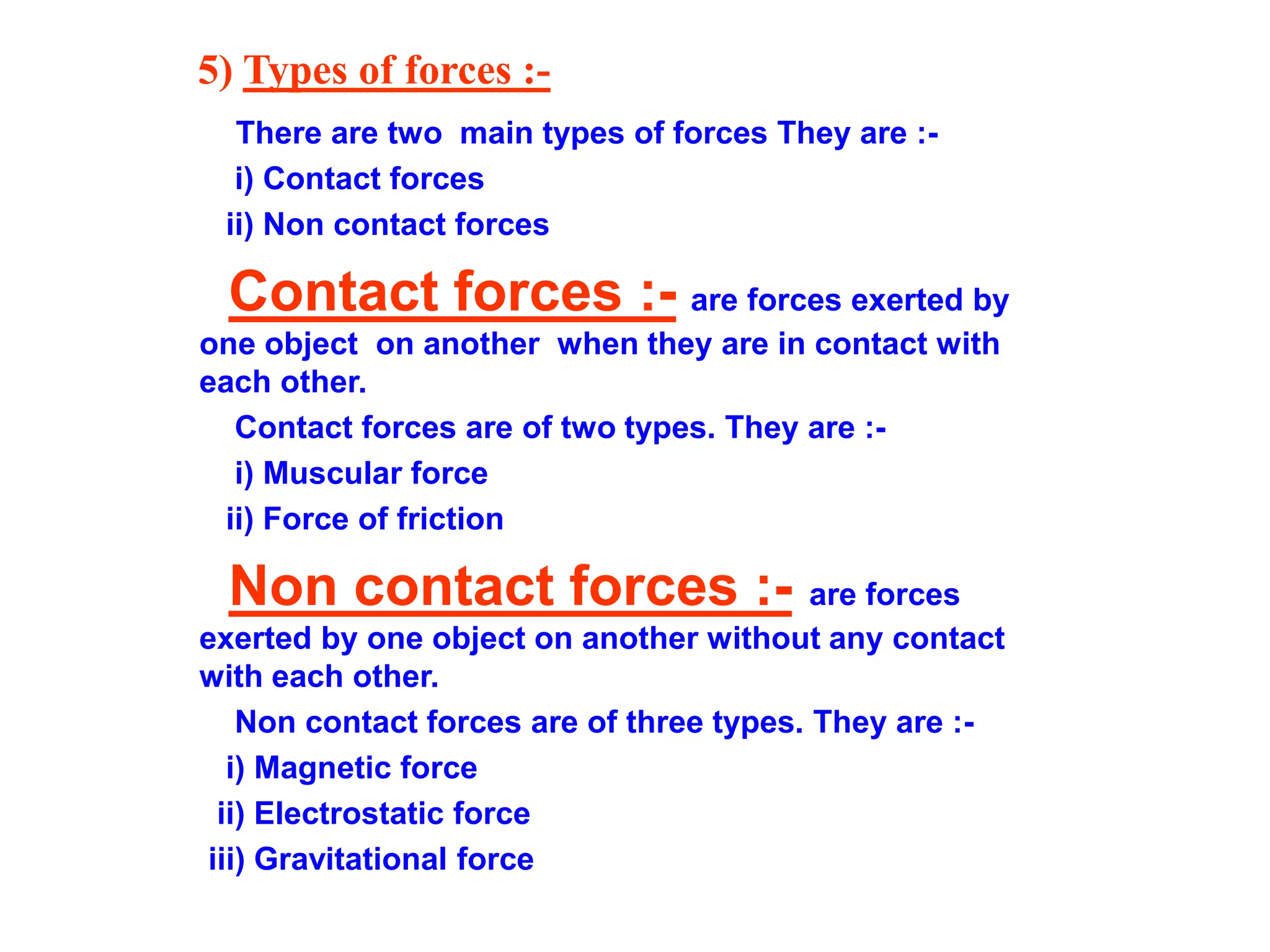

6. 5) Types of forces :-
There are two main types of forces They are :-
i) Contact forces
ii) Non contact forces
Contact forces :- are forces exerted by
one object on another when they are in contact with
each other.
Contact forces are of two types. They are :-
i) Muscular force
ii) Force of friction
Non contact forces :- are forces
exerted by one object on another without any contact
with each other.
Non contact forces are of three types. They are :-
i) Magnetic force
ii) Electrostatic force
iii) Gravitational force

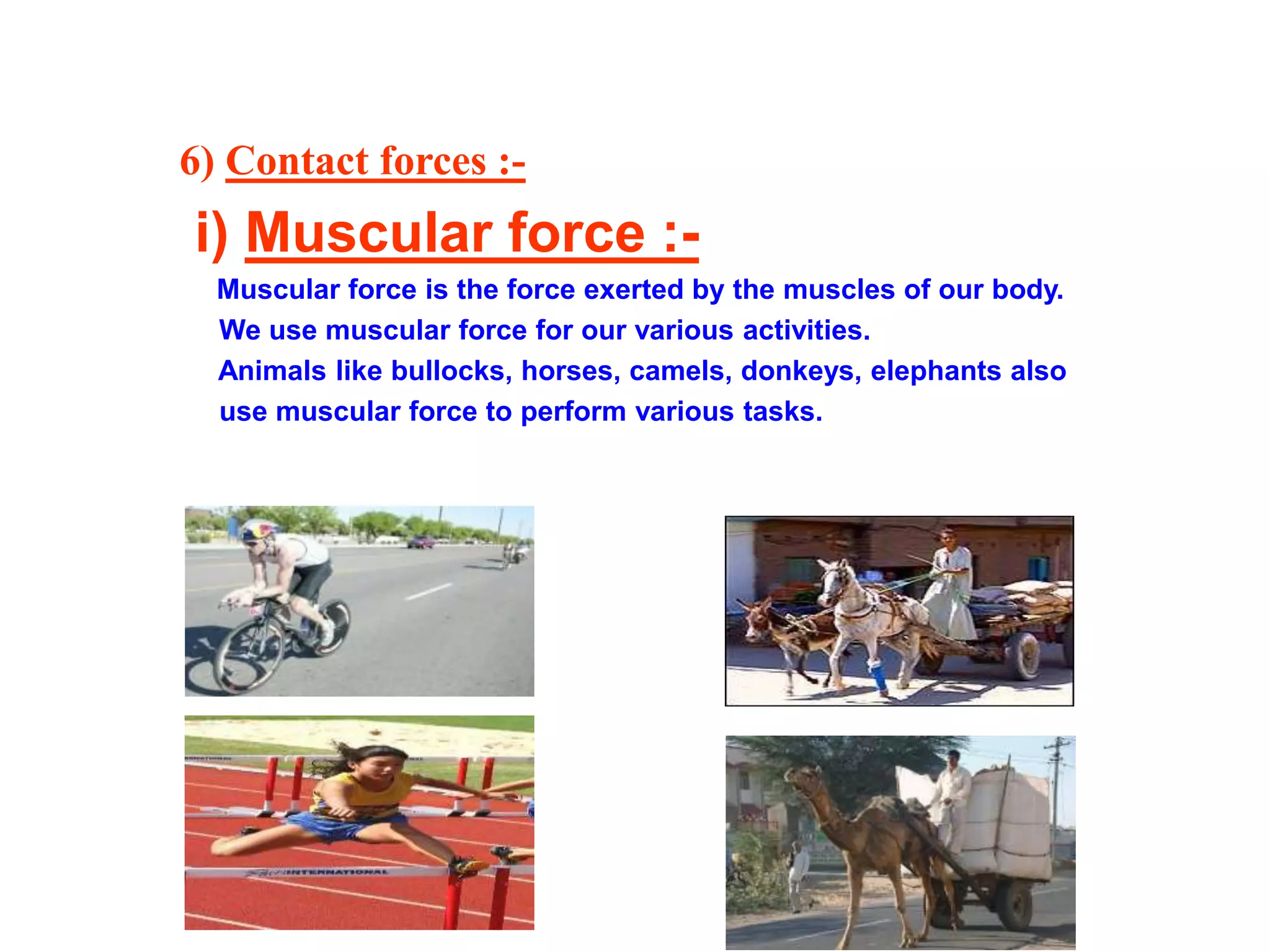

7. 6) Contact forces :-
i) Muscular force :-
Muscular force is the force exerted by the muscles of our body.
We use muscular force for our various activities.
Animals like bullocks, horses, camels, donkeys, elephants also
use muscular force to perform various tasks.

8. ii) Force of friction :-
Force of friction is the force which opposes the motion
of an object
over a surface.
Eg :- A ball rolling on ground gradually slows down and
comes to
rest due to force of friction.
If we stop pedalling a bicycle, it gradually slows
down and
comes to a stop due to force of friction.

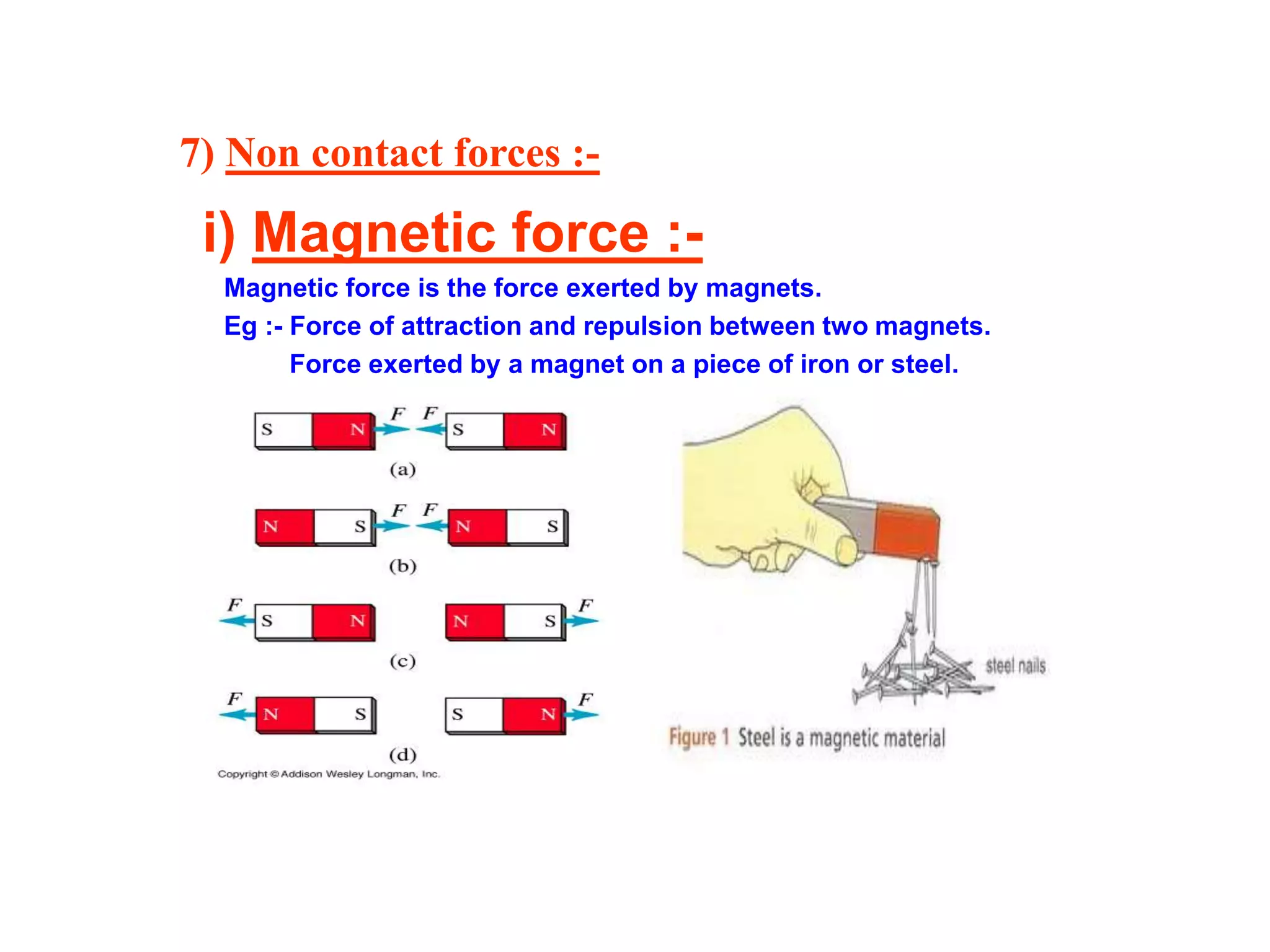

9. 7) Non contact forces :-
i) Magnetic force :-
Magnetic force is the force exerted by magnets.
Eg :- Force of attraction and repulsion between two magnets.
Force exerted by a magnet on a piece of iron or steel.

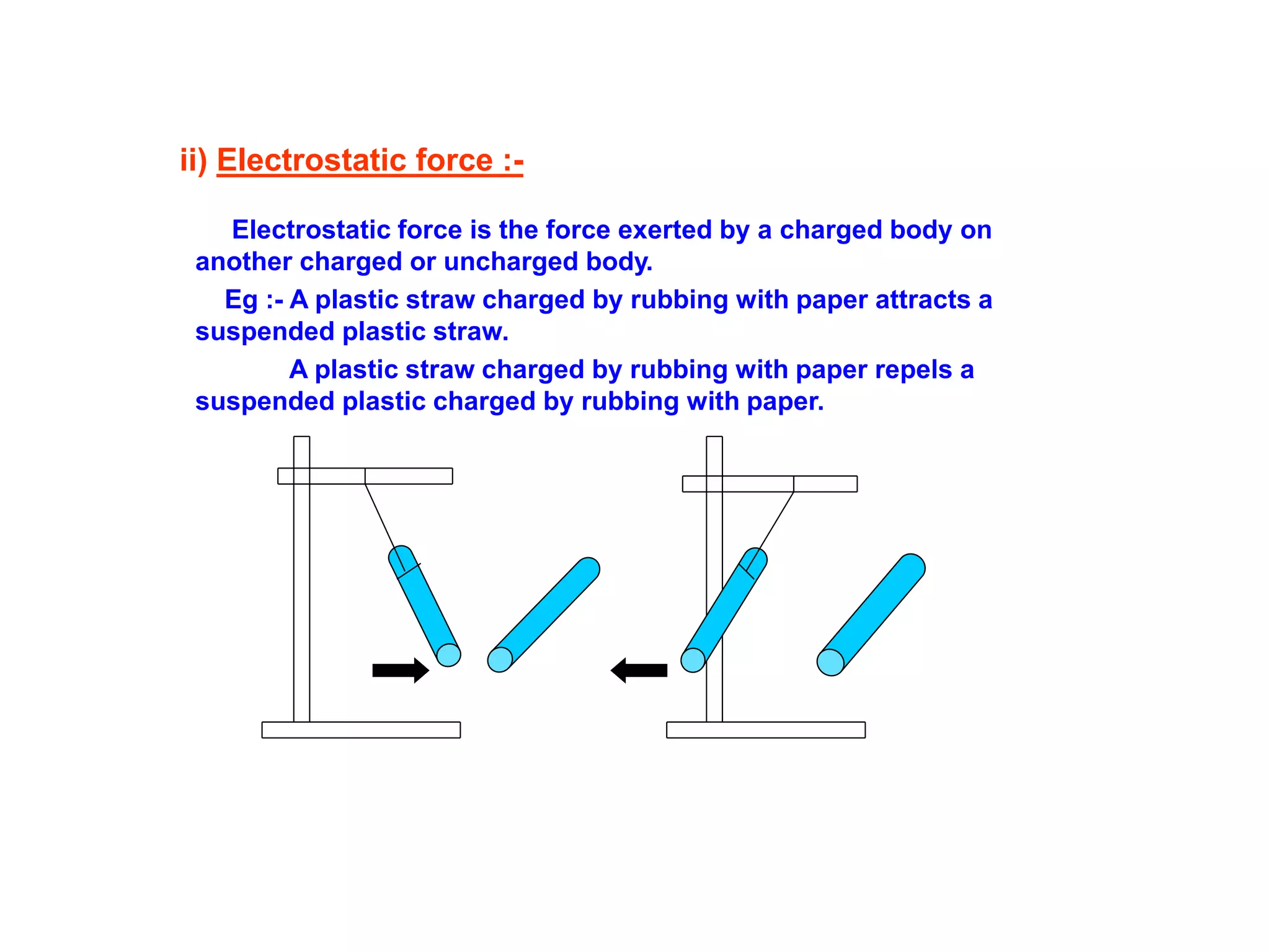

10. ii) Electrostatic force :-
Electrostatic force is the force exerted by a charged body on
another charged or uncharged body.
Eg :- A plastic straw charged by rubbing with paper attracts a
suspended plastic straw.
A plastic straw charged by rubbing with paper repels a
suspended plastic charged by rubbing with paper.

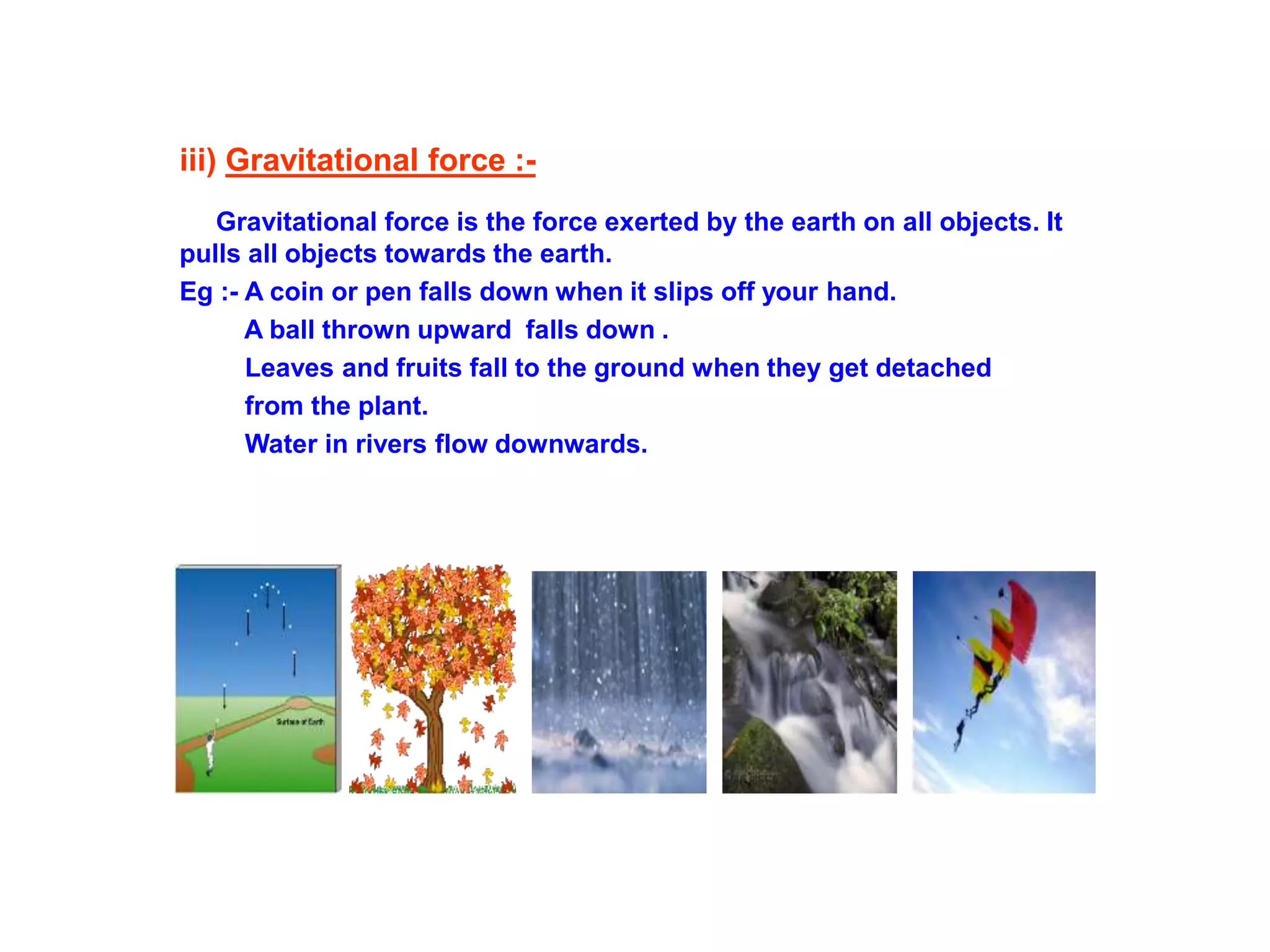

11. iii) Gravitational force :-
Gravitational force is the force exerted by the earth on all objects. It
pulls all objects towards the earth.
Eg :- A coin or pen falls down when it slips off your hand.
A ball thrown upward falls down .
Leaves and fruits fall to the ground when they get detached
from the plant.
Water in rivers flow downwards.

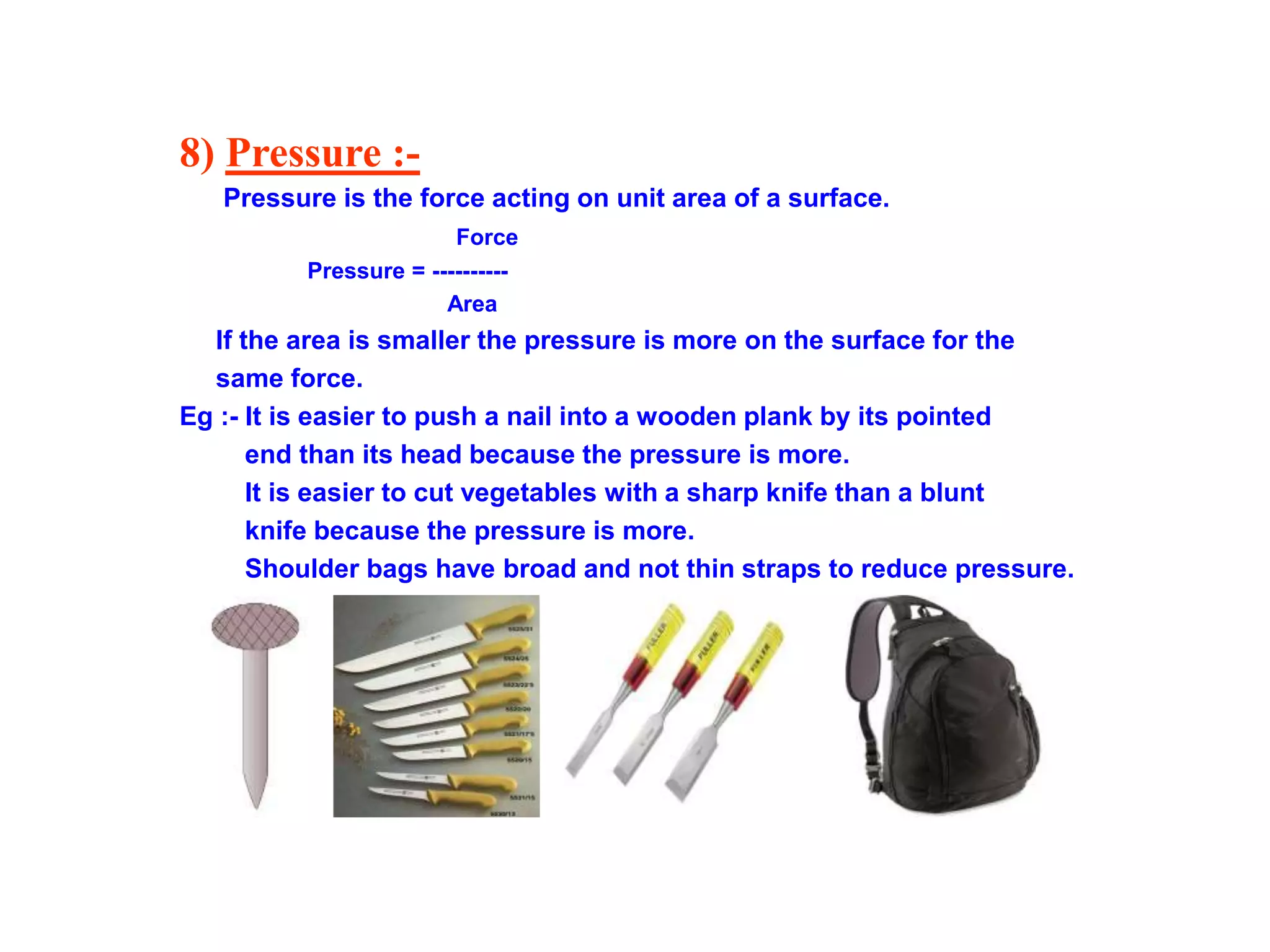

12. 8) Pressure :-
Pressure is the force acting on unit area of a surface.
Force
Pressure = ----------
Area
If the area is smaller the pressure is more on the surface for the
same force.
Eg :- It is easier to push a nail into a wooden plank by its pointed
end than its head because the pressure is more.
It is easier to cut vegetables with a sharp knife than a blunt
knife because the pressure is more.
Shoulder bags have broad and not thin straps to reduce pressure.

13. 9) Pressure exerted by liquids gases :-
Liquids exert pressure on the walls of a container.
Liquids exert pressure on the bottom of a container. It depends
upon the height of the liquid column.
Liquids exert sideways pressure.
Liquids exert equal pressure at the same height.
Rubber balloon

14. 10) Pressure exerted by gases :-
Gases exert pressure on the walls of a container.

15. 11) Atmospheric pressure :-
Atmospheric pressure is the pressure of air around us.
Atmospheric pressure is due to the weight of air.
The weight of an air column of the height of the
of the atmosphere and area 10 cm x 10 cm is as
large as 1000 kg.
10 cm
10 cm
Rubber sucker
Air column
