Exploring-Forces 5.pdf/8th science curiosity/by sandeep swamy notes/ppt

Here are chapter notes based on the provided sources, summarising key concepts related to electricity's magnetic and heating effects, and the nature of forces. ### Chapter Notes **1. Electricity: Magnetic and Heating Effects** This chapter explores how electric currents can produce magnetic fields and generate heat, along with the fundamental principles of how batteries work. * **Magnetic Effect of Electric Current** * **Discovery**: The phenomenon that electricity and magnetism are linked was discovered by scientist Hans Christian Oersted in 1820. He observed that a magnetic compass needle deflected when an electrical circuit nearby was closed or opened, indicating an electric current produces a magnetic field. * **Principle**: When electric current flows through a conductor (e.g., a wire), it generates a **magnetic field** around it. This magnetic field is the region where its magnetic effect can be felt. The magnetic effect disappears when the current stops flowing. * **Electromagnets**: * A current-carrying coil that behaves like a magnet is called an **electromagnet**. For practical uses, most electromagnets incorporate an **iron core** to significantly increase their strength. * **Properties**: Electromagnets, like permanent magnets, have two poles (North and South). * **Strength**: Their strength can be increased by: * Using a larger electric current (e.g., more cells in a battery). * Increasing the number of turns in the coil. * **Polarity**: The poles of an electromagnet can be reversed by changing the direction of the current flow. * **Applications**: The magnetic effect of electric current is used in many devices, including electric bells, motors, fans, loudspeakers, and **lifting electromagnets**. Lifting electromagnets are used in factories and scrap yards to efficiently move heavy metal items; they work by switching the current **ON** to lift objects and **OFF** to release them. * **Earth's Magnetic Field**: The Earth acts like a giant magnet due to the movement of liquid iron in its core, which creates electric currents. This magnetic field is vital for navigation by migratory animals and shields Earth from harmful space particles. * **Heating Effect of Electric Current** * **Principle**: When electric current flows through a conductor, it encounters **resistance** to its flow. This resistance converts some of the electrical energy into **heat energy**, causing the conductor to warm up. This is known as the **heating effect of electric current**. Different materials have varying resistance; for example, nichrome wire offers higher resistance than copper wire of the same size and length. * **Factors Affecting Heat Generation**: The amount of heat produced depends on the **material, thickness, and length of the wire**, as well as the **magnitude of the electric current** and the **duration** for which the current

Education◦
Exploring Forces Chapter 5/8th class/science(curiosity) Forces are all around us - pushing, pulling, and changing the world we live in. This presentation explores what forces are, how they work, and the different types we encounter every day. By : K Sandeep Swamy(M.Sc,B.Ed) For Online Classes (IITJEE & NEET foundation and academics) contact : 9491878325 Subscribe Samyans Eduhub youtube channel

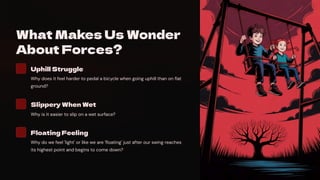

What Makes Us Wonder About Forces? Uphill Struggle Why does it feel harder to pedal a bicycle when going uphill than on flat ground? Slippery When Wet Why is it easier to slip on a wet surface? Floating Feeling Why do we feel 'light' or like we are 'floating' just after our swing reaches its highest point and begins to come down?

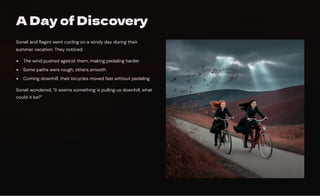

A Day of Discovery Sonali and Ragini went cycling on a windy day during their summer vacation. They noticed: The wind pushed against them, making pedaling harder Some paths were rough, others smooth Coming downhill, their bicycles moved fast without pedaling Sonali wondered, "It seems something is pulling us downhill, what could it be?"
What Is a Force? A force is a push or pull on an object resulting from the object's interaction with another object. The SI unit of force is newton (written with a small 'n') and its symbol is N. Forces always involve at least two objects interacting with each other. Moving a box by pushing, pulling, and lifting

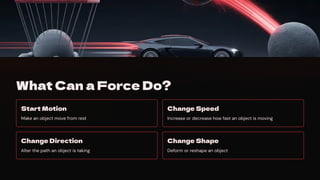

What Can a Force Do? Start Motion Make an object move from rest Change Speed Increase or decrease how fast an object is moving Change Direction Alter the path an object is taking Change Shape Deform or reshape an object

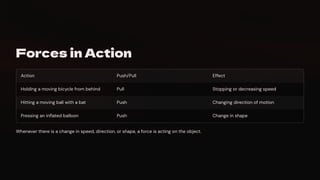

Forces in Action Action Push/Pull Effect Holding a moving bicycle from behind Pull Stopping or decreasing speed Hitting a moving ball with a bat Push Changing direction of motion Pressing an inflated balloon Push Change in shape Whenever there is a change in speed, direction, or shape, a force is acting on the object.
Types of Forces Contact Forces Require physical contact between objects Muscular force Friction Non-Contact Forces Act from a distance without physical contact Magnetic force Electrostatic force Gravitational force
Muscular Force Muscular force occurs when muscles contract and elongate while doing any activity. Used in walking, running, lifting, pushing Animals use muscular forces for movement Humans have historically used animal muscular force for tasks Inside our bodies, muscular force helps with digestion and blood circulation Use of muscular force by living beings
Friction: The Opposing Force Friction is the force that comes into play when an object moves or tries to move over another surface. Always acts opposite to the direction of motion Arises due to irregularities between surfaces Greater on rough surfaces than smooth ones Also acts in liquids and gases (air resistance) Friction acts between two surfaces and opposes the motion of the object. Friction between surfaces due to irregularities

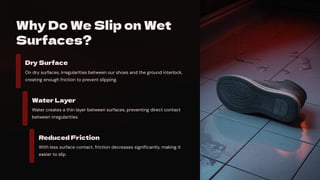

Why Do We Slip on Wet Surfaces? Dry Surface On dry surfaces, irregularities between our shoes and the ground interlock, creating enough friction to prevent slipping. Water Layer Water creates a thin layer between surfaces, preventing direct contact between irregularities. Reduced Friction With less surface contact, friction decreases significantly, making it easier to slip.

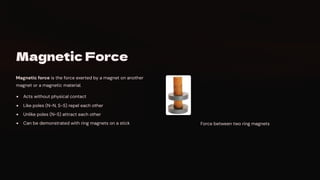

Magnetic Force Magnetic force is the force exerted by a magnet on another magnet or a magnetic material. Acts without physical contact Like poles (N-N, S-S) repel each other Unlike poles (N-S) attract each other Can be demonstrated with ring magnets on a stick Force between two ring magnets
Electrostatic Force Electrostatic force is the force exerted by a charged body on another charged or uncharged body. Created when objects are rubbed together Static charges build up on surfaces Like charges repel each other Unlike charges attract each other Charged plastic scale attracting small paper pieces Two charged balloons repelling each other
Gravitational Force Gravitational force is the force with which the Earth attracts objects toward itself. Also called force of gravity or simply gravity Always an attractive force Acts without physical contact Makes objects fall toward Earth Causes vertical motion Objects falling toward Earth due to gravity

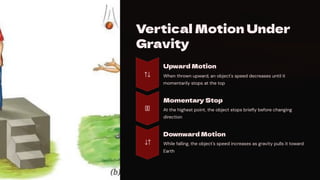

Vertical Motion Under Gravity Upward Motion When thrown upward, an object's speed decreases until it momentarily stops at the top Momentary Stop At the highest point, the object stops briefly before changing direction Downward Motion While falling, the object's speed increases as gravity pulls it toward Earth

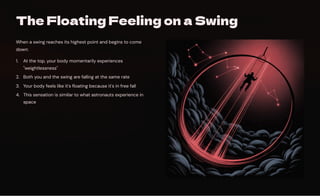

The Floating Feeling on a Swing When a swing reaches its highest point and begins to come down: At the top, your body momentarily experiences "weightlessness" 1. Both you and the swing are falling at the same rate 2. Your body feels like it's floating because it's in free fall 3. This sensation is similar to what astronauts experience in space 4.

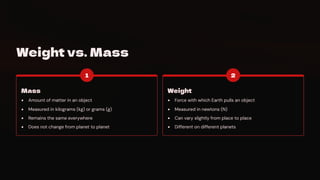

Weight vs. Mass 1 Mass Amount of matter in an object Measured in kilograms (kg) or grams (g) Remains the same everywhere Does not change from planet to planet 2 Weight Force with which Earth pulls an object Measured in newtons (N) Can vary slightly from place to place Different on different planets

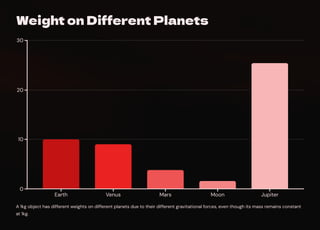

Weight on Different Planets 0 10 20 30 Earth Venus Mars Moon Jupiter A 1kg object has different weights on different planets due to their different gravitational forces, even though its mass remains constant at 1kg.
Measuring Weight A spring balance is used to measure weight: Spring stretches when an object is hung from it Amount of stretching indicates the weight Scale shows weight in newtons (N) Often includes a second scale for mass (g) A spring balance with scale markings
Floating and Sinking When an object is placed in a liquid: Gravitational force pulls it downward Liquid applies an upward force called upthrust or buoyant force If gravitational force > buoyant force: object sinks If gravitational force = buoyant force: object floats Plastic bottle experiencing upthrust in water

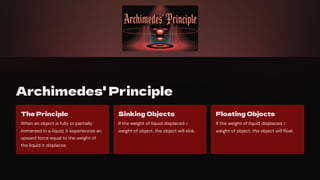

Archimedes' Principle The Principle When an object is fully or partially immersed in a liquid, it experiences an upward force equal to the weight of the liquid it displaces. Sinking Objects If the weight of liquid displaced < weight of object, the object will sink. Floating Objects If the weight of liquid displaced = weight of object, the object will float.

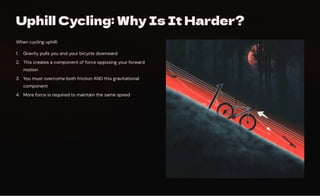

Uphill Cycling: Why Is It Harder? When cycling uphill: Gravity pulls you and your bicycle downward 1. This creates a component of force opposing your forward motion 2. You must overcome both friction AND this gravitational component 3. More force is required to maintain the same speed 4.

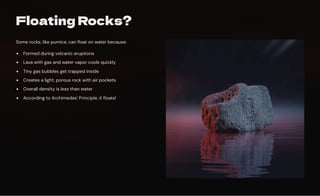

Floating Rocks? Some rocks, like pumice, can float on water because: Formed during volcanic eruptions Lava with gas and water vapor cools quickly Tiny gas bubbles get trapped inside Creates a light, porous rock with air pockets Overall density is less than water According to Archimedes' Principle, it floats!

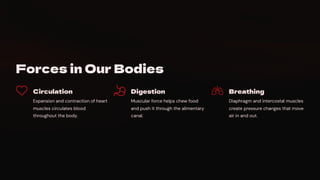

Forces in Our Bodies Circulation Expansion and contraction of heart muscles circulates blood throughout the body. Digestion Muscular force helps chew food and push it through the alimentary canal. Breathing Diaphragm and intercostal muscles create pressure changes that move air in and out.
Key Takeaways Force Basics A force is a push or pull resulting from interaction between objects. The SI unit is newton (N). Force Effects Forces can change speed, direction, shape, or start motion from rest. Force Types Contact forces (muscular, friction) require physical contact. Non-contact forces (magnetic, electrostatic, gravitational) act from a distance. Weight vs. Mass Weight is the gravitational force on an object and varies by location. Mass is the amount of matter and remains constant.

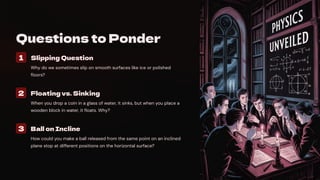

Questions to Ponder 1 Slipping Question Why do we sometimes slip on smooth surfaces like ice or polished floors? 2 Floating vs. Sinking When you drop a coin in a glass of water, it sinks, but when you place a wooden block in water, it floats. Why? 3 Ball on Incline How could you make a ball released from the same point on an inclined plane stop at different positions on the horizontal surface?
