This document discusses the use of Robot Operating System 2 (ROS 2) and Data Distribution Service (DDS) for smart manufacturing. ROS 2 is an open-source robotics middleware that has gained popularity for use in mobile robots, industrial robots, and autonomous vehicles. It allows for distributed, decentralized control through the use of DDS as its underlying middleware for data distribution. The document outlines the history and releases of ROS 2, its advantages over a centralized ROS 1 architecture, and examples of its use in industrial applications such as multiple autonomous guided vehicles (AGVs) and 5G factory networks.

1. Leading EDGE COMPUTING 11
The Next Generation of
Smart Manufacturing-
Using Robot Operating System 2 & DDS
Bill Wang, Ph.D
Project Manager
Advanced Robotic Platform Group
2018.11.10

2. Leading EDGE COMPUTING 22
PrismTech Acquired in 2016

3. Leading EDGE COMPUTING 33
Definition of Industrial/Service Robots
*AGV in manufacturing is here
Field robot
Inspection/maintenance/construction/logistics/medical/rescue/security Cleaning/mowing/toy/hobby/
multimedia/education/elderly/
person aid

4. Leading EDGE COMPUTING 44
Service Robotics: Strong Growth and Technology Burst
Main drivers: logistic systems
Burst

5. Leading EDGE COMPUTING 55
Open Source Software systems hugely popular; e.g. >2/3 of all service
robot suppliers use Robot Operating System ROS (and other OSS)
by IFA (International Federation of Robotics) 2017

6. Leading EDGE COMPUTING 66
ROS 2 Alpha version(Ardent Apalone) release on 2017.12
ROS 10 Years of History ~
Zhang et al., Sci. Robot. 2, eaar1868 (2017) 25 October 2017
• ROS is widely used from mobile robots,
industrial robots, probing robots, human–
computer interaction robots, to
autonomous car and group robots
• Integrated navigation, simulation,
trajectory planning, collision avoidance,
environmental awareness
ROS
2017.12

7. Leading EDGE COMPUTING 77
Revolution of AGV
Multiple AGVsAGV in the past
To Be:
VS
As Is:

8. Leading EDGE COMPUTING 88
Release in June 2018
ROS 2 release Bouncy Bolson!
•Ubuntu 18.04 (Bionic)
• Debian packages for amd64 as well as arm64
•Ubuntu 16.04 (Xenial)
• no Debian packages but building from source is
supported
•Mac OS X 10.12 (Sierra)
•Windows 10 with Visual Studio 2017
•Binary packages / fat archives support three RMW
implementations by default (without the need to build from
source):
• eProsima's FastRTPS (default)
• RTI's Connext
• ADLINK's OpenSplice
https://github.com/ros2/ros2/wiki/Release-Bouncy-Bolson

9. Leading EDGE COMPUTING 99
De-centralized International Open
Architecture Becomes Popular!
OPC-UA PUB/SUB over TSN
ROS
Node 2
ROS
Node 3
ROS
Node 4
ROS
Node 1
Distributed (UDP)
ROS 2 from ROS 1
Factory Automation Robotics Autonomous Car

10. MISSION CRITICAL

11. BUSINESS CRITICAL

12. Leading EDGE COMPUTING 1212
Fault Propagation in Centralized System

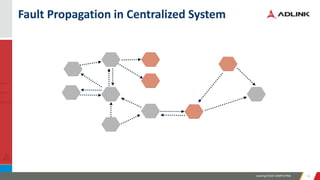

13. Leading EDGE COMPUTING 1313
Fault Propagation in Centralized System

14. Leading EDGE COMPUTING 1414

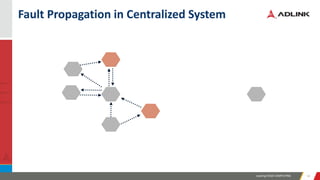

Fault Propagation in Centralized System

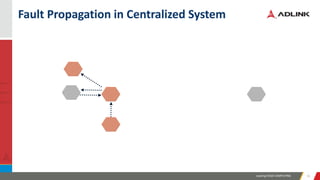

15. Leading EDGE COMPUTING 1515
Fault Propagation in Centralized System

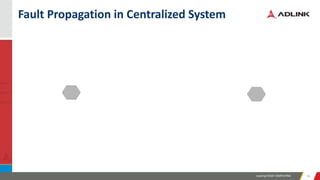

16. Leading EDGE COMPUTING 1616
Fault Propagation in Centralized System

17. Leading EDGE COMPUTING 1717
DDS Architecture
Physical View
DDS MIDDLEWARE
Stable Interfaces
Scalable Architecture
Infrastructure ensures “the right data at the right place, at
the right time”
Autonomous Software
Components

18. Leading EDGE COMPUTING 1818
• The world's largest robots open source platform
• 3M, ABB, BMW, Ford, BOSCH, Boeing,
Siemens, MIT, Stanford
• 3000+ developers
• 14 million download (2017)
• 180,000+ commits
• 140+ kinds of robots
• Reusable modular components
• Support all kinds of H/S components
• OpenCV, TensorFlow, etc.
• CUDA, CPU, ARM, X86
• Lidar, Infrared sensors, depth sensor, camera
ROS Industrial (ROS-I)

19. Leading EDGE COMPUTING 1919
5G Factories of the Future

20. Leading EDGE COMPUTING 2020

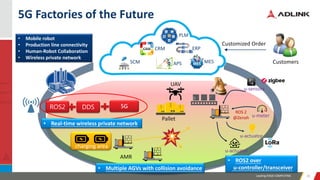

5G Factories of the Future
• Mobile robot
• Production line connectivity
• Human-Robot Collaboration
• Wireless private network
SCM
CRM
PLM
ERP
APS MES
• Multiple AGVs with collision avoidance
ROS2 DDS 5G
charging area
UAV
AMR
Pallet
Customers
Customized Order
• Real-time wireless private network
u-sensors
u-meter
u-actuator
u-actuator
ROS 2
@Zenoh
• ROS2 over
u-controller/transceiver

21. Leading EDGE COMPUTING 2121

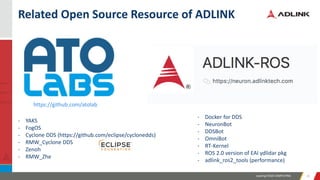

Related Open Source Resource of ADLINK
- YAKS
- FogOS
- Cyclone DDS (https://github.com/eclipse/cyclonedds)
- RMW_Cyclone DDS
- Zenoh
- RMW_Zhe
- Docker for DDS
- NeuronBot
- DDSBot
- OmniBot
- RT-Kernel
- ROS 2.0 version of EAI ydlidar pkg
- adlink_ros2_tools (performance)
https://github.com/atolab

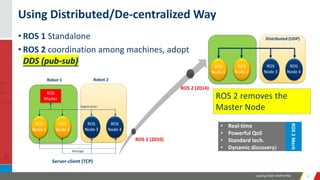

22. Leading EDGE COMPUTING 2222
• ROS 1 Standalone
• ROS 2 coordination among machines, adopt
DDS (pub-sub)
ROS
Master
ROS
Node 1
ROS
Node 2
ROS
Node 3
ROS
Node 4
Robot 1
Server-client (TCP)
Registration
Robot 2
Message
ROS 1 (2010)
ROS 2 (2014)
ROS
Node 2
ROS
Node 3
ROS
Node 4
ROS
Node 1
Distributed (UDP)
• Real-time
• Powerful QoS
• Standard tech.
• Dynamic discovery)
ROS2Merit
ROS 2 removes the
Master Node
Using Distributed/De-centralized Way

23. Leading EDGE COMPUTING 2323

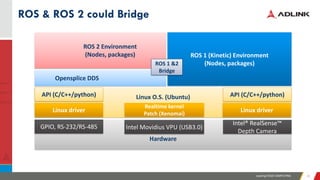

ROS & ROS 2 could Bridge
ROS 1 (Kinetic) Environment
(Nodes, packages)
Linux O.S. (Ubuntu)
Hardware
GPIO, RS-232/RS-485
Intel® RealSense™
Depth Camera
Linux driver Linux driver
Opensplice DDS
API (C/C++/python)
ROS 2 Environment
(Nodes, packages)
ROS 1 &2
Bridge
API (C/C++/python)
Realtime kernel
Patch (Xenomai)
Intel Movidius VPU (USB3.0)

24. Leading EDGE COMPUTING 2424

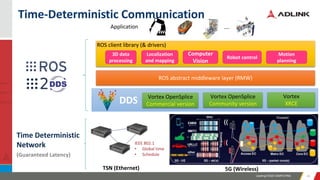

Time-Deterministic Communication
Application ….
Motion
planning
Localization
and mapping
Computer
Vision
3D data
processing
Robot control
ROS client library (& drivers)
Vortex OpenSplice
Commercial version
Vortex OpenSplice
Community version
ROS abstract middleware layer (RMW)
Motion
planning
Localization
and mapping
Computer
Vision
3D data
processing
Robot control
ROS client library (& drivers)
DDS Vortex
XRCE
Huawei
TSN (Ethernet)
IEEE 802.1
• Global time
• Schedule
Time Deterministic
Network
(Guaranteed Latency)
5G (Wireless)

25. Leading EDGE COMPUTING 2525
Architecture I: Cloud of Robots X AI
ADLINK
ROS2
controller
Smart
Camera
5G EPC+MEC
EtherCAT
passed failed
pick & place
Defect
check
1. Dynamic
trajectory
inference
Motion control
deploy
deploy pretrained model
new result
new result
2. Advanced
analytics

26. Leading EDGE COMPUTING 2626
ROS 2

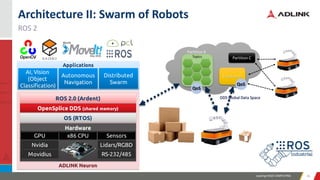

Architecture II: Swarm of Robots

27. Leading EDGE COMPUTING 2727

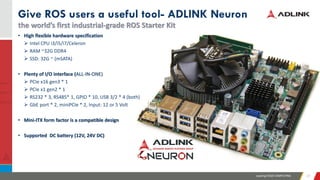

Give ROS users a useful tool- ADLINK Neuron
the world’s first industrial-grade ROS Starter Kit
• High flexible hardware specification
➢ Intel CPU i3/i5/i7/Celeron
➢ RAM ~32G DDR4
➢ SSD: 32G ~ (mSATA)
• Plenty of I/O interface (ALL-IN-ONE)
➢ PCIe x16 gen3 * 1
➢ PCIe x1 gen2 * 1
➢ RS232 * 3, RS485* 1, GPIO * 10, USB 3/2 * 4 (both)
➢ GbE port * 2, miniPCIe * 2, Input: 12 or 5 Volt
• Mini-ITX form factor is a compatible design
• Supported DC battery (12V, 24V DC)

28. Leading EDGE COMPUTING 2828

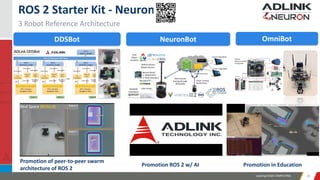

3 Robot Reference Architecture
ROS 2 Starter Kit - Neuron
DDSBot NeuronBot OmniBot
Promotion of peer-to-peer swarm
architecture of ROS 2
Promotion ROS 2 w/ AI Promotion in Education

29. Leading EDGE COMPUTING 2929

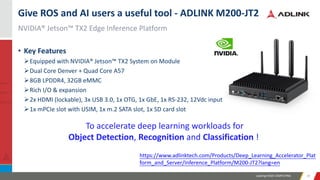

NVIDIA® Jetson™ TX2 Edge Inference Platform
Give ROS and AI users a useful tool - ADLINK M200-JT2
• Key Features
➢Equipped with NVIDIA® Jetson™ TX2 System on Module
➢Dual Core Denver + Quad Core A57
➢8GB LPDDR4, 32GB eMMC
➢Rich I/O & expansion
➢2x HDMI (lockable), 3x USB 3.0, 1x OTG, 1x GbE, 1x RS-232, 12Vdc input
➢1x mPCIe slot with USIM, 1x m.2 SATA slot, 1x SD card slot
https://www.adlinktech.com/Products/Deep_Learning_Accelerator_Plat
form_and_Server/Inference_Platform/M200-JT2?lang=en
To accelerate deep learning workloads for
Object Detection, Recognition and Classification !

30. Leading EDGE COMPUTING 3030

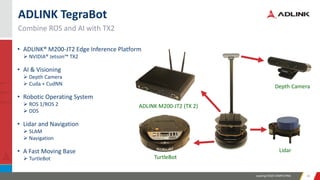

• ADLINK® M200-JT2 Edge Inference Platform
➢ NVIDIA® Jetson™ TX2
• AI & Visioning
➢ Depth Camera
➢ Cuda + CudNN
• Robotic Operating System
➢ ROS 1/ROS 2
➢ DDS
• Lidar and Navigation
➢ SLAM
➢ Navigation
• A Fast Moving Base
➢ TurtleBot
Combine ROS and AI with TX2
ADLINK TegraBot
Depth Camera
Lidar
TurtleBot
ADLINK M200-JT2 (TX 2)

31. Leading EDGE COMPUTING 3131

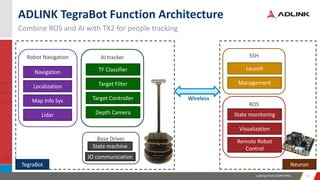

ADLINK TegraBot Function Architecture
Robot Navigation
Localization
Lidar
Navigation
Map Info Sys
AI tracker
Target Filter
Depth Camera
TF Classifier
Target Controller
Base Driver
State machine
IO communication
ROS
Visualization
State monitoring
Remote Robot
Control
SSH
Management
Launch
TegraBot Neuron
Wireless
Combine ROS and AI with TX2 for people tracking

32. Leading EDGE COMPUTING 3232

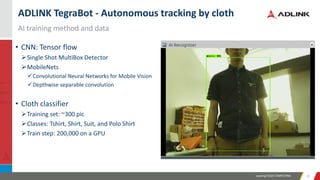

AI training method and data
ADLINK TegraBot - Autonomous tracking by cloth
• CNN: Tensor flow
➢Single Shot MultiBox Detector
➢MobileNets
✓Convolutional Neural Networks for Mobile Vision
✓Depthwise separable convolution
• Cloth classifier
➢Training set: ~300 pic
➢Classes: Tshirt, Shirt, Suit, and Polo Shirt
➢Train step: 200,000 on a GPU

33. Leading EDGE COMPUTING 3333

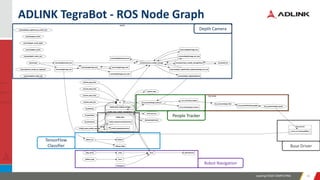

ADLINK TegraBot - ROS Node Graph
Depth Camera
People Tracker
TensorFlow
Classifier Base Driver
Robot Navigation

34. Leading EDGE COMPUTING 3434

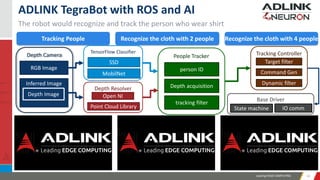

The robot would recognize and track the person who wear shirt
ADLINK TegraBot with ROS and AI
Tracking People Recognize the cloth with 2 people Recognize the cloth with 4 people
Depth Camera
RGB Image
Inferred Image
Depth Image
TensorFlow Classifier
SSD
MobilNet
People Tracker
person ID
Depth acquisition
tracking filter
Tracking Controller
Target filter
Command Gen
Dynamic filter
Depth Resolver
Open NI
Point Cloud Library
Base Driver
State machine IO comm

35. Leading EDGE COMPUTING 3535
Power by ADLINK, ROS-I, ABB
ADLINK use ROS to control ABB robot arm
https://www.youtube.com/watch?v=q-ansSW0Cec

36. Leading EDGE COMPUTING 3636
https://neuron.adlinktech.com
ROS 2 Starter Kit - Neuron

37. Leading EDGE COMPUTING 3737
ADLINK’s experience in ROS/DDS training course
Hsin-Ming Youth Hub, Taoyuan City Government, Taiwan Automotive component manufacturing company, Japan

38. Leading EDGE COMPUTING 3838
