The document discusses the importance of observability in software systems, emphasizing metrics, logs, and traces as essential components for monitoring application and infrastructure performance. It highlights using tools like real-user monitoring and synthetics together to gain insights into user experiences and application reliability. Scenarios are presented to illustrate how various monitoring techniques can function in identifying issues, ensuring that systems can be optimized for performance and responsiveness.

1. 1 0 0 % V I S I B I L I T Y
H O L I S T I C A L LY V I E W I N G S Y S T E M S

2. A M B I G U O U S C Y L I N D E R S
P E R S P E C T I V E M AT T E R S

3. J A S O N Y E E
D O C S & TA L K S
T R AV E L H A C K E R
P O K E M O N T R A I N E R
W H I S K E Y H U N T E R
T W: @ g i t b i s e c t
E M : j y e e @ d a t a d o g h q . c o m

4. D ATA D O G
S A A S - B A S E D M O N I T O R I N G
T R I L L I O N S O F P O I N T S / D AY
W E ’ R E H I R I N G :
j o b s . d a t a d o g h q . c o m
T W: @ d a t a d o g h q

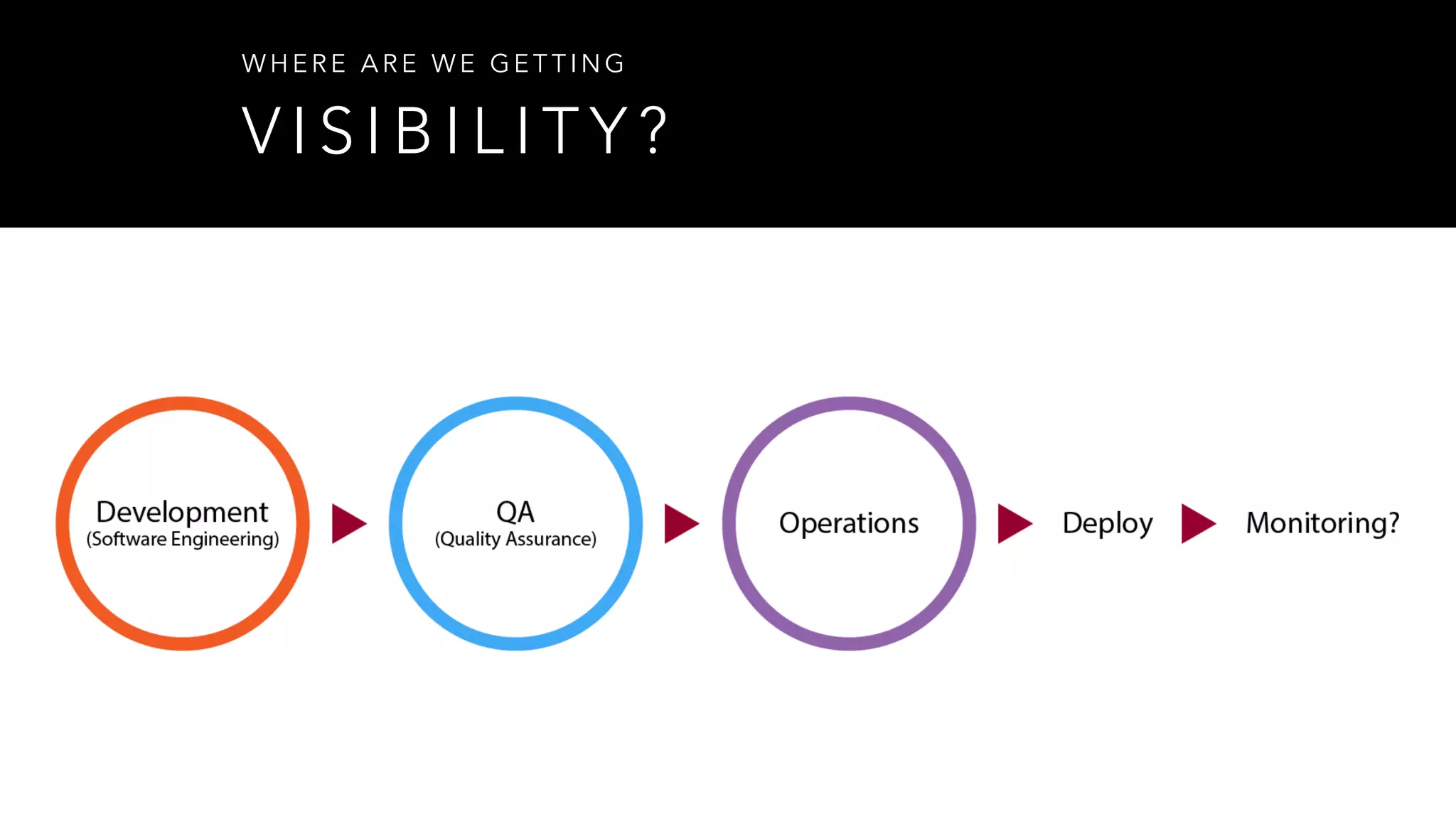

5. V I S I B I L I T Y ?
W H E R E A R E W E G E T T I N G

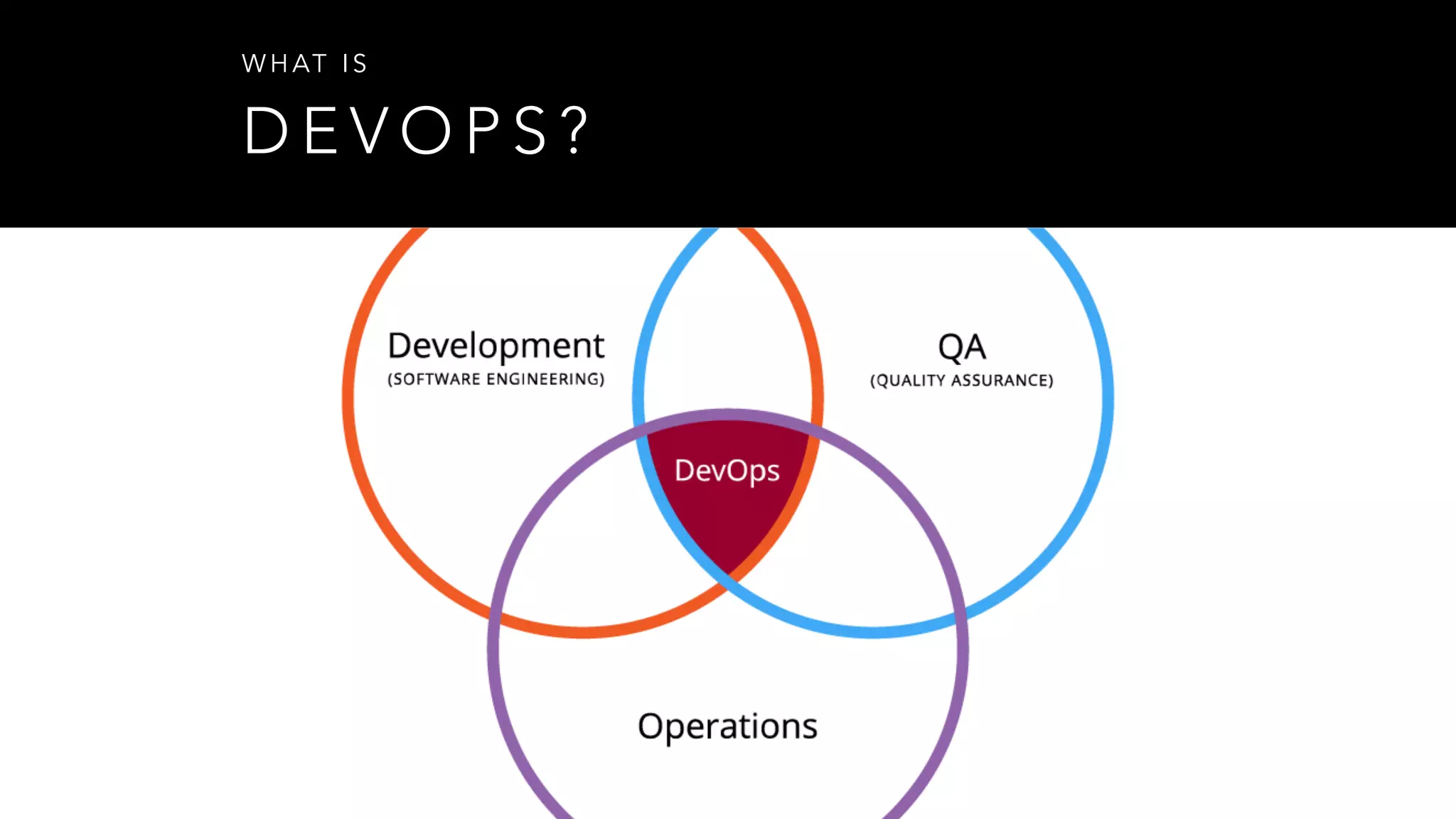

6. D E V O P S ?
W H AT I S

7. C u l t u re , A u t o m a t i o n , M e t r i c s , S h a r i n g
D E V O P S I S

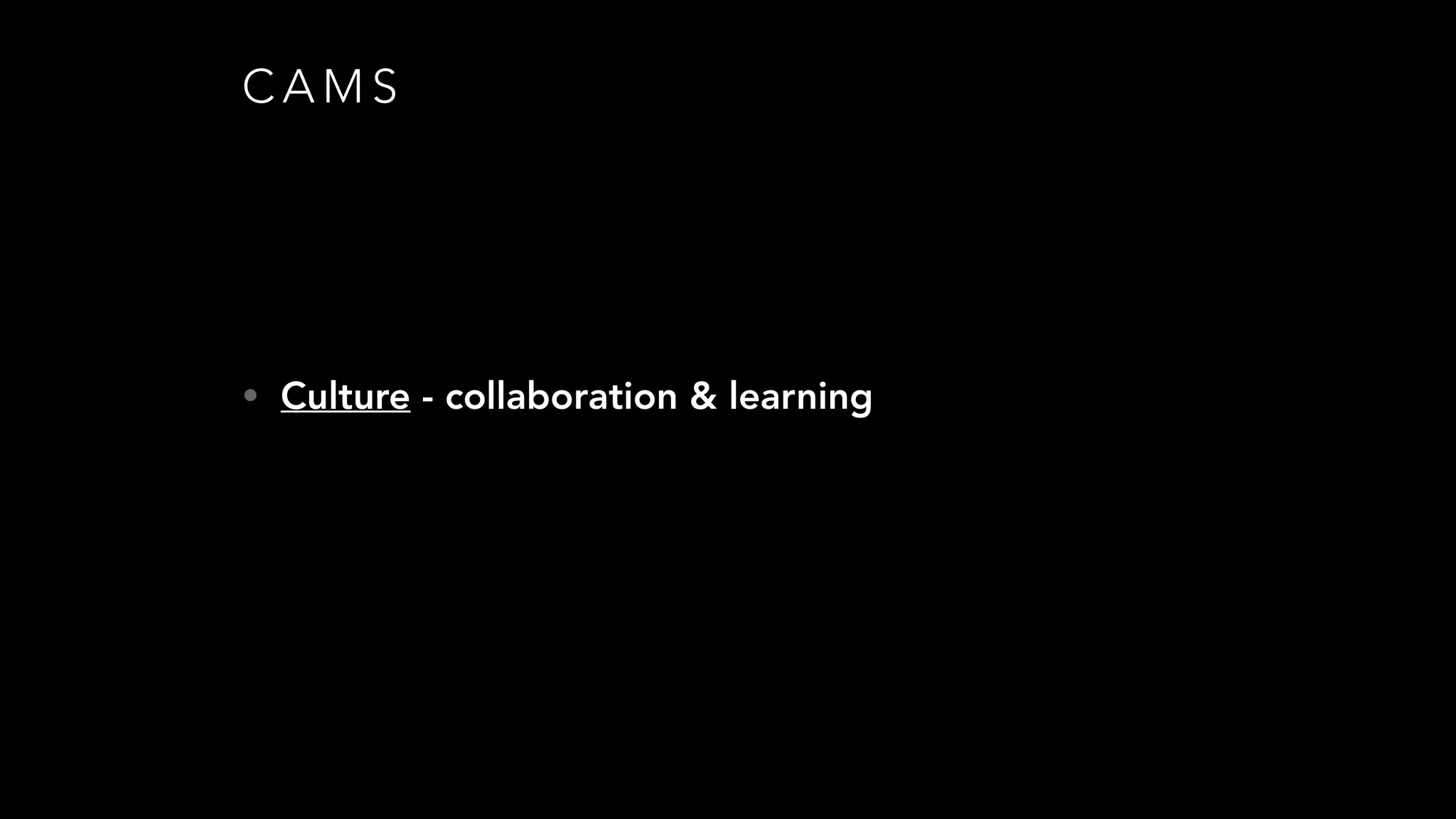

8. C A M S
• Culture - collaboration & learning

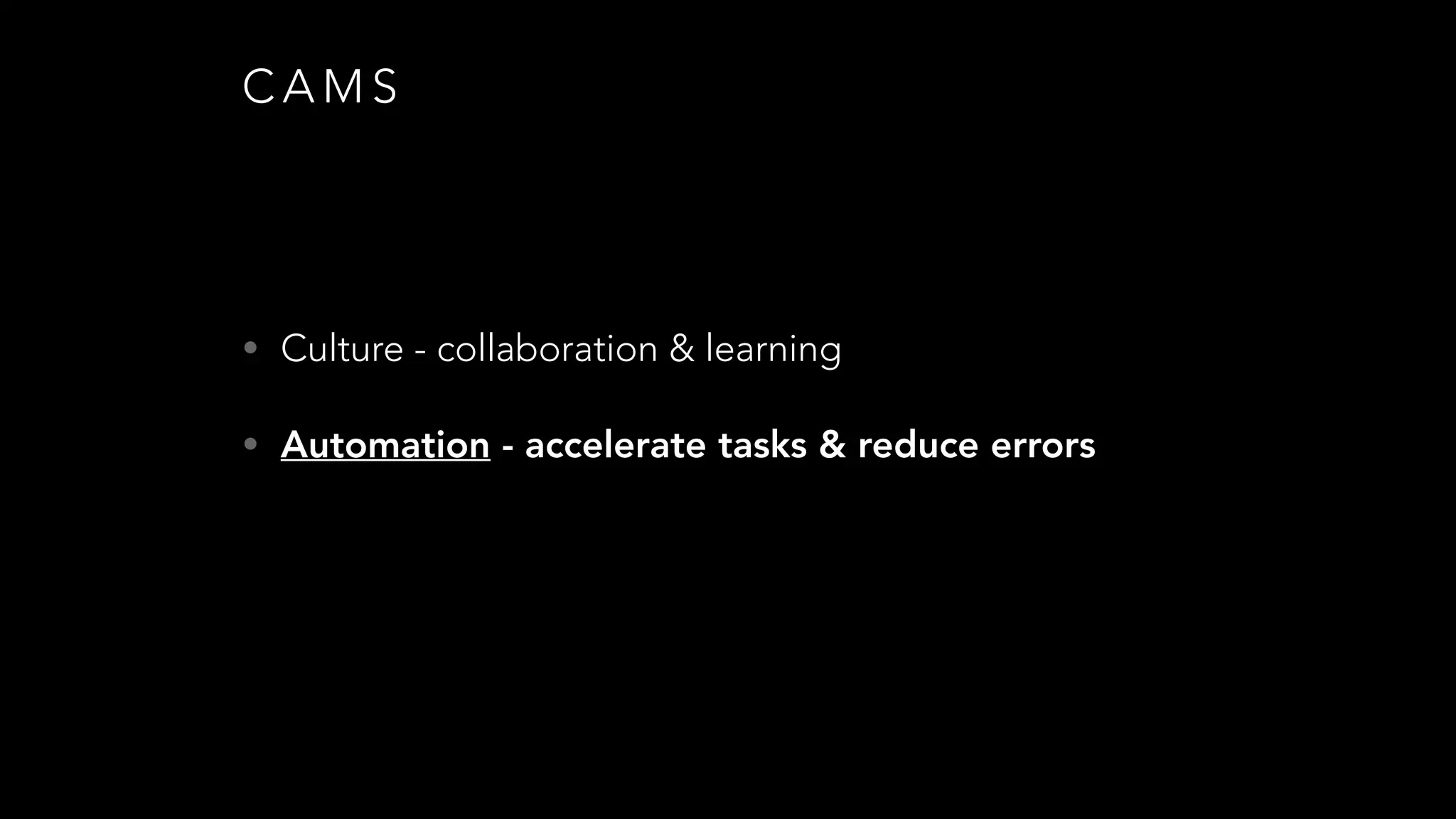

9. C A M S
• Culture - collaboration & learning
• Automation - accelerate tasks & reduce errors

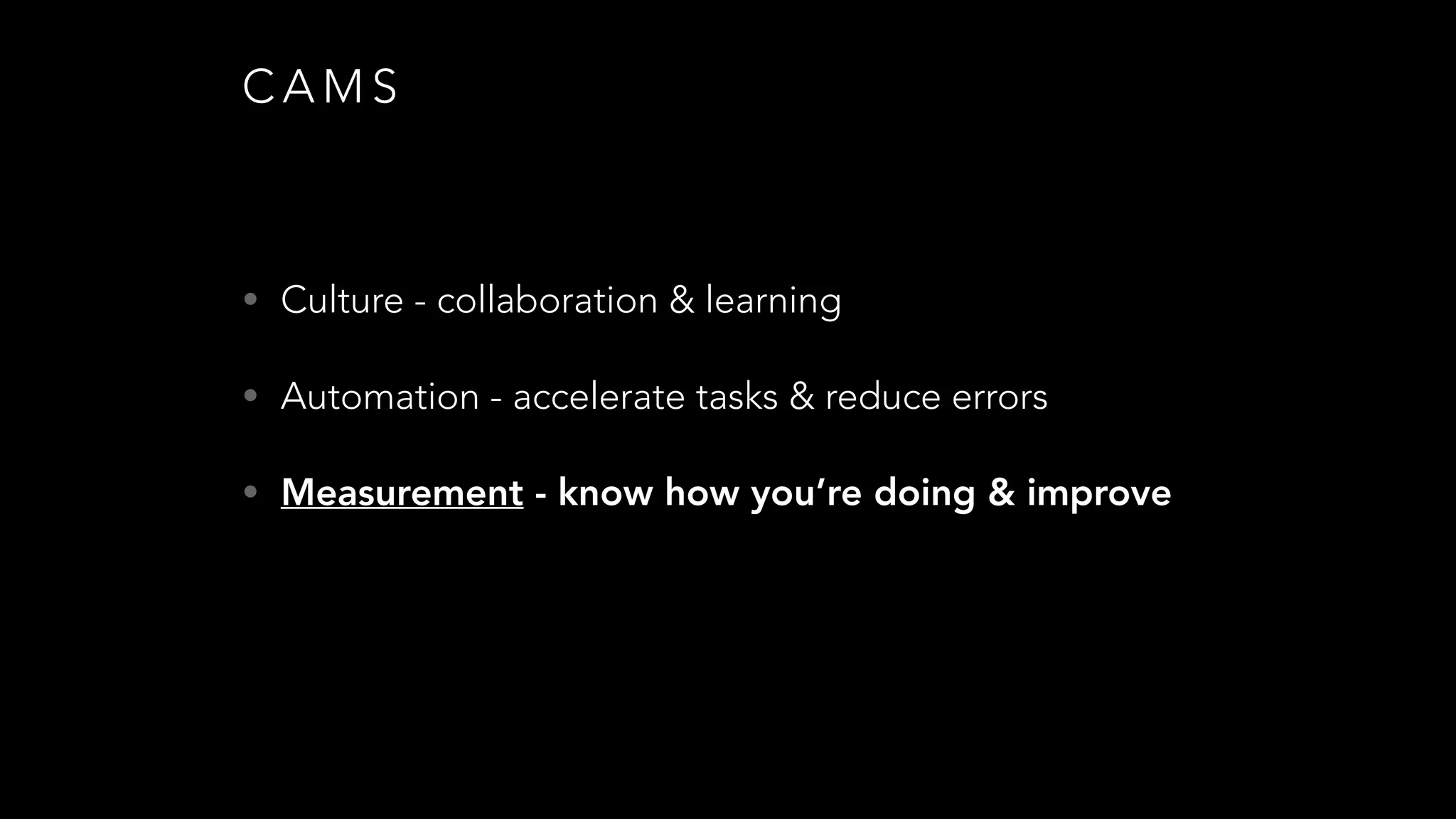

10. C A M S
• Culture - collaboration & learning
• Automation - accelerate tasks & reduce errors
• Measurement - know how you’re doing & improve

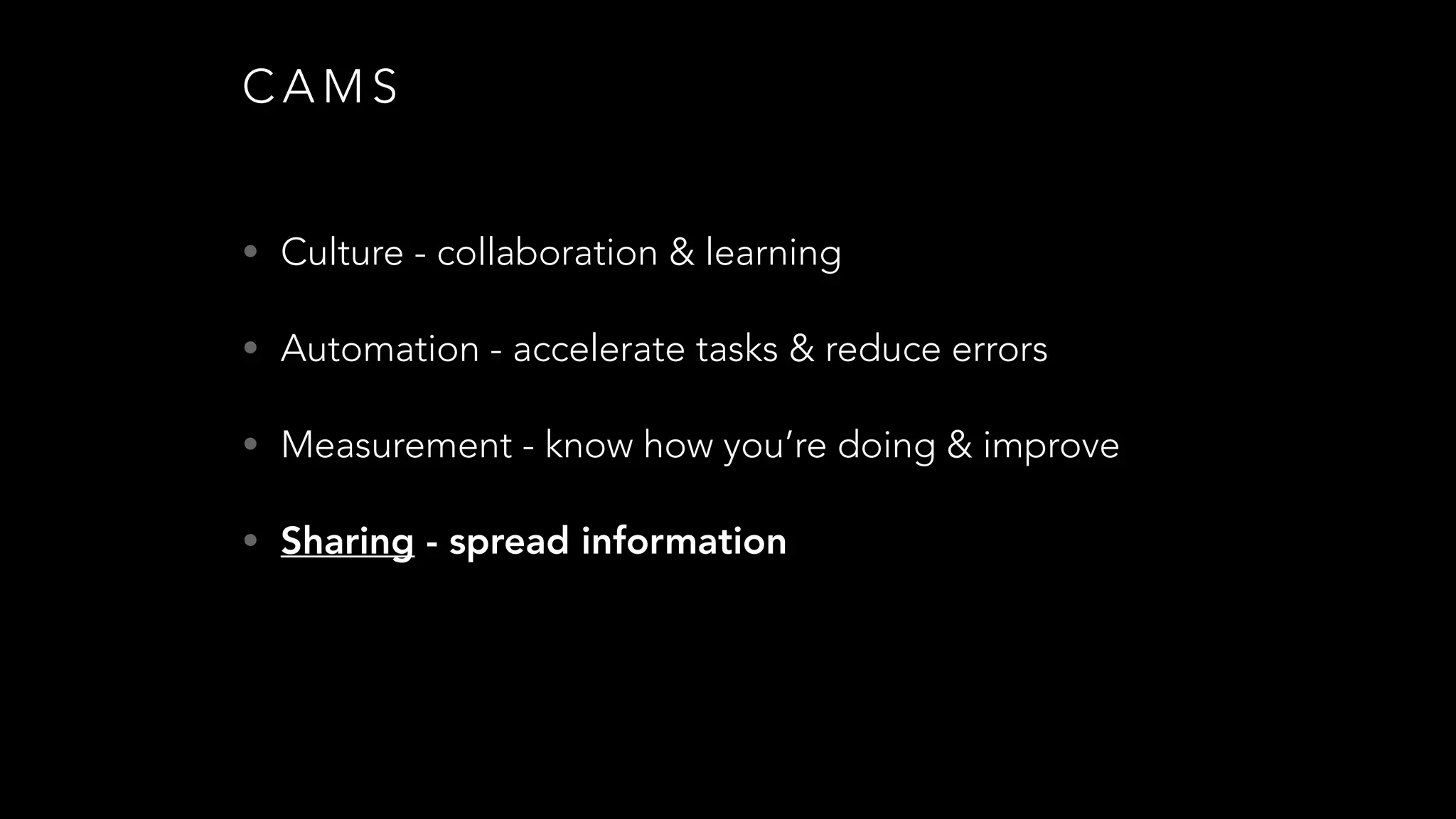

11. C A M S
• Culture - collaboration & learning
• Automation - accelerate tasks & reduce errors
• Measurement - know how you’re doing & improve
• Sharing - spread information

13. This is not DevOps

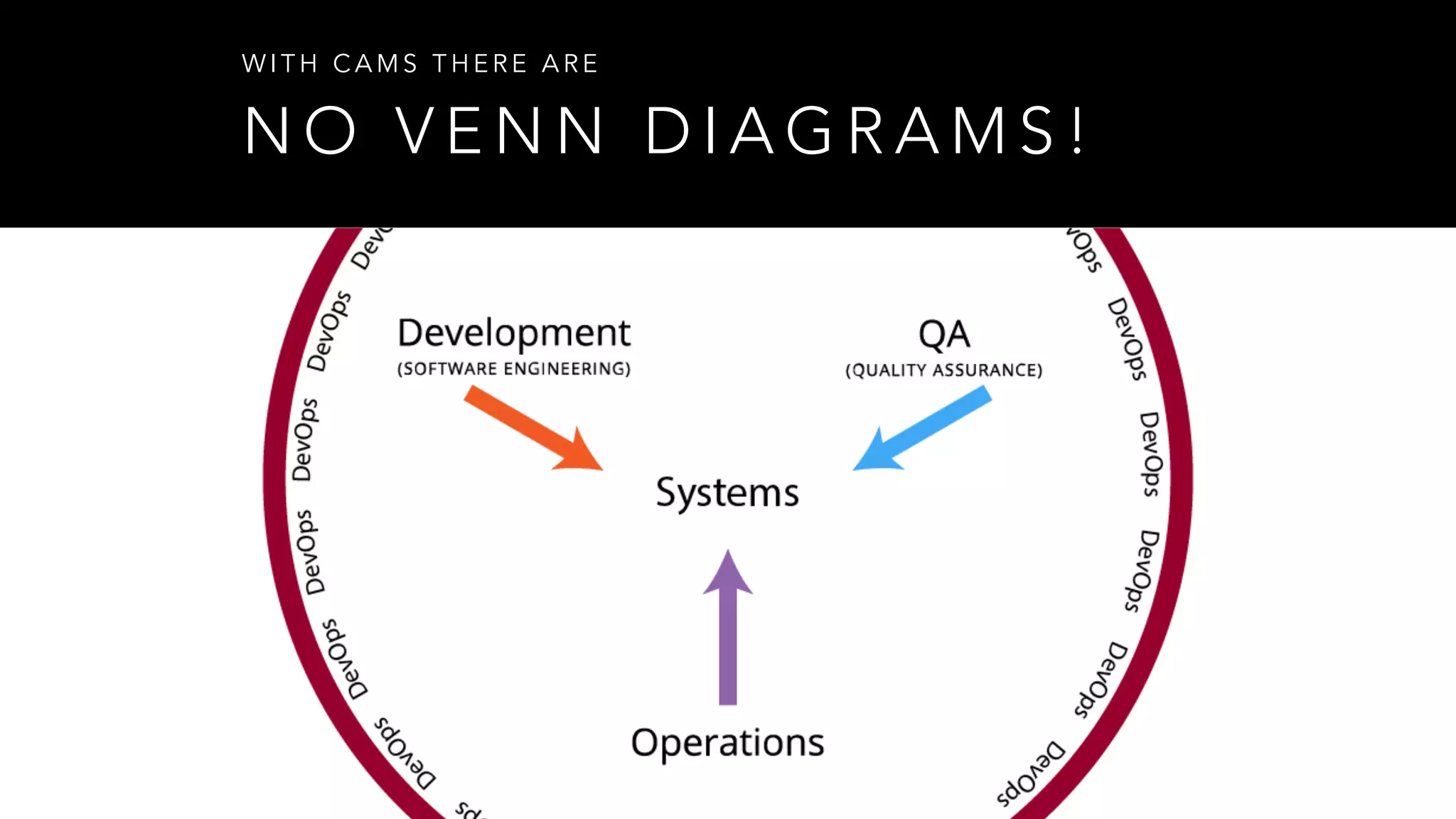

14. N O V E N N D I A G R A M S !
W I T H C A M S T H E R E A R E

15. T H E S TA C K
T H E T R A D I T I O N A L V I E W O F

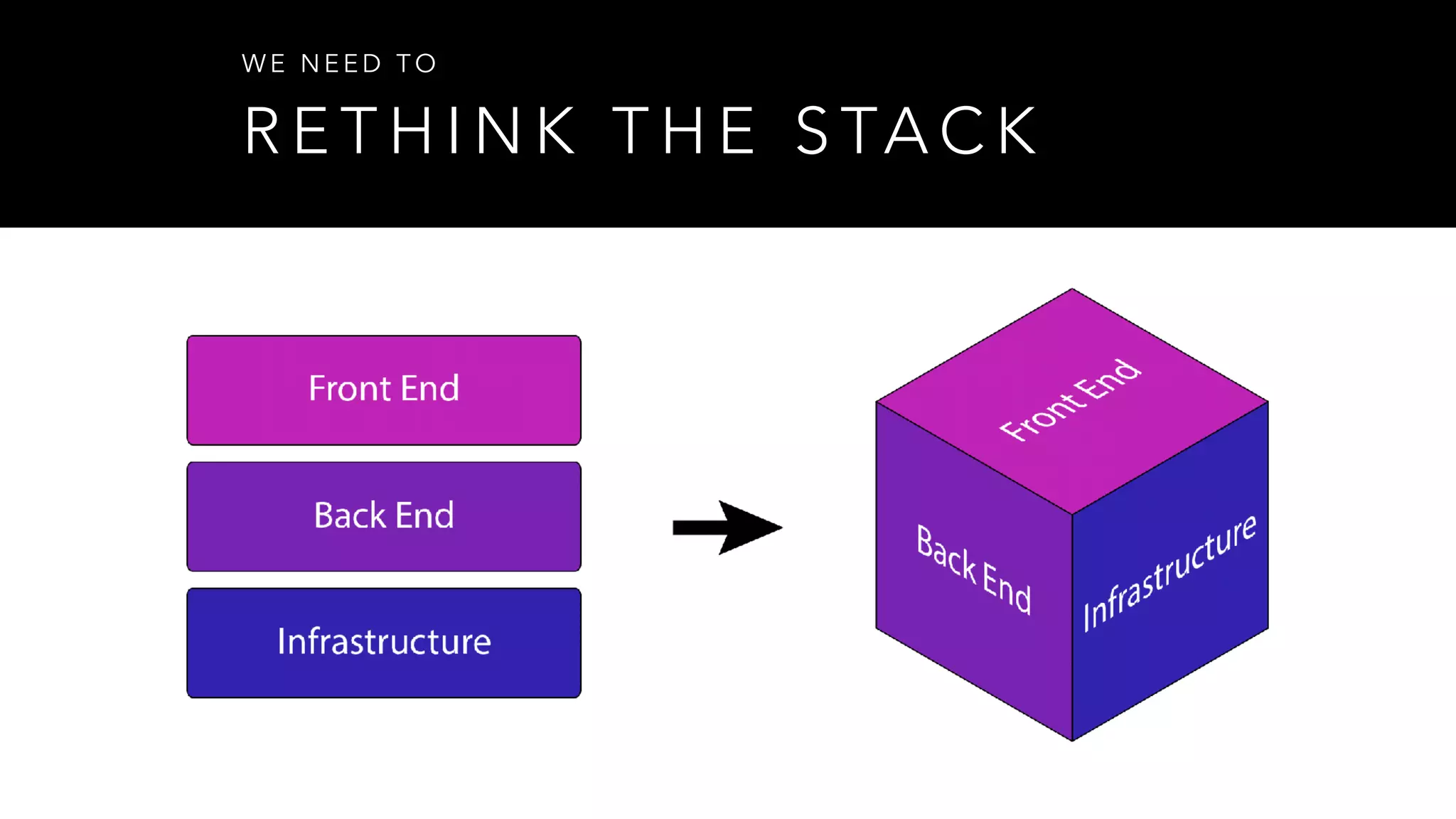

16. R E T H I N K T H E S TA C K
W E N E E D T O

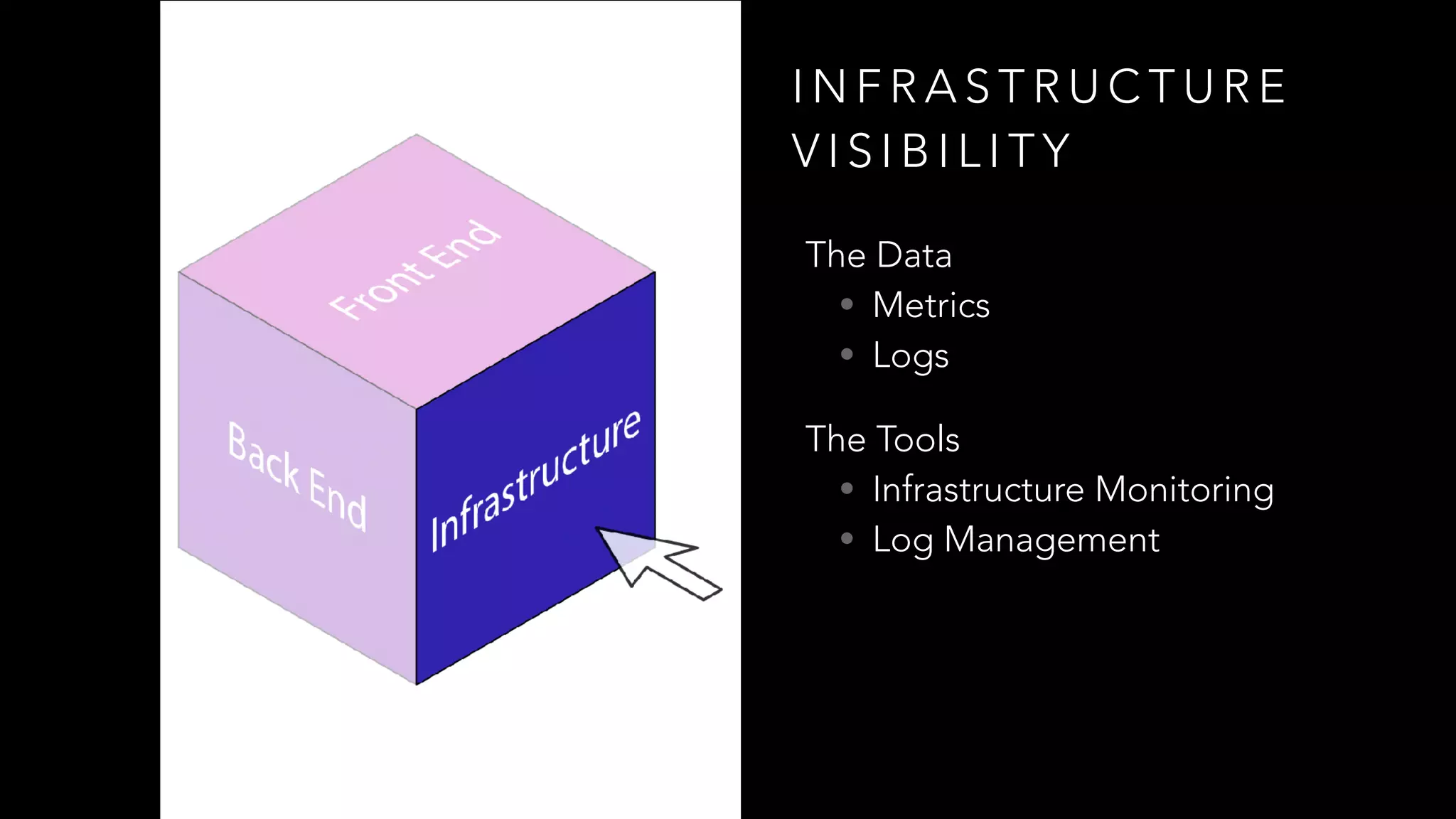

17. I N F R A S T R U C T U R E
V I S I B I L I T Y
The Data
• Metrics
• Logs
The Tools
• Infrastructure Monitoring
• Log Management

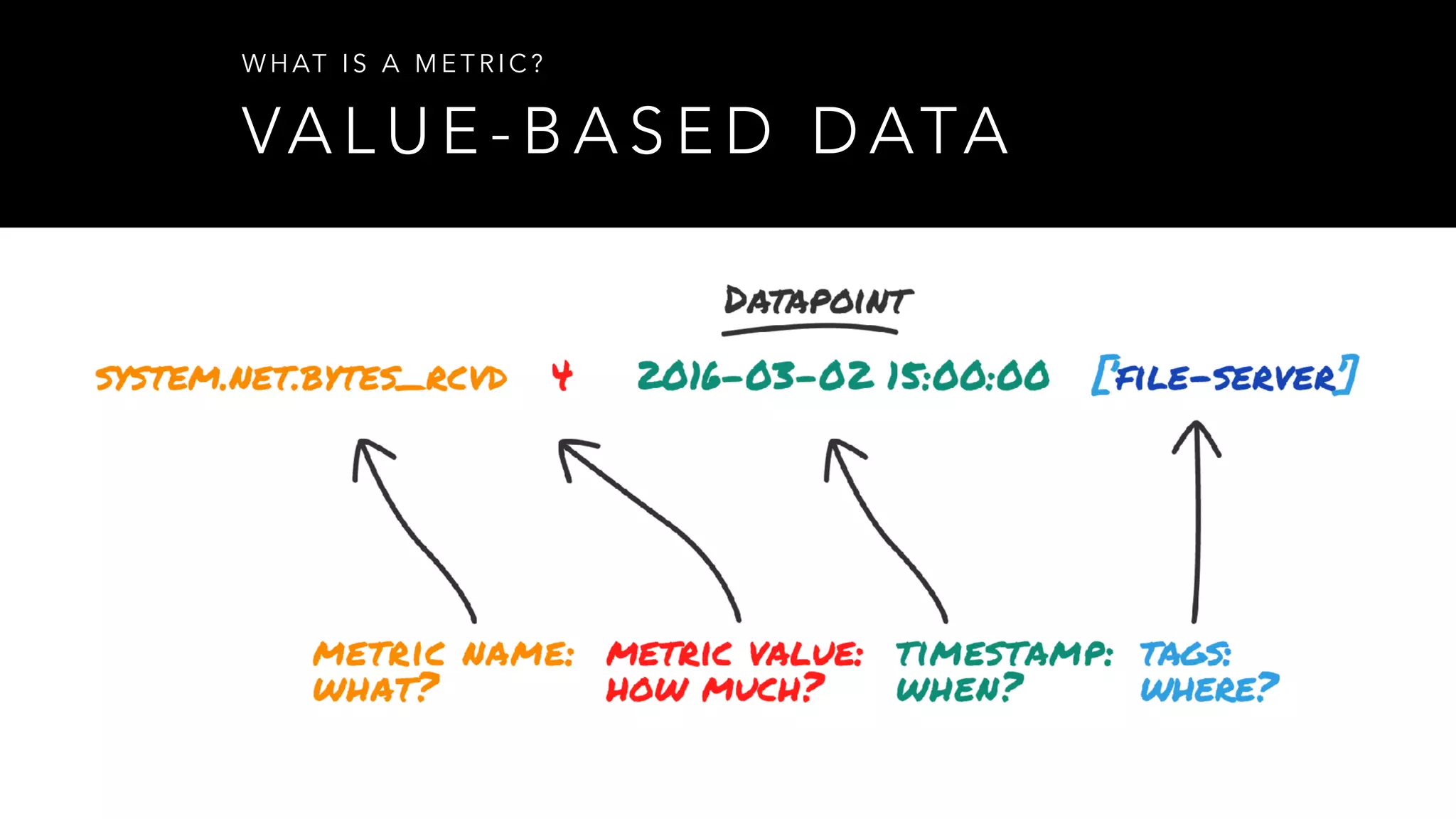

18. VA L U E - B A S E D D ATA
W H AT I S A M E T R I C ?

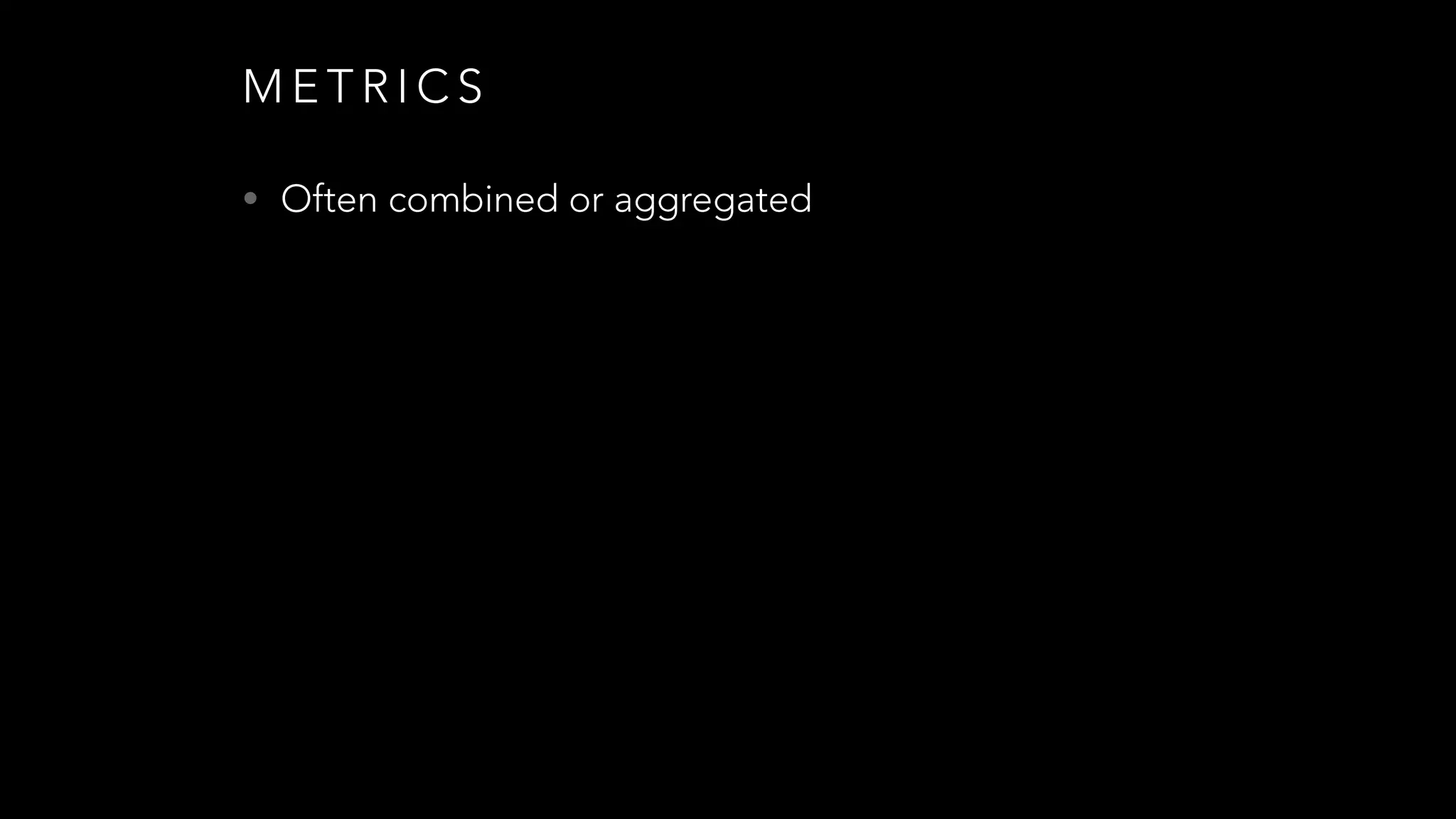

19. M E T R I C S
• Often combined or aggregated

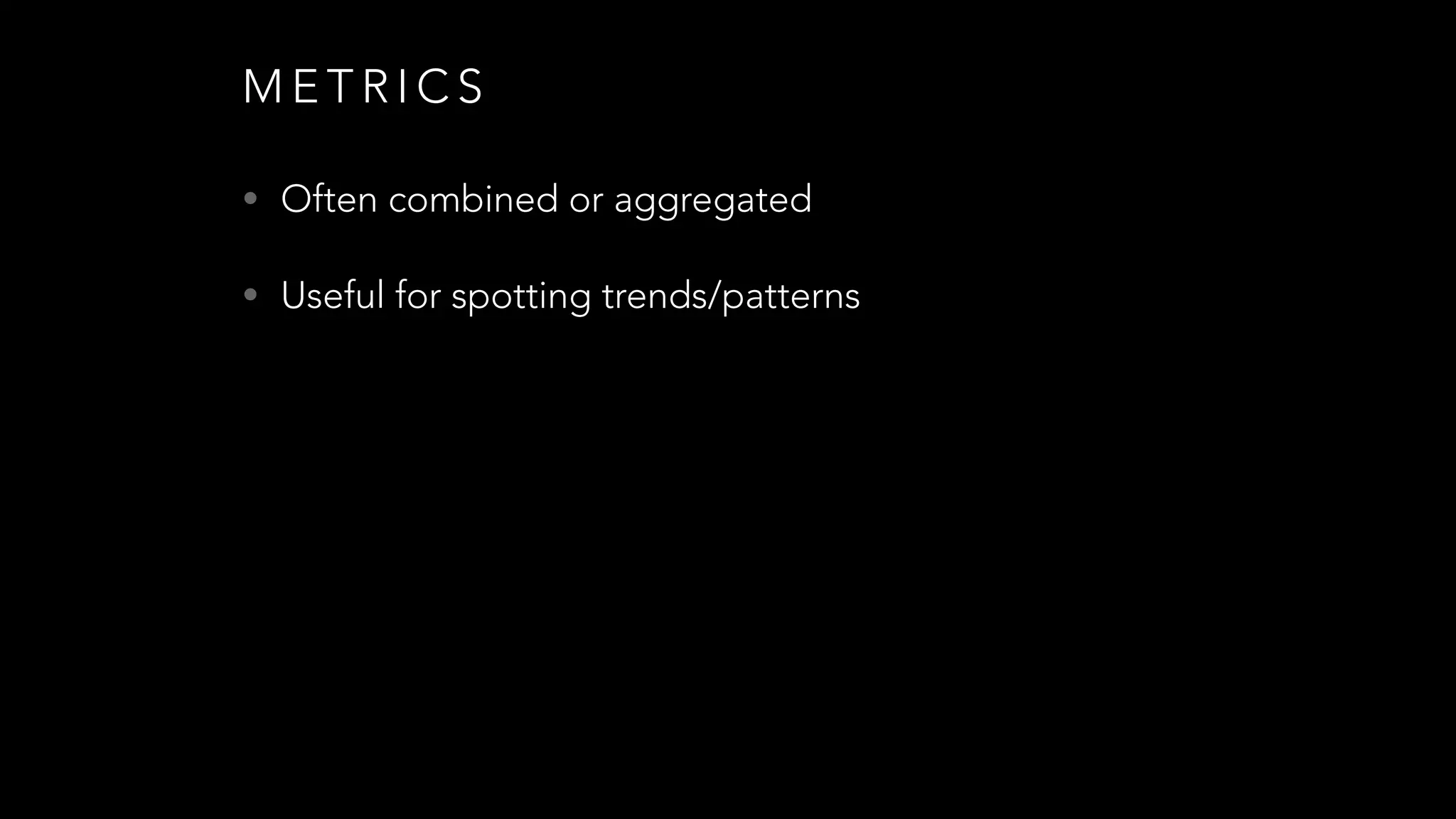

20. M E T R I C S
• Often combined or aggregated
• Useful for spotting trends/patterns

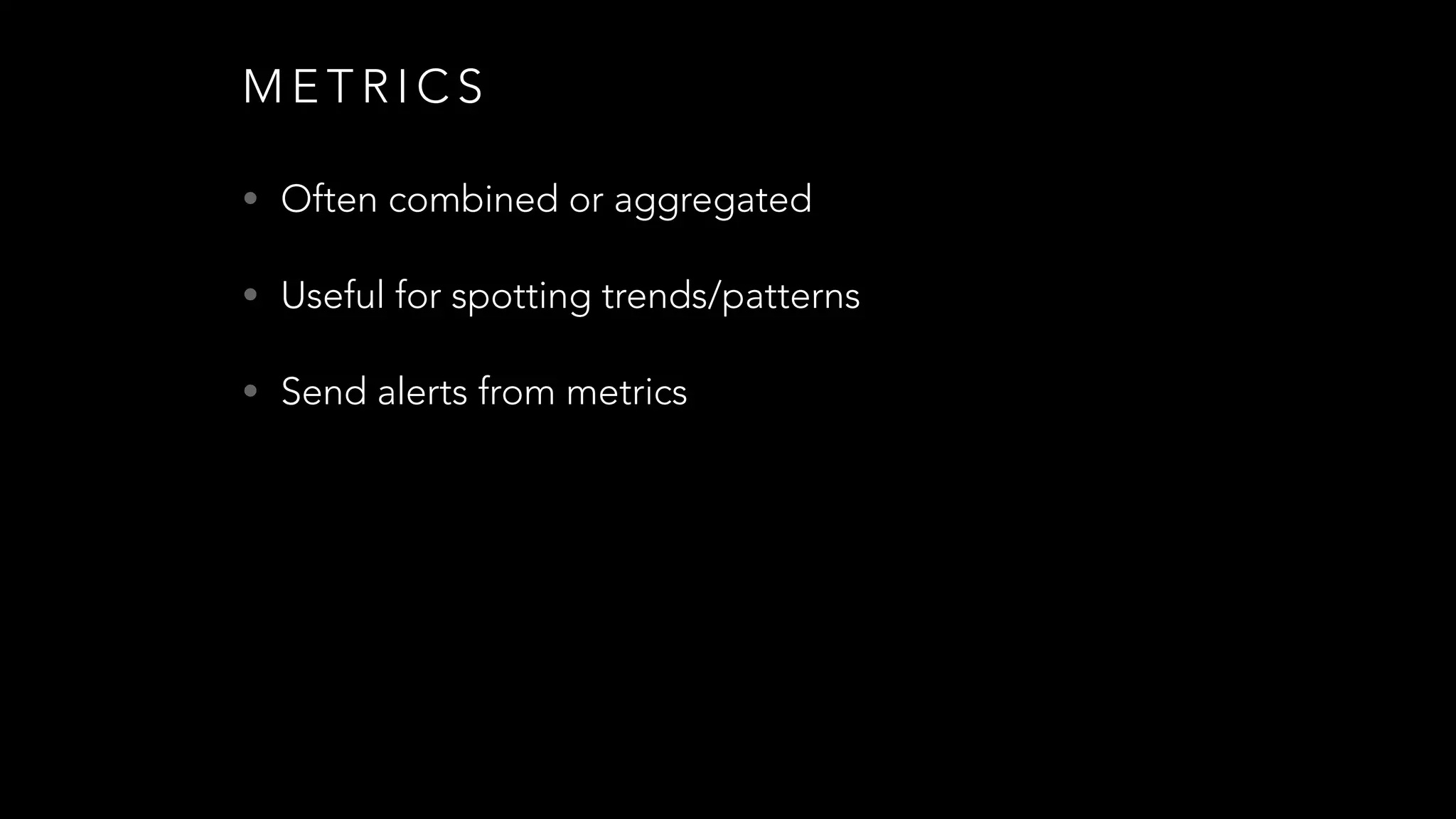

21. M E T R I C S
• Often combined or aggregated
• Useful for spotting trends/patterns
• Send alerts from metrics

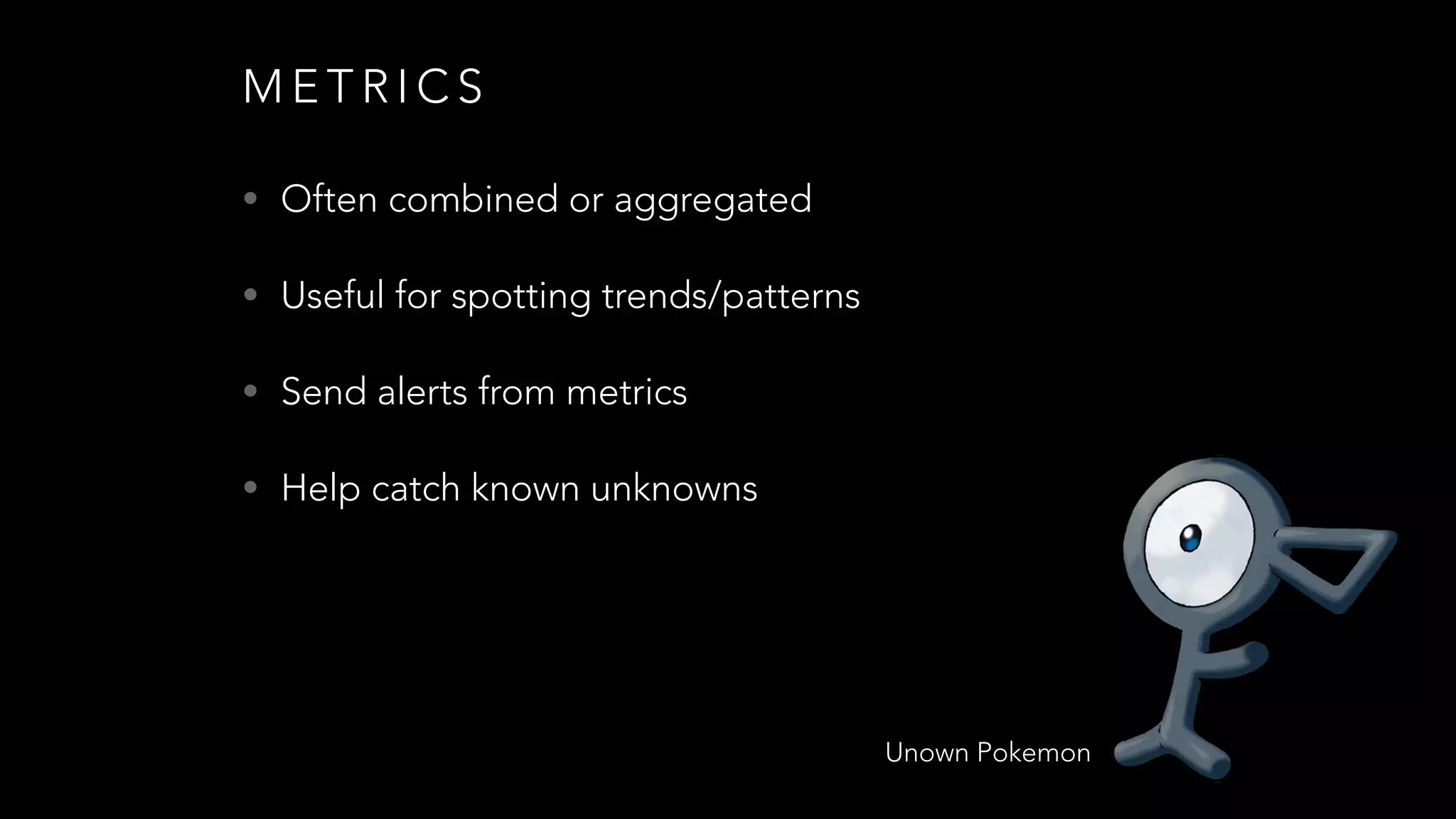

22. M E T R I C S
• Often combined or aggregated
• Useful for spotting trends/patterns
• Send alerts from metrics
• Help catch known unknowns
Unown Pokemon

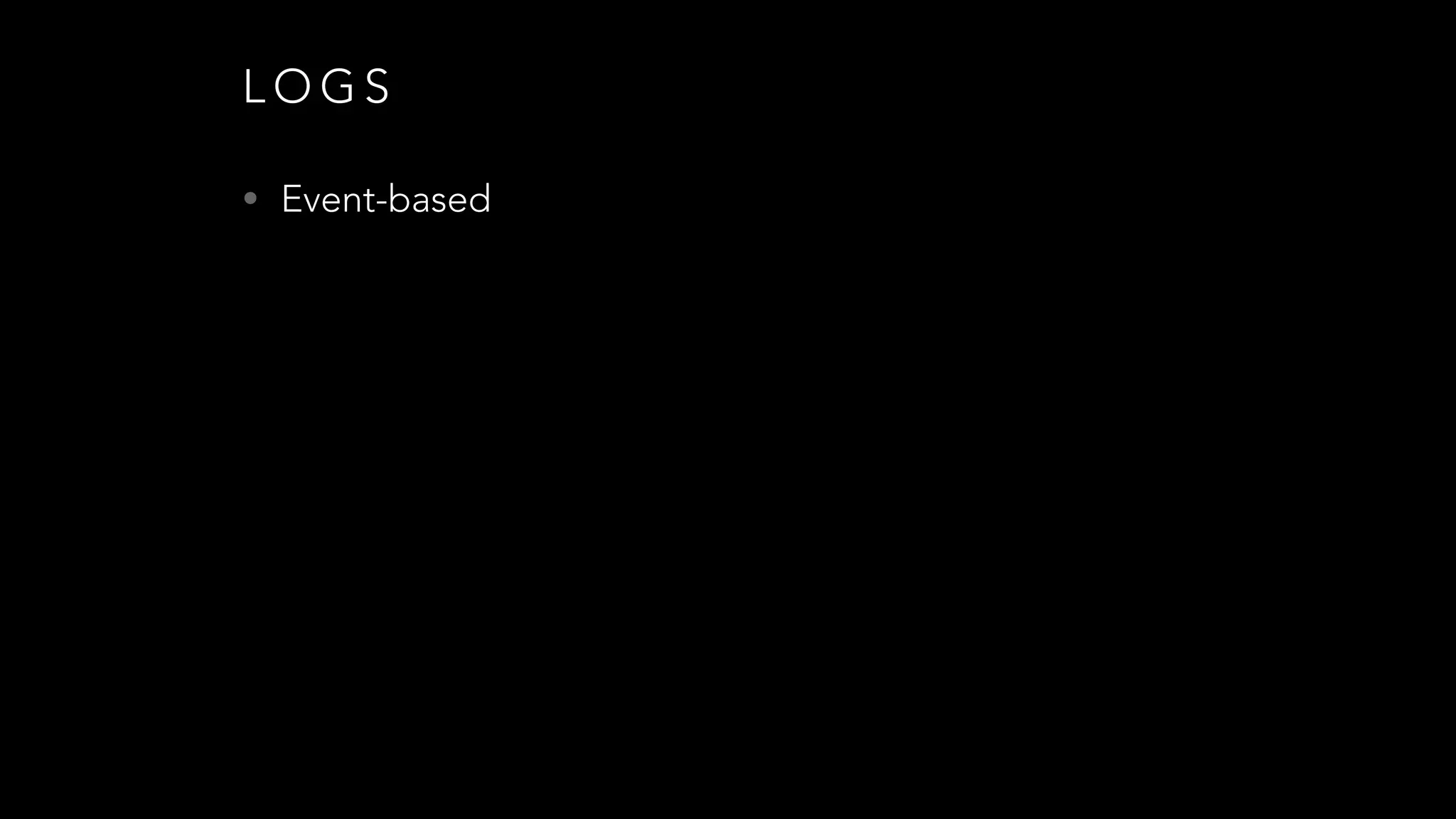

23. L O G S
• Event-based

24. L O G S
• Event-based
• Easy to read for humans

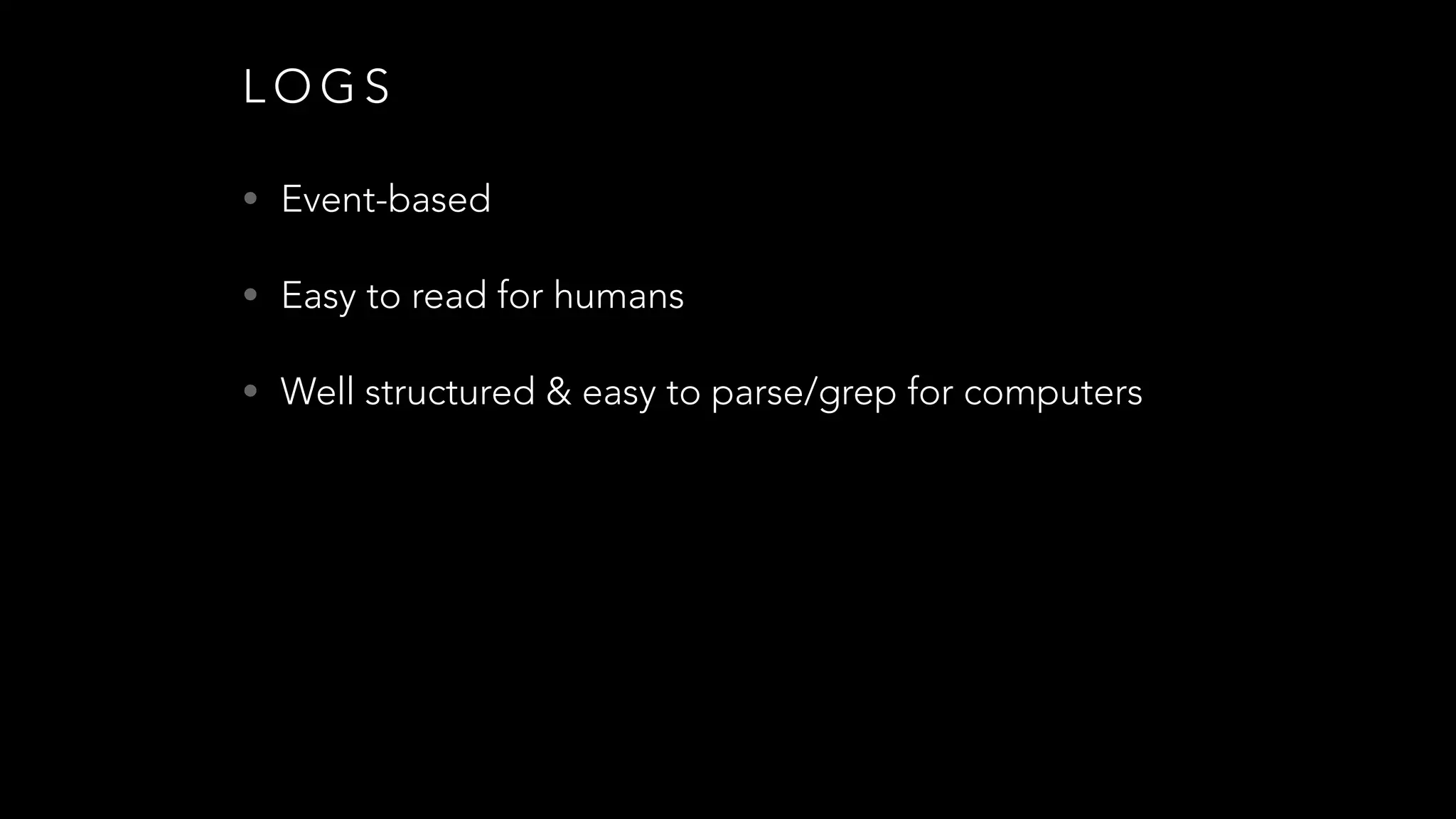

25. L O G S
• Event-based
• Easy to read for humans
• Well structured & easy to parse/grep for computers

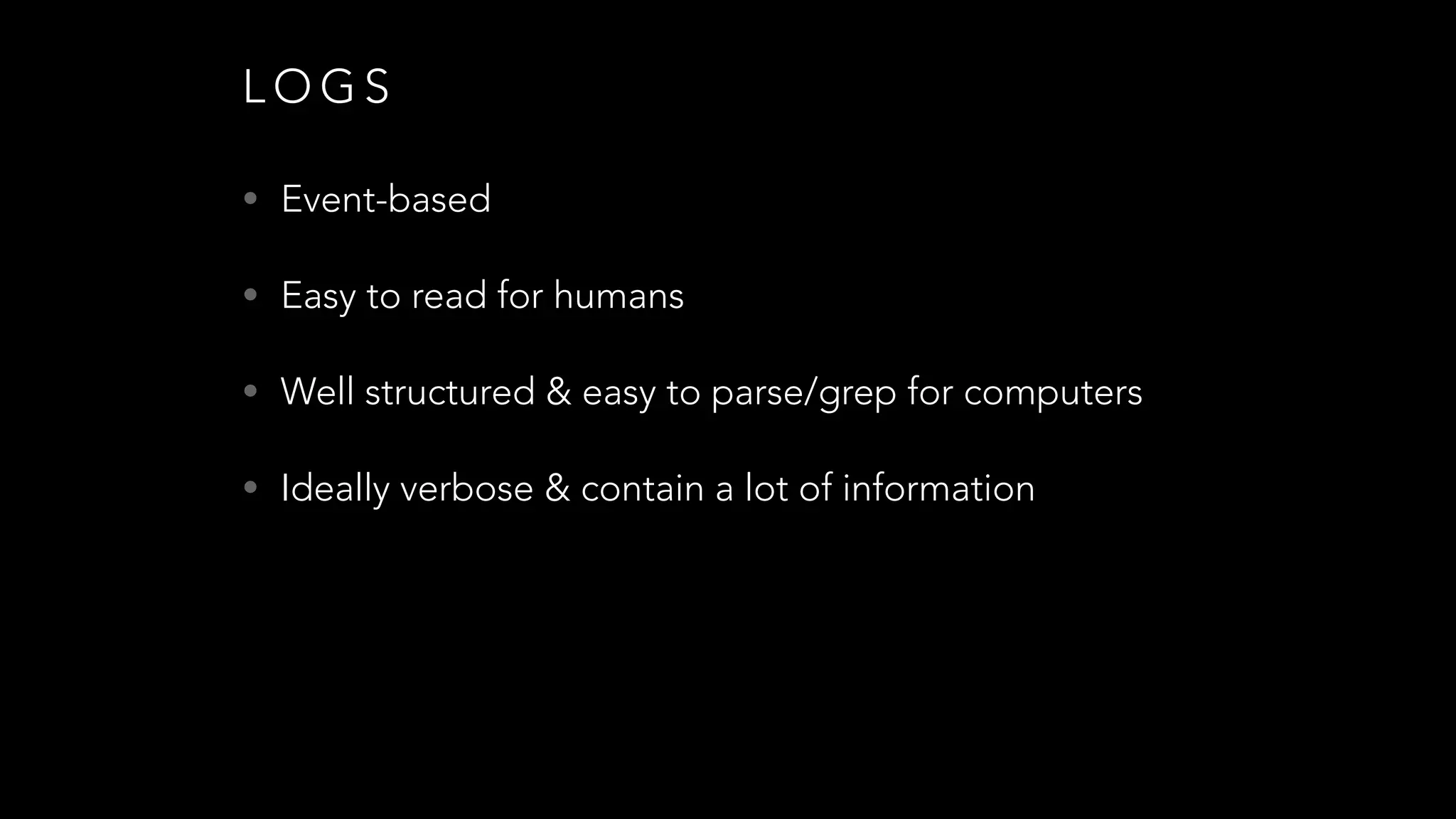

26. L O G S
• Event-based
• Easy to read for humans
• Well structured & easy to parse/grep for computers
• Ideally verbose & contain a lot of information

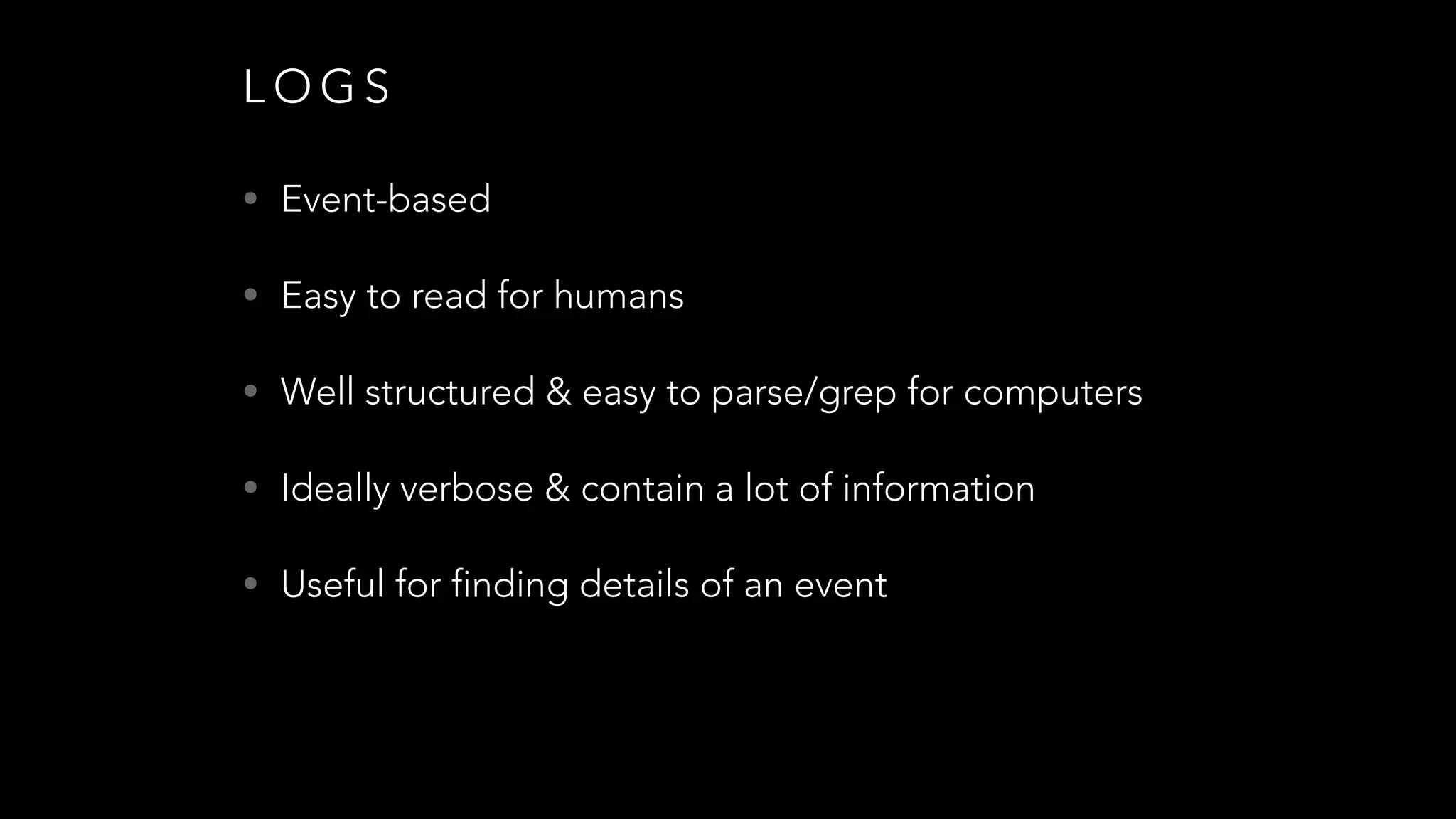

27. L O G S
• Event-based
• Easy to read for humans
• Well structured & easy to parse/grep for computers
• Ideally verbose & contain a lot of information
• Useful for finding details of an event

28. L O G S
• Event-based
• Easy to read for humans
• Well structured & easy to parse/grep for computers
• Ideally verbose & contain a lot of information
• Useful for finding details of an event
• Help catch unknown unknowns

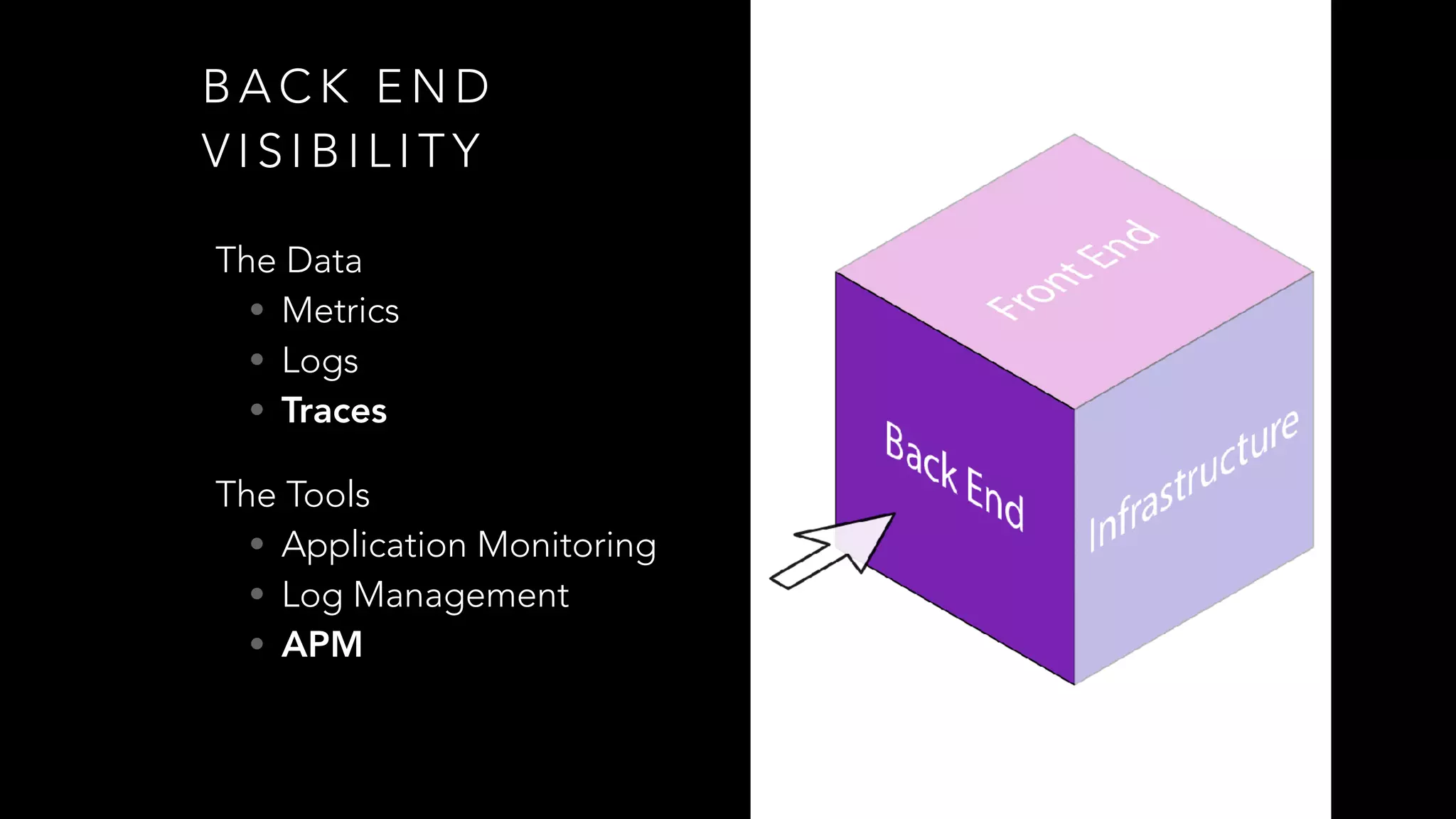

29. The Data
• Metrics
• Logs
• Traces
The Tools
• Application Monitoring
• Log Management
• APM
B A C K E N D
V I S I B I L I T Y

30. T R A C E S
• Request-based

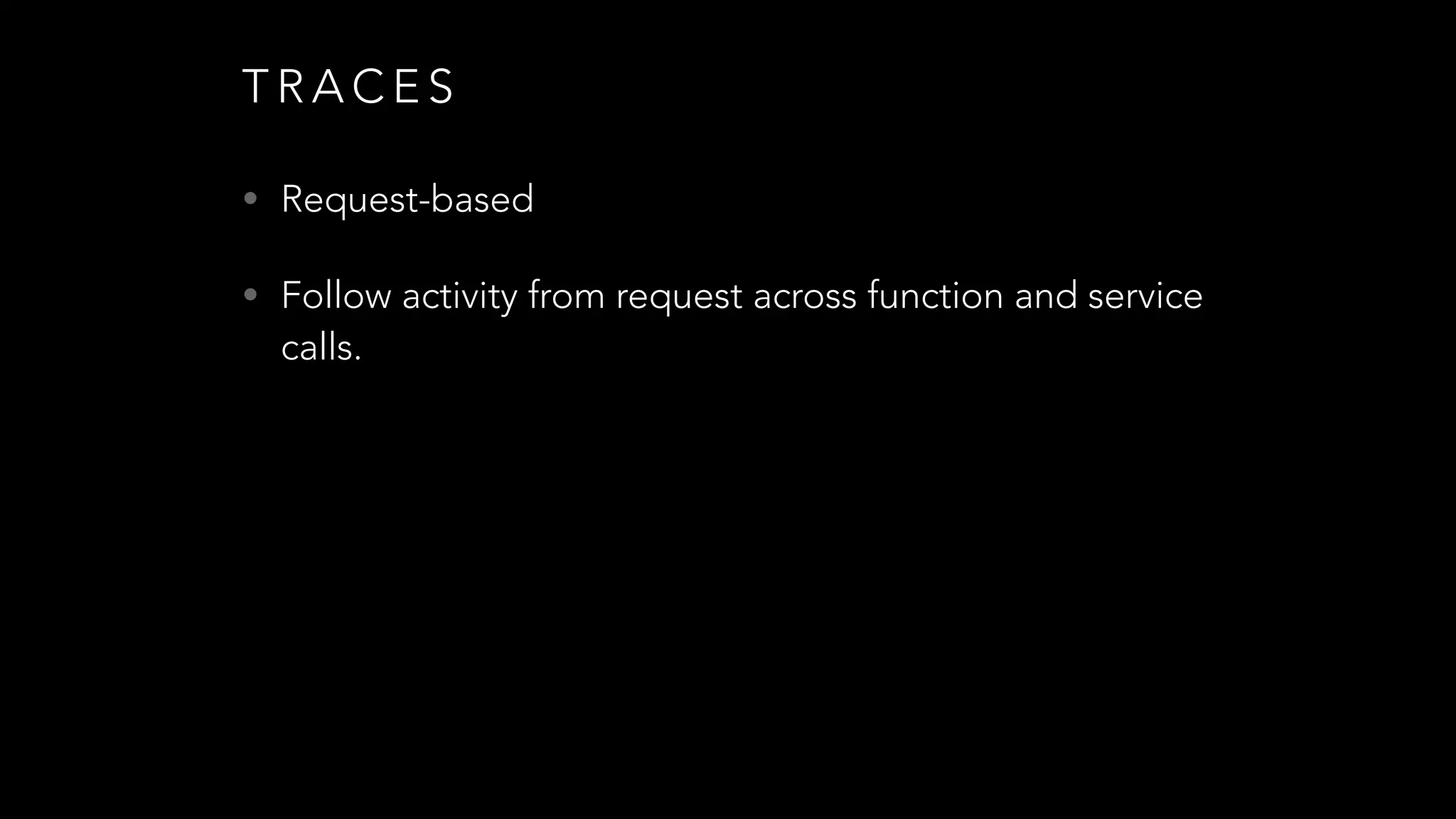

31. T R A C E S
• Request-based
• Follow activity from request across function and service
calls.

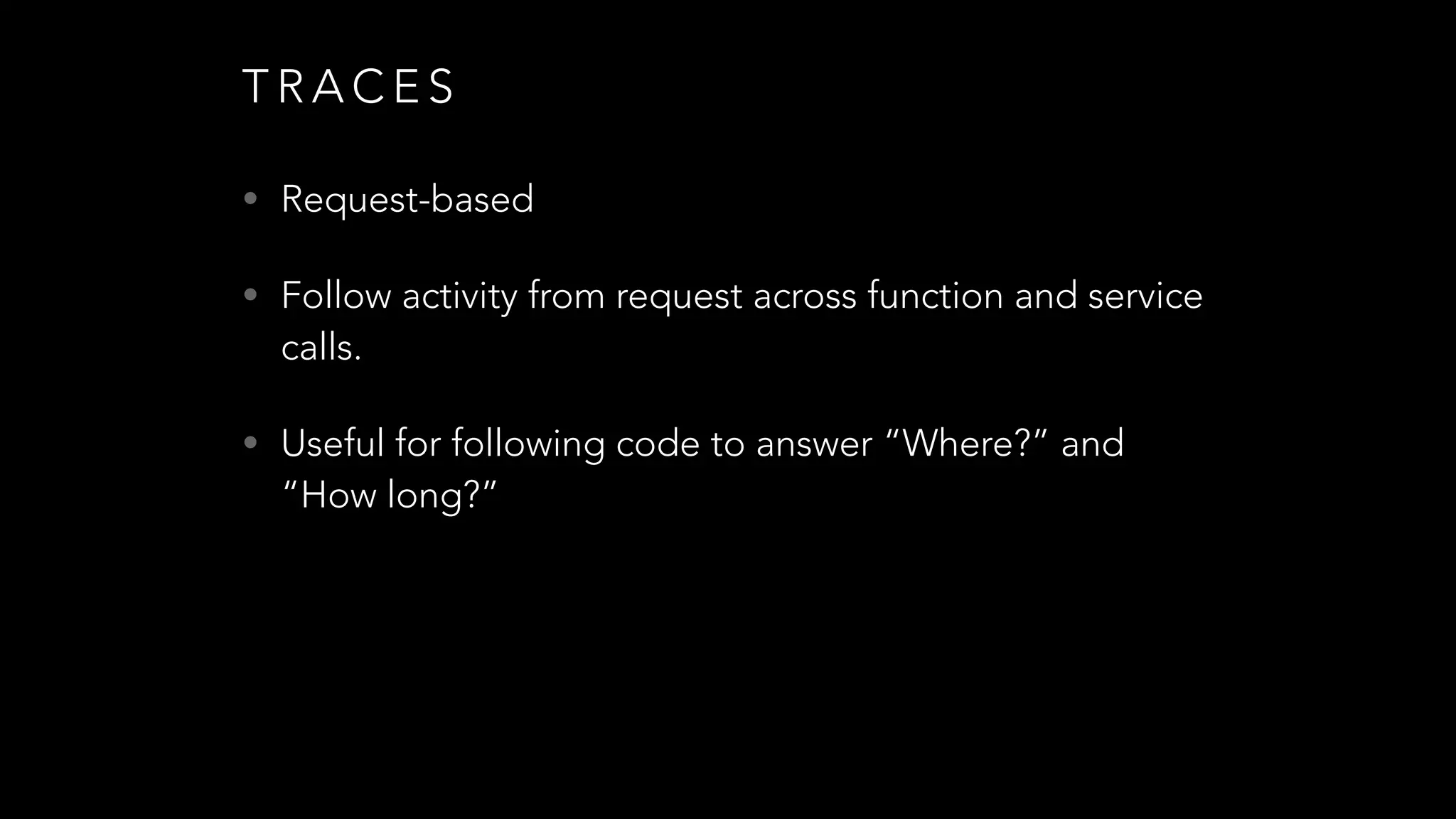

32. T R A C E S
• Request-based
• Follow activity from request across function and service
calls.
• Useful for following code to answer “Where?” and
“How long?”

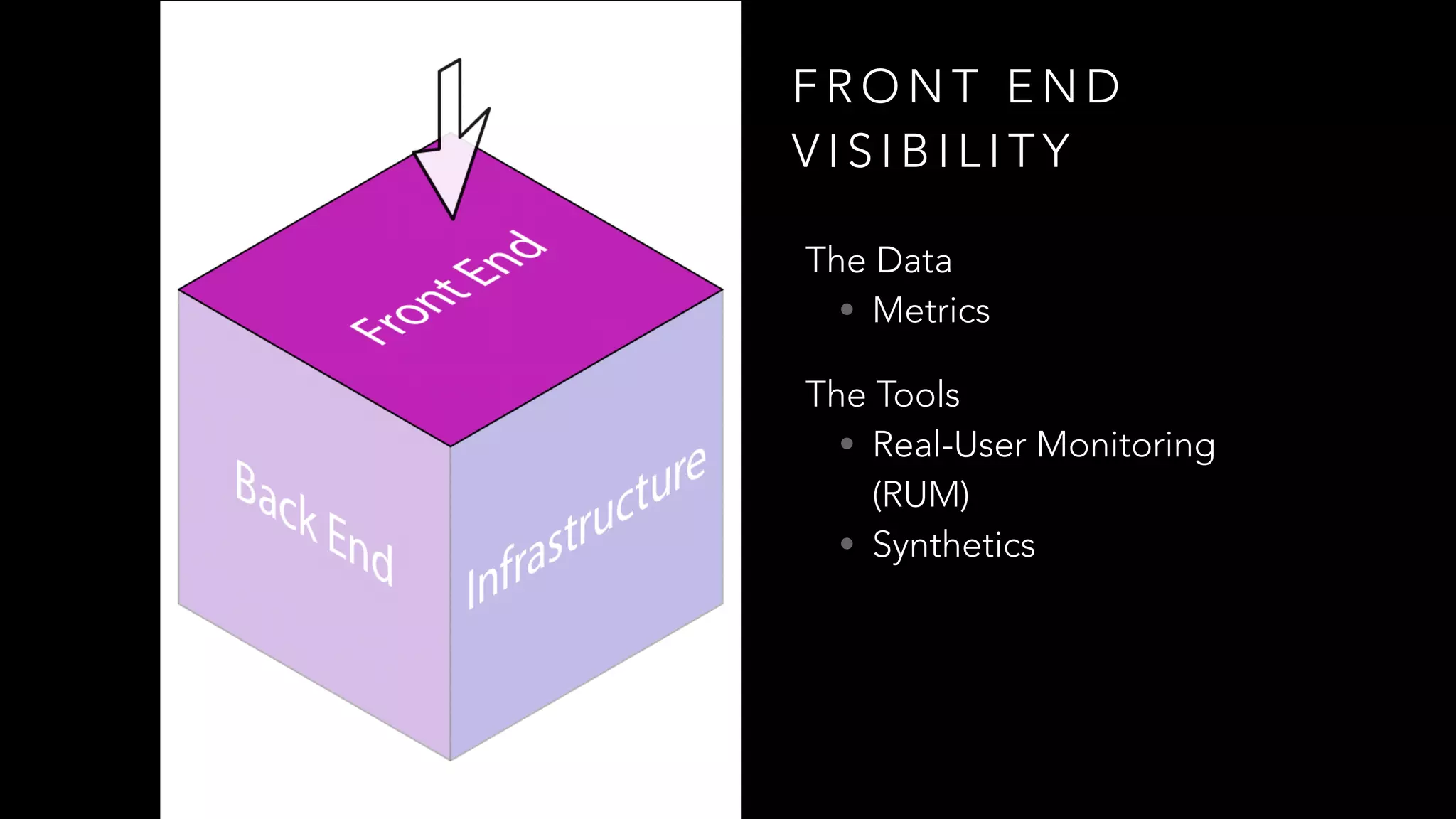

33. The Data
• Metrics
The Tools
• Real-User Monitoring
(RUM)
• Synthetics
F R O N T E N D
V I S I B I L I T Y

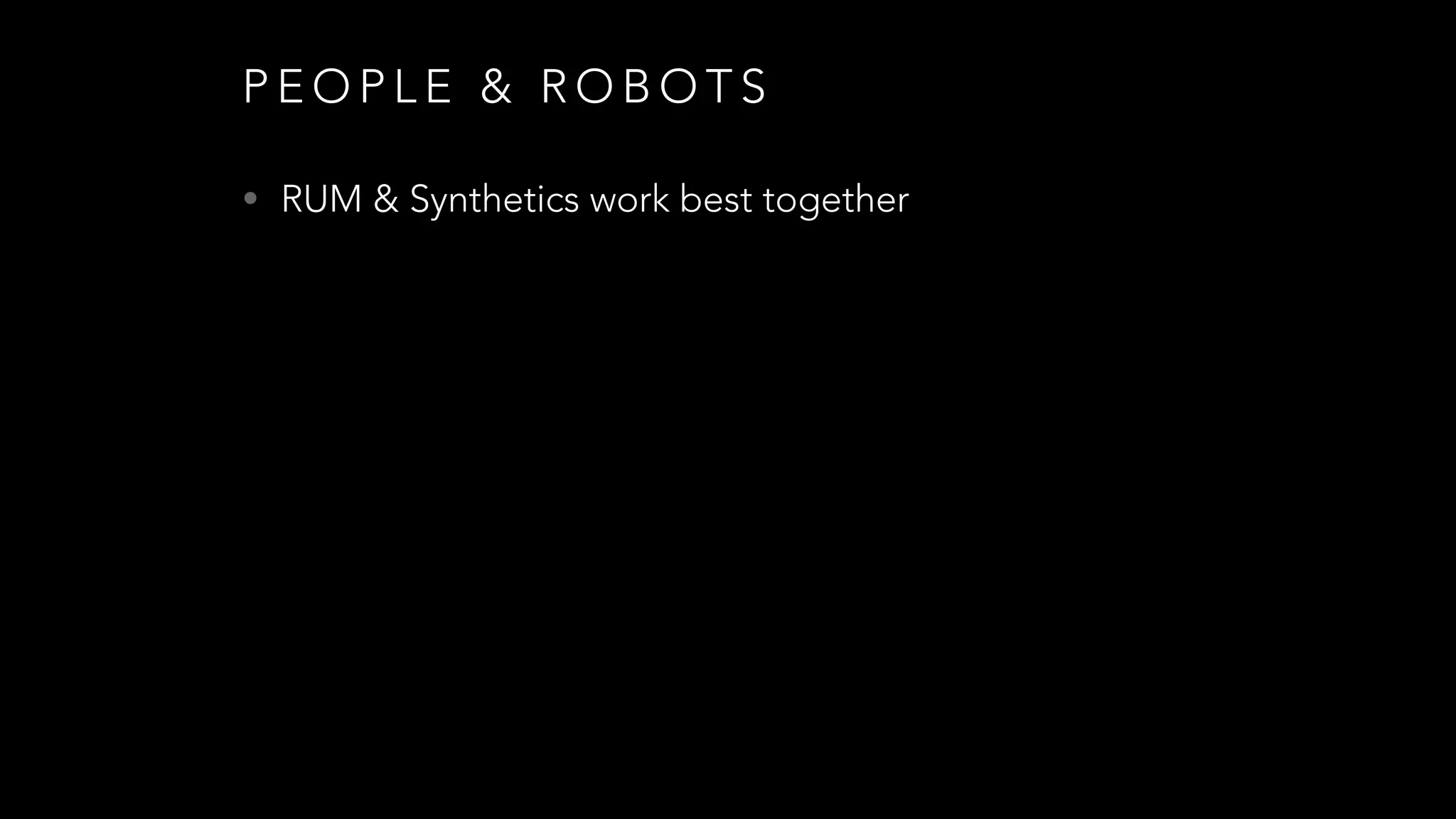

34. P E O P L E & R O B O T S
• RUM & Synthetics work best together

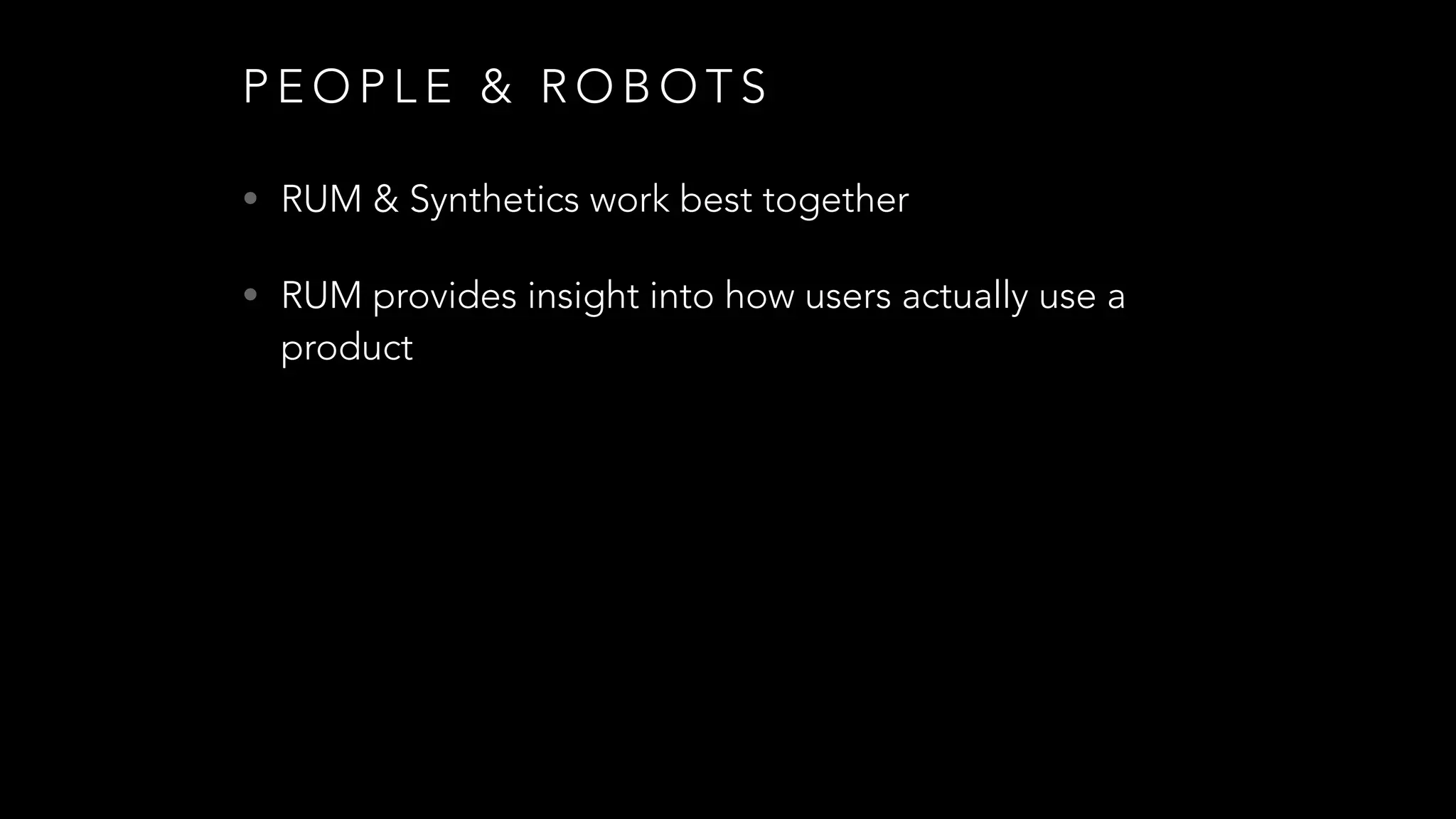

35. P E O P L E & R O B O T S
• RUM & Synthetics work best together
• RUM provides insight into how users actually use a
product

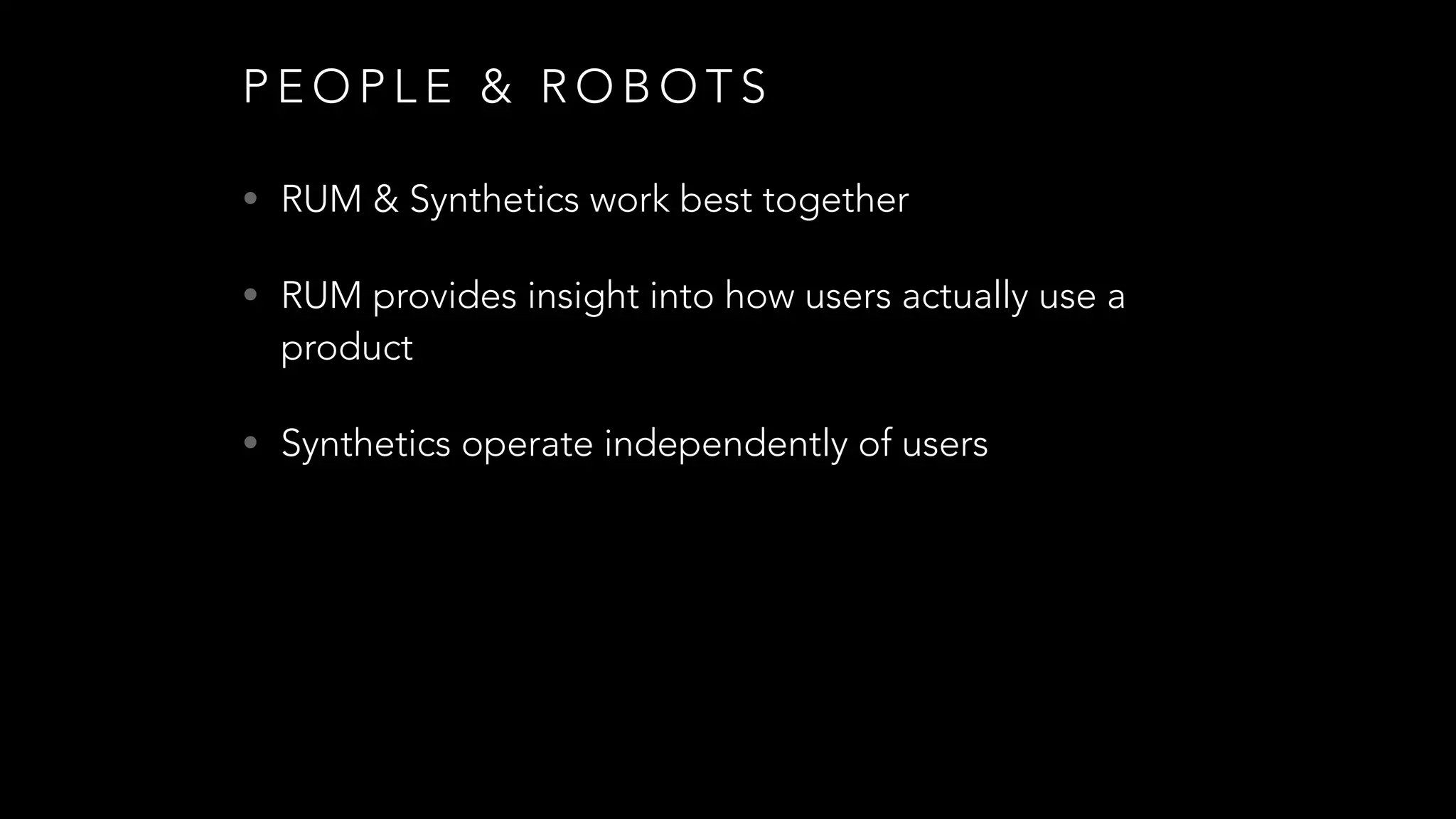

36. P E O P L E & R O B O T S
• RUM & Synthetics work best together
• RUM provides insight into how users actually use a
product
• Synthetics operate independently of users

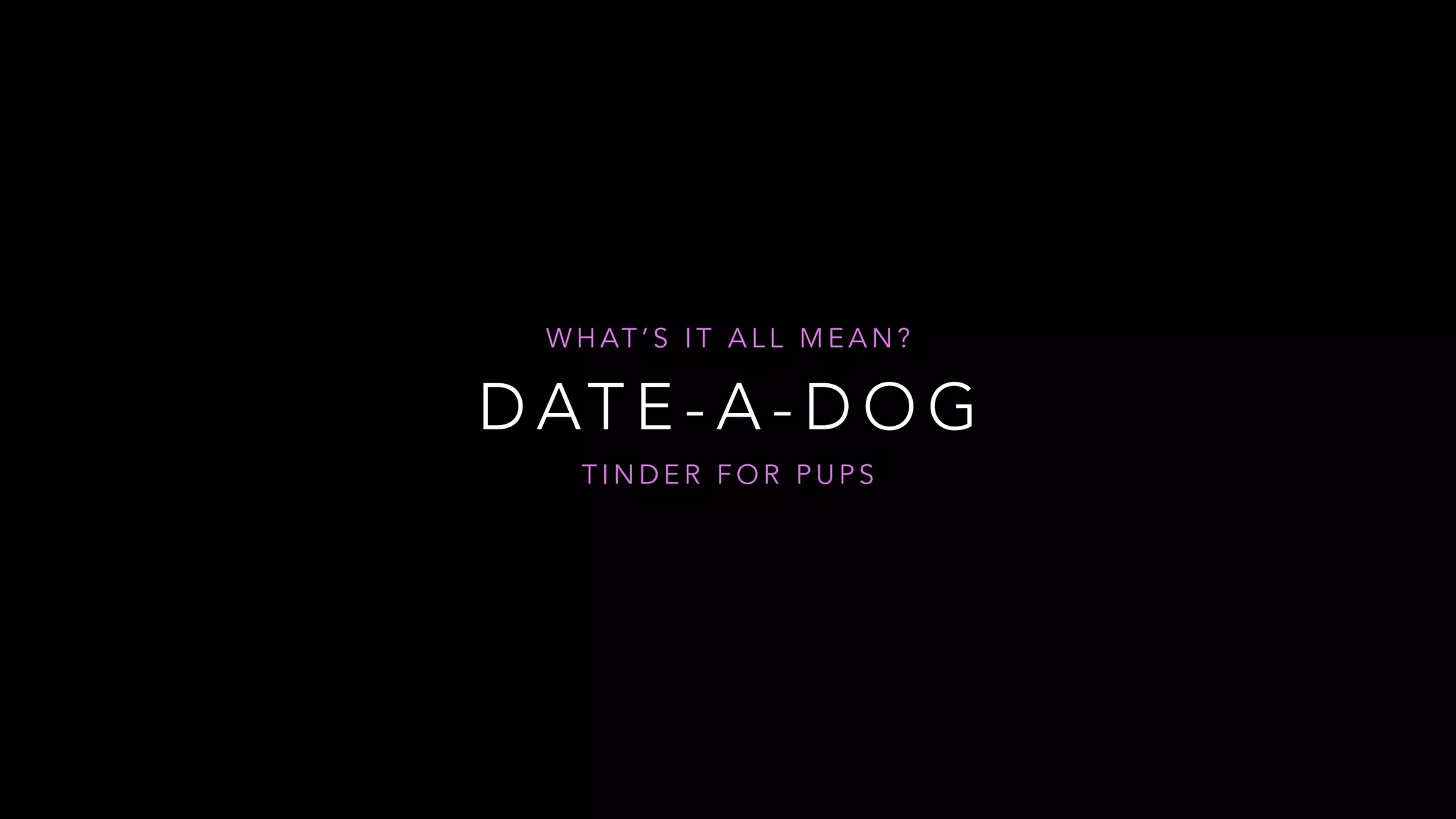

37. D AT E - A - D O G
W H AT ’ S I T A L L M E A N ?
T I N D E R F O R P U P S

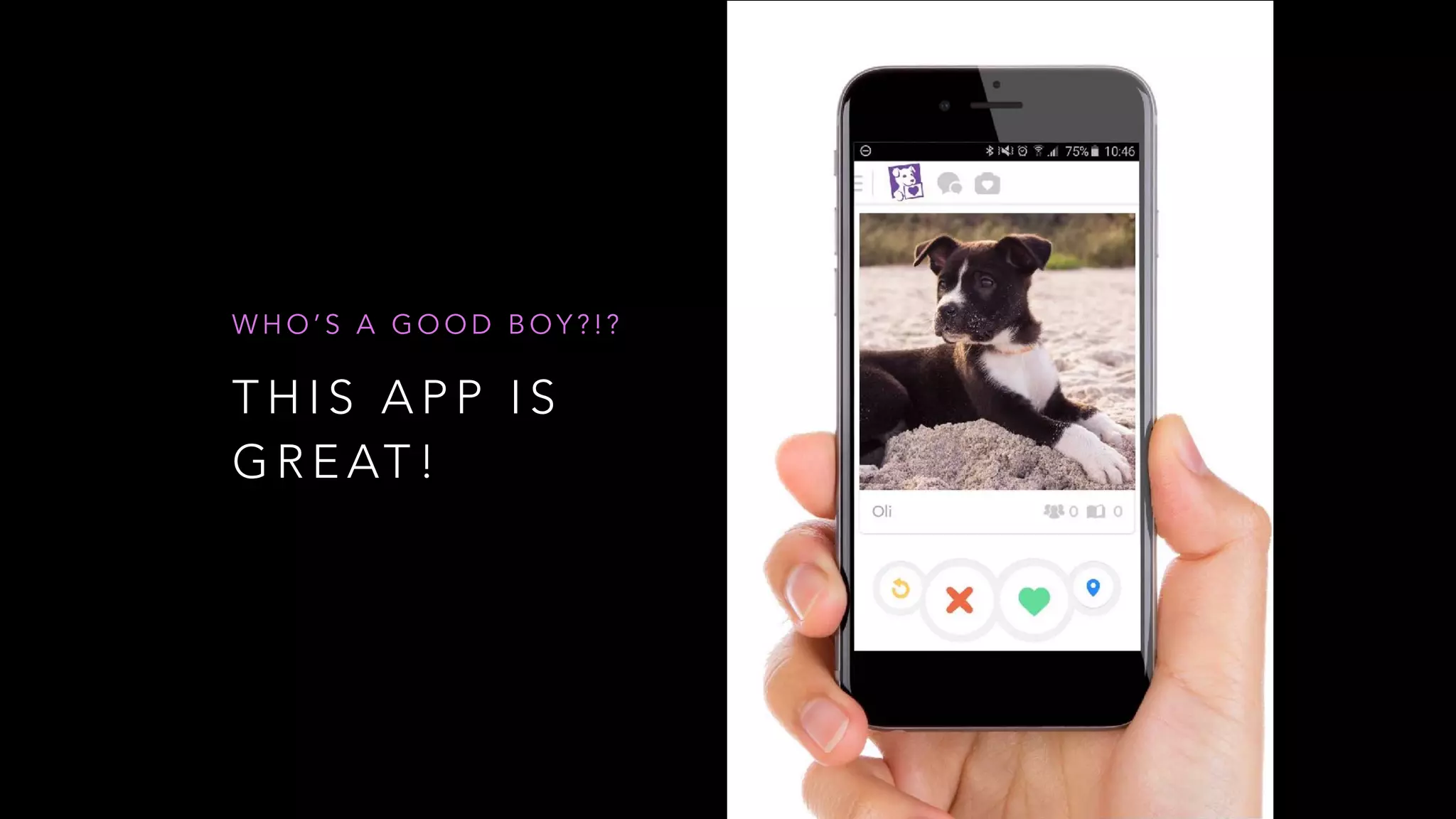

38. T H I S A P P I S
G R E AT !
W H O ’ S A G O O D B O Y ? ! ?

39. I G O T TA T E L L
M Y F R I E N D S
A B O U T T H I S
A P P !
T H E Y ’ R E S O C U T E ! ! !

40. A N D M Y
F R I E N D S A R E
G O N N A T E L L
T H E I R F R I E N D S …
A A A W W W W W W W ! ! !

41. W H AT J U S T
H A P P E N E D ? ! ?
W H E R E ’ D T H E P U P P I E S G O ?

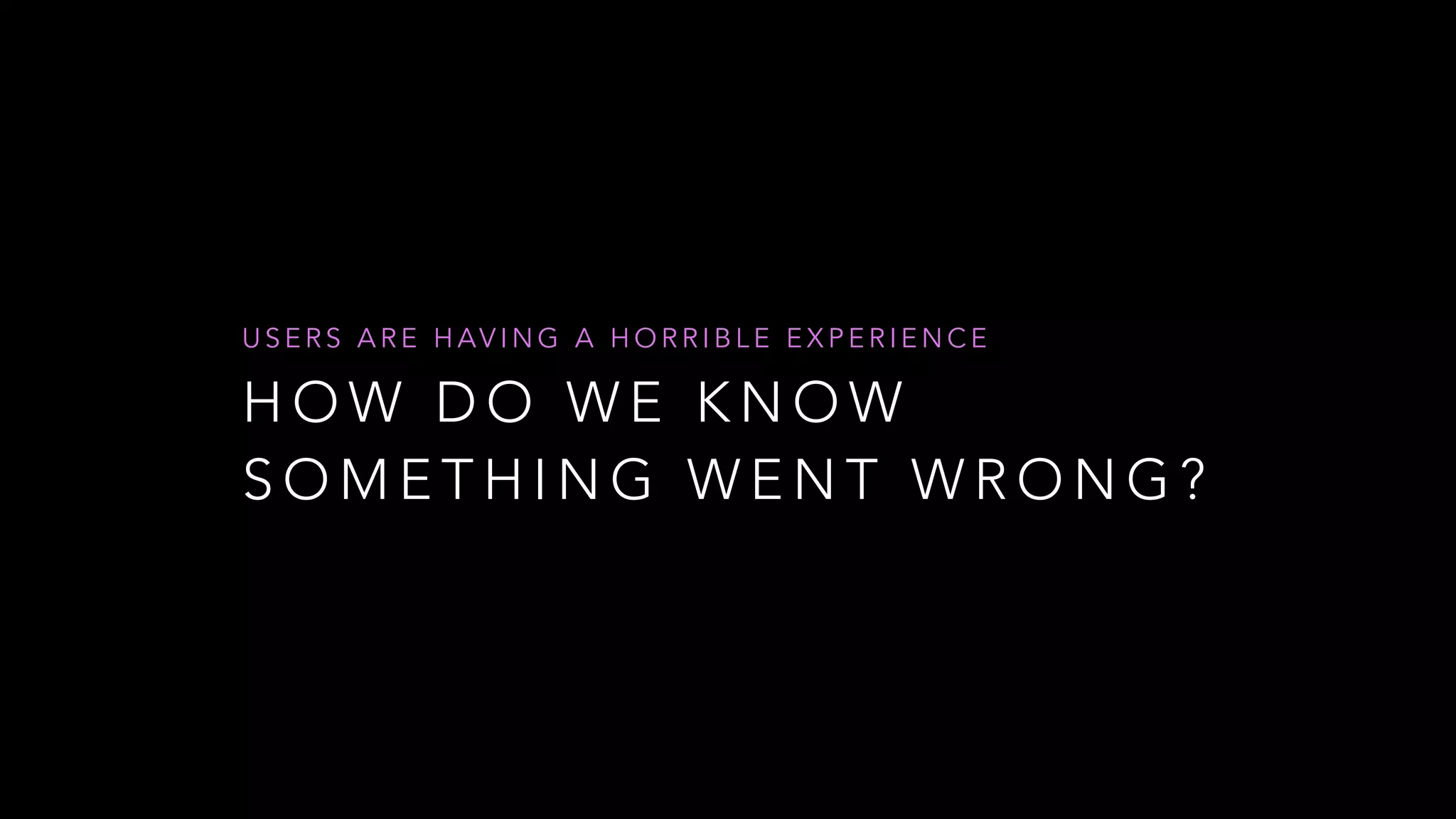

42. H O W D O W E K N O W
S O M E T H I N G W E N T W R O N G ?
U S E R S A R E H AV I N G A H O R R I B L E E X P E R I E N C E

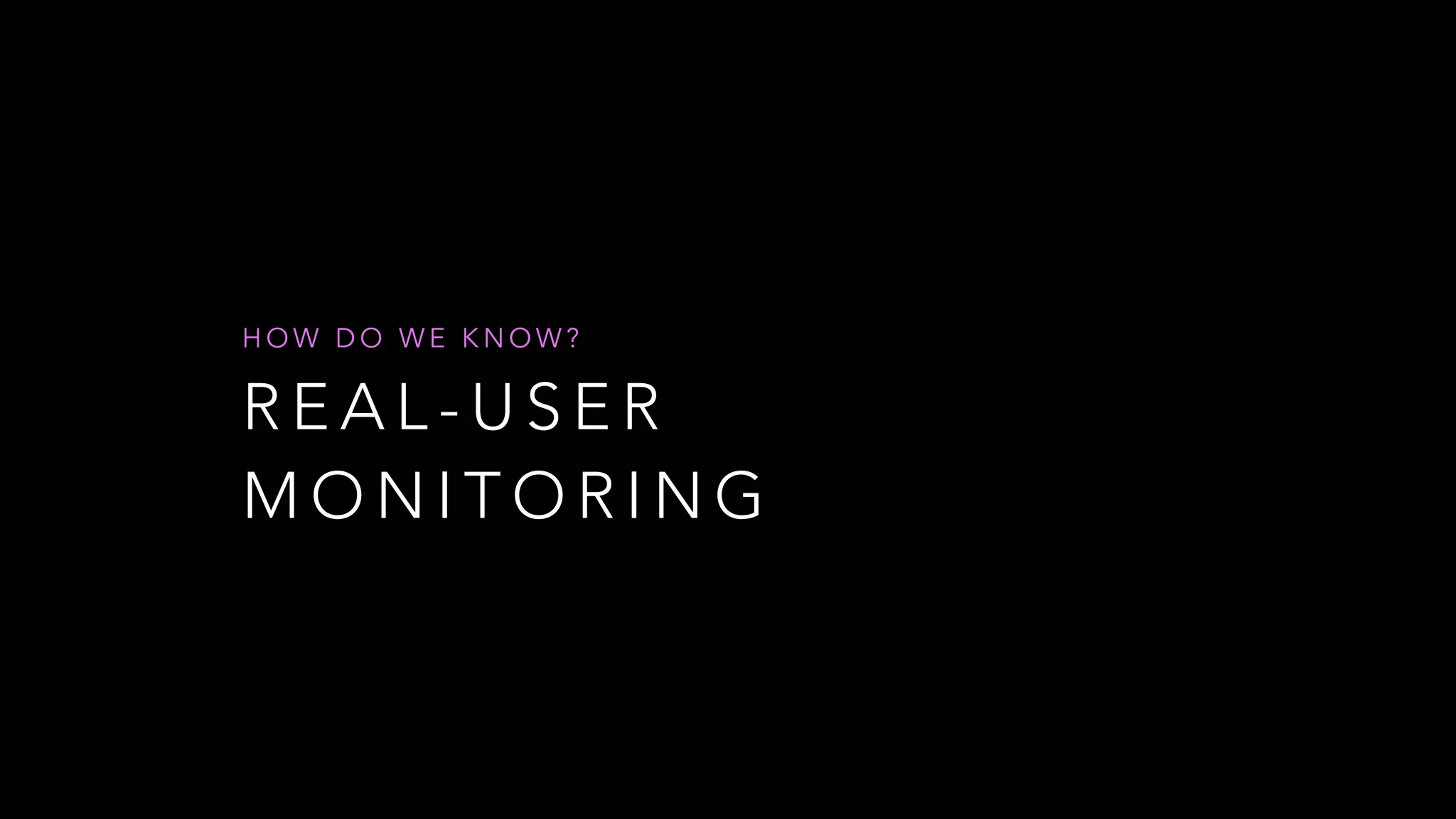

44. R E A L - U S E R
M O N I T O R I N G
H O W D O W E K N O W ?

45. R E A L - U S E R M O N I T O R I N G
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

46. S Y N T H E T I C S
H O W D O W E K N O W ?

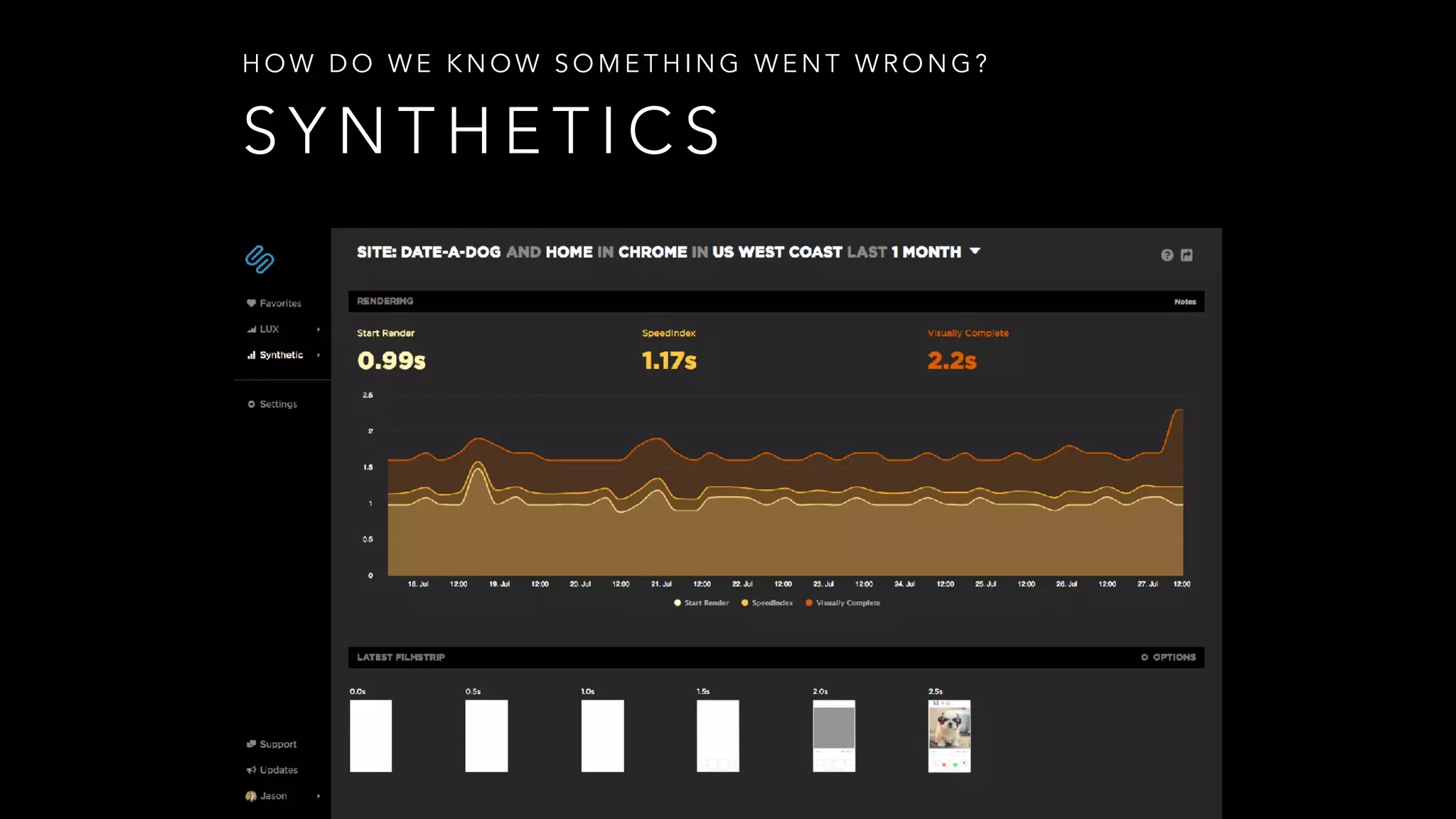

47. S Y N T H E T I C S
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

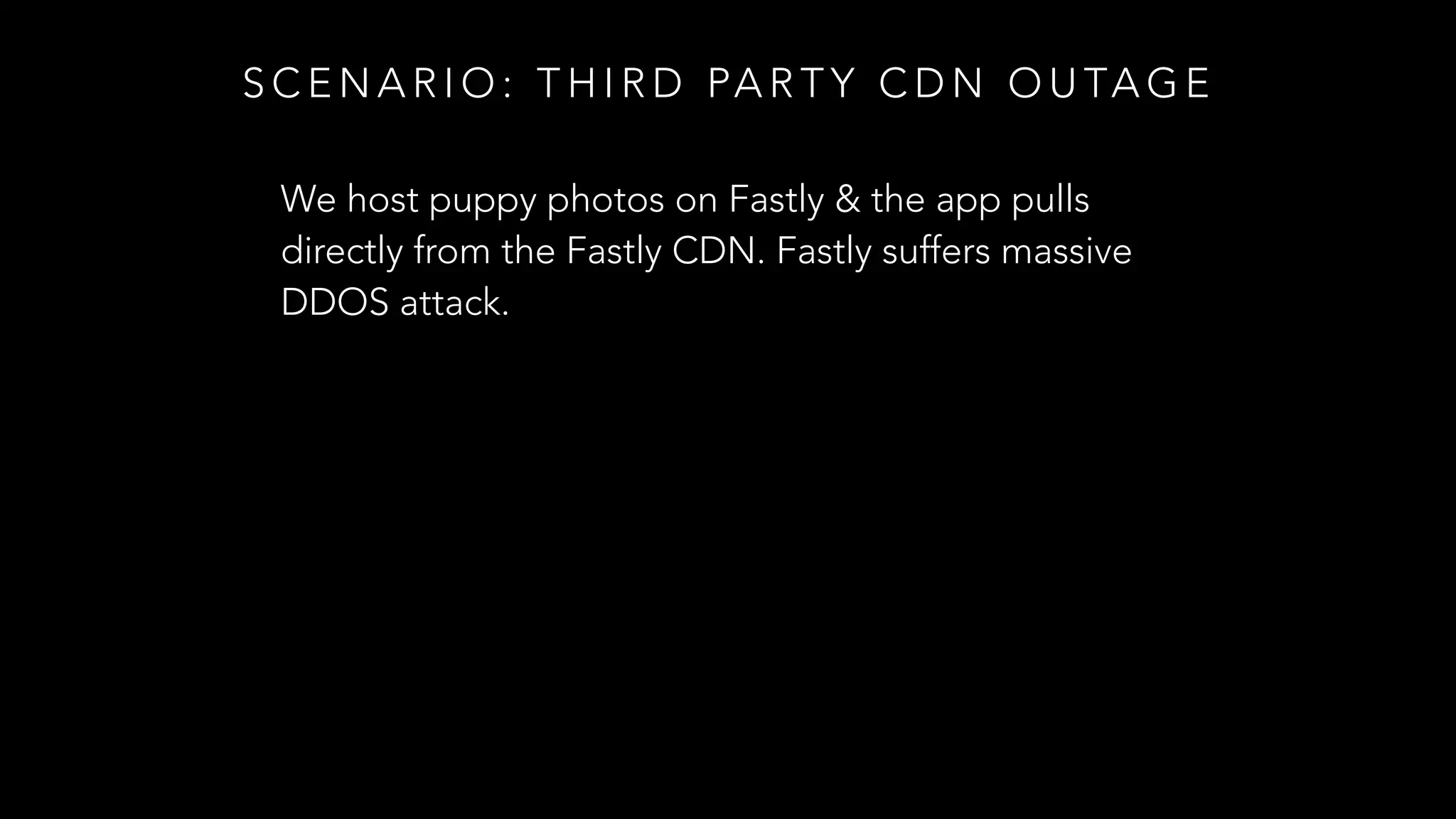

48. S C E N A R I O : T H I R D PA R T Y C D N O U TA G E
We host puppy photos on Fastly & the app pulls
directly from the Fastly CDN. Fastly suffers massive
DDOS attack.

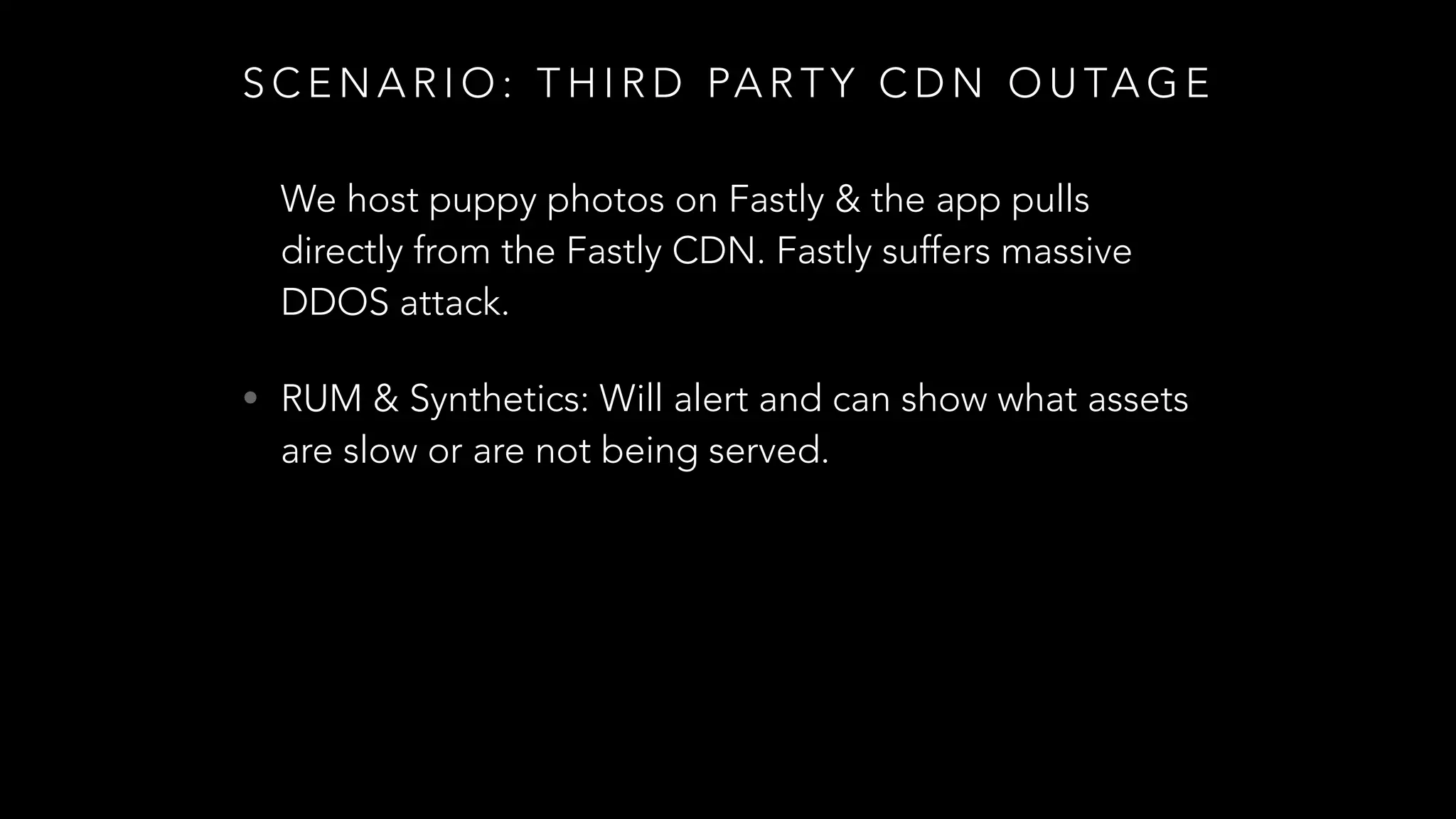

49. S C E N A R I O : T H I R D PA R T Y C D N O U TA G E
We host puppy photos on Fastly & the app pulls
directly from the Fastly CDN. Fastly suffers massive
DDOS attack.
• RUM & Synthetics: Will alert and can show what assets
are slow or are not being served.

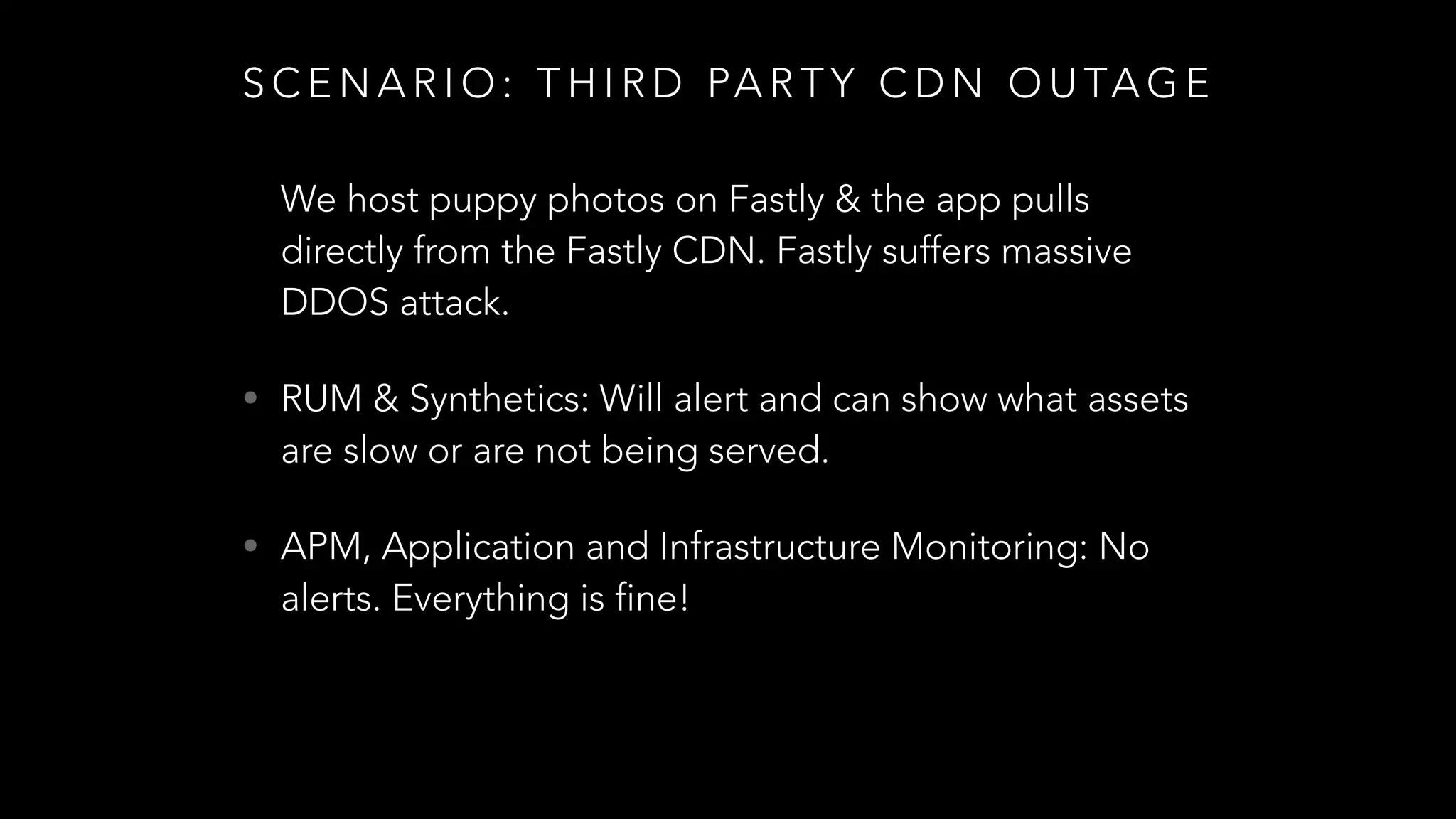

50. S C E N A R I O : T H I R D PA R T Y C D N O U TA G E
We host puppy photos on Fastly & the app pulls
directly from the Fastly CDN. Fastly suffers massive
DDOS attack.
• RUM & Synthetics: Will alert and can show what assets
are slow or are not being served.
• APM, Application and Infrastructure Monitoring: No
alerts. Everything is fine!

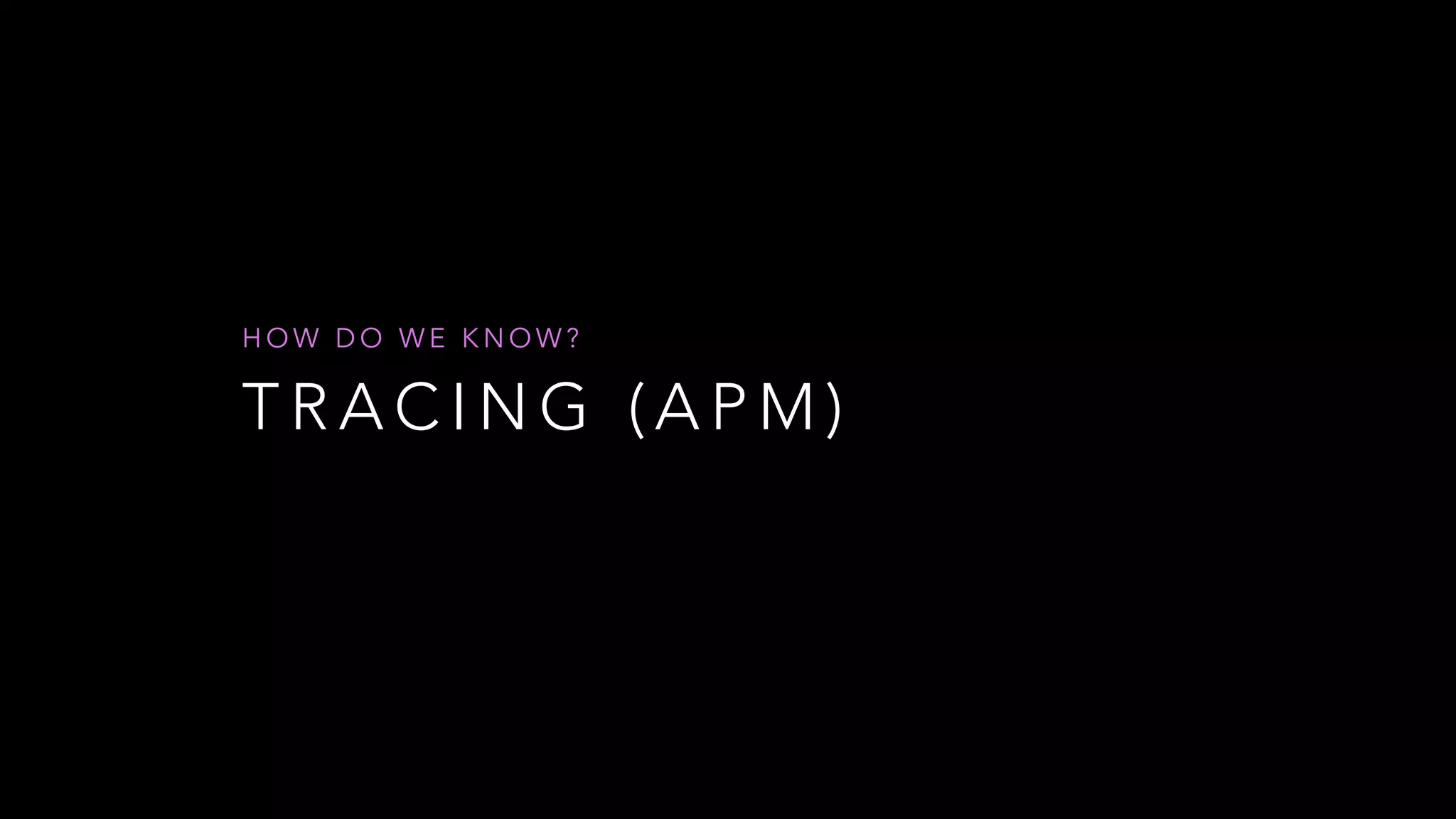

51. T R A C I N G ( A P M )
H O W D O W E K N O W ?

52. T R A C I N G ( A P M )
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

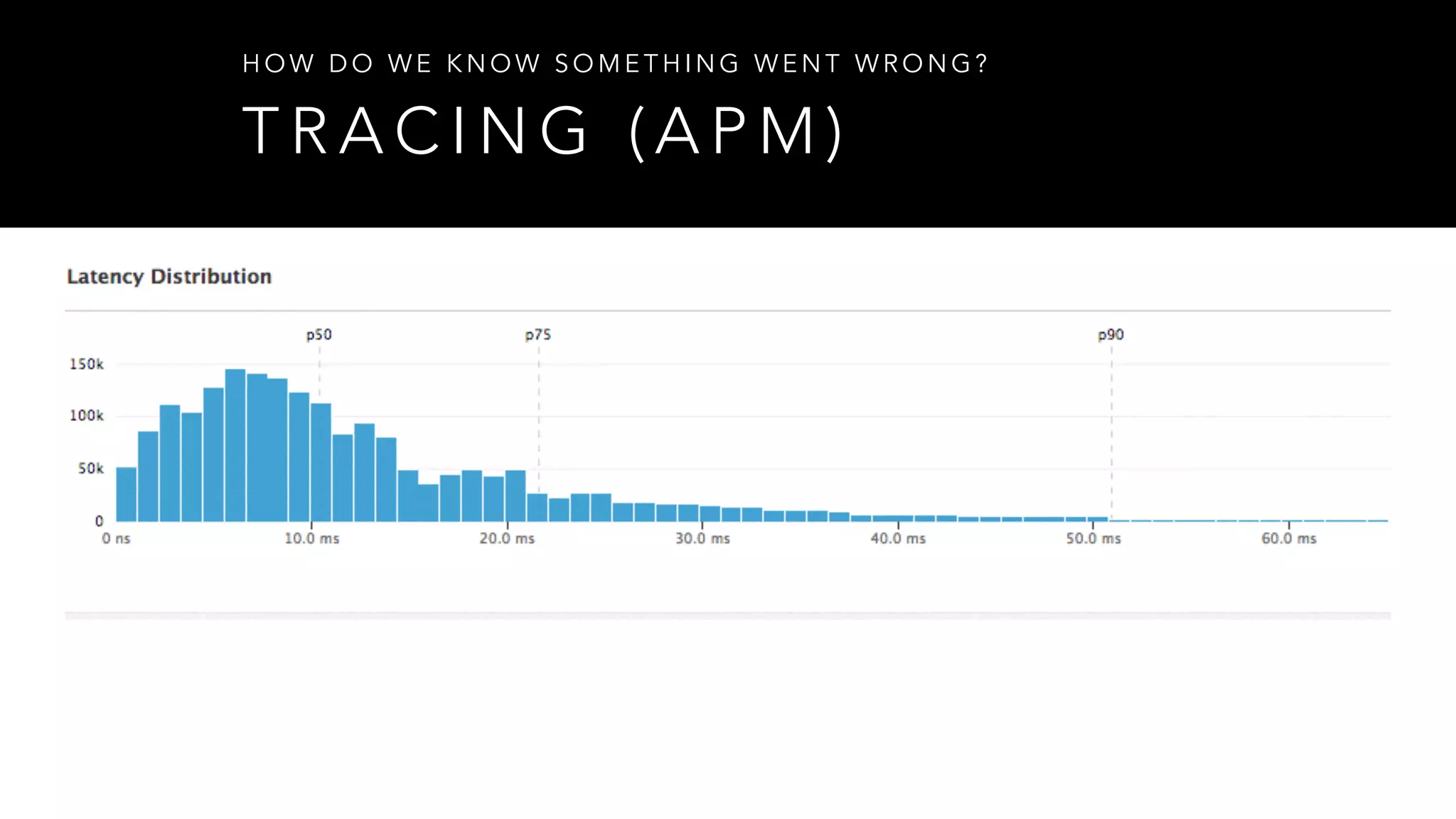

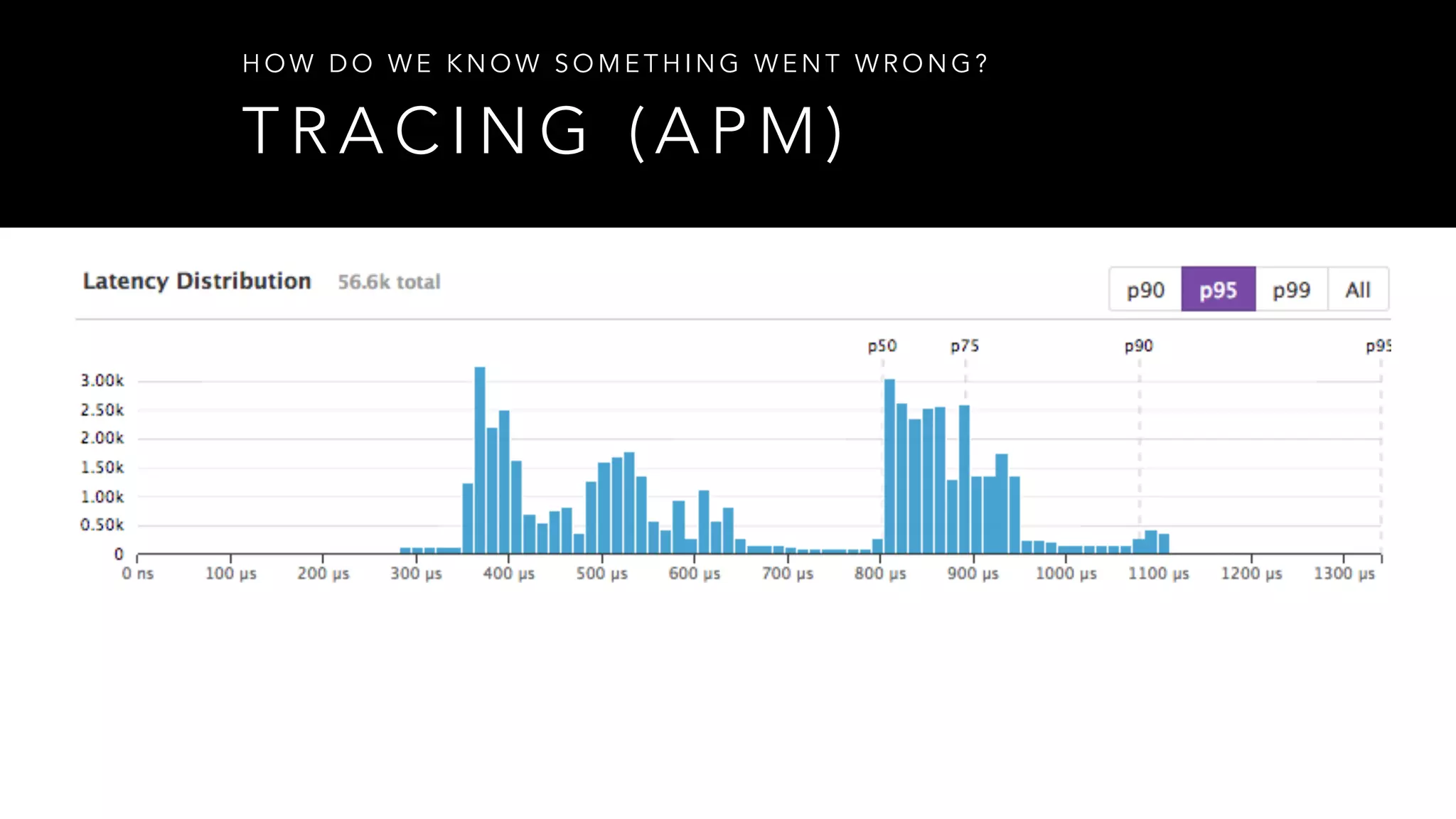

53. T R A C I N G ( A P M )
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

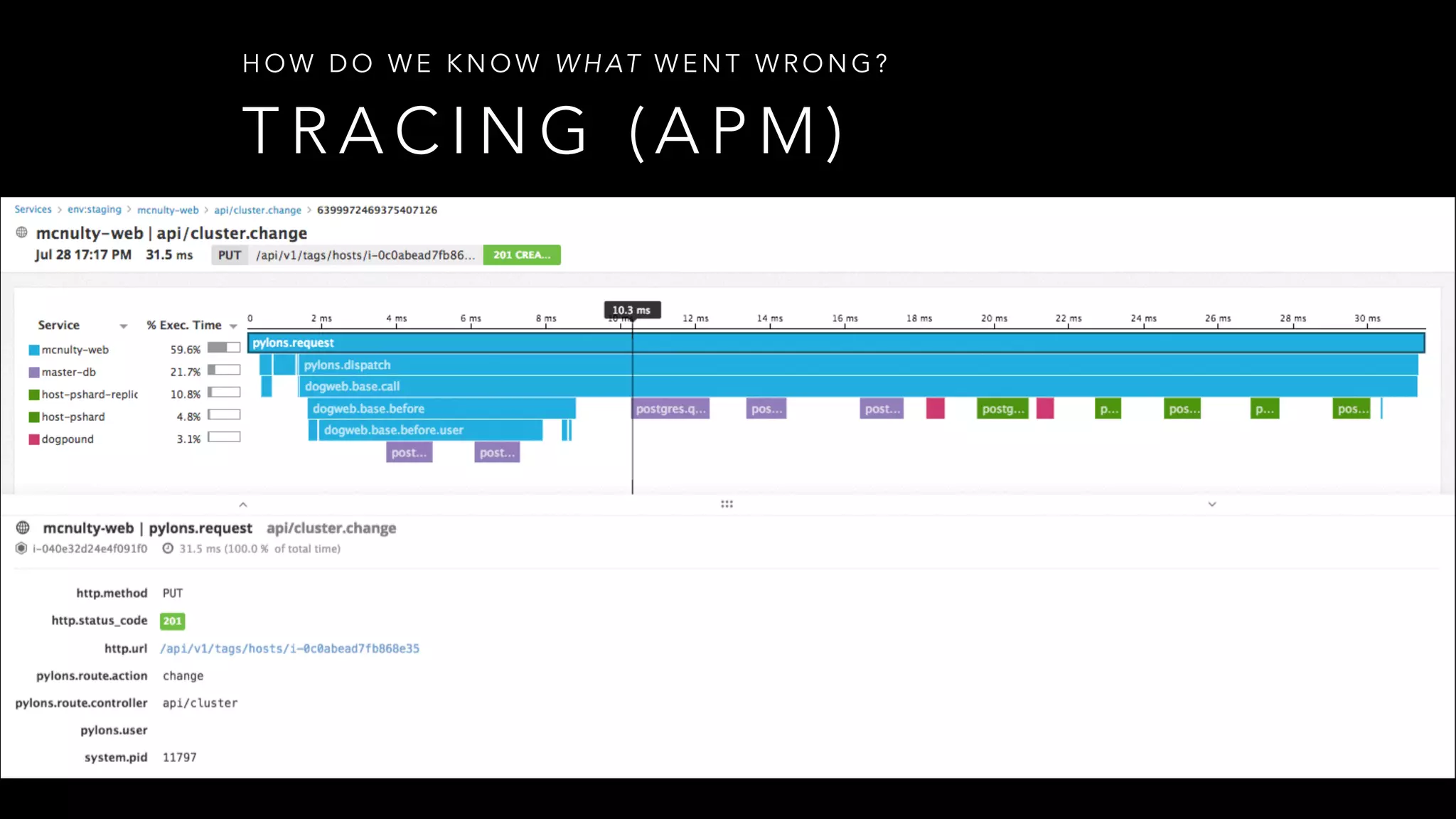

54. T R A C I N G ( A P M )
H O W D O W E K N O W W H AT W E N T W R O N G ?

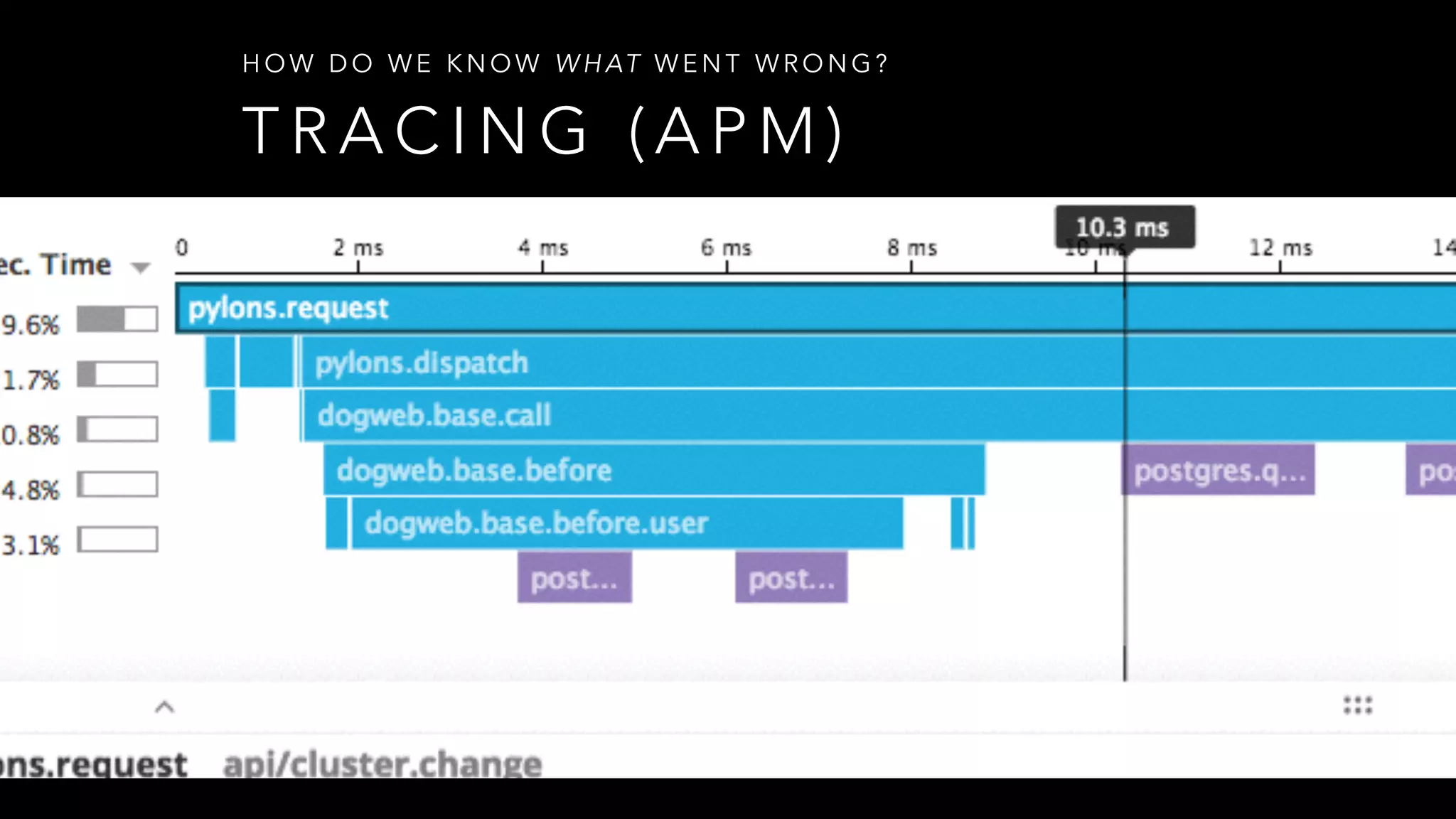

55. T R A C I N G ( A P M )
H O W D O W E K N O W W H AT W E N T W R O N G ?

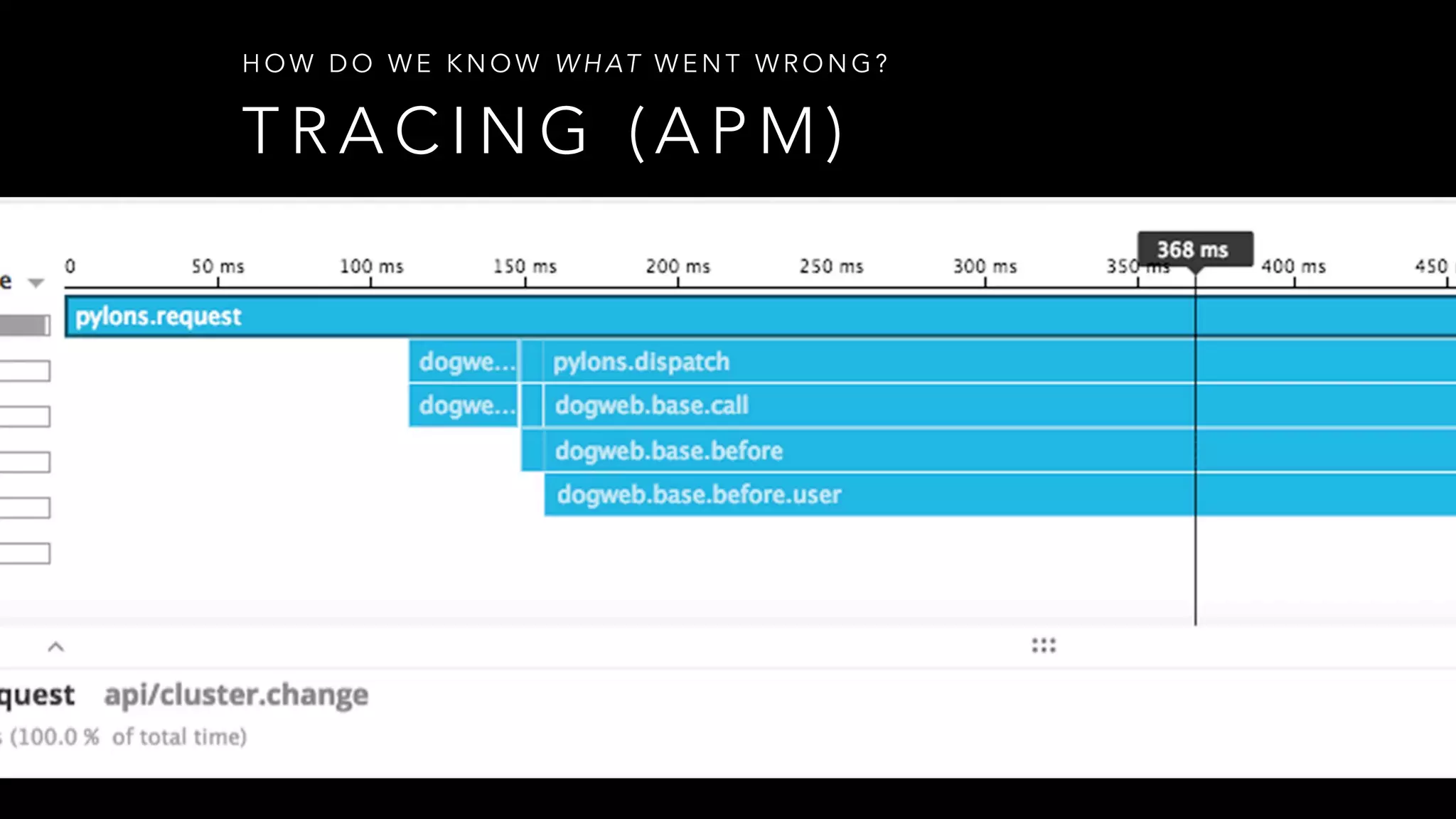

56. T R A C I N G ( A P M )
H O W D O W E K N O W W H AT W E N T W R O N G ?

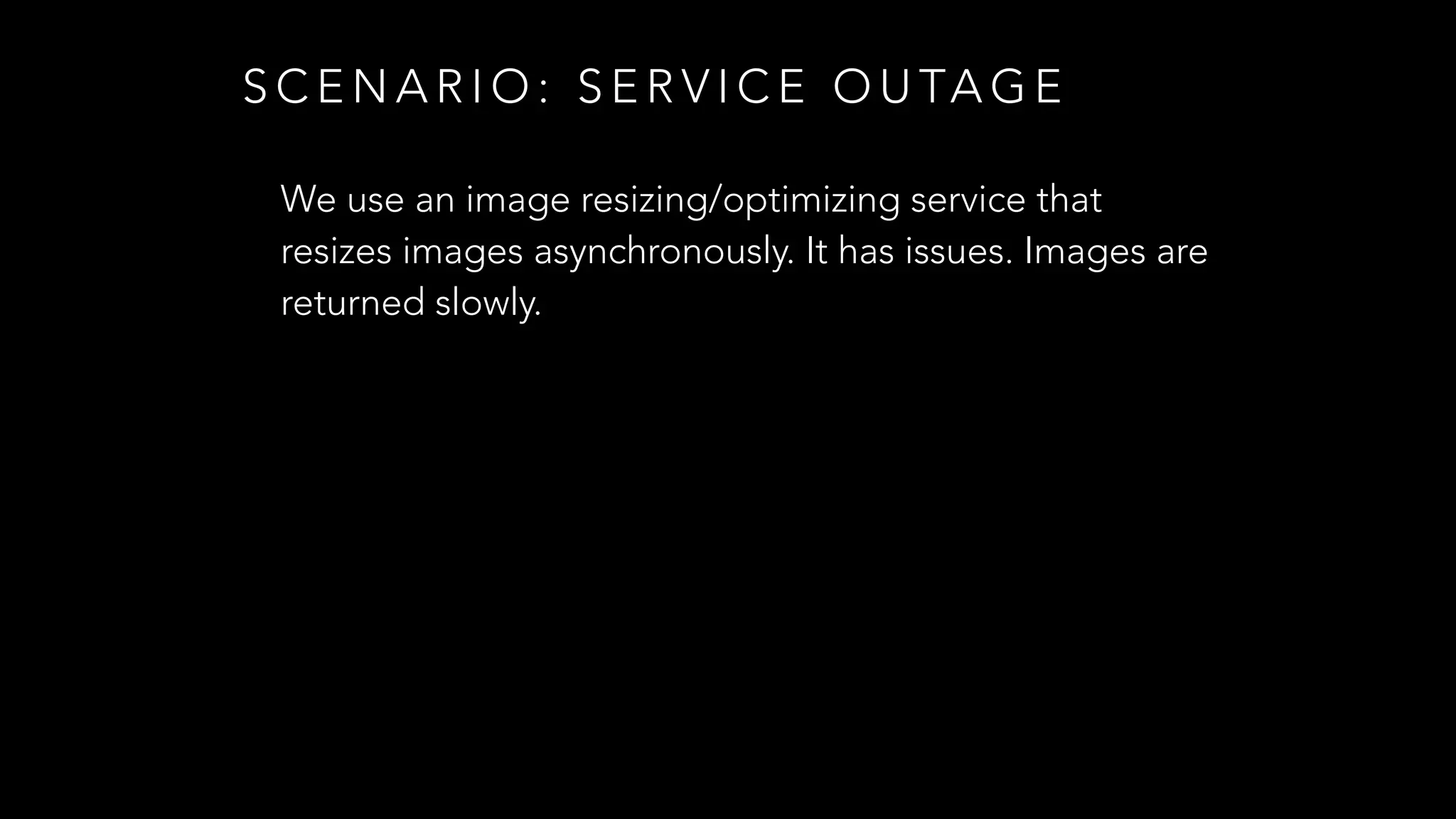

57. S C E N A R I O : S E R V I C E O U TA G E
We use an image resizing/optimizing service that
resizes images asynchronously. It has issues. Images are
returned slowly.

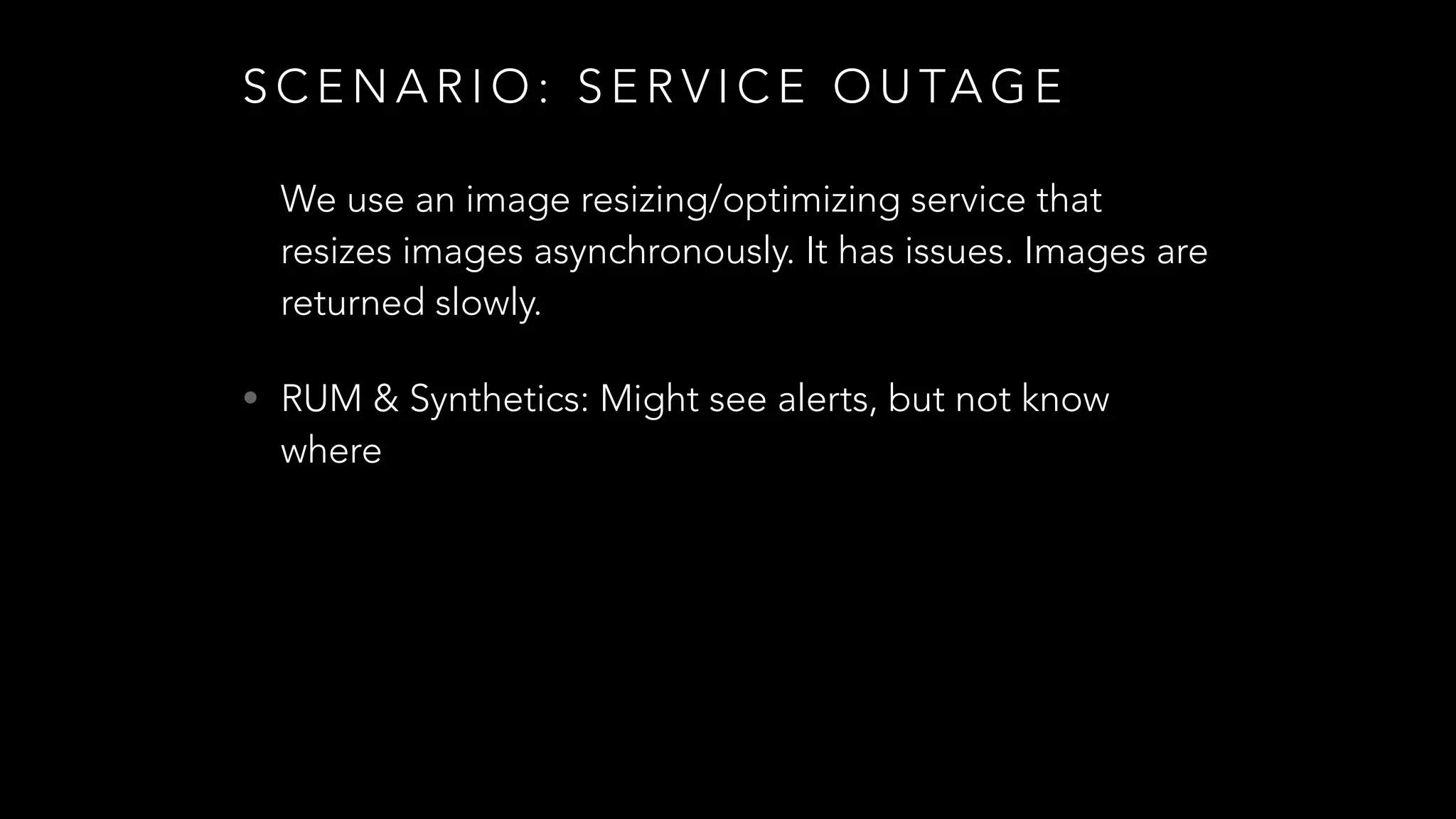

58. S C E N A R I O : S E R V I C E O U TA G E
We use an image resizing/optimizing service that
resizes images asynchronously. It has issues. Images are
returned slowly.
• RUM & Synthetics: Might see alerts, but not know
where

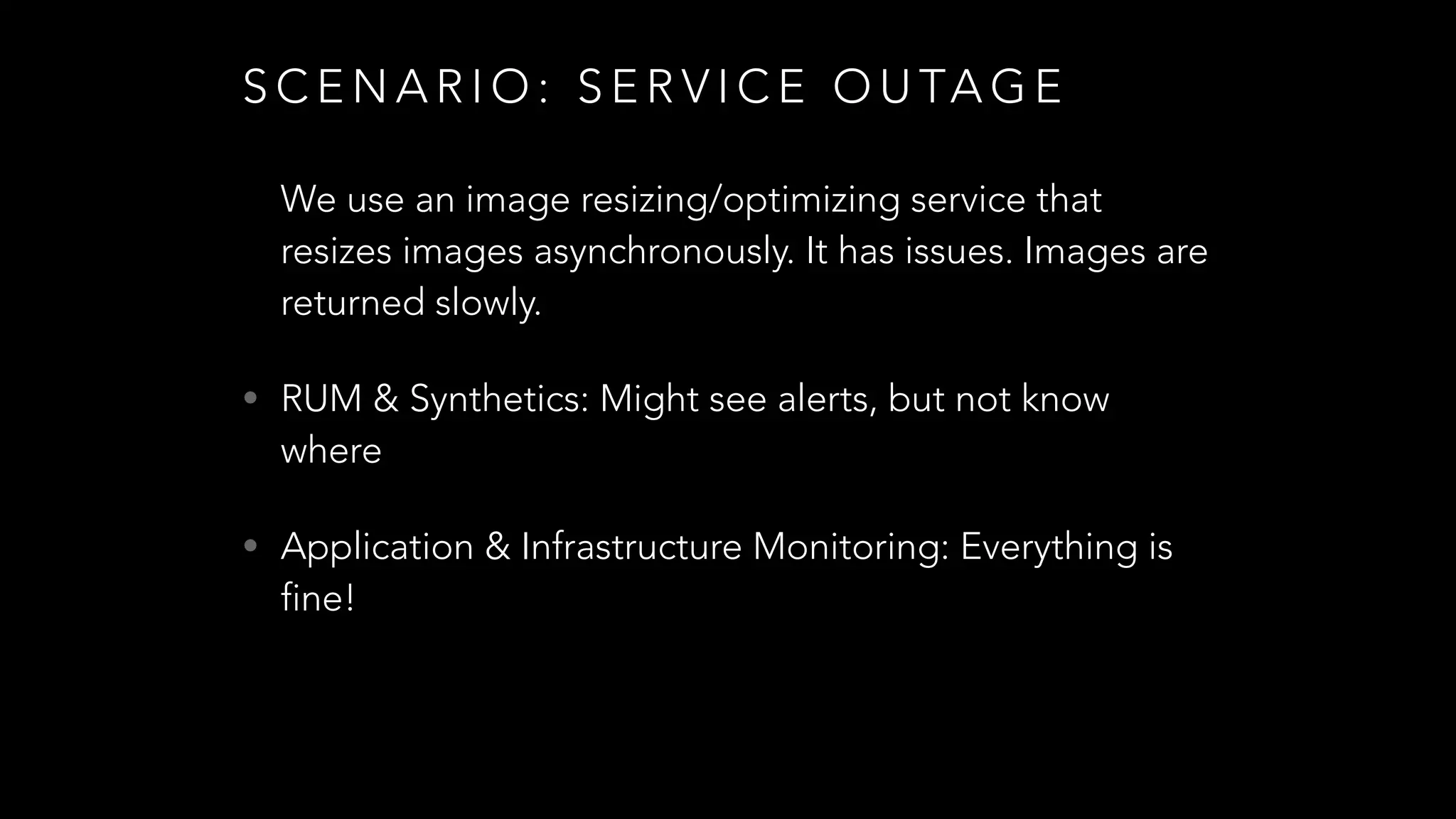

59. S C E N A R I O : S E R V I C E O U TA G E
We use an image resizing/optimizing service that
resizes images asynchronously. It has issues. Images are
returned slowly.
• RUM & Synthetics: Might see alerts, but not know
where
• Application & Infrastructure Monitoring: Everything is
fine!

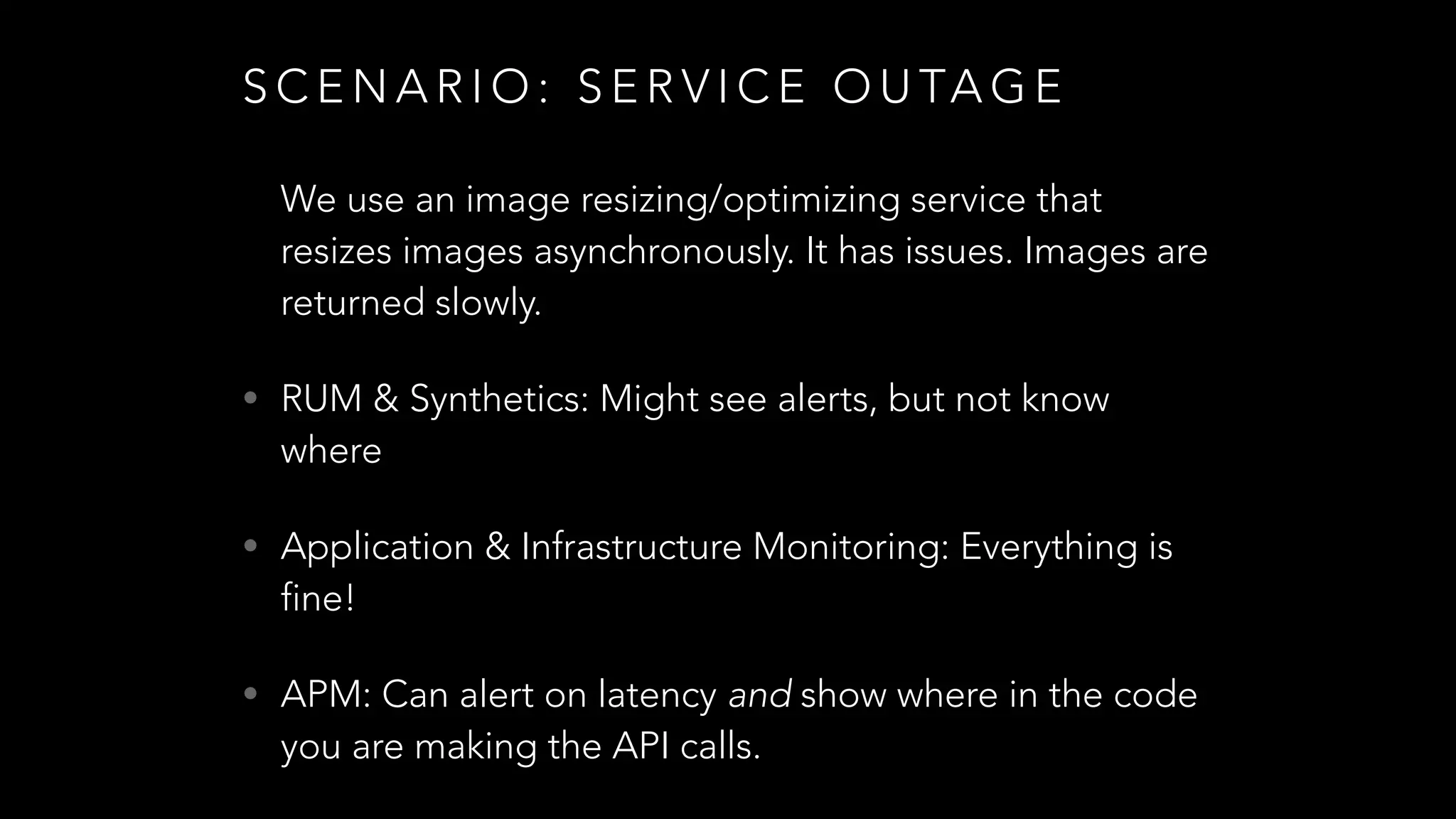

60. S C E N A R I O : S E R V I C E O U TA G E
We use an image resizing/optimizing service that
resizes images asynchronously. It has issues. Images are
returned slowly.
• RUM & Synthetics: Might see alerts, but not know
where
• Application & Infrastructure Monitoring: Everything is
fine!
• APM: Can alert on latency and show where in the code
you are making the API calls.

61. A P P L I C AT I O N
M O N I T O R I N G
H O W D O W E K N O W ?

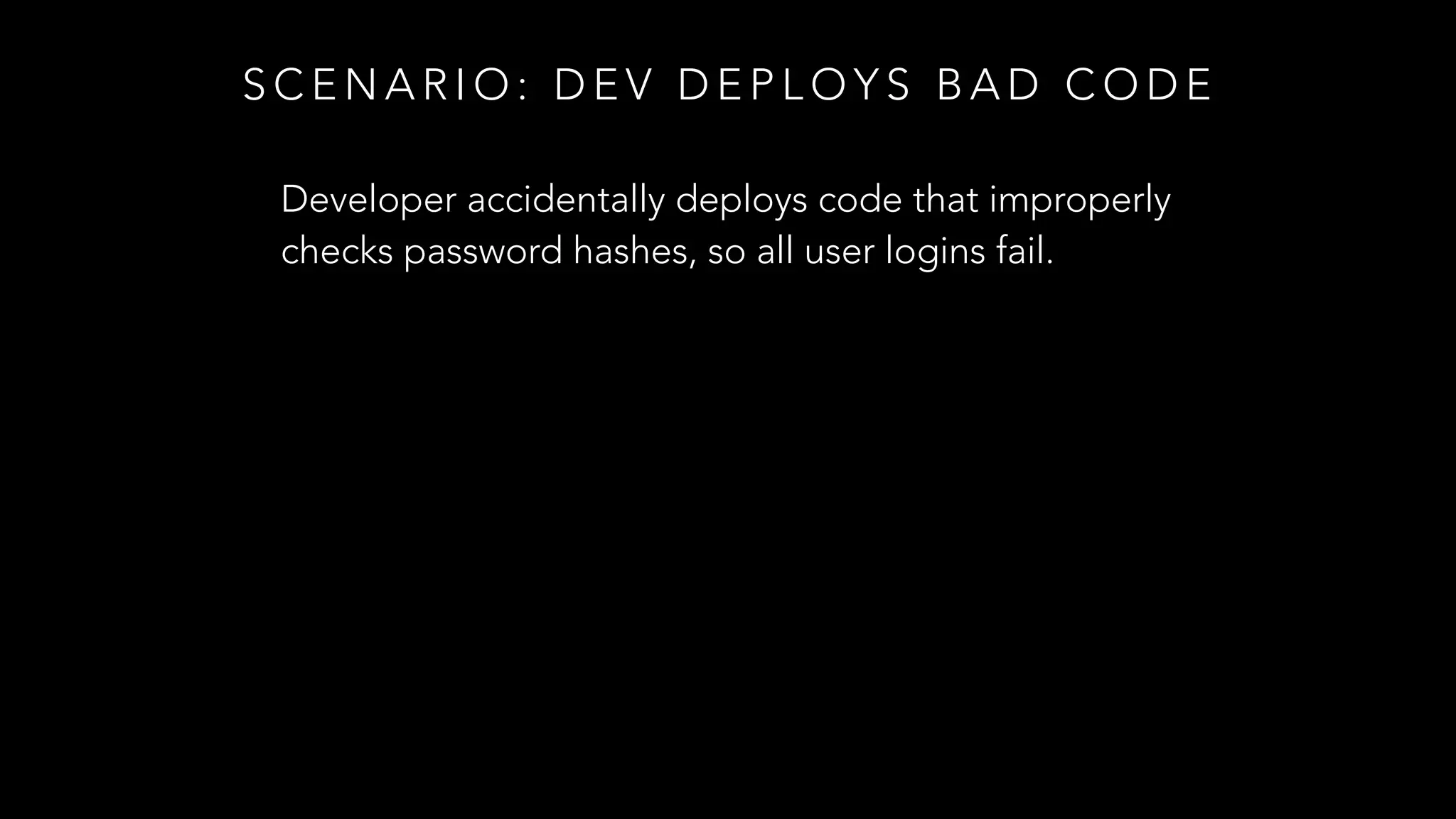

62. S C E N A R I O : D E V D E P L O Y S B A D C O D E
Developer accidentally deploys code that improperly
checks password hashes, so all user logins fail.

63. S C E N A R I O : D E V D E P L O Y S B A D C O D E
Developer accidentally deploys code that improperly
checks password hashes, so all user logins fail.
• RUM & Synthetics, APM: No alerts. Everything is fine!

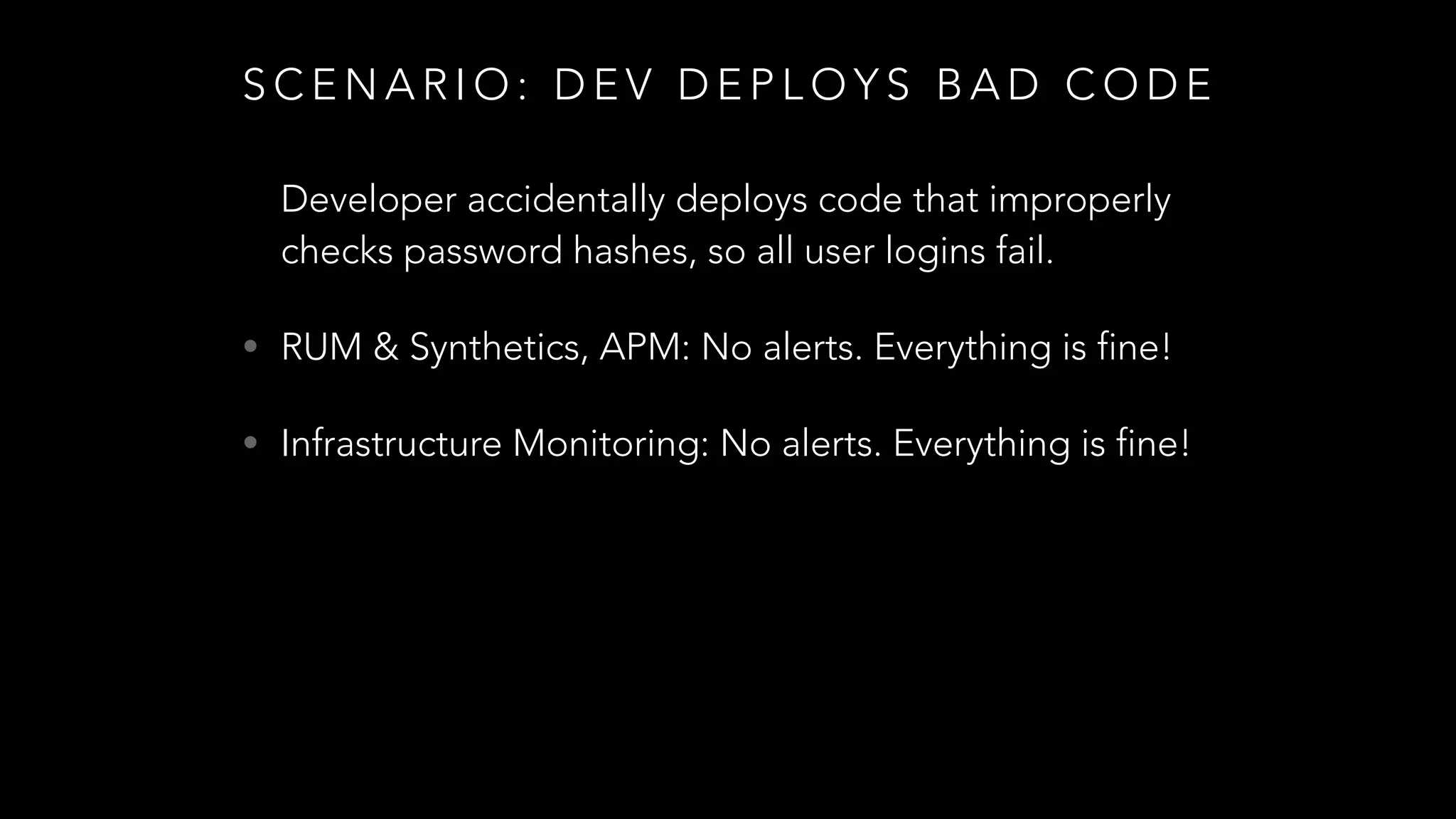

64. S C E N A R I O : D E V D E P L O Y S B A D C O D E
Developer accidentally deploys code that improperly
checks password hashes, so all user logins fail.
• RUM & Synthetics, APM: No alerts. Everything is fine!
• Infrastructure Monitoring: No alerts. Everything is fine!

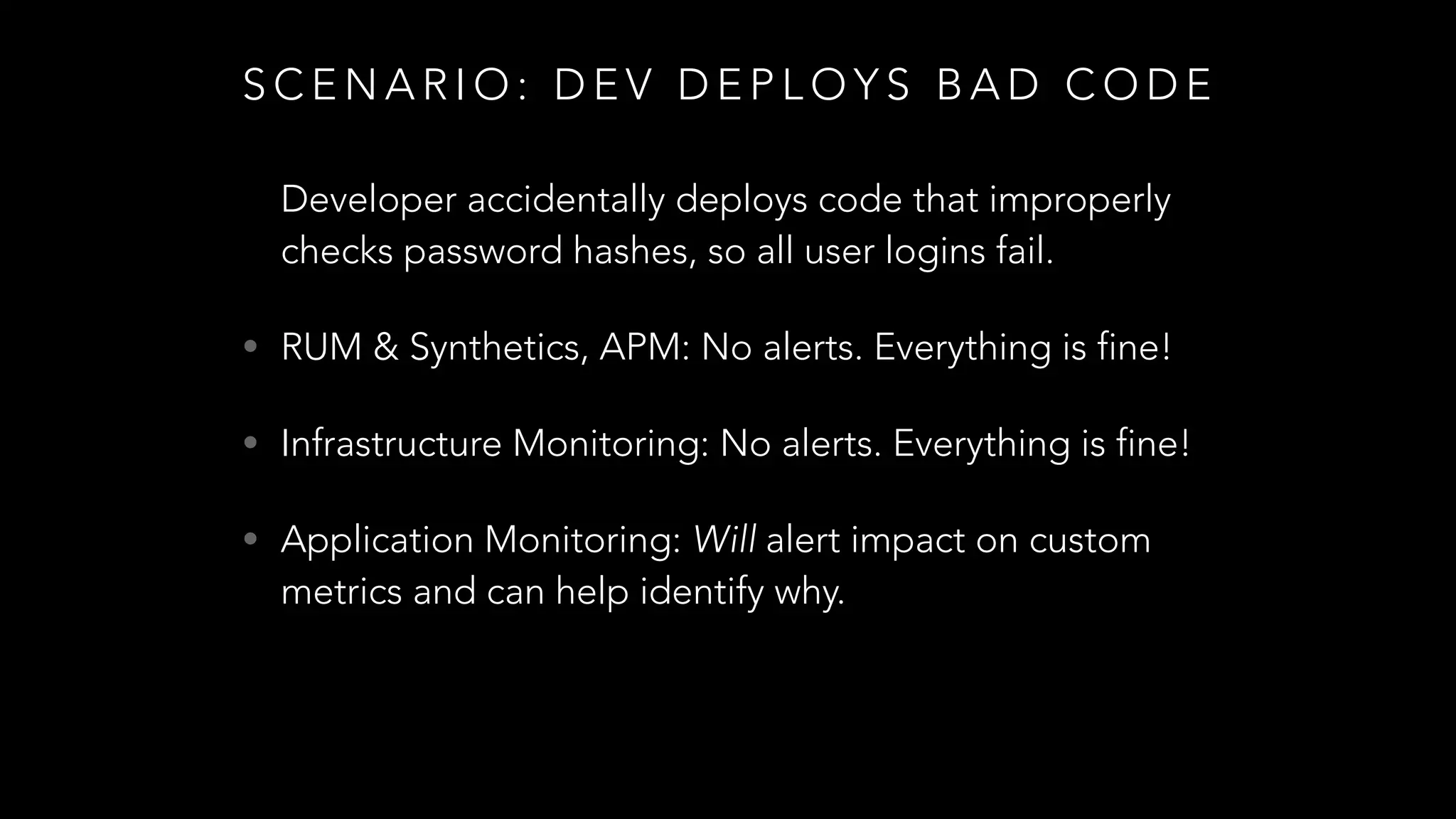

65. S C E N A R I O : D E V D E P L O Y S B A D C O D E
Developer accidentally deploys code that improperly
checks password hashes, so all user logins fail.
• RUM & Synthetics, APM: No alerts. Everything is fine!
• Infrastructure Monitoring: No alerts. Everything is fine!
• Application Monitoring: Will alert impact on custom
metrics and can help identify why.

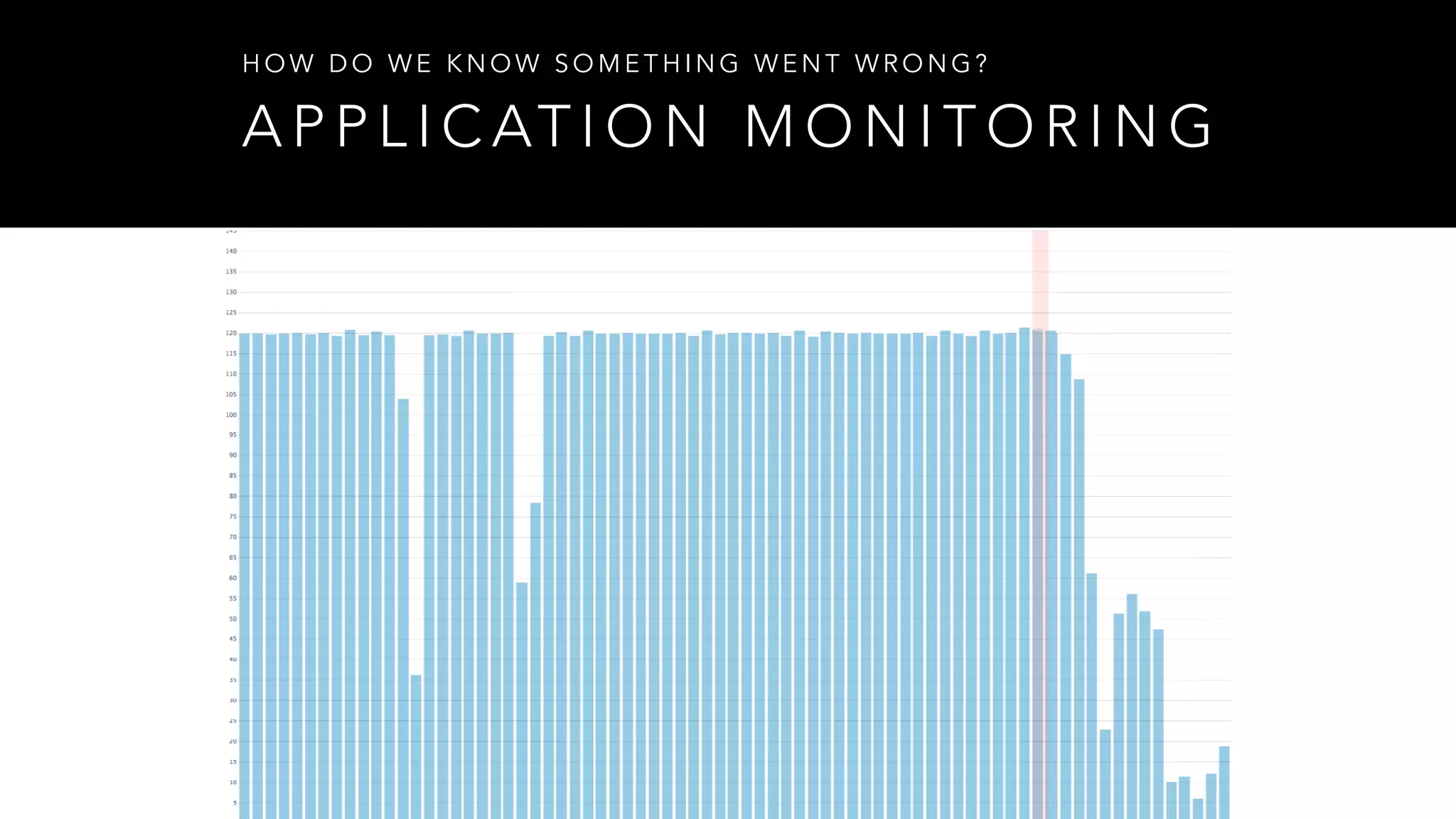

66. A P P L I C AT I O N M O N I T O R I N G
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

67. I N F R A S T R U C T U R E
M O N I T O R I N G
H O W D O W E K N O W ?

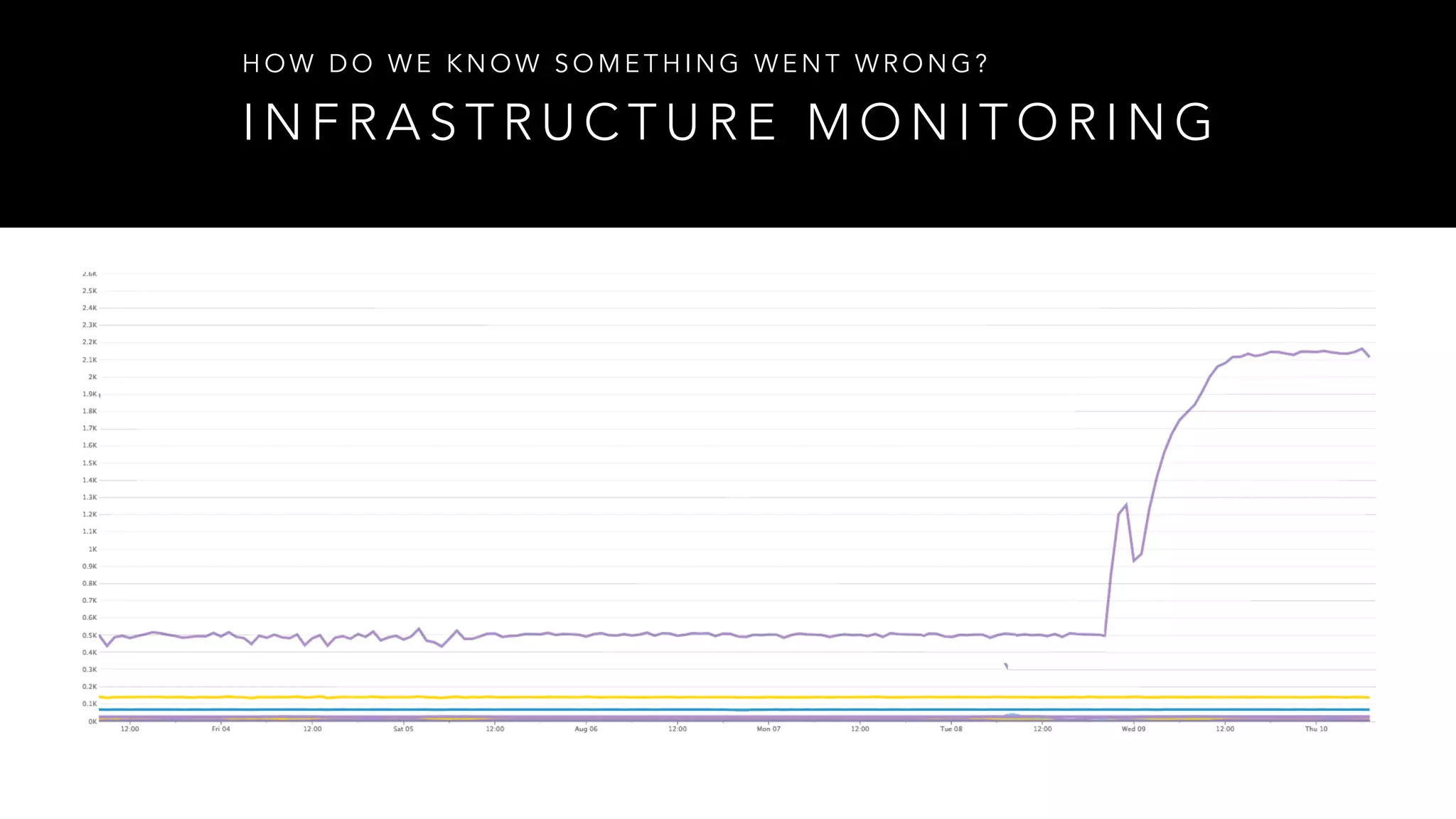

68. I N F R A S T R U C T U R E M O N I T O R I N G
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

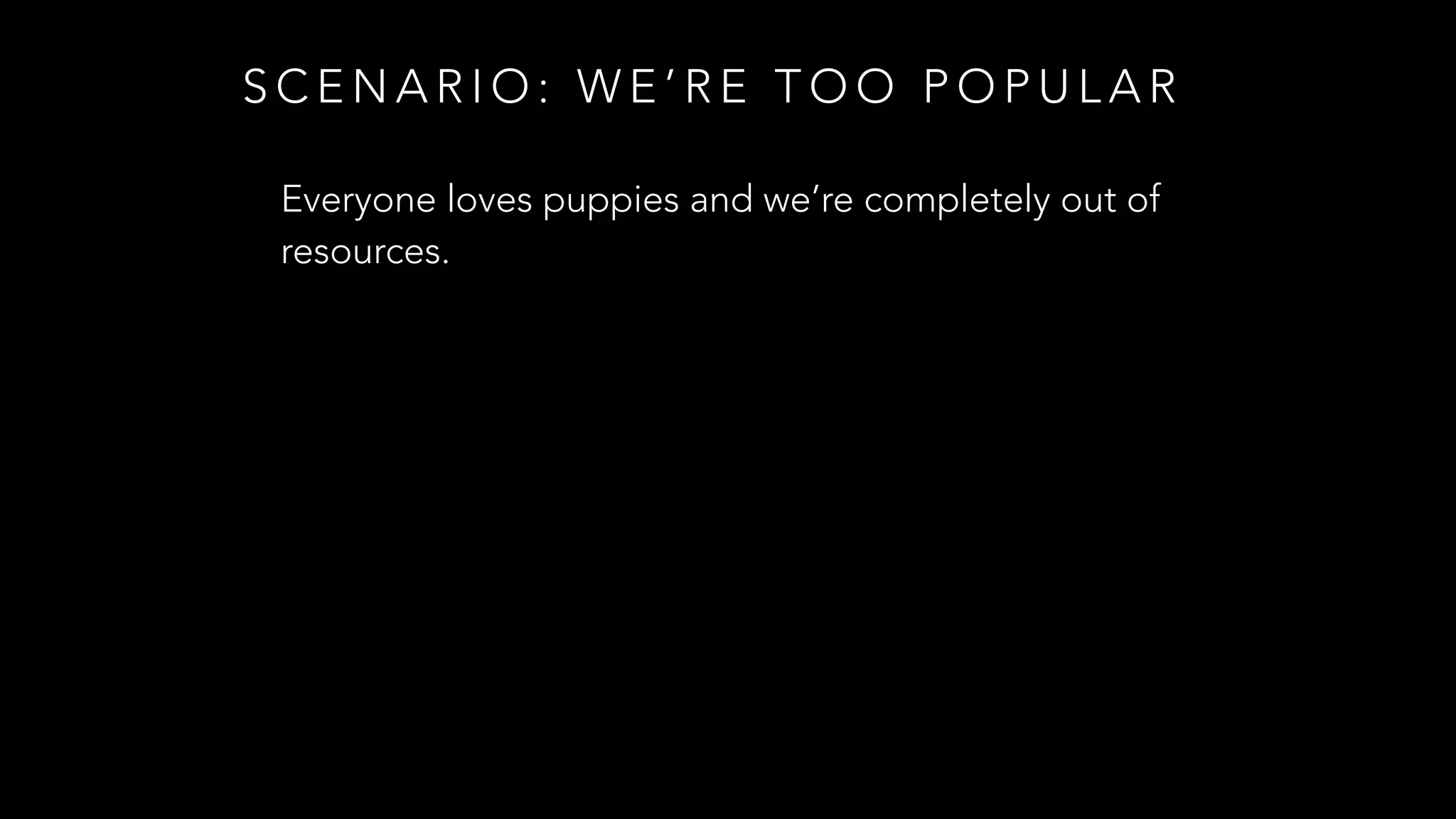

69. S C E N A R I O : W E ’ R E T O O P O P U L A R
Everyone loves puppies and we’re completely out of
resources.

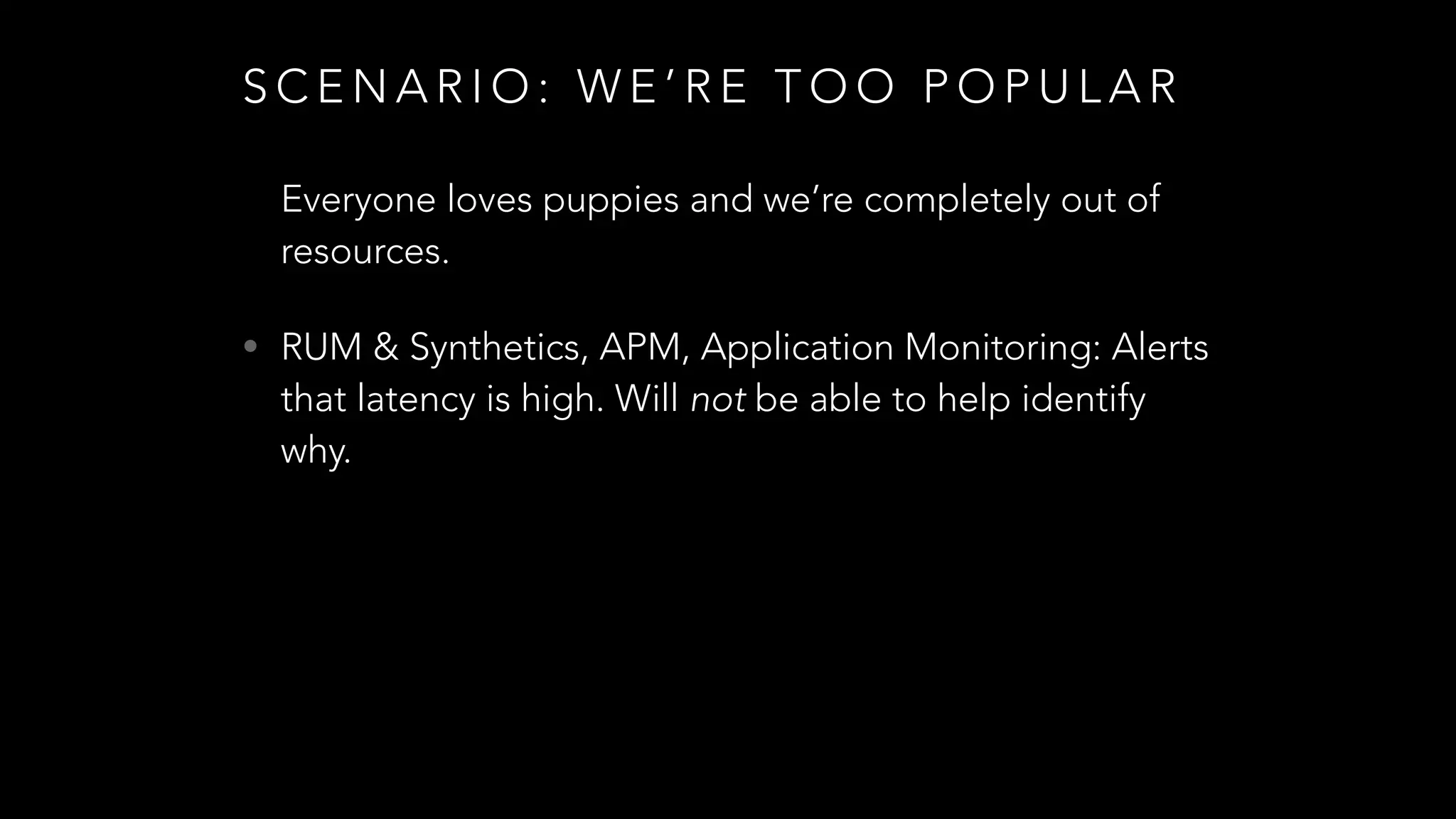

70. S C E N A R I O : W E ’ R E T O O P O P U L A R
Everyone loves puppies and we’re completely out of
resources.
• RUM & Synthetics, APM, Application Monitoring: Alerts
that latency is high. Will not be able to help identify
why.

71. S C E N A R I O : W E ’ R E T O O P O P U L A R
Everyone loves puppies and we’re completely out of
resources.
• RUM & Synthetics, APM, Application Monitoring: Alerts
that latency is high. Will not be able to help identify
why.
• Infrastructure Monitoring: Alerts on high resource use
and may be able to trigger automatic remediation.

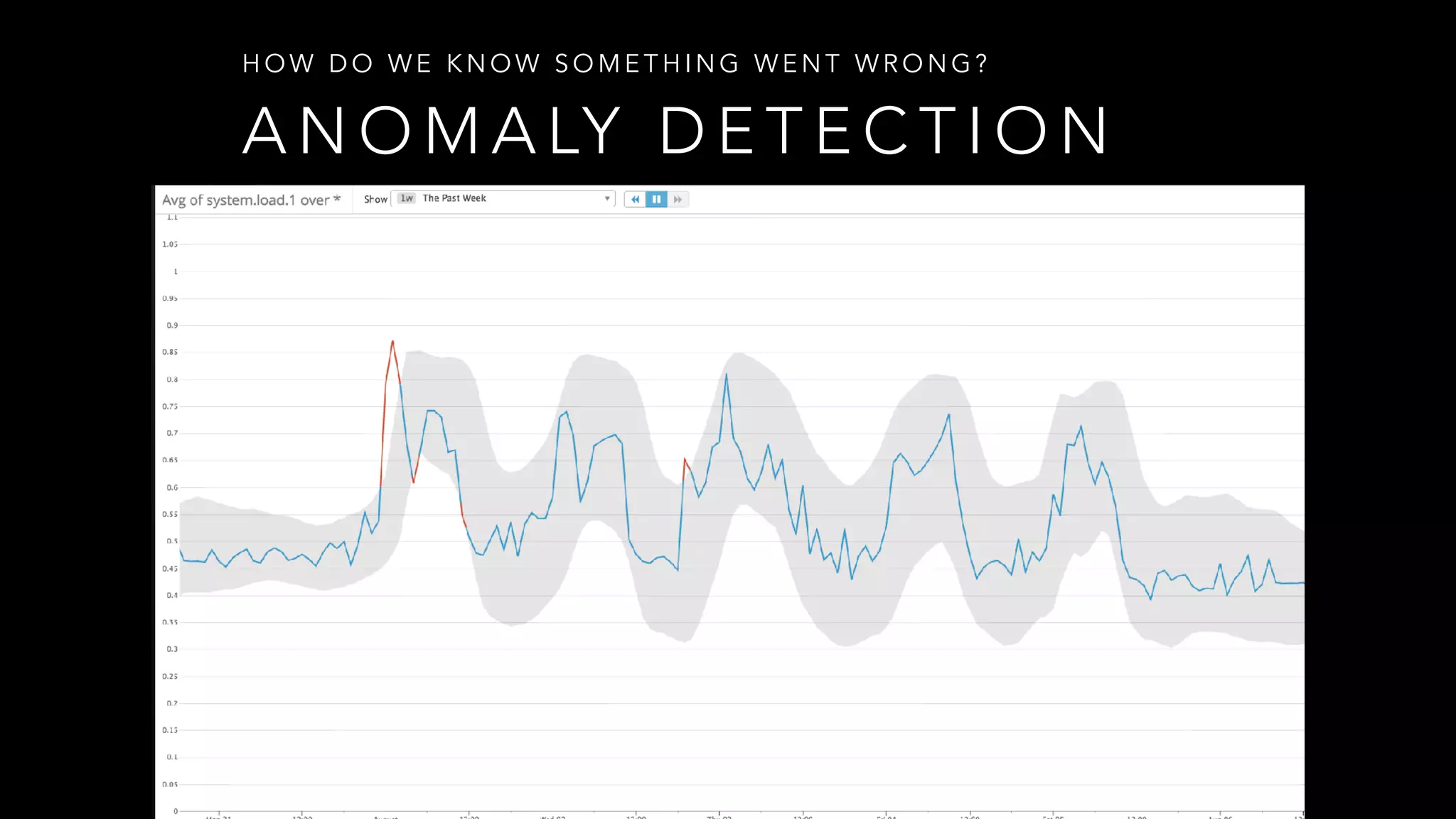

72. A N O M A LY D E T E C T I O N
H O W D O W E K N O W S O M E T H I N G W E N T W R O N G ?

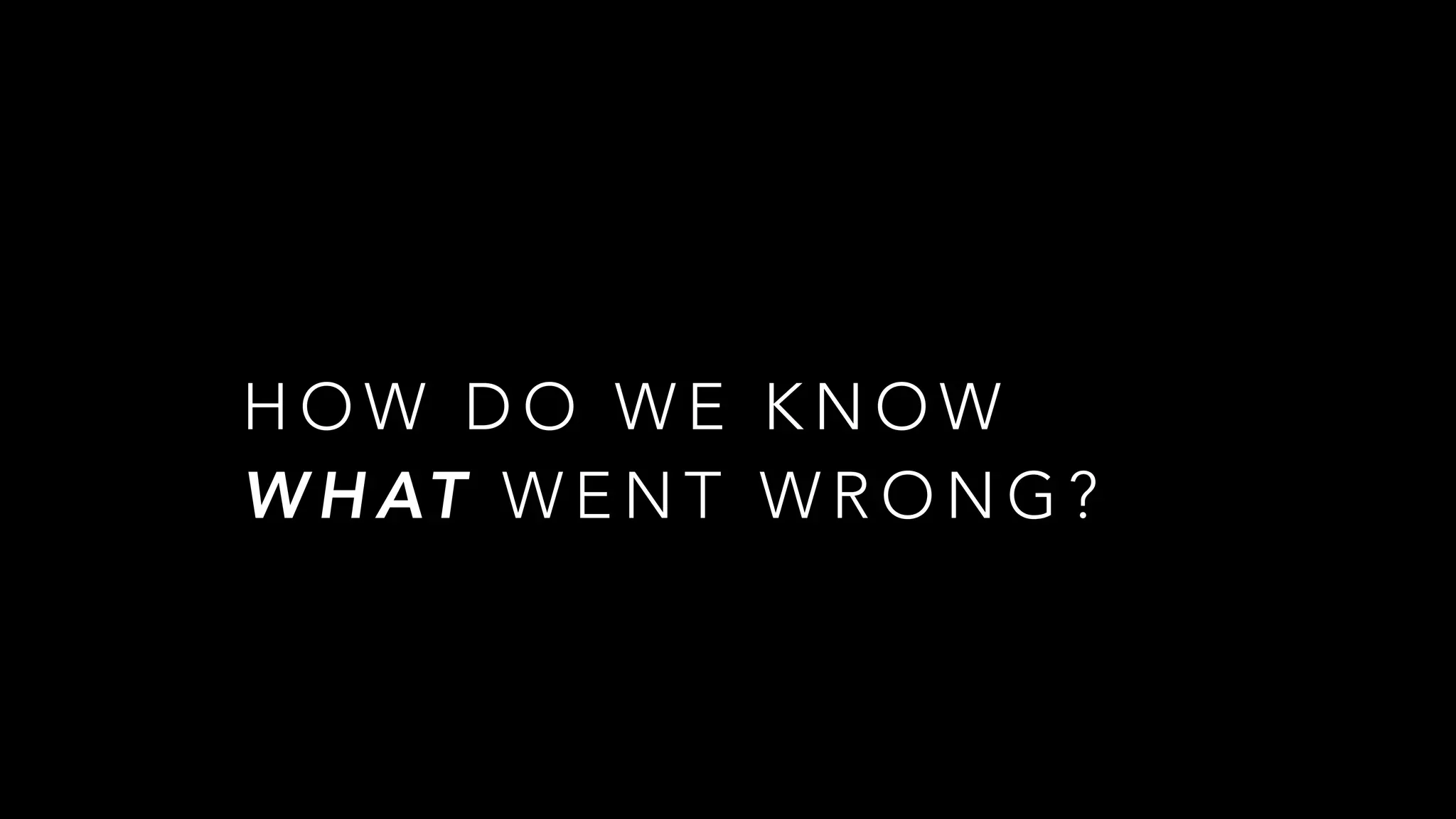

73. H O W D O W E K N O W
W H AT W E N T W R O N G ?

74. U N T I L Y O U F I N D T H E C A U S E S
R E C U R S E R E C U R S E R E C U R S E

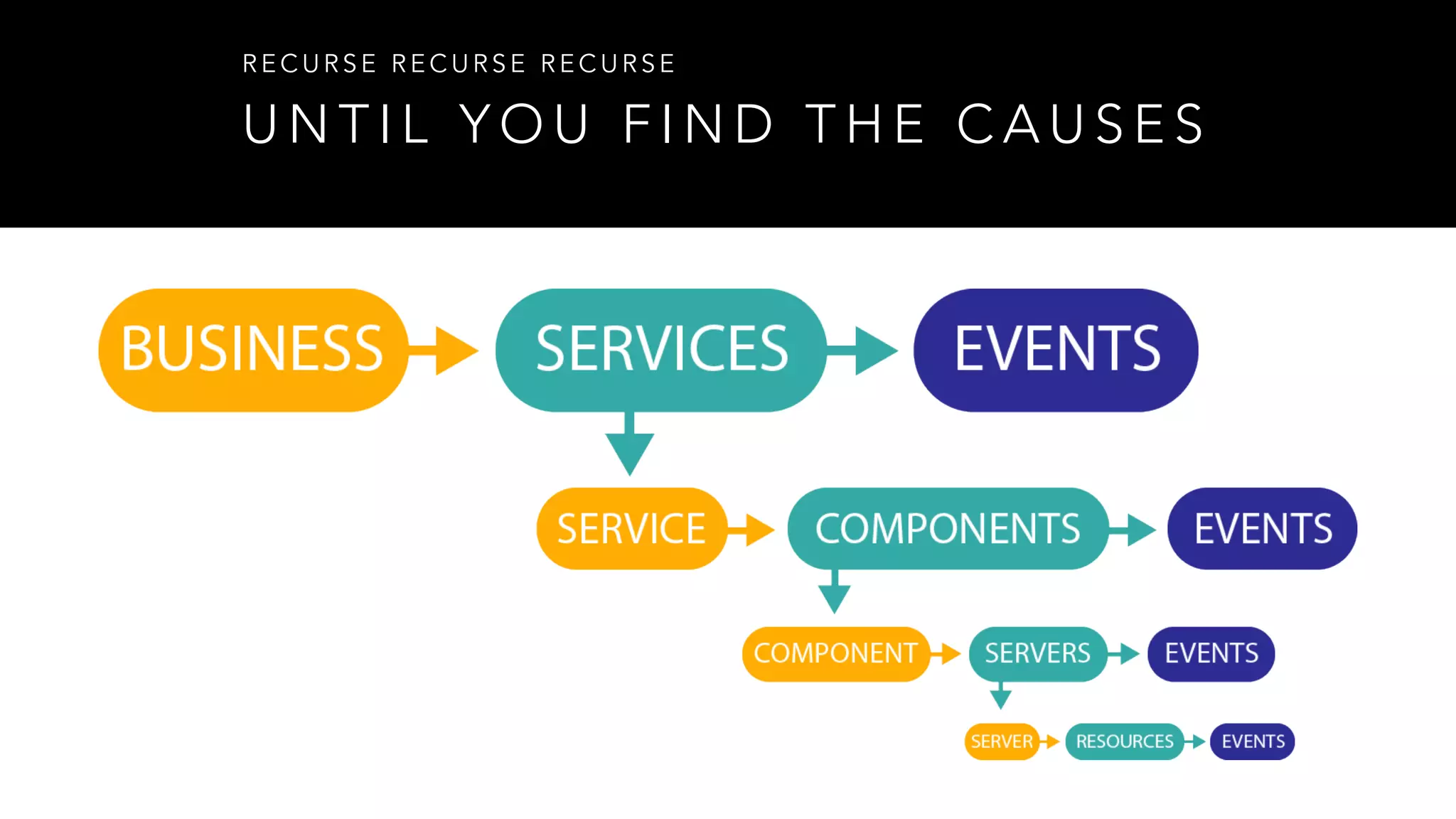

75. U N T I L Y O U F I N D T H E C A U S E S
R E C U R S E R E C U R S E R E C U R S E

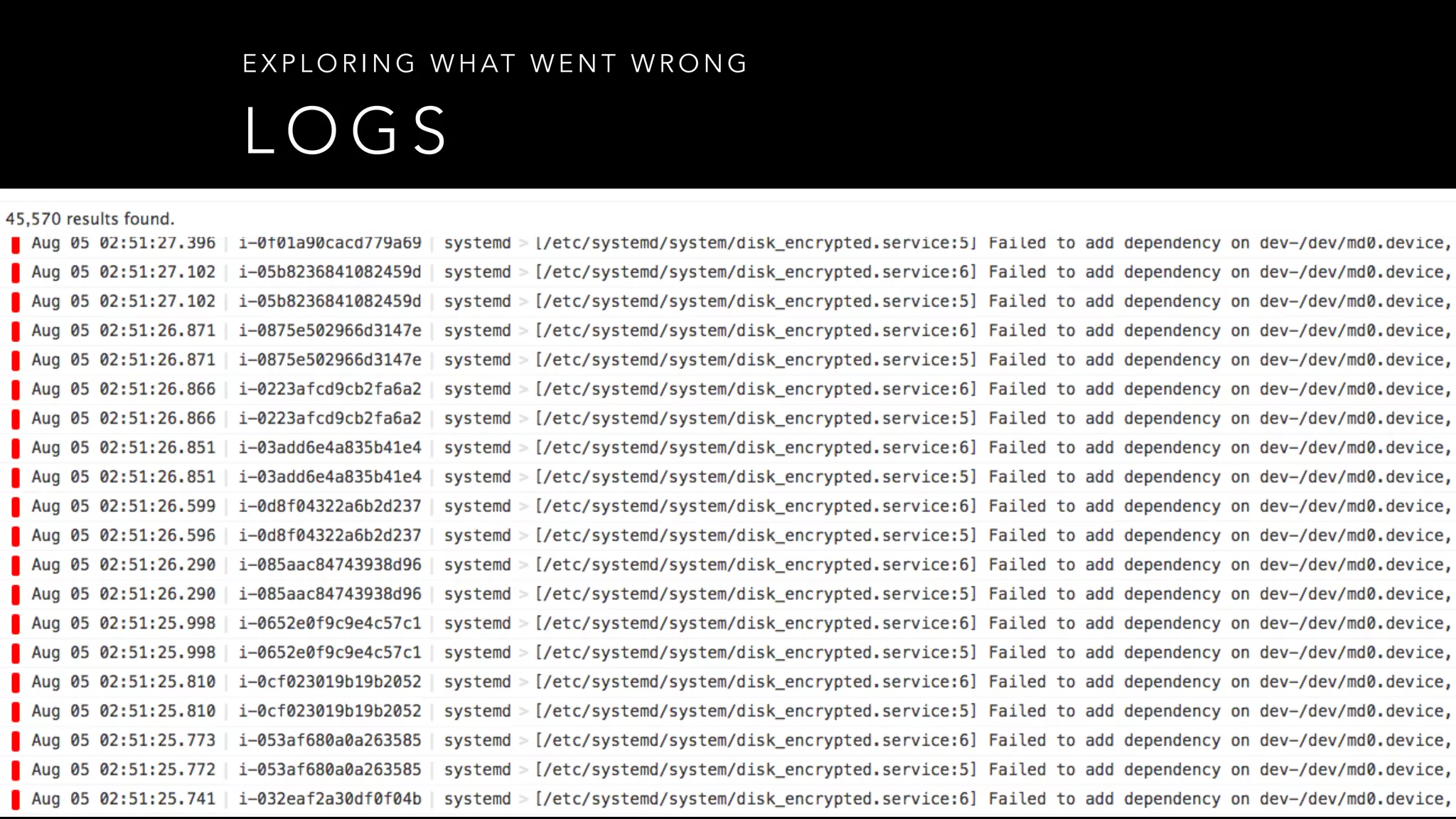

76. L O G S
E X P L O R I N G W H AT W E N T W R O N G

77. H O W T O G E T 1 0 0 % V I S I B I L I T Y ?
• Think about your system as a whole

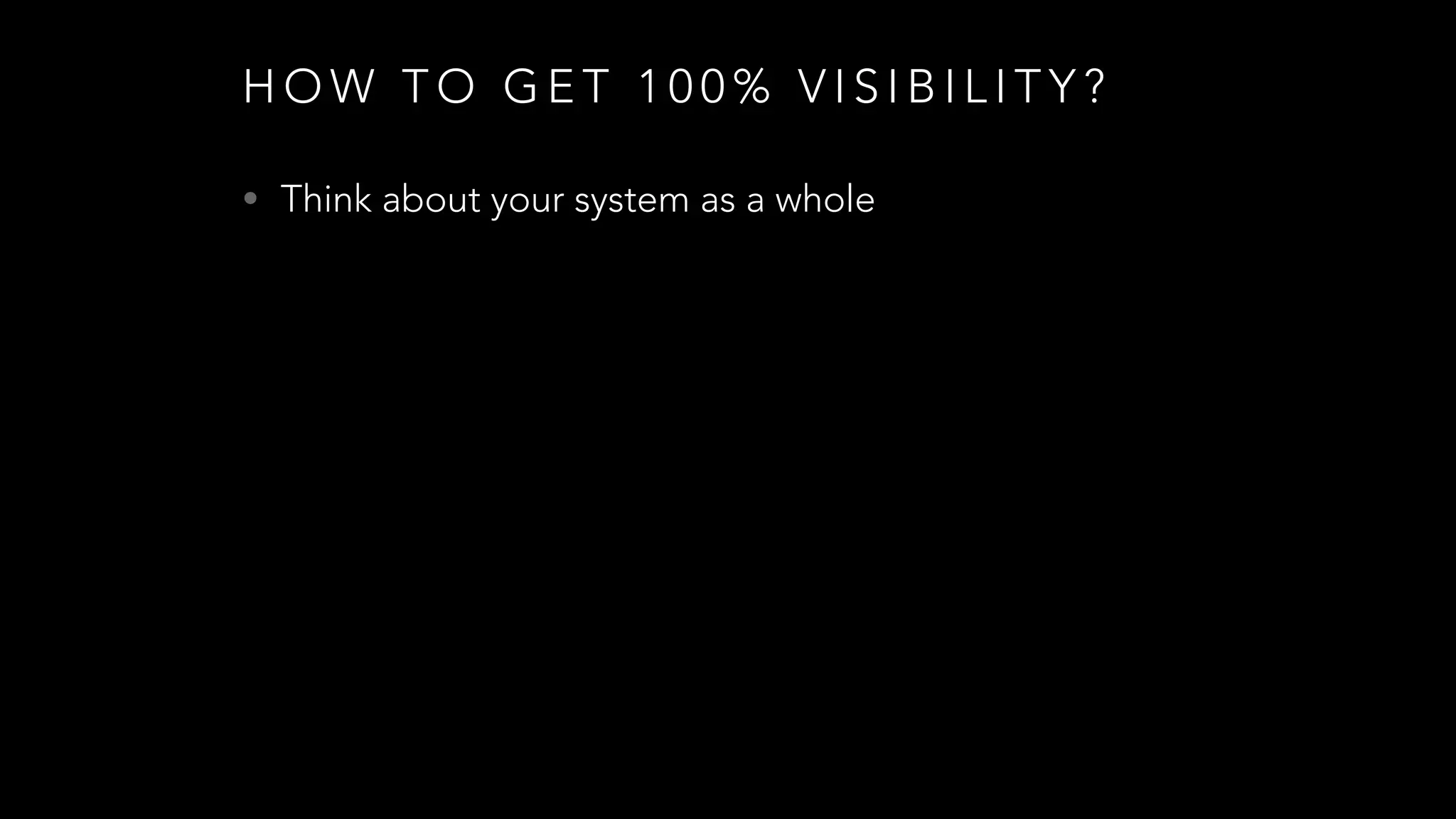

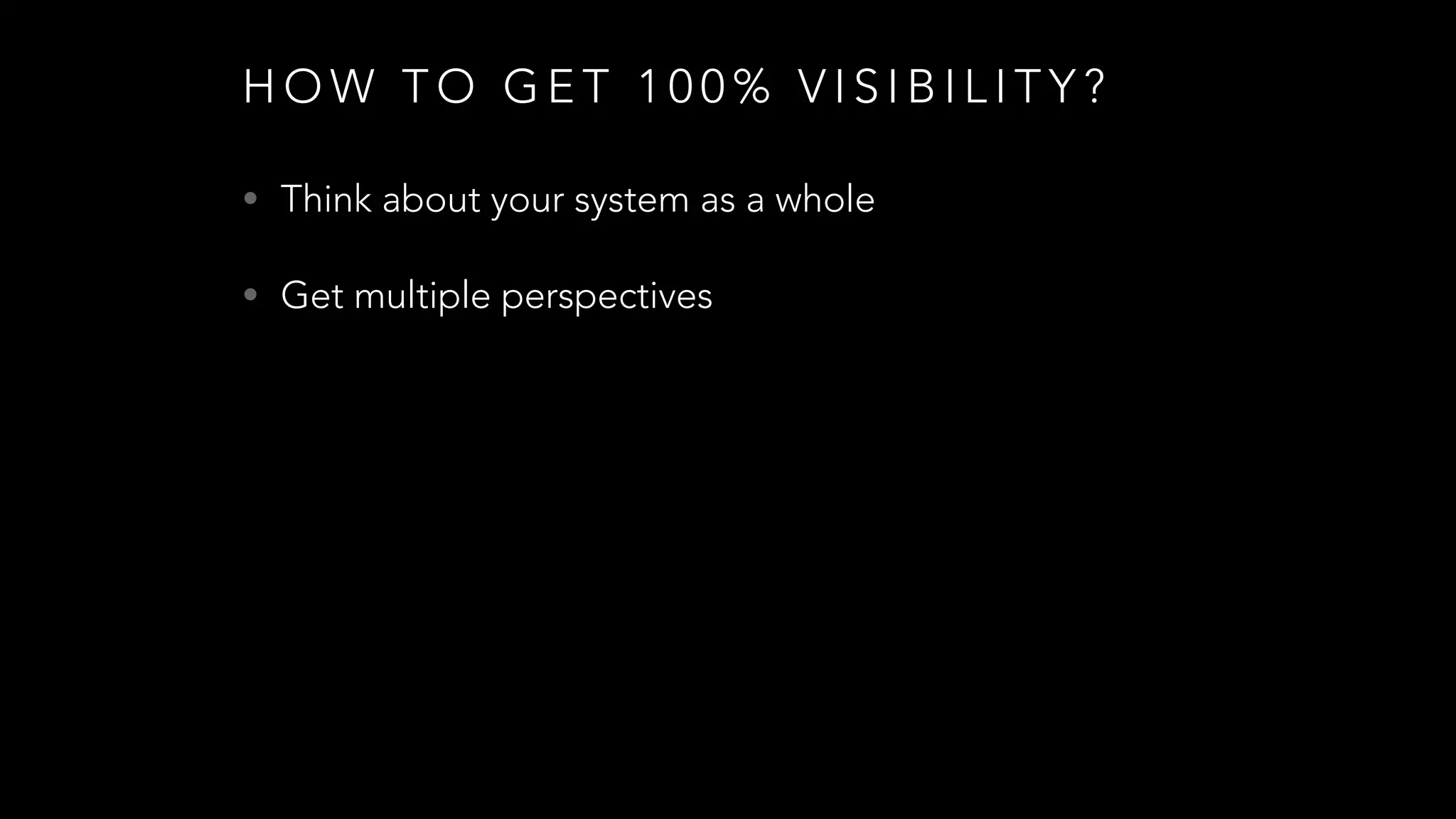

78. H O W T O G E T 1 0 0 % V I S I B I L I T Y ?
• Think about your system as a whole
• Get multiple perspectives

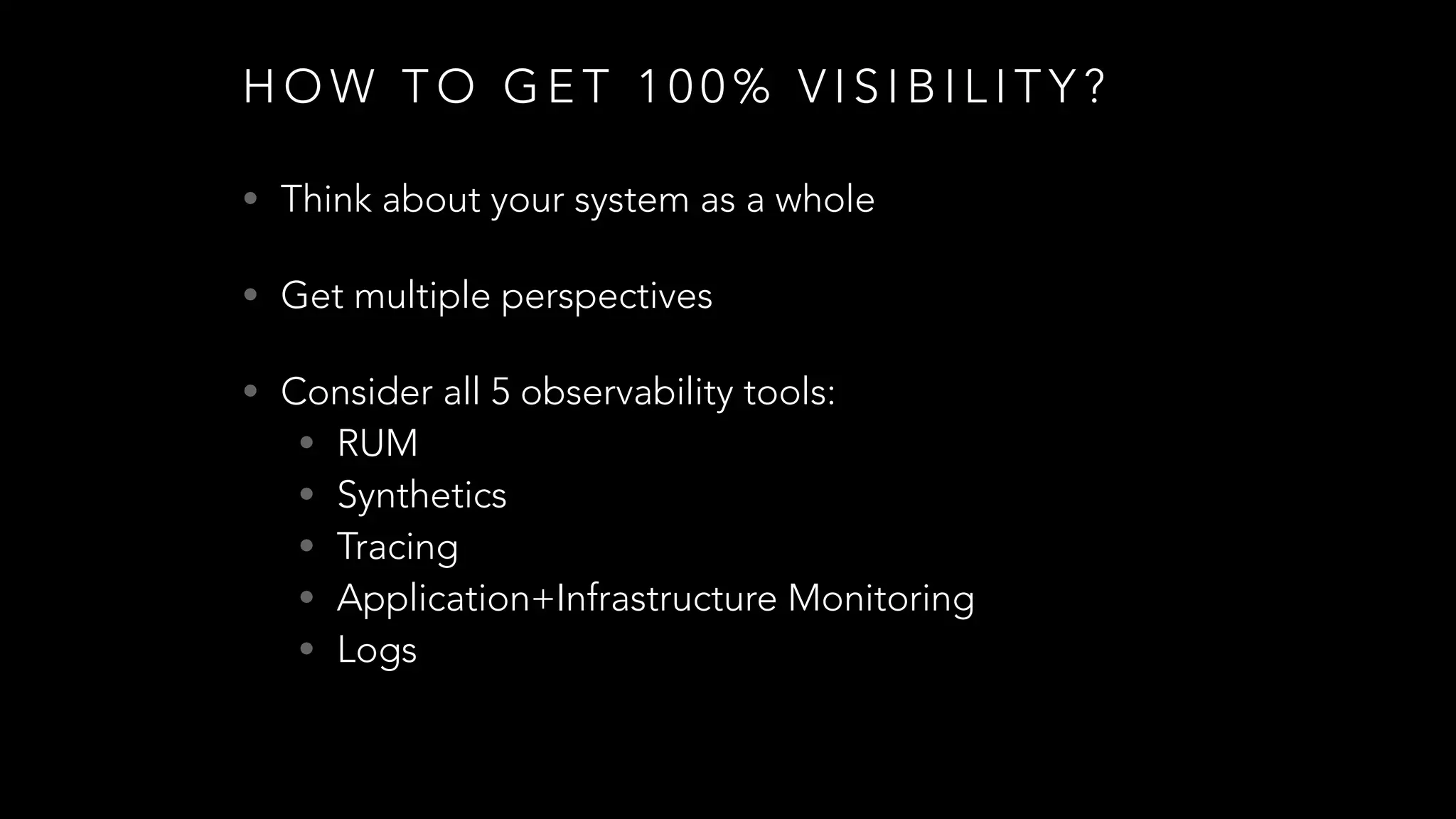

79. H O W T O G E T 1 0 0 % V I S I B I L I T Y ?
• Think about your system as a whole
• Get multiple perspectives
• Consider all 5 observability tools:
• RUM
• Synthetics
• Tracing
• Application+Infrastructure Monitoring
• Logs

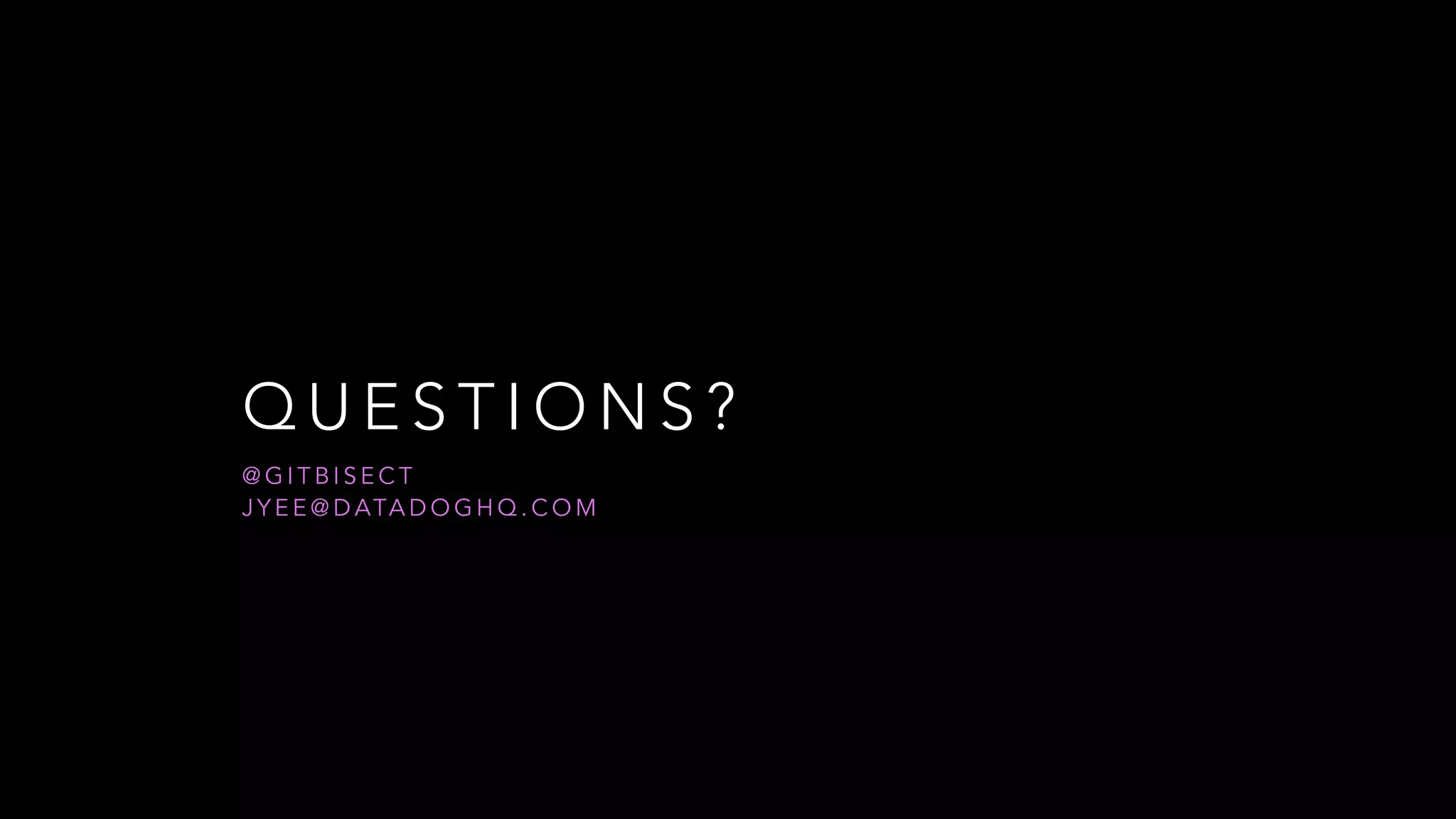

80. Q U E S T I O N S ?
@ G I T B I S E C T
J Y E E @ D ATA D O G H Q . C O M

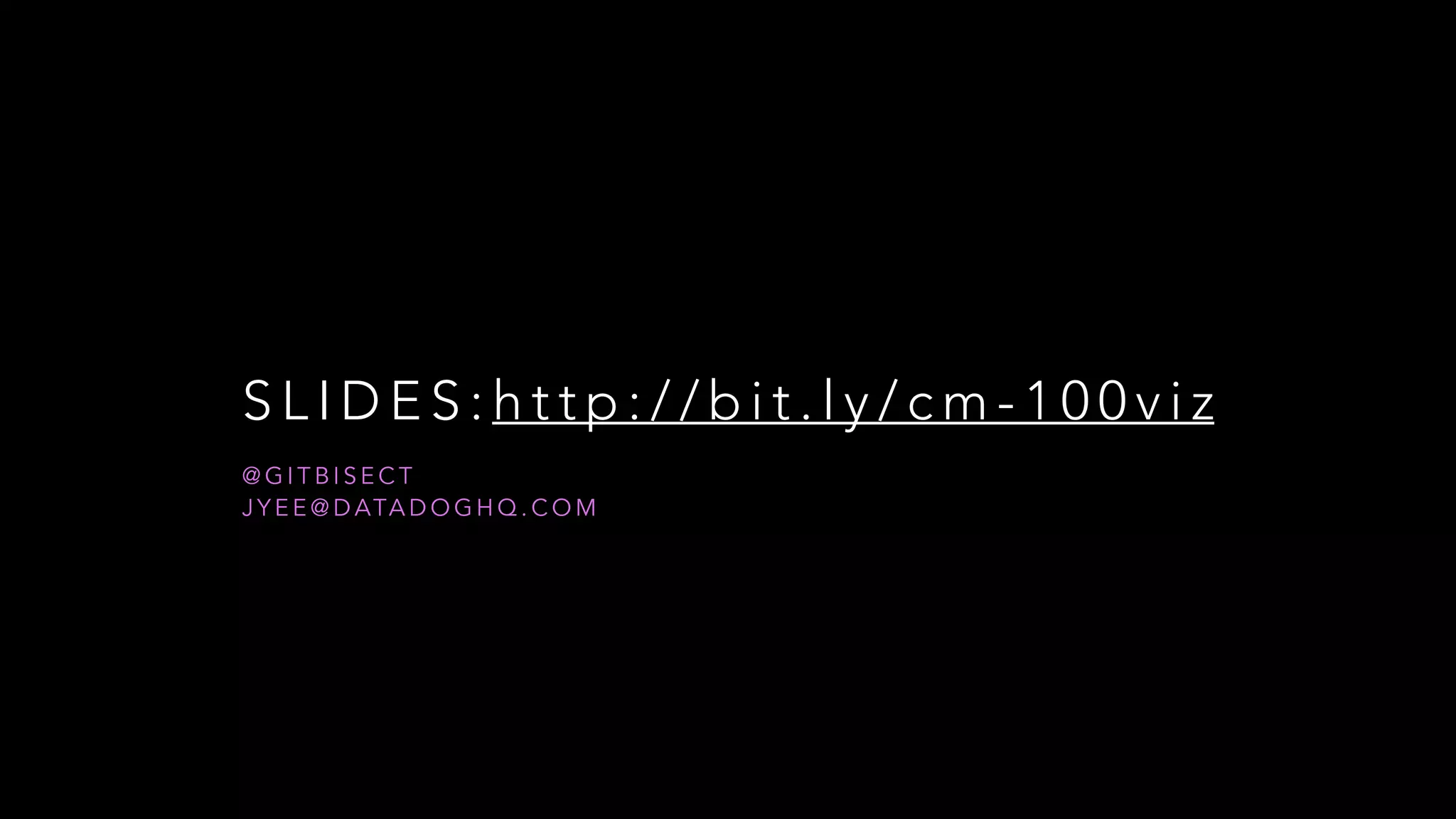

81. S L I D E S : h t t p : / / b i t . l y / c m - 1 0 0 v i z
@ G I T B I S E C T
J Y E E @ D ATA D O G H Q . C O M
