Elm Detroit
Planting Seeds
with Elm
An introduction to the Elm programming language

September7,2017 2

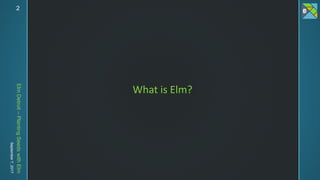

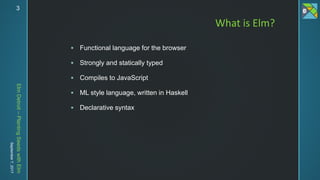

What is Elm?

September7,2017 3
 Functional language for the browser
 Strongly and statically typed
 Compiles to JavaScript
 ML style language, written in Haskell
 Declarative syntax
What is Elm?

September7,2017 4

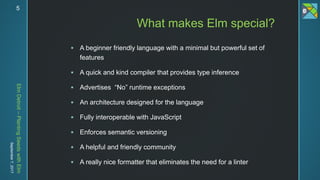

What makes Elm special?

September7,2017 5
 A beginner friendly language with a minimal but powerful set of
features

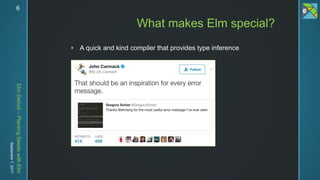

 A quick and kind compiler that provides type inference
 Advertises “No” runtime exceptions
 An architecture designed for the language
 Fully interoperable with JavaScript
 Enforces semantic versioning
 A helpful and friendly community
 A really nice formatter that eliminates the need for a linter

September7,2017 6

September7,2017 7

September7,2017 8

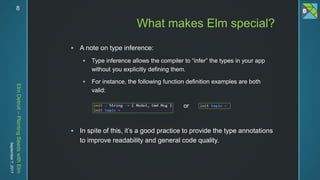

 A note on type inference:
 Type inference allows the compiler to “infer” the types in your app
without you explicitly defining them.
 For instance, the following function definition examples are both
valid:
 In spite of this, it’s a good practice to provide the type annotations
to improve readability and general code quality.
or

September7,2017 9

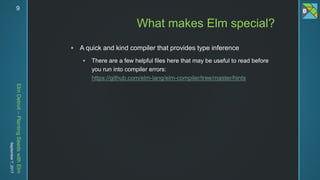

 There are a few helpful files here that may be useful to read before
you run into compiler errors:
https://github.com/elm-lang/elm-compiler/tree/master/hints

September7,201710

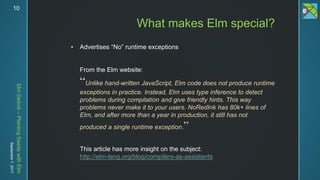

From the Elm website:
“Unlike hand-written JavaScript, Elm code does not produce runtime
exceptions in practice. Instead, Elm uses type inference to detect
problems during compilation and give friendly hints. This way
problems never make it to your users. NoRedInk has 80k+ lines of
Elm, and after more than a year in production, it still has not
produced a single runtime exception.”
This article has more insight on the subject:
http://elm-lang.org/blog/compilers-as-assistants

September7,201711

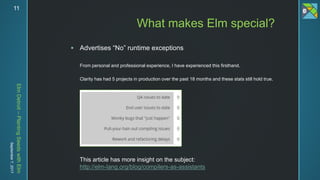

From personal and professional experience, I have experienced this firsthand.
Clarity has had 5 projects in production over the past 18 months and these stats still hold true.
This article has more insight on the subject:
http://elm-lang.org/blog/compilers-as-assistants

September7,201712

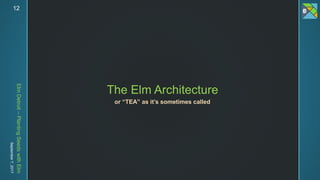

The Elm Architecture
or “TEA” as it’s sometimes called

September7,201713

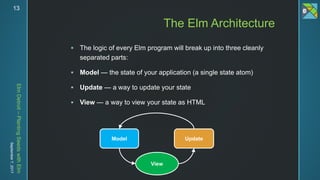

 The logic of every Elm program will break up into three cleanly
separated parts:
 Model — the state of your application (a single state atom)
 Update — a way to update your state
 View — a way to view your state as HTML
The Elm Architecture
View
Model Update

September7,201714

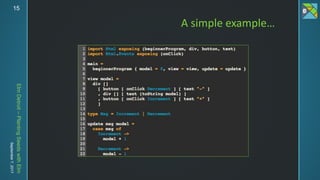

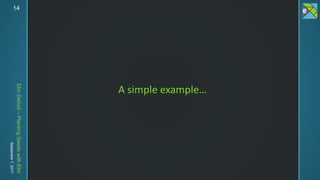

A simple example…

September7,201715
A simple example…

September7,201716

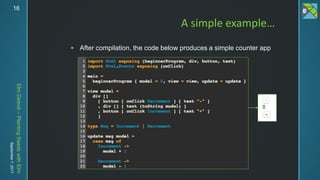

 After compilation, the code below produces a simple counter app
A simple example…

September7,201717

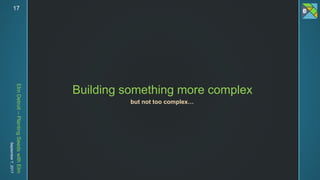

Building something more complex
but not too complex…

September7,201718

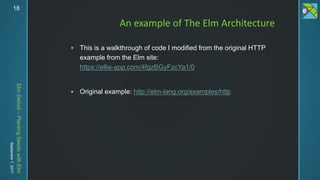

 This is a walkthrough of code I modified from the original HTTP
example from the Elm site:
https://ellie-app.com/4fgzBGyFzcYa1/0
 Original example: http://elm-lang.org/examples/http
An example of The Elm Architecture

September7,201719

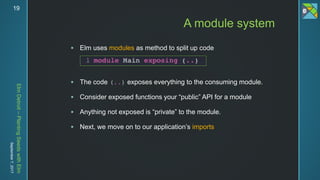

 Elm uses modules as method to split up code
 The code (..) exposes everything to the consuming module.
 Consider exposed functions your “public” API for a module
 Anything not exposed is “private” to the module.
 Next, we move on to our application’s imports
A module system

September7,201720

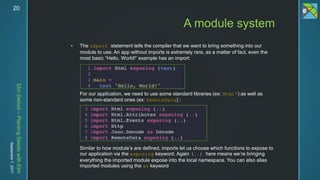

 The import statement tells the compiler that we want to bring something into our
module to use. An app without imports is extremely rare, as a matter of fact, even the
most basic “Hello, World!” example has an import:
For our application, we need to use some standard libraries (ex: Html*) as well as
some non-standard ones (ex: RemoteData) :
Similar to how module’s are defined, imports let us choose which functions to expose to
our application via the exposing keyword. Again (..) here means we’re bringing
everything the imported module expose into the local namespace. You can also alias
imported modules using the as keyword
A module system

September7,201721

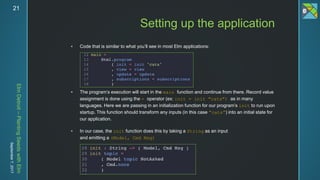

 Code that is similar to what you’ll see in most Elm applications:
 The program’s execution will start in the main function and continue from there. Record value
assignment is done using the = operator (ex: init = init "cats") as in many
languages. Here we are passing in an initialization function for our program’s init to run upon
startup. This function should transform any inputs (in this case “cats”) into an initial state for
our application.
 In our case, the init function does this by taking a String as an input
and emitting a (Model, Cmd Msg)
Setting up the application

September7,201722

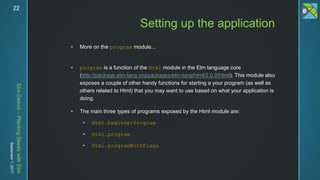

 More on the program module...
 program is a function of the Html module in the Elm language core
(http://package.elm-lang.org/packages/elm-lang/html/2.0.0/Html). This module also
exposes a couple of other handy functions for starting a your program (as well as
others related to Html) that you may want to use based on what your application is
doing.
 The main three types of programs exposed by the Html module are:
 Html.beginnerProgram
 Html.program
 Html.programWithFlags

September7,201723

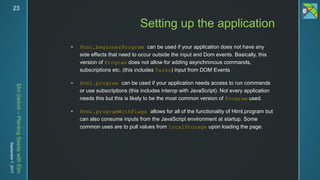

 Html.beginnerProgram can be used if your application does not have any
side effects that need to occur outside the input and Dom events. Basically, this
version of Program does not allow for adding asynchronous commands,
subscriptions etc. (this includes Tasks) input from DOM Events
 Html.program can be used if your application needs access to run commands
or use subscriptions (this includes interop with JavaScript). Not every application
needs this but this is likely to be the most common version of Program used.
 Html.programWithFlags allows for all of the functionality of Html.program but
can also consume inputs from the JavaScript environment at startup. Some
common uses are to pull values from localStorage upon loading the page.

September7,201724

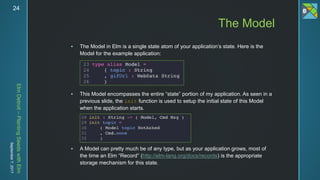

 The Model in Elm is a single state atom of your application’s state. Here is the
Model for the example application:
 This Model encompasses the entire “state” portion of my application. As seen in a
previous slide, the init function is used to setup the initial state of this Model
when the application starts.
 A Model can pretty much be of any type, but as your application grows, most of
the time an Elm “Record” (http://elm-lang.org/docs/records) is the appropriate
storage mechanism for this state.
The Model

September7,201725

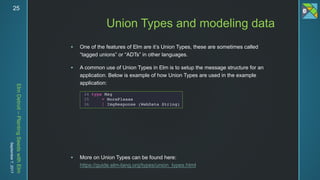

 One of the features of Elm are it’s Union Types, these are sometimes called
“tagged unions” or “ADTs” in other languages.
 A common use of Union Types in Elm is to setup the message structure for an
application. Below is example of how Union Types are used in the example
application:
 More on Union Types can be found here:
https://guide.elm-lang.org/types/union_types.html
Union Types and modeling data

September7,201726
 A more complex union type example:
 Referenced from RemoteData package by Kris Jenkins:
http://package.elm-lang.org/packages/krisajenkins/remotedata/latest

September7,201727

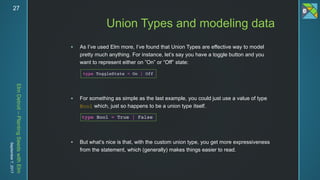

 As I’ve used Elm more, I’ve found that Union Types are effective way to model
pretty much anything. For instance, let’s say you have a toggle button and you
want to represent either on ”On” or “Off” state:
 For something as simple as the last example, you could just use a value of type
Bool which, just so happens to be a union type itself.
 But what’s nice is that, with the custom union type, you get more expressiveness
from the statement, which (generally) makes things easier to read.

September7,201728
 In practice, union types allow for actions based on a pattern match which we’ll see
in the next slide as we move on to the update function!

September7,201729

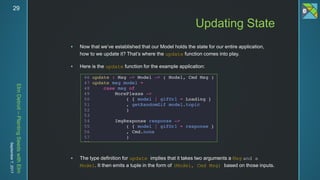

 Now that we’ve established that our Model holds the state for our entire application,
how to we update it? That’s where the update function comes into play.
 Here is the update function for the example application:
 The type definition for update implies that it takes two arguments a Msg and a
Model. It then emits a tuple in the form of (Model, Cmd Msg) based on those inputs.
Updating State

September7,201730
Updating State
In this case, pattern matching is being used to determine what should be returned by the update
function (how the model should change based on the current model) as well as any additional
commands that may need to be run based on the condition. This is a fairly standard thing to see
in an Elm update function
However, as an application scales, this section can grow and it may be beneficial to break out
some of the smaller blocks of execution into their own function (or even their own module)
Update the Model
Schedule a Cmd to be run upon the
next cycle of the Elm runtime
loop (after the View is rendered)
Update the Model
In this case, we don’t need to run
Any additional commands, just
process the response so we use
Cmd.none

September7,201731

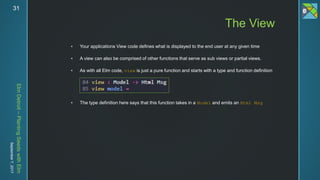

 Your applications View code defines what is displayed to the end user at any given time
 A view can also be comprised of other functions that serve as sub views or partial views.
 As with all Elm code, view is just a pure function and starts with a type and function definition
 The type definition here says that this function takes in a Model and emits an Html Msg
The View

September7,201732

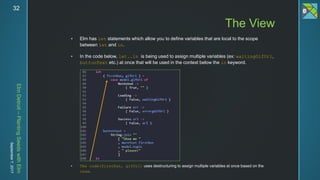

 Elm has let statements which allow you to define variables that are local to the scope
between let and in.
 In the code below, let..in is being used to assign multiple variables (ex: waitingGifUrl,
buttonText etc.) at once that will be used in the context below the in keyword.
 The code(firstRun, gifUrl) uses destructuring to assign multiple variables at once based on the
case.
The View

September7,201733

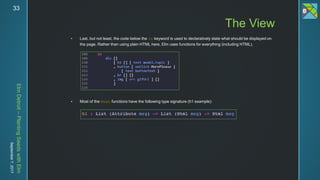

 Last, but not least, the code below the in keyword is used to declaratively state what should be displayed on
the page. Rather than using plain HTML here, Elm uses functions for everything (including HTML).
 Most of the Html functions have the following type signature (h1 example):
The View

September7,201734

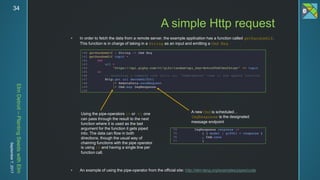

 In order to fetch the data from a remote server, the example application has a function called getRandomGif.
This function is in charge of taking in a String as an input and emitting a Cmd Msg
 An example of using the pipe-operator from the official site: http://elm-lang.org/examples/pipes/code
A simple Http request
A new Cmd is scheduled…
ImgResponse is the designated
message endpoint
Using the pipe-operators |> or <| one
can pass through the result to the next
function where it is used as the last
argument for the function it gets piped
into. The data can flow in both
directions, though the usual way of
chaining functions with the pipe operator
is using |> and having a single line per
function call.

September7,201735

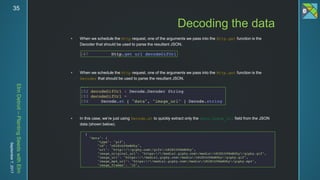

 When we schedule the Http request, one of the arguments we pass into the Http.get function is the
Decoder that should be used to parse the resultant JSON.
 When we schedule the Http request, one of the arguments we pass into the Http.get function is the
Decoder that should be used to parse the resultant JSON.
 In this case, we’re just using Decode.at to quickly extract only the data.image_url field from the JSON
data (shown below).
Decoding the data

September7,201736

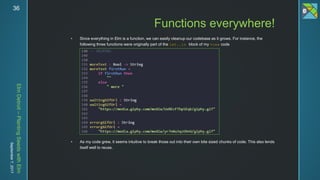

 Since everything in Elm is a function, we can easily cleanup our codebase as it grows. For instance, the
following three functions were originally part of the let..in block of my view code
 As my code grew, it seems intuitive to break those out into their own bite sized chunks of code. This also lends
itself well to reuse.
Functions everywhere!

September7,201737

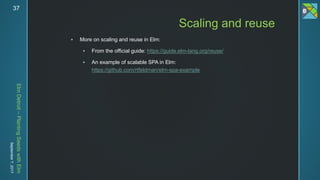

 More on scaling and reuse in Elm:
 From the official guide: https://guide.elm-lang.org/reuse/
 An example of scalable SPA in Elm:
https://github.com/rtfeldman/elm-spa-example
Scaling and reuse

September7,201738

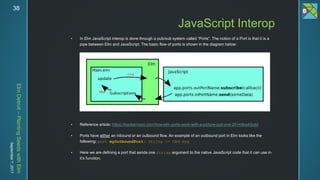

 In Elm JavaScript interop is done through a pub/sub system called “Ports”. The notion of a Port is that it is a
pipe between Elm and JavaScript. The basic flow of ports is shown in the diagram below:
 Reference article: https://hackernoon.com/how-elm-ports-work-with-a-picture-just-one-25144ba43cdd
 Ports have either an inbound or an outbound flow. An example of an outbound port in Elm looks like the
following: port myOutboundPort: String -> Cmd msg
 Here we are defining a port that sends one String argument to the native JavaScript code that it can use in
it’s function.
JavaScript Interop

September7,201739

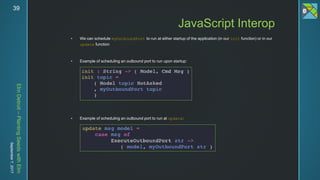

 We can schedule myOutboundPort to run at either startup of the application (in our init function) or in our
update function
 Example of scheduling an outbound port to run upon startup:
 Example of scheduling an outbound port to run at update:
JavaScript Interop

September7,201740

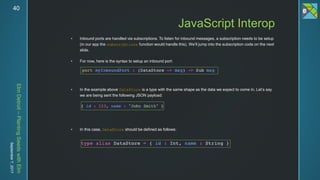

 Inbound ports are handled via subscriptions. To listen for inbound messages, a subscription needs to be setup
(in our app the subscriptions function would handle this). We’ll jump into the subscription code on the next
slide.
 For now, here is the syntax to setup an inbound port:
 In the example above DataStore is a type with the same shape as the data we expect to come in. Let’s say
we are being sent the following JSON payload:
 In this case, DataStore should be defined as follows:
JavaScript Interop

September7,201741
 To subscribe (listen) for messages coming in on this port, we need to add a subscription to our
subscriptions function:
JavaScript Interop
When we receive messages from this
port the update function will be
called with ExecuteInboundPort
as the message

September7,201742
 A few notes on subscriptions (Sub) and commands (Cmd) :
 If you need to subscribe to multiple endpoints (Phoenix channels, Ports etc.), you can
use Sub.batch with a List of subscriptions rather than just listing one.
 Similar to Sub.batch, Cmd.batch allows you to schedule multiple commands to run
 There are other functions for working with subscriptions and commands, their respective
documentation pages are:
 Subscriptions: http://package.elm-lang.org/packages/elm-lang/core/5.1.1/Platform-Sub
 Commands: http://package.elm-lang.org/packages/elm-lang/core/5.1.1/Platform-Cmd
Commands and Subscriptions

September7,201743

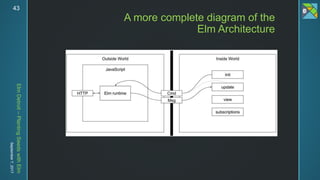

A more complete diagram of the
Elm Architecture

September7,201744

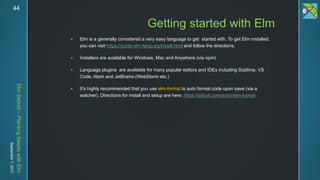

 Elm is a generally considered a very easy language to get started with. To get Elm installed,
you can visit https://guide.elm-lang.org/install.html and follow the directions.
 Installers are available for Windows, Mac and Anywhere (via npm)
 Language plugins are available for many popular editors and IDEs including Sublime, VS
Code, Atom and JetBrains (WebStorm etc.)
 It’s highly recommended that you use elm-format to auto format code upon save (via a
watcher). Directions for install and setup are here: https://github.com/avh4/elm-format
Getting started with Elm

September7,201745

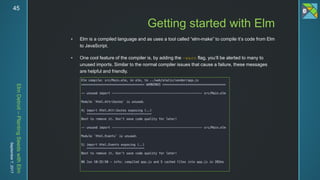

 Elm is a compiled language and as uses a tool called “elm-make” to compile it’s code from Elm
to JavaScript.
 One cool feature of the compiler is, by adding the –warn flag, you’ll be alerted to many to
unused imports. Similar to the normal compiler issues that cause a failure, these messages
are helpful and friendly.
Getting started with Elm

September7,201746

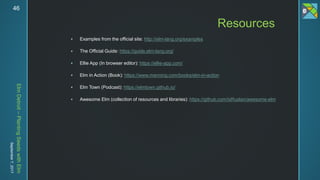

 Examples from the official site: http://elm-lang.org/examples
 The Official Guide: https://guide.elm-lang.org/
 Ellie App (In browser editor): https://ellie-app.com/
 Elm in Action (Book): https://www.manning.com/books/elm-in-action
 Elm Town (Podcast): https://elmtown.github.io/
 Awesome Elm (collection of resources and libraries): https://github.com/isRuslan/awesome-elm
Resources

September7,201747
Questions?

Elm Detroit 9/7/17 - Planting Seeds with Elm

Recommended

Recommended

More Related Content

Similar to Elm Detroit 9/7/17 - Planting Seeds with Elm

Similar to Elm Detroit 9/7/17 - Planting Seeds with Elm (20)

Recently uploaded

Recently uploaded (20)

Elm Detroit 9/7/17 - Planting Seeds with Elm
