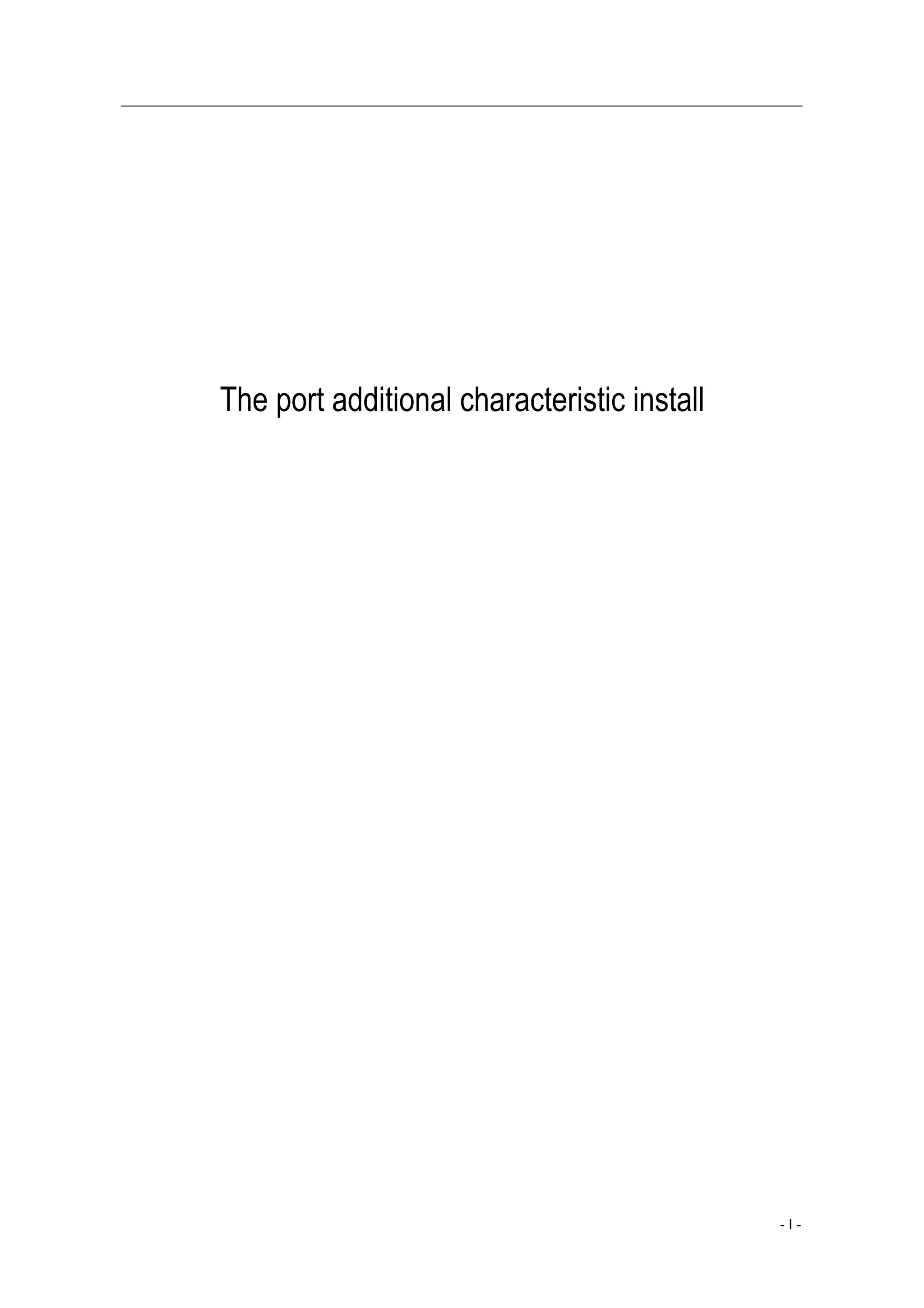

1. The port additional characteristic install
-I-

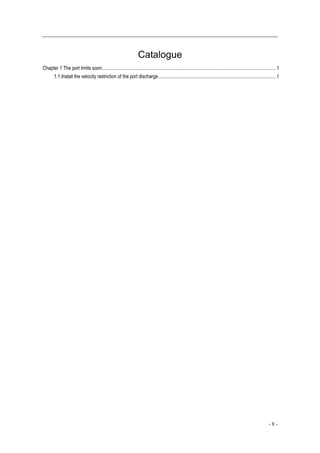

2. Catalogue
Chapter 1 The port limits soon.............................................................................................................................................. 1
1.1 Install the velocity restriction of the port discharge................................................................................................ 1
- II -

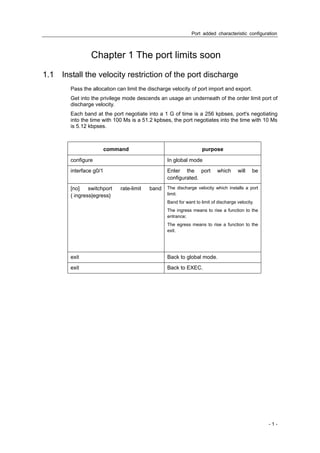

3. Port added characteristic configuration
Chapter 1 The port limits soon
1.1 Install the velocity restriction of the port discharge
Pass the allocation can limit the discharge velocity of port import and export.
Get into the privilege mode descends an usage an underneath of the order limit port of
discharge velocity.
Each band at the port negotiate into a 1 G of time is a 256 kpbses, port's negotiating
into the time with 100 Ms is a 51.2 kpbses, the port negotiates into the time with 10 Ms
is 5.12 kbpses.
command purpose
configure In global mode
interface g0/1 Enter the port which will be
configurated.
[no] switchport rate-limit band The discharge velocity which installs a port
{ ingress|egress} limit.
Band for want to limit of discharge velocity.
The ingress means to rise a function to the
entrance;
The egress means to rise a function to the
exit.
exit Back to global mode.
exit Back to EXEC.
-1-
