1. CS 1501
Balanced Trees

2. 2

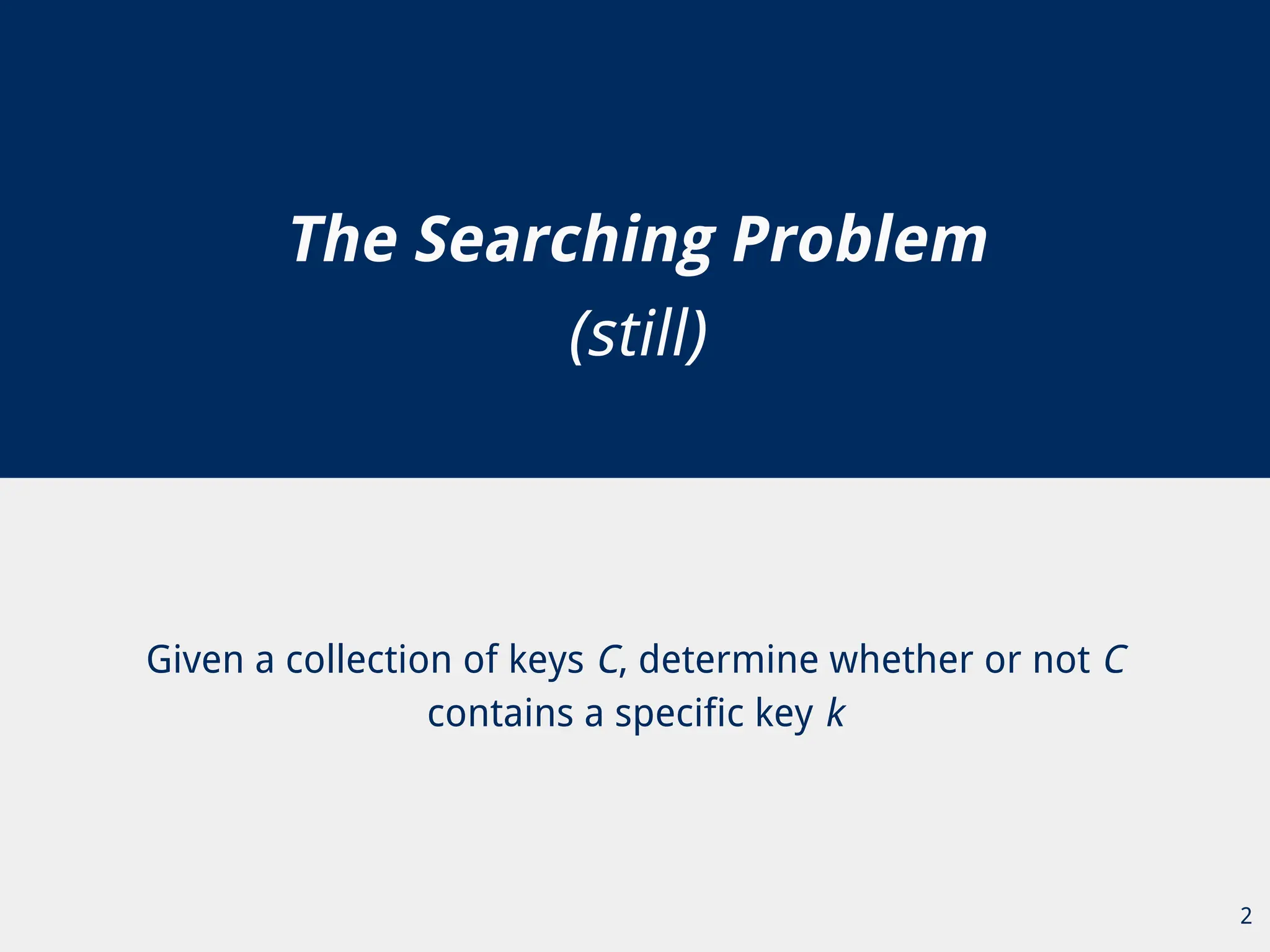

The Searching Problem
Given a collection of keys C, determine whether or not C
contains a specific key k
(still)

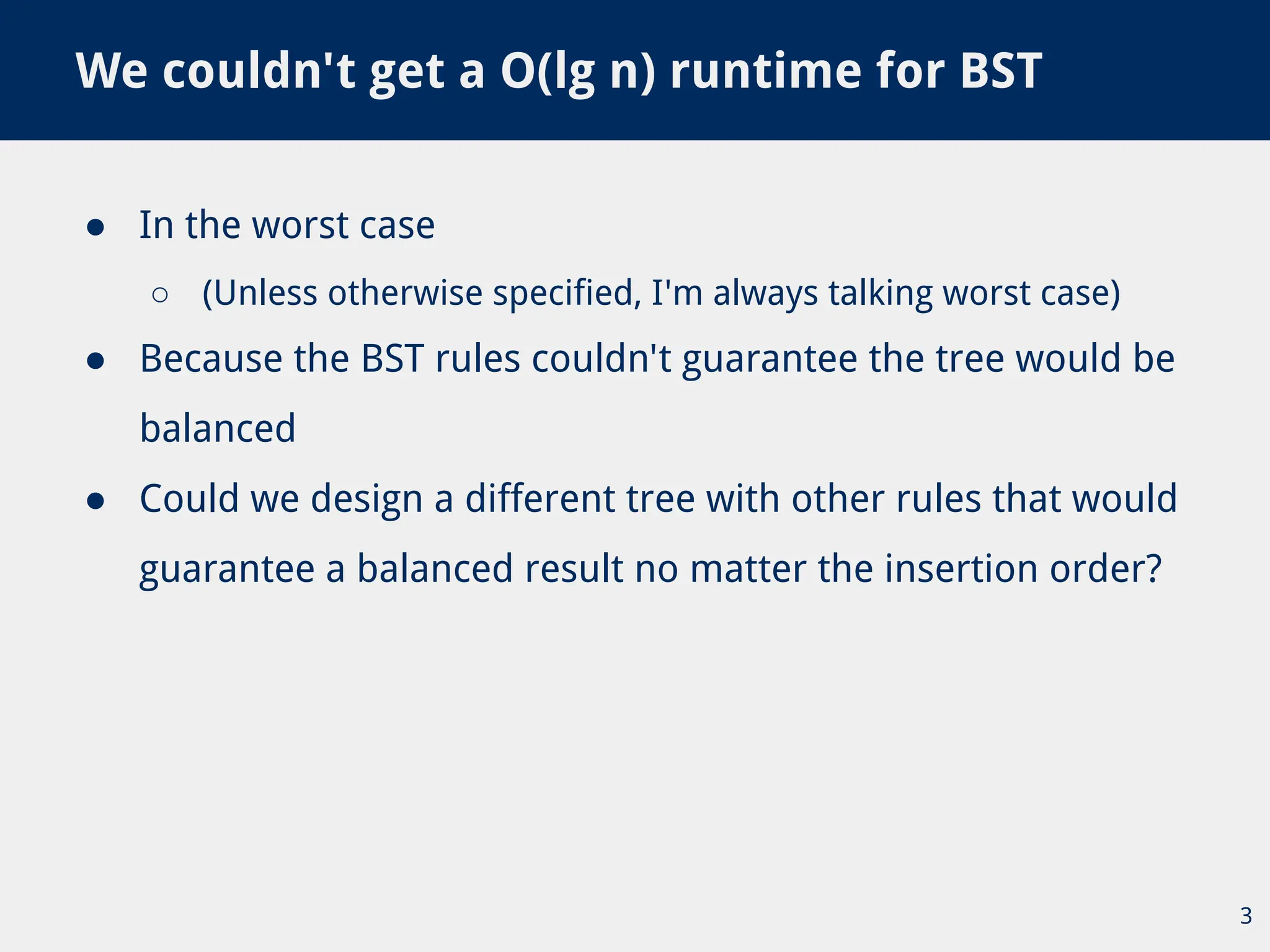

3. ● In the worst case
○ (Unless otherwise specified, I'm always talking worst case)
● Because the BST rules couldn't guarantee the tree would be
balanced
● Could we design a different tree with other rules that would
guarantee a balanced result no matter the insertion order?
We couldn't get a O(lg n) runtime for BST
3

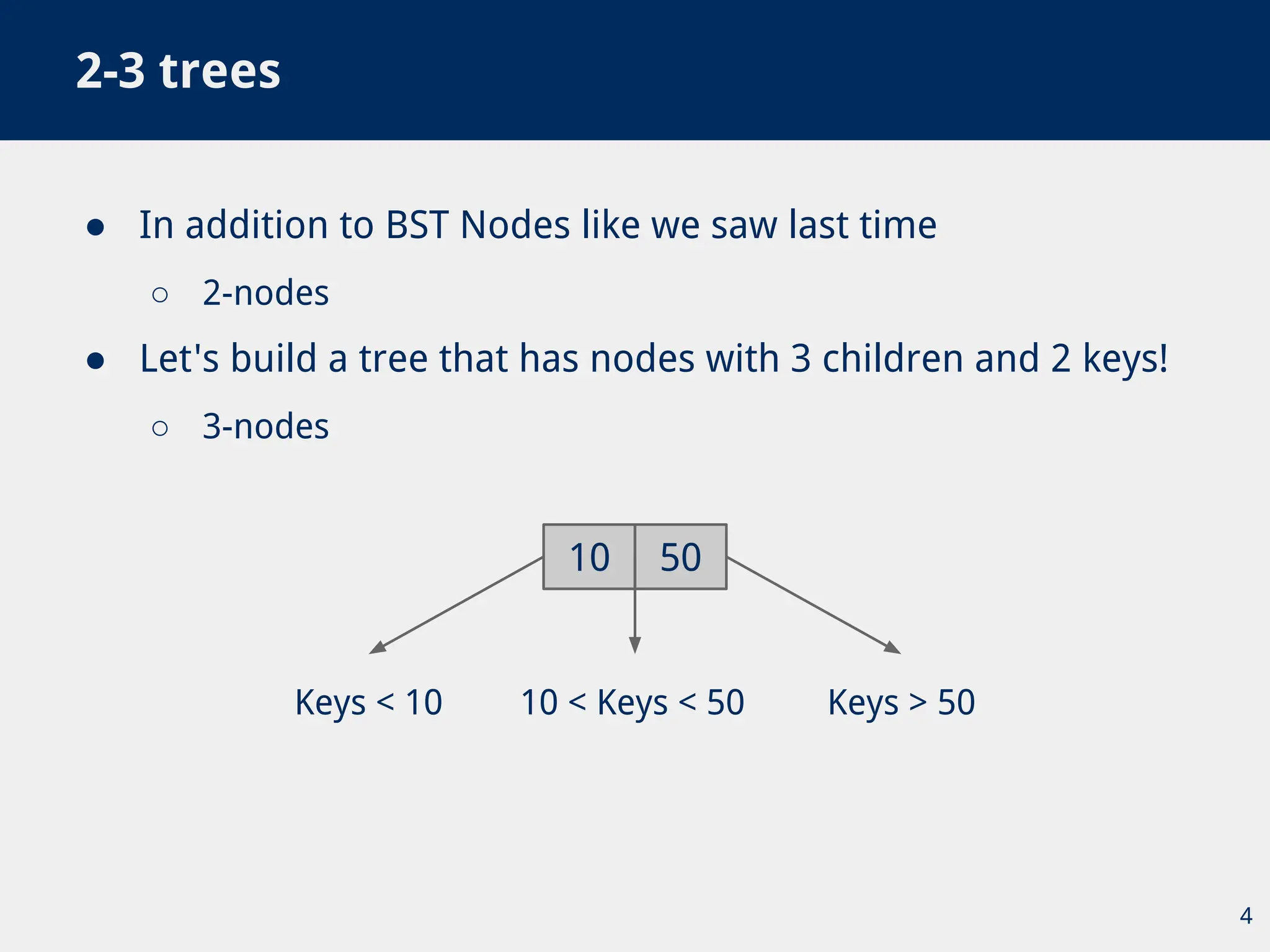

4. ● In addition to BST Nodes like we saw last time
○ 2-nodes
● Let's build a tree that has nodes with 3 children and 2 keys!
○ 3-nodes
2-3 trees
4
10 50
Keys < 10 10 < Keys < 50 Keys > 50

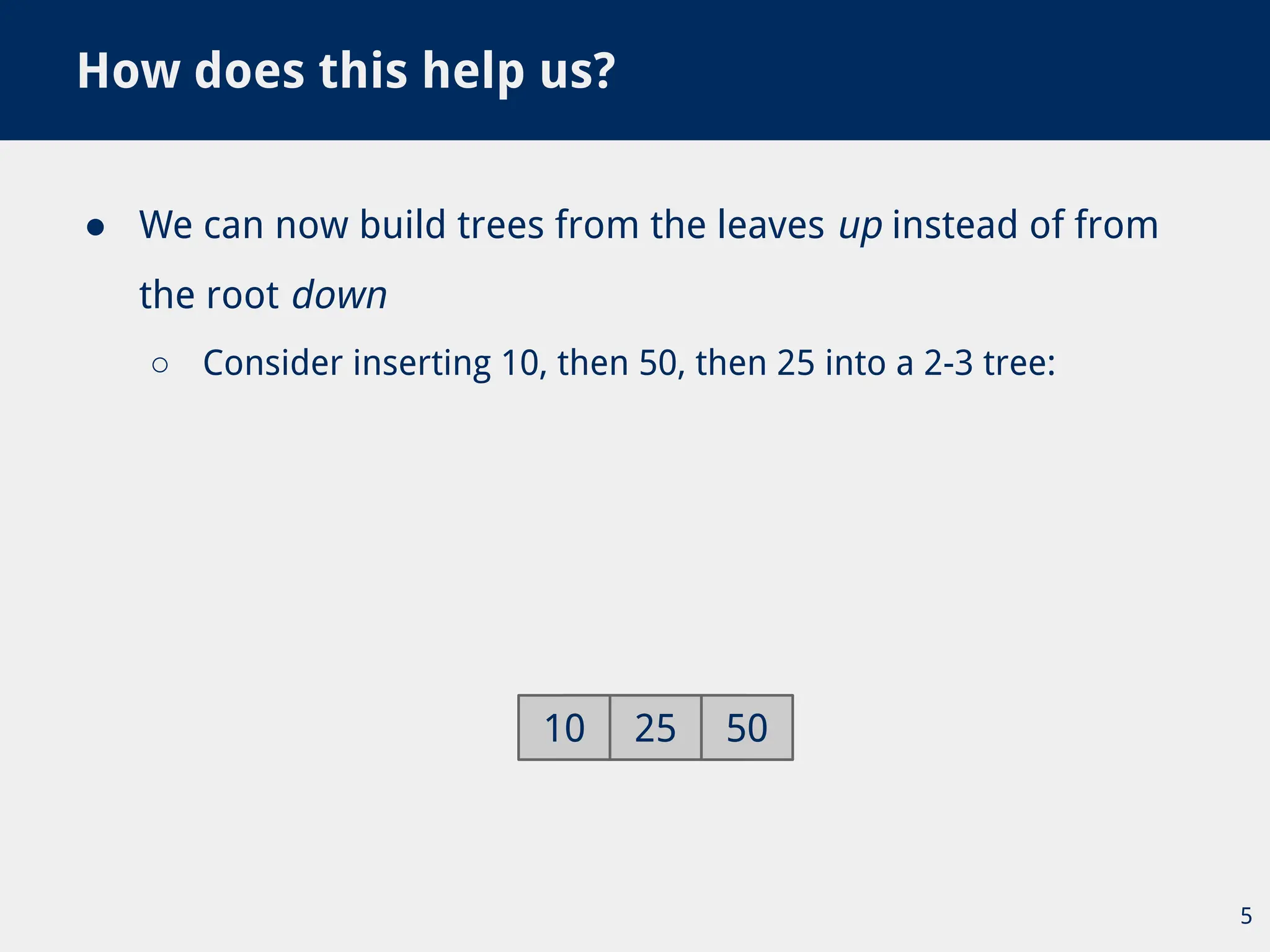

5. ● We can now build trees from the leaves up instead of from
the root down
○ Consider inserting 10, then 50, then 25 into a 2-3 tree:
How does this help us?
5
10 50
10 50
25

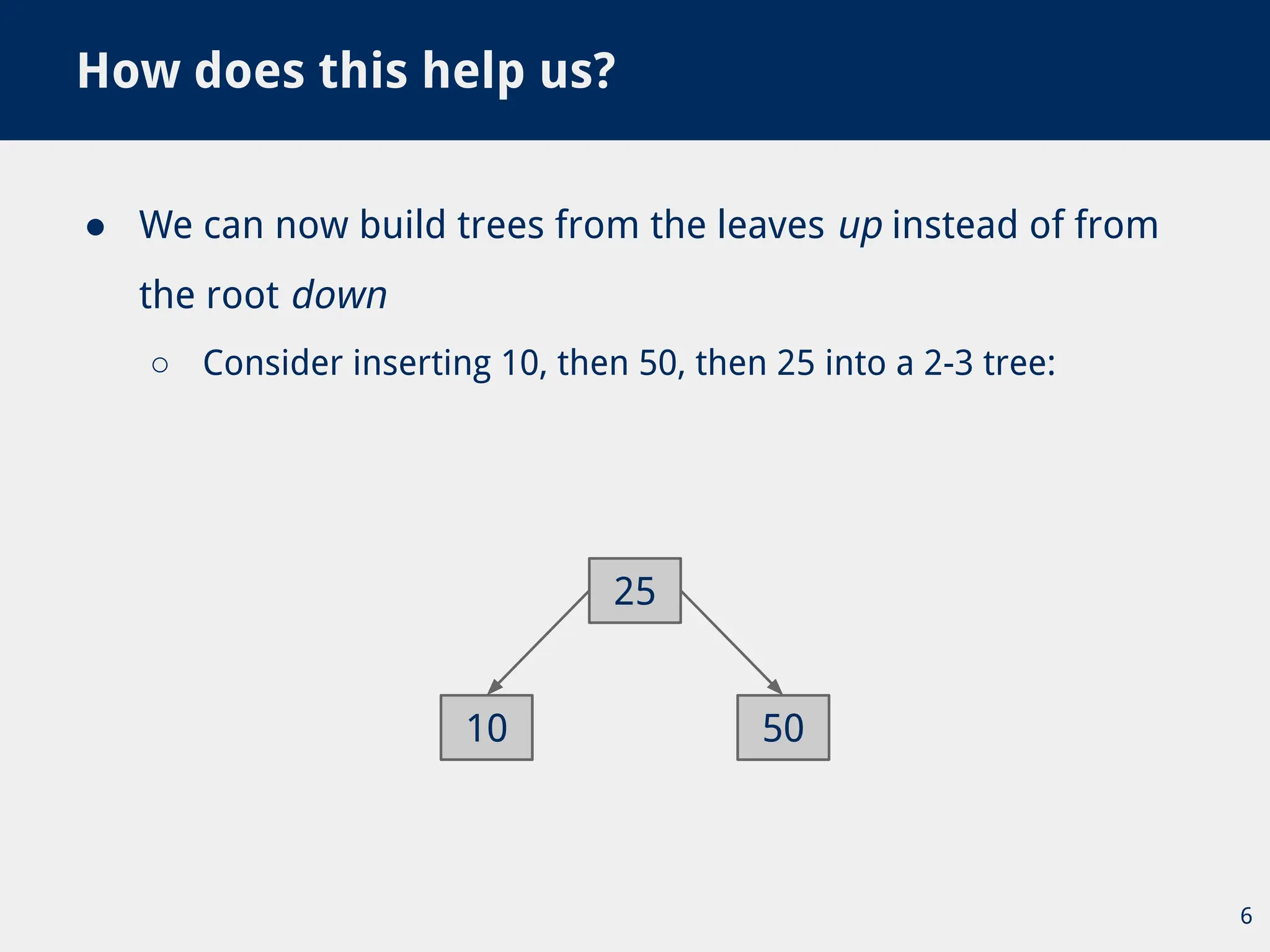

6. ● We can now build trees from the leaves up instead of from
the root down
○ Consider inserting 10, then 50, then 25 into a 2-3 tree:
How does this help us?
6
10 50
25

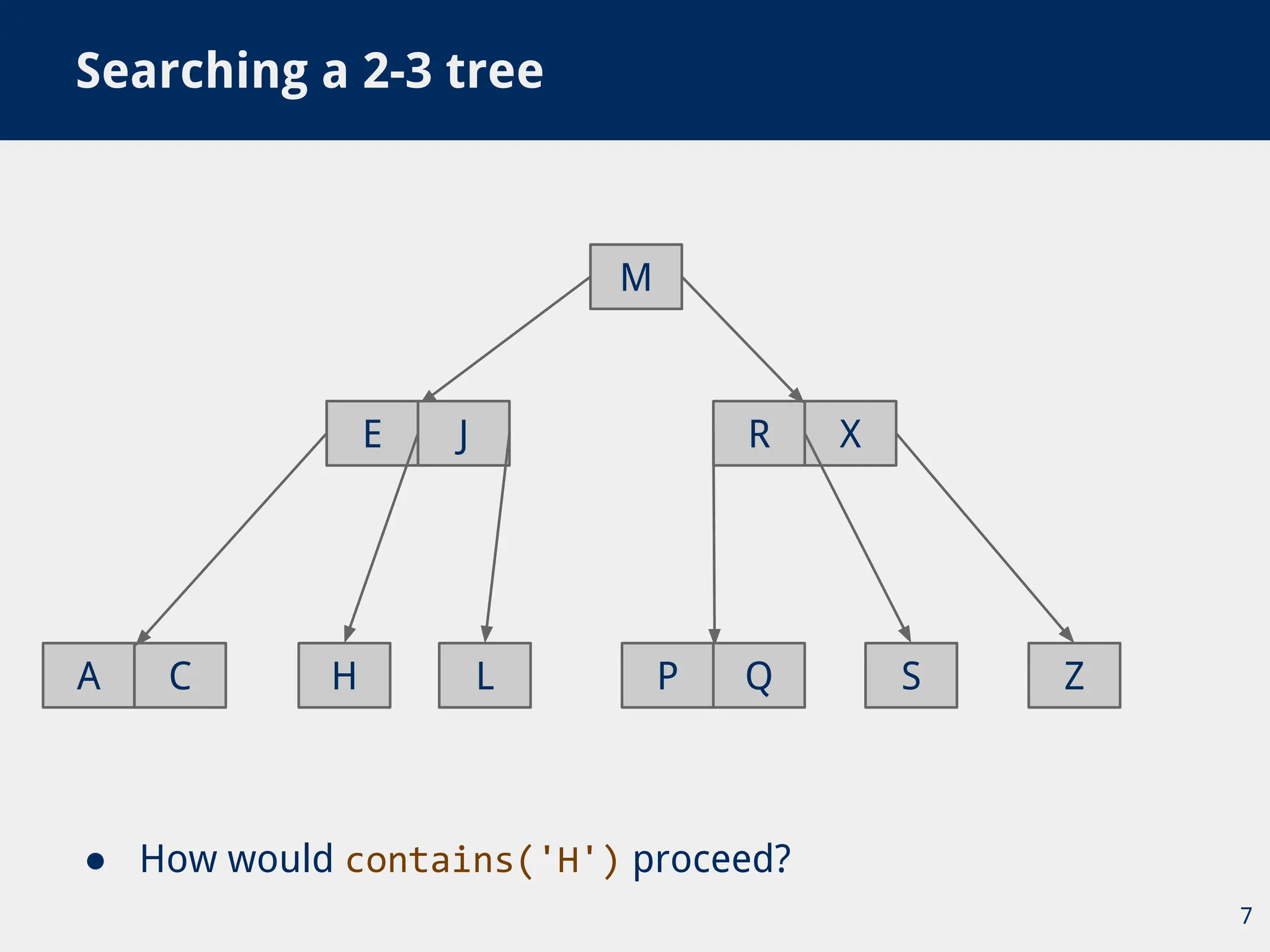

7. ● How would contains('H') proceed?
Searching a 2-3 tree
7
R
M
E J
A C H L
X
P S Z
Q

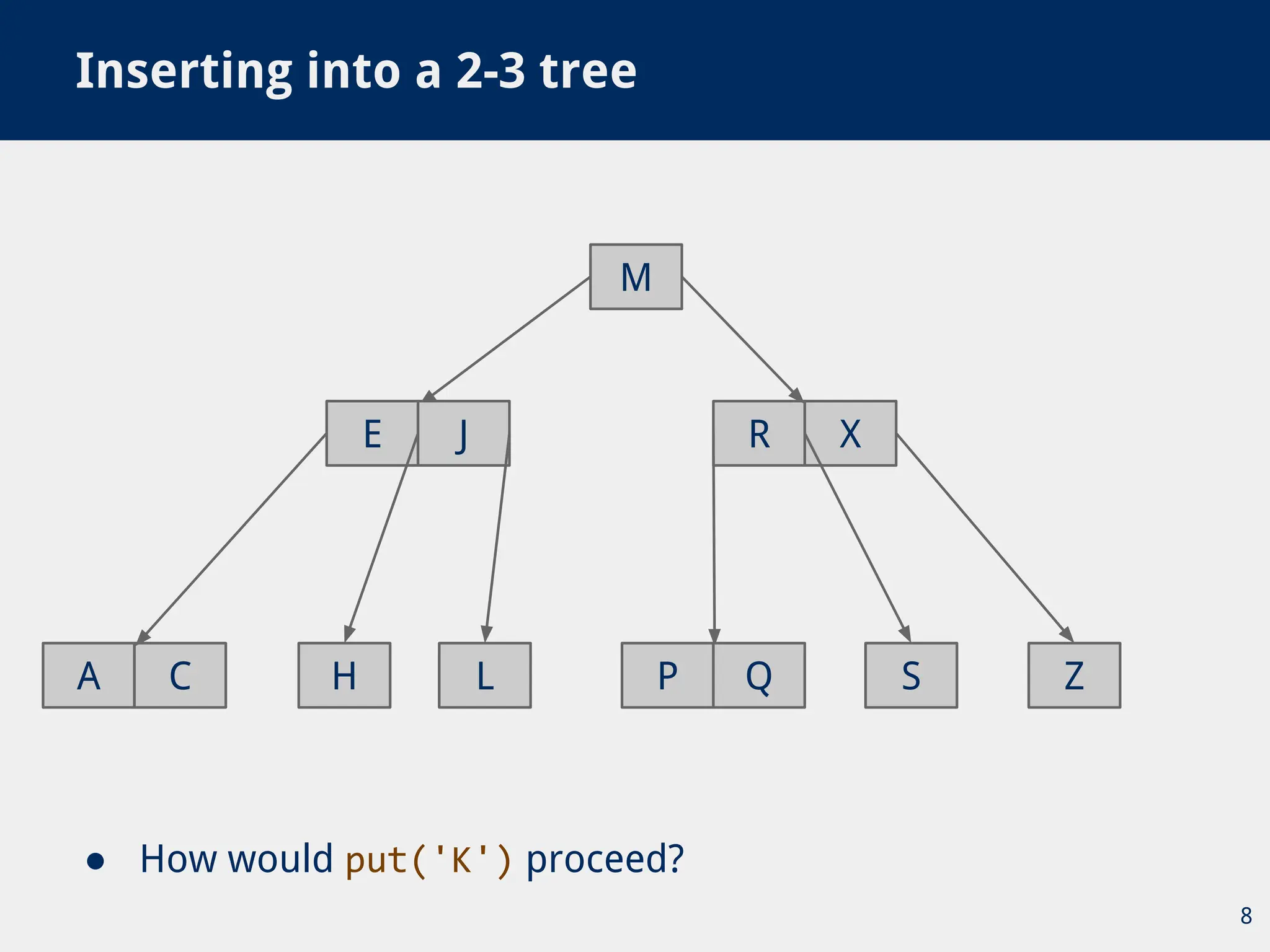

8. ● How would put('K') proceed?
Inserting into a 2-3 tree
8
R
M
E J
A C H L
X
P S Z
Q

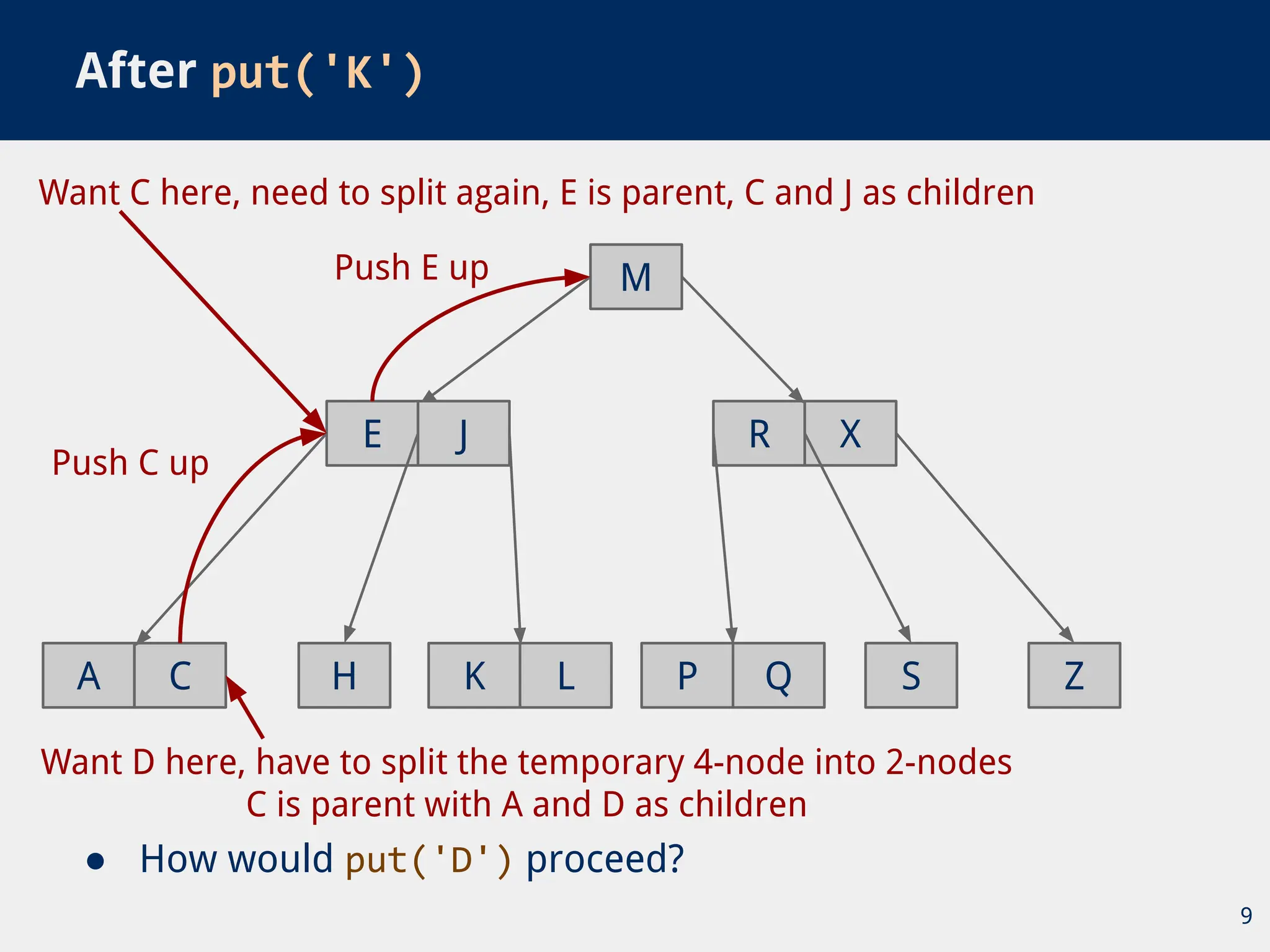

9. ● How would put('D') proceed?
After put('K')
9
R
M
E J
A C H L
X
S Z
K
Want D here, have to split the temporary 4-node into 2-nodes
C is parent with A and D as children
Push C up
Want C here, need to split again, E is parent, C and J as children
Push E up
P Q

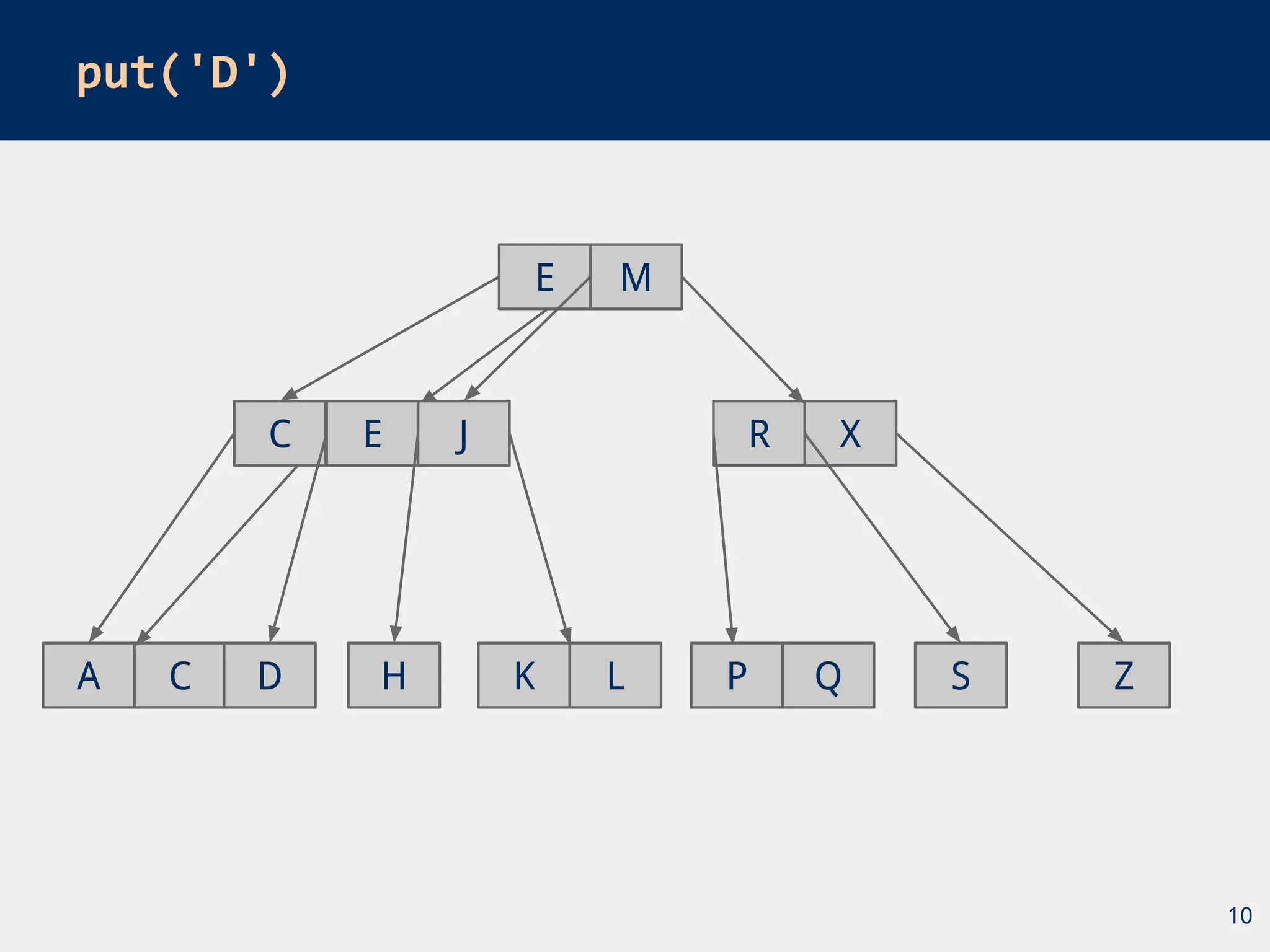

10. put('D')
10
R
M
E J
A C H L
X
S Z
K P Q
D
C
E

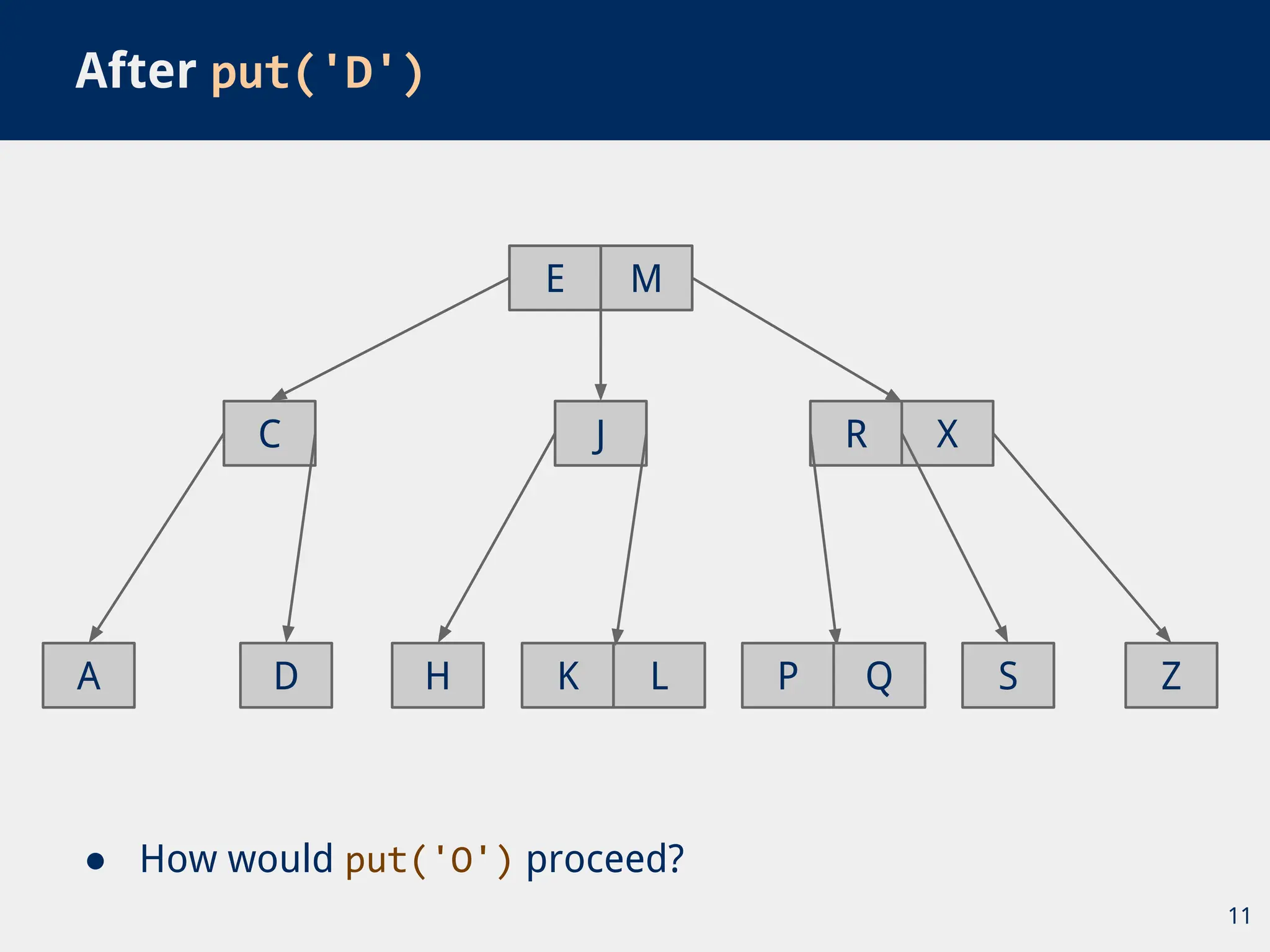

11. ● How would put('O') proceed?
After put('D')
11
R
M
C J
A D H L
X
S Z
K
E
P Q

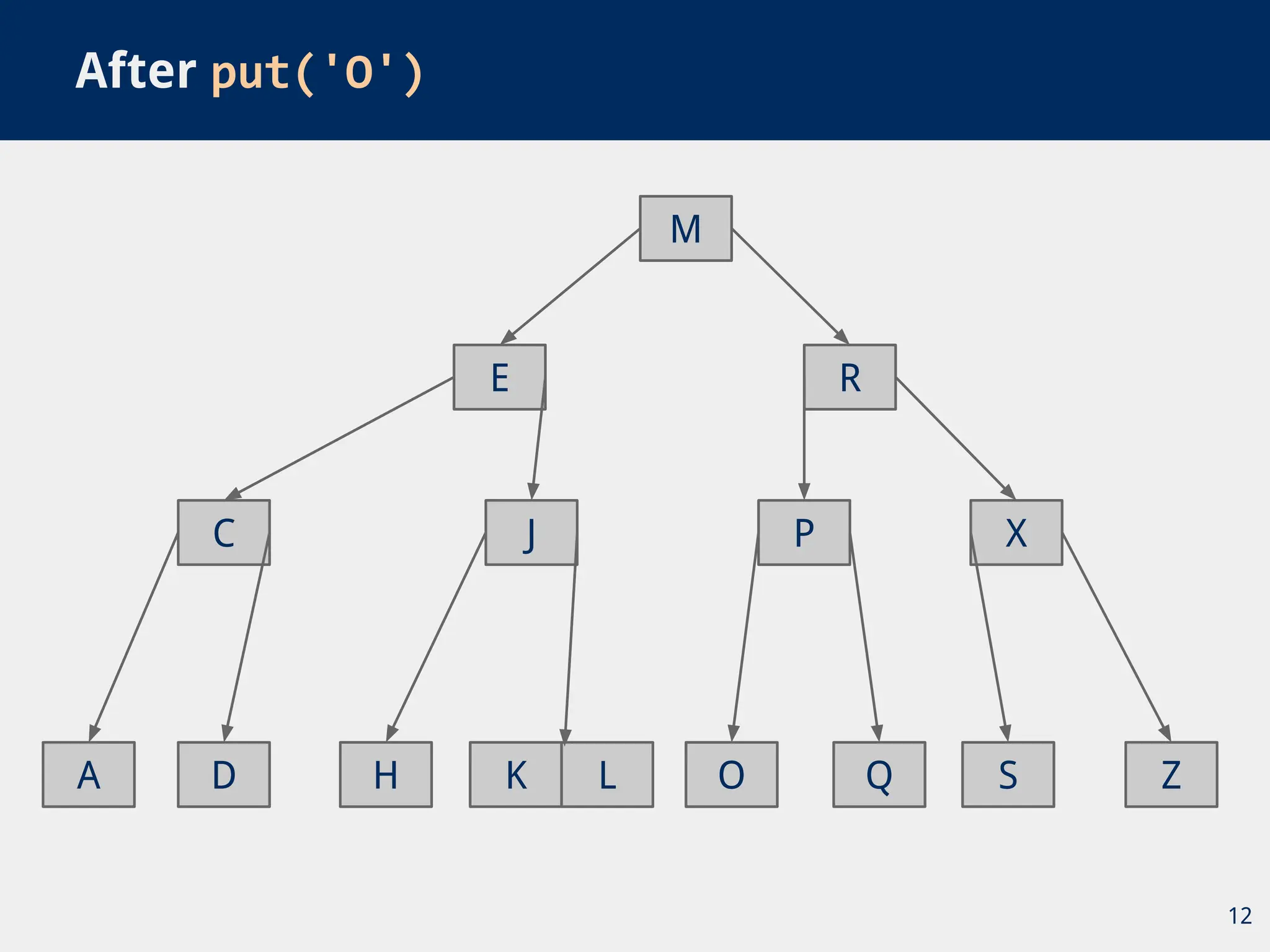

12. After put('O')
12
R
M
C J
A D H L
X
S Z
K
E
P
Q
O

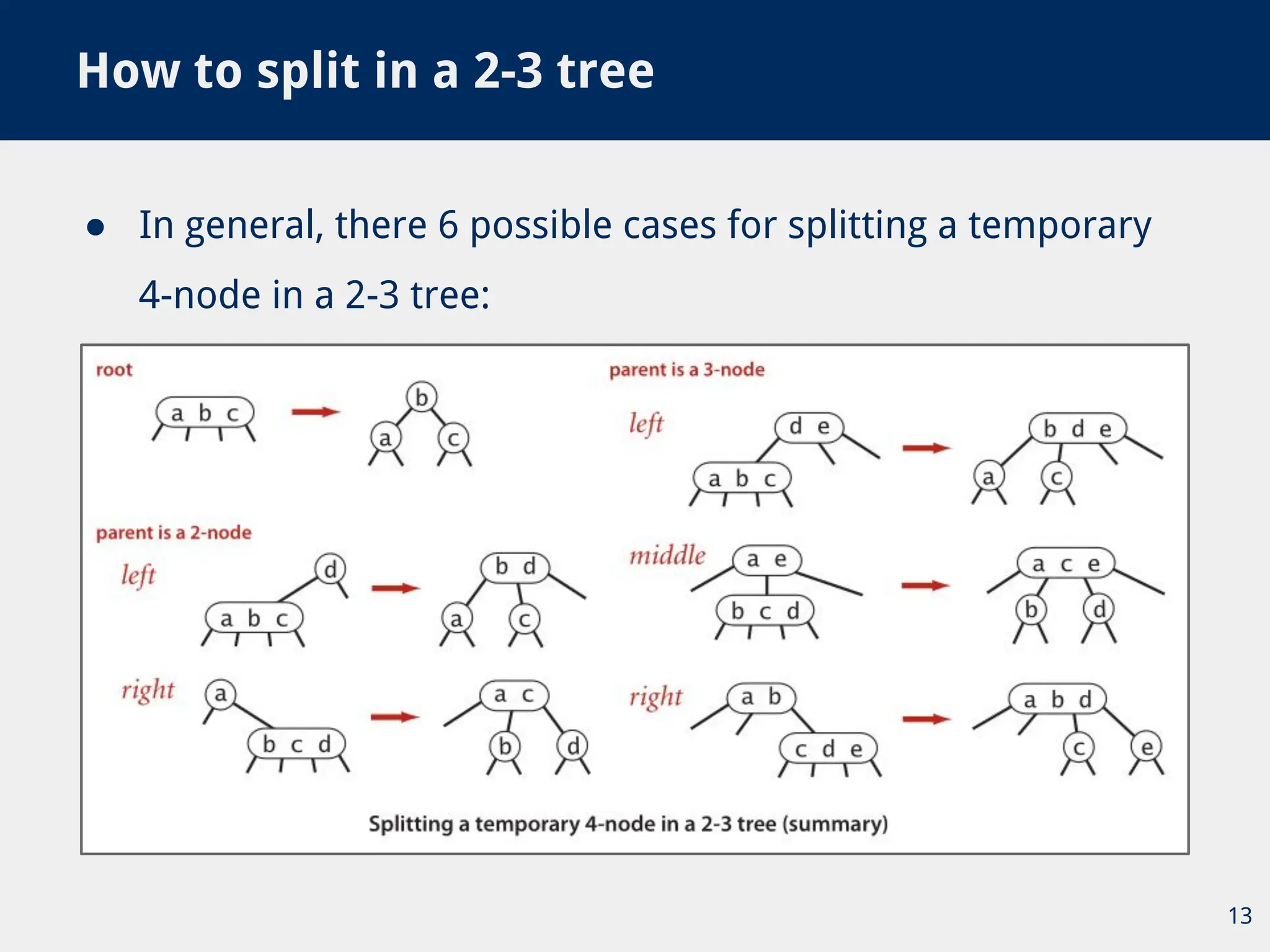

13. ● In general, there 6 possible cases for splitting a temporary
4-node in a 2-3 tree:
How to split in a 2-3 tree
13

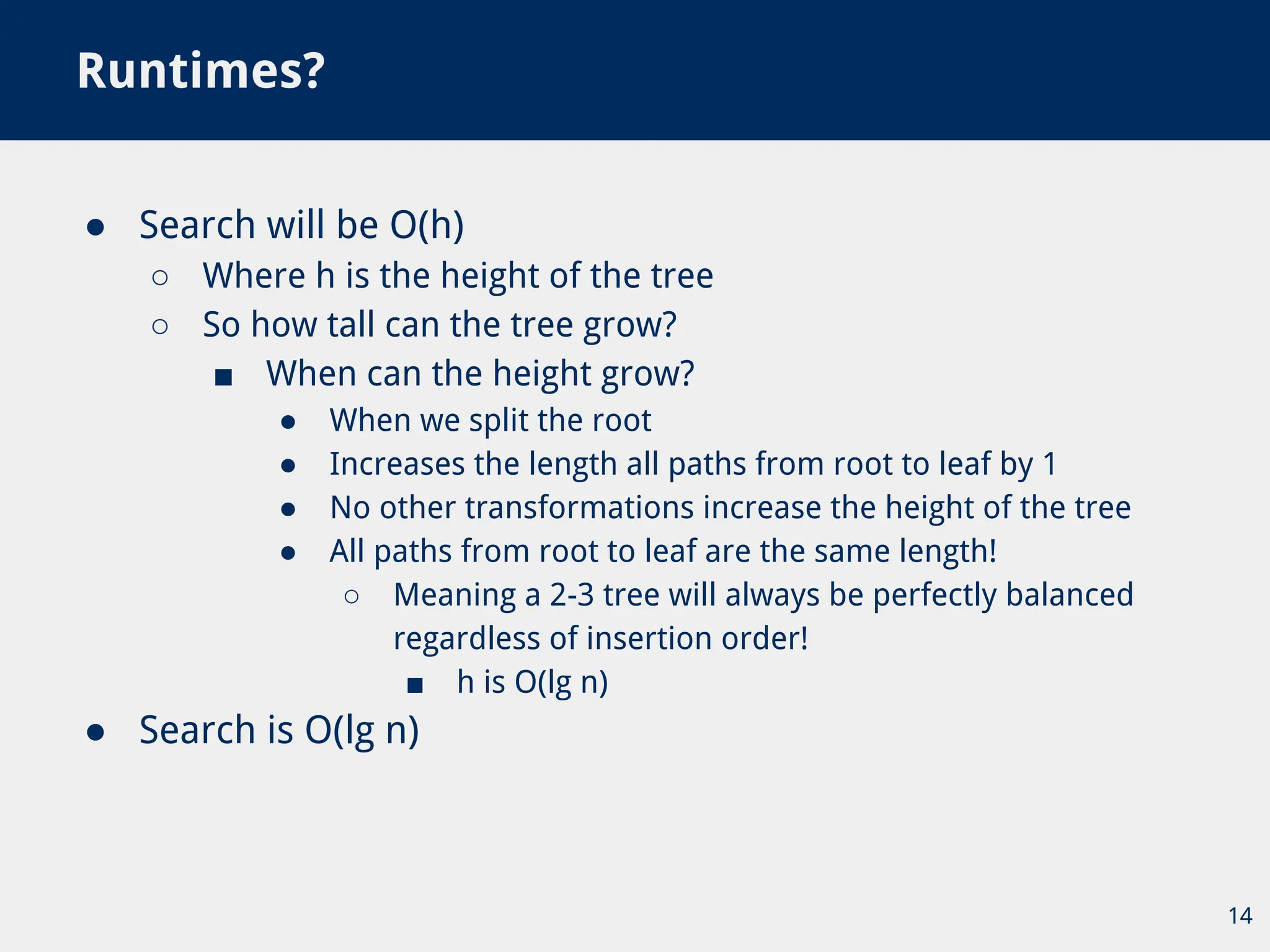

14. ● Search will be O(h)
○ Where h is the height of the tree
○ So how tall can the tree grow?
■ When can the height grow?
● When we split the root
● Increases the length all paths from root to leaf by 1
● No other transformations increase the height of the tree
● All paths from root to leaf are the same length!
○ Meaning a 2-3 tree will always be perfectly balanced
regardless of insertion order!
■ h is O(lg n)
● Search is O(lg n)
Runtimes?
14

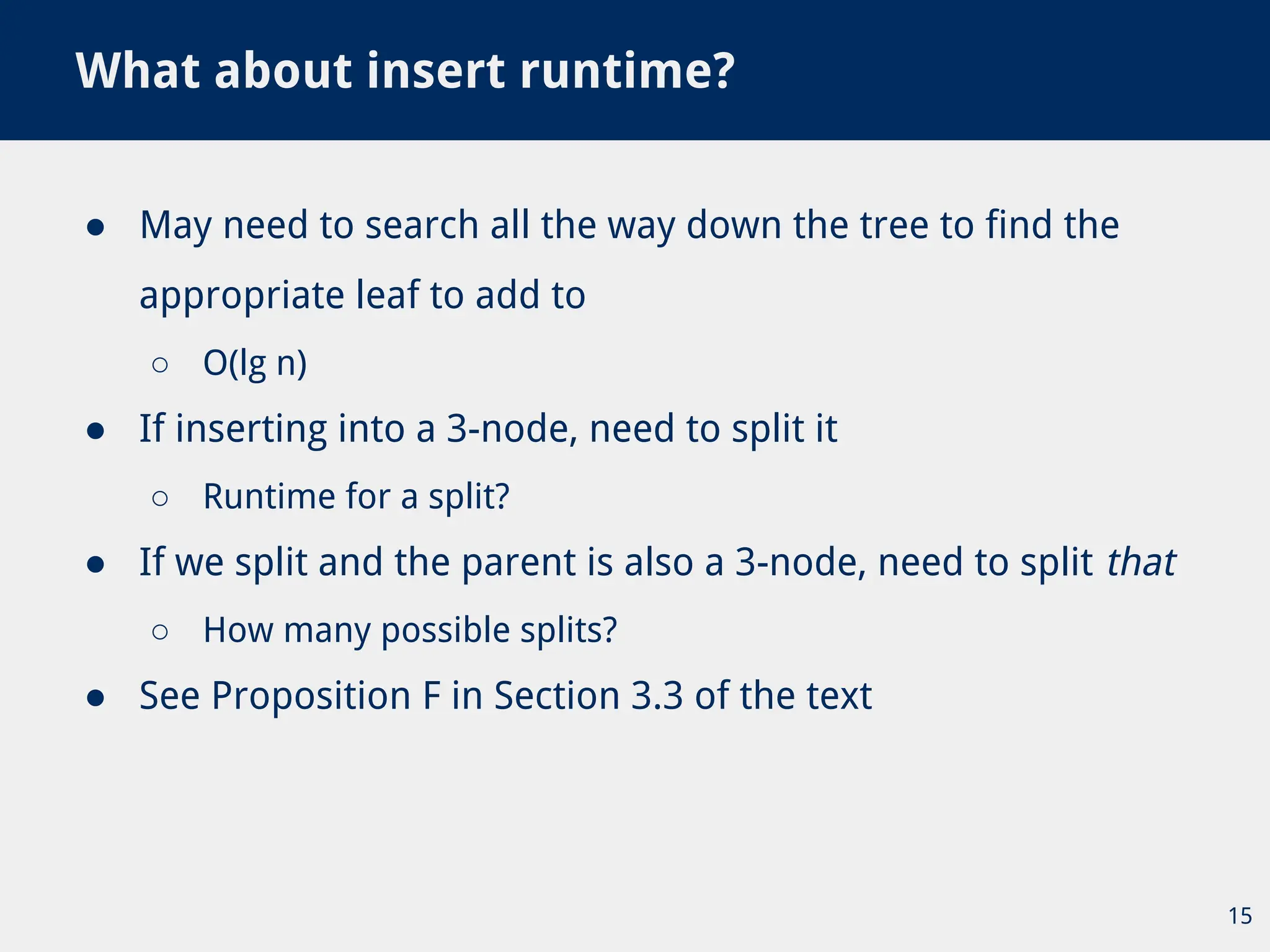

15. ● May need to search all the way down the tree to find the
appropriate leaf to add to
○ O(lg n)
● If inserting into a 3-node, need to split it
○ Runtime for a split?
● If we split and the parent is also a 3-node, need to split that
○ How many possible splits?
● See Proposition F in Section 3.3 of the text
What about insert runtime?
15

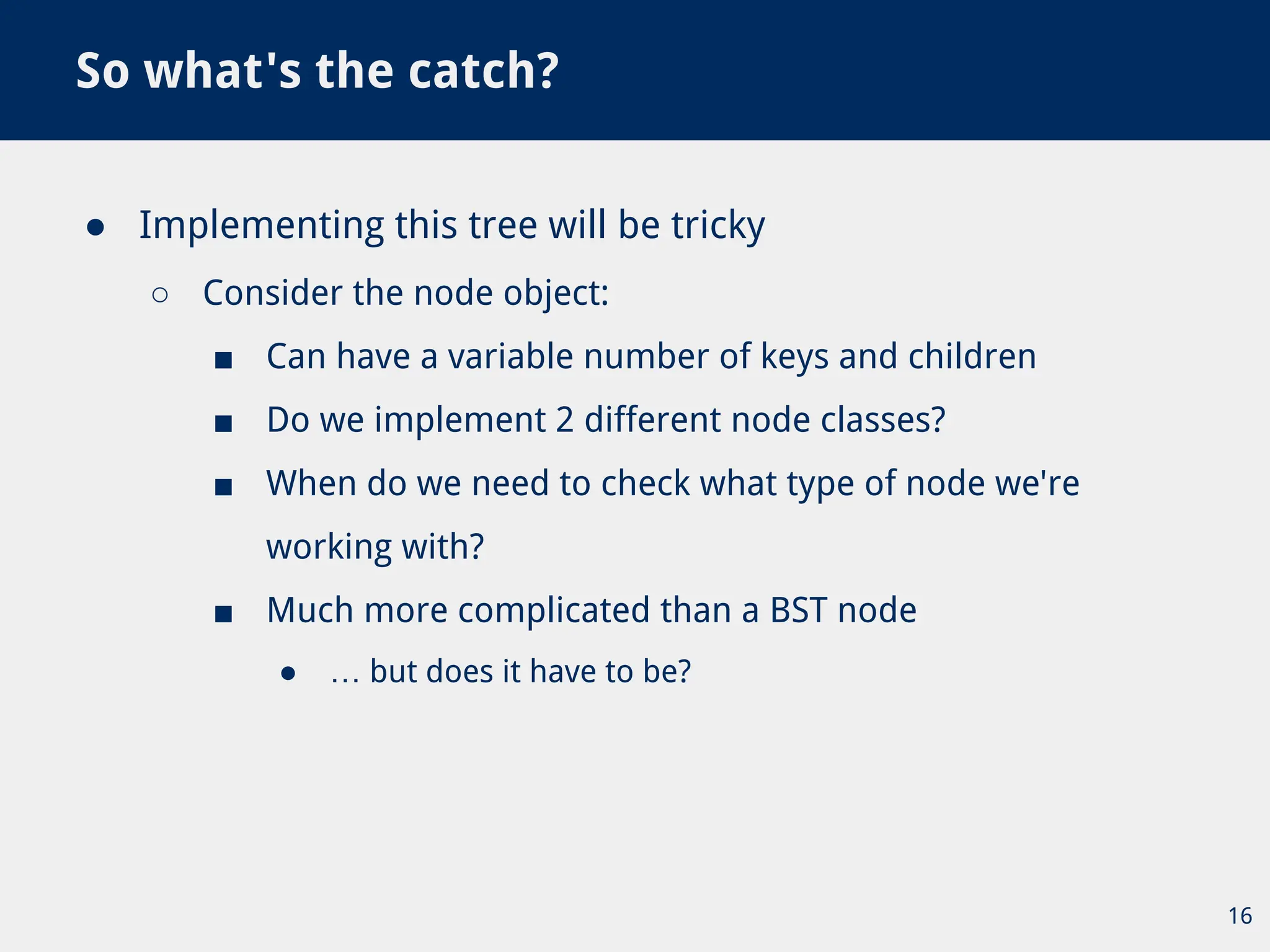

16. ● Implementing this tree will be tricky
○ Consider the node object:
■ Can have a variable number of keys and children
■ Do we implement 2 different node classes?
■ When do we need to check what type of node we're
working with?
■ Much more complicated than a BST node
● … but does it have to be?
So what's the catch?
16

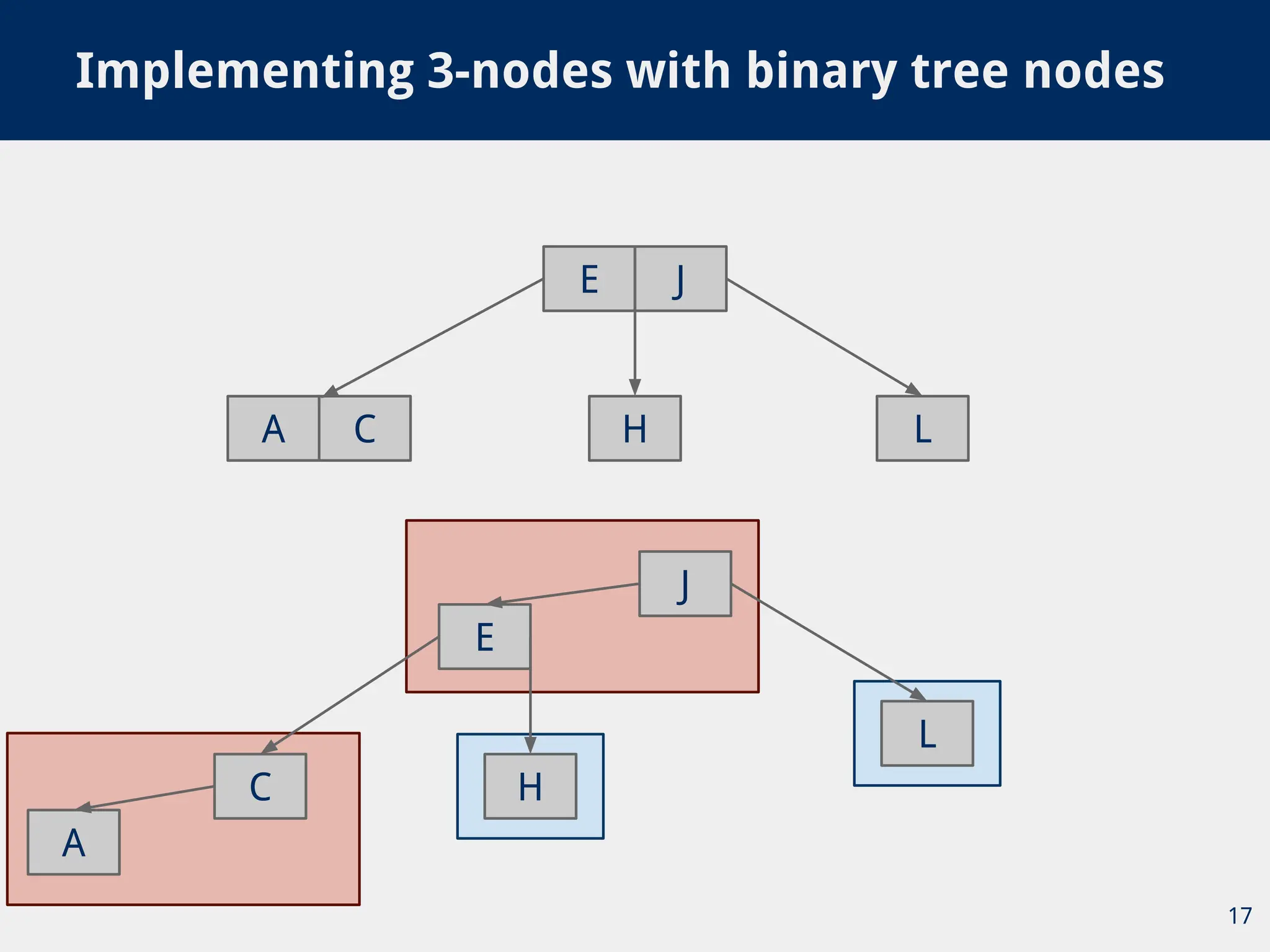

17. Implementing 3-nodes with binary tree nodes
17
E J
A C H L
E
J
A
C H
L

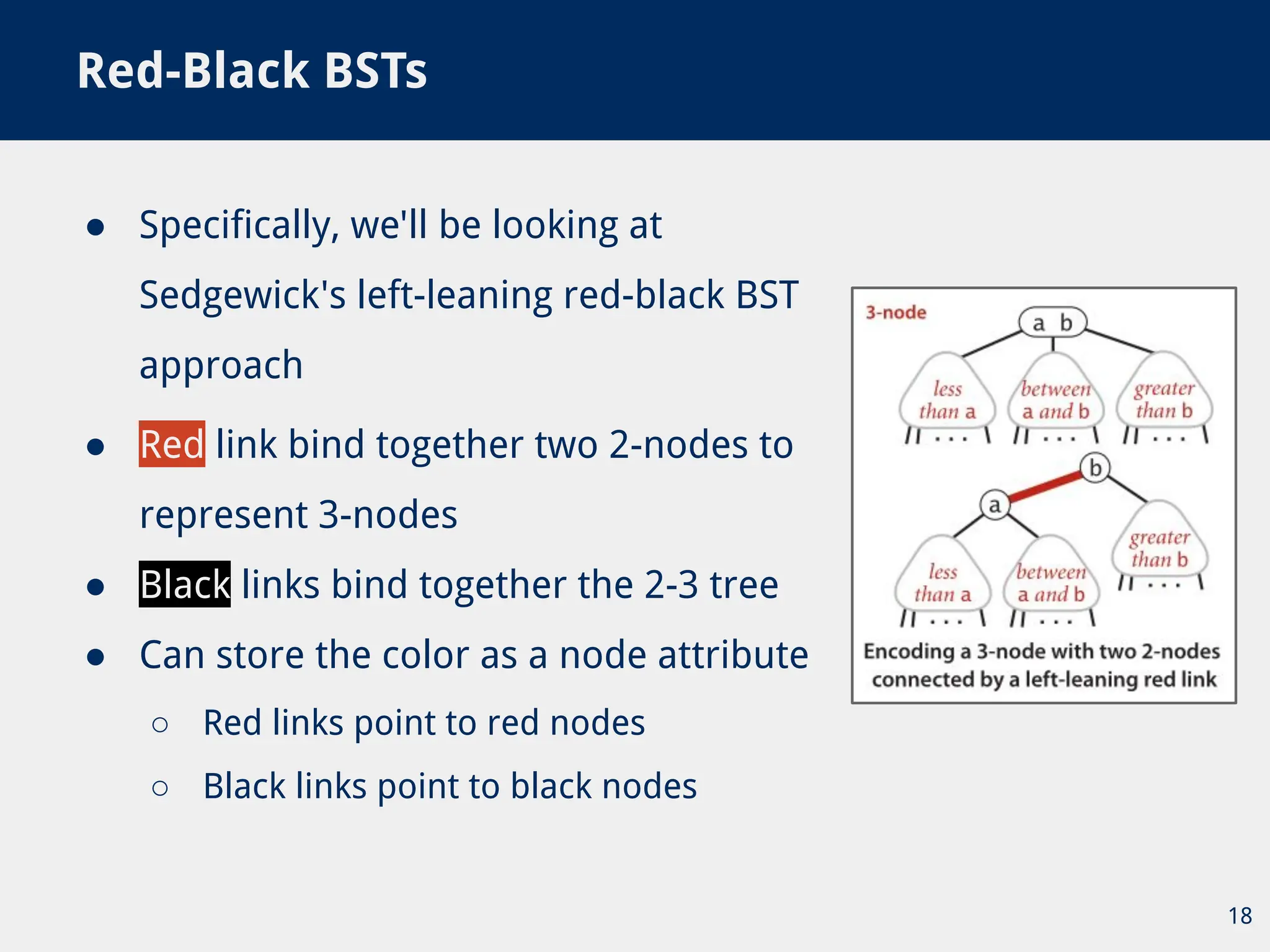

18. ● Specifically, we'll be looking at
Sedgewick's left-leaning red-black BST
approach
Red-Black BSTs
18
● Red link bind together two 2-nodes to
represent 3-nodes
● Black links bind together the 2-3 tree
● Can store the color as a node attribute
○ Red links point to red nodes
○ Black links point to black nodes

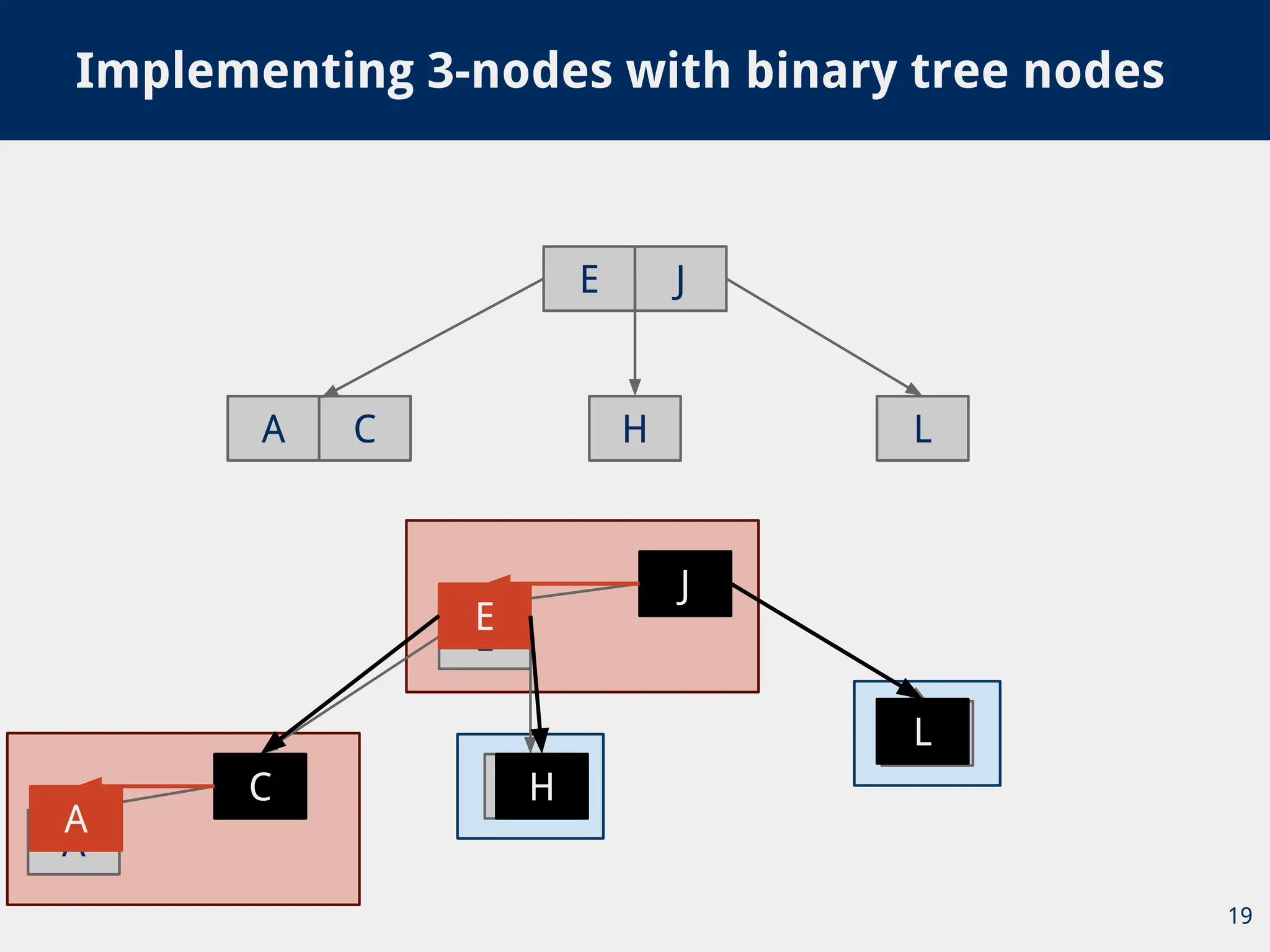

19. Implementing 3-nodes with binary tree nodes
19
E J
A C H L
E
J
A
C H
L
E
J
A
C H
L

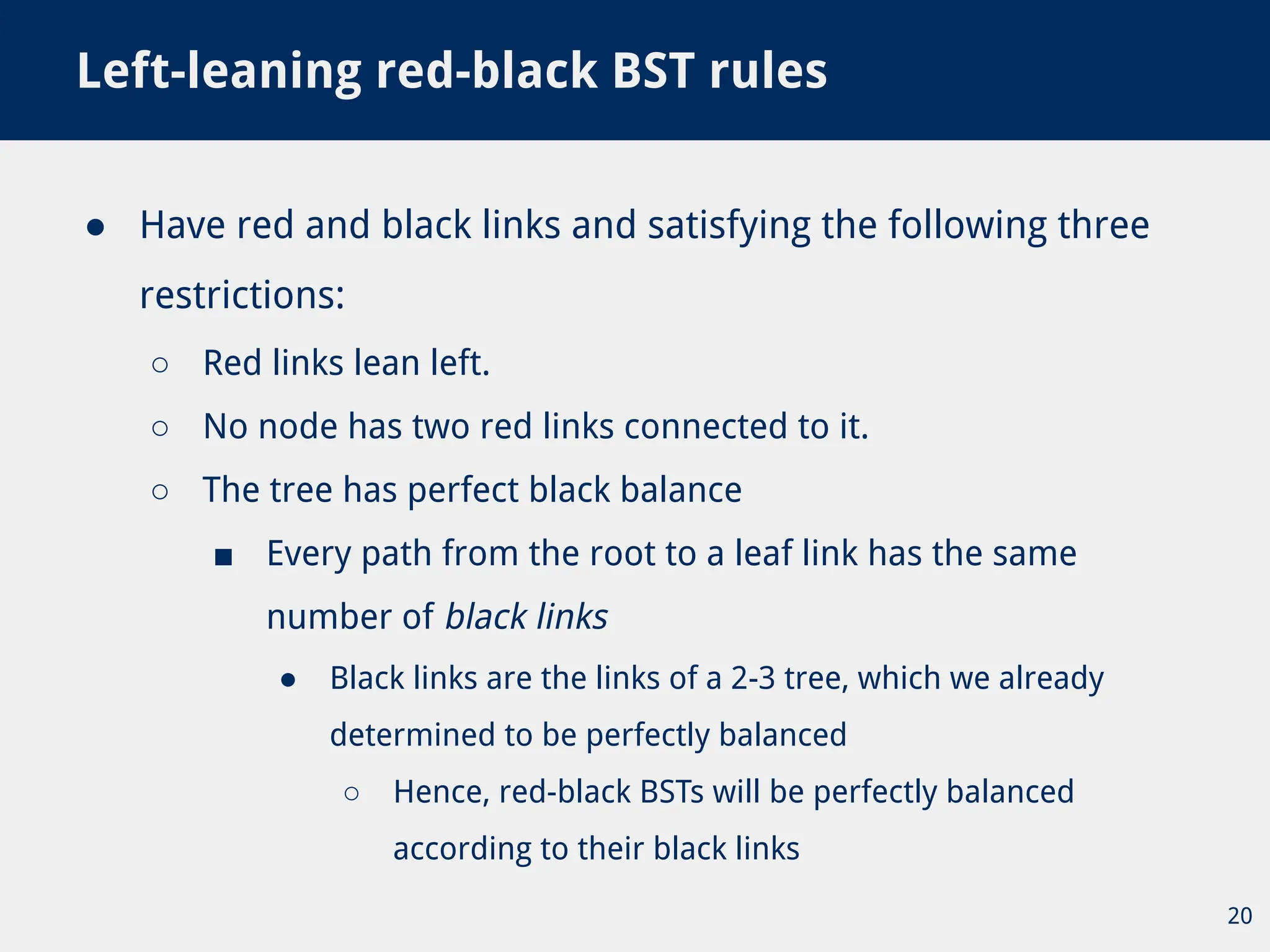

20. ● Have red and black links and satisfying the following three
restrictions:
○ Red links lean left.
○ No node has two red links connected to it.
○ The tree has perfect black balance
■ Every path from the root to a leaf link has the same
number of black links
● Black links are the links of a 2-3 tree, which we already
determined to be perfectly balanced
○ Hence, red-black BSTs will be perfectly balanced
according to their black links
Left-leaning red-black BST rules
20

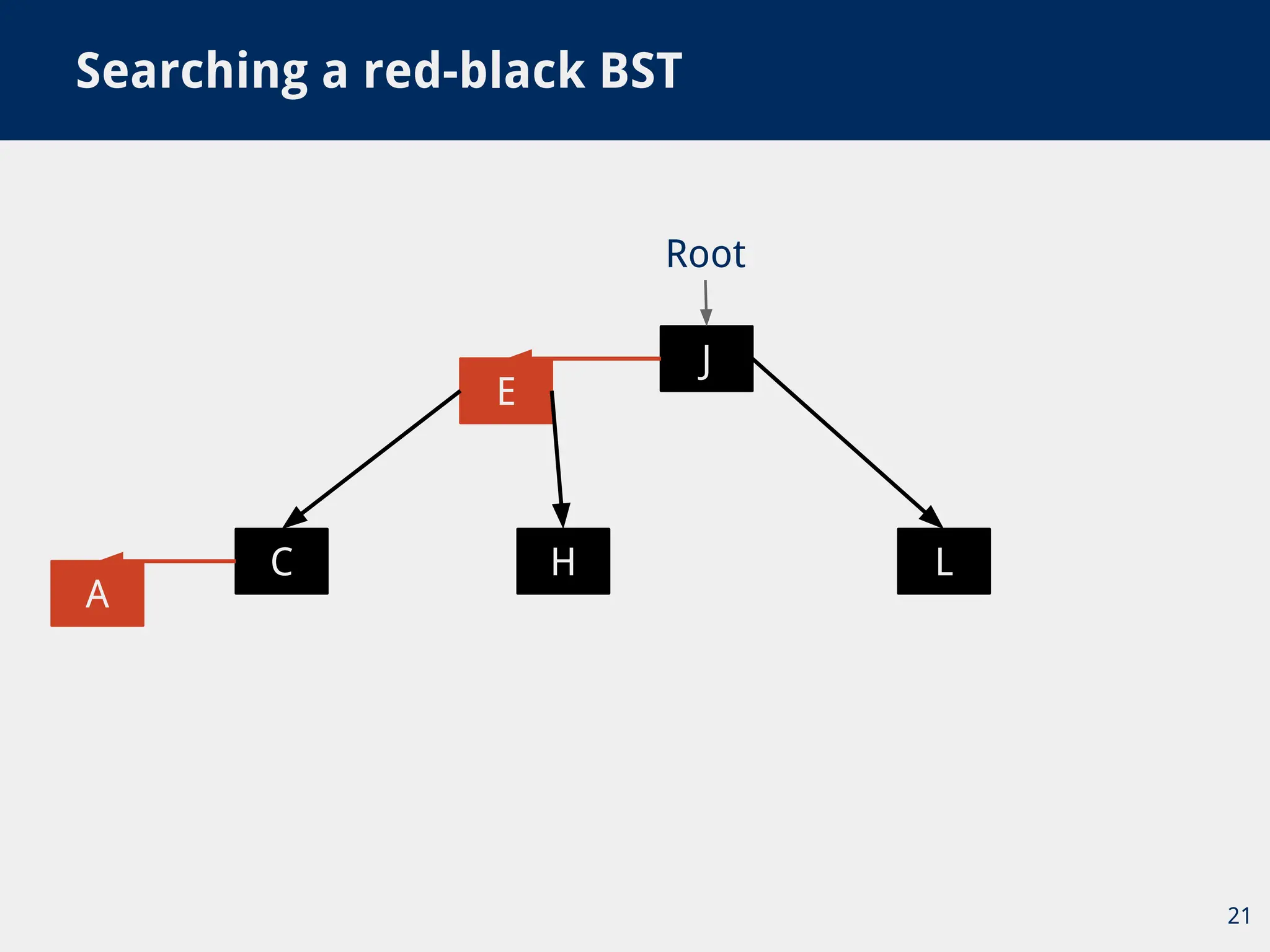

21. Searching a red-black BST
21
E
J
A
C H L
Root

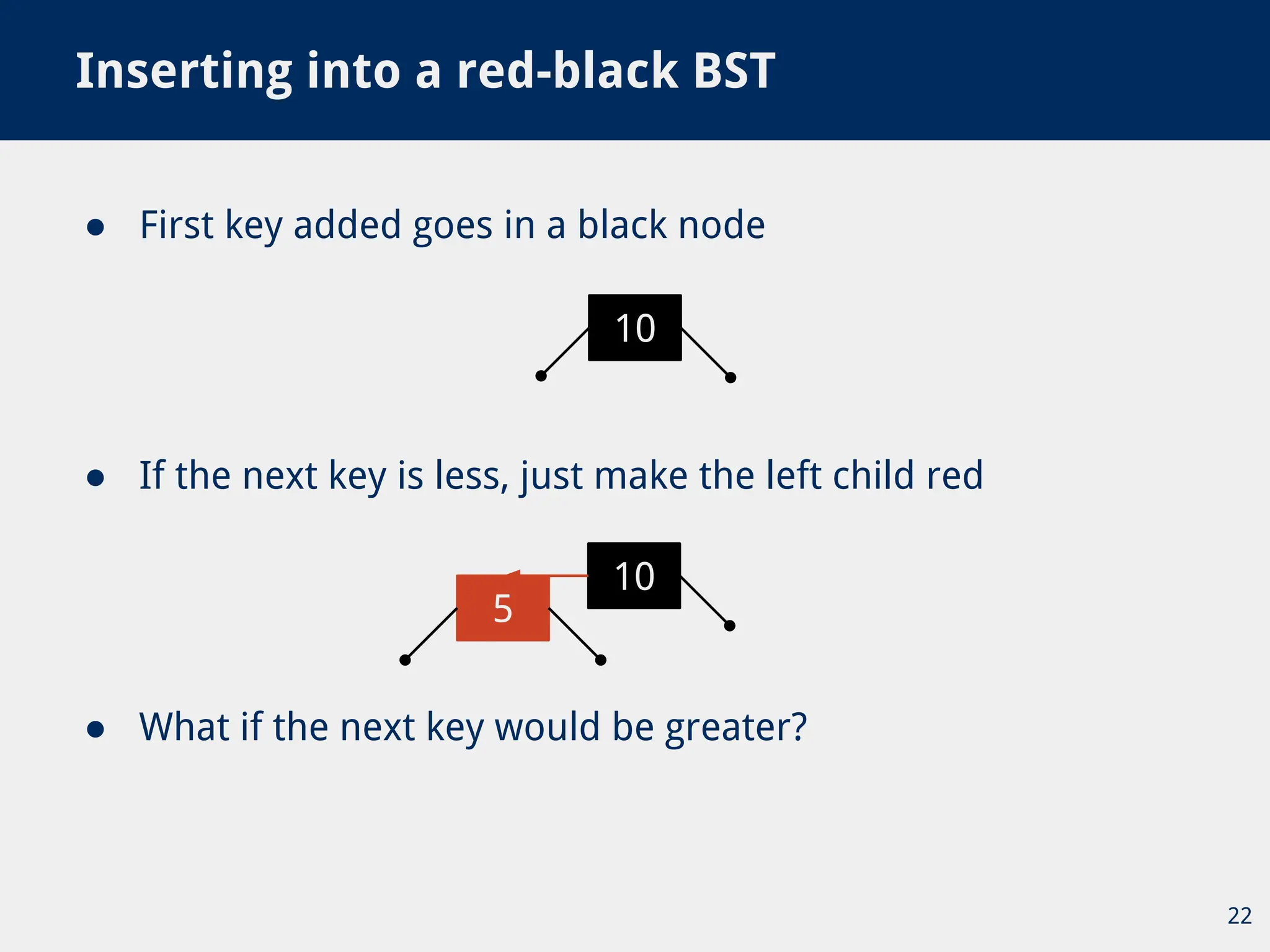

22. ● First key added goes in a black node
Inserting into a red-black BST
22
● If the next key is less, just make the left child red
10
● What if the next key would be greater?
10
5

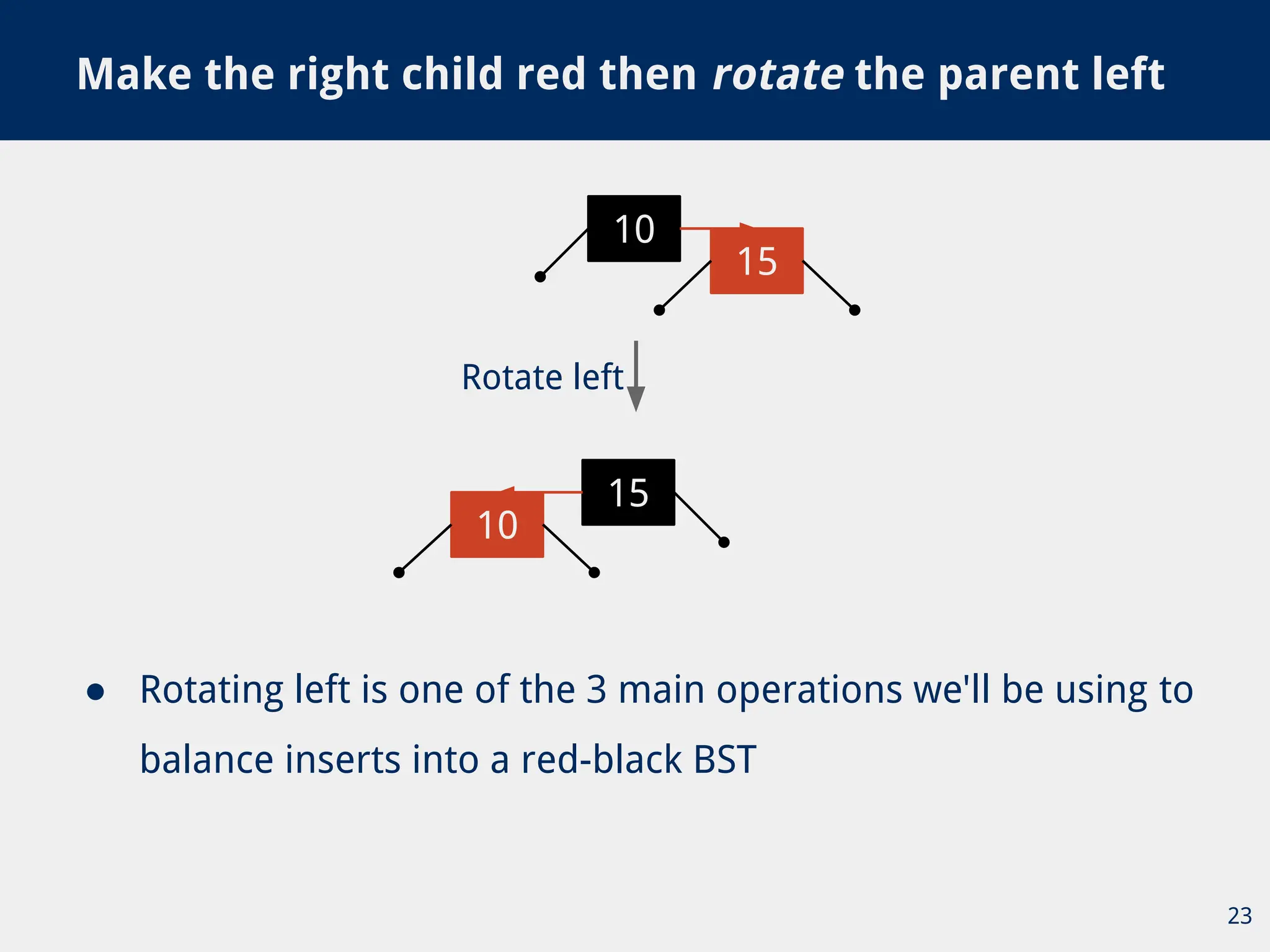

23. ● Rotating left is one of the 3 main operations we'll be using to
balance inserts into a red-black BST
Make the right child red then rotate the parent left
23
Rotate left
10
15
15
10

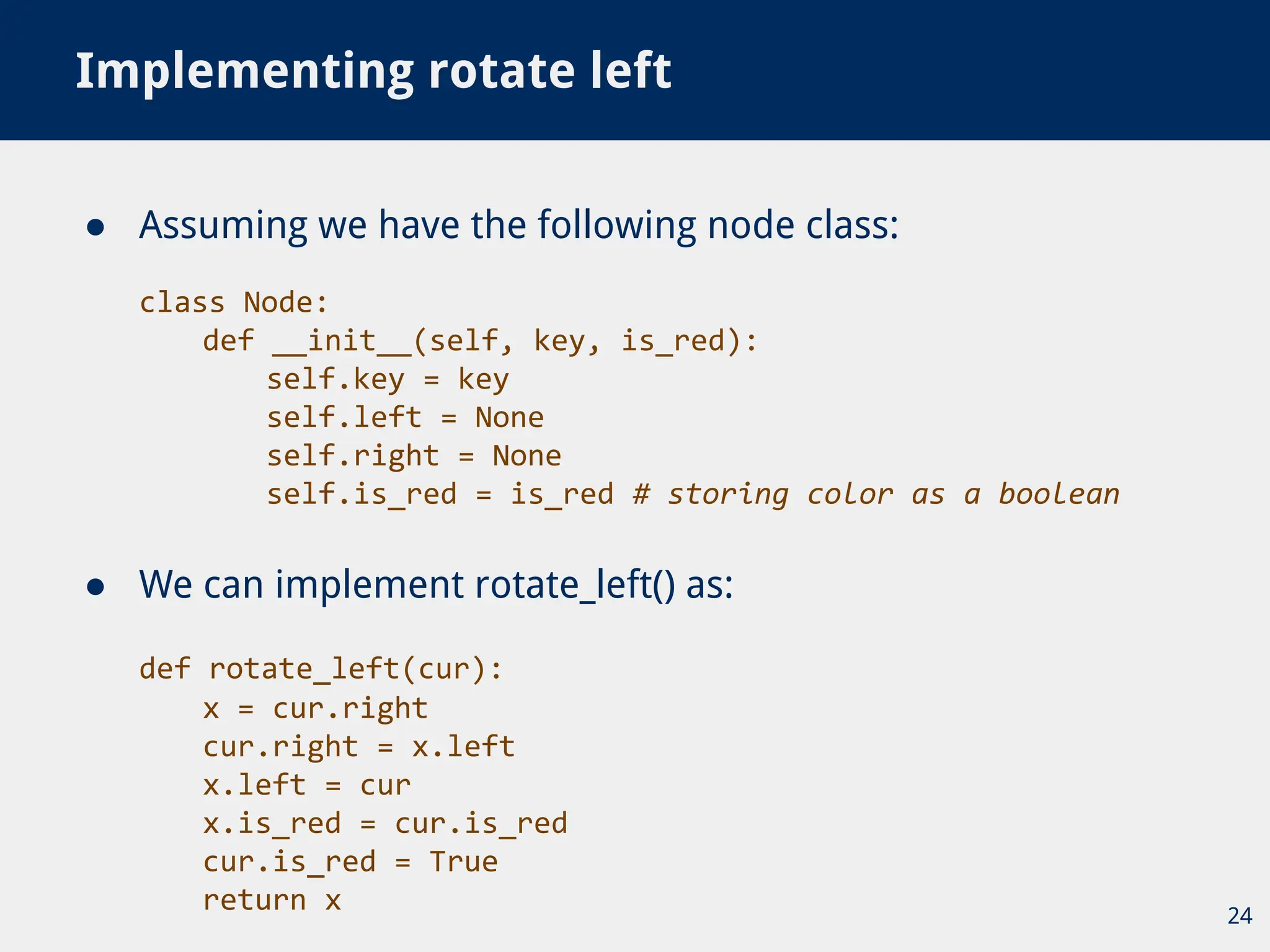

24. ● Assuming we have the following node class:
class Node:
def __init__(self, key, is_red):
self.key = key
self.left = None
self.right = None
self.is_red = is_red # storing color as a boolean
● We can implement rotate_left() as:
def rotate_left(cur):
x = cur.right
cur.right = x.left
x.left = cur
x.is_red = cur.is_red
cur.is_red = True
return x
Implementing rotate left
24

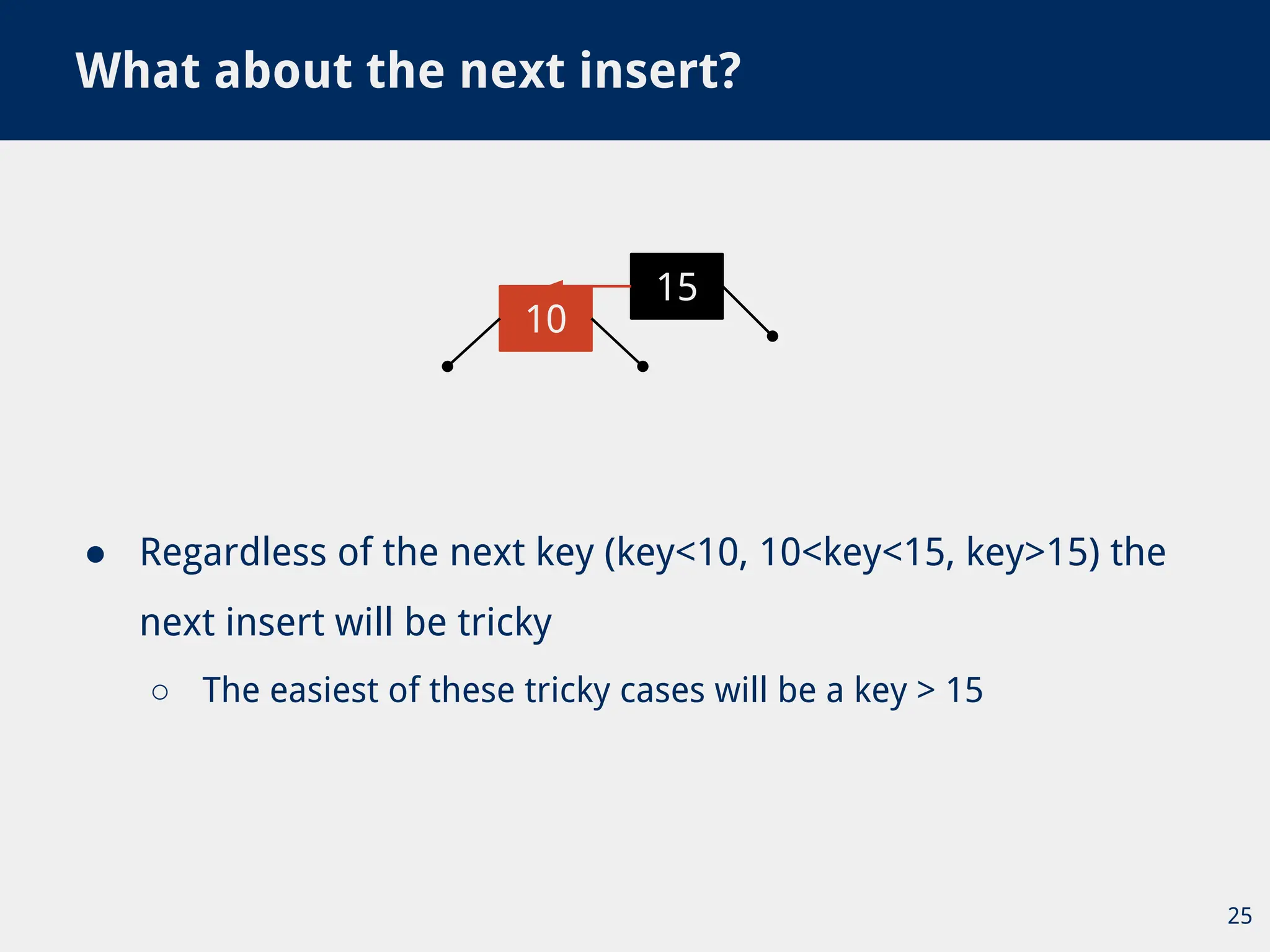

25. ● Regardless of the next key (key<10, 10<key<15, key>15) the
next insert will be tricky
○ The easiest of these tricky cases will be a key > 15
What about the next insert?
25
15
10

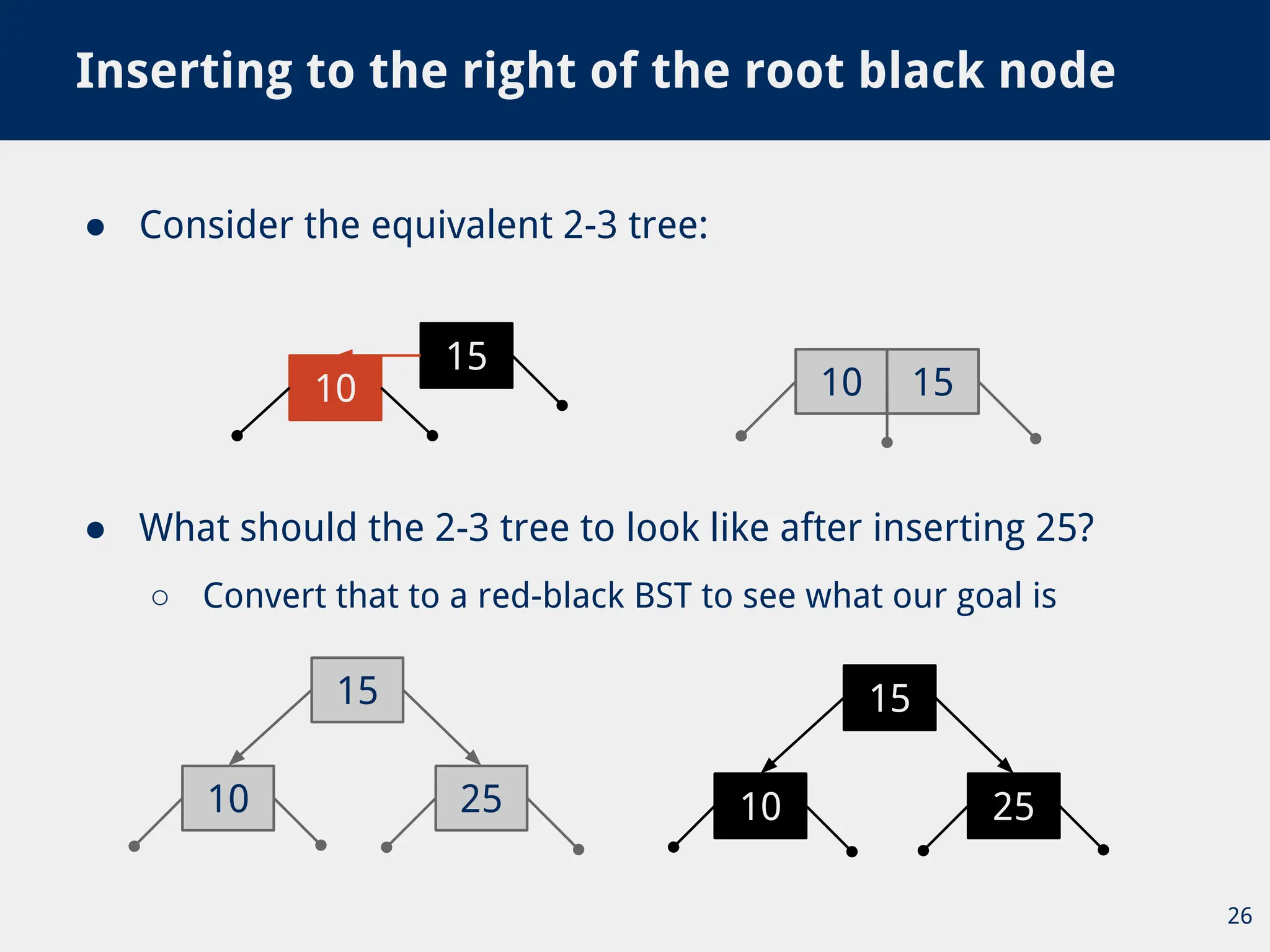

26. ● Consider the equivalent 2-3 tree:
Inserting to the right of the root black node
26
15
10
● What should the 2-3 tree to look like after inserting 25?
○ Convert that to a red-black BST to see what our goal is
10 15
10 25
15
10 25
15

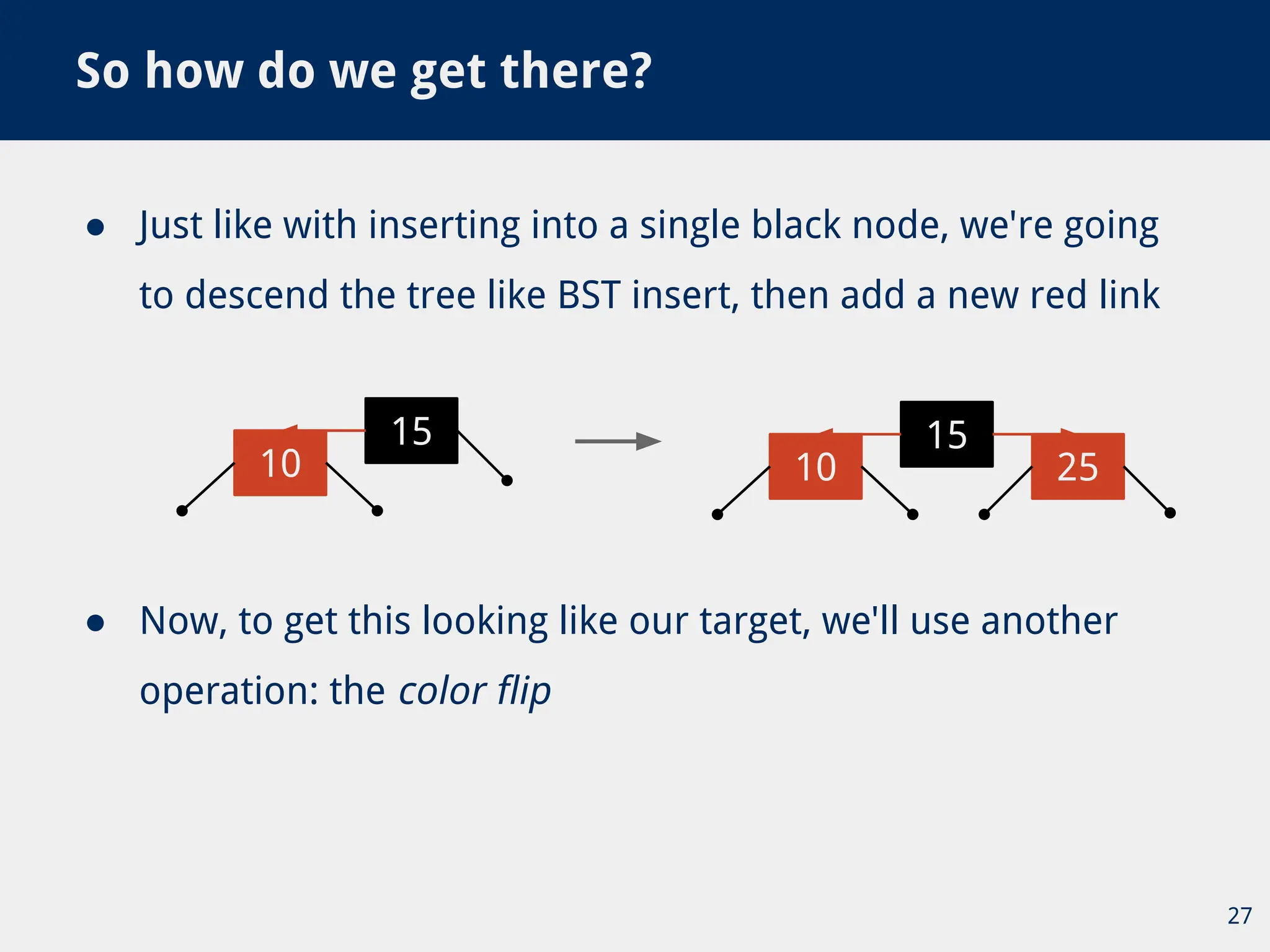

27. ● Just like with inserting into a single black node, we're going
to descend the tree like BST insert, then add a new red link
So how do we get there?
27
15
10
15
10 25
● Now, to get this looking like our target, we'll use another
operation: the color flip

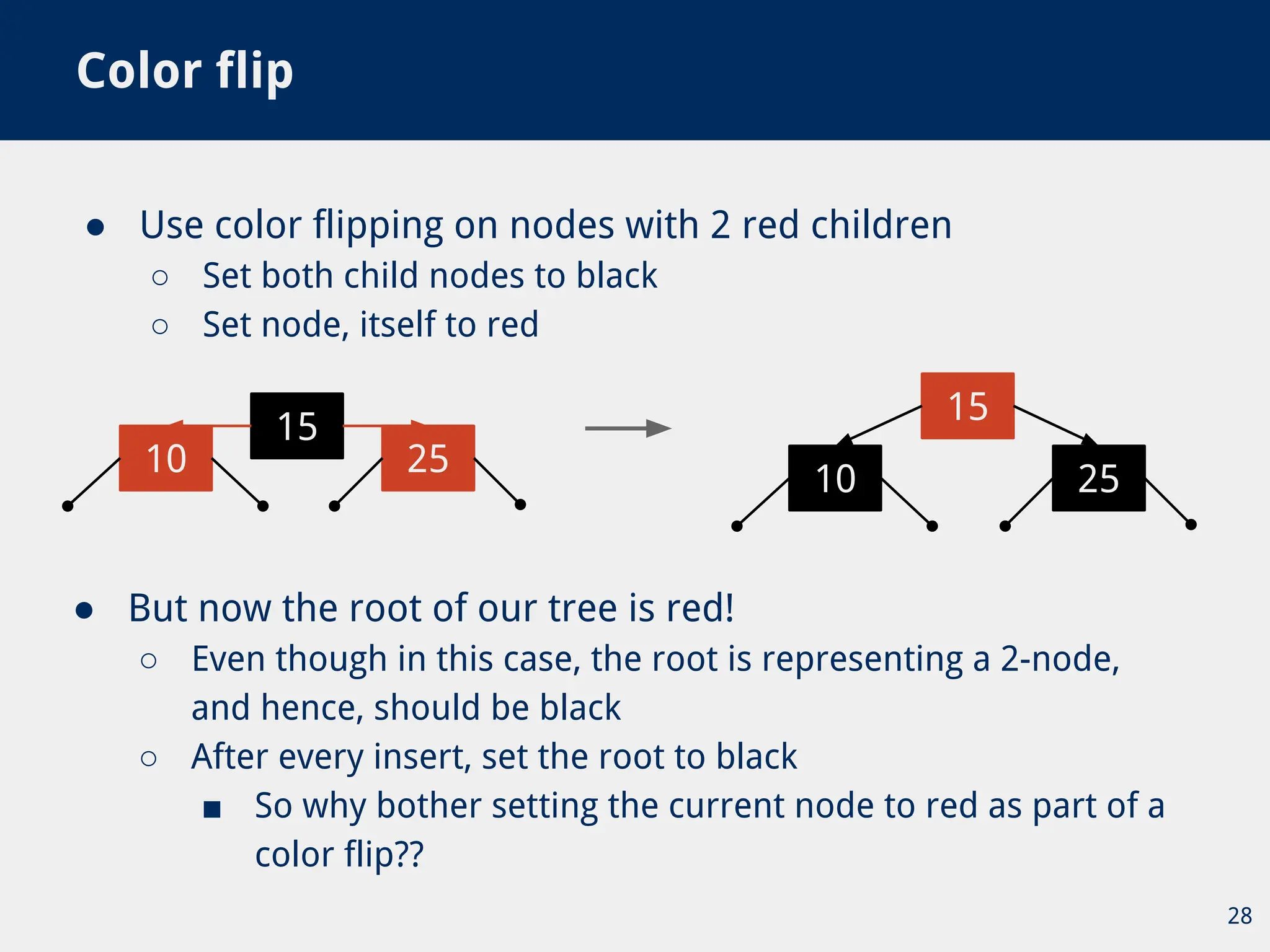

28. ● Use color flipping on nodes with 2 red children
○ Set both child nodes to black
○ Set node, itself to red
Color flip
28
15
10 25
15
10 25
● But now the root of our tree is red!
○ Even though in this case, the root is representing a 2-node,
and hence, should be black
○ After every insert, set the root to black
■ So why bother setting the current node to red as part of a
color flip??

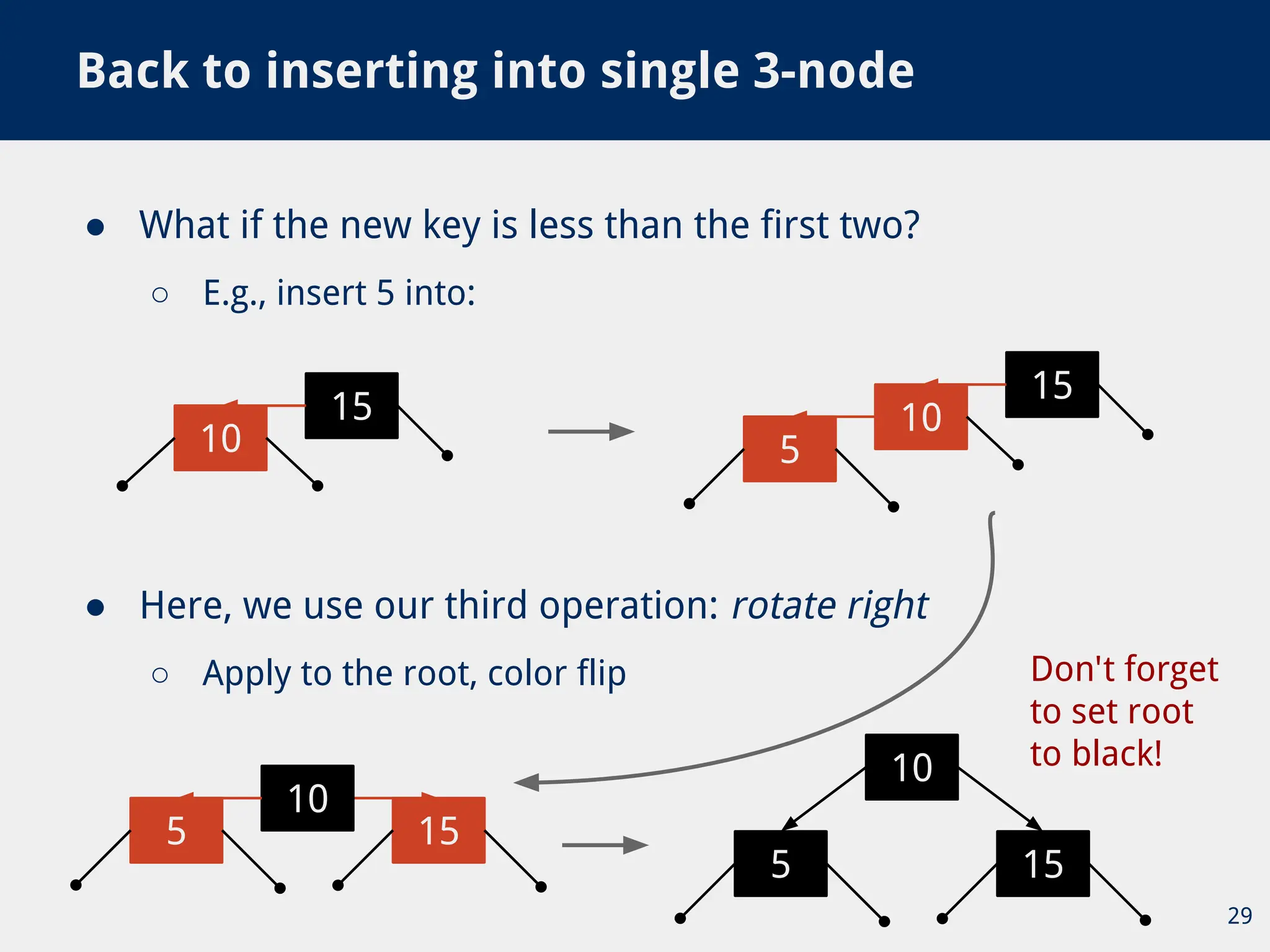

29. ● What if the new key is less than the first two?
○ E.g., insert 5 into:
Back to inserting into single 3-node
29
15
10
15
10
5
● Here, we use our third operation: rotate right
○ Apply to the root, color flip
15
10
5
15
10
5
Don't forget
to set root
to black!
10

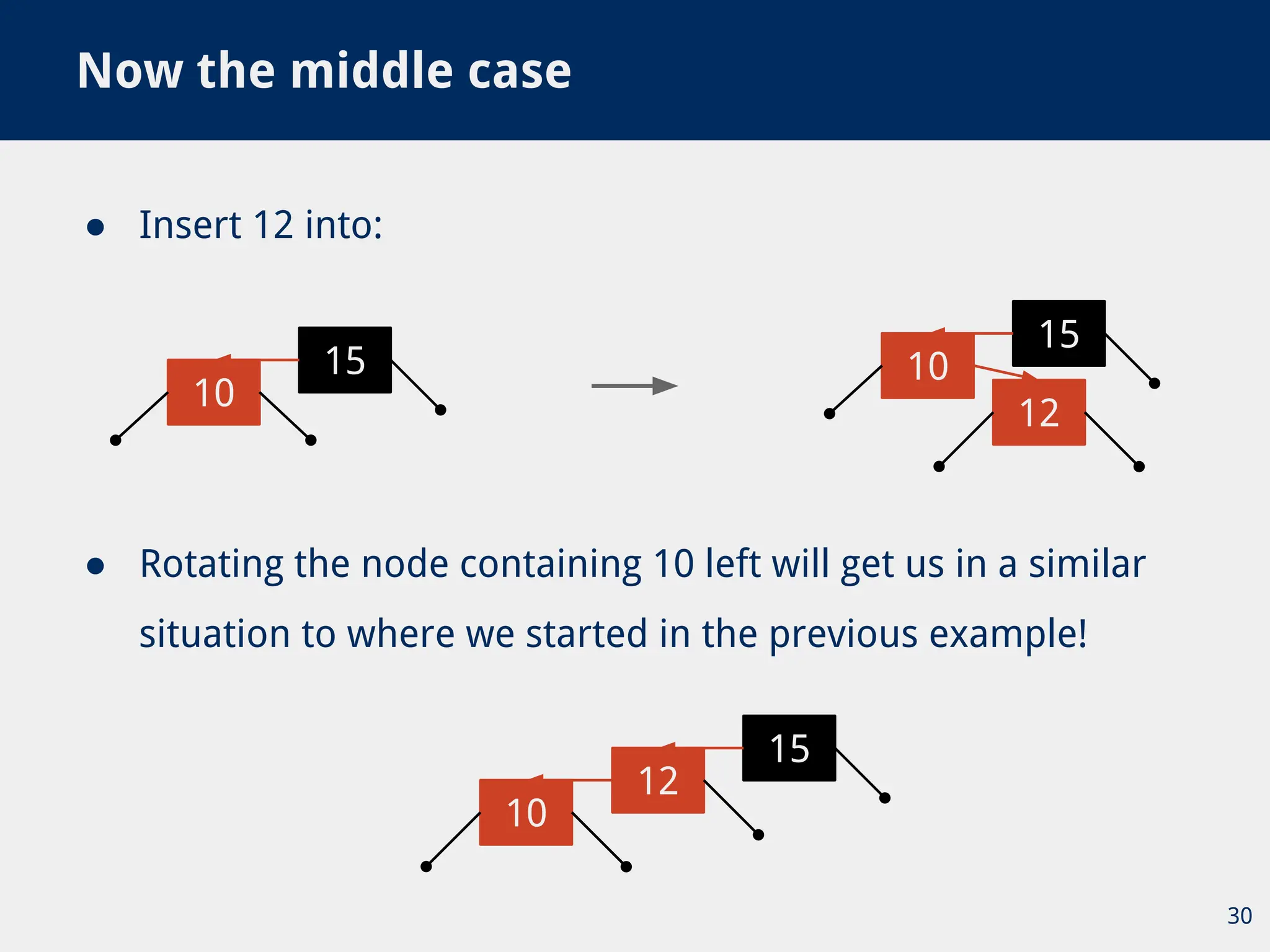

30. ● Insert 12 into:
Now the middle case
30
15
10
15
10
12
● Rotating the node containing 10 left will get us in a similar
situation to where we started in the previous example!
15
12
10

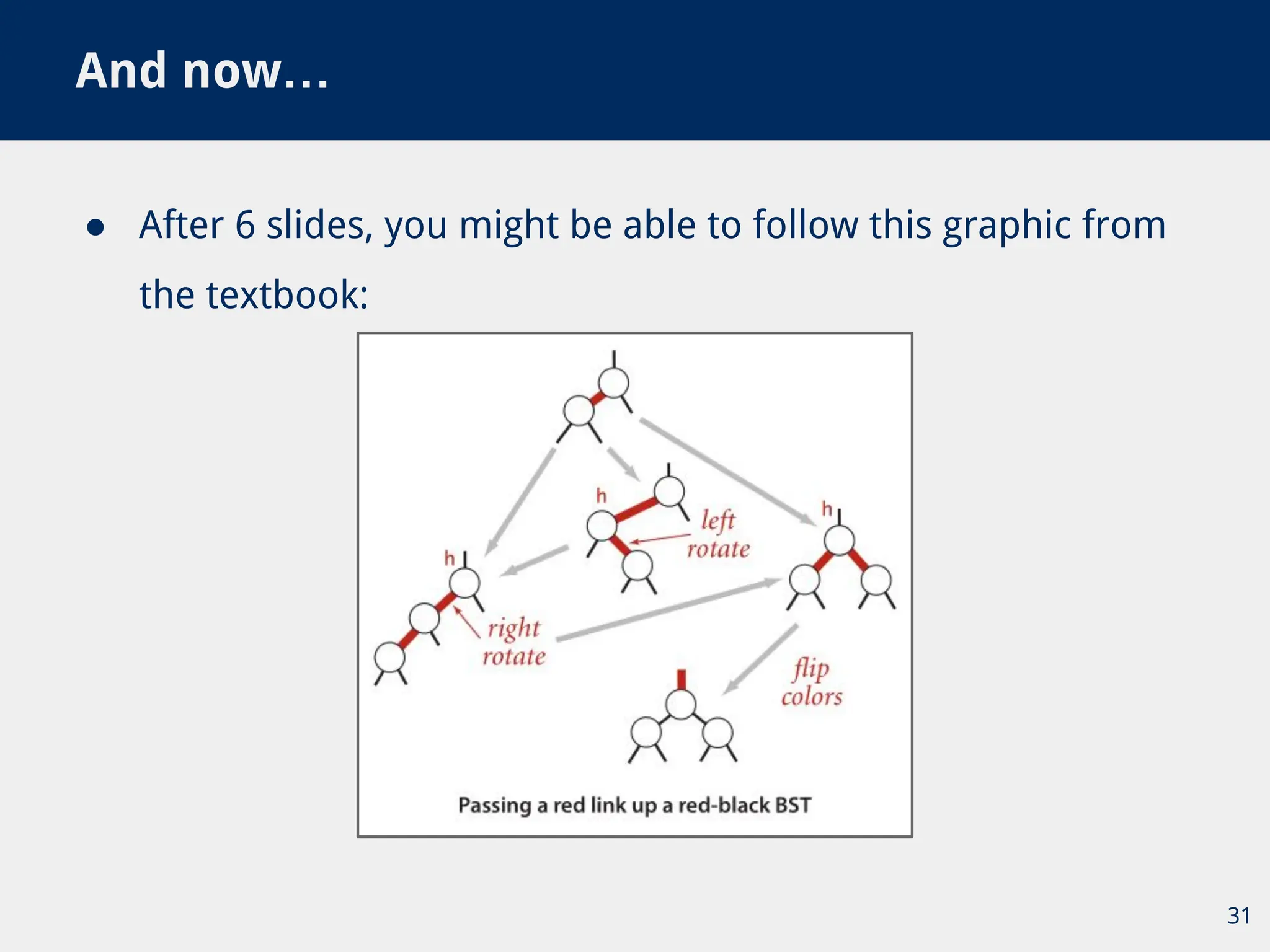

31. ● After 6 slides, you might be able to follow this graphic from
the textbook:
And now…
31

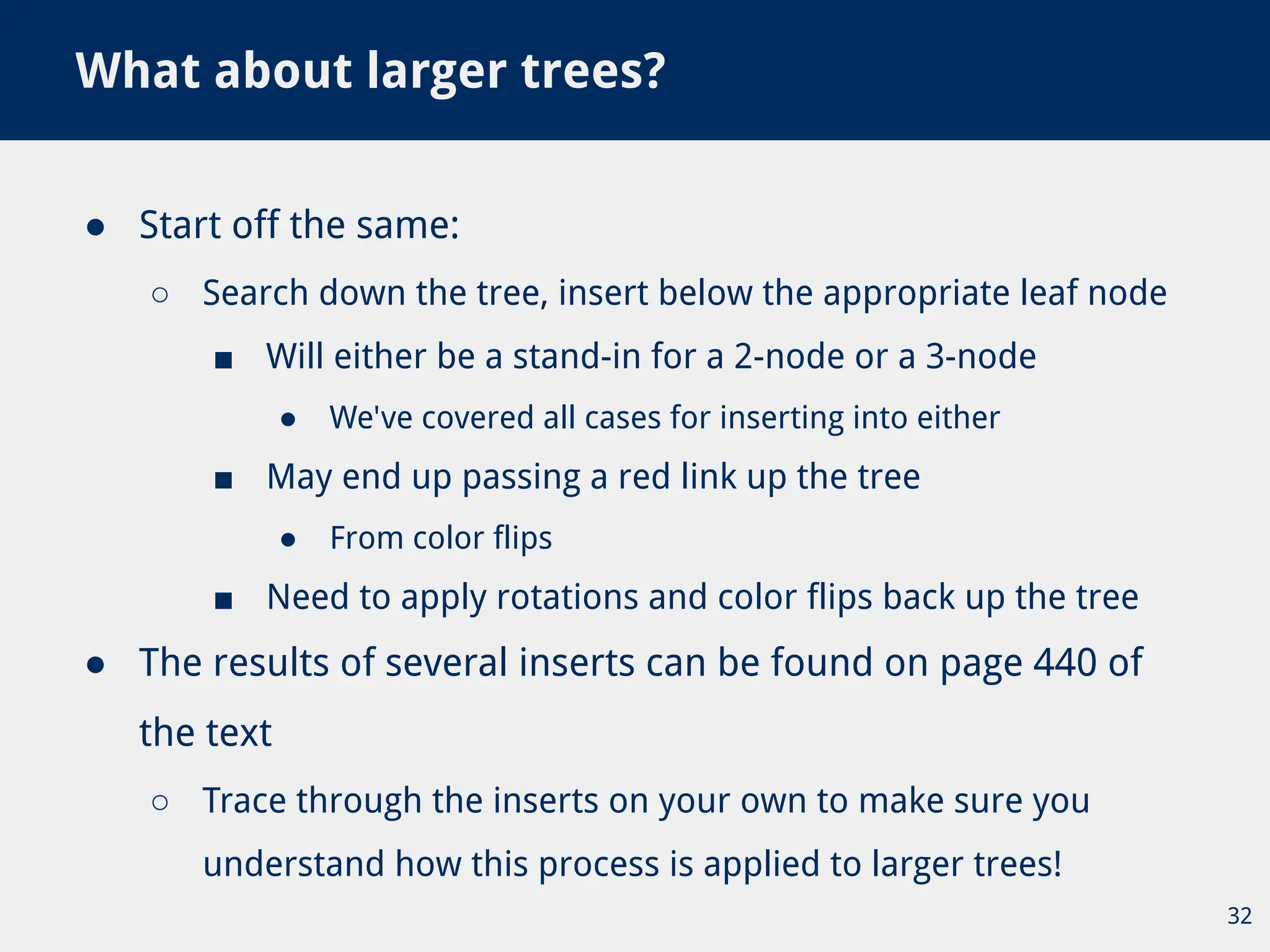

32. ● Start off the same:
○ Search down the tree, insert below the appropriate leaf node
■ Will either be a stand-in for a 2-node or a 3-node
● We've covered all cases for inserting into either
■ May end up passing a red link up the tree
● From color flips
■ Need to apply rotations and color flips back up the tree
● The results of several inserts can be found on page 440 of
the text
○ Trace through the inserts on your own to make sure you
understand how this process is applied to larger trees!
What about larger trees?
32

33. Removing a key from the tree
33

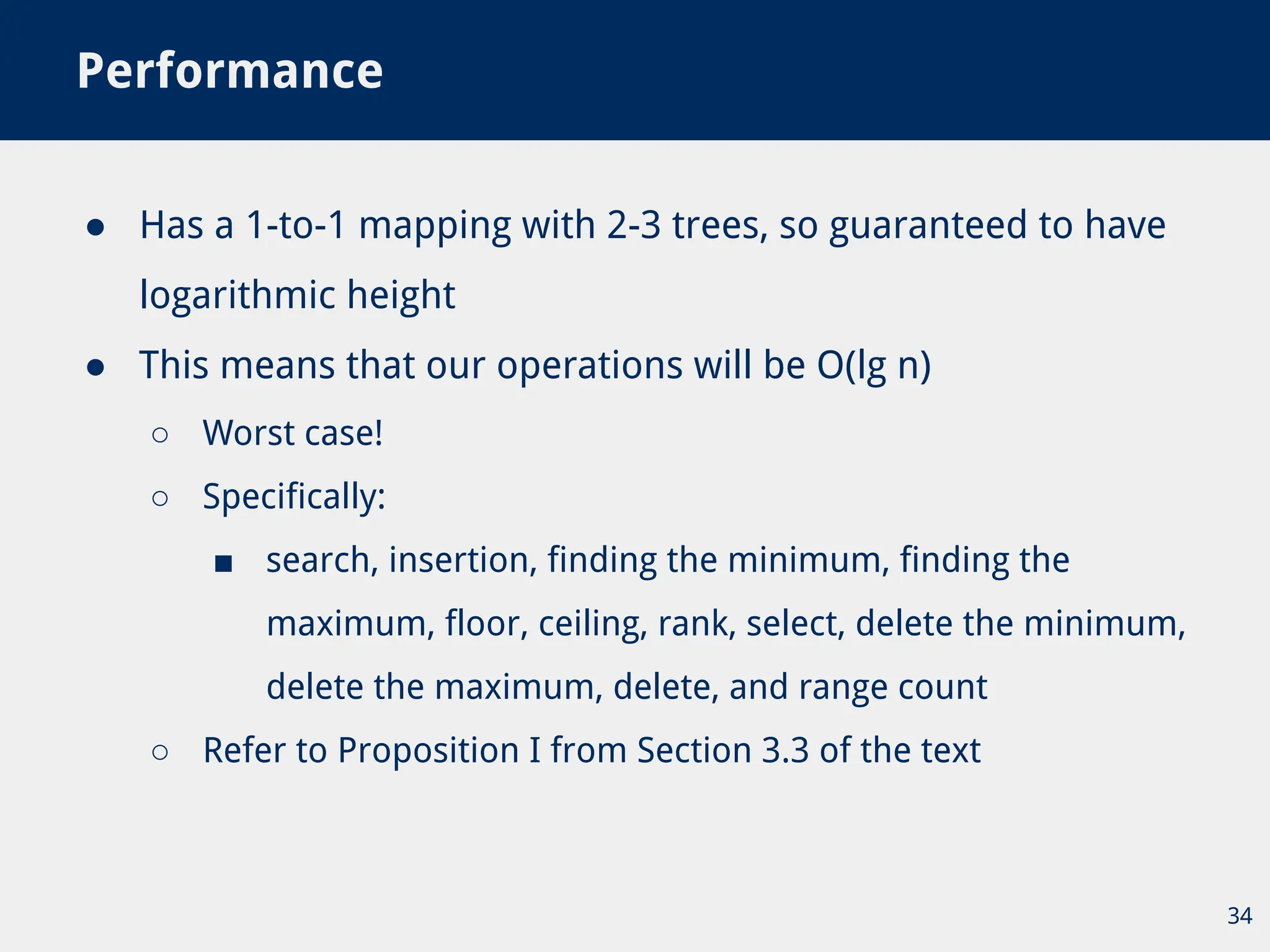

34. ● Has a 1-to-1 mapping with 2-3 trees, so guaranteed to have
logarithmic height
● This means that our operations will be O(lg n)
○ Worst case!
○ Specifically:
■ search, insertion, finding the minimum, finding the
maximum, floor, ceiling, rank, select, delete the minimum,
delete the maximum, delete, and range count
○ Refer to Proposition I from Section 3.3 of the text
Performance
34
