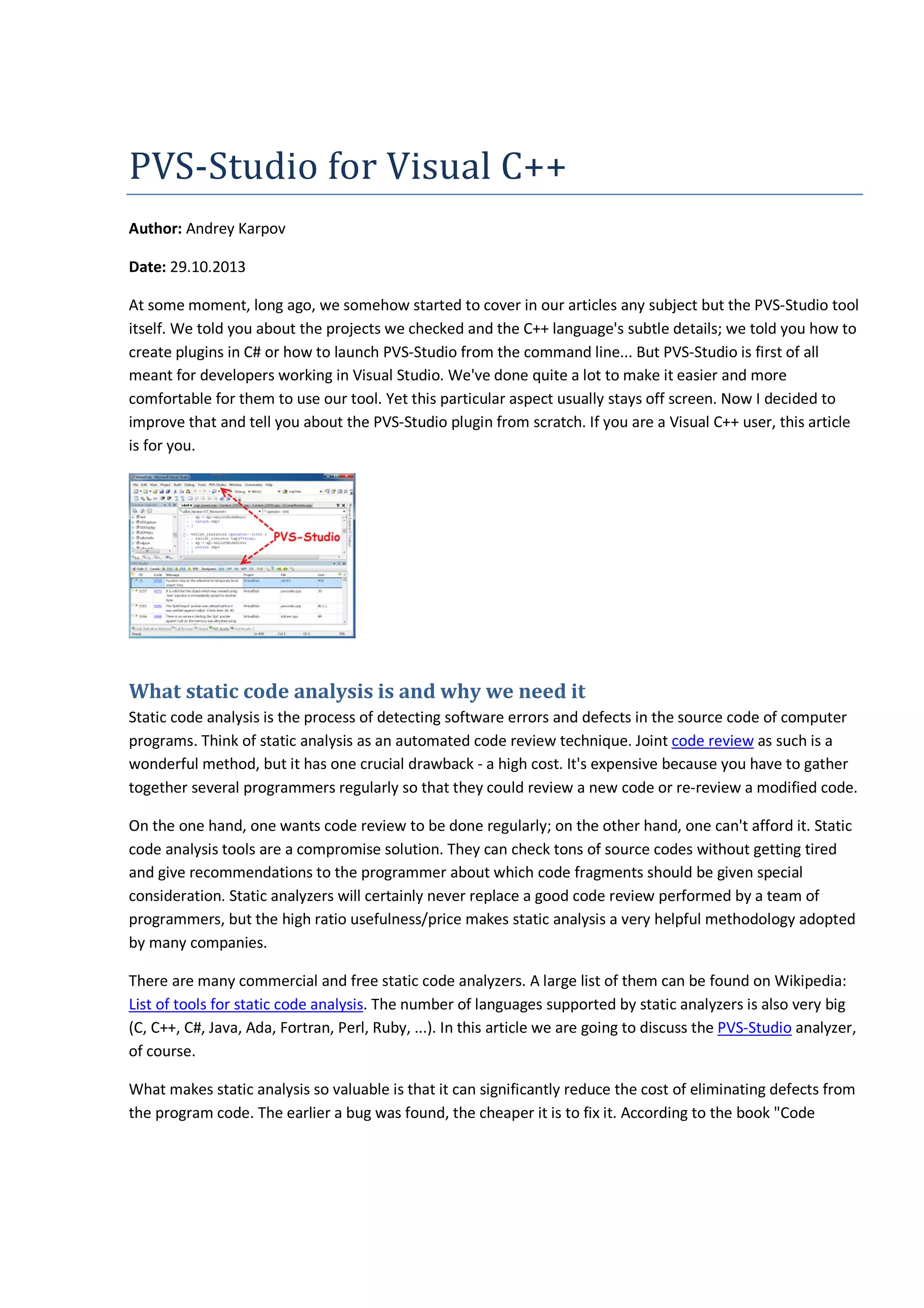

1. PVS-Studio for Visual C++
Author: Andrey Karpov
Date: 29.10.2013
At some moment, long ago, we somehow started to cover in our articles any subject but the PVS-Studio tool
itself. We told you about the projects we checked and the C++ language's subtle details; we told you how to
create plugins in C# or how to launch PVS-Studio from the command line... But PVS-Studio is first of all
meant for developers working in Visual Studio. We've done quite a lot to make it easier and more
comfortable for them to use our tool. Yet this particular aspect usually stays off screen. Now I decided to
improve that and tell you about the PVS-Studio plugin from scratch. If you are a Visual C++ user, this article
is for you.
What static code analysis is and why we need it
Static code analysis is the process of detecting software errors and defects in the source code of computer
programs. Think of static analysis as an automated code review technique. Joint code review as such is a
wonderful method, but it has one crucial drawback - a high cost. It's expensive because you have to gather
together several programmers regularly so that they could review a new code or re-review a modified code.
On the one hand, one wants code review to be done regularly; on the other hand, one can't afford it. Static
code analysis tools are a compromise solution. They can check tons of source codes without getting tired
and give recommendations to the programmer about which code fragments should be given special
consideration. Static analyzers will certainly never replace a good code review performed by a team of
programmers, but the high ratio usefulness/price makes static analysis a very helpful methodology adopted
by many companies.
There are many commercial and free static code analyzers. A large list of them can be found on Wikipedia:
List of tools for static code analysis. The number of languages supported by static analyzers is also very big
(C, C++, C#, Java, Ada, Fortran, Perl, Ruby, ...). In this article we are going to discuss the PVS-Studio analyzer,
of course.
What makes static analysis so valuable is that it can significantly reduce the cost of eliminating defects from
the program code. The earlier a bug was found, the cheaper it is to fix it. According to the book "Code

2. Complete" by S. McConnell, fixing an error at the testing stage is ten times more expensive than at the code
writing stage:
Figure 1. An average cost of error fixing depending on the time the error was added into the code and the
time it was detected (the figures for this table are taken from the book "Code Complete" by S. McConnell).
Click on the picture to enlarge it.
Static analysis tools allow one to reveal many errors that appear at the code writing stage, which makes the
development of the whole project much cheaper. For example, the PVS-Studio analyzer can run in the
background right after compilation and report any potential bug to the programmer. I'll tell you about this
mode in detail a bit later.
The subjects of code review and static analysis are discussed in detail in the articles found by the links in the
References section [1, 2, 3].
The PVS-Studio static code analyzer
PVS-Studio is a static analyzer for detecting bugs in the source code of applications written in C, C++, C++11,
C++/CX. First of all, it is designed for Visual Studio users (see the product page for details about supporting
other IDEs). The analyzer integrates firm and smooth into any version of the environment within the range
VS2005 - VS2012. We're also adding support for VS2013 soon. Once the tool has been integrated, users will

3. see a new item "PVS-Studio" in the main menu and a window where to handle diagnostic messages
generated by the analyzer (see Figure 2).
Figure 2. The main elements added by the PVS-Studio analyzer plugin after integration into Visual Studio.
Click on the picture to enlarge it.

4. Initial settings
The analyzer is ready for work right after installation. In most cases it won't require you to customize
anything before the first run. The only option you may need in the very beginning is that of excluding third-party
libraries from analysis: you won't change anything in the source codes of the jpeg library anyway - so,
no need to check it. Besides, excluding some folders from analysis will reduce the analysis time. To specify
the folders you want to exclude from analysis, go to the following settings window: Options->Dont't Check
Files->PathMasks (see Figure 3).

5. Figure 3. Editing the list of folders you don't want to be checked. Click on the picture to enlarge it.
If the full file path contains one of the specified names, analysis won't run for them. By default the list
includes the names of certain folders. However, the folder containing the ZLib library may have a different
name in your project - for example "zip_lib" instead of "zlib". That's why you may need to edit this list first.
To start editing click on the button with three dots.
These are examples of legal masks for the PathMasks list:
• c:Libs — all the files of the current project which are stored in the specified folder and its
subfolders will be excluded.
• Libs or *Libs* — all the files stored in the folders whose paths contain the "Libs" subfolder will
be excluded. If the "*" characters are missing, they will be added automatically, so both the ways of
specifying this mask are legal.
• Libs or *Libs* — all the files will be excluded whose paths contain the subfolder which has 'Libs' as
its name or part of its name. Also, in this case, all the files will be excluded whose names have the
word Libs, for example c:projectmylibs.cpp. To avoid confusion, we recommend that you always
use slashes.
Besides excluding entire folders, you may specify masks for excluding individual files. This is done through
the FileNameMasks option. To learn more about how to handle exclusion lists, see the documentation:
Settings: Don't Check Files.

6. Checking the project
Once you're done with the preliminary customization, you can start the analysis of your project. I suggest
that you try checking the entire solution at once. To do that, select PVS-Studio->Check->Solution (see Figure
4).
Figure 4. Checking a solution with the PVS-Studio analyzer.
If any troubles occur when trying to run the analysis, see the section "Troubleshooting FAQ" at our website
for useful tips. Those are not stupid recommendations of the "make sure the plug is plugged into a wall
outlet" kind; no, this section describes typical issues encountered by users and suggests certain algorithms
of actions to solve them.
Handling the list of diagnostic messages
Once the analysis is complete, all the diagnostic messages will be displayed inside a special window. This has
a number of control items, all of them designed for filtering the messages in various ways to make
navigation among them more convenient. However, you may find the layout of the window too complicated
at first, so let's examine all the control items closer (see Figure 5).

7. Figure 5. The window with diagnostic messages. Click on the picture to enlarge it.
1. The PVS-Studio window itself.
2. Show/hide messages of the "something gone wrong" kind; for example, some file wasn't processed
correctly.
3. Show/hide messages belonging to different severity levels. On the screenshot, the messages of all
the three levels are shown, 132 of them referring to the first level, 235 to the second, and 390 to
the third. A message's severity level is shown as an emblem of a triangle with a number in the
second left column.
4. Active sets of diagnostic rules. GA stands for the general analysis diagnostics, OP for
microoptimizations, 64 for 64-bit diagnostics, MP for OpenMP-related diagnostics, and CS for
custom diagnostics proposed by users. On the screenshot, displaying of the diagnostics from the
sets GA and MP is enabled.
5. Show/hide messages marked as false positives. On the screenshot, this option is enabled. To learn
more about it, see the documentation: Suppression of false alarms.
6. Search through the diagnostic messages.
7. Quick filters. For example, you can set them to show only messages with the code V501 for the
project XYZ.
8. Move to the next/previous message. When a message is selected, the corresponding file is opened
and the cursor is set at the line containing a potential bug. Also, you may in any time select a
message from the list by double-clicking on it.
9. Open the settings window.
The table with the diagnostic messages is made up of a number of columns:
• Star. It doesn't mean anything special; the user is free to interpret it as he likes. For example, you
may use it to mark the most interesting warnings you'd like to study closer later. It's something like
marking letters with stars in the email clients like Thunderbird or Outlook.
• Severity Level. The severity level the message refers to, the 1-st level including the most critical and
possibly most dangerous issues, the 3-rd level including small, non-critical mistakes or warnings
which are most likely false positives.
• ID. A unique number assigned to every message. You may need this when dealing with a large list.
For example, you may move to a particular message by its number (see the item "Navigate to ID..."
of the drop-down menu).
• Code. The code of the message. Clicking on it opens the description of the warning.

8. • Message. The text of the diagnostic message.
• Project. The project name (you can hide this column through the drop-down menu).
• File. The file name.
• Line. The line number. Important! Note that there may be three dots after the line number for
some messages, for example "123 (...)". Clicking on this number opens the list of all the code lines
this message refers to, so you can navigate to each of them from the list.
• The "False Alarm" mark. This is a mark showing that the warning is a false positive. Keep in mind
that false positives are only shown if button 5 is pressed (see Figure 5).
It all was tiresome to read, wasn't it? But I assure you that you'll get used to the tool very quickly once you
start using it. And you will very rarely have to customize anything.
The drop-down menu
So, double-clicking on a message gets you to the corresponding code fragment, whereas right-clicking calls
the drop-down menu.
The menu is pretty simple and we don't want to overload the article with a detailed description of each
menu item. If anything is not clear, refer to the documentation.
However, I'd like to speak of one very useful feature in particular.
Remember you can choose folders/files to be excluded from analysis (Figure 2)? Well, this operation can be
done in a much easier way than it seems!
Note the item "Don't check files and hide all messages from...". When clicking on it, you'll see a drop-down
list of paths you can add into the exclusion list (see Figure 6).
Figure 6. Excluding files from analysis. Click on the picture to enlarge it.
You can choose both an individual file and an entire folder. On the screenshot, we're selecting the folder
"E:[Build]VirualDubsrctest". It means that all the files in this folder and its subfolders will be excluded

9. from analysis. Besides, all the messages related to these files will be hidden in the message list at once.
Convenient, isn't it? You don't have to relaunch analysis to hide all the warnings generated for tests (the
"test" folder), for example.
Incremental analysis mode
This manual about getting started with PVS-Studio would be incomplete without the description of a very
important and useful feature of the tool - incremental code analysis.
We know that the earlier a bug is found, the cheaper it is to fix it. Ideally, bugs should be underlined right as
the code is being written. But this is hard and resource-intensive to implement from the technical
viewpoint. Instead, PVS-Studio starts in the background right after the modified code has been compiled.
Thus, the tool is searching for bugs in the code that has been modified right now. The analysis running
status is indicated by a tray icon.
Whenever a bug is found, a pop-out message appears to warn you (see Figure 7) about a possible error.
Figure 7. A pop-out message informing you that potential bugs have been found in the recently modified
files.
If you click on this message, the PVS-Studio window will open (see Figure 2) where you can examine the
suspicious code fragments.
You'd really better try this mode yourself - you'll understand it much easier that way than from my
explanation. In short, it works in this way: you go on writing the code as usual, and the analyzer will bother
you if necessary. Do try it!
We always use this mode ourselves. Yes, we sometime make mistakes when writing code too, and being
able to fix them right away makes it much easier and quicker to find the defect and figure out why the
program behaves in a non-expected way. It's a pity when you waste 15-20 minutes on debugging just to find
a typo in some index. Here's one of the latest examples when PVS-Studio found a bug inside itself right after
it had been added into the code:
if (in[0] == '' && in[1] == '.' && in[1] == '')
{
in += 2;
continue;
}

10. But that's just trifles, of course. PVS-Studio sometimes proves much more useful. For example, here's a
comment by one of our users describing his experience of using the analyzer: "A User's Experience of
Working with the Analyzer". The text sets you thinking, doesn't it?
To sum it up: incremental analysis is surely a must-try. You'll get to like it once you've found a few bugs in
your freshly written code.
PVS-Studio's capabilities
Now, let's be brief. It's impossible to describe in short all the diagnostics provided by PVS-Studio, so refer to
the documentation for the complete list of diagnostic rules and their detailed descriptions: Error
description. Here I will only paste a table showing the diagnostics grouped into categories. Some of the
diagnostics are included into more than one group - because this division is actually quite relative. For
example, a typo may cause using an uninitialized memory area. Some of the bugs, on the contrary, are not
included into any category, for they are too peculiar. Nevertheless, the table is a good way for you to grasp
the general idea about our static code analyzer's capabilities (see Figure 8).

11. Figure 8. PVS-Studio's capabilities. Click on the picture to enlarge it.
As you can see, the analyzer is especially good at catching bugs caused by typos and using Copy-Paste. It is
also good at detecting issues related to code security.
For real-life examples demonstrating these diagnostics in action, see our bug database. We use it to collect
all the bugs caught while checking various open-source projects.

12. Conclusion
We haven't told you everything about our tool, of course, because the article would then turn into a
complete documentation. The purpose of this paper was to show you how to easily and comfortably work
with the tool within the Visual Studio environment. To learn about support of other environments and
modes, see the documentation and other articles found at our website. In addition, you will also find many
interesting materials for programmers there. So, welcome to our site - you'll surely spend a while there.
I wish you bugless code and hope you'll like PVS-Studio. If you have any questions, we are always glad to
help you. Contact us.
References:
1. Code review.
2. Static code analysis.
3. Static code analysis tools.
4. Myths about static analysis. The second myth - expert developers do not make silly mistakes.
5. Download PVS-Studio and try it real-life.
6. Too few bugs found in my code. Why? Leo Tolstoy and static code analysis.
7. If you want to purchase PVS-Studio for your team, visit the page Buy PVS-Studio to discuss the price
and ways of purchasing the tool.
8. FAQ for those who have read our articles and want to ask a question.
