Mder rubber and plastic technology limited company is located in Jingzhou Rubber and Plastic Zone in China. It manufactures high performance steel wire reinforced hydraulic rubber hoses. The company has a total area of 80 mu (50690 square meters) including 16,000 square meters of production, testing and R&D facilities. It has various production lines including steel spiral winding, steel braiding, and large diameter braiding lines. The company focuses on research and testing to ensure product quality. Its main products are drilling and high pressure hoses for industries like engineering machinery, mining, construction, and oil drilling.

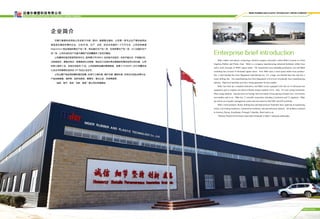

3. 迈德尔橡塑科技有限公司坐落于中国（景州）橡塑管业基地。公司是一家专业生产高性能钢丝
增强液压橡胶软管的企业，占地 80 亩。生产、试验、研发车间面积 1.6 万平方米。公司现有美国
Magnatech 钢丝缠绕胶管生产线 1 条 , 钢丝编织生产线 1 条，钻探胶管生产线 1 条，大口径编织生产
线 1 条。公司先进的生产设备为确保产品质量提供了坚实的基础。
公司建有标准实验室和研发中心，配有意大利 BIMAL 动态脉冲试验台，无转子硫化仪，平板硫化机，
试验密炼机，爆破试验台，耐臭氧老化试验箱，钢丝拉力试验机等全套橡胶软管实验和化验设备。公司
现有工程师 2 名，实验及检验员 15 名。公司用拥有完善的管理制度，取得了 ISO90001:2000 质量体系
认证证书和美国石油协会 API 专业认证证书。
公司主要产品钻探胶管和高压胶管，应用于工程机械、煤矿机械、建筑机械、风电及石油钻采等行业。
产品远销美国、俄罗斯、哈萨克斯坦、葡萄牙、哥伦比亚、巴西等国家。
“诚信、细节、坚持、创新、感恩”是公司的经营理念。
Mder rubber and plastic technology limited company (hereafter called Mder) located in China
Jingzhou Rubber and Plastic Zone. Mder is a company manufacturing industrial hydraulic rubber hose
with a total coverage of 50691 square meter. All construction area including production, test and R&D
workshop has covered 16 thousand square meter. Now Mder have a steel spiral rubber hose produce-
line, a steel braided line from Magnatech International Inc. US ,a large size braided hose line and also a
rotary drilling line. The manufacturing line from Magnatech is first level in hydraulic hose manufacturing
industry. High level machines provide a strong guarantee for hose quality.
Mder has built up a standard laboratory and R&D center equipped with full set of advanced test
equipment such as impulse test stand of Bimal testing machines S.P.A . Italy, No rotor curing instrument,
Plate curing machine, internal mixer for testing, burst test stand, Ozone ageing resistance box, wire tension
test machine and so on. Mder has 17 scientific researchers including 2 professors and 15 engineers. Mder
has whole set of quality management system and also achieves ISO 9001 and API certificate.
Mder’s main products: Rotary drilling hose and high pressure Hydraulic hose, applying in engineering
trucks, coal mining machinery, construction machinery and petrochemical industry. All products exported
to America, Russia, Kazakhstan, Portugal, Columbia, Brazil and so on.
“Honesty Details Perseverance Innovation Gratitude”is Mder’s operation philosophy.
企业简介
Enterprise brief introduction
MDER 01/02
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

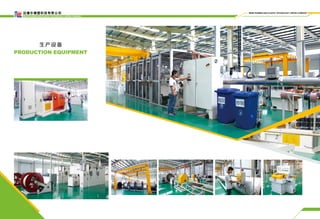

4. 迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

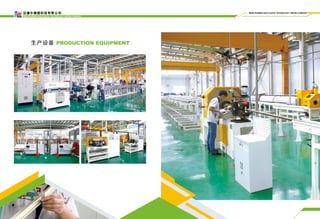

5. 迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

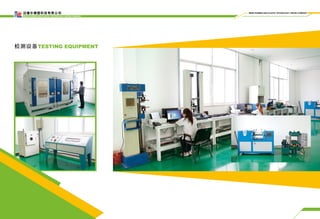

6. 迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

7. M-RB2 (SAE 100 R1) M-RB2 (SAE 100 R2)
钢丝编织液压软管 钢丝编织液压软管
Steel wire reinforced hydraulic rubber hose Steel wire reinforced hydraulic rubber hose
结构：软管由一层耐油合成胶内胶层，一层钢丝编织增强层和一层耐油耐侯合成橡
胶外层组成。
应用：适用于石油基液压油和水性流体。
温度范围：-40℃ -- +100℃
结构：软管由一层耐油合成胶内胶层，二层钢丝编织增强层和一层耐油耐侯合成橡
胶外层组成。
应用：适用于石油基液压油和水性流体，
温度范围：-40℃ -- +100℃
Recommended for: Medium pressure hydraulic oil lines. Meets or exceeds
requirements of SAE 100R1
Tube: Black, oil resistant, Nitrile
Reinforcement: Two braids of high tensile steel wire
Cover:Black, oil and abrasion resistant Neoprene
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ )
Recommended for: Medium pressure hydraulic oil lines. Meets or exceeds
requirements of SAE 100R2
Tube: Black, oil resistant, Nitrile
Reinforcement: Two braids of high tensile steel wire
Cover:Black, oil and abrasion resistant Neoprene
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ )
型号
Type
公制
规格
SIZE
英制
规格
SIZE
内径
ID
增强层直径
WD
外径 OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
A/D TYPE AT TYPE
mm inch Min Max Min Max Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB1-03 5 3/16 4.6 5.4 8.9 10.1 11.9 13.5 12.5 21 3045 84 12180 3.54 90 0.20
RB1-04 6.3 1/4 6.2 7.0 10.6 11.7 15.1 16.7 14.1 19.2 2780 77 11165 3.94 100 0.25
RB1-05 8 5/16 7.7 8.5 12.1 13.3 16.7 18.3 15.7 17.5 2540 70 10150 4.53 115 0.31
RB1-06 10 3/8 9.3 10.1 14.5 15.7 19.0 20.6 18.1 15.7 2280 63 9135 4.92 125 0.36
RB1-08 12.5 1/2 12.3 13.5 17.5 19.0 22.2 23.8 21.5 14 2030 56 8120 7.09 180 0.45
RB1-10 16 5/8 15.5 16.7 20.6 22.2 25.4 27.0 24.7 10.5 1520 42 6090 8.07 205 0.52
RB1-12 19 3/4 18.6 19.8 24.6 26.2 29.4 31.0 28.6 8.7 1260 35 5075 9.45 240 0.65
RB1-16 25 1 25.0 26.4 32.5 34.1 36.9 39.3 36.6 7 1015 28 4060 11.81 300 0.91
RB1-20 31.5 1 1/4 31.4 33.0 39.3 41.7 44.4 47.6 44.8 4.3 620 17.5 2540 16.54 420 1.30
RB1-24 38 1 1/2 37.7 39.3 45.6 48.0 50.8 54.0 52.0 3.5 510 14 2030 19.69 500 1.70
RB1-32 51 2 50.4 52.0 58.7 61.9 65.1 68.3 65.9 2.6 380 10.5 1520 24.8 630 2.00
型号
Type
公制
规格
SIZE
英制
规格
SIZE
内径
ID
增强层直径
WD
外径 OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
A/D TYPE AT TYPE
mm inch Min Max Min Max Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB2-03 5 3/16 4.6 5.4 10.6 11.7 15.1 16.7 14.1 35 5075 140 20300 3.54 90 0.32
RB2-04 6.3 1/4 6.2 7.0 12.1 13.3 16.7 18.3 15.7 35 5075 140 20300 3.94 100 0.36
RB2-05 8 5/16 7.7 8.5 13.7 14.9 18.3 19.8 17.3 29.7 4310 119 17255 4.53 115 0.45
RB2-06 10 3/8 9.3 10.1 16.1 17.3 20.6 22.2 19.7 28 4060 112 16240 4.92 125 0.54
RB2-08 12.5 1/2 12.3 13.5 19.0 20.6 23.8 25.4 23.1 24.5 3550 98 14210 7.09 180 0.68
RB2-10 16 5/8 15.5 16.7 22.2 23.8 27.0 28.6 26.3 19.2 2780 77 11165 8.07 205 0.80
RB2-12 19 3/4 18.6 19.8 26.2 27.8 31.0 32.5 30.2 15.7 2280 63 9135 9.45 240 0.94
RB2-16 25 1 25.0 26.4 34.1 35.7 38.5 40.9 38.9 14 2030 56 8120 11.81 300 1.35
RB2-20 31.5 1 1/4 31.4 33.0 43.2 45.6 49.2 52.4 49.6 11.3 1640 45.5 6600 16.54 420 2.15
RB2-24 38 1 1/2 37.7 39.3 49.6 52.0 55.6 58.7 56.0 8.7 1260 35 5075 19.09 500 2.65
RB2-32 51 2 50.4 52.0 62.3 64.7 68.3 71.4 68.6 7.8 1130 31.5 4570 24.8 630 3.42
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

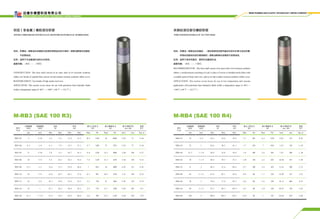

8. M-RB3 (SAE 100 R3) M-RB4 (SAE 100 R4)
双层（非金属）橡胶液压软管 夹钢丝液压吸引橡胶软管
Double fiber braid (nonmetallic) reinforced hydraulic rubber hose Wire inserted hydraulic suction hose
结构：软管由一层耐油合成橡胶内胶层和两层适当的纤维和一层耐油耐候合成橡胶
外胶层组成。
应用：适用于石油基液压油和水性流体。
温度范围：-40℃ -- +100℃
结构：软管由一层耐油合成橡胶，一层由单层或多层布编织的纺织纤维与适当的管
体钢丝回旋线构成的增强层和一层耐油耐候合成橡胶外胶层组成。
应用：适用于低压和真空，使用石油基液压油。
温度范围：-40℃ -- +100℃
Construction: This hose shall consist of an inner tube of oil resistant synthetic
rubber, two braids of suitable fiber, and an oil and weather resistant synthetic rubber cover.
Reinforcement: Two braids of high tensile steel wire
Application: This section covers hoses for use with petroleum base hydraulic fluids
within a temperature range of -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
Recommended for: This hose shall consist of an inner tube of oil resistant synthetic
rubber, a reinforcement consisting of a ply or plies of woven or braided textile fibers with
a suitable spiral of body steel wire, and an oil and weather resistant synthetic rubber cover.
Application: This section covers hoses for use in low temperature and vacuum
applications with petroleum base hydraulic fluids within a temperature range of -40℃ --
+100℃ (-40 ℉ -- +212 ℉ )
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
RB3-03 5 3/16 4.5 5.4 11.9 13.5 10.5 1520 42 6090 2.95 75 0.16
RB3-04 6.3 1/4 6.1 7.0 13.5 15.1 8.7 1260 35 5075 2.95 75 0.18
RB3-05 8 5/16 7.6 8.5 16.7 18.3 8.4 1220 33.5 4860 3.94 100 0.27
RB3-06 10 3/8 9.2 10.1 18.3 19.8 7.8 1130 31.5 4570 3.94 100 0.31
RB3-08 12.5 1/2 12.4 13.5 23.0 24.6 7 1015 28 4060 4.92 125 0.45
RB3-10 16 5/8 15.6 16.7 26.2 27.8 6.1 885 24.5 3550 5.51 140 0.53
RB3-12 19 3/4 18.7 19.8 31.0 32.5 5.2 750 21 3045 5.91 150 0.72
RB3-16 25 1 25.1 26.2 36.9 39.3 3.9 570 15.7 2280 8.07 205 0.9
RB3-20 31.5 1 1/4 31.4 32.9 42.9 46.0 2.6 380 10.5 1520 9.84 250 1.07
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB4-12 19 3/4 18.2 19.8 34.9 2.1 305 8.4 1210 4.92 125 0.92
RB4-16 25 1 24.6 26.2 41.3 1.7 250 7 1015 5.91 150 1.10
RB4-20 31.5 1 1/4 30.6 33.0 50.8 1.4 200 5.6 810 7.87 200 1.30
RB4-24 38 1 1/2 36.9 39.3 57.2 1.05 150 4.2 610 10.04 255 1.80
RB4-32 51 2 49.2 52.4 69.9 0.7 100 2.8 410 11.81 300 2.23
RB4-40 63 2 1/2 61.9 65.1 82.6 0.4 60 1.7 250 13.98 355 3.23
RB4-48 76 3 74.6 77.8 95.3 0.4 60 1.6 230 18.11 460 4.25
RB4-56 89 3 1/2 87.3 90.5 107.9 0.3 40 1.25 180 20.87 530 5.05
RB4-64 102 4 100.0 103.2 120.7 0.25 40 1 145 24.02 610 5.60
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

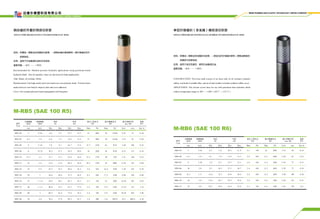

9. M-RB5 (SAE 100 R5)
M-RB6 (SAE 100 R6)
钢丝编织外覆织物液压软管 单层纤维编织（非金属）橡胶液压软管
Single wire braid,textile covered hydraulic hose Single fiber braid (nonmetallic) rubber covered hydraulic hose
结构：软管由一层耐油合成橡胶内胶层，一层钢丝编织增强层和一层纤维编织的外
胶层组成。
应用：适用于石油基液压油和水性流体。
温度范围：-40℃ -- +100℃
结构：软管由一层耐油合成橡胶内胶层，一层适当的纤维编织层和一层耐油耐候合
成橡胶外胶层组成。
应用：适用于低压和真空，使用石油基液压油。
温度范围：-40℃ -- +100℃
Recommended for: Medium pressure hydraulic applications using petroleum based
hydraulic fluids. Also for gasoline, water, air and truck air brake applications.
Tube: Black, oil resistant, Nitrile
Reinforcement: One high tensile steel wire braid over one polyester braid. Friction layers
under and over wire braid to improve tube and cover adhesion.
Cover: Oil resistant polyester braid impregnated with Neoprene.
Construction: This hose shall consist of an inner tube of oil resistant synthetic
rubber, one braid of suitable fiber, and an oil and weather resistant synthetic rubber cover.
Application: This section covers hose for use with petroleum base hydraulic fluids
within a temperature range of -40℃ -- +100℃ (-40 ℉ -- +212 ℉ )
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
RB5-04 5 3/16 4.8 5.5 12.7 13.7 21 3045 84 12180 2.95 75 0.24
RB5-05 6.3 1/4 6.4 7.2 14.3 15.3 21 3045 84 12180 3.35 85 0.28
RB5-06 8 5/16 7.9 8.7 16.7 17.6 15.7 2270 63 9135 3.94 100 0.35
RB5-08 11 13/32 10.3 11.1 18.9 20.0 14 2030 56 8120 4.53 115 0.38
RB5-10 12.5 1/2 12.7 13.7 22.8 24.0 12.2 1770 49 7105 5.51 140 0.51
RB5-12 16 5/8 15.9 17.0 26.8 28.0 10.5 1520 42 6090 6.50 165 0.68
RB5-16 22 3/4 22.3 23.3 30.6 32.2 5.6 810 22.4 3250 7.28 185 0.70
RB5-20 29 1 28.6 29.8 37.3 38.9 4.3 620 17.5 2540 9.06 230 0.80
RB5-24 35 1 1/4 34.9 36.1 43.7 45.2 3.5 510 14 2030 10.43 265 0.93
RB5-32 46 1 1/2 46.0 47.2 55.2 57.6 2.4 350 9.8 1420 13.19 335 1.32
RB5-40 60 2 60.3 61.9 71.8 74.2 2.4 350 9.8 1420 24.02 610 2.96
RB5-48 76 3.0 76.2 77.8 89.3 91.7 1.4 200 5.6 810.0 33.1 840.0 4.10
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
RB6-03 5 3/16 4.5 5.4 10.3 11.9 3.5 510 14 2030 1.97 50 0.10
RB6-04 6.3 1/4 6.1 7.0 11.9 13.5 2.8 410 11.2 1620 2.56 65 0.13
RB6-05 8 5/16 7.6 8.5 13.5 15.1 2.8 410 11.2 1620 2.95 75 0.15
RB6-06 10 3/8 9.2 10.1 15.1 16.7 2.8 410 11.2 1620 2.95 75 0.18
RB6-08 12.5 1/2 12.4 13.5 19.0 20.6 2.8 410 11.2 1620 3.94 100 0.26
RB6-10 16 5/8 15.6 16.7 22.2 23.8 2.4 350 9.8 1420 4.92 125 0.31
RB6-12 19 3/4 18.7 19.8 25.4 27.8 2.1 310 8.4 1220 5.91 150 0.4
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

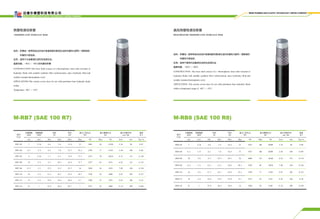

10. M-RB7 (SAE 100 R7) M-RB8 (SAE 100 R8)
热塑性液压软管 高压热塑性液压软管
Thermoplastic hydraulic hose High pressure thermoplastic hydraulic hose
结构：软管由一层带有适当合成纤维增强层的耐液压油的热塑性内层和一层耐候的
热塑性外层组成。
应用：适用于石油基液压油和合成液压油。
温度范围：-40℃～ +93℃的热塑性软管
结构：软管由一层带有适当合成纤维增强层的耐液压油的热塑性内层和一层耐候的
热塑性外层组成。
应用：适用于使用石油基液压油和合成液压油。
温度范围：-40℃～ +93℃
CONSTRUCTION:This hose shall consist of a thermoplastic inner tube resistant to
hydraulic fluids with suitable synthetic fiber reinforcement, and a hydraulic fluid and
weather resistant thermoplastic cover.
APPLICATIONS:This section covers hose for use with petroleum base hydraulic fluids
within.
Temperature: -40℃ -- +93℃ .
Construction: This hose shall consist of a thermoplastic inner tube resistant to
hydraulic fluids with suitable synthetic fiber reinforcement, and a hydraulic fluid and
weather resistant thermoplastic cover.
Application: This section covers hose for use with petroleum base hydraulic fluids
within a temperature range of -40℃ -- +93℃
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB7-03 5 3/16 4.6 5.4 11.4 21 3045 84 12180 3.54 90 0.07
RB7-04 6.3 1/4 6.2 7.0 13.7 19.2 2780 77 11165 3.94 100 0.09
RB7-05 8 5/16 7.7 8.5 15.6 17.5 2535 70 10150 4.53 115 0.128
RB7-06 10 3/8 9.3 10.3 18.4 15.7 2275 63 9135 4.92 125 0.155
RB7-08 12.5 1/2 12.3 13.5 22.5 14 2030 56 8120 7.09 180 0.224
RB7-10 16 5/8 15.5 16.7 25.8 10.5 1520 42 6090 8.07 205 0.277
RB7-12 19 3/4 18.6 19.8 28.6 8.7 1260 35 5075 9.45 240 0.33
RB7-16 25 1 25.0 26.4 36.7 7 1015 28 4060 11.81 300 0.403
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB8-03 5 3/16 4.6 5.4 14.6 35 5075 140 20300 3.54 90 0.09
RB8-04 6.3 1/4 6.2 7.0 16.8 35 5075 140 20300 3.94 100 0.097
RB8-06 10 3/8 9.3 10.3 20.3 28 4060 112 16240 4.92 125 0.178
RB8-08 12.5 1/2 12.3 13.5 24.6 24.5 3550 98 14210 7.09 180 0.216
RB8-10 16 5/8 15.5 16.7 29.8 19.2 2780 77 11165 8.07 205 0.312
RB8-12 19 3/4 18.6 19.8 33.0 15.7 2275 63 9135 9.45 240 0.36
RB8-16 25 1 25.0 26.4 38.6 14 2030 56 8120 11.81 300 0.505
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company

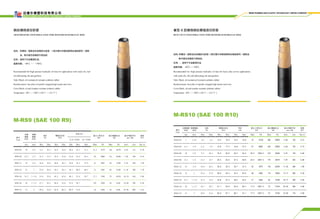

11. M-RS9 (SAE 100 R9)
M-RS10 (SAE 100 R10)
钢丝缠绕液压软管 重型 4 层缠绕钢丝增强液压软管
High pressure, four spiral steel wire reinforced hydraulic hose Heavy duty, four spiral steel wire reinforced hydraulic hose
结构：软管由一层耐油合成橡胶内胶层、4 层交替方向高强度钢丝缠绕层和一层耐
油、耐天候合成橡胶外层组成
应用：适用于石油基液压油。
温度范围：-40℃ -- +100℃
结构：软管由一层耐油合成橡胶内胶层、4层交替方向高强度钢丝缠绕层和一层耐油、
耐天候合成橡胶外层组成。
应用：：适用于石油基液压油。
温度范围：-40℃～ +100℃
Recommended for:High pressure hydraulic oil lines for applications with crude oils, fuel
oils,lubricating oils and gasoline.
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
Recommended for: High pressure hydraulic oil lines for heavy duty service applications
with crude oils, fuel oils,lubricating oils and gasoline.
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company
型号
Type
公制
规格
SIZE
英制
规格
SIZE
内径
ID
增强层直径
WD
外径 OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
A/D TYPE AT TYPE
mm inch Min Max Min Max Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RS9-06 10 3/8 9.3 10.1 16.9 18.0 20.6 22.2 21.1 31.5 4570 126 18270 4.92 125 0.70
RS9-08 12.5 1/2 12.3 13.5 19.4 21.0 23.8 25.4 24.3 28 4060 112 16240 7.09 180 0.83
RS9-12 19 3/4 18.6 19.8 26.6 28.2 30.6 32.2 31.9 21 3045 84 12180 9.45 240 1.30
RS9-16 25 1 25.0 26.4 34.5 36.1 38.5 40.9 40.5 21 3045 84 12180 11.81 300 1.70
RS9-20 31.5 1 1/4 31.4 33.0 43.3 45.6 49.2 52.4 50.7 17.5 2540 70 10150 16.54 420 3.08
RS9-24 38 1 1/2 37.7 39.3 49.6 52.0 55.6 58.7 147 2030 56 8120 19.69 500 4.30
RS9-32 51 2 50.4 52.0 63.9 66.2 69.9 73.0 14 2030 56 8120 25.98 660 5.63
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
RS10-03 5 3/16 4.6 5.4 14.3 15.9 18.3 19.8 70 10150 280 40600 3.94 100 0.61
RS10-04 6.3 1/4 6.2 7.0 15.8 17.4 19.8 21.4 61 8845 245 35525 4.92 125 0.73
RS10-06 10 3/8 9.3 10.1 19.0 20.6 23.0 24.6 52.5 7642.5 210 30450 5.91 150 0.82
RS10-08 12.5 1/2 12.5 13.7 23.0 24.6 27.0 28.6 43.5 6307.5 175 25375 7.87 200 0.96
RS10-12 19 3/4 19.0 20.2 30.9 32.5 35.7 37.3 35 5075 140 20300 11.02 280 1.65
RS10-16 25 1 25.4 27.0 38.9 40.5 43.3 45.6 28 4060 112 16240 14.17 360 2.30
RS10-20 31.5 1 1/4 31.8 33.4 44.8 47.2 49.2 52.4 21 3045 84 12180 18.17 460 3.25
RS10-24 38 1 1/2 38.1 39.7 51.1 53.6 55.6 58.7 17.5 2537.5 70 10150 22.05 560 3.95
RS10-32 51 2 50.8 52.6 64.6 67.1 69.1 72.1 17.5 2537.5 70 10150 27.95 710 4.95

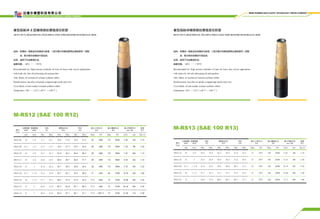

12. M-RS12 (SAE 100 R12)
M-RS13 (SAE 100 R13)
重型高脉冲 4 层缠绕钢丝增强液压软管 重型高脉冲缠绕钢丝增强液压软管
Heavy duty, high impulse, four spiral steel wire reinforced hydraulic hose Heavy duty, high impulse, multiple spiral steel wire reinforced hydraulic hose
结构：软管由一层耐油合成橡胶内胶层、4 层交替方向高强度钢丝缠绕层和一层耐
油、耐天候合成橡胶外层组成。
应用：适用于石油基液压油。
温度范围：-40℃ -- +121℃
结构：软管由一层耐油合成橡胶内胶层、4 层交替方向高强度钢丝缠绕层和一层耐
油、耐天候合成橡胶外层组成。
应用：适用于石油基液压油。
温度范围：-40℃ -- +121℃
Recommended for: High pressure hydraulic oil lines for heavy duty service applications
with crude oils, fuel oils,lubricating oils and gasoline.
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +121℃ (-40 ℉ -- +249 ℉ ).
Recommended for: High pressure hydraulic oil lines for heavy duty service applications
with crude oils, fuel oils,lubricating oils and gasoline.
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +121℃ (-40 ℉ -- +249 ℉ ).
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
RS13-12 19 3/4 18.6 19.8 28.2 29.8 31.0 33.2 35 5075 140 20300 9.45 240 2.10
RS13-16 25 1 25.0 26.4 34.9 36.4 37.6 39.8 35 5075 140 20300 11.81 300 2.88
RS13-20 31.5 1 1/4 31.4 33.0 45.6 48.0 48.3 51.3 35 5075 140 20300 16.54 420 4.20
RS13-24 38 1 1/2 37.7 39.3 53.1 55.5 55.8 58.8 35 5075 140 20300 19.69 500 5.00
RS13-32 51 2 50.4 52.0 66.9 69.3 69.5 72.7 35 5075 140 20300 25.2 640 7.00
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
RS12-06 10 3/8 9.3 10.1 16.6 17.8 19.5 21.0 28 4060 112 16240 4.92 125 0.70
RS12-08 12.5 1/2 12.3 13.5 19.9 21.5 23.0 24.6 28 4060 112 16240 7.09 180 0.83
RS12-10 16 5/8 15.5 16.7 23.8 25.4 26.6 28.2 28 4060 112 16240 7.87 200 1.12
RS12-12 19 3/4 18.6 19.8 26.9 28.7 29.9 31.7 28 4060 112 16240 9.45 240 1.43
RS12-16 25 1 25.0 26.4 34.1 36.0 36.8 39.4 28 4060 112 16240 11.81 300 2.00
RS12-20 31.5 1 1/4 31.4 33.0 42.7 45.1 45.4 48.6 21 3045 84 12180 16.54 420 2.80
RS12-24 38 1 1/2 37.7 39.3 49.2 51.6 51.9 55.0 17.5 2540 70 10150 19.69 500 3.40
RS12-32 51 2 50.8 52.0 62.5 64.8 65.1 68.3 17.5 2540 70 10150 25.20 640 4.25
RS10-32 51 2 50.8 52.6 64.6 67.1 69.1 72.1 17.5 2537.5 70 10150 27.95 710 4.95

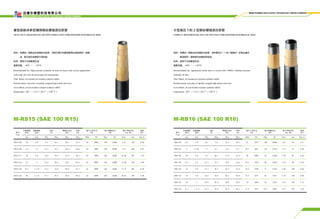

13. M-RS15 (SAE 100 R15) M-RB16 (SAE 100 R16)
重型高脉冲多层缠绕钢丝增强液压软管 小型高压 1 和 2 层钢丝增强液压软管
Heavy duty, high impulse, multiple spiral steel wire reinforced hydraulic hose Compact, high pressure, one and two steel wire reinforced hydraulic hose
结构：软管由一层耐油合成橡胶内胶层、多层交替方向高强度钢丝缠绕层和一层耐
油、耐天候合成橡胶外层组成
应用：适用于石油基液压油。
温度范围：-40℃ -- +121℃
结构：软管由一层耐油合成橡胶内胶层，按软管设计（1 或 2 层编织）的钢丝编织
增强层和一层耐候合成橡胶层组成。
应用：适用于石油基液压油。
温度范围：-40℃ -- +121℃
Recommended for: High pressure hydraulic oil lines for heavy duty service applications
with crude oils, fuel oils,lubricating oils and gasoline.
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +121℃ (-40 ℉ -- +249 ℉ ).
Recommended for: Application which meet or exceed SAE 100R16. Medium pressure
hydraulic oil lines
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +121℃ (-40 ℉ -- +249 ℉ ).
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RS15-06 10 3/8 9.3 10.1 20.3 23.3 42 6090 168 24360 5.91 150 0.80
RS15-08 12.5 1/2 12.3 13.5 24.0 26.8 42 6090 168 24360 7.87 200 0.95
RS15-12 19 3/4 18.6 19.8 32.9 36.1 42 6090 168 24360 10.40 265 1.85
RS15-16 25 1 25.0 26.4 38.9 42.9 42 6090 168 24360 13.00 330 2.90
RS15-20 31.5 1 1/4 31.4 33.0 48.4 51.5 42 6090 168 24360 17.52 445 4.20
RS15-24 38 1 1/2 37.7 39.3 56.3 59.6 42 6090 168 24360 20.87 530 5.60
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB1-04 6.3 1/4 6.2 7.0 12.3 14.5 35 5075 140 20300 1.97 50 0.3
RB1-05 8 5/16 7.7 8.5 13.3 15.7 29.7 4305 119 17255 2.17 55 0.34
RB1-06 10 3/8 9.3 10.1 15.9 18.8 28 4060 112 16240 2.56 65 0.42
RB1-08 12.5 1/2 12.3 13.5 19.0 22.0 24.5 3550 98 14210 3.54 90 0.54
RB1-10 16 5/8 15.5 16.7 22.5 25.4 19.2 2780 77 11165 3.94 100 0.68
RB1-12 19 3/4 18.6 19.8 26.3 29.0 15.7 2275 63 9135 4.72 120 0.80
RB1-16 25 1 25.0 26.4 34.0 36.6 14 2030 56 8120 5.91 150 1.15
RB1-20 31.5 1 1/4 31.4 33.0 41.9 44.3 11.3 1635 45.5 6595 8.27 210 1.83

14. M-RB17 (SAE 100 R17)
M-EB31 (EN853-1)
小型 21MPa 最大工作压力 1 和 2 层钢丝增强液压软管 钢丝编织液压软管
Compact, 21MPa maximun working pressure, one and two steel wire
reinforced hydraulic hose
wire braided hydraulic rubber hose
结构：软管由一层耐油合成橡胶内胶层，按软管设计（1 或 2 层编织）的钢丝编织
增强层和一层耐候合成橡胶层组成。
应用：适用于石油基液压油。
温度范围：-40℃ -- +121℃
结构：软管由一层耐油合成胶内胶层，一层钢丝编织增强层和一层耐油耐侯合成橡
胶外层组成。
应用：适用于石油基液压油和水性流体。
温度范围：-40℃ -- +100℃
Recommended for: Application which meet or exceed SAE 100R17. Medium pressure
hydraulic oil lines
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +121℃ (-40 ℉ -- +249 ℉ ).
Recommended for: Medium pressure hydraulic oil lines. Meets or exceeds requirements
of SAE 100R1
Tube: :Black, oil resistant, Nitrile
Reinforcement:One braid of high tensile steel wire
Cover:Black, oil and abrasion resistant Neoprene
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Max Max Mpa Psi Mpa Psi Inch mm Kg/m
RB17-04 6.3 1/4 6.2 7.0 11.0 13.2 21 3045 84 12180 1.97 50 0.169
RB17-05 8 5/16 7.7 8.5 13.0 15.0 21 3045 84 12180 2.17 55 0.210
RB17-06 10 3/8 9.3 10.1 15.0 17.0 21 3045 84 12180 2.56 65 0.254
RB17-08 12.5 1/2 12.3 13.5 18.8 21.1 21 3045 84 12180 3.54 90 0.466
RB17-10 16 5/8 15.5 16.7 23.6 25.9 21 3045 84 12180 3.94 105 0.586
RB17-12 19 3/4 18.6 19.8 27.7 30.3 21 3045 84 12180 4.72 125 0.749
RB17-16 25 1 25.0 26.4 35.6 38.6 21 3045 84 12180 5.91 150 1.457
型号
Type
公制
规格
SIZE
英制
规格
SIZE
内径
ID
增强层直径
WD
外径 OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
A/D TYPE AT TYPE
mm inch Min Max Min Max Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
EB1-05 5 3/16 4.6 5.4 9.0 10.0 11.9 13.5 12.5 25 3625 100 14500 3.54 90 0.20
EB1-06 6.3 1/4 6.2 7.0 10.6 11.6 15.1 16.7 14.1 22.5 3260 90 13050 3.94 100 0.25
EB1-08 8 5/16 7.7 8.5 12.1 13.3 16.7 18.3 15.7 21.5 3120 85 12325 4.53 115 0.31
EB1-10 10 3/8 9.3 10.1 14.5 15.7 19.0 20.6 18.1 18 2610 72 10440 5.12 130 0.36
EB1-13 12.5 1/2 12.3 13.5 17.5 19.1 22.2 23.8 21.4 16 2320 64 9280 7.09 180 0.45
EB1-16 16 5/8 15.5 16.7 20.6 22.2 25.4 27.0 24.5 13 1885 52 7540 7.87 200 0.52
EB1-19 19 3/4 18.6 19.8 24.6 26.2 29.4 31.0 28.5 10.5 1520 42 6090 9.45 240 0.65
EB1-25 25 1 25.0 26.4 32.5 34.1 37.1 39.1 36.6 8.8 1280 35 5075 11.81 300 0.91
EB1-32 31.5 1 1/4 31.4 33.0 39.3 41.7 44.4 47.6 44.8 6.3 910 25 3625 16.54 420 1.30
EB1-38 38 1 1/2 37.7 39.3 45.6 48.0 50.8 54.0 52.1 5 725 20 2900 19.69 500 1.70
EB1-51 51 2 50.4 52.0 58.7 61.7 65.1 68.3 65.5 4 580 16 2320 24.80 630 2.00

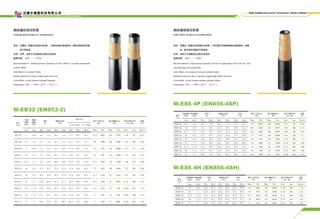

15. M-EB32 (EN853-2)
M-ES6 4P (EN856-4SP)
M-ES6 4H (EN856-4SH)
钢丝编织液压软管 钢丝缠绕液压软管
wire braided hydraulic rubber hose wire spiral hydraulic rubber hose
结构：软管由一层耐油合成胶内胶层，二层钢丝编织增强层和一层耐油耐侯合成橡
胶外层组成。
应用：应用：适用于石油基液压油和水性流体。
温度范围：-40℃ -- +121℃
结构：软管由一层耐油合成橡胶内胶层、4 层交替方向高强度钢丝缠绕层和一层耐
油、耐天候合成橡胶外层组成。
应用：适用于石油基液压油和水性流体。
温度范围：-40℃ -- +100℃
Recommended for: Medium pressure hydraulic oil lines. Meets or exceeds requirements
of SAE 100R2
Tube:Black, oil resistant, Nitrile
Reinforcement:Two braids of high tensile steel wire
Cover:Black, oil and abrasion resistant Neoprene
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
Recommended for: High pressure hydraulic oil lines for applications with crude oils, fuel
oils,lubricating oils and gasoline.
Tube: Black, oil resistant,oil resistant synthetic rubber
Reinforcement: four plies of spirally wrapped high tensile steel wire.
Cover:Black, oil and weather resistant synthetic rubber
Temperature: -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company
型号
Type
公制
规格
SIZE
英制
规格
SIZE
内径
ID
增强层直径
WD
外径 OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
A/D TYPE AT TYPE
mm inch Min Max Min Max Min Max Max Mpa Psi Mpa Psi Inch mm Kg/m
EB2-05 5 3/16 4.6 5.4 10.6 11.6 15.1 16.7 14.1 41.5 6020 165 23925 3.54 90 0.32
EB2-06 6.3 1/4 6.2 7.0 12.1 13.3 16.7 18.3 15.7 40 5800 160 23200 3.94 100 0.36
EB2-08 8 5/16 7.7 8.5 13.7 14.9 18.3 19.9 17.3 35 5075 140 20300 4.53 115 0.45
EB2-10 10 3/8 9.3 10.1 16.1 17.3 20.6 22.2 19.7 33 4785 132 19140 5.12 130 0.54
EB2-13 12.5 1/2 12.3 13.5 19.0 20.6 23.8 25.4 23.0 27.5 3990 110 15950 7.09 180 0.68
EB2-16 16 5/8 15.5 16.7 22.2 23.8 27.0 28.6 26.2 25 3625 100 14500 7.87 200 0.80
EB2-19 19 3/4 18.6 19.8 26.2 27.8 31.0 32.6 30.1 21.5 3120 85 12325 9.45 240 0.94
EB2-25 25 1 25.0 26.4 34.1 35.7 38.5 40.9 38.9 16.5 2390 65 9425 11.81 300 1.35
EB2-32 31.5 1 1/4 31.4 33.0 43.3 45.6 49.2 52.4 49.5 12.5 1810 50 7250 16.54 420 2.15
EB2-38 38 1 1/2 37.7 39.3 49.6 52.0 55.6 58.8 55.9 9 1305 36 5220 19.69 500 2.65
EB2-51 51 2 50.4 52.0 62.3 64.7 68.2 71.4 68.6 8 1160 32 4640 24.80 630 3.42
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
ES4P-04 6.3 1/4 6.2 7.0 14.1 15.3 17.1 18.7 45 6625 180 26100 5.91 150 0.64
ES4P-06 10 3/8 9.3 10.1 16.9 18.1 20.6 22.2 44.5 6450 178 25810 7.09 180 0.75
ES4P-08 12.5 1/2 12.3 13.5 19.4 21.0 23.8 25.4 41.5 6020 166 24070 9.06 230 0.89
ES4P-10 16 5/8 15.5 16.7 23.0 24.6 27.4 29.0 35 5075 140 20300 9.84 250 1.1
ES4P-12 19 3/4 18.6 19.8 27.4 29.0 31.4 33.0 35 5075 148 21460 11.81 300 1.5
ES4P-16 25 1 25.0 26.4 34.5 36.1 38.5 40.9 28 4060 112 16240 13.39 340 2.00
ES4P-20 31.5 1 1/4 31.4 33.0 45.0 47.0 49.2 52.4 21 3045 84 12180 18.11 460 3.00
ES4P-24 38 1 1/2 37.7 39.3 51.4 53.4 55.6 58.8 18.5 1680 74 10730 22.05 560 3.40
ES4P-32 51 2 50.4 52.0 64.3 66.3 68.2 71.4 16.5 2390 66 9570 25.98 660 4.35
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Min Max Mpa Psi Mpa Psi Inch mm Kg/m
ES4H-12 19 3/4 18.6 19.8 27.6 29.2 31.4 33.0 42 6090 168 24360 11.02 280 1.70
ES4H-16 25 1 25.0 26.4 34.4 36.0 37.5 39.9 38 5510 152 22040 13.39 340 2.50
ES4H-20 31.5 1 1/4 31.4 33.0 40.9 42.9 43.9 47.1 32.5 4710 130 18850 18.11 460 3.00
ES4H-24 38 1 1/2 37.7 39.3 47.8 49.8 51.9 55.1 29 4205 116 16820 22.05 560 3.60
ES4H-32 51 2 50.4 52.0 62.2 64.2 66.5 69.7 25 3625 100 14500 27.56 700 5.00

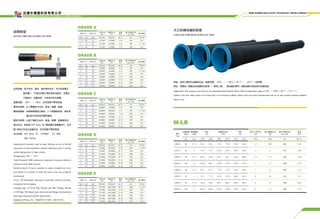

16. 钻探胶管 大口径钢丝编织胶管
Rotary Vibrator and Drilling hose
Large size wire braid hydraulic hose
应用范围：用于钻井、固井、修井等作业中，作为泥浆管汇、
固井管汇、节流压井管汇等的柔性连接件，在高压
下输送水、油基泥浆、水泥浆及洗井液等。
温度范围：-30℃ -- +82℃，也可按客户要求定制。
管体内胶层：以丁晴橡胶为主体，耐油、耐磨、耐碱。
管体增强层：采用单根高强力钢丝，2-8 层缠绕结构，钢丝间
通过胶片粘合成牢固的整体。
管体外胶层：以氯丁橡胶为主体，耐油、耐磨、耐候耐老化。
接头形式：除采用 API Spec 5B 管线管及油管螺纹外，还可
提 供由壬及法兰连接形式，亦可按客户要求制造。
执行标准：API Spec 7K， ISO6807， SY 5469，
GB/T24145
用途：适用于使用石油基液压油，温度范围：-40℃ -- +100℃ (-40 ℉ -- +212 ℉ ) 的软管。
特性：软管由一层耐油合成橡胶内胶层（一层或二层）、钢丝编织层和一层耐油耐天候合成外胶层组成。
Application:Commonly used in rotary drilling service as flexible
connectors of mud manifold to transfer water-base mud or oil-base
mud at high pressure in large volume.
Temeperature:-30℃ -- +82℃
Tube:Principally NBR constructed, featuring oil-resistant, abrasion-
resistant, acid & alkali resistant.
Reinforcement:2-8 layers spiraled by single strength steel wire,
and rubber as a binder to make the layers into one complete
construction.
Cover: CR fabricated, featuring oil-resistant, abrasion-resistant,
waterproof and anti-aging.
Coupling type: LP (Line Pipe Thread) and TBG (Tubing Thread)
of API Spec 5B Integral type union joint and flange joint particular
types upon customers’specific requirements.
Standard: API Spec 7K ISO6807 SY 5469 GB/T24145
Application: This section covers hose for use petroleum base hydraulic fluids within a temperature range of -40℃ -- +100℃ (-40 ℉ -- +212 ℉ ).
Feature: This hose shall consist of an inner tube of oil resistant synthetic rubber steel wire braid reinforcement and an oil and weather resistant synthetic
rubber cover.
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
Mder rubber and plastic technology limited company
GRADE A
GRADE B
GRADE C
GRADE D
GRADE E
内径 ID 外径 OD
工作压力
WP
测试压力
TP
重量
WT
最小弯曲半径
min BR
接头螺纹
Inch mm inch Mpa(psi) Mpa(psi) kg/m mm Thread
1 1/2 38 51 11(1500) 22(3000) 2.19 560 2LP
2 51 65 11(1500) 22(3000) 3.03 900 2 1/2LP
2 1/2 64 78 11(1500) 22(3000) 3.95 1200 3LP
内径 ID 外径 OD
工作压力
WP
测试压力
TP
重量
WT
最小弯曲半径
min BR
接头螺纹
Inch mm inch Mpa(psi) Mpa(psi) kg/m mm Thread
1 1/2 38 52 14(2000) 28(4000) 2.39 560 2LP
2 51 66 14(2000) 28(4000) 3.25 900 2 1/2LP
2 1/2 64 79 14(2000) 28(4000) 4.37 1200 3LP
3 76 98 14(2000) 28(4000) 7.76 1200 4LP
3 1/2 89 113 14(2000) 28(4000) 9.95 1300 4LP
4 102 127 14(2000) 28(4000) 12.43 1400 5LP
5 127 153 14(2000) 28(4000) 15.25 1500 6LP
内径 ID 外径 OD
工作压力
WP
测试压力
TP
重量
WT
最小弯曲半径
min BR
接头螺纹
Inch mm inch Mpa(psi) Mpa(psi) kg/m mm Thread
1 1/2 38 55 28(4000) 56(8000) 3.65 560 2LP
2 51 69 28(4000) 56(8000) 5.15 900 2 1/2LP
2 1/2 64 88 28(4000) 56(8000) 7.86 1200 3LP
3 76 105 28(4000) 56(8000) 13.12 1200 4LP
3 1/2 89 121 28(4000) 56(8000) 16.79 1300 4LP
4 102 137 28(4000) 56(8000) 21.70 1400 5LP
5 127 164 28(4000) 56(8000) 28.46 1500 6LP
内径 ID 外径 OD
工作压力
WP
测试压力
TP
重量
WT
最小弯曲半径
min BR
接头螺纹
Inch mm inch Mpa(psi) Mpa(psi) kg/m mm Thread
2 51 73 35(5000) 70(10000) 6.46 900 2 1/2LP
2 1/2 64 91 35(5000) 70(10000) 10.75 1200 3LP
3 76 107 35(5000) 70(10000) 14.35 1200 4LP
3 1/2 89 123 35(5000) 70(10000) 18.77 1300 4LP
4 102 139 35(5000) 70(10000) 23.16 1400 5LP
5 127 171 35(5000) 70(10000) 38.00 1500 6LP
5 127 164 28(4000) 56(8000) 28.46 1500 6LP
内径 ID 外径 OD
工作压力
WP
测试压力
TP
重量
WT
最小弯曲半径
min BR
接头螺纹
Inch mm inch Mpa(psi) Mpa(psi) kg/m mm Thread
2 51 80 52(7500) 104(15000) 10.37 1000 2 1/2LP
2 1/2 64 101 52(7500) 104(15000) 17.88 1200 3LP
3 76 120 52(7500) 104(15000) 24.45 1200 4LP
3 1/2 89 135 52(7500) 104(15000) 29.33 1300 4LP
4 102 148 52(7500) 104(15000) 34.24 1400 5LP
5 127 189 52(7500) 104(15000) 55.39 1500 6LP
M-LB
型号
Type
公制规格
SIZE
英制规格
SIZE
内径
ID
增强层直径
WD
外径
OD
最大工作压力
WP
最小爆破压力
BP
最小弯曲半径
min BR
重量
WT
mm inch Min Max Min Max Min Max Mpa Mpa mm Kg/m
LB64-1 64 2 1/2 63.5 65.3 71.0 73.0 76.0 80.0 3.5 10.5 800 2.42
LB76-1 76 3 75.5 77.5 83.0 85.0 88.0 92.0 3 9 920 2.86
LB89-1 89 3 1/2 88.4 90.0 96.5 98.5 102.0 106.0 2.5 7.5 1100 3.34
LB102-1 102 4 101.0 104.5 110.0 115.0 116.0 121.0 2 6 1300 3.78
LB64-2 64 2 1/2 63.5 65.3 73.0 75.0 78.0 80.0 7 21 800 3.3
LB76-2 76 3 75.5 77.5 85.0 87.0 90.0 94.0 6 18 920 3.9
LB89-2 89 3 1/2 88.4 90.0 98.5 100.5 104.0 108.0 5 15 1100 4.54
LB102-2 102 4 101.0 104.5 112.0 116.0 118.0 123.0 4 12 1300 5.13

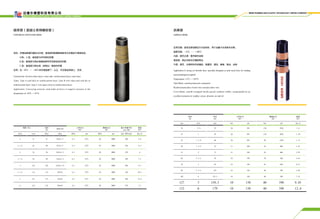

17. 喷浆管（混凝土泵用橡胶管） 沥青管
Concrete conveying hose Asphalt hose
结构：软管由耐磨的橡胶内衬层、增强层和耐磨耐候耐老化的橡胶外覆层组成。
分类：A 型：增强层为帘布层的胶管。
B 型：增强层为钢丝绳缠绕层和帘布层组成的软管。
C 型：增强层为钢丝绳（或钢丝）缠绕的软管。
应用：在 -30℃ -- +85℃的环境温度下，以正、负压输送混凝土、泥浆。
应用范围：具有足够强度但不失柔韧性，用于油罐卡车装卸热沥青。
温度范围：-15℃ -- +185℃
内层：黑色光滑、聚丙烯合成物
增强层：钢丝夹层芯及螺旋钢丝
外层：黑色、光滑特种合成橡胶，耐磨损、浸蚀、臭氧、焦油、油滞
Construction: Involves three layers: inner tube, reinforcement layer, outer layer.
Types: Type A cord plies as reinforcement layer; Type B wire ropes and cord ply as
reinforcement layer; Type C wire ropes (wire) as reinforcement layer.
Application: Conveying concrete, mud under positive or negative pressure in the
temperature of -30℃ -- +85℃
Application:A strong yet flexible hose, specially designed as tank truck hose for loading
and unloading hot asphalt.
Temperature:-15℃ -- +185℃
Tube:Black, smooth polyacrylic compound
Reinforcement:plies of steel wire cord plus helix wire
Cover:Black, smooth (wrapped finish) special synthetic rubber, compounded for an
excellent resistance to weather, ozone, abrasion, tar and oil.
迈德尔橡塑科技有限公司
Mder rubber and plastic technology limited company
规格 Size 内径
ID
外径 OD
工作压力
WP
爆破压力
BP
最小弯曲半径
min BR
重量
WT
Inch mm Max Max MPa psi MPa psi min BR(mm) Kg/m
2 51 51 68±1.5 8.5 1275 20 3000 200 2.8
2 1/2 64 64 85±1.5 8.5 1275 20 3000 250 4.3
3 76 76 102±1.5 8.5 1275 20 3000 270 6
3 1/2 89 89 116±1.5 8.5 1275 20 3000 290 7.5
4 102 102 130±1.75 8.5 1275 20 3000 300 9.1
4 1/2 115 115 143±2 8.5 1275 20 3000 320 10.5
5 127 127 158±2 8.5 1275 20 3000 360 12.8
6 152 152 186±2 8.5 1275 20 3000 570 17
内径
ID
外径
OD
工作压力
WP
爆破压力
BP
重量
WT
mm inch mm bar psi bar psi kg/m
19 3/4 32 20 295 130 1910 1.0
25 1 38 20 295 110 1620 1.28
32 1 1/4 46 20 295 90 1320 1.75
38 1 1/2 52 15 220 45 660 1.87
51 2 71 15 220 45 660 2.83
64 2 1/2 78 10 150 50 740 3.45
76 3 93 10 150 43 630 4.71
89 3 1/2 107 10 150 40 590 5.48
102 4 125.5 10 150 40 590 7.32
127 5 150.5 10 150 40 590 9.85
152 6 179 10 150 40 590 12.4
Mder rubber and plastic technology limited company
