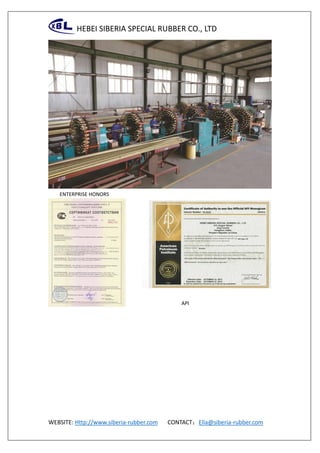

ENTERPRISE HONORS
API

ISO CE
PRODUCTION &TESTING EQUIPMENT
Rubber Hose

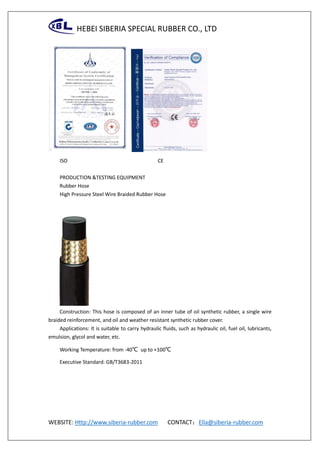

High Pressure Steel Wire Braided Rubber Hose

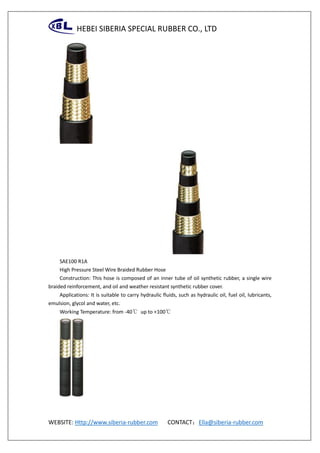

Construction: This hose is composed of an inner tube of oil synthetic rubber, a single wire
braided reinforcement, and oil and weather resistant synthetic rubber cover.
Applications: It is suitable to carry hydraulic fluids, such as hydraulic oil, fuel oil, lubricants,
emulsion, glycol and water, etc.
Working Temperature: from -40℃ up to +100℃
Executive Standard: GB/T3683-2011

SAE100 R1A

SAE100 R1AT EN853 1SN
SAE
Dash
mm Inch Size Min Max Min Max Min Max Psi Bar Psi Bar Psi Bar Inch mm Kg/m
R1A-3 5 3/16 -3 4.6 5.4 8.9 10.1 11.9 13.5 3001 207 6002 414 12004 828 3.50 89 0.22
R1A-4 6.3 1/4 -4 6.2 7.0 10.6 11.7 15.1 16.7 2740 189 5480 378 10960 756 4.02 102 0.31
R1A-5 8 5/16 -5 7.7 8.5 12.1 13.3 16.7 18.3 2494 172 4988 344 9976 688 4.49 114 0.38
R1A-6 10 3/8 -6 9.3 10.1 14.5 15.7 19.0 20.6 2247 155 4494 310 8988 620 5.00 127 0.45
R1A-8 12.5 1/2 -8 12.3 13.5 17.5 19.0 22.2 23.9 2001 138 4002 276 8004 552 7.01 178 0.55
R1A-10 16 5/8 -10 15.5 16.7 20.6 22.2 25.4 27.0 1493 103 2986 206 5972 412 7.99 203 0.63
R1A-12 19 3/4 -12 18.6 19.8 24.6 26.2 29.4 31.0 1247 86 2494 172 4988 344 9.49 241 0.77
R1A-16 25 1 -16 25.0 26.4 32.5 34.1 36.9 39.3 1000 69 2000 138 4000 276 12.01 305 1.06
R1A-20 31.5 1-1/4 -20 31.4 33.0 39.3 41.7 44.4 47.6 623 43 1246 86 2492 172 16.50 419 1.45
R1A-24 38 1-1/2 -24 37.7 39.3 45.6 48.0 50.8 54.0 493 34 986 68 1972 136 20.00 508 1.80
R1A-32 51 2 -32 50.4 52.0 58.7 61.9 65.1 68.3 377 26 754 52 1508 104 25.00 635 2.30
SAE100 R1A Medium Pressure Hydraulic Hose
Part
No.
W.T.Size I.D. W.D. O.D. W.P. P.P. B.P. B.R.

SAE 100 R2A

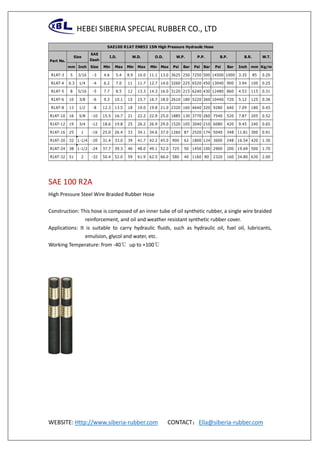

Construction: This hose is composed of an inner tube of oil synthetic rubber, a single wire braided
reinforcement, and oil and weather resistant synthetic rubber cover.
SAE
Dash
R1AT-3 5 3/16 -3 4.6 5.4 8.9 10.0 11.1 13.0 3625 250 7250 500 14500 1000 3.35 85 0.20
R1AT-4 6.3 1/4 -4 6.2 7.0 11 11.7 12.7 14.0 3260 225 6520 450 13040 900 3.94 100 0.25
R1AT-5 8 5/16 -5 7.7 8.5 12 13.3 14.3 16.0 3120 215 6240 430 12480 860 4.53 115 0.31
R1AT-6 10 3/8 -6 9.3 10.1 15 15.7 16.7 18.0 2610 180 5220 360 10440 720 5.12 125 0.36
R1AT-8 13 1/2 -8 12.3 13.5 18 19.0 19.8 21.0 2320 160 4640 320 9280 640 7.09 180 0.45
R1AT-10 16 5/8 -10 15.5 16.7 21 22.2 22.9 25.0 1885 130 3770 260 7540 520 7.87 205 0.52
R1AT-12 19 3/4 -12 18.6 19.8 25 26.2 26.9 29.0 1520 105 3040 210 6080 420 9.45 240 0.65
R1AT-16 25 1 -16 25.0 26.4 33 34.1 34.6 37.0 1260 87 2520 174 5040 348 11.81 300 0.91
R1AT-20 32 1-1/4 -20 31.4 33.0 39 41.7 42.2 45.0 900 62 1800 124 3600 248 16.54 420 1.30
R1AT-24 38 1-1/2 -24 37.7 39.3 46 48.0 49.1 52.0 725 50 1450 100 2900 200 19.69 500 1.70
R1AT-32 51 2 -32 50.4 52.0 59 61.9 62.5 66.0 580 40 1160 80 2320 160 24.80 630 2.00

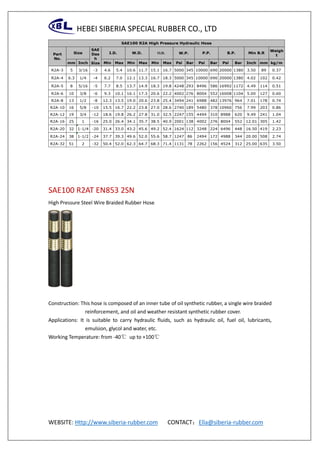

SAE100 R1AT EN853 1SN High Pressure Hydraulic Hose
Part No.
W.T.I.D. W.D. O.D. W.P. P.P. B.P. B.R.Size

SAE100 R2AT EN853 2SN
mm Inch Min Max Min Max Min Max Psi Bar Psi Bar Psi Bar Inch mm kg/m
R2A-3 5 3/16 -3 4.6 5.4 10.6 11.7 15.1 16.7 5000 345 10000 690 20000 1380 3.50 89 0.37
R2A-4 6.3 1/4 -4 6.2 7.0 12.1 13.3 16.7 18.3 5000 345 10000 690 20000 1380 4.02 102 0.42
R2A-5 8 5/16 -5 7.7 8.5 13.7 14.9 18.3 19.8 4248 293 8496 586 16992 1172 4.49 114 0.51
R2A-6 10 3/8 -6 9.3 10.1 16.1 17.3 20.6 22.2 4002 276 8004 552 16008 1104 5.00 127 0.60
R2A-8 13 1/2 -8 12.3 13.5 19.0 20.6 23.8 25.4 3494 241 6988 482 13976 964 7.01 178 0.74
R2A-10 16 5/8 -10 15.5 16.7 22.2 23.8 27.0 28.6 2740 189 5480 378 10960 756 7.99 203 0.86
R2A-12 19 3/4 -12 18.6 19.8 26.2 27.8 31.0 32.5 2247 155 4494 310 8988 620 9.49 241 1.04
R2A-16 25 1 -16 25.0 26.4 34.1 35.7 38.5 40.9 2001 138 4002 276 8004 552 12.01 305 1.42
R2A-20 32 1-1/4 -20 31.4 33.0 43.2 45.6 49.2 52.4 1624 112 3248 224 6496 448 16.50 419 2.23
R2A-24 38 1-1/2 -24 37.7 39.3 49.6 52.0 55.6 58.7 1247 86 2494 172 4988 344 20.00 508 2.74
R2A-32 51 2 -32 50.4 52.0 62.3 64.7 68.3 71.4 1131 78 2262 156 4524 312 25.00 635 3.50
SAE100 R2A High Pressure Hydraulic Hose
Part
No.
SAE
Das
h
Size
Weigh
t
I.D. W.D. O.D. W.P. P.P. B.P. Min B.RSize

SAE100 R16
mm Inch Min Max Min Max Min Max Psi Bar Psi Bar Psi Bar Inch mm kg/m
R2AT-3 5 3/16 -3 4.6 5.4 10.6 11.6 12.7 14 6020 415 12040 830 24080 1660 3.54 90 0.32
R2AT-4 6.3 1/4 -4 6.2 7.0 12.1 13.3 14.3 16 5800 400 11600 800 23200 1600 3.94 100 0.36
R2AT-5 8 5/16 -5 7.7 8.5 13.7 14.9 15.9 17 5075 350 10150 700 20300 1400 4.53 115 0.45
R2AT-6 10 3/8 -6 9.3 10.1 16.1 17.3 18.3 20 4785 330 9570 660 19140 1320 5.12 130 0.54
R2AT-8 13 1/2 -8 12.3 13.5 19.0 20.6 21.4 23 3985 275 7970 550 15940 1100 7.09 180 0.58
R2AT-10 16 5/8 -10 15.5 16.7 22.2 23.8 24.6 26 3625 250 7250 500 14500 1000 7.87 200 0.6
R2AT-12 19 3/4 -12 18.6 19.8 26.2 27.8 28.5 30 3120 215 6240 430 12480 860 9.45 240 0.94
R2AT-16 25 1 -16 25.0 26.4 34.1 35.7 37.3 39 2390 165 4780 330 9560 660 11.81 300 1.35
R2AT-20 32 1-1/4 -20 31.4 33.0 43.2 45.6 47.1 50 1810 125 3620 250 7240 500 16.54 420 2.15
R2AT-24 38 1-1/2 -24 37.7 39.3 49.6 52.0 53.3 56 1305 90 2610 180 5220 360 19.69 500 2.65
R2AT-32 51 2 -32 50.4 52.0 62.3 64.7 66.0 69 1160 80 2320 160 4640 320 24.80 630 3.42
SAE100 R2AT High Pressure Hydraulic Hose
Part No.
SAE
Dash
Size
WeightI.D. W.D. O.D. W.P. P.P. B.P. Min B.RSize

SAE100 R17

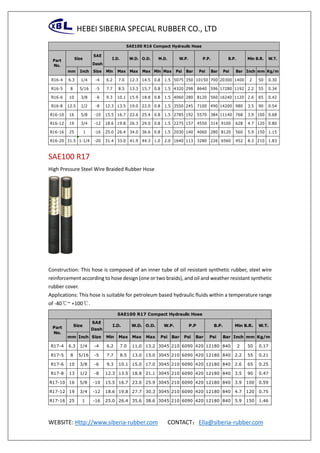

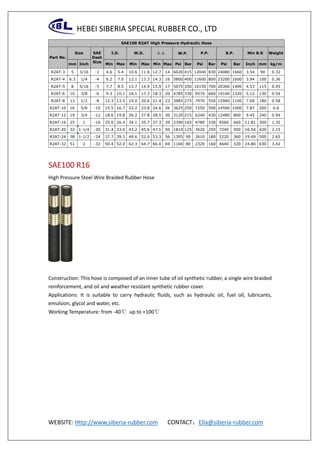

Construction: This hose is composed of an inner tube of oil resistant synthetic rubber, steel wire
reinforcement according to hose design (one or two braids), and oil and weather resistant synthetic
rubber cover.
Applications: This hose is suitable for petroleum based hydraulic fluids within a temperature range
of -40℃~ +100℃.
SAE
Dash
mm Inch Size Min Max Max Max Min Max Psi Bar Psi Bar Psi Bar Inch mm Kg/m
R16-4 6.3 1/4 -4 6.2 7.0 12.3 14.5 0.8 1.5 5075 350 10150 700 20300 1400 2 50 0.30
R16-5 8 5/16 -5 7.7 8.5 13.3 15.7 0.8 1.5 4320 298 8640 596 17280 1192 2.2 55 0.34
R16-6 10 3/8 -6 9.3 10.1 15.9 18.8 0.8 1.5 4060 280 8120 560 16240 1120 2.6 65 0.42
R16-8 12.5 1/2 -8 12.3 13.5 19.0 22.0 0.8 1.5 3550 245 7100 490 14200 980 3.5 90 0.54
R16-10 16 5/8 -10 15.5 16.7 22.6 25.4 0.8 1.5 2785 192 5570 384 11140 768 3.9 100 0.68
R16-12 19 3/4 -12 18.6 19.8 26.3 29.0 0.8 1.5 2275 157 4550 314 9100 628 4.7 120 0.80
R16-16 25 1 -16 25.0 26.4 34.0 36.6 0.8 1.5 2030 140 4060 280 8120 560 5.9 150 1.15
R16-20 31.5 1-1/4 -20 31.4 33.0 41.9 44.3 1.0 2.0 1640 113 3280 226 6560 452 8.3 210 1.83
SAE100 R16 Compact Hydraulic Hose
Part
No.
W.D. O.D. W.T.I.D. M.D. W.P. P.P. B.P. Min B.R.Size
SAE
Dash
mm Inch Size Min Max Max Max Psi Bar Psi Bar Psi Bar Inch mm Kg/m
R17-4 6.3 1/4 -4 6.2 7.0 11.0 13.2 3045 210 6090 420 12180 840 2 50 0.17
R17-5 8 5/16 -5 7.7 8.5 13.0 15.0 3045 210 6090 420 12180 840 2.2 55 0.21
R17-6 10 3/8 -6 9.3 10.1 15.0 17.0 3045 210 6090 420 12180 840 2.6 65 0.25
R17-8 13 1/2 -8 12.3 13.5 18.8 21.1 3045 210 6090 420 12180 840 3.5 90 0.47
R17-10 16 5/8 -10 15.5 16.7 23.6 25.9 3045 210 6090 420 12180 840 3.9 100 0.59
R17-12 19 3/4 -12 18.6 19.8 27.7 30.3 3045 210 6090 420 12180 840 4.7 120 0.75
R17-16 25 1 -16 25.0 26.4 35.6 38.6 3045 210 6090 420 12180 840 5.9 150 1.46
SAE100 R17 Compact Hydraulic Hose
Part
No.
W.D. O.D. W.T.I.D. W.P. P.P B.P. Min B.R.Size

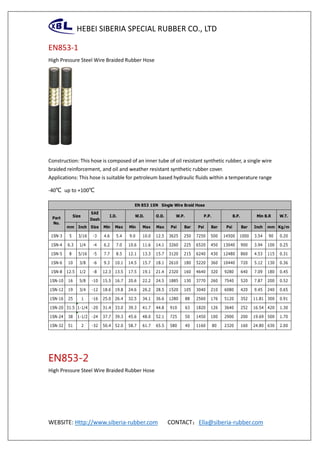

EN853-1
Construction: This hose is composed of an inner tube of oil resistant synthetic rubber, a single wire
-40℃ up to +100℃
EN853-2
SAE
Dash
mm Inch Size Min Max Min Max Max Psi Bar Psi Bar Psi Bar Inch mm Kg/m
1SN-3 5 3/16 -3 4.6 5.4 9.0 10.0 12.5 3625 250 7250 500 14500 1000 3.54 90 0.20
1SN-4 6.3 1/4 -4 6.2 7.0 10.6 11.6 14.1 3260 225 6520 450 13040 900 3.94 100 0.25
1SN-5 8 5/16 -5 7.7 8.5 12.1 13.3 15.7 3120 215 6240 430 12480 860 4.53 115 0.31
1SN-6 10 3/8 -6 9.3 10.1 14.5 15.7 18.1 2610 180 5220 360 10440 720 5.12 130 0.36
1SN-8 12.5 1/2 -8 12.3 13.5 17.5 19.1 21.4 2320 160 4640 320 9280 640 7.09 180 0.45
1SN-10 16 5/8 -10 15.5 16.7 20.6 22.2 24.5 1885 130 3770 260 7540 520 7.87 200 0.52
1SN-12 19 3/4 -12 18.6 19.8 24.6 26.2 28.5 1520 105 3040 210 6080 420 9.45 240 0.65
1SN-16 25 1 -16 25.0 26.4 32.5 34.1 36.6 1280 88 2560 176 5120 352 11.81 300 0.91
1SN-20 31.5 1-1/4 -20 31.4 33.0 39.3 41.7 44.8 910 63 1820 126 3640 252 16.54 420 1.30
1SN-24 38 1-1/2 -24 37.7 39.3 45.6 48.0 52.1 725 50 1450 100 2900 200 19.69 500 1.70
1SN-32 51 2 -32 50.4 52.0 58.7 61.7 65.5 580 40 1160 80 2320 160 24.80 630 2.00
EN 853 1SN Single Wire Braid Hose
Part
No.
O.D. W.T.Size W.P. P.P. B.P. Min B.RI.D. W.D.

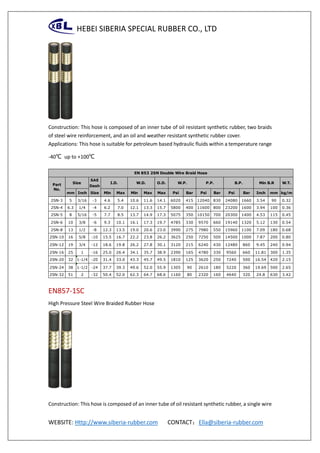

Construction: This hose is composed of an inner tube of oil resistant synthetic rubber, two braids
of steel wire reinforcement, and an oil and weather resistant synthetic rubber cover.
-40℃ up to +100℃
EN857-1SC
Construction: This hose is composed of an inner tube of oil resistant synthetic rubber, a single wire
SAE
Dash
mm Inch Size Min Max Min Max Max Psi Bar Psi Bar Psi Bar Inch mm kg/m
2SN-3 5 3/16 -3 4.6 5.4 10.6 11.6 14.1 6020 415 12040 830 24080 1660 3.54 90 0.32
2SN-4 6.3 1/4 -4 6.2 7.0 12.1 13.3 15.7 5800 400 11600 800 23200 1600 3.94 100 0.36
2SN-5 8 5/16 -5 7.7 8.5 13.7 14.9 17.3 5075 350 10150 700 20300 1400 4.53 115 0.45
2SN-6 10 3/8 -6 9.3 10.1 16.1 17.3 19.7 4785 330 9570 660 19140 1320 5.12 130 0.54
2SN-8 13 1/2 -8 12.3 13.5 19.0 20.6 23.0 3990 275 7980 550 15960 1100 7.09 180 0.68
2SN-10 16 5/8 -10 15.5 16.7 22.2 23.8 26.2 3625 250 7250 500 14500 1000 7.87 200 0.80
2SN-12 19 3/4 -12 18.6 19.8 26.2 27.8 30.1 3120 215 6240 430 12480 860 9.45 240 0.94
2SN-16 25 1 -16 25.0 26.4 34.1 35.7 38.9 2390 165 4780 330 9560 660 11.81 300 1.35
2SN-20 32 1-1/4 -20 31.4 33.0 43.3 45.7 49.5 1810 125 3620 250 7240 500 16.54 420 2.15
2SN-24 38 1-1/2 -24 37.7 39.3 49.6 52.0 55.9 1305 90 2610 180 5220 360 19.69 500 2.65
2SN-32 51 2 -32 50.4 52.0 62.3 64.7 68.6 1160 80 2320 160 4640 320 24.8 630 3.42
EN 853 2SN Double Wire Braid Hose
Part
No.
O.D. W.T.I.D. W.D.Size W.P. P.P. B.P. Min B.R

-40℃ up to +100℃
EN857-2SC
Construction: This hose is composed of an inner tube of oil resistant synthetic rubber, two braids
of steel wire reinforcement, and an oil and weather resistant synthetic rubber cover.
-40℃ up to +100℃
SAE
Dash
mm Inch Size Min Max Min Max Max Psi Bar Psi Bar Psi Bar Inch mm
Kg/
m
1SC-4 6.3 1/4 -4 6.1 6.9 9.6 10.8 13.5 3260 225 6520 450 13040 900 2.95 75 0.13
1SC-5 8 5/16 -5 7.7 8.5 10.9 12.1 14.5 3120 215 6240 430 12480 860 3.35 85 0.15
1SC-6 10 3/8 -6 9.3 10.1 12.7 14.5 16.9 2610 180 5220 360 10440 720 3.54 90 0.19
1SC-8 13 1/2 -8 12.3 13.5 15.9 18.1 20.4 2320 160 4640 320 9280 640 5.12 130 0.23
1SC-10 16 5/8 -10 15.5 16.7 19.8 21.0 23.0 1885 130 3770 260 7540 520 5.91 150 0.29
1SC-12 19 3/4 -12 18.6 19.8 23.2 24.4 26.7 1520 105 3040 210 6080 420 7.09 180 0.34
1SC-16 25 1 -16 25.0 26.4 30.7 31.9 34.9 1280 88 2560 176 5120 352 9.06 230 0.49
EN 857 1SC High Pressure Hydraulic Hose
Part
No.
O.D. W.T.I.D. W.D.Size W.P. P.P. B.P. Min B.R.

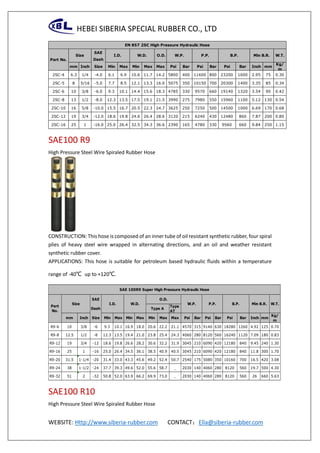

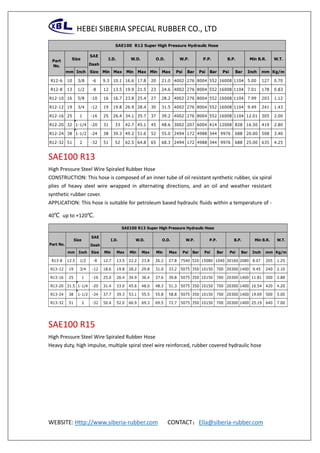

SAE100 R9
High Pressure Steel Wire Spiraled Rubber Hose

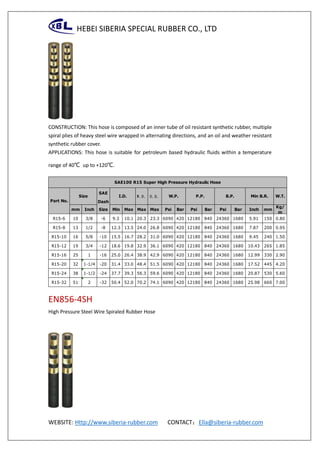

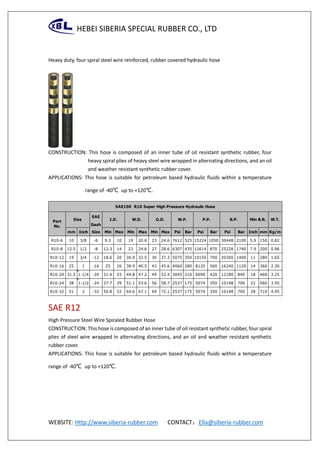

CONSTRUCTION: This hose is composed of an inner tube of oil resistant synthetic rubber, four spiral
plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant
synthetic rubber cover.
APPLICATIONS: This hose is suitable for petroleum based hydraulic fluids within a temperature
range of -40℃ up to +120℃.

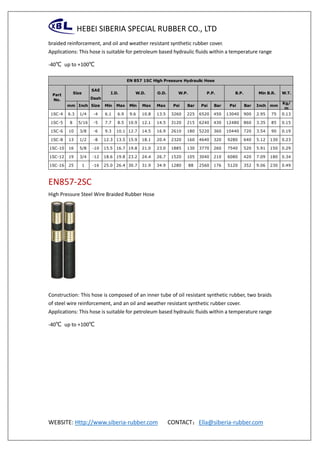

SAE100 R10
SAE
Dash
mm Inch Size Min Max Min Max Max Psi Bar Psi Bar Psi Bar Inch mm
Kg/
m
2SC-4 6.3 1/4 -4.0 6.1 6.9 10.6 11.7 14.2 5800 400 11600 800 23200 1600 2.95 75 0.30
2SC-5 8 5/16 -5.0 7.7 8.5 12.1 13.3 16.0 5075 350 10150 700 20300 1400 3.35 85 0.34
2SC-6 10 3/8 -6.0 9.3 10.1 14.4 15.6 18.3 4785 330 9570 660 19140 1320 3.54 90 0.42
2SC-8 13 1/2 -8.0 12.3 13.5 17.5 19.1 21.5 3990 275 7980 550 15960 1100 5.12 130 0.54
2SC-10 16 5/8 -10.0 15.5 16.7 20.5 22.3 24.7 3625 250 7250 500 14500 1000 6.69 170 0.68
2SC-12 19 3/4 -12.0 18.6 19.8 24.6 26.4 28.6 3120 215 6240 430 12480 860 7.87 200 0.80
2SC-16 25 1 -16.0 25.0 26.4 32.5 34.3 36.6 2390 165 4780 330 9560 660 9.84 250 1.15
EN 857 2SC High Pressure Hydraulic Hose
Part No.
O.D. W.T.Size W.P. P.P. B.P. Min B.R.I.D. W.D.
SAE
Dash
Type
AT
mm Inch Size Min Max Min Max Min Max Max Psi Bar Psi Bar Psi Bar Inch mm
Kg/
m
R9-6 10 3/8 -6 9.3 10.1 16.9 18.0 20.6 22.2 21.1 4570 315 9140 630 18280 1260 4.92 125 0.70
R9-8 12.5 1/2 -8 12.3 13.5 19.4 21.0 23.8 25.4 24.3 4060 280 8120 560 16240 1120 7.09 180 0.83
R9-12 19 3/4 -12 18.6 19.8 26.6 28.2 30.6 32.2 31.9 3045 210 6090 420 12180 840 9.45 240 1.30
R9-16 25 1 -16 25.0 26.4 34.5 36.1 38.5 40.9 40.5 3045 210 6090 420 12180 840 11.8 300 1.70
R9-20 31.5 1-1/4 -20 31.4 33.0 43.3 45.6 49.2 52.4 50.7 2540 175 5080 350 10160 700 16.5 420 3.08
R9-24 38 1-1/2 -24 37.7 39.3 49.6 52.0 55.6 58.7 _ 2030 140 4060 280 8120 560 19.7 500 4.30
R9-32 51 2 -32 50.8 52.0 63.9 66.2 69.9 73.0 _ 2030 140 4060 280 8120 560 26 660 5.63
SAE 100R9 Super High Pressure Hydraulic Hose
O.D.
Type A
Part
No.
W.T.I.D. W.D.Size W.P. P.P. B.P. Min B.R.

Heavy duty, four spiral steel wire reinforced, rubber covered hydraulic hose
CONSTRUCTION: This hose is composed of an inner tube of oil resistant synthetic rubber, four
heavy spiral plies of heavy steel wire wrapped in alternating directions, and an oil
and weather resistant synthetic rubber cover.
SAE R12
CONSTRUCTION: This hose is composed of an inner tube of oil resistant synthetic rubber, four spiral
plies of steel wire wrapped in alternating directions, and an oil and weather resistant synthetic
rubber cover.
SAE
Dash
R10-6 10 3/8 -6 9.3 10 19 20.6 23 24.6 7612 525 15224 1050 30448 2100 5.9 150 0.82
R10-8 12.5 1/2 -8 12.3 14 23 24.6 27 28.6 6307 435 12614 870 25228 1740 7.9 200 0.96
R10-12 19 3/4 -12 18.6 20 30.9 32.5 36 37.3 5075 350 10150 700 20300 1400 11 280 1.65
R10-16 25 1 -16 25 26 38.9 40.5 43 45.6 4060 280 8120 560 16240 1120 14 360 2.30
R10-20 31.5 1-1/4 -20 31.4 33 44.8 47.2 49 52.4 3045 210 6090 420 12180 840 18 460 3.25
R10-24 38 1-1/2 -24 37.7 39 51.1 53.6 56 58.7 2537 175 5074 350 10148 700 22 560 3.95
R10-32 51 2 -32 50.8 52 64.6 67.1 69 72.1 2537 175 5074 350 10148 700 28 710 4.95
SAE100 R10 Super High Pressure Hydraulic Hose
Part
No.
W.T.I.D. W.D. O.D. W.P. P.P. B.P. Min B.R.Size

SAE100 R13
CONSTRUCTION: This hose is composed of an inner tube of oil resistant synthetic rubber, six spiral
plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant
APPLICATION: This hose is suitable for petroleum based hydraulic fluids within a temperature of -
40℃ up to +120℃.
SAE100 R15
Heavy duty, high impulse, multiple spiral steel wire reinforced, rubber covered hydraulic hose
SAE
Dash
R12-6 10 3/8 -6 9.3 10.1 16.6 17.8 20 21.0 4002 276 8004 552 16008 1104 5.00 127 0.70
R12-8 13 1/2 -8 12 13.5 19.9 21.5 23 24.6 4002 276 8004 552 16008 1104 7.01 178 0.83
R12-10 16 5/8 -10 16 16.7 23.8 25.4 27 28.2 4002 276 8004 552 16008 1104 7.99 203 1.12
R12-12 19 3/4 -12 19 19.8 26.9 28.4 30 31.5 4002 276 8004 552 16008 1104 9.49 241 1.43
R12-16 25 1 -16 25 26.4 34.1 35.7 37 39.2 4002 276 8004 552 16008 1104 12.01 305 2.00
R12-20 32 1-1/4 -20 31 33 42.7 45.1 45 48.6 3002 207 6004 414 12008 828 16.50 419 2.80
R12-24 38 1-1/2 -24 38 39.3 49.2 51.6 52 55.0 2494 172 4988 344 9976 688 20.00 508 3.40
R12-32 51 2 -32 51 52 62.5 64.8 65 68.3 2494 172 4988 344 9976 688 25.00 635 4.25
Part
No.
W.T.Size I.D. W.D. O.D. W.P. P.P. B.P. Min B.R.
SAE
Dash
R13-8 12.5 1/2 -8 12.7 13.5 22.2 23.8 26.2 27.8 7540 520 15080 1040 30160 2080 8.07 205 1.25
R13-12 19 3/4 -12 18.6 19.8 28.2 29.8 31.0 33.2 5075 350 10150 700 20300 1400 9.45 240 2.10
R13-16 25 1 -16 25.0 26.4 34.9 36.4 37.6 39.8 5075 350 10150 700 20300 1400 11.81 300 2.88
R13-20 31.5 1-1/4 -20 31.4 33.0 45.6 48.0 48.3 51.3 5075 350 10150 700 20300 1400 16.54 420 4.20
R13-24 38 1-1/2 -24 37.7 39.3 53.1 55.5 55.8 58.8 5075 350 10150 700 20300 1400 19.69 500 5.00
R13-32 51 2 -32 50.4 52.0 66.9 69.3 69.5 72.7 5075 350 10150 700 20300 1400 25.19 640 7.00
Part No.

CONSTRUCTION: This hose is composed of an inner tube of oil resistant synthetic rubber, multiple
spiral plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant
range of 40℃ up to +120℃.
EN856-4SH
SAE
Dash
mm Inch Size Min Max Max Max Psi Bar Psi Bar Psi Bar Inch mm
Kg/
m
R15-6 10 3/8 -6 9.3 10.1 20.3 23.3 6090 420 12180 840 24360 1680 5.91 150 0.80
R15-8 13 1/2 -8 12.3 13.5 24.0 26.8 6090 420 12180 840 24360 1680 7.87 200 0.95
R15-10 16 5/8 -10 15.5 16.7 28.2 31.0 6090 420 12180 840 24360 1680 9.45 240 1.50
R15-12 19 3/4 -12 18.6 19.8 32.9 36.1 6090 420 12180 840 24360 1680 10.43 265 1.85
R15-16 25 1 -16 25.0 26.4 38.9 42.9 6090 420 12180 840 24360 1680 12.99 330 2.90
R15-20 32 1-1/4 -20 31.4 33.0 48.4 51.5 6090 420 12180 840 24360 1680 17.52 445 4.20
R15-24 38 1-1/2 -24 37.7 39.3 56.3 59.6 6090 420 12180 840 24360 1680 20.87 530 5.60
R15-32 51 2 -32 50.4 52.0 70.2 74.1 6090 420 12180 840 24360 1680 25.98 660 7.00
Part No.
W.D. O.D. W.T.I.D. W.P. P.P. B.P. Min B.R.Size

CONSTRUCTION: This hose is composed of an inner tube of oil resistant synthetic rubber, four
heavy spiral plies of heavy steel wire wrapped in alternating directions, and an oil
and weather resistant synthetic rubber cover.
Steel Wire Spiraled Drilling Rubber Hose
CONSTRUCTION: It’s composed of an inner rubber protection layer, middle rubber
layer, steel wire spiraled layer and external rubber cover.
APPLICATIONS: Steel wire spiraled drilling rubber hose are used in oil fields, well
cementing, well repairing, geological explorations, small drilling machine, and water
conveyance at coal excavations, used to carry slurry, water at environmental
temperature, and other fluids.
执行标准：GB/T10544-2003 Executive Standard：GB/T10544-2003
SAE
Dash
4SH-12 19 3/4 -12 18.6 19.8 27.6 29.2 31.4 33.0 6090 420 12180 840 24360 1680 11.02 280 1.70
4SH-16 25 1 -16 25.0 26.4 34.4 36.0 37.5 39.9 5510 380 11020 760 22040 1520 13.39 340 2.50
4SH-20 31.5 1-1/4 -20 31.4 33.0 40.9 42.9 43.9 47.1 4710 325 9420 650 18840 1300 18.11 460 3.00
4SH-24 38 1-1/2 -24 37.7 39.3 47.8 49.8 51.9 55.1 4205 290 8410 580 16820 1160 22.05 560 3.60
4SH-32 51 2 -32 50.4 52.0 62.2 64.2 66.5 69.7 3625 250 7250 500 14500 1000 27.56 700 5.00
EN856 4SH Super High Pressure Hydraulic Hose
Part No.

Size ID ×
Layer NO.
I.D.
mm
Toler
ance
Mm
Reinforcemen
t Diameter
mm
O.D. Toler
ance
Mm
W.P
.
MP
a
Proof
Pressur
e
MPa
Burst
Pressur
e
MPa
Min.
Bend
Radius
Mm
Weig
ht
Size Toleran
ce
51×4SP
51 1.0 63 1.0 69 1.5 35 70 140 660 5.70
64×4SP
64 1.2 77 1.0 84 1.5 35 70 140 990 5.78
76×4SP
76 1.4 101 1.5 107 2 35 70 140 1200 16.50
89×4SP
89 1.4 114 1.5 120 2 35 70 140 1300 19.65
102×4SP
102 1.5 132 1.5 135 2 35 70 140 1400 20.35
51×6SP
51 1.0 66 1.0 71.9 1.5 70 140 210 860 6.73
64×6SP
64 1.2 81 1.0 85 1.5 70 140 210 1200 8.02
76×6SP
76 1.4 109 1.5 115.5 2 70 140 210 1300 23.0
89×6SP
89 1.4 122 1.5 128.6 2 70 140 210 1400 28.0
102×6SP
102 1.5 135 1.5 142.3 2 70 140 210 1600 30.0

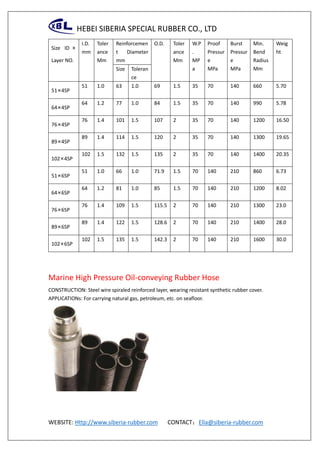

Marine High Pressure Oil-conveying Rubber Hose
CONSTRUCTION: Steel wire spiraled reinforced layer, wearing resistant synthetic rubber cover.
APPLICATIONs: For carrying natural gas, petroleum, etc. on seafloor.

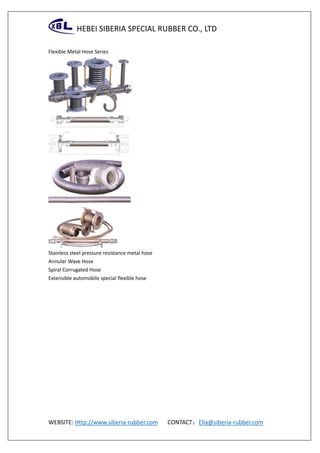

Flexible Metal Hose Series
Stainless steel pressure resistance metal hose
Annular Wave Hose
Spiral Corrugated Hose
Extensible automobile special flexible hose

RUBBER HOSE CATALOG

More Related Content

What's hot

Viewers also liked

Similar to RUBBER HOSE CATALOG

RUBBER HOSE CATALOG
