The tile making machine has several advantages: 1. It has high quality raw materials to ensure tile quality and longevity. 2. It has more functions like being fully automatic to save on labor costs and the ability to make different tile varieties. 3. It has a beautiful appearance due to high quality painting and polished welding that results in a flawless surface.

1. The Advantage Of Our
Tile Making Machine
• SD GROUP

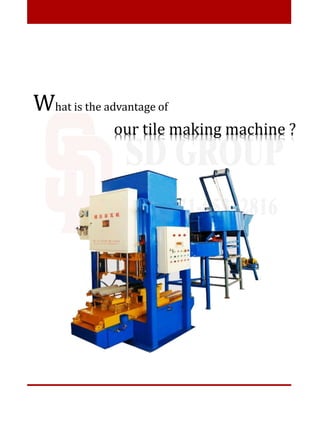

2. What is the advantage of
our tile making machine ?

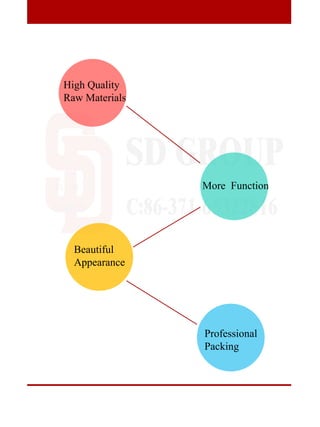

3. 第一章
标题内容
More Function
High Quality
Raw Materials
Beautiful
Appearance
Professional
Packing

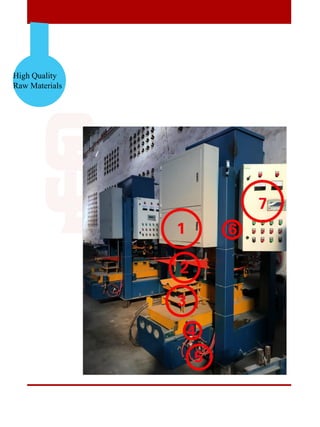

4. High Quality
Raw Materials

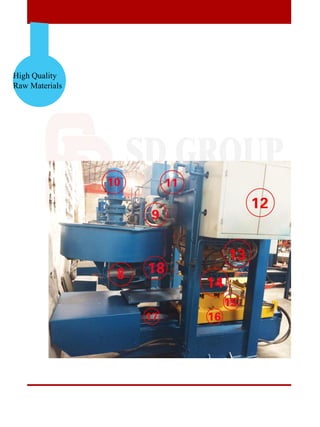

5. High Quality
Raw Materials

6. High Quality
Raw Materials
1.
2.
3.
A total of 6 hydraulic cylinder, to
ensure the stability of making tile
Tile can leave the mold perfect
with automatic injection system of
the main tile mold.
Carrier plate with high high
strength cast steel

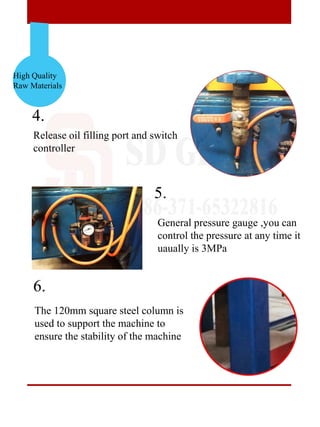

7. High Quality
Raw Materials
4.
5.
6.
Release oil filling port and switch
controller
The 120mm square steel column is
used to support the machine to
ensure the stability of the machine
General pressure gauge ,you can
control the pressure at any time it
uaually is 3MPa

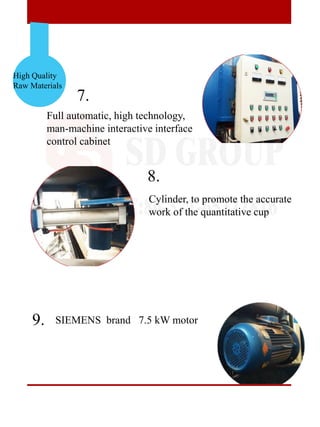

8. High Quality
Raw Materials
7.
8.
9.
Full automatic, high technology,
man-machine interactive interface
control cabinet
SIEMENS brand 7.5 kW motor
Cylinder, to promote the accurate
work of the quantitative cup

9. High Quality
Raw Materials

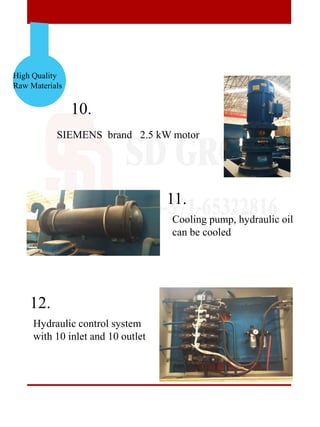

10.
11.
12.
SIEMENS brand 2.5 kW motor
Hydraulic control system
with 10 inlet and 10 outlet
Cooling pump, hydraulic oil
can be cooled

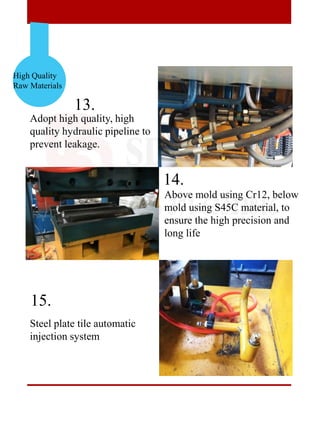

10. High Quality
Raw Materials
13.
14.
15.
Adopt high quality, high
quality hydraulic pipeline to
prevent leakage.
Above mold using Cr12, below
mold using S45C material, to
ensure the high precision and
long life
Steel plate tile automatic
injection system

11. High Quality
Raw Materials

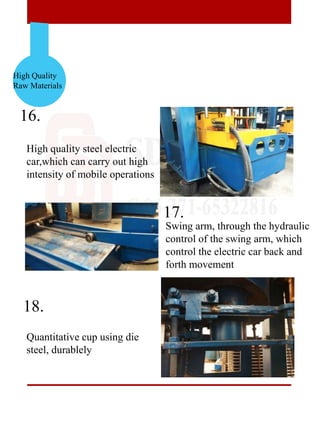

16.
17.
18.
High quality steel electric
car,which can carry out high
intensity of mobile operations
Quantitative cup using die
steel, durablely
Swing arm, through the hydraulic
control of the swing arm, which
control the electric car back and
forth movement

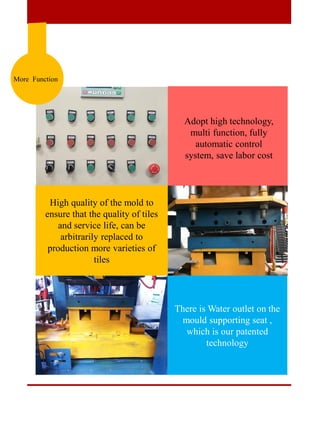

12. More Function
High quality of the mold to
ensure that the quality of tiles
and service life, can be
arbitrarily replaced to
production more varieties of
tiles
There is Water outlet on the
mould supporting seat ,
which is our patented
technology
Adopt high technology,
multi function, fully
automatic control
system, save labor cost

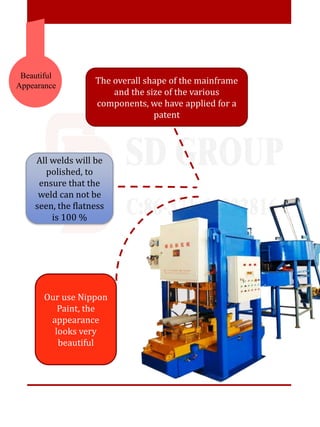

13. Beautiful
Appearance
The overall shape of the mainframe
and the size of the various
components, we have applied for a
patent
All welds will be
polished, to
ensure that the
weld can not be
seen, the flatness
is 100 %
Our use Nippon
Paint, the
appearance
looks very
beautiful

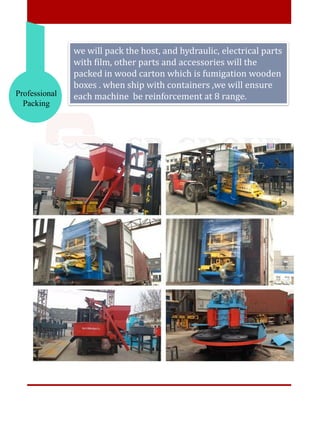

14. Professional
Packing
we will pack the host, and hydraulic, electrical parts
with film, other parts and accessories will the
packed in wood carton which is fumigation wooden
boxes . when ship with containers ,we will ensure
each machine be reinforcement at 8 range.

15. CONTACT INFO
(SD GROUP) HENAN YUXINSENDA HEAVY INDUSTRY MACHINERY CO.,LTD
Address : Zhengzhou City, Henan Province , China. 450000
Email : sales@sendamachine.com
Tel : 0086-371-65322816
Web : www.sendamachine.com
