SPICE MODEL of MCR265-2 in SPICE PARK. English Version is http://www.spicepark.net. Japanese Version is http://www.spicepark.com by Bee Technologies.

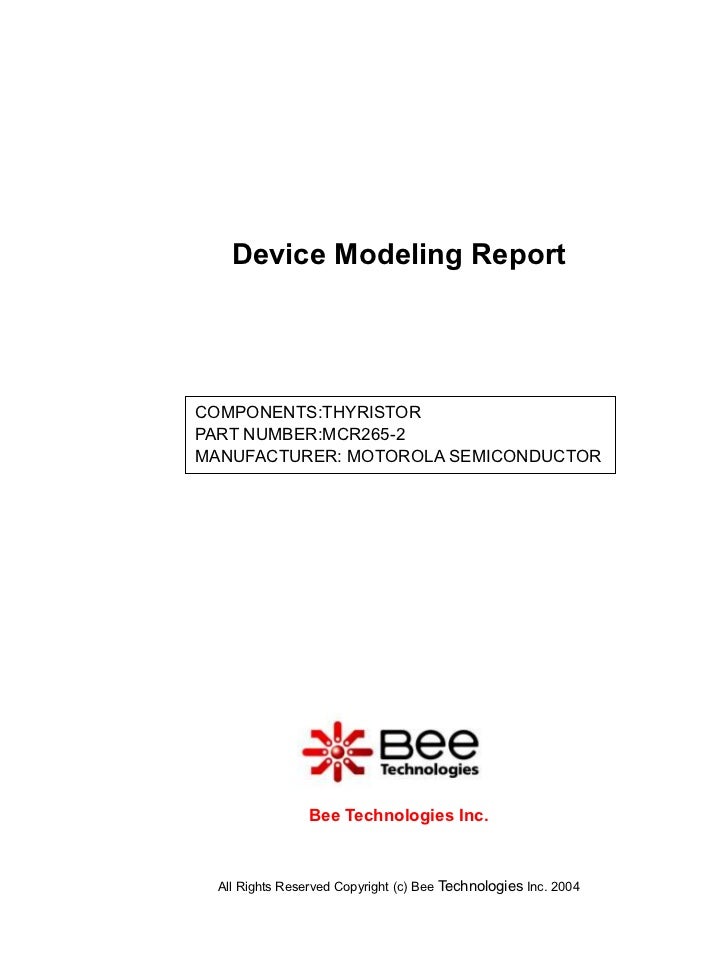

1. Device Modeling Report
COMPONENTS:THYRISTOR
PART NUMBER:MCR265-2
MANUFACTURER: MOTOROLA SEMICONDUCTOR
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

2. DIODE MODEL
Pspice model
Model description
Parameter
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

3. IG-VT Characteristic
Evaluation Circuit
Simulation result
Simulation
Comparison Table
Measurement Simulation % Error
IGT (mA) 20 19.920 -0.40000
VGT (V) 1 0.962594 -3.74060
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

4. ITM-VTM Characteristic
Evaluation Circuit
Simulation result
Simulation
Comparison Table
At ITM=110A Measurement Simulation % Error
VTM(V) 1.5 1.4917 -0.55333
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

5. Holding Characteristic (IH)
Evaluation Circuit
Simulation result
Simulation
Comparison Table
VAK=12V Measurement Simulation % Error
IH(mA) 30 30.073 0.24333
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004

6. Switching Time Characteristic
Evaluation Circuit
Simulation result
Simulation
Comparison Table
Measurement Simulation %Error
Ton(us) 1.5 1.5000 0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2004
