Scaling Xen withinRackspace Cloud Servers                            Chris Behrens                    chris.behrens@racksp...
Agenda•  Intro to Rackspace Cloud Servers•  Why Xen?•  Xen to XenServer•  OpenStack Basics•  OpenStack at Rackspace•  Scal...
Intro to Cloud Servers                    RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                                      ...
Intro to Cloud ServersOverview•  Public Cloud product under Rackspace’s Open Cloud portfolio•  First Gen –  Code originate...
Intro to Cloud ServersStatistics•  180,000+ total Rackspace customers (not just Cloud Servers)•  Tens of thousands of host...
Why Xen?           RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                                                        6
Why Xen?•  Thin hypervisor layer•  Open source•  Excellent driver support due to Linux dom0•  Good API•  Good performance•...
Xen to XenServer                   RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                                             ...
Xen to XenServerCloud Servers use of Xen•  LVM –  Logical volumes per VM•  Base images stored as tar files•  Kernel and ra...
Xen to XenServerXen to XenServer changes•  VHDs for virtual disk images –  Tarred and gzipped•  Kernel and ramdisk inside ...
Xen to XenServerMigrating•  Pick a XenServer host•  Create VDI•  Attach VDI to dom0•  Partition, mkfs, and mount the new v...
OpenStack The Basics              RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                                              ...
OpenStackComponents•  Nova  –  Compute controller with various hypervisor drivers•  Glance  –  VM Image registry•  Swift  ...
OpenStackTypical OpenStack Deployment                                   keystone                  nova                    ...
OpenStacknova-compute w/ XenAPI•  Runs in a utility domU on each host•  Images downloaded in dom0              Physical ho...
OpenStackXenAPI VM Calls•  VM.start / VM.start_on   •  VM.add_to_VCPUs_params•  VM.destroy               •  VM.get_VBDs•  ...
OpenStackRackspace Specifics                      RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                              ...
OpenStack Rackspace SpecificsSource Code•  Rackspace tracks trunk –  Deployed code generally less than 2 weeks behind trun...
OpenStack Rackspace SpecificsOpenStack Compute Cells•  Scaling beyond small nova deployments  –  Effectively ties multiple...
OpenStack Rackspace Specifics   OpenStack Nova Multi-cell Diagram            API Cell                          RabbitMQ   ...
Deploying OpenStack                 RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                                            ...
Deploying OpenStack‘Inception’•  Private internal cloud  –  Based on Openstack, called iNova  –  OpenStack services for pu...
Deploying OpenStackiNova Diagram                   iNova"                                   OpenStack Control             ...
Deploying OpenStackContinuous Deployment•  Trunk and custom branches merged multiple times daily –  Unit Tested and Packag...
Future         RACKSPACE® HOSTING   |   WWW.RACKSPACE.COM                                                      25
FutureImprovements desired from Xen•  Better VM resource isolation  –  I/O scheduling weights per virtual disk•  Built in ...
FutureRackspace’s Other Interests•  Better VDI introduction for new VMs –  Look at VDI.introduce vs mv’ing VDIs and doing ...
FutureiNova with Dev/QE Environments                                          OpenStack QE                iNova"          ...
"                                                                        Chris Behrens"                                   ...
Upcoming SlideShare
Loading in...5
×

Scaling Xen within Rackspace Cloud Servers

129,866

Published on

Rackspace has years of experience with running Xen at scale, starting with Xen and migrating to XenServer. We will share why we use Xen/XenServer along with some of the issues that we've experienced. We will touch on our experience with migrating from Xen to XenServer and the challenges there. We will share information about Rackspace Cloud Servers architecture, and touch briefly on OpenStack when doing so. We will explain how we use Xen to quickly deploy new Openstack services with what we call Nova on Nova. And finally, we will discuss what additional features and improvements are needed and why.

Published in: Technology
0 Comments
5 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
129,866
On Slideshare
0
From Embeds
0
Number of Embeds
15
Actions
Shares
0
Downloads
129
Comments
0
Likes
5
Embeds 0
No embeds

No notes for slide

Scaling Xen within Rackspace Cloud Servers

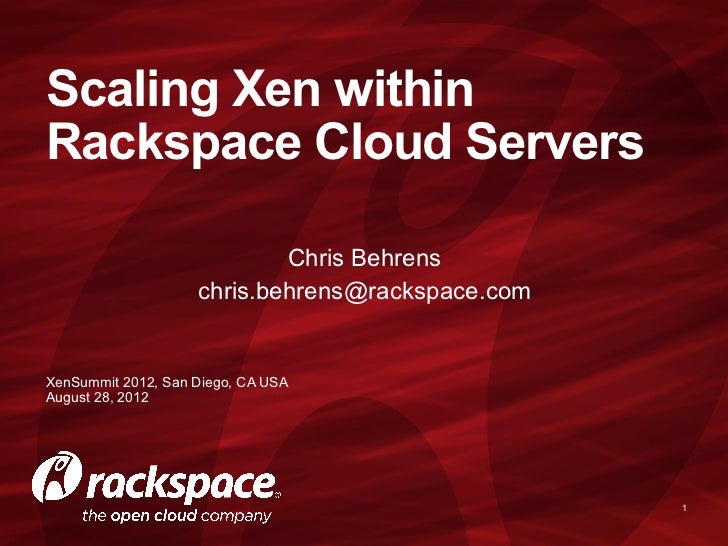

  1. 1. Scaling Xen withinRackspace Cloud Servers Chris Behrens chris.behrens@rackspace.comXenSummit 2012, San Diego, CA USAAugust 28, 2012 1
