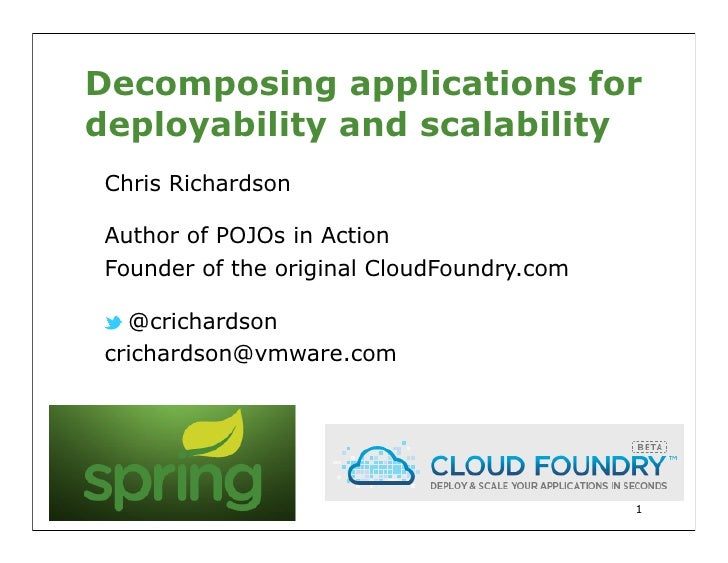

Decomposing applications fordeployability and scalability Chris Richardson Author of POJOs in Action Founder of the origin...
Presentation goal     How decomposing   applications improves deployability and scalability             and How Cloud Foun...
About Chris              3
(About Chris)                4
About Chris()                5
About Chris              6
About Chris   http://www.theregister.co.uk/2009/08/19/springsource_cloud_foundry/                                         ...
vmc push About-Chris     Developer Advocate for       CloudFoundry.comSignup at http://cloudfoundry.com    Promo code: Glu...
Agenda The (sometimes evil) monolith Decomposing applications into services How do services communicate? Presentation ...
Let’s imagine you are building an e-       commerce application                                       10
Traditional web application architecture                         WAR                                StoreFrontUI          ...
But there are problems                         12
Users expect a rich, dynamic andinteractive experience on mobiledevices and desktop                                       ...
Obstacle to frequent deployments Need to redeploy everything to change one component Interrupts long running background ...
Large application             Slow IDESlow start times for web container                                     15
Scaling development      WAR             StoreFrontUI              Accounting                                  Scalable   ...
Long-term commitment to a single technology stack Let’s suppose you go with the JVM  • Some polyglot support  • Many (but...
Agenda The (sometimes evil) monolith Decomposing applications into services How do services communicate? Presentation ...
3 dimensions to scalingY axis -functionaldecompositionScale by                                                            ...
Y axis scaling - functional partitioning Splits monolithic application into a set of services Each service implements a ...
Y axis scaling - application level                                         billing web application                        ...
Real world examples                 http://techblog.netflix.com/                 Between 100-150 services are accessed to  ...
There are drawbacks Complexity:  • Architectural  • Development  • Deployment  • Application management Deciding when to...
But there are many benefits Scales development: focussed two pizza devops teams Deploy services independently Scale ser...
Two levels of architecture System level  • Defines the inter-service glue: interfaces and   communication mechanisms • Sl...
If services are small... Regularly rewrite using a better technology stack Pick the best developers rather than best <pi...
Moreover: you are not the same you ... Cell lifetimes:                             Can we build software  • hours - some ...
Agenda The (sometimes evil) monolith Decomposing applications into services How do services communicate? Presentation ...
Inter-service communication options Multiple collaborating services   need a communication  mechanism Many choices:  • S...
Asynchronous message-based communication                                wgrus-billing.war                                 ...
Benefits and drawbacks Benefits  • Decouples caller from server  • Caller unaware of server’s coordinates (URL)  • Messag...
Writing code that calls services                                   32
Composable futures Problem:  • Service A needs to call services B and C and then D  • Makes sense to call B and C paralle...
Spring Integration Builds on Spring framework Implements EAI patterns = high-level of abstraction for  building message ...
Handling failure Errors happen (especially in distributed systems) Use timeouts and retries  • Never wait forever  • Som...
Agenda The (sometimes evil) monolith Decomposing applications into services How do services communicate? Presentation ...
Modular applicationChoice of presentation layer technology                   + Redeploy UI frequently/independently       ...
NodeJS is the fashionable technologyMany JavaScript client frameworks have a NodeJS counterparte.g. socket.io             ...
NodeJS isn’t the only game in town    JVM-based          http://vertx.io/                                          39
A modern web application                                                   Service 1                 RESTful WS       Node...
NodeJS - using RESTful WS and AMQP                       REST                               ServiceRESTRequests           ...
Updating the UI is easy Update the UI independently of rest of system Easily run A/B tests Enables fast iteration of th...
But coordination with backend changes required Let’s imagine that you are deploying an advanced search  feature:  • Enhan...
Agenda The (sometimes evil) monolith Decomposing applications into services How do services communicate? Presentation ...
Traditional tools: monolithic applications                                         45
Developing modular apps is more difficult Many more moving parts to manage  • Platform services: SQL, NoSQL, RabbitMQ  • ...
Easy polyglot application deployment and service provisioning                                                             ...
Creating a platform service instance$ vmc create-service mysql --name mysql1Creating Service: OK$ vmc services......======...
Multi-application manifest - part 1 --- applications:   inventory/target:            Path to application     name: invento...
Multi-application manifest - part 2 store/target:                   Path to application  name: store  url: cer-store.chris...
One command to create platform services and deployapplication $ vmc push Would you like to deploy from the current directo...
Micro Cloud Foundry: new developer sandbox     App Instances                                Services      Open source Plat...
Using Caldecott…$ vmc tunnel1: mysql-135e02: mysql1Which service to tunnel to?: 2Password: ********Stopping Application: O...
…Using CaldecottLaunching mysql --protocol=TCP --host=localhost --port=10000 --    user=uMe6Apgw00AhS --password=pKcD76PcZ...
Running JUnit test with Caldecott   Configure your test code to use port + connection info                                 ...
Summary Monolithic applications are simple to develop and deploy                 BUT applying the scale cube Decomposes ...
@crichardson crichardson@vmware.com             Questions?www.cloudfoundry.com promo code Gluecon12
