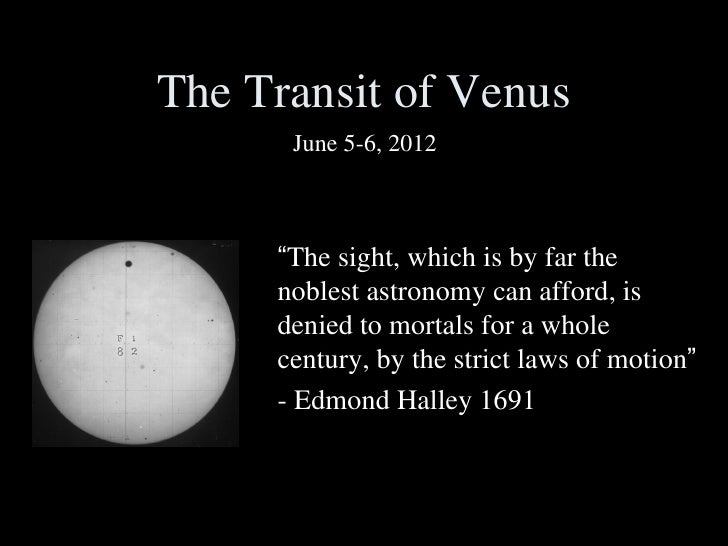

The Transit of Venus      June 5-6, 2012     “The sight, which is by far the     noblest astronomy can afford, is     deni...
What is a Transit?Like a mini eclipse of the Sun                                 Planet
Why Do They Happen?• An inner planet  (Mercury or Venus)  passes directly  between the Sun and  Earth• So why don’t they  ...
The Orbits Aren’t AlignedEarth Orbit              Venus Orbit
If Venus is above Earth’s Orbit…
We see:
If Venus is below Earth’s Orbit…
We see:
But if Venus aligns with Earth’s orbit (Astronomers say “on a           node”)…
We see a transit!
Series of Venus Transits• Combination of tilt and orbital speeds mean  transits occur in a series:  – 8 years apart, 105.5...
Transits before Kepler• Babylonians, Mayans and Chinese regularly  observed the Sun and Venus and probably saw a  transit,...
Predictions of       Transits• Kepler’s Rudolphine tables  published in 1627  – Predicted first Venus transit    1631     ...
Jeremiah Horrocks• Predicted time and location over Britain  – Observed only the middle of the transit in Lancashire.  – H...
Safe Solar Viewing in 1639• Project an image through the ‘scope  – By 19th century, telescopes were getting too    big    ...
Edmund Halley• In 1716, Halley showed how to use a transit  to measure the Astronomical Unit…
The Astronomical Unit (AU)• Kepler’s laws give relative distances in  Solar System in terms of the Earth-Sun  distance: th...
Measuring the AU• The method was derived by Halley from  ideas presented by James Gregory  – Solar parallax measured by ti...
Measuring the AU• Northern Hemisphere observer sees Venus  travel low across the Sun:
Measuring the AU• Southern Hemisphere observer sees the  higher path:
Measuring the AU• The distance between the two lines, θ, and  the distance between the two observing  points, d, gives the...
1761• 176 reported observations• 7 year war and bad  weather caused many  problems  – No AU measurement• Mikhail Lomonosov...
Venus AtmosphereD. Kiselman, et al. (Inst. for Solar Physics), Royal Swedish Academyof Sciences. 2004
1769• First organized  American observations  – State House observatory    in Philadelphia where    Declaration of    Inde...
1769• International Expeditions Launched  – Many had multiple goals: Cook’s Voyage to Point Venus    Tahiti and find “Terr...
An Unexpected Problem• The “black drop”  effect made accurate  measurements  impossible!
Not Just a Problem for Venus• This image of the  transit of Mercury  2003 shows same  effect• There were high  hopes that ...
1874 & 1882• New Technology  – Photography     • Measurement could be made when Venus crossed Sun’s       meridian     • s...
UofM connections• James Craig Watson,  director of the Detroit  Observatory, led US  expedition to Peking for the  Dec 187...
Surviving  Images• 11 images  survive from  1882  – Note gridlines
Accuracy of AU• Astronomers measured the Earth-Sun  distance to within 0.2%  – That’s an accuracy of about 300,000 km or  ...
20th Century Accuracy of AU• Radar and laser measurements have an  uncertainty of less than a meter!• Transits are no long...
Importance for the 21st Century• Spectroscopy of atmosphere  – Search for trace elements• The search for extra-solar planets
The atmosphere• Composition  determined from      HD 209458  changes in  spectrum  – Use this for    planets around    oth...
Detecting transits of Extra-Solar                 Planets• As a planet  passes in front of  a star, it blocks a  tiny bit ...
Viewing the Transit• NEVER LOOK DIRECTLY AT THE SUN – Indirect methods    • Pinhole cameras, projection screens – Filters ...
•“On account of their rarity alone, they must afford    an exquisite entertainment to an astronomical taste”              ...
