- 1. PRESENTATION ON RANGEOF THRESHOLD FOR FUZZY INPUT IN TRAFFIC FLOW BY ZAINAB SANI SHEHU SPS/21/MCE/00033 BAYERO UNIVERSITY ,KANO DECEMBER,2023

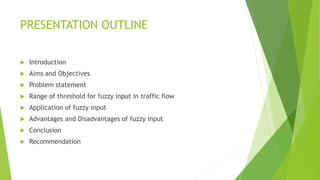

- 2. PRESENTATION OUTLINE Introduction Aims and Objectives Problem statement Range of threshold for fuzzy input in traffic flow Application of fuzzy input Advantages and Disadvantages of fuzzy input Conclusion Recommendation
- 3. INTRODUCTION Fuzzy inputrefers to the use of fuzzy logic to model and interpret imprecise or uncertain information related to traffic conditions. Fuzzy logic allows for the representation of traffic parameters such as traffic speed, volume and density in linguistics terms rather than precise numerical value Determining the threshold values, for input in traffic flow relies on a variety of factors. Is typically established by analyzing historical data, seeking expert knowledge or conducting simulation studies. Fuzzy logic plays a pivotal role in managing traffic flow by incorporating a range of thresholds that govern decision-making processes. A fuzzy input threshold is a value used to determine the membership of a variable in a fuzzy set. It helps define the degree to which an element belong to a particular set, allowing for more nuanced and flexible reasoning in systems with uncertainty.

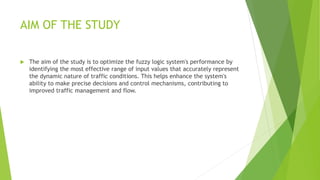

- 4. AIM OF THESTUDY The aim of the study is to optimize the fuzzy logic system's performance by identifying the most effective range of input values that accurately represent the dynamic nature of traffic conditions. This helps enhance the system's ability to make precise decisions and control mechanisms, contributing to improved traffic management and flow.
- 5. OBJECTIVES OF FUZZYINPUT MODEL Capturing and representing uncertainty, imprecision, and vagueness in information, enabling effective decision making in situations with incomplete or ambiguous data. Improving traffic control and management by handling uncertainty, Fuzzy models help account for unpredictable factors like varying traffic conditions, weather, and driver behavior. Fuzzy logic can enhance traffic signal timing by considering real-time data, reducing congestion, and improving overall traffic flow. Fuzzy models allow systems to adapt to changing traffic situations, providing dynamic and context-aware control.

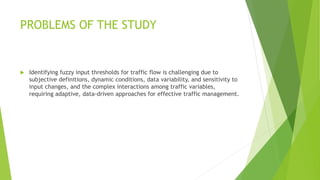

- 6. PROBLEMS OF THESTUDY Identifying fuzzy input thresholds for traffic flow is challenging due to subjective definitions, dynamic conditions, data variability, and sensitivity to input changes, and the complex interactions among traffic variables, requiring adaptive, data-driven approaches for effective traffic management.

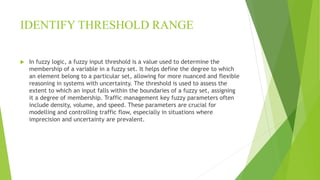

- 7. IDENTIFY THRESHOLD RANGE In fuzzy logic, a fuzzy input threshold is a value used to determine the membership of a variable in a fuzzy set. It helps define the degree to which an element belong to a particular set, allowing for more nuanced and flexible reasoning in systems with uncertainty. The threshold is used to assess the extent to which an input falls within the boundaries of a fuzzy set, assigning it a degree of membership. Traffic management key fuzzy parameters often include density, volume, and speed. These parameters are crucial for modelling and controlling traffic flow, especially in situations where imprecision and uncertainty are prevalent.
- 8. RANGE OF THRESHOLDFOR DENSITY Vehicle Density; It refers to the number of vehicles present within a specific length of roadway at a given time. It is usually measured in vehicles per unit distance, such as vehicle per kilometer or vehicles per mile. Fuzzy logic describe traffic density with terms like low, moderate, and high. Membership functions model the gradual transition between these categories, capturing the imprecision in density measurement . Threshold for traffic density can be set to distinguish between low, moderate and high congestion levels. The specific values would depend on the units used to measure density e.g. vehicle/km. 0-10 Vehicles per km Low congestion (Free flow) 10-30 vehicles per km Light congestion 30-60vehicles per km moderate congestion 60-above vehicles per km Heavy congestion

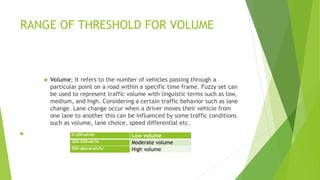

- 9. RANGE OF THRESHOLDFOR VOLUME Volume; It refers to the number of vehicles passing through a particular point on a road within a specific time frame. Fuzzy set can be used to represent traffic volume with linguistic terms such as low, medium, and high. Considering a certain traffic behavior such as lane change. Lane change occur when a driver moves their vehicle from one lane to another this can be influenced by some traffic conditions such as volume, lane choice, speed differential etc. 0-200veh/hr Low volume 200-500veh/hr Moderate volume 500-aboveveh/hr High volume

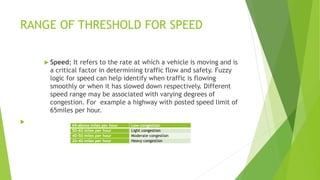

- 10. RANGE OF THRESHOLDFOR SPEED Speed; It refers to the rate at which a vehicle is moving and is a critical factor in determining traffic flow and safety. Fuzzy logic for speed can help identify when traffic is flowing smoothly or when it has slowed down respectively. Different speed range may be associated with varying degrees of congestion. For example a highway with posted speed limit of 65miles per hour. 65-above miles per hour Low congestion 50-60 miles per hour Light congestion 40-50 miles per hour Moderate congestion 20-40 miles per hour Heavy congestion

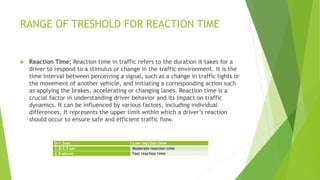

- 11. RANGE OF TRESHOLDFOR REACTION TIME Reaction Time; Reaction time in traffic refers to the duration it takes for a driver to respond to a stimulus or change in the traffic environment. It is the time interval between perceiving a signal, such as a change in traffic lights or the movement of another vehicle, and initiating a corresponding action such as applying the brakes, accelerating or changing lanes. Reaction time is a crucial factor in understanding driver behavior and its impact on traffic dynamics. It can be influenced by various factors, including individual differences. It represents the upper limit within which a driver’s reaction should occur to ensure safe and efficient traffic flow. 0-1.5sec Low reaction time 1.5-2.5 sec Moderate reaction time 2.5-above Fast reaction time

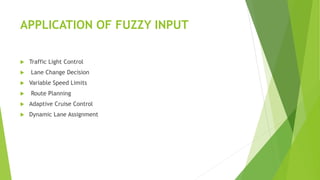

- 12. APPLICATION OF FUZZYINPUT Traffic Light Control Lane Change Decision Variable Speed Limits Route Planning Adaptive Cruise Control Dynamic Lane Assignment

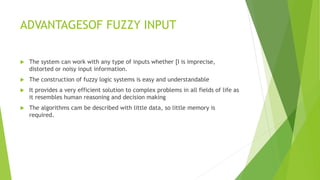

- 13. ADVANTAGESOF FUZZY INPUT The system can work with any type of inputs whether [I is imprecise, distorted or noisy input information. The construction of fuzzy logic systems is easy and understandable It provides a very efficient solution to complex problems in all fields of life as it resembles human reasoning and decision making The algorithms cam be described with little data, so little memory is required.

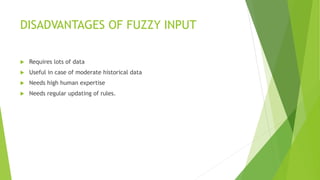

- 14. DISADVANTAGES OF FUZZYINPUT Requires lots of data Useful in case of moderate historical data Needs high human expertise Needs regular updating of rules.

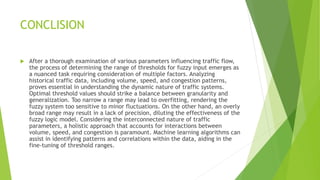

- 15. CONCLISION After athorough examination of various parameters influencing traffic flow, the process of determining the range of thresholds for fuzzy input emerges as a nuanced task requiring consideration of multiple factors. Analyzing historical traffic data, including volume, speed, and congestion patterns, proves essential in understanding the dynamic nature of traffic systems. Optimal threshold values should strike a balance between granularity and generalization. Too narrow a range may lead to overfitting, rendering the fuzzy system too sensitive to minor fluctuations. On the other hand, an overly broad range may result in a lack of precision, diluting the effectiveness of the fuzzy logic model. Considering the interconnected nature of traffic parameters, a holistic approach that accounts for interactions between volume, speed, and congestion is paramount. Machine learning algorithms can assist in identifying patterns and correlations within the data, aiding in the fine-tuning of threshold ranges.
- 16. RECOMMENDATION For abalanced and adaptable threshold range, it is important to fine-tune these thresholds based on location conditions, the goal of the traffic management, and any specific requirements of the application. Further adjustment may be included to ensure the fuzzy logic system responds effectively to changing traffic conditions. Also, a multidimensional analysis, leveraging historical data, simulation models, and machine learning techniques should be in cooperated in the development of threshold range.
