Xevgenis_Michail_CI7130 Network and Information Security

FACULTY OF ENGINEERING
DEPARTMENTS OF ELECTRONICS ENGINEERING AND AUTOMATION ENGINEERING
TECHNOLOGICAL EDUCATIONAL INSTITUTE OF PIRAEUS
MSc IN NETWORKING AND DATA COMMUNICATIONS
COURSEWORK
MODULE:
CI7130: Network and Information Security
ID:___1465167_____
Module Coordinator:
Dr. Adamopoulos Dionisios & Dr. Katopodis Harrilaos
Date of Module:
23/5/2015
Name of Student:
Xevgenis Michail
Module:
Module Coordinator:

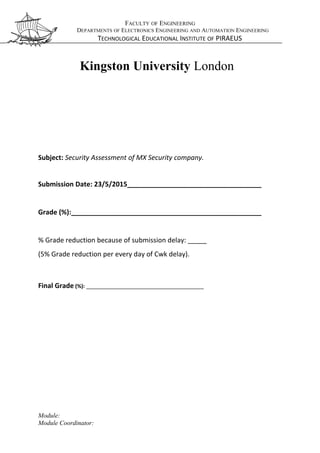

Kingston University London

Subject: Security Assessment of MX Security company.
Submission Date: 23/5/2015____________________________________
Grade (%):___________________________________________________
% Grade reduction because of submission delay: _____
(5% Grade reduction per every day of Cwk delay).
Final Grade (%): ________________________________________
Module:
Module Coordinator:
Kingston University London

Module:
Module Coordinator:

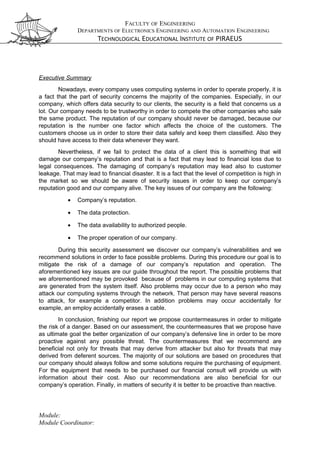

Executive Summary
Nowadays, every company uses computing systems in order to operate properly, it is
a fact that the part of security concerns the majority of the companies. Especially, in our
company, which offers data security to our clients, the security is a field that concerns us a
lot. Our company needs to be trustworthy in order to compete the other companies who sale
the same product. The reputation of our company should never be damaged, because our
reputation is the number one factor which affects the choice of the customers. The
customers choose us in order to store their data safely and keep them classified. Also they
should have access to their data whenever they want.
Nevertheless, if we fail to protect the data of a client this is something that will
damage our company’s reputation and that is a fact that may lead to financial loss due to
legal consequences. The damaging of company’s reputation may lead also to customer
leakage. That may lead to financial disaster. It is a fact that the level of competition is high in
the market so we should be aware of security issues in order to keep our company’s
reputation good and our company alive. The key issues of our company are the following:
• Company’s reputation.
• The data protection.
• The data availability to authorized people.
• The proper operation of our company.
During this security assessment we discover our company’s vulnerabilities and we
recommend solutions in order to face possible problems. During this procedure our goal is to
mitigate the risk of a damage of our company’s reputation and operation. The
aforementioned key issues are our guide throughout the report. The possible problems that
we aforementioned may be provoked because of problems in our computing systems that
are generated from the system itself. Also problems may occur due to a person who may
attack our computing systems through the network. That person may have several reasons
to attack, for example a competitor. In addition problems may occur accidentally for
example, an employ accidentally erases a cable.
In conclusion, finishing our report we propose countermeasures in order to mitigate
the risk of a danger. Based on our assessment, the countermeasures that we propose have
as ultimate goal the better organization of our company’s defensive line in order to be more
proactive against any possible threat. The countermeasures that we recommend are
beneficial not only for threats that may derive from attacker but also for threats that may
derived from deferent sources. The majority of our solutions are based on procedures that
our company should always follow and some solutions require the purchasing of equipment.
For the equipment that needs to be purchased our financial consult will provide us with
information about their cost. Also our recommendations are also beneficial for our
company’s operation. Finally, in matters of security it is better to be proactive than reactive.
Module:
Module Coordinator:

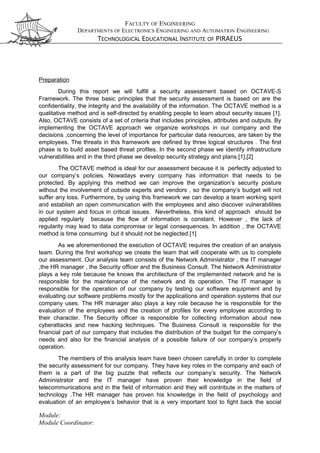

Preparation
During this report we will fulfill a security assessment based on OCTAVE-S
Framework. The three basic principles that the security assessment is based on are the
confidentiality, the integrity and the availability of the information. The OCTAVE method is a
qualitative method and is self-directed by enabling people to learn about security issues [1].
Also, OCTAVE consists of a set of criteria that includes principles, attributes and outputs. By
implementing the OCTAVE approach we organize workshops in our company and the
decisions ,concerning the level of importance for particular data resources, are taken by the
employees. The threats in this framework are defined by three logical structures . The first
phase is to build asset based threat profiles. In the second phase we identify infrastructure
vulnerabilities and in the third phase we develop security strategy and plans.[1],[2]
The OCTAVE method is ideal for our assessment because it is perfectly adjusted to
our company’s policies. Nowadays every company has information that needs to be
protected. By applying this method we can improve the organization’s security posture
without the involvement of outside experts and vendors , so the company’s budget will not
suffer any loss. Furthermore, by using this framework we can develop a team working spirit
and establish an open communication with the employees and also discover vulnerabilities
in our system and focus in critical issues. Nevertheless, this kind of approach should be
applied regularly because the flow of information is constant. However , the lack of
regularity may lead to data compromise or legal consequences. In addition , the OCTAVE
method is time consuming but it should not be neglected.[1]
As we aforementioned the execution of OCTAVE requires the creation of an analysis
team. During the first workshop we create the team that will cooperate with us to complete
our assessment. Our analysis team consists of the Network Administrator , the IT manager
,the HR manager , the Security officer and the Business Consult. The Network Administrator
plays a key role because he knows the architecture of the implemented network and he is
responsible for the maintenance of the network and its operation. The IT manager is
responsible for the operation of our company by testing our software equipment and by
evaluating our software problems mostly for the applications and operation systems that our
company uses. The HR manager also plays a key role because he is responsible for the
evaluation of the employees and the creation of profiles for every employee according to
their character. The Security officer is responsible for collecting information about new
cyberattacks and new hacking techniques. The Business Consult is responsible for the
financial part of our company that includes the distribution of the budget for the company’s
needs and also for the financial analysis of a possible failure of our company’s properly
operation.
The members of this analysis team have been chosen carefully in order to complete
the security assessment for our company. They have key roles in the company and each of
them is a part of the big puzzle that reflects our company’s security. The Network
Administrator and the IT manager have proven their knowledge in the field of
telecommunications and in the field of information and they will contribute in the matters of
technology .The HR manager has proven his knowledge in the field of psychology and
evaluation of an employee’s behavior that is a very important tool to fight back the social
Module:
Module Coordinator:

engineering. The Security officer has knowledge about new malicious techniques that have
been implemented by attackers and their frequency which are implemented. Also the
Business Consult has knowledge about the financial parts of the company and he can
indicate us which of the solutions that we propose are realistic and furthermore the financial
impact that the company can suffer in case of a failure.
Organization Overview
Our organization is responsible for the secure storage of classified records of our
clients. These records consist of critical information about the security of our clients. The
hardware that our clients use for their protection, as also the codes of the access cards and
the security alarms that they use, are very important information that needs to be classified.
Our ultimate goal is to avoid the violation of confidentiality, integrity and availability of our
information. The important assets of our company are the proper operation of our systems
and our data security. Furthermore, our software and our hardware are key components of
our organization's proper operation and are also critical assets. Nevertheless, it is a fact that
nowadays social engineering is a growing method that may lead to harmful consequences
for our company, so the people are also a key asset. Our goal is to improve our safety and
mitigate the risk of a danger. In addition, we should provide with information only people who
have the authorization and only after the procedure of their identification. Every employee,
according to the job role who has, has also the right privilege and the access in the system’s
operation.
The company is geographically distributed and consists of three branch offices and
one headquarter. The headquarter is located in Athens which is the capital of Greece and
the largest city in terms of population. Also in Athens the one of our three branches is
located in order to service the majority of our clients. The second branch is located in
Thessaloniki that is the second large city in Greece in terms of population and covers the
north region of the country. Our third branch is located in Chania in order to service our
customers in the south region of the country.
Furthermore, the headquarter and the branches communicate via VPN (Virtual
Private Network) connections. Each branch office consists of servers, switches, routers, pcs
and firewalls that are important for the company’s operation and their operation system is
Windows. At the application layer our company uses the web application Siebel that creates
the customers profile with all the necessary information. The headquarter is the center of
that enterprise network and consists of all the aforementioned machines too. At the
headquarter the most critical information is stored and secured the most critical information,
therefore it must be heavily secured. Nevertheless, it is important to provide internet access
when a customer visits the branch, therefore we provide a Wi-Fi connection. In addition,
clients who are away from our branch should be able to communicate with us via a WAN
(Wide Area Network) connection (Internet).
However, our employees who have access to critical information should use their pcs
wisely in order to keep the information secure and to service the clients. The operation of the
pc’s system is also Windows and is the version 7-64 bits. Also there are implemented
mechanisms for those pcs to avoid critical mistakes and to mitigate the risk of danger. For
the proper operation of our company we use the hardware that covers our needs. To
establish a secure communication between the headquarters and the branch offices we use
the Cisco RV320 Dual Gigabit WAN VPN Router [3]. Moreover, the company uses the Cisco
Module:
Module Coordinator:

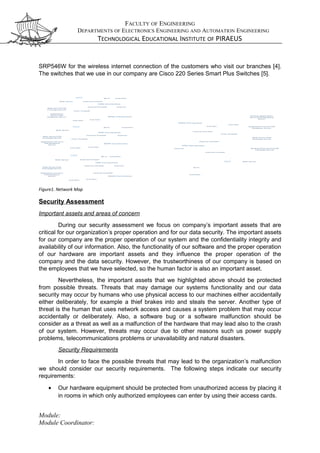

SRP546W for the wireless internet connection of the customers who visit our branches [4].
The switches that we use in our company are Cisco 220 Series Smart Plus Switches [5].
DMZ
Interne t Fire wall
Wi-Fi
Inne r Firewall
Web Serve r/V M
Exchang e Server
A pplication
Se rver/VM
Database Serve r
Web Serve r
Customer
Interne t Firewa ll
Interne t
End Use r
E nd User
WAN Connection
VPN Connection
DMZ
Internet Fire wall
W i-Fi
Inne r Firewall
Web Serve r/VM
Exchang e Se rver
Applica tion Server/
VM Databa se
Se rver
Web Serve r
Custome r
Interne t
E nd User
End User
WAN Connection
VPN Connection
DMZ
Interne t Fire wall
Wi-Fi
Web Serve r/VM
E xchange Server
Applica tion Serve r/
V M Da tabase
Se rve r
W eb Serve r
Customer
Interne t
E nd Use r
E nd Use r
WAN Connection
VPN Connection
Internet Firewa ll
Interne t Firewall
DMZ
Internet Firewa ll
W i-Fi
Inne r Firew all
Web Serve r/V M
Exchange Se rver
Applica tion S erver/VM
Da tabase Serve r
Web Server
Customer
Interne t Fire wall
Internet
End Use r
End Use r
WAN Connection
VPN Connection
Backup Application
Server/V M Da tabase
Serve r
Backup W eb Server/VM
Exchang e Se rver
Internet Fire wall
Figure1. Network Map
Security Assessment
Important assets and areas of concern
During our security assessment we focus on company’s important assets that are
critical for our organization’s proper operation and for our data security. The important assets
for our company are the proper operation of our system and the confidentiality integrity and
availability of our information. Also, the functionality of our software and the proper operation
of our hardware are important assets and they influence the proper operation of the
company and the data security. However, the trustworthiness of our company is based on
the employees that we have selected, so the human factor is also an important asset.
Nevertheless, the important assets that we highlighted above should be protected
from possible threats. Threats that may damage our systems functionality and our data
security may occur by humans who use physical access to our machines either accidentally
either deliberately, for example a thief brakes into and steals the server. Another type of
threat is the human that uses network access and causes a system problem that may occur
accidentally or deliberately. Also, a software bug or a software malfunction should be
consider as a threat as well as a malfunction of the hardware that may lead also to the crash
of our system. However, threats may occur due to other reasons such us power supply
problems, telecommunications problems or unavailability and natural disasters.
Security Requirements
In order to face the possible threats that may lead to the organization’s malfunction
we should consider our security requirements. The following steps indicate our security
requirements:
• Our hardware equipment should be protected from unauthorized access by placing it
in rooms in which only authorized employees can enter by using their access cards.
Module:
Module Coordinator:

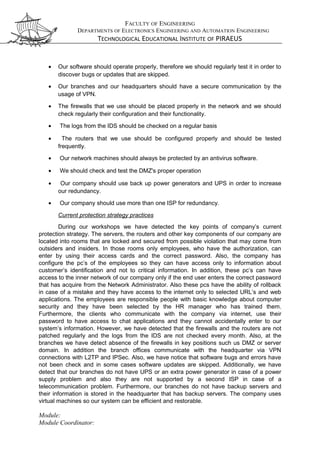

• Our software should operate properly, therefore we should regularly test it in order to
discover bugs or updates that are skipped.
• Our branches and our headquarters should have a secure communication by the
usage of VPN.
• The firewalls that we use should be placed properly in the network and we should
check regularly their configuration and their functionality.
• The logs from the IDS should be checked on a regular basis
• The routers that we use should be configured properly and should be tested
frequently.
• Our network machines should always be protected by an antivirus software.
• We should check and test the DMZ's proper operation
• Our company should use back up power generators and UPS in order to increase
our redundancy.
• Our company should use more than one ISP for redundancy.
Current protection strategy practices
During our workshops we have detected the key points of company’s current
protection strategy. The servers, the routers and other key components of our company are
located into rooms that are locked and secured from possible violation that may come from
outsiders and insiders. In those rooms only employees, who have the authorization, can
enter by using their access cards and the correct password. Also, the company has
configure the pc’s of the employees so they can have access only to information about
customer’s identification and not to critical information. In addition, these pc’s can have
access to the inner network of our company only if the end user enters the correct password
that has acquire from the Network Administrator. Also these pcs have the ability of rollback
in case of a mistake and they have access to the internet only to selected URL’s and web
applications. The employees are responsible people with basic knowledge about computer
security and they have been selected by the HR manager who has trained them.
Furthermore, the clients who communicate with the company via internet, use their
password to have access to chat applications and they cannot accidentally enter to our
system’s information. However, we have detected that the firewalls and the routers are not
patched regularly and the logs from the IDS are not checked every month. Also, at the
branches we have detect absence of the firewalls in key positions such us DMZ or server
domain. In addition the branch offices communicate with the headquarter via VPN
connections with L2TP and IPSec. Also, we have notice that software bugs and errors have
not been check and in some cases software updates are skipped. Additionally, we have
detect that our branches do not have UPS or an extra power generator in case of a power
supply problem and also they are not supported by a second ISP in case of a
telecommunication problem. Furthermore, our branches do not have backup servers and
their information is stored in the headquarter that has backup servers. The company uses
virtual machines so our system can be efficient and restorable.
Module:
Module Coordinator:

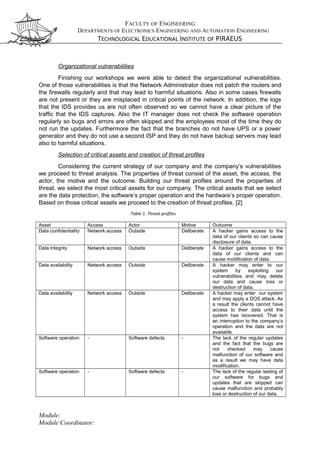

Organizational vulnerabilities
Finishing our workshops we were able to detect the organizational vulnerabilities.
One of those vulnerabilities is that the Network Administrator does not patch the routers and
the firewalls regularly and that may lead to harmful situations. Also in some cases firewalls
are not present or they are misplaced in critical points of the network. In addition, the logs
that the IDS provides us are not often observed so we cannot have a clear picture of the
traffic that the IDS captures. Also the IT manager does not check the software operation
regularly so bugs and errors are often skipped and the employees most of the time they do
not run the updates. Furthermore the fact that the branches do not have UPS or a power
generator and they do not use a second ISP and they do not have backup servers may lead
also to harmful situations.
Selection of critical assets and creation of threat profiles
Considering the current strategy of our company and the company’s vulnerabilities
we proceed to threat analysis. The properties of threat consist of the asset, the access, the
actor, the motive and the outcome. Building our threat profiles around the properties of
threat, we select the most critical assets for our company. The critical assets that we select
are the data protection, the software’s proper operation and the hardware’s proper operation.
Based on those critical assets we proceed to the creation of threat profiles. [2]
Table 1. Threat profiles
Asset Access Actor Motive Outcome
Data confidentiality Network access Outside Deliberate A hacker gains access to the
data of our clients so can cause
disclosure of data.
Data integrity Network access Outside Deliberate A hacker gains access to the
data of our clients and can
cause modification of data.
Data availability Network access Outside Deliberate A hacker may enter to our
system by exploiting our
vulnerabilities and may delete
our data and cause loss or
destruction of data.
Data availability Network access Outside Deliberate A hacker may enter our system
and may apply a DOS attack. As
a result the clients cannot have
access to their data until the
system has recovered. That is
an interruption to the company’s
operation and the data are not
available.
Software operation - Software defects - The lack of the regular updates
and the fact that the bugs are
not checked may cause
malfunction of our software and
as a result we may have data
modification.
Software operation - Software defects - The lack of the regular testing of
our software for bugs and
updates that are skipped can
cause malfunction and probably
loss or destruction of our data.
Module:
Module Coordinator:

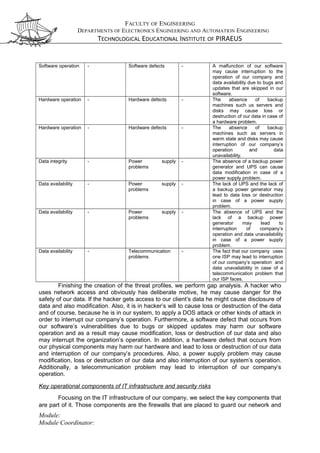

Software operation - Software defects - A malfunction of our software
may cause interruption to the
operation of our company and
data availability due to bugs and
updates that are skipped in our
software.
Hardware operation - Hardware defects - The absence of backup
machines such us servers and
disks may cause loss or
destruction of our data in case of
a hardware problem.
Hardware operation - Hardware defects - The absence of backup
machines such as servers in
warm state and disks may cause
interruption of our company’s
operation and data
unavailability.
Data integrity - Power supply
problems
- The absence of a backup power
generator and UPS can cause
data modification in case of a
power supply problem.
Data availability - Power supply
problems
- The lack of UPS and the lack of
a backup power generator may
lead to data loss or destruction
in case of a power supply
problem.
Data availability - Power supply
problems
- The absence of UPS and the
lack of a backup power
generator may lead to
interruption of company’s
operation and data unavailability
in case of a power supply
problem.
Data availability - Telecommunication
problems
- The fact that our company uses
one ISP may lead to interruption
of our company’s operation and
data unavailability in case of a
telecommunication problem that
our ISP faces.
Finishing the creation of the threat profiles, we perform gap analysis. A hacker who
uses network access and obviously has deliberate motive, he may cause danger for the
safety of our data. If the hacker gets access to our client’s data he might cause disclosure of
data and also modification. Also, it is in hacker’s will to cause loss or destruction of the data
and of course, because he is in our system, to apply a DOS attack or other kinds of attack in
order to interrupt our company’s operation. Furthermore, a software defect that occurs from
our software’s vulnerabilities due to bugs or skipped updates may harm our software
operation and as a result may cause modification, loss or destruction of our data and also
may interrupt the organization’s operation. In addition, a hardware defect that occurs from
our physical components may harm our hardware and lead to loss or destruction of our data
and interruption of our company’s procedures. Also, a power supply problem may cause
modification, loss or destruction of our data and also interruption of our system’s operation.
Additionally, a telecommunication problem may lead to interruption of our company’s
operation.
Key operational components of IT infrastructure and security risks
Focusing on the IT infrastructure of our company, we select the key components that
are part of it. Those components are the firewalls that are placed to guard our network and
Module:
Module Coordinator:

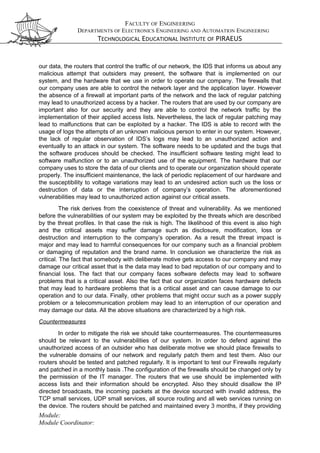

our data, the routers that control the traffic of our network, the IDS that informs us about any
malicious attempt that outsiders may present, the software that is implemented on our
system, and the hardware that we use in order to operate our company. The firewalls that
our company uses are able to control the network layer and the application layer. However
the absence of a firewall at important parts of the network and the lack of regular patching
may lead to unauthorized access by a hacker. The routers that are used by our company are
important also for our security and they are able to control the network traffic by the
implementation of their applied access lists. Nevertheless, the lack of regular patching may
lead to malfunctions that can be exploited by a hacker. The IDS is able to record with the
usage of logs the attempts of an unknown malicious person to enter in our system. However,
the lack of regular observation of IDS’s logs may lead to an unauthorized action and
eventually to an attack in our system. The software needs to be updated and the bugs that
the software produces should be checked. The insufficient software testing might lead to
software malfunction or to an unauthorized use of the equipment. The hardware that our
company uses to store the data of our clients and to operate our organization should operate
properly. The insufficient maintenance, the lack of periodic replacement of our hardware and
the susceptibility to voltage variations may lead to an undesired action such us the loss or
destruction of data or the interruption of company’s operation. The aforementioned
vulnerabilities may lead to unauthorized action against our critical assets.
The risk derives from the coexistence of threat and vulnerability. As we mentioned
before the vulnerabilities of our system may be exploited by the threats which are described
by the threat profiles. In that case the risk is high. The likelihood of this event is also high
and the critical assets may suffer damage such as disclosure, modification, loss or
destruction and interruption to the company’s operation. As a result the threat impact is
major and may lead to harmful consequences for our company such as a financial problem
or damaging of reputation and the brand name. In conclusion we characterize the risk as
critical. The fact that somebody with deliberate motive gets access to our company and may
damage our critical asset that is the data may lead to bad reputation of our company and to
financial loss. The fact that our company faces software defects may lead to software
problems that is a critical asset. Also the fact that our organization faces hardware defects
that may lead to hardware problems that is a critical asset and can cause damage to our
operation and to our data. Finally, other problems that might occur such as a power supply
problem or a telecommunication problem may lead to an interruption of our operation and
may damage our data. All the above situations are characterized by a high risk.
Countermeasures
In order to mitigate the risk we should take countermeasures. The countermeasures
should be relevant to the vulnerabilities of our system. In order to defend against the
unauthorized access of an outsider who has deliberate motive we should place firewalls to
the vulnerable domains of our network and regularly patch them and test them. Also our
routers should be tested and patched regularly. It is important to test our Firewalls regularly
and patched in a monthly basis .The configuration of the firewalls should be changed only by
the permission of the IT manager. The routers that we use should be implemented with
access lists and their information should be encrypted. Also they should disallow the IP
directed broadcasts, the incoming packets at the device sourced with invalid address, the
TCP small services, UDP small services, all source routing and all web services running on
the device. The routers should be patched and maintained every 3 months, if they providing
Module:
Module Coordinator:

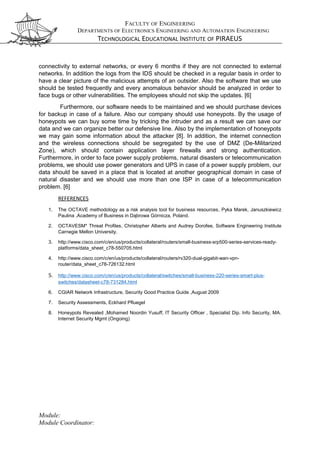

connectivity to external networks, or every 6 months if they are not connected to external
networks. In addition the logs from the IDS should be checked in a regular basis in order to
have a clear picture of the malicious attempts of an outsider. Also the software that we use
should be tested frequently and every anomalous behavior should be analyzed in order to
face bugs or other vulnerabilities. The employees should not skip the updates. [6]
Furthermore, our software needs to be maintained and we should purchase devices
for backup in case of a failure. Also our company should use honeypots. By the usage of
honeypots we can buy some time by tricking the intruder and as a result we can save our
data and we can organize better our defensive line. Also by the implementation of honeypots
we may gain some information about the attacker [8]. In addition, the internet connection
and the wireless connections should be segregated by the use of DMZ (De-Militarized
Zone), which should contain application layer firewalls and strong authentication.
Furthermore, in order to face power supply problems, natural disasters or telecommunication
problems, we should use power generators and UPS in case of a power supply problem, our
data should be saved in a place that is located at another geographical domain in case of
natural disaster and we should use more than one ISP in case of a telecommunication
problem. [6]
REFERENCES
1. The OCTAVE methodology as a risk analysis tool for business resources, Pyka Marek, Januszkiewicz
Paulina ,Academy of Business in Dąbrowa Górnicza, Poland.
2. OCTAVESM* Threat Profiles, Christopher Alberts and Audrey Dorofee, Software Engineering Institute
Carnegie Mellon University.
3. http://www.cisco.com/c/en/us/products/collateral/routers/small-business-srp500-series-services-ready-
platforms/data_sheet_c78-550705.html
4. http://www.cisco.com/c/en/us/products/collateral/routers/rv320-dual-gigabit-wan-vpn-
router/data_sheet_c78-726132.html
5. http://www.cisco.com/c/en/us/products/collateral/switches/small-business-220-series-smart-plus-
switches/datasheet-c78-731284.html
6. CGIAR Network Infrastructure, Security Good Practice Guide ,August 2009
7. Security Assessments, Eckhard Pfluegel
8. Honeypots Revealed ,Mohamed Noordin Yusuff, IT Security Officer , Specialist Dip. Info Security, MA.
Internet Security Mgmt (Ongoing)
Module:
Module Coordinator:

Xevgenis_Michail_CI7130 Network and Information Security

More Related Content

What's hot

Viewers also liked

Similar to Xevgenis_Michail_CI7130 Network and Information Security

Xevgenis_Michail_CI7130 Network and Information Security
