- Legacy Perl code is code that uses outdated practices, has no tests or documentation, and is difficult to understand and modify. It often results from organic growth over many years and developers. - Unit testing legacy code provides safety during refactoring, speeds up development by replacing debugging, and creates regression tests. However, the code's dependencies make it difficult to isolate and test. - Techniques like dependency injection, sprouting, monkey patching, and temporary object reblessing can help break dependencies and make legacy code more testable. Instrumentation with profilers also aids understanding the code.

1. Working Effectively with
Legacy Perl Code
Erik Rantapaa
Frozen Perl 2010

2. What is Legacy Code?

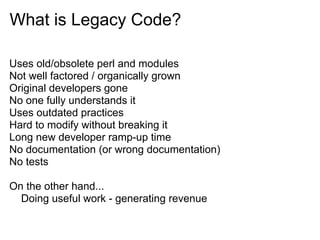

3. What is Legacy Code?
Uses old/obsolete perl and modules
Not well factored / organically grown
Original developers gone
No one fully understands it
Uses outdated practices
Hard to modify without breaking it
Long new developer ramp-up time
No documentation (or wrong documentation)
No tests
On the other hand...
Doing useful work - generating revenue

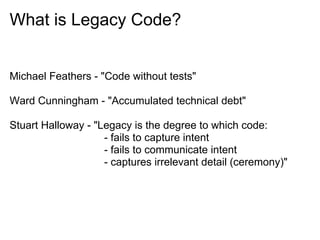

4. What is Legacy Code?
Michael Feathers - "Code without tests"
Ward Cunningham - "Accumulated technical debt"
Stuart Halloway - "Legacy is the degree to which code:
- fails to capture intent
- fails to communicate intent
- captures irrelevant detail (ceremony)"

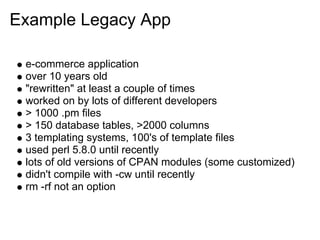

5. Example Legacy App
e-commerce application
over 10 years old
"rewritten" at least a couple of times
worked on by lots of different developers
> 1000 .pm files
> 150 database tables, >2000 columns
3 templating systems, 100's of template files
used perl 5.8.0 until recently
lots of old versions of CPAN modules (some customized)
didn't compile with -cw until recently
rm -rf not an option

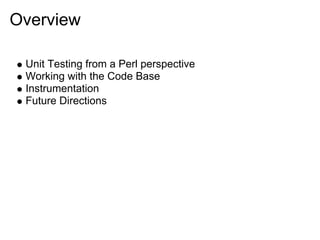

6. Overview
Unit Testing from a Perl perspective
Working with the Code Base
Instrumentation
Future Directions

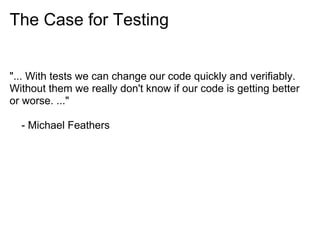

8. The Case for Testing
"... With tests we can change our code quickly and verifiably.
Without them we really don't know if our code is getting better
or worse. ..."
- Michael Feathers

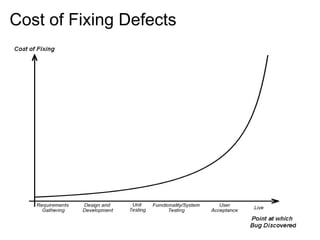

9. Cost of Fixing Defects

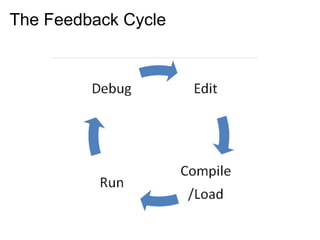

10. The Feedback Cycle

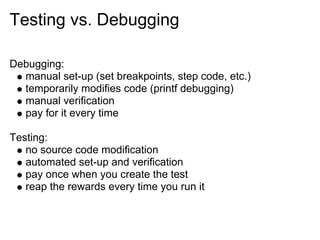

11. Testing vs. Debugging
Debugging:
manual set-up (set breakpoints, step code, etc.)
temporarily modifies code (printf debugging)
manual verification
pay for it every time
Testing:
no source code modification
automated set-up and verification
pay once when you create the test
reap the rewards every time you run it

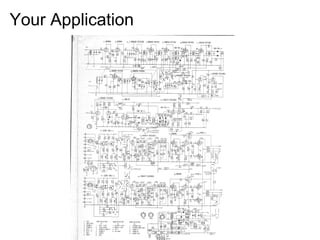

12. Your Application

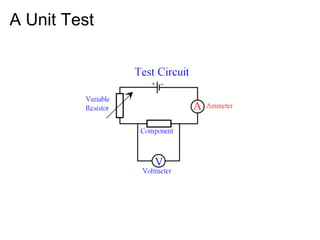

13. A Unit Test

14. Unit Testing
isolates a small piece of functionality
eliminates dependencies on other components through
mocking / substitution
ideally runs quickly
provides automated verification
Benefits:
safety net during refactoring
after refactoring becomes a regression test
speeds up the Edit-Compile-Run-Debug cycle

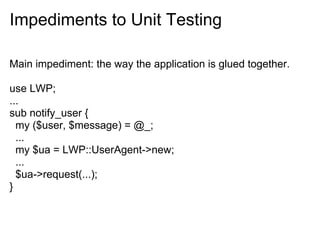

15. Impediments to Unit Testing
Main impediment: the way the application is glued together.
use LWP;
...
sub notify_user {
my ($user, $message) = @_;
...
my $ua = LWP::UserAgent->new;
...
$ua->request(...);
}

16. Strongly Coupled Concerns
sub emit_html {
}

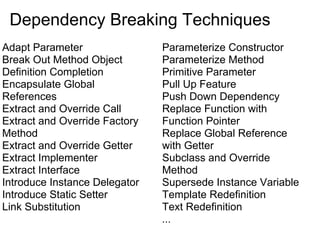

17. Dependency Breaking Techniques
Adapt Parameter Parameterize Constructor
Break Out Method Object Parameterize Method
Definition Completion Primitive Parameter
Encapsulate Global Pull Up Feature
References Push Down Dependency
Extract and Override Call Replace Function with
Extract and Override Factory Function Pointer
Method Replace Global Reference
Extract and Override Getter with Getter
Extract Implementer Subclass and Override
Extract Interface Method
Introduce Instance Delegator Supersede Instance Variable
Introduce Static Setter Template Redefinition
Link Substitution Text Redefinition
...

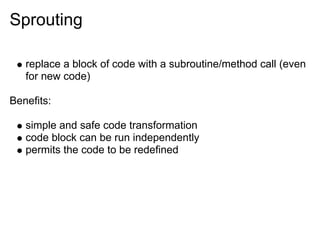

18. Sprouting
replace a block of code with a subroutine/method call (even
for new code)
Benefits:
simple and safe code transformation
code block can be run independently
permits the code to be redefined

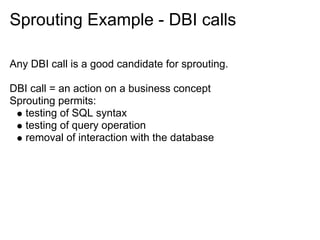

19. Sprouting Example - DBI calls
Any DBI call is a good candidate for sprouting.
DBI call = an action on a business concept
Sprouting permits:
testing of SQL syntax
testing of query operation
removal of interaction with the database

20. Dependency Injection
# use LWP;
...
sub notify_user {
my ($user, $message, $ua ) = @_;
...
# my $ua = LWP::UserAgent->new;
...
$ua->request(...);
}
"Ask for - Don't create"

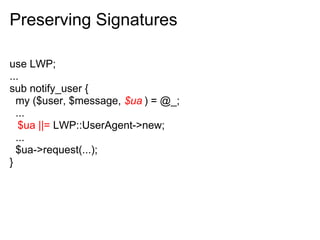

21. Preserving Signatures
use LWP;
...
sub notify_user {
my ($user, $message, $ua ) = @_;
...
$ua ||= LWP::UserAgent->new;
...
$ua->request(...);
}

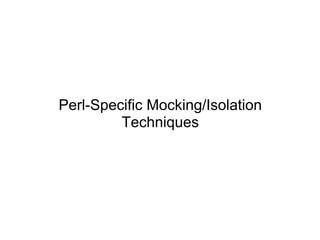

22. Perl-Specific Mocking/Isolation
Techniques

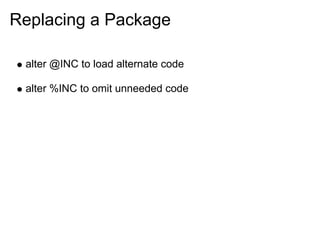

23. Replacing a Package
alter @INC to load alternate code
alter %INC to omit unneeded code

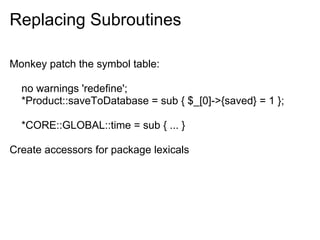

24. Replacing Subroutines
Monkey patch the symbol table:
no warnings 'redefine';
*Product::saveToDatabase = sub { $_[0]->{saved} = 1 };
*CORE::GLOBAL::time = sub { ... }
Create accessors for package lexicals

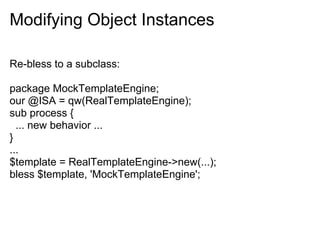

25. Modifying Object Instances
Re-bless to a subclass:
package MockTemplateEngine;
our @ISA = qw(RealTemplateEngine);
sub process {
... new behavior ...
}
...
$template = RealTemplateEngine->new(...);
bless $template, 'MockTemplateEngine';

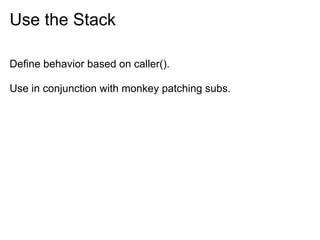

26. Use the Stack
Define behavior based on caller().
Use in conjunction with monkey patching subs.

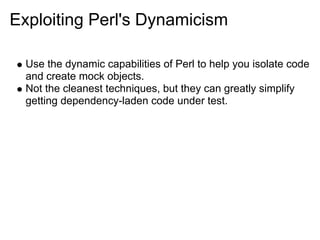

27. Exploiting Perl's Dynamicism
Use the dynamic capabilities of Perl to help you isolate code
and create mock objects.
Not the cleanest techniques, but they can greatly simplify
getting dependency-laden code under test.

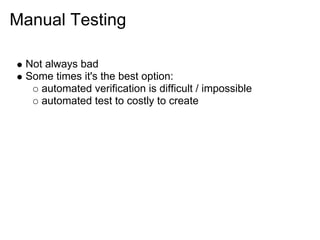

28. Manual Testing
Not always bad
Some times it's the best option:
automated verification is difficult / impossible
automated test to costly to create

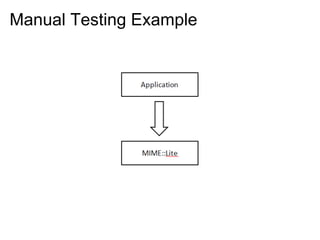

29. Manual Testing Example

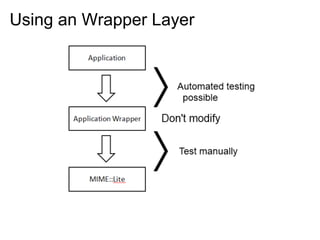

30. Using an Wrapper Layer

31. Real-World Experience
Writing the first test is very difficult
It gets easier!
Biggest win: automated verification
Next biggest win: efficient tests
Manual testing is ok (save what you did!)

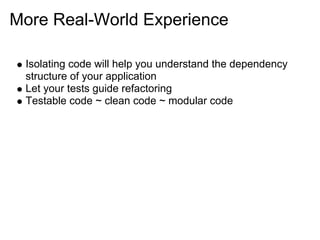

32. More Real-World Experience
Isolating code will help you understand the dependency
structure of your application
Let your tests guide refactoring
Testable code ~ clean code ~ modular code

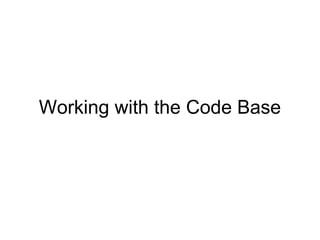

33. Working with the Code Base

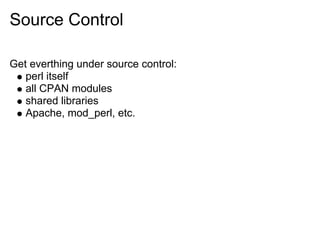

34. Source Control
Get everthing under source control:
perl itself
all CPAN modules
shared libraries
Apache, mod_perl, etc.

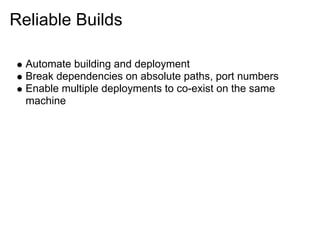

35. Reliable Builds
Automate building and deployment
Break dependencies on absolute paths, port numbers
Enable multiple deployments to co-exist on the same
machine

36. Logging
make logs easy to access
import logs into a database
automate a daily synopsis
SELECT count(*), substr(message, 0, 50) as "key"
FROM log_message
WHERE log_time BETWEEN ... AND ...
GROUP BY key
ORDER BY count(*) DESC;

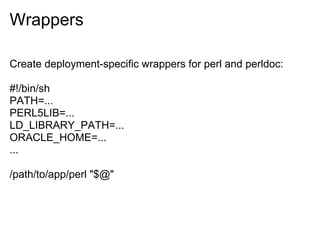

37. Wrappers
Create deployment-specific wrappers for perl and perldoc:
#!/bin/sh
PATH=...
PERL5LIB=...
LD_LIBRARY_PATH=...
ORACLE_HOME=...
...
/path/to/app/perl "$@"

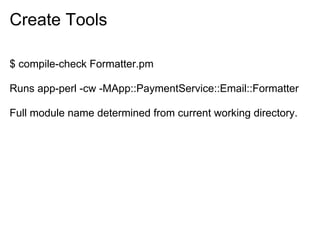

38. Create Tools
$ compile-check Formatter.pm
Runs app-perl -cw -MApp::PaymentService::Email::Formatter
Full module name determined from current working directory.

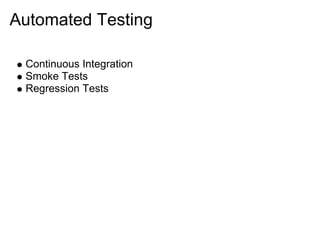

39. Automated Testing
Continuous Integration
Smoke Tests
Regression Tests

40. Instrumentation

41. Devel::NYTProf
Pros:
full instrumentation of your code
timing statistics on a per-line basis
call-graphs, heat map
useful for
Cons:
big performance hit (not suitable for production)
you need to drive it
Also see Aspect::Library::NYTProf for targeted profiling

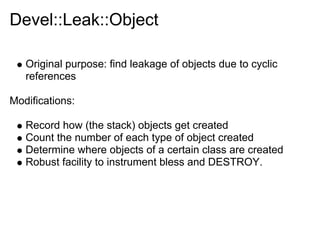

42. Devel::Leak::Object
Original purpose: find leakage of objects due to cyclic
references
Modifications:
Record how (the stack) objects get created
Count the number of each type of object created
Determine where objects of a certain class are created
Robust facility to instrument bless and DESTROY.

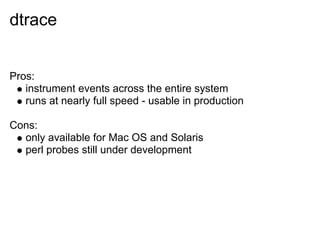

43. dtrace
Pros:
instrument events across the entire system
runs at nearly full speed - usable in production
Cons:
only available for Mac OS and Solaris
perl probes still under development

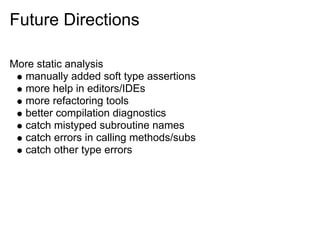

44. Future Directions
More static analysis
manually added soft type assertions
more help in editors/IDEs
more refactoring tools
better compilation diagnostics
catch mistyped subroutine names
catch errors in calling methods/subs
catch other type errors

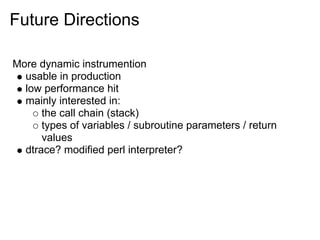

45. Future Directions
More dynamic instrumention
usable in production
low performance hit
mainly interested in:
the call chain (stack)
types of variables / subroutine parameters / return
values
dtrace? modified perl interpreter?

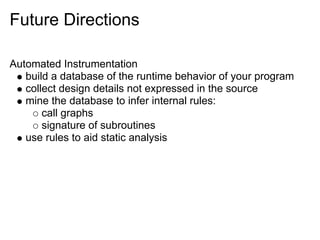

46. Future Directions
Automated Instrumentation
build a database of the runtime behavior of your program
collect design details not expressed in the source
mine the database to infer internal rules:
call graphs
signature of subroutines
use rules to aid static analysis

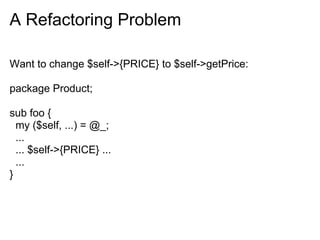

47. A Refactoring Problem
Want to change $self->{PRICE} to $self->getPrice:
package Product;
sub foo {
my ($self, ...) = @_;
...
... $self->{PRICE} ...
...
}

48. A Refactoring Problem
Within package Product → easy!
package Product;
sub getPrice { ... }
sub foo {
my ($self, ...) = @_;
...
... $self->getPrice ... # know type of $self
...
}

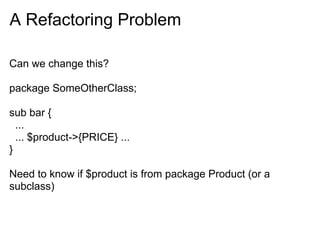

49. A Refactoring Problem
Can we change this?
package SomeOtherClass;
sub bar {
...
... $product->{PRICE} ...
}
Need to know if $product is from package Product (or a
subclass)

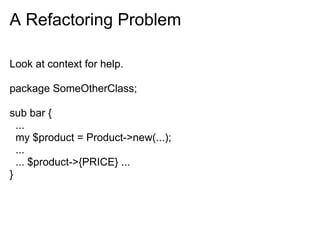

50. A Refactoring Problem
Look at context for help.
package SomeOtherClass;
sub bar {
...
my $product = Product->new(...);
...
... $product->{PRICE} ...
}

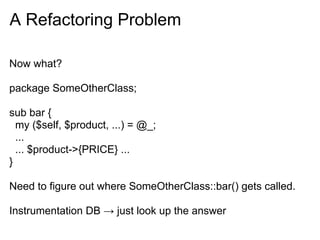

51. A Refactoring Problem
Now what?
package SomeOtherClass;
sub bar {
my ($self, $product, ...) = @_;
...
... $product->{PRICE} ...
}
Need to figure out where SomeOtherClass::bar() gets called.
Instrumentation DB → just look up the answer

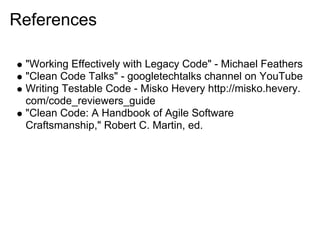

52. References
"Working Effectively with Legacy Code" - Michael Feathers
"Clean Code Talks" - googletechtalks channel on YouTube
Writing Testable Code - Misko Hevery http://misko.hevery.
com/code_reviewers_guide
"Clean Code: A Handbook of Agile Software
Craftsmanship," Robert C. Martin, ed.

53. Thanks!
Feedback, suggestions, experiences?
erantapaa@gmail.com
