Wireless ad hoc distribution
The document discusses wireless distribution of apps to testers. It describes the traditional method of sending the app and provisioning profile to testers as long, boring, and error-prone. The wireless method allows testers to receive a link by email or SMS to install the app. Developers can use tools like iOS Beta Builder or HockeyApp to generate a manifest file and upload the app files to a server, then send testers a link to install the app wirelessly. This wireless approach makes app testing easier for both testers and developers.
Wireless ad hoc distribution

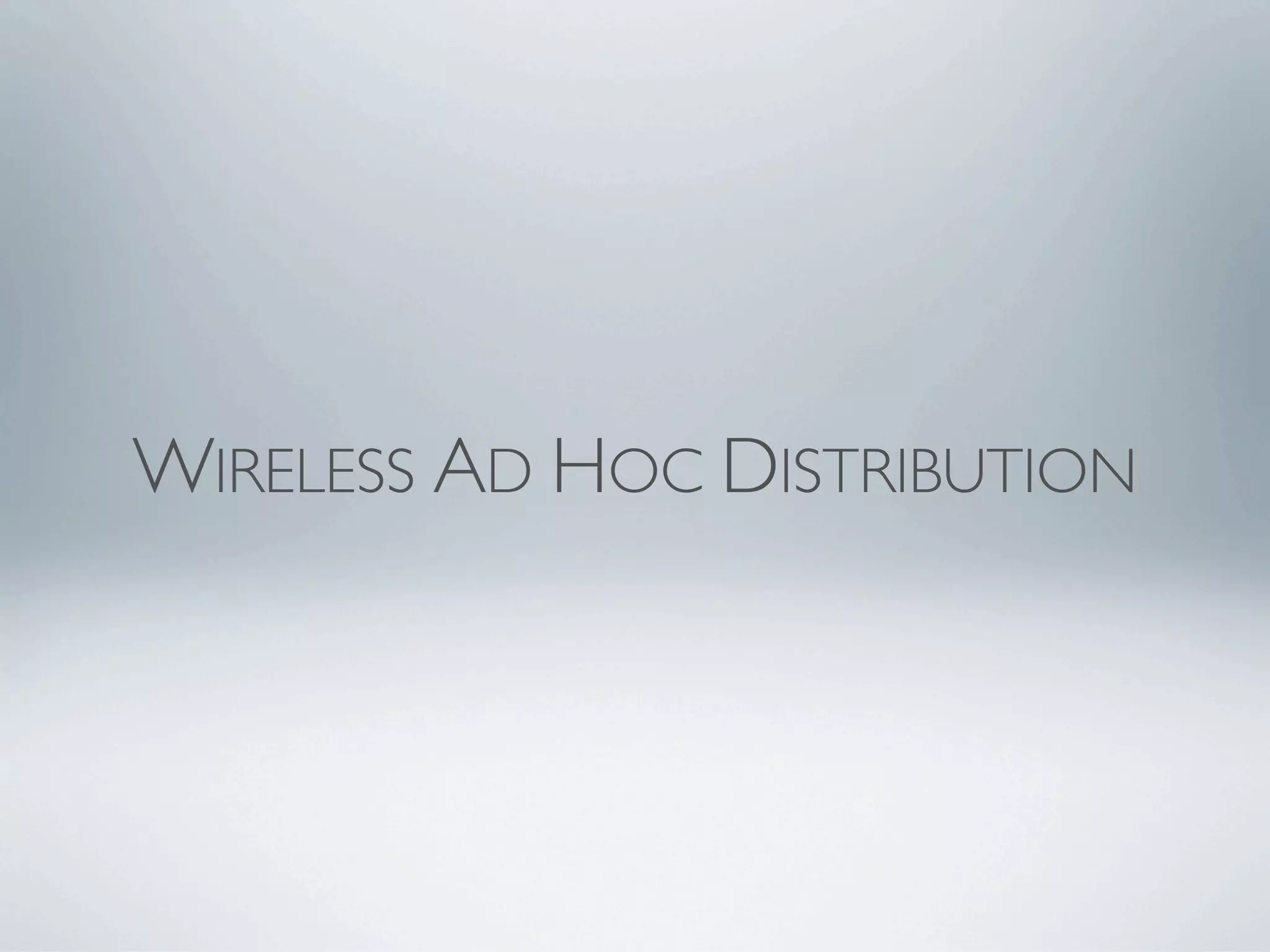

- 2. WIRELESS AD HOCDISTRIBUTION
- 3. WIRELESS AD HOCDISTRIBUTION Mathieu Godart - L’atelier du mobile

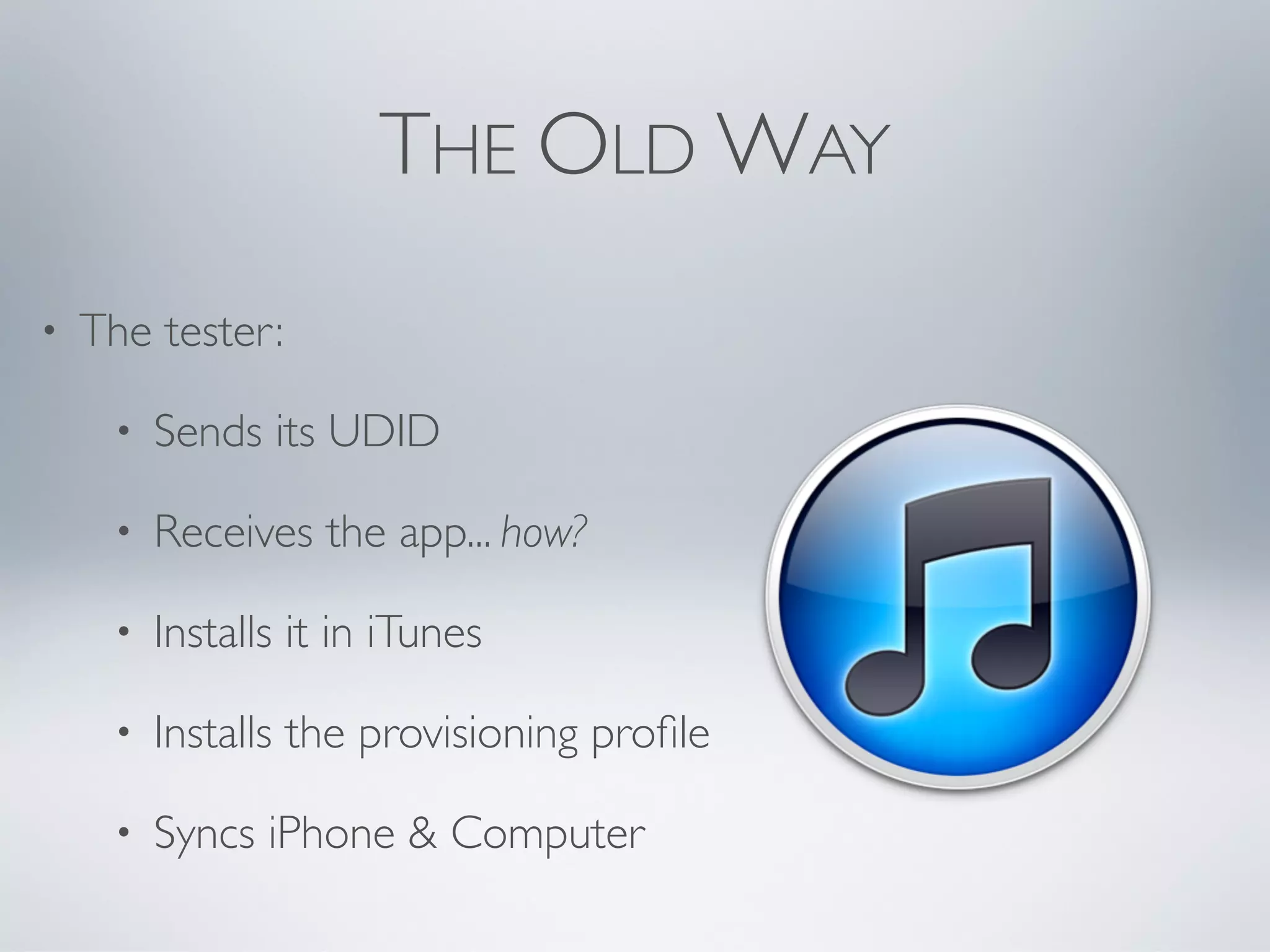

- 4. THE OLD WAY • The tester: • Sends its UDID • Receives the app... how? • Installs it in iTunes • Installs the provisioning profile • Syncs iPhone & Computer

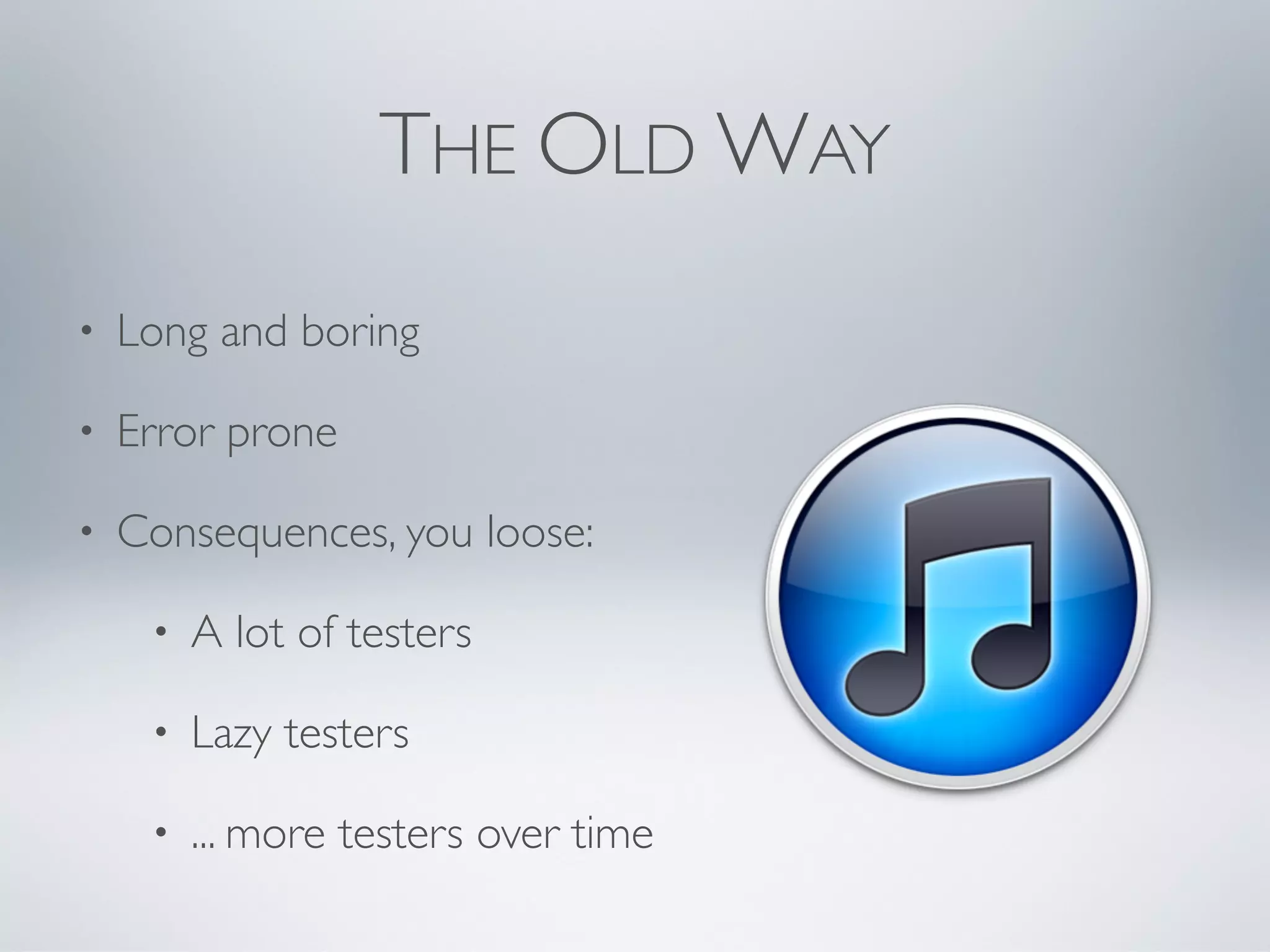

- 5. THE OLD WAY • Long and boring • Error prone • Consequences, you loose: • A lot of testers • Lazy testers • ... more testers over time

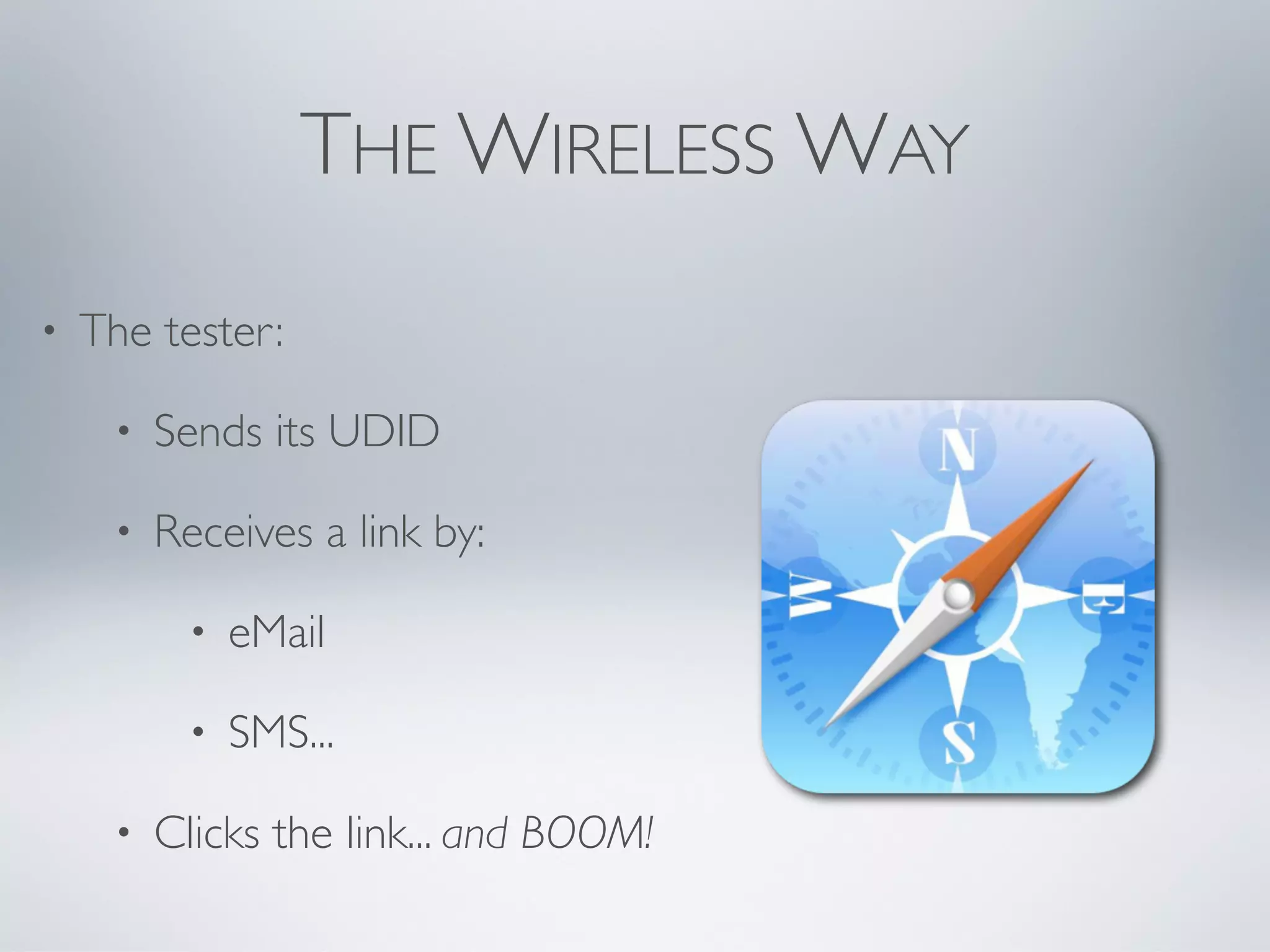

- 6. THE WIRELESS WAY • The tester: • Sends its UDID • Receives a link by: • eMail • SMS... • Clicks the link... and BOOM!

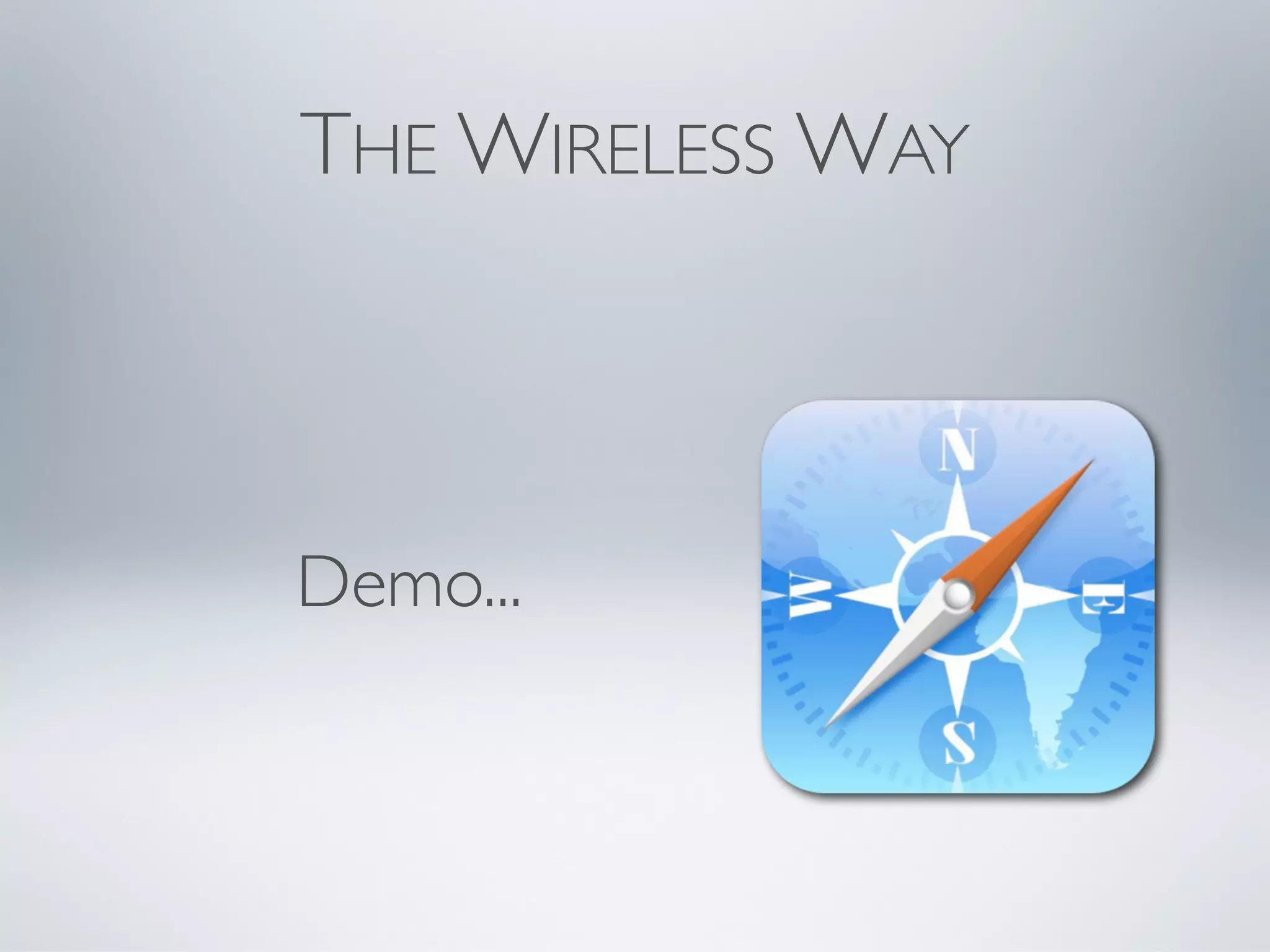

- 7.
- 8. THE WIRELESS WAY You’vegot mail!
- 9. THE WIRELESS WAY ...or through SMS

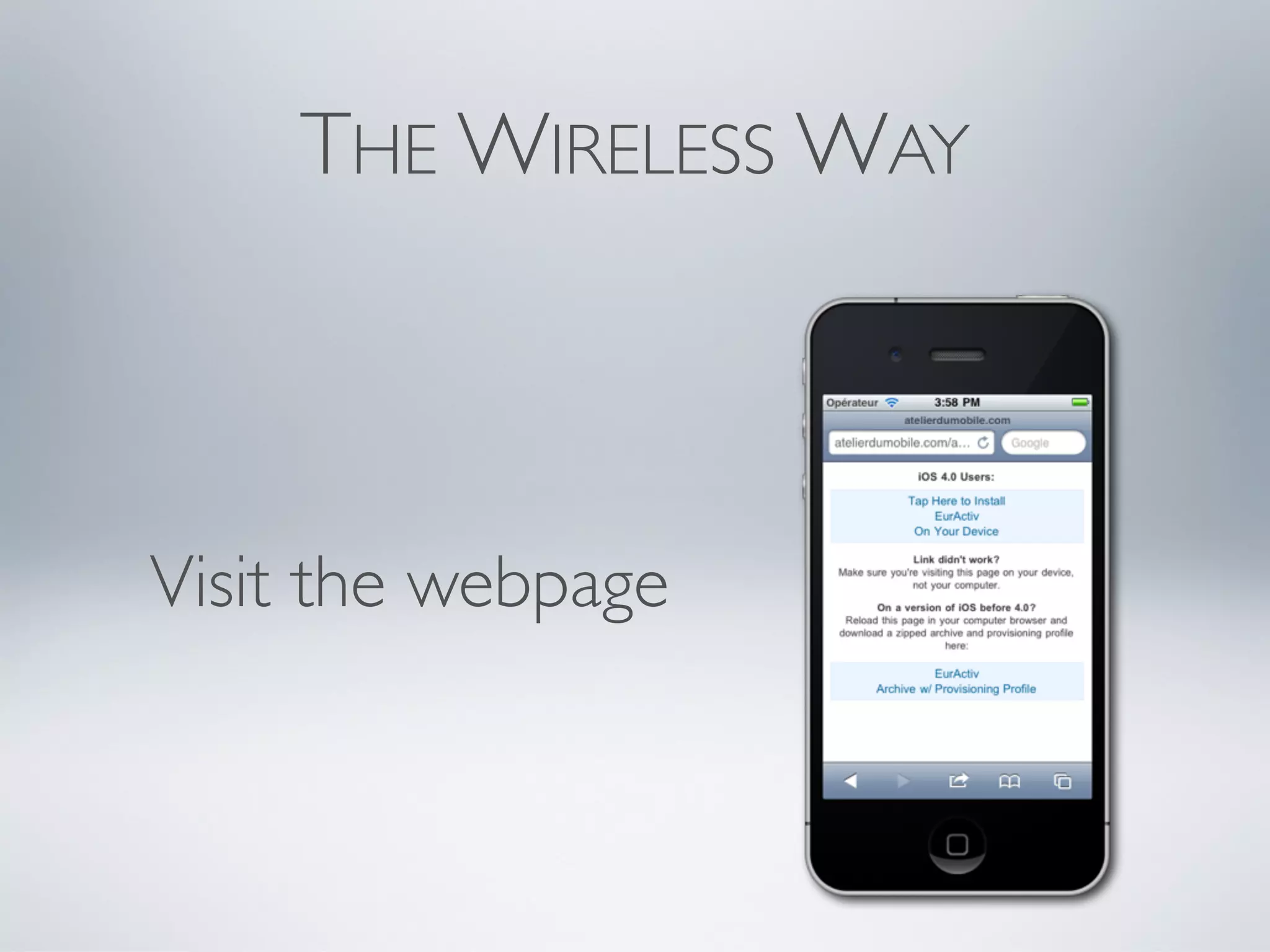

- 10. THE WIRELESS WAY Visitthe webpage

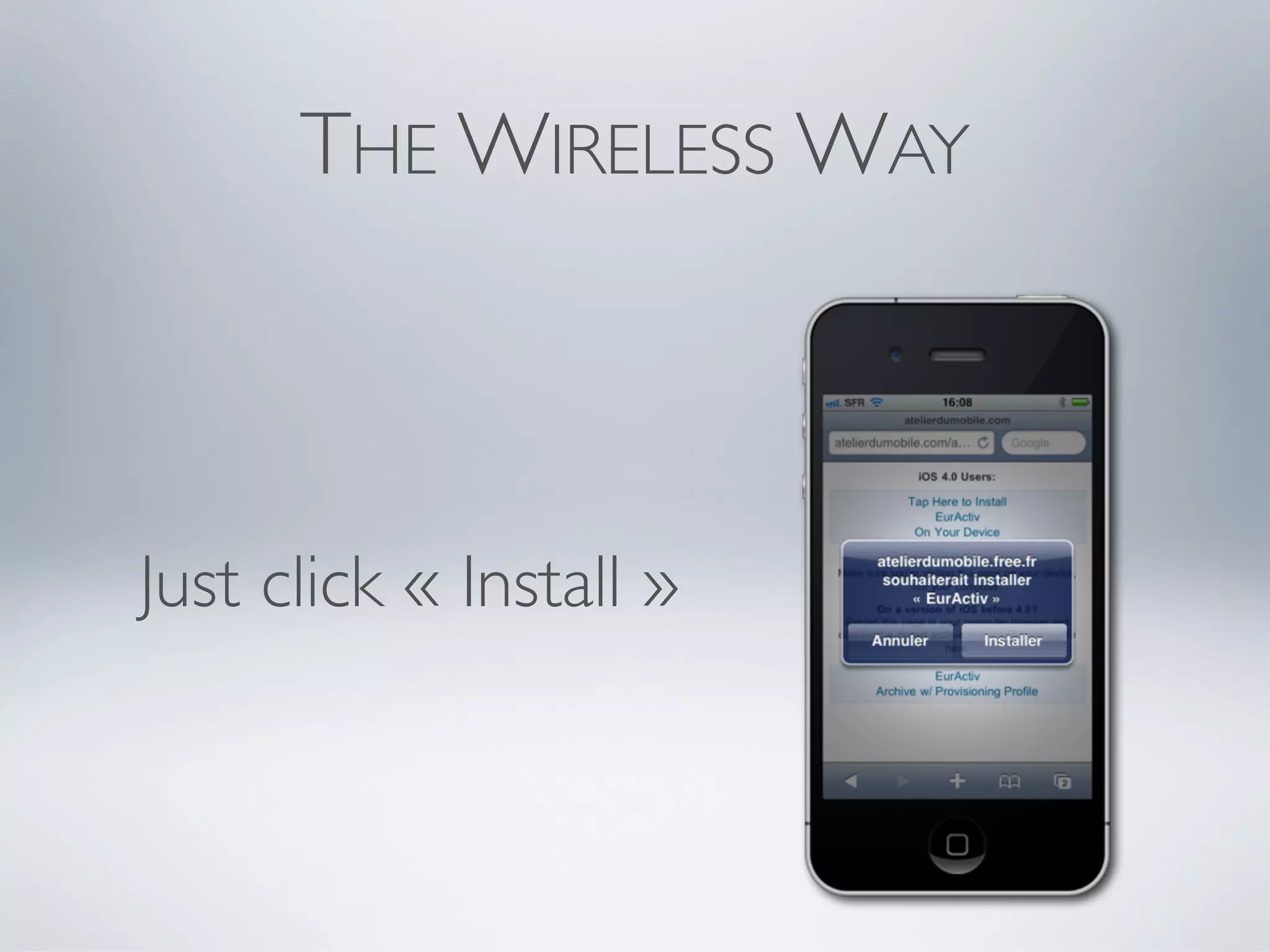

- 11. THE WIRELESS WAY Justclick « Install »

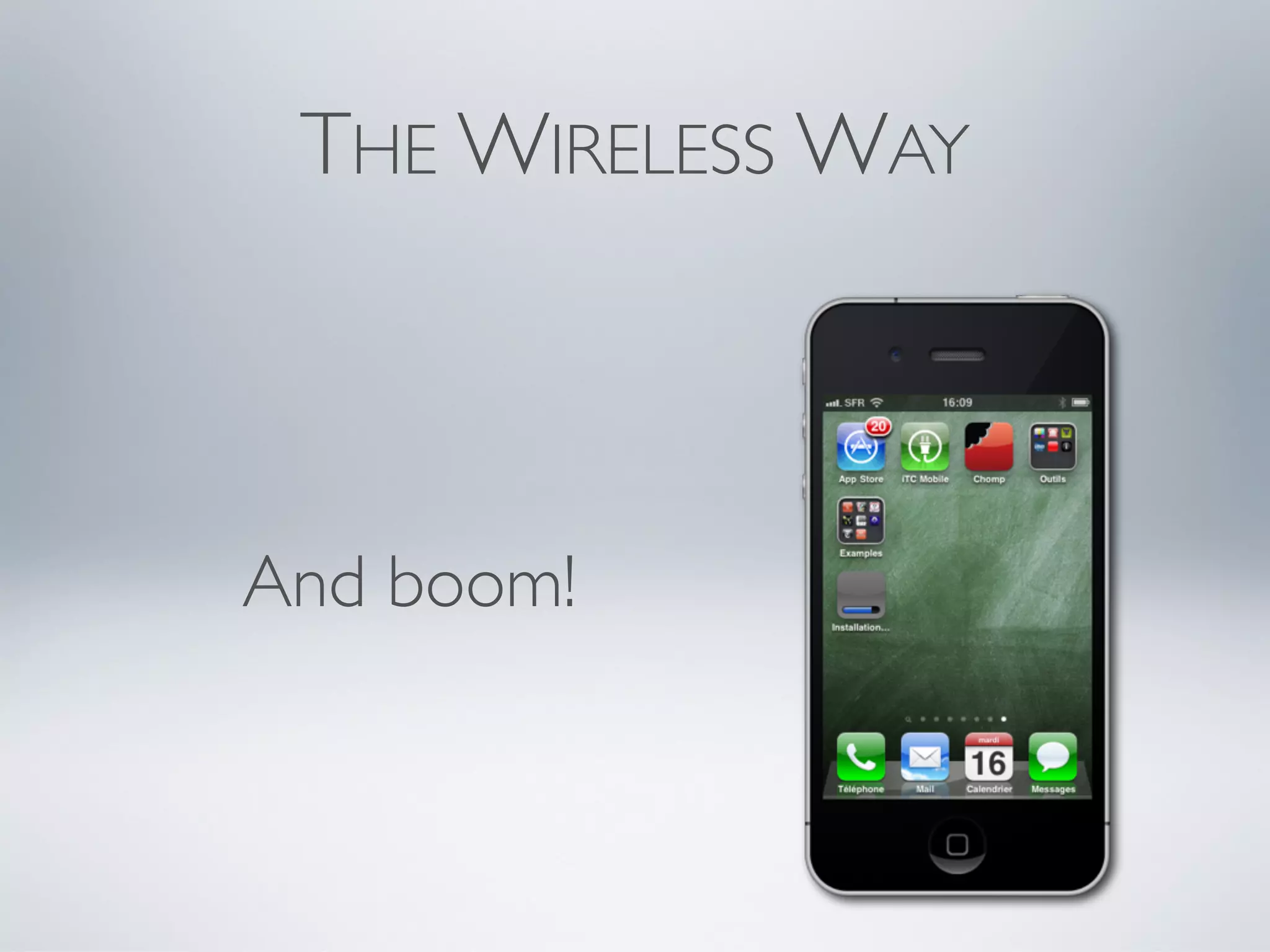

- 12. THE WIRELESS WAY Andboom!

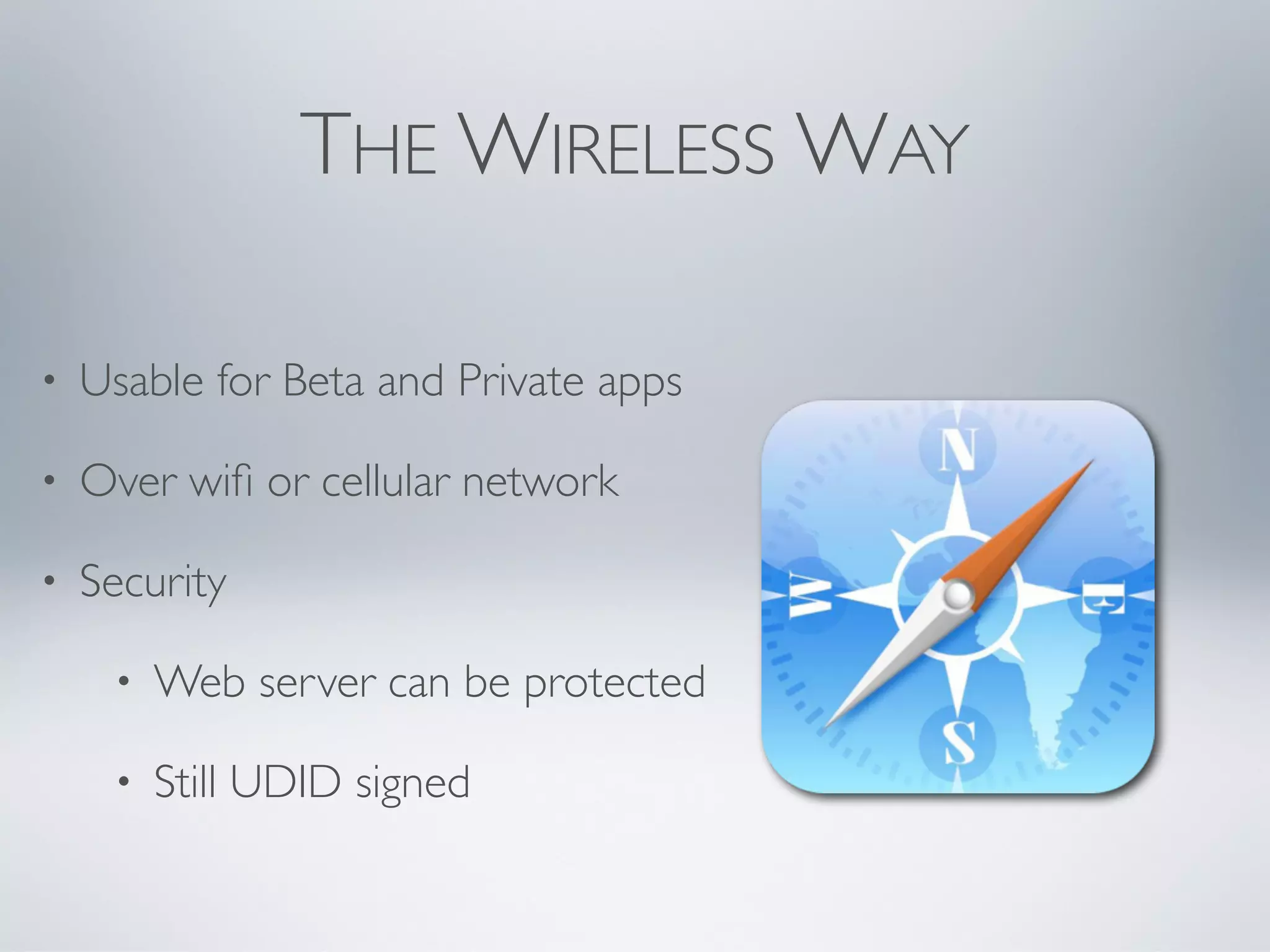

- 13. THE WIRELESS WAY • Usable for Beta and Private apps • Over wifi or cellular network • Security • Web server can be protected • Still UDID signed

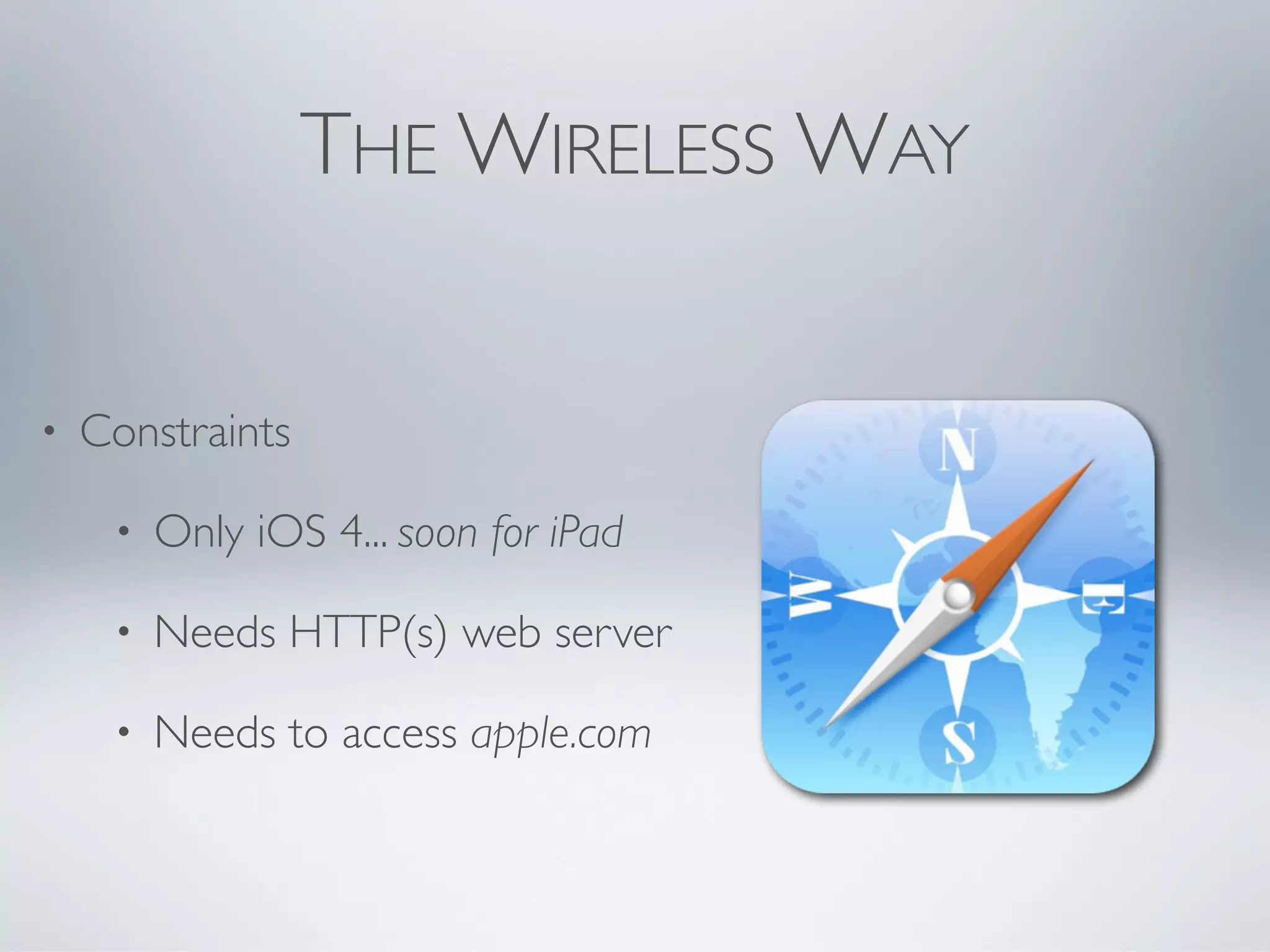

- 14. THE WIRELESS WAY • Constraints • Only iOS 4... soon for iPad • Needs HTTP(s) web server • Needs to access apple.com

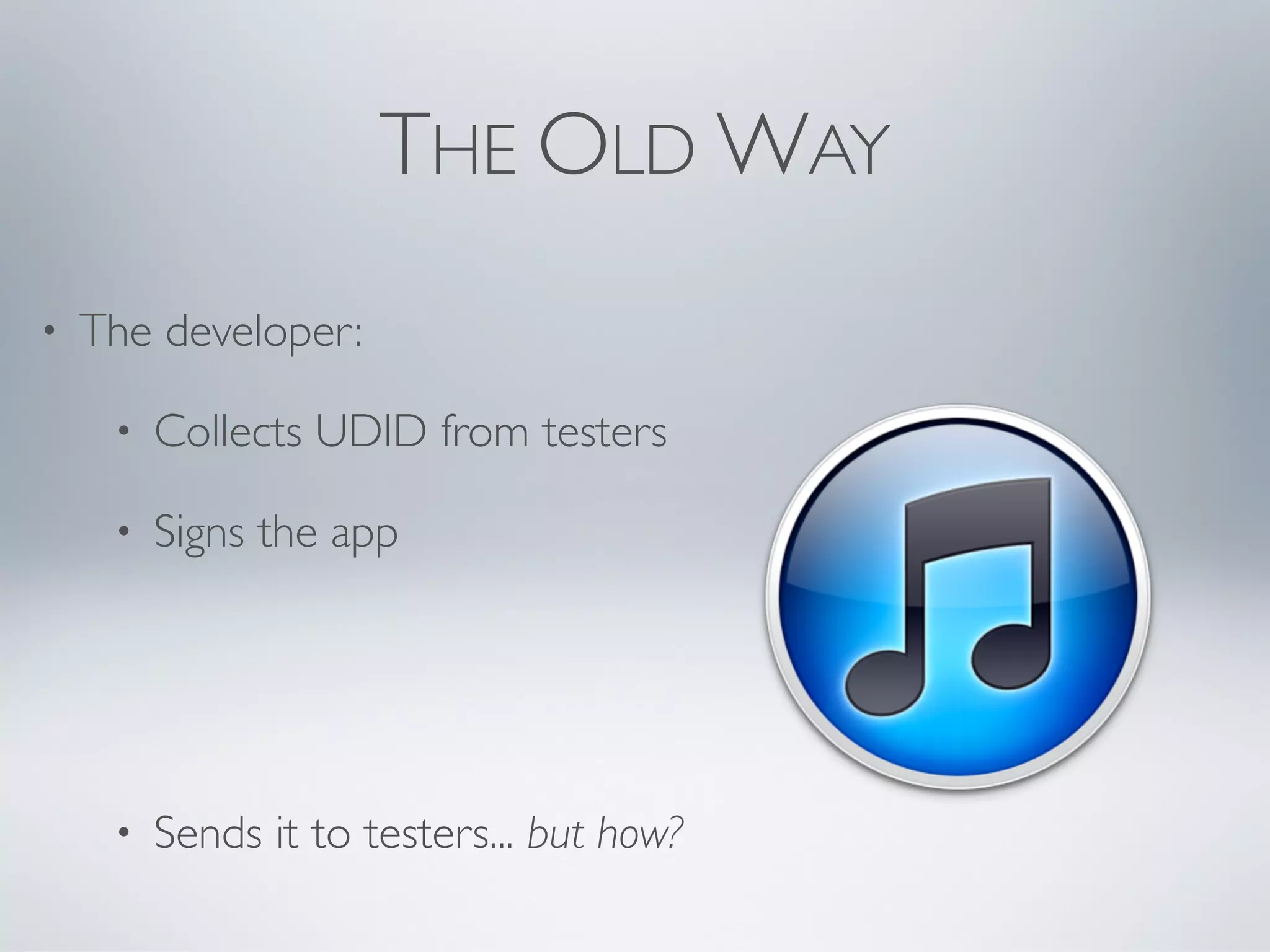

- 15. THE OLD WAY • The developer: • Collects UDID from testers • Signs the app • Sends it to testers... but how?

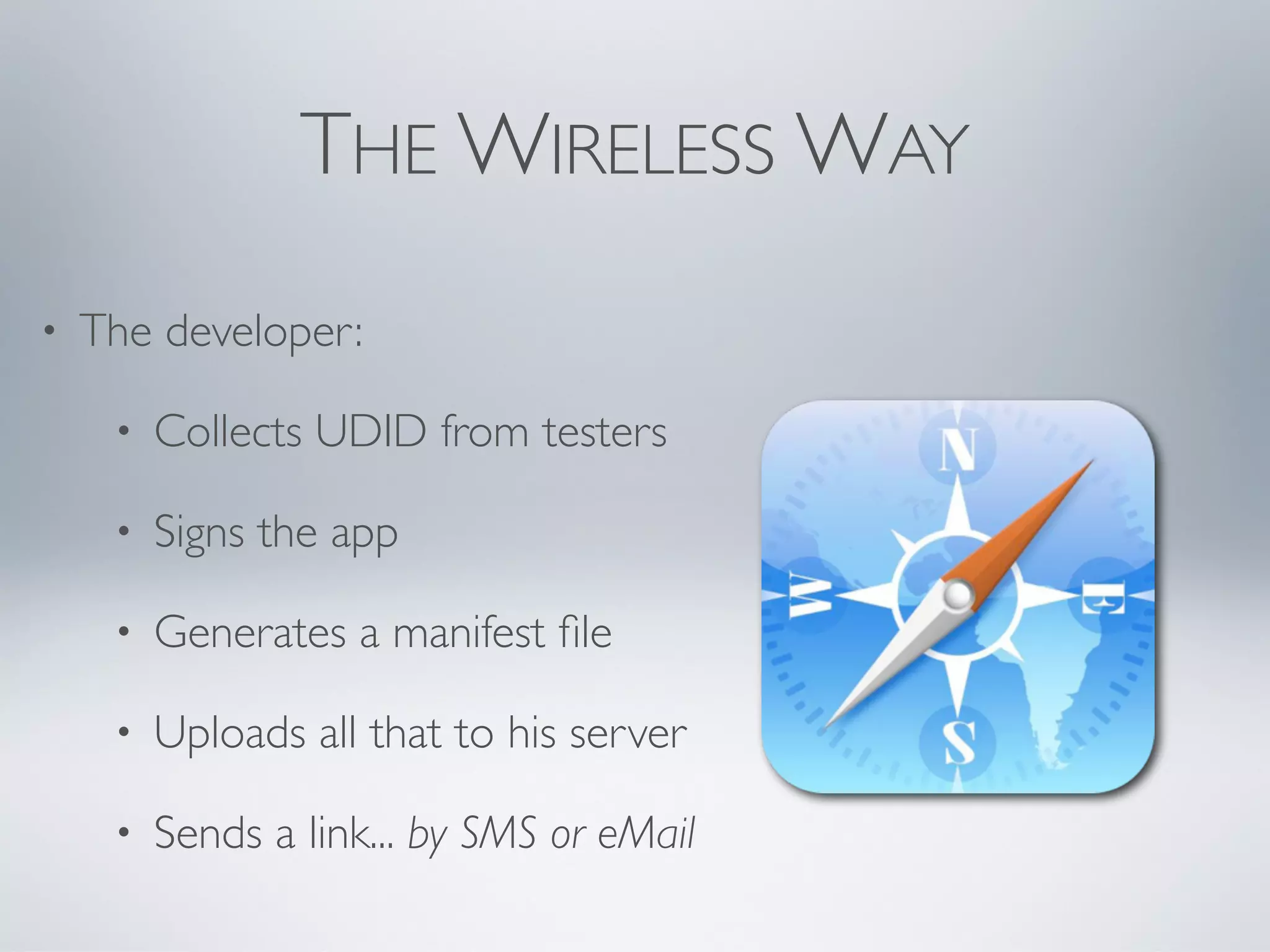

- 16. THE WIRELESS WAY • The developer: • Collects UDID from testers • Signs the app • Generates a manifest file • Uploads all that to his server • Sends a link... by SMS or eMail

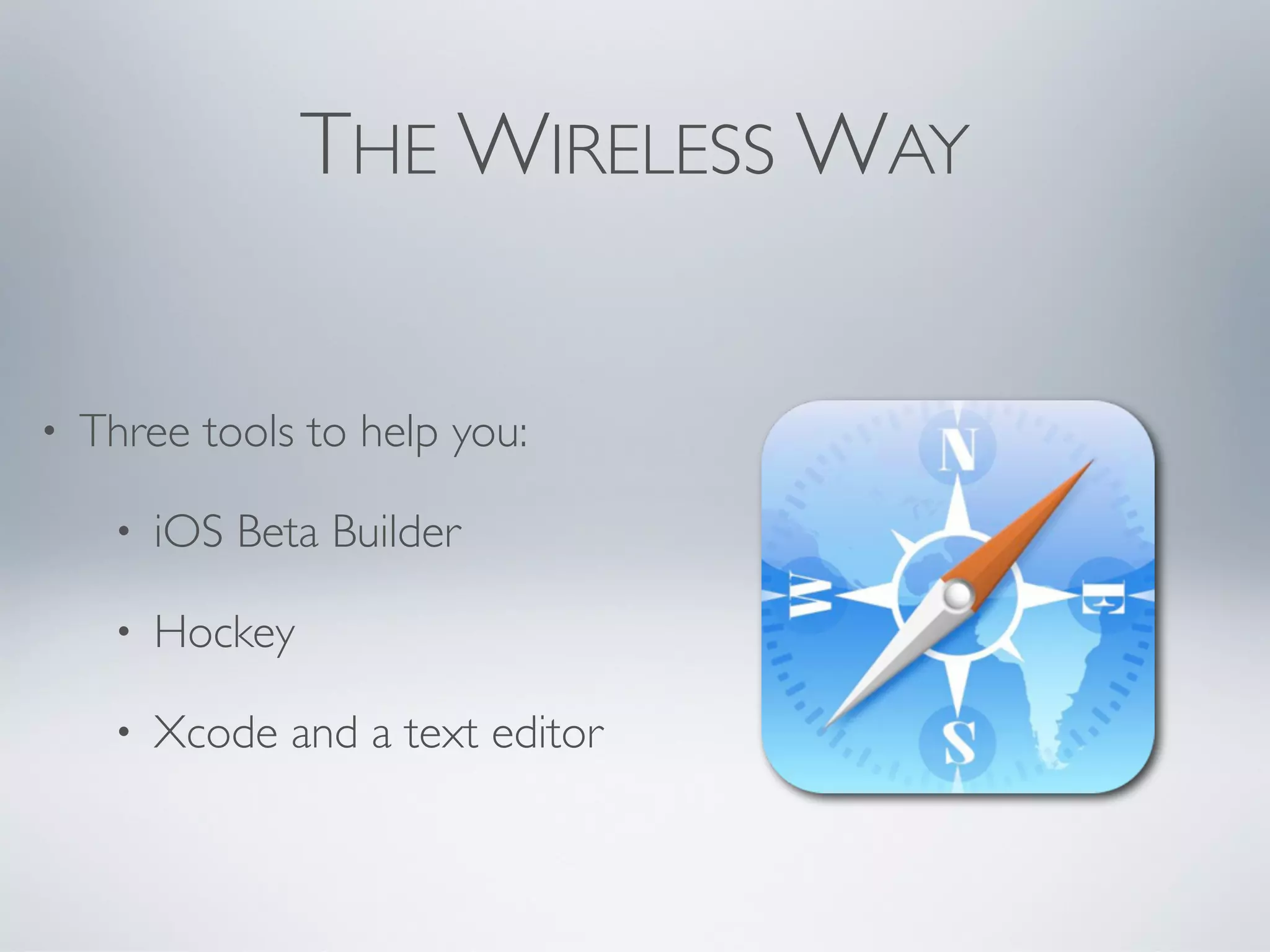

- 17. THE WIRELESS WAY • Three tools to help you: • iOS Beta Builder • Hockey • Xcode and a text editor

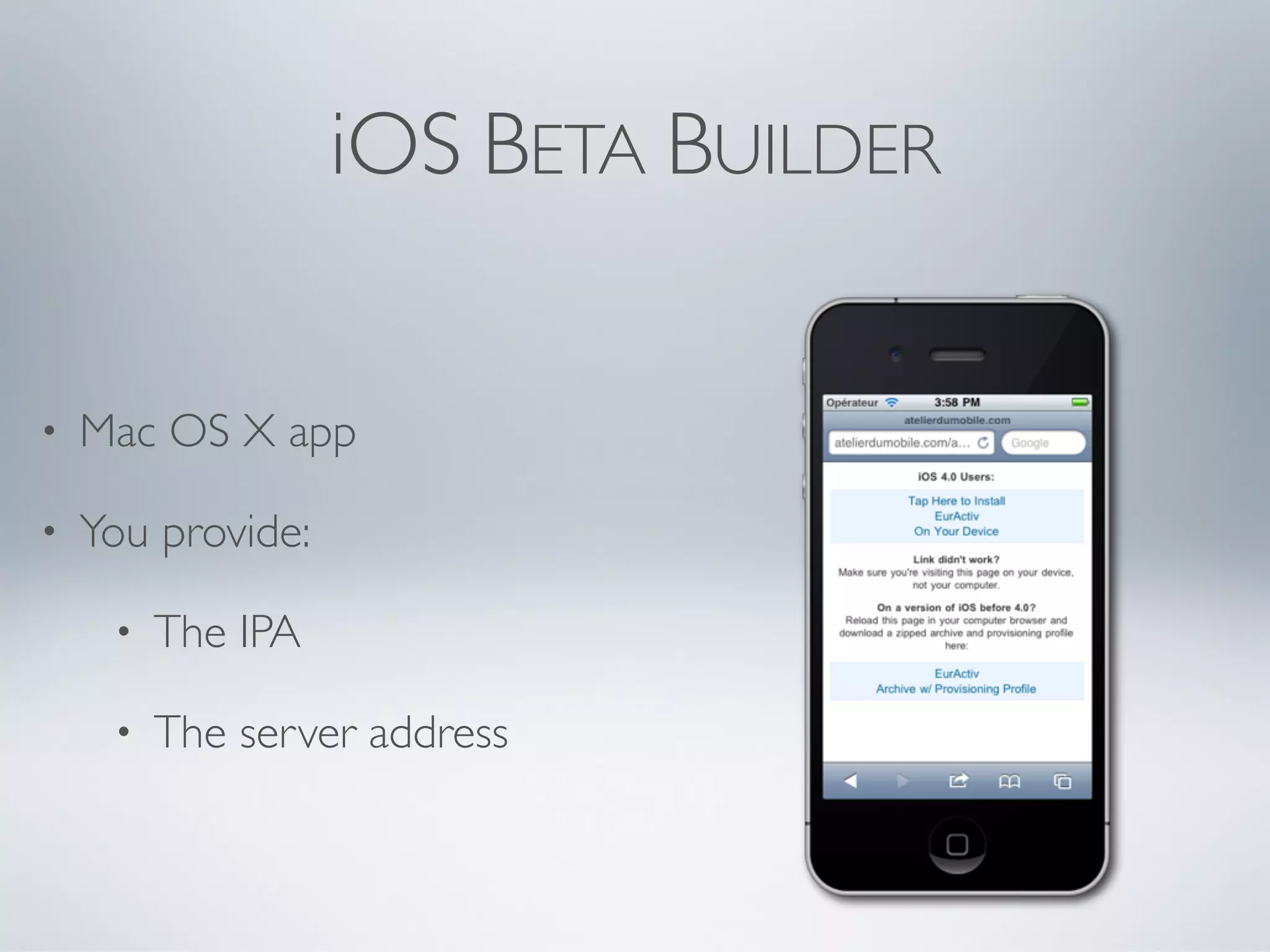

- 18. iOS BETA BUILDER • Mac OS X app • You provide: • The IPA • The server address

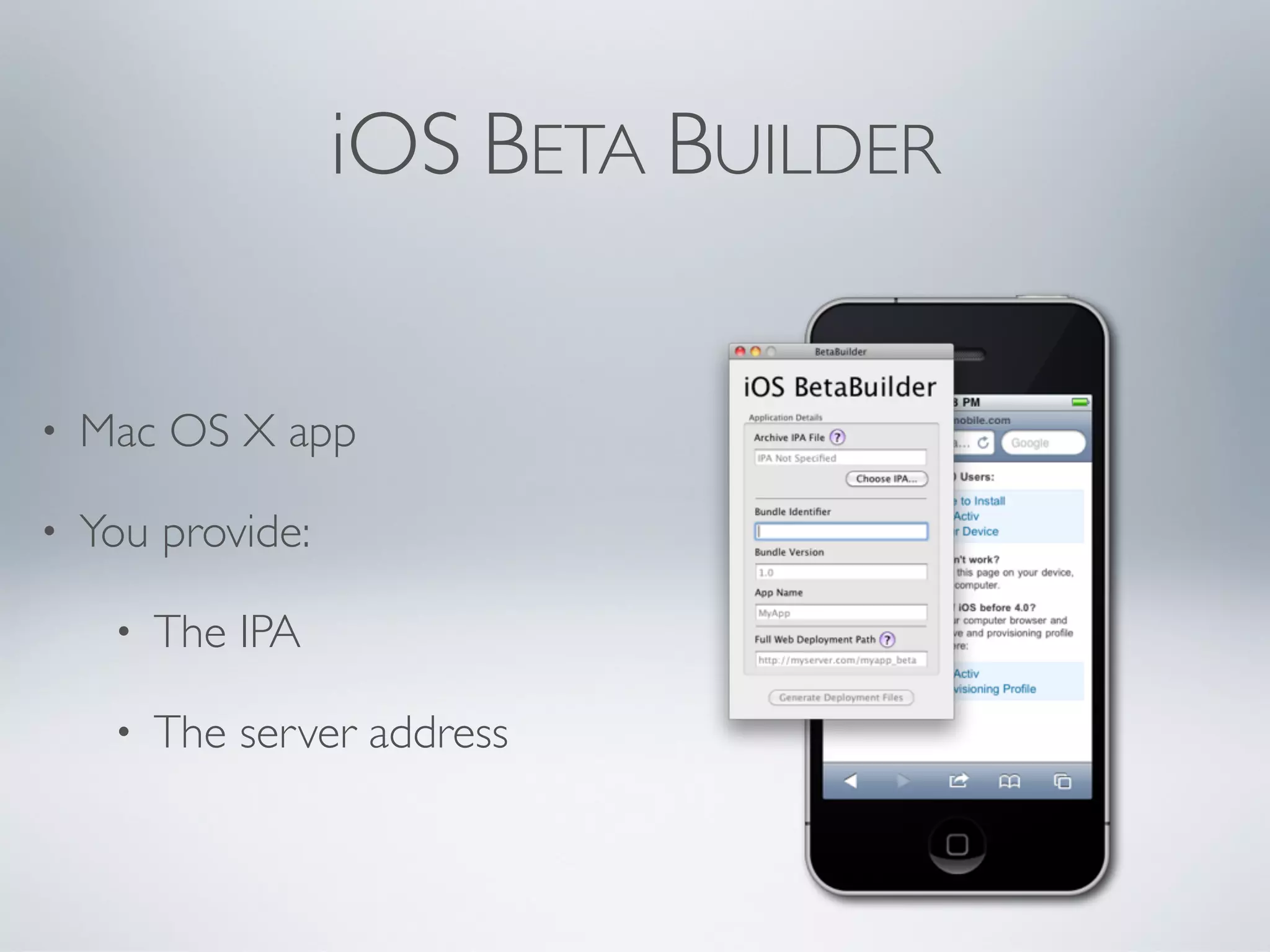

- 19. iOS BETA BUILDER • Mac OS X app • You provide: • The IPA • The server address
- 20. iOS BETA BUILDER • It creates: • Manifest PLIST file • IPA + MPP archive... for iOS 3 • Simple static web page • Just upload all that
- 21. iOS BETA BUILDER • Pros • Easy to use and scriptable • Web page template • Open source

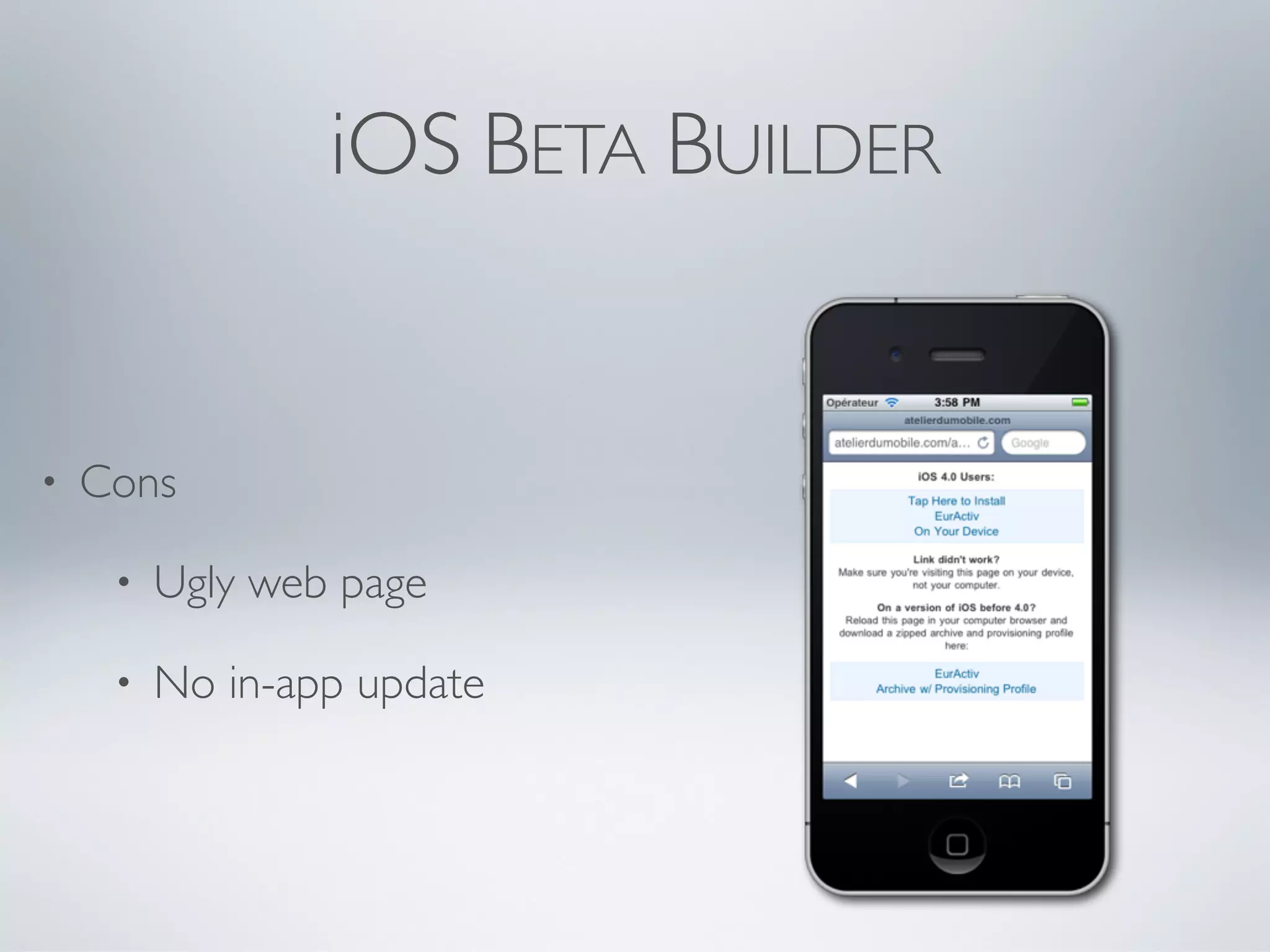

- 22. iOS BETA BUILDER • Cons • Ugly web page • No in-app update

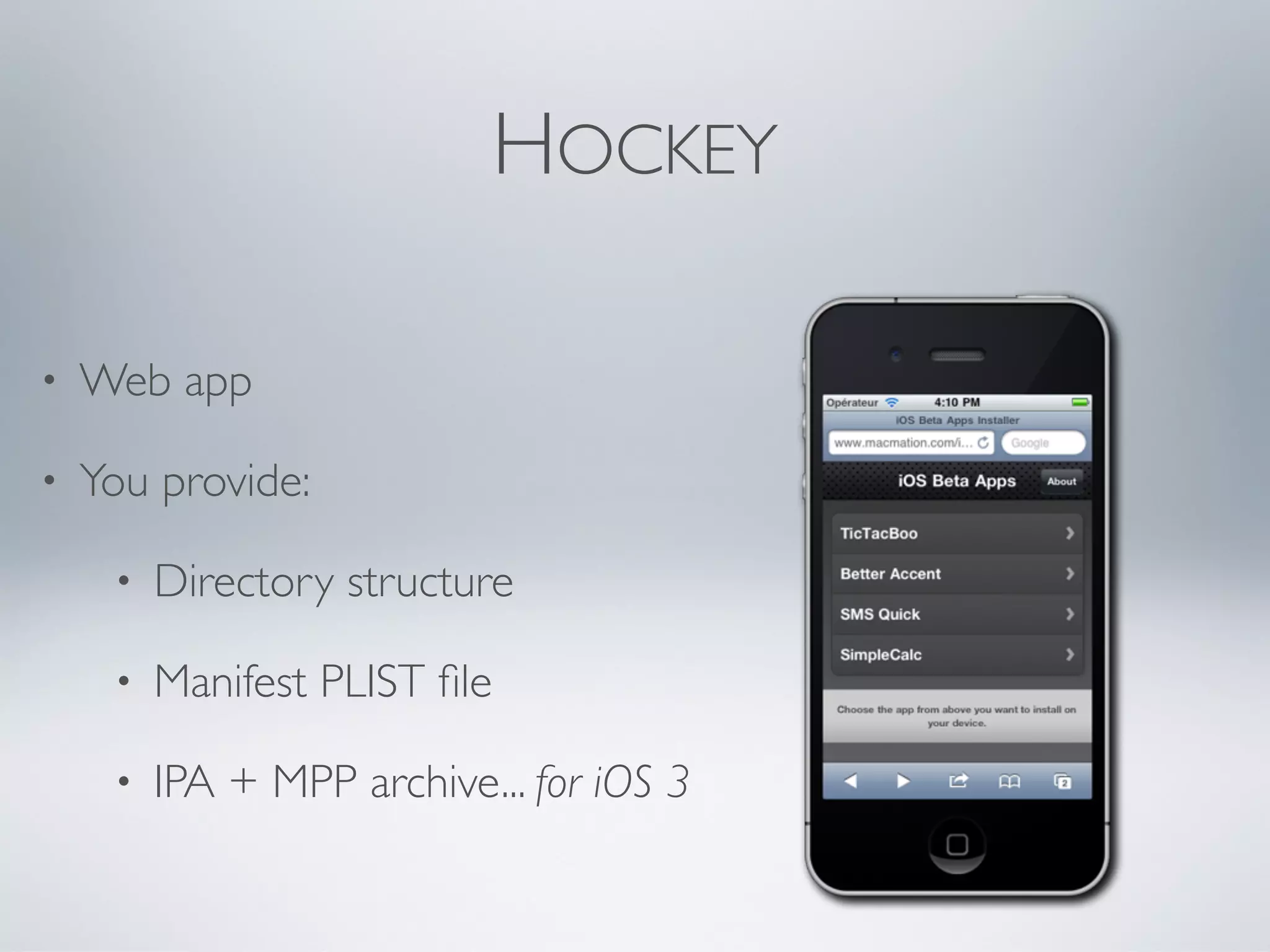

- 23. HOCKEY • Web app • You provide: • Directory structure • Manifest PLIST file • IPA + MPP archive... for iOS 3

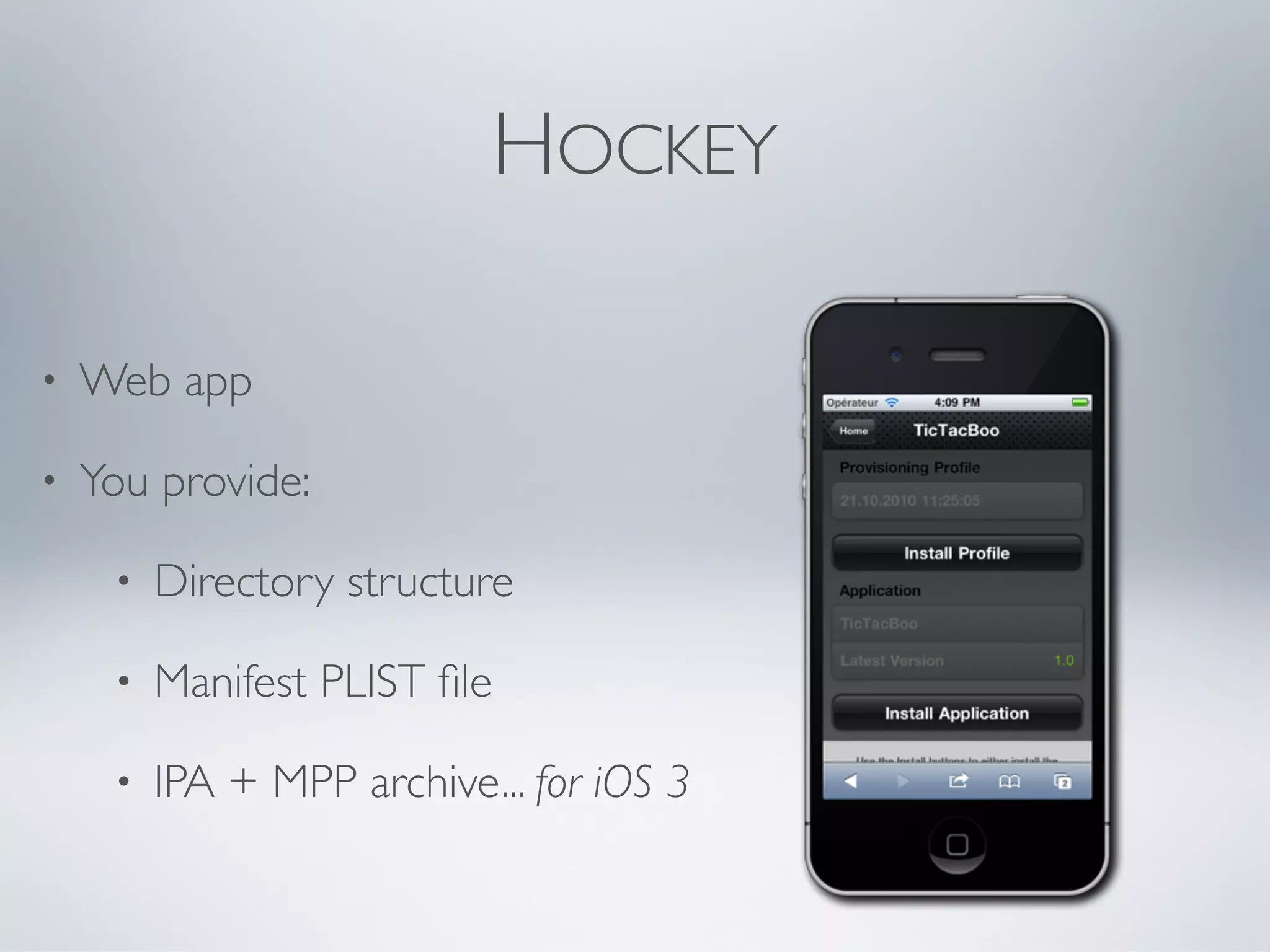

- 24. HOCKEY • Web app • You provide: • Directory structure • Manifest PLIST file • IPA + MPP archive... for iOS 3

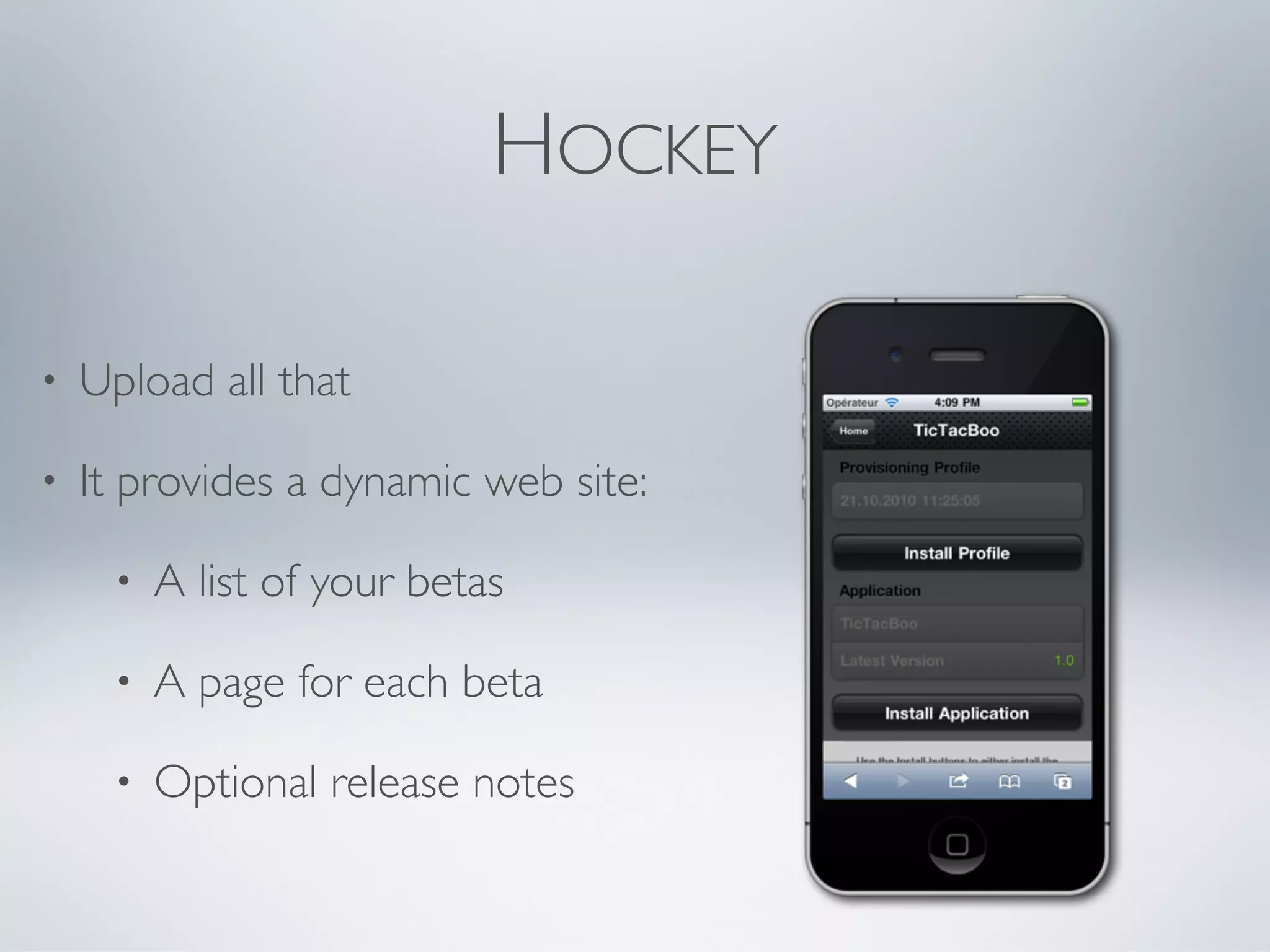

- 25. HOCKEY • Upload all that • It provides a dynamic web site: • A list of your betas • A page for each beta • Optional release notes

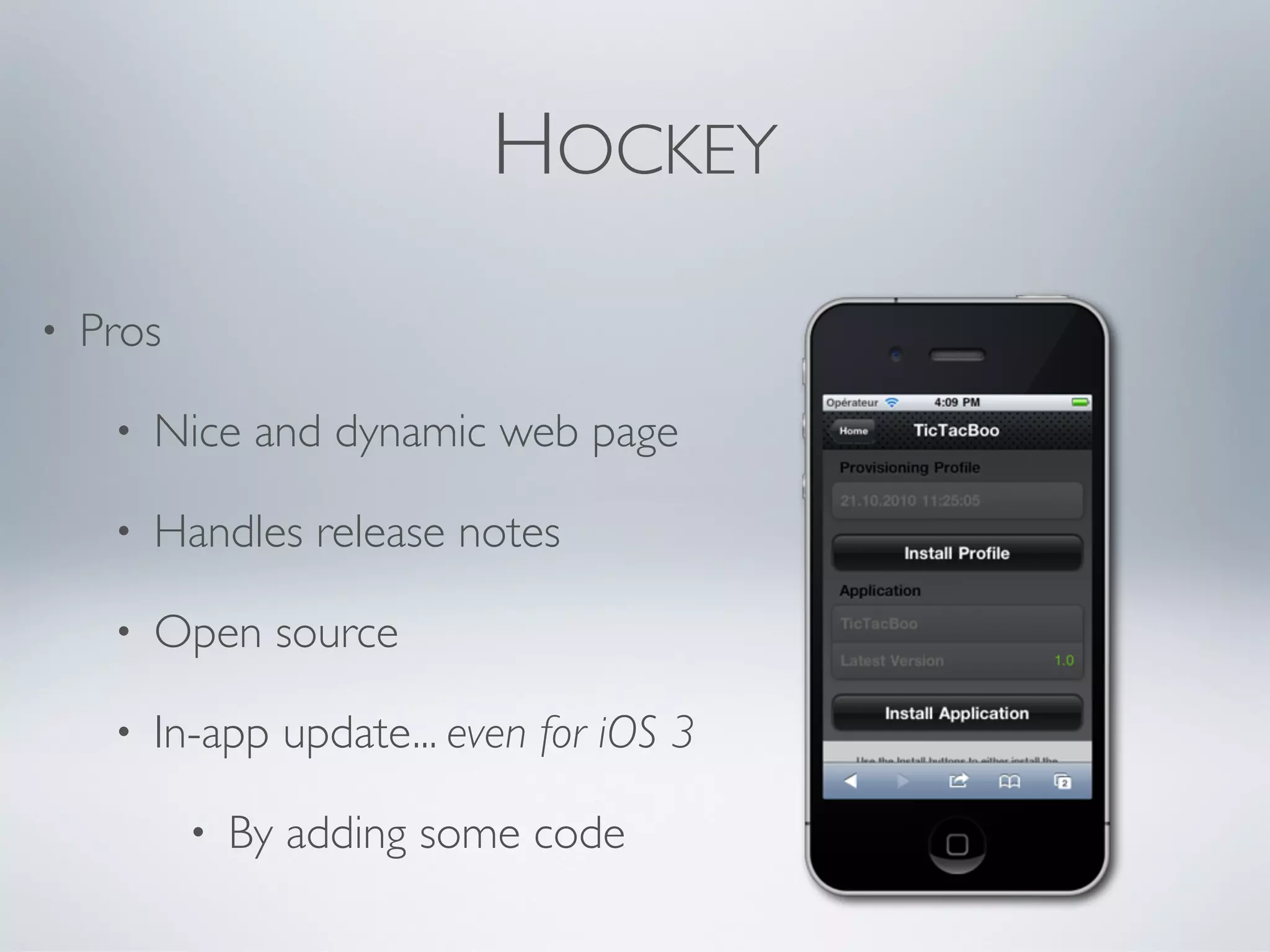

- 26. HOCKEY • Pros • Nice and dynamic web page • Handles release notes • Open source • In-app update... even for iOS 3 • By adding some code

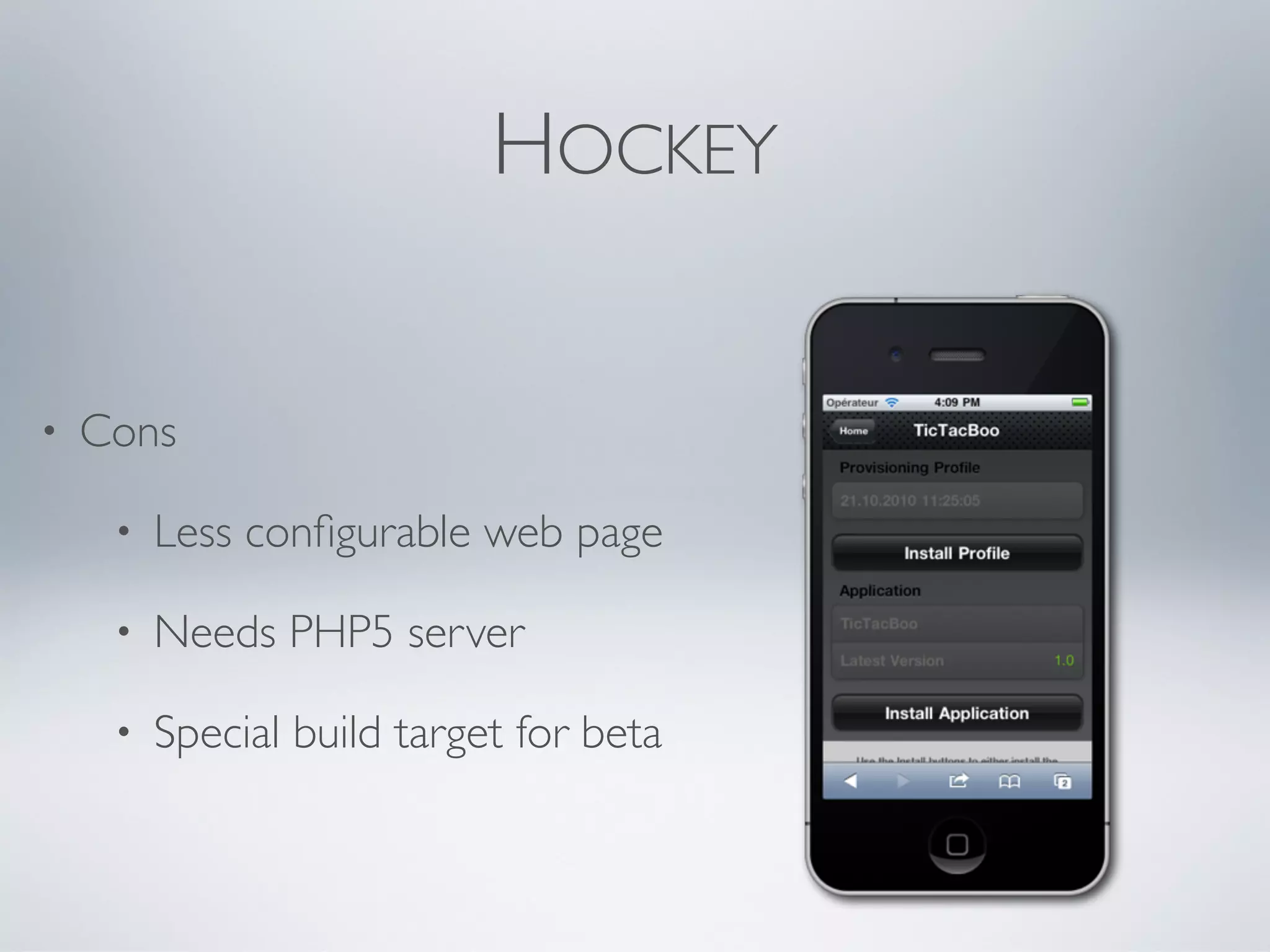

- 27. HOCKEY • Cons • Less configurable web page • Needs PHP5 server • Special build target for beta

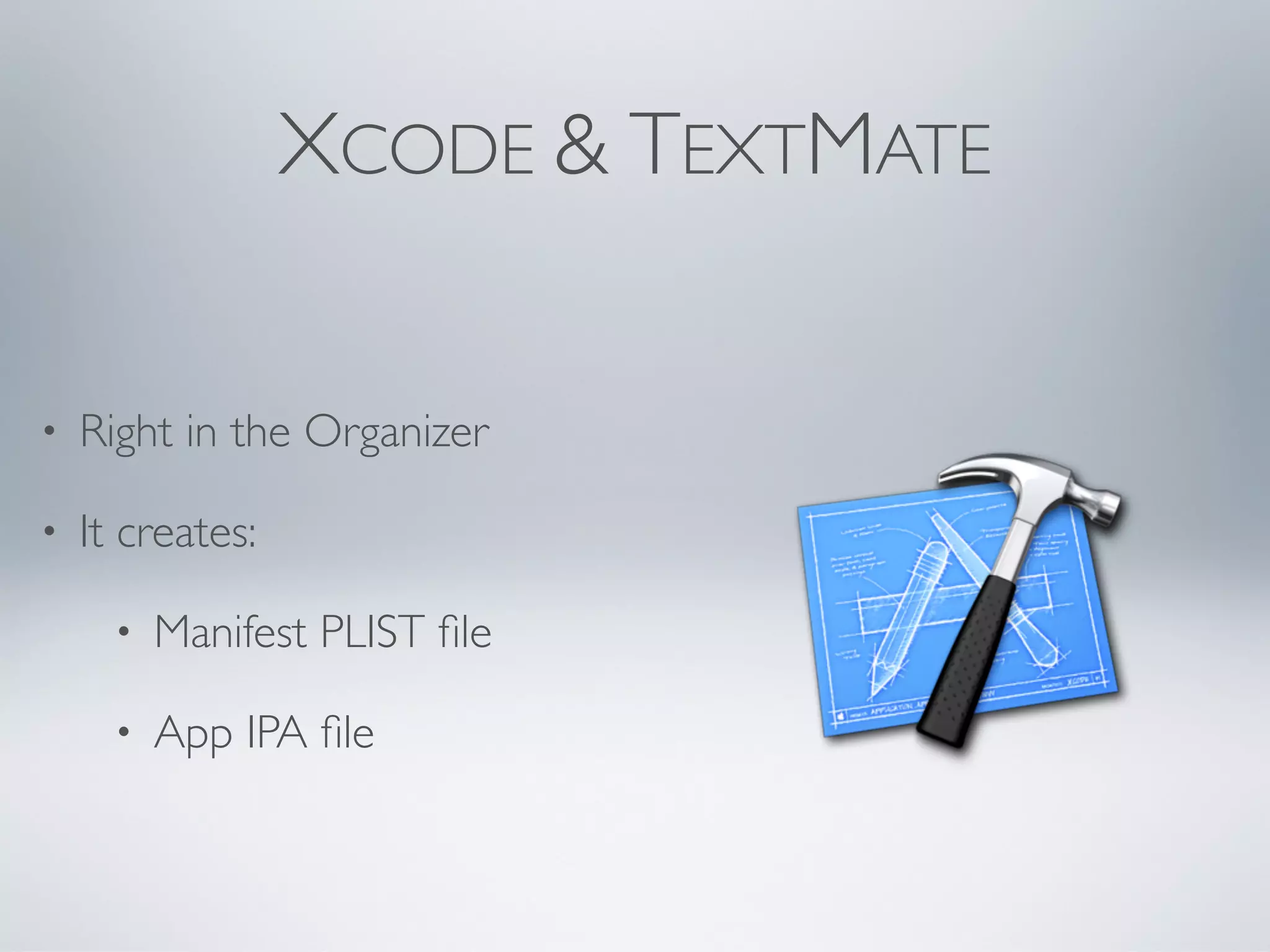

- 28. XCODE & TEXTMATE • Right in the Organizer • It creates: • Manifest PLIST file • App IPA file

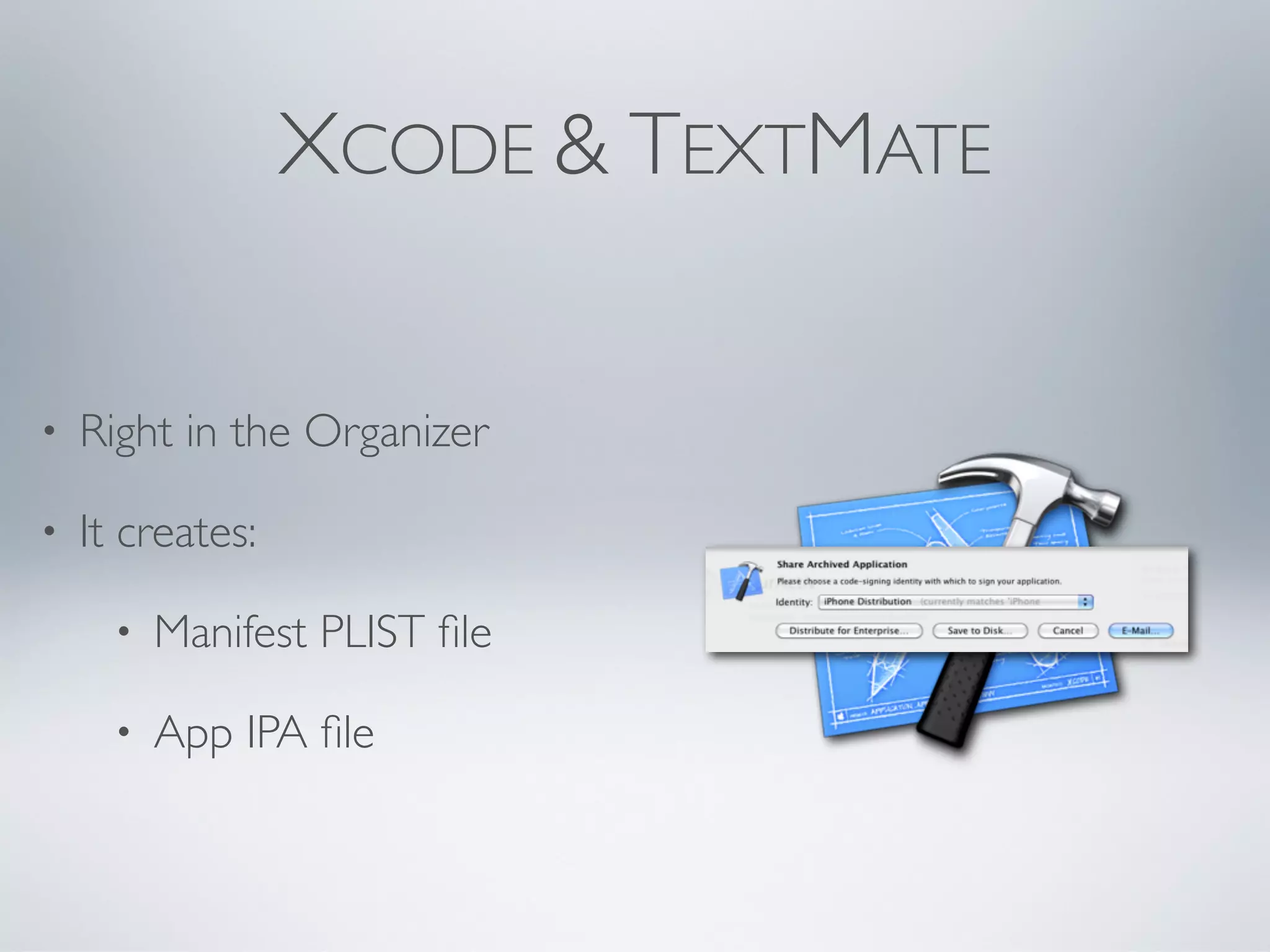

- 29. XCODE & TEXTMATE • Right in the Organizer • It creates: • Manifest PLIST file • App IPA file
- 30. XCODE & TEXTMATE • Add this to any web page: <a href="itms-services://?action=download- manifest&url=http://example.com/manifest.plist"> Click here to install my app</a> • Upload IPA + manifest files • That’s it!

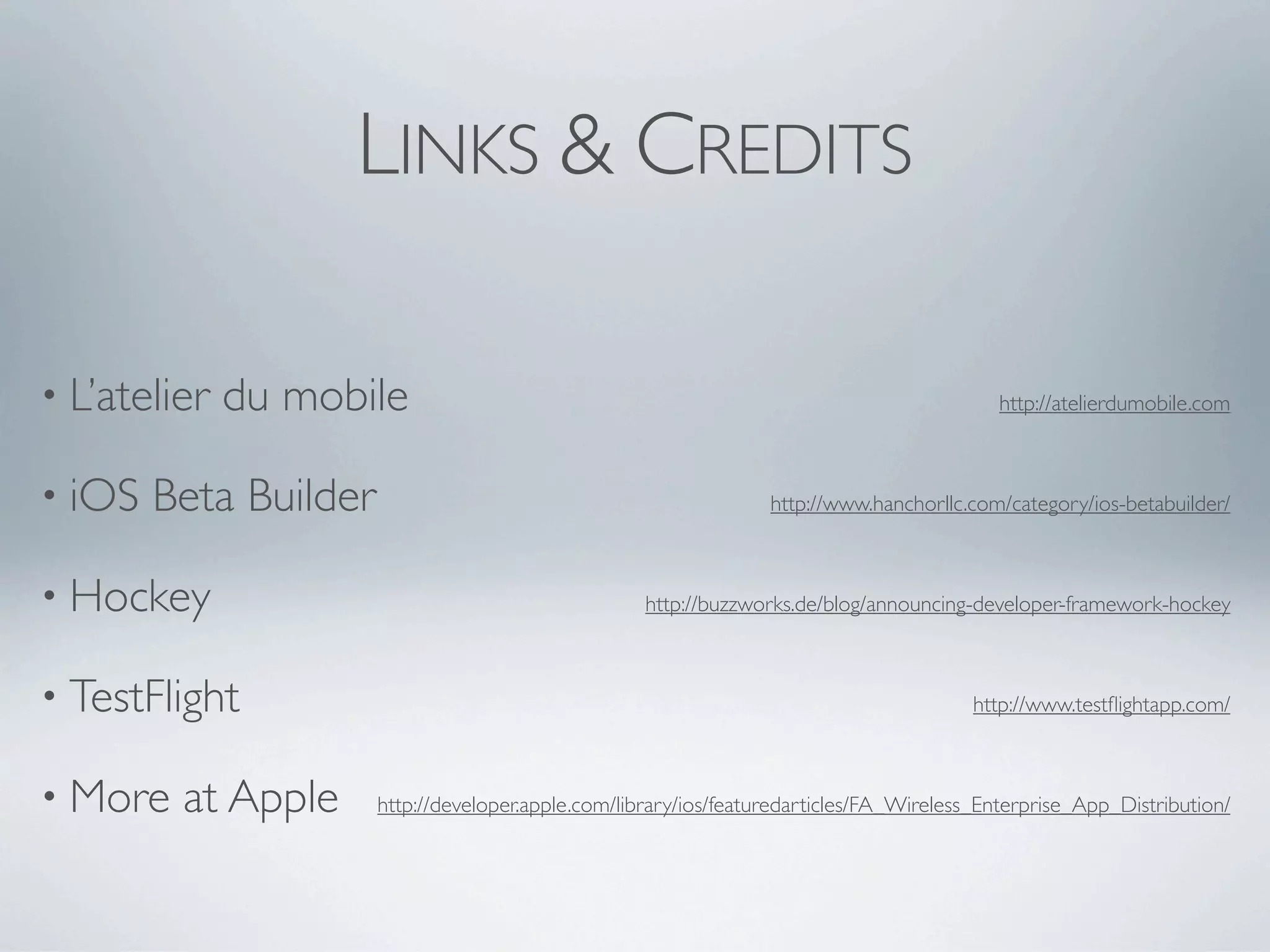

- 31. LINKS & CREDITS •L’atelier du mobile http://atelierdumobile.com • iOS Beta Builder http://www.hanchorllc.com/category/ios-betabuilder/ • Hockey http://buzzworks.de/blog/announcing-developer-framework-hockey • TestFlight http://www.testflightapp.com/ • More at Apple http://developer.apple.com/library/ios/featuredarticles/FA_Wireless_Enterprise_App_Distribution/
