1. Drug and chemical compound items in Wikidata
as a data source for Wikipedia infoboxes
https://commons.wikimedia.org/wiki/File:Wikidata-logo-en.svg
Sebastian Burgstaller-Muehlbacher, PhD
User:Sebotic
Twitter: @sebotic

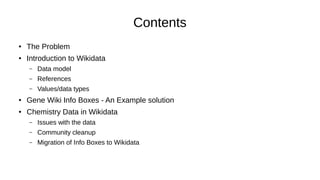

2. Contents
● The Problem
● Introduction to Wikidata
– Data model
– References
– Values/data types
● Gene Wiki Info Boxes - An Example solution
● Chemistry Data in Wikidata
– Issues with the data
– Community cleanup
– Migration of Info Boxes to Wikidata

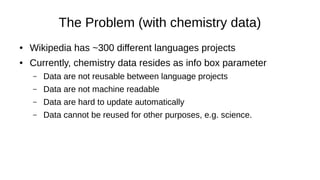

3. The Problem (with chemistry data)
● Wikipedia has ~300 different languages projects
● Currently, chemistry data resides as info box parameter
– Data are not reusable between language projects
– Data are not machine readable
– Data are hard to update automatically
– Data cannot be reused for other purposes, e.g. science.

4. The solution

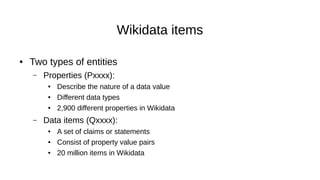

6. Wikidata items
● Two types of entities
– Properties (Pxxxx):
● Describe the nature of a data value
● Different data types
● 2,900 different properties in Wikidata
– Data items (Qxxxx):
● A set of claims or statements
● Consist of property value pairs
● 20 million items in Wikidata

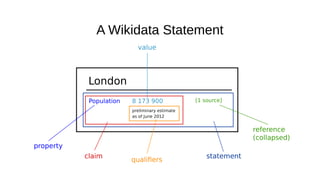

7. A Wikidata Statement

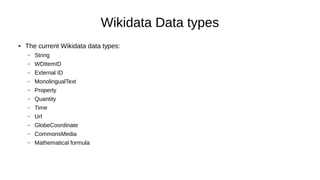

10. Wikidata Data types
● The current Wikidata data types:
– String
– WDItemID
– External ID
– MonolingualText
– Property
– Quantity
– Time
– Url
– GlobeCoordinate
– CommonsMedia
– Mathematical formula

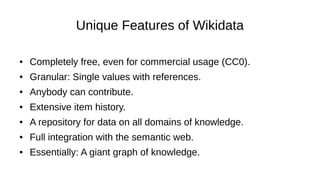

11. Unique Features of Wikidata
● Completely free, even for commercial usage (CC0).
● Granular: Single values with references.
● Anybody can contribute.
● Extensive item history.
● A repository for data on all domains of knowledge.
● Full integration with the semantic web.
● Essentially: A giant graph of knowledge.

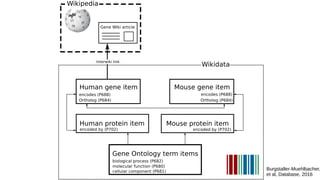

13. Burgstaller-Muehlbacher,
et al, Database, 2016

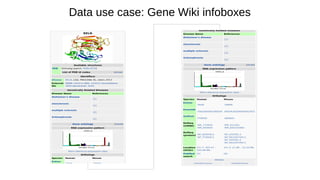

14. Data use case: Gene Wiki infoboxes

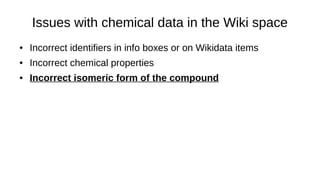

15. Issues with chemical data in the Wiki space
● Incorrect identifiers in info boxes or on Wikidata items
● Incorrect chemical properties
● Incorrect labels, aliases
● Incorrect isomeric forms of the compound
● Mixture of different isomeric forms

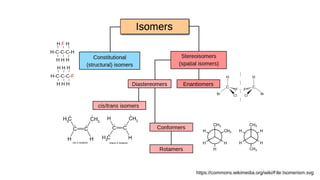

16. https://commons.wikimedia.org/wiki/File:Isomerism.svg

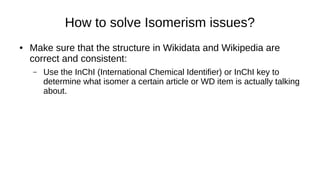

17. How to solve Isomerism issues?
● Make sure that the structure in Wikidata and Wikipedia are correct
and consistent:
– Use the InChI (International Chemical Identifier) or InChI key to determine
what isomer a certain article or WD item is actually talking about.

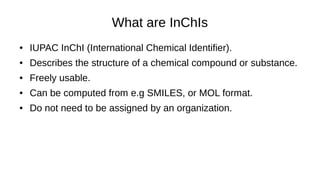

18. What are InChIs
● IUPAC InChI (International Chemical Identifier).
● Describes the structure of a chemical compound or substance.
● Freely usable.
● Can be computed from e.g SMILES, or MOL format.
● Do not need to be assigned by an organization.

19. What are InChI keys
● The SHA-256 hashed version of an InChI
● Makes chemicals searchable on the Web
● Makes chemicals easily comparable
● Short, unique
UEJJHQNACJXSKW-UHFFFAOYSA-N
First block (14 letter) encodes
skeleton (connectivtiy)
Second block (8 letter) encodes
stereochemistry and radioisotopes
Last letter, number of protons
(charge)

20. How to solve Isomerism issues?
● Make sure that the structure in Wikidata and Wikipedia are correct
and consistent:
– Use the InChI (International Chemical Identifier) or InChI key to determine
what isomer a certain article or WD item is actually talking about.
– Minimum requirement: Correct, unique InChI key on item.
– Best case: Make sure all structural identifiers are correct (isomeric
SMILES, canonical SMILES, InChI or InCh key).
– A minimum of a correct InChI key allows for the rest of the chemical
compound item to be populated by (our) bots.

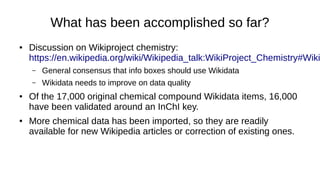

21. What has been accomplished so far?
● Discussion on Wikiproject chemistry:
https://en.wikipedia.org/wiki/Wikipedia_talk:WikiProject_Chemistry#Wiki
– General consensus that info boxes should use Wikidata
– Wikidata needs to improve on data quality
● Of the 17,000 original chemical compound Wikidata items, 16,000
have been validated around an InChI key.
● More chemical data has been imported, so they are readily
available for new Wikipedia articles or correction of existing ones.

22. Things that need your attention
● I generated a list of items at Wikidata project chemistry which
need human intervention.
https://www.wikidata.org/wiki/Wikidata_talk:WikiProject_Chemistry#Annota
Please have a look at those and unify the sterechemistry and
identifiers around one unique InChI key!

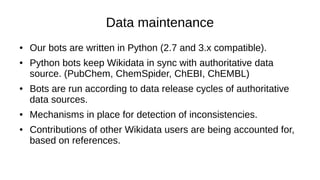

23. Data maintenance in Wikidata
● Our bots are written in Python (2.7 and 3.x compatible).
● Python bots keep Wikidata in sync with authoritative data
source. (PubChem, ChemSpider, ChEBI, ChEMBL)
● Bots are run according to data release cycles of authoritative
data sources.
● Mechanisms in place for detection of inconsistencies.
● Contributions of other Wikidata users are being accounted for,
based on references.

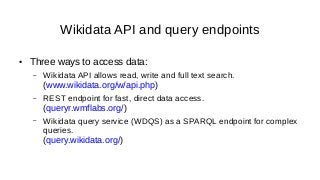

24. Wikidata API and query endpoints
● Three ways to access data:
– Wikidata API allows read, write and full text search.
(www.wikidata.org/w/api.php)
– REST endpoint for fast, direct data access.
(queryr.wmflabs.org/)
– Wikidata query service (WDQS) as a SPARQL endpoint for complex
queries.
(query.wikidata.org/)

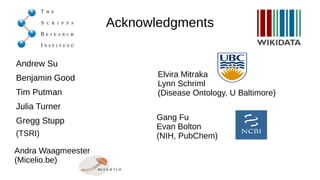

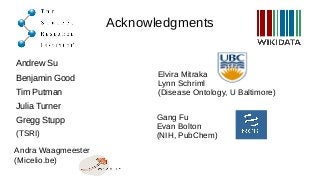

25. Acknowledgments
Andrew Su
Benjamin Good
Tim Putman
Julia Turner
Gregg Stupp
(TSRI)
Gang Fu
Evan Bolton
(NIH, PubChem)
Andra Waagmeester
(Micelio.be)
Elvira Mitraka
Lynn Schriml
(Disease Ontology, U Baltimore)
