DevOps instincts tend to be shaped by what has worked well before. Instincts derived from mainstream software development projects get challenged when we turn to enabling machine learning projects. The key reasons are that the development/delivery workflow is different and the kind of software artefacts involved are different. We will explore the differences and look at emerging open source projects in order to appreciate why the DevOps for machine learning space is growing and the needs that it addresses.

1. Why is DevOps for Machine Learning
so Different?
London DevOps Oct ‘19
Ryan Dawson

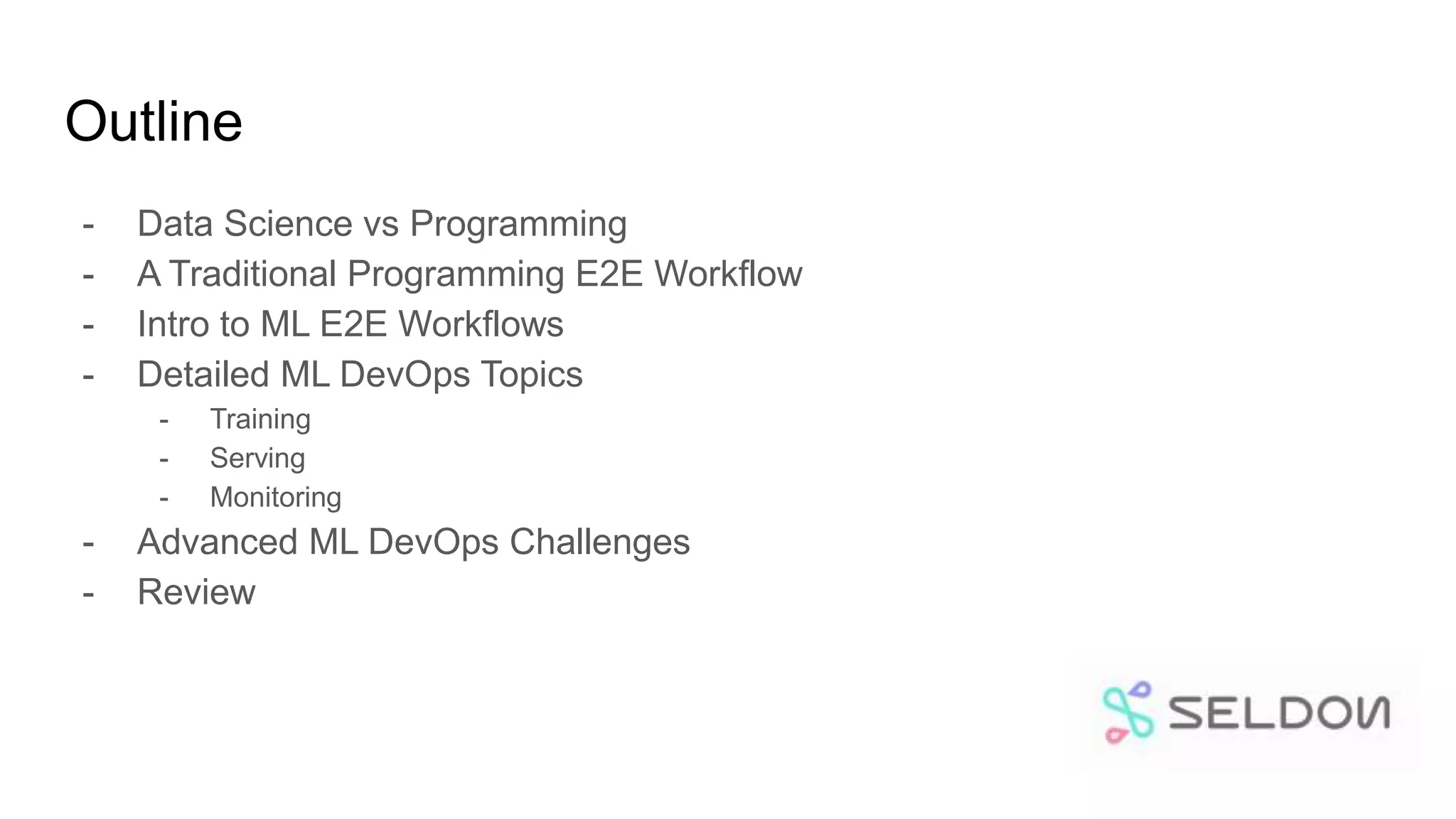

2. Outline
- Data Science vs Programming
- A Traditional Programming E2E Workflow
- Intro to ML E2E Workflows
- Detailed ML DevOps Topics
- Training
- Serving
- Monitoring
- Advanced ML DevOps Challenges
- Review

3. DevOps Background
DevOps roles centred on CI/CD and infra
Established tools
Key enabler for projects - time to value & governance

4. MLOps Background
87% of ML projects never go live
ML-related infrastructure is complex
Rise of ‘MLOps’

5. Why So Different?
Running software performs actions in response to inputs.
Traditional programming codifies actions as explicit rules
ML does not codify explicitly. Instead rules are indirectly set by capturing
patterns from data.
Different problem domains - ML more applicable to focused numerical problems.

6. Examples
Traditional Programming
● Old terminal systems through to
games
● Start with hello-world add control
structures
Data Science
● Classification problems,
regression problems
● Start with mnist or kaggle

7. ML Problem Examples
Regression:
- Predict salary from experience, education, location, etc.
- Predict sales from advertising spend, type of adverts, placement, etc.
Classification:
- Hand-writing samples for numbers - which number is it?
- Image classification - cat or not cat?

8. Data Playgrounds/Exploration
Data science is
exploratory
Interactive notebooks -
great for exploration
and visualization
ML code shared
through notebooks -
model can be an
artifact

9. Regression
fitting

10. Gradient Descent
Compute error against training data
Adjust weights and recompute

11. Key Points on ML
Training data and code together drive fitting
Closest thing to executable is a trained/weighted model (can vary with toolkit)
Retraining can be necessary (e.g. online shop and fashion trends)
Lots of data, long-running jobs

12. Traditional Programming Workflow
1. User Story
2. Write code
3. Submit PR
4. Tests run automatically
5. Review and merge
6. New version builds
7. Built executable deployed to environment
8. Further tests
9. Promote to next environment
10. More tests etc.
11. PROD
12. Monitor - stacktraces or error codes
Docker as packaging
Driver is a code change (git)

13. ML Workflows - Primer
Driver might be a code change. Or new data.
Data not in git.
More experimental - data-driven and you’ve only a sample of data.
Testing for quantifiable performance, not pass/fail.
Let’s focus on offline learning to simplify.

14. ML E2E Workflow Intro
1. Data inputs and outputs. Preprocessed. Large.
2. Try stuff locally with a slice.
3. Try with more data as long-running experiments.
4. Collaboration - often in jupyter & git
5. Model may be pickled
6. Integrate into a running app e.g. add REST API (serving)
7. Integration test with app.
8. Monitor performance metrics

15. Metrics Example
Online store example
A/B test
B leads to more conversions
But…
More negative reviews? Bounce-rate? Interaction-level? Latency?

16. What Can Happen

17. Role of MLOps
Empower teams and break down silos
Provide ways to collaborate/self-serve

18. New Territory
Special challenges for ML.
No clear standards yet. We’ll drill into:
1. Training - slice of data, train a weighted model to make predictions on unseen
data.
2. Serving - call with HTTP.
3. Rollout and Monitoring - making sure it performs.

19. 1 Training/Experimentation
For long-running, intensive training jobs there’s kubeflow pipelines, polyaxon,
mlflow…
Broken into steps incl. cleaning and transformation (pre-processing).

20. Model Training
Each step can be long-running

21. Kubeflow - an ML platform

22. Kubeflow Pipelines
Parameterised experiments

23. MLFlow Experiments

24. Training and CI
Some training platforms have CI integration.
Result of a run could be a model. So analogous to a CI build of an executable.
But how to say that the new version is ‘good’?

25. 2 Serving
Serving = use model via HTTP. Offline/batch is different.
Some platforms have serving or there’s dedicated solutions. Seldon, Tensorflow
Serving, AzureML, SageMaker
Often package the model and host (bucket) so the serving solution can run it.
Serving can support rollout & monitoring.

26. Comparison: k8s hello world
apiVersion: apps/v1
kind: Deployment
metadata:
name: hello-world
spec:
selector:
matchLabels:
run: load-balancer-example
replicas: 2
template:
metadata:
labels:
run: load-balancer-example
spec:
containers:
- name: hello-world
image: gcr.io/google-samples/node-hello:1.0
ports:
- containerPort: 8080
protocol: TCP
K8s Dep using docker
Hand-craft Service spec

27. Seldon ML Serving apiVersion: machinelearning.seldon.io/v1alpha2
kind: SeldonDeployment
metadata:
name: sklearn
spec:
name: iris
predictors:
- graph:
children: []
implementation: SKLEARN_SERVER
modelUri: gs://seldon-models/sklearn/iris
name: classifier
name: default
replicas: 1
K8s custom resource
Pods created to serve http
Docker option too
Data scientists like pickles

28. 3 Rollout and Monitoring
ML model trained on a sample - need to check and keep checking against new
data coming in. Rollout strategies:
Canary = % of traffic to new version as check
A/B Test = % split between versions for longer to monitor performance
Shadowing = All traffic to old and new model. Only the live model’s responses are
used

29. Canary with Seldon
kind: SeldonDeployment
apiVersion: machinelearning.seldon.io/v1alpha2
metadata:
name: skiris
namespace: default
creationTimestamp:
spec:
name: skiris
predictors:
- name: default
graph:
name: skiris-default
implementation: SKLEARN_SERVER
modelUri: gs://seldon-models/sklearn/iris
replicas: 1
- name: canary
graph:
name: skiris-canary
implementation: XGBOOST_SERVER
modelUri: gs://seldon-models/xgboost/iris
replicas: 1
Traffic-splitting more typically defined
in gateway config.
Very common in ML.
In serving not gateway so data
scientist can define rollout.

30. A/B Test with Seldon
apiVersion: machinelearning.seldon.io/v1alpha2
kind: SeldonDeployment
metadata:
name: mlflow-deployment
spec:
name: mlflow-deployment
predictors:
- graph:
children: []
implementation: MLFLOW_SERVER
modelUri: gs://seldon-models/mlflow/elasticnet_wine
name: wines-classifier
name: a-mlflow-deployment-dag
replicas: 1
traffic: 20
- graph:
children: []
implementation: MLFLOW_SERVER
modelUri: gs://seldon-models/mlflow/elasticnet_wine
name: wines-classifier
name: b-mlflow-deployment-dag
replicas: 1
traffic: 80

31. Seldon Metrics
Out of the box basic metrics (because so commonly needed)

32. Seldon Request Logging
Human review of predictions can be needed

33. Seldon UI
Rollout, serving and monitoring

34. Advanced Topics - Serving
● Real-time inference graphs with pre-processing
● Advanced routing - multi-armed bandits.
● Outlier detection
● Concept drift

35. Advanced Topics - Governance
● Explainability - why did it predict that?
○ Some orgs sticking to whitebox techniques - not neural nets
○ Blackbox is possible
● Reproducibility - tracking and metadata (associating models to training runs to
data to triggers)
○ Data versioning adds complexity
○ Competing tools for metadata
○ No agreed standards yet
● Bias & ethics
● Adversarial attacks

36. Summary
MLOps is new terrain.
ML is data-driven. MLOps enables with:
● Data and compute-intensive experiments and training
● Artifact tracking
● Monitoring tools
● Rollout strategies to work with monitoring
